  • Количество слайдов: 39

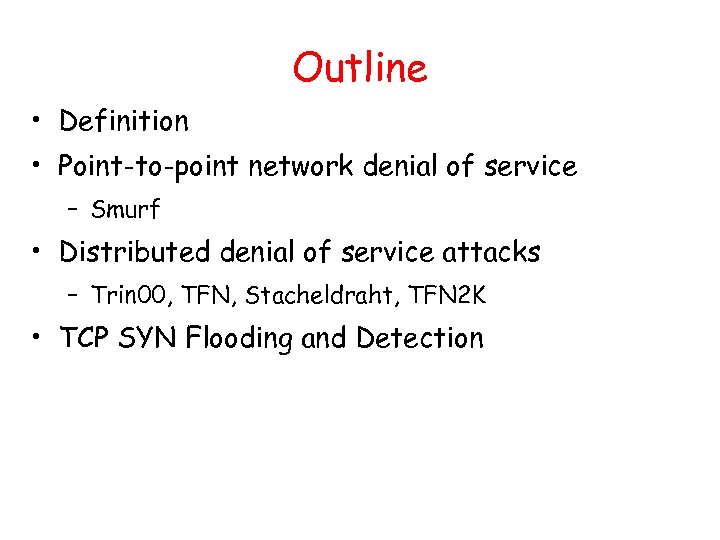

Outline • Definition • Point-to-point network denial of service – Smurf • Distributed denial Outline • Definition • Point-to-point network denial of service – Smurf • Distributed denial of service attacks – Trin 00, TFN, Stacheldraht, TFN 2 K • TCP SYN Flooding and Detection

Denial of Service Attack Definition • An explicit attempt by attackers to prevent legitimate Denial of Service Attack Definition • An explicit attempt by attackers to prevent legitimate users of a service from using that service • Threat model – taxonomy from CERT – Consumption of network connectivity and/or bandwidth – Consumption of other resources, e. g. queue, CPU – Destruction or alternation of configuration information • – Malformed packets confusing an application, cause it to freeze Physical destruction or alternation of network components

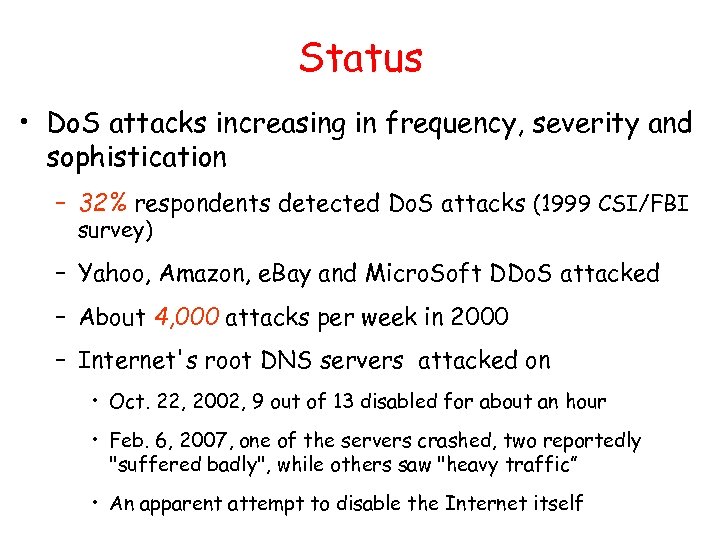

Status • Do. S attacks increasing in frequency, severity and sophistication – 32% respondents Status • Do. S attacks increasing in frequency, severity and sophistication – 32% respondents detected Do. S attacks (1999 CSI/FBI survey) – Yahoo, Amazon, e. Bay and Micro. Soft DDo. S attacked – About 4, 000 attacks per week in 2000 – Internet's root DNS servers attacked on • Oct. 22, 2002, 9 out of 13 disabled for about an hour • Feb. 6, 2007, one of the servers crashed, two reportedly "suffered badly", while others saw "heavy traffic” • An apparent attempt to disable the Internet itself

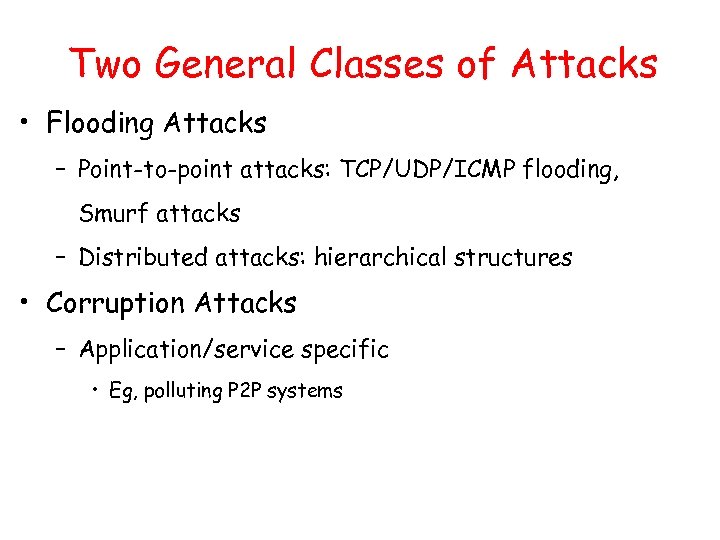

Two General Classes of Attacks • Flooding Attacks – Point-to-point attacks: TCP/UDP/ICMP flooding, Smurf Two General Classes of Attacks • Flooding Attacks – Point-to-point attacks: TCP/UDP/ICMP flooding, Smurf attacks – Distributed attacks: hierarchical structures • Corruption Attacks – Application/service specific • Eg, polluting P 2 P systems

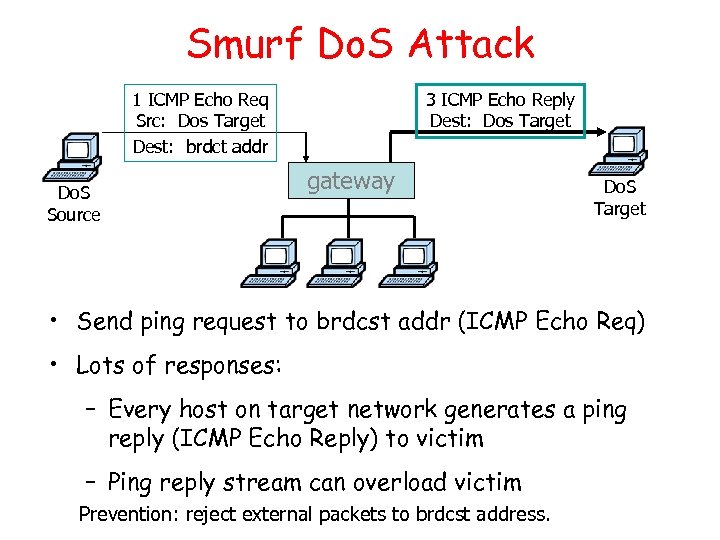

Smurf Do. S Attack 1 ICMP Echo Req Src: Dos Target Dest: brdct addr Smurf Do. S Attack 1 ICMP Echo Req Src: Dos Target Dest: brdct addr Do. S Source 3 ICMP Echo Reply Dest: Dos Target gateway Do. S Target • Send ping request to brdcst addr (ICMP Echo Req) • Lots of responses: – Every host on target network generates a ping reply (ICMP Echo Reply) to victim – Ping reply stream can overload victim Prevention: reject external packets to brdcst address.

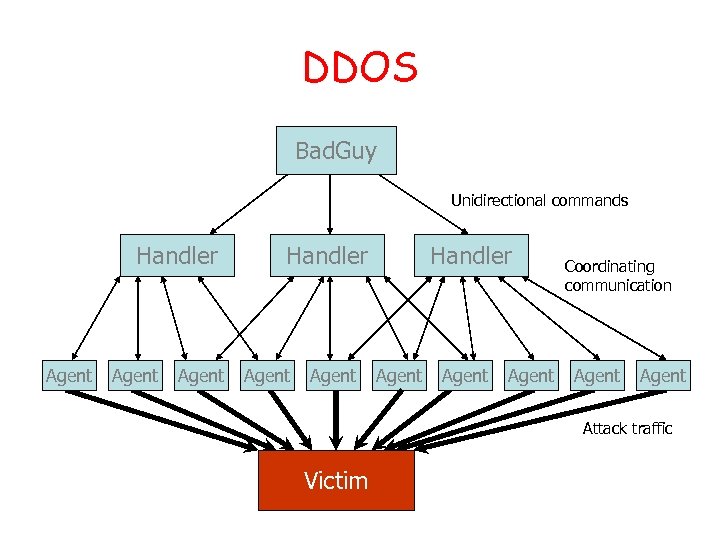

DDOS Bad. Guy Unidirectional commands Handler Agent Agent Coordinating communication Agent Attack traffic Victim DDOS Bad. Guy Unidirectional commands Handler Agent Agent Coordinating communication Agent Attack traffic Victim

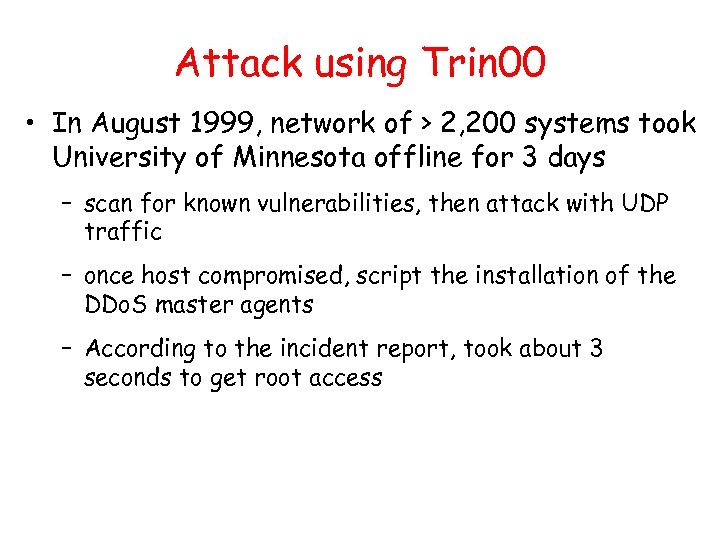

Attack using Trin 00 • In August 1999, network of > 2, 200 systems Attack using Trin 00 • In August 1999, network of > 2, 200 systems took University of Minnesota offline for 3 days – scan for known vulnerabilities, then attack with UDP traffic – once host compromised, script the installation of the DDo. S master agents – According to the incident report, took about 3 seconds to get root access

Can you find source of attack? • Hard to find Bad. Guy – Originator Can you find source of attack? • Hard to find Bad. Guy – Originator of attack compromised the handlers – Originator not active when DDOS attack occurs • Can try to find agents – Source IP address in packets is not reliable – Need to examine traffic at many points, modify traffic, or modify routers

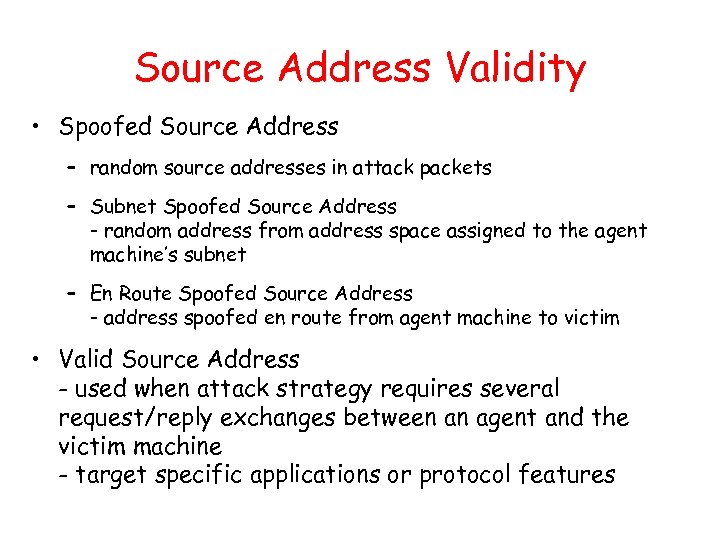

Source Address Validity • Spoofed Source Address – random source addresses in attack packets Source Address Validity • Spoofed Source Address – random source addresses in attack packets – Subnet Spoofed Source Address - random address from address space assigned to the agent machine’s subnet – En Route Spoofed Source Address - address spoofed en route from agent machine to victim • Valid Source Address - used when attack strategy requires several request/reply exchanges between an agent and the victim machine - target specific applications or protocol features

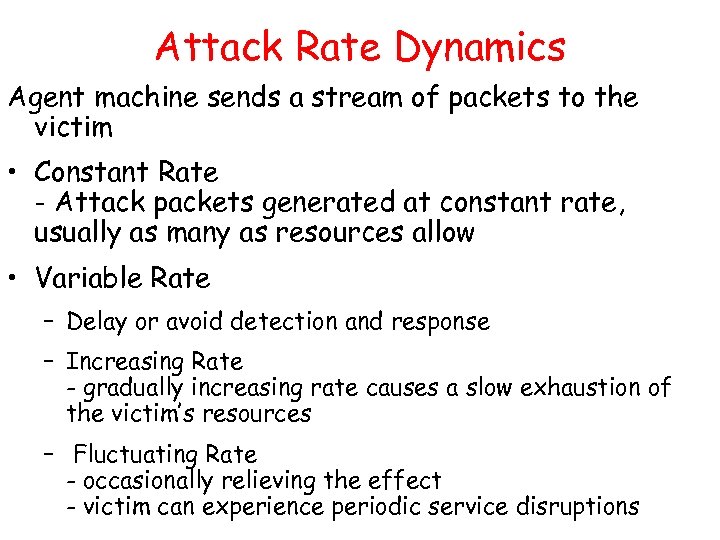

Attack Rate Dynamics Agent machine sends a stream of packets to the victim • Attack Rate Dynamics Agent machine sends a stream of packets to the victim • Constant Rate - Attack packets generated at constant rate, usually as many as resources allow • Variable Rate – Delay or avoid detection and response – Increasing Rate - gradually increasing rate causes a slow exhaustion of the victim’s resources – Fluctuating Rate - occasionally relieving the effect - victim can experience periodic service disruptions

The DDo. S Landscape The DDo. S Landscape

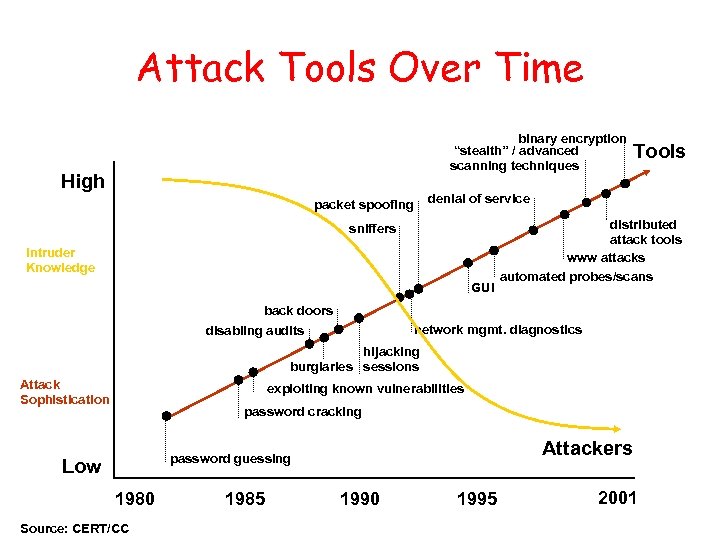

Attack Tools Over Time binary encryption “stealth” / advanced scanning techniques High Tools denial Attack Tools Over Time binary encryption “stealth” / advanced scanning techniques High Tools denial of service packet spoofing sniffers Intruder Knowledge GUI distributed attack tools www attacks automated probes/scans back doors network mgmt. diagnostics disabling audits hijacking burglaries sessions Attack Sophistication exploiting known vulnerabilities password cracking Attackers password guessing Low 1980 Source: CERT/CC 1985 1990 1995 2001

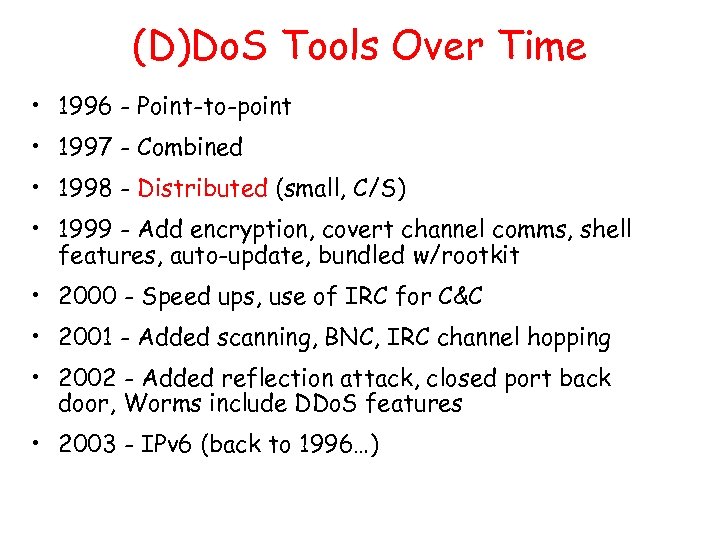

(D)Do. S Tools Over Time • 1996 - Point-to-point • 1997 - Combined • (D)Do. S Tools Over Time • 1996 - Point-to-point • 1997 - Combined • 1998 - Distributed (small, C/S) • 1999 - Add encryption, covert channel comms, shell features, auto-update, bundled w/rootkit • 2000 - Speed ups, use of IRC for C&C • 2001 - Added scanning, BNC, IRC channel hopping • 2002 - Added reflection attack, closed port back door, Worms include DDo. S features • 2003 - IPv 6 (back to 1996…)

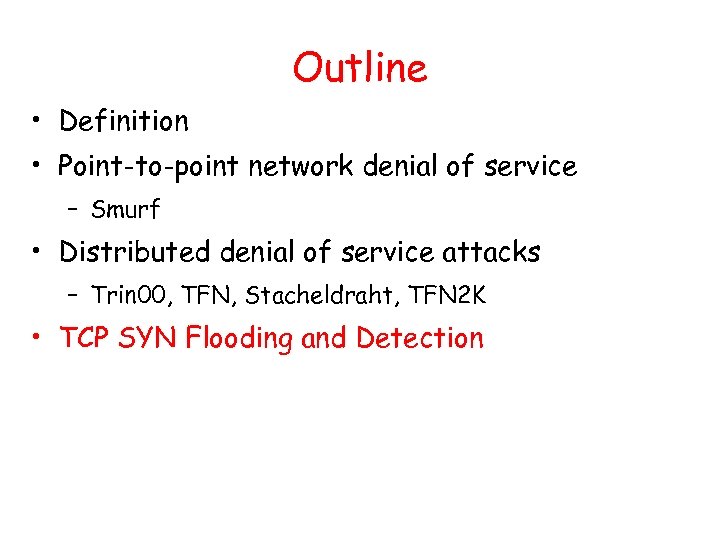

Outline • Definition • Point-to-point network denial of service – Smurf • Distributed denial Outline • Definition • Point-to-point network denial of service – Smurf • Distributed denial of service attacks – Trin 00, TFN, Stacheldraht, TFN 2 K • TCP SYN Flooding and Detection

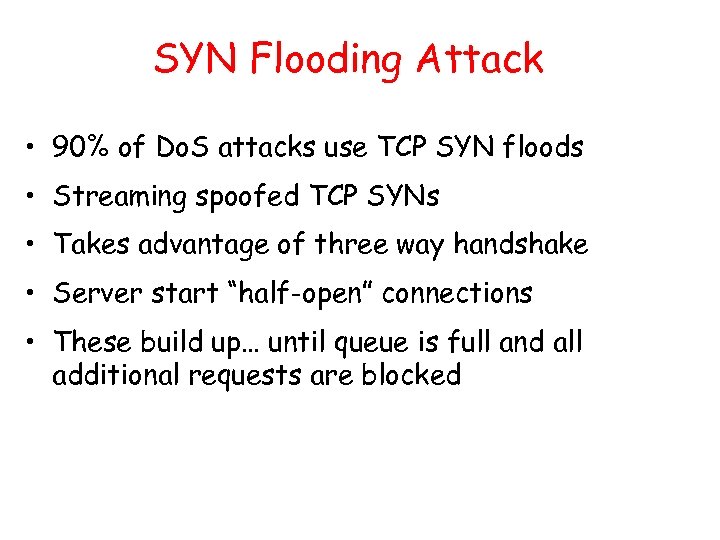

SYN Flooding Attack • 90% of Do. S attacks use TCP SYN floods • SYN Flooding Attack • 90% of Do. S attacks use TCP SYN floods • Streaming spoofed TCP SYNs • Takes advantage of three way handshake • Server start “half-open” connections • These build up… until queue is full and all additional requests are blocked

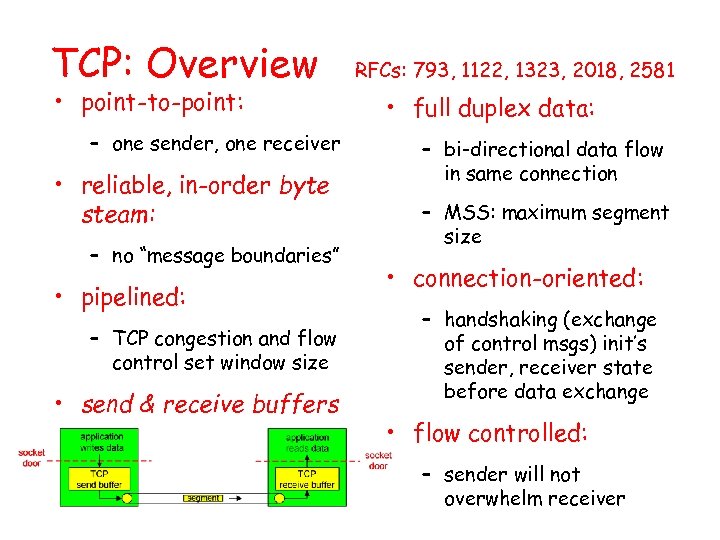

TCP: Overview • point-to-point: – one sender, one receiver • reliable, in-order byte steam: TCP: Overview • point-to-point: – one sender, one receiver • reliable, in-order byte steam: – no “message boundaries” • pipelined: – TCP congestion and flow control set window size • send & receive buffers RFCs: 793, 1122, 1323, 2018, 2581 • full duplex data: – bi-directional data flow in same connection – MSS: maximum segment size • connection-oriented: – handshaking (exchange of control msgs) init’s sender, receiver state before data exchange • flow controlled: – sender will not overwhelm receiver

TCP segment structure 32 bits URG: urgent data (generally not used) ACK: ACK # TCP segment structure 32 bits URG: urgent data (generally not used) ACK: ACK # valid PSH: push data now (generally not used) RST, SYN, FIN: connection estab (setup, teardown commands) Internet checksum (as in UDP) source port # dest port # sequence number acknowledgement number head not UA P R S F len used checksum Receive window Urg data pnter Options (variable length) application data (variable length) counting by bytes of data (not segments!) # bytes rcvr willing to accept

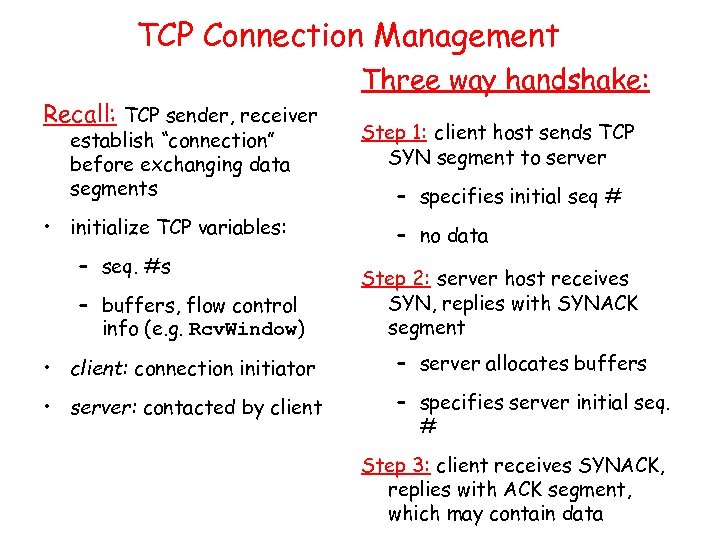

TCP Connection Management Recall: TCP sender, receiver establish “connection” before exchanging data segments • TCP Connection Management Recall: TCP sender, receiver establish “connection” before exchanging data segments • initialize TCP variables: – seq. #s – buffers, flow control info (e. g. Rcv. Window) Three way handshake: Step 1: client host sends TCP SYN segment to server – specifies initial seq # – no data Step 2: server host receives SYN, replies with SYNACK segment • client: connection initiator – server allocates buffers • server: contacted by client – specifies server initial seq. # Step 3: client receives SYNACK, replies with ACK segment, which may contain data

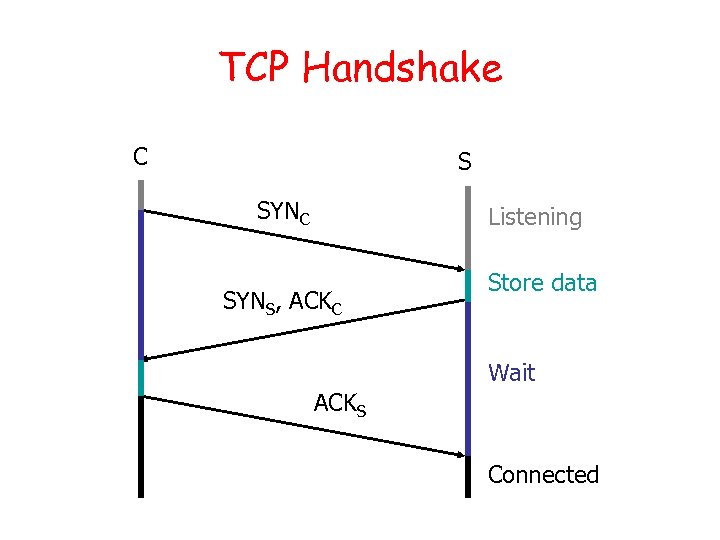

TCP Handshake C S SYNC Listening SYNS, ACKC Store data Wait ACKS Connected TCP Handshake C S SYNC Listening SYNS, ACKC Store data Wait ACKS Connected

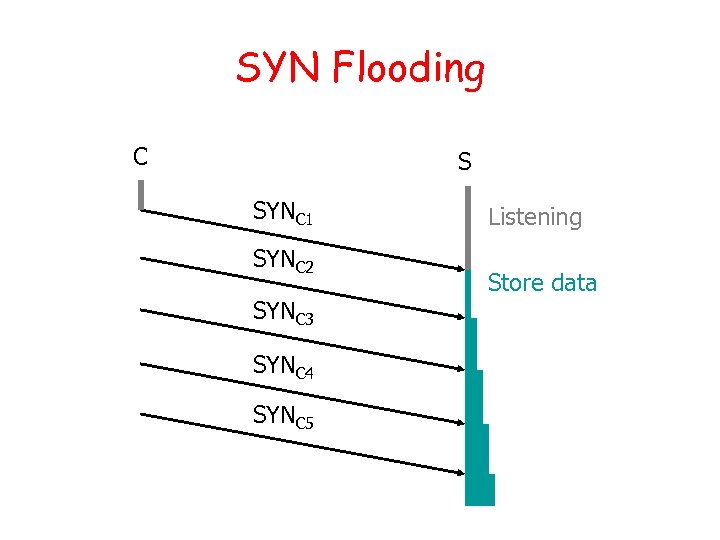

SYN Flooding C S SYNC 1 SYNC 2 SYNC 3 SYNC 4 SYNC 5 SYN Flooding C S SYNC 1 SYNC 2 SYNC 3 SYNC 4 SYNC 5 Listening Store data

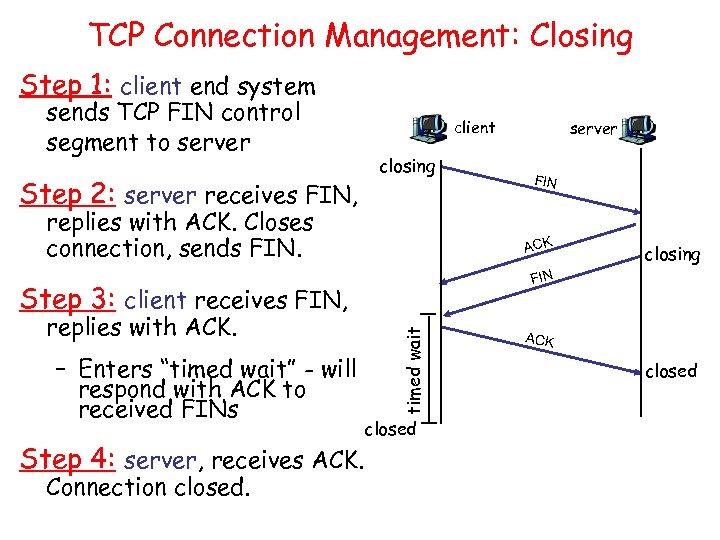

TCP Connection Management: Closing Step 1: client end system sends TCP FIN control segment TCP Connection Management: Closing Step 1: client end system sends TCP FIN control segment to server Step 2: server receives FIN, client closing replies with ACK. Closes connection, sends FIN. Step 4: server, receives ACK. Connection closed. closing FIN timed wait – Enters “timed wait” - will respond with ACK to received FINs FIN ACK Step 3: client receives FIN, replies with ACK. server closed ACK closed

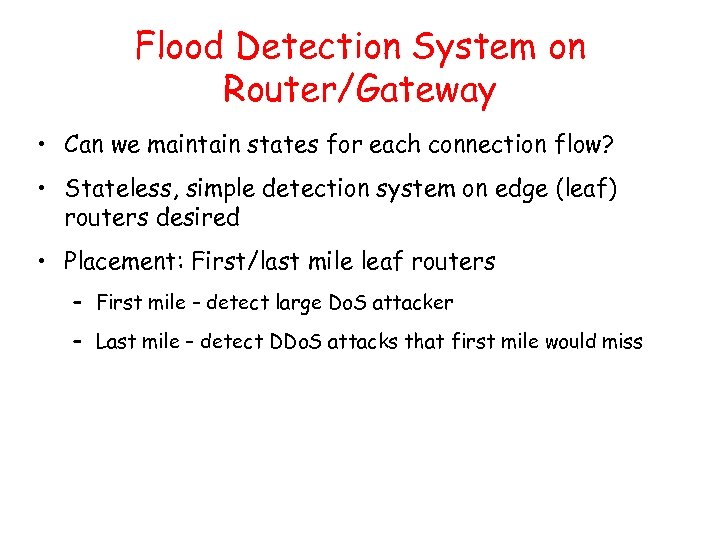

Flood Detection System on Router/Gateway • Can we maintain states for each connection flow? Flood Detection System on Router/Gateway • Can we maintain states for each connection flow? • Stateless, simple detection system on edge (leaf) routers desired • Placement: First/last mile leaf routers – First mile – detect large Do. S attacker – Last mile – detect DDo. S attacks that first mile would miss

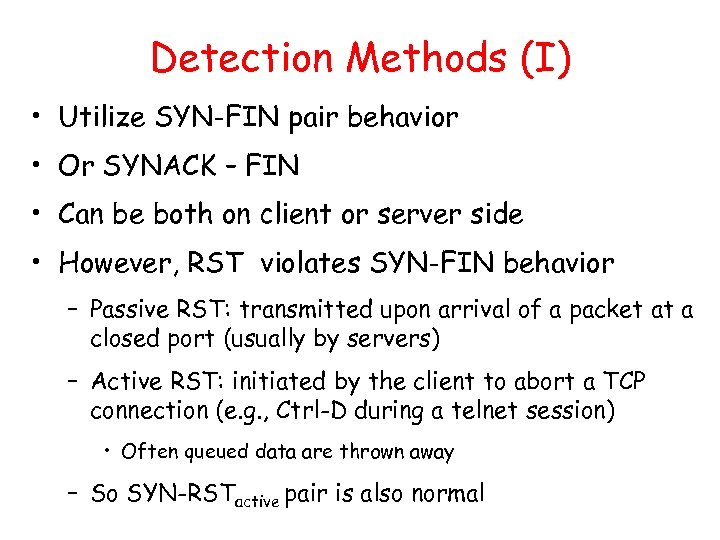

Detection Methods (I) • Utilize SYN-FIN pair behavior • Or SYNACK – FIN • Detection Methods (I) • Utilize SYN-FIN pair behavior • Or SYNACK – FIN • Can be both on client or server side • However, RST violates SYN-FIN behavior – Passive RST: transmitted upon arrival of a packet at a closed port (usually by servers) – Active RST: initiated by the client to abort a TCP connection (e. g. , Ctrl-D during a telnet session) • Often queued data are thrown away – So SYN-RSTactive pair is also normal

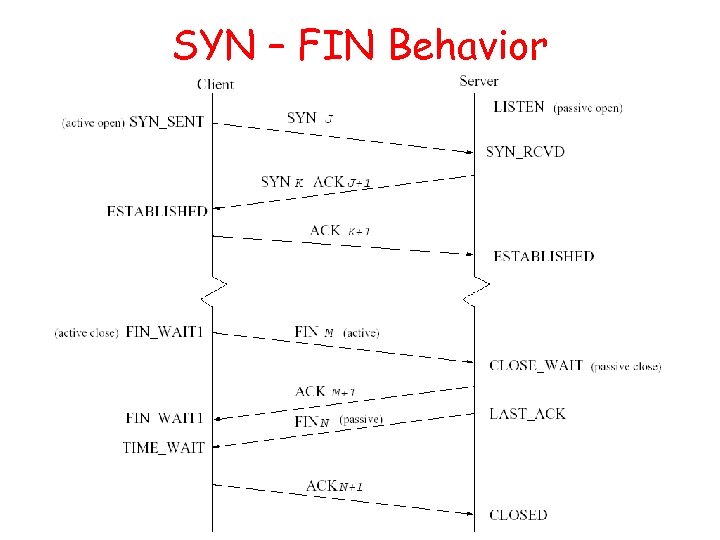

SYN – FIN Behavior SYN – FIN Behavior

SYN – FIN Behavior • Generally every SYN has a FIN • We can’t SYN – FIN Behavior • Generally every SYN has a FIN • We can’t tell if RST is active or passive • Consider 75% active

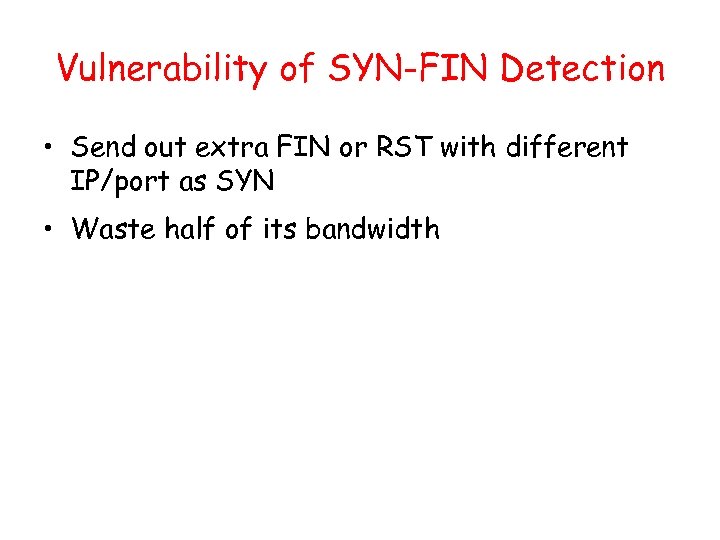

Vulnerability of SYN-FIN Detection • Send out extra FIN or RST with different IP/port Vulnerability of SYN-FIN Detection • Send out extra FIN or RST with different IP/port as SYN • Waste half of its bandwidth

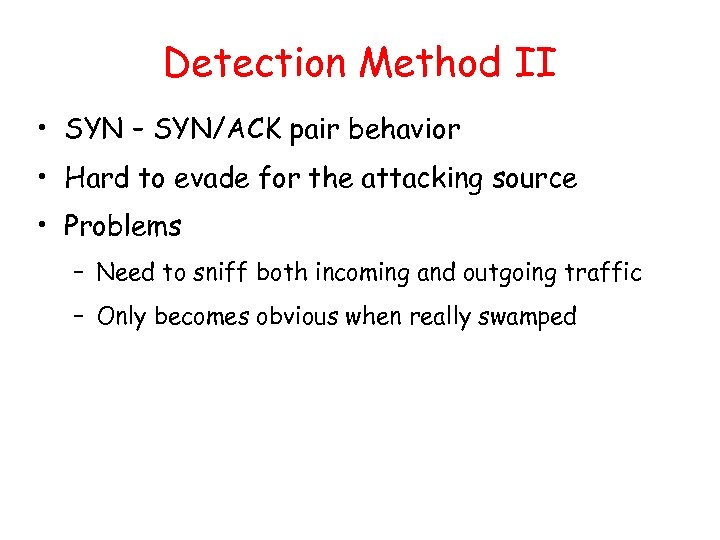

Detection Method II • SYN – SYN/ACK pair behavior • Hard to evade for Detection Method II • SYN – SYN/ACK pair behavior • Hard to evade for the attacking source • Problems – Need to sniff both incoming and outgoing traffic – Only becomes obvious when really swamped

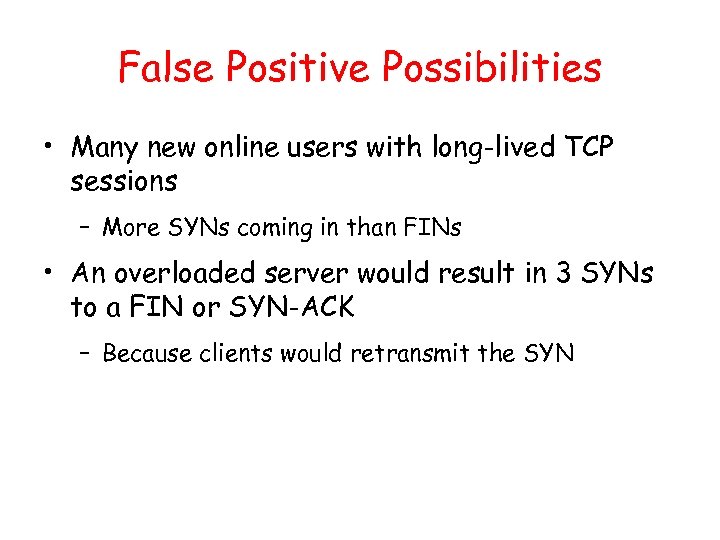

False Positive Possibilities • Many new online users with long-lived TCP sessions – More False Positive Possibilities • Many new online users with long-lived TCP sessions – More SYNs coming in than FINs • An overloaded server would result in 3 SYNs to a FIN or SYN-ACK – Because clients would retransmit the SYN

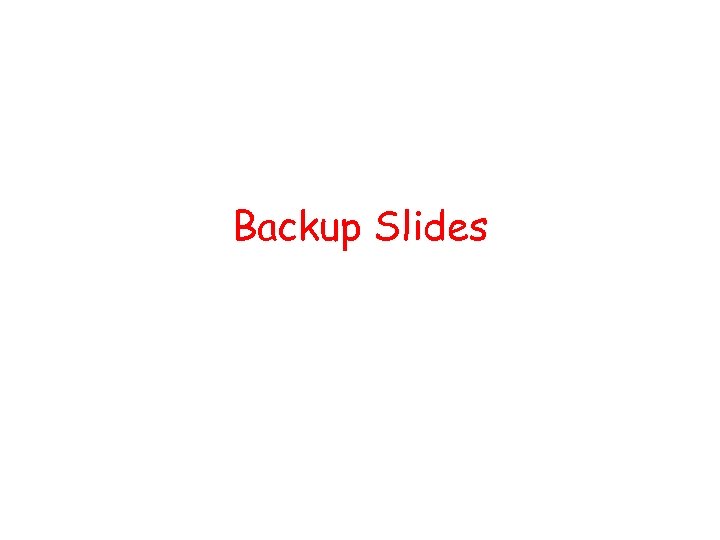

Backup Slides Backup Slides

Up to 1996 • Point-to-point (single threaded) – SYN flood – Fragmented packet attacks Up to 1996 • Point-to-point (single threaded) – SYN flood – Fragmented packet attacks – “Ping of Death” – “UDP kill”

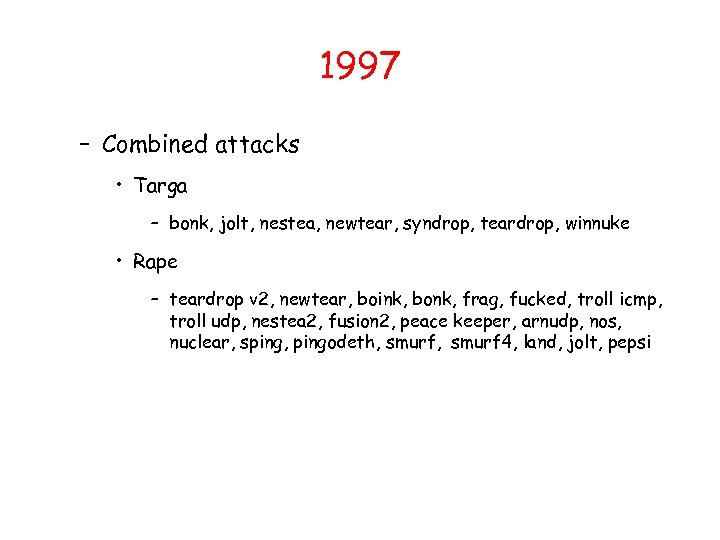

1997 – Combined attacks • Targa – bonk, jolt, nestea, newtear, syndrop, teardrop, winnuke 1997 – Combined attacks • Targa – bonk, jolt, nestea, newtear, syndrop, teardrop, winnuke • Rape – teardrop v 2, newtear, boink, bonk, frag, fucked, troll icmp, troll udp, nestea 2, fusion 2, peace keeper, arnudp, nos, nuclear, sping, pingodeth, smurf 4, land, jolt, pepsi

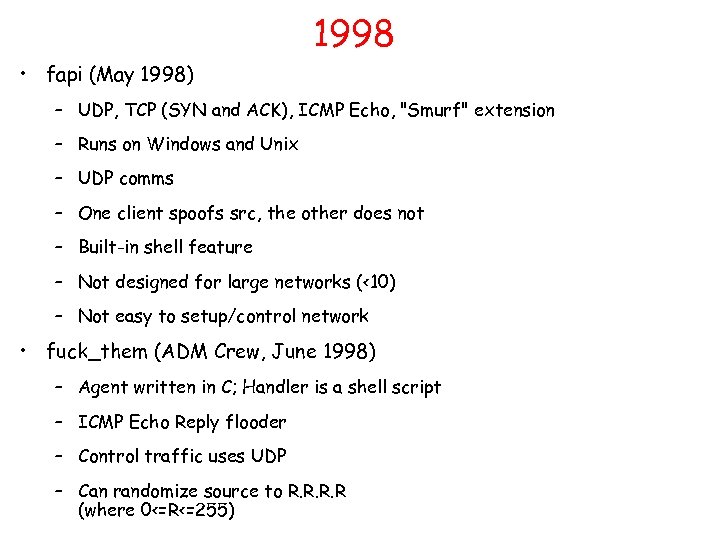

1998 • fapi (May 1998) – UDP, TCP (SYN and ACK), ICMP Echo, 1998 • fapi (May 1998) – UDP, TCP (SYN and ACK), ICMP Echo, "Smurf" extension – Runs on Windows and Unix – UDP comms – One client spoofs src, the other does not – Built-in shell feature – Not designed for large networks (<10) – Not easy to setup/control network • fuck_them (ADM Crew, June 1998) – Agent written in C; Handler is a shell script – ICMP Echo Reply flooder – Control traffic uses UDP – Can randomize source to R. R (where 0<=R<=255)

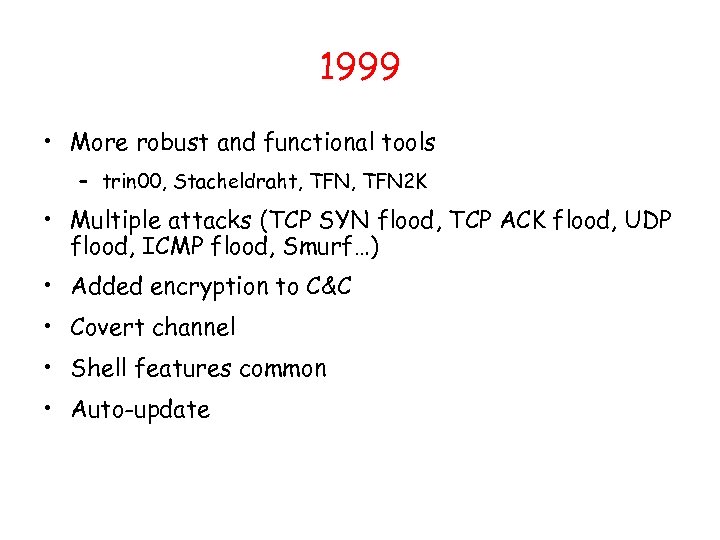

1999 • More robust and functional tools – trin 00, Stacheldraht, TFN 2 K 1999 • More robust and functional tools – trin 00, Stacheldraht, TFN 2 K • Multiple attacks (TCP SYN flood, TCP ACK flood, UDP flood, ICMP flood, Smurf…) • Added encryption to C&C • Covert channel • Shell features common • Auto-update

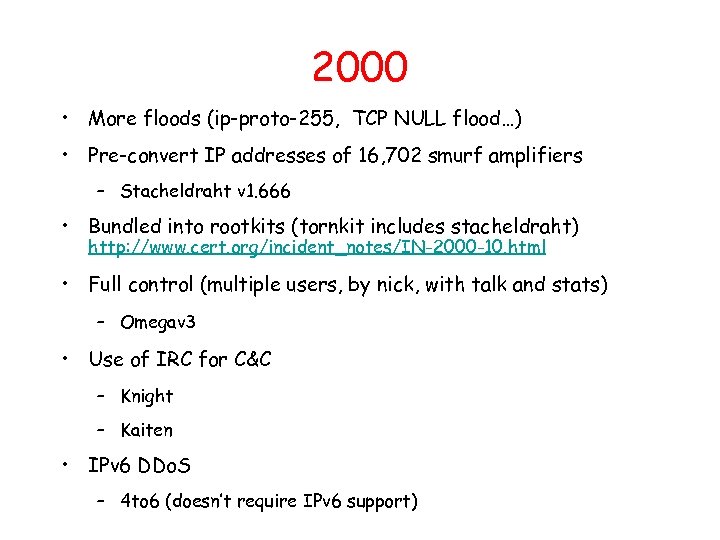

2000 • More floods (ip-proto-255, TCP NULL flood…) • Pre-convert IP addresses of 16, 2000 • More floods (ip-proto-255, TCP NULL flood…) • Pre-convert IP addresses of 16, 702 smurf amplifiers – Stacheldraht v 1. 666 • Bundled into rootkits (tornkit includes stacheldraht) http: //www. cert. org/incident_notes/IN-2000 -10. html • Full control (multiple users, by nick, with talk and stats) – Omegav 3 • Use of IRC for C&C – Knight – Kaiten • IPv 6 DDo. S – 4 to 6 (doesn’t require IPv 6 support)

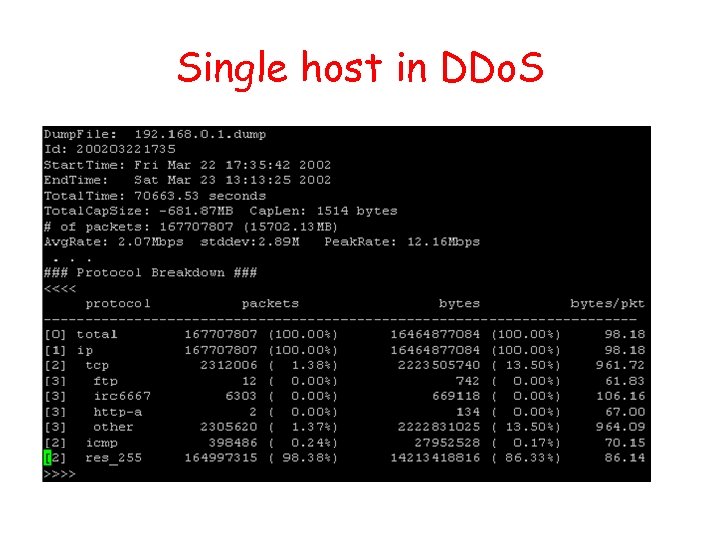

Single host in DDo. S Single host in DDo. S

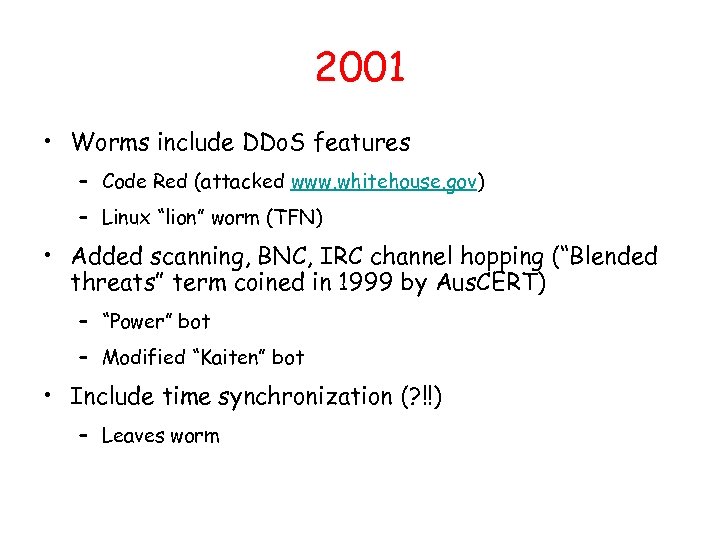

2001 • Worms include DDo. S features – Code Red (attacked www. whitehouse. gov) 2001 • Worms include DDo. S features – Code Red (attacked www. whitehouse. gov) – Linux “lion” worm (TFN) • Added scanning, BNC, IRC channel hopping (“Blended threats” term coined in 1999 by Aus. CERT) – “Power” bot – Modified “Kaiten” bot • Include time synchronization (? !!) – Leaves worm

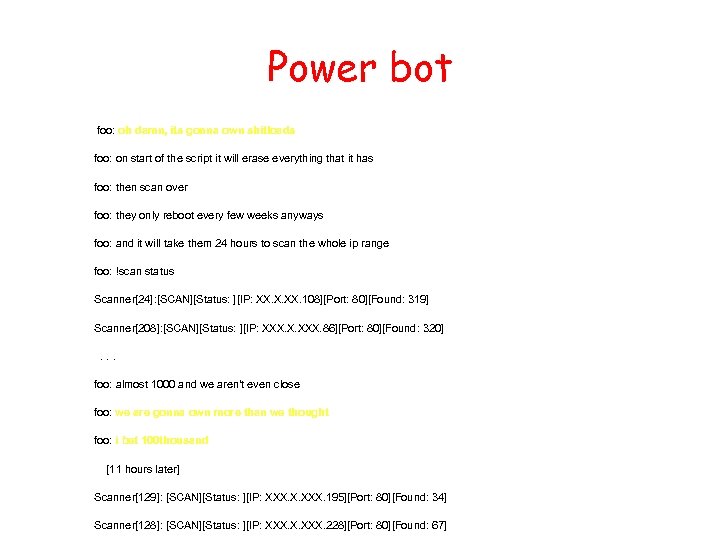

Power bot foo: oh damn, its gonna own shitloads foo: on start of the Power bot foo: oh damn, its gonna own shitloads foo: on start of the script it will erase everything that it has foo: then scan over foo: they only reboot every few weeks anyways foo: and it will take them 24 hours to scan the whole ip range foo: !scan status Scanner[24]: [SCAN][Status: ][IP: XX. X. XX. 108][Port: 80][Found: 319] Scanner[208]: [SCAN][Status: ][IP: XXX. X. XXX. 86][Port: 80][Found: 320]. . . foo: almost 1000 and we aren't even close foo: we are gonna own more than we thought foo: i bet 100 thousand [11 hours later] Scanner[129]: [SCAN][Status: ][IP: XXX. X. XXX. 195][Port: 80][Found: 34] Scanner[128]: [SCAN][Status: ][IP: XXX. X. XXX. 228][Port: 80][Found: 67]

2002 • Distributed reflected attack tools – d 7 -p. H-orgasm – drdos (reflects 2002 • Distributed reflected attack tools – d 7 -p. H-orgasm – drdos (reflects NBT, TCP SYN : 80, ICMP) • Reflected DNS attacks, steathly (NVP protocol) and encoded covert channel comms, closed port back door – Honeynet Project Reverse Challenge binary http: //project. honeynet. org/reverse/results/project/020601 -Analysis. IP-Proto 11 -Backdoor. pdf

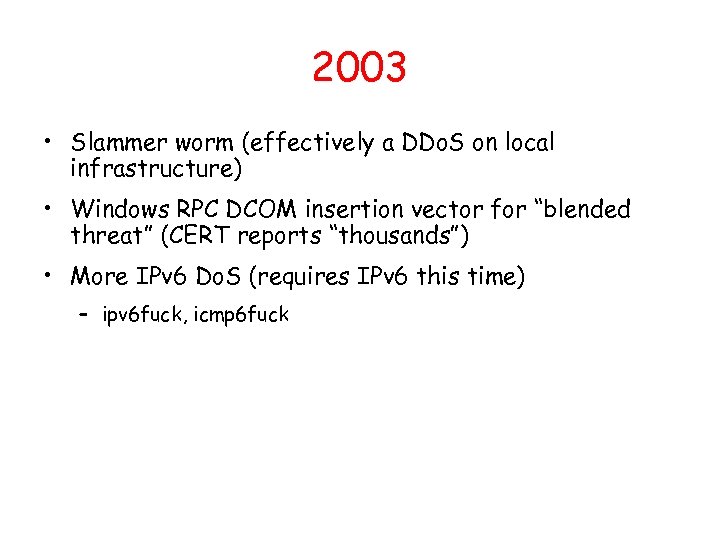

2003 • Slammer worm (effectively a DDo. S on local infrastructure) • Windows RPC 2003 • Slammer worm (effectively a DDo. S on local infrastructure) • Windows RPC DCOM insertion vector for “blended threat” (CERT reports “thousands”) • More IPv 6 Do. S (requires IPv 6 this time) – ipv 6 fuck, icmp 6 fuck
