Outdoor GPON ONT September 2010 PROPRIETARY & CONFIDENTIAL
z. NIDs for SFU/SBU Applications PROPRIETARY & CONFIDENTIAL

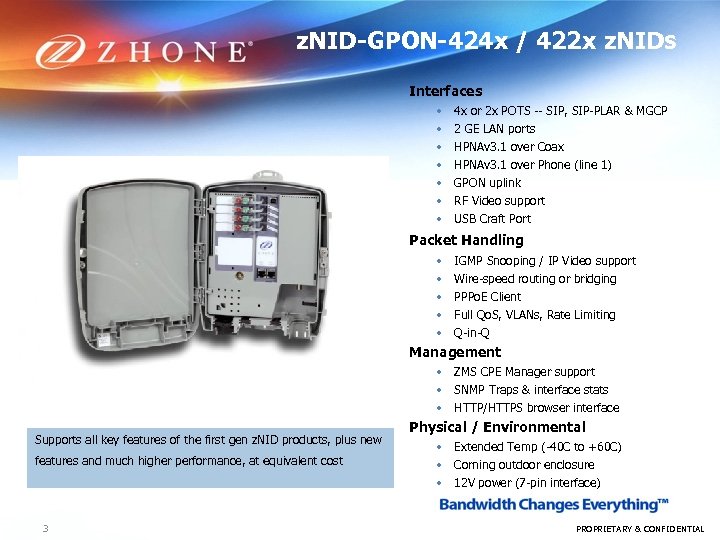

z. NID-GPON-424 x / 422 x z. NIDs Interfaces • • 4 x or 2 x POTS -- SIP, SIP-PLAR & MGCP 2 GE LAN ports HPNAv 3. 1 over Coax HPNAv 3. 1 over Phone (line 1) GPON uplink RF Video support USB Craft Port Packet Handling • • • IGMP Snooping / IP Video support Wire-speed routing or bridging PPPo. E Client Full Qo. S, VLANs, Rate Limiting Q-in-Q Management • ZMS CPE Manager support • SNMP Traps & interface stats • HTTP/HTTPS browser interface Supports all key features of the first gen z. NID products, plus new features and much higher performance, at equivalent cost 3 Physical / Environmental • Extended Temp (-40 C to +60 C) • Corning outdoor enclosure • 12 V power (7 -pin interface) PROPRIETARY & CONFIDENTIAL

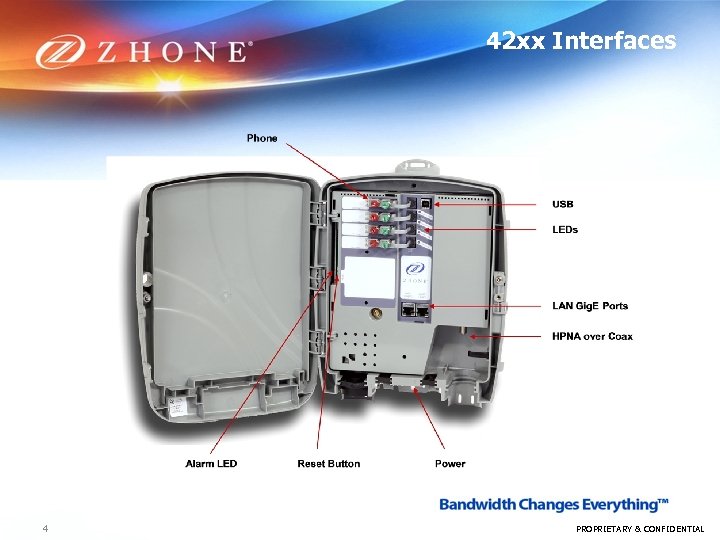

42 xx Interfaces 4 PROPRIETARY & CONFIDENTIAL

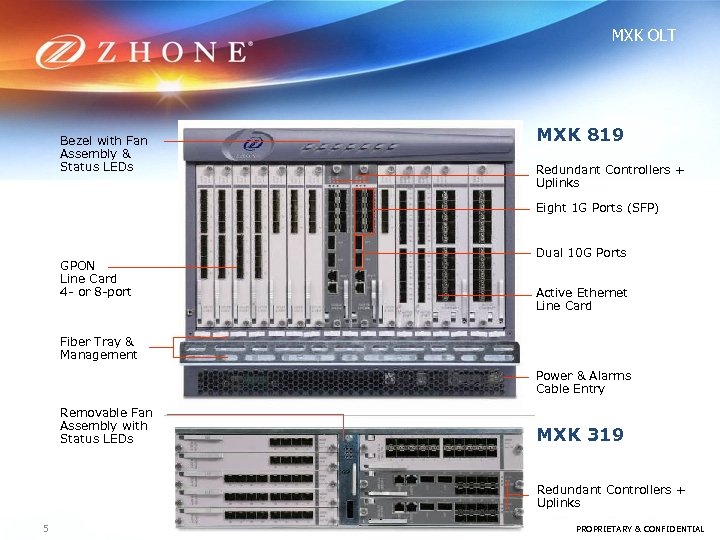

MXK OLT Bezel with Fan Assembly & Status LEDs MXK 819 Redundant Controllers + Uplinks Eight 1 G Ports (SFP) GPON Line Card 4 - or 8 -port Dual 10 G Ports Active Ethernet Line Card Fiber Tray & Management Power & Alarms Cable Entry Removable Fan Assembly with Status LEDs MXK 319 Redundant Controllers + Uplinks 5 PROPRIETARY & CONFIDENTIAL

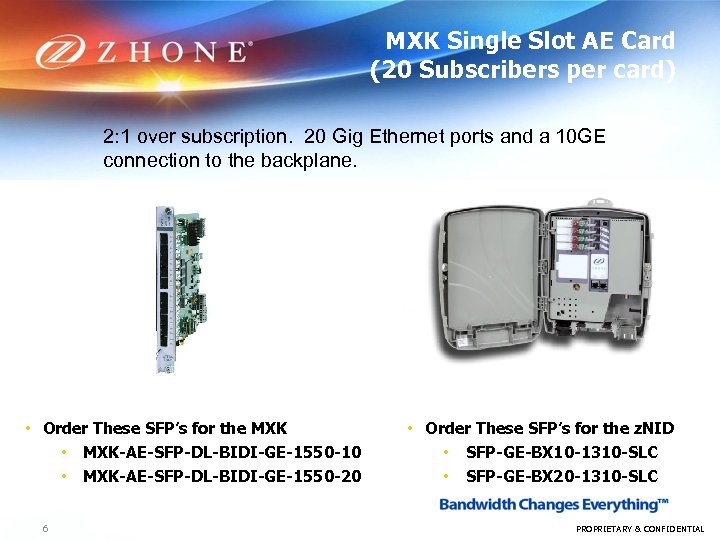

MXK Single Slot AE Card (20 Subscribers per card) 2: 1 over subscription. 20 Gig Ethernet ports and a 10 GE connection to the backplane. • Order These SFP’s for the MXK • MXK-AE-SFP-DL-BIDI-GE-1550 -10 • MXK-AE-SFP-DL-BIDI-GE-1550 -20 6 • Order These SFP’s for the z. NID • SFP-GE-BX 10 -1310 -SLC • SFP-GE-BX 20 -1310 -SLC PROPRIETARY & CONFIDENTIAL

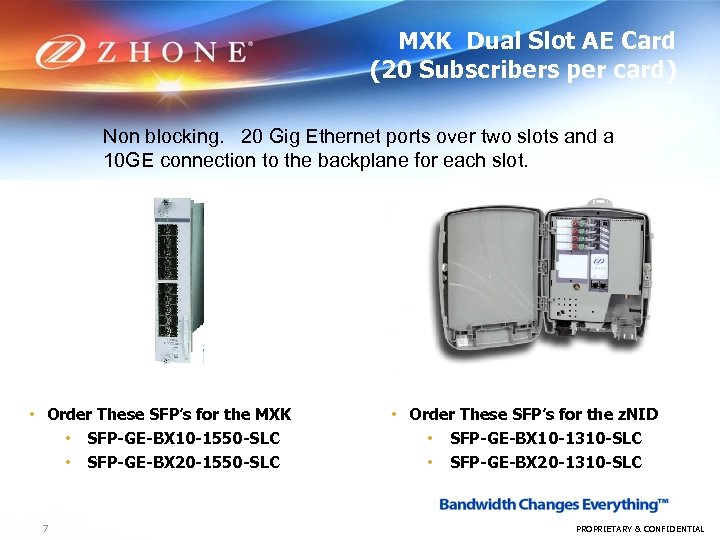

MXK Dual Slot AE Card (20 Subscribers per card) Non blocking. 20 Gig Ethernet ports over two slots and a 10 GE connection to the backplane for each slot. • Order These SFP’s for the MXK • SFP-GE-BX 10 -1550 -SLC • SFP-GE-BX 20 -1550 -SLC 7 • Order These SFP’s for the z. NID • SFP-GE-BX 10 -1310 -SLC • SFP-GE-BX 20 -1310 -SLC PROPRIETARY & CONFIDENTIAL

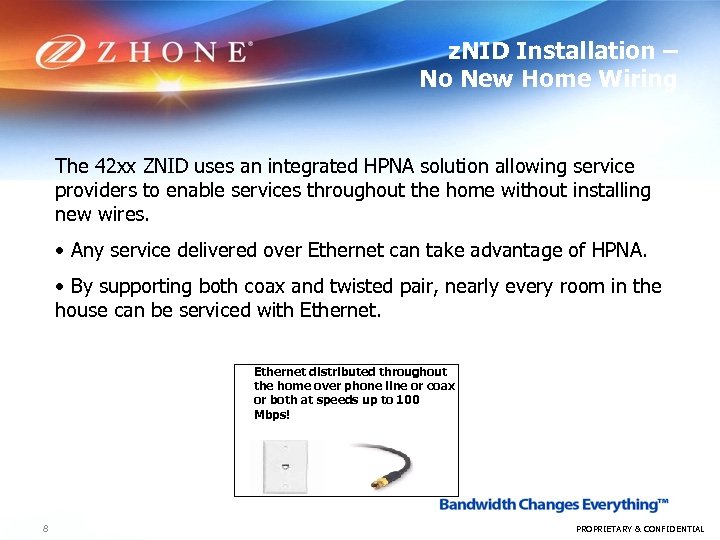

z. NID Installation – No New Home Wiring The 42 xx ZNID uses an integrated HPNA solution allowing service providers to enable services throughout the home without installing new wires. • Any service delivered over Ethernet can take advantage of HPNA. • By supporting both coax and twisted pair, nearly every room in the house can be serviced with Ethernet distributed throughout the home over phone line or coax or both at speeds up to 100 Mbps! 8 PROPRIETARY & CONFIDENTIAL

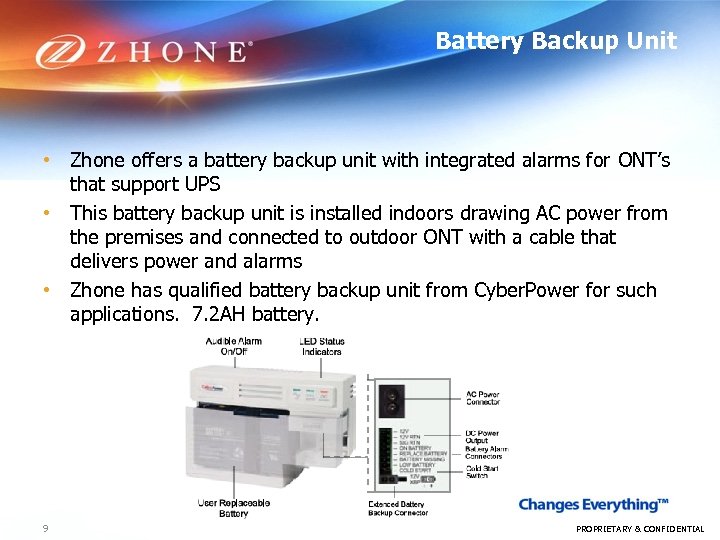

Battery Backup Unit • Zhone offers a battery backup unit with integrated alarms for ONT’s that support UPS • This battery backup unit is installed indoors drawing AC power from the premises and connected to outdoor ONT with a cable that delivers power and alarms • Zhone has qualified battery backup unit from Cyber. Power for such applications. 7. 2 AH battery. 9 PROPRIETARY & CONFIDENTIAL
z. NIDs for Mx. U/SBU Applications PROPRIETARY & CONFIDENTIAL

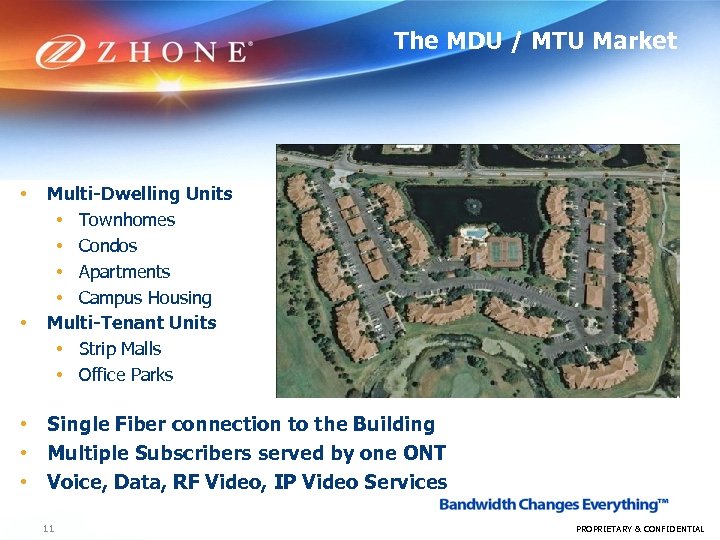

The MDU / MTU Market • • Multi-Dwelling Units • Townhomes • Condos • Apartments • Campus Housing Multi-Tenant Units • Strip Malls • Office Parks • Single Fiber connection to the Building • Multiple Subscribers served by one ONT • Voice, Data, RF Video, IP Video Services 11 PROPRIETARY & CONFIDENTIAL

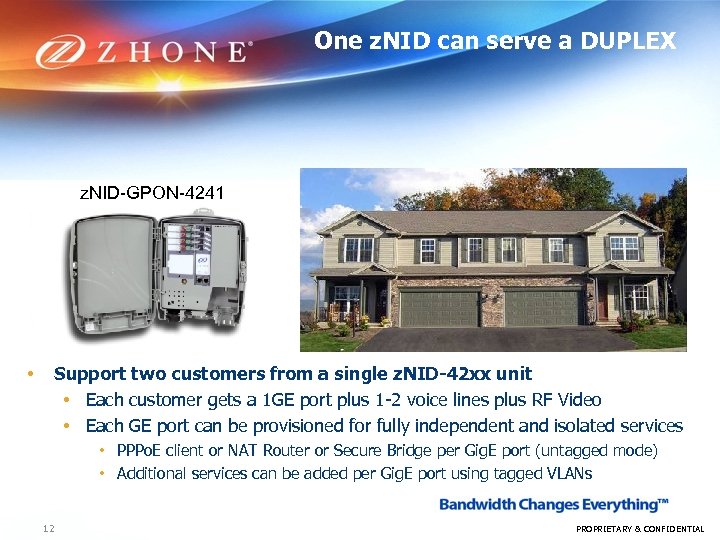

One z. NID can serve a DUPLEX z. NID-GPON-4241 Support two customers from a single z. NID-42 xx unit • Each customer gets a 1 GE port plus 1 -2 voice lines plus RF Video • Each GE port can be provisioned for fully independent and isolated services • • PPPo. E client or NAT Router or Secure Bridge per Gig. E port (untagged mode) • Additional services can be added per Gig. E port using tagged VLANs 12 PROPRIETARY & CONFIDENTIAL

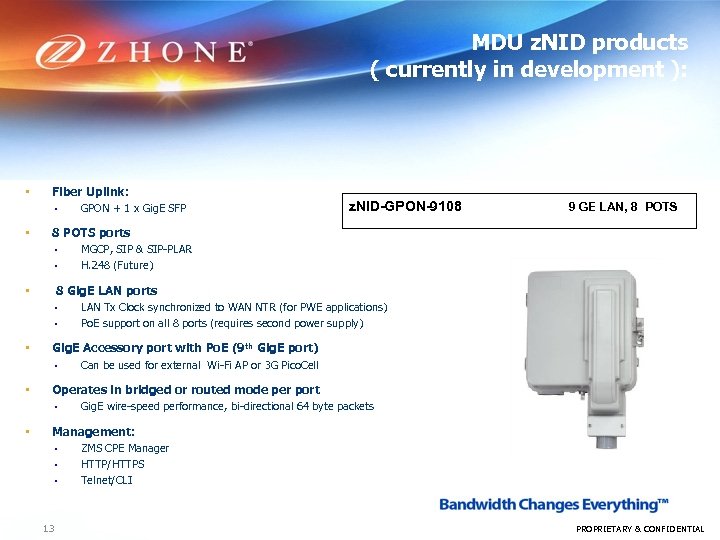

MDU z. NID products ( currently in development ): • Fiber Uplink: • • • MGCP, SIP & SIP-PLAR H. 248 (Future) LAN Tx Clock synchronized to WAN NTR (for PWE applications) Po. E support on all 8 ports (requires second power supply) Gig. E Accessory port with Po. E (9 th Gig. E port) • Can be used for external Wi-Fi AP or 3 G Pico. Cell Operates in bridged or routed mode per port • • 9 GE LAN, 8 POTS 8 Gig. E LAN ports • • z. NID-GPON-9108 8 POTS ports • • GPON + 1 x Gig. E SFP Gig. E wire-speed performance, bi-directional 64 byte packets Management: • • • 13 ZMS CPE Manager HTTP/HTTPS Telnet/CLI PROPRIETARY & CONFIDENTIAL

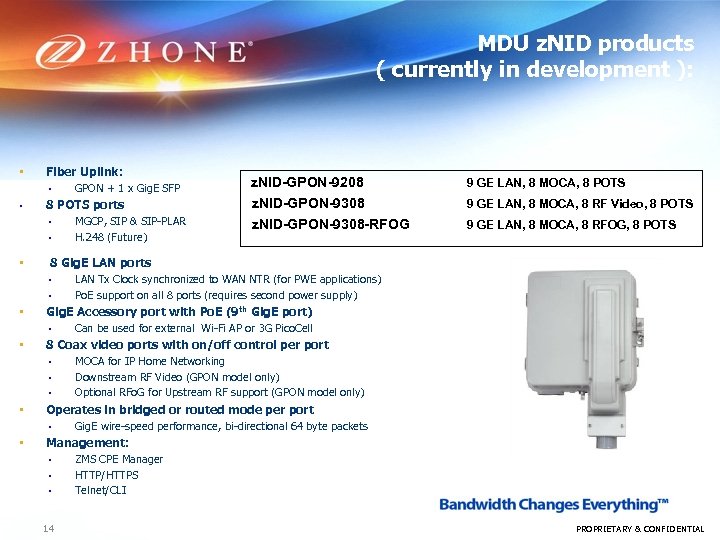

MDU z. NID products ( currently in development ): • Fiber Uplink: • • 8 POTS ports • • • 9 GE LAN, 8 MOCA, 8 RFOG, 8 POTS LAN Tx Clock synchronized to WAN NTR (for PWE applications) Po. E support on all 8 ports (requires second power supply) Can be used for external Wi-Fi AP or 3 G Pico. Cell MOCA for IP Home Networking Downstream RF Video (GPON model only) Optional RFo. G for Upstream RF support (GPON model only) Operates in bridged or routed mode per port • • z. NID-GPON-9308 -RFOG 9 GE LAN, 8 MOCA, 8 RF Video, 8 POTS 8 Coax video ports with on/off control per port • • 9 GE LAN, 8 MOCA, 8 POTS Gig. E Accessory port with Po. E (9 th Gig. E port) • • MGCP, SIP & SIP-PLAR H. 248 (Future) z. NID-GPON-9208 z. NID-GPON-9308 8 Gig. E LAN ports • • GPON + 1 x Gig. E SFP Gig. E wire-speed performance, bi-directional 64 byte packets Management: • • • 14 ZMS CPE Manager HTTP/HTTPS Telnet/CLI PROPRIETARY & CONFIDENTIAL

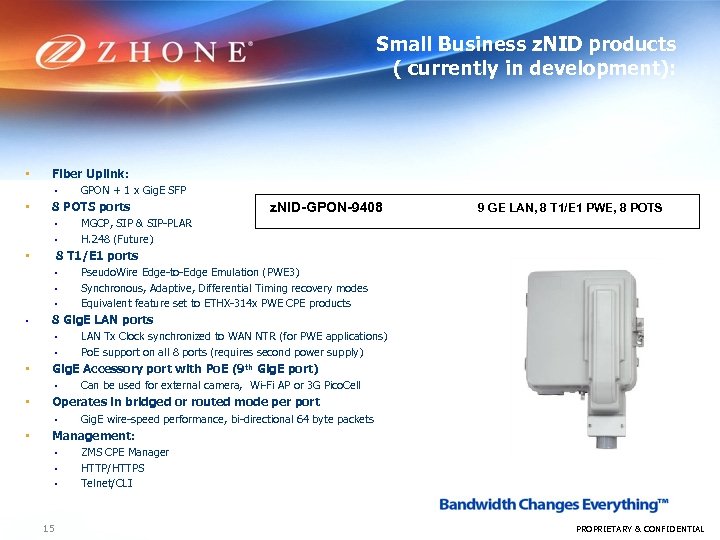

Small Business z. NID products ( currently in development): • Fiber Uplink: • • 8 POTS ports • • • Pseudo. Wire Edge-to-Edge Emulation (PWE 3) Synchronous, Adaptive, Differential Timing recovery modes Equivalent feature set to ETHX-314 x PWE CPE products LAN Tx Clock synchronized to WAN NTR (for PWE applications) Po. E support on all 8 ports (requires second power supply) Can be used for external camera, Wi-Fi AP or 3 G Pico. Cell Operates in bridged or routed mode per port • • MGCP, SIP & SIP-PLAR H. 248 (Future) Gig. E Accessory port with Po. E (9 th Gig. E port) • • 9 GE LAN, 8 T 1/E 1 PWE, 8 POTS 8 Gig. E LAN ports • • z. NID-GPON-9408 8 T 1/E 1 ports • • GPON + 1 x Gig. E SFP Gig. E wire-speed performance, bi-directional 64 byte packets Management: • • • 15 ZMS CPE Manager HTTP/HTTPS Telnet/CLI PROPRIETARY & CONFIDENTIAL

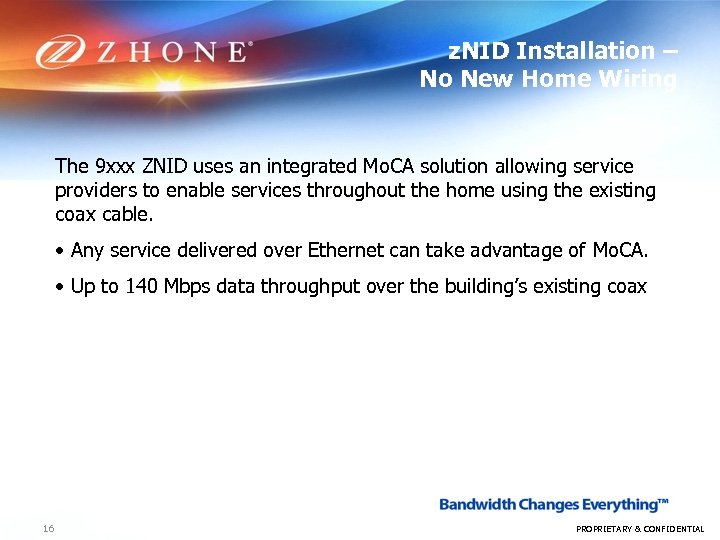

z. NID Installation – No New Home Wiring The 9 xxx ZNID uses an integrated Mo. CA solution allowing service providers to enable services throughout the home using the existing coax cable. • Any service delivered over Ethernet can take advantage of Mo. CA. • Up to 140 Mbps data throughput over the building’s existing coax 16 PROPRIETARY & CONFIDENTIAL

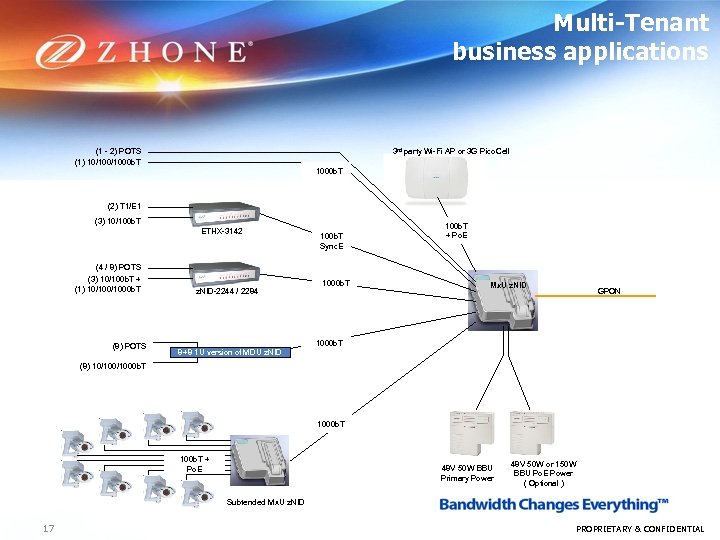

Multi-Tenant business applications (1 - 2) POTS (1) 10/1000 b. T 3 rd party Wi-Fi AP or 3 G Pico. Cell 1000 b. T (2) T 1/E 1 (3) 10/100 b. T ETHX-3142 (4 / 8) POTS (3) 10/100 b. T + (1) 10/1000 b. T (8) POTS z. NID-2244 / 2284 100 b. T Sync. E 1000 b. T 100 b. T + Po. E Mx. U z. NID GPON 1000 b. T 8+8 1 U version of MDU z. NID (8) 10/1000 b. T 100 b. T + Po. E 48 V 50 W BBU Primary Power 48 V 50 W or 150 W BBU Po. E Power ( Optional ) Subtended Mx. U z. NID 17 PROPRIETARY & CONFIDENTIAL

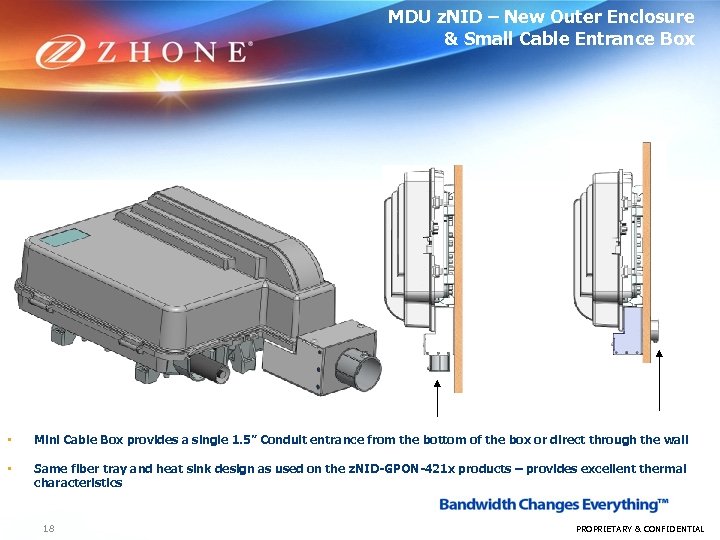

MDU z. NID – New Outer Enclosure & Small Cable Entrance Box • Mini Cable Box provides a single 1. 5” Conduit entrance from the bottom of the box or direct through the wall • Same fiber tray and heat sink design as used on the z. NID-GPON-421 x products – provides excellent thermal characteristics 18 PROPRIETARY & CONFIDENTIAL

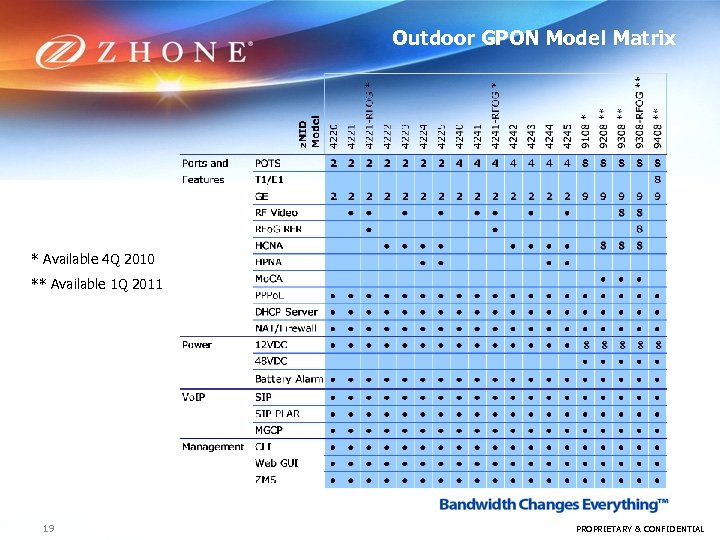

Outdoor GPON Model Matrix * Available 4 Q 2010 ** Available 1 Q 2011 19 PROPRIETARY & CONFIDENTIAL
Supporting Slides • Supporting slides for this slide deck 20 PROPRIETARY & CONFIDENTIAL

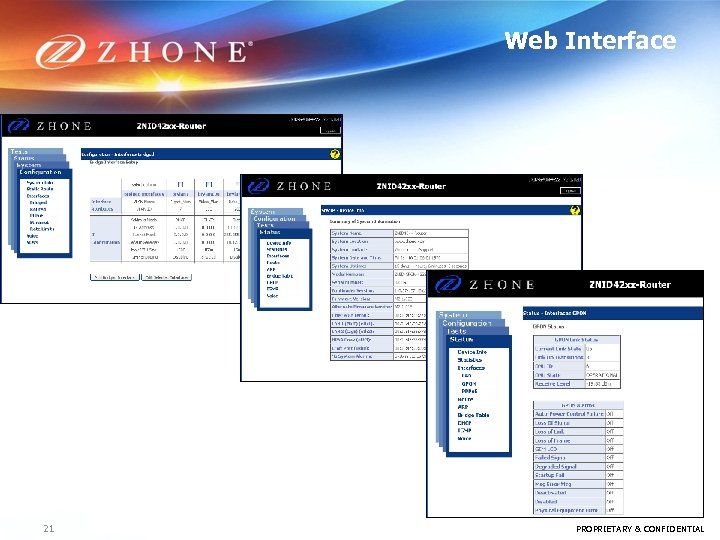

Web Interface 21 PROPRIETARY & CONFIDENTIAL

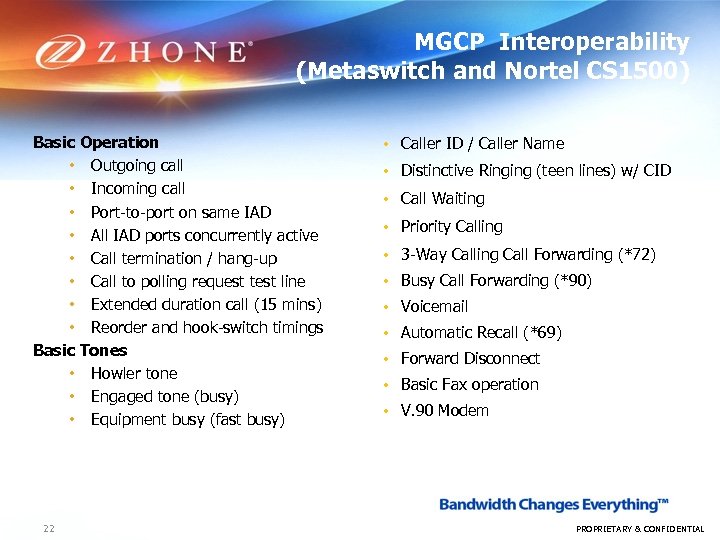

MGCP Interoperability (Metaswitch and Nortel CS 1500) Basic Operation • Outgoing call • Incoming call • Port-to-port on same IAD • All IAD ports concurrently active • Call termination / hang-up • Call to polling request test line • Extended duration call (15 mins) • Reorder and hook-switch timings Basic Tones • Howler tone • Engaged tone (busy) • Equipment busy (fast busy) 22 • Caller ID / Caller Name • Distinctive Ringing (teen lines) w/ CID • Call Waiting • Priority Calling • 3 -Way Calling Call Forwarding (*72) • Busy Call Forwarding (*90) • Voicemail • Automatic Recall (*69) • Forward Disconnect • Basic Fax operation • V. 90 Modem PROPRIETARY & CONFIDENTIAL

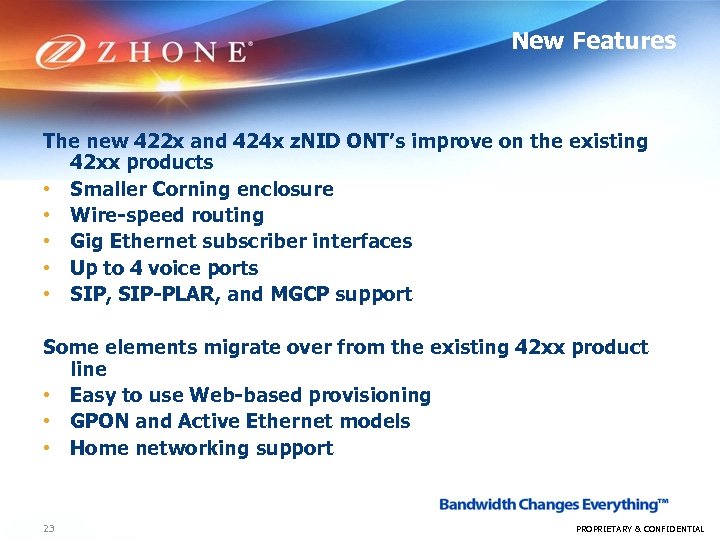

New Features The new 422 x and 424 x z. NID ONT’s improve on the existing 42 xx products • Smaller Corning enclosure • Wire-speed routing • Gig Ethernet subscriber interfaces • Up to 4 voice ports • SIP, SIP-PLAR, and MGCP support Some elements migrate over from the existing 42 xx product line • Easy to use Web-based provisioning • GPON and Active Ethernet models • Home networking support 23 PROPRIETARY & CONFIDENTIAL
New z. NID-42 xx Product Line Active Ethernet (Gig. E Fiber) 2 GE 2 GE + HCNA + HPNA 2 Voice Ports GE 4220 GE 4222 4 Voice Ports GE 4240 GE 4242 • 24 GPON + RF Video 2 GE 2 GE + HCNA + HPNA GE 4224 GPON 4220 GPON 4222 GPON 4224 GPON 4221 GPON 4223 GPON 4225 GE 4244 GPON 4240 GPON 4242 GPON 4244 GPON 4241 GPON 4243 GPON 4245 18 new models to cover a wide variety of application requirements PROPRIETARY & CONFIDENTIAL

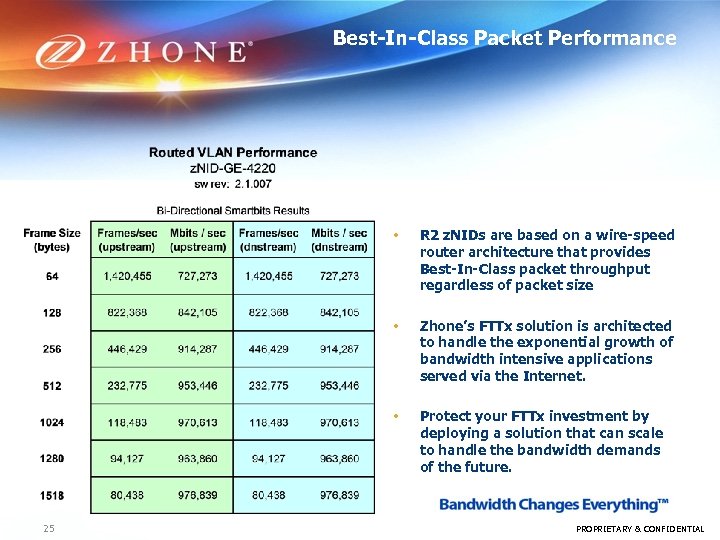

Best-In-Class Packet Performance • • Zhone’s FTTx solution is architected to handle the exponential growth of bandwidth intensive applications served via the Internet. • 25 R 2 z. NIDs are based on a wire-speed router architecture that provides Best-In-Class packet throughput regardless of packet size Protect your FTTx investment by deploying a solution that can scale to handle the bandwidth demands of the future. PROPRIETARY & CONFIDENTIAL

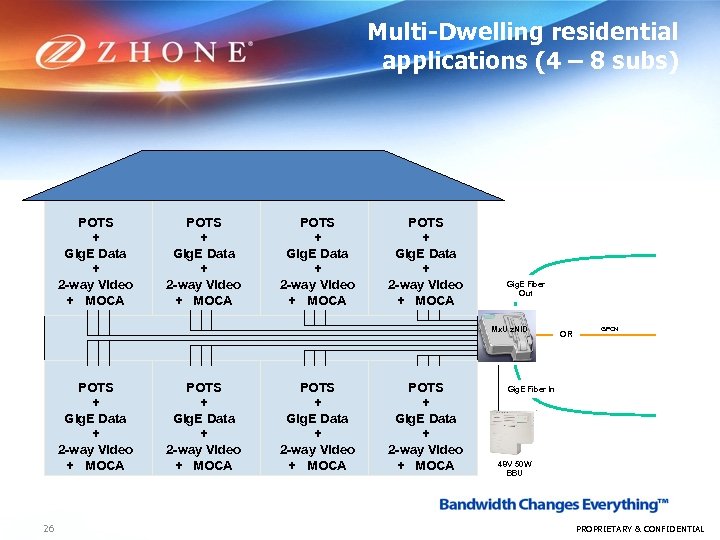

Multi-Dwelling residential applications (4 – 8 subs) POTS + Gig. E Data + 2 -way Video + MOCA Gig. E Fiber Out Mx. U z. NID POTS + Gig. E Data + 2 -way Video + MOCA 26 POTS + Gig. E Data + 2 -way Video + MOCA OR GPON Gig. E Fiber In 48 V 50 W BBU PROPRIETARY & CONFIDENTIAL
