Operating Systems Certificate Program in Software Development CSE-TC and CSIM, AIT September -- November, Operating Systems Certificate Program in Software Development CSE-TC and CSIM, AIT September -- November, 2003 6. Deadlock (Ch. 7, S&G) ch 8 in the 6 th ed. v Objectives – describe deadlock, and forms of prevention, avoidance, detection, and recovery OSes: 6. Deadlock 1

Contents 1. What is Deadlock? 2. Dealing with Deadlock 3. Deadlock Prevention 4. Deadlock Contents 1. What is Deadlock? 2. Dealing with Deadlock 3. Deadlock Prevention 4. Deadlock Avoidance 5. Deadlock Detection 6. Deadlock Recovery OSes: 6. Deadlock 2

1. What is Deadlock? v An example from US Kansas law: – “When two 1. What is Deadlock? v An example from US Kansas law: – “When two trains approach each other at a crossing, both shall come to a full stop and neither shall start up again until the other has gone. ” OSes: 6. Deadlock 3

In Picture Form: VUW CS 305 Neither truck can proceed. OSes: 6. Deadlock 4 In Picture Form: VUW CS 305 Neither truck can proceed. OSes: 6. Deadlock 4

1. 1. System Deadlock v A process must request a resource before using it, 1. 1. System Deadlock v A process must request a resource before using it, and must release the resource after finishing with it. v A set of processes is in a deadlock state when every process in the set is waiting for a resource that can only be released by another process in the set. OSes: 6. Deadlock 5

1. 2. Necessary Conditions for Deadlock v Mutual Exclusion – at least one resource 1. 2. Necessary Conditions for Deadlock v Mutual Exclusion – at least one resource must be held in non-shareable mode v Hold and Wait – a process is holding a resource and waiting for others OSes: 6. Deadlock continued 6

v No Preemption – only the process can release its held resource v Circular v No Preemption – only the process can release its held resource v Circular Wait – {P 0, P 1, …, Pn} – Pi is waiting for the resource held by Pi+1; Pn is waiting for the resource held by P 0 OSes: 6. Deadlock 7

1. 3. Resource Allocation Graph v A set of processes {P 0, P 1, 1. 3. Resource Allocation Graph v A set of processes {P 0, P 1, …} Pj v A set of resource types {R 1, R 2, …}, together with instances of those types. Rk OSes: 6. Deadlock 8

Edge Notation v Pi R j – process i has requested an instance of Edge Notation v Pi R j – process i has requested an instance of resource j – called a request edge v R j Pi – an instance of resource j has been assigned to process i – called an assignment edge OSes: 6. Deadlock 9

Example Graph R 1 P 1 R 2 OSes: 6. Deadlock Fig. 7. 1, Example Graph R 1 P 1 R 2 OSes: 6. Deadlock Fig. 7. 1, p. 211 R 3 P 2 P 3 R 4 10

Finding a Deadlock v If the graph has no cycles then there are no Finding a Deadlock v If the graph has no cycles then there are no deadlock processes. v If there is a cycle, then there may be a deadlock. OSes: 6. Deadlock 11

Graph with a Deadlock R 1 P 1 R 2 OSes: 6. Deadlock Fig. Graph with a Deadlock R 1 P 1 R 2 OSes: 6. Deadlock Fig. 7. 2, p. 212 R 3 P 2 P 3 R 4 12

Graph without a Deadlock Fig. 7. 3, p. 213 R 1 P 2 P Graph without a Deadlock Fig. 7. 3, p. 213 R 1 P 2 P 3 R 2 P 4 OSes: 6. Deadlock 13

2. Deadling with Deadlocks v Stop a deadlock ever occuring – deadlock prevention u 2. Deadling with Deadlocks v Stop a deadlock ever occuring – deadlock prevention u disallow at least one of the necessary conditions – deadlock avoidance u see a deadlock coming and alter the process/resource allocation strategy OSes: 6. Deadlock continued 14

v Deadlock detection and recovery v Ignore the problem – done by most OSes, v Deadlock detection and recovery v Ignore the problem – done by most OSes, including UNIX – cheap solution – infrequent, manual reboots may be acceptable OSes: 6. Deadlock 15

3. Deadlock Prevention v Eliminate one (or more) of: – mutual exclusion – hold 3. Deadlock Prevention v Eliminate one (or more) of: – mutual exclusion – hold and wait – no preemption (i. e. have preemption) – circular wait OSes: 6. Deadlock 16

3. 1. Eliminate Mutual Exclusion v Shared resources do not require mutual exclusion – 3. 1. Eliminate Mutual Exclusion v Shared resources do not require mutual exclusion – e. g. read-only files v But some resources cannot be shared (at the same time) – e. g. printers OSes: 6. Deadlock 17

3. 2. Eliminate Hold & Wait v One approach requires that each process be 3. 2. Eliminate Hold & Wait v One approach requires that each process be allocated all of its resources before it begins executing – eliminates the wait possibility v Alternatively, only allow a process to request resources when it currently has none – eliminates the hold possibility OSes: 6. Deadlock 18

3. 3. Eliminate “No Preemption” v Make a process automatically release its current resources 3. 3. Eliminate “No Preemption” v Make a process automatically release its current resources if it cannot obtain all the ones it wants – restart the process when it can obtain everything v Alternatively, the desired resources can be preempted from other waiting processes OSes: 6. Deadlock 19

3. 4. Eliminate Circular Wait v Impose a total ordering on all the resource 3. 4. Eliminate Circular Wait v Impose a total ordering on all the resource types, and force each process to request resources in increasing order. v Another approach: require a process to release larger numbered resources when it obtains a smaller numbered resource. OSes: 6. Deadlock 20

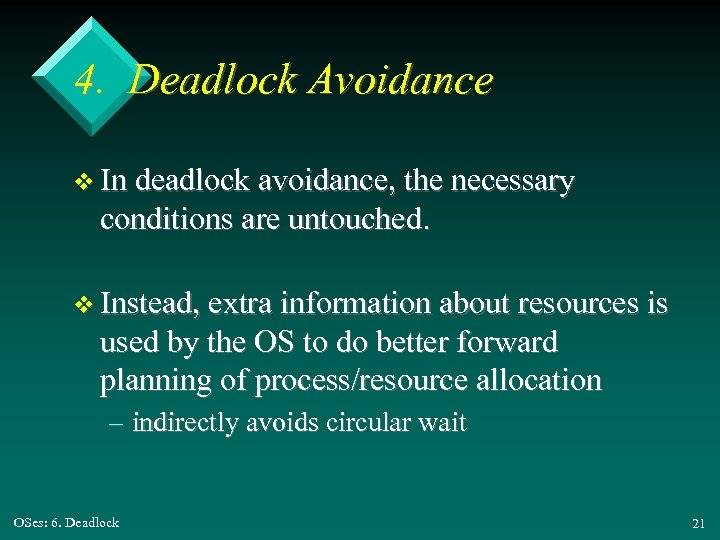

4. Deadlock Avoidance v In deadlock avoidance, the necessary conditions are untouched. v Instead, 4. Deadlock Avoidance v In deadlock avoidance, the necessary conditions are untouched. v Instead, extra information about resources is used by the OS to do better forward planning of process/resource allocation – indirectly avoids circular wait OSes: 6. Deadlock 21

4. 1. Safe States v An OS is in a safe state if there 4. 1. Safe States v An OS is in a safe state if there is a safe sequence of process executions

. v In a safe sequence, each Pi can satisfy its resource requests by using the currently available resources and (if necessary) the resources held by Pj (j < i) – only when Pj has finished OSes: 6. Deadlock 22

Safe State Implications Fig. 7. 4, p. 218 v A safe state cannot lead Safe State Implications Fig. 7. 4, p. 218 v A safe state cannot lead to deadlock. Deadlock Unsafe v An unsafe state may lead to deadlock. v Deadlock is avoided by always Safe keeping the system in a safe state – this may reduce resource utilization OSes: 6. Deadlock 23

Example 1 p. 218 v Max no. of resources: 12 tape drives Max needs Example 1 p. 218 v Max no. of resources: 12 tape drives Max needs v P 0 P 1 P 2 10 4 9 Current Allocation 5 2 2 v Currently, there are 3 free tape drives v The OS is in a safe state, since

is a safe sequence. OSes: 6. Deadlock 24

Example 2 v Same as last slide, but P 2 now has 3 tape Example 2 v Same as last slide, but P 2 now has 3 tape drives allocated currently. Max needs v P 0 P 1 P 2 10 4 9 Current Allocation 5 2 3 v The OS is in an unsafe state. OSes: 6. Deadlock 25

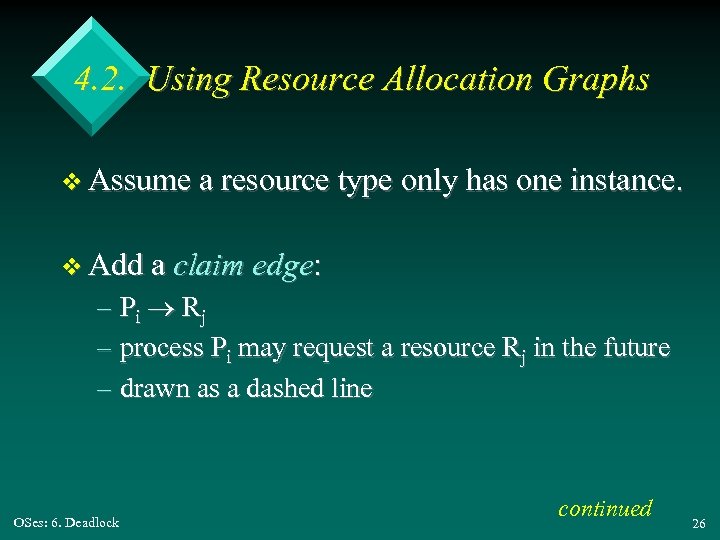

4. 2. Using Resource Allocation Graphs v Assume a resource type only has one 4. 2. Using Resource Allocation Graphs v Assume a resource type only has one instance. v Add a claim edge: – Pi R j – process Pi may request a resource Rj in the future – drawn as a dashed line OSes: 6. Deadlock continued 26

v When the resource is actually requested, the claim edge is changed to a v When the resource is actually requested, the claim edge is changed to a request edge. v When an assignment is released, the assignment edge is changed back to a claim edge. OSes: 6. Deadlock continued 27

v All resources must be claimed before system start-up. v An unsafe state is v All resources must be claimed before system start-up. v An unsafe state is caused by a cycle in the resource allocation graph. OSes: 6. Deadlock 28

Example Figs 7. 5, 7. 6, p. 220 -221 R 1 P 2 P Example Figs 7. 5, 7. 6, p. 220 -221 R 1 P 2 P 1 R 2 P 2 R 2 allocation to P 2 creates an unsafe state OSes: 6. Deadlock 29

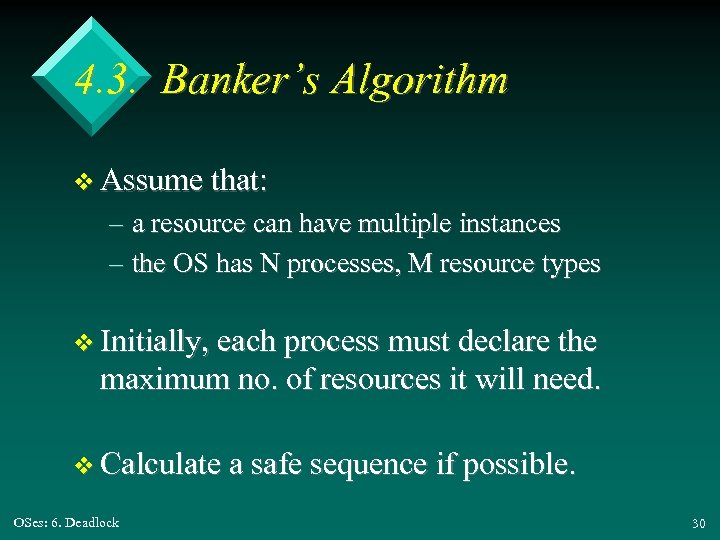

4. 3. Banker’s Algorithm v Assume that: – a resource can have multiple instances 4. 3. Banker’s Algorithm v Assume that: – a resource can have multiple instances – the OS has N processes, M resource types v Initially, each process must declare the maximum no. of resources it will need. v Calculate a safe sequence if possible. OSes: 6. Deadlock 30

Banker Data Structures v Available[M] – no. of available resource instances for each resource Banker Data Structures v Available[M] – no. of available resource instances for each resource type – e. g. Available[j] == k means K Rj’s v Max[N][M] – max demand of each process – e. g. max[i][j] == k means Pi wants k Rj’s OSes: 6. Deadlock continued 31

v Work[M] – no. of resource instances available for work (by all processes) – v Work[M] – no. of resource instances available for work (by all processes) – e. g. Work[j] == k means K Rj’s are available v Finish[N] – record of finished processes – e. g. Pi is finished if Finish[i] == true OSes: 6. Deadlock continued 32

v Allocation[N][M] – no. of resource instances allocated to each process – e. g. v Allocation[N][M] – no. of resource instances allocated to each process – e. g. Allocation[i][j] == k means Pi currently has k Rj’s v Need[N][M] – no. of resource instances still needed by each process – e. g. Need[i][j] == k means Pi still needs k Rj’s – Need[i][j] == Max[i][j] - Allocation[i][j] continued 33 OSes: 6. Deadlock

v Request[N][M] – no. of resource instances currently requested by each process – e. v Request[N][M] – no. of resource instances currently requested by each process – e. g. Request[i][j] == k means Pi has requested k Rj’s OSes: 6. Deadlock 34

Vectors v Allocation[i] shorthand for referring to the 2 D data structures – resources Vectors v Allocation[i] shorthand for referring to the 2 D data structures – resources currently allocated to Pi v Need[i] – resources still needed by Pi v Request[i] – resources currently requested by Pi OSes: 6. Deadlock 35

The Safety Algorithm 1 2 3 4 VUW CS 305; p 221 -222 Vector The Safety Algorithm 1 2 3 4 VUW CS 305; p 221 -222 Vector Copy: Work : = Available; Finish : = false Find i such that Pi hasn’t finished but could: Finish[i] == false Need[i] <= Work If no suitable i, go to step 4. Assume Pi completes: Work : = Work + Allocation[i] Finish[i] : = true go to step 2 If for all i Finish[i] == true then Safe-State OSes: 6. Deadlock 36

Safety Example v Resource Type A B C OSes: 6. Deadlock p. 222 Instances Safety Example v Resource Type A B C OSes: 6. Deadlock p. 222 Instances 10 5 7 continued 37

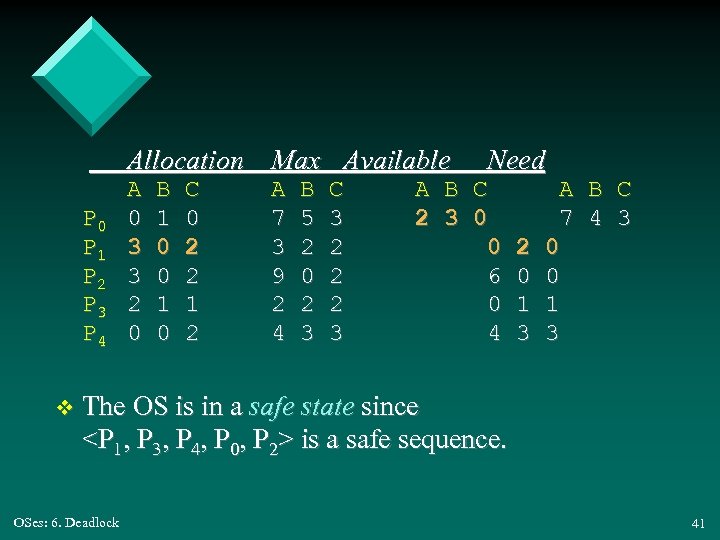

Allocation Max Available P 0 P 1 P 2 P 3 P 4 v Allocation Max Available P 0 P 1 P 2 P 3 P 4 v A 0 2 3 2 0 B 1 0 0 1 0 C 0 0 2 1 2 A 7 3 9 2 4 B 5 2 0 2 3 C 3 2 2 2 3 Need A B C 3 3 2 1 6 0 4 2 0 1 3 A B C 7 4 3 2 0 1 1 The OS is in a safe state since

is a safe sequence. OSes: 6. Deadlock 38

Request Resource Algorithm 1 2 3 VUW CS 305; p. 222 If (Need[i] < Request Resource Algorithm 1 2 3 VUW CS 305; p. 222 If (Need[i] < Request[i]) then max-error While (Available < Request[i]) do wait Construct a new state by: Available = Available - Request[i] Allocation[i] = Allocation[i] + Request [i] Need[i] = Need[i] - Request [i] 4 If (new state is not safe) then restore and wait OSes: 6. Deadlock 39

Request Example 1 v At some time, P 1 requests an additional 1 A Request Example 1 v At some time, P 1 requests an additional 1 A instance and 2 C instances – i. e. Request[1] == (1, 0, 2) v Does this lead to a safe state? – Available >= Request[1] so continue – generate new state and test for safety OSes: 6. Deadlock 40

Allocation Max Available P 0 P 1 P 2 P 3 P 4 v Allocation Max Available P 0 P 1 P 2 P 3 P 4 v A 0 3 3 2 0 B 1 0 0 1 0 C 0 2 2 1 2 A 7 3 9 2 4 B 5 2 0 2 3 C 3 2 2 2 3 Need A B C 2 3 0 0 6 0 4 2 0 1 3 A B C 7 4 3 0 0 1 3 The OS is in a safe state since

is a safe sequence. OSes: 6. Deadlock 41

Further Request Examples v From this state, P 4 requests a further (3, 3, Further Request Examples v From this state, P 4 requests a further (3, 3, 0) – cannot be granted, since insufficient resources v Alternatively, P 0 requests a further (0, 2, 0) – should not be granted since the resulting state is unsafe OSes: 6. Deadlock 42

5. Deadlock Detection v If there are no prevention or avoidance mechanisms in place, 5. Deadlock Detection v If there are no prevention or avoidance mechanisms in place, then deadlock may occur. v Deadlock detection should return enough information so the OS can recover. v How often should the detection algorithm be executed? OSes: 6. Deadlock 43

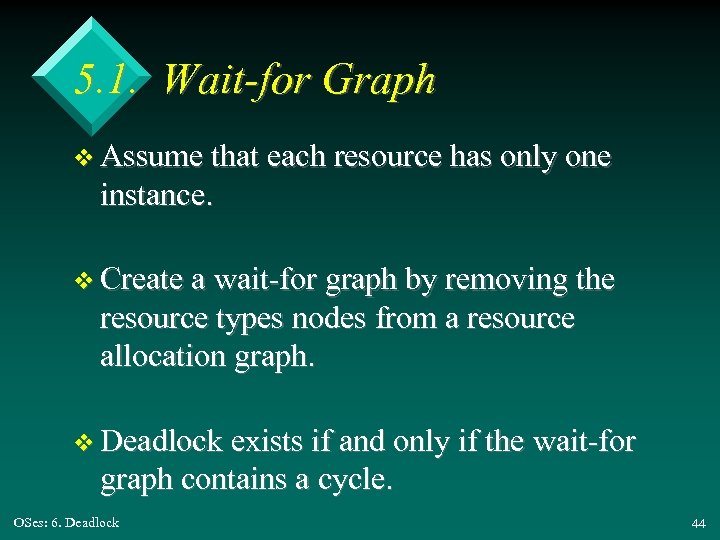

5. 1. Wait-for Graph v Assume that each resource has only one instance. v 5. 1. Wait-for Graph v Assume that each resource has only one instance. v Create a wait-for graph by removing the resource types nodes from a resource allocation graph. v Deadlock exists if and only if the wait-for graph contains a cycle. OSes: 6. Deadlock 44

Example Fig. 7. 7, p. 225 P 5 R 1 R 3 P 1 Example Fig. 7. 7, p. 225 P 5 R 1 R 3 P 1 P 2 P 3 R 2 P 4 P 5 R 4 OSes: 6. Deadlock R 5 P 1 P 2 P 3 P 4 45

5. 2. Banker’s Algorithm Variation v If a resource type can have multiple instances, 5. 2. Banker’s Algorithm Variation v If a resource type can have multiple instances, then an algorithm very similar to the banker’s algorithm can be used. v The algorithm investigates every possible allocation sequence for the processes that remain to be completed. OSes: 6. Deadlock 46

Detection Algorithm 1 2 3 4 VUW CS 305; p. 225 Vector Copy: Work Detection Algorithm 1 2 3 4 VUW CS 305; p. 225 Vector Copy: Work : = Available; Finish : = false Find i such that Pi hasn’t finished but could: Finish[i] == false Request[i] <= Work If no suitable i, go to step 4. Assume Pi completes: Work : = Work + Allocation[i] Finish[i] : = true go to step 2 If Finish[i] == false then Pi is deadlocked OSes: 6. Deadlock 47

Example 1 v Resource Type A B C OSes: 6. Deadlock p. 226 Instances Example 1 v Resource Type A B C OSes: 6. Deadlock p. 226 Instances 7 2 6 continued 48

Allocation Request P 0 P 1 P 2 P 3 P 4 v Available Allocation Request P 0 P 1 P 2 P 3 P 4 v Available A 0 2 3 2 0 A B C 0 0 0 B 1 0 0 1 0 C 0 0 3 1 2 A 0 2 0 1 0 B 0 0 0 C 0 2 0 0 2 The OS is not in a deadlocked state since

is a safe sequence. OSes: 6. Deadlock 49

Example 2 v Change P 2 to request 1 C instance Allocation P 0 Example 2 v Change P 2 to request 1 C instance Allocation P 0 P 1 P 2 P 3 P 4 v OSes: 6. Deadlock Request Available A 0 2 3 2 0 A 0 2 0 1 0 A B C 0 0 0 B 1 0 0 1 0 C 0 0 3 1 2 B 0 0 0 C 0 2 1 0 2 The OS is deadlocked. 50

6. Deadlock Recovery v Tell the operator v System-based recovery: – abort one or 6. Deadlock Recovery v Tell the operator v System-based recovery: – abort one or more processes in the circular wait – preempt resources in one or more deadlocked processes OSes: 6. Deadlock 51

6. 1. Process Termination v Abort all deadlocked processes, or v Abort one process 6. 1. Process Termination v Abort all deadlocked processes, or v Abort one process at a time until the deadlocked cycle disappears – not always easy to abort a process – choice should be based on minimum cost OSes: 6. Deadlock 52

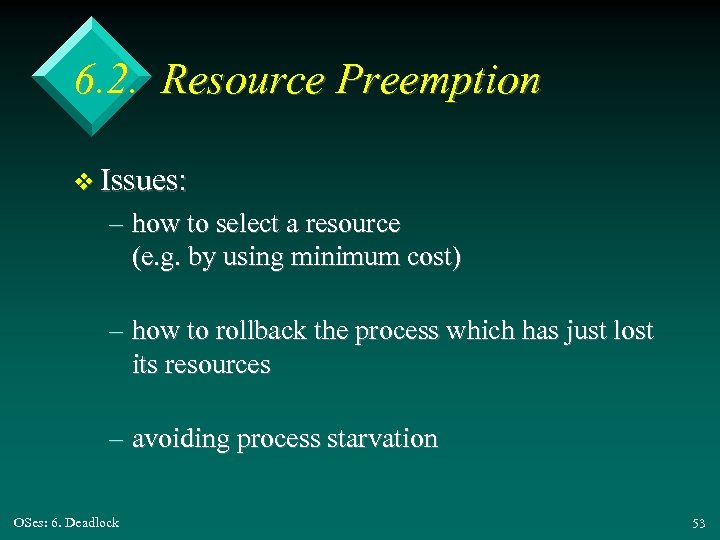

6. 2. Resource Preemption v Issues: – how to select a resource (e. g. 6. 2. Resource Preemption v Issues: – how to select a resource (e. g. by using minimum cost) – how to rollback the process which has just lost its resources – avoiding process starvation OSes: 6. Deadlock 53
