Operating System Modifications for Task-Based Speed and Voltage Scheduling Jacob R. Lorch Alan Jay Operating System Modifications for Task-Based Speed and Voltage Scheduling Jacob R. Lorch Alan Jay Smith Microsoft Research University of California, Berkeley First International Conference on Mobile Systems, Applications, and Services May 7, 2003

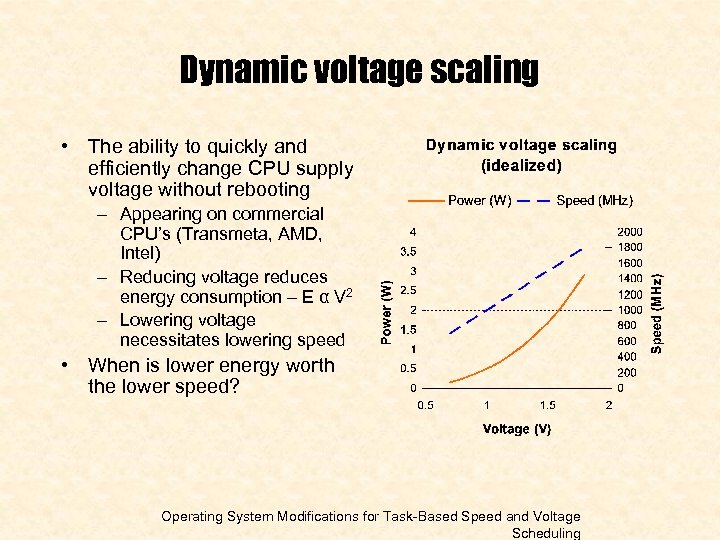

Dynamic voltage scaling • The ability to quickly and efficiently change CPU supply voltage Dynamic voltage scaling • The ability to quickly and efficiently change CPU supply voltage without rebooting – Appearing on commercial CPU’s (Transmeta, AMD, Intel) – Reducing voltage reduces energy consumption – E α V 2 – Lowering voltage necessitates lowering speed • When is lower energy worth the lower speed? Operating System Modifications for Task-Based Speed and Voltage Scheduling

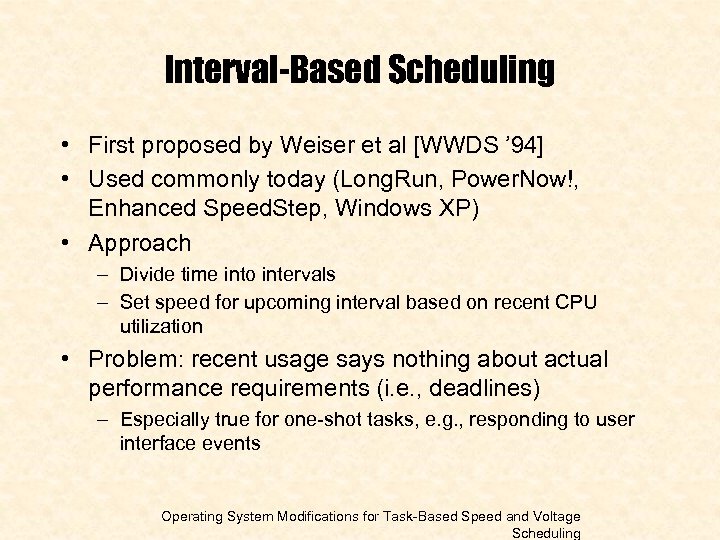

Interval-Based Scheduling • First proposed by Weiser et al [WWDS ’ 94] • Used Interval-Based Scheduling • First proposed by Weiser et al [WWDS ’ 94] • Used commonly today (Long. Run, Power. Now!, Enhanced Speed. Step, Windows XP) • Approach – Divide time into intervals – Set speed for upcoming interval based on recent CPU utilization • Problem: recent usage says nothing about actual performance requirements (i. e. , deadlines) – Especially true for one-shot tasks, e. g. , responding to user interface events Operating System Modifications for Task-Based Speed and Voltage Scheduling

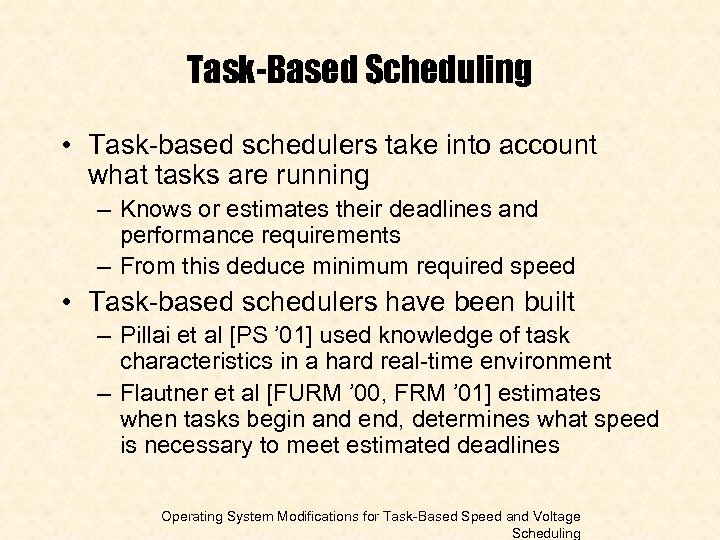

Task-Based Scheduling • Task-based schedulers take into account what tasks are running – Knows Task-Based Scheduling • Task-based schedulers take into account what tasks are running – Knows or estimates their deadlines and performance requirements – From this deduce minimum required speed • Task-based schedulers have been built – Pillai et al [PS ’ 01] used knowledge of task characteristics in a hard real-time environment – Flautner et al [FURM ’ 00, FRM ’ 01] estimates when tasks begin and end, determines what speed is necessary to meet estimated deadlines Operating System Modifications for Task-Based Speed and Voltage Scheduling

Right. Speed: Our Task-Based Scheduler for Windows 2000 Applications instrumented to describe their tasks Right. Speed: Our Task-Based Scheduler for Windows 2000 Applications instrumented to describe their tasks Uninstrumented applications Task information inference via user-interface event interposition System calls to describe task boundaries and deadlines Operating system routines for scheduling speed and voltage CPU capable of dynamic voltage scaling Implemented without OS source code access Novel automatic task detection system Implements PACE scheduling algorithm Operating System Modifications for Task-Based Speed and Voltage Scheduling

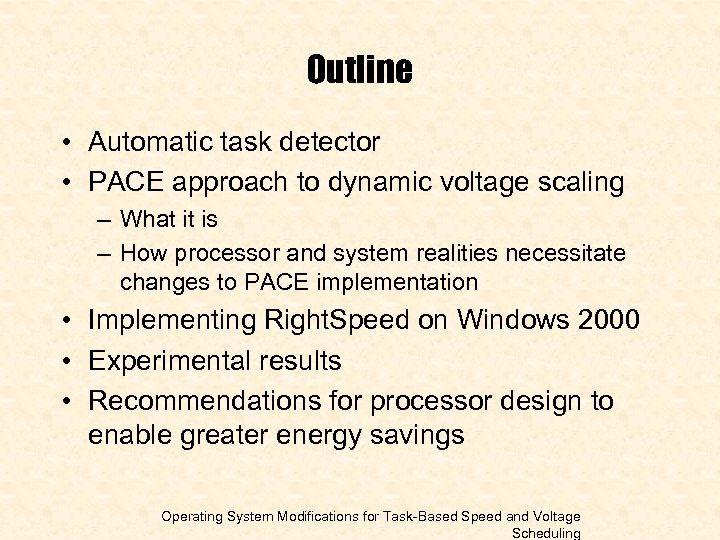

Outline • Automatic task detector • PACE approach to dynamic voltage scaling – What Outline • Automatic task detector • PACE approach to dynamic voltage scaling – What it is – How processor and system realities necessitate changes to PACE implementation • Implementing Right. Speed on Windows 2000 • Experimental results • Recommendations for processor design to enable greater energy savings Operating System Modifications for Task-Based Speed and Voltage Scheduling

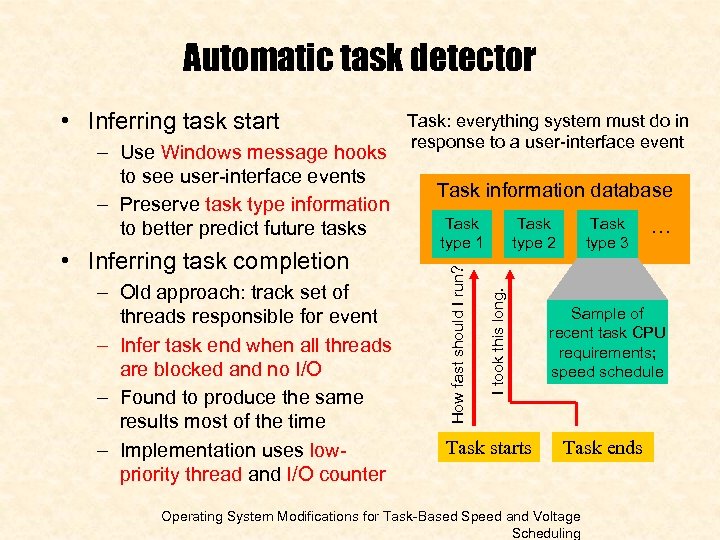

Automatic task detector • Inferring task completion – Old approach: track set of threads Automatic task detector • Inferring task completion – Old approach: track set of threads responsible for event – Infer task end when all threads are blocked and no I/O – Found to produce the same results most of the time – Implementation uses lowpriority thread and I/O counter Task information database Task type 1 Task type 2 I took this long. – Use Windows message hooks to see user-interface events – Preserve task type information to better predict future tasks Task: everything system must do in response to a user-interface event How fast should I run? • Inferring task start Task starts Task type 3 … Sample of recent task CPU requirements; speed schedule Task ends Operating System Modifications for Task-Based Speed and Voltage Scheduling

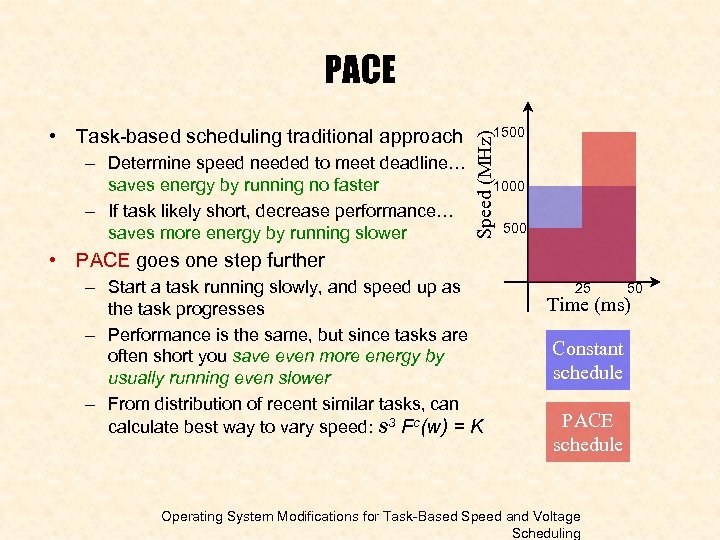

PACE – Determine speed needed to meet deadline… saves energy by running no faster PACE – Determine speed needed to meet deadline… saves energy by running no faster – If task likely short, decrease performance… saves more energy by running slower 1500 Speed (MHz) • Task-based scheduling traditional approach 1000 500 • PACE goes one step further – Start a task running slowly, and speed up as the task progresses – Performance is the same, but since tasks are often short you save even more energy by usually running even slower – From distribution of recent similar tasks, can calculate best way to vary speed: s 3 Fc(w) = K 25 50 Time (ms) Constant schedule PACE schedule Operating System Modifications for Task-Based Speed and Voltage Scheduling

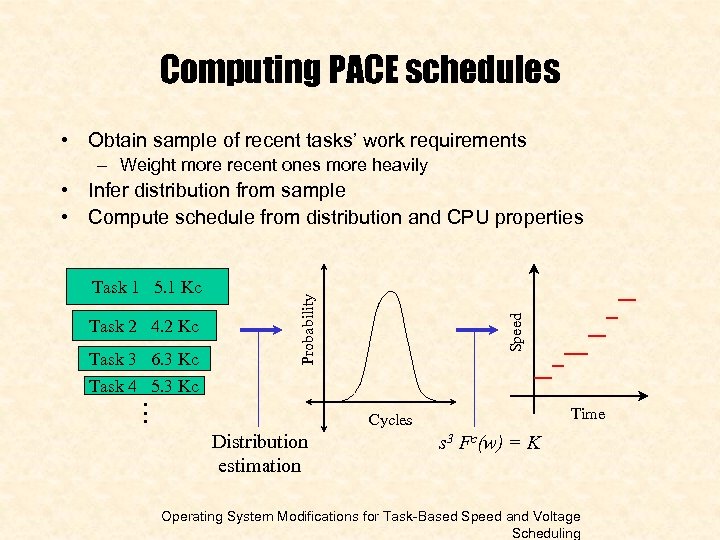

Computing PACE schedules • Obtain sample of recent tasks’ work requirements – Weight more Computing PACE schedules • Obtain sample of recent tasks’ work requirements – Weight more recent ones more heavily Task 2 4. 2 Kc Task 3 6. 3 Kc Speed Task 1 5. 1 Kc Probability • Infer distribution from sample • Compute schedule from distribution and CPU properties … Task 4 5. 3 Kc Time Cycles Distribution estimation s 3 Fc(w) = K Operating System Modifications for Task-Based Speed and Voltage Scheduling

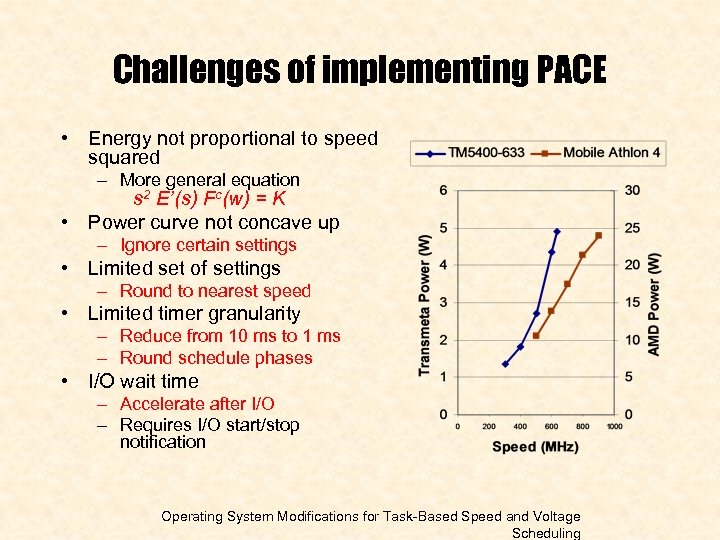

Challenges of implementing PACE • Energy not proportional to speed squared – More general Challenges of implementing PACE • Energy not proportional to speed squared – More general equation s 2 E’(s) Fc(w) = K • Power curve not concave up – Ignore certain settings • Limited set of settings – Round to nearest speed • Limited timer granularity – Reduce from 10 ms to 1 ms – Round schedule phases • I/O wait time – Accelerate after I/O – Requires I/O start/stop notification Operating System Modifications for Task-Based Speed and Voltage Scheduling

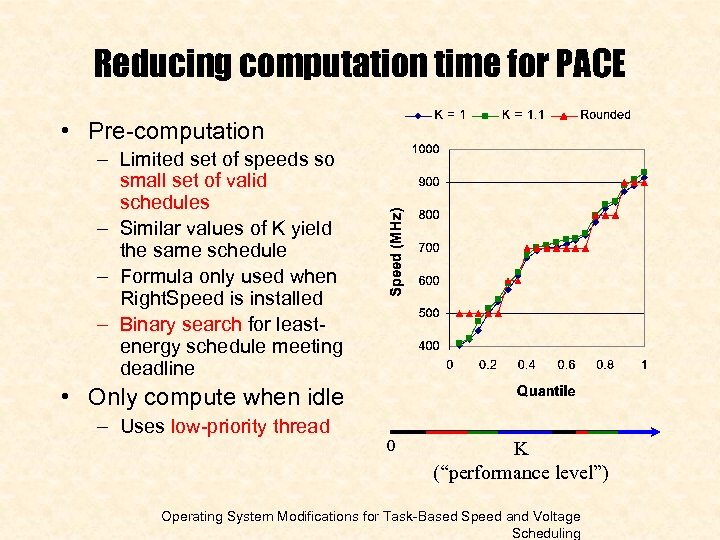

Reducing computation time for PACE • Pre-computation – Limited set of speeds so small Reducing computation time for PACE • Pre-computation – Limited set of speeds so small set of valid schedules – Similar values of K yield the same schedule – Formula only used when Right. Speed is installed – Binary search for leastenergy schedule meeting deadline • Only compute when idle – Uses low-priority thread 0 K (“performance level”) Operating System Modifications for Task-Based Speed and Voltage Scheduling

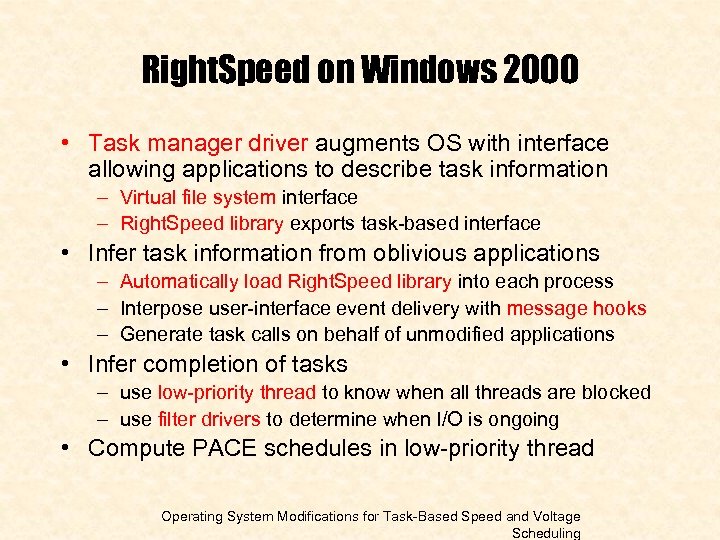

Right. Speed on Windows 2000 • Task manager driver augments OS with interface allowing Right. Speed on Windows 2000 • Task manager driver augments OS with interface allowing applications to describe task information – Virtual file system interface – Right. Speed library exports task-based interface • Infer task information from oblivious applications – Automatically load Right. Speed library into each process – Interpose user-interface event delivery with message hooks – Generate task calls on behalf of unmodified applications • Infer completion of tasks – use low-priority thread to know when all threads are blocked – use filter drivers to determine when I/O is ongoing • Compute PACE schedules in low-priority thread Operating System Modifications for Task-Based Speed and Voltage Scheduling

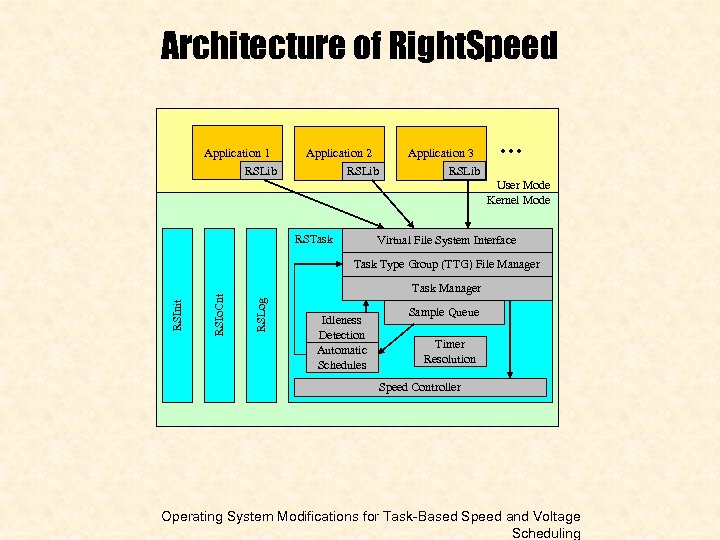

Architecture of Right. Speed Application 1 Application 2 RSLib Application 3 RSLib … User Architecture of Right. Speed Application 1 Application 2 RSLib Application 3 RSLib … User Mode Kernel Mode RSTask Virtual File System Interface Task Manager RSLog RSIo. Cnt RSInit Task Type Group (TTG) File Manager Idleness Detection Automatic Schedules Sample Queue Timer Resolution Speed Controller Operating System Modifications for Task-Based Speed and Voltage Scheduling

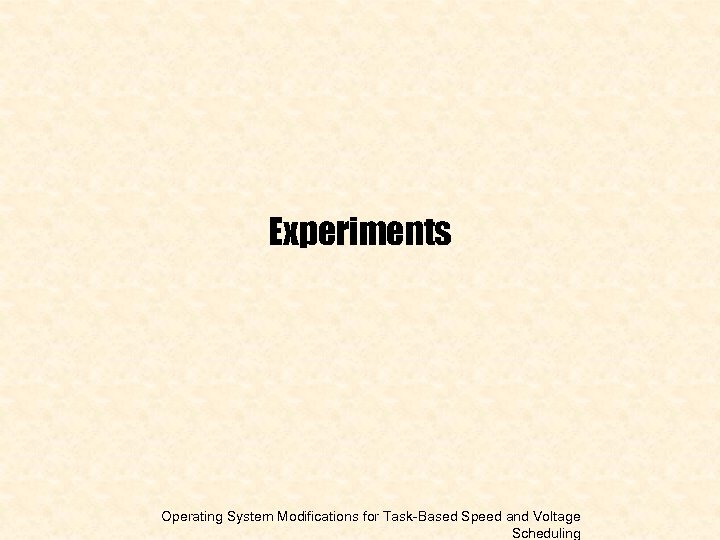

Experiments Operating System Modifications for Task-Based Speed and Voltage Scheduling Experiments Operating System Modifications for Task-Based Speed and Voltage Scheduling

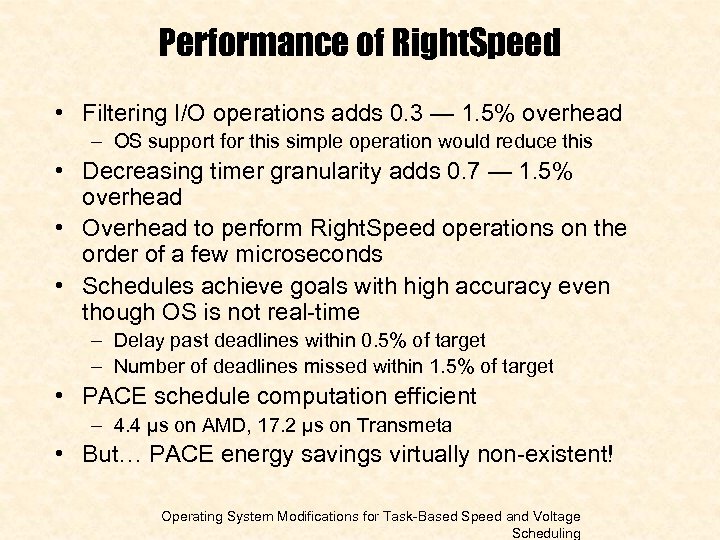

Performance of Right. Speed • Filtering I/O operations adds 0. 3 — 1. 5% Performance of Right. Speed • Filtering I/O operations adds 0. 3 — 1. 5% overhead – OS support for this simple operation would reduce this • Decreasing timer granularity adds 0. 7 — 1. 5% overhead • Overhead to perform Right. Speed operations on the order of a few microseconds • Schedules achieve goals with high accuracy even though OS is not real-time – Delay past deadlines within 0. 5% of target – Number of deadlines missed within 1. 5% of target • PACE schedule computation efficient – 4. 4 μs on AMD, 17. 2 μs on Transmeta • But… PACE energy savings virtually non-existent! Operating System Modifications for Task-Based Speed and Voltage Scheduling

Efficiency of CPU settings • Traditional DVS model – Power a cubic function of Efficiency of CPU settings • Traditional DVS model – Power a cubic function of speed • Concavity of power vs. speed – Makes intermediate settings very worthwhile to use – Efficiency of a setting: savings from using that setting – 1 GHz setting saves ~50% vs. using 500 MHz and 1. 5 GHz – If task is short, 500 MHz / 1. 5 GHz schedule best; otherwise 1 GHz is • Without concavity, intermediate speeds unhelpful Speed (MHz) • Example 1500 1 GHz 1000 500 MHz / 1. 5 GHz 500 25 50 Time (ms) Operating System Modifications for Task-Based Speed and Voltage Scheduling

Processor Characteristics • TM 5400 -633 – 2 of 5 speeds w/ efficiency < Processor Characteristics • TM 5400 -633 – 2 of 5 speeds w/ efficiency < 0. 5% • Mobile Athlon 4 – 3 of 5 speeds w/ efficiency < 1. 5% – 2 of those negative, so never useful! • Centrino – 3 intermediate speeds have 3. 7%, 6. 0%, 9. 8% – 1 speed with negative efficiency To benefit from intermediate speeds, processor design should value not just the slope, but also the concavity. Operating System Modifications for Task-Based Speed and Voltage Scheduling

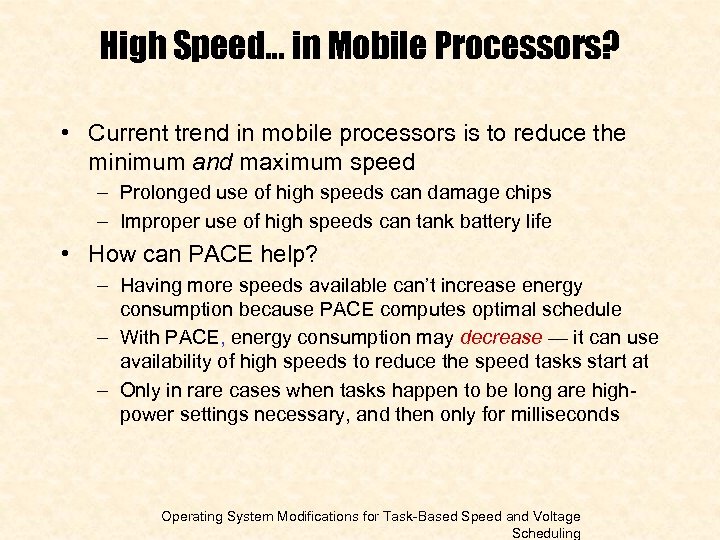

High Speed… in Mobile Processors? • Current trend in mobile processors is to reduce High Speed… in Mobile Processors? • Current trend in mobile processors is to reduce the minimum and maximum speed – Prolonged use of high speeds can damage chips – Improper use of high speeds can tank battery life • How can PACE help? – Having more speeds available can’t increase energy consumption because PACE computes optimal schedule – With PACE, energy consumption may decrease — it can use availability of high speeds to reduce the speed tasks start at – Only in rare cases when tasks happen to be long are highpower settings necessary, and then only for milliseconds Operating System Modifications for Task-Based Speed and Voltage Scheduling

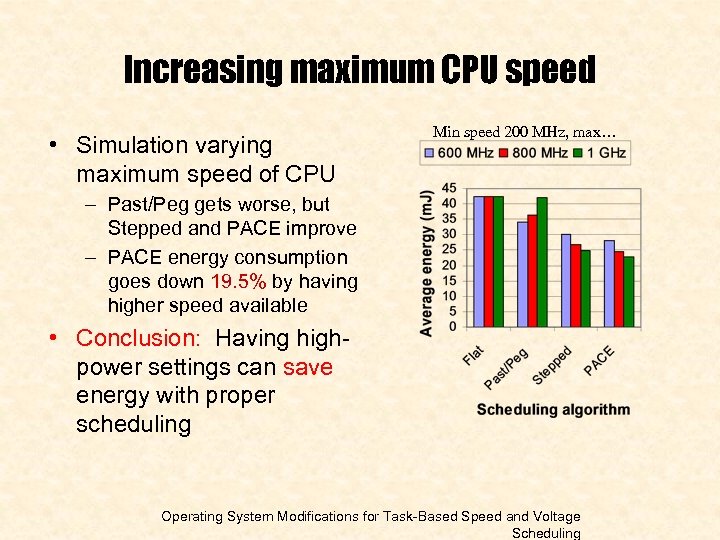

Increasing maximum CPU speed • Simulation varying maximum speed of CPU Min speed 200 Increasing maximum CPU speed • Simulation varying maximum speed of CPU Min speed 200 MHz, max… – Past/Peg gets worse, but Stepped and PACE improve – PACE energy consumption goes down 19. 5% by having higher speed available • Conclusion: Having highpower settings can save energy with proper scheduling Operating System Modifications for Task-Based Speed and Voltage Scheduling

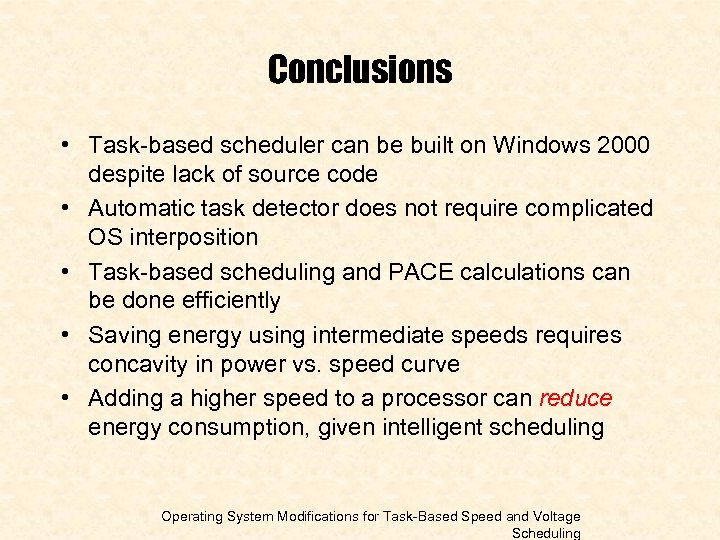

Conclusions • Task-based scheduler can be built on Windows 2000 despite lack of source Conclusions • Task-based scheduler can be built on Windows 2000 despite lack of source code • Automatic task detector does not require complicated OS interposition • Task-based scheduling and PACE calculations can be done efficiently • Saving energy using intermediate speeds requires concavity in power vs. speed curve • Adding a higher speed to a processor can reduce energy consumption, given intelligent scheduling Operating System Modifications for Task-Based Speed and Voltage Scheduling
