Open. Server 6 Hardware Overview Presented by: Alexander Sack, Senior Developer & Paul Hurford, Open. Server 6 Hardware Overview Presented by: Alexander Sack, Senior Developer & Paul Hurford, Director Hardware Technologies 1

Agenda § Certified Hardware § General SCO Hardware Database Statistics § Open. Server 6 Agenda § Certified Hardware § General SCO Hardware Database Statistics § Open. Server 6 § New Channel Partner Hardware Certification Programs § Future Hardware Developments § Open. Server 6 Specifics § Basic Requirements § General Device Guide § OSR 5 vs. OSR 6 § Q & A 2

Certified Hardware information Certified Hardware information

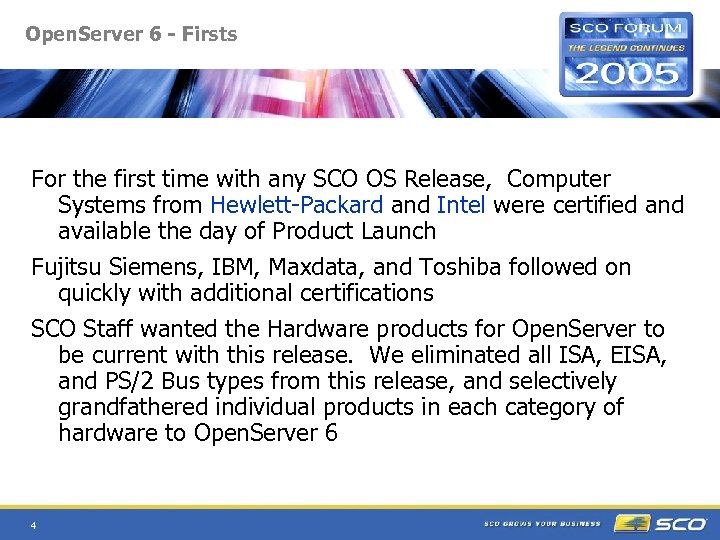

Open. Server 6 - Firsts For the first time with any SCO OS Release, Open. Server 6 - Firsts For the first time with any SCO OS Release, Computer Systems from Hewlett-Packard and Intel were certified and available the day of Product Launch Fujitsu Siemens, IBM, Maxdata, and Toshiba followed on quickly with additional certifications SCO Staff wanted the Hardware products for Open. Server to be current with this release. We eliminated all ISA, EISA, and PS/2 Bus types from this release, and selectively grandfathered individual products in each category of hardware to Open. Server 6 4

Open. Server 6 – Available Hardware Count as of 26, July 2005 Hardware Category Open. Server 6 – Available Hardware Count as of 26, July 2005 Hardware Category Count Computer Systems Graphics (X. Org Companies listed) 22 Network Cards 302 Storage Controllers 173 Storage Technologies/SAN 18 Tape Drives 42 Port Adapters 5 48 16

Computer Systems Certified for OSR 6 6 Computer Systems Certified for OSR 6 6

New Channel Partner Hardware Certification Programs New Channel Partner Hardware Certification Programs

Channel Partner Certification Programs NEW Hardware Certification Programs for Channel Partners SCO distributors and Channel Partner Certification Programs NEW Hardware Certification Programs for Channel Partners SCO distributors and channel partners can now certify their white-box server solutions in the SCO Hardware Database. Two new programs are available to list computer servers under your company name, and model number, and list them as Certified, or compatible products with SCO Operating System Platforms. 8

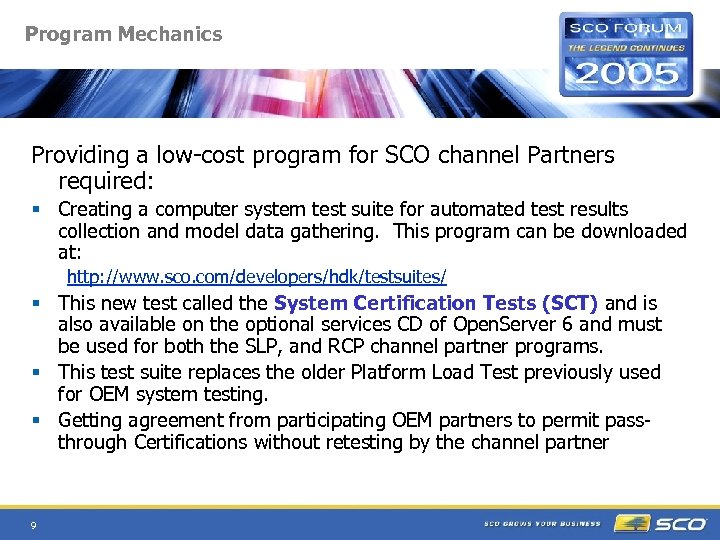

Program Mechanics Providing a low-cost program for SCO channel Partners required: § Creating a Program Mechanics Providing a low-cost program for SCO channel Partners required: § Creating a computer system test suite for automated test results collection and model data gathering. This program can be downloaded at: http: //www. sco. com/developers/hdk/testsuites/ § This new test called the System Certification Tests (SCT) and is also available on the optional services CD of Open. Server 6 and must be used for both the SLP, and RCP channel partner programs. § This test suite replaces the older Platform Load Test previously used for OEM system testing. § Getting agreement from participating OEM partners to permit passthrough Certifications without retesting by the channel partner 9

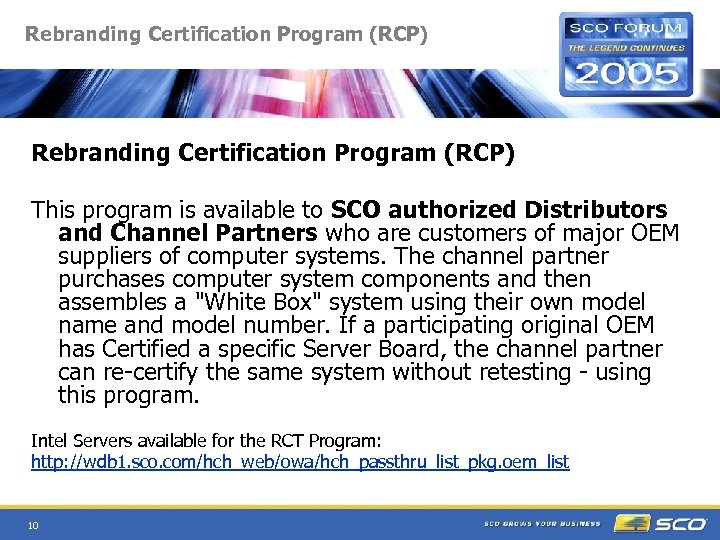

Rebranding Certification Program (RCP) This program is available to SCO authorized Distributors and Channel Rebranding Certification Program (RCP) This program is available to SCO authorized Distributors and Channel Partners who are customers of major OEM suppliers of computer systems. The channel partner purchases computer system components and then assembles a "White Box" system using their own model name and model number. If a participating original OEM has Certified a specific Server Board, the channel partner can re-certify the same system without retesting - using this program. Intel Servers available for the RCT Program: http: //wdb 1. sco. com/hch_web/owa/hch_passthru_list_pkg. oem_list 10

Rebranding Certification Program (RCP) RCP Specifics Eligible Products Any computer system product manufactured by Rebranding Certification Program (RCP) RCP Specifics Eligible Products Any computer system product manufactured by Intel Corporation that has been Certified by Intel for any SCO platform, and Release, and is submitted by an SCO authorized channel partner is eligibile for rebranding. Submission and testing requirements § Model numbers submitted by the channel partner must be unique and can only describe one system. § The system board used for the certification can not be modified in any way from the original certified OSM platform. § The disk subsystem must be identical to the OEM certified product § BIOS changes from the original OEM Certified product are not permitted. Only BIOS revisions listed as certified in the original OEM certification are valid. § The microprocessor clock and speed must be the equal to or less than the OEM certified product. § The microprocessor must be from the same microprocessor family and the same type as the OEM certified product. § Any alterations to a submission from the original OEM certified model will be rejected. 11

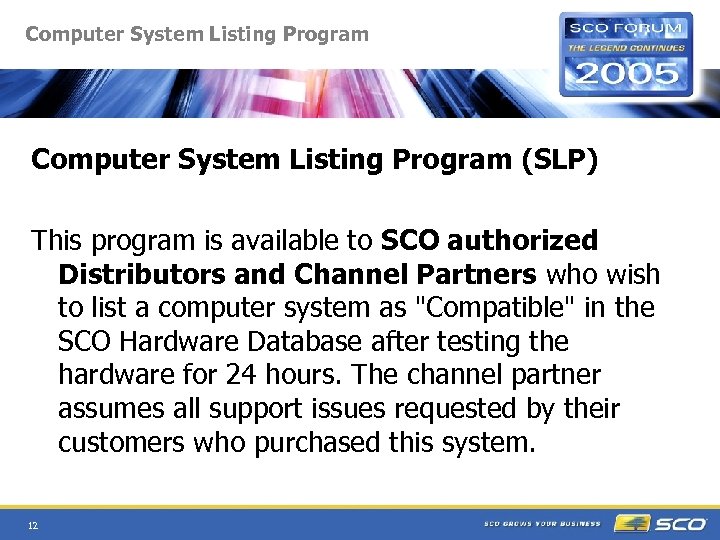

Computer System Listing Program (SLP) This program is available to SCO authorized Distributors and Computer System Listing Program (SLP) This program is available to SCO authorized Distributors and Channel Partners who wish to list a computer system as "Compatible" in the SCO Hardware Database after testing the hardware for 24 hours. The channel partner assumes all support issues requested by their customers who purchased this system. 12

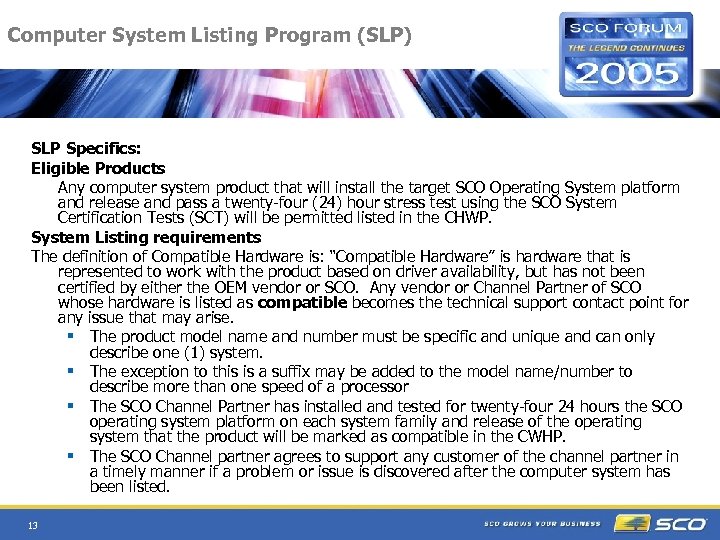

Computer System Listing Program (SLP) SLP Specifics: Eligible Products Any computer system product that Computer System Listing Program (SLP) SLP Specifics: Eligible Products Any computer system product that will install the target SCO Operating System platform and release and pass a twenty-four (24) hour stress test using the SCO System Certification Tests (SCT) will be permitted listed in the CHWP. System Listing requirements The definition of Compatible Hardware is: “Compatible Hardware” is hardware that is represented to work with the product based on driver availability, but has not been certified by either the OEM vendor or SCO. Any vendor or Channel Partner of SCO whose hardware is listed as compatible becomes the technical support contact point for any issue that may arise. § The product model name and number must be specific and unique and can only describe one (1) system. § The exception to this is a suffix may be added to the model name/number to describe more than one speed of a processor § The SCO Channel Partner has installed and tested for twenty-four 24 hours the SCO operating system platform on each system family and release of the operating system that the product will be marked as compatible in the CWHP. § The SCO Channel partner agrees to support any customer of the channel partner in a timely manner if a problem or issue is discovered after the computer system has been listed. 13

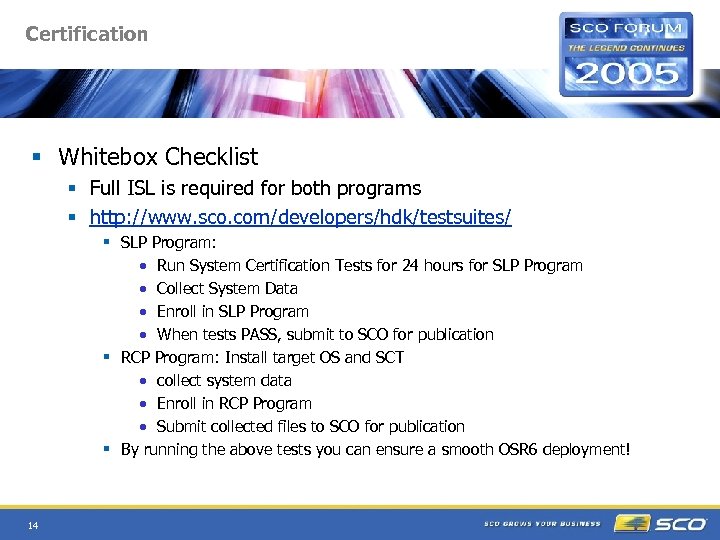

Certification § Whitebox Checklist § Full ISL is required for both programs § http: Certification § Whitebox Checklist § Full ISL is required for both programs § http: //www. sco. com/developers/hdk/testsuites/ § SLP Program: · Run System Certification Tests for 24 hours for SLP Program · Collect System Data · Enroll in SLP Program · When tests PASS, submit to SCO for publication § RCP Program: Install target OS and SCT · collect system data · Enroll in RCP Program · Submit collected files to SCO for publication § By running the above tests you can ensure a smooth OSR 6 deployment! 14

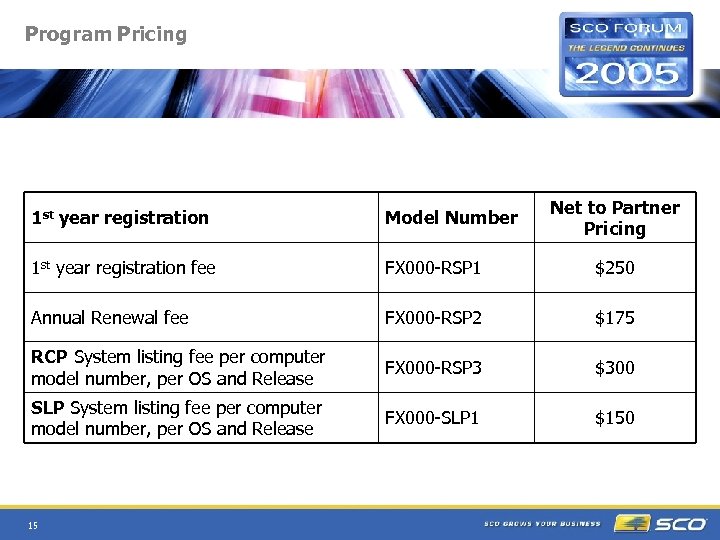

Program Pricing Net to Partner Pricing 1 st year registration Model Number 1 st Program Pricing Net to Partner Pricing 1 st year registration Model Number 1 st year registration fee FX 000 -RSP 1 $250 Annual Renewal fee FX 000 -RSP 2 $175 RCP System listing fee per computer model number, per OS and Release FX 000 -RSP 3 $300 SLP System listing fee per computer model number, per OS and Release FX 000 -SLP 1 $150 15

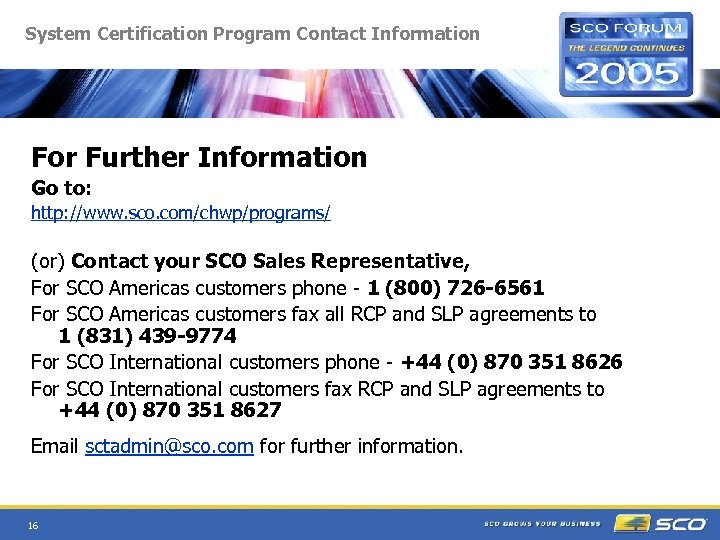

System Certification Program Contact Information For Further Information Go to: http: //www. sco. com/chwp/programs/ System Certification Program Contact Information For Further Information Go to: http: //www. sco. com/chwp/programs/ (or) Contact your SCO Sales Representative, For SCO Americas customers phone - 1 (800) 726 -6561 For SCO Americas customers fax all RCP and SLP agreements to 1 (831) 439 -9774 For SCO International customers phone - +44 (0) 870 351 8626 For SCO International customers fax RCP and SLP agreements to +44 (0) 870 351 8627 Email [email protected] com for further information. 16

Future Hardware Developments for Open. Server 6, and Unix. Ware Future Hardware Developments for Open. Server 6, and Unix. Ware

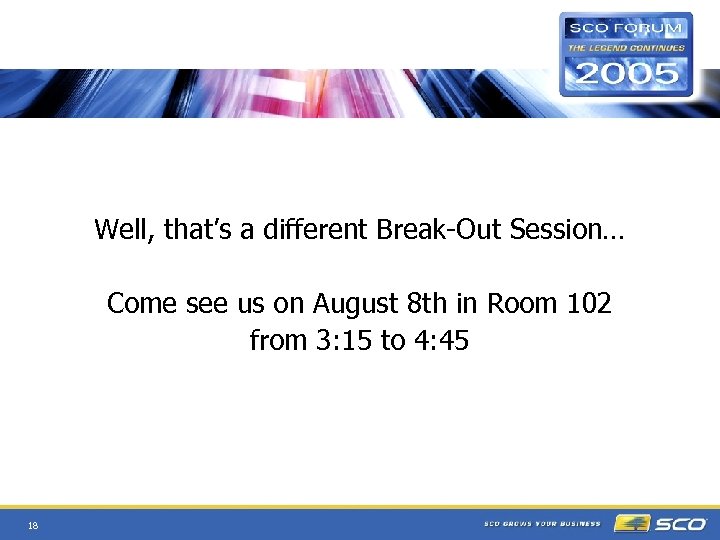

Well, that’s a different Break-Out Session… Come see us on August 8 th in Well, that’s a different Break-Out Session… Come see us on August 8 th in Room 102 from 3: 15 to 4: 45 18

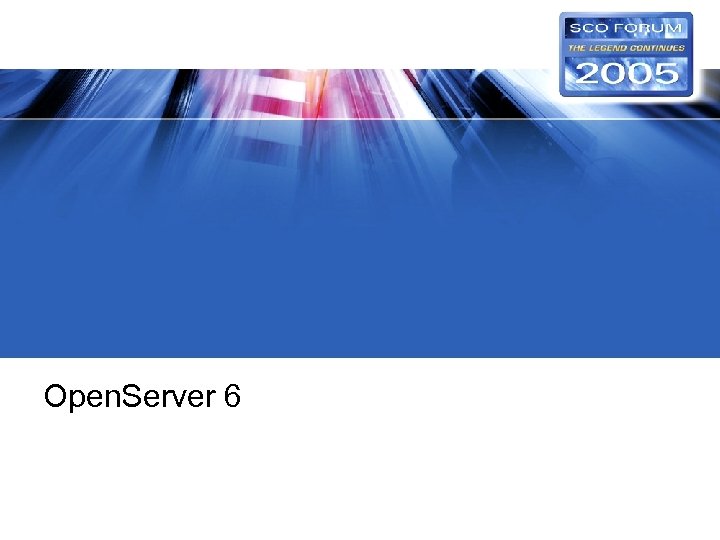

Open. Server 6 Open. Server 6

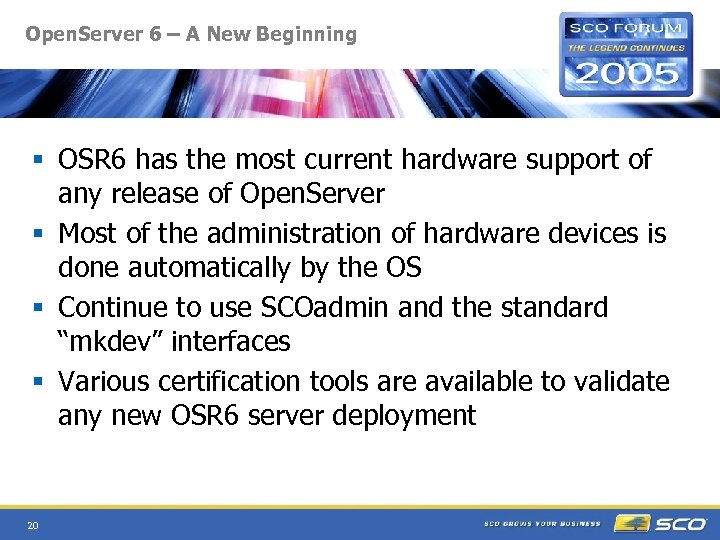

Open. Server 6 – A New Beginning § OSR 6 has the most current Open. Server 6 – A New Beginning § OSR 6 has the most current hardware support of any release of Open. Server § Most of the administration of hardware devices is done automatically by the OS § Continue to use SCOadmin and the standard “mkdev” interfaces § Various certification tools are available to validate any new OSR 6 server deployment 20

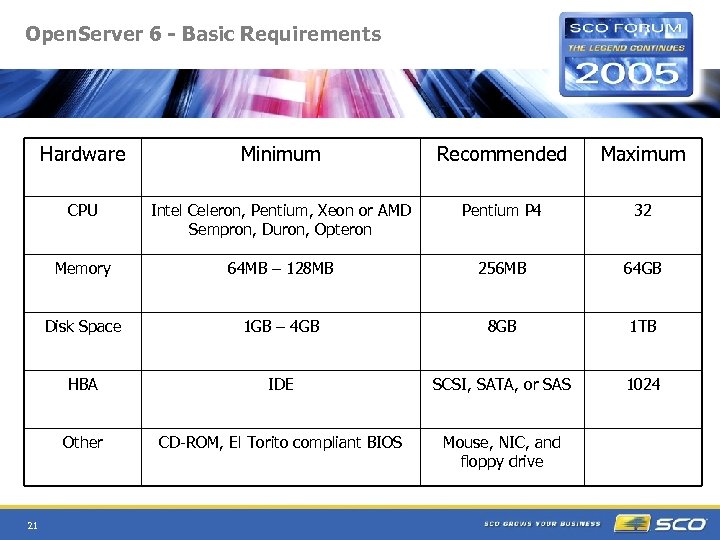

Open. Server 6 - Basic Requirements Hardware Recommended Maximum CPU Intel Celeron, Pentium, Xeon Open. Server 6 - Basic Requirements Hardware Recommended Maximum CPU Intel Celeron, Pentium, Xeon or AMD Sempron, Duron, Opteron Pentium P 4 32 Memory 64 MB – 128 MB 256 MB 64 GB Disk Space 1 GB – 4 GB 8 GB 1 TB HBA IDE SCSI, SATA, or SAS 1024 Other 21 Minimum CD-ROM, El Torito compliant BIOS Mouse, NIC, and floppy drive

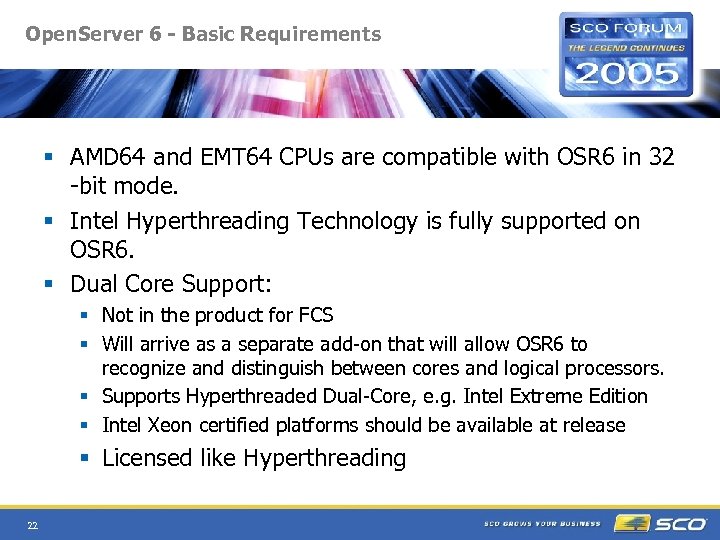

Open. Server 6 - Basic Requirements § AMD 64 and EMT 64 CPUs are Open. Server 6 - Basic Requirements § AMD 64 and EMT 64 CPUs are compatible with OSR 6 in 32 -bit mode. § Intel Hyperthreading Technology is fully supported on OSR 6. § Dual Core Support: § Not in the product for FCS § Will arrive as a separate add-on that will allow OSR 6 to recognize and distinguish between cores and logical processors. § Supports Hyperthreaded Dual-Core, e. g. Intel Extreme Edition § Intel Xeon certified platforms should be available at release § Licensed like Hyperthreading 22

Open. Server 6 - Basic Requirements § IDE § Promise Fasttrak and Ultra TX Open. Server 6 - Basic Requirements § IDE § Promise Fasttrak and Ultra TX 2 § All Intel ICH based controllers § PCI IDE Controller Specification Revision 1. 0 § SATA § Advanced Host Controller Interface (AHCI) § Found on ICH 6 M/R chipsets § Supports SATA II features such as NCQ and Hot-Plug § Whitebox chipsets plan AHCI support, e. g. Si. S, Via, etc. § SAS § HP SAS has been certified. § Adaptec and LSI SAS support due in the Fall/Winter timeframe. 23

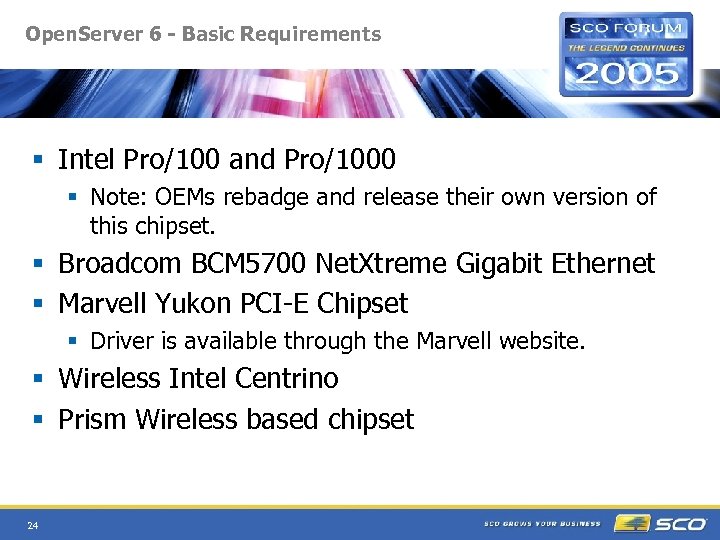

Open. Server 6 - Basic Requirements § Intel Pro/100 and Pro/1000 § Note: OEMs Open. Server 6 - Basic Requirements § Intel Pro/100 and Pro/1000 § Note: OEMs rebadge and release their own version of this chipset. § Broadcom BCM 5700 Net. Xtreme Gigabit Ethernet § Marvell Yukon PCI-E Chipset § Driver is available through the Marvell website. § Wireless Intel Centrino § Prism Wireless based chipset 24

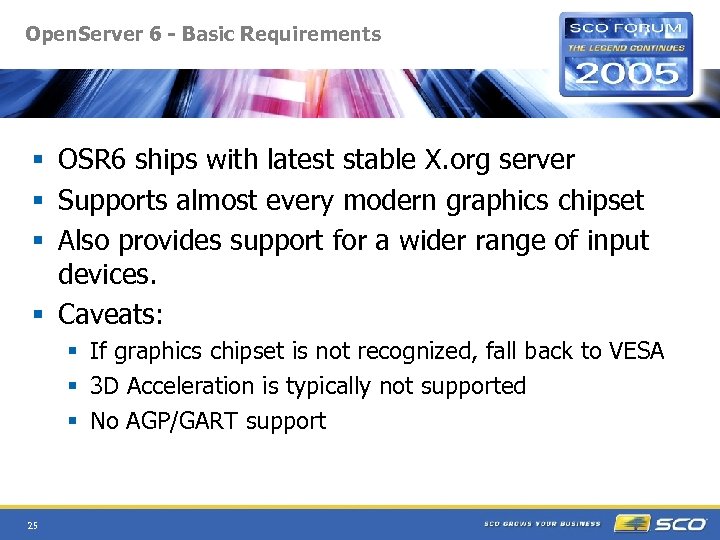

Open. Server 6 - Basic Requirements § OSR 6 ships with latest stable X. Open. Server 6 - Basic Requirements § OSR 6 ships with latest stable X. org server § Supports almost every modern graphics chipset § Also provides support for a wider range of input devices. § Caveats: § If graphics chipset is not recognized, fall back to VESA § 3 D Acceleration is typically not supported § No AGP/GART support 25

General Device Guide General Device Guide

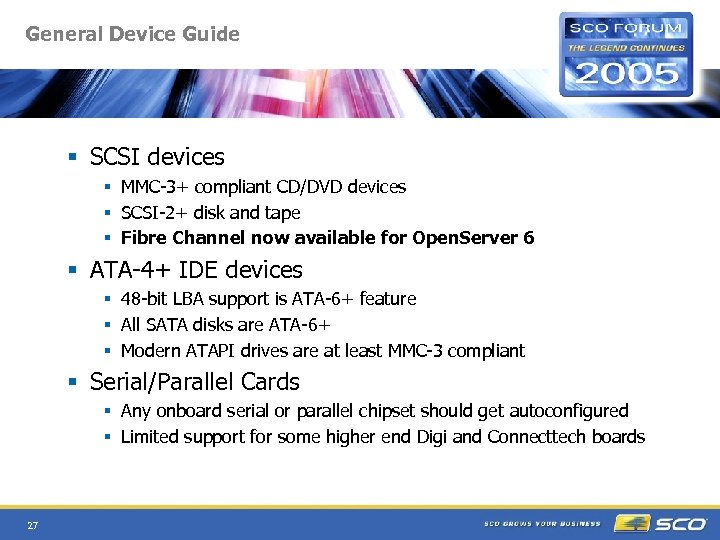

General Device Guide § SCSI devices § MMC-3+ compliant CD/DVD devices § SCSI-2+ disk General Device Guide § SCSI devices § MMC-3+ compliant CD/DVD devices § SCSI-2+ disk and tape § Fibre Channel now available for Open. Server 6 § ATA-4+ IDE devices § 48 -bit LBA support is ATA-6+ feature § All SATA disks are ATA-6+ § Modern ATAPI drives are at least MMC-3 compliant § Serial/Parallel Cards § Any onboard serial or parallel chipset should get autoconfigured § Limited support for some higher end Digi and Connecttech boards 27

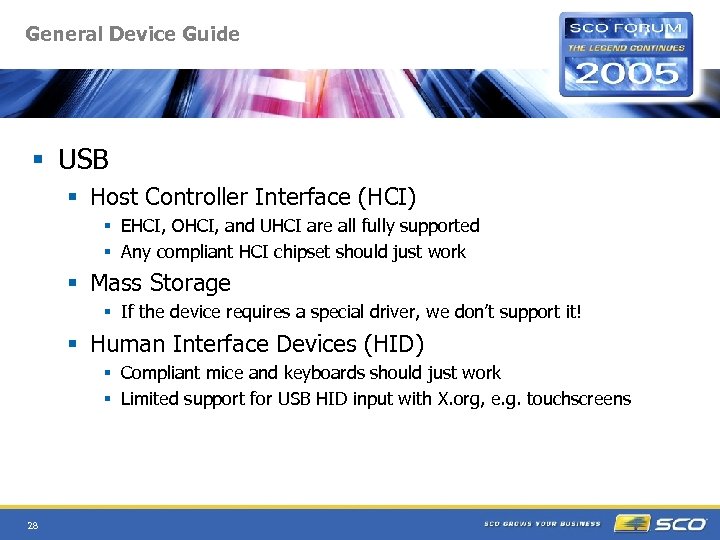

General Device Guide § USB § Host Controller Interface (HCI) § EHCI, OHCI, and General Device Guide § USB § Host Controller Interface (HCI) § EHCI, OHCI, and UHCI are all fully supported § Any compliant HCI chipset should just work § Mass Storage § If the device requires a special driver, we don’t support it! § Human Interface Devices (HID) § Compliant mice and keyboards should just work § Limited support for USB HID input with X. org, e. g. touchscreens 28

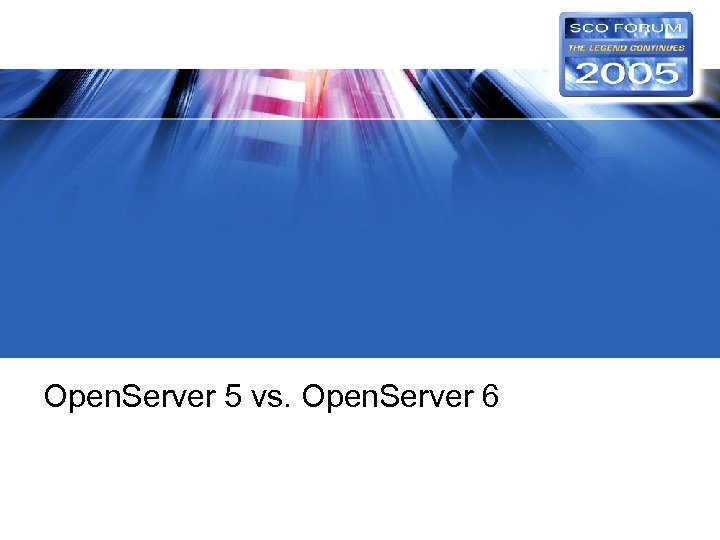

Open. Server 5 vs. Open. Server 6 Open. Server 5 vs. Open. Server 6

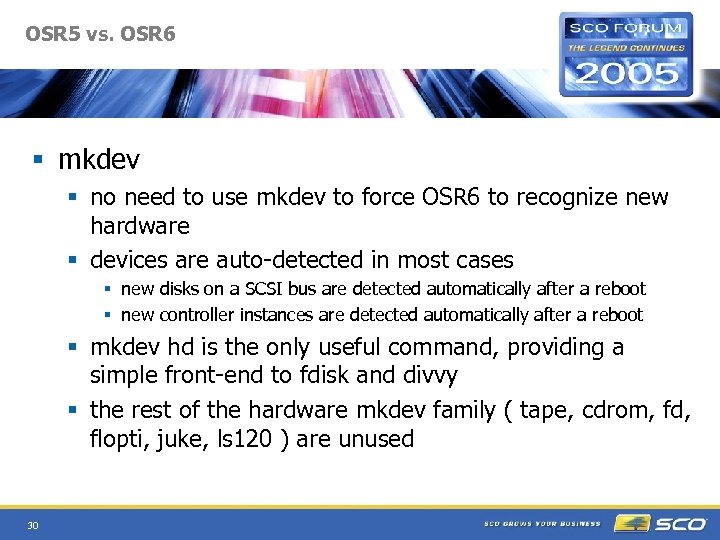

OSR 5 vs. OSR 6 § mkdev § no need to use mkdev to OSR 5 vs. OSR 6 § mkdev § no need to use mkdev to force OSR 6 to recognize new hardware § devices are auto-detected in most cases § new disks on a SCSI bus are detected automatically after a reboot § new controller instances are detected automatically after a reboot § mkdev hd is the only useful command, providing a simple front-end to fdisk and divvy § the rest of the hardware mkdev family ( tape, cdrom, fd, flopti, juke, ls 120 ) are unused 30

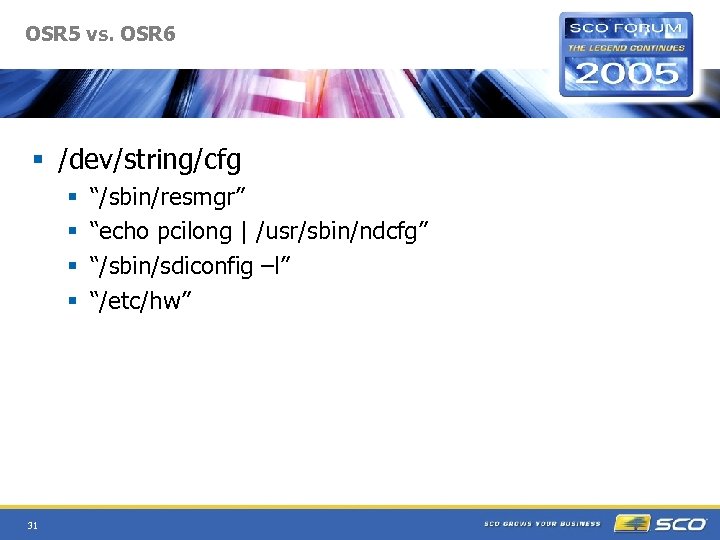

OSR 5 vs. OSR 6 § /dev/string/cfg § § 31 “/sbin/resmgr” “echo pcilong | OSR 5 vs. OSR 6 § /dev/string/cfg § § 31 “/sbin/resmgr” “echo pcilong | /usr/sbin/ndcfg” “/sbin/sdiconfig –l” “/etc/hw”

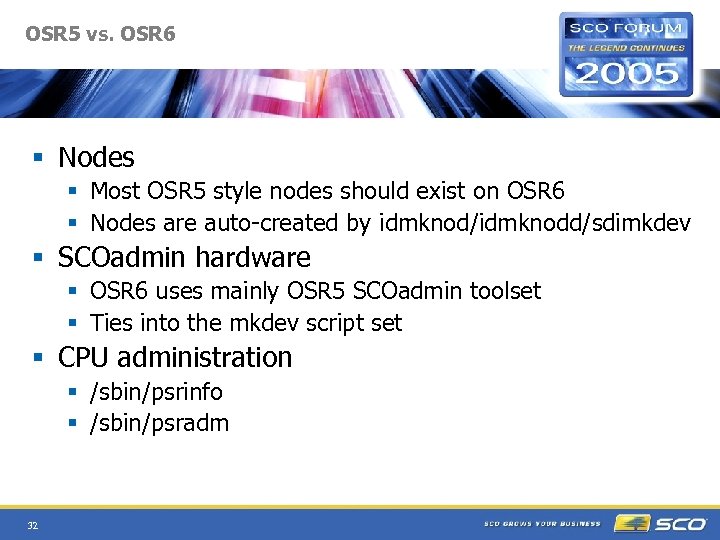

OSR 5 vs. OSR 6 § Nodes § Most OSR 5 style nodes should OSR 5 vs. OSR 6 § Nodes § Most OSR 5 style nodes should exist on OSR 6 § Nodes are auto-created by idmknod/idmknodd/sdimkdev § SCOadmin hardware § OSR 6 uses mainly OSR 5 SCOadmin toolset § Ties into the mkdev script set § CPU administration § /sbin/psrinfo § /sbin/psradm 32

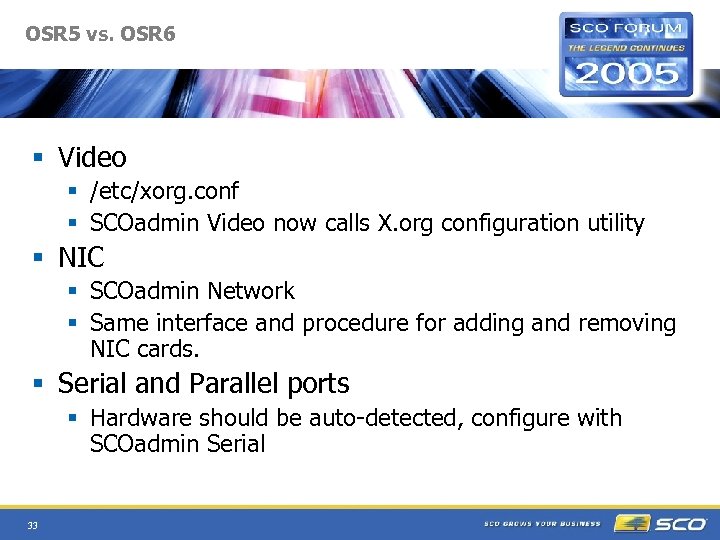

OSR 5 vs. OSR 6 § Video § /etc/xorg. conf § SCOadmin Video now OSR 5 vs. OSR 6 § Video § /etc/xorg. conf § SCOadmin Video now calls X. org configuration utility § NIC § SCOadmin Network § Same interface and procedure for adding and removing NIC cards. § Serial and Parallel ports § Hardware should be auto-detected, configure with SCOadmin Serial 33

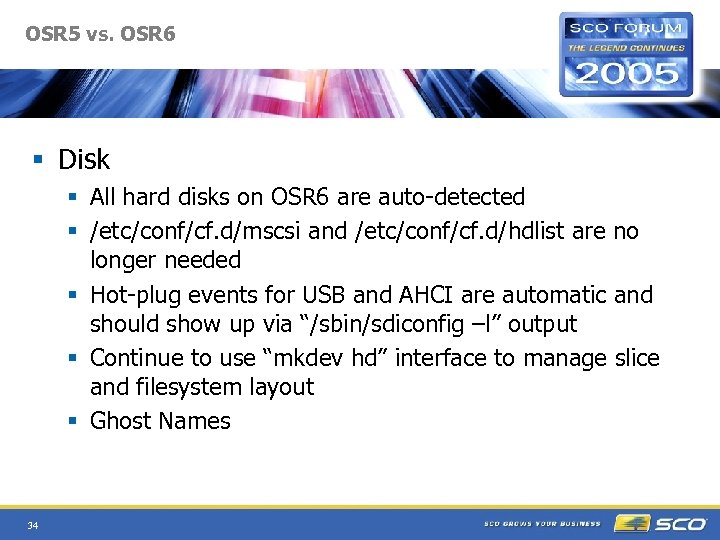

OSR 5 vs. OSR 6 § Disk § All hard disks on OSR 6 OSR 5 vs. OSR 6 § Disk § All hard disks on OSR 6 are auto-detected § /etc/conf/cf. d/mscsi and /etc/conf/cf. d/hdlist are no longer needed § Hot-plug events for USB and AHCI are automatic and should show up via “/sbin/sdiconfig –l” output § Continue to use “mkdev hd” interface to manage slice and filesystem layout § Ghost Names 34

OSR 5 vs. OSR 6 § MPIO § § § 35 Something new for OSR 5 vs. OSR 6 § MPIO § § § 35 Something new for SCO Open. Server Multi-Path I/O Installed by default but disabled Use “mkdev mpio” to enable/disable Provides Redundancy

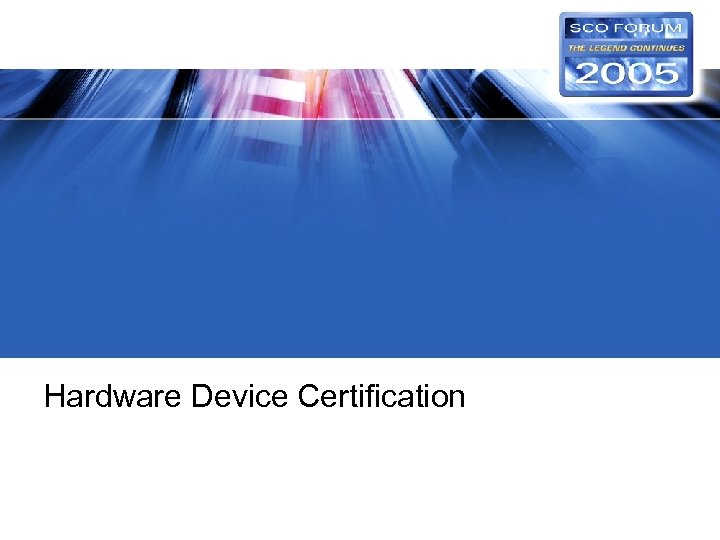

Hardware Device Certification Hardware Device Certification

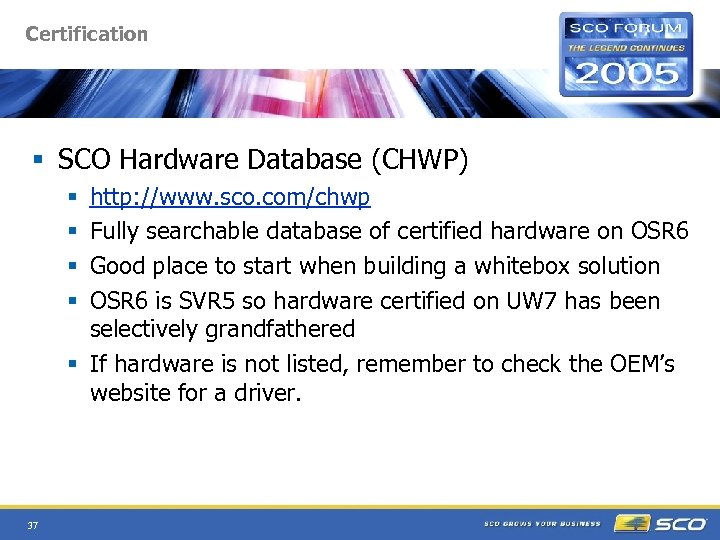

Certification § SCO Hardware Database (CHWP) http: //www. sco. com/chwp Fully searchable database of Certification § SCO Hardware Database (CHWP) http: //www. sco. com/chwp Fully searchable database of certified hardware on OSR 6 Good place to start when building a whitebox solution OSR 6 is SVR 5 so hardware certified on UW 7 has been selectively grandfathered § If hardware is not listed, remember to check the OEM’s website for a driver. § § 37

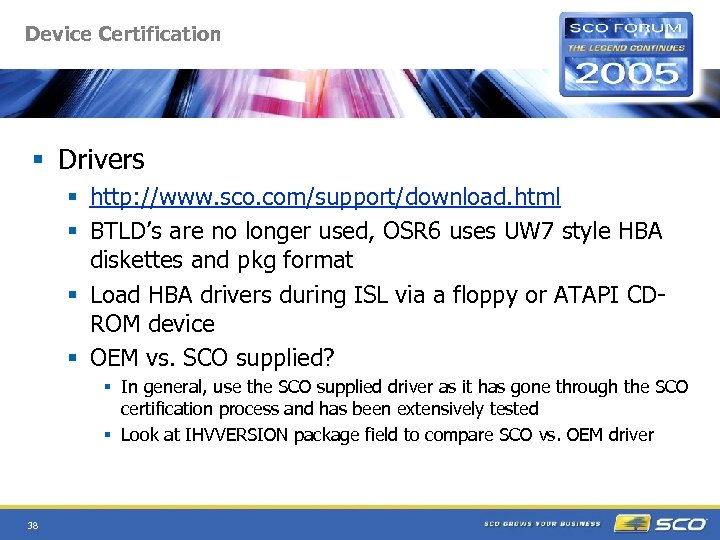

Device Certification § Drivers § http: //www. sco. com/support/download. html § BTLD’s are no Device Certification § Drivers § http: //www. sco. com/support/download. html § BTLD’s are no longer used, OSR 6 uses UW 7 style HBA diskettes and pkg format § Load HBA drivers during ISL via a floppy or ATAPI CDROM device § OEM vs. SCO supplied? § In general, use the SCO supplied driver as it has gone through the SCO certification process and has been extensively tested § Look at IHVVERSION package field to compare SCO vs. OEM driver 38

Your SCO Hardware Team Alex Sack Mike Drangula David Wood Mohammed Ali Evan Hunt Your SCO Hardware Team Alex Sack Mike Drangula David Wood Mohammed Ali Evan Hunt Richard Harry Jim Bonnet Robert Lipe Kerri Wallach Roger Vortman Kurt Hutchinson Simon Bordman Maxine Mc. Carthy Steve Williamson Dean Flamberg Nigel Simpson We appreciate your attendance. Paul Hurford session, at this Dean Zimmerman Doug Souders and your continued support of Paul Weaver. Products SCO Q&A Contact Information: Alexander Sack, [email protected] com – Senior Developer Paul Hurford, [email protected] com – Director, Hardware Strategies Mike Drangula, [email protected] com – Senior Developer

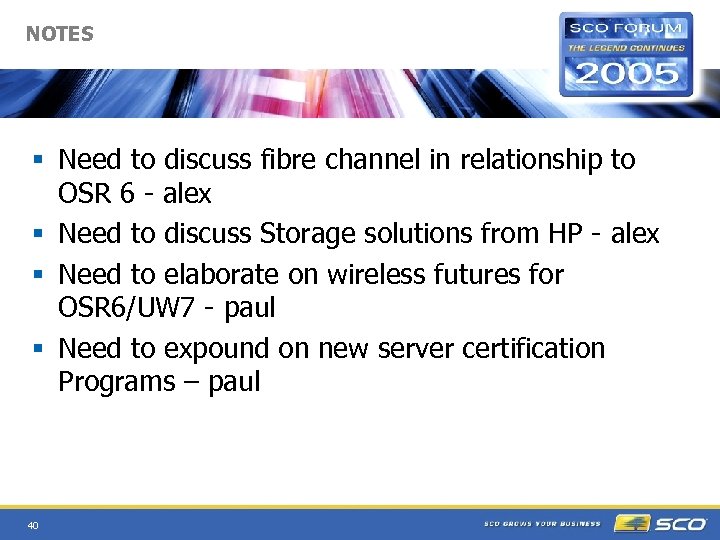

NOTES § Need to discuss fibre channel in relationship to OSR 6 - alex NOTES § Need to discuss fibre channel in relationship to OSR 6 - alex § Need to discuss Storage solutions from HP - alex § Need to elaborate on wireless futures for OSR 6/UW 7 - paul § Need to expound on new server certification Programs – paul 40
