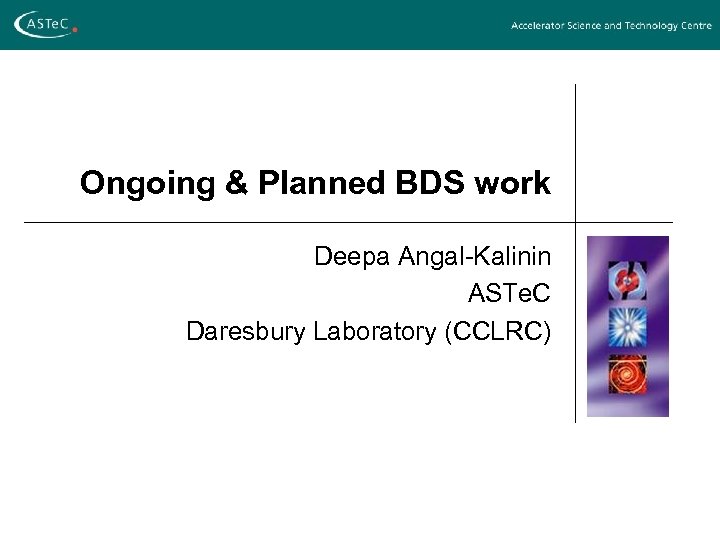

Ongoing Planned BDS work Deepa Angal-Kalinin ASTe

Ongoing & Planned BDS work Deepa Angal-Kalinin ASTe. C Daresbury Laboratory (CCLRC)

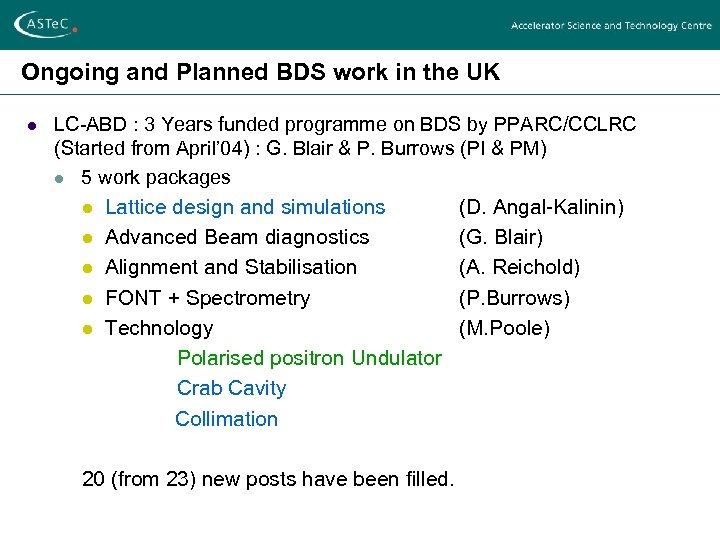

Ongoing and Planned BDS work in the UK l LC-ABD : 3 Years funded programme on BDS by PPARC/CCLRC (Started from April’ 04) : G. Blair & P. Burrows (PI & PM) l 5 work packages l l l Lattice design and simulations Advanced Beam diagnostics Alignment and Stabilisation FONT + Spectrometry Technology Polarised positron Undulator Crab Cavity Collimation 20 (from 23) new posts have been filled. (D. Angal-Kalinin) (G. Blair) (A. Reichold) (P. Burrows) (M. Poole)

Linear Collider Accelerator Beam Delivery (LC-ABD) Project : 14 UK Institutes

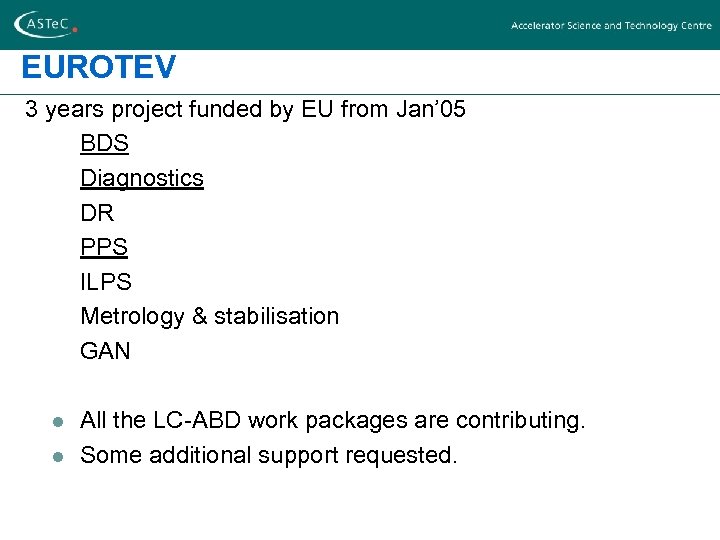

EUROTEV 3 years project funded by EU from Jan’ 05 BDS Diagnostics DR PPS ILPS Metrology & stabilisation GAN l l All the LC-ABD work packages are contributing. Some additional support requested.

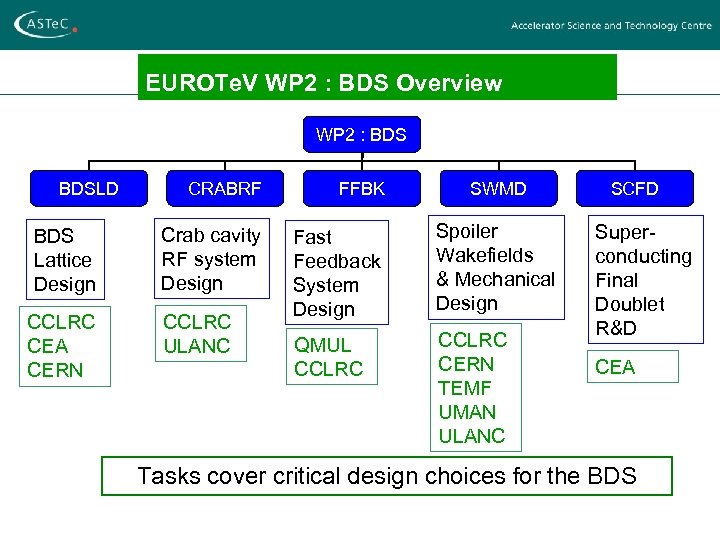

EUROTe. V WP 2 : BDS Overview WP 2 : BDSLD BDS Lattice Design CCLRC CEA CERN CRABRF FFBK Crab cavity RF system Design Fast Feedback System Design Spoiler Wakefields & Mechanical Design QMUL CCLRC CERN TEMF UMAN ULANC CCLRC ULANC SWMD SCFD Superconducting Final Doublet R&D CEA Tasks cover critical design choices for the BDS

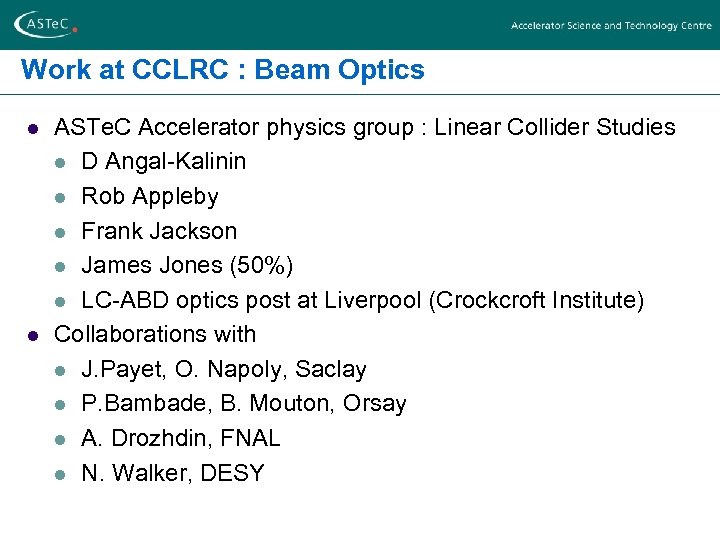

Work at CCLRC : Beam Optics l l ASTe. C Accelerator physics group : Linear Collider Studies l D Angal-Kalinin l Rob Appleby l Frank Jackson l James Jones (50%) l LC-ABD optics post at Liverpool (Crockcroft Institute) Collaborations with l J. Payet, O. Napoly, Saclay l P. Bambade, B. Mouton, Orsay l A. Drozhdin, FNAL l N. Walker, DESY

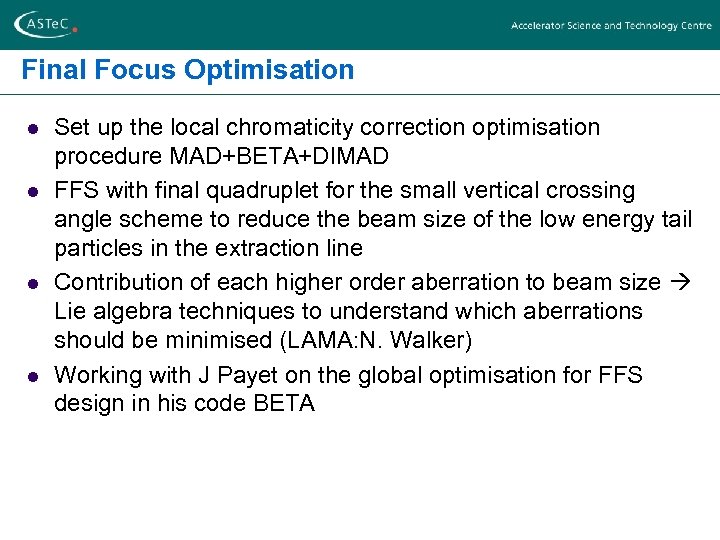

Final Focus Optimisation l l Set up the local chromaticity correction optimisation procedure MAD+BETA+DIMAD FFS with final quadruplet for the small vertical crossing angle scheme to reduce the beam size of the low energy tail particles in the extraction line Contribution of each higher order aberration to beam size Lie algebra techniques to understand which aberrations should be minimised (LAMA: N. Walker) Working with J Payet on the global optimisation for FFS design in his code BETA

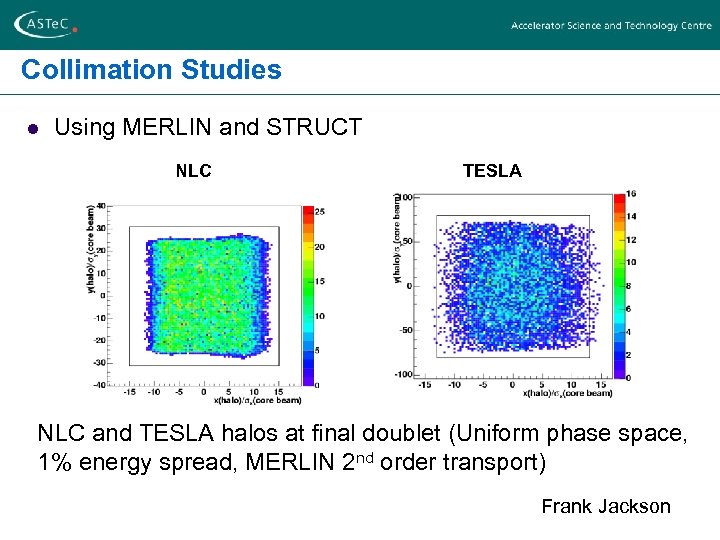

Collimation Studies l Using MERLIN and STRUCT NLC TESLA NLC and TESLA halos at final doublet (Uniform phase space, 1% energy spread, MERLIN 2 nd order transport) Frank Jackson

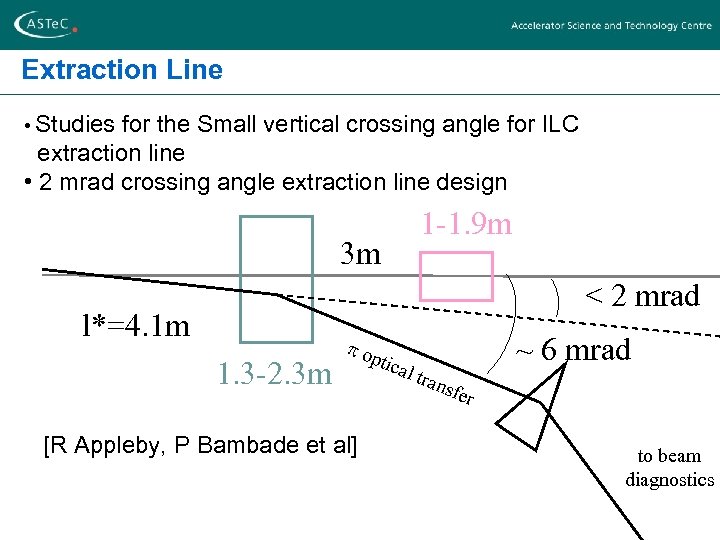

Extraction Line • Studies for the Small vertical crossing angle for ILC extraction line • 2 mrad crossing angle extraction line design 3 m 1 -1. 9 m < 2 mrad l*=4. 1 m 1. 3 -2. 3 m o [R Appleby, P Bambade et al] ptic a l tra ~ 6 mrad nsfe r to beam diagnostics

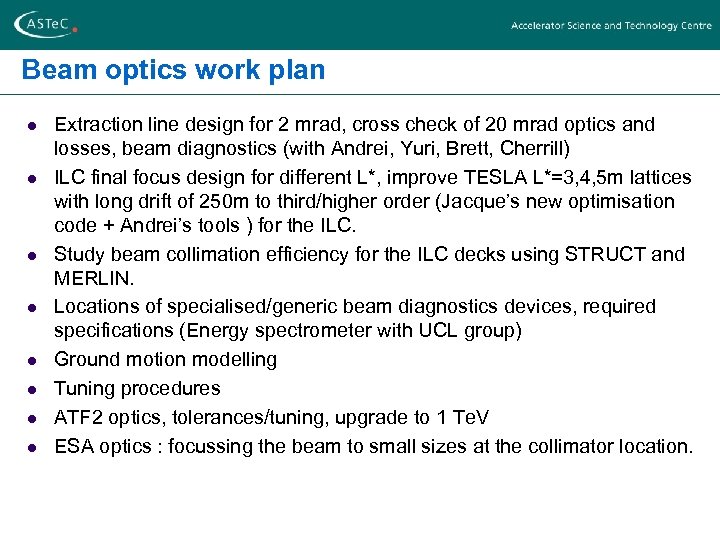

Beam optics work plan l l l l Extraction line design for 2 mrad, cross check of 20 mrad optics and losses, beam diagnostics (with Andrei, Yuri, Brett, Cherrill) ILC final focus design for different L*, improve TESLA L*=3, 4, 5 m lattices with long drift of 250 m to third/higher order (Jacque’s new optimisation code + Andrei’s tools ) for the ILC. Study beam collimation efficiency for the ILC decks using STRUCT and MERLIN. Locations of specialised/generic beam diagnostics devices, required specifications (Energy spectrometer with UCL group) Ground motion modelling Tuning procedures ATF 2 optics, tolerances/tuning, upgrade to 1 Te. V ESA optics : focussing the beam to small sizes at the collimator location.

Crab Cavity Team l l Graeme Burt Amos Dexter l Philippe Goudket Alexander Kalinin Carl Beard Mike Dykes (RF Group Leader) l Mike Poole (WP leader) l l l One more post will be recruited soon at Daresbury + one more post requested at Lancaster from EUROTe. V.

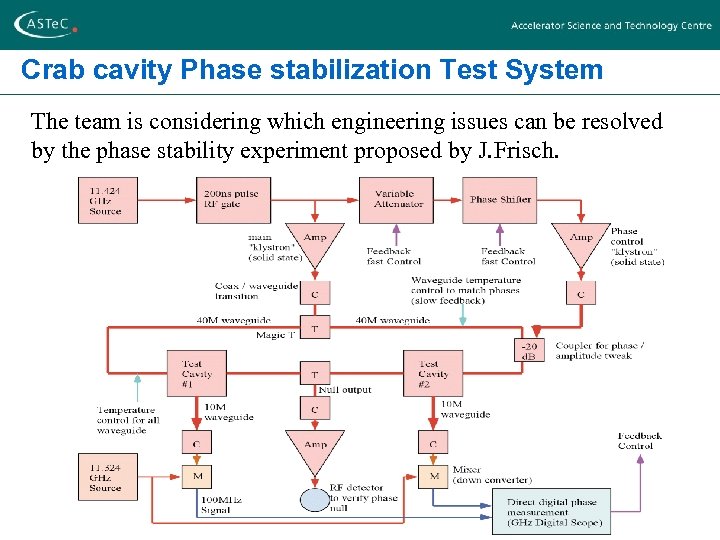

Crab cavity Phase stabilization Test System The team is considering which engineering issues can be resolved by the phase stability experiment proposed by J. Frisch.

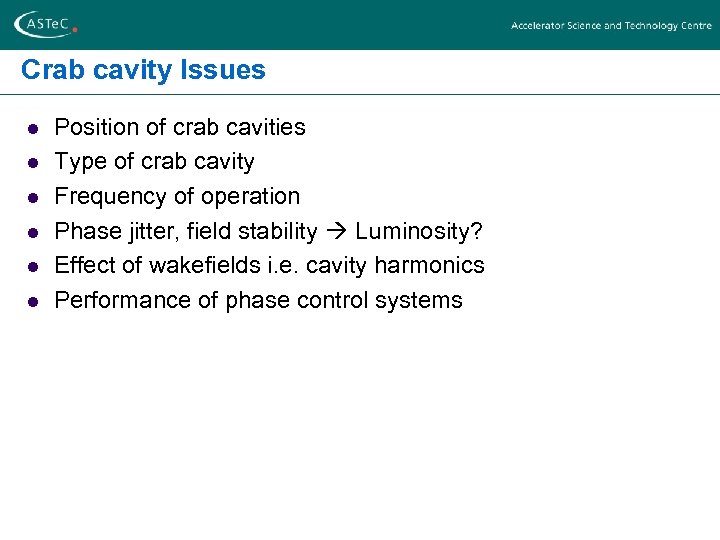

Crab cavity Issues l l l Position of crab cavities Type of crab cavity Frequency of operation Phase jitter, field stability Luminosity? Effect of wakefields i. e. cavity harmonics Performance of phase control systems

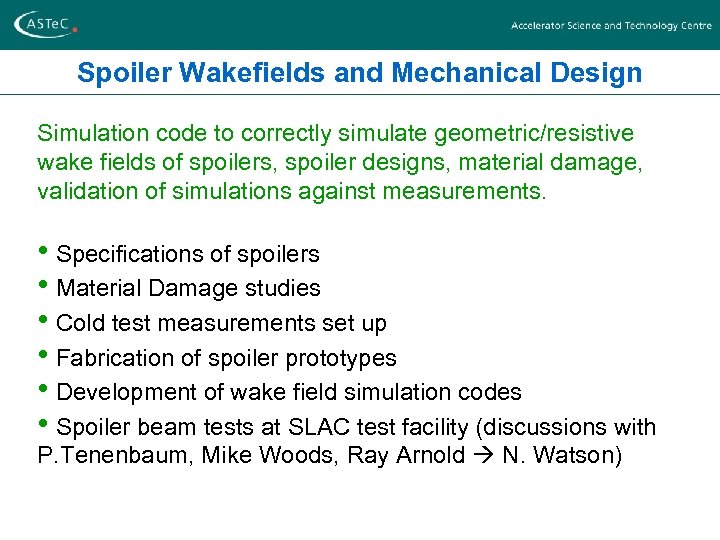

Spoiler Wakefields and Mechanical Design Simulation code to correctly simulate geometric/resistive wake fields of spoilers, spoiler designs, material damage, validation of simulations against measurements. • Specifications of spoilers • Material Damage studies • Cold test measurements set up • Fabrication of spoiler prototypes • Development of wake field simulation codes • Spoiler beam tests at SLAC test facility (discussions with P. Tenenbaum, Mike Woods, Ray Arnold N. Watson)

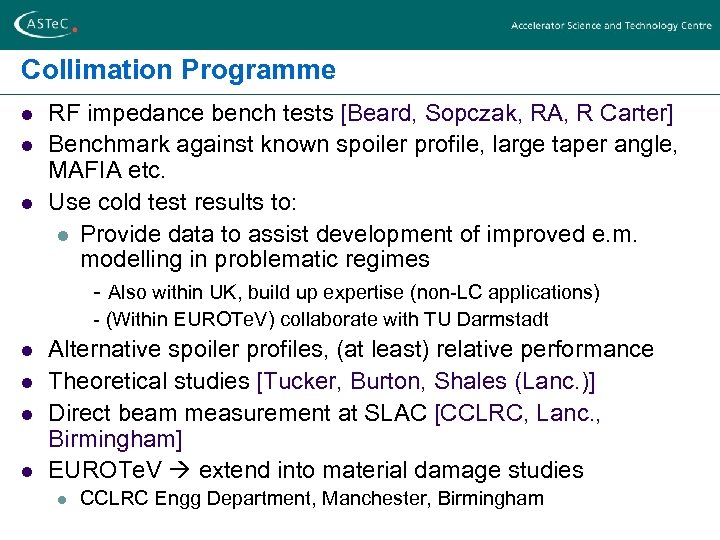

Collimation Programme l l l RF impedance bench tests [Beard, Sopczak, RA, R Carter] Benchmark against known spoiler profile, large taper angle, MAFIA etc. Use cold test results to: l Provide data to assist development of improved e. m. modelling in problematic regimes - Also within UK, build up expertise (non-LC applications) - (Within EUROTe. V) collaborate with TU Darmstadt l l Alternative spoiler profiles, (at least) relative performance Theoretical studies [Tucker, Burton, Shales (Lanc. )] Direct beam measurement at SLAC [CCLRC, Lanc. , Birmingham] EUROTe. V extend into material damage studies l CCLRC Engg Department, Manchester, Birmingham

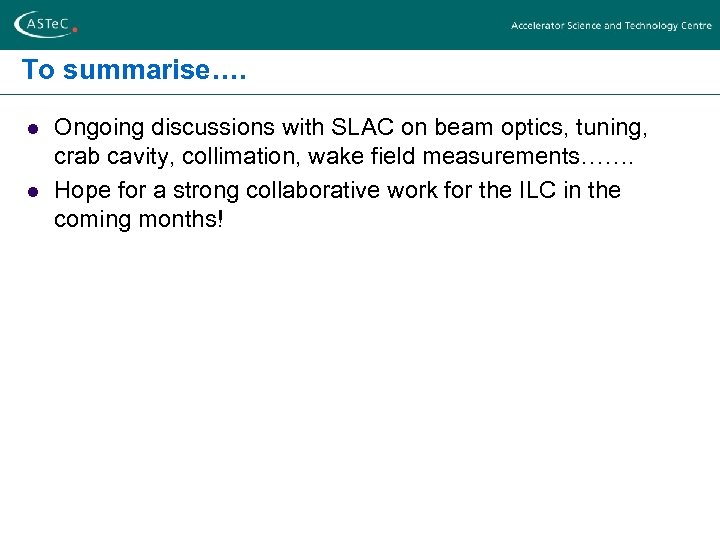

To summarise…. l l Ongoing discussions with SLAC on beam optics, tuning, crab cavity, collimation, wake field measurements……. Hope for a strong collaborative work for the ILC in the coming months!

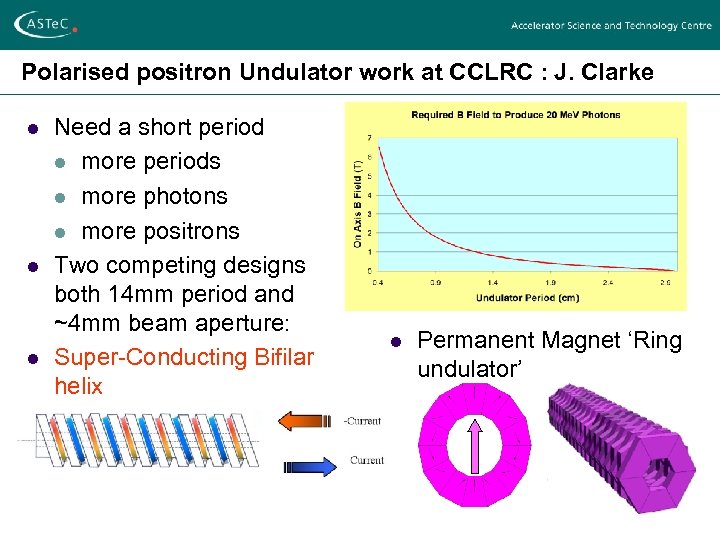

Polarised positron Undulator work at CCLRC : J. Clarke l l l Need a short period l more periods l more photons l more positrons Two competing designs both 14 mm period and ~4 mm beam aperture: Super-Conducting Bifilar helix l Permanent Magnet ‘Ring undulator’

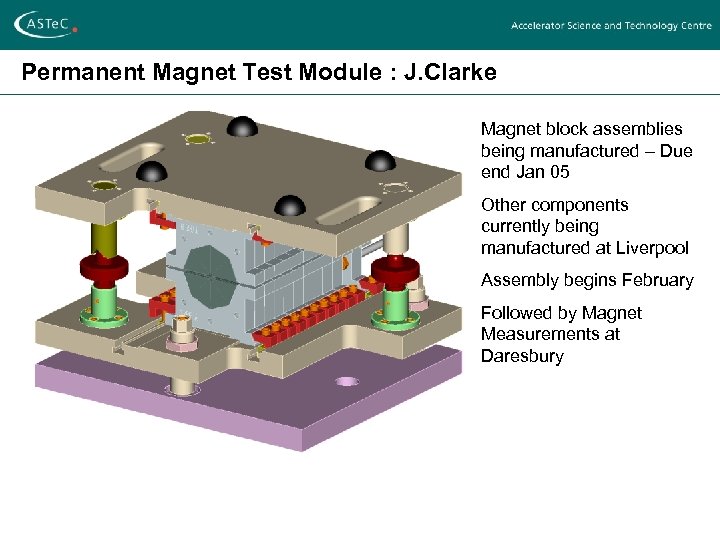

Permanent Magnet Test Module : J. Clarke Magnet block assemblies being manufactured – Due end Jan 05 Other components currently being manufactured at Liverpool Assembly begins February Followed by Magnet Measurements at Daresbury

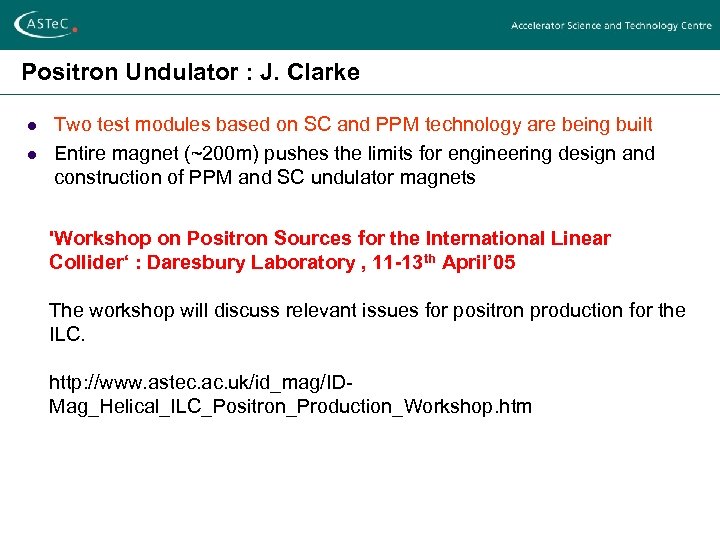

Positron Undulator : J. Clarke l l Two test modules based on SC and PPM technology are being built Entire magnet (~200 m) pushes the limits for engineering design and construction of PPM and SC undulator magnets 'Workshop on Positron Sources for the International Linear Collider‘ : Daresbury Laboratory , 11 -13 th April’ 05 The workshop will discuss relevant issues for positron production for the ILC. http: //www. astec. ac. uk/id_mag/IDMag_Helical_ILC_Positron_Production_Workshop. htm
