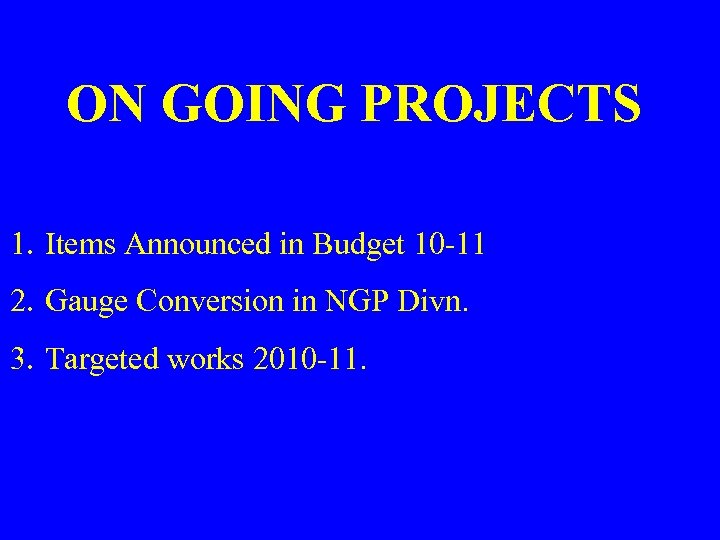

ON GOING PROJECTS 1. Items Announced in Budget 10 -11 2. Gauge Conversion in NGP Divn. 3. Targeted works 2010 -11.

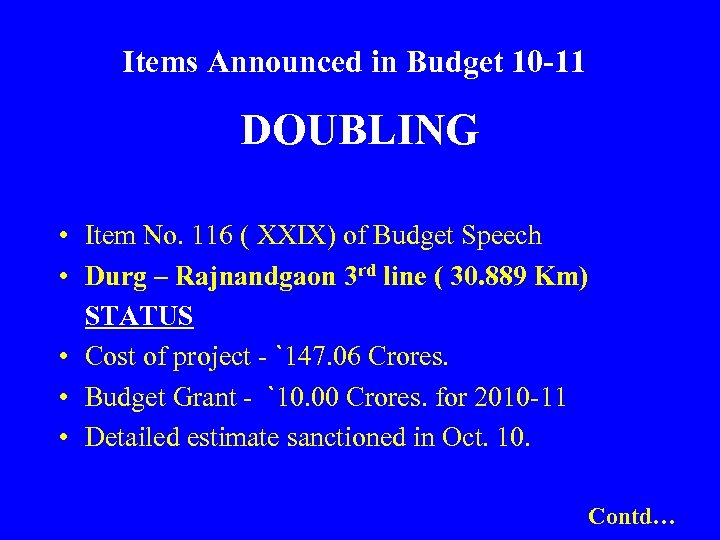

Items Announced in Budget 10 -11 DOUBLING • Item No. 116 ( XXIX) of Budget Speech • Durg – Rajnandgaon 3 rd line ( 30. 889 Km) STATUS • Cost of project - `147. 06 Crores. • Budget Grant - `10. 00 Crores. for 2010 -11 • Detailed estimate sanctioned in Oct. 10. Contd…

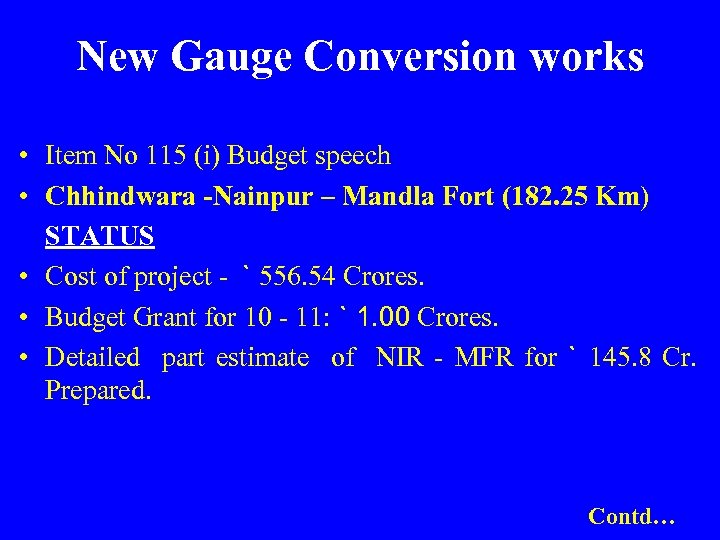

New Gauge Conversion works • Item No 115 (i) Budget speech • Chhindwara -Nainpur – Mandla Fort (182. 25 Km) STATUS • Cost of project - ` 556. 54 Crores. • Budget Grant for 10 - 11: ` 1. 00 Crores. • Detailed part estimate of NIR - MFR for ` 145. 8 Cr. Prepared. Contd…

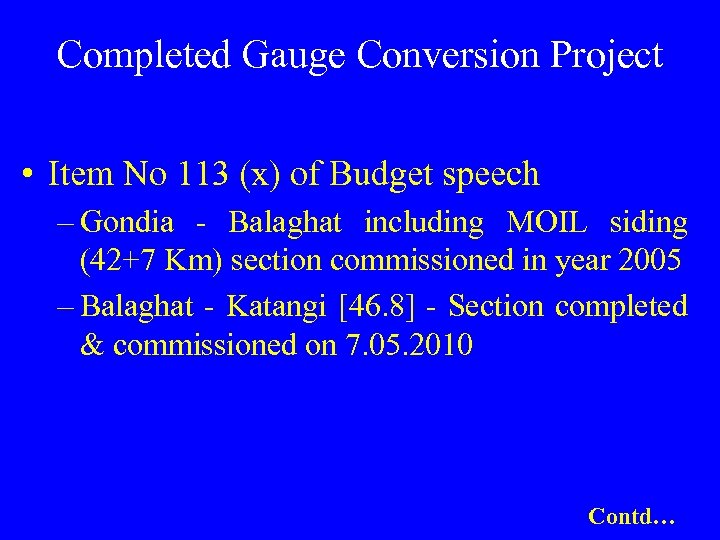

Completed Gauge Conversion Project • Item No 113 (x) of Budget speech – Gondia - Balaghat including MOIL siding (42+7 Km) section commissioned in year 2005 – Balaghat - Katangi [46. 8] - Section completed & commissioned on 7. 05. 2010 Contd…

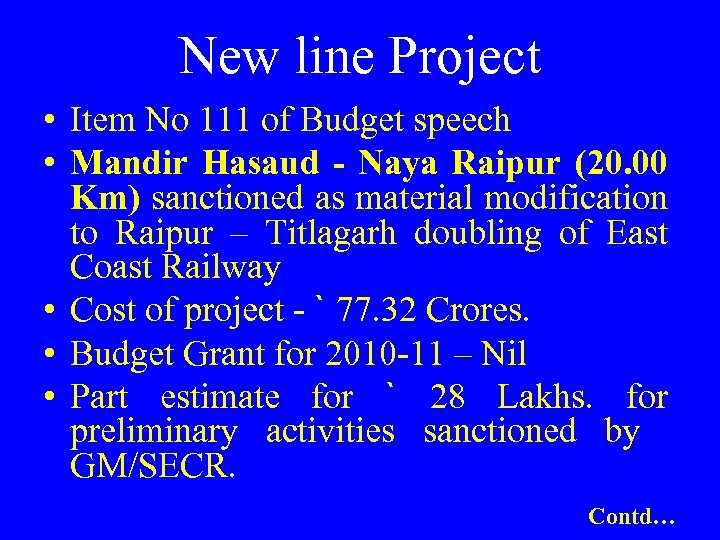

New line Project • Item No 111 of Budget speech • Mandir Hasaud - Naya Raipur (20. 00 Km) sanctioned as material modification to Raipur – Titlagarh doubling of East Coast Railway • Cost of project - ` 77. 32 Crores. • Budget Grant for 2010 -11 – Nil • Part estimate for ` 28 Lakhs. for preliminary activities sanctioned by GM/SECR. Contd…

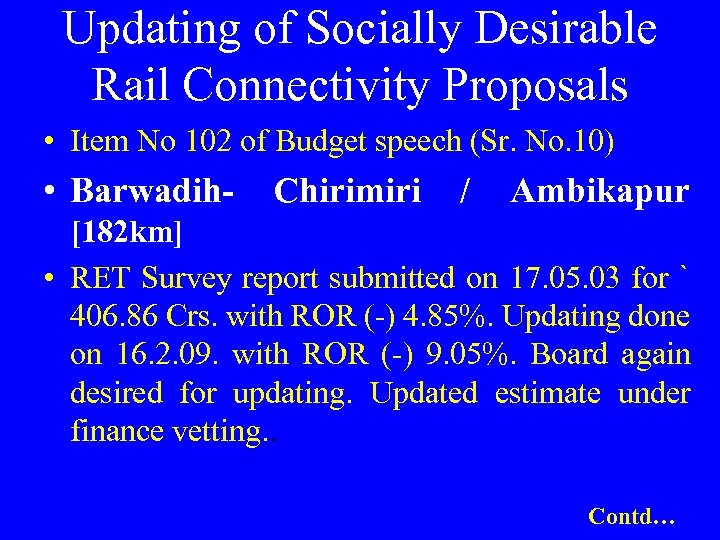

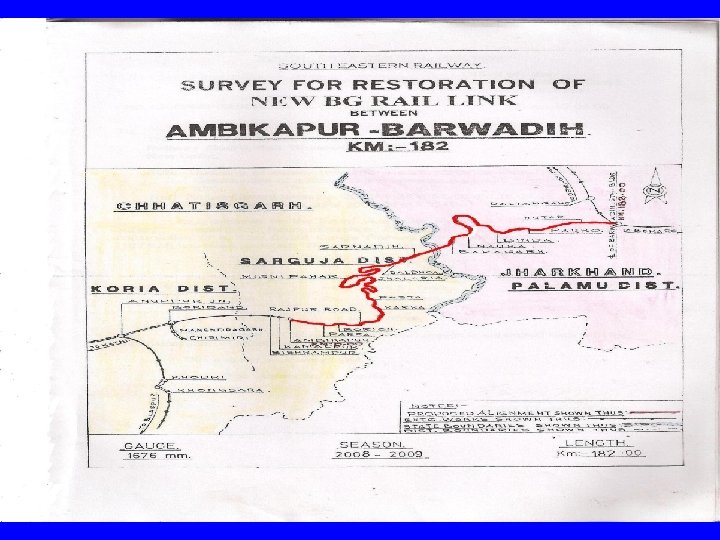

Updating of Socially Desirable Rail Connectivity Proposals • Item No 102 of Budget speech (Sr. No. 10) • Barwadih- Chirimiri / Ambikapur [182 km] • RET Survey report submitted on 17. 05. 03 for ` 406. 86 Crs. with ROR (-) 4. 85%. Updating done on 16. 2. 09. with ROR (-) 9. 05%. Board again desired for updating. Updated estimate under finance vetting. . Contd…

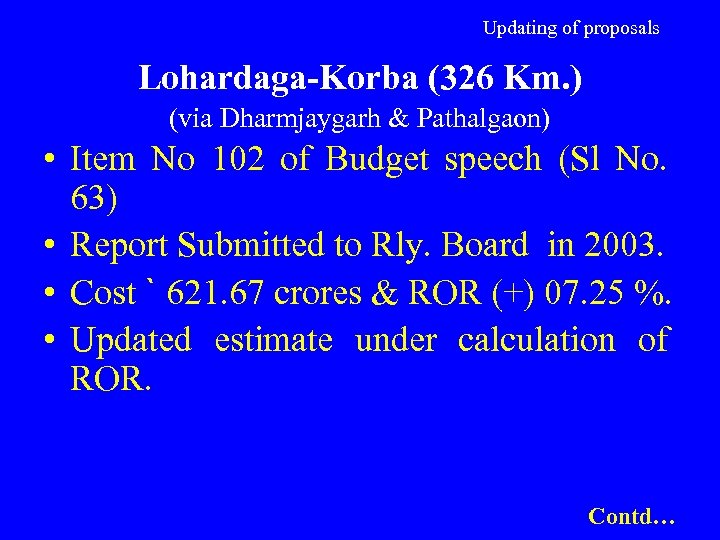

Updating of proposals Lohardaga-Korba (326 Km. ) (via Dharmjaygarh & Pathalgaon) • Item No 102 of Budget speech (Sl No. 63) • Report Submitted to Rly. Board in 2003. • Cost ` 621. 67 crores & ROR (+) 07. 25 %. • Updated estimate under calculation of ROR. Contd…

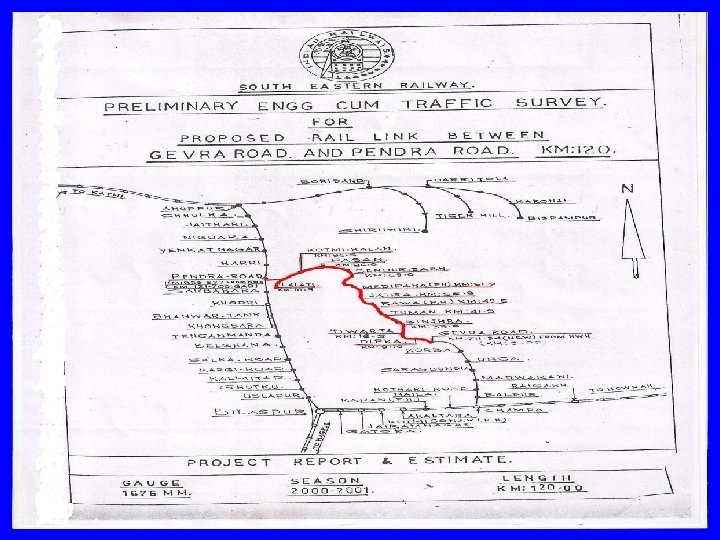

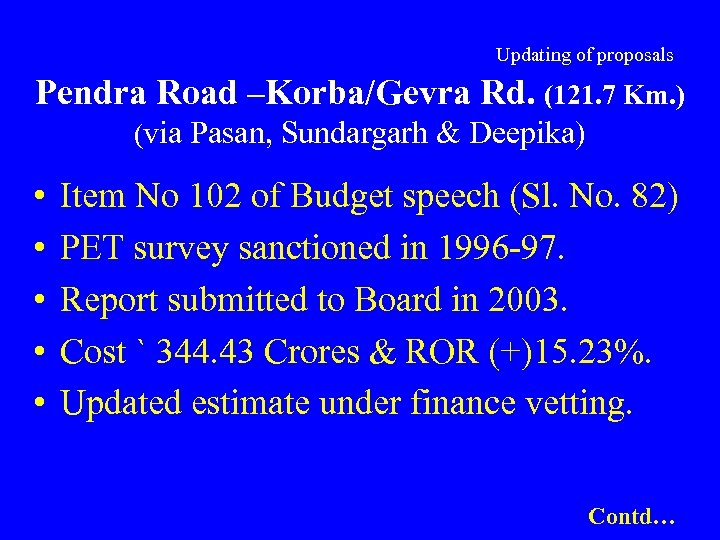

Updating of proposals Pendra Road –Korba/Gevra Rd. (121. 7 Km. ) (via Pasan, Sundargarh & Deepika) • • • Item No 102 of Budget speech (Sl. No. 82) PET survey sanctioned in 1996 -97. Report submitted to Board in 2003. Cost ` 344. 43 Crores & ROR (+)15. 23%. Updated estimate under finance vetting. Contd…

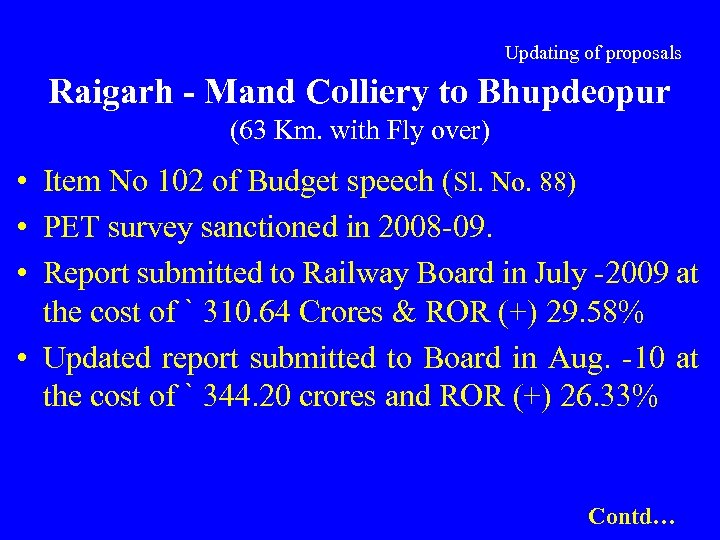

Updating of proposals Raigarh - Mand Colliery to Bhupdeopur (63 Km. with Fly over) • Item No 102 of Budget speech (Sl. No. 88) • PET survey sanctioned in 2008 -09. • Report submitted to Railway Board in July -2009 at the cost of ` 310. 64 Crores & ROR (+) 29. 58% • Updated report submitted to Board in Aug. -10 at the cost of ` 344. 20 crores and ROR (+) 26. 33% Contd…

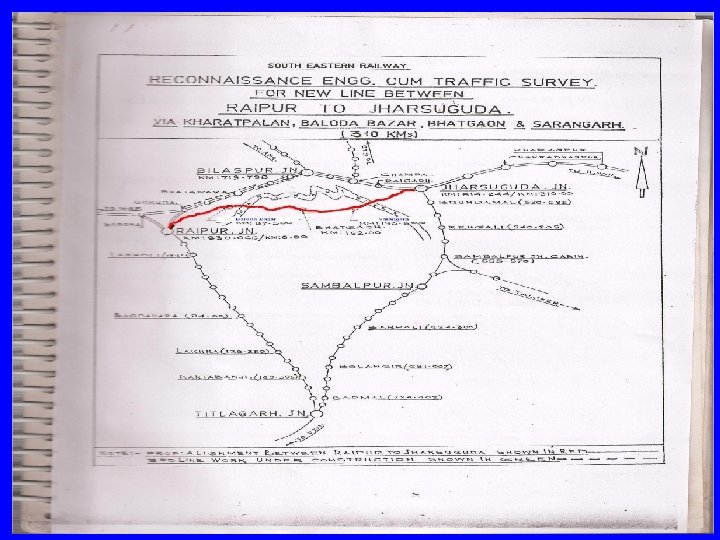

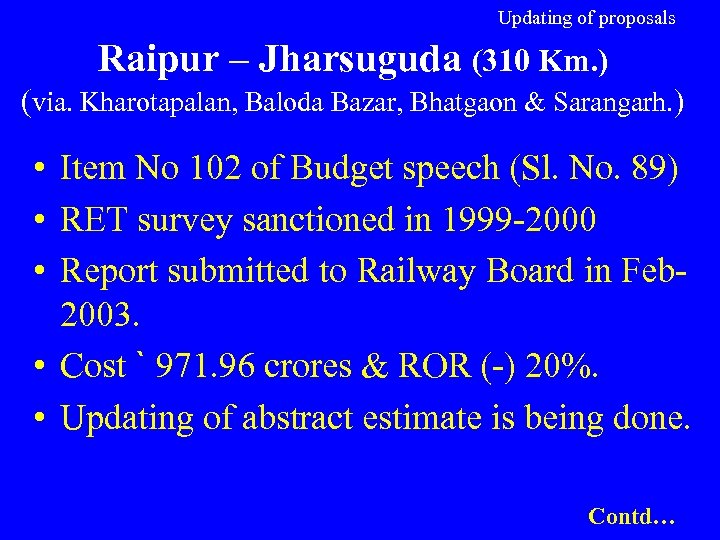

Updating of proposals Raipur – Jharsuguda (310 Km. ) (via. Kharotapalan, Baloda Bazar, Bhatgaon & Sarangarh. ) • Item No 102 of Budget speech (Sl. No. 89) • RET survey sanctioned in 1999 -2000 • Report submitted to Railway Board in Feb 2003. • Cost ` 971. 96 crores & ROR (-) 20%. • Updating of abstract estimate is being done. Contd…

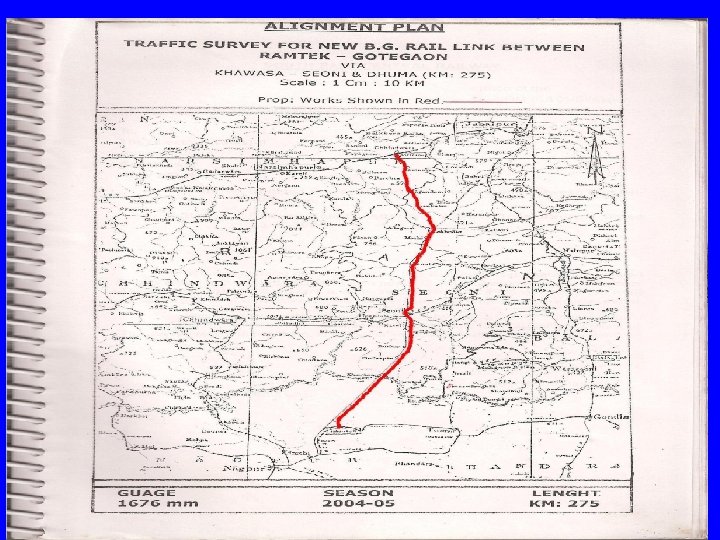

Updating of proposals Ramtek – Gotegaon (275 Km. ) (via Khawasa, Sioni & Dhuma) • Item No 102 of Budget speech (Sl. No. 92) • RET survey sanctioned in 1995. • Report submitted to Railway Board in April 1999. • Cost `. 528. 21 crores & ROR (-) 11. 50% • Updating in progress. Contd…

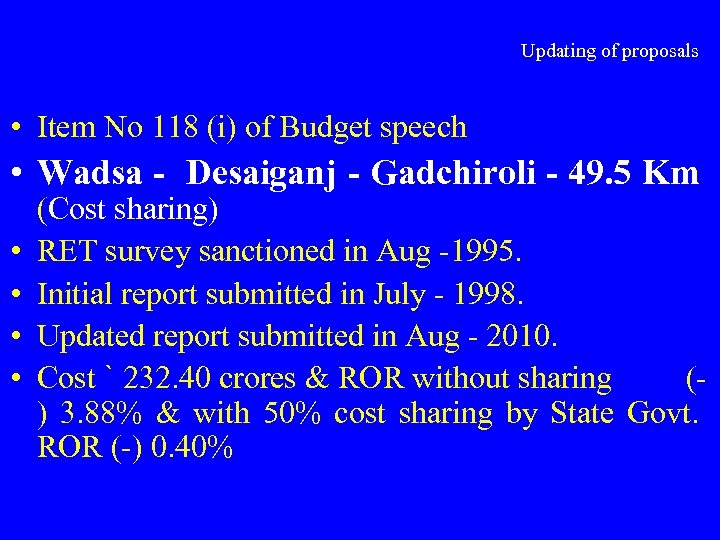

Updating of proposals • Item No 118 (i) of Budget speech • Wadsa - Desaiganj - Gadchiroli - 49. 5 Km • • (Cost sharing) RET survey sanctioned in Aug -1995. Initial report submitted in July - 1998. Updated report submitted in Aug - 2010. Cost ` 232. 40 crores & ROR without sharing () 3. 88% & with 50% cost sharing by State Govt. ROR (-) 0. 40%
Gauge conversion in NGP division

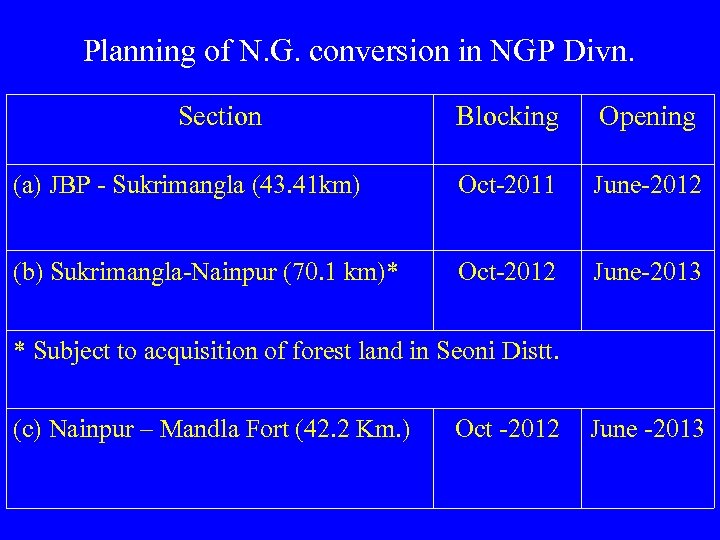

Planning of N. G. conversion in NGP Divn. Section Blocking Opening (a) JBP - Sukrimangla (43. 41 km) Oct-2011 June-2012 (b) Sukrimangla-Nainpur (70. 1 km)* Oct-2012 June-2013 * Subject to acquisition of forest land in Seoni Distt. (c) Nainpur – Mandla Fort (42. 2 Km. ) Oct -2012 June -2013

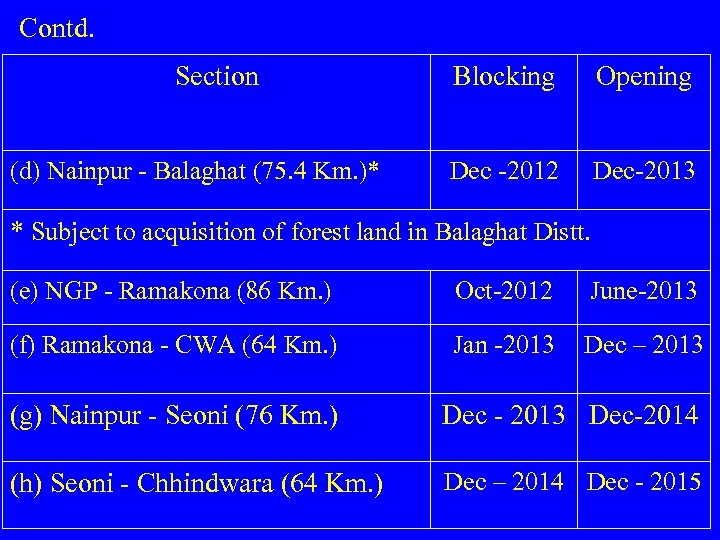

Contd. Section (d) Nainpur - Balaghat (75. 4 Km. )* Blocking Opening Dec -2012 Dec-2013 * Subject to acquisition of forest land in Balaghat Distt. (e) NGP - Ramakona (86 Km. ) Oct-2012 June-2013 (f) Ramakona - CWA (64 Km. ) Jan -2013 Dec – 2013 (g) Nainpur - Seoni (76 Km. ) Dec - 2013 Dec-2014 (h) Seoni - Chhindwara (64 Km. ) Dec – 2014 Dec - 2015

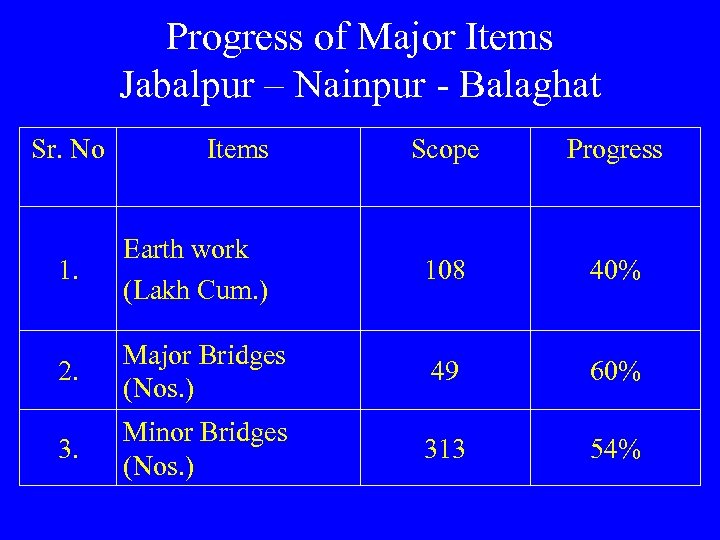

Progress of Major Items Jabalpur – Nainpur - Balaghat Sr. No Items Scope Progress 1. Earth work (Lakh Cum. ) 108 40% 2. Major Bridges (Nos. ) 49 60% 3. Minor Bridges (Nos. ) 313 54%

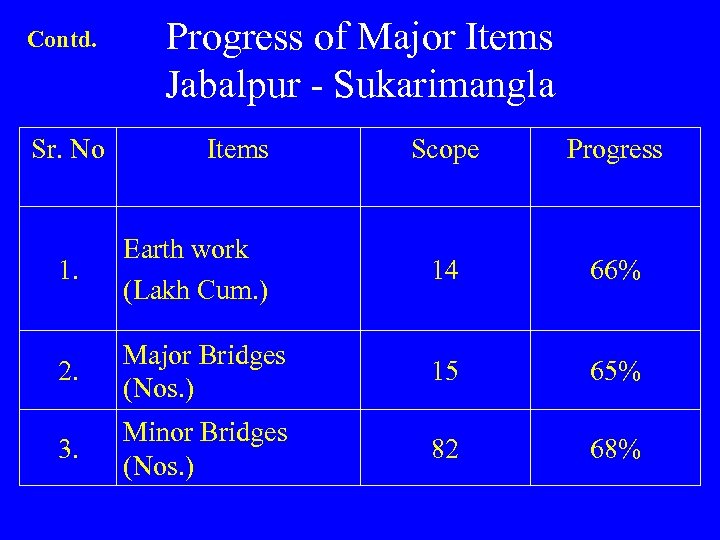

Contd. Sr. No Progress of Major Items Jabalpur - Sukarimangla Items Scope Progress 1. Earth work (Lakh Cum. ) 14 66% 2. Major Bridges (Nos. ) 15 65% 3. Minor Bridges (Nos. ) 82 68%

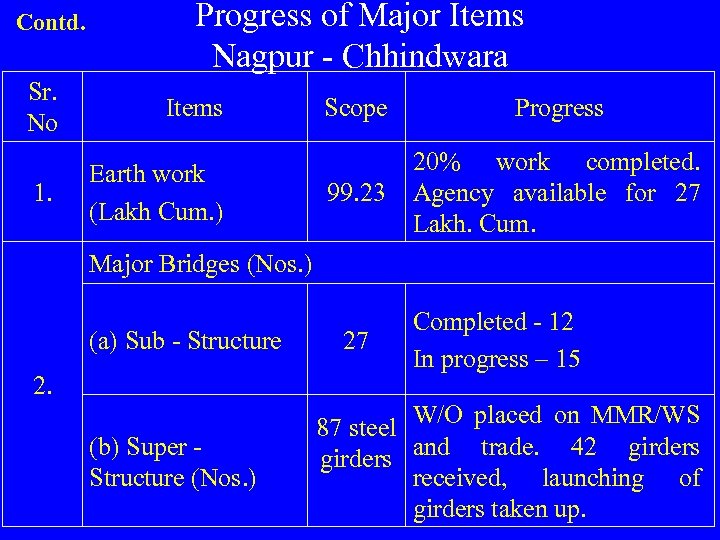

Contd. Progress of Major Items Nagpur - Chhindwara Sr. No Items 1. Earth work (Lakh Cum. ) Scope Progress 99. 23 20% work completed. Agency available for 27 Lakh. Cum. Major Bridges (Nos. ) (a) Sub - Structure 2. (b) Super Structure (Nos. ) 27 Completed - 12 In progress – 15 87 steel W/O placed on MMR/WS girders and trade. 42 girders received, launching of girders taken up.

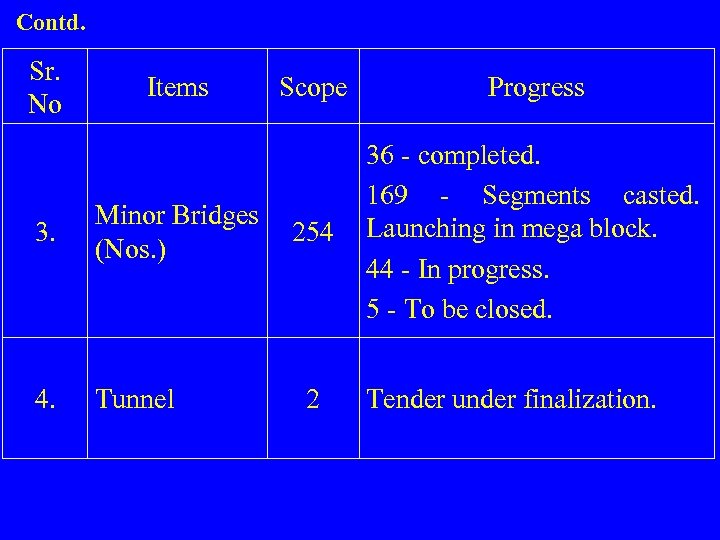

Contd. Sr. No Items 3. Minor Bridges (Nos. ) 4. Tunnel Scope Progress 254 36 - completed. 169 - Segments casted. Launching in mega block. 44 - In progress. 5 - To be closed. 2 Tender under finalization.

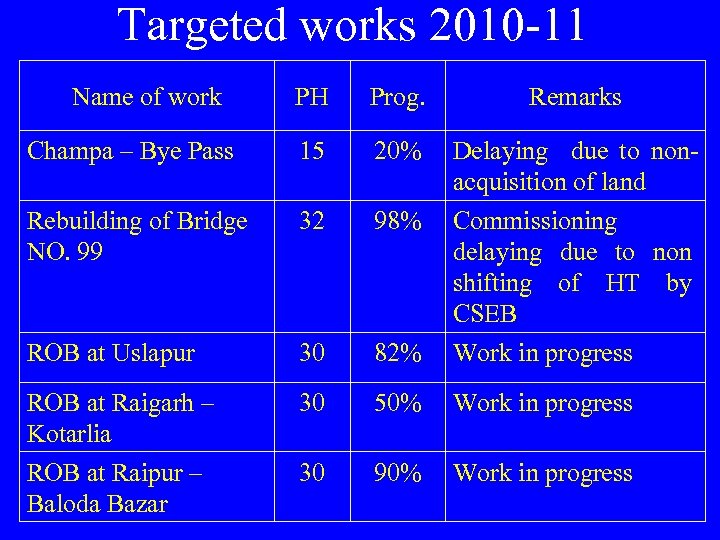

Targeted works 2010 -11 Name of work PH Prog. Remarks Champa – Bye Pass 15 20% Rebuilding of Bridge NO. 99 32 98% ROB at Uslapur 30 82% Delaying due to nonacquisition of land Commissioning delaying due to non shifting of HT by CSEB Work in progress ROB at Raigarh – Kotarlia ROB at Raipur – Baloda Bazar 30 50% Work in progress 30 90% Work in progress

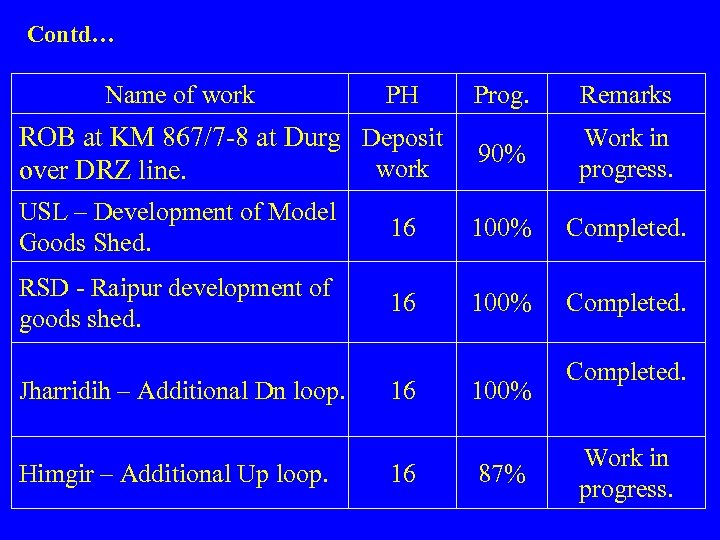

Contd… Name of work Prog. Remarks ROB at KM 867/7 -8 at Durg Deposit work over DRZ line. 90% Work in progress. USL – Development of Model Goods Shed. 16 100% Completed. RSD - Raipur development of goods shed. 16 100% Completed. Jharridih – Additional Dn loop. Himgir – Additional Up loop. PH 16 16 100% 87% Completed. Work in progress.

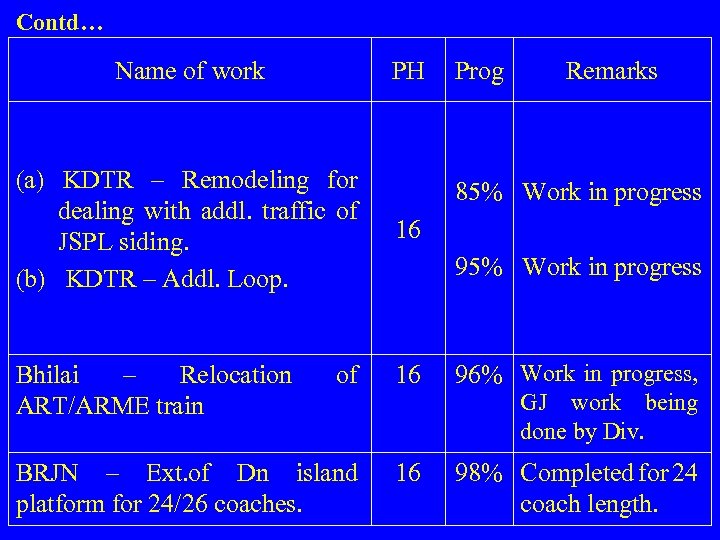

Contd… Name of work PH (a) KDTR – Remodeling for dealing with addl. traffic of JSPL siding. (b) KDTR – Addl. Loop. Prog Remarks 85% Work in progress 16 95% Work in progress of 16 96% Work in progress, BRJN – Ext. of Dn island platform for 24/26 coaches. 16 98% Completed for 24 coach length. Bhilai – Relocation ART/ARME train GJ work being done by Div.

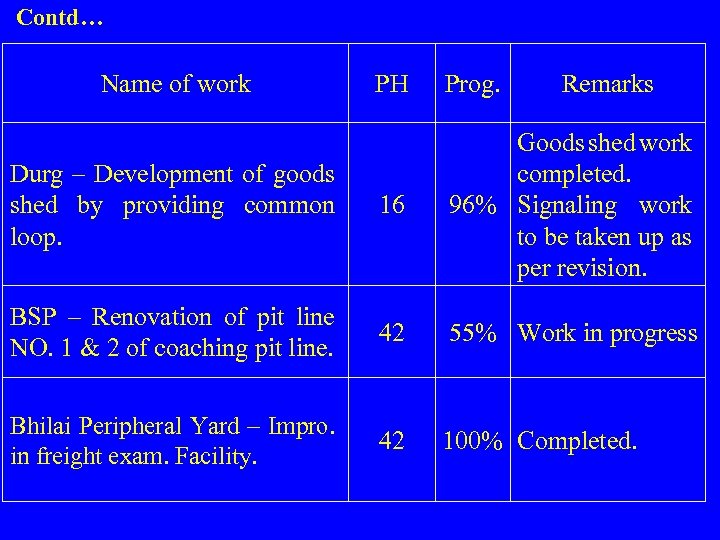

Contd… Name of work PH Prog. Remarks Durg – Development of goods shed by providing common loop. 16 Goods shed work completed. 96% Signaling work to be taken up as per revision. BSP – Renovation of pit line NO. 1 & 2 of coaching pit line. 42 55% Work in progress Bhilai Peripheral Yard – Impro. in freight exam. Facility. 42 100% Completed.

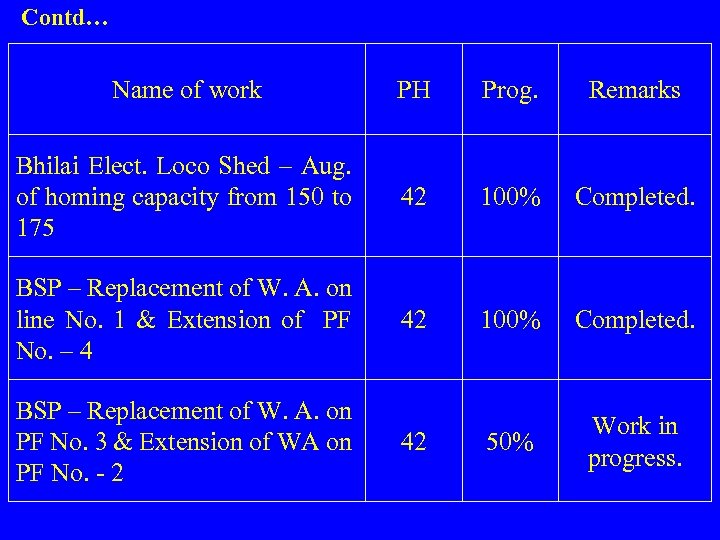

Contd… Name of work PH Prog. Remarks Bhilai Elect. Loco Shed – Aug. of homing capacity from 150 to 175 42 100% Completed. BSP – Replacement of W. A. on line No. 1 & Extension of PF No. – 4 42 100% Completed. 50% Work in progress. BSP – Replacement of W. A. on PF No. 3 & Extension of WA on PF No. - 2 42

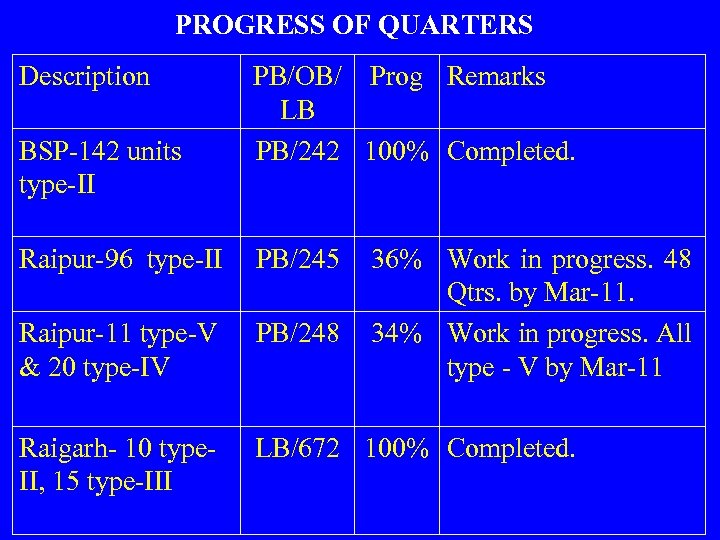

PROGRESS OF QUARTERS Description BSP-142 units type-II PB/OB/ Prog Remarks LB PB/242 100% Completed. Raipur-96 type-II PB/245 36% Work in progress. 48 Qtrs. by Mar-11. 34% Work in progress. All type - V by Mar-11 Raipur-11 type-V & 20 type-IV PB/248 Raigarh- 10 type. II, 15 type-III LB/672 100% Completed.

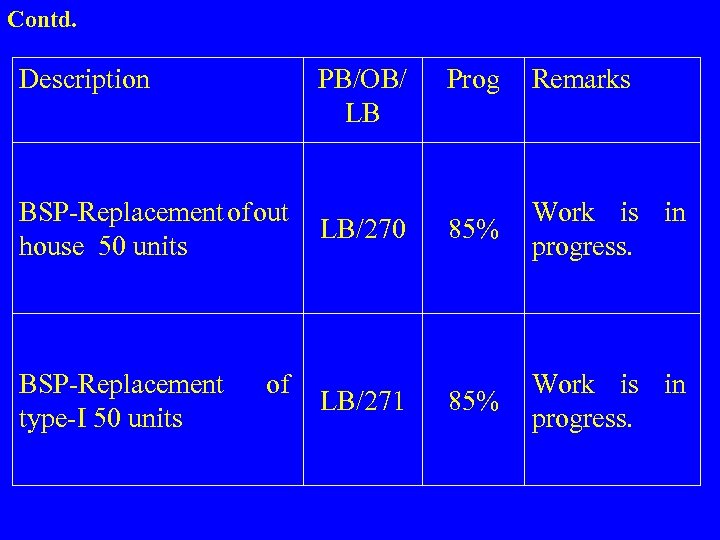

Contd. Description PB/OB/ LB BSP-Replacement of out house 50 units BSP-Replacement type-I 50 units of LB/270 LB/271 Prog Remarks 85% Work is in progress.
THANK YOU

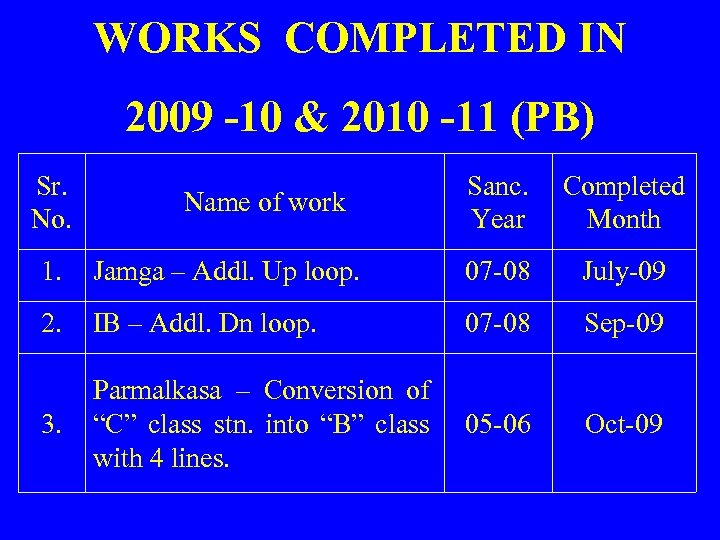

WORKS COMPLETED IN 2009 -10 & 2010 -11 (PB) Sr. No. Name of work Sanc. Year Completed Month 1. Jamga – Addl. Up loop. 07 -08 July-09 2. IB – Addl. Dn loop. 07 -08 Sep-09 3. Parmalkasa – Conversion of “C” class stn. into “B” class with 4 lines. 05 -06 Oct-09
Contd. Sr. No. 4. Sanc. Completed Year Month Name of work Salva - Conversion of “C” class stn. into “B” class with 4 lines. Belpahar – Addl. Dn loop. 06 -07 Nov-09 07 -08 Dec-09 6. Uslapur – Development model goods shed. of 05 -06 Apr-10 7. Raipur – Store depot. Development of goods shed. 08 -09 June-10 8. Jharradih – Addl. Loop line. 05 -06 Aug-10 9. Bhilai – Jamul cement siding Electrification including yard. 07 -08 Feb-10 5.

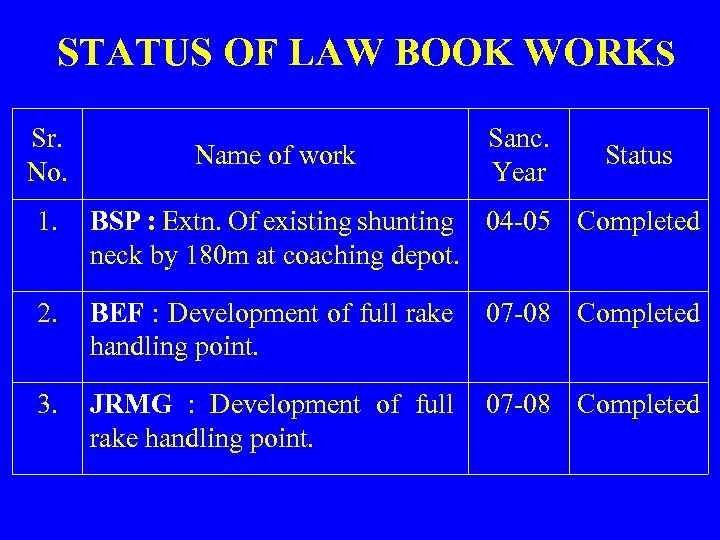

STATUS OF LAW BOOK WORKS Sr. No. Name of work Sanc. Year Status 1. BSP : Extn. Of existing shunting 04 -05 Completed neck by 180 m at coaching depot. 2. BEF : Development of full rake handling point. 07 -08 Completed 3. JRMG : Development of full rake handling point. 07 -08 Completed

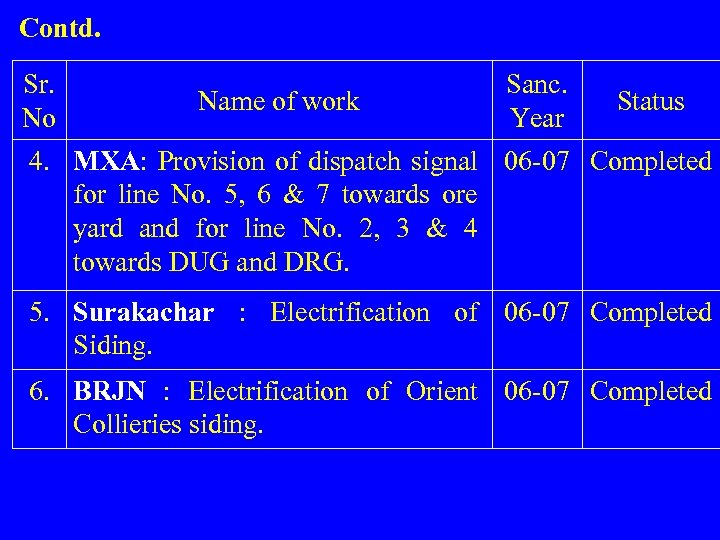

Contd. Sr. No Name of work Sanc. Year Status 4. MXA: Provision of dispatch signal 06 -07 Completed for line No. 5, 6 & 7 towards ore yard and for line No. 2, 3 & 4 towards DUG and DRG. 5. Surakachar : Electrification of 06 -07 Completed Siding. 6. BRJN : Electrification of Orient 06 -07 Completed Collieries siding.

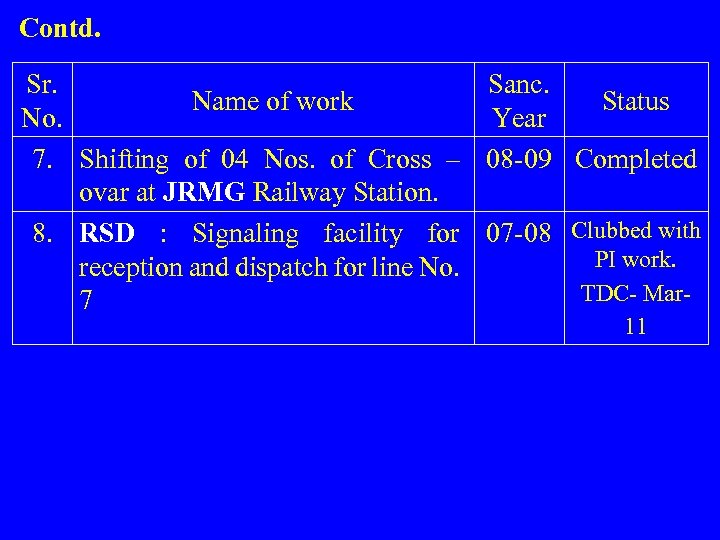

Contd. Sr. Sanc. Name of work Status No. Year 7. Shifting of 04 Nos. of Cross – 08 -09 Completed ovar at JRMG Railway Station. 8. RSD : Signaling facility for 07 -08 Clubbed with PI work. reception and dispatch for line No. TDC- Mar 7 11

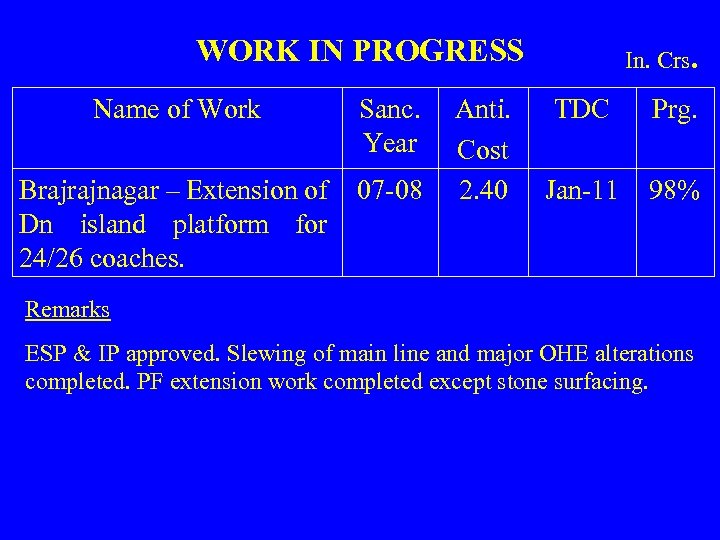

WORK IN PROGRESS Name of Work Sanc. Year Brajrajnagar – Extension of Dn island platform for 24/26 coaches. 07 -08 Anti. Cost 2. 40 In. Crs. TDC Prg. Jan-11 98% Remarks ESP & IP approved. Slewing of main line and major OHE alterations completed. PF extension work completed except stone surfacing.

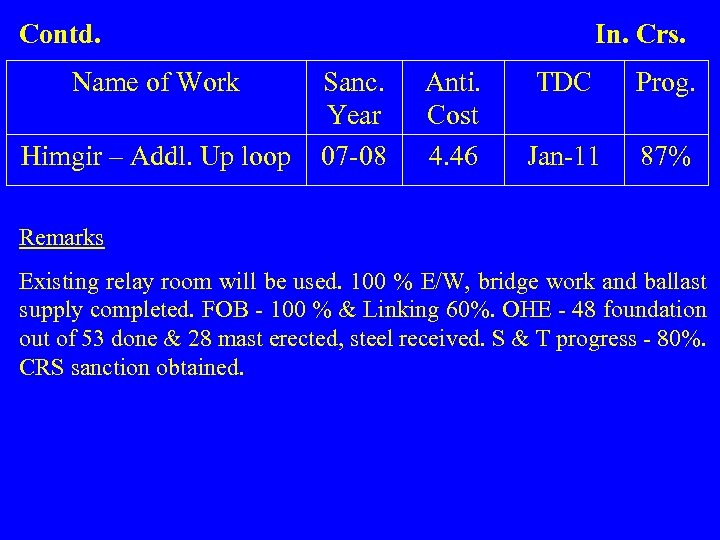

Contd. Name of Work Himgir – Addl. Up loop In. Crs. Sanc. Year 07 -08 Anti. Cost 4. 46 TDC Prog. Jan-11 87% Remarks Existing relay room will be used. 100 % E/W, bridge work and ballast supply completed. FOB - 100 % & Linking 60%. OHE - 48 foundation out of 53 done & 28 mast erected, steel received. S & T progress - 80%. CRS sanction obtained.
In Crs. Contd. Name of Work Sanc. Year 1. Kirodimalnagar – Addl. Loop. 06 -07 2. Kirodimalnagar – Remodeling 08 -09 for dealing with additional traffic of JSPL siding. Anti. TDC Prog. Cost 4. 20 Jan-11 85% 6. 00 Jan-11 60% Remarks Work is planned in two stages. Stage -I – Up loop and one Dn loop work at KDTR. Stage – II – 2 nd Dn loop. Connection for all 3 loops planned for simultaneous commissioning to avoid redundant works. CRS sanction awaited. E/W – 95%, Building & Bridge work – 100%, S & T – 95%, Track Linking in progress.

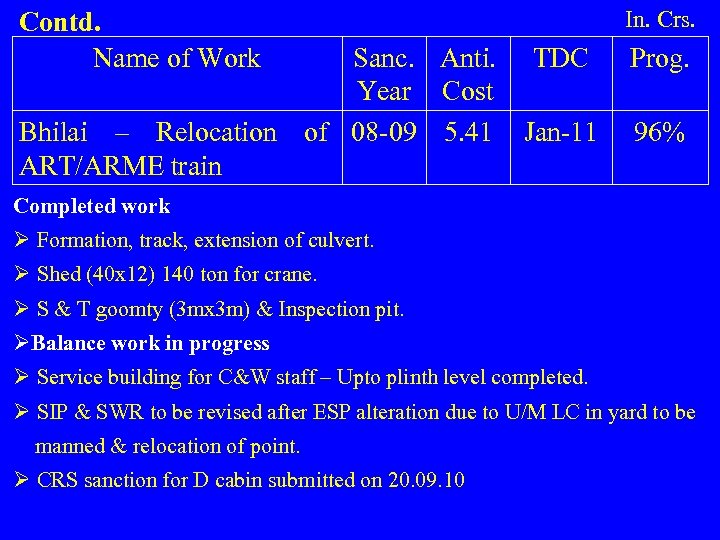

Contd. Name of Work Sanc. Anti. TDC Year Cost Bhilai – Relocation of 08 -09 5. 41 Jan-11 ART/ARME train In. Crs. Prog. 96% Completed work Ø Formation, track, extension of culvert. Ø Shed (40 x 12) 140 ton for crane. Ø S & T goomty (3 mx 3 m) & Inspection pit. ØBalance work in progress Ø Service building for C&W staff – Upto plinth level completed. Ø SIP & SWR to be revised after ESP alteration due to U/M LC in yard to be manned & relocation of point. Ø CRS sanction for D cabin submitted on 20. 09. 10

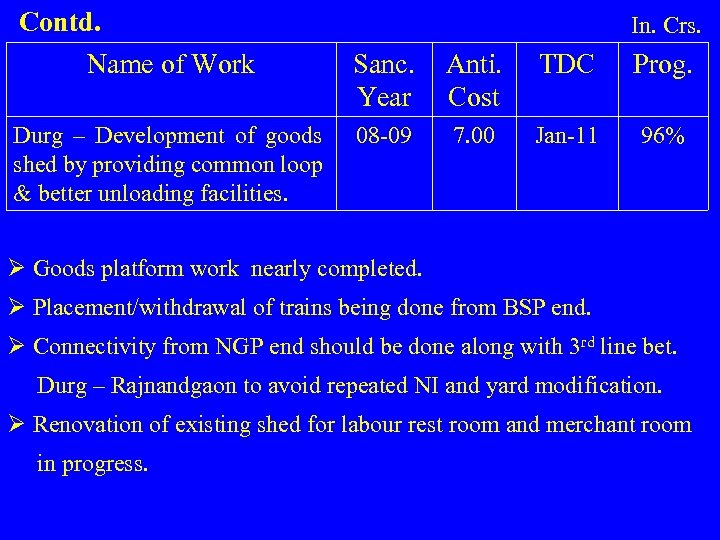

Contd. Name of Work Durg – Development of goods shed by providing common loop & better unloading facilities. In. Crs. Sanc. Year Anti. Cost TDC Prog. 08 -09 7. 00 Jan-11 96% Ø Goods platform work nearly completed. Ø Placement/withdrawal of trains being done from BSP end. Ø Connectivity from NGP end should be done along with 3 rd line bet. Durg – Rajnandgaon to avoid repeated NI and yard modification. Ø Renovation of existing shed for labour rest room and merchant room in progress.

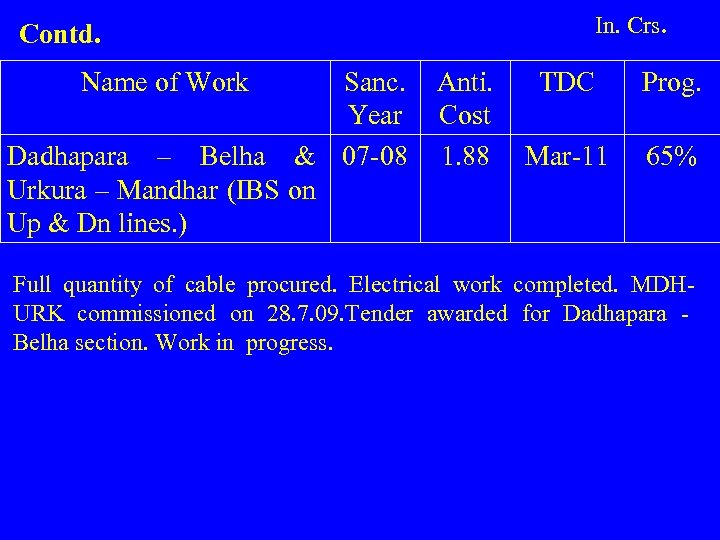

In. Crs. Contd. Name of Work Sanc. Year Dadhapara – Belha & 07 -08 Urkura – Mandhar (IBS on Up & Dn lines. ) Anti. Cost 1. 88 TDC Prog. Mar-11 65% Full quantity of cable procured. Electrical work completed. MDHURK commissioned on 28. 7. 09. Tender awarded for Dadhapara Belha section. Work in progress.
Contd. Name of Work Gevra Road – Run through facility. Remarks Work proposed for dropping. In. Crs. Sanc. Year 08 -09 Anti. TDC Prog. Cost 6. 52 Mar-11 5%

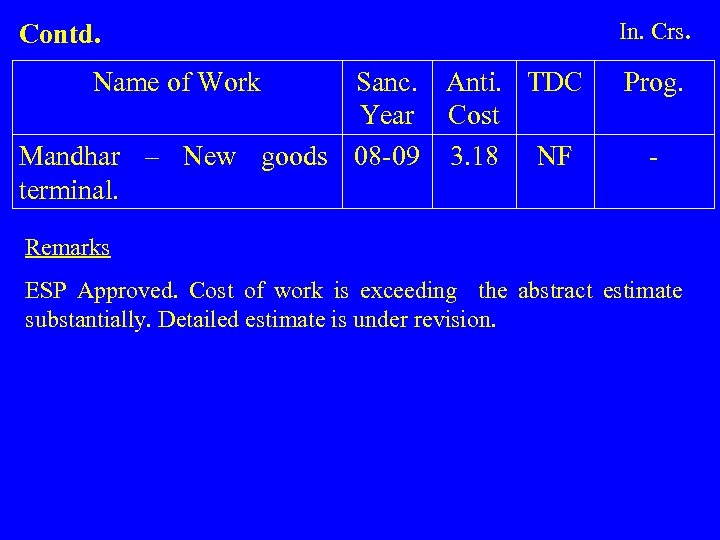

Contd. Name of Work Sanc. Anti. TDC Year Cost Mandhar – New goods 08 -09 3. 18 NF terminal. In. Crs. Prog. - Remarks ESP Approved. Cost of work is exceeding the abstract estimate substantially. Detailed estimate is under revision.

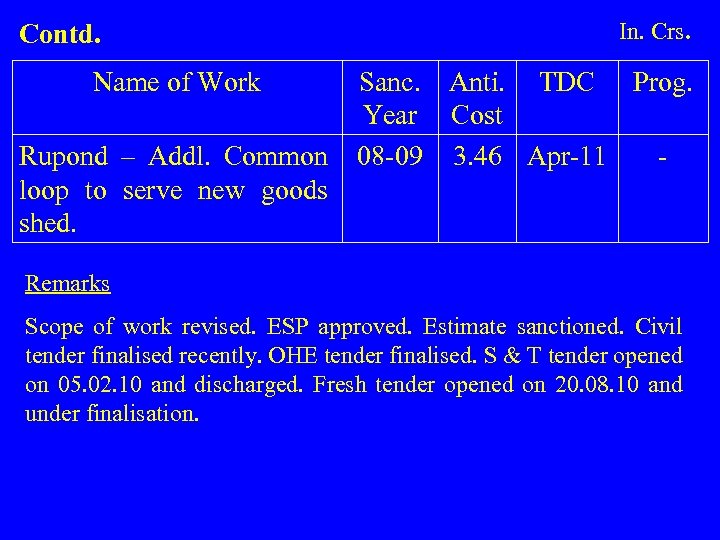

Contd. Name of Work Rupond – Addl. Common loop to serve new goods shed. In. Crs. Sanc. Anti. TDC Prog. Year Cost 08 -09 3. 46 Apr-11 - Remarks Scope of work revised. ESP approved. Estimate sanctioned. Civil tender finalised recently. OHE tender finalised. S & T tender opened on 05. 02. 10 and discharged. Fresh tender opened on 20. 08. 10 and under finalisation.

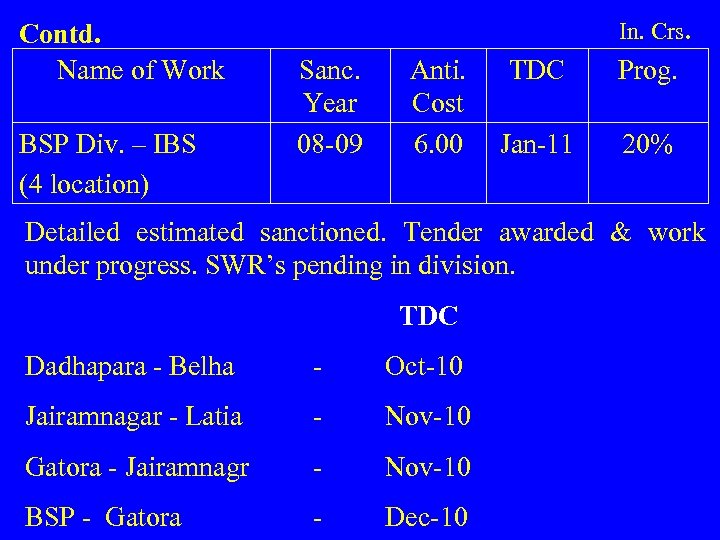

Contd. Name of Work BSP Div. – IBS (4 location) In. Crs. Sanc. Year 08 -09 Anti. Cost 6. 00 TDC Prog. Jan-11 20% Detailed estimated sanctioned. Tender awarded & work under progress. SWR’s pending in division. TDC Dadhapara - Belha - Oct-10 Jairamnagar - Latia - Nov-10 Gatora - Jairamnagr - Nov-10 BSP - Gatora - Dec-10

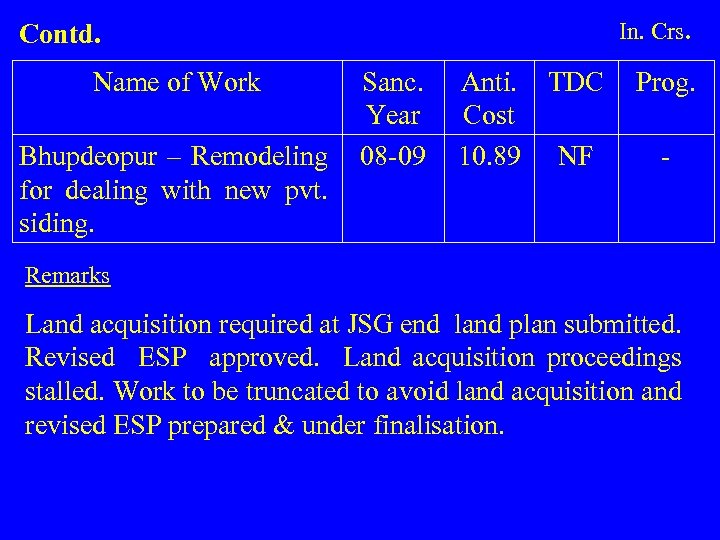

In. Crs. Contd. Name of Work Bhupdeopur – Remodeling for dealing with new pvt. siding. Sanc. Year 08 -09 Anti. TDC Cost 10. 89 NF Prog. - Remarks Land acquisition required at JSG end land plan submitted. Revised ESP approved. Land acquisition proceedings stalled. Work to be truncated to avoid land acquisition and revised ESP prepared & under finalisation.

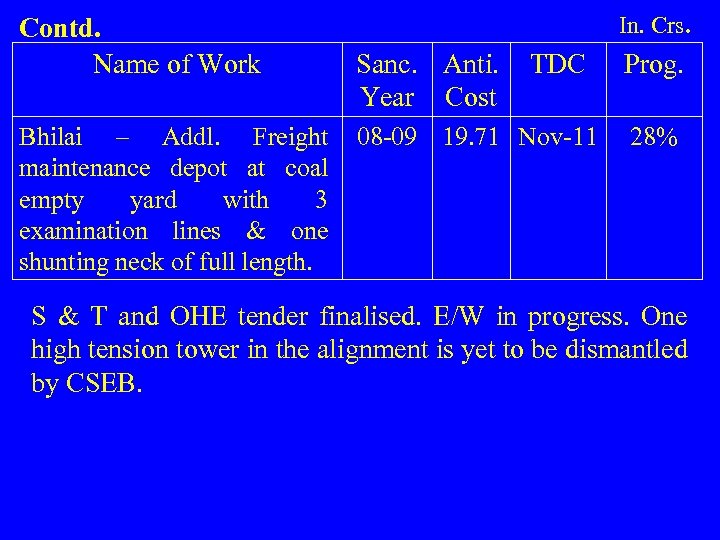

Contd. Name of Work Bhilai – Addl. Freight maintenance depot at coal empty yard with 3 examination lines & one shunting neck of full length. In. Crs. Sanc. Anti. Year Cost TDC 08 -09 19. 71 Nov-11 Prog. 28% S & T and OHE tender finalised. E/W in progress. One high tension tower in the alignment is yet to be dismantled by CSEB.

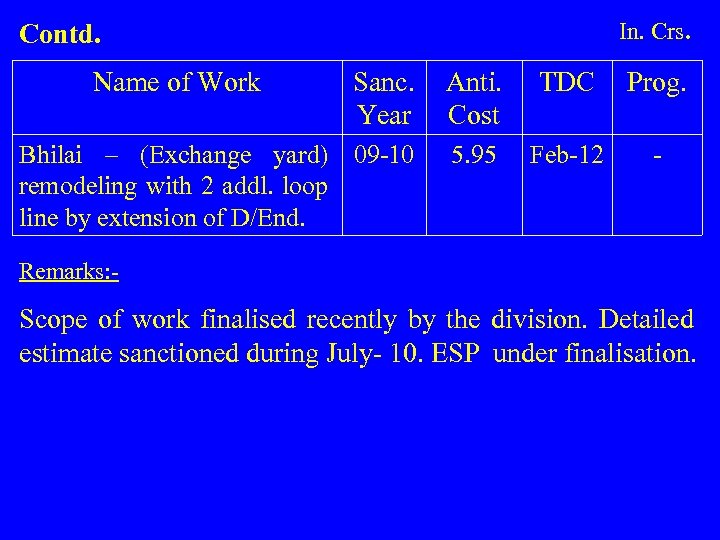

In. Crs. Contd. Name of Work Sanc. Year Anti. Cost TDC Prog. Bhilai – (Exchange yard) 09 -10 remodeling with 2 addl. loop line by extension of D/End. 5. 95 Feb-12 - Remarks: - Scope of work finalised recently by the division. Detailed estimate sanctioned during July- 10. ESP under finalisation.
In. Crs. Contd. Name of Work Himgir – Addl. Dn. Loop. Sanc. Anti. TDC Year Cost 09 -10 5. 00 NF Remarks: - ESP approved. Work to be executed with 3 rd line. Prog. -

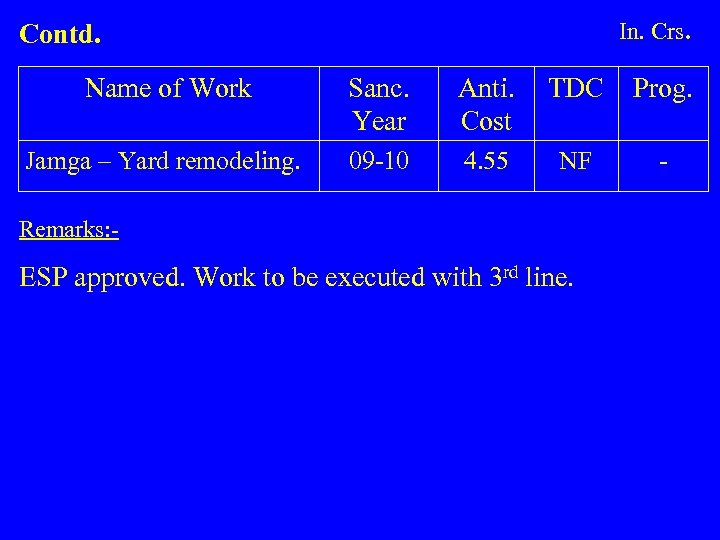

In. Crs. Contd. Name of Work Sanc. Year Anti. Cost TDC Prog. Jamga – Yard remodeling. 09 -10 4. 55 NF - Remarks: - ESP approved. Work to be executed with 3 rd line.

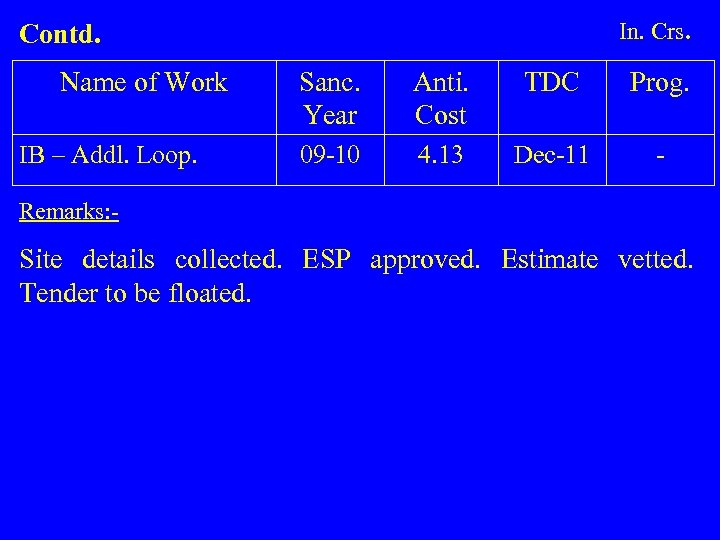

In. Crs. Contd. Name of Work IB – Addl. Loop. Sanc. Year Anti. Cost TDC Prog. 09 -10 4. 13 Dec-11 - Remarks: - Site details collected. ESP approved. Estimate vetted. Tender to be floated.

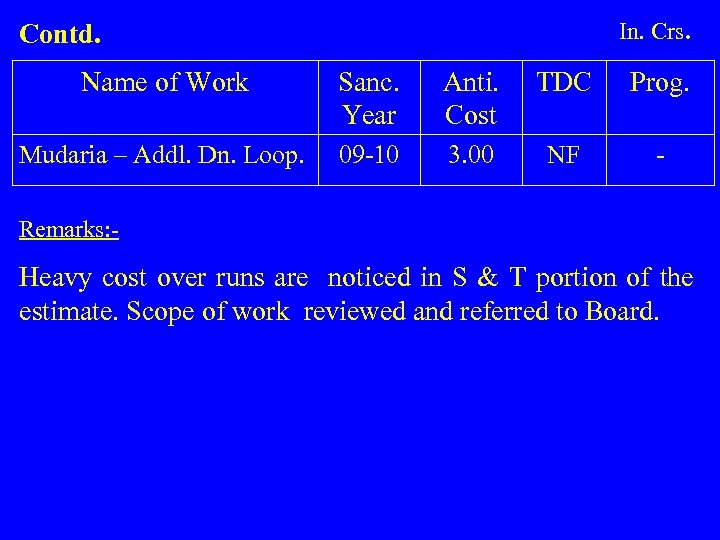

In. Crs. Contd. Name of Work Sanc. Year Anti. Cost TDC Prog. Mudaria – Addl. Dn. Loop. 09 -10 3. 00 NF - Remarks: - Heavy cost over runs are noticed in S & T portion of the estimate. Scope of work reviewed and referred to Board.

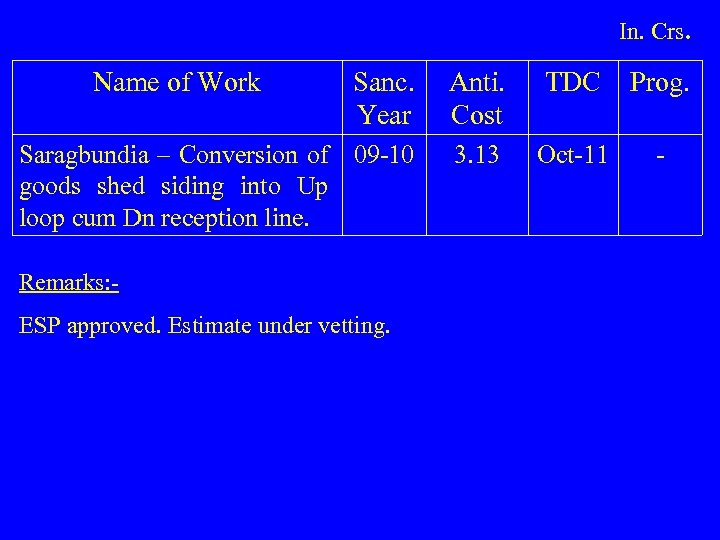

In. Crs. Name of Work Sanc. Year Anti. Cost TDC Prog. Saragbundia – Conversion of 09 -10 goods shed siding into Up loop cum Dn reception line. 3. 13 Oct-11 - Remarks: ESP approved. Estimate under vetting.

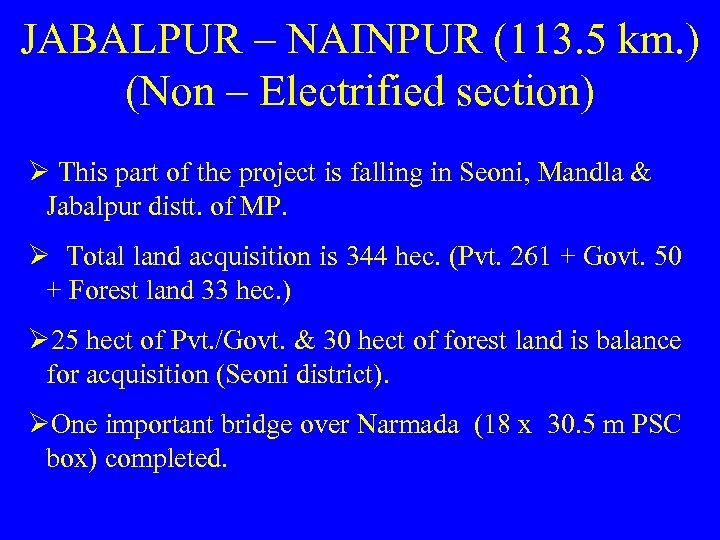

JABALPUR – NAINPUR (113. 5 km. ) (Non – Electrified section) Ø This part of the project is falling in Seoni, Mandla & Jabalpur distt. of MP. Ø Total land acquisition is 344 hec. (Pvt. 261 + Govt. 50 + Forest land 33 hec. ) Ø 25 hect of Pvt. /Govt. & 30 hect of forest land is balance for acquisition (Seoni district). ØOne important bridge over Narmada (18 x 30. 5 m PSC box) completed.

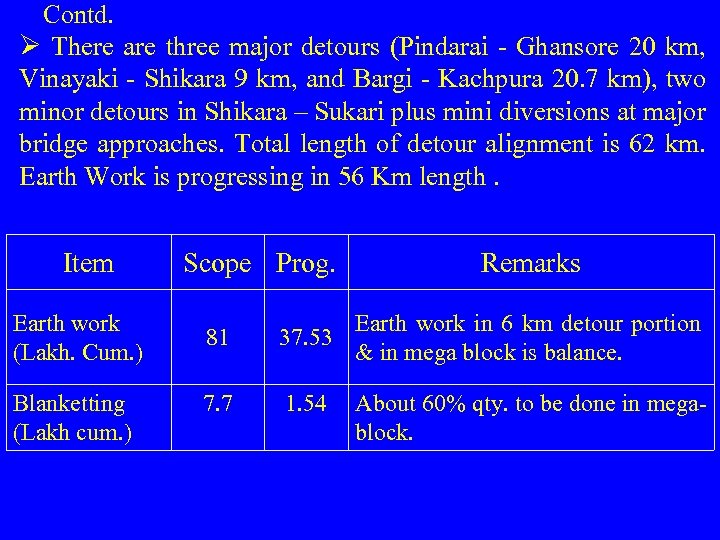

Contd. Ø There are three major detours (Pindarai - Ghansore 20 km, Vinayaki - Shikara 9 km, and Bargi - Kachpura 20. 7 km), two minor detours in Shikara – Sukari plus mini diversions at major bridge approaches. Total length of detour alignment is 62 km. Earth Work is progressing in 56 Km length. Item Earth work (Lakh. Cum. ) Blanketting (Lakh cum. ) Scope Prog. Remarks 81 Earth work in 6 km detour portion 37. 53 & in mega block is balance. 7. 7 1. 54 About 60% qty. to be done in megablock.

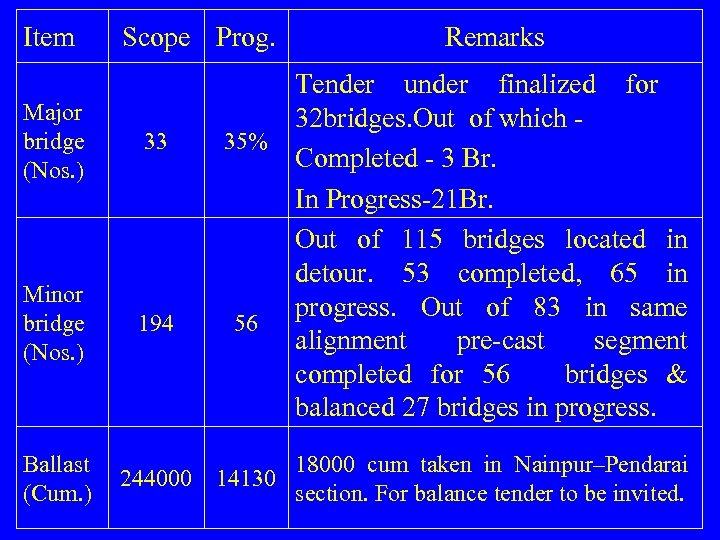

Item Scope Prog. Major bridge (Nos. ) 33 Minor bridge (Nos. ) 194 Ballast (Cum. ) Remarks Tender under finalized for 32 bridges. Out of which 35% Completed - 3 Br. In Progress-21 Br. Out of 115 bridges located in detour. 53 completed, 65 in progress. Out of 83 in same 56 alignment pre-cast segment completed for 56 bridges & balanced 27 bridges in progress. 18000 cum taken in Nainpur–Pendarai 244000 14130 section. For balance tender to be invited.
Gondia – Jabalpur gauge conversion incl. Balaghat – Katangi (275. 20 Km. ) 2009 -10 Year of sanction Anticipated cost. Exp. Upto Mar-10 1996 -97 1038. 00 453. 85 Exp. Upto Oct. -10 Overall progress 34. 48 62% Gondia – Balaghat section including MOIL siding (42+7 Km) already commissioned. Balaghat–Katangi section 46. 8 km completed. CRS after inspection on 23. 02. 2010. & section commissioned on 07. 05. 10

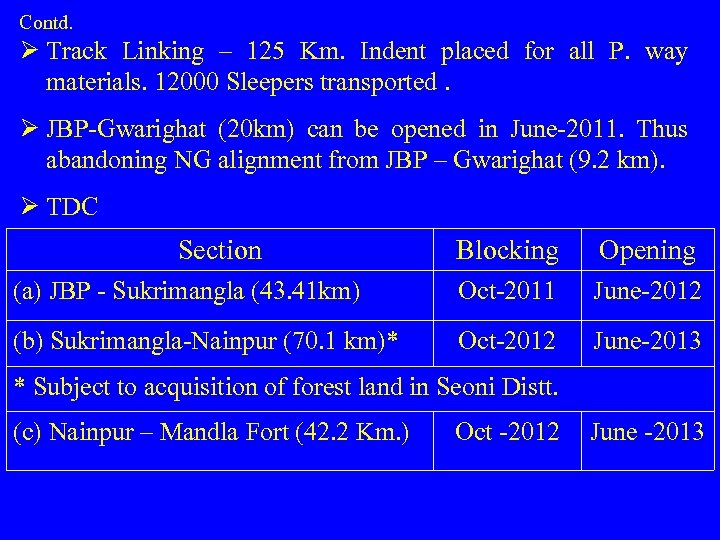

Contd. Ø Track Linking – 125 Km. Indent placed for all P. way materials. 12000 Sleepers transported. Ø JBP-Gwarighat (20 km) can be opened in June-2011. Thus abandoning NG alignment from JBP – Gwarighat (9. 2 km). Ø TDC Section Blocking Opening (a) JBP - Sukrimangla (43. 41 km) Oct-2011 June-2012 (b) Sukrimangla-Nainpur (70. 1 km)* Oct-2012 June-2013 * Subject to acquisition of forest land in Seoni Distt. (c) Nainpur – Mandla Fort (42. 2 Km. ) Oct -2012 June -2013

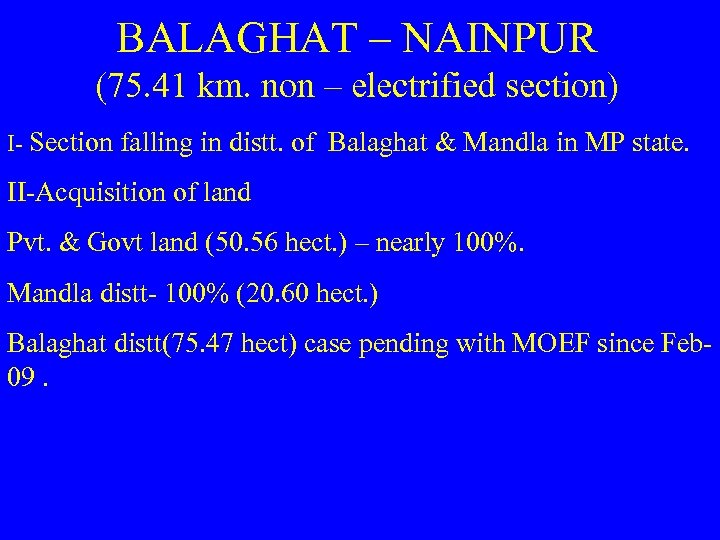

BALAGHAT – NAINPUR (75. 41 km. non – electrified section) I- Section falling in distt. of Balaghat & Mandla in MP state. II-Acquisition of land Pvt. & Govt land (50. 56 hect. ) – nearly 100%. Mandla distt- 100% (20. 60 hect. ) Balaghat distt(75. 47 hect) case pending with MOEF since Feb 09.

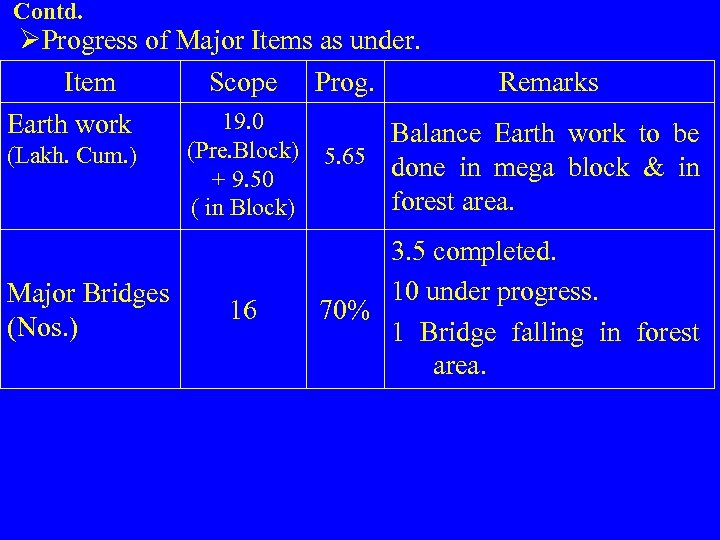

Contd. ØProgress of Major Items as under. Item Earth work (Lakh. Cum. ) Major Bridges (Nos. ) Scope Prog. Remarks 19. 0 (Pre. Block) + 9. 50 ( in Block) Balance Earth work to be 5. 65 done in mega block & in forest area. 16 3. 5 completed. 10 under progress. 70% 1 Bridge falling in forest area.

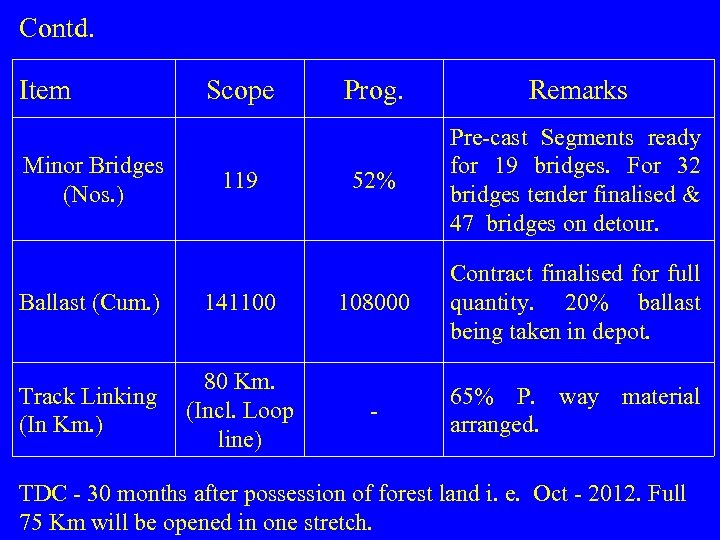

Contd. Item Minor Bridges (Nos. ) Scope 119 Ballast (Cum. ) 141100 Track Linking (In Km. ) 80 Km. (Incl. Loop line) Prog. Remarks 52% Pre-cast Segments ready for 19 bridges. For 32 bridges tender finalised & 47 bridges on detour. 108000 Contract finalised for full quantity. 20% ballast being taken in depot. - 65% P. way material arranged. TDC - 30 months after possession of forest land i. e. Oct - 2012. Full 75 Km will be opened in one stretch.

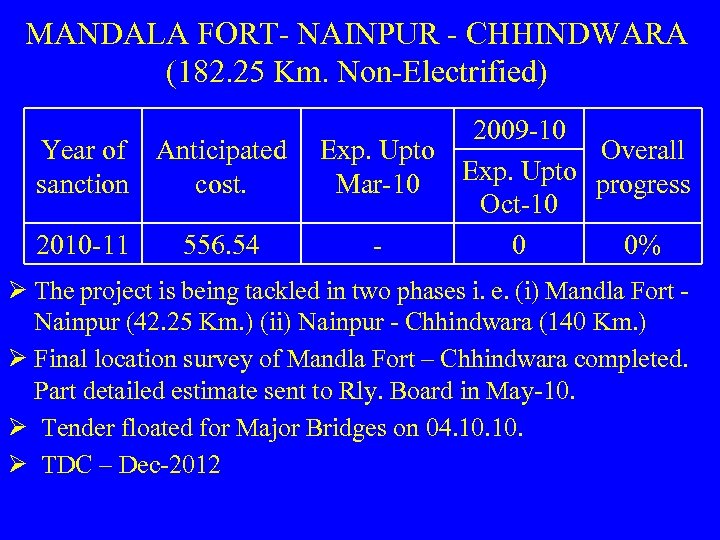

MANDALA FORT- NAINPUR - CHHINDWARA (182. 25 Km. Non-Electrified) Year of Anticipated sanction cost. 2010 -11 556. 54 2009 -10 Exp. Upto Overall Exp. Upto progress Mar-10 Oct-10 0 0% Ø The project is being tackled in two phases i. e. (i) Mandla Fort Nainpur (42. 25 Km. ) (ii) Nainpur - Chhindwara (140 Km. ) Ø Final location survey of Mandla Fort – Chhindwara completed. Part detailed estimate sent to Rly. Board in May-10. Ø Tender floated for Major Bridges on 04. 10. Ø TDC – Dec-2012

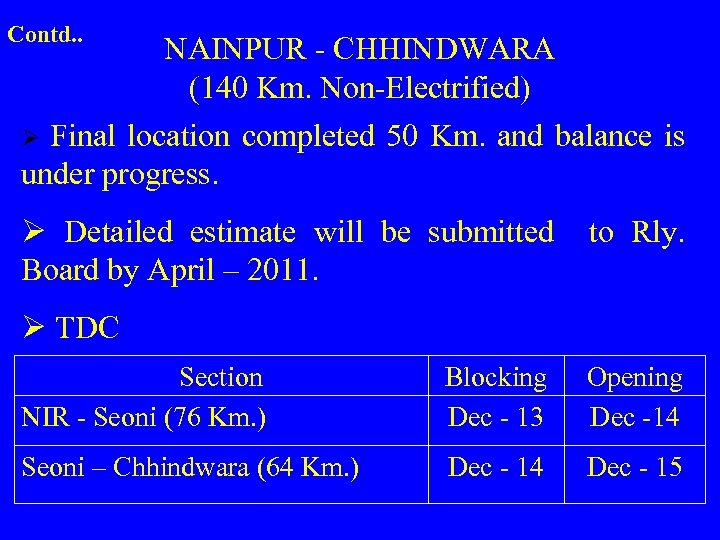

Contd. . NAINPUR - CHHINDWARA (140 Km. Non-Electrified) Final location completed 50 Km. and balance is under progress. Ø Ø Detailed estimate will be submitted Board by April – 2011. to Rly. Ø TDC Section NIR - Seoni (76 Km. ) Blocking Dec - 13 Opening Dec -14 Seoni – Chhindwara (64 Km. ) Dec - 14 Dec - 15

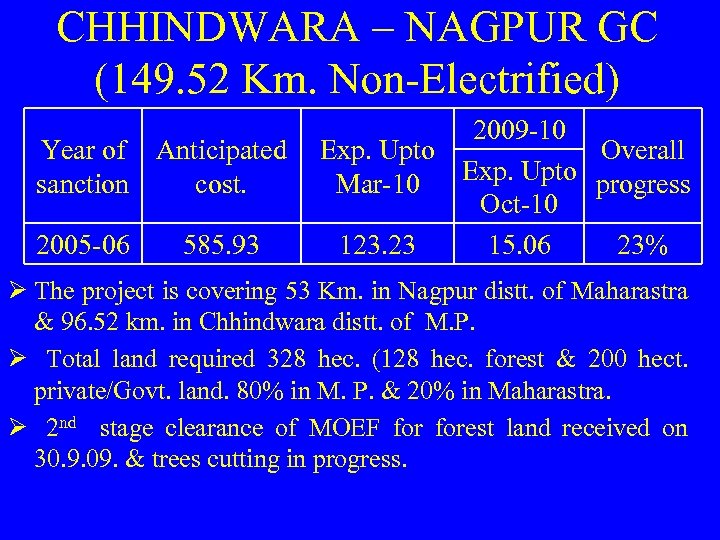

CHHINDWARA – NAGPUR GC (149. 52 Km. Non-Electrified) Year of Anticipated sanction cost. 2005 -06 585. 93 2009 -10 Exp. Upto Overall Exp. Upto progress Mar-10 Oct-10 123. 23 15. 06 23% Ø The project is covering 53 Km. in Nagpur distt. of Maharastra & 96. 52 km. in Chhindwara distt. of M. P. Ø Total land required 328 hec. (128 hec. forest & 200 hect. private/Govt. land. 80% in M. P. & 20% in Maharastra. Ø 2 nd stage clearance of MOEF forest land received on 30. 9. 09. & trees cutting in progress.

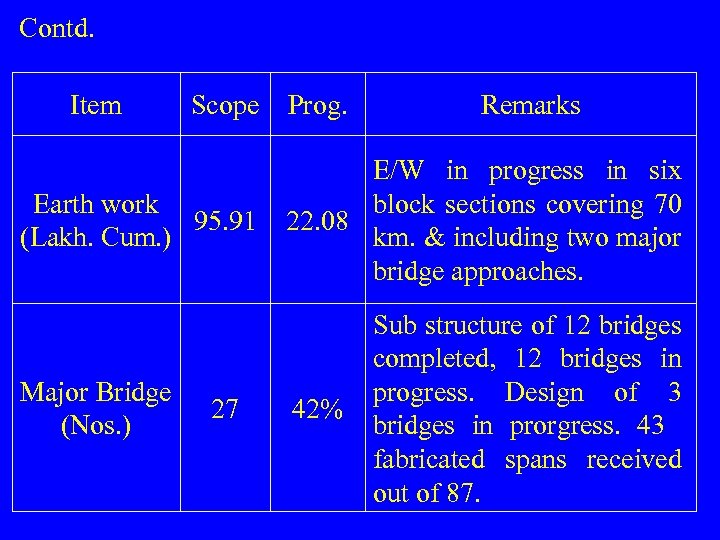

Contd. Item Scope Earth work 95. 91 (Lakh. Cum. ) Major Bridge (Nos. ) 27 Prog. Remarks E/W in progress in six block sections covering 70 22. 08 km. & including two major bridge approaches. 42% Sub structure of 12 bridges completed, 12 bridges in progress. Design of 3 bridges in prorgress. 43 fabricated spans received out of 87.

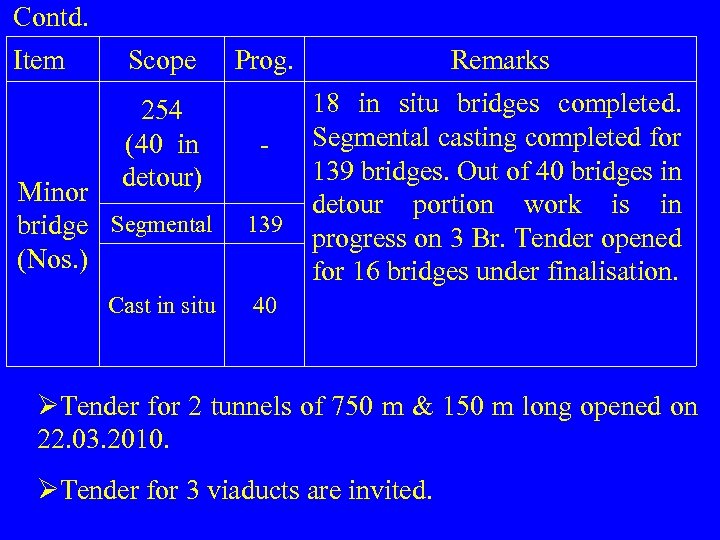

Contd. Item Scope 254 (40 in detour) Prog. - Minor bridge Segmental (Nos. ) 139 Cast in situ Remarks 18 in situ bridges completed. Segmental casting completed for 139 bridges. Out of 40 bridges in detour portion work is in progress on 3 Br. Tender opened for 16 bridges under finalisation. 40 ØTender for 2 tunnels of 750 m & 150 m long opened on 22. 03. 2010. ØTender for 3 viaducts are invited.

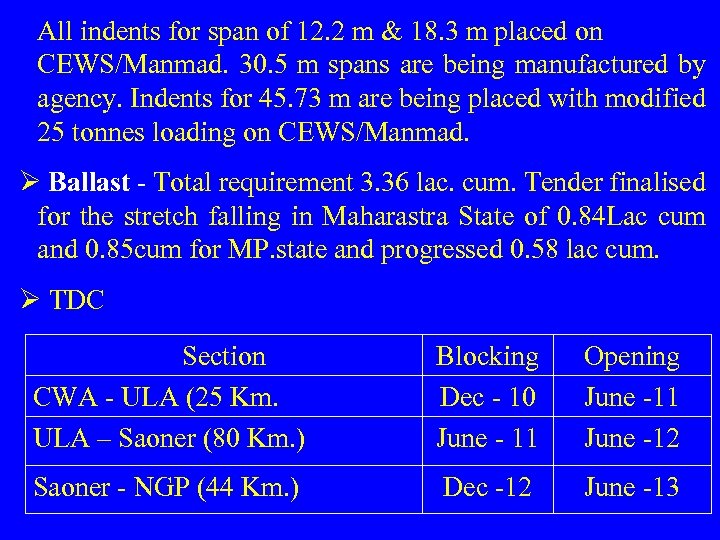

All indents for span of 12. 2 m & 18. 3 m placed on CEWS/Manmad. 30. 5 m spans are being manufactured by agency. Indents for 45. 73 m are being placed with modified 25 tonnes loading on CEWS/Manmad. Ø Ballast - Total requirement 3. 36 lac. cum. Tender finalised for the stretch falling in Maharastra State of 0. 84 Lac cum and 0. 85 cum for MP. state and progressed 0. 58 lac cum. Ø TDC Section CWA - ULA (25 Km. ULA – Saoner (80 Km. ) Blocking Dec - 10 June - 11 Opening June -11 June -12 Saoner - NGP (44 Km. ) Dec -12 June -13
