OL Working Group Panel 2 a: Current Realities Bob Houtman Head, Integrative Programs Section National Science Foundation

US Fleet Update • 21 ships in US Academic Research Fleet • 6 Global • 6 Ocean/Intermediate • 5 Regional • 4 Local

The UNOLS Fleet Notes:

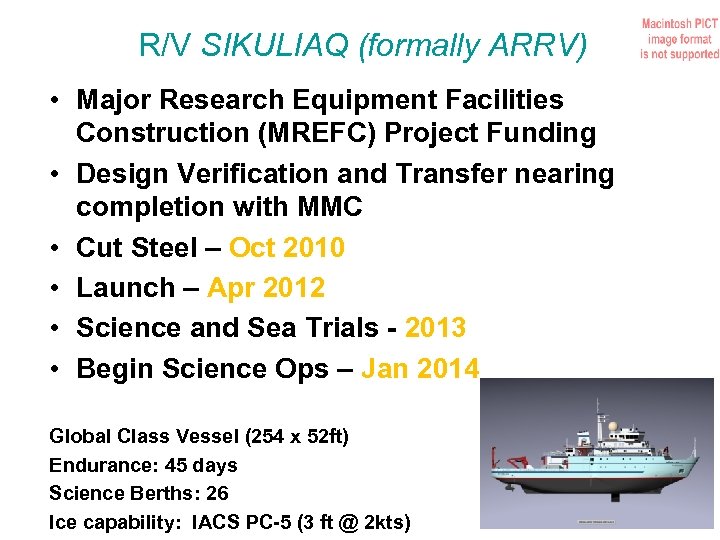

R/V SIKULIAQ (formally ARRV) • Major Research Equipment Facilities Construction (MREFC) Project Funding • Design Verification and Transfer nearing completion with MMC • Cut Steel – Oct 2010 • Launch – Apr 2012 • Science and Sea Trials - 2013 • Begin Science Ops – Jan 2014 Global Class Vessel (254 x 52 ft) Endurance: 45 days Science Berths: 26 Ice capability: IACS PC-5 (3 ft @ 2 kts)

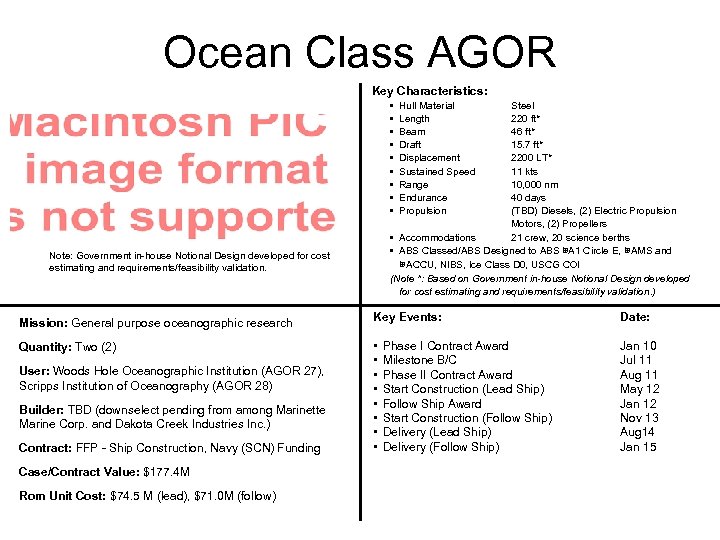

Ocean Class AGOR Key Characteristics: • • • Note: Government in-house Notional Design developed for cost estimating and requirements/feasibility validation. Mission: General purpose oceanographic research Quantity: Two (2) User: Woods Hole Oceanographic Institution (AGOR 27), Scripps Institution of Oceanography (AGOR 28) Builder: TBD (downselect pending from among Marinette Marine Corp. and Dakota Creek Industries Inc. ) Contract: FFP - Ship Construction, Navy (SCN) Funding Case/Contract Value: $177. 4 M Rom Unit Cost: $74. 5 M (lead), $71. 0 M (follow) Hull Material Length Beam Draft Displacement Sustained Speed Range Endurance Propulsion Steel 220 ft* 46 ft* 15. 7 ft* 2200 LT* 11 kts 10, 000 nm 40 days (TBD) Diesels, (2) Electric Propulsion Motors, (2) Propellers • Accommodations 21 crew, 20 science berths • ABS Classed/ABS Designed to ABS A 1 Circle E, AMS and ACCU, NIBS, Ice Class D 0, USCG COI (Note *: Based on Government in-house Notional Design developed for cost estimating and requirements/feasibility validation. ) Key Events: • Phase I Contract Award • Milestone B/C • Phase II Contract Award • Start Construction (Lead Ship) • Follow Ship Award • Start Construction (Follow Ship) • Delivery (Lead Ship) • Delivery (Follow Ship) Date: Jan 10 Jul 11 Aug 11 May 12 Jan 12 Nov 13 Aug 14 Jan 15

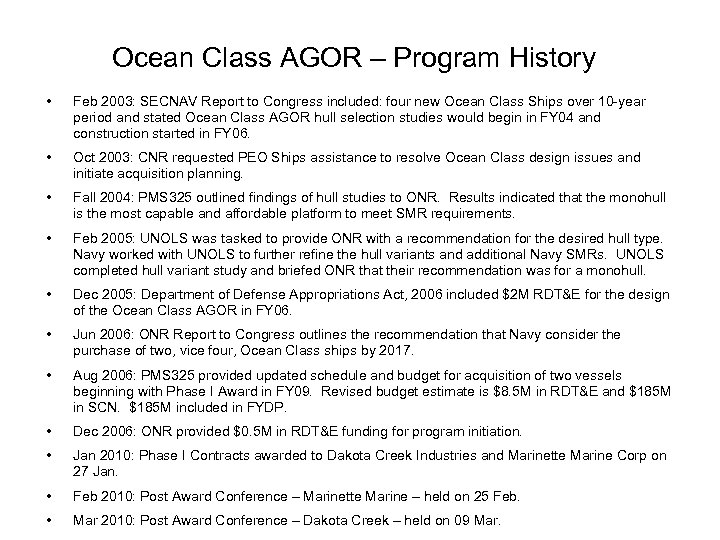

Ocean Class AGOR – Program History • Feb 2003: SECNAV Report to Congress included: four new Ocean Class Ships over 10 -year period and stated Ocean Class AGOR hull selection studies would begin in FY 04 and construction started in FY 06. • Oct 2003: CNR requested PEO Ships assistance to resolve Ocean Class design issues and initiate acquisition planning. • Fall 2004: PMS 325 outlined findings of hull studies to ONR. Results indicated that the monohull is the most capable and affordable platform to meet SMR requirements. • Feb 2005: UNOLS was tasked to provide ONR with a recommendation for the desired hull type. Navy worked with UNOLS to further refine the hull variants and additional Navy SMRs. UNOLS completed hull variant study and briefed ONR that their recommendation was for a monohull. • Dec 2005: Department of Defense Appropriations Act, 2006 included $2 M RDT&E for the design of the Ocean Class AGOR in FY 06. • Jun 2006: ONR Report to Congress outlines the recommendation that Navy consider the purchase of two, vice four, Ocean Class ships by 2017. • Aug 2006: PMS 325 provided updated schedule and budget for acquisition of two vessels beginning with Phase I Award in FY 09. Revised budget estimate is $8. 5 M in RDT&E and $185 M in SCN. $185 M included in FYDP. • Dec 2006: ONR provided $0. 5 M in RDT&E funding for program initiation. • Jan 2010: Phase I Contracts awarded to Dakota Creek Industries and Marinette Marine Corp on 27 Jan. • Feb 2010: Post Award Conference – Marinette Marine – held on 25 Feb. • Mar 2010: Post Award Conference – Dakota Creek – held on 09 Mar.

Ocean Class AGOR – Marinette Marine Corporation Chief Executive Officer Richard T. Mc. Creary Mailing Address: 1600 Ely Street Marinette, WI 54143 -2434 Street Address: 1600 Ely Street Marinette, WI 54143 -2434 Phone: 715. 735. 9341 Fax: 715. 735. 4774 http: //www. marinettemarine. com/ Current Contracts: • NOAA Fisheries Vessel: FSV • Alaska Regional Research Vessel: ARRV Prior U. S. Navy Contracts: • Barracks Craft: APL-65/66 • Improved Navy Lighterage System: INLS • Littoral Combat Ship: LCS 1, LCS 3 • Mine Countermeasure Vessels: MCM 2, MCM 4, MCM 7 • Powhatan Class Fleet Tugs: T-AFT 166 – 172 • Torpedo Weapons Retriever: 120 TR 821 -825, 120 TR 832 -833 & 120 TR 841 -842 • Patrol Craft: YP 683 - 702 Facilities: • Ship Erecting Facility (341' x 206' – 8 x 50 ton overhead cranes) (expansion underway to 591’ x 206’) • Assembly Buildings (combine total of 190, 000 sq. ft. ) • Lifting Equipment (including 275 ton Manitowoc, 100 ton Manitowoc, 40 ton Loraine) • Travelift & Movers (150 ton Travelift, 30 ton & 115 ton block movers) • Warehouse (324’ x 180’; 53, 070 sq. ft. ) • Service Center Offices (7, 970 sq. ft. Customer Offices) • Tech Center (42, 600 sq ft. Executive, Engineering & Operations) • Launch Way & Dock Wall (450’ Launch Way, 1970’ Dock Wall)

Ocean Class AGOR – Dakota Creek Industries Chief Executive Officer Richard Nelson Mailing Address: PO Box 218 Anacortes, WA 98221 Street Address: 820 4 th Street Anacortes, WA 98221 Phone: 360. 293. 9575 Fax: 360. 293. 6432 http: //www. dakotacreek. com/ Products: • Offshore support vessels • Research vessels • Tugboats • Fishing vessels • Ferries Facilities: • Syncrolift Shiplift: (306' x 75' - 5, 000 ton capacity) • Drydock (314' x 90' - 9, 000 ton capacity) • Assembly Building: (300' x 100'- controlled atmosphere; 2 x 10 ton overhead cranes) • Lifting Equipment: (275 (2008) & 175 ton Manitowoc Crawler, 150 ton P&H Crawler, Grove RT 90 and 60 ton, forklifts, man-buckets, 233 ton Kamag Transporter) • Main Warehouse: (Pipe Fabrication Shop, Stores, Machine Shop) • Outfitting Berths: (Main, Mid Pier (new 2009), and East Docks • Office Space: (Executive, Engineering, Owner's Rep offices) • Galley Complex: (including a fully catered lunchroom, washrooms and showers)

Ocean Class AGOR – Program Schedule FY 07 FY 08 FY 09 FY 10 FY 11 FY 12 FY 13 FY 14 FY 15 O N D J F M A M J J A S O N D J F M A M J J A SO N D J F M A M J J A S ON D FY 16 J F MA M J J A S ACAT Designation Key: Government Notional Design Planned Event Completed Event Duration TBD ACAT: Acquisition Category ASR: Acquisition Strategy Report CDD: Capability Development Document FOC: Full Operational Capability IOC: Initial Operational Capability RFP: Request for Proposal SOC: Start of Construction CDD Review (96 Days) CDD Signature ASR Approved RFP Release (combined phase I& II) Phase I Bid Preparation Phase I Source Selection Phase I Award (Preliminary/Contract Design) Preliminary/Contract Design Phase II Bid Preparation Phase II Source Selection Milestone B/C Phase II Award (Detail Design & Lead Ship Construction) Detail Design SOC Delivery IOC Follow Ship Award SOC Delivery FOC

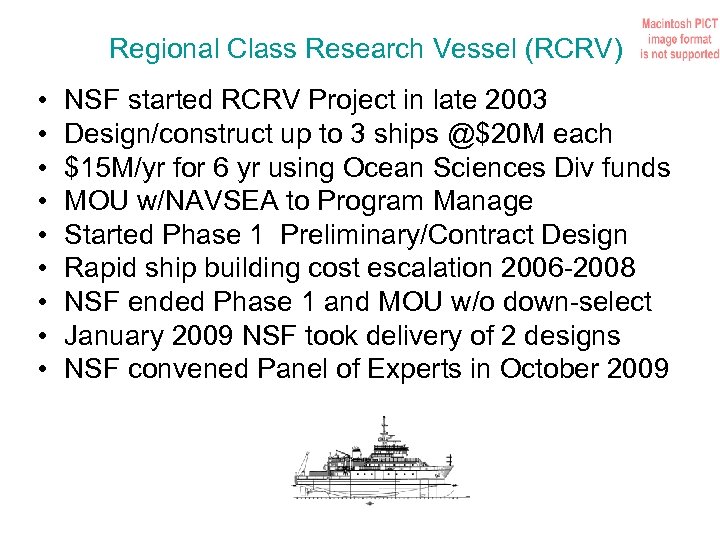

Regional Class Research Vessel (RCRV) • • • NSF started RCRV Project in late 2003 Design/construct up to 3 ships @$20 M each $15 M/yr for 6 yr using Ocean Sciences Div funds MOU w/NAVSEA to Program Manage Started Phase 1 Preliminary/Contract Design Rapid ship building cost escalation 2006 -2008 NSF ended Phase 1 and MOU w/o down-select January 2009 NSF took delivery of 2 designs NSF convened Panel of Experts in October 2009

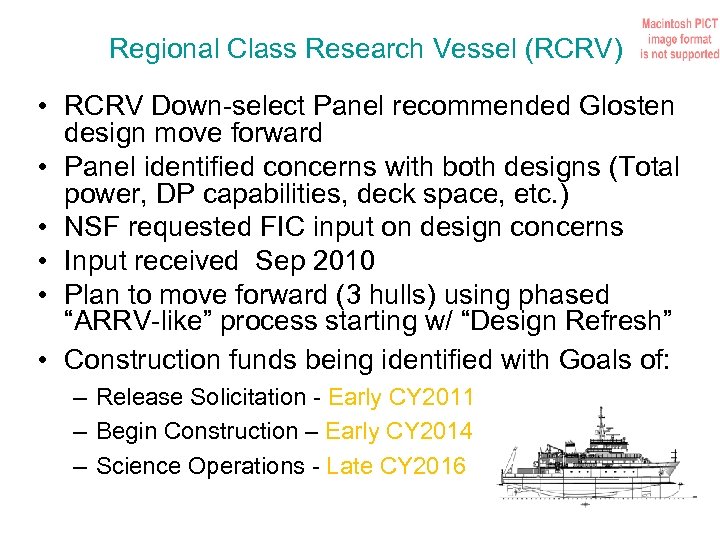

Regional Class Research Vessel (RCRV) • RCRV Down-select Panel recommended Glosten design move forward • Panel identified concerns with both designs (Total power, DP capabilities, deck space, etc. ) • NSF requested FIC input on design concerns • Input received Sep 2010 • Plan to move forward (3 hulls) using phased “ARRV-like” process starting w/ “Design Refresh” • Construction funds being identified with Goals of: – Release Solicitation - Early CY 2011 – Begin Construction – Early CY 2014 – Science Operations - Late CY 2016

Backup

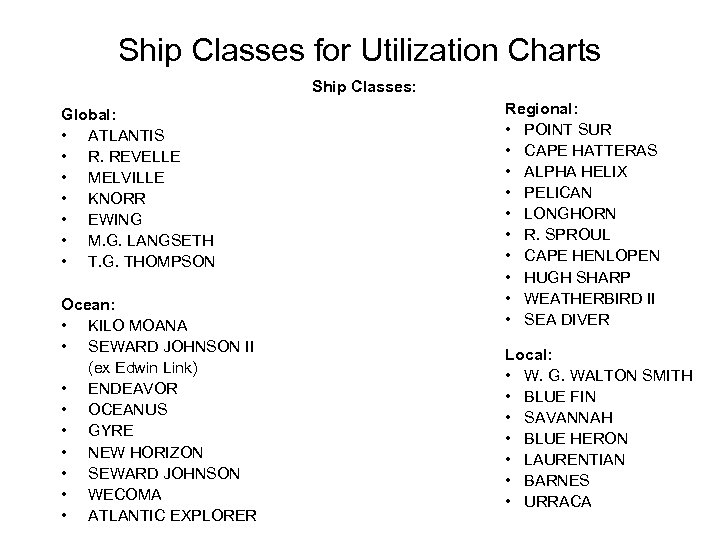

Ship Classes for Utilization Charts Ship Classes: Global: • ATLANTIS • R. REVELLE • MELVILLE • KNORR • EWING • M. G. LANGSETH • T. G. THOMPSON Ocean: • KILO MOANA • SEWARD JOHNSON II (ex Edwin Link) • ENDEAVOR • OCEANUS • GYRE • NEW HORIZON • SEWARD JOHNSON • WECOMA • ATLANTIC EXPLORER Regional: • POINT SUR • CAPE HATTERAS • ALPHA HELIX • PELICAN • LONGHORN • R. SPROUL • CAPE HENLOPEN • HUGH SHARP • WEATHERBIRD II • SEA DIVER Local: • W. G. WALTON SMITH • BLUE FIN • SAVANNAH • BLUE HERON • LAURENTIAN • BARNES • URRACA
