OHP EQ 10 WQ 7 EQ 9 3

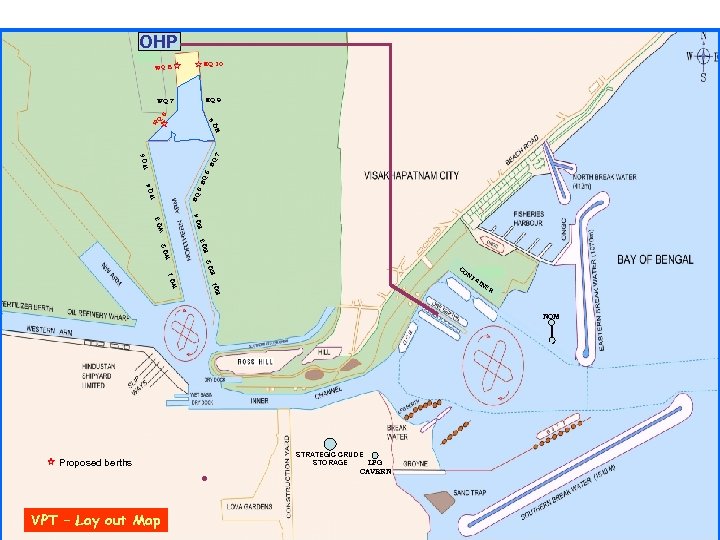

OHP EQ 10 WQ 7 EQ 9 3 EQ 2 EQ CO N V T C AI T NER P EQ 1 1 WQ 2 WQ EQ 3 WQ 4 EQ WQ 5 4 EQ 6 EQ WQ 7 5 EQ W Q 8 6 WQ 8 L NOM Proposed berths • VPT – Lay out Map STRATEGIC CRUDE STORAGE LPG CAVERN

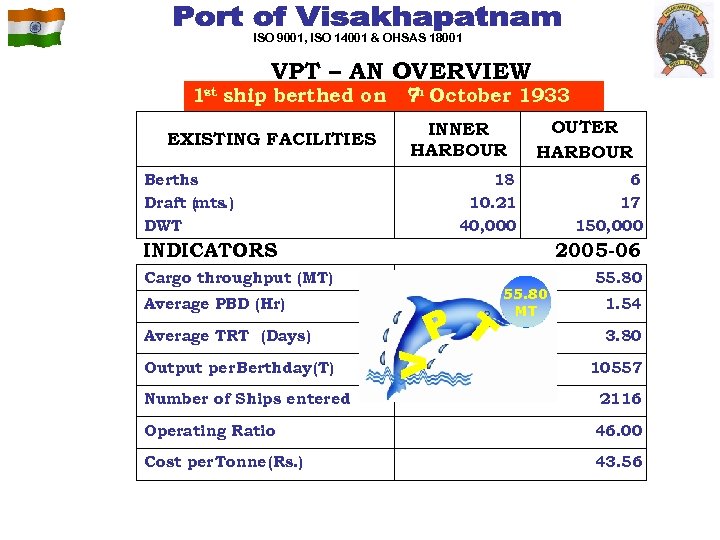

ISO 9001, ISO 14001 & OHSAS 18001 VPT – AN OVERVIEW 1 st ship berthed on EXISTING FACILITIES Berths Draft (mts. ) DWT th 7 October 1933 INNER HARBOUR OUTER HARBOUR 18 10. 21 40, 000 INDICATORS Cargo throughput (MT) Average PBD (Hr) Average TRT (Days) Output per Berthday (T) Number of Ships entered 6 17 150, 000 2005 -06 55. 80 MT 55. 80 1. 54 3. 80 10557 2116 Operating Ratio 46. 00 Cost per Tonne (Rs. ) 43. 56

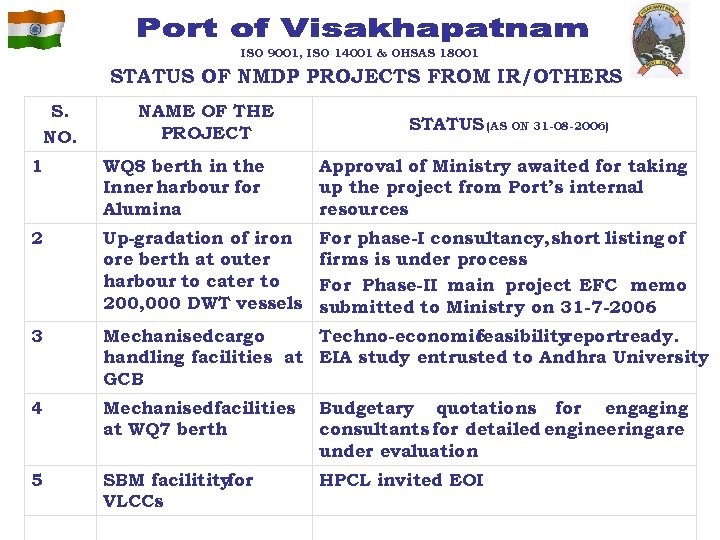

ISO 9001, ISO 14001 & OHSAS 18001 STATUS OF NMDP PROJECTS FROM IR/OTHERS S. NO. NAME OF THE PROJECT STATUS (AS ON 31 -08 -2006) 1 WQ 8 berth in the Inner harbour for Alumina Approval of Ministry awaited for taking up the project from Port’s internal resources 2 Up-gradation of iron ore berth at outer harbour to cater to 200, 000 DWT vessels For phase-I consultancy, short listing of firms is under process For Phase-II main project EFC memo submitted to Ministry on 31 -7 -2006 3 Mechanisedcargo Techno-economic feasibility reportready. handling facilities at EIA study entrusted to Andhra University GCB 4 Mechanisedfacilities at WQ 7 berth Budgetary quotations for engaging consultants for detailed engineering are under evaluation 5 SBM facilitity for VLCCs HPCL invited EOI

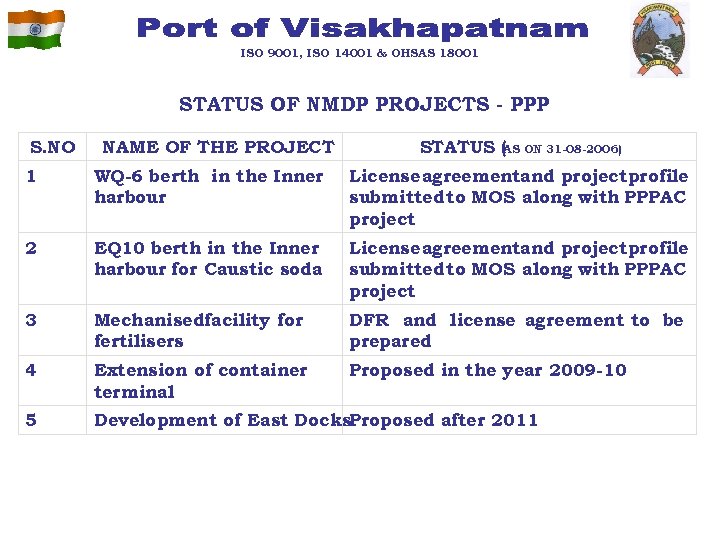

ISO 9001, ISO 14001 & OHSAS 18001 STATUS OF NMDP PROJECTS - PPP S. NO NAME OF THE PROJECT STATUS (AS ON 31 -08 -2006) 1 WQ-6 berth in the Inner harbour License agreementand project profile submitted to MOS along with PPPAC project 2 EQ 10 berth in the Inner harbour for Caustic soda License agreementand project profile submitted to MOS along with PPPAC project 3 Mechanisedfacility for fertilisers DFR and license agreement to be prepared 4 Extension of container terminal Proposed in the year 2009 -10 5 Development of East Docks. Proposed after 2011

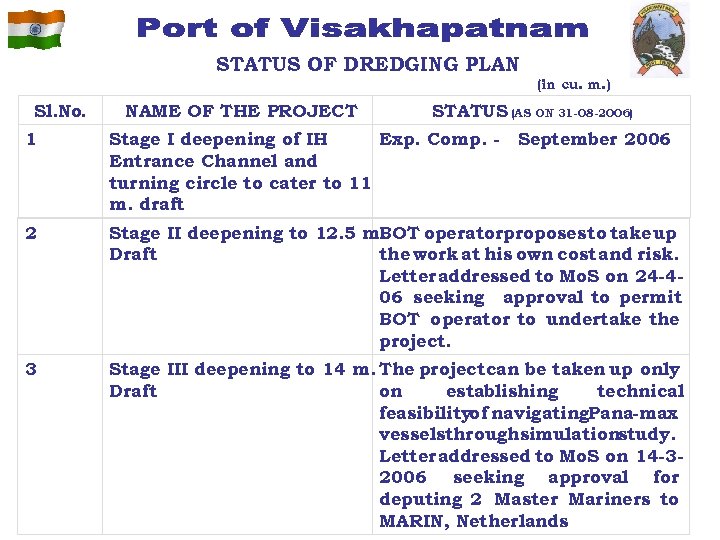

STATUS OF DREDGING PLAN (in cu. m. ) Sl. No. NAME OF THE PROJECT STATUS (AS ON 31 -08 -2006) 1 Stage I deepening of IH Exp. Comp. Entrance Channel and turning circle to cater to 11 m. draft September 2006 2 Stage II deepening to 12. 5 m. BOT operatorproposes to take up Draft the work at his own cost and risk. Letter addressed to Mo. S on 24 -406 seeking approval to permit BOT operator to undertake the project. 3 Stage III deepening to 14 m. The project can be taken up only Draft on establishing technical feasibilityof navigating. Pana-max vesselsthroughsimulationstudy. Letter addressed to Mo. S on 14 -32006 seeking approval for deputing 2 Master Mariners to MARIN, Netherlands

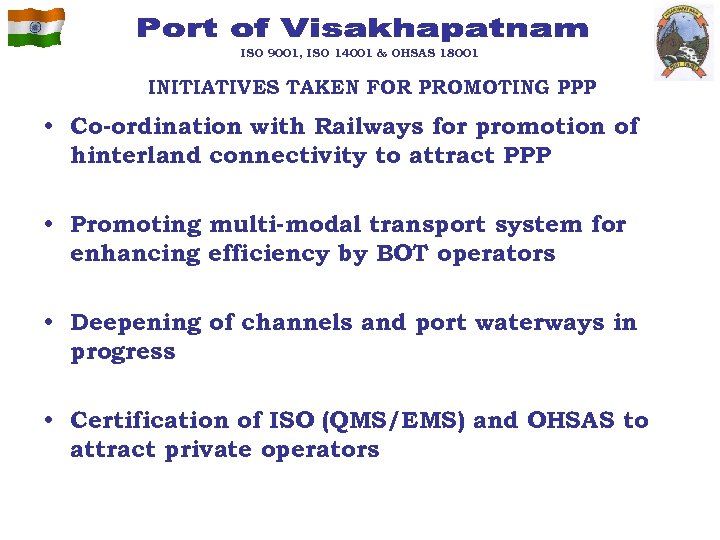

ISO 9001, ISO 14001 & OHSAS 18001 INITIATIVES TAKEN FOR PROMOTING PPP • Co-ordination with Railways for promotion of hinterland connectivity to attract PPP • Promoting multi-modal transport system for enhancing efficiency by BOT operators • Deepening of channels and port waterways in progress • Certification of ISO (QMS/EMS) and OHSAS to attract private operators

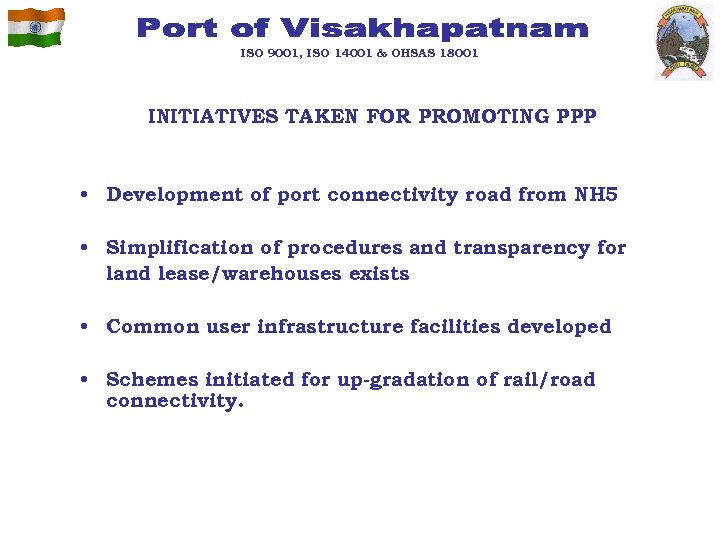

ISO 9001, ISO 14001 & OHSAS 18001 INITIATIVES TAKEN FOR PROMOTING PPP • Development of port connectivity road from NH 5 • Simplification of procedures and transparency for land lease/warehouses exists • Common user infrastructure facilities developed • Schemes initiated for up-gradation of rail/road connectivity.

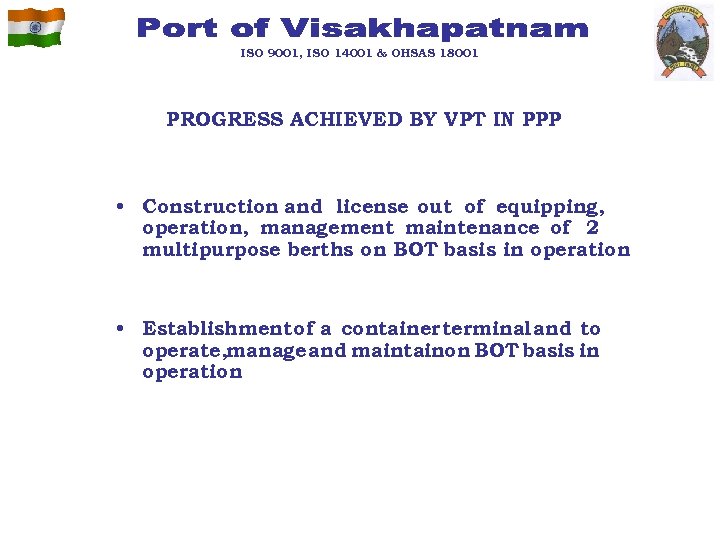

ISO 9001, ISO 14001 & OHSAS 18001 PROGRESS ACHIEVED BY VPT IN PPP • Construction and license out of equipping, operation, management maintenance of 2 multipurpose berths on BOT basis in operation • Establishment of a container terminal and to operate, manage and maintainon BOT basis in operation
