Overview ■ Main Target - Small & medium Biz. 12 to 50 extensions - Replacing Office. Serv 100 ■ IP Enabled platform - TDM config. : Max. 58 ports (Trunk + Station) Max. 30 E 1 PRI channel + 44 ports (TDM terminals) - IP config. : Max. 60 ports (8 SIP Trunk + 52 Station) - Basic embedded config. : 4 Trunk + 4 DLI + 8 SLI, (BMP + B 8 S) 4 ch AA, 4 ch VMS, 8 MGI, 1 LAN for programming and connection to IP switch - Common resources : 2 MOH(1 internal, 1 external), 1 external paging ■ Compatibility with b’ds of Office. Serv 7100 ■ SPNet connectivity with Office. Serv 7030/7100/7200/7400 ■ No cabinet expansion ■ Identical S/W and Terminals to 7000 series ■ IP Phone, Wi. Fi phone and SIP Trunk Connectivity 1

■ Mother boards - BMP : Main Processor, 4 DLI embedded, enabling 2 D B’ds to place on BMP - B 8 S : 8 SLI + 4 ATrunk embedded, enabling 3 D B’ds to place on B 8 S, connected to BMP - E 8 S : 8 SLI embedded, enabling 3 D B’ds to place on E 8 S, connected to B 8 S ■ Daughter boards - Trunk b’d : 4 TRK, PRI (E 1 PRI, R 2 not supported) - Station b’d : 4 SLI, 4 SL 2(New), 4 DLI [ Location table of feature boards ] Location 4 SLM 4 SL 2 4 TRM PRM LOC 1 BMP 4 DLM ● ● LOC 2 ● ● ● LOC 3 LOC 1 ● ● LOC 2 ● ● ● ● LOC 1 E 8 S ● LOC 3 B 8 S ● ● ● LOC 2 ● ● LOC 3 ● ● 2

3

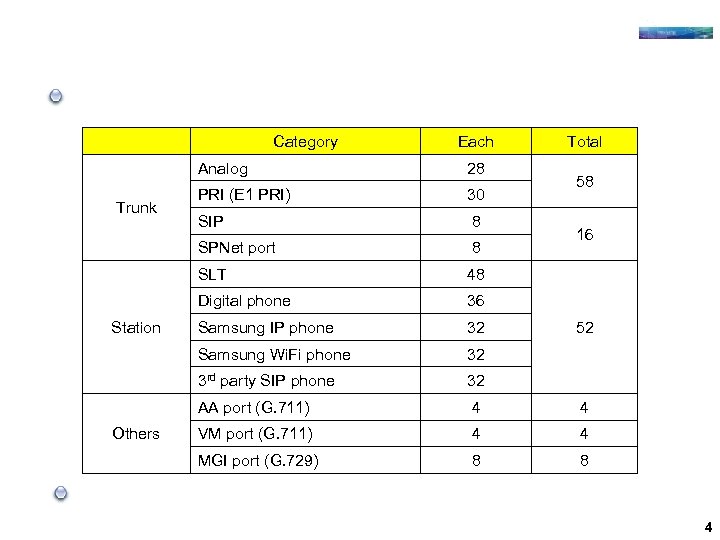

Category Each Total Analog SIP 8 8 48 Digital phone 36 Samsung IP phone 32 Samsung Wi. Fi phone 32 3 rd party SIP phone 32 AA port (G. 711) Others 30 SLT Station PRI (E 1 PRI) SPNet port Trunk 28 4 4 VM port (G. 711) 4 4 MGI port (G. 729) 8 8 58 16 52 4

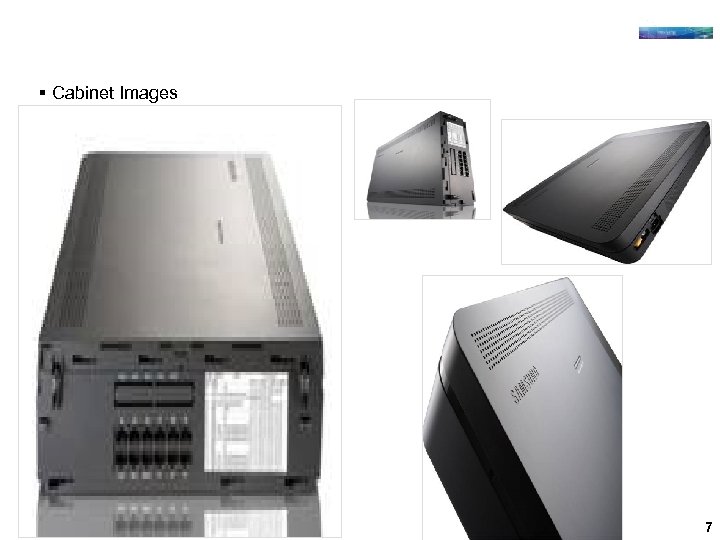

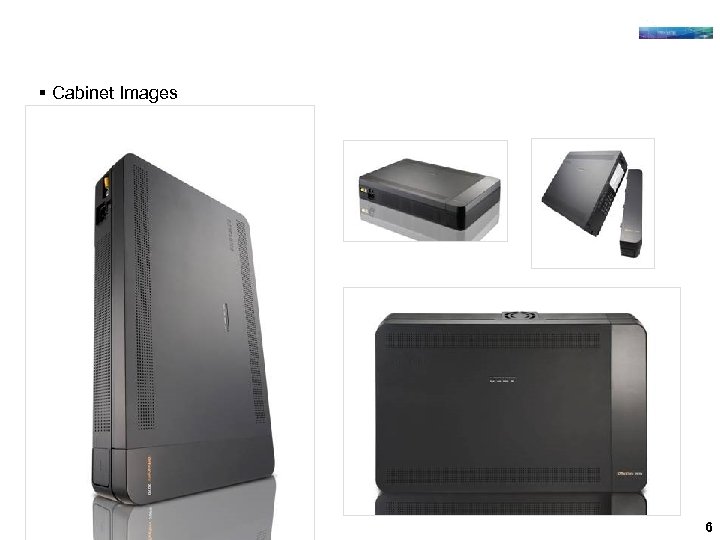

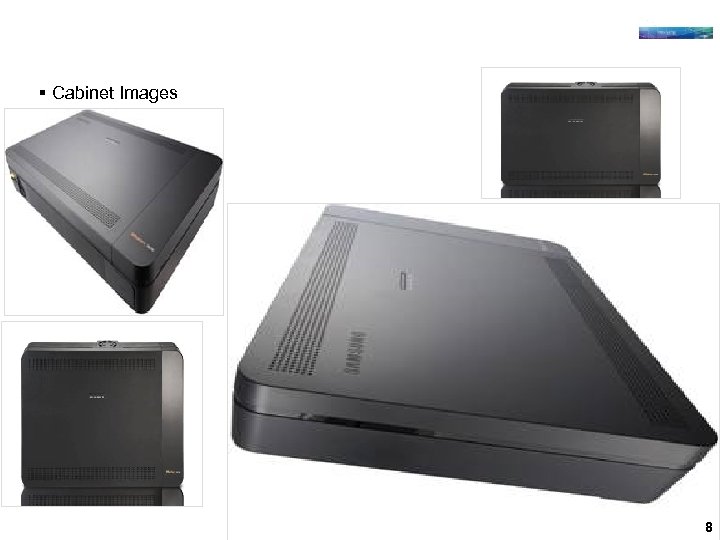

Design § Cabinet Internal Configuration (LED) [ Top view ] Reserved D B'd BMP PSU all-Option D B'd RJ-45 Jack D B'd B 8 S & E 8 S B'd [ Front view ] Switch ● ● Power Jack BMP B'd B 8 S B'd 5
