Office of the Manager, NCS NGN Priority Services Efforts Presentation to CSRIC Frank J Suraci GETS/WPS Prog Mgr March 22, 2010 1

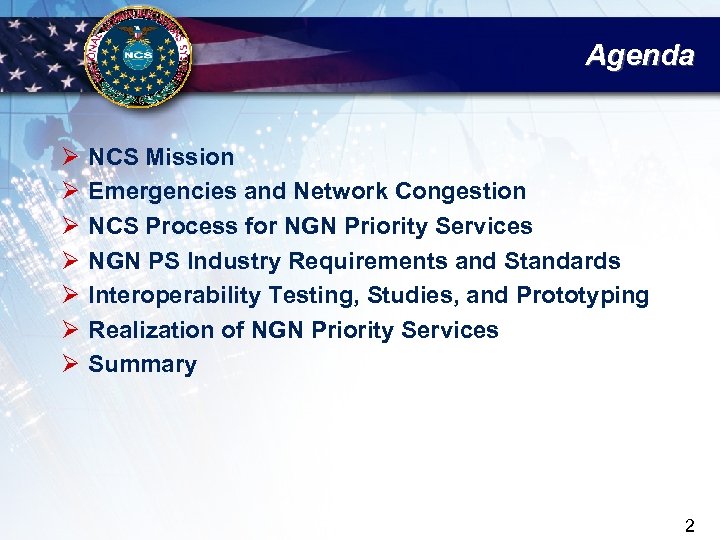

Agenda Ø Ø Ø Ø NCS Mission Emergencies and Network Congestion NCS Process for NGN Priority Services NGN PS Industry Requirements and Standards Interoperability Testing, Studies, and Prototyping Realization of NGN Priority Services Summary 2

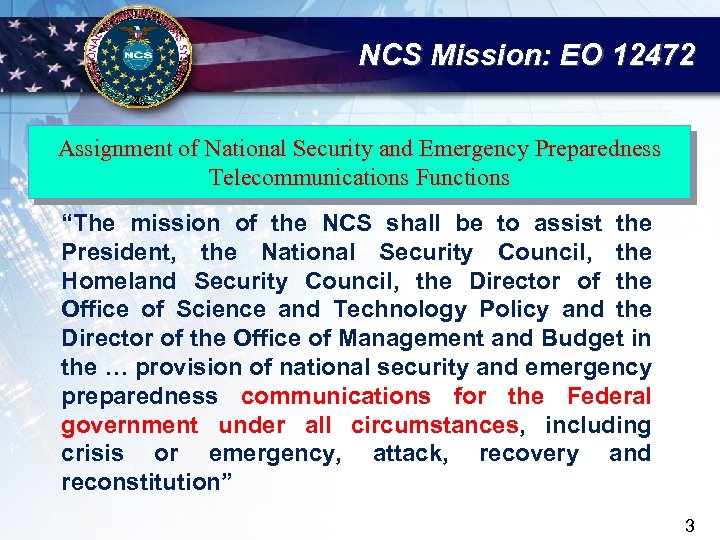

NCS Mission: EO 12472 Assignment of National Security and Emergency Preparedness Telecommunications Functions “The mission of the NCS shall be to assist the President, the National Security Council, the Homeland Security Council, the Director of the Office of Science and Technology Policy and the Director of the Office of Management and Budget in the … provision of national security and emergency preparedness communications for the Federal government under all circumstances, including crisis or emergency, attack, recovery and reconstitution” 3

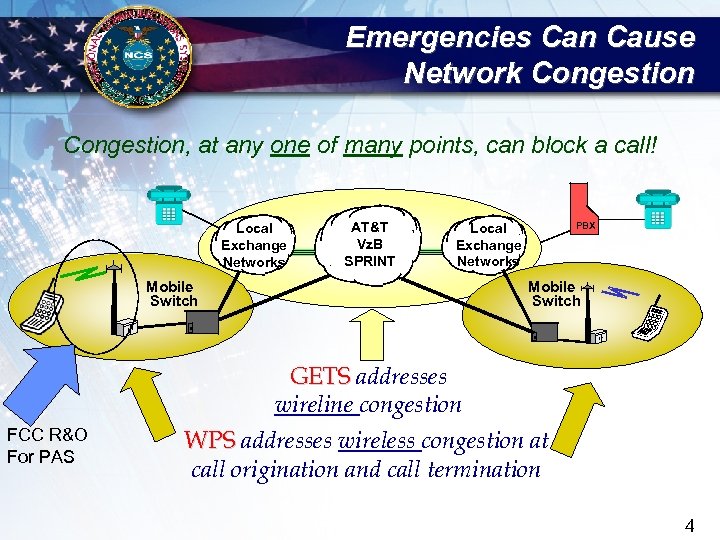

Emergencies Can Cause Network Congestion, at any one of many points, can block a call! Local Exchange Networks Mobile Switch FCC R&O For PAS AT&T Vz. B SPRINT PBX Local Exchange Networks Mobile Switch GETS addresses wireline congestion WPS addresses wireless congestion at call origination and call termination 4

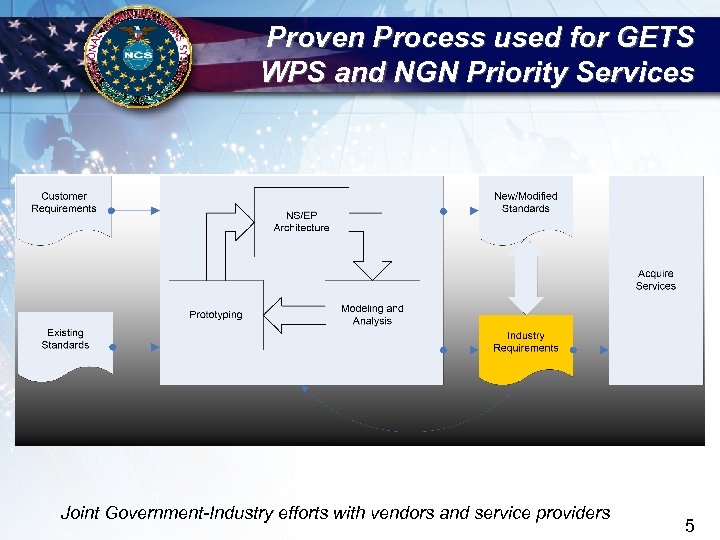

Proven Process used for GETS WPS and NGN Priority Services Joint Government-Industry efforts with vendors and service providers 5

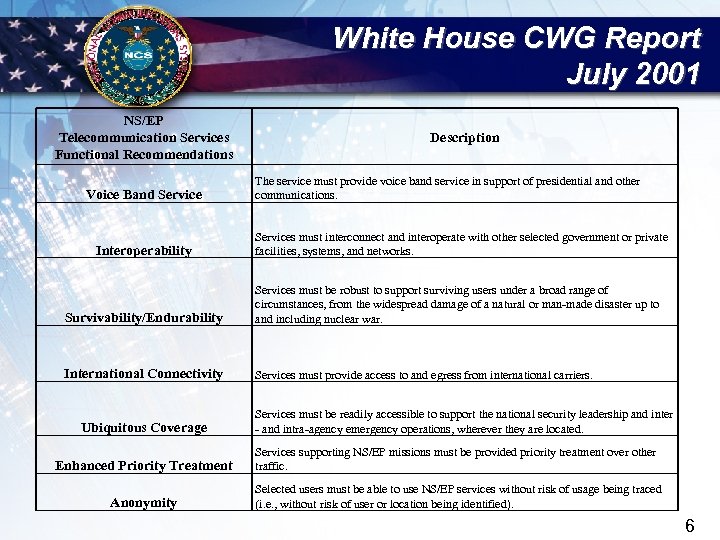

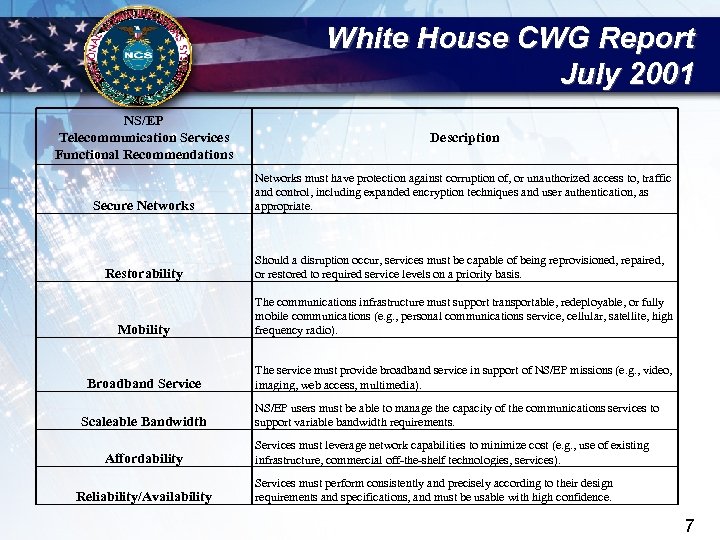

White House CWG Report July 2001 NS/EP Telecommunication Services Functional Recommendations Voice Band Service Interoperability Description The service must provide voice band service in support of presidential and other communications. Services must interconnect and interoperate with other selected government or private facilities, systems, and networks. Survivability/Endurability Services must be robust to support surviving users under a broad range of circumstances, from the widespread damage of a natural or man-made disaster up to and including nuclear war. International Connectivity Services must provide access to and egress from international carriers. Ubiquitous Coverage Services must be readily accessible to support the national security leadership and inter - and intra-agency emergency operations, wherever they are located. Enhanced Priority Treatment Services supporting NS/EP missions must be provided priority treatment over other traffic. Anonymity Selected users must be able to use NS/EP services without risk of usage being traced (i. e. , without risk of user or location being identified). 6

White House CWG Report July 2001 NS/EP Telecommunication Services Functional Recommendations Secure Networks Restorability Description Networks must have protection against corruption of, or unauthorized access to, traffic and control, including expanded encryption techniques and user authentication, as appropriate. Should a disruption occur, services must be capable of being reprovisioned, repaired, or restored to required service levels on a priority basis. Mobility The communications infrastructure must support transportable, redeployable, or fully mobile communications (e. g. , personal communications service, cellular, satellite, high frequency radio). Broadband Service The service must provide broadband service in support of NS/EP missions (e. g. , video, imaging, web access, multimedia). Scaleable Bandwidth Affordability Reliability/Availability NS/EP users must be able to manage the capacity of the communications services to support variable bandwidth requirements. Services must leverage network capabilities to minimize cost (e. g. , use of existing infrastructure, commercial off-the-shelf technologies, services). Services must perform consistently and precisely according to their design requirements and specifications, and must be usable with high confidence. 7

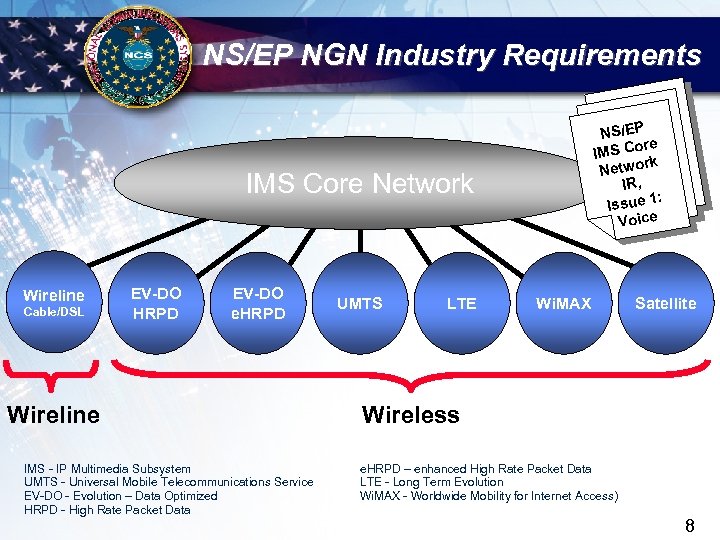

NS/EP NGN Industry Requirements NS/EP re IMS Co rk Netwo IR, : Issue 1 Voice IMS Core Network Wireline Cable/DSL EV-DO HRPD EV-DO e. HRPD Wireline IMS - IP Multimedia Subsystem UMTS - Universal Mobile Telecommunications Service EV-DO - Evolution – Data Optimized HRPD - High Rate Packet Data UMTS LTE Wi. MAX Satellite Wireless e. HRPD – enhanced High Rate Packet Data LTE - Long Term Evolution Wi. MAX - Worldwide Mobility for Internet Access) 8

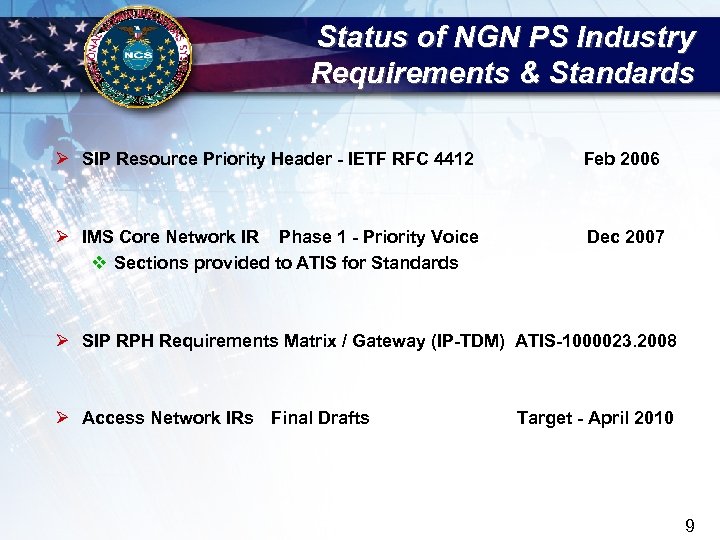

Status of NGN PS Industry Requirements & Standards Ø SIP Resource Priority Header - IETF RFC 4412 Feb 2006 Ø IMS Core Network IR Phase 1 - Priority Voice v Sections provided to ATIS for Standards Dec 2007 Ø SIP RPH Requirements Matrix / Gateway (IP-TDM) ATIS-1000023. 2008 Ø Access Network IRs Final Drafts Target - April 2010 9

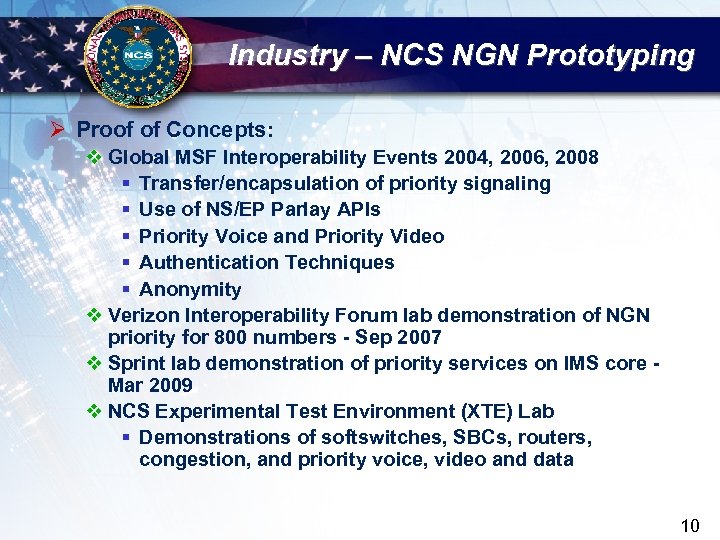

Industry – NCS NGN Prototyping Ø Proof of Concepts: v Global MSF Interoperability Events 2004, 2006, 2008 § Transfer/encapsulation of priority signaling § Use of NS/EP Parlay APIs § Priority Voice and Priority Video § Authentication Techniques § Anonymity v Verizon Interoperability Forum lab demonstration of NGN priority for 800 numbers - Sep 2007 v Sprint lab demonstration of priority services on IMS core Mar 2009 v NCS Experimental Test Environment (XTE) Lab § Demonstrations of softswitches, SBCs, routers, congestion, and priority voice, video and data 10

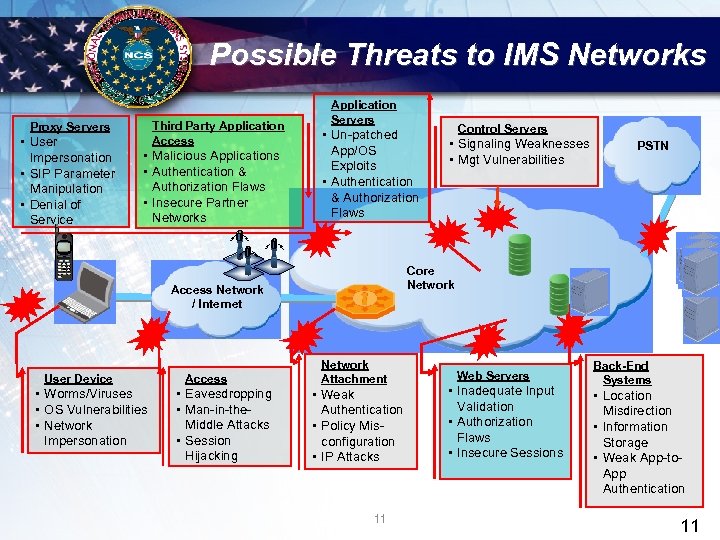

Possible Threats to IMS Networks Third Party Application Access Proxy Servers • User Impersonation • SIP Parameter Manipulation • Denial of Service • Malicious Applications • Authentication & Authorization Flaws • Insecure Partner Networks Application Servers • Un-patched App/OS Exploits • Authentication & Authorization Flaws • Worms/Viruses • OS Vulnerabilities • Network Impersonation Access • Eavesdropping • Man-in-the. Middle Attacks • Session Hijacking • Signaling Weaknesses • Mgt Vulnerabilities PSTN Core Network Access Network / Internet User Device Control Servers Network Attachment • Weak Authentication • Policy Misconfiguration • IP Attacks 11 Web Servers • Inadequate Input Validation • Authorization Flaws • Insecure Sessions Back-End Systems • Location Misdirection • Information Storage • Weak App-to. App Authentication 11

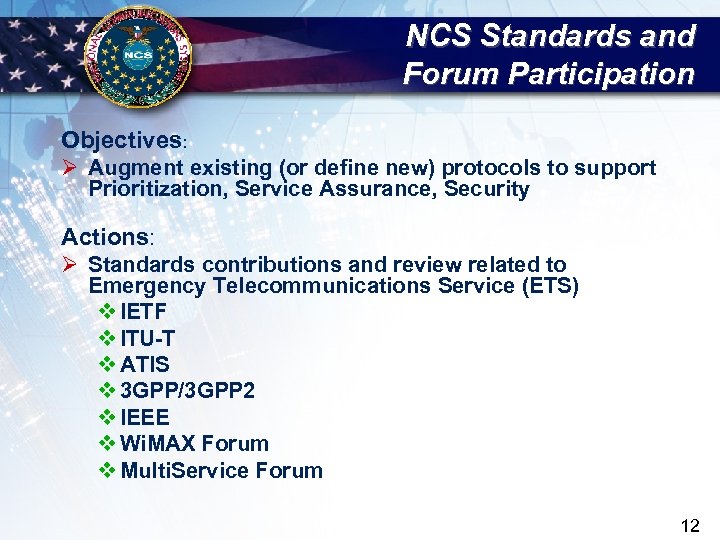

NCS Standards and Forum Participation Objectives: Ø Augment existing (or define new) protocols to support Prioritization, Service Assurance, Security Actions: Ø Standards contributions and review related to Emergency Telecommunications Service (ETS) v IETF v ITU-T v ATIS v 3 GPP/3 GPP 2 v IEEE v Wi. MAX Forum v Multi. Service Forum 12

Interoperability Ø Interoperability with other networks v Defense Switched Network v Diplomatic Telecommunications Service v FTS/Networx Ø US - Canada WPS interoperability 13

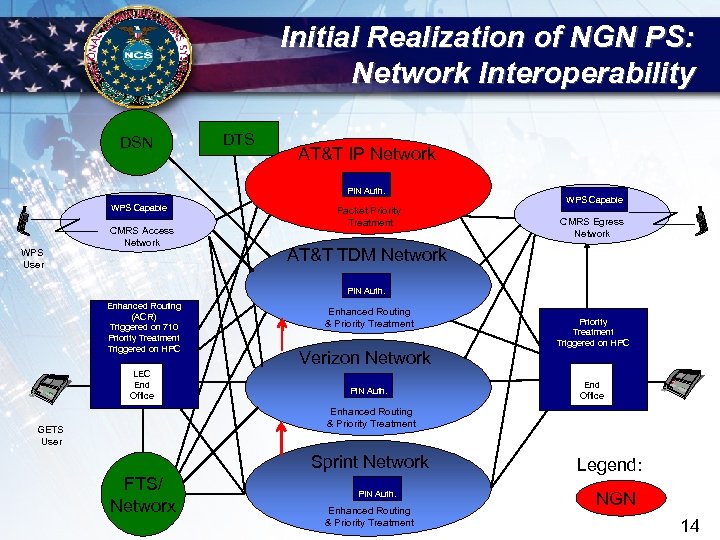

Initial Realization of NGN PS: Network Interoperability DSN DTS AT&T IP Network PIN Auth. WPS Capable WPS User CMRS Access Network Packet Priority Treatment WPS Capable CMRS Egress Network AT&T TDM Network PIN Auth. Enhanced Routing (ACR) Triggered on 710 Priority Treatment Triggered on HPC LEC End Office Enhanced Routing & Priority Treatment Triggered on HPC Verizon Network PIN Auth. End Office Enhanced Routing & Priority Treatment GETS User Sprint Network FTS/ Networx PIN Auth. Enhanced Routing & Priority Treatment Legend: NGN 14

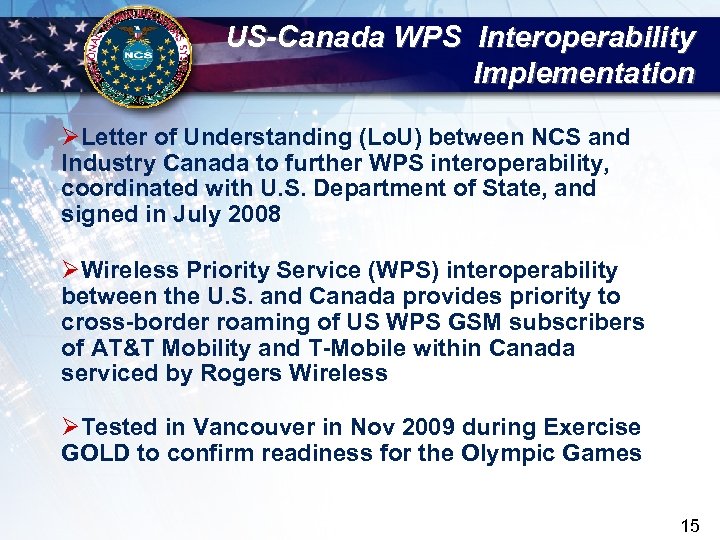

US-Canada WPS Interoperability Implementation ØLetter of Understanding (Lo. U) between NCS and Industry Canada to further WPS interoperability, coordinated with U. S. Department of State, and signed in July 2008 ØWireless Priority Service (WPS) interoperability between the U. S. and Canada provides priority to cross-border roaming of US WPS GSM subscribers of AT&T Mobility and T-Mobile within Canada serviced by Rogers Wireless ØTested in Vancouver in Nov 2009 during Exercise GOLD to confirm readiness for the Olympic Games 15

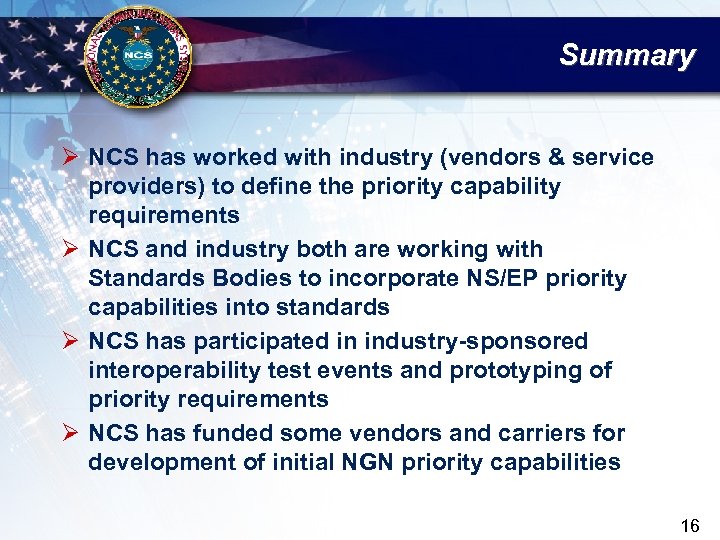

Summary Ø NCS has worked with industry (vendors & service providers) to define the priority capability requirements Ø NCS and industry both are working with Standards Bodies to incorporate NS/EP priority capabilities into standards Ø NCS has participated in industry-sponsored interoperability test events and prototyping of priority requirements Ø NCS has funded some vendors and carriers for development of initial NGN priority capabilities 16

Questions?

BACKUPS 18

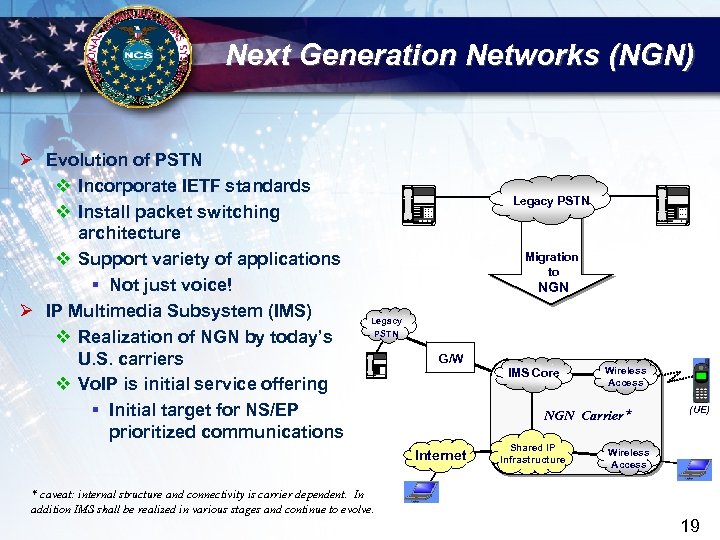

Next Generation Networks (NGN) Ø Evolution of PSTN v Incorporate IETF standards v Install packet switching architecture v Support variety of applications § Not just voice! Ø IP Multimedia Subsystem (IMS) v Realization of NGN by today’s U. S. carriers v Vo. IP is initial service offering § Initial target for NS/EP prioritized communications Legacy PSTN 1 2 3 4 5 6 7 8 9 * 8 # Migration to NGN Legacy PSTN G/W IMS Core 123 456 789 * 8# NGN Carrier * Internet * caveat: internal structure and connectivity is carrier dependent. In addition IMS shall be realized in various stages and continue to evolve. Wireless Access Shared IP Infrastructure (UE) Wireless Access 19

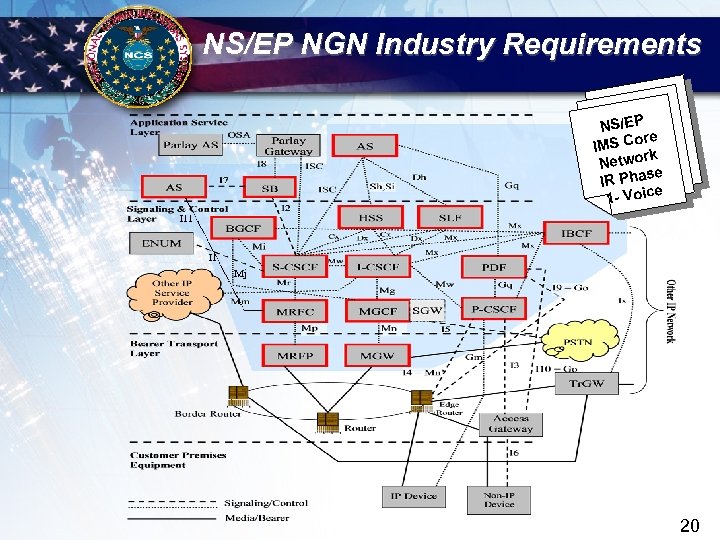

NS/EP NGN Industry Requirements NS/EP re IMS Co rk Netwo se IR Pha e 1 - Voic I 11 I 1 Mj 20

Status of NGN PS Industry Requirements & Standards Activity Event/Standard Status Dep Mgr NCS briefed Industry on NGN Transition Strategy Team Forum May 2004 ETS Service Description ATIS 1000005 2005 SIP Resource Priority Header IETF RFC 4412 Feb 2006 NCS Selection of Reference Architecture for Industry Rqmts Internet Protocol (IP) Multimedia Subsystem Oct 2006 IMS Core Network IR Phase 1 - Priority Voice Completed Sections provided to ATIS for Standards Dec 2007 SIP RPH Requirements Matrix / Gateway (IP-TDM) ATIS-1000023. 2008 NGN Priority Services Descriptions Completed April 2009 Access Network IRs (7) for Priority Voice and Data Final Drafts Target - April 2010 ATIS Pending 21 21

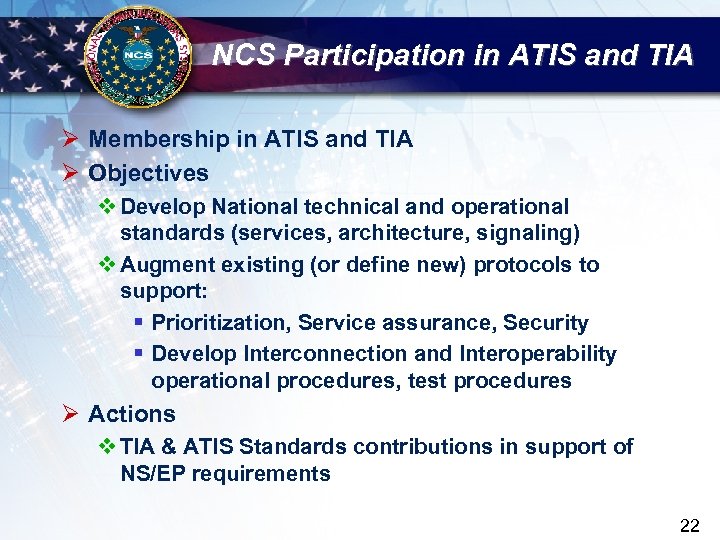

NCS Participation in ATIS and TIA Ø Membership in ATIS and TIA Ø Objectives v Develop National technical and operational standards (services, architecture, signaling) v Augment existing (or define new) protocols to support: § Prioritization, Service assurance, Security § Develop Interconnection and Interoperability operational procedures, test procedures Ø Actions v TIA & ATIS Standards contributions in support of NS/EP requirements 22

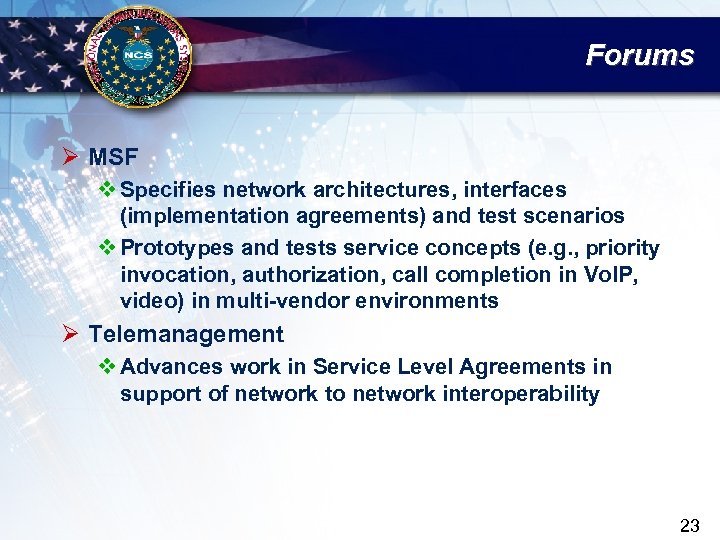

Forums Ø MSF v Specifies network architectures, interfaces (implementation agreements) and test scenarios v Prototypes and tests service concepts (e. g. , priority invocation, authorization, call completion in Vo. IP, video) in multi-vendor environments Ø Telemanagement v Advances work in Service Level Agreements in support of network to network interoperability 23
