Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 1

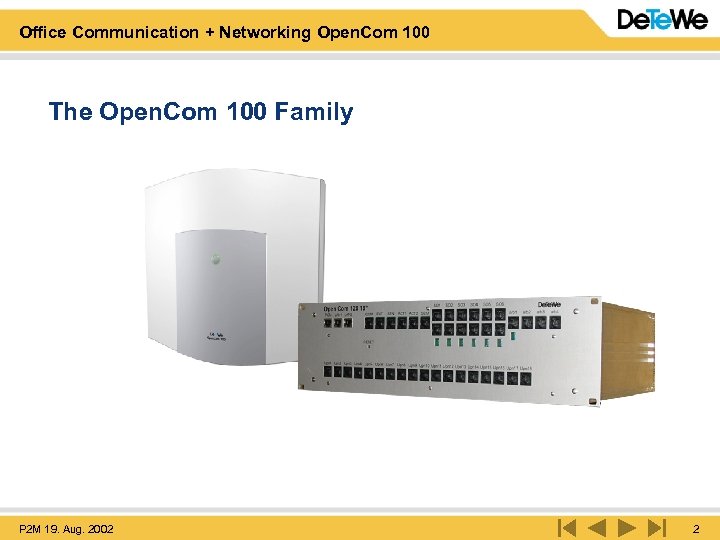

Office Communication + Networking Open. Com 100 The Open. Com 100 Family P 2 M 19. Aug. 2002 2

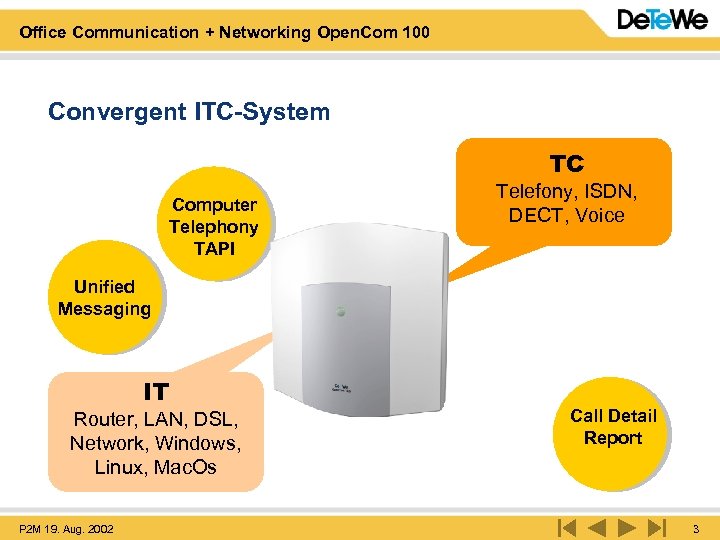

Office Communication + Networking Open. Com 100 Convergent ITC-System TC Computer Telephony TAPI Telefony, ISDN, DECT, Voice Unified Messaging IT Router, LAN, DSL, Network, Windows, Linux, Mac. Os P 2 M 19. Aug. 2002 Call Detail Report 3

Office Communication + Networking Open. Com 100 matches for everybody Connections Open. Com 105 Open. Com 110 Open. Com 120(rack) Ethernet-LAN-Connection 1 1 1 BRI Trunks 1 2 / BRI Trunks / Subscriber switchable 2 2 6 BRI Subscriber 1 1 / PRI Trunk Option UPN-Extensions with 2 lines Analogue Ports Door Station on analogue port P 2 M 19. Aug. 2002 1 4 8 18 4 4 4 1 1 1 4

Office Communication + Networking Open. Com 100 DECT Server and PBX ISDN DECT Open. Com 100 BRI PRI (optional) RFP 21 Open. Phone 20 UPN BRI Extension also with DDI analogue P 2 M 19. Aug. 2002 UPN Open. Phone 60 System telefony 5

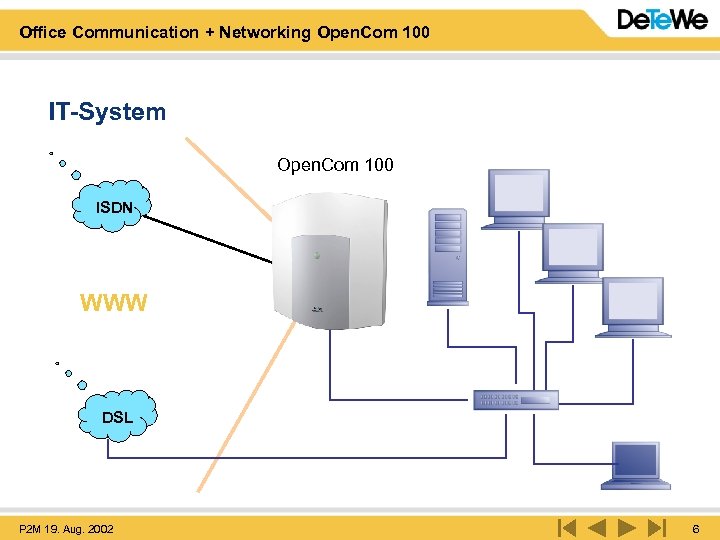

Office Communication + Networking Open. Com 100 IT-System Open. Com 100 ISDN WWW DSL P 2 M 19. Aug. 2002 6

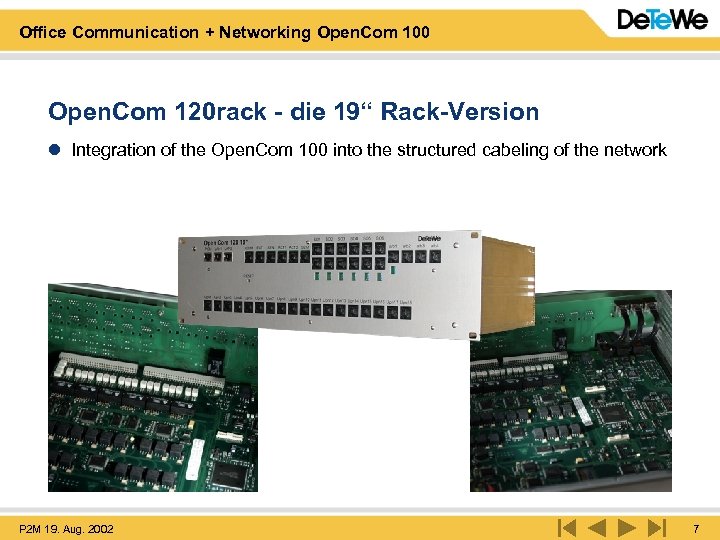

Office Communication + Networking Open. Com 100 Open. Com 120 rack - die 19“ Rack-Version l Integration of the Open. Com 100 into the structured cabeling of the network P 2 M 19. Aug. 2002 7

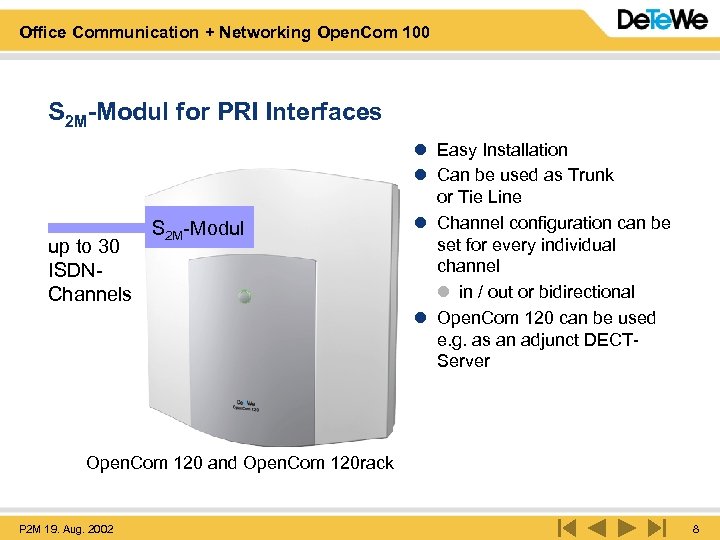

Office Communication + Networking Open. Com 100 S 2 M-Modul for PRI Interfaces up to 30 ISDNChannels S 2 M-Modul l Easy Installation l Can be used as Trunk or Tie Line l Channel configuration can be set for every individual channel l in / out or bidirectional l Open. Com 120 can be used e. g. as an adjunct DECTServer Open. Com 120 and Open. Com 120 rack P 2 M 19. Aug. 2002 8

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights New from Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 9

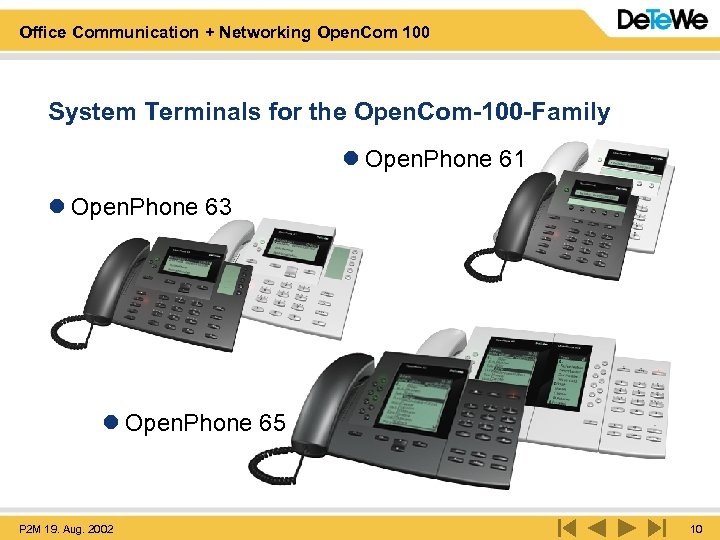

Office Communication + Networking Open. Com 100 System Terminals for the Open. Com-100 -Family l Open. Phone 61 l Open. Phone 63 l Open. Phone 65 P 2 M 19. Aug. 2002 10

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 11

Office Communication + Networking Open. Com 100 DECT l Mobile and nevertheless available P 2 M 19. Aug. 2002 12

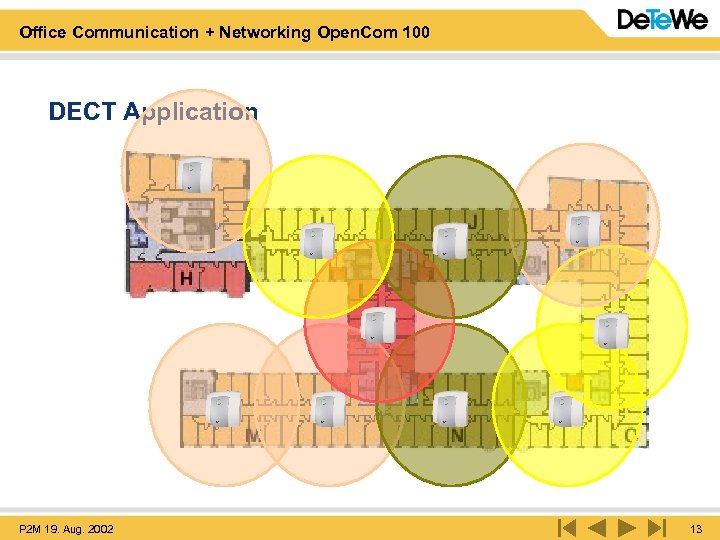

Office Communication + Networking Open. Com 100 DECT Application P 2 M 19. Aug. 2002 13

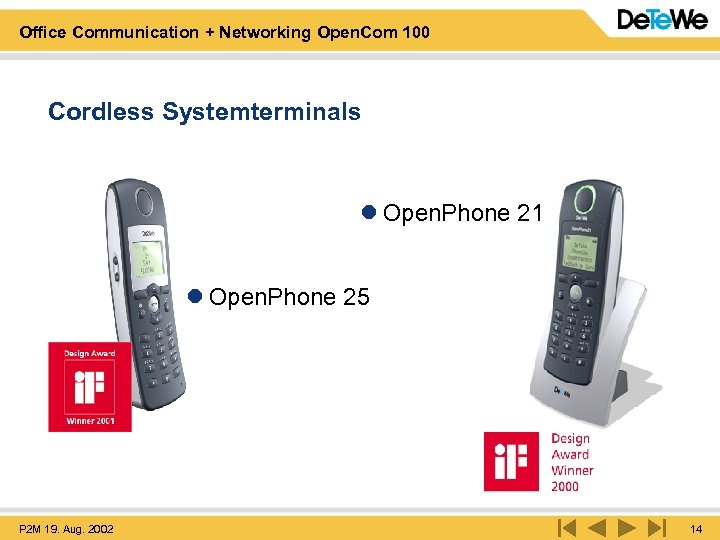

Office Communication + Networking Open. Com 100 Cordless Systemterminals l Open. Phone 21 l Open. Phone 25 P 2 M 19. Aug. 2002 14

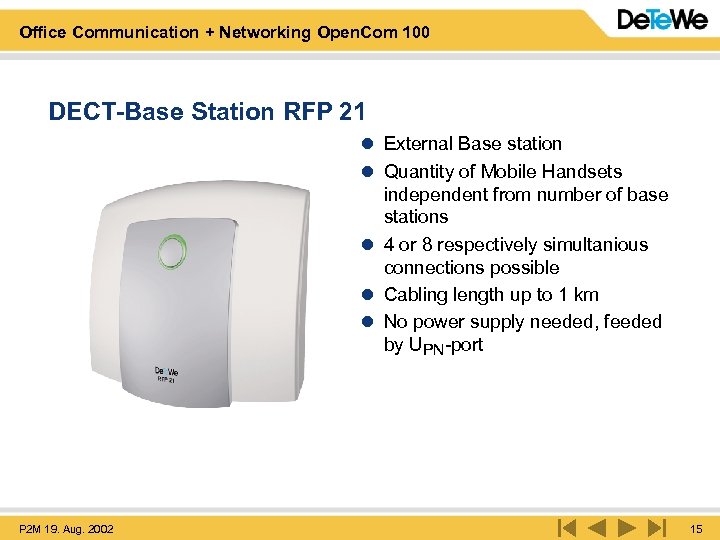

Office Communication + Networking Open. Com 100 DECT-Base Station RFP 21 l External Base station l Quantity of Mobile Handsets independent from number of base stations l 4 or 8 respectively simultanious connections possible l Cabling length up to 1 km l No power supply needed, feeded by UPN-port P 2 M 19. Aug. 2002 15

Office Communication + Networking Open. Com 100 USB DECT-Box l Cordless Internet Access for your PC using RFP 21 l Powered by the PC l LED for function control l Supported Operating Systems: Windows 98, 2000 or ME l Datarate about 60 Kbit/s P 2 M 19. Aug. 2002 16

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 17

Office Communication + Networking Open. Com 100 e. Mail-Notification l No customer will be lost: Notification of new e. Mails on the display l. . . once a day or every 5 minutes l You decide when to read the e. Mail: Originator, Time and Subject are shown on the display of your system handset ISDN e. Mail Server internal/ external UPN „e. Mail received“ RFP 21 „e. Mail received“ P 2 M 19. Aug. 2002 18

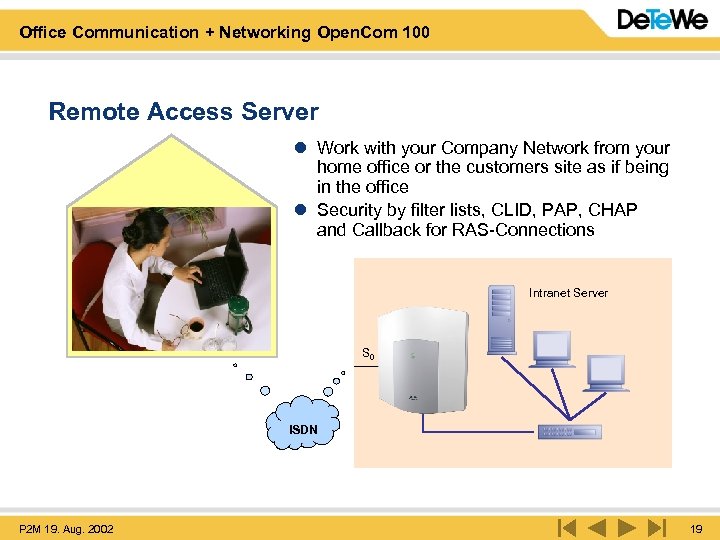

Office Communication + Networking Open. Com 100 Remote Access Server l Work with your Company Network from your home office or the customers site as if being in the office l Security by filter lists, CLID, PAP, CHAP and Callback for RAS-Connections Intranet Server S 0 ISDN P 2 M 19. Aug. 2002 19

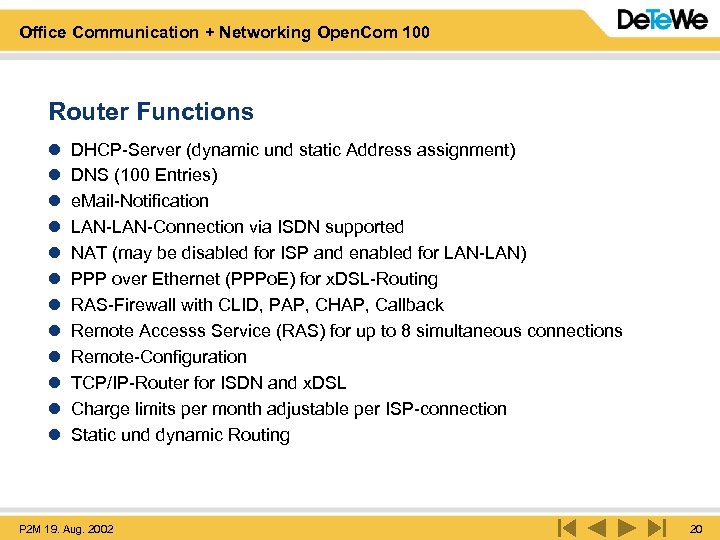

Office Communication + Networking Open. Com 100 Router Functions l l l DHCP-Server (dynamic und static Address assignment) DNS (100 Entries) e. Mail-Notification LAN-Connection via ISDN supported NAT (may be disabled for ISP and enabled for LAN-LAN) PPP over Ethernet (PPPo. E) for x. DSL-Routing RAS-Firewall with CLID, PAP, CHAP, Callback Remote Accesss Service (RAS) for up to 8 simultaneous connections Remote-Configuration TCP/IP-Router for ISDN and x. DSL Charge limits per month adjustable per ISP-connection Static und dynamic Routing P 2 M 19. Aug. 2002 20

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 21

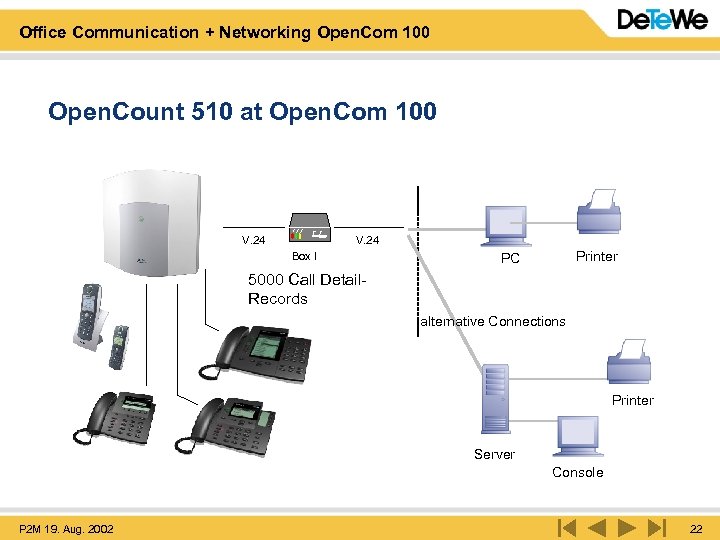

Office Communication + Networking Open. Com 100 Open. Count 510 at Open. Com 100 V. 24 Box I Printer PC 5000 Call Detail. Records alternative Connections Printer Server Console P 2 M 19. Aug. 2002 22

Office Communication + Networking Open. Com 100 Open. Count 510 Multisite Branch Office Cologne Branch Office Munich Box I Modem Box I Headquarters Berlin Modem Reports LAN more P 2 M 19. Aug. 2002 23

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 24

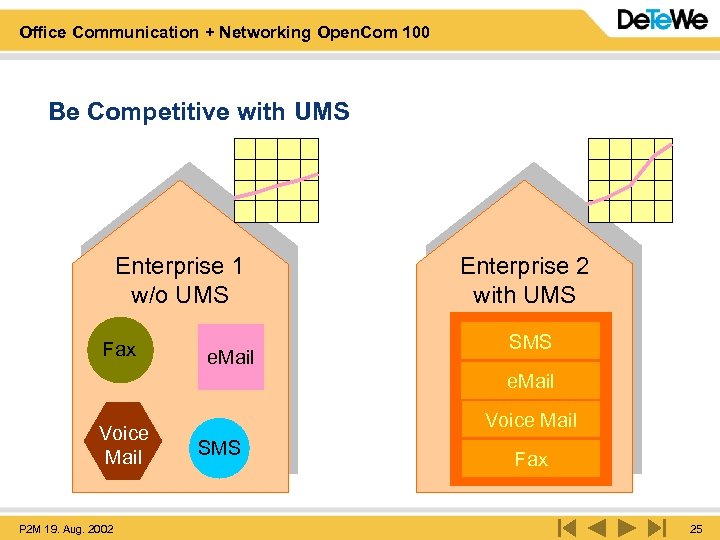

Office Communication + Networking Open. Com 100 Be Competitive with UMS Enterprise 1 w/o UMS Fax e. Mail Enterprise 2 with UMS SMS e. Mail Voice Mail P 2 M 19. Aug. 2002 Voice Mail SMS Fax 25

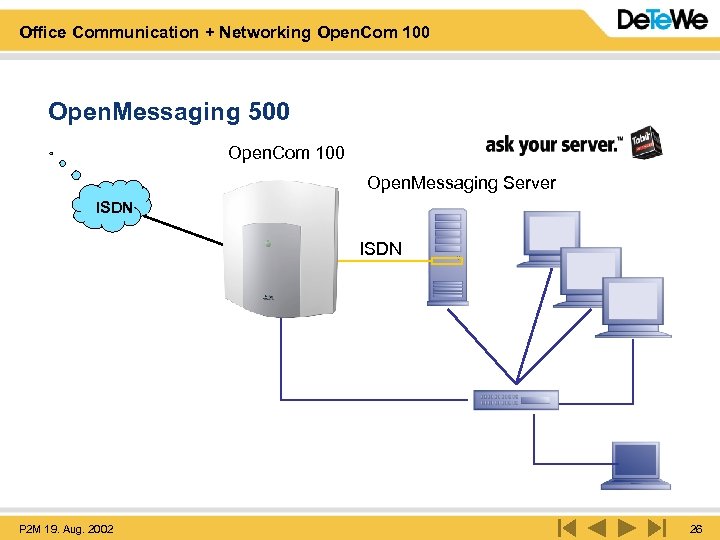

Office Communication + Networking Open. Com 100 Open. Messaging 500 Open. Com 100 Open. Messaging Server ISDN P 2 M 19. Aug. 2002 26

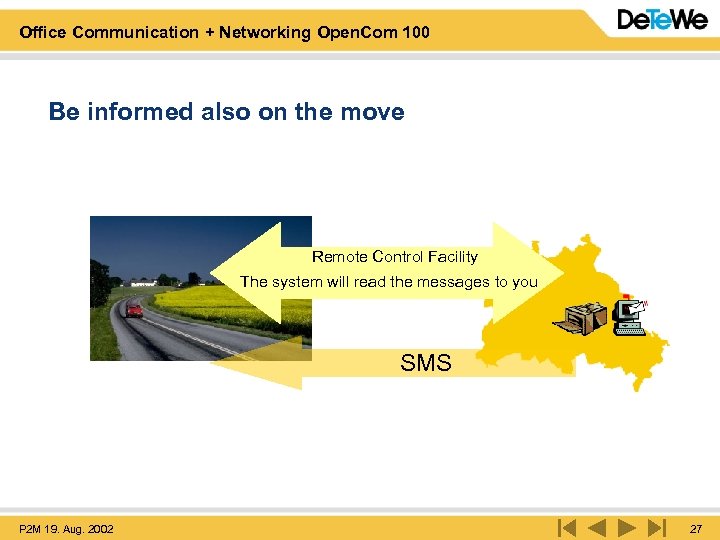

Office Communication + Networking Open. Com 100 Be informed also on the move Remote Control Facility Fernabfrage The system will read the messages to you SMS P 2 M 19. Aug. 2002 27

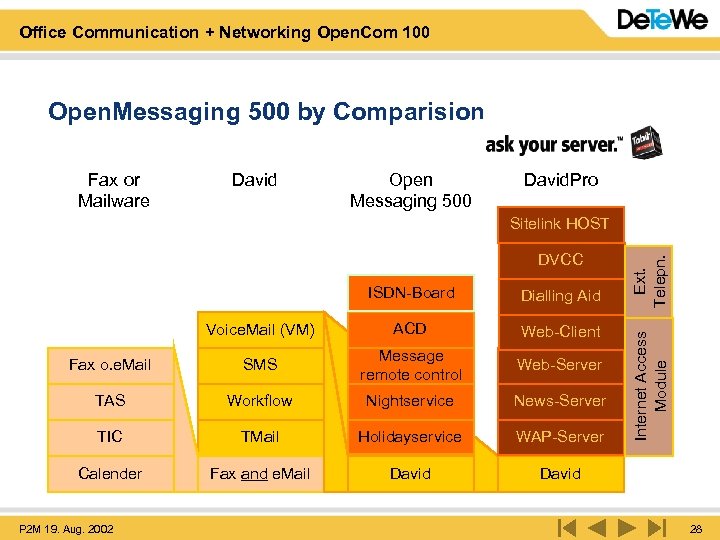

Office Communication + Networking Open. Com 100 Open. Messaging 500 by Comparision Fax or Mailware David Open Messaging 500 David. Pro DVCC Dialling Aid Voice. Mail (VM) ACD Web-Client Fax o. e. Mail SMS Message remote control Web-Server TAS Workflow Nightservice News-Server TIC TMail Holidayservice WAP-Server Calender Fax and e. Mail David P 2 M 19. Aug. 2002 Internet Access Module ISDN-Board Ext. Telepn. Sitelink HOST 28

Office Communication + Networking Open. Com 100 Systems System. Terminal DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 29

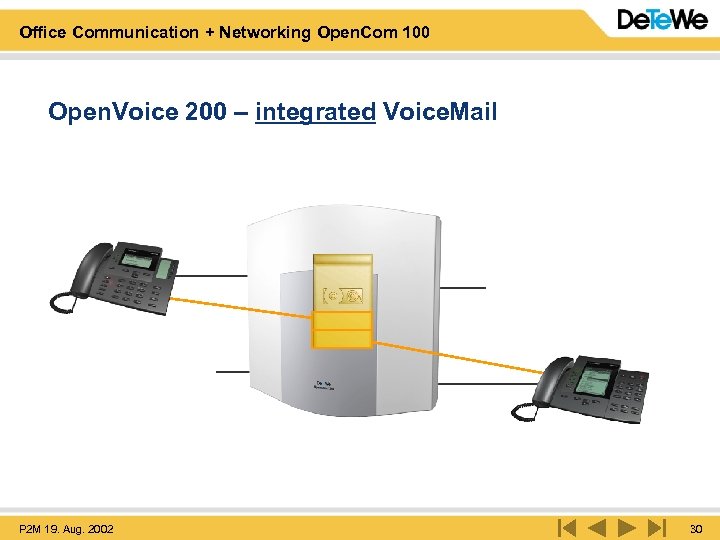

Office Communication + Networking Open. Com 100 Open. Voice 200 – integrated Voice. Mail P 2 M 19. Aug. 2002 30

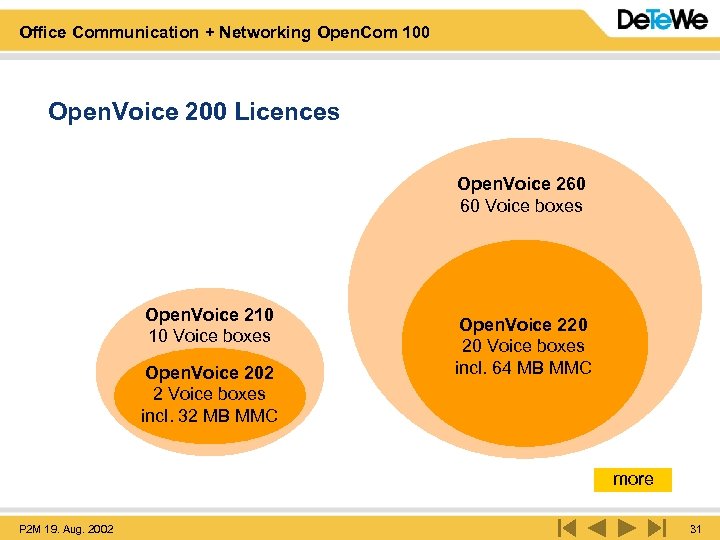

Office Communication + Networking Open. Com 100 Open. Voice 200 Licences Open. Voice 260 60 Voice boxes Open. Voice 210 10 Voice boxes Open. Voice 202 2 Voice boxes incl. 32 MB MMC Open. Voice 220 20 Voice boxes incl. 64 MB MMC more P 2 M 19. Aug. 2002 31

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 32

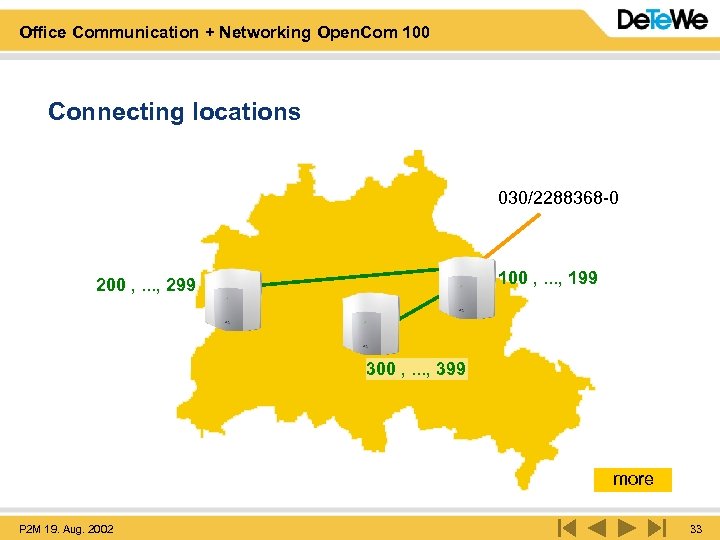

Office Communication + Networking Open. Com 100 Connecting locations 030/2288368 -0 100 , . . . , 199 200 , . . . , 299 300 , . . . , 399 more P 2 M 19. Aug. 2002 33

Office Communication + Networking Open. Com 100 Cascading – conditioned to growth Open. Com 120 Open. Com 110 82 to 112 Ports Open. Com 120 Open. Com 105 72 to 102 Ports P 2 M 19. Aug. 2002 34

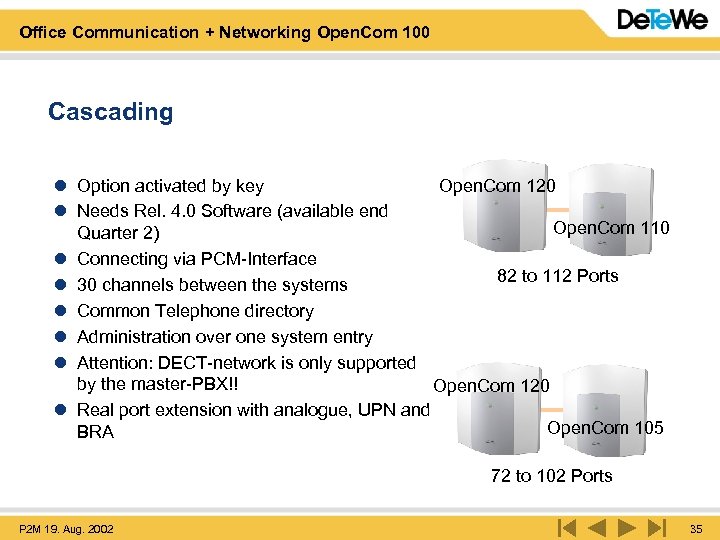

Office Communication + Networking Open. Com 100 Cascading l Option activated by key Open. Com 120 l Needs Rel. 4. 0 Software (available end Open. Com 110 Quarter 2) l Connecting via PCM-Interface 82 to 112 Ports l 30 channels between the systems l Common Telephone directory l Administration over one system entry l Attention: DECT-network is only supported by the master-PBX!! Open. Com 120 l Real port extension with analogue, UPN and Open. Com 105 BRA 72 to 102 Ports P 2 M 19. Aug. 2002 35

Office Communication + Networking Open. Com 100 Further Highlights l General Call for Mini Call-Center l cyclic, linear, static and all l Call Queue l Alphanumeric Directory l 6000 Telephone Numbers, 2000 destinations with 3 entries each (Private, Office, Mobile) l Centralised und individual Directory l Separable from Programming of the System l Pick. Up-Groups with Pick. Up-Notification l User Groups may be defined P 2 M 19. Aug. 2002 36

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 37

Office Communication + Networking Open. Com 100 News in Release 4. 0 l l l l Support for Microsoft TAPI Version 2. 1 Virtual CAPI-Driver, CAPI-Functionality over the IP network Announcement with Open. Voice 200 Cascading Open. Com 120 with Open. Com 110 or Open. Com 105 Absence Notification for Open. CTI 50 Factor for Call Cost Calculation and display per User Group 10 Registers for Call Barring (black and white-lists), assignable per User Group l Support for German Telekom „SMS in the fixed network“ (Using special FSK-signalisation) P 2 M 19. Aug. 2002 38

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 39

Office Communication + Networking Open. Com 100 Computer assisted Telephony with Open. CTI 50 P 2 M 19. Aug. 2002 40

Office Communication + Networking Open. Com 100 Open. CTI 50 l l l Open. CTI 50 - 60 day test before buy Browser based Available without installation Independent from Operating System New for Release 4. 0: Absence Notification from/to System Telephones Open. Phone 6 x and Open. Phone 21, 25 more P 2 M 19. Aug. 2002 41

Office Communication + Networking Open. Com 100 Systems System. Terminals DECTIntegration IP-Package Highlights News for Release 4. 0 Open. Voice 200 Open. CTI 50 UMS Open. Messaging 500 Open. Count 510 P 2 M 19. Aug. 2002 42

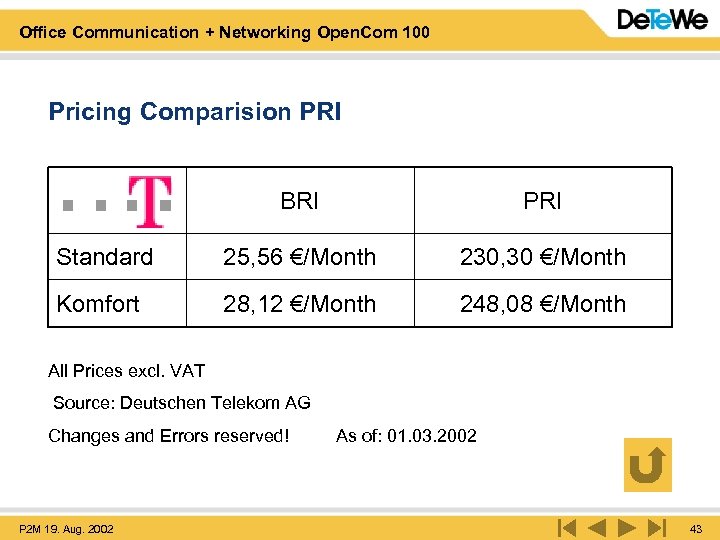

Office Communication + Networking Open. Com 100 Pricing Comparision PRI BRI PRI Standard 25, 56 €/Month 230, 30 €/Month Komfort 28, 12 €/Month 248, 08 €/Month All Prices excl. VAT Source: Deutschen Telekom AG Changes and Errors reserved! P 2 M 19. Aug. 2002 As of: 01. 03. 2002 43

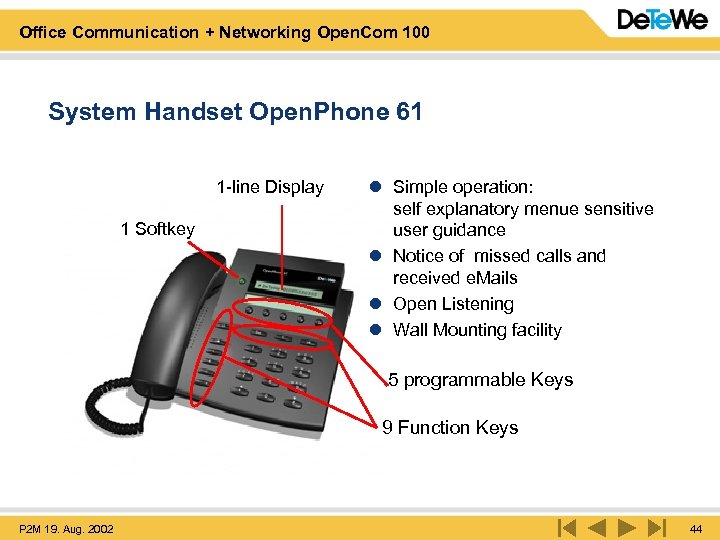

Office Communication + Networking Open. Com 100 System Handset Open. Phone 61 1 -line Display 1 Softkey l Simple operation: self explanatory menue sensitive user guidance l Notice of missed calls and received e. Mails l Open Listening l Wall Mounting facility 5 programmable Keys 9 Function Keys P 2 M 19. Aug. 2002 44

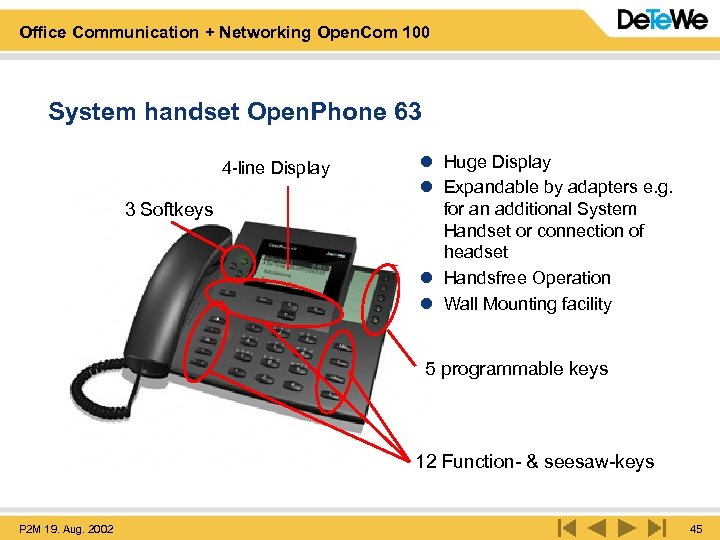

Office Communication + Networking Open. Com 100 System handset Open. Phone 63 4 -line Display 3 Softkeys l Huge Display l Expandable by adapters e. g. for an additional System Handset or connection of headset l Handsfree Operation l Wall Mounting facility 5 programmable keys 12 Function- & seesaw-keys P 2 M 19. Aug. 2002 45

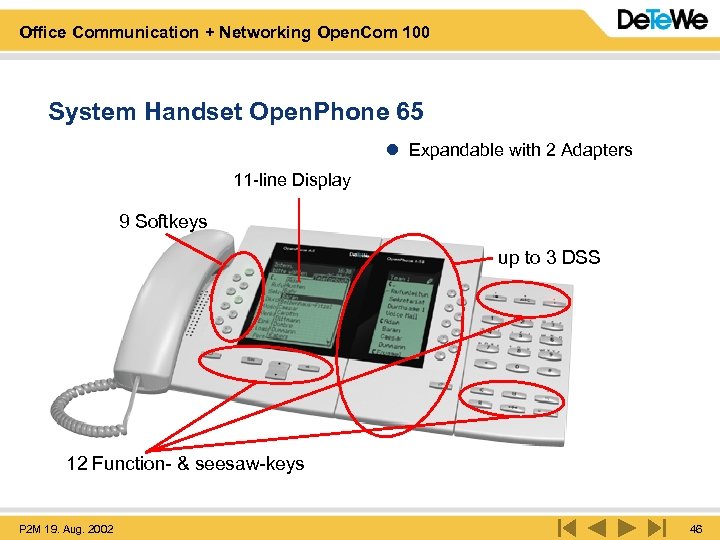

Office Communication + Networking Open. Com 100 System Handset Open. Phone 65 l Expandable with 2 Adapters 11 -line Display 9 Softkeys up to 3 DSS 12 Function- & seesaw-keys P 2 M 19. Aug. 2002 46

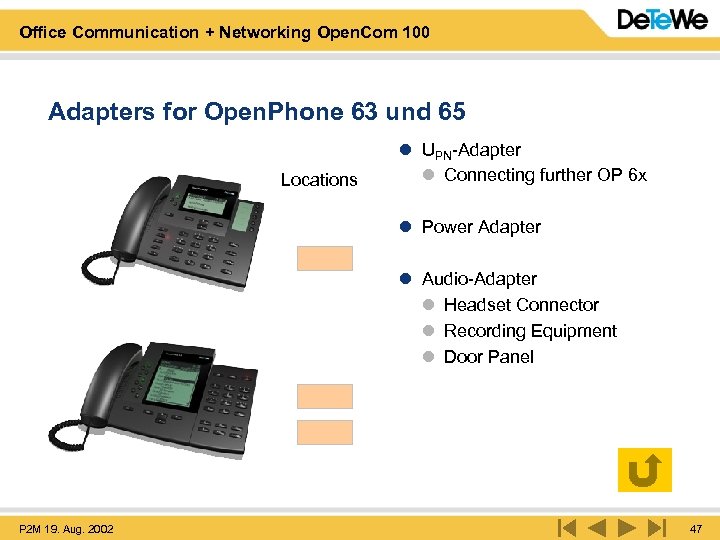

Office Communication + Networking Open. Com 100 Adapters for Open. Phone 63 und 65 Locations l UPN-Adapter l Connecting further OP 6 x l Power Adapter l Audio-Adapter l Headset Connector l Recording Equipment l Door Panel P 2 M 19. Aug. 2002 47

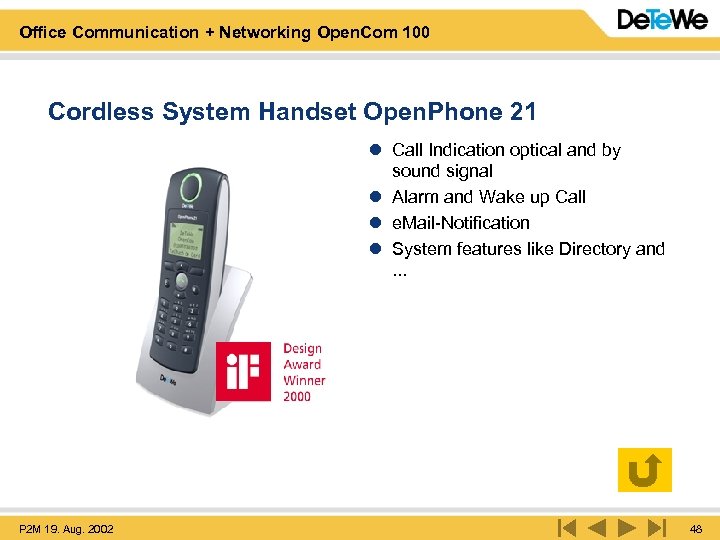

Office Communication + Networking Open. Com 100 Cordless System Handset Open. Phone 21 l Call Indication optical and by sound signal l Alarm and Wake up Call l e. Mail-Notification l System features like Directory and. . . P 2 M 19. Aug. 2002 48

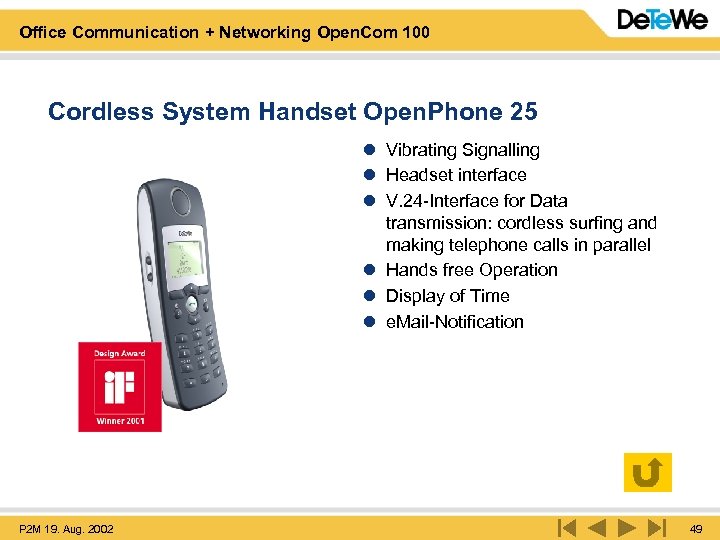

Office Communication + Networking Open. Com 100 Cordless System Handset Open. Phone 25 l Vibrating Signalling l Headset interface l V. 24 -Interface for Data transmission: cordless surfing and making telephone calls in parallel l Hands free Operation l Display of Time l e. Mail-Notification P 2 M 19. Aug. 2002 49

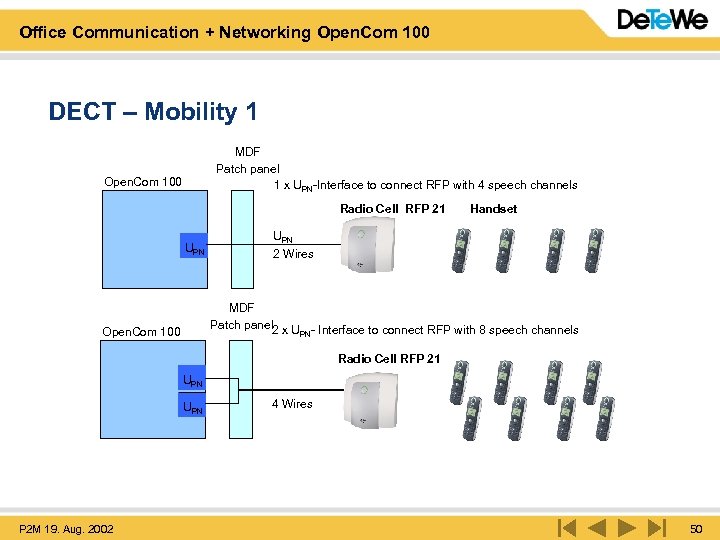

Office Communication + Networking Open. Com 100 DECT – Mobility 1 MDF Patch panel 1 x UPN-Interface to connect RFP with 4 speech channels Open. Com 100 Radio Cell RFP 21 UPN Handset UPN 2 Wires MDF Patch panel 2 x U - Interface to connect RFP with 8 speech channels PN Open. Com 100 Radio Cell RFP 21 UPN P 2 M 19. Aug. 2002 4 Wires 50

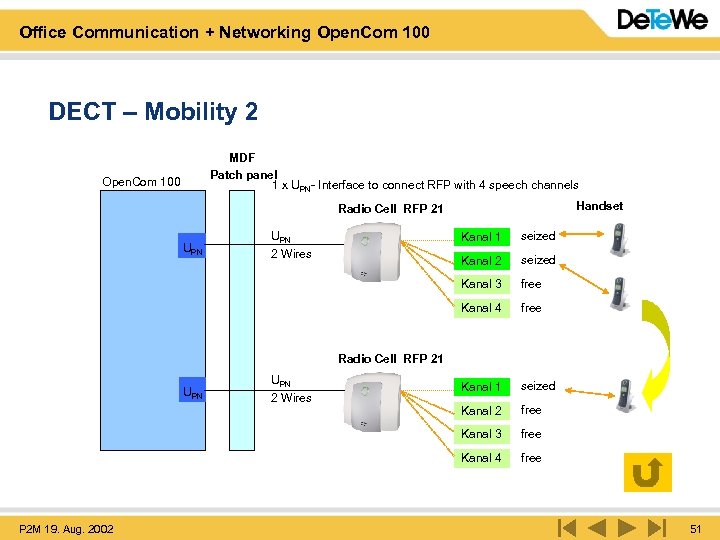

Office Communication + Networking Open. Com 100 DECT – Mobility 2 MDF Patch panel 1 x UPN- Interface to connect RFP with 4 speech channels Open. Com 100 Handset Radio Cell RFP 21 Kanal 1 UPN 2 Wires seized Kanal 2 seized belegt frei Kanal 3 free Kanal 4 free Kanal 1 seized frei Kanal 2 free Kanal 3 free Kanal 4 UPN free Radio Cell RFP 21 UPN P 2 M 19. Aug. 2002 UPN 2 Wires 51

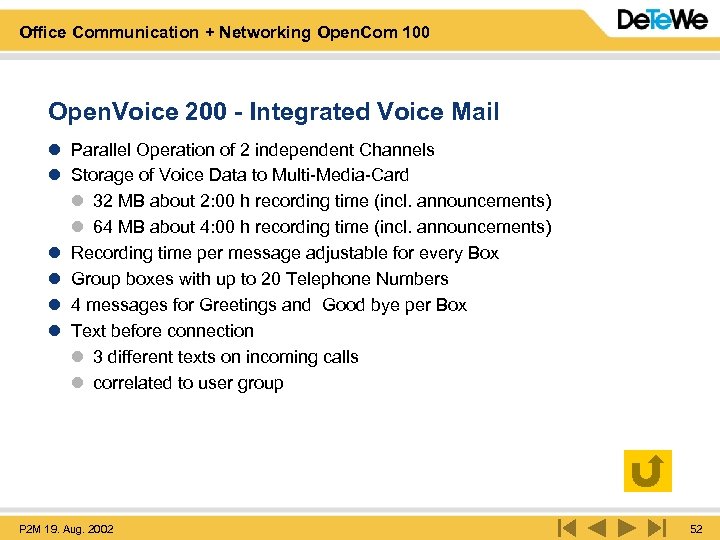

Office Communication + Networking Open. Com 100 Open. Voice 200 - Integrated Voice Mail l Parallel Operation of 2 independent Channels l Storage of Voice Data to Multi-Media-Card l 32 MB about 2: 00 h recording time (incl. announcements) l 64 MB about 4: 00 h recording time (incl. announcements) l Recording time per message adjustable for every Box l Group boxes with up to 20 Telephone Numbers l 4 messages for Greetings and Good bye per Box l Text before connection l 3 different texts on incoming calls l correlated to user group P 2 M 19. Aug. 2002 52

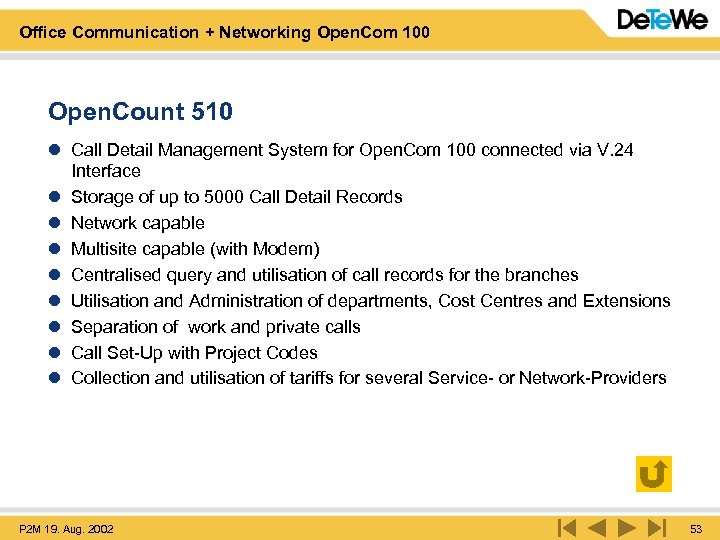

Office Communication + Networking Open. Com 100 Open. Count 510 l Call Detail Management System for Open. Com 100 connected via V. 24 Interface l Storage of up to 5000 Call Detail Records l Network capable l Multisite capable (with Modem) l Centralised query and utilisation of call records for the branches l Utilisation and Administration of departments, Cost Centres and Extensions l Separation of work and private calls l Call Set-Up with Project Codes l Collection and utilisation of tariffs for several Service- or Network-Providers P 2 M 19. Aug. 2002 53

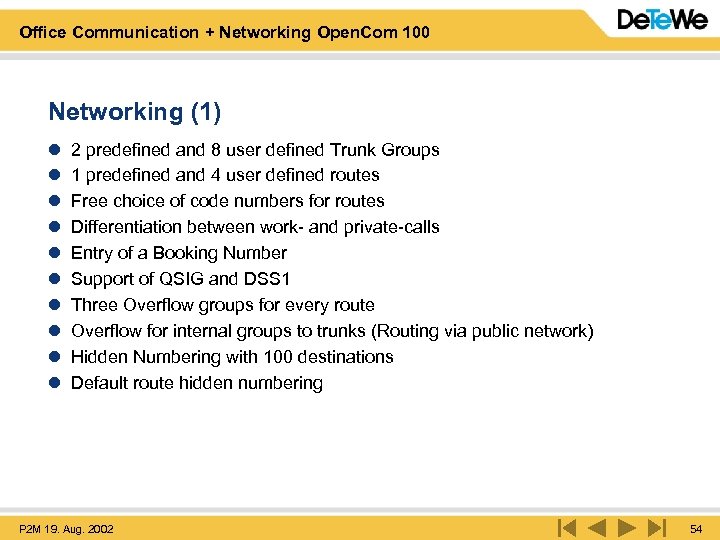

Office Communication + Networking Open. Com 100 Networking (1) l l l l l 2 predefined and 8 user defined Trunk Groups 1 predefined and 4 user defined routes Free choice of code numbers for routes Differentiation between work- and private-calls Entry of a Booking Number Support of QSIG and DSS 1 Three Overflow groups for every route Overflow for internal groups to trunks (Routing via public network) Hidden Numbering with 100 destinations Default route hidden numbering P 2 M 19. Aug. 2002 54

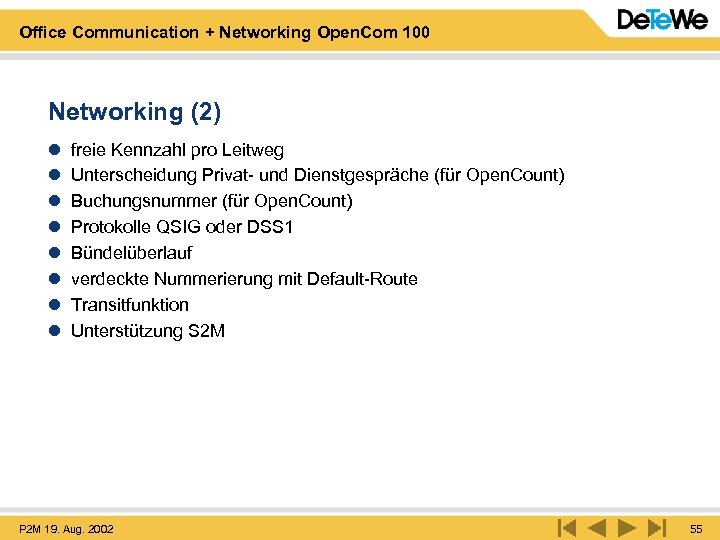

Office Communication + Networking Open. Com 100 Networking (2) l l l l freie Kennzahl pro Leitweg Unterscheidung Privat- und Dienstgespräche (für Open. Count) Buchungsnummer (für Open. Count) Protokolle QSIG oder DSS 1 Bündelüberlauf verdeckte Nummerierung mit Default-Route Transitfunktion Unterstützung S 2 M P 2 M 19. Aug. 2002 55

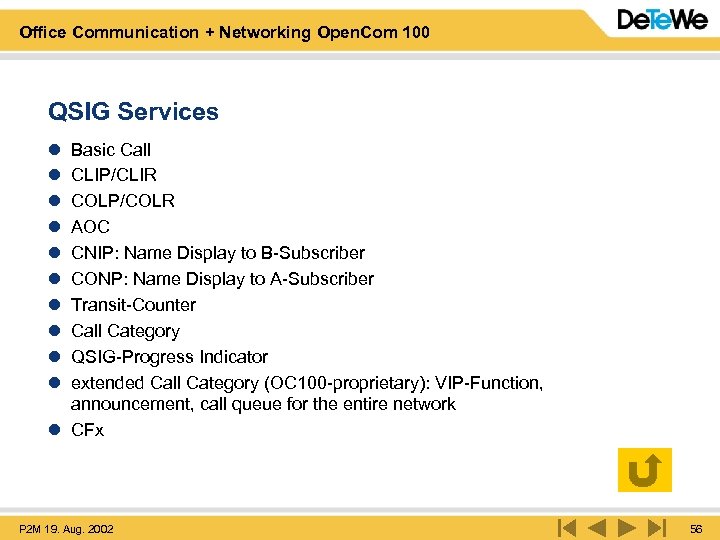

Office Communication + Networking Open. Com 100 QSIG Services l l l l l Basic Call CLIP/CLIR COLP/COLR AOC CNIP: Name Display to B-Subscriber CONP: Name Display to A-Subscriber Transit-Counter Call Category QSIG-Progress Indicator extended Call Category (OC 100 -proprietary): VIP-Function, announcement, call queue for the entire network l CFx P 2 M 19. Aug. 2002 56

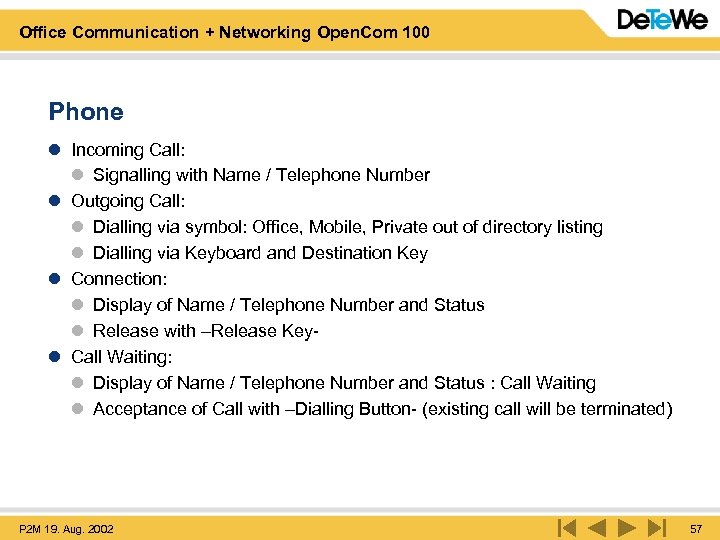

Office Communication + Networking Open. Com 100 Phone l Incoming Call: l Signalling with Name / Telephone Number l Outgoing Call: l Dialling via symbol: Office, Mobile, Private out of directory listing l Dialling via Keyboard and Destination Key l Connection: l Display of Name / Telephone Number and Status l Release with –Release Keyl Call Waiting: l Display of Name / Telephone Number and Status : Call Waiting l Acceptance of Call with –Dialling Button- (existing call will be terminated) P 2 M 19. Aug. 2002 57

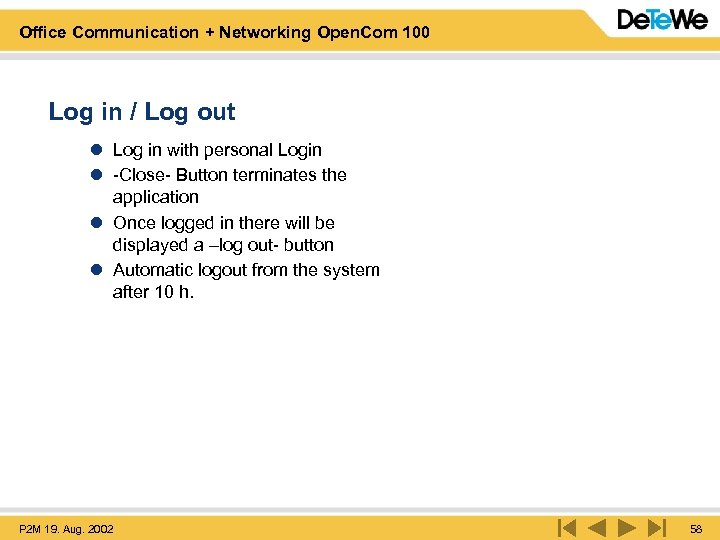

Office Communication + Networking Open. Com 100 Log in / Log out l Log in with personal Login l -Close- Button terminates the application l Once logged in there will be displayed a –log out- button l Automatic logout from the system after 10 h. P 2 M 19. Aug. 2002 58

Office Communication + Networking Open. Com 100 Call List l Calls during absence (max. 10) l Accepted Calls (max. 10) l Listen to voice messages (max. 25) l Display of office-, mobile- and private-telephone number with symbol l Display of time and date and number of calls l Transfer to private or central directory l All entries can be deleted individually or in total P 2 M 19. Aug. 2002 59

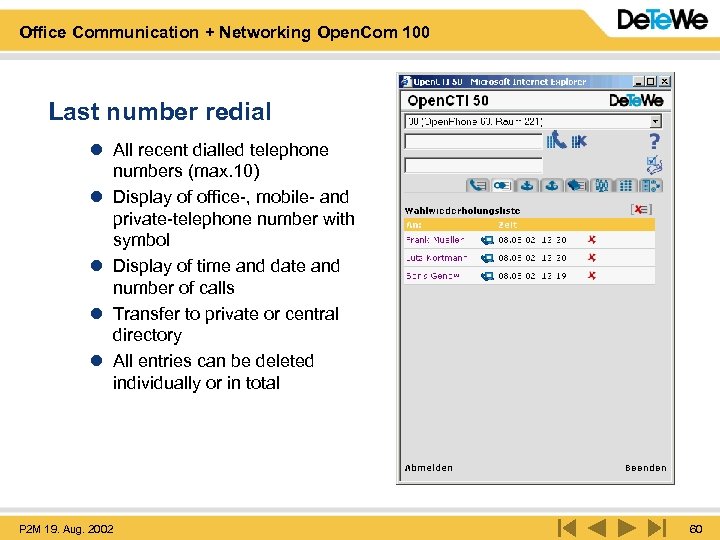

Office Communication + Networking Open. Com 100 Last number redial l All recent dialled telephone numbers (max. 10) l Display of office-, mobile- and private-telephone number with symbol l Display of time and date and number of calls l Transfer to private or central directory l All entries can be deleted individually or in total P 2 M 19. Aug. 2002 60

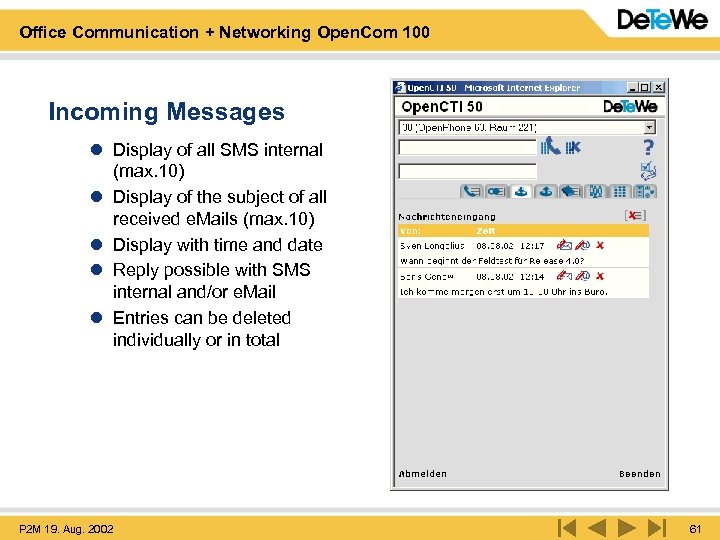

Office Communication + Networking Open. Com 100 Incoming Messages l Display of all SMS internal (max. 10) l Display of the subject of all received e. Mails (max. 10) l Display with time and date l Reply possible with SMS internal and/or e. Mail l Entries can be deleted individually or in total P 2 M 19. Aug. 2002 61

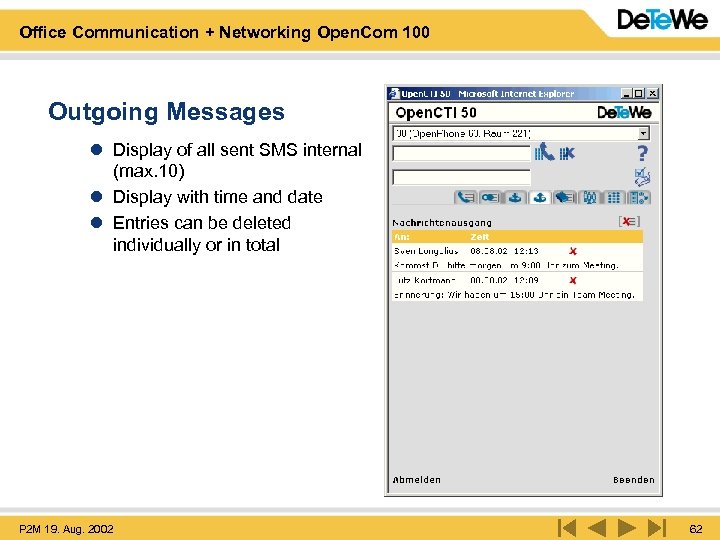

Office Communication + Networking Open. Com 100 Outgoing Messages l Display of all sent SMS internal (max. 10) l Display with time and date l Entries can be deleted individually or in total P 2 M 19. Aug. 2002 62

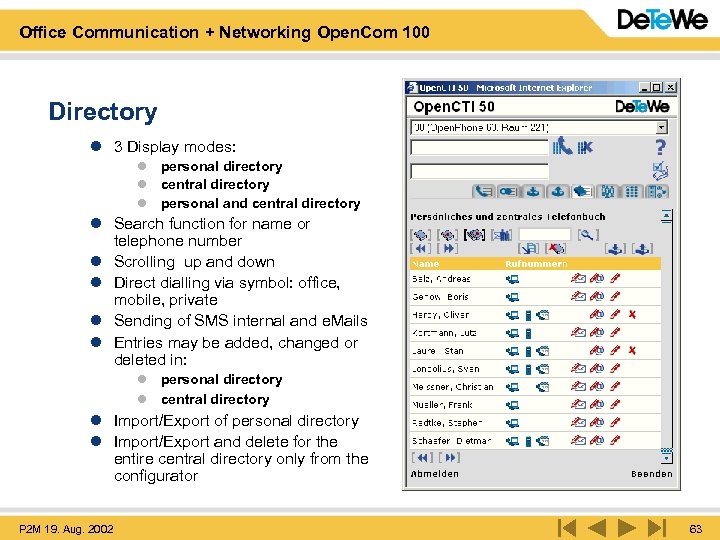

Office Communication + Networking Open. Com 100 Directory l 3 Display modes: l personal directory l central directory l personal and central directory l Search function for name or telephone number l Scrolling up and down l Direct dialling via symbol: office, mobile, private l Sending of SMS internal and e. Mails l Entries may be added, changed or deleted in: l personal directory l central directory l Import/Export of personal directory l Import/Export and delete for the entire central directory only from the configurator P 2 M 19. Aug. 2002 63

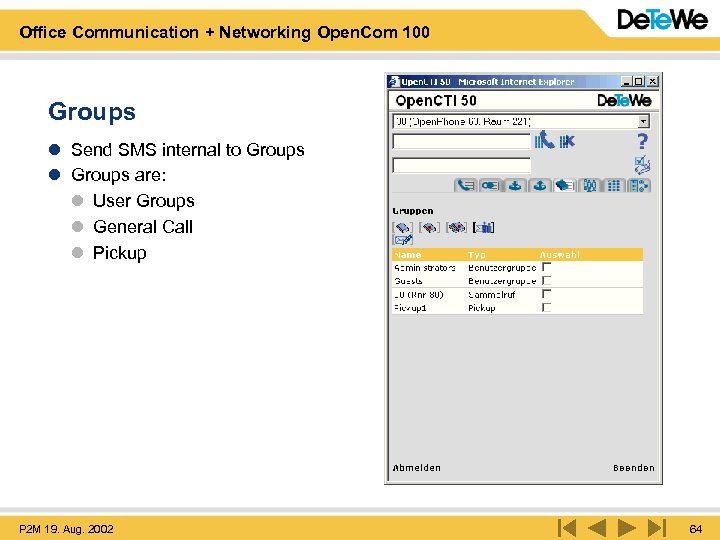

Office Communication + Networking Open. Com 100 Groups l Send SMS internal to Groups l Groups are: l User Groups l General Call l Pickup P 2 M 19. Aug. 2002 64

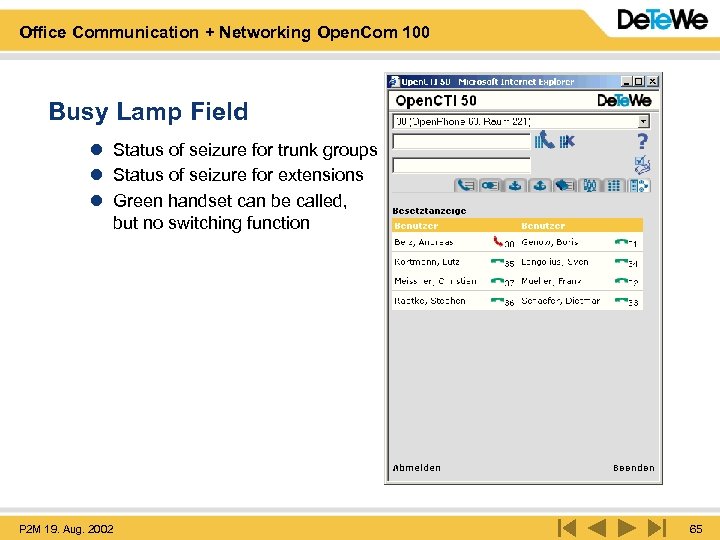

Office Communication + Networking Open. Com 100 Busy Lamp Field l Status of seizure for trunk groups l Status of seizure for extensions l Green handset can be called, but no switching function P 2 M 19. Aug. 2002 65

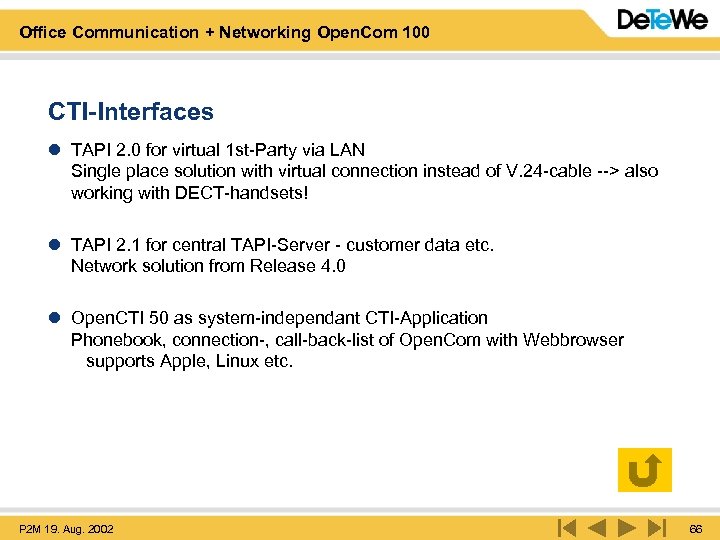

Office Communication + Networking Open. Com 100 CTI-Interfaces l TAPI 2. 0 for virtual 1 st-Party via LAN Single place solution with virtual connection instead of V. 24 -cable --> also working with DECT-handsets! l TAPI 2. 1 for central TAPI-Server - customer data etc. Network solution from Release 4. 0 l Open. CTI 50 as system-independant CTI-Application Phonebook, connection-, call-back-list of Open. Com with Webbrowser supports Apple, Linux etc. P 2 M 19. Aug. 2002 66
