Observatory and Research Facilities for European Seismology www. orfeus-eu. org Reinoud Sleeman ORFEUS Data Center Royal Netherlands Meteorological Insitute sleeman @ knmi. nl (KNMI) IRIS - ORFEUS Workshop “Managing Waveform Data and Related Metadata for Seismic Networks”, Helwan, Cairo, Egypt 8 – 17 November 2009

ORFEUS Organizations and Research Facilities for European Seismology ORFEUS, founded in 1987, is the European non-profit foundation that aims at co- ordinating and promoting digital, broadband (BB) seismology in the European-Mediterranean area. • Coordinating services and projects (Europe) • Orfeus Data Center (ODC) Observatories and Research Facilities for European Seismology ORFEUS Organization

ORFEUS Organizations and Research Facilities for European Seismology ORFEUS, founded in 1987, is the European non-profit foundation that aims at co- ordinating and promoting digital, broadband (BB) seismology in the European-Mediterranean area. Coordinating services (Europe): • • Working groups (station siting, technical support, software, mobile networks ) Data services (e. g. EIDA, Arc. Link, webservices ) Technical and scientific workshops ( e. g. Seis. Comp, observatory meetings ) European scale fund raising and projects (e. g. NERIES, NERA, VERCE, …) Observatories and Research Facilities for European Seismology ORFEUS Organization

ORFEUS Organizations and Research Facilities for European Seismology ORFEUS, founded in 1987, is the European non-profit foundation that aims at co- ordinating and promoting digital, broadband (BB) seismology in the European-Mediterranean area. Coordinating services (Europe): • • Working groups (station siting, technical support, software, mobile networks ) Data services (e. g. EIDA, Arc. Link, webservices ) Technical and scientific workshops ( e. g. Seis. Comp, observatory meetings ) European scale fund raising and projects (e. g. NERIES, NERA, VERCE, …) Orfeus Data Center (ODC) main priorities: • Long-term archiving of (continuous) broad-band waveform data from (European-Mediterranean) seismological organizations • Building of a pre-packed archive of event based broad-band waveform data • Data quality monitoring • Data services to the seismological community Observatories and Research Facilities for European Seismology ORFEUS Organization

Observatories and Research Facilities for European Seismology ORFEUS Organization

ORFEUS Board of directors • • • • W. Lenhardt T. Camelbeeck S. Gregersen A. Deschamps W. Hanka K. Makropoulus S. Mazza B. Dost J. Havskov J. Fonseca J. Gallart R. Bodvarsson D. Giardini B. Baptie (Austria) (Belgium) (Denmark) (France) (Germany) (Greece) (Italy) (Netherlands) (Norway) (Portugal) (Spain) (Sweden) (Switzerland) (UK) R. Bossu M. Garcia D. Storchak (EMSC, observer) (ESC, observer) (ISC, observer) ORFEUS Executive Committee (Exe. Com) • • John Clinton Peter Labak Thomas Meier Nikos Melis Alberto Michelini (president) Nicolai Shapiro Johannes Schweitzer Jan Zednik ETHZ, Switzerland GI-SAS, Slovak Republic Uni. Bochum, Germany NOA, Greece INGV, Italy IPGP, France NORSAR, Norway GI_ASCR, Czech Republic Observatories and Research Facilities for European Seismology ORFEUS Organization

Working Group chairman • • Josep Vila Marco Olivieri Alex Brisbourne Joachim Saul BB siting (WG 1) Technical support (WG 2) Mobile stations (WG 3) Software (WG 4) ORFEUS staff (5. 7 fte) • • • Reinoud Sleeman Torild van Eck Gert-Jan van den Hazel Luca Trani Alessandro Spinuso Peter de Boer Anton van Geyt Patricia van der Kooij Kris Marnette Participating institutes: Contributing networks: No. of seismic stations: Director ORFEUS Data Center Secretary General ORFEUS VEBSN, Antelope (SAFER / NERIES ) Portal development / webservices (NERIES) Software development, Arc. Link, Wilber, DB (NERIES) Software development, QC (ORFEUS) Web maintenance, Project Assistant (NERIES) Data Quality Controller (ORFEUS) 65 (26 countries) 53 ~ 450 Observatories and Research Facilities for European Seismology ORFEUS Organization

Hosting Institute of ORFEUS Data Center (ODC) – since 1993: Royal Netherlands Meteorological Institute (KNMI) Seismology Department Wilhelminalaan 10 3732 GK, De Bilt Netherlands Observatories and Research Facilities for European Seismology ORFEUS Organization

ORFEUS Data Center - mission The primary purpose of the ORFEUS Data Center (ODC) is to collect and archive high quality seismic broadband waveform data from European and Mediterranean organizations, and to give open and rapid access to the data by the scientific community. • The ODC can fulfill this mission only in strong cooperation with seismic observatories, seismic network operators and (active) users from the scientific community. • VEBSN Statement of Operation • EC Infrastructure project: NERIES Observatories and Research Facilities for European Seismology ORFEUS Organization

ORFEUS Data Center – operations in a nutshell • Real-time acquisition of (continuous) broad-band waveform data (mini-SEED; 1 -100 (250) sps) • Generate or collect and validate up-to-date metadata (dataless SEED) • Long term archiving of waveforms and meta data (My. SQL dbase) • Monitoring of data quality (QC) and communication • Building pre-packed QC event based datasets (SEED) • Providing end-user data access services (local and to distributed, inter-connected data archives) • Providing technical support (protocols, software, metadata, etc) Observatories and Research Facilities for European Seismology ORFEUS Organization

Contributing networks (53; Nov 2009) AI - Antarctic Seismographic Argentinean Italian Net BE - Belgian Seismic Network BN - UK-Net BS - National Network of Bulgaria BW - Bayern. Netz CA - Catalan Seismic Network CH - Switzerland Seismological Network CR - Croatian Seismograph Network CZ - Czech Seismic Network DK - Danish Seismological Network DZ - CRAAG, Algeria EI - Irish Regional Digital Seismic Network ES - SPANISH DIGITAL SEISMIC NETWORK FN - Northen Finland Seismological Network FR - French Broadband Seismological Network G - GEOSCOPE GB - Great Britain Seismograph Network GE - GEOFON GR - German Regional Seismic Network HE - Finnish National Seismic Network (HEL) HF - Swedish Seismic Array Network HL - National Observatory of Athens Digital Broadband HP - University of Patras HT - Aristotle University of Thessaloniki Seismology HU – Hungarian Seismological Network IG - Instituto Andaluz de Geofisica II - IRIS/IDA Network IP - Instituto Superior Tecnico Broadband Seismic Net IS - Israel National Seismic Network IU - IRIS/USGS Network IV - Italian National Seismic Network KO - Kandilli Observatory MN - MEDNET NA - Netherlands Antilles Seismic Network NI – North-East Italy BB network (OGS, Uni. Trieste) NL - Netherlands Seismic Network NO - Norwegian Seismic Array Network NR - NARS Array NS - Norwegian National Seismic Network OE - Austrian Seismic Network PL - Polish Seismological Network PM - Portuguese National Seismograph Network RO - Romanian Seismic Network SJ - Serbian National Network SK - Slovak National Seismic Network SL - Slovenia Seismic Network SS - SINGLE STATION (Ebro Observatory) SX – Saxon network / Leipzig TU - National Earthquake Observ. Netw. , Ankara, Turkey UP - University of Uppsala Network VI - Icelandic National Digital Seismographic Network pending: Irpinia Seismic Network, Napels, Italy UG - University of Genua, Italy Observatories and Research Facilities for FDSN Seismology All stations are ISC registered and have a. Europeannetwork code !

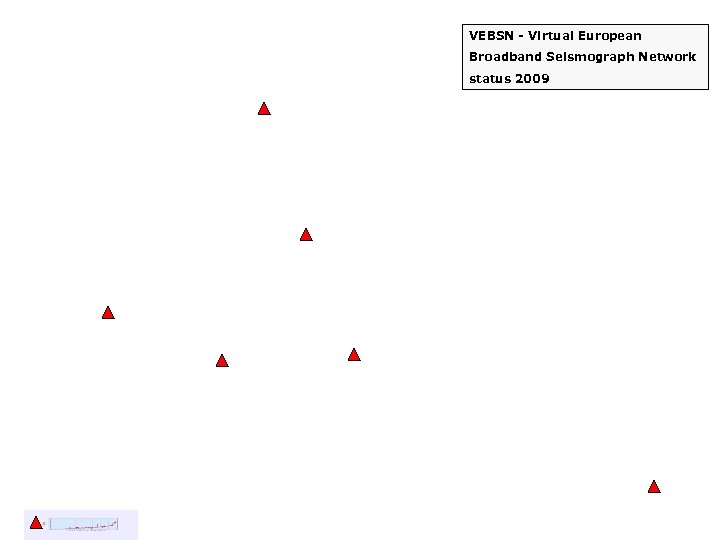

VEBSN - Virtual European Broadband Seismograph Network status 2009 Observatories and Research Facilities for European Seismology

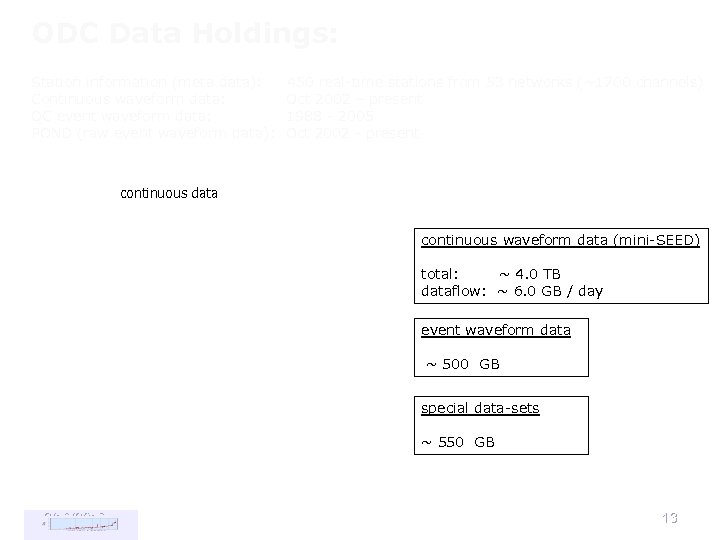

ODC Data Holdings: Station information (meta data): Continuous waveform data: QC event waveform data: POND (raw event waveform data): 450 real-time stations from 53 networks (~1700 channels) Oct 2002 – present 1988 - 2005 Oct 2002 - present continuous data continuous waveform data (mini-SEED) total: ~ 4. 0 TB dataflow: ~ 6. 0 GB / day event waveform data ~ 500 GB special data-sets ~ 550 GB 3/19/2018 Observatories and Research Facilities for European Seismology 13

current data flow : 6 GB/day Observatories and Research Facilities for European Seismology

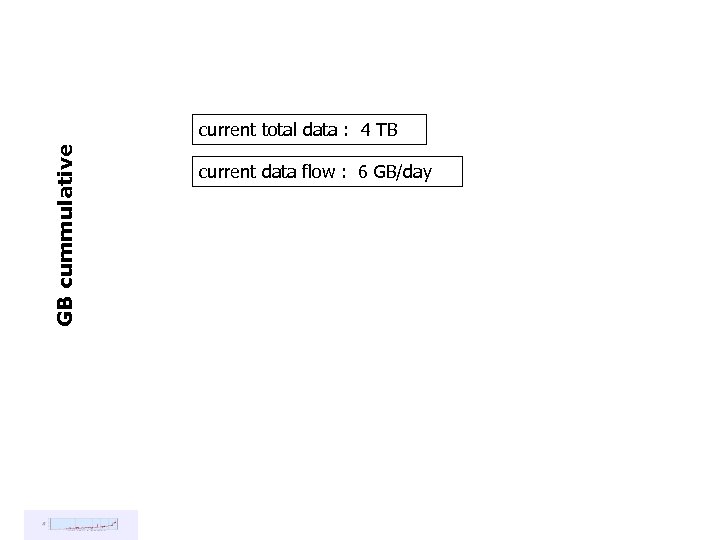

GB cummulative current total data : 4 TB current data flow : 6 GB/day Observatories and Research Facilities for European Seismology

direct access interactive access tool (web) e-mail request tools web based access tools (distributed data) Java client continuous data Observatories and Research Facilities for European Seismology

NERIES www. neries-eu. org Network of Research Infrastructures for European Seismology Addressing a European infrastructure challenge: archival and availibility of seismological data gathered by observatories and research facilities in Europe and its surroundings. NERIES is an Integrated Infrastructure Initiative (I 3) project in the Sixth Framework Program (FP 6) of the European Commission (EC), aiming at networking the European seismic networks, improving access to data, allowing access to specific seismic infrastructures and pursuing targeted research developing the next generation of tools for improved service and data analysis. The NERIES consortium consists of 25 participants (European universities and research centres) executing 18 different activities: 9 Networking Activities (NA), 5 Joint Research Activities (JRA), and 5 activities concerning Transnational Access (TA). The core of the NERIES project organization lies with the Observatories and Research Facilities for European Seismology (ORFEUS) and the European Mediterranean Seismological Centre (EMSC). Both organizations are working under the auspices of the European Seismological Commission (ESC). The NERIES Project Office is situated at the Royal Netherlands Meteorological Institute (KNMI). Duration: 1 June 2006 – 31 May 2010 Observatories and Research Facilities for European Seismology
