North Carolina CTS Committee Meeting 2 November 14

North Carolina CTS Committee Meeting #2 November 14, 2000

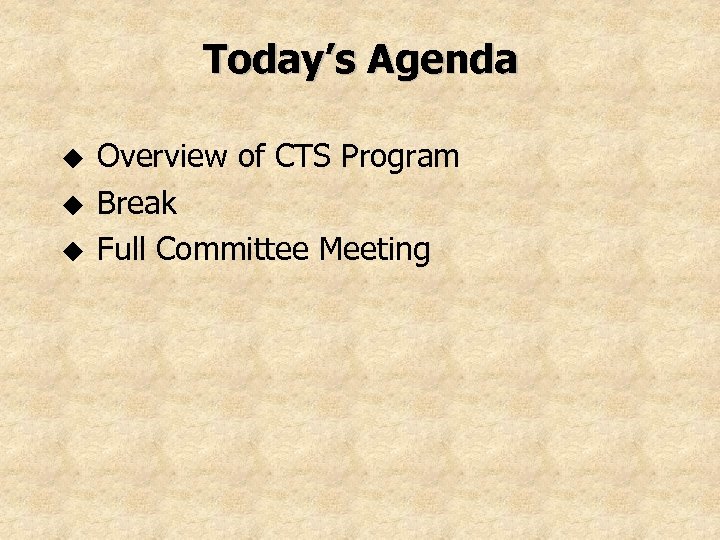

Today’s Agenda u u u Overview of CTS Program Break Full Committee Meeting

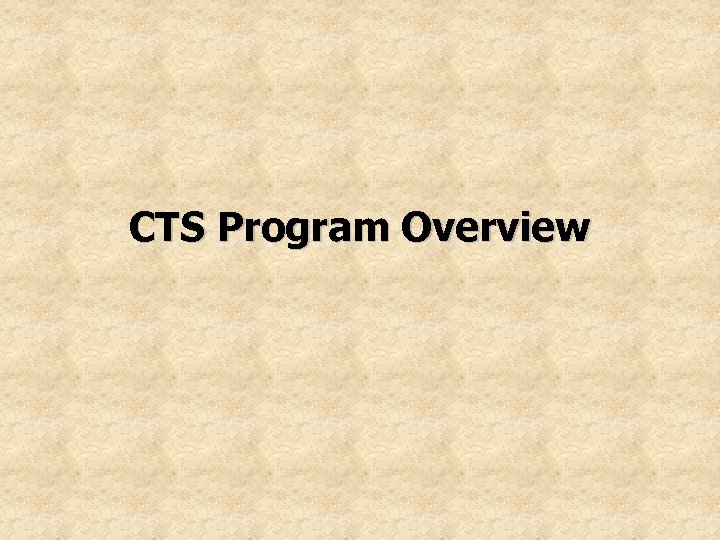

CTS Program Overview

North Carolina’s Flood Mapping Program u Program established to implement the Cooperating Technical State Partnership with the Federal Emergency Management Agency (FEMA), signed September 15 th u Ownership and responsibility for Flood Insurance Rate Maps (FIRMs) delegated to State

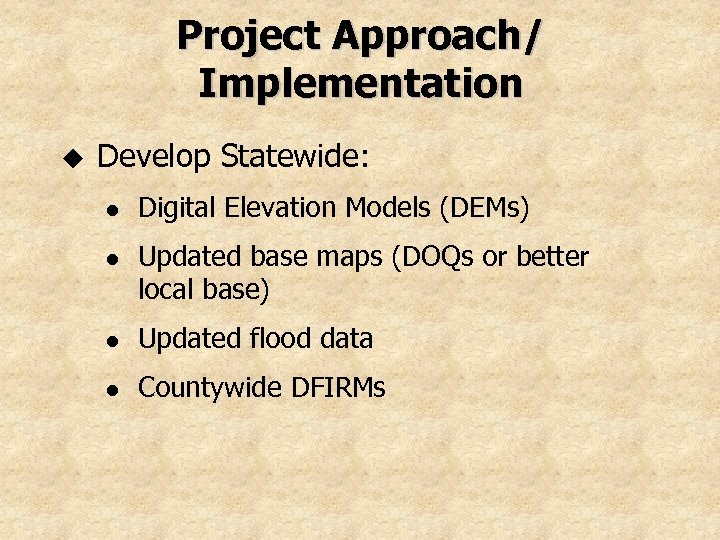

Project Approach/ Implementation u Develop Statewide: l l Digital Elevation Models (DEMs) Updated base maps (DOQs or better local base) l Updated flood data l Countywide DFIRMs

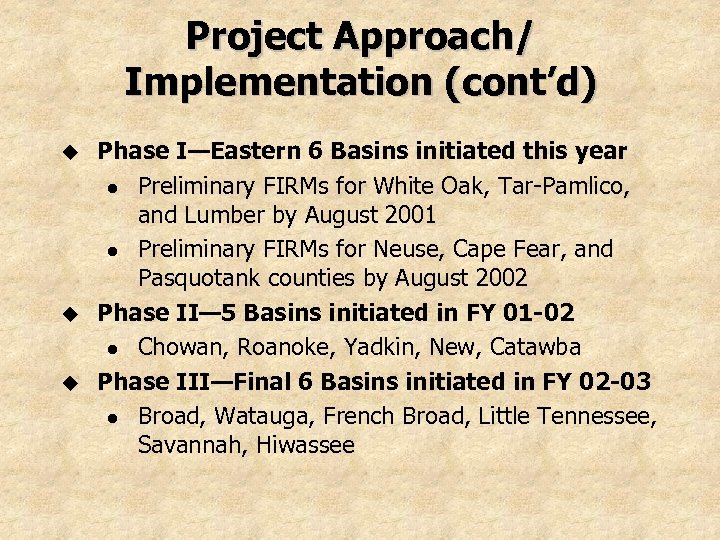

Project Approach/ Implementation (cont’d) u u u Phase I—Eastern 6 Basins initiated this year l Preliminary FIRMs for White Oak, Tar-Pamlico, and Lumber by August 2001 l Preliminary FIRMs for Neuse, Cape Fear, and Pasquotank counties by August 2002 Phase II— 5 Basins initiated in FY 01 -02 l Chowan, Roanoke, Yadkin, New, Catawba Phase III—Final 6 Basins initiated in FY 02 -03 l Broad, Watauga, French Broad, Little Tennessee, Savannah, Hiwassee

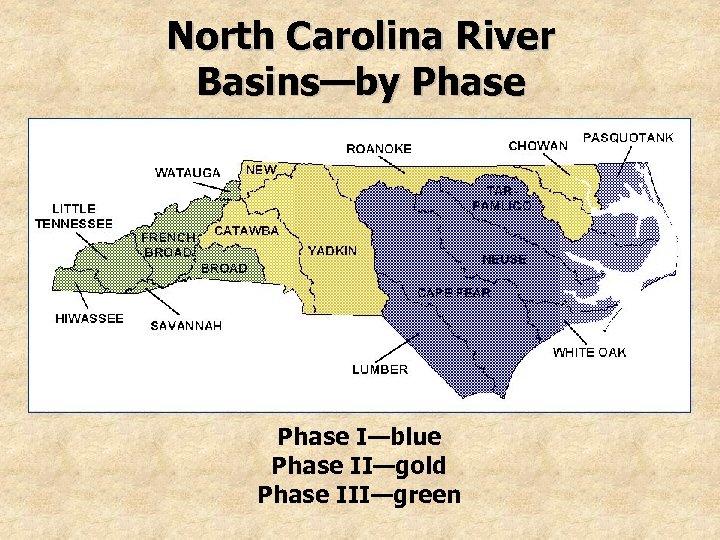

North Carolina River Basins—by Phase I—blue Phase II—gold Phase III—green

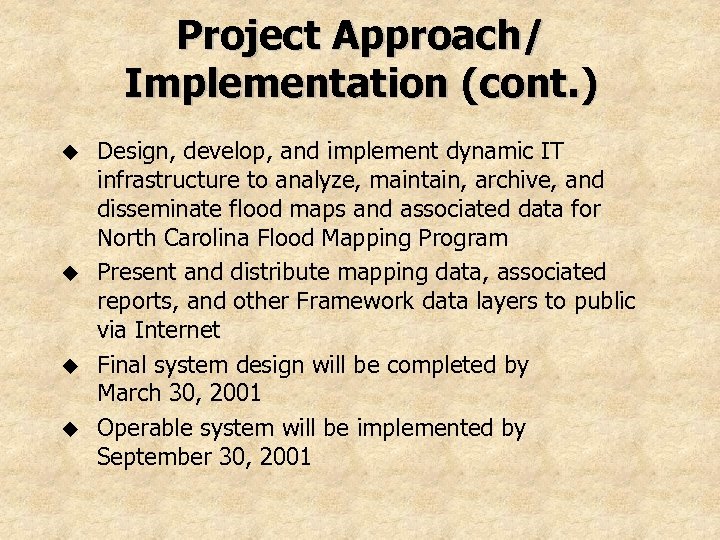

Project Approach/ Implementation (cont. ) u u Design, develop, and implement dynamic IT infrastructure to analyze, maintain, archive, and disseminate flood maps and associated data for North Carolina Flood Mapping Program Present and distribute mapping data, associated reports, and other Framework data layers to public via Internet Final system design will be completed by March 30, 2001 Operable system will be implemented by September 30, 2001

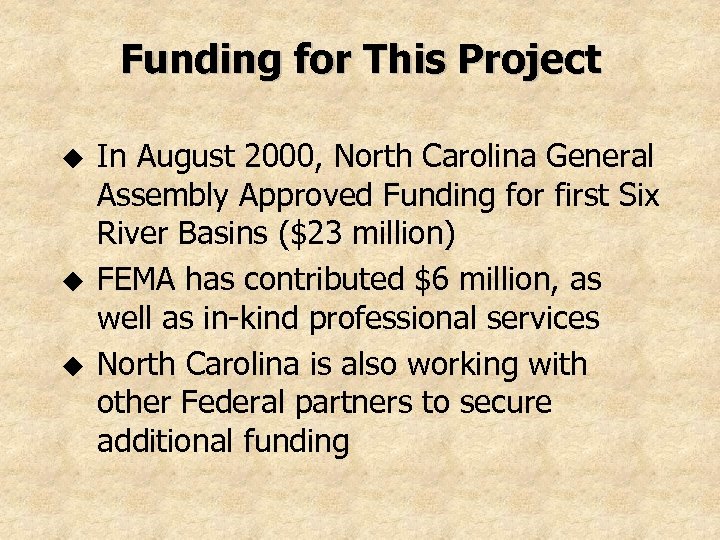

Funding for This Project u u u In August 2000, North Carolina General Assembly Approved Funding for first Six River Basins ($23 million) FEMA has contributed $6 million, as well as in-kind professional services North Carolina is also working with other Federal partners to secure additional funding

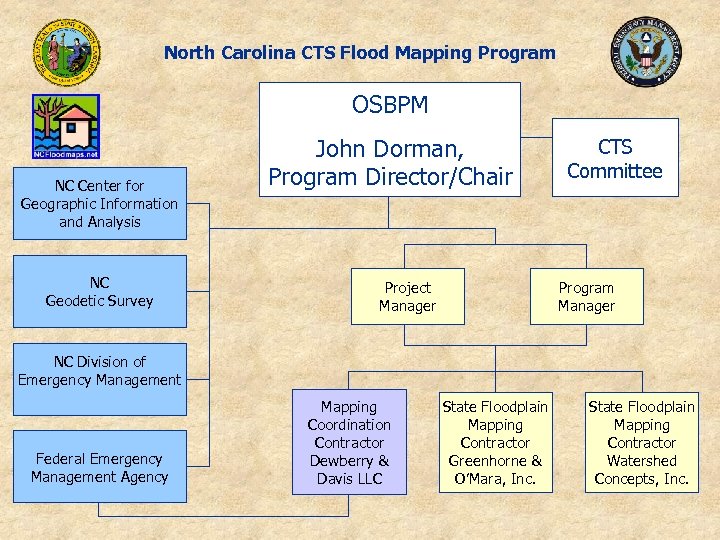

North Carolina CTS Flood Mapping Program OSBPM NC Center for Geographic Information and Analysis NC Geodetic Survey John Dorman, Program Director/Chair Project Manager CTS Committee Program Manager NC Division of Emergency Management Federal Emergency Management Agency Mapping Coordination Contractor Dewberry & Davis LLC State Floodplain Mapping Contractor Greenhorne & O’Mara, Inc. State Floodplain Mapping Contractor Watershed Concepts, Inc.

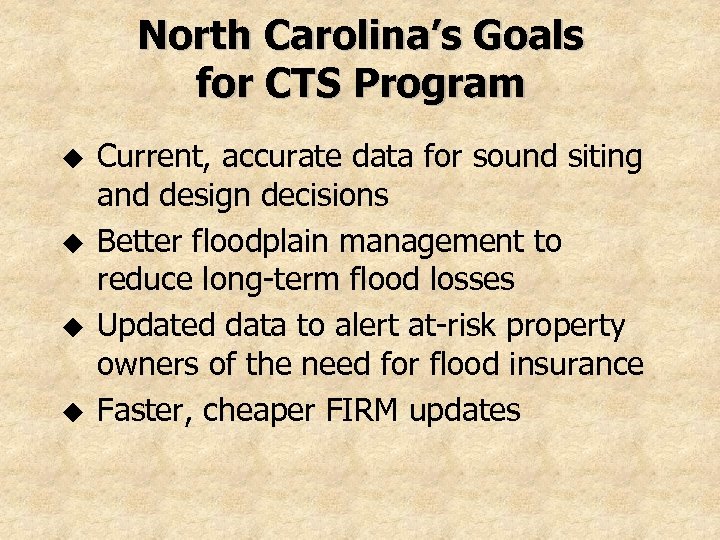

North Carolina’s Goals for CTS Program u u Current, accurate data for sound siting and design decisions Better floodplain management to reduce long-term flood losses Updated data to alert at-risk property owners of the need for flood insurance Faster, cheaper FIRM updates

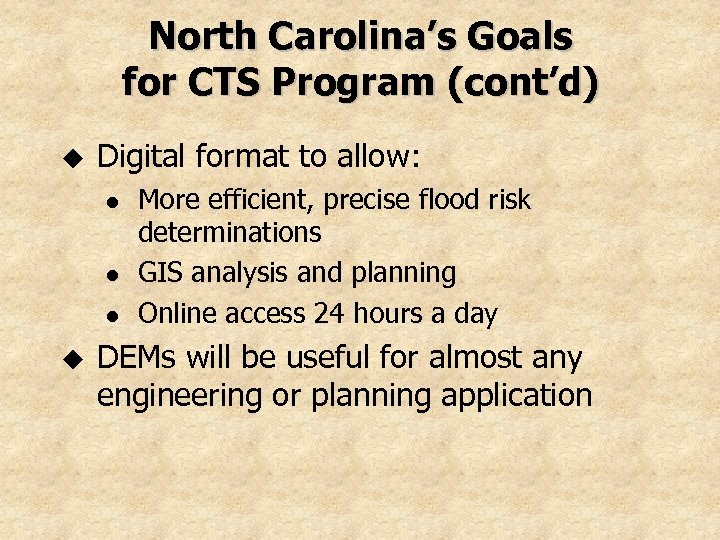

North Carolina’s Goals for CTS Program (cont’d) u Digital format to allow: l l l u More efficient, precise flood risk determinations GIS analysis and planning Online access 24 hours a day DEMs will be useful for almost any engineering or planning application

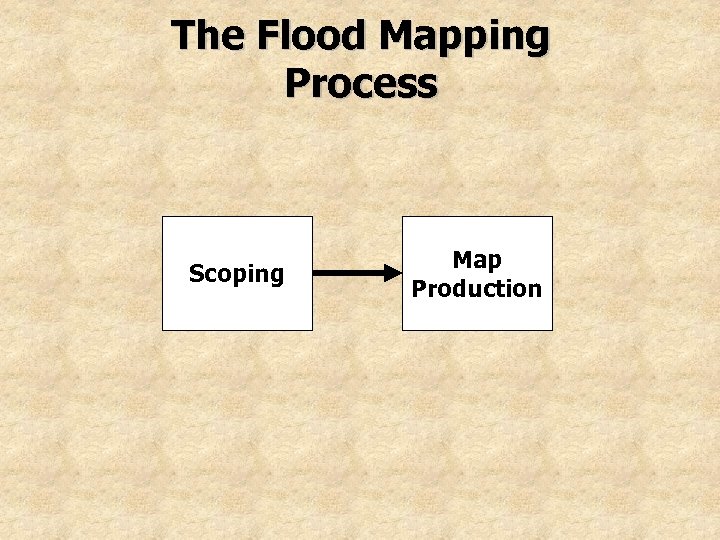

The Flood Mapping Process Scoping Map Production

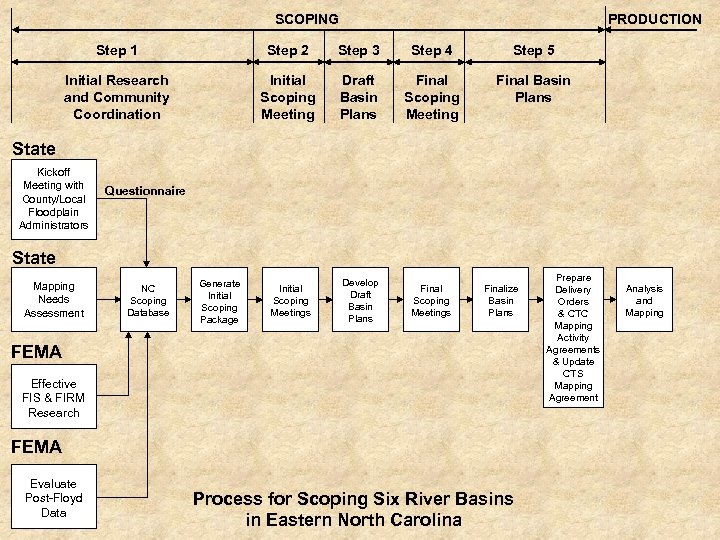

SCOPING PRODUCTION Step 1 Step 2 Step 3 Step 4 Step 5 Initial Research and Community Coordination Initial Scoping Meeting Draft Basin Plans Final Scoping Meeting Final Basin Plans Initial Scoping Meetings Develop Draft Basin Plans Final Scoping Meetings State Kickoff Meeting with County/Local Floodplain Administrators Questionnaire State Mapping Needs Assessment NC Scoping Database Generate Initial Scoping Package Finalize Basin Plans FEMA Effective FIS & FIRM Research FEMA Evaluate Post-Floyd Data Process for Scoping Six River Basins in Eastern North Carolina Prepare Delivery Orders & CTC Mapping Activity Agreements & Update CTS Mapping Agreement Analysis and Mapping

Community Review u u u Preliminary countywide DFIRMs issued to each county and its communities for review and comment County meetings to present maps and provide opportunity for comment Statutory 90 -day appeal period

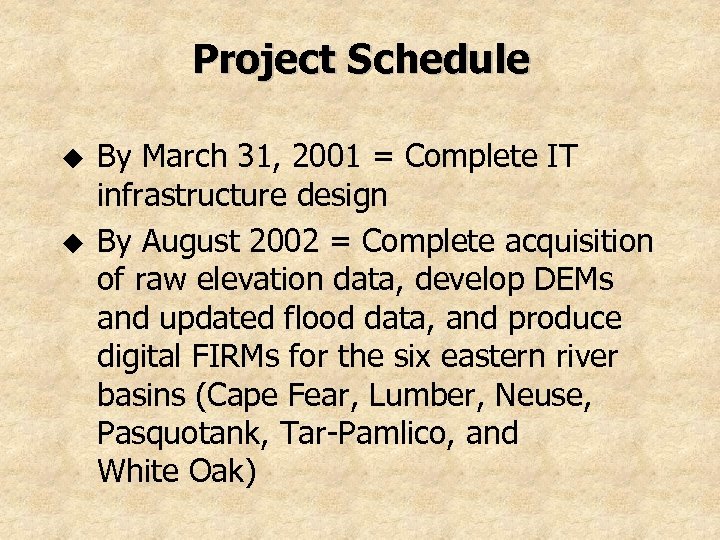

Project Schedule u u By March 31, 2001 = Complete IT infrastructure design By August 2002 = Complete acquisition of raw elevation data, develop DEMs and updated flood data, and produce digital FIRMs for the six eastern river basins (Cape Fear, Lumber, Neuse, Pasquotank, Tar-Pamlico, and White Oak)

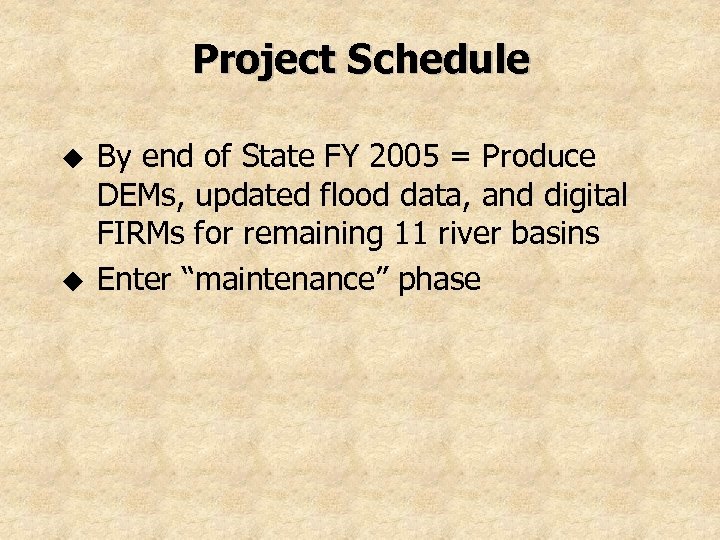

Project Schedule u u By end of State FY 2005 = Produce DEMs, updated flood data, and digital FIRMs for remaining 11 river basins Enter “maintenance” phase

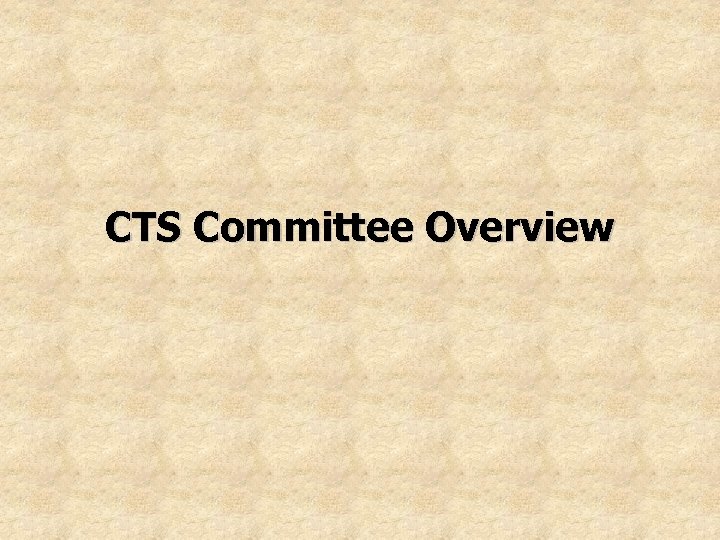

CTS Committee Overview

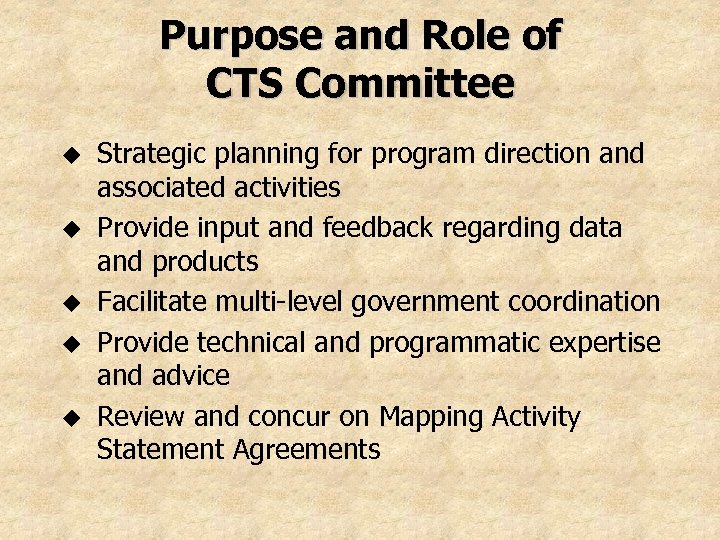

Purpose and Role of CTS Committee u u u Strategic planning for program direction and associated activities Provide input and feedback regarding data and products Facilitate multi-level government coordination Provide technical and programmatic expertise and advice Review and concur on Mapping Activity Statement Agreements

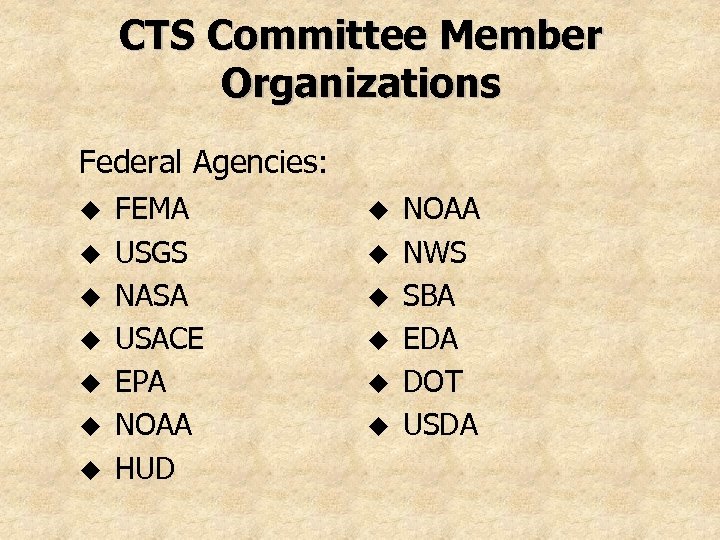

CTS Committee Member Organizations Federal Agencies: u u u u FEMA USGS NASA USACE EPA NOAA HUD u u u NOAA NWS SBA EDA DOT USDA

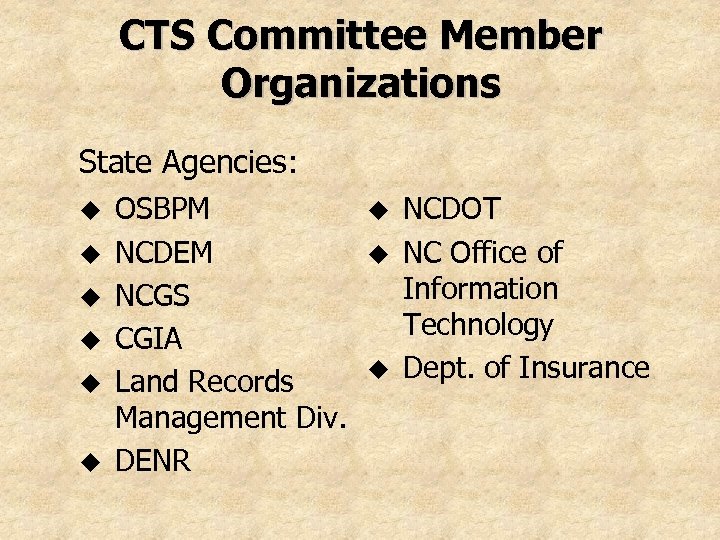

CTS Committee Member Organizations State Agencies: u u u OSBPM NCDEM NCGS CGIA Land Records Management Div. DENR u u u NCDOT NC Office of Information Technology Dept. of Insurance

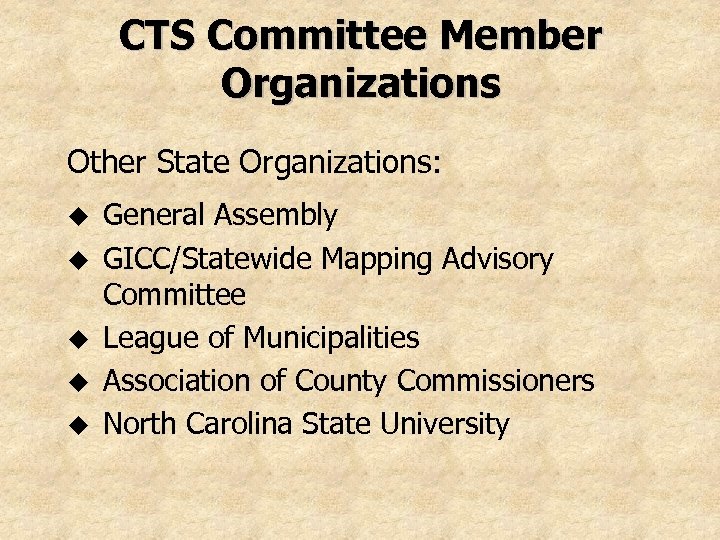

CTS Committee Member Organizations Other State Organizations: u u u General Assembly GICC/Statewide Mapping Advisory Committee League of Municipalities Association of County Commissioners North Carolina State University

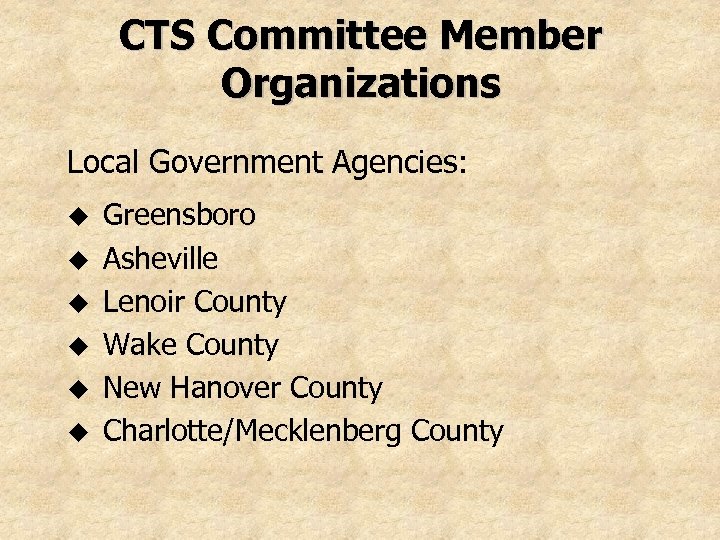

CTS Committee Member Organizations Local Government Agencies: u u u Greensboro Asheville Lenoir County Wake County New Hanover County Charlotte/Mecklenberg County

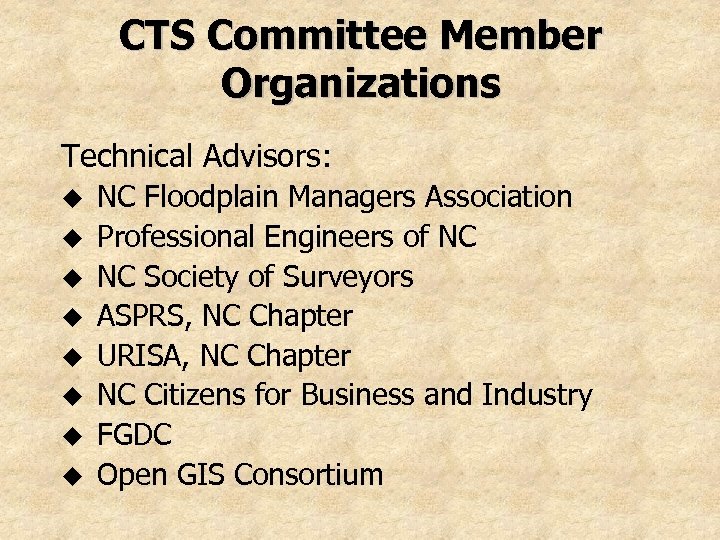

CTS Committee Member Organizations Technical Advisors: u u u u NC Floodplain Managers Association Professional Engineers of NC NC Society of Surveyors ASPRS, NC Chapter URISA, NC Chapter NC Citizens for Business and Industry FGDC Open GIS Consortium

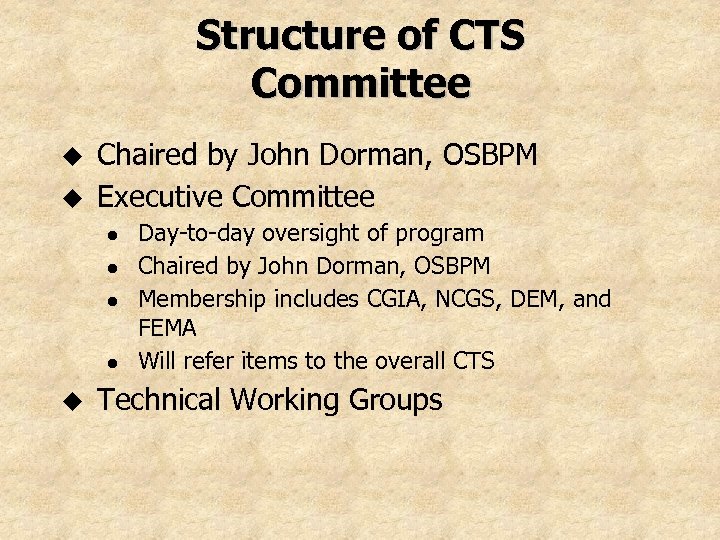

Structure of CTS Committee u u Chaired by John Dorman, OSBPM Executive Committee l l u Day-to-day oversight of program Chaired by John Dorman, OSBPM Membership includes CGIA, NCGS, DEM, and FEMA Will refer items to the overall CTS Technical Working Groups

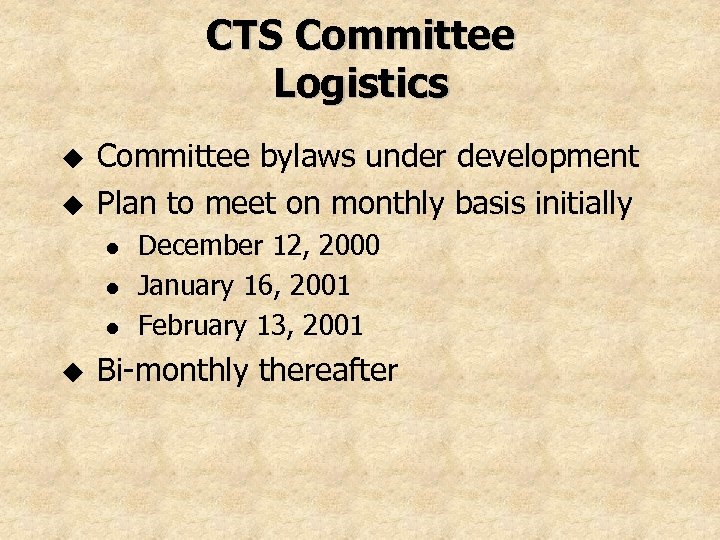

CTS Committee Logistics u u Committee bylaws under development Plan to meet on monthly basis initially l l l u December 12, 2000 January 16, 2001 February 13, 2001 Bi-monthly thereafter

Agreements/Tasking Process

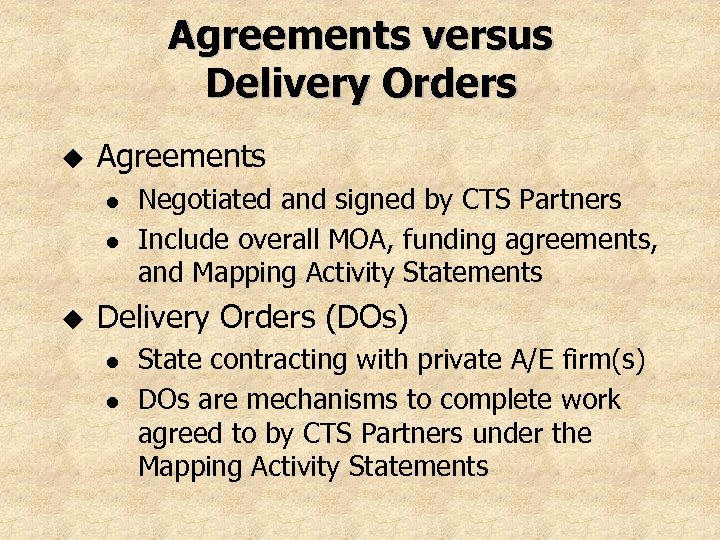

Agreements versus Delivery Orders u Agreements l l u Negotiated and signed by CTS Partners Include overall MOA, funding agreements, and Mapping Activity Statements Delivery Orders (DOs) l l State contracting with private A/E firm(s) DOs are mechanisms to complete work agreed to by CTS Partners under the Mapping Activity Statements

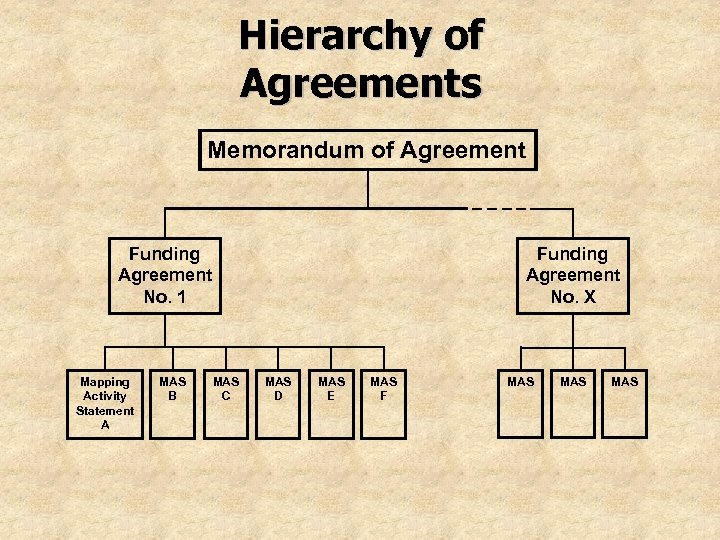

Hierarchy of Agreements Memorandum of Agreement Funding Agreement No. 1 Mapping Activity Statement A MAS B Funding Agreement No. X MAS C MAS D MAS E MAS F MAS MAS

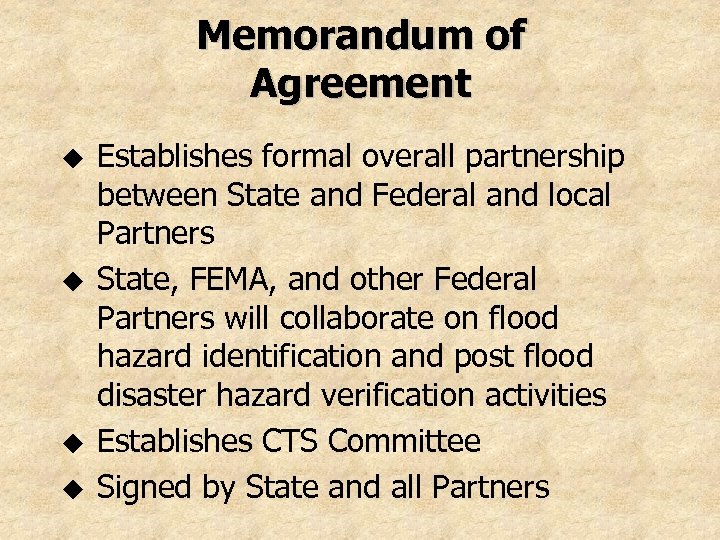

Memorandum of Agreement u u Establishes formal overall partnership between State and Federal and local Partners State, FEMA, and other Federal Partners will collaborate on flood hazard identification and post flood disaster hazard verification activities Establishes CTS Committee Signed by State and all Partners

Funding Agreements u u Written under “umbrella” of overall Memorandum of Agreement Summarizes available funding sources and amounts for specific mapping activities Ties funding to specific Mapping Activity Statements Signed by all partners contributing funding to the relevant activities

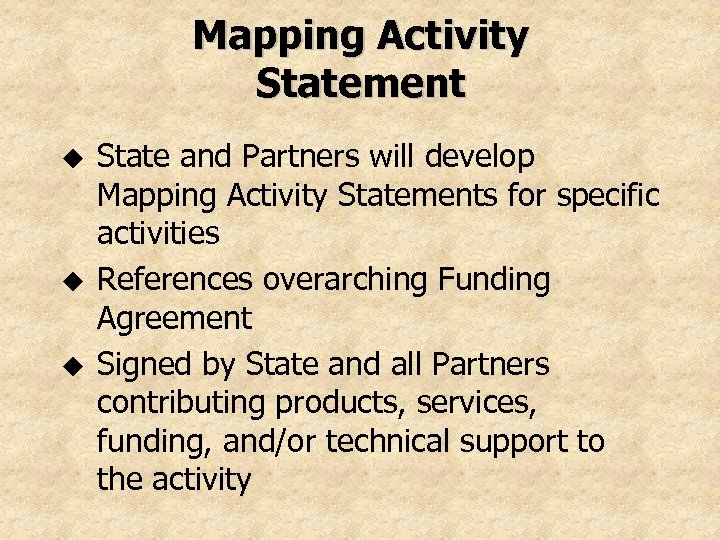

Mapping Activity Statement u u u State and Partners will develop Mapping Activity Statements for specific activities References overarching Funding Agreement Signed by State and all Partners contributing products, services, funding, and/or technical support to the activity

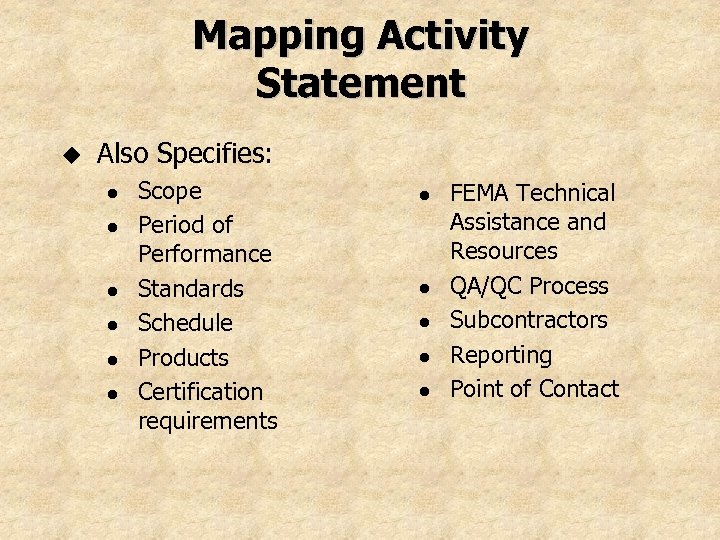

Mapping Activity Statement u Also Specifies: l l l Scope Period of Performance Standards Schedule Products Certification requirements l l l FEMA Technical Assistance and Resources QA/QC Process Subcontractors Reporting Point of Contact

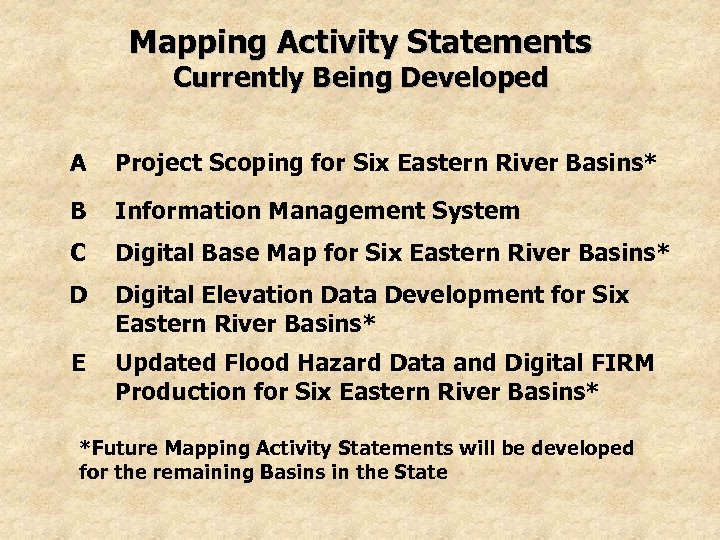

Mapping Activity Statements Currently Being Developed A Project Scoping for Six Eastern River Basins* B Information Management System C Digital Base Map for Six Eastern River Basins* D Digital Elevation Data Development for Six Eastern River Basins* E Updated Flood Hazard Data and Digital FIRM Production for Six Eastern River Basins* *Future Mapping Activity Statements will be developed for the remaining Basins in the State

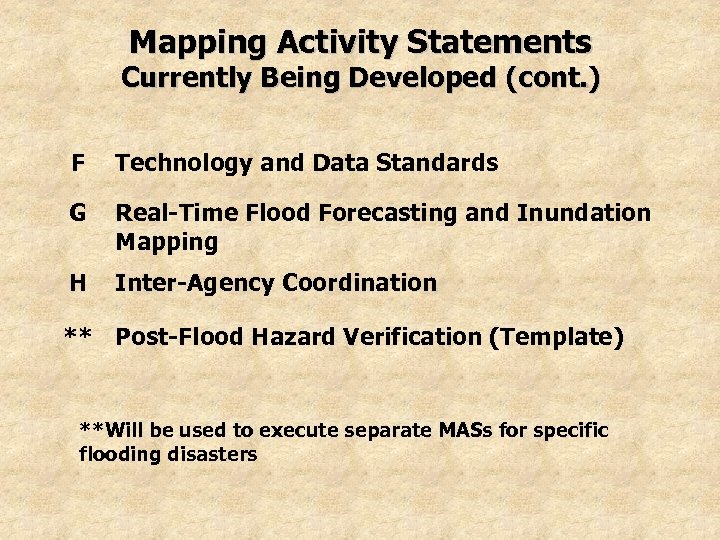

Mapping Activity Statements Currently Being Developed (cont. ) F Technology and Data Standards G Real-Time Flood Forecasting and Inundation Mapping H Inter-Agency Coordination ** Post-Flood Hazard Verification (Template) **Will be used to execute separate MASs for specific flooding disasters

Overview of CTS Program Questions

North Carolina CTS Committee Meeting #2 November 14, 2000

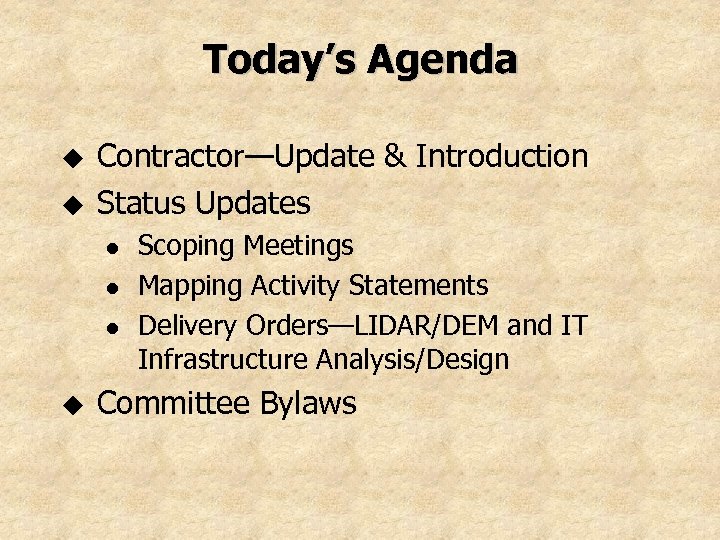

Today’s Agenda u u Contractor—Update & Introduction Status Updates l l l u Scoping Meetings Mapping Activity Statements Delivery Orders—LIDAR/DEM and IT Infrastructure Analysis/Design Committee Bylaws

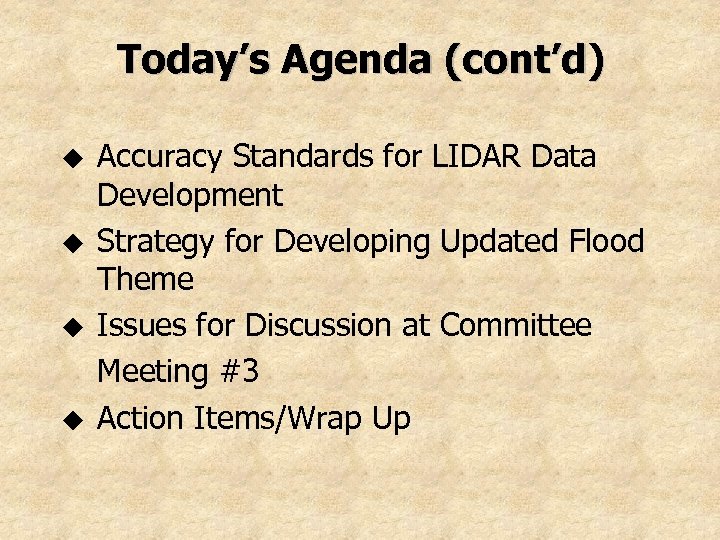

Today’s Agenda (cont’d) u u Accuracy Standards for LIDAR Data Development Strategy for Developing Updated Flood Theme Issues for Discussion at Committee Meeting #3 Action Items/Wrap Up

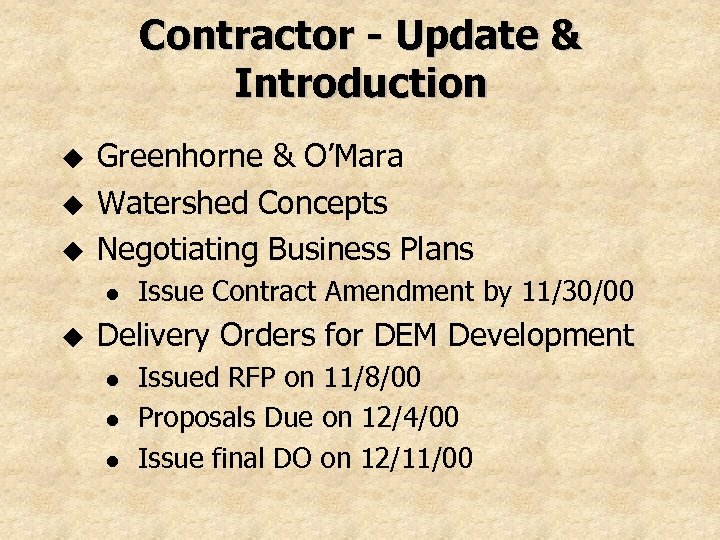

Contractor - Update & Introduction u u u Greenhorne & O’Mara Watershed Concepts Negotiating Business Plans l u Issue Contract Amendment by 11/30/00 Delivery Orders for DEM Development l l l Issued RFP on 11/8/00 Proposals Due on 12/4/00 Issue final DO on 12/11/00

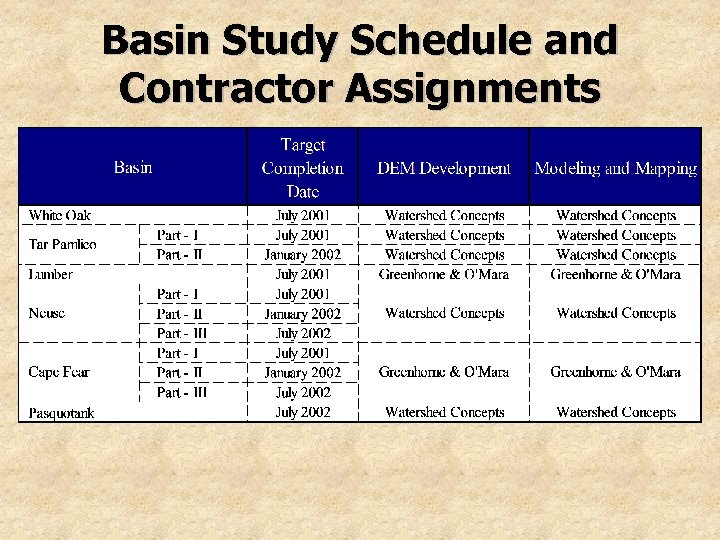

Basin Study Schedule and Contractor Assignments

Status Updates: Scoping Meetings

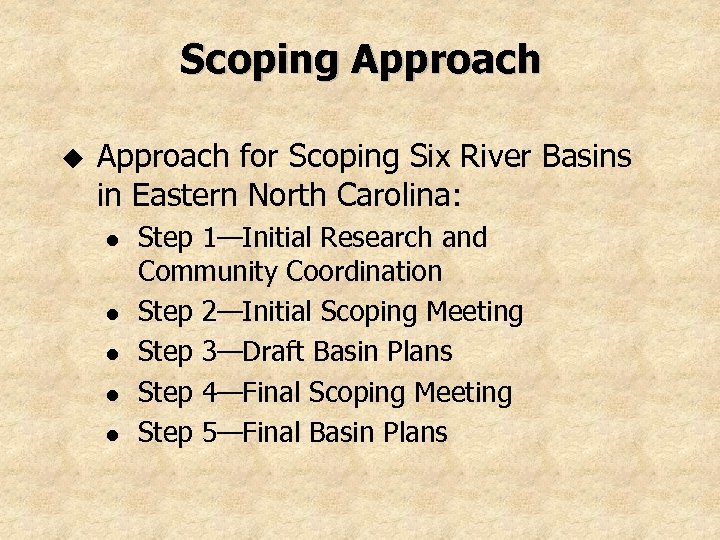

Scoping Approach u Approach for Scoping Six River Basins in Eastern North Carolina: l l l Step 1—Initial Research and Community Coordination Step 2—Initial Scoping Meeting Step 3—Draft Basin Plans Step 4—Final Scoping Meeting Step 5—Final Basin Plans

Step 2—Initial Scoping Meeting u Currently conducting Initial Scoping Meetings: l l County meetings to present results of Step 1 research To date, meetings have taken place in following counties: u Franklin, Nash, Onslow, Jones, Carteret, Craven, Pitt, Beaufort, Edgecombe, Halifax, Wilson, Warren, Vance, Scotland, Richmond, Montgomery

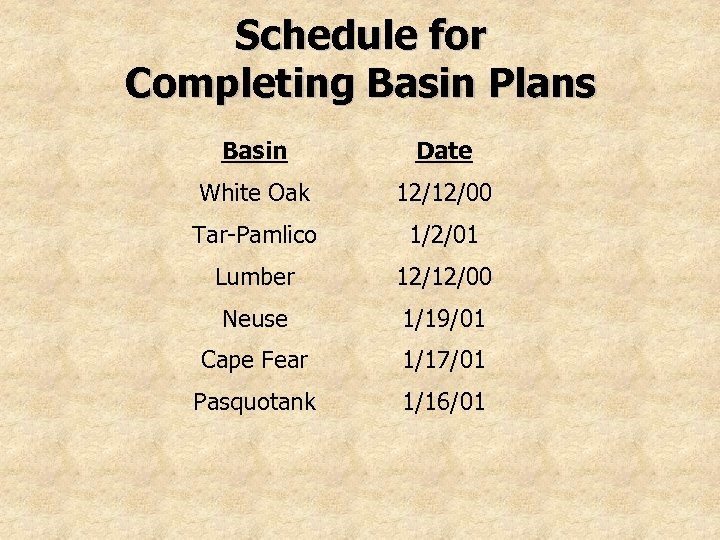

Schedule for Completing Basin Plans Basin Date White Oak 12/12/00 Tar-Pamlico 1/2/01 Lumber 12/12/00 Neuse 1/19/01 Cape Fear 1/17/01 Pasquotank 1/16/01

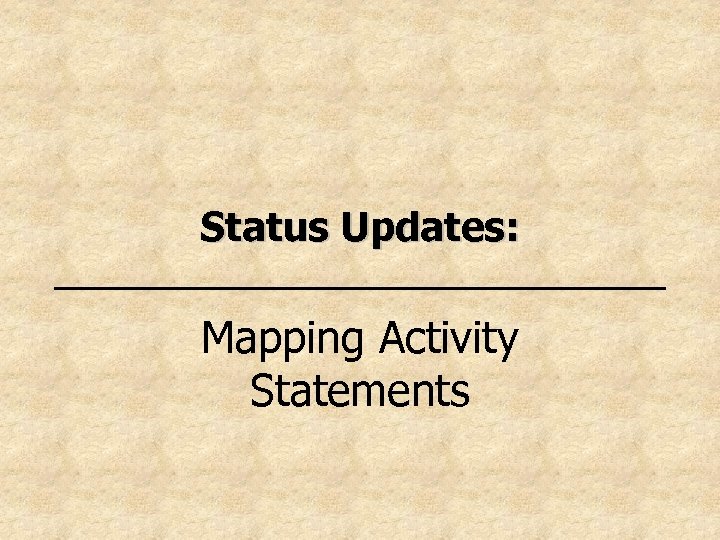

Status Updates: Mapping Activity Statements

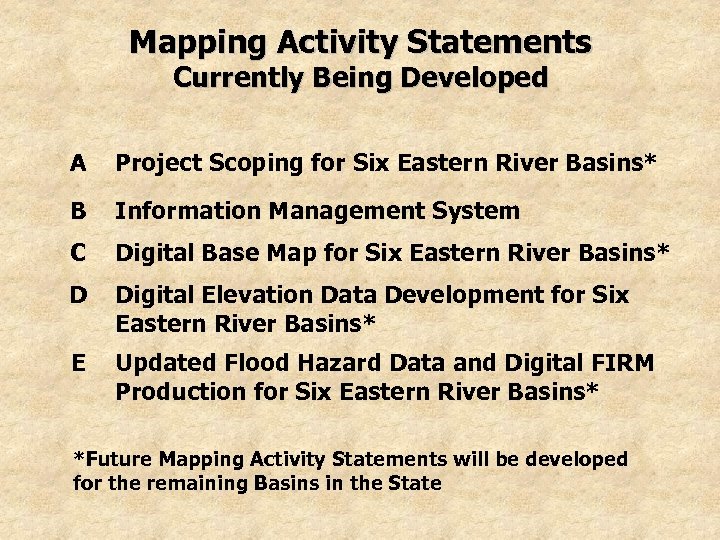

Mapping Activity Statements Currently Being Developed A Project Scoping for Six Eastern River Basins* B Information Management System C Digital Base Map for Six Eastern River Basins* D Digital Elevation Data Development for Six Eastern River Basins* E Updated Flood Hazard Data and Digital FIRM Production for Six Eastern River Basins* *Future Mapping Activity Statements will be developed for the remaining Basins in the State

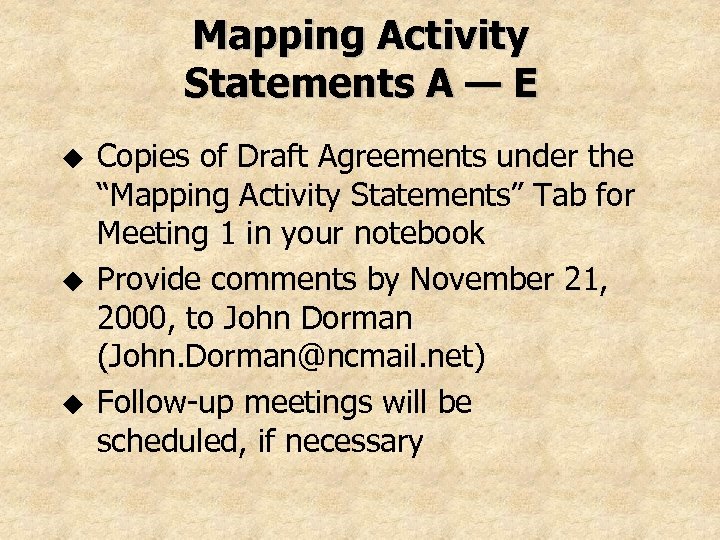

Mapping Activity Statements A — E u u u Copies of Draft Agreements under the “Mapping Activity Statements” Tab for Meeting 1 in your notebook Provide comments by November 21, 2000, to John Dorman (John. Dorman@ncmail. net) Follow-up meetings will be scheduled, if necessary

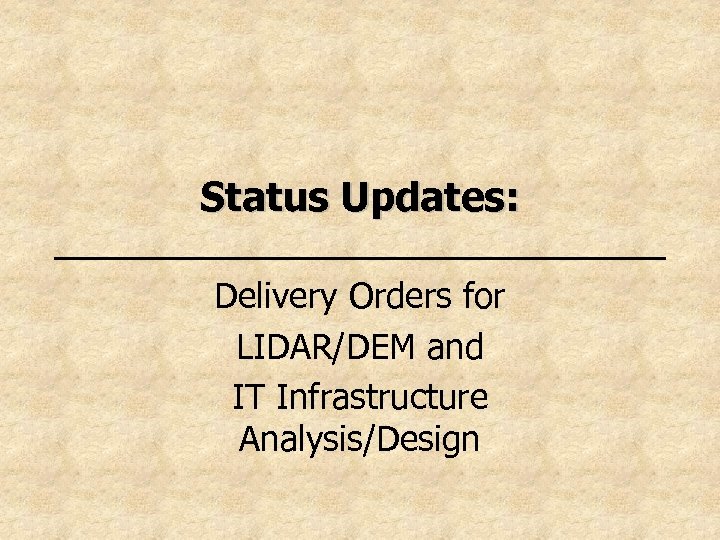

Status Updates: Delivery Orders for LIDAR/DEM and IT Infrastructure Analysis/Design

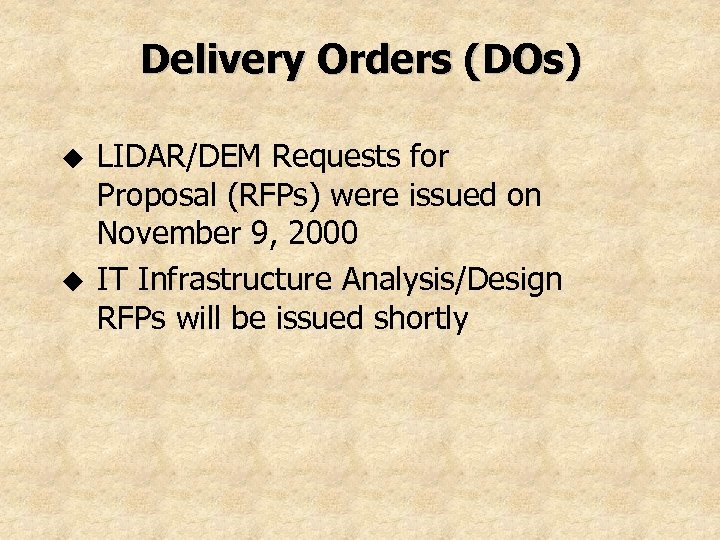

Delivery Orders (DOs) u u LIDAR/DEM Requests for Proposal (RFPs) were issued on November 9, 2000 IT Infrastructure Analysis/Design RFPs will be issued shortly

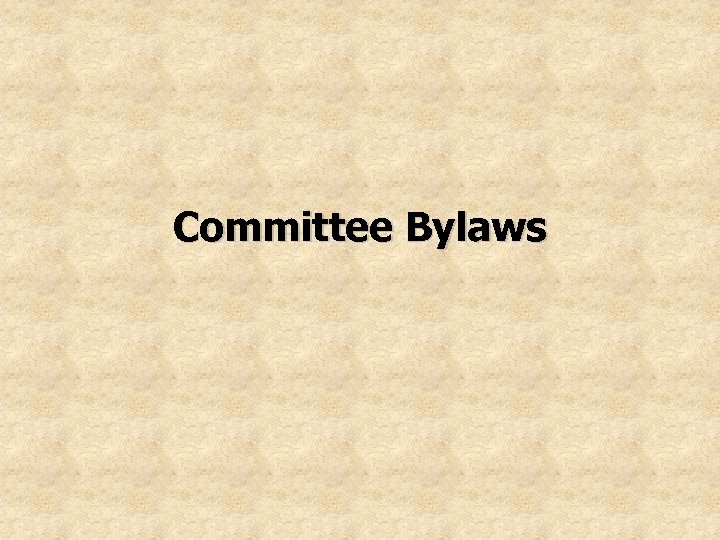

Committee Bylaws

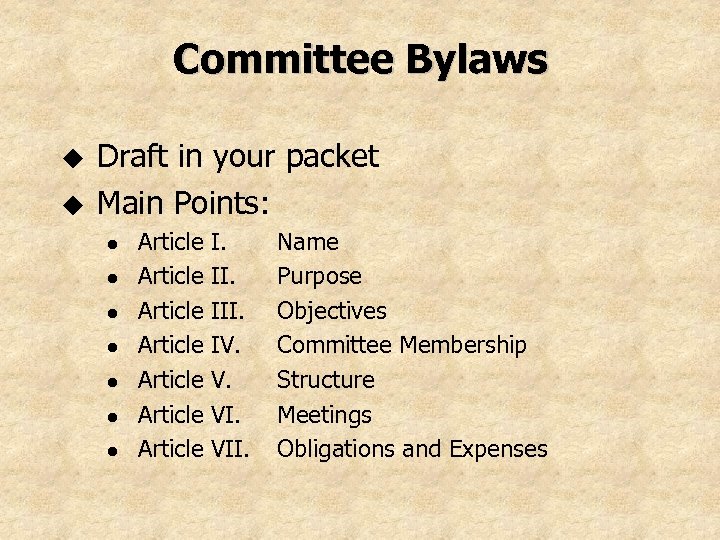

Committee Bylaws u u Draft in your packet Main Points: l l l l Article Article I. III. IV. V. VII. Name Purpose Objectives Committee Membership Structure Meetings Obligations and Expenses

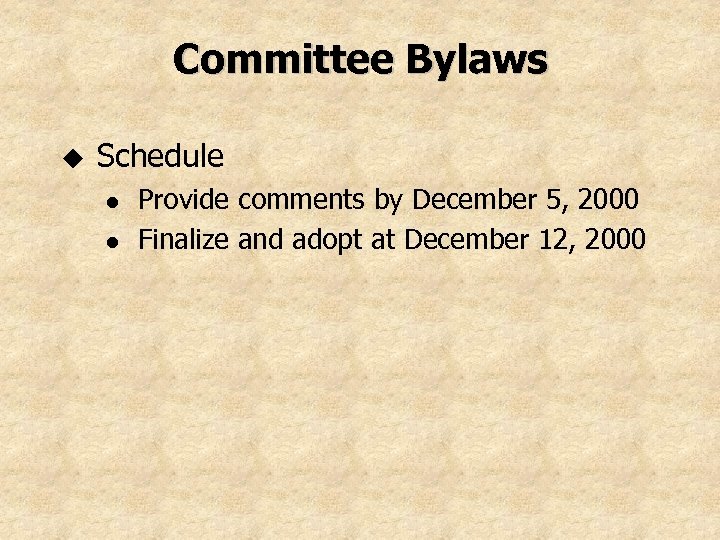

Committee Bylaws u Schedule l l Provide comments by December 5, 2000 Finalize and adopt at December 12, 2000

Accuracy Standards for LIDAR Data Development

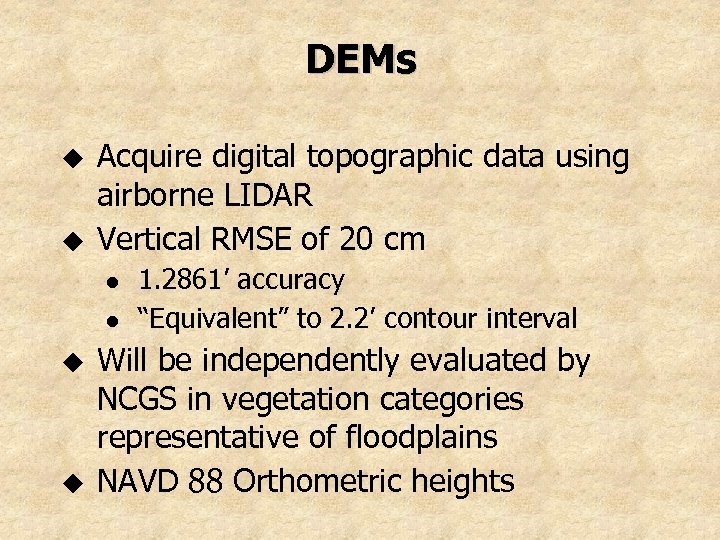

DEMs u u Acquire digital topographic data using airborne LIDAR Vertical RMSE of 20 cm l l u u 1. 2861’ accuracy “Equivalent” to 2. 2’ contour interval Will be independently evaluated by NCGS in vegetation categories representative of floodplains NAVD 88 Orthometric heights

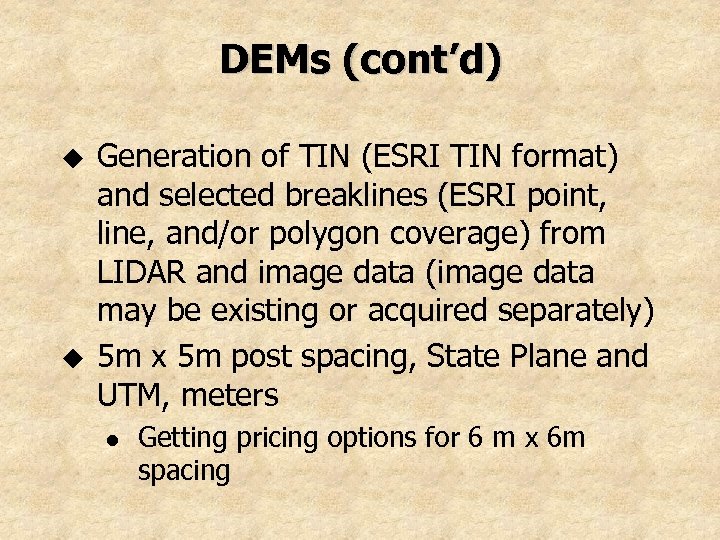

DEMs (cont’d) u u Generation of TIN (ESRI TIN format) and selected breaklines (ESRI point, line, and/or polygon coverage) from LIDAR and image data (image data may be existing or acquired separately) 5 m x 5 m post spacing, State Plane and UTM, meters l Getting pricing options for 6 m x 6 m spacing

DEMs (cont’d) u u Multiple file formats for H&H modeling and other applications using ARC/INFO and other GIS software In addition to automated processing, manual post-processing of LIDAR, wall-to-wall or only for floodplain areas

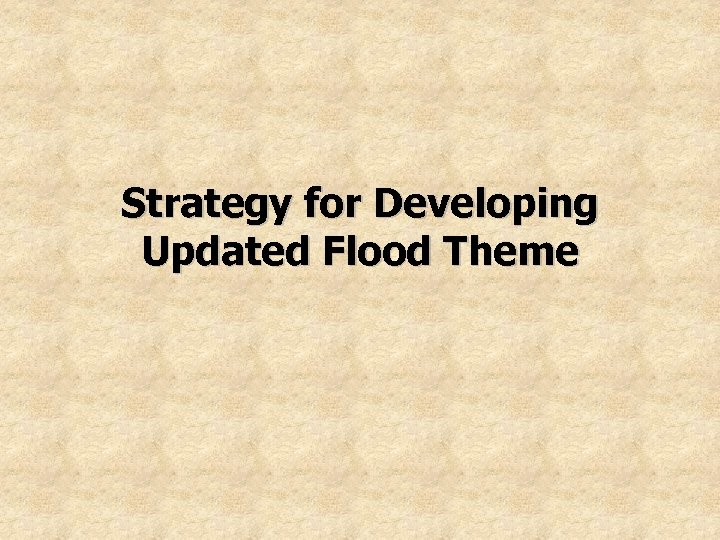

Strategy for Developing Updated Flood Theme

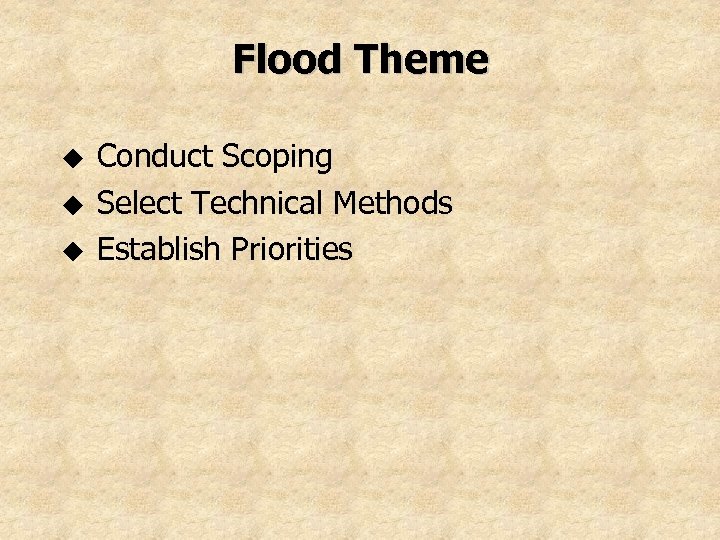

Flood Theme u u u Conduct Scoping Select Technical Methods Establish Priorities

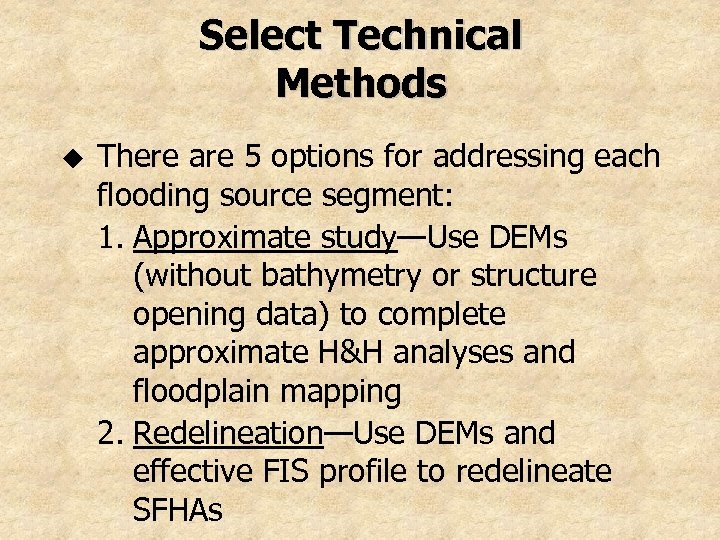

Select Technical Methods u There are 5 options for addressing each flooding source segment: 1. Approximate study—Use DEMs (without bathymetry or structure opening data) to complete approximate H&H analyses and floodplain mapping 2. Redelineation—Use DEMs and effective FIS profile to redelineate SFHAs

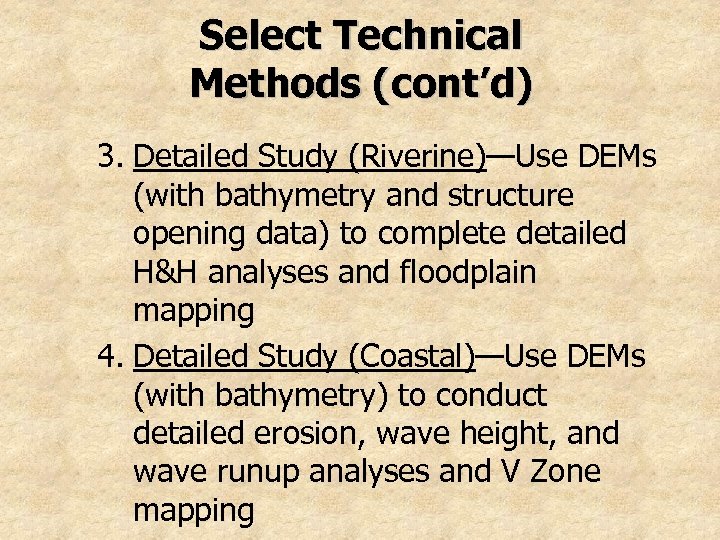

Select Technical Methods (cont’d) 3. Detailed Study (Riverine)—Use DEMs (with bathymetry and structure opening data) to complete detailed H&H analyses and floodplain mapping 4. Detailed Study (Coastal)—Use DEMs (with bathymetry) to conduct detailed erosion, wave height, and wave runup analyses and V Zone mapping

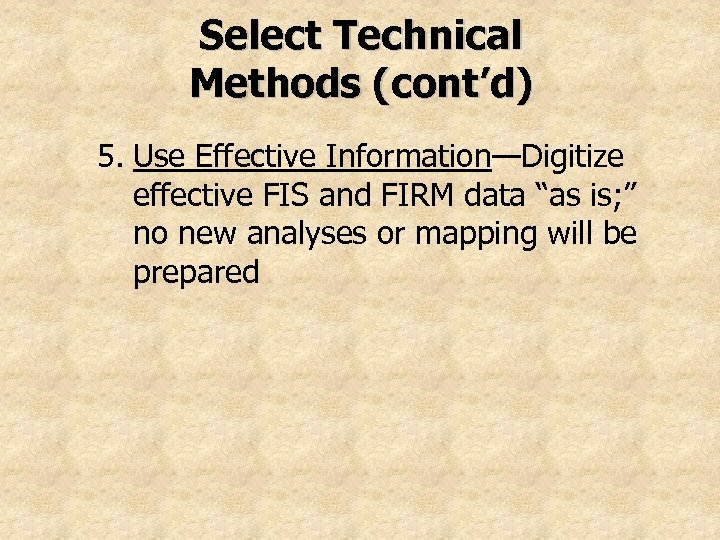

Select Technical Methods (cont’d) 5. Use Effective Information—Digitize effective FIS and FIRM data “as is; ” no new analyses or mapping will be prepared

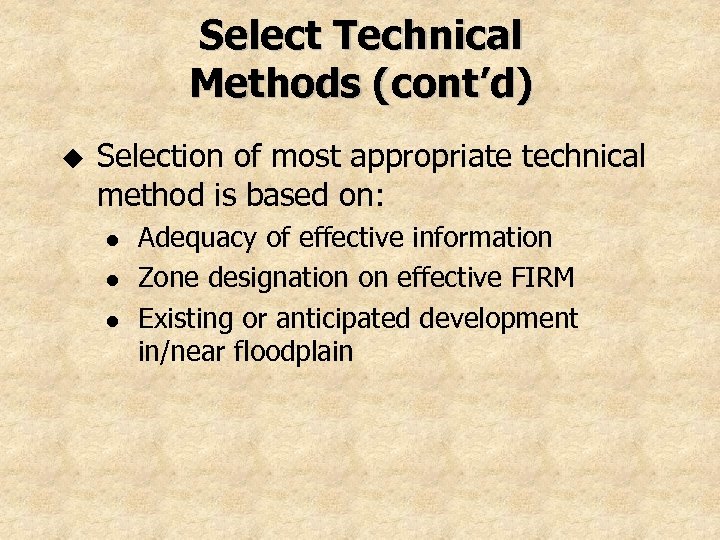

Select Technical Methods (cont’d) u Selection of most appropriate technical method is based on: l l l Adequacy of effective information Zone designation on effective FIRM Existing or anticipated development in/near floodplain

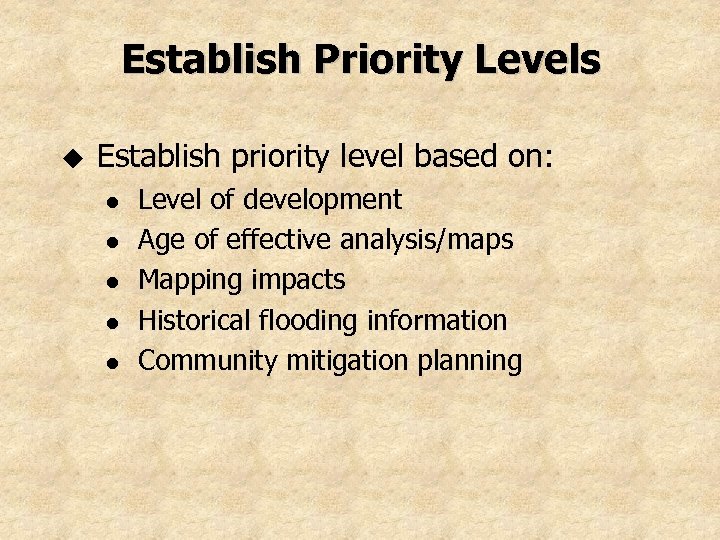

Establish Priority Levels u Establish priority level based on: l l l Level of development Age of effective analysis/maps Mapping impacts Historical flooding information Community mitigation planning

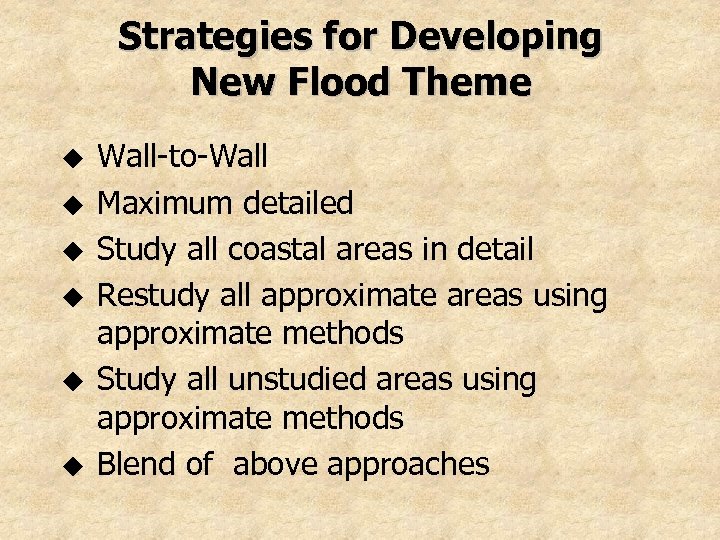

Strategies for Developing New Flood Theme u u u Wall-to-Wall Maximum detailed Study all coastal areas in detail Restudy all approximate areas using approximate methods Study all unstudied areas using approximate methods Blend of above approaches

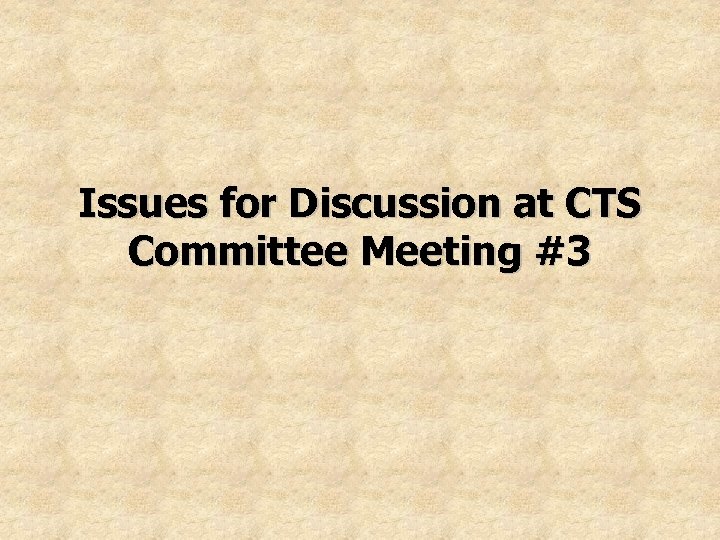

Issues for Discussion at CTS Committee Meeting #3

Action Items/Wrap Up
