NLANR/MNA Measurement and Network Analysis Hans-Werner Braun Ronn Ritke NLANR/MNA (UCSD/SDSC) http: //moat. nlanr. net/ Funded by the National Science Foundation/CISE/ANIR

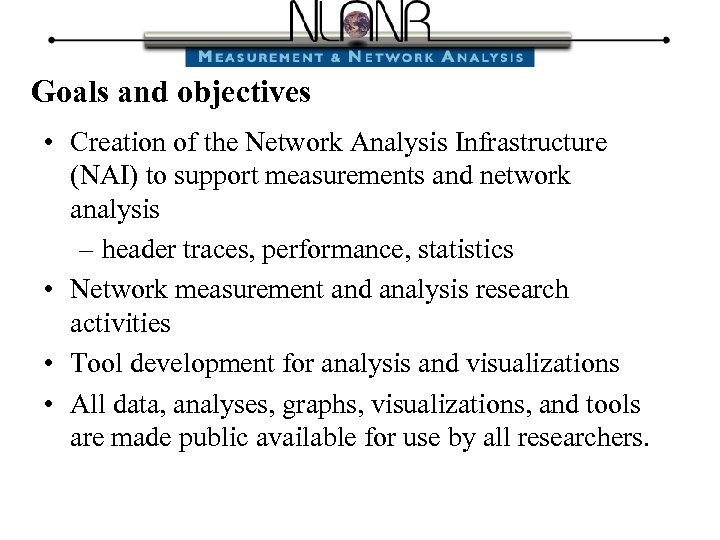

Goals and objectives • Creation of the Network Analysis Infrastructure (NAI) to support measurements and network analysis – header traces, performance, statistics • Network measurement and analysis research activities • Tool development for analysis and visualizations • All data, analyses, graphs, visualizations, and tools are made public available for use by all researchers.

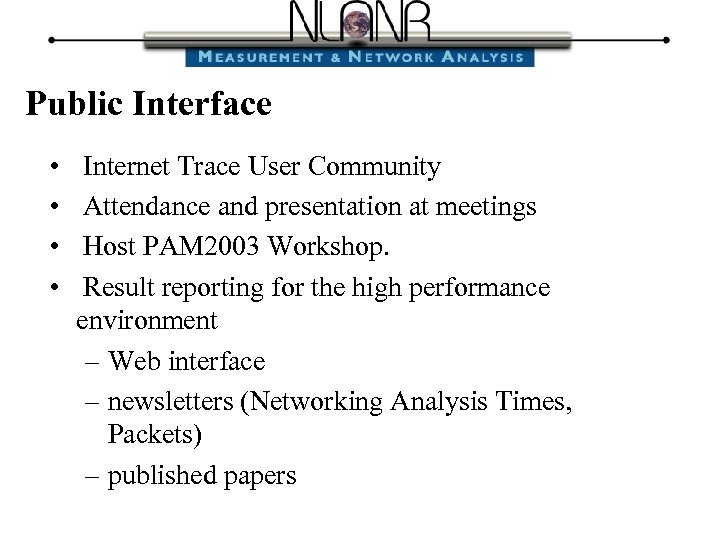

Public Interface • • Internet Trace User Community Attendance and presentation at meetings Host PAM 2003 Workshop. Result reporting for the high performance environment – Web interface – newsletters (Networking Analysis Times, Packets) – published papers

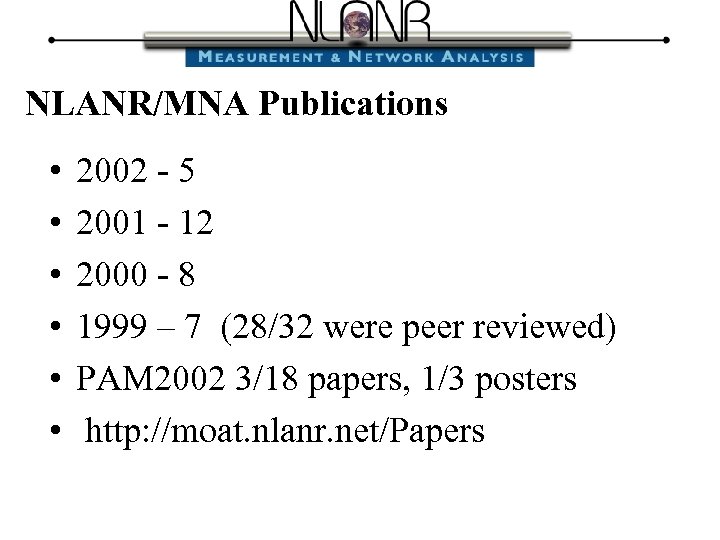

NLANR/MNA Publications • • • 2002 - 5 2001 - 12 2000 - 8 1999 – 7 (28/32 were peer reviewed) PAM 2002 3/18 papers, 1/3 posters http: //moat. nlanr. net/Papers

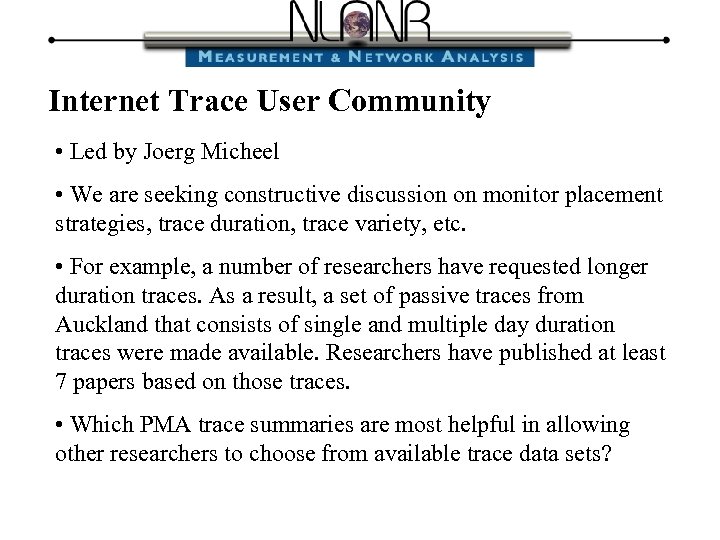

Internet Trace User Community • Led by Joerg Micheel • We are seeking constructive discussion on monitor placement strategies, trace duration, trace variety, etc. • For example, a number of researchers have requested longer duration traces. As a result, a set of passive traces from Auckland that consists of single and multiple day duration traces were made available. Researchers have published at least 7 papers based on those traces. • Which PMA trace summaries are most helpful in allowing other researchers to choose from available trace data sets?
Passive Measurement and Analysis (PMA) project (Passive traffic collection and analysis at optical carrier speeds) • Completely noninvasive, no impact on forwarding paths. • Aggregated traffic signature at a measurement point. • OC 3/OC 12, ATM and POS, OC 48 (develop OC 192 capability). • Between June 2000 and Jan 2001 (7 months) 6, 000 PMA trace files were downloaded (31 per day) from at least 193 different sites. • Trace analysis summaries include (total packets, Bytes, top port numbers by volume, top 100 throughput connections, etc. )
NCAR U. Colorado, Boulder STARTAP/APAN Argonne Nat. Lab Front Range Giga. Po. P Colorado State FIX-West NCSA Ohio State U. Columbia U. Indiana State AIX/MAE-West NASA-Ames U. Memphis SDSC, U. California, San Diego FDDI OC 3 ATM OC 3 Po. S OC 12 ATM OC 12 Po. S U. of Michigan State U. Texas Giga. Po. P Rice U. Baylor College of Medicine U. of Houston Texas A&M U. Old Dominion U. MCNC North Carolina State U. U. of North Carolina Duke U. Tel Aviv U. (I-2) U. of Florida Miami U. Florida State U. 26 September 2000 Passive measurement deployment status

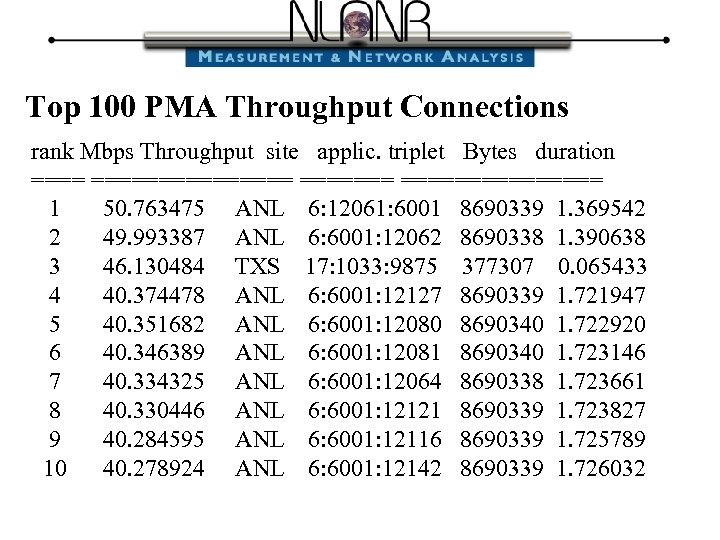

Top 100 PMA Throughput Connections rank Mbps Throughput site applic. triplet Bytes duration =========== 1 50. 763475 ANL 6: 12061: 6001 8690339 1. 369542 2 49. 993387 ANL 6: 6001: 12062 8690338 1. 390638 3 46. 130484 TXS 17: 1033: 9875 377307 0. 065433 4 40. 374478 ANL 6: 6001: 12127 8690339 1. 721947 5 40. 351682 ANL 6: 6001: 12080 8690340 1. 722920 6 40. 346389 ANL 6: 6001: 12081 8690340 1. 723146 7 40. 334325 ANL 6: 6001: 12064 8690338 1. 723661 8 40. 330446 ANL 6: 6001: 12121 8690339 1. 723827 9 40. 284595 ANL 6: 6001: 12116 8690339 1. 725789 10 40. 278924 ANL 6: 6001: 12142 8690339 1. 726032
optical interconnection optical splitters fiber connection end-point host system bus optical interfaces with own subsystem (e. g. , DAG 3, FORE) main system memory host collection and analysis process Passive monitor components

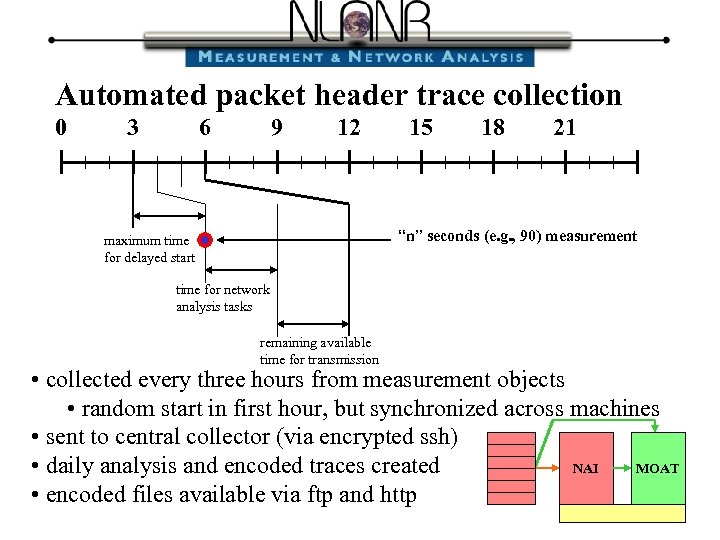

Automated packet header trace collection 0 3 6 9 12 15 18 21 “n” seconds (e. g. , 90) measurement maximum time for delayed start time for network analysis tasks remaining available time for transmission • collected every three hours from measurement objects • random start in first hour, but synchronized across machines • sent to central collector (via encrypted ssh) NAI MOAT • daily analysis and encoded traces created • encoded files available via ftp and http

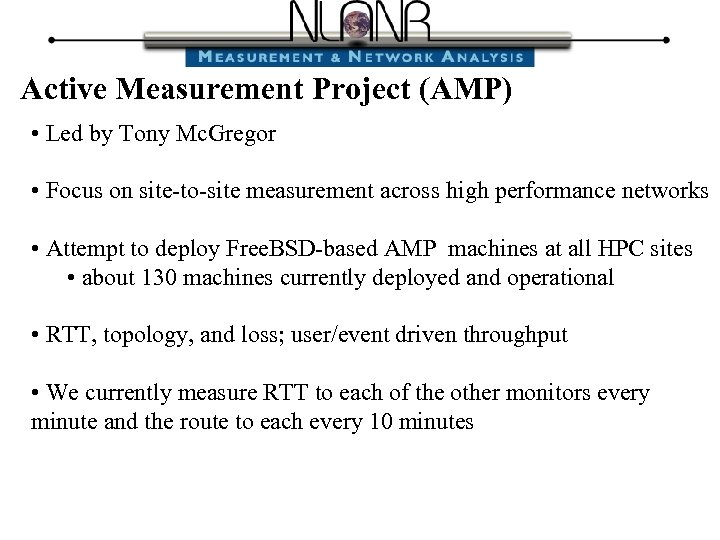

Active Measurement Project (AMP) • Led by Tony Mc. Gregor • Focus on site-to-site measurement across high performance networks • Attempt to deploy Free. BSD-based AMP machines at all HPC sites • about 130 machines currently deployed and operational • RTT, topology, and loss; user/event driven throughput • We currently measure RTT to each of the other monitors every minute and the route to each every 10 minutes

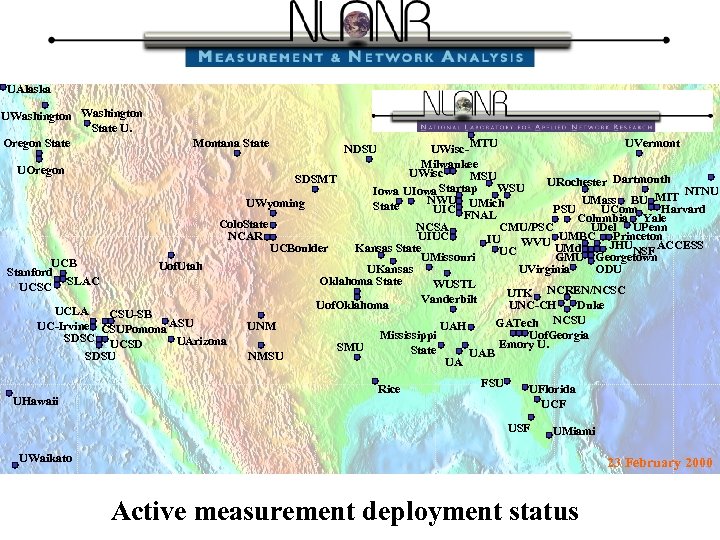

UAlaska UWashington State U. Oregon State Montana State UOregon UCB Stanford UCSC SLAC Uof. Utah UVermont UWisc- MTU Milwaukee UWisc MSU SDSMT URochester Dartmouth Startap WSU Iowa UIowa NTNU NWU UMich UMass BU MIT UWyoming State UIC FNAL PSU UConn Harvard Columbia Yale Colo. State NCSA CMU/PSC UDel UPenn NCAR UIUC UMBC Princeton IU WVU UMd JHUNSF ACCESS UCBoulder Kansas State UC UMissouri GMU Georgetown UKansas UVirginia ODU Oklahoma State WUSTL UTK NCREN/NCSC Vanderbilt Uof. Oklahoma UNC-CH Duke UCLA CSU-SB UC-Irvine CSUPomona ASU SDSC UCSD UArizona SDSU UHawaii NDSU UNM NMSU SMU Mississippi State Rice UAH UA UAB GATech NCSU Uof. Georgia Emory U. FSU UFlorida UCF USF UMiami UWaikato 23 February 2000 Active measurement deployment status

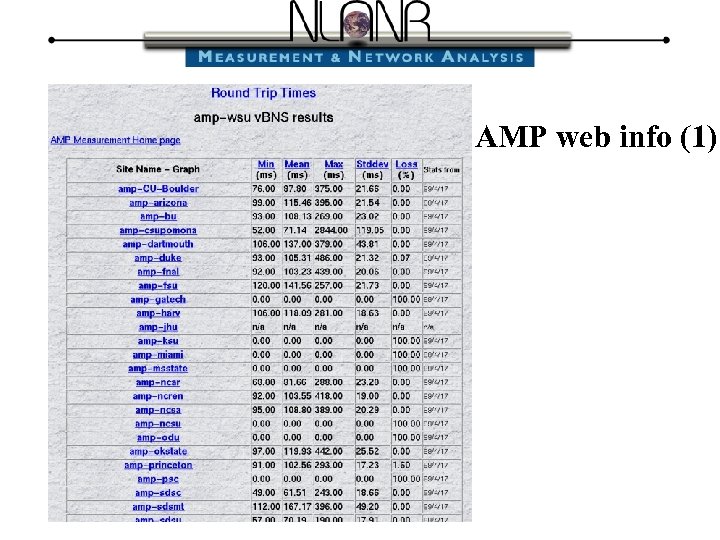

AMP web info (1)
AMP web info (2)

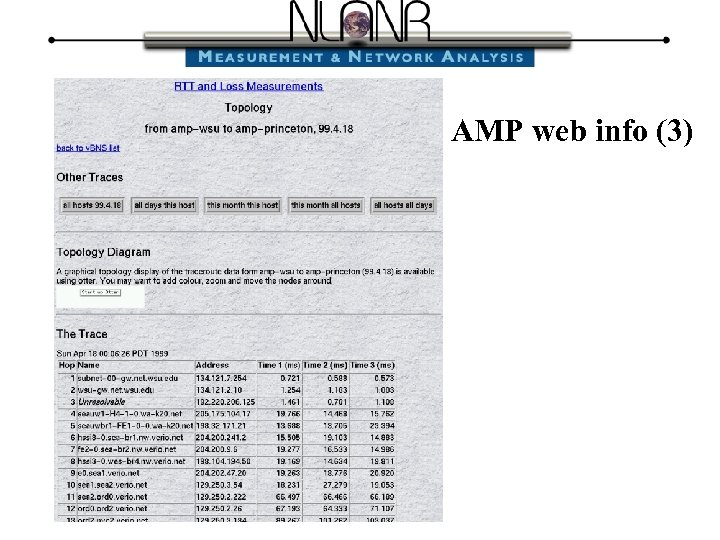

AMP web info (3)

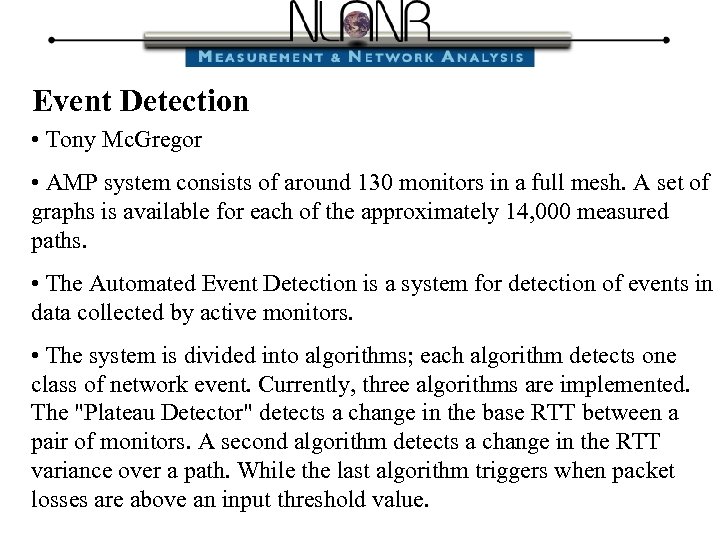

Event Detection • Tony Mc. Gregor • AMP system consists of around 130 monitors in a full mesh. A set of graphs is available for each of the approximately 14, 000 measured paths. • The Automated Event Detection is a system for detection of events in data collected by active monitors. • The system is divided into algorithms; each algorithm detects one class of network event. Currently, three algorithms are implemented. The "Plateau Detector" detects a change in the base RTT between a pair of monitors. A second algorithm detects a change in the RTT variance over a path. While the last algorithm triggers when packet losses are above an input threshold value.

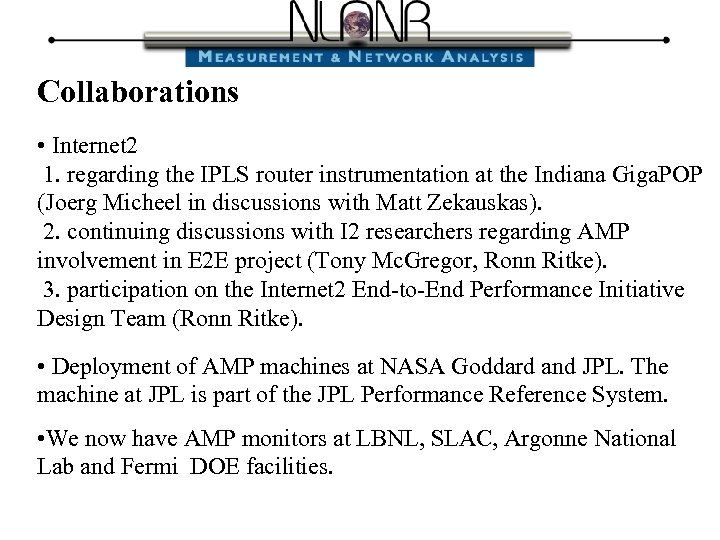

Collaborations • Internet 2 1. regarding the IPLS router instrumentation at the Indiana Giga. POP (Joerg Micheel in discussions with Matt Zekauskas). 2. continuing discussions with I 2 researchers regarding AMP involvement in E 2 E project (Tony Mc. Gregor, Ronn Ritke). 3. participation on the Internet 2 End-to-End Performance Initiative Design Team (Ronn Ritke). • Deployment of AMP machines at NASA Goddard and JPL. The machine at JPL is part of the JPL Performance Reference System. • We now have AMP monitors at LBNL, SLAC, Argonne National Lab and Fermi DOE facilities.

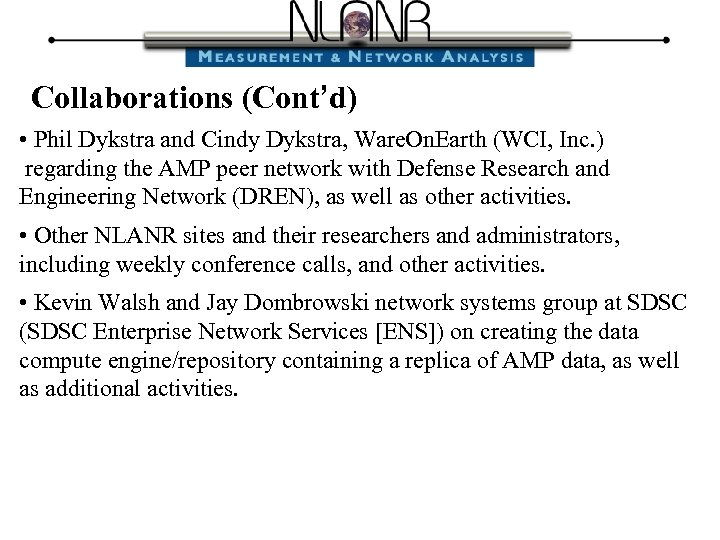

Collaborations (Cont’d) • Phil Dykstra and Cindy Dykstra, Ware. On. Earth (WCI, Inc. ) regarding the AMP peer network with Defense Research and Engineering Network (DREN), as well as other activities. • Other NLANR sites and their researchers and administrators, including weekly conference calls, and other activities. • Kevin Walsh and Jay Dombrowski network systems group at SDSC (SDSC Enterprise Network Services [ENS]) on creating the data compute engine/repository containing a replica of AMP data, as well as additional activities.

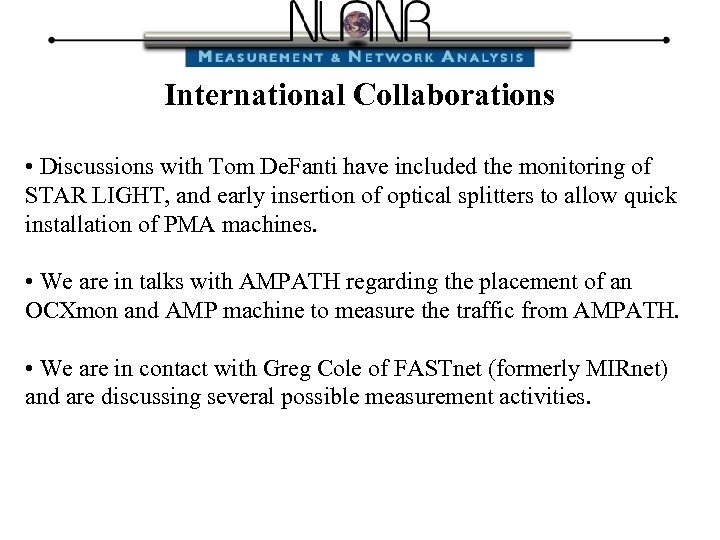

International Collaborations • Discussions with Tom De. Fanti have included the monitoring of STAR LIGHT, and early insertion of optical splitters to allow quick installation of PMA machines. • We are in talks with AMPATH regarding the placement of an OCXmon and AMP machine to measure the traffic from AMPATH. • We are in contact with Greg Cole of FASTnet (formerly MIRnet) and are discussing several possible measurement activities.

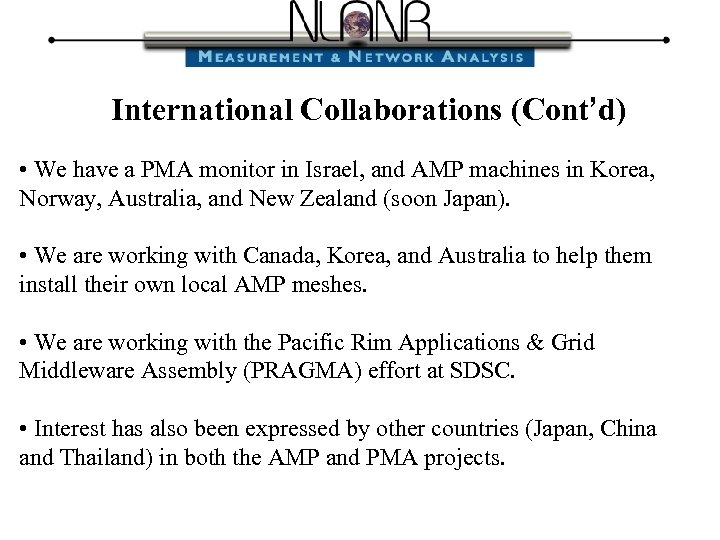

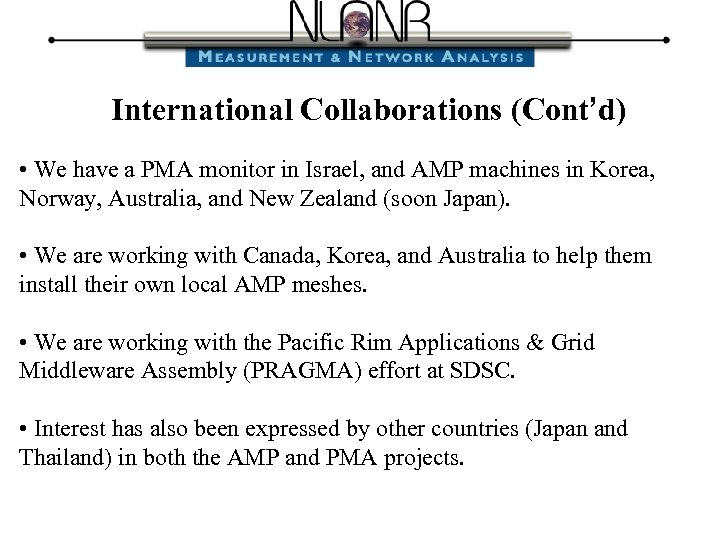

International Collaborations (Cont’d) • We have a PMA monitor in Israel, and AMP machines in Korea, Norway, Australia, and New Zealand (soon Japan). • We are working with Canada, Korea, and Australia to help them install their own local AMP meshes. • We are working with the Pacific Rim Applications & Grid Middleware Assembly (PRAGMA) effort at SDSC. • Interest has also been expressed by other countries (Japan and Thailand) in both the AMP and PMA projects.

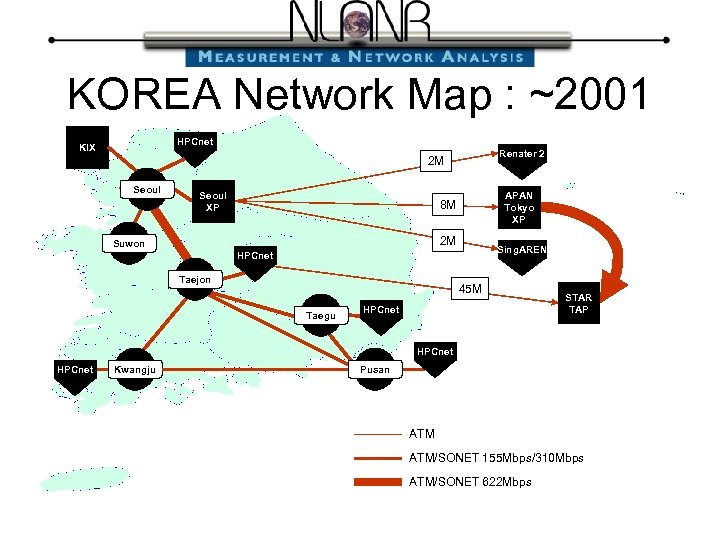

KOREA Network Map : ~2001 HPCnet KIX Renater 2 2 M Seoul XP APAN Tokyo XP 8 M 2 M Suwon Sing. AREN HPCnet Taejon 45 M Taegu HPCnet STAR TAP HPCnet Kwangju Pusan ATM/SONET 155 Mbps/310 Mbps ATM/SONET 622 Mbps
NLANR/MNA Measurement and Network Analysis Hans-Werner Braun Ronn Ritke NLANR/MNA (UCSD/SDSC) http: //moat. nlanr. net/ Funded by the National Science Foundation/CISE/ANIR

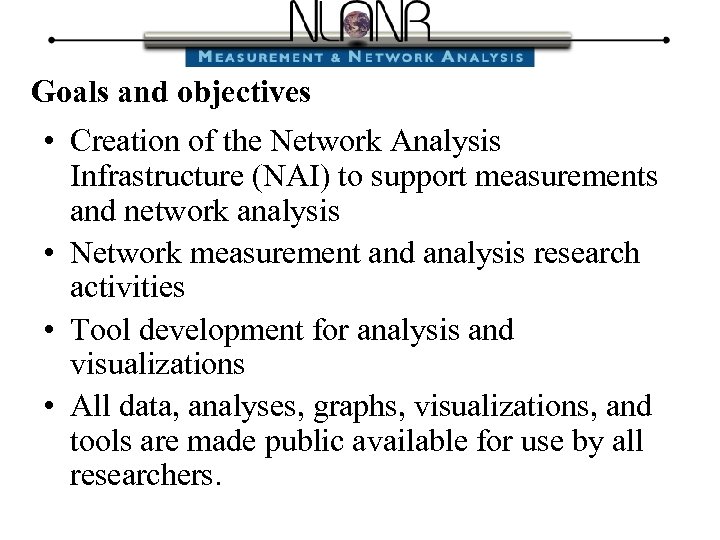

Goals and objectives • Creation of the Network Analysis Infrastructure (NAI) to support measurements and network analysis • Network measurement and analysis research activities • Tool development for analysis and visualizations • All data, analyses, graphs, visualizations, and tools are made public available for use by all researchers.

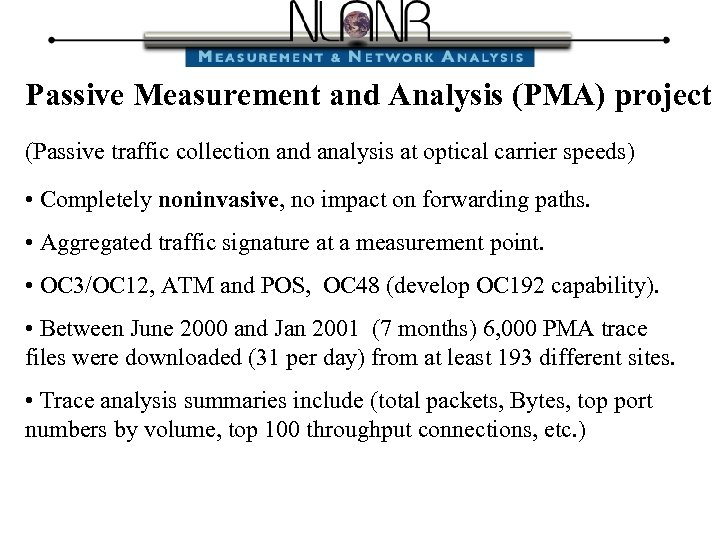

Passive Measurement and Analysis (PMA) project (Passive traffic collection and analysis at optical carrier speeds) • Completely noninvasive, no impact on forwarding paths. • Aggregated traffic signature at a measurement point. • OC 3/OC 12, ATM and POS, OC 48 (develop OC 192 capability). • Between June 2000 and Jan 2001 (7 months) 6, 000 PMA trace files were downloaded (31 per day) from at least 193 different sites. • Trace analysis summaries include (total packets, Bytes, top port numbers by volume, top 100 throughput connections, etc. )

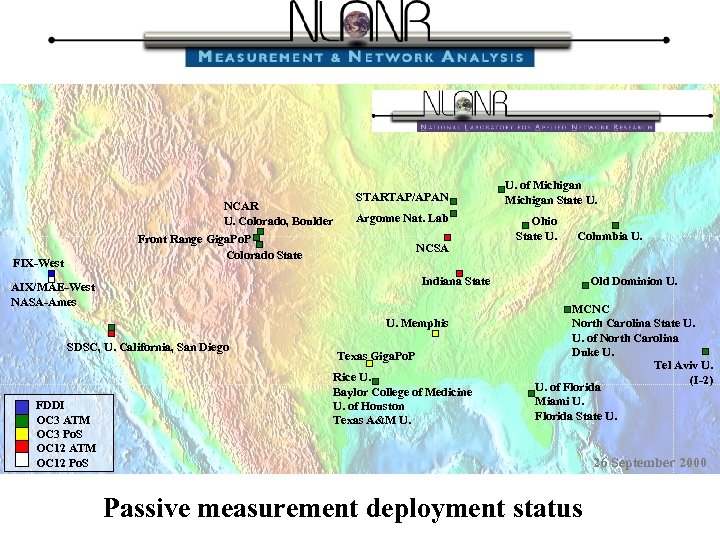

NCAR U. Colorado, Boulder STARTAP/APAN Argonne Nat. Lab Front Range Giga. Po. P Colorado State FIX-West NCSA Ohio State U. Columbia U. Indiana State AIX/MAE-West NASA-Ames U. Memphis SDSC, U. California, San Diego FDDI OC 3 ATM OC 3 Po. S OC 12 ATM OC 12 Po. S U. of Michigan State U. Texas Giga. Po. P Rice U. Baylor College of Medicine U. of Houston Texas A&M U. Old Dominion U. MCNC North Carolina State U. U. of North Carolina Duke U. Tel Aviv U. (I-2) U. of Florida Miami U. Florida State U. 26 September 2000 Passive measurement deployment status
Active Measurement Project (AMP) • Led by Tony Mc. Gregor • Focus on site-to-site measurement across high performance networks • Attempt to deploy Free. BSD-based AMP machines at all HPC sites • about 130 machines currently deployed and operational • RTT, topology, and loss; user/event driven throughput • We currently measure RTT to each of the other monitors every minute and the route to each every 10 minutes
UAlaska UWashington State U. Oregon State Montana State UOregon UCB Stanford UCSC SLAC Uof. Utah UVermont UWisc- MTU Milwaukee UWisc MSU SDSMT URochester Dartmouth Startap WSU Iowa UIowa NTNU NWU UMich UMass BU MIT UWyoming State UIC FNAL PSU UConn Harvard Columbia Yale Colo. State NCSA CMU/PSC UDel UPenn NCAR UIUC UMBC Princeton IU WVU UMd JHUNSF ACCESS UCBoulder Kansas State UC UMissouri GMU Georgetown UKansas UVirginia ODU Oklahoma State WUSTL UTK NCREN/NCSC Vanderbilt Uof. Oklahoma UNC-CH Duke UCLA CSU-SB UC-Irvine CSUPomona ASU SDSC UCSD UArizona SDSU UHawaii NDSU UNM NMSU SMU Mississippi State Rice UAH UA UAB GATech NCSU Uof. Georgia Emory U. FSU UFlorida UCF USF UMiami UWaikato 23 February 2000 Active measurement deployment status
AMP web info (1)

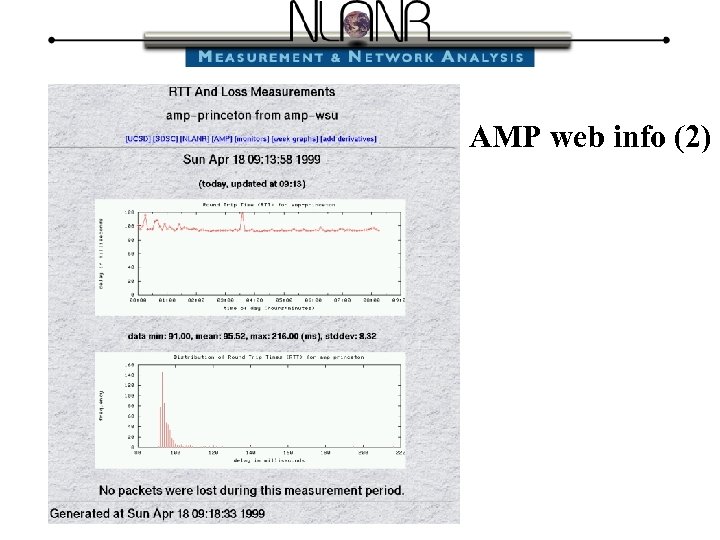

AMP web info (2)
AMP web info (3)
International Collaborations • Discussions with Tom De. Fanti have included the monitoring of STAR LIGHT, and early insertion of optical splitters to allow quick installation of PMA machines. • We are in talks with AMPATH regarding the placement of an OCXmon and AMP machine to measure the traffic from AMPATH. • I recently attended a meeting in Russia with Greg Cole of Nauka. Net (formerly Fastnet) and are discussing several possible measurement activities.
International Collaborations (Cont’d) • We have a PMA monitor in Israel, and AMP machines in Korea, Norway, Australia, and New Zealand (soon Japan). • We are working with Canada, Korea, and Australia to help them install their own local AMP meshes. • We are working with the Pacific Rim Applications & Grid Middleware Assembly (PRAGMA) effort at SDSC. • Interest has also been expressed by other countries (Japan, China and Thailand) in both the AMP and PMA projects.
KOREA Network Map : ~2001 HPCnet KIX Renater 2 2 M Seoul XP APAN Tokyo XP 8 M 2 M Suwon Sing. AREN HPCnet Taejon 45 M Taegu HPCnet STAR TAP HPCnet Kwangju Pusan ATM/SONET 155 Mbps/310 Mbps ATM/SONET 622 Mbps

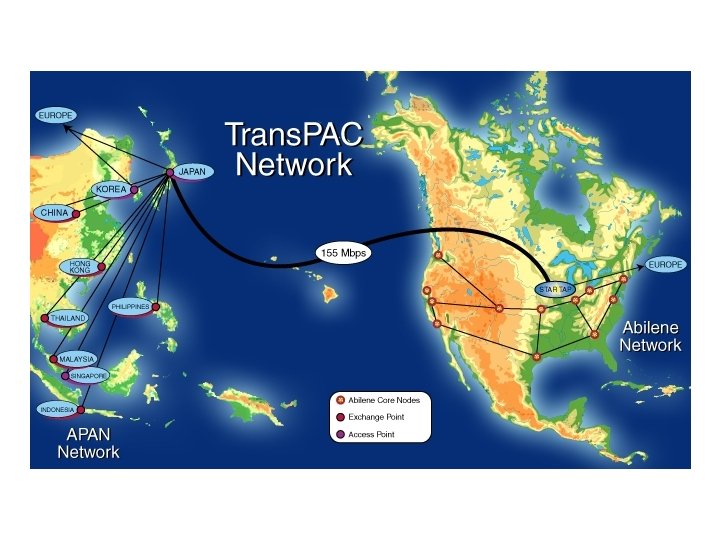

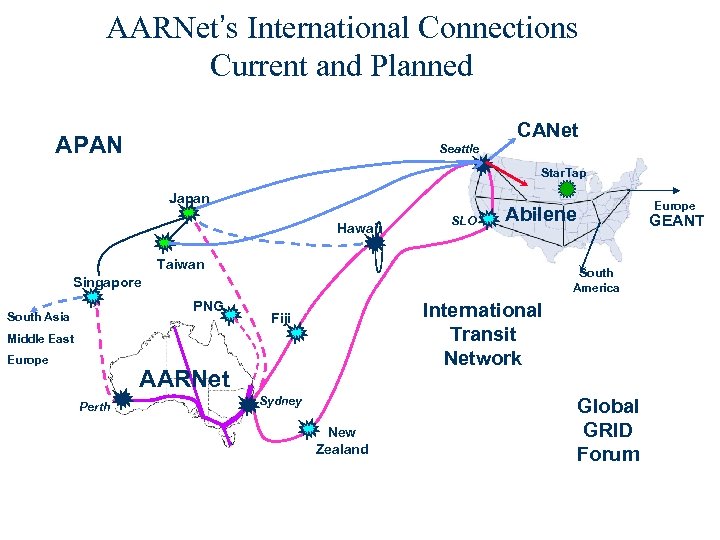

AARNet’s International Connections Current and Planned CANet APAN Seattle Star. Tap Japan Hawaii SLO Abilene Taiwan South America Singapore PNG South Asia International Transit Network Fiji Middle East Europe AARNet Perth Sydney New Zealand Global GRID Forum Europe GEANT

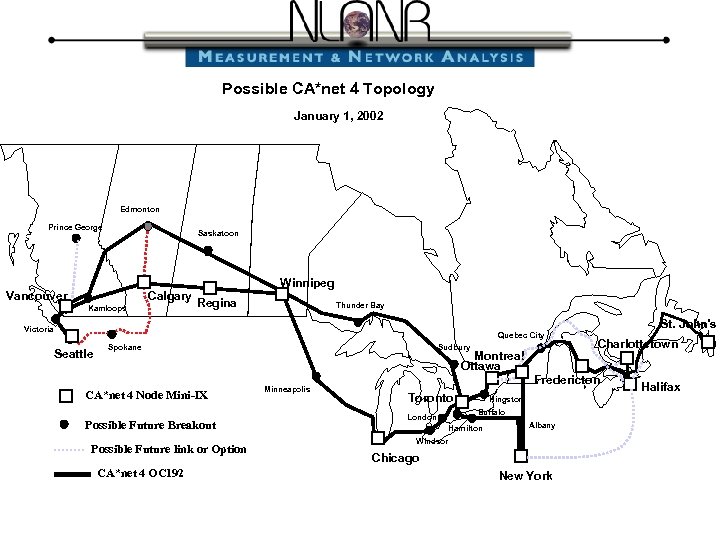

Possible CA*net 4 Topology January 1, 2002 Edmonton Prince George Saskatoon Vancouver Calgary Kamloops Winnipeg Regina Halifax Thunder Bay Victoria Quebec City Seattle Spokane CA*net 4 Node Mini-IX Possible Future Breakout Possible Future link or Option CA*net 4 OC 192 Sudbury Montreal Ottawa Minneapolis St. John's Charlottetown Fredericton Toronto London Kingston Buffalo Hamilton Albany Windsor Chicago New York Halifax

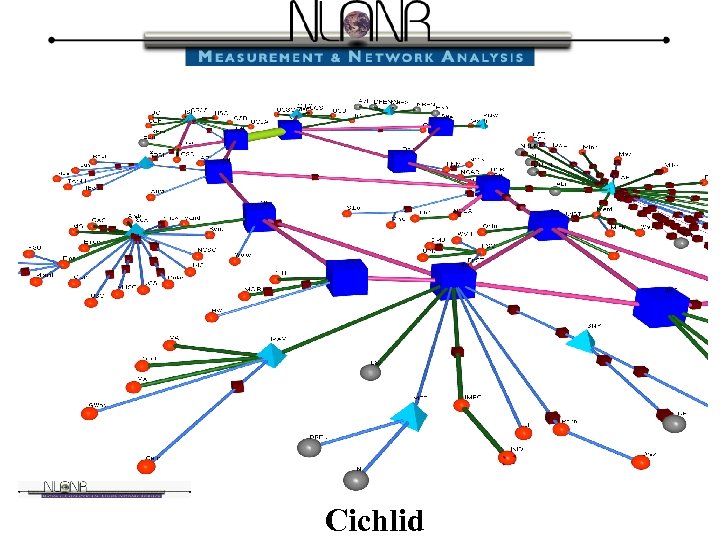

Cichlid
