News from ESRF Jean-Michel Chaize Tango collaboration meeting 13/14 May 2009 May 13 rd 2009 TANGO collaboration 1
News from ESRF Ø The upgrade program Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 2
ESRF Programme 2009 -2018 New, better science May 13 rd 2009 TANGO collaboration 3

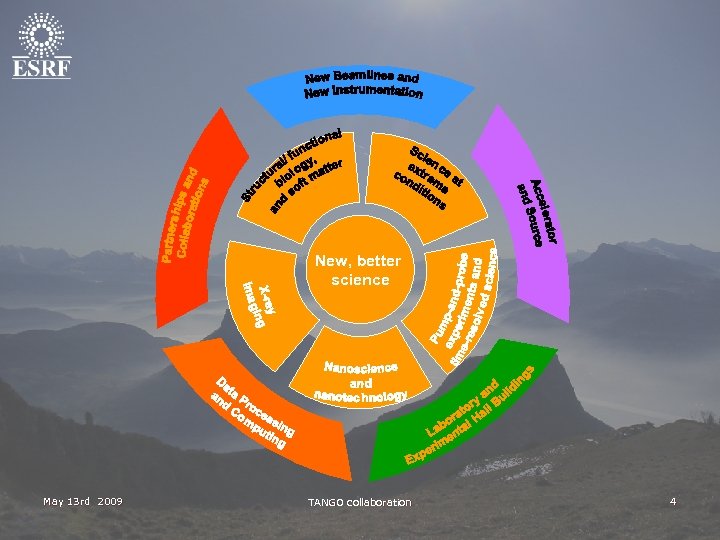

New, better science May 13 rd 2009 TANGO collaboration 4

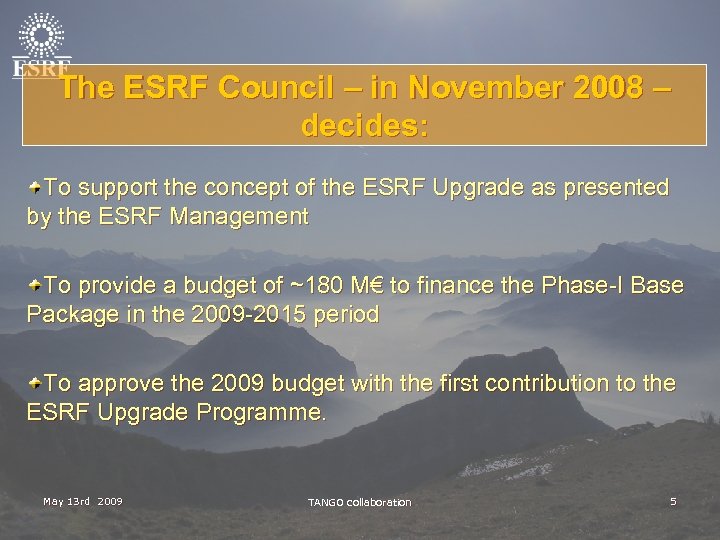

The ESRF Council – in November 2008 – decides: To support the concept of the ESRF Upgrade as presented by the ESRF Management To provide a budget of ~180 M€ to finance the Phase-I Base Package in the 2009 -2015 period To approve the 2009 budget with the first contribution to the ESRF Upgrade Programme. May 13 rd 2009 TANGO collaboration 5
News from ESRF Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 6

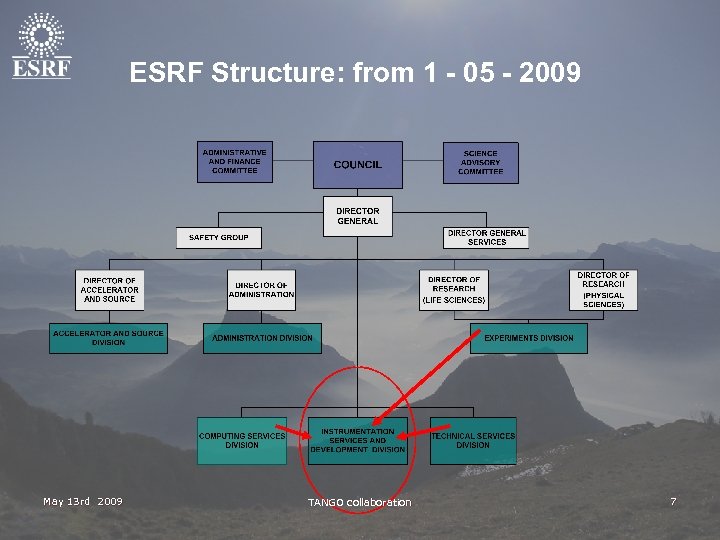

ESRF Structure: from 1 - 05 - 2009 May 13 rd 2009 TANGO collaboration 7
A new Division for the ESRF: Instrument Service and Development Division • Bringing together: (120 people) Ø Detector and Electronics Ø Mechanical Engineering Ø X-ray Optics Ø Software Ø Advanced Analysis and Modeling May 13 rd 2009 TANGO collaboration 8 8

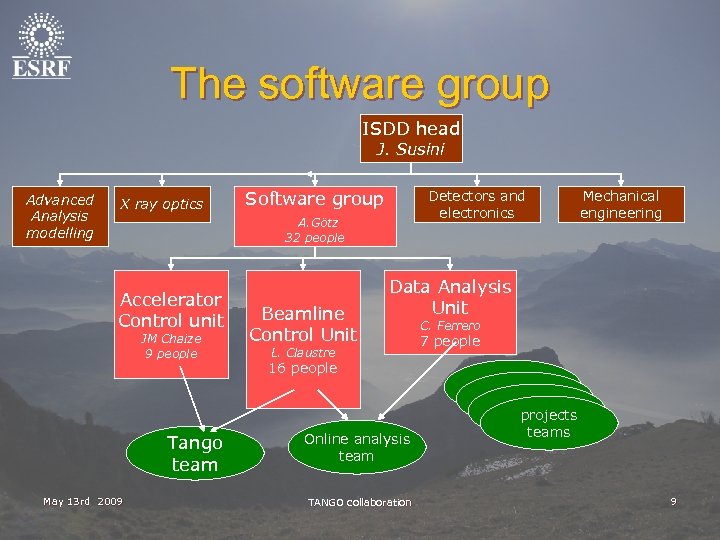

The software group ISDD head J. Susini Advanced Analysis modelling X ray optics Software group A. Götz Detectors and electronics Mechanical engineering 32 people Accelerator Control unit JM Chaize 9 people Tango team May 13 rd 2009 Beamline Control Unit Data Analysis Unit L. Claustre 16 people Online analysis team TANGO collaboration C. Ferrero 7 people projects teams 9
News from ESRF Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 10

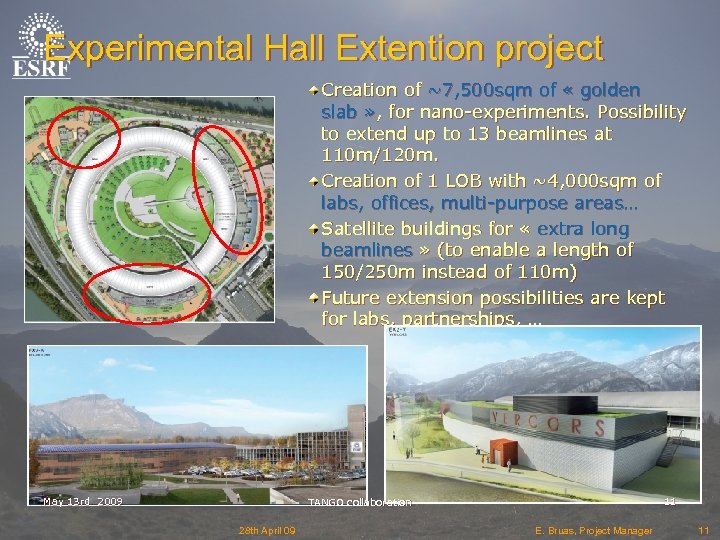

Experimental Hall Extention project Creation of ~7, 500 sqm of « golden slab » , for nano-experiments. Possibility to extend up to 13 beamlines at 110 m/120 m. Creation of 1 LOB with ~4, 000 sqm of labs, offices, multi-purpose areas… Satellite buildings for « extra long beamlines » (to enable a length of 150/250 m instead of 110 m) Future extension possibilities are kept for labs, partnerships, … May 13 rd 2009 11 TANGO collaboration 28 th April 09 E. Bruas, Project Manager 11

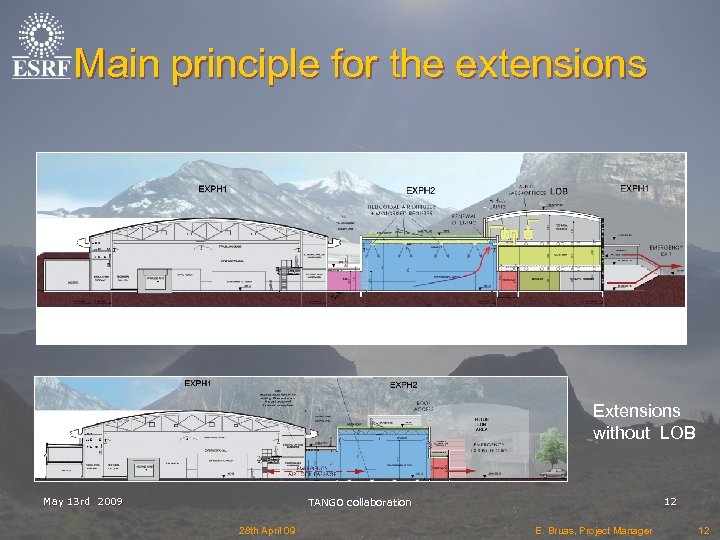

Main principle for the extensions Extensions without LOB May 13 rd 2009 12 TANGO collaboration 28 th April 09 E. Bruas, Project Manager 12

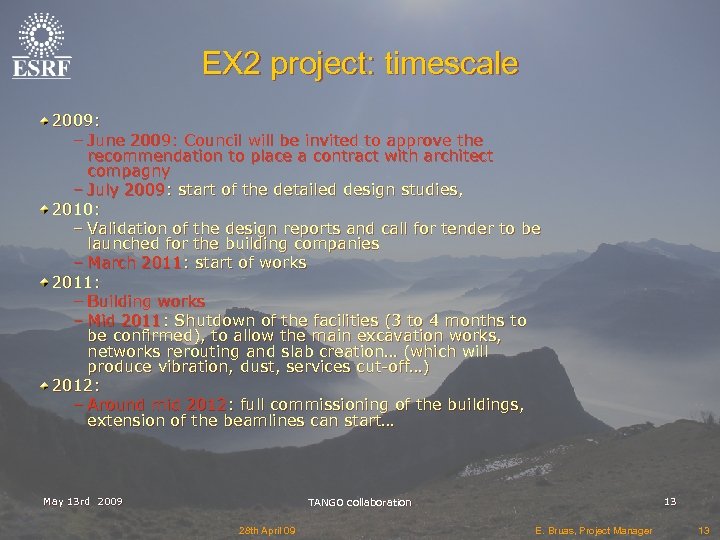

EX 2 project: timescale 2009: – June 2009: Council will be invited to approve the recommendation to place a contract with architect compagny – July 2009: start of the detailed design studies, 2010: – Validation of the design reports and call for tender to be launched for the building companies – March 2011: start of works 2011: – Building works – Mid 2011: Shutdown of the facilities (3 to 4 months to be confirmed), to allow the main excavation works, networks rerouting and slab creation… (which will produce vibration, dust, services cut-off…) 2012: – Around mid 2012: full commissioning of the buildings, extension of the beamlines can start… May 13 rd 2009 13 TANGO collaboration 28 th April 09 E. Bruas, Project Manager 13
Development of the joint site ILL/ESRF « Project Contract State-Region - CPER » • October 08: signature of the « Site Contract » by the local authorities, particularly for the Large Scale Facilities (ESRF and ILL) for a total amount of 15 M€: • 2009: An additional budget could be added to build IBS 2 The main objective is to develop partnership facilities and site visibility: • to develop ambitious research programmes in collaboration with external users of the highest scientific excellence • to improve the on-site science support to users • to boost the academic programme by better opportunities (Ph. D thesis students, …) • to implement a platform with better support for industrial and applied research activities May 13 rd 2009 14 TANGO collaboration 28 th April 09 E. Bruas, Project Manager 14

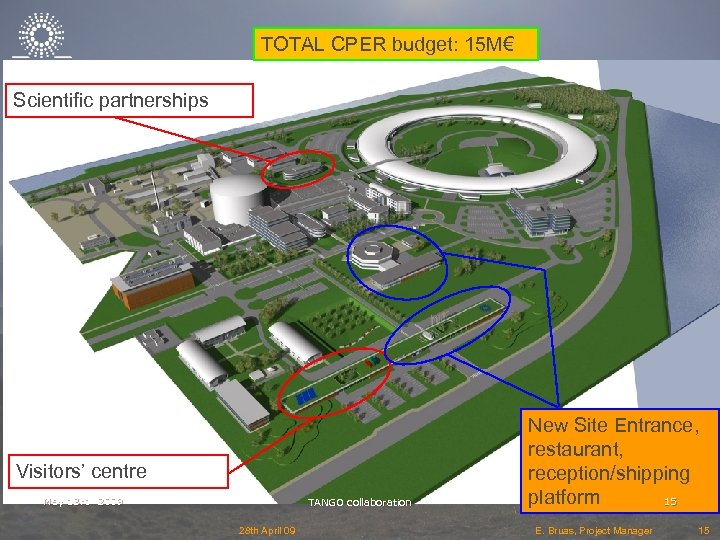

TOTAL CPER budget: 15 M€ Scientific partnerships Visitors’ centre May 13 rd 2009 TANGO collaboration 28 th April 09 New Site Entrance, restaurant, reception/shipping platform 15 E. Bruas, Project Manager 15

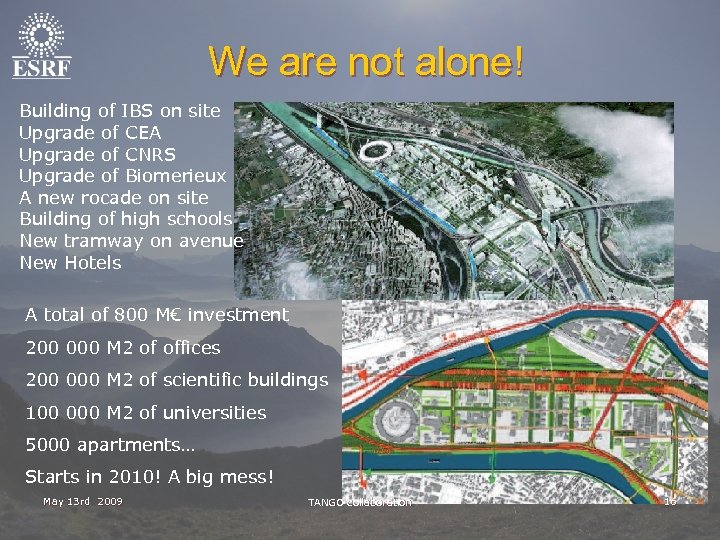

We are not alone! Building of IBS on site Upgrade of CEA Upgrade of CNRS Upgrade of Biomerieux A new rocade on site Building of high schools New tramway on avenue New Hotels A total of 800 M€ investment 200 000 M 2 of offices 200 000 M 2 of scientific buildings 100 000 M 2 of universities 5000 apartments… Starts in 2010! A big mess! May 13 rd 2009 TANGO collaboration 16
News from ESRF Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 17

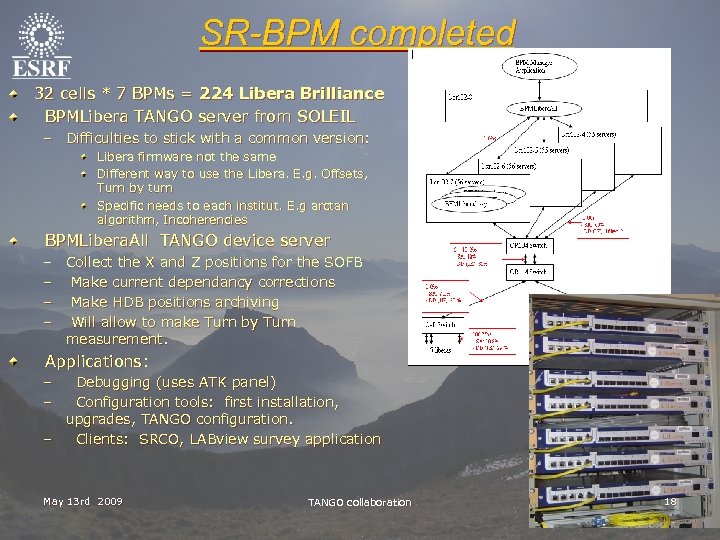

SR-BPM completed 32 cells * 7 BPMs = 224 Libera Brilliance BPMLibera TANGO server from SOLEIL – Difficulties to stick with a common version: Libera firmware not the same Different way to use the Libera. E. g. Offsets, Turn by turn Specific needs to each institut. E. g arctan algorithm, Incoherencies BPMLibera. All TANGO device server – – Collect the X and Z positions for the SOFB Make current dependancy corrections Make HDB positions archiving Will allow to make Turn by Turn measurement. Applications: – Debugging (uses ATK panel) – Configuration tools: first installation, upgrades, TANGO configuration. – Clients: SRCO, LABview survey application May 13 rd 2009 TANGO collaboration 18

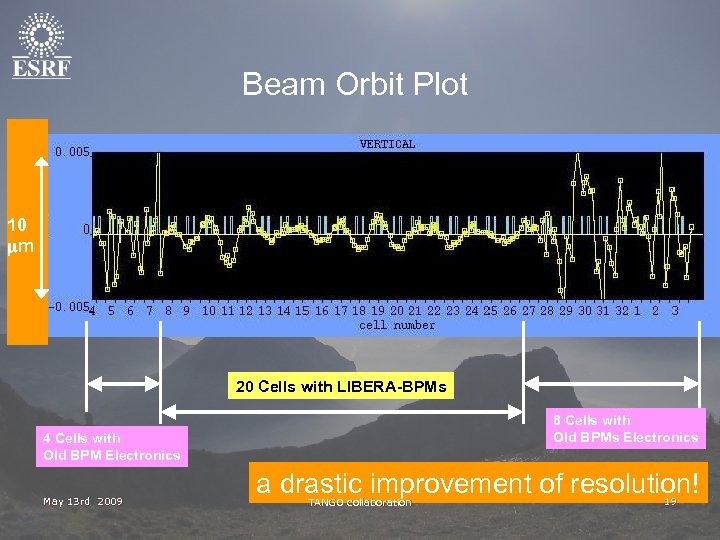

Beam Orbit Plot 10 mm 20 Cells with LIBERA-BPMs 8 Cells with Old BPMs Electronics 4 Cells with Old BPM Electronics May 13 rd 2009 a drastic improvement of resolution! TANGO collaboration 19

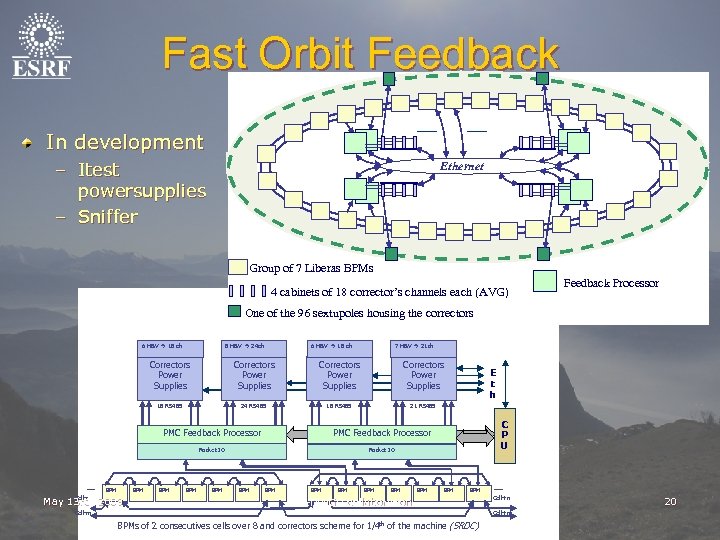

Fast Orbit Feedback ----- In development – Itest powersupplies – Sniffer ----Ethernet Group of 7 Liberas BPMs 4 cabinets of 18 corrector’s channels each (AVG) Feedback Processor One of the 96 sextupoles housing the correctors 6 H&V 18 ch 8 H&V 24 ch 6 H&V 18 ch 7 H&V 21 ch Correctors Power Supplies 18 RS 485 24 RS 485 18 RS 485 21 RS 485 PMC Feedback Processor --Cell-n BPM May 13 rd 2009 C P U PMC Feedback Processor Rocket IO E t h Rocket IO BPM BPM BPM TANGO collaboration Cell-m --Cell+n Cell+m BPMs of 2 consecutives cells over 8 and correctors scheme for 1/4 th of the machine (SRDC) 20

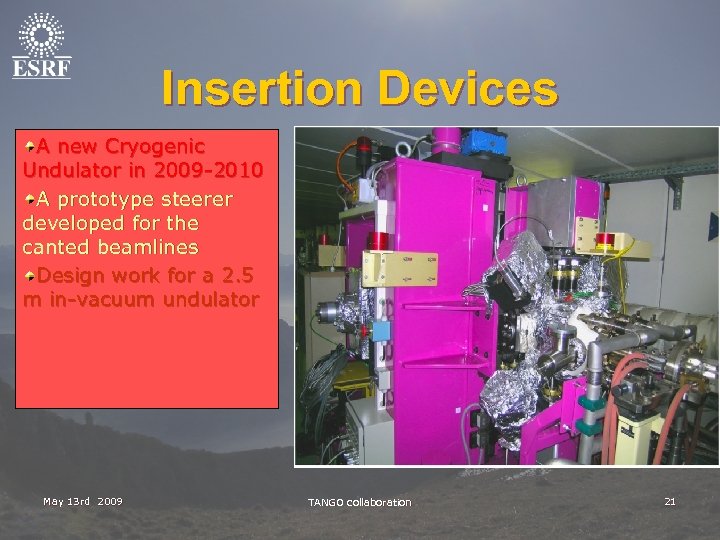

Insertion Devices A new Cryogenic Undulator in 2009 -2010 A prototype steerer developed for the canted beamlines Design work for a 2. 5 m in-vacuum undulator May 13 rd 2009 TANGO collaboration 21

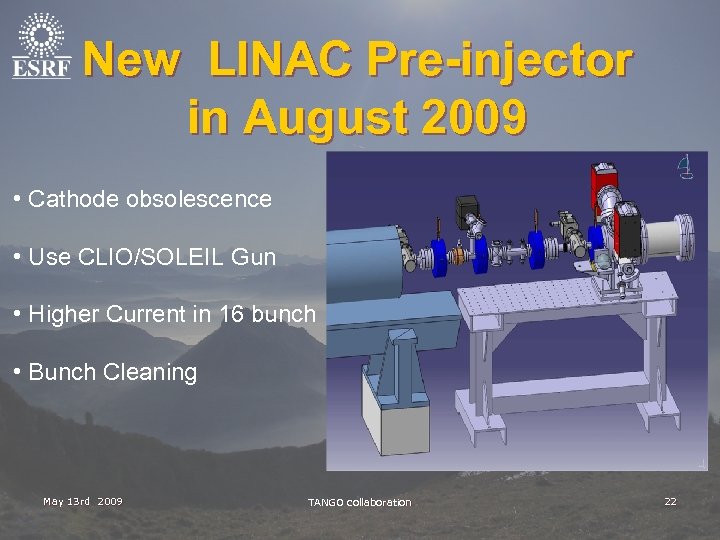

New LINAC Pre-injector in August 2009 • Cathode obsolescence • Use CLIO/SOLEIL Gun • Higher Current in 16 bunch • Bunch Cleaning May 13 rd 2009 TANGO collaboration 22
Solid State RF Amplifier (SSA) 600 k. W + 450 k. W SSA for Booster Cavities and future ID 23 cavities soon to be ordered SSA at SOLEIL May 13 rd 2009 TANGO collaboration 23

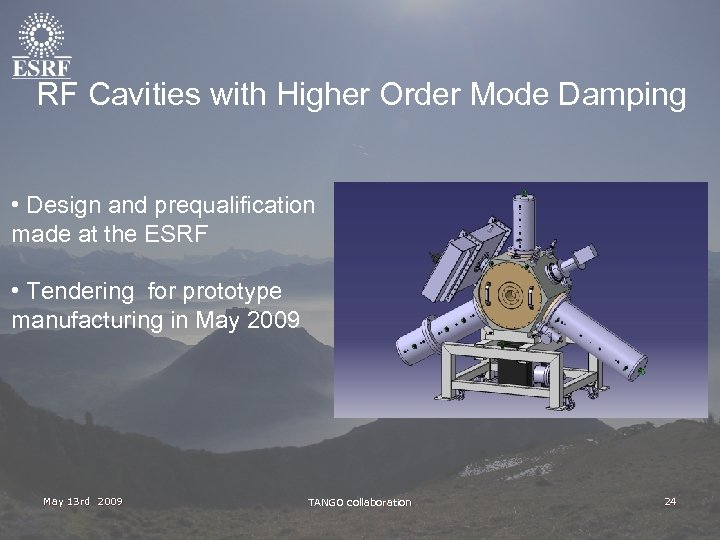

RF Cavities with Higher Order Mode Damping • Design and prequalification made at the ESRF • Tendering for prototype manufacturing in May 2009 May 13 rd 2009 TANGO collaboration 24

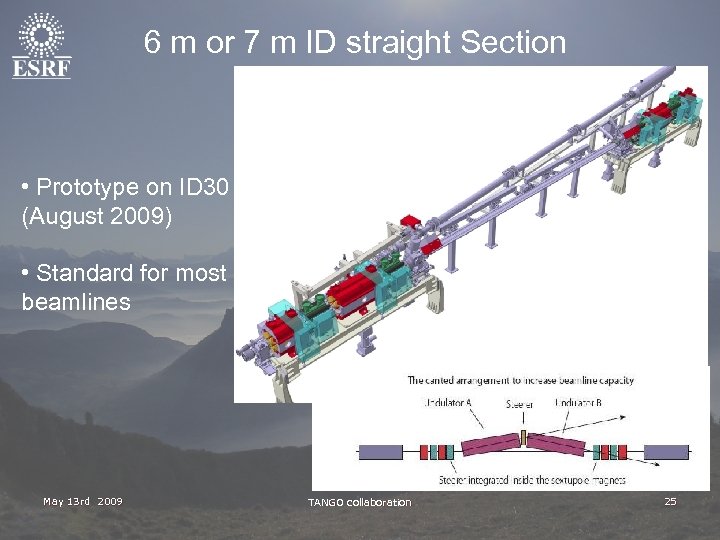

6 m or 7 m ID straight Section • Prototype on ID 30 (August 2009) • Standard for most beamlines May 13 rd 2009 TANGO collaboration 25
News from ESRF Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 26

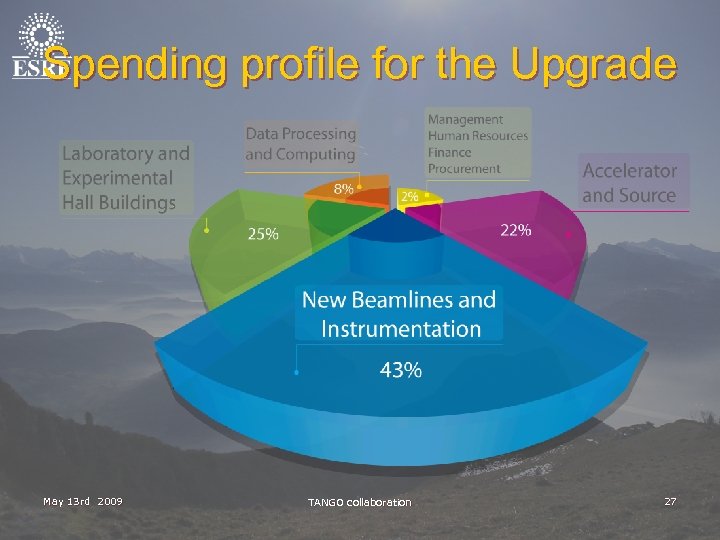

Spending profile for the Upgrade May 13 rd 2009 TANGO collaboration 27

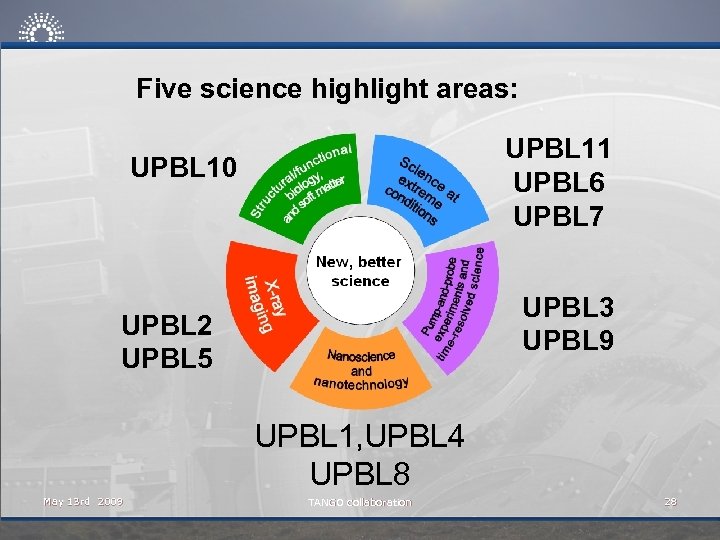

Five science highlight areas: UPBL 11 UPBL 6 UPBL 7 UPBL 10 UPBL 3 UPBL 9 UPBL 2 UPBL 5 UPBL 1, UPBL 4 UPBL 8 May 13 rd 2009 TANGO collaboration 28

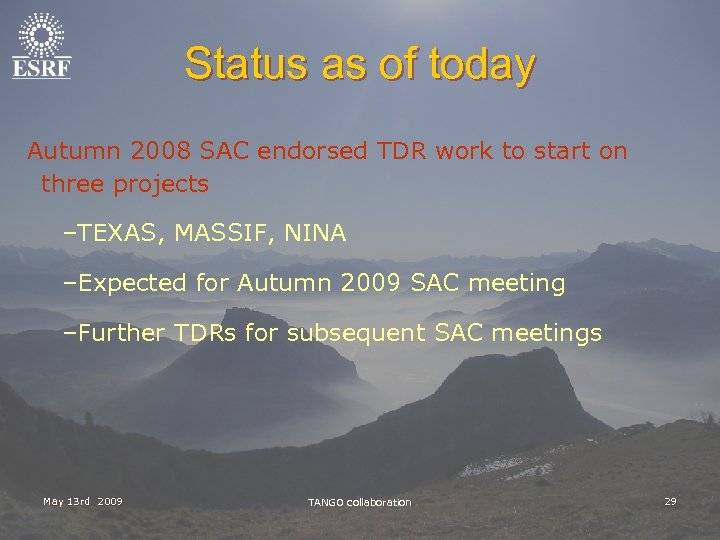

Status as of today Autumn 2008 SAC endorsed TDR work to start on three projects –TEXAS, MASSIF, NINA –Expected for Autumn 2009 SAC meeting –Further TDRs for subsequent SAC meetings May 13 rd 2009 TANGO collaboration 29

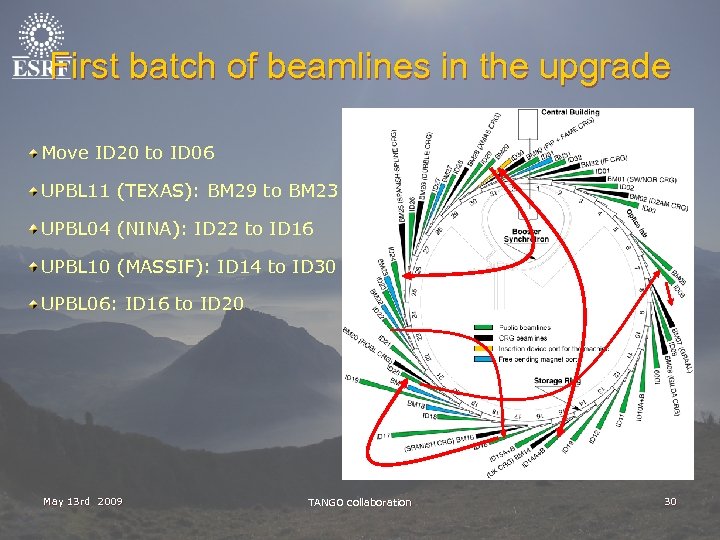

First batch of beamlines in the upgrade Move ID 20 to ID 06 UPBL 11 (TEXAS): BM 29 to BM 23 UPBL 04 (NINA): ID 22 to ID 16 UPBL 10 (MASSIF): ID 14 to ID 30 UPBL 06: ID 16 to ID 20 May 13 rd 2009 TANGO collaboration 30

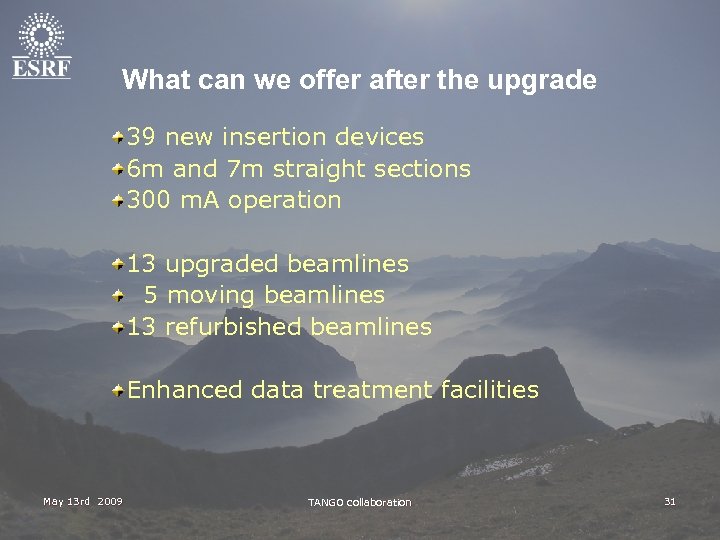

What can we offer after the upgrade 39 new insertion devices 6 m and 7 m straight sections 300 m. A operation 13 upgraded beamlines 5 moving beamlines 13 refurbished beamlines Enhanced data treatment facilities May 13 rd 2009 TANGO collaboration 31

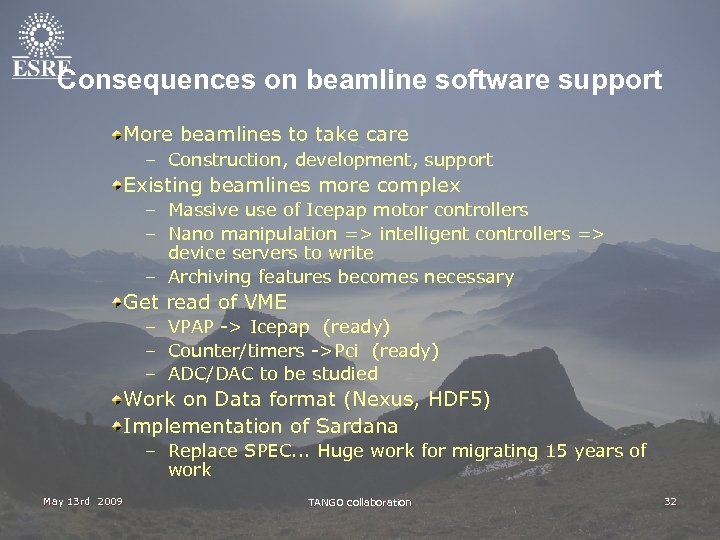

Consequences on beamline software support More beamlines to take care – Construction, development, support Existing beamlines more complex – Massive use of Icepap motor controllers – Nano manipulation => intelligent controllers => device servers to write – Archiving features becomes necessary Get read of VME – VPAP -> Icepap (ready) – Counter/timers ->Pci (ready) – ADC/DAC to be studied Work on Data format (Nexus, HDF 5) Implementation of Sardana – Replace SPEC. . . Huge work for migrating 15 years of work May 13 rd 2009 TANGO collaboration 32
News from ESRF Ø Changes in the ESRF Staff Structure Ø Construction Program Ø Accelerator and Source Upgrades Ø New Beamlines Program Ø TANGO@esrf. fr May 13 rd 2009 TANGO collaboration 33

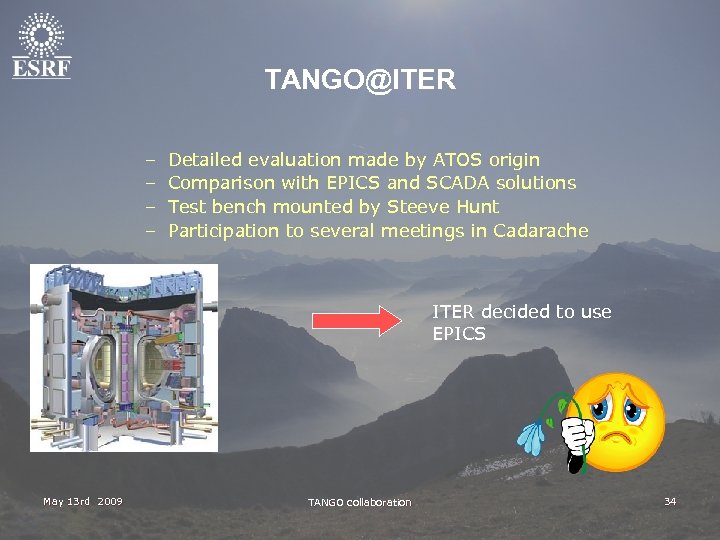

TANGO@ITER – – Detailed evaluation made by ATOS origin Comparison with EPICS and SCADA solutions Test bench mounted by Steeve Hunt Participation to several meetings in Cadarache ITER decided to use EPICS May 13 rd 2009 TANGO collaboration 34

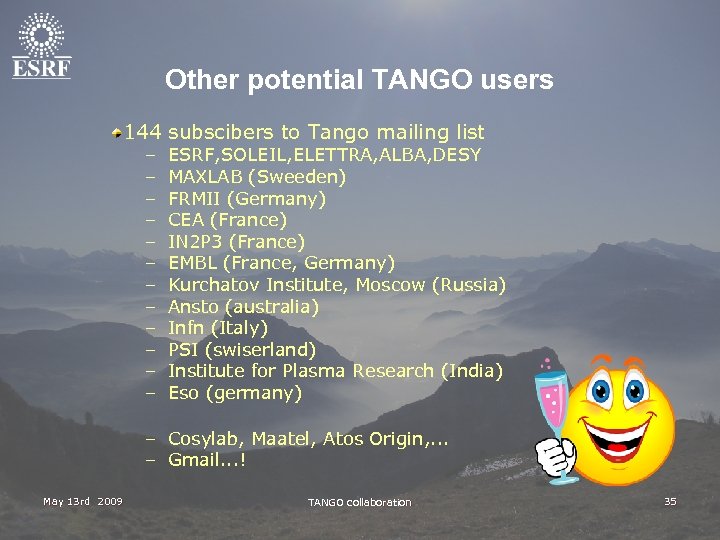

Other potential TANGO users 144 subscibers to Tango mailing list – – – ESRF, SOLEIL, ELETTRA, ALBA, DESY MAXLAB (Sweeden) FRMII (Germany) CEA (France) IN 2 P 3 (France) EMBL (France, Germany) Kurchatov Institute, Moscow (Russia) Ansto (australia) Infn (Italy) PSI (swiserland) Institute for Plasma Research (India) Eso (germany) – Cosylab, Maatel, Atos Origin, . . . – Gmail. . . ! May 13 rd 2009 TANGO collaboration 35
May 13 rd 2009 TANGO collaboration 36
