New Virtual Application Networks Innovations Enable Cloud Data Center Interconnectivity in Minutes © Copyright New Virtual Application Networks Innovations Enable Cloud Data Center Interconnectivity in Minutes © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Legacy Networks Can’t Meet SDN & Cloud Expectations Application Indifferent Rigid Physical Networks Manual Legacy Networks Can’t Meet SDN & Cloud Expectations Application Indifferent Rigid Physical Networks Manual Management 2 Impossible to identify applications and user behaviors and meet diverse service levels Architected for one tenant, user type & location - lacking programmability Slow to respond to new app requirements & hampered by manual errors © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Virtual Application Networks Deliver SDN, Cloud Agility Application Characterization Create consistency, reliability & repeatability Virtual Application Networks Deliver SDN, Cloud Agility Application Characterization Create consistency, reliability & repeatability across entire the network infrastructure Network Virtualization Automated Orchestration 3 Create multitenant, on-demand, topology & device-independent provisioning Orchestrate using templates, user service levels & policy for dynamic app delivery © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

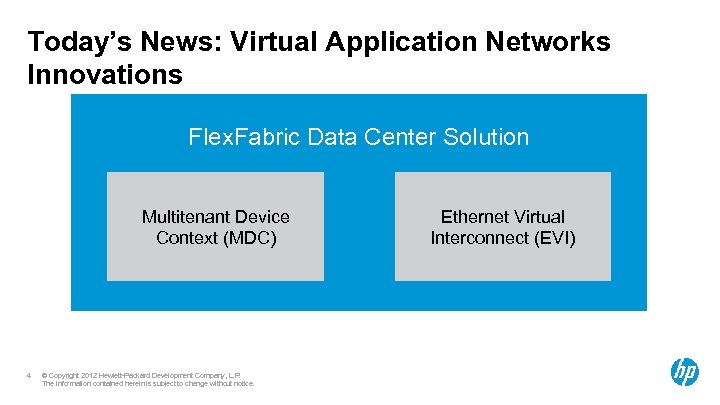

Today’s News: Virtual Application Networks Innovations Flex. Fabric Data Center Solution Multitenant Device Context Today’s News: Virtual Application Networks Innovations Flex. Fabric Data Center Solution Multitenant Device Context (MDC) 4 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Ethernet Virtual Interconnect (EVI)

Virtual Application Networks Deliver SDN, Cloud Agility Application Characterization Network Virtualization Automated Orchestration 5 Virtual Application Networks Deliver SDN, Cloud Agility Application Characterization Network Virtualization Automated Orchestration 5 Multitenant Device Context (MDC) delivers single enterprise private cloud network to support multiple tenants Ethernet Virtual Interconnect (EVI) reduces enterprise data center interconnectivity setup time from months to minutes © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

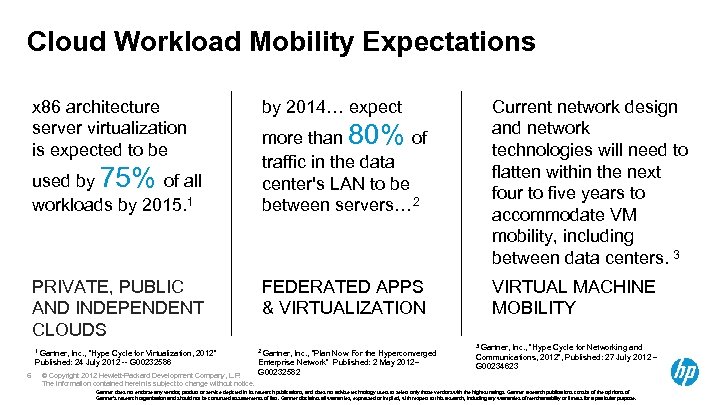

Cloud Workload Mobility Expectations x 86 architecture server virtualization is expected to be used Cloud Workload Mobility Expectations x 86 architecture server virtualization is expected to be used by 75% of all workloads by 2015. 1 PRIVATE, PUBLIC AND INDEPENDENT CLOUDS 1 Gartner, Inc. , “Hype Cycle for Virtualization, 2012” Published: 24 July 2012 -- G 00232586 6 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. by 2014… expect more than 80% of traffic in the data center's LAN to be between servers… 2 FEDERATED APPS & VIRTUALIZATION 2 Gartner, Inc. , “Plan Now For the Hyperconverged Enterprise Network” Published: 2 May 2012– G 00232582 Current network design and network technologies will need to flatten within the next four to five years to accommodate VM mobility, including between data centers. 3 VIRTUAL MACHINE MOBILITY 3 Gartner, Inc. , “Hype Cycle for Networking and Communications, 2012”, Published: 27 July 2012 – G 00234623 Gartner does not endorse any vendor, product or service depicted in its research publications, and does not advise technology users to select only those vendors with the highest ratings. Gartner research publications consist of the opinions of Gartner's research organization and should not be construed as statements of fact. Gartner disclaims all warranties, expressed or implied, with respect to this research, including any warranties of merchantability or fitness for a particular purpose.

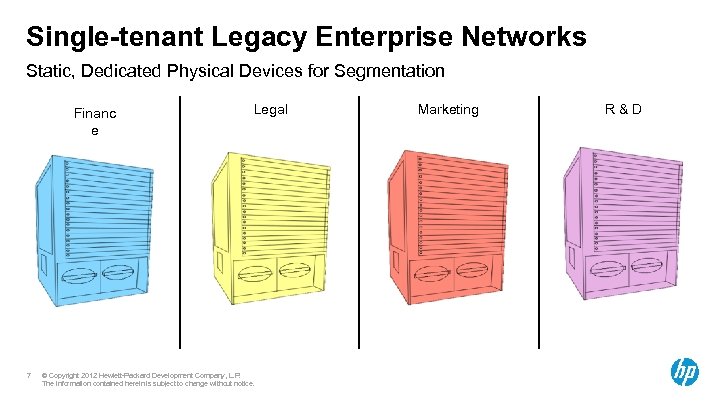

Single-tenant Legacy Enterprise Networks Static, Dedicated Physical Devices for Segmentation Financ e 7 Legal Single-tenant Legacy Enterprise Networks Static, Dedicated Physical Devices for Segmentation Financ e 7 Legal © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Marketing R&D

Introducing HP Multitenant Device Context Creating a Multitenant Enterprise Data Center while Reducing Physical Introducing HP Multitenant Device Context Creating a Multitenant Enterprise Data Center while Reducing Physical Devices Marketin g Finance • Complete secure isolation of tenants • Increased resiliency • Simplified management R&D Legal • Reduced configuration errors • Reduced power, cooling and space Up to 75% reduction of devices and cost 8 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Legacy Data Center Interconnect – Slow & MPLS/VPLS based Data Center Interconnect Complex Identify Legacy Data Center Interconnect – Slow & MPLS/VPLS based Data Center Interconnect Complex Identify right SP for MPLS service provision End to end VPLS service planning and design Customer Edge/ Provider Edge deployment Provider Edge configuration Customer Edge configuration Time in Months Re-design Complex Configuration Expensive additional equipment, services, cost 9 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. 100 s of CLI entries

Data Center Interconnectivity in minutes, not Introducing HP months Ethernet Virtual Interconnect Layer 2 Data Center Interconnectivity in minutes, not Introducing HP months Ethernet Virtual Interconnect Layer 2 Routing Extensions DC 1 DC 5 DC 3 • Single touch site configuration 5 steps per site DC 7 Layer 2 Routing Extension DC 2 DC 4 DC 6 One logical Data Center DC 8 • Simplified Configuration & operation • Multi -datacenter scalability • Overlay - No network re-design Up to 8 physical sites 10 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. • High Resiliency Up to 56% lower Total Cost of Ownership

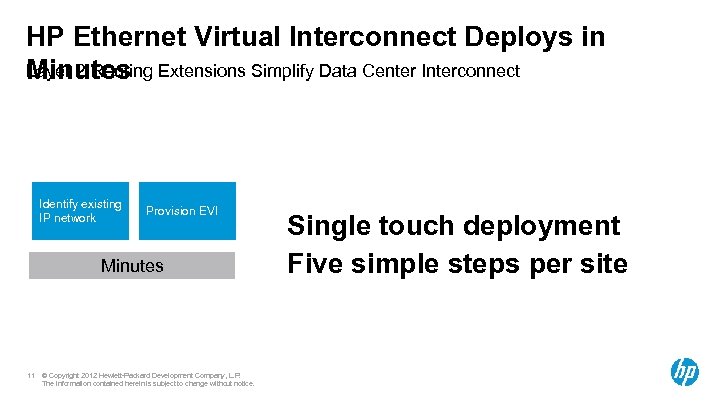

HP Ethernet Virtual Interconnect Deploys in Layer 2 Routing Extensions Simplify Data Center Interconnect HP Ethernet Virtual Interconnect Deploys in Layer 2 Routing Extensions Simplify Data Center Interconnect Minutes Identify existing IP network Provision EVI Minutes 11 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Single touch deployment Five simple steps per site

EVI Use Cases for Virtualized Data Center Long-distance Workload Mobility Long-distance Data Mobility Disaster EVI Use Cases for Virtualized Data Center Long-distance Workload Mobility Long-distance Data Mobility Disaster Recovery Business Continuity Ethernet Extension Virtualized Data Center 1 Deploy over Existing Network 12 Any Transport No Redesign Required © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Virtualized Data Center 2 Five Configuration Steps per Site Automatic Fault Isolation

EVI & MDC Use Case for Private Cloud Data Long-distance Workload Center. Cloud Disaster EVI & MDC Use Case for Private Cloud Data Long-distance Workload Center. Cloud Disaster Recovery & & Data Mobility Bursting Business Continuity Ethernet Extension Private Cloud 1 75% Reduction of Devices Lowers Cost 13 Any Transport DCI in minutes from months © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Private Cloud 2 80% faster v. Motion w/ IRF * 500 X faster v. Motion failover w/ IRF * * “Higher Speed, Lower Downtime, With HP IRF Technology, ” Network Test, August 2011

HP EVI – Unmatched in the market DCI Feature Juniper Cisco HP Layer 2 HP EVI – Unmatched in the market DCI Feature Juniper Cisco HP Layer 2 Routing Extension No No Yes – OTV Yes – EVI Layer 2 Routing Extension Scaling N/A 512 VLANS 6 Data centers 4 K VLANS 8 Data centers Layer 2 Routing Extension with Multitenancy No No No YES EVI & MDC Multiple MPLS/VPLS-based & Layer 2 DCI on one switch 14 Brocade No No No Yes 12500 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP EVI Advantages vs. Cisco OTV DCI Feature VPLS Cisco OTV HP EVI End-to-End HP EVI Advantages vs. Cisco OTV DCI Feature VPLS Cisco OTV HP EVI End-to-End Loop-free without STP √ √ √ Failure Domain Isolation √ √ √ Multi-pathing and Load-balancing Independent of Infrastructure Multi-DC Interconnectivity √ MPLS required Multicast required by Default √ √ √ Up to 6 √ Up to 8 Active/Active Physical Redundancy Large Number of VLANs 15 © Copyright 2012 Number of. Hewlett-Packard Development Company, L. P. Network Instances The information contained herein is subject to change without notice. √ 256 √ 512 √ 4 K 10 per Nexus 7000 32 per MDC

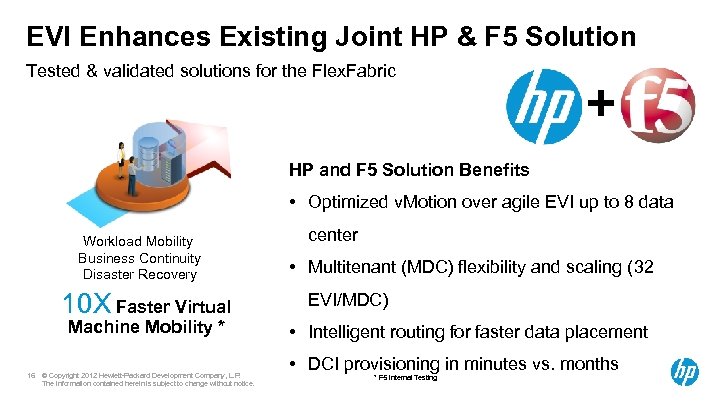

EVI Enhances Existing Joint HP & F 5 Solution Tested & validated solutions for EVI Enhances Existing Joint HP & F 5 Solution Tested & validated solutions for the Flex. Fabric HP and F 5 Solution Benefits • Optimized v. Motion over agile EVI up to 8 data Workload Mobility Business Continuity Disaster Recovery 10 X Faster Virtual Machine Mobility * 16 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. center • Multitenant (MDC) flexibility and scaling (32 EVI/MDC) • Intelligent routing for faster data placement • DCI provisioning in minutes vs. months * F 5 Internal Testing

HPN Data Center Interconnectivity Solution Roadmap DCI Phase 3 DCI Phase 2 DCI Phase HPN Data Center Interconnectivity Solution Roadmap DCI Phase 3 DCI Phase 2 DCI Phase 1 Enhanced EVI 17 IP EVI based Simplified Mgmt Dark fibre/DWDM based Scalable to 8 DCs 1 QCY 2012 3 QCY 2012 No Multicast MPLS vpls/vll based requirement IP based MPLS over GRE HA architect via IRF IP © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. Flooding control IMC EVI module DCI encryption 2013

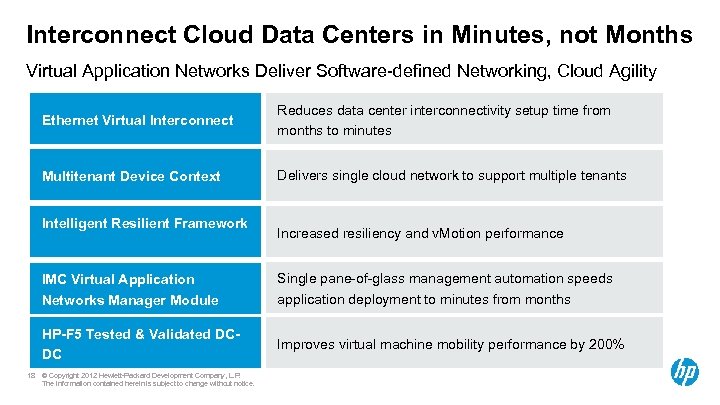

Interconnect Cloud Data Centers in Minutes, not Months Virtual Application Networks Deliver Software-defined Networking, Interconnect Cloud Data Centers in Minutes, not Months Virtual Application Networks Deliver Software-defined Networking, Cloud Agility Ethernet Virtual Interconnect Reduces data center interconnectivity setup time from months to minutes Multitenant Device Context Delivers single cloud network to support multiple tenants Intelligent Resilient Framework Increased resiliency and v. Motion performance IMC Virtual Application Networks Manager Module HP-F 5 Tested & Validated DCDC 18 Single pane-of-glass management automation speeds application deployment to minutes from months Improves virtual machine mobility performance by 200% © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

Thank you © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein Thank you © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice.

HP EVI TCO vs. Cisco OTV HP Lowers CAPEX by 56% or Cisco CAPEX HP EVI TCO vs. Cisco OTV HP Lowers CAPEX by 56% or Cisco CAPEX is 127% than HP $56, 510 12508 Chassis 4 x. Fabric 1 x. MPU 2 x. PSU 1 x. Gb. E Module 20 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. $60, 000 Licenses - Enterprise - VDC - OTV $68, 000 7010 Chassis 2 x. Fabric 1 1 x. Sup 1 x. PSU 1 x. Gb. E Module Licensing Base System
