New Technologies — Software Radios An Easy

New Technologies - Software Radios

An Easy Definition A software-defined radio (SDR) system is a radio communication system which uses software for the modulation and demodulation of radio signals. (Wikipedia)

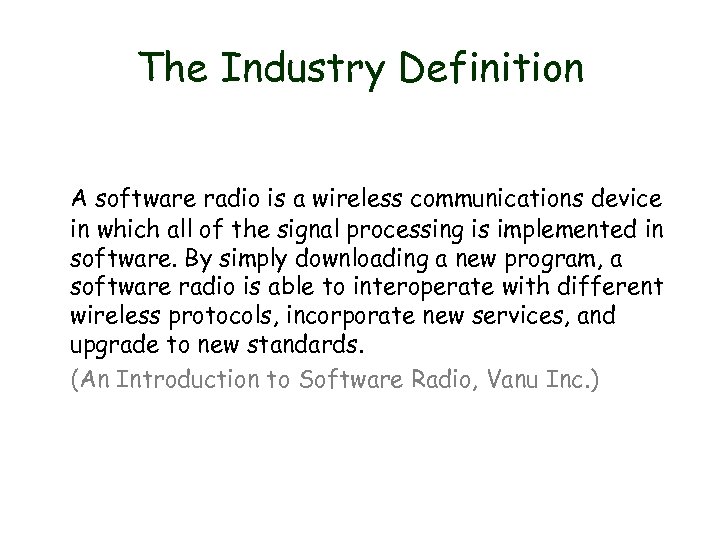

The Industry Definition A software radio is a wireless communications device in which all of the signal processing is implemented in software. By simply downloading a new program, a software radio is able to interoperate with different wireless protocols, incorporate new services, and upgrade to new standards. (An Introduction to Software Radio, Vanu Inc. )

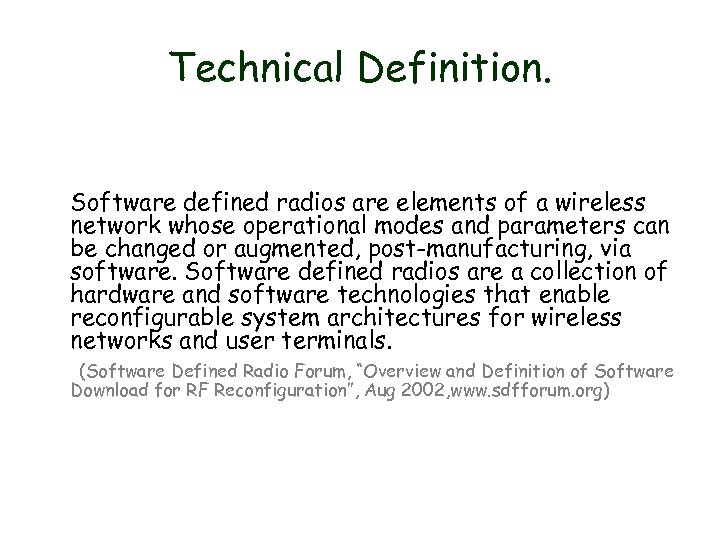

Technical Definition. Software defined radios are elements of a wireless network whose operational modes and parameters can be changed or augmented, post-manufacturing, via software. Software defined radios are a collection of hardware and software technologies that enable reconfigurable system architectures for wireless networks and user terminals. (Software Defined Radio Forum, “Overview and Definition of Software Download for RF Reconfiguration”, Aug 2002, www. sdfforum. org)

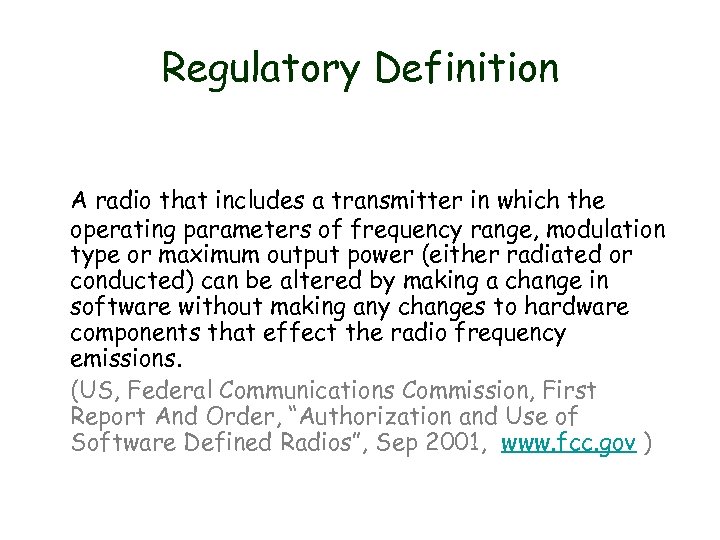

Regulatory Definition A radio that includes a transmitter in which the operating parameters of frequency range, modulation type or maximum output power (either radiated or conducted) can be altered by making a change in software without making any changes to hardware components that effect the radio frequency emissions. (US, Federal Communications Commission, First Report And Order, “Authorization and Use of Software Defined Radios”, Sep 2001, www. fcc. gov )

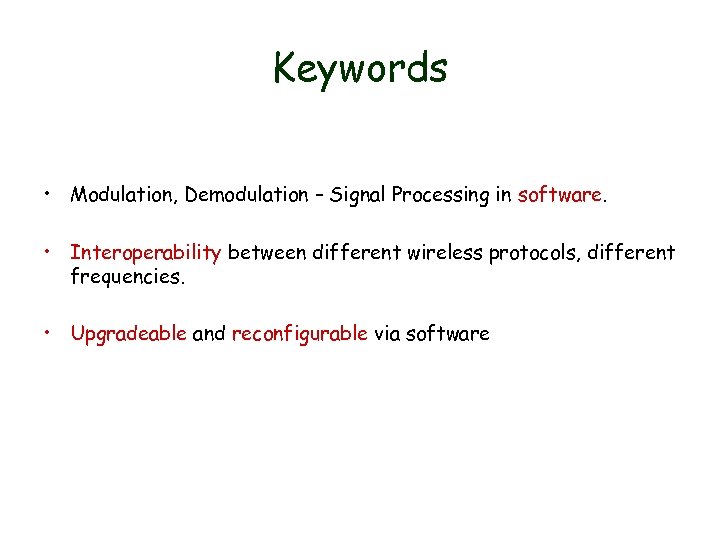

Keywords • Modulation, Demodulation – Signal Processing in software. • Interoperability between different wireless protocols, different frequencies. • Upgradeable and reconfigurable via software

What are we looking for: Flexible Software Architecture Generic Hardware Interoperable Upgradeable Multiple Protocols Reconfigurable Multiple Frequencies

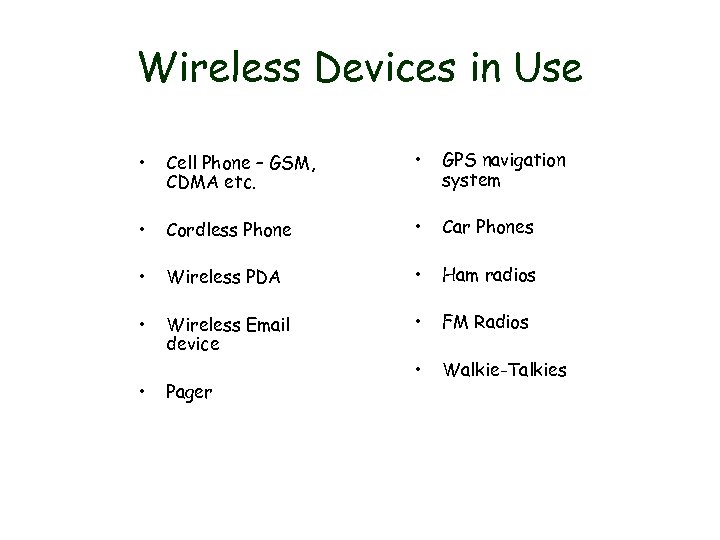

Wireless Devices in Use • Cell Phone – GSM, CDMA etc. • GPS navigation system • Cordless Phone • Car Phones • Wireless PDA • Ham radios • Wireless Email device • FM Radios • Walkie-Talkies • Pager

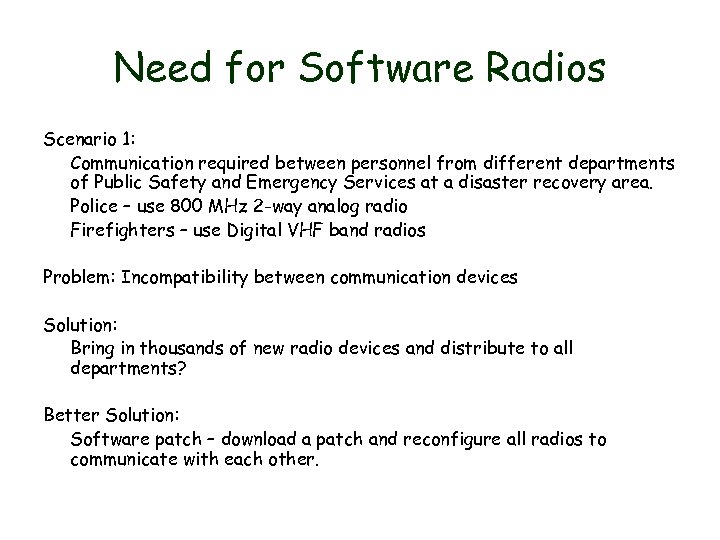

Need for Software Radios Scenario 1: Communication required between personnel from different departments of Public Safety and Emergency Services at a disaster recovery area. Police – use 800 MHz 2 -way analog radio Firefighters – use Digital VHF band radios Problem: Incompatibility between communication devices Solution: Bring in thousands of new radio devices and distribute to all departments? Better Solution: Software patch – download a patch and reconfigure all radios to communicate with each other.

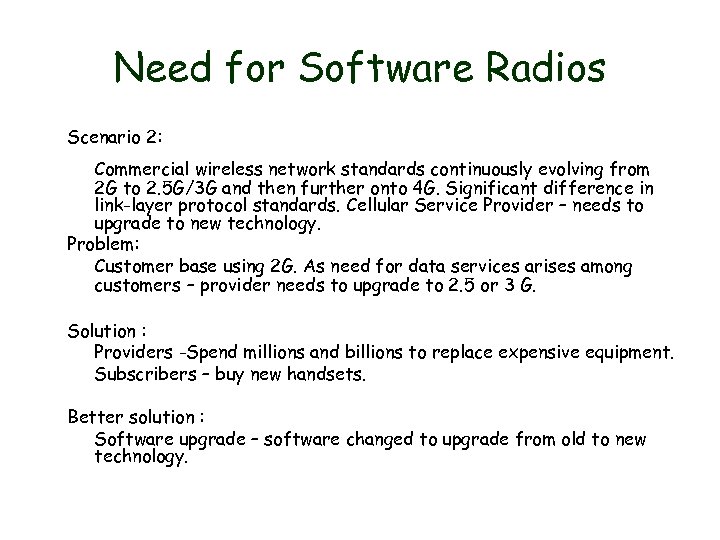

Need for Software Radios Scenario 2: Commercial wireless network standards continuously evolving from 2 G to 2. 5 G/3 G and then further onto 4 G. Significant difference in link-layer protocol standards. Cellular Service Provider – needs to upgrade to new technology. Problem: Customer base using 2 G. As need for data services arises among customers – provider needs to upgrade to 2. 5 or 3 G. Solution : Providers -Spend millions and billions to replace expensive equipment. Subscribers – buy new handsets. Better solution : Software upgrade – software changed to upgrade from old to new technology.

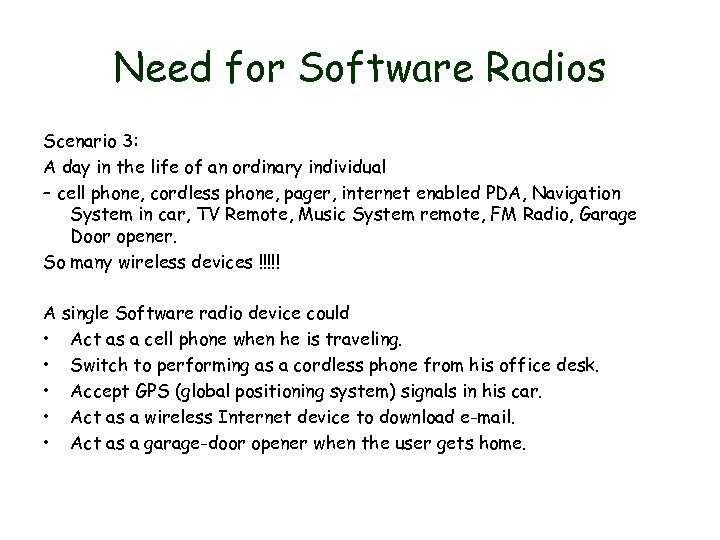

Need for Software Radios Scenario 3: A day in the life of an ordinary individual – cell phone, cordless phone, pager, internet enabled PDA, Navigation System in car, TV Remote, Music System remote, FM Radio, Garage Door opener. So many wireless devices !!!!! A single Software radio device could • Act as a cell phone when he is traveling. • Switch to performing as a cordless phone from his office desk. • Accept GPS (global positioning system) signals in his car. • Act as a wireless Internet device to download e-mail. • Act as a garage-door opener when the user gets home.

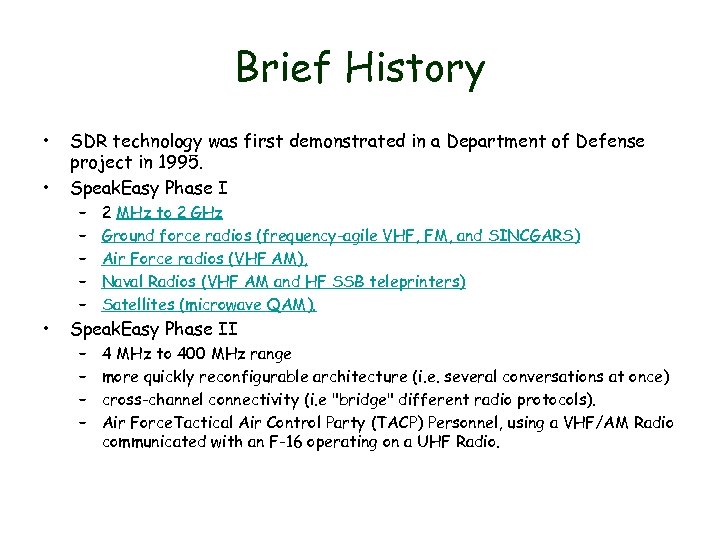

Brief History • • • SDR technology was first demonstrated in a Department of Defense project in 1995. Speak. Easy Phase I – – – 2 MHz to 2 GHz Ground force radios (frequency-agile VHF, FM, and SINCGARS) Air Force radios (VHF AM), Naval Radios (VHF AM and HF SSB teleprinters) Satellites (microwave QAM). Speak. Easy Phase II – – 4 MHz to 400 MHz range more quickly reconfigurable architecture (i. e. several conversations at once) cross-channel connectivity (i. e "bridge" different radio protocols). Air Force. Tactical Air Control Party (TACP) Personnel, using a VHF/AM Radio communicated with an F-16 operating on a UHF Radio.

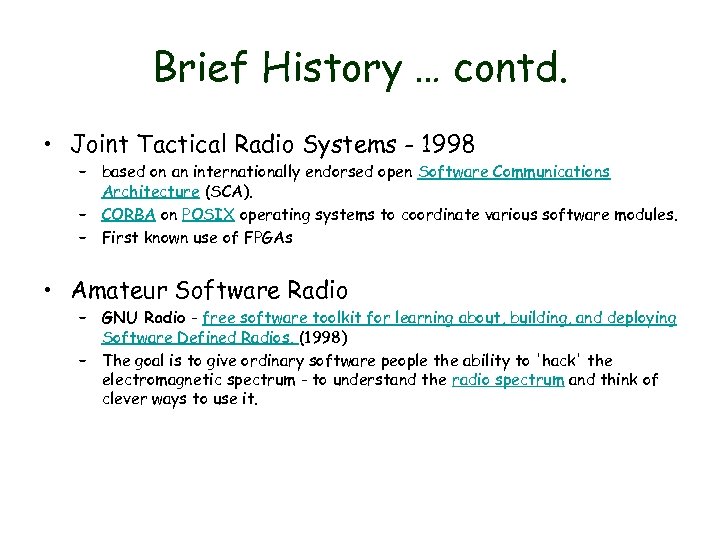

Brief History … contd. • Joint Tactical Radio Systems - 1998 – based on an internationally endorsed open Software Communications Architecture (SCA). – CORBA on POSIX operating systems to coordinate various software modules. – First known use of FPGAs • Amateur Software Radio – GNU Radio - free software toolkit for learning about, building, and deploying Software Defined Radios. (1998) – The goal is to give ordinary software people the ability to 'hack' the electromagnetic spectrum - to understand the radio spectrum and think of clever ways to use it.

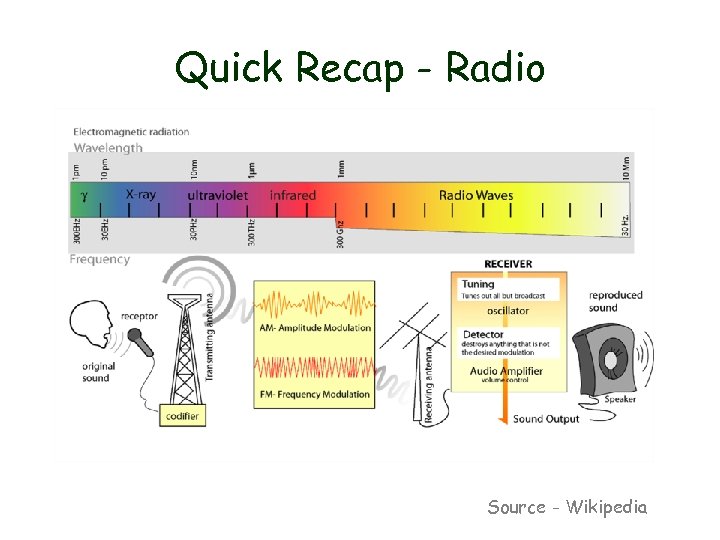

Quick Recap - Radio Source - Wikipedia

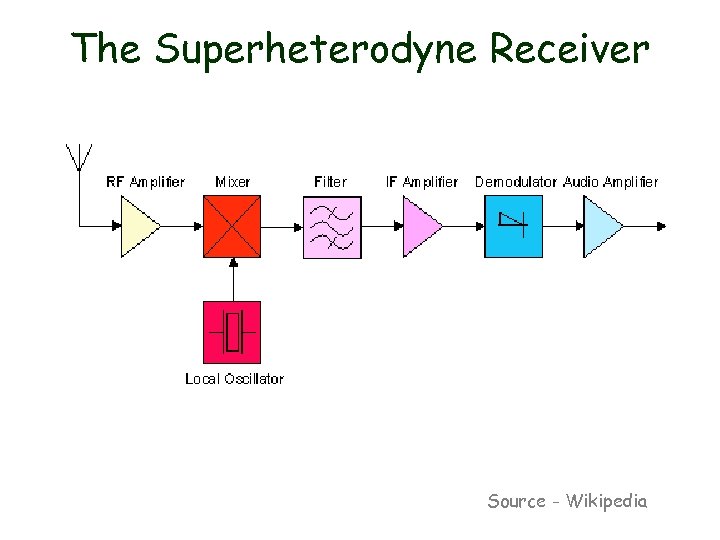

The Superheterodyne Receiver Source - Wikipedia

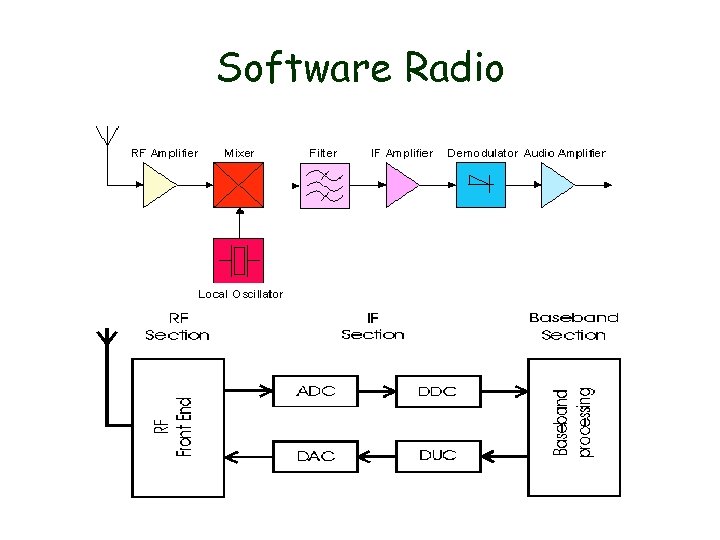

Software Radio

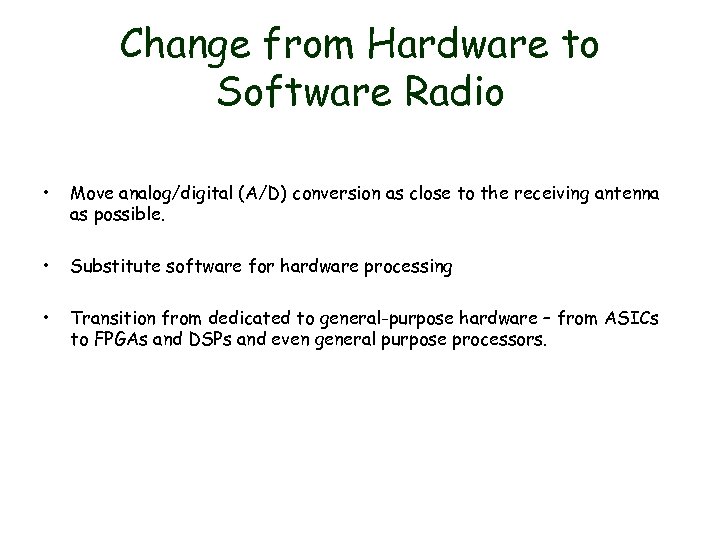

Change from Hardware to Software Radio • Move analog/digital (A/D) conversion as close to the receiving antenna as possible. • Substitute software for hardware processing • Transition from dedicated to general-purpose hardware – from ASICs to FPGAs and DSPs and even general purpose processors.

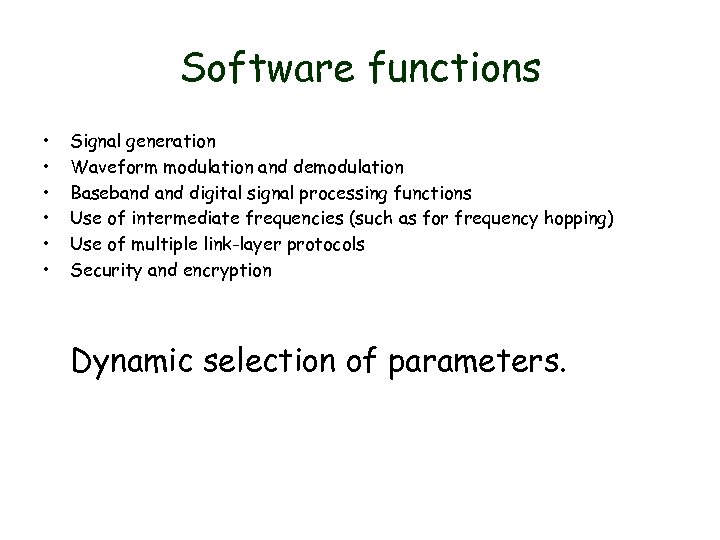

Software functions • • • Signal generation Waveform modulation and demodulation Baseband digital signal processing functions Use of intermediate frequencies (such as for frequency hopping) Use of multiple link-layer protocols Security and encryption Dynamic selection of parameters.

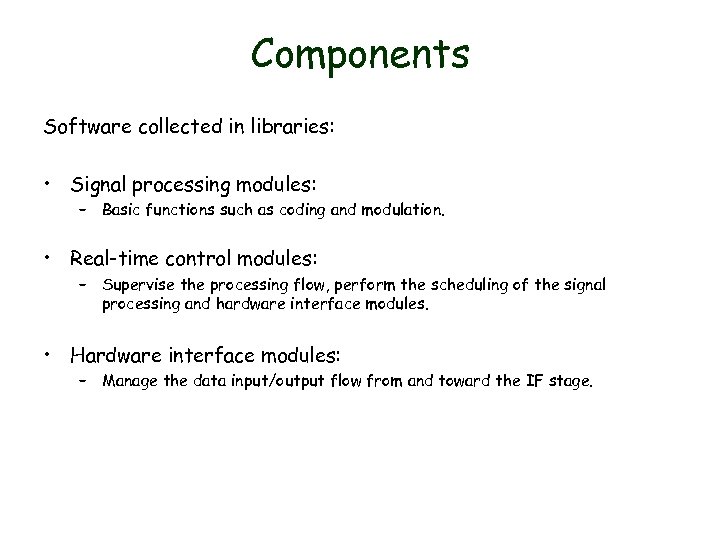

Components Software collected in libraries: • Signal processing modules: – Basic functions such as coding and modulation. • Real-time control modules: – Supervise the processing flow, perform the scheduling of the signal processing and hardware interface modules. • Hardware interface modules: – Manage the data input/output flow from and toward the IF stage.

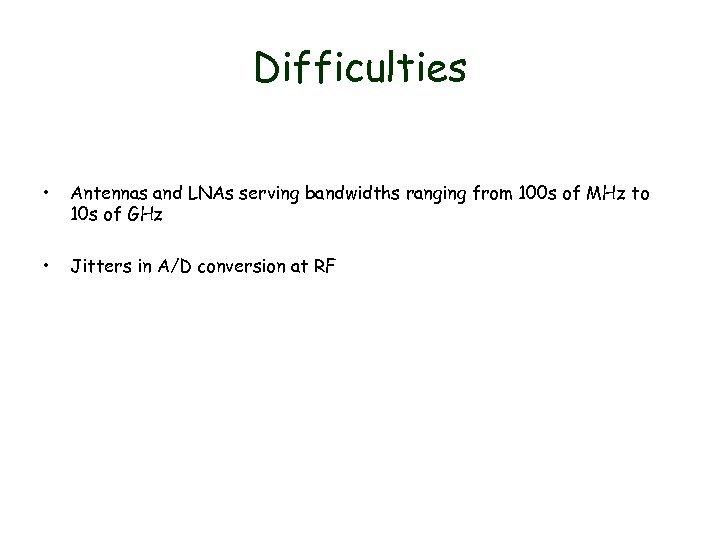

Difficulties • Antennas and LNAs serving bandwidths ranging from 100 s of MHz to 10 s of GHz • Jitters in A/D conversion at RF

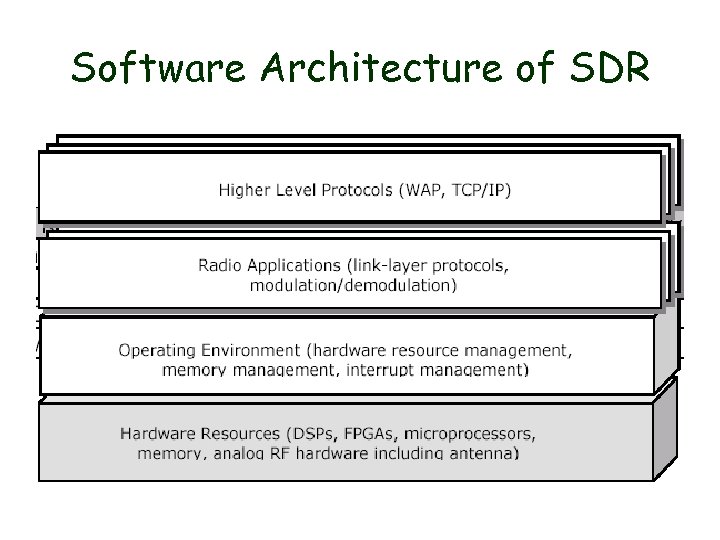

Software Architecture of SDR

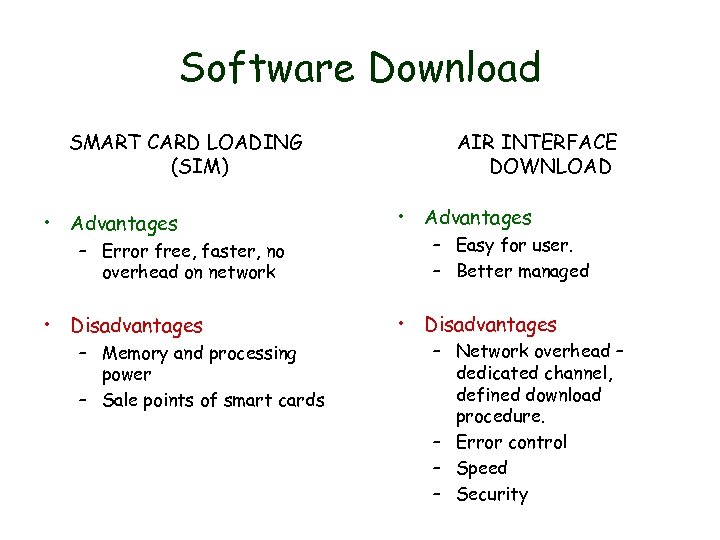

Software Download SMART CARD LOADING (SIM) • Advantages – Error free, faster, no overhead on network • Disadvantages – Memory and processing power – Sale points of smart cards AIR INTERFACE DOWNLOAD • Advantages – Easy for user. – Better managed • Disadvantages – Network overhead – dedicated channel, defined download procedure. – Error control – Speed – Security

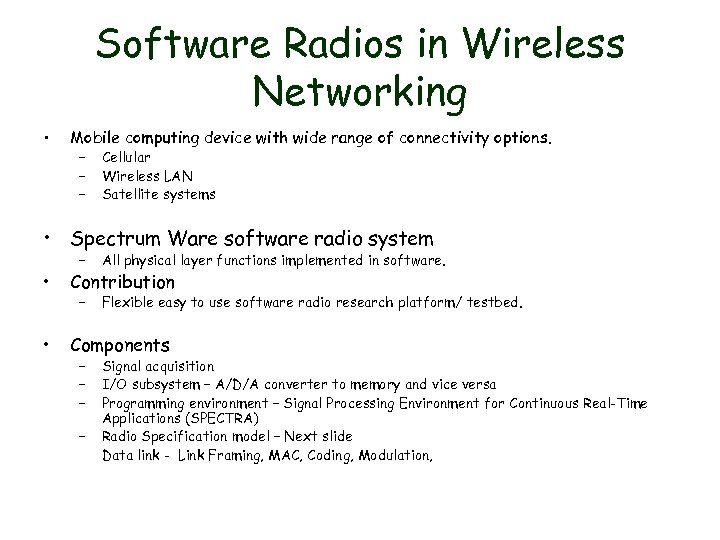

Software Radios in Wireless Networking • Mobile computing device with wide range of connectivity options. – – – Cellular Wireless LAN Satellite systems • Spectrum Ware software radio system – All physical layer functions implemented in software. – Flexible easy to use software radio research platform/ testbed. • Contribution • Components – – Signal acquisition I/O subsystem – A/D/A converter to memory and vice versa Programming environment – Signal Processing Environment for Continuous Real-Time Applications (SPECTRA) Radio Specification model – Next slide Data link - Link Framing, MAC, Coding, Modulation,

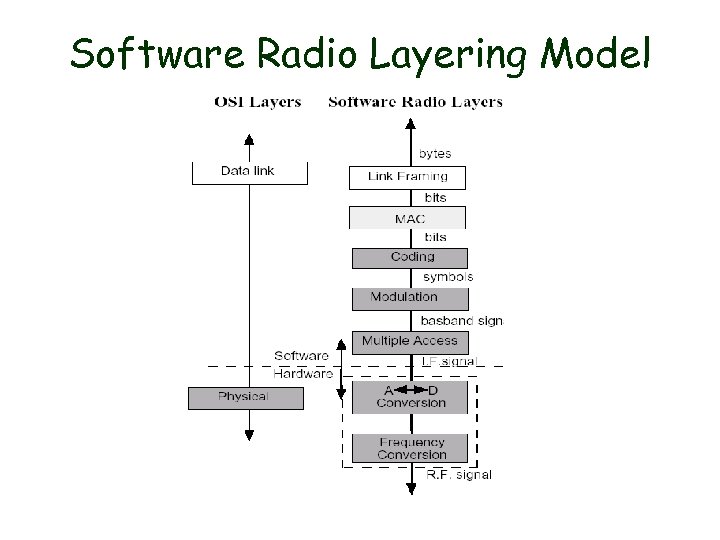

Software Radio Layering Model

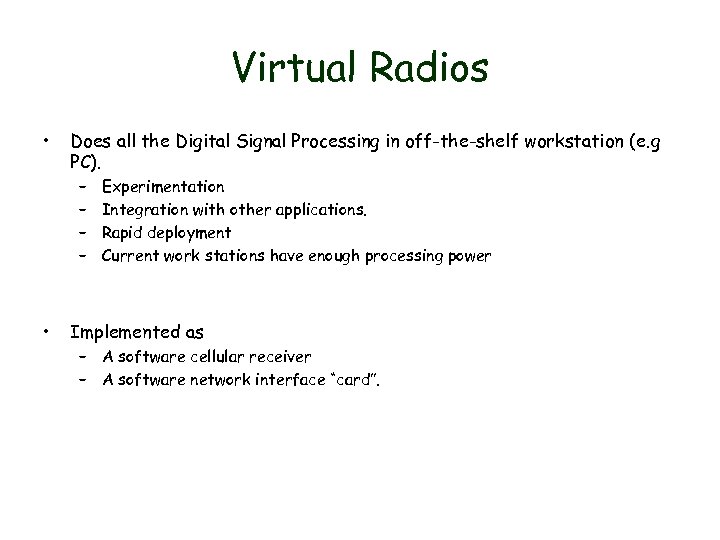

Virtual Radios • Does all the Digital Signal Processing in off-the-shelf workstation (e. g PC). – – • Experimentation Integration with other applications. Rapid deployment Current work stations have enough processing power Implemented as – A software cellular receiver – A software network interface “card”.

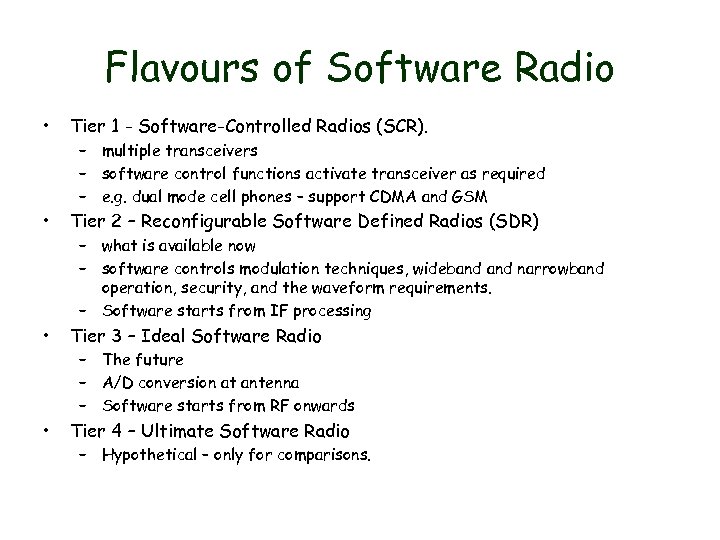

Flavours of Software Radio • Tier 1 - Software-Controlled Radios (SCR). • Tier 2 – Reconfigurable Software Defined Radios (SDR) • Tier 3 – Ideal Software Radio • Tier 4 – Ultimate Software Radio – multiple transceivers – software control functions activate transceiver as required – e. g. dual mode cell phones – support CDMA and GSM – what is available now – software controls modulation techniques, wideband narrowband operation, security, and the waveform requirements. – Software starts from IF processing – The future – A/D conversion at antenna – Software starts from RF onwards – Hypothetical – only for comparisons.

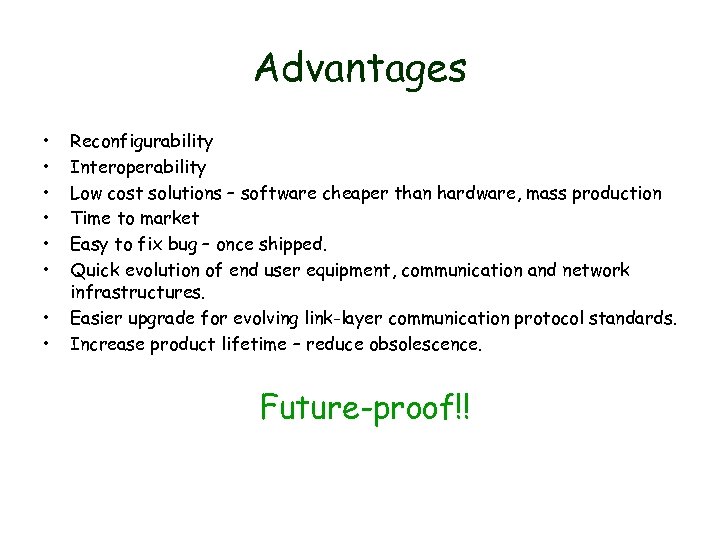

Advantages • • Reconfigurability Interoperability Low cost solutions – software cheaper than hardware, mass production Time to market Easy to fix bug – once shipped. Quick evolution of end user equipment, communication and network infrastructures. Easier upgrade for evolving link-layer communication protocol standards. Increase product lifetime – reduce obsolescence. Future-proof!!

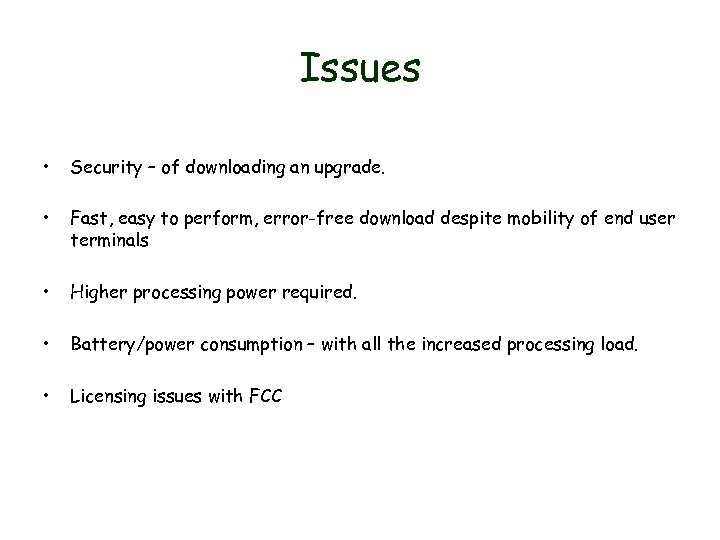

Issues • Security – of downloading an upgrade. • Fast, easy to perform, error-free download despite mobility of end user terminals • Higher processing power required. • Battery/power consumption – with all the increased processing load. • Licensing issues with FCC

Some bits of info…. . • Industry support for SDR on the network/base station side. – Cost and battery power of handset are limitations. • FCC introduced special licensing process for software radio – “permissive change” – Sep 2004 • FCC approved the Vanu Software Radio GSM Base Station – Supports multiple cellular technologies and frequencies at the same time. – Can be modified in the future without any hardware changes. – Runs on an off-the–shelf server and standard OS.

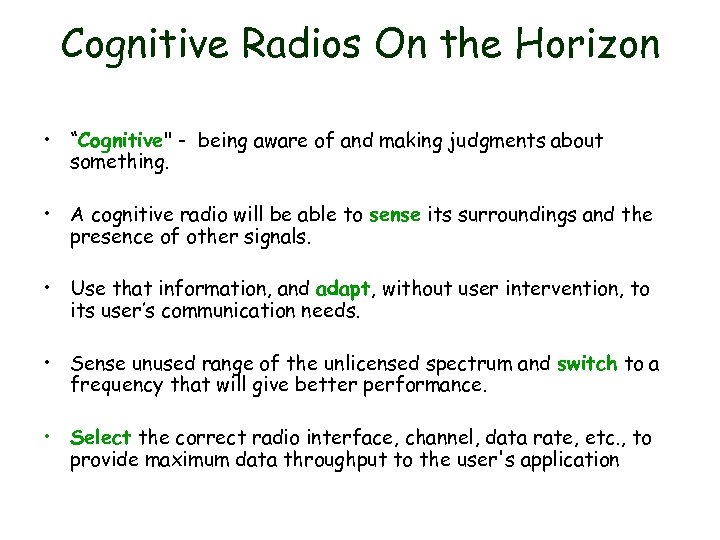

Cognitive Radios On the Horizon • “Cognitive" - being aware of and making judgments about something. • A cognitive radio will be able to sense its surroundings and the presence of other signals. • Use that information, and adapt, without user intervention, to its user’s communication needs. • Sense unused range of the unlicensed spectrum and switch to a frequency that will give better performance. • Select the correct radio interface, channel, data rate, etc. , to provide maximum data throughput to the user's application

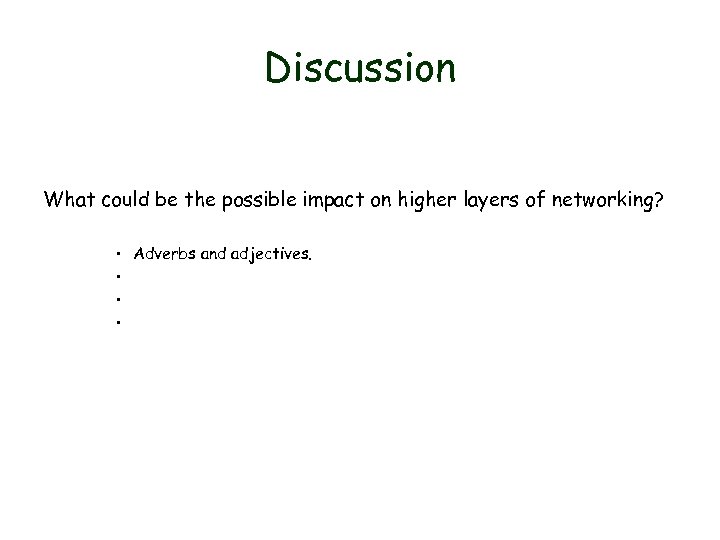

Discussion What could be the possible impact on higher layers of networking? • Adverbs and adjectives. • • •

Links of interest • • SDR Forum -http: //www. sdrforum. org/faq. html SDR resources page – http: //www-sop. inria. fr/planete/Software. Radio/ • • • GNU software radio project - http: //www. gnu. org/software/gnuradio/ SDRadio - http: //www. sdradio. org/ Vanu Inc. - http: //vanu. com/

Thank You.
