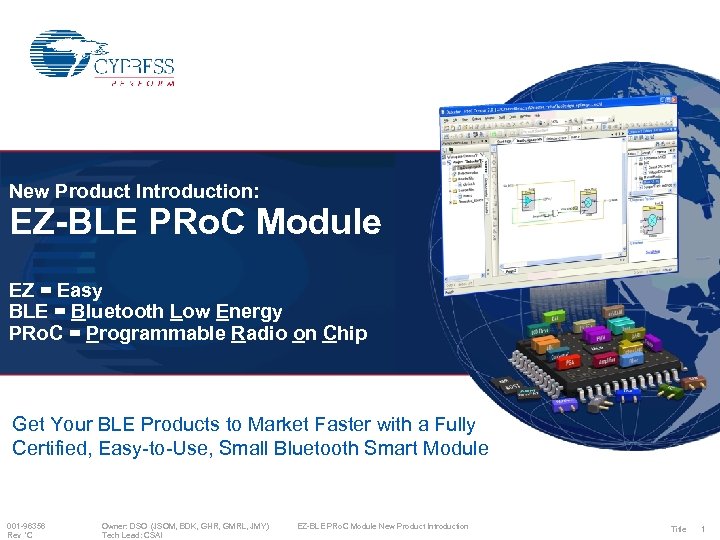

New Product Introduction: EZ-BLE PRo. C Module EZ = Easy BLE = Bluetooth Low Energy PRo. C = Programmable Radio on Chip Get Your BLE Products to Market Faster with a Fully Certified, Easy-to-Use, Small Bluetooth Smart Module 001 -96356 Rev *C Owner: DSO (JSOM, BDK, GHR, GMRL, JMY) Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Title 1

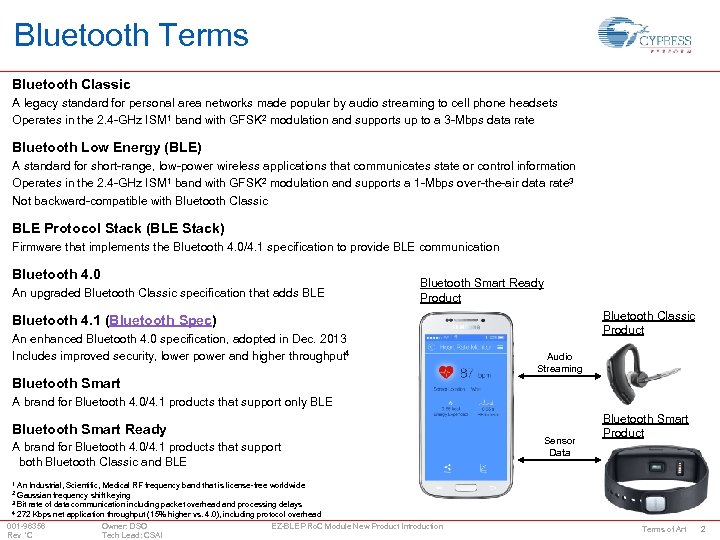

Bluetooth Terms Bluetooth Classic A legacy standard for personal area networks made popular by audio streaming to cell phone headsets Operates in the 2. 4 -GHz ISM 1 band with GFSK 2 modulation and supports up to a 3 -Mbps data rate Bluetooth Low Energy (BLE) A standard for short-range, low-power wireless applications that communicates state or control information Operates in the 2. 4 -GHz ISM 1 band with GFSK 2 modulation and supports a 1 -Mbps over-the-air data rate 3 Not backward-compatible with Bluetooth Classic BLE Protocol Stack (BLE Stack) Firmware that implements the Bluetooth 4. 0/4. 1 specification to provide BLE communication Bluetooth 4. 0 Bluetooth Smart Ready Product An upgraded Bluetooth Classic specification that adds BLE Bluetooth Classic Product Bluetooth 4. 1 (Bluetooth Spec) An enhanced Bluetooth 4. 0 specification, adopted in Dec. 2013 Includes improved security, lower power and higher throughput 4 Audio Streaming Bluetooth Smart A brand for Bluetooth 4. 0/4. 1 products that support only BLE Bluetooth Smart Ready Sensor Data A brand for Bluetooth 4. 0/4. 1 products that support both Bluetooth Classic and BLE Bluetooth Smart Product 1 An Industrial, Scientific, Medical RF frequency band that is license-free worldwide 2 Gaussian frequency shift keying 3 Bit rate of data communication including packet overhead and processing delays 4 272 Kbps net application throughput (15% higher vs. 4. 0), including protocol overhead 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Terms of Art 2

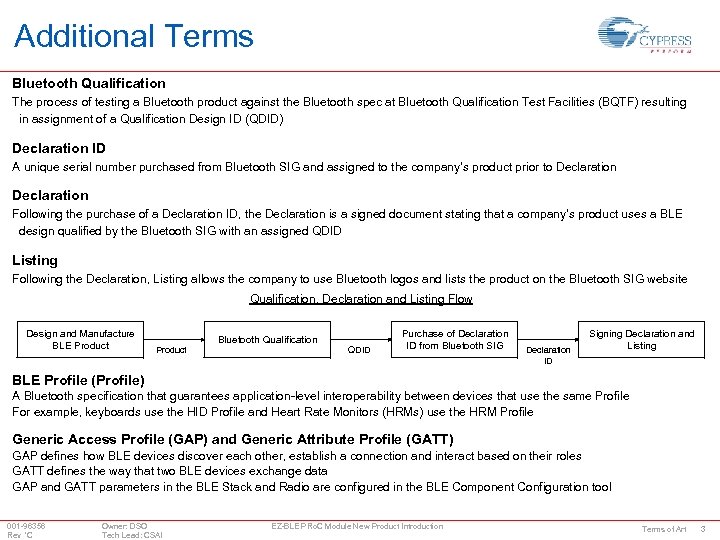

Additional Terms Bluetooth Qualification The process of testing a Bluetooth product against the Bluetooth spec at Bluetooth Qualification Test Facilities (BQTF) resulting in assignment of a Qualification Design ID (QDID) Declaration ID A unique serial number purchased from Bluetooth SIG and assigned to the company’s product prior to Declaration Following the purchase of a Declaration ID, the Declaration is a signed document stating that a company’s product uses a BLE design qualified by the Bluetooth SIG with an assigned QDID Listing Following the Declaration, Listing allows the company to use Bluetooth logos and lists the product on the Bluetooth SIG website Qualification, Declaration and Listing Flow Design and Manufacture BLE Product Bluetooth Qualification QDID Purchase of Declaration ID from Bluetooth SIG Declaration ID Signing Declaration and Listing BLE Profile (Profile) A Bluetooth specification that guarantees application-level interoperability between devices that use the same Profile For example, keyboards use the HID Profile and Heart Rate Monitors (HRMs) use the HRM Profile Generic Access Profile (GAP) and Generic Attribute Profile (GATT) GAP defines how BLE devices discover each other, establish a connection and interact based on their roles GATT defines the way that two BLE devices exchange data GAP and GATT parameters in the BLE Stack and Radio are configured in the BLE Component Configuration tool 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Terms of Art 3

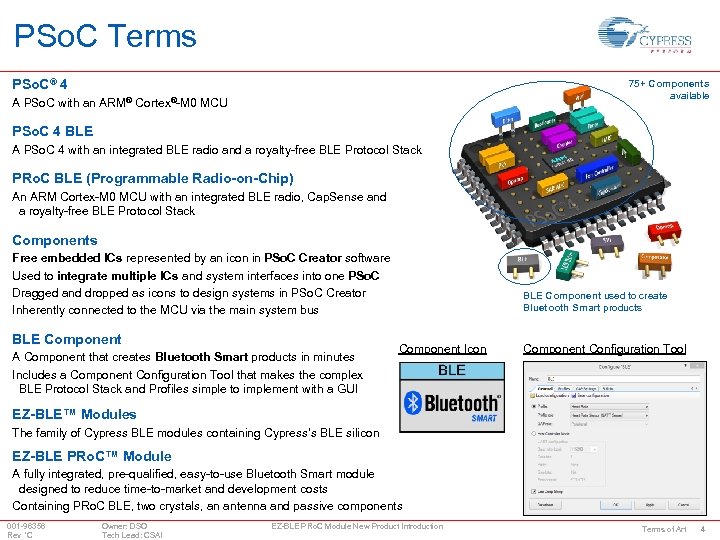

PSo. C Terms PSo. C® 4 75+ Components available A PSo. C with an ARM® Cortex®-M 0 MCU PSo. C 4 BLE A PSo. C 4 with an integrated BLE radio and a royalty-free BLE Protocol Stack PRo. C BLE (Programmable Radio-on-Chip) An ARM Cortex-M 0 MCU with an integrated BLE radio, Cap. Sense and a royalty-free BLE Protocol Stack Components Free embedded ICs represented by an icon in PSo. C Creator software Used to integrate multiple ICs and system interfaces into one PSo. C Dragged and dropped as icons to design systems in PSo. C Creator Inherently connected to the MCU via the main system bus BLE Component A Component that creates Bluetooth Smart products in minutes Includes a Component Configuration Tool that makes the complex BLE Protocol Stack and Profiles simple to implement with a GUI BLE Component used to create Bluetooth Smart products Component Icon Component Configuration Tool EZ-BLE™ Modules The family of Cypress BLE modules containing Cypress’s BLE silicon EZ-BLE PRo. C™ Module A fully integrated, pre-qualified, easy-to-use Bluetooth Smart module designed to reduce time-to-market and development costs Containing PRo. C BLE, two crystals, an antenna and passive components 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Terms of Art 4

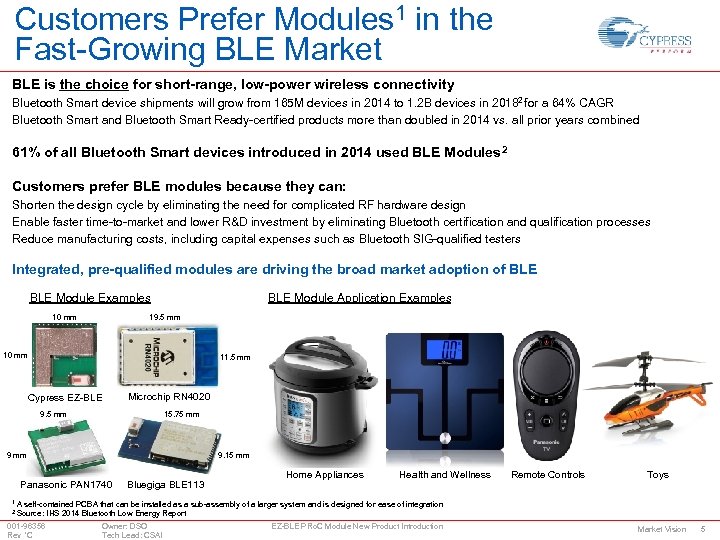

Customers Prefer Modules 1 in the Fast-Growing BLE Market BLE is the choice for short-range, low-power wireless connectivity Bluetooth Smart device shipments will grow from 165 M devices in 2014 to 1. 2 B devices in 20182 for a 64% CAGR Bluetooth Smart and Bluetooth Smart Ready-certified products more than doubled in 2014 vs. all prior years combined 61% of all Bluetooth Smart devices introduced in 2014 used BLE Modules 2 Customers prefer BLE modules because they can: Shorten the design cycle by eliminating the need for complicated RF hardware design Enable faster time-to-market and lower R&D investment by eliminating Bluetooth certification and qualification processes Reduce manufacturing costs, including capital expenses such as Bluetooth SIG-qualified testers Integrated, pre-qualified modules are driving the broad market adoption of BLE Module Examples 10 mm BLE Module Application Examples 19. 5 mm 10 mm 11. 5 mm Cypress EZ-BLE Microchip RN 4020 9. 5 mm 15. 75 mm 9. 15 mm Panasonic PAN 1740 Bluegiga BLE 113 Home Appliances Health and Wellness Remote Controls Toys 1 A self-contained PCBA that can be installed as a sub-assembly of a larger system and is designed for ease of integration 2 Source: IHS 2014 Bluetooth Low Energy Report 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Market Vision 5

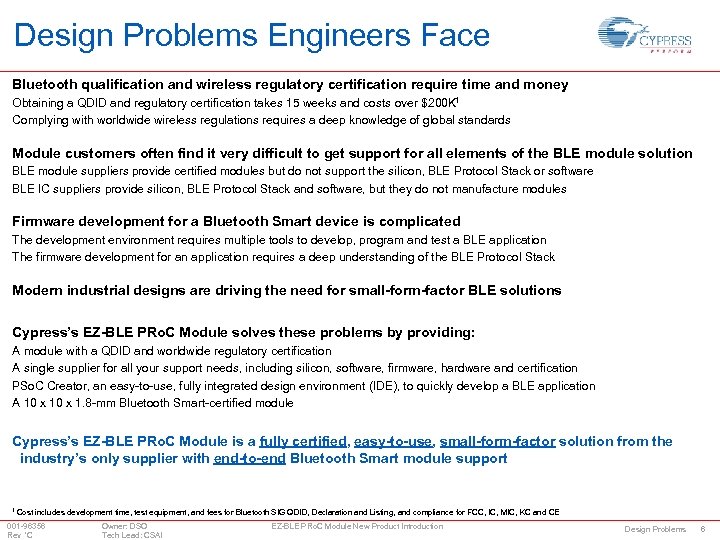

Design Problems Engineers Face Bluetooth qualification and wireless regulatory certification require time and money Obtaining a QDID and regulatory certification takes 15 weeks and costs over $200 K 1 Complying with worldwide wireless regulations requires a deep knowledge of global standards Module customers often find it very difficult to get support for all elements of the BLE module solution BLE module suppliers provide certified modules but do not support the silicon, BLE Protocol Stack or software BLE IC suppliers provide silicon, BLE Protocol Stack and software, but they do not manufacture modules Firmware development for a Bluetooth Smart device is complicated The development environment requires multiple tools to develop, program and test a BLE application The firmware development for an application requires a deep understanding of the BLE Protocol Stack Modern industrial designs are driving the need for small-form-factor BLE solutions Cypress’s EZ-BLE PRo. C Module solves these problems by providing: A module with a QDID and worldwide regulatory certification A single supplier for all your support needs, including silicon, software, firmware, hardware and certification PSo. C Creator, an easy-to-use, fully integrated design environment (IDE), to quickly develop a BLE application A 10 x 1. 8 -mm Bluetooth Smart-certified module Cypress’s EZ-BLE PRo. C Module is a fully certified, easy-to-use, small-form-factor solution from the industry’s only supplier with end-to-end Bluetooth Smart module support 1 Cost includes development time, test equipment, and fees for Bluetooth SIG QDID, Declaration and Listing, and compliance for FCC, IC, MIC, KC and CE 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Design Problems 6
EZ-BLE PRo. C Module: Bluetooth Qualified, Global Regulatory Compliant EZ-BLE PRo. C Module is qualified by the Bluetooth SIG with a unique QDID 1 QDID Declaration ID Name Product Type Spec 67366 D 026297 EZ-BLE PRo. C Module End Product 4. 1 67366 N/A EZ-BLE PRo. C Module RF-PHY Component (Tested) 4. 1 63199 D 025070 BLE Profiles on PSo. C Creator 3. 1 Component (Tested) 4. 1 EZ-BLE PRo. C Module complies with wireless regulations for U. S. , Canada, Japan, Korea and Europe EZ-BLE PRo. C Module Certified by Global Regulatory Agencies U. S. : Federal Communications Commission (FCC) IC Canada: Industry Canada (IC) Japan: Ministry of Internal Affairs and Communications (MIC) Korea: Korea Certification (KC) Europe: Conformite Europeenne (CE) Save over $200 K 2 and bring your BLE product to market faster without the hassle of regulatory and qualification processes 1 Customers can refer to the EZ-BLE PRo. C Module QDID and proceed with Bluetooth Declaration 2 Cost includes development time, test equipment, and fees for Bluetooth SIG QDID, Declaration and Listing, and compliance for FCC, IC, MIC, KC and CE 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Cypress Solution 7
Cypress: Complete BLE Solution Cypress is the only BLE solution provider with expertise in silicon, stack, module hardware and software BLE Module Suppliers BLE Silicon Suppliers 1 Solution Discipline Cypress BLE Silicon Design BLE Wafer Fabrication BLE Silicon Package Assembly/Test BLE Stack Development Software (IDE) BLE Module Hardware Design BLE Module Manufacturing BLE Silicon Design BLE Wafer Fabrication Microchip BLE CSP Package 2 Panasonic Bluegiga PSo. C Creator Software Module Hardware Design EZ-BLE PRo. C Module Cypress is the end-to-end expert for all of your BLE needs 1 Nordic, TI, CSR, Dialog 2 Chip-scale package (CSP) manufactured by Cypress subsidiary Deca Technologies Inc. 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Cypress Solution 8

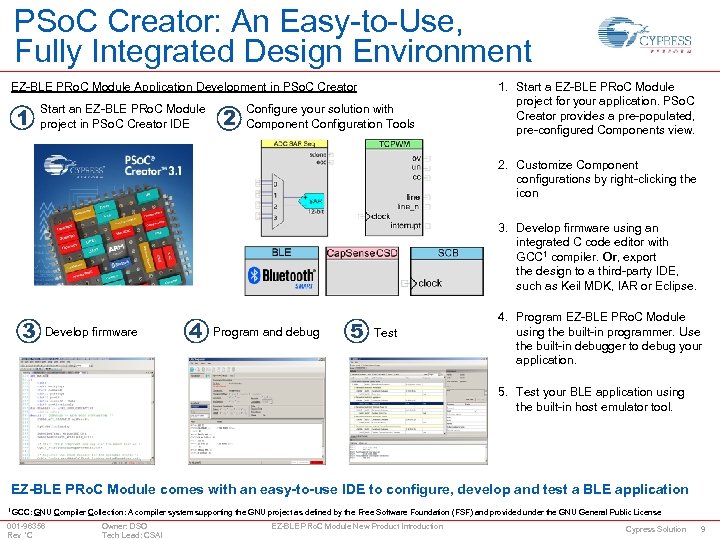

PSo. C Creator: An Easy-to-Use, Fully Integrated Design Environment EZ-BLE PRo. C Module Application Development in PSo. C Creator 1 Start an EZ-BLE PRo. C Module project in PSo. C Creator IDE 2 Configure your solution with Component Configuration Tools 1. Start a EZ-BLE PRo. C Module project for your application. PSo. C Creator provides a pre-populated, pre-configured Components view. 2. Customize Component configurations by right-clicking the icon 3. Develop firmware using an integrated C code editor with GCC 1 compiler. Or, export the design to a third-party IDE, such as Keil MDK, IAR or Eclipse. 3 Develop firmware 4 Program and debug 5 Test 4. Program EZ-BLE PRo. C Module using the built-in programmer. Use the built-in debugger to debug your application. 5. Test your BLE application using the built-in host emulator tool. EZ-BLE PRo. C Module comes with an easy-to-use IDE to configure, develop and test a BLE application 1 GCC: GNU Compiler Collection: A compiler system supporting the GNU project as defined by the Free Software Foundation (FSF) and provided under the GNU General Public License 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Cypress Solution 9

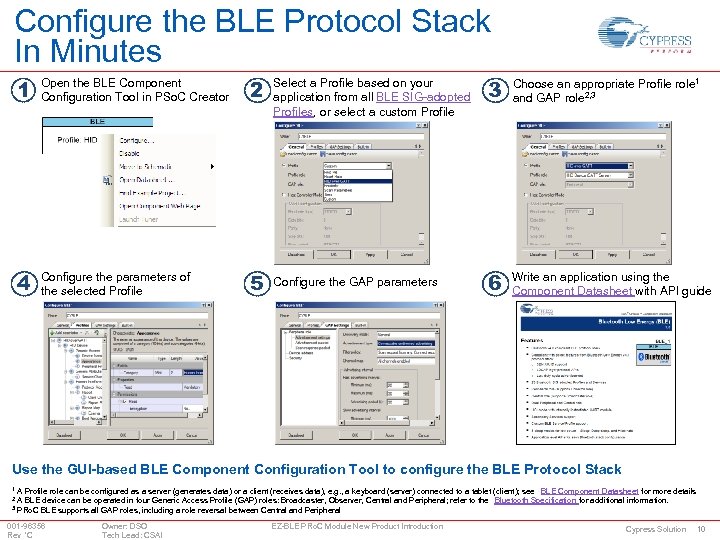

Configure the BLE Protocol Stack In Minutes 1 Open the BLE Component Configuration Tool in PSo. C Creator 2 4 Configure the parameters of the selected Profile 5 Select a Profile based on your application from all BLE SIG-adopted Profiles, or select a custom Profile Configure the GAP parameters 3 Choose an appropriate Profile role 1 and GAP role 2, 3 6 Write an application using the Component Datasheet with API guide Use the GUI-based BLE Component Configuration Tool to configure the BLE Protocol Stack 1 A Profile role can be configured as a server (generates data) or a client (receives data), e. g. , a keyboard (server) connected to a tablet (client); see 2 A BLE device can be operated in four Generic Access Profile (GAP) roles: Broadcaster, Observer, Central and Peripheral; refer to the BLE Component Datasheet for more details Bluetooth Specification for additional information. 3 PRo. C BLE supports all GAP roles, including a role reversal between Central and Peripheral 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Cypress Solution 10

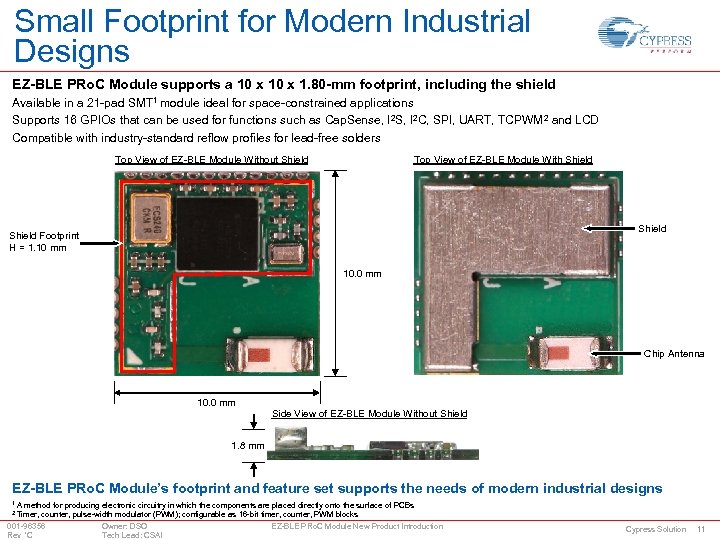

Small Footprint for Modern Industrial Designs EZ-BLE PRo. C Module supports a 10 x 1. 80 -mm footprint, including the shield Available in a 21 -pad SMT 1 module ideal for space-constrained applications Supports 16 GPIOs that can be used for functions such as Cap. Sense, I 2 S, I 2 C, SPI, UART, TCPWM 2 and LCD Compatible with industry-standard reflow profiles for lead-free solders Top View of EZ-BLE Module Without Shield Top View of EZ-BLE Module With Shield Footprint H = 1. 10 mm 10. 0 mm Chip Antenna 10. 0 mm Side View of EZ-BLE Module Without Shield 1. 8 mm EZ-BLE PRo. C Module’s footprint and feature set supports the needs of modern industrial designs 1 A method for producing electronic circuitry in which the components are placed directly onto the surface of PCBs 2 Timer, counter, pulse-width modulator (PWM); configurable as 16 -bit timer, counter, PWM blocks 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Cypress Solution 11

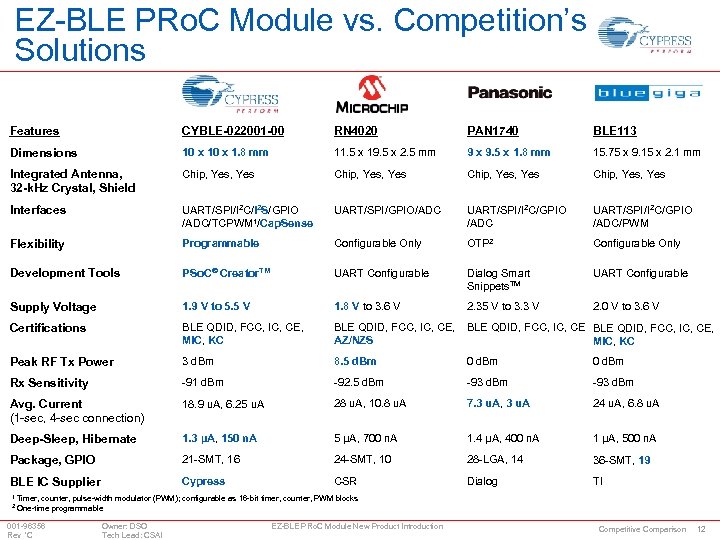

EZ-BLE PRo. C Module vs. Competition’s Solutions Features CYBLE-022001 -00 RN 4020 PAN 1740 BLE 113 Dimensions 10 x 1. 8 mm 11. 5 x 19. 5 x 2. 5 mm 9 x 9. 5 x 1. 8 mm 15. 75 x 9. 15 x 2. 1 mm Integrated Antenna, 32 -k. Hz Crystal, Shield Chip, Yes, Yes Interfaces UART/SPI/I 2 C/I 2 S/GPIO /ADC/TCPWM 1/Cap. Sense UART/SPI/GPIO/ADC UART/SPI/I 2 C/GPIO /ADC/PWM Flexibility Programmable Configurable Only OTP 2 Configurable Only Development Tools PSo. C® Creator. TM UART Configurable Dialog Smart Snippets. TM UART Configurable Supply Voltage 1. 9 V to 5. 5 V 1. 8 V to 3. 6 V 2. 35 V to 3. 3 V 2. 0 V to 3. 6 V Certifications BLE QDID, FCC, IC, CE, MIC, KC BLE QDID, FCC, IC, CE, AZ/NZS MIC, KC Peak RF Tx Power 3 d. Bm 8. 5 d. Bm 0 d. Bm Rx Sensitivity -91 d. Bm -92. 5 d. Bm -93 d. Bm Avg. Current (1 -sec, 4 -sec connection) 18. 9 u. A, 6. 25 u. A 28 u. A, 10. 8 u. A 7. 3 u. A, 3 u. A 24 u. A, 6. 8 u. A Deep-Sleep, Hibernate 1. 3 µA, 150 n. A 5 µA, 700 n. A 1. 4 µA, 400 n. A 1 µA, 500 n. A Package, GPIO 21 -SMT, 16 24 -SMT, 10 28 -LGA, 14 36 -SMT, 19 BLE IC Supplier Cypress CSR Dialog TI 1 Timer, counter, pulse-width modulator (PWM); configurable as 16 -bit timer, counter, PWM blocks 2 One-time programmable 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Competitive Comparison 12

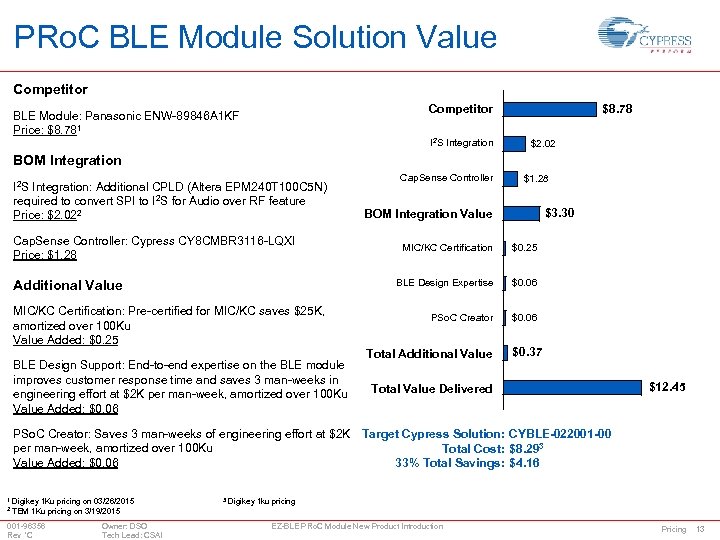

PRo. C BLE Module Solution Value Competitor $8. 78 Competitor BLE Module: Panasonic ENW-89846 A 1 KF Price: $8. 781 I 2 S Integration $2. 02 BOM Integration I 2 S Integration: Additional CPLD (Altera EPM 240 T 100 C 5 N) required to convert SPI to I 2 S for Audio over RF feature Price: $2. 022 Cap. Sense Controller: Cypress CY 8 CMBR 3116 -LQXI Price: $1. 28 Cap. Sense Controller $1. 28 $3. 30 BOM Integration Value MIC/KC Certification: Pre-certified for MIC/KC saves $25 K, amortized over 100 Ku Value Added: $0. 25 BLE Design Support: End-to-end expertise on the BLE module improves customer response time and saves 3 man-weeks in engineering effort at $2 K per man-week, amortized over 100 Ku Value Added: $0. 06 $0. 25 BLE Design Expertise Additional Value MIC/KC Certification $0. 06 PSo. C Creator $0. 06 Total Additional Value $0. 37 Total Value Delivered $12. 45 PSo. C Creator: Saves 3 man-weeks of engineering effort at $2 K Target Cypress Solution: CYBLE-022001 -00 per man-week, amortized over 100 Ku Total Cost: $8. 293 Value Added: $0. 06 33% Total Savings: $4. 16 1 Digikey 1 Ku pricing on 03/26/2015 3 Digikey 1 ku pricing 2 TEM 1 Ku pricing on 3/19/2015 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Pricing 13

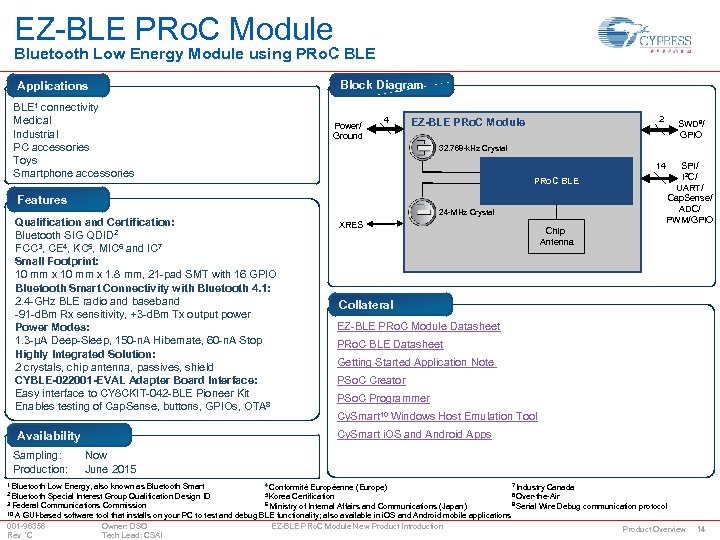

EZ-BLE PRo. C Module Bluetooth Low Energy Module using PRo. C BLE Block Diagram Applications BLE 1 connectivity Medical Industrial PC accessories Toys Smartphone accessories Power/ Ground 4 2 EZ-BLE PRo. C Module 32. 768 -k. Hz Crystal 14 PRo. C BLE Features Qualification and Certification: Bluetooth SIG QDID 2 FCC 3, CE 4, KC 5, MIC 6 and IC 7 Small Footprint: 10 mm x 1. 8 mm, 21 -pad SMT with 16 GPIO Bluetooth Smart Connectivity with Bluetooth 4. 1: 2. 4 -GHz BLE radio and baseband -91 -d. Bm Rx sensitivity, +3 -d. Bm Tx output power Power Modes: 1. 3 -µA Deep-Sleep, 150 -n. A Hibernate, 60 -n. A Stop Highly Integrated Solution: 2 crystals, chip antenna, passives, shield CYBLE-022001 -EVAL Adapter Board Interface: Easy interface to CY 8 CKIT-042 -BLE Pioneer Kit Enables testing of Cap. Sense, buttons, GPIOs, OTA 8 24 -MHz Crystal XRES SPI/ I 2 C/ UART/ Cap. Sense/ ADC/ PWM/GPIO Chip Antenna Collateral EZ-BLE PRo. C Module Datasheet PRo. C BLE Datasheet Getting Started Application Note PSo. C Creator PSo. C Programmer Cy. Smart 10 Windows Host Emulation Tool Cy. Smart i. OS and Android Apps Availability Sampling: Production: SWD 9/ GPIO Now June 2015 1 Bluetooth Low Energy, also known as Bluetooth Smart 4 Conformité Européenne (Europe) 7 Industry Canada 2 Bluetooth Special Interest Group Qualification Design ID 5 Korea Certification 8 Over-the-Air 3 Federal Communications Commission 6 Ministry of Internal Affairs and Communications (Japan) 9 Serial Wire Debug communication protocol 10 A GUI-based software tool that installs on your PC to test and debug BLE functionality; also available in i. OS and Android mobile applications 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Product Overview 14
APPENDIX 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Appendix 15

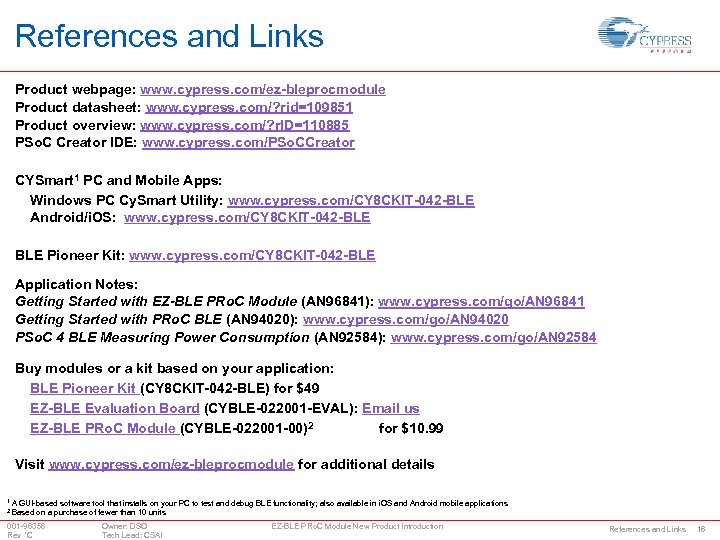

References and Links Product webpage: www. cypress. com/ez-bleprocmodule Product datasheet: www. cypress. com/? rid=109851 Product overview: www. cypress. com/? r. ID=110885 PSo. C Creator IDE: www. cypress. com/PSo. CCreator CYSmart 1 PC and Mobile Apps: Windows PC Cy. Smart Utility: www. cypress. com/CY 8 CKIT-042 -BLE Android/i. OS: www. cypress. com/CY 8 CKIT-042 -BLE Pioneer Kit: www. cypress. com/CY 8 CKIT-042 -BLE Application Notes: Getting Started with EZ-BLE PRo. C Module (AN 96841): www. cypress. com/go/AN 96841 Getting Started with PRo. C BLE (AN 94020): www. cypress. com/go/AN 94020 PSo. C 4 BLE Measuring Power Consumption (AN 92584): www. cypress. com/go/AN 92584 Buy modules or a kit based on your application: BLE Pioneer Kit (CY 8 CKIT-042 -BLE) for $49 EZ-BLE Evaluation Board (CYBLE-022001 -EVAL): Email us EZ-BLE PRo. C Module (CYBLE-022001 -00)2 for $10. 99 Visit www. cypress. com/ez-bleprocmodule for additional details 1 A GUI-based software tool that installs on your PC to test and debug BLE functionality; also available in i. OS and Android mobile applications 2 Based on a purchase of fewer than 10 units 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction References and Links 16
EZ-BLE Portfolio D+C Programmable Radio-on-Chip (EZ-BLETM PRo. CTM) CYBLE-022001 -00 Q 215 EZ-BLE PRo. C Module CM 03, 2 SCB 4 16 GPIOs 10 x 1. 80 mm SMT 7 256 KB Flash 128 KB Flash CYBLE-222005 -00 Q 315 EZ-BLE PRo. C Module CM 03, 2 SCB 4 16 GPIOs 10 x 1. 80 mm SMT 7 256 KB Flash CYBLE-024008 -00 Q 315 EZ-BLE PSo. C Module CM 03, 2 SCB 4, , 4 Opamps, 1 CMP 5, 4 UDBs 6, 26 GPIOs 12 x 1. 80 mm SMT 7 CYBLE-224009 -00 Q 415 EZ-BLE PSo. C Module CM 03, 2 SCB 4, , 4 Opamps, 1 CMP 5, 4 UDBs 6, 26 GPIOs 12 x 1. 80 mm SMT 7 Q 315 CYBLE-210002 -00 EZ-BLE Serial Module UART to BLE 12 x 16 x 1. 80 mm SMT 7 CYBLE-222106 -00 Q 415 EZ-BLE PRo. C Module CM 03, 2 SCB 4 16 GPIOs 12 x 2. 1 mm SMT 7 Extended Industrial Temp 2 Industrial Temp 1 128 KB Flash Programmable System-on-Chip Module (EZ-BLE PSo. C®) CYBLE-224110 -00 Q 116 EZ-BLE PSo. C Module CM 03, 2 SCB 4, , 4 Opamps, 2 CMP 5, 4 UDBs 6, 36 GPIOs 15 x 2. 1 mm SMT 7 CYBLE-222107 -00 Q 116 EZ-BLE PRo. C Module CM 03, 2 SCB 4, 36 GPIOs 15 x 2. 1 mm SMT 7 Integration 1 Range of -40 o C to +85 o C o o 2 5 Comparator 3 ARM® Cortex® -M 0 7 Surface mount technology Range of -40 C to +105 C 6 Universal Digital Block 4 Serial communication block 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Production Sampling Development Concept Status Availability QQYY Roadmap 17

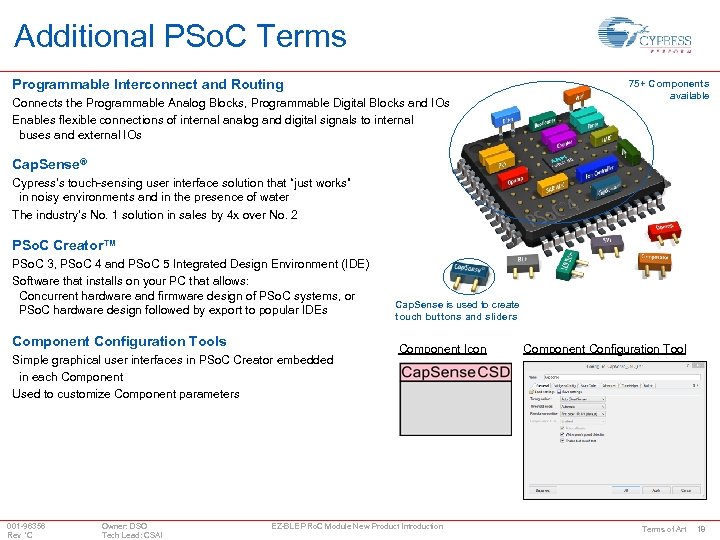

Additional PSo. C Terms Programmable Interconnect and Routing Connects the Programmable Analog Blocks, Programmable Digital Blocks and IOs Enables flexible connections of internal analog and digital signals to internal buses and external IOs 75+ Components available Cap. Sense® Cypress’s touch-sensing user interface solution that “just works” in noisy environments and in the presence of water The industry’s No. 1 solution in sales by 4 x over No. 2 PSo. C Creator™ PSo. C 3, PSo. C 4 and PSo. C 5 Integrated Design Environment (IDE) Software that installs on your PC that allows: Concurrent hardware and firmware design of PSo. C systems, or PSo. C hardware design followed by export to popular IDEs Component Configuration Tools Simple graphical user interfaces in PSo. C Creator embedded in each Component Used to customize Component parameters 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI Cap. Sense is used to create touch buttons and sliders Component Icon EZ-BLE PRo. C Module New Product Introduction Component Configuration Tool Terms of Art 18

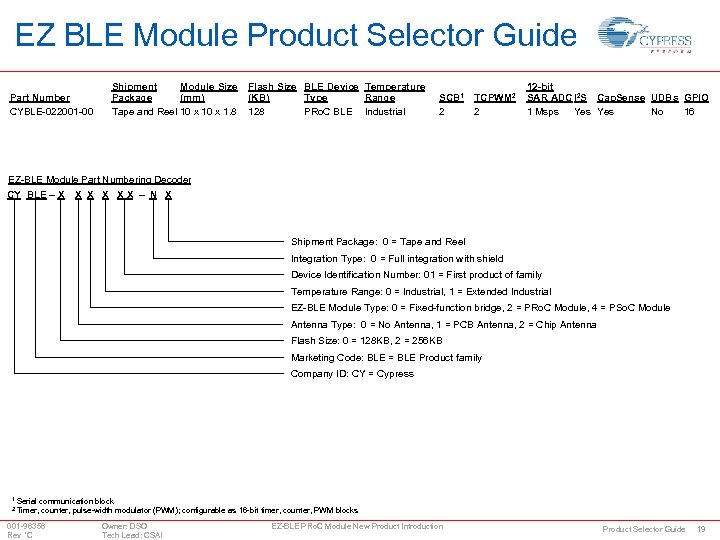

EZ BLE Module Product Selector Guide Part Number CYBLE-022001 -00 Shipment Module Size Package (mm) Tape and Reel 10 x 1. 8 Flash Size BLE Device Temperature (KB) Type Range 128 PRo. C BLE Industrial SCB 1 2 TCPWM 2 2 12 -bit SAR ADC I 2 S Cap. Sense UDBs GPIO 1 Msps Yes No 16 EZ-BLE Module Part Numbering Decoder CY BLE – X X X – N X Shipment Package: 0 = Tape and Reel Integration Type: 0 = Full integration with shield Device Identification Number: 01 = First product of family Temperature Range: 0 = Industrial, 1 = Extended Industrial EZ-BLE Module Type: 0 = Fixed-function bridge, 2 = PRo. C Module, 4 = PSo. C Module Antenna Type: 0 = No Antenna, 1 = PCB Antenna, 2 = Chip Antenna Flash Size: 0 = 128 KB, 2 = 256 KB Marketing Code: BLE = BLE Product family Company ID: CY = Cypress 1 Serial communication block 2 Timer, counter, pulse-width modulator (PWM); configurable as 16 -bit timer, counter, PWM blocks 001 -96356 Rev *C Owner: DSO Tech Lead: CSAI EZ-BLE PRo. C Module New Product Introduction Product Selector Guide 19
