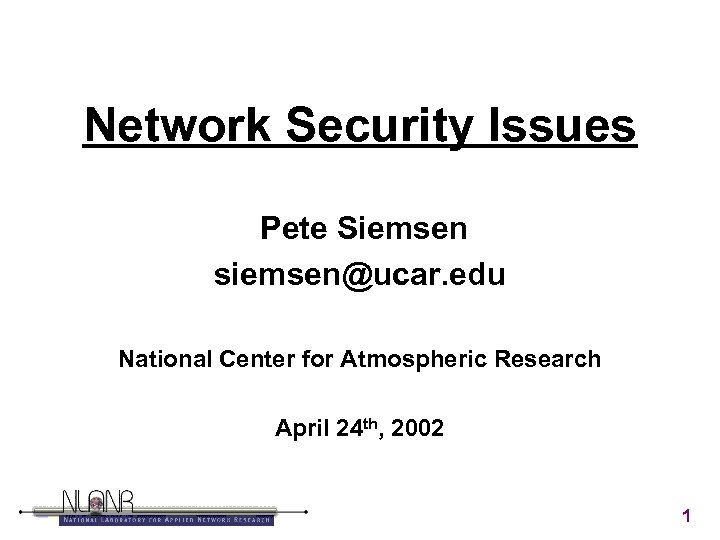

Network Security Issues Pete Siemsen siemsen@ucar. edu National Center for Atmospheric Research April 24 Network Security Issues Pete Siemsen [email protected] edu National Center for Atmospheric Research April 24 th, 2002 1

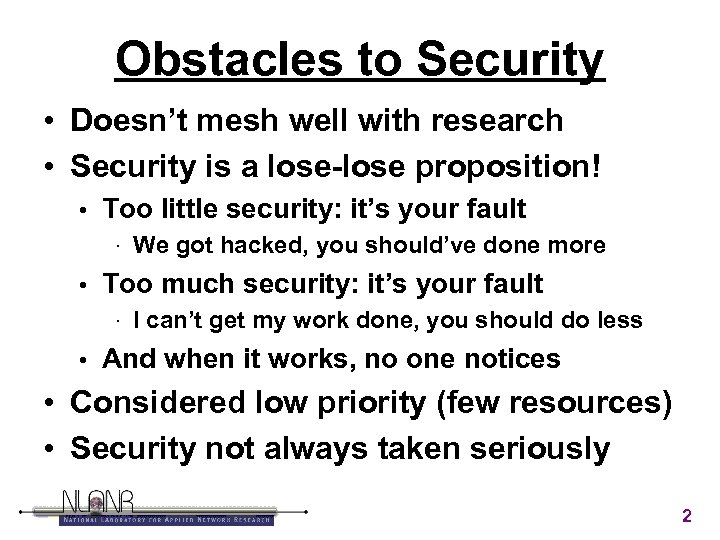

Obstacles to Security • Doesn’t mesh well with research • Security is a lose-lose Obstacles to Security • Doesn’t mesh well with research • Security is a lose-lose proposition! • Too little security: it’s your fault · • Too much security: it’s your fault · • We got hacked, you should’ve done more I can’t get my work done, you should do less And when it works, no one notices • Considered low priority (few resources) • Security not always taken seriously 2

Types of Threats • • • Viruses Packet sniffing Denial of service Probing for Types of Threats • • • Viruses Packet sniffing Denial of service Probing for holes Wireless 3

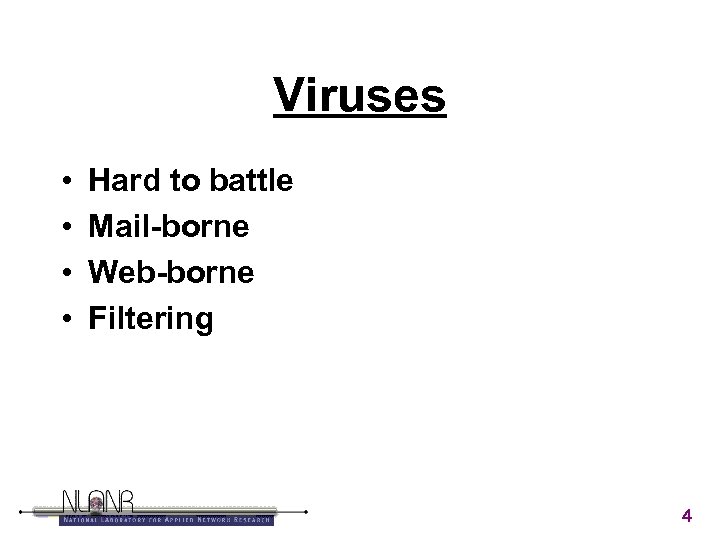

Viruses • • Hard to battle Mail-borne Web-borne Filtering 4 Viruses • • Hard to battle Mail-borne Web-borne Filtering 4

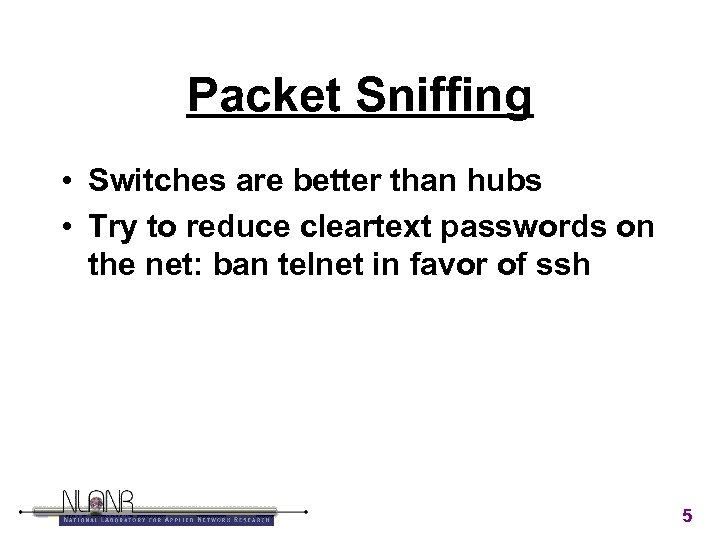

Packet Sniffing • Switches are better than hubs • Try to reduce cleartext passwords Packet Sniffing • Switches are better than hubs • Try to reduce cleartext passwords on the net: ban telnet in favor of ssh 5

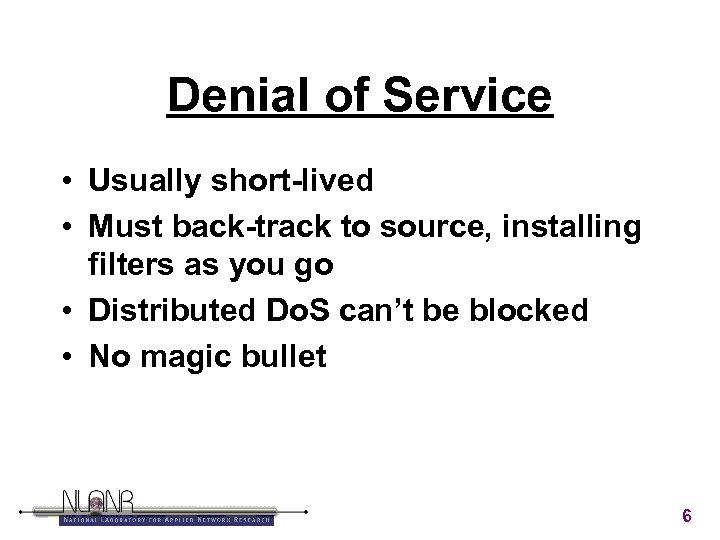

Denial of Service • Usually short-lived • Must back-track to source, installing filters as Denial of Service • Usually short-lived • Must back-track to source, installing filters as you go • Distributed Do. S can’t be blocked • No magic bullet 6

Probing for holes • “script kiddies” are unsophisticated hackers who run software “kits” to Probing for holes • “script kiddies” are unsophisticated hackers who run software “kits” to attack a target. They don’t have to understand networking. • Software scans for open ports and known vulnerabilities 7

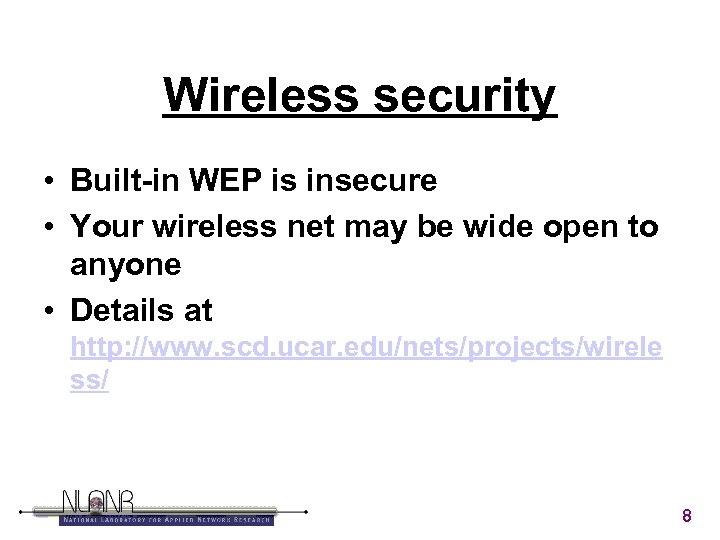

Wireless security • Built-in WEP is insecure • Your wireless net may be wide Wireless security • Built-in WEP is insecure • Your wireless net may be wide open to anyone • Details at http: //www. scd. ucar. edu/nets/projects/wirele ss/ 8

Case study: NCAR 9 Case study: NCAR 9

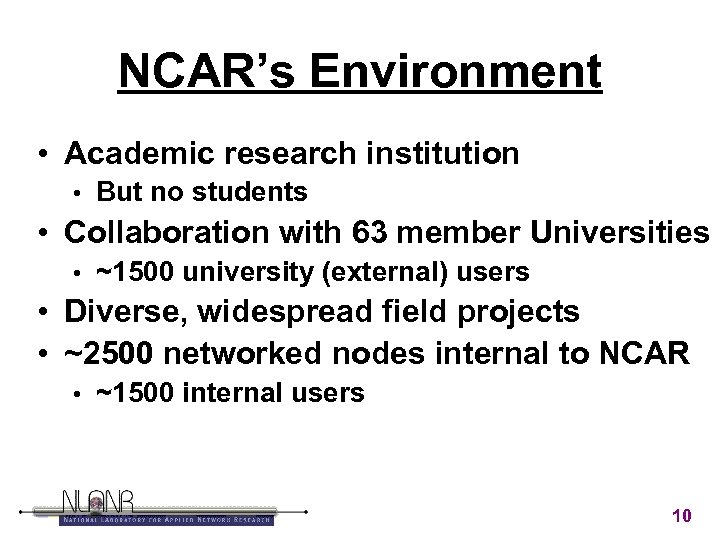

NCAR’s Environment • Academic research institution • But no students • Collaboration with 63 NCAR’s Environment • Academic research institution • But no students • Collaboration with 63 member Universities • ~1500 university (external) users • Diverse, widespread field projects • ~2500 networked nodes internal to NCAR • ~1500 internal users 10

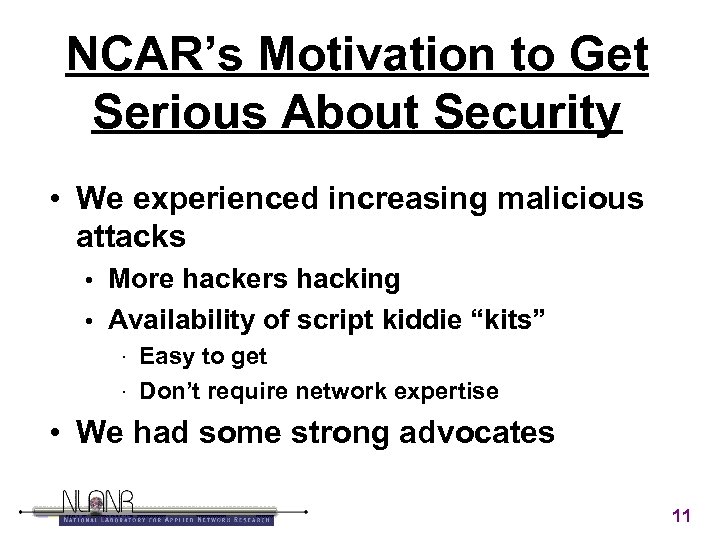

NCAR’s Motivation to Get Serious About Security • We experienced increasing malicious attacks More NCAR’s Motivation to Get Serious About Security • We experienced increasing malicious attacks More hackers hacking • Availability of script kiddie “kits” • Easy to get · Don’t require network expertise · • We had some strong advocates 11

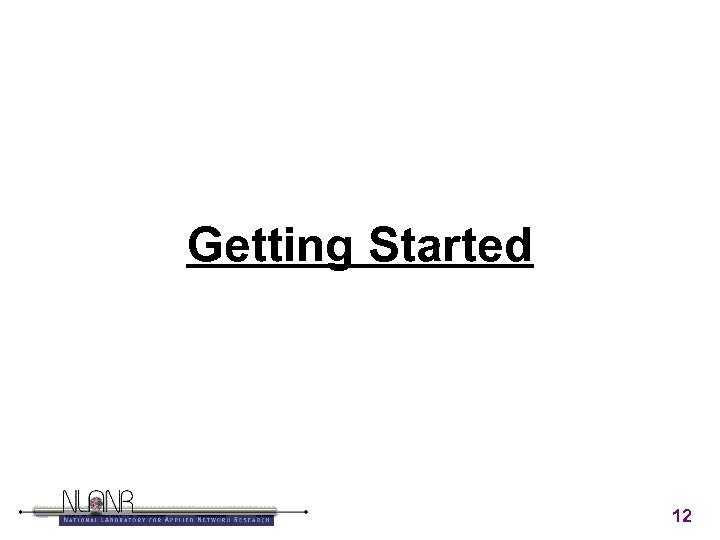

Getting Started 12 Getting Started 12

NCAR Security Committee • • • We created a committee to develop policy Sysadmins NCAR Security Committee • • • We created a committee to develop policy Sysadmins from all NCAR Divisions Policy process delivers institutional buy-in 2 -hour meetings once a month Lots of cooperation, little authority With time, authority has grown 13

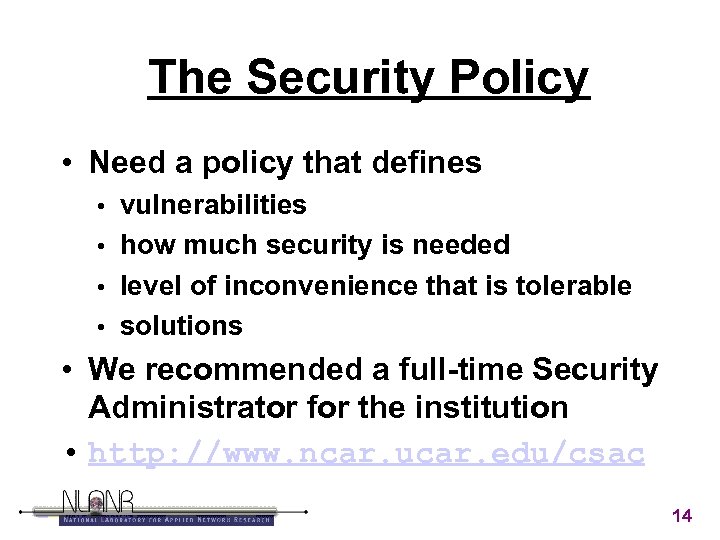

The Security Policy • Need a policy that defines vulnerabilities • how much security The Security Policy • Need a policy that defines vulnerabilities • how much security is needed • level of inconvenience that is tolerable • solutions • • We recommended a full-time Security Administrator for the institution • http: //www. ncar. ucar. edu/csac 14

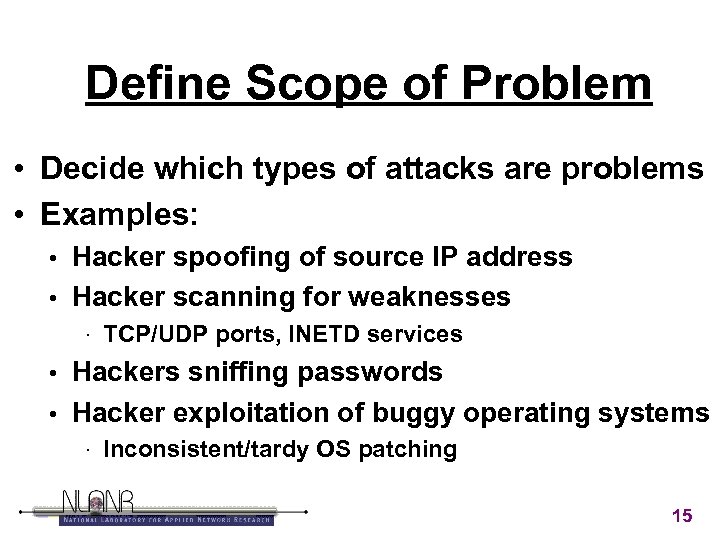

Define Scope of Problem • Decide which types of attacks are problems • Examples: Define Scope of Problem • Decide which types of attacks are problems • Examples: Hacker spoofing of source IP address • Hacker scanning for weaknesses • · TCP/UDP ports, INETD services Hackers sniffing passwords • Hacker exploitation of buggy operating systems • · Inconsistent/tardy OS patching 15

Define Scope of Solution • What we won’t do Not feasible to secure every Define Scope of Solution • What we won’t do Not feasible to secure every computer • Over-reliance on timely OS security fixes • Can’t prohibit internal “personal” modems • Attacks from within aren’t a big problem • • What we will do • Reduce external attacks from the Internet 16

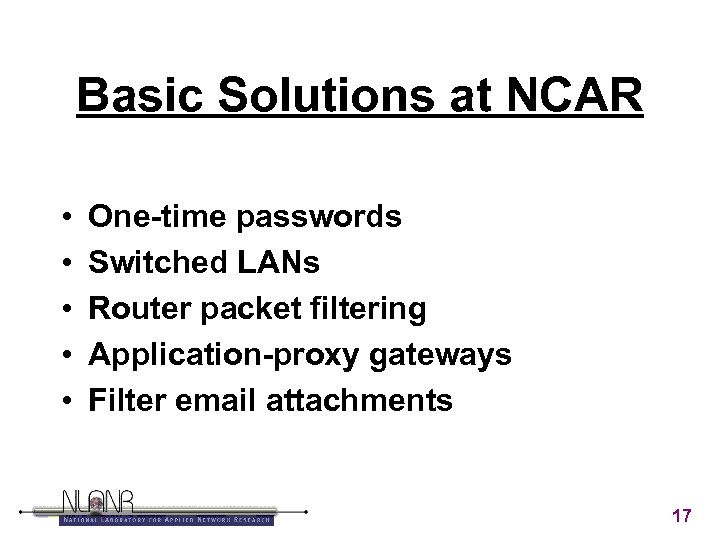

Basic Solutions at NCAR • • • One-time passwords Switched LANs Router packet filtering Basic Solutions at NCAR • • • One-time passwords Switched LANs Router packet filtering Application-proxy gateways Filter email attachments 17

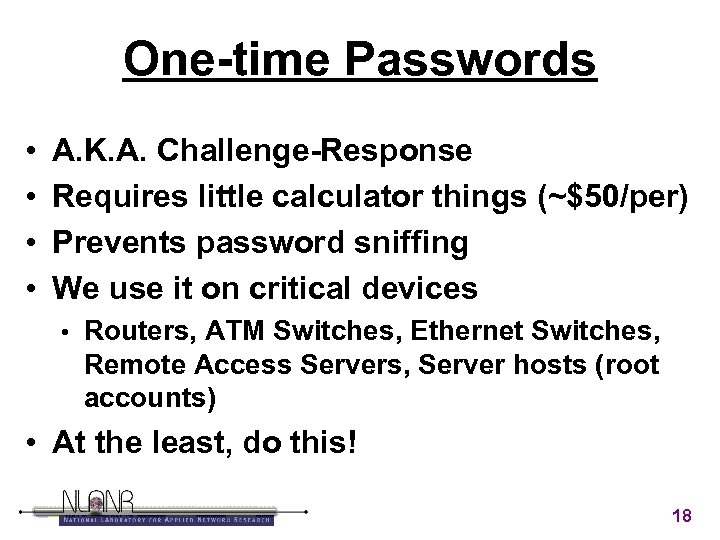

One-time Passwords • • A. K. A. Challenge-Response Requires little calculator things (~$50/per) Prevents One-time Passwords • • A. K. A. Challenge-Response Requires little calculator things (~$50/per) Prevents password sniffing We use it on critical devices • Routers, ATM Switches, Ethernet Switches, Remote Access Servers, Server hosts (root accounts) • At the least, do this! 18

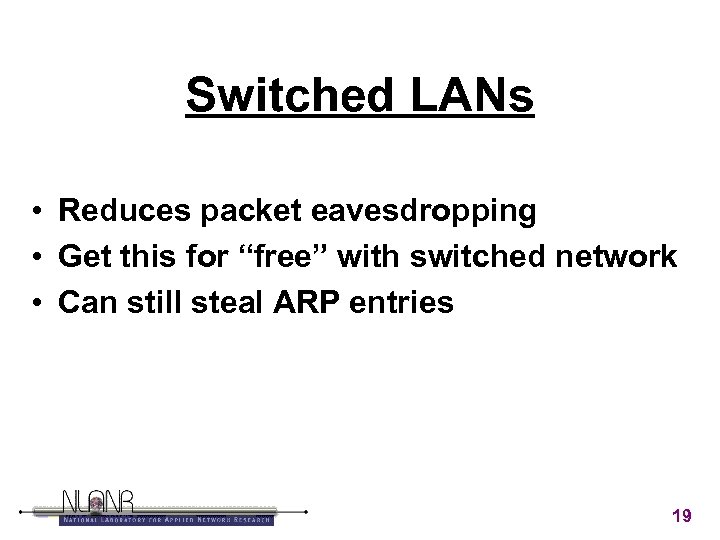

Switched LANs • Reduces packet eavesdropping • Get this for “free” with switched network Switched LANs • Reduces packet eavesdropping • Get this for “free” with switched network • Can still steal ARP entries 19

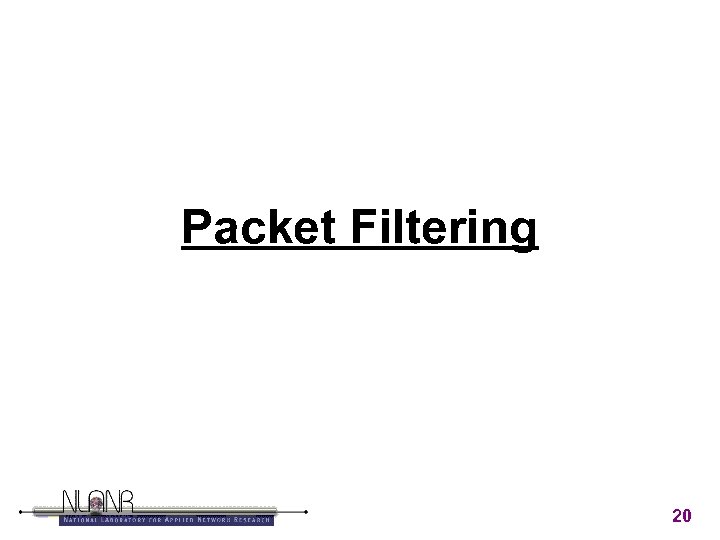

Packet Filtering 20 Packet Filtering 20

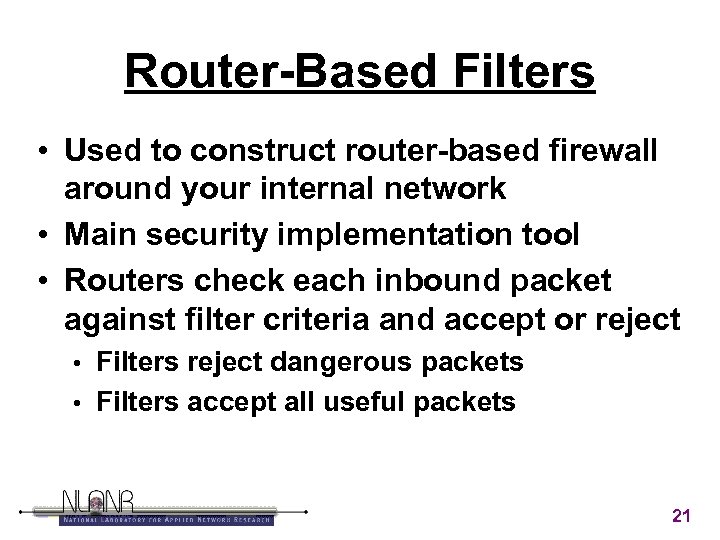

Router-Based Filters • Used to construct router-based firewall around your internal network • Main Router-Based Filters • Used to construct router-based firewall around your internal network • Main security implementation tool • Routers check each inbound packet against filter criteria and accept or reject Filters reject dangerous packets • Filters accept all useful packets • 21

22 22

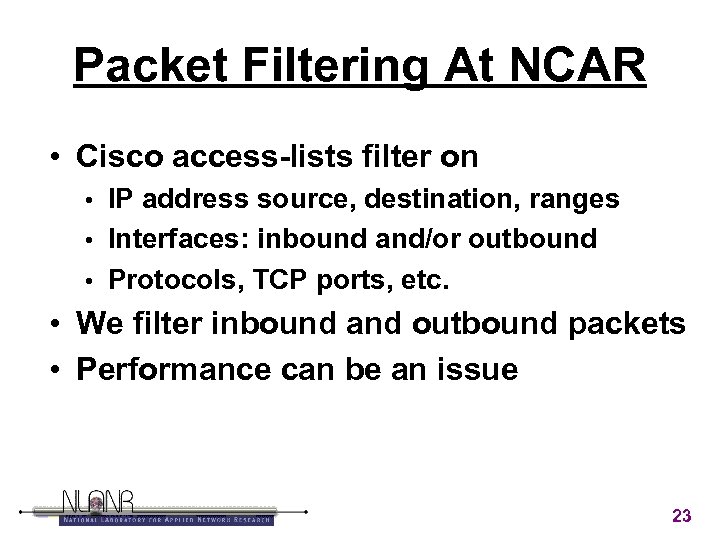

Packet Filtering At NCAR • Cisco access-lists filter on IP address source, destination, ranges Packet Filtering At NCAR • Cisco access-lists filter on IP address source, destination, ranges • Interfaces: inbound and/or outbound • Protocols, TCP ports, etc. • • We filter inbound and outbound packets • Performance can be an issue 23

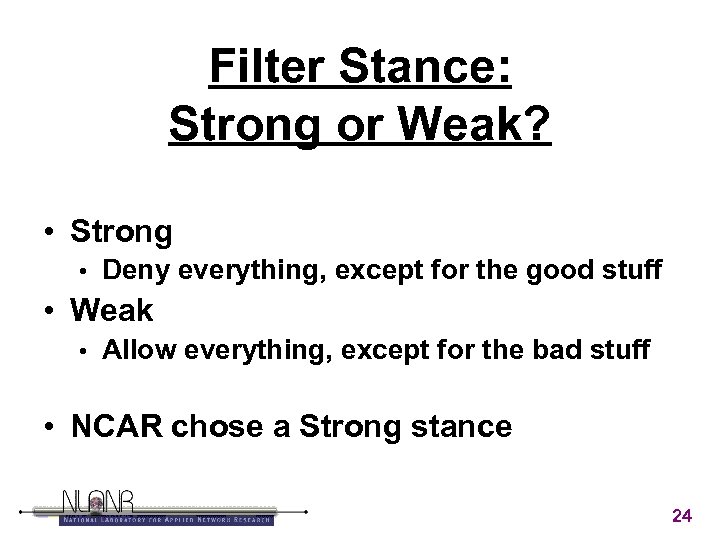

Filter Stance: Strong or Weak? • Strong • Deny everything, except for the good Filter Stance: Strong or Weak? • Strong • Deny everything, except for the good stuff • Weak • Allow everything, except for the bad stuff • NCAR chose a Strong stance 24

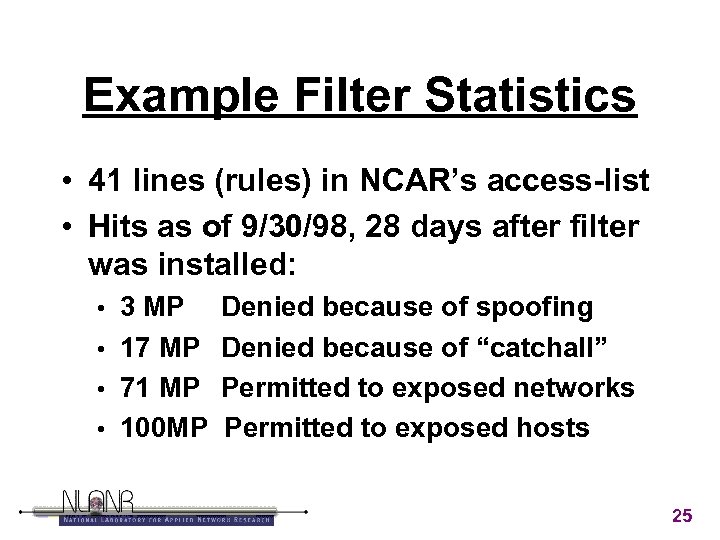

Example Filter Statistics • 41 lines (rules) in NCAR’s access-list • Hits as of Example Filter Statistics • 41 lines (rules) in NCAR’s access-list • Hits as of 9/30/98, 28 days after filter was installed: 3 MP • 17 MP • 71 MP • 100 MP • Denied because of spoofing Denied because of “catchall” Permitted to exposed networks Permitted to exposed hosts 25

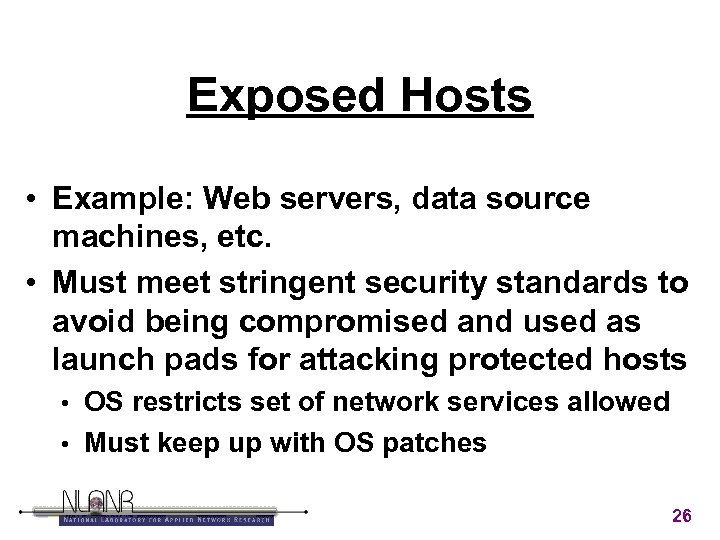

Exposed Hosts • Example: Web servers, data source machines, etc. • Must meet stringent Exposed Hosts • Example: Web servers, data source machines, etc. • Must meet stringent security standards to avoid being compromised and used as launch pads for attacking protected hosts OS restricts set of network services allowed • Must keep up with OS patches • 26

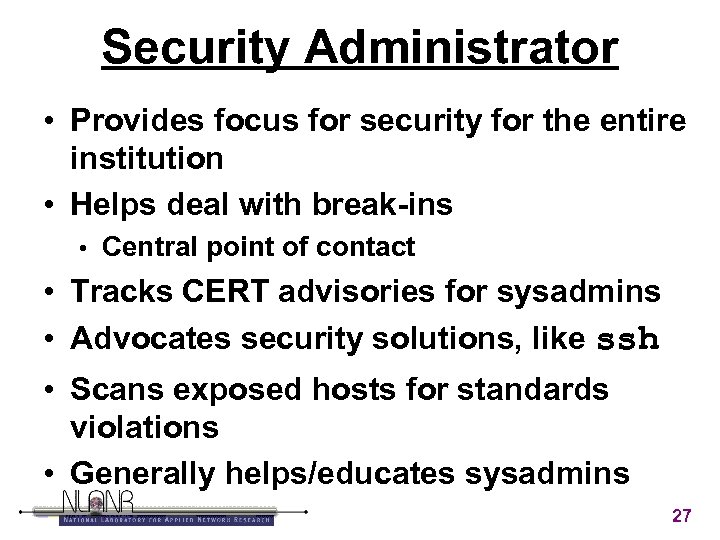

Security Administrator • Provides focus for security for the entire institution • Helps deal Security Administrator • Provides focus for security for the entire institution • Helps deal with break-ins • Central point of contact • Tracks CERT advisories for sysadmins • Advocates security solutions, like ssh • Scans exposed hosts for standards violations • Generally helps/educates sysadmins 27

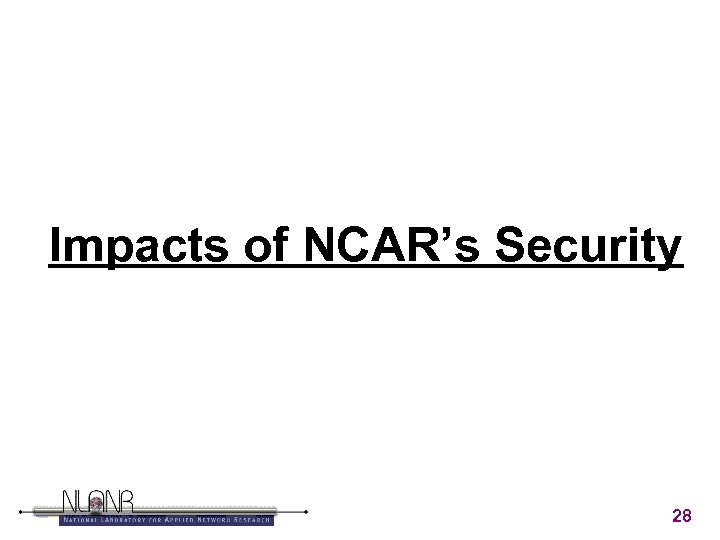

Impacts of NCAR’s Security 28 Impacts of NCAR’s Security 28

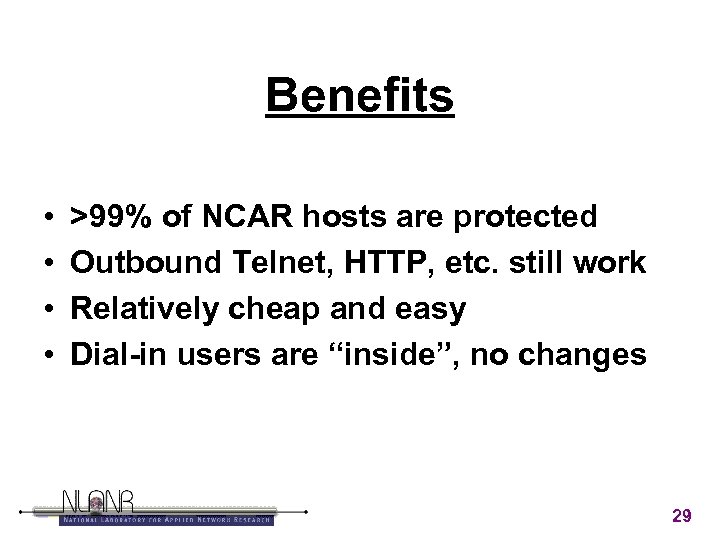

Benefits • • >99% of NCAR hosts are protected Outbound Telnet, HTTP, etc. still Benefits • • >99% of NCAR hosts are protected Outbound Telnet, HTTP, etc. still work Relatively cheap and easy Dial-in users are “inside”, no changes 29

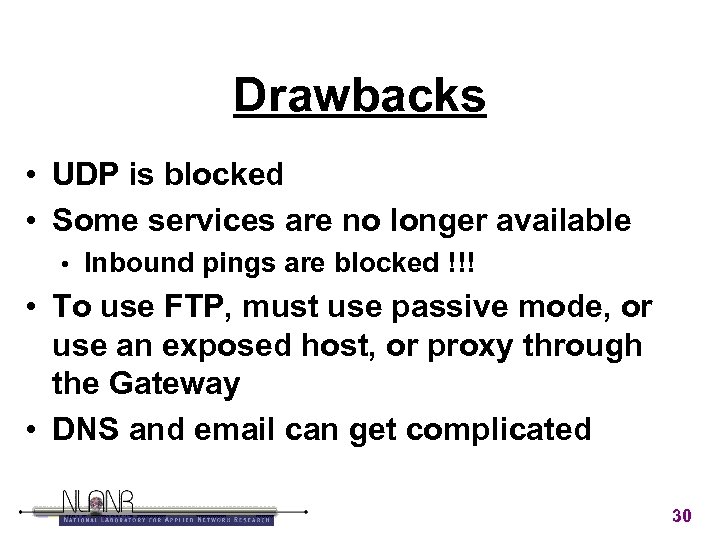

Drawbacks • UDP is blocked • Some services are no longer available • Inbound Drawbacks • UDP is blocked • Some services are no longer available • Inbound pings are blocked !!! • To use FTP, must use passive mode, or use an exposed host, or proxy through the Gateway • DNS and email can get complicated 30

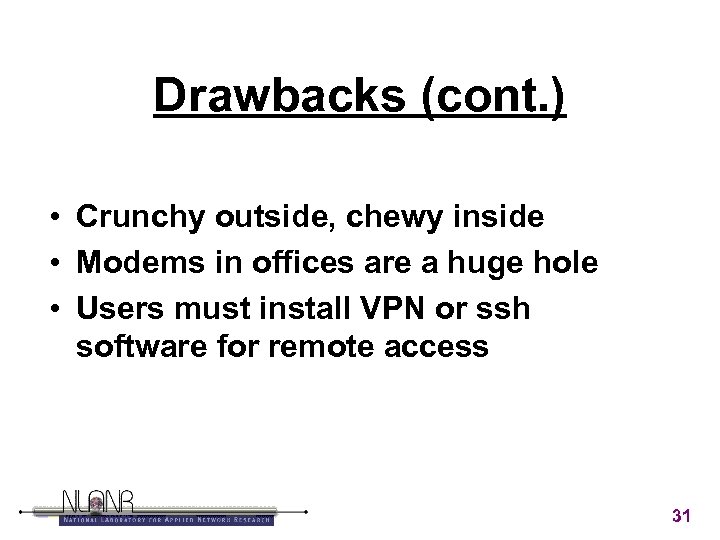

Drawbacks (cont. ) • Crunchy outside, chewy inside • Modems in offices are a Drawbacks (cont. ) • Crunchy outside, chewy inside • Modems in offices are a huge hole • Users must install VPN or ssh software for remote access 31

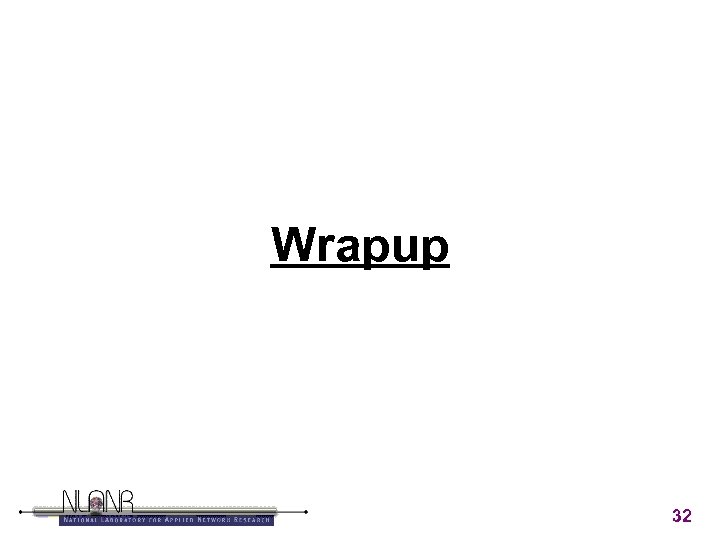

Wrapup 32 Wrapup 32

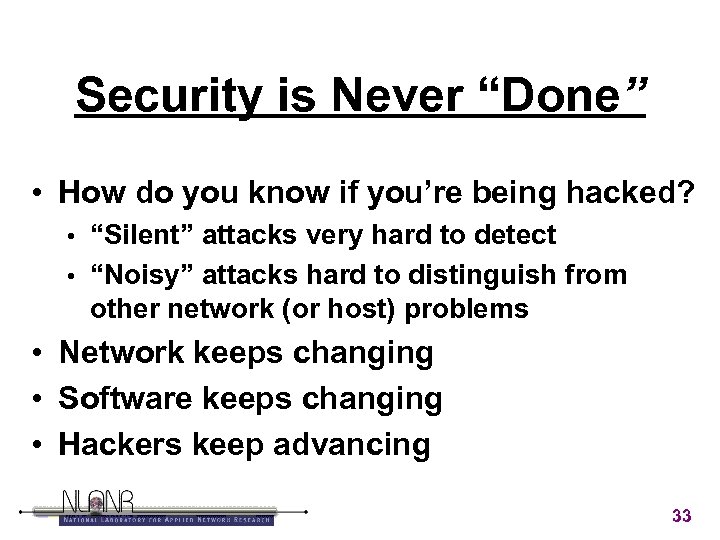

Security is Never “Done” • How do you know if you’re being hacked? “Silent” Security is Never “Done” • How do you know if you’re being hacked? “Silent” attacks very hard to detect • “Noisy” attacks hard to distinguish from other network (or host) problems • • Network keeps changing • Software keeps changing • Hackers keep advancing 33

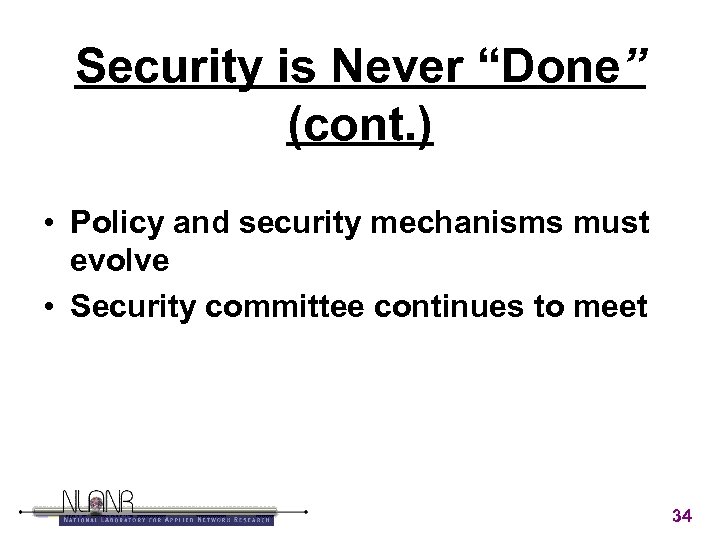

Security is Never “Done” (cont. ) • Policy and security mechanisms must evolve • Security is Never “Done” (cont. ) • Policy and security mechanisms must evolve • Security committee continues to meet 34

Conclusion • NCAR struck a balance between: Convenience and Security • Politics and Technology Conclusion • NCAR struck a balance between: Convenience and Security • Politics and Technology • Cost and Quality • 35
