NETW 703 Network Protocols PROTOCOL CORECTNESS Dr. Eng Amr T. Abdel-Hamid Winter 2007 Based on Lectures notes from: * Dr. Igor Potapov, The University of Liverpool * Dr. Junzhao Sun, University of Oulu * Dr. Rachida Dssouli, Dr. Sofiene Tahar, and Dr. Ferhat Kendek Concordia University

Amr Talaat What is a Concurrent Program? A sequential program has a single thread of control. A concurrent program has multiple threads of control allowing it perform multiple computations in parallel and to control multiple external activities which occur at the same time. 2/43

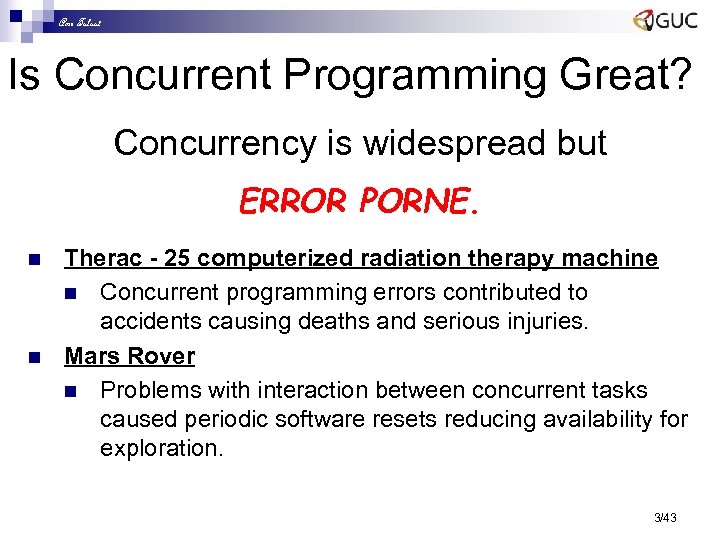

Amr Talaat Is Concurrent Programming Great? Concurrency is widespread but ERROR PORNE. n n Therac - 25 computerized radiation therapy machine n Concurrent programming errors contributed to accidents causing deaths and serious injuries. Mars Rover n Problems with interaction between concurrent tasks caused periodic software resets reducing availability for exploration. 3/43

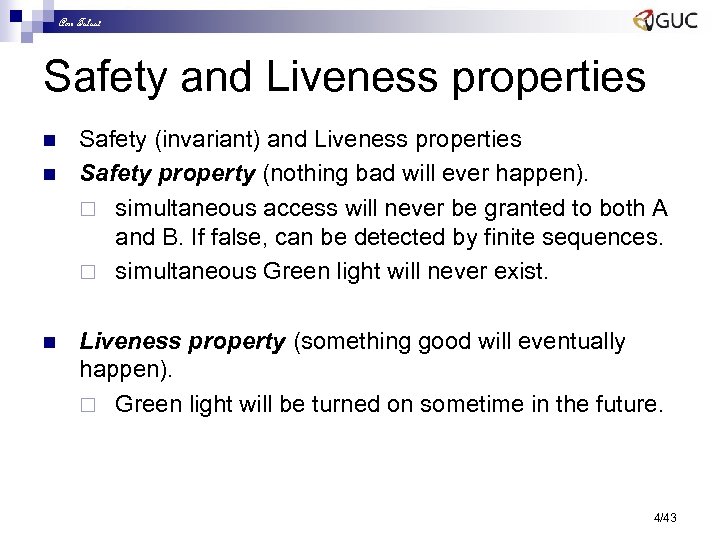

Amr Talaat Safety and Liveness properties n n n Safety (invariant) and Liveness properties Safety property (nothing bad will ever happen). ¨ simultaneous access will never be granted to both A and B. If false, can be detected by finite sequences. ¨ simultaneous Green light will never exist. Liveness property (something good will eventually happen). ¨ Green light will be turned on sometime in the future. 4/43

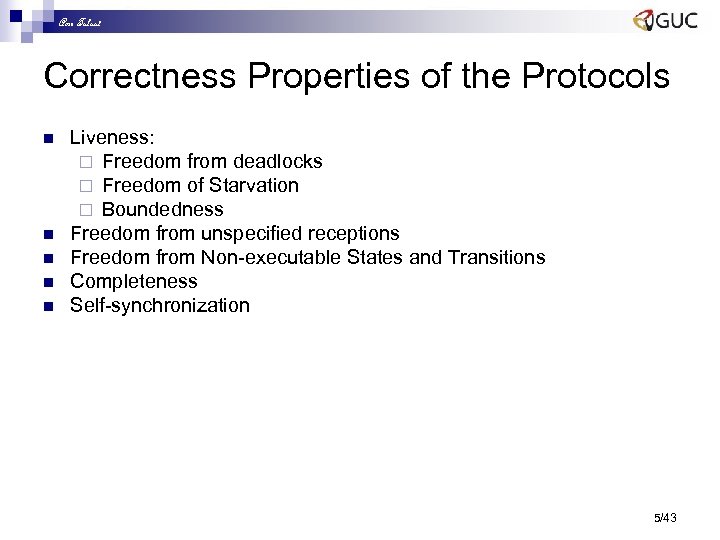

Amr Talaat Correctness Properties of the Protocols n n n Liveness: ¨ Freedom from deadlocks ¨ Freedom of Starvation ¨ Boundedness Freedom from unspecified receptions Freedom from Non-executable States and Transitions Completeness Self-synchronization 5/43

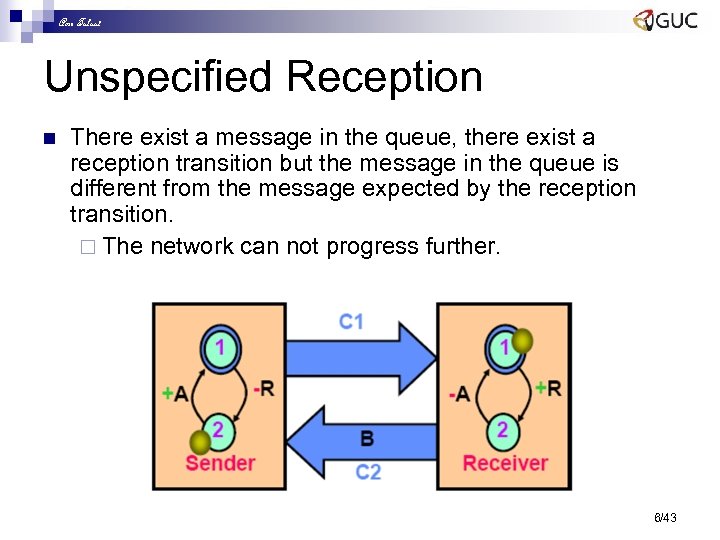

Amr Talaat Unspecified Reception n There exist a message in the queue, there exist a reception transition but the message in the queue is different from the message expected by the reception transition. ¨ The network can not progress further. 6/43

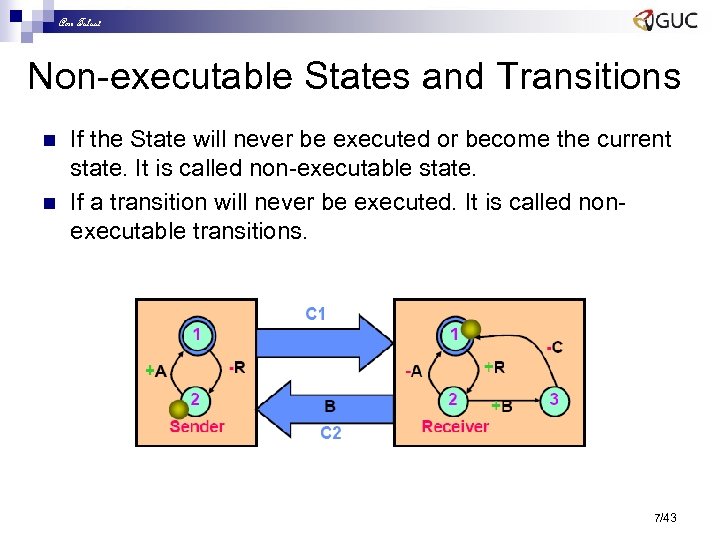

Amr Talaat Non-executable States and Transitions n n If the State will never be executed or become the current state. It is called non-executable state. If a transition will never be executed. It is called nonexecutable transitions. 7/43

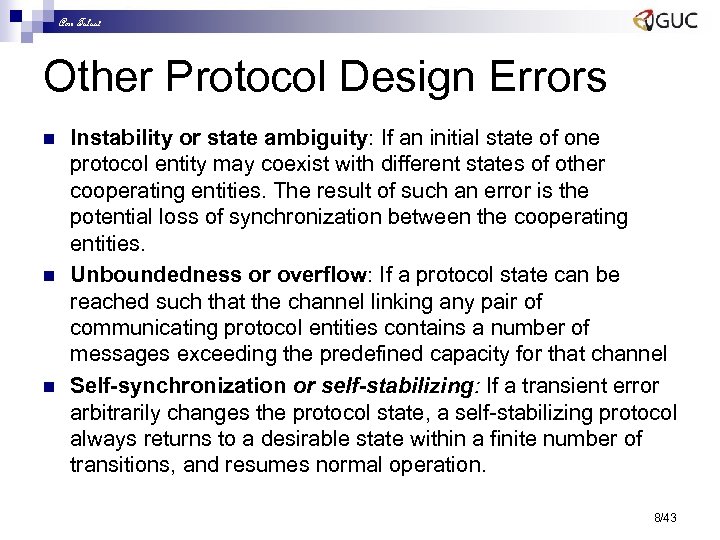

Amr Talaat Other Protocol Design Errors n n n Instability or state ambiguity: If an initial state of one protocol entity may coexist with different states of other cooperating entities. The result of such an error is the potential loss of synchronization between the cooperating entities. Unboundedness or overflow: If a protocol state can be reached such that the channel linking any pair of communicating protocol entities contains a number of messages exceeding the predefined capacity for that channel Self-synchronization or self-stabilizing: If a transient error arbitrarily changes the protocol state, a self-stabilizing protocol always returns to a desirable state within a finite number of transitions, and resumes normal operation. 8/43

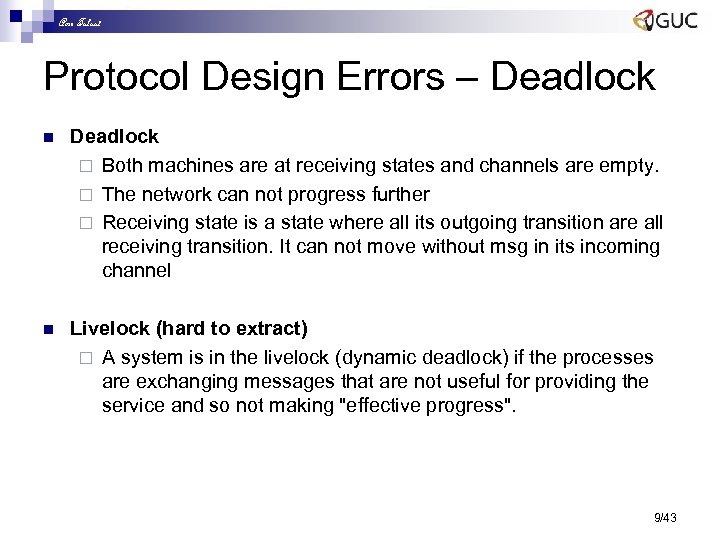

Amr Talaat Protocol Design Errors – Deadlock n Deadlock ¨ Both machines are at receiving states and channels are empty. ¨ The network can not progress further ¨ Receiving state is a state where all its outgoing transition are all receiving transition. It can not move without msg in its incoming channel n Livelock (hard to extract) ¨ A system is in the livelock (dynamic deadlock) if the processes are exchanging messages that are not useful for providing the service and so not making "effective progress". 9/43

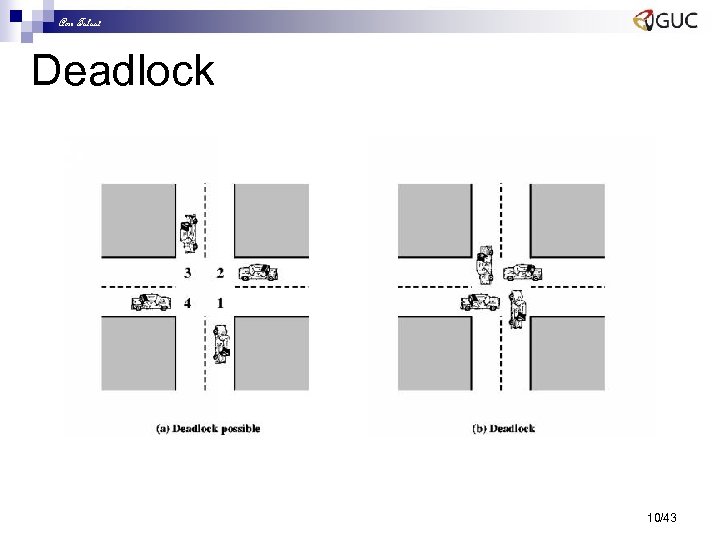

Amr Talaat Deadlock 10/43

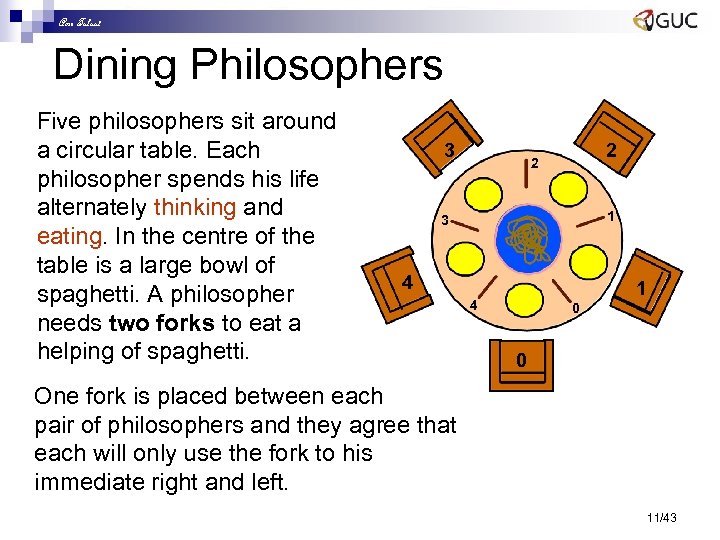

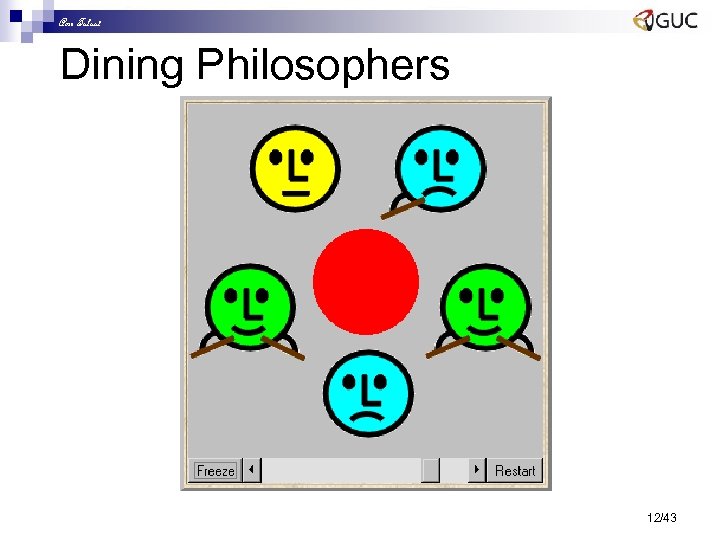

Amr Talaat Dining Philosophers Five philosophers sit around a circular table. Each philosopher spends his life alternately thinking and eating. In the centre of the table is a large bowl of spaghetti. A philosopher needs two forks to eat a helping of spaghetti. 3 2 2 1 3 4 1 4 0 0 One fork is placed between each pair of philosophers and they agree that each will only use the fork to his immediate right and left. 11/43

Amr Talaat Dining Philosophers 12/43

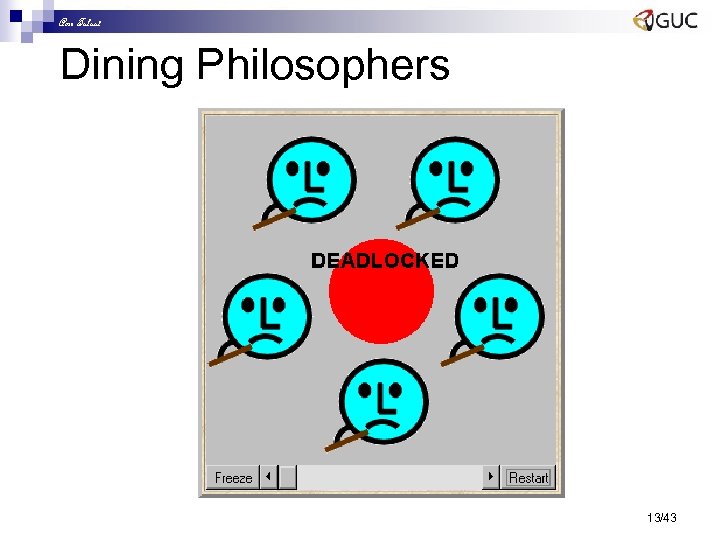

Amr Talaat Dining Philosophers 13/43

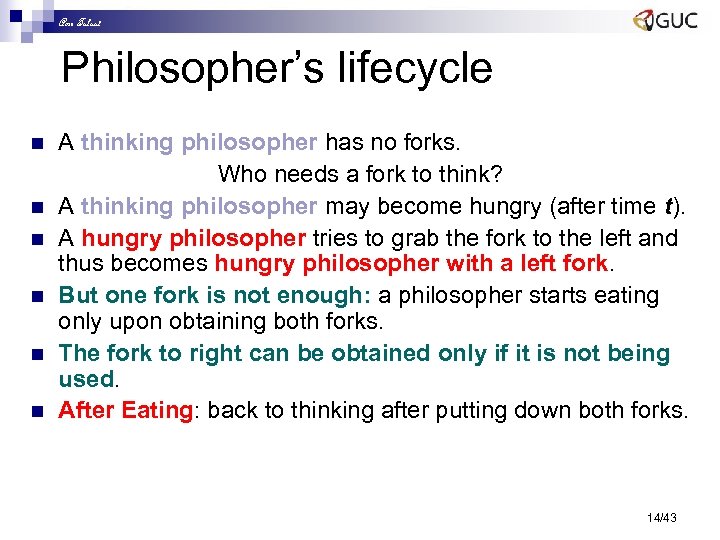

Amr Talaat Philosopher’s lifecycle n n n A thinking philosopher has no forks. Who needs a fork to think? A thinking philosopher may become hungry (after time t). A hungry philosopher tries to grab the fork to the left and thus becomes hungry philosopher with a left fork. But one fork is not enough: a philosopher starts eating only upon obtaining both forks. The fork to right can be obtained only if it is not being used. After Eating: back to thinking after putting down both forks. 14/43

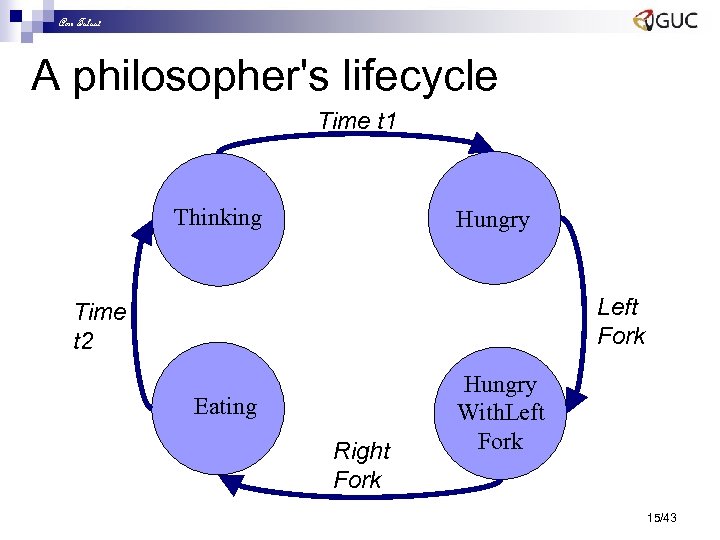

Amr Talaat A philosopher's lifecycle Time t 1 Thinking Hungry Left Fork Time t 2 Eating Right Fork Hungry With. Left Fork 15/43

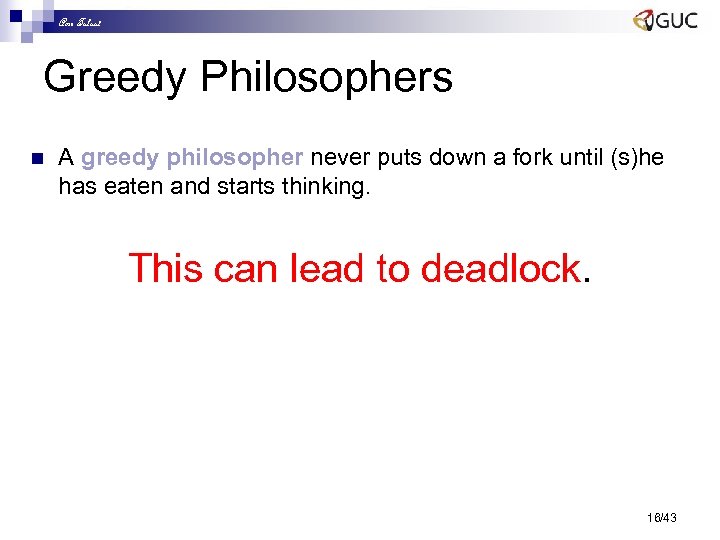

Amr Talaat Greedy Philosophers n A greedy philosopher never puts down a fork until (s)he has eaten and starts thinking. This can lead to deadlock. 16/43

Amr Talaat Generous Philosophers n n n A generous philosopher does not insist on following a successful philosophical life. After picking up the left fork, but finding that the right fork is not available, a generous philosopher drops the left fork and goes back to think some more. So if all philosophers are generous, then there is no deadlock. 17/43

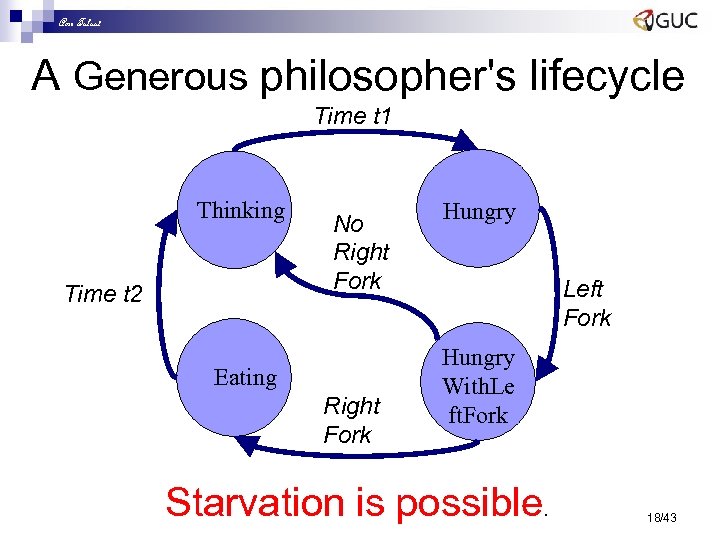

Amr Talaat A Generous philosopher's lifecycle Time t 1 Thinking Time t 2 No Right Fork Eating Right Fork Hungry Left Fork Hungry With. Le ft. Fork Starvation is possible. 18/43

Amr Talaat Dijkstra's Solution n One solution is to order the forks and require the philosophers to pick up the forks in increasing order. ¨ label the philosophers P 1, P 2, P 3, P 4, and P 5 ¨ label the forks F 1, F 2, F 3, F 4, and F 5. ¨ Each philosopher must pick up forks in a prescribed order and cannot pick up a fork another philosopher already has. ¨ Upon acquiring two forks, a philosopher may eat. ¨ Philosophers P 1 through P 4 follow the rule that Px must pick up fork Fx first and then may pick up fork Fx+1. ¨ Philosopher P 5 follows a slightly different rule, picking up fork F 1 before picking up fork F 5. If P 5 followed the same rule as the others, F 5 would come before F 1. This change in behavior for P 5 creates an asymmetry that prevents deadlock. 19/43

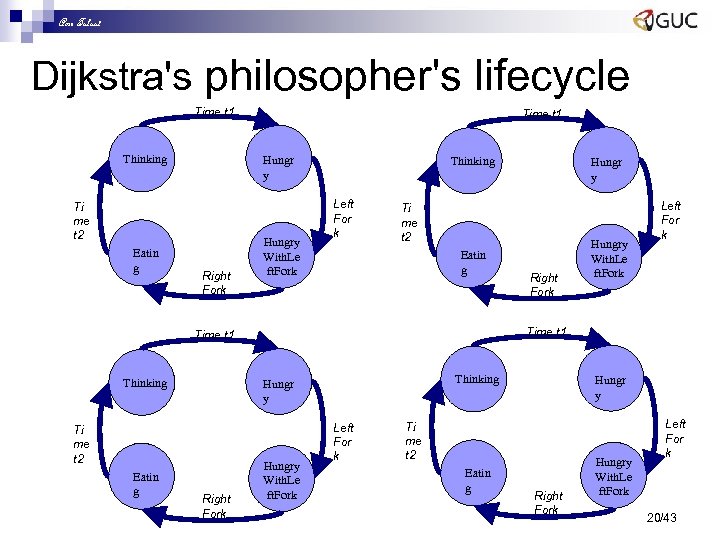

Amr Talaat Dijkstra's philosopher's lifecycle Time t 1 Thinking Hungr y Ti me t 2 Eatin g Time t 1 Right Fork Hungry With. Le ft. Fork Thinking Left For k Ti me t 2 Eatin g Thinking Hungr y Ti me t 2 Right Fork Hungry With. Le ft. Fork Left For k Time t 1 Thinking Hungr y Hungry With. Le ft. Fork Left For k Hungr y Ti me t 2 Eatin g Right Fork Hungry With. Le ft. Fork Left For k 20/43

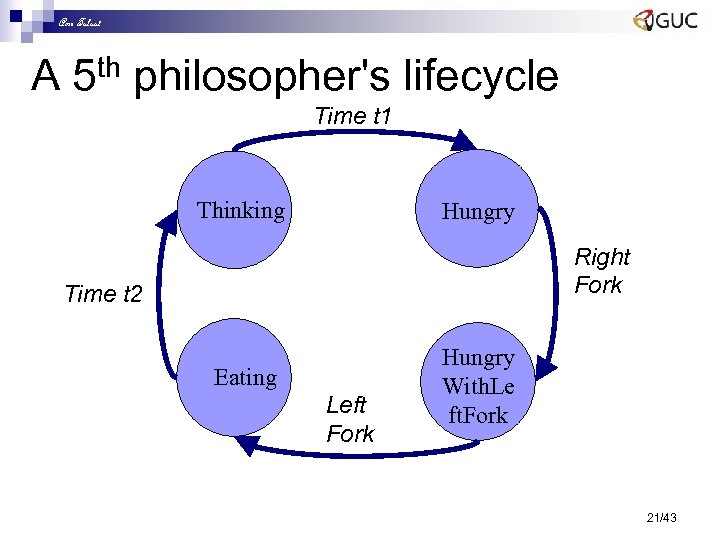

Amr Talaat A 5 th philosopher's lifecycle Time t 1 Thinking Hungry Right Fork Time t 2 Eating Left Fork Hungry With. Le ft. Fork 21/43

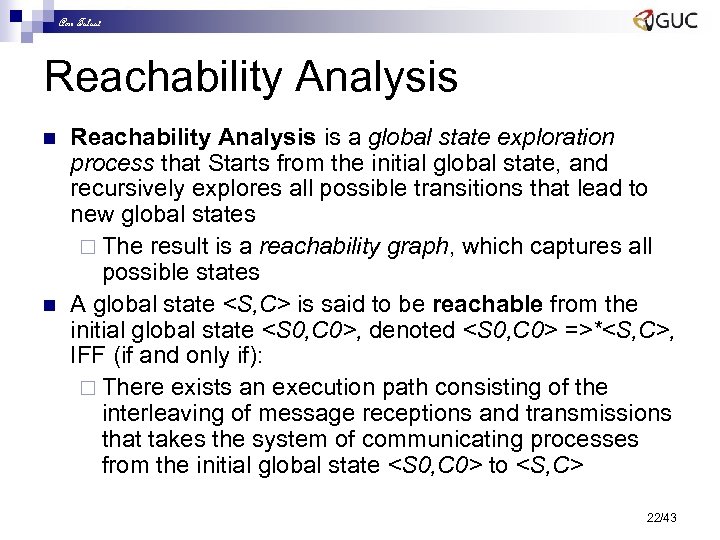

Amr Talaat Reachability Analysis n n Reachability Analysis is a global state exploration process that Starts from the initial global state, and recursively explores all possible transitions that lead to new global states ¨ The result is a reachability graph, which captures all possible states A global state is said to be reachable from the initial global state , denoted =>*, IFF (if and only if): ¨ There exists an execution path consisting of the interleaving of message receptions and transmissions that takes the system of communicating processes from the initial global state to 22/43
