NEO 3000 Substation Bay computer – FRTU - CAU 380

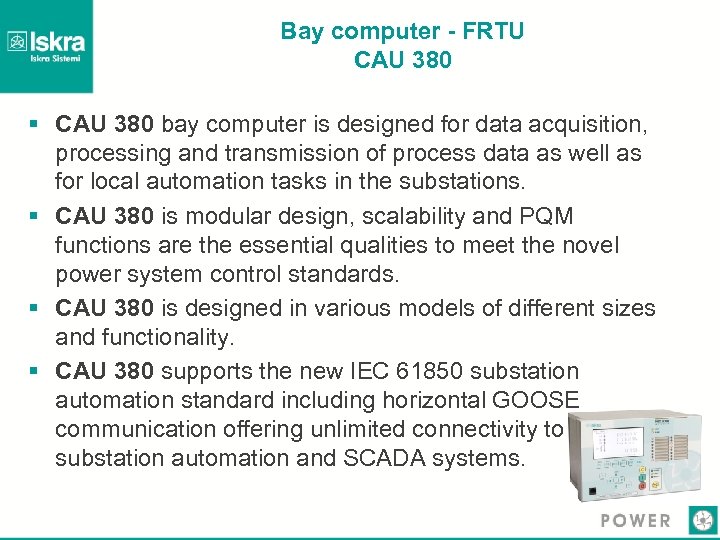

Bay computer - FRTU CAU 380 § CAU 380 bay computer is designed for data acquisition, processing and transmission of process data as well as for local automation tasks in the substations. § CAU 380 is modular design, scalability and PQM functions are the essential qualities to meet the novel power system control standards. § CAU 380 is designed in various models of different sizes and functionality. § CAU 380 supports the new IEC 61850 substation automation standard including horizontal GOOSE communication offering unlimited connectivity to substation automation and SCADA systems.

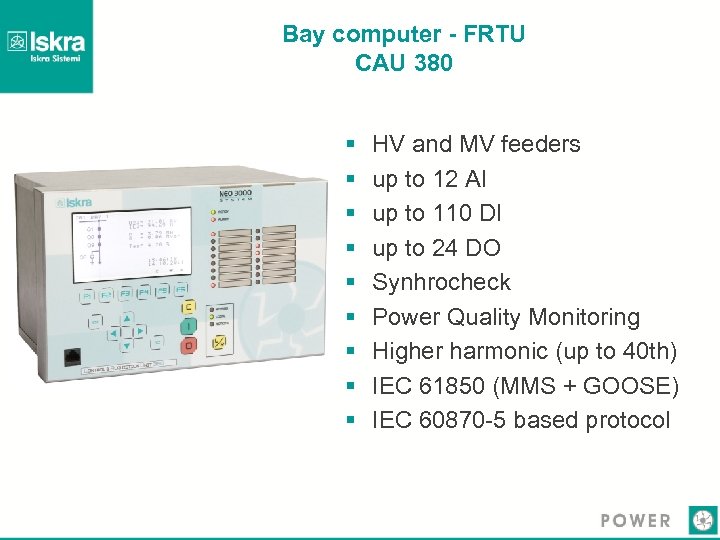

Bay computer - FRTU CAU 380 § § § § § HV and MV feeders up to 12 AI up to 110 DI up to 24 DO Synhrocheck Power Quality Monitoring Higher harmonic (up to 40 th) IEC 61850 (MMS + GOOSE) IEC 60870 -5 based protocol

Bay computer - FRTU CAU 380: Control overview § Internal data acquisition (fault detection operation, other internal signalization) § External data acquisition – up to 44 DI § Power relay outputs – up to 16 DO § Synchro-check (25) – V, deg & Hz § Local and remote setting § Multiple parameter setting groups

Bay computer - FRTU CAU 380: Monitoring and measurements overview § Current, voltage, power, frequency and power factor measurements § Energy metering § Fault recording § Transient disturbance recorder (DREC) § Power Quality Monitoring (THD, sag/swells, harmonics) § Statistical data processing (operation counters of fault detection devices and circuit breakers) § Trip circuit monitoring (TCM) § Self-monitoring

Bay computer - FRTU CAU 380: Local Display Unit overview § Graphic LCD display with single line diagram § Possible to control switching elements § Showing measurements § Local/Remote switch with LED indication § Easy to use navigation keys § Open/Close control keys § Ready LED + 16 programmable LEDs § 6 user definable function keys § Front Ethernet RJ-45 communication port for local connection to device

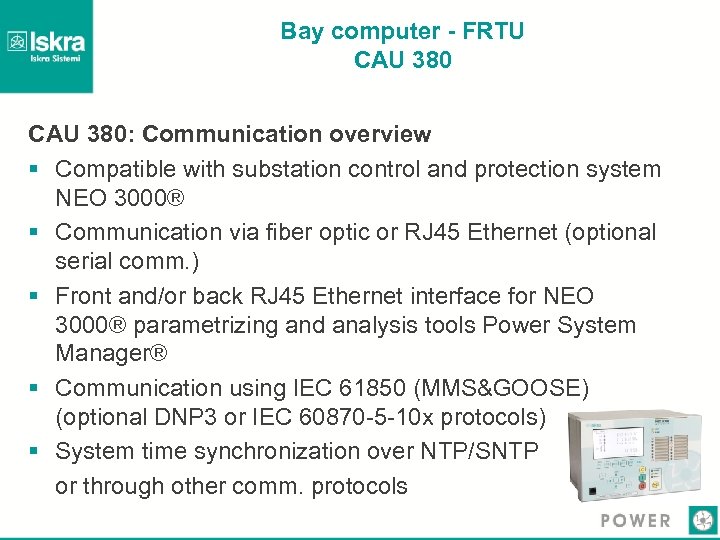

Bay computer - FRTU CAU 380: Communication overview § Compatible with substation control and protection system NEO 3000® § Communication via fiber optic or RJ 45 Ethernet (optional serial comm. ) § Front and/or back RJ 45 Ethernet interface for NEO 3000® parametrizing and analysis tools Power System Manager® § Communication using IEC 61850 (MMS&GOOSE) (optional DNP 3 or IEC 60870 -5 -10 x protocols) § System time synchronization over NTP/SNTP or through other comm. protocols

Bay computer - FRTU CAU 380: Software tool overview § NEO 3000® Power System Manager § Control parameter settings § Functional block configuration § Communicaton configuration § Device diagnostics

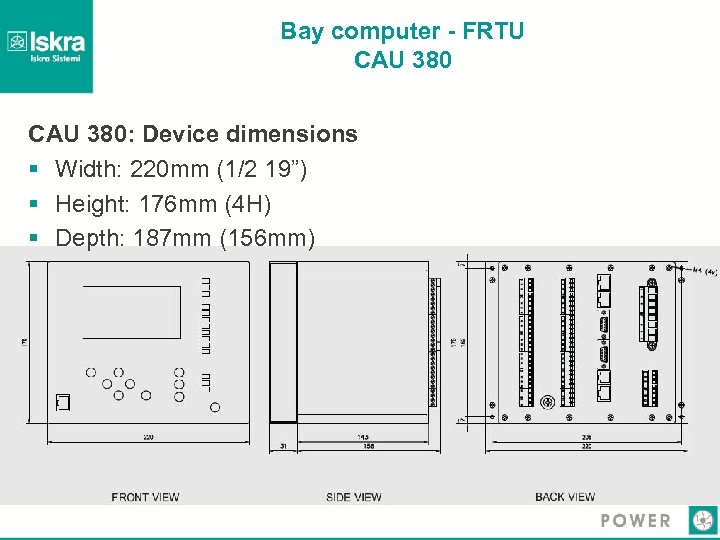

Bay computer - FRTU CAU 380: Device dimensions § Width: 220 mm (1/2 19”) § Height: 176 mm (4 H) § Depth: 187 mm (156 mm)

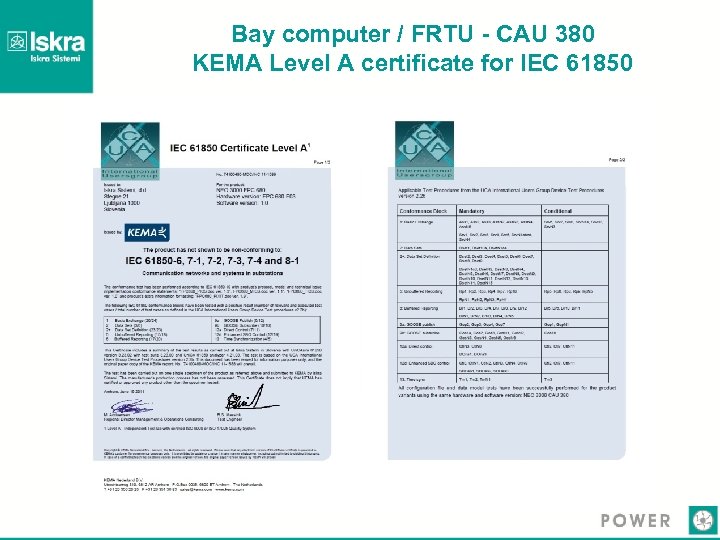

Bay computer / FRTU - CAU 380 KEMA Level A certificate for IEC 61850

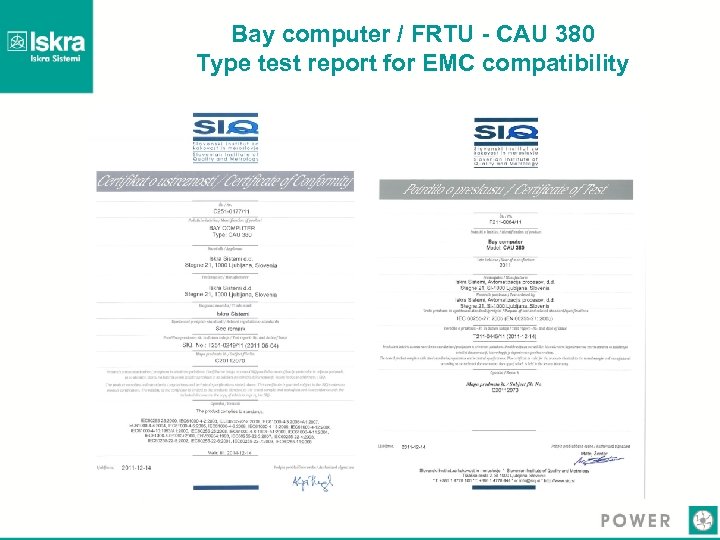

Bay computer / FRTU - CAU 380 Type test report for EMC compatibility

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § SW – software type § C 01 – Control § C 02 – Control with Synchro check § C 03 – Control with Voltage regulator § C 04 – Control with Synchro check and Voltage regulator § C 05 – Control with Fault Current Detection

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § H – Housing layout § Type § L – flush mounting with integrated LDU § N – surface mounting without LDU § D – surface mounting with detachable LDU § Z – surface mounting with integrated LDU

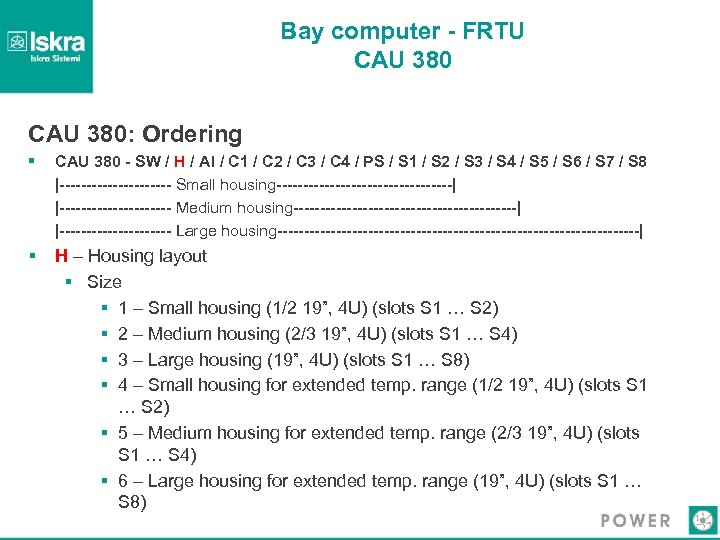

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § H – Housing layout § Size § 1 – Small housing (1/2 19”, 4 U) (slots S 1 … S 2) § 2 – Medium housing (2/3 19”, 4 U) (slots S 1 … S 4) § 3 – Large housing (19”, 4 U) (slots S 1 … S 8) § 4 – Small housing for extended temp. range (1/2 19”, 4 U) (slots S 1 … S 2) § 5 – Medium housing for extended temp. range (2/3 19”, 4 U) (slots S 1 … S 4) § 6 – Large housing for extended temp. range (19”, 4 U) (slots S 1 … S 8)

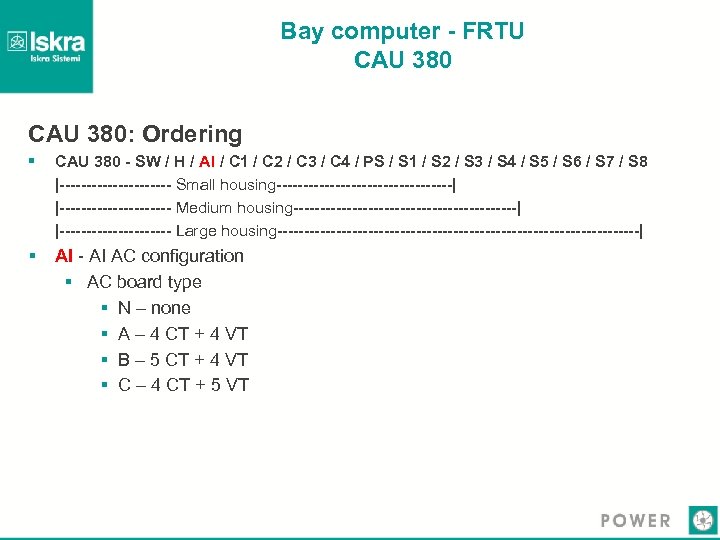

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § AI - AI AC configuration § AC board type § N – none § A – 4 CT + 4 VT § B – 5 CT + 4 VT § C – 4 CT + 5 VT

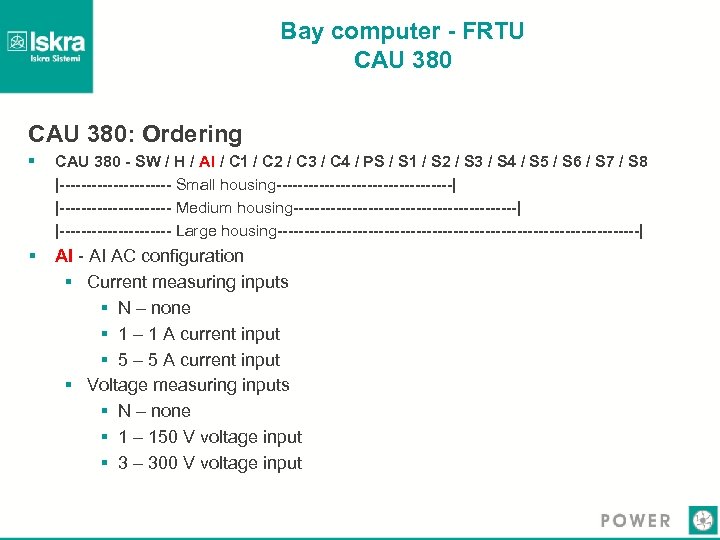

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § AI - AI AC configuration § Current measuring inputs § N – none § 1 – 1 A current input § 5 – 5 A current input § Voltage measuring inputs § N – none § 1 – 150 V voltage input § 3 – 300 V voltage input

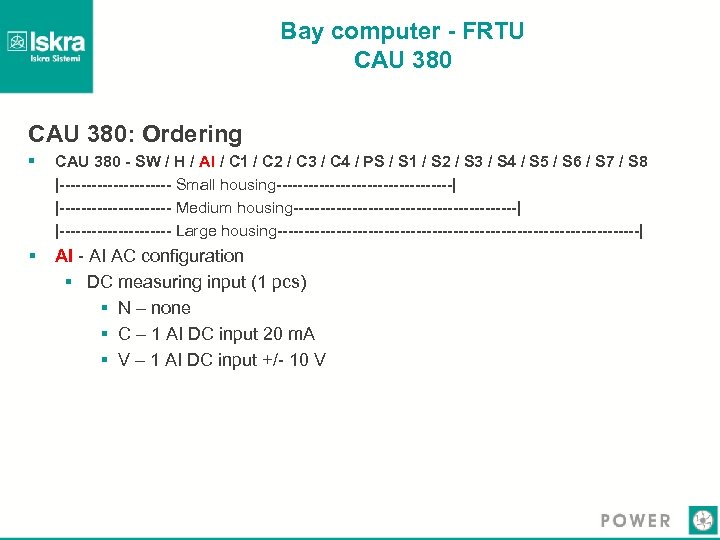

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § AI - AI AC configuration § DC measuring input (1 pcs) § N – none § C – 1 AI DC input 20 m. A § V – 1 AI DC input +/- 10 V

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § C 1, C 2 - Ethernet Communication ports § Connector § N – none (only system) § E – 100 Base. TX (RJ 45) § F – 100 Base. FX (ST Glass F. O. ) § Communication protocol § N – none § G – IEC 61850 MMS with GOOSE § 4 – IEC 60870 -5 -104 § D – DNP 3 (TCP/IP)

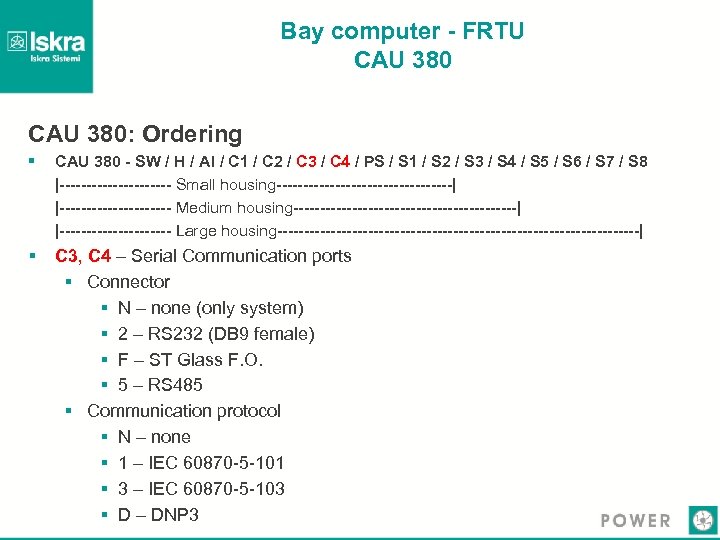

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § C 3, C 4 – Serial Communication ports § Connector § N – none (only system) § 2 – RS 232 (DB 9 female) § F – ST Glass F. O. § 5 – RS 485 § Communication protocol § N – none § 1 – IEC 60870 -5 -101 § 3 – IEC 60870 -5 -103 § D – DNP 3

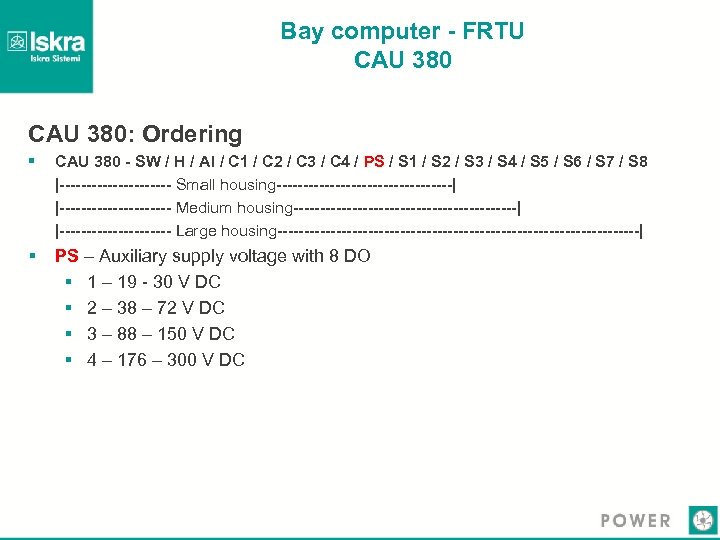

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § PS – Auxiliary supply voltage with 8 DO § 1 – 19 - 30 V DC § 2 – 38 – 72 V DC § 3 – 88 – 150 V DC § 4 – 176 – 300 V DC

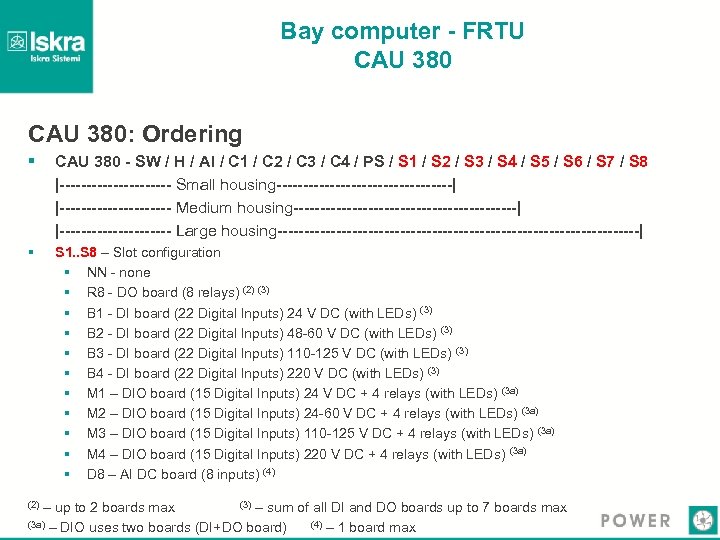

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § S 1. . S 8 – Slot configuration § NN - none § R 8 - DO board (8 relays) (2) (3) § B 1 - DI board (22 Digital Inputs) 24 V DC (with LEDs) (3) § B 2 - DI board (22 Digital Inputs) 48 -60 V DC (with LEDs) (3) § B 3 - DI board (22 Digital Inputs) 110 -125 V DC (with LEDs) (3) § B 4 - DI board (22 Digital Inputs) 220 V DC (with LEDs) (3) § M 1 – DIO board (15 Digital Inputs) 24 V DC + 4 relays (with LEDs) (3 a) § M 2 – DIO board (15 Digital Inputs) 24 -60 V DC + 4 relays (with LEDs) (3 a) § M 3 – DIO board (15 Digital Inputs) 110 -125 V DC + 4 relays (with LEDs) (3 a) § M 4 – DIO board (15 Digital Inputs) 220 V DC + 4 relays (with LEDs) (3 a) § D 8 – AI DC board (8 inputs) (4) (3) – sum of all DI and DO boards up to 7 boards max – up to 2 boards max (3 a) – DIO uses two boards (DI+DO board) (4) – 1 board max (2)

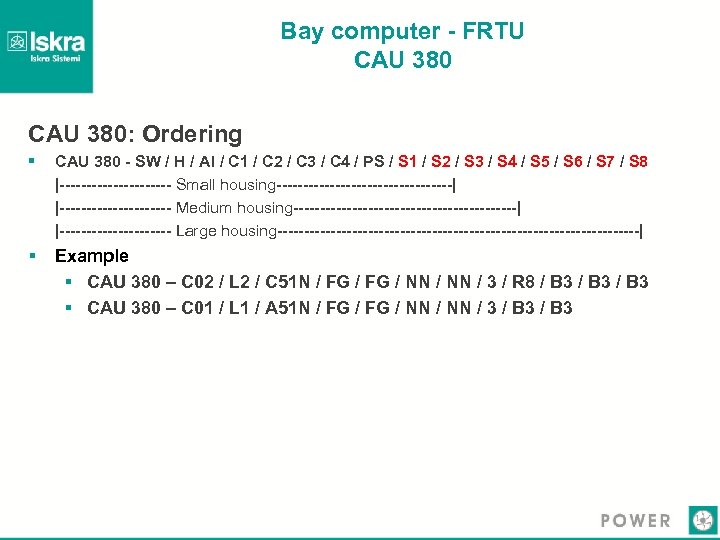

Bay computer - FRTU CAU 380: Ordering § CAU 380 - SW / H / AI / C 1 / C 2 / C 3 / C 4 / PS / S 1 / S 2 / S 3 / S 4 / S 5 / S 6 / S 7 / S 8 |----------- Small housing-----------------| |----------- Medium housing---------------------| |----------- Large housing----------------------------------| § Example § CAU 380 – C 02 / L 2 / C 51 N / FG / NN / 3 / R 8 / B 3 § CAU 380 – C 01 / L 1 / A 51 N / FG / NN / 3 / B 3
