Navigation Spring 2008 Naval ROTC Unit The Citadel

Navigation Spring 2008 Naval ROTC Unit The Citadel

Marine Navigation Textbooks/References http: //www. uscg. mil/vtm/pages/rules. htm http: //164. 214. 12. 145/pubs/

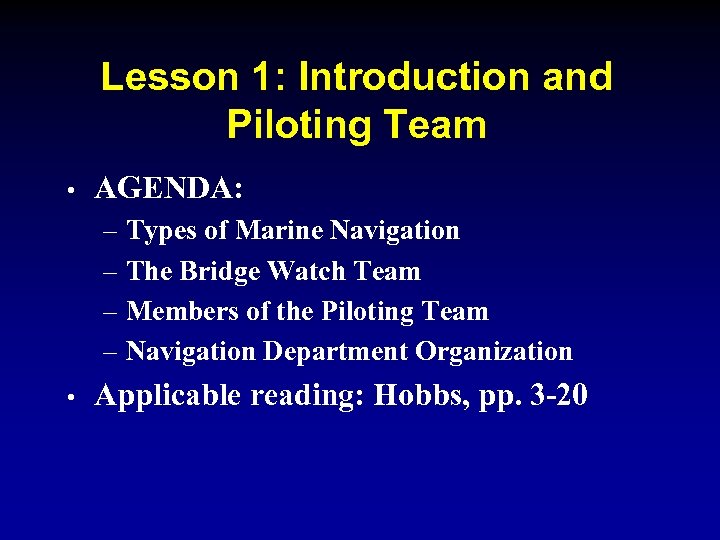

Lesson 1: Introduction and Piloting Team • AGENDA: – Types of Marine Navigation – The Bridge Watch Team – Members of the Piloting Team – Navigation Department Organization • Applicable reading: Hobbs, pp. 3 -20

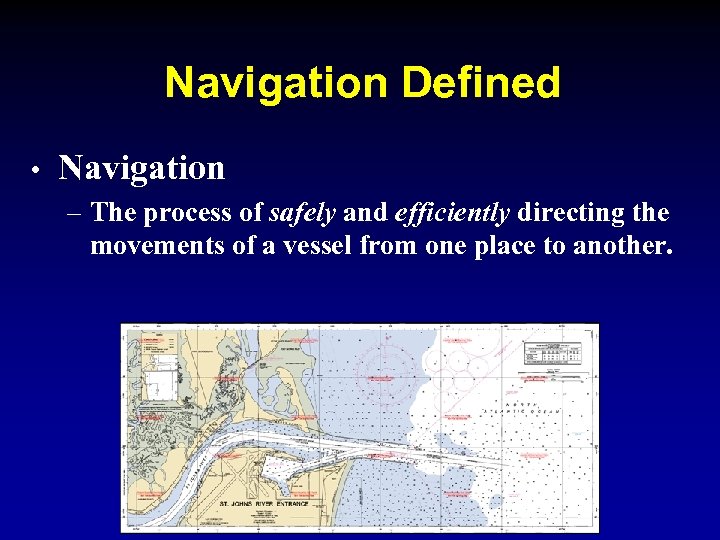

Navigation Defined • Navigation – The process of safely and efficiently directing the movements of a vessel from one place to another.

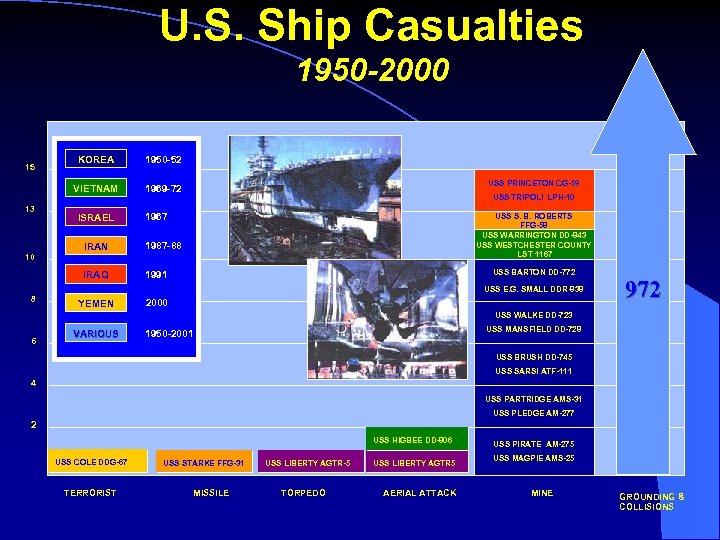

U. S. Ship Casualties 1950 -2000 13 KOREA 1950 -52 VIETNAM 15 1969 -72 ISRAEL USS TRIPOLI LPH-10 1967 IRAN USS S. B. ROBERTS FFG-58 USS WARRINGTON DD-843 USS WESTCHESTER COUNTY LST 1167 1987 -88 IRAQ 10 USS PRINCETON CG-59 1991 USS BARTON DD-772 USS E. G. SMALL DDR-838 8 YEMEN 2000 972 USS WALKE DD-723 6 VARIOUS USS MANSFIELD DD-728 1950 -2001 USS BRUSH DD-745 USS SARSI ATF-111 4 USS PARTRIDGE AMS-31 USS PLEDGE AM-277 2 USS HIGBEE DD-806 USS COLE DDG-67 TERRORIST USS STARKE FFG-31 MISSILE USS LIBERTY AGTR-5 TORPEDO USS LIBERTY AGTR 5 AERIAL ATTACK USS PIRATE AM-275 USS MAGPIE AMS-25 MINE GROUNDING & COLLISIONS

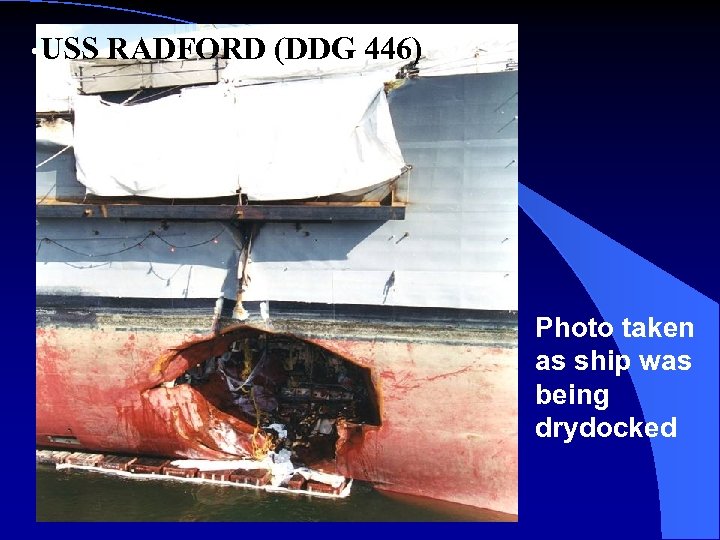

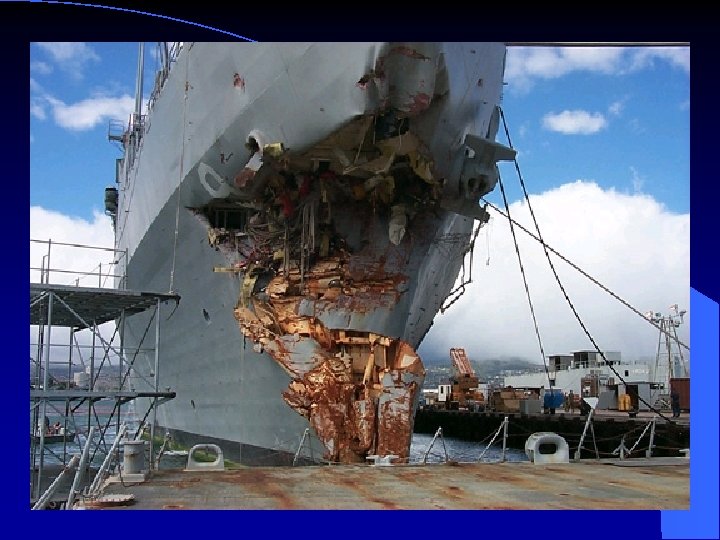

• USS RADFORD (DDG 446) Photo taken as ship was being drydocked

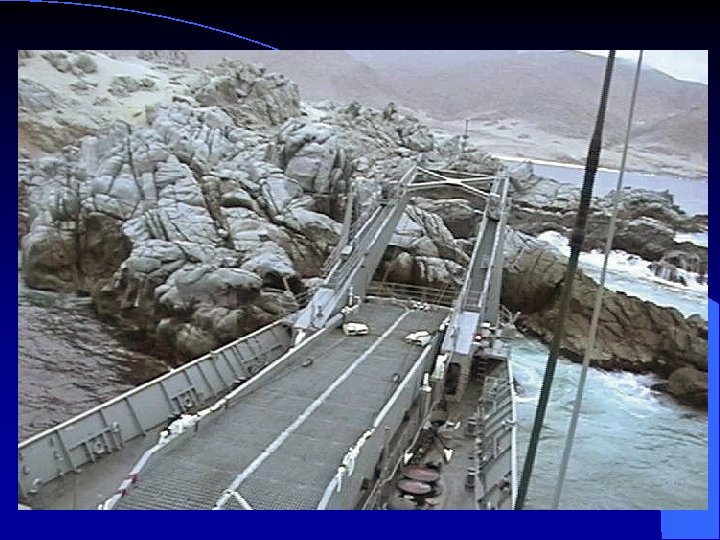

• USS LAMOURE COUNTY (LST 1194)

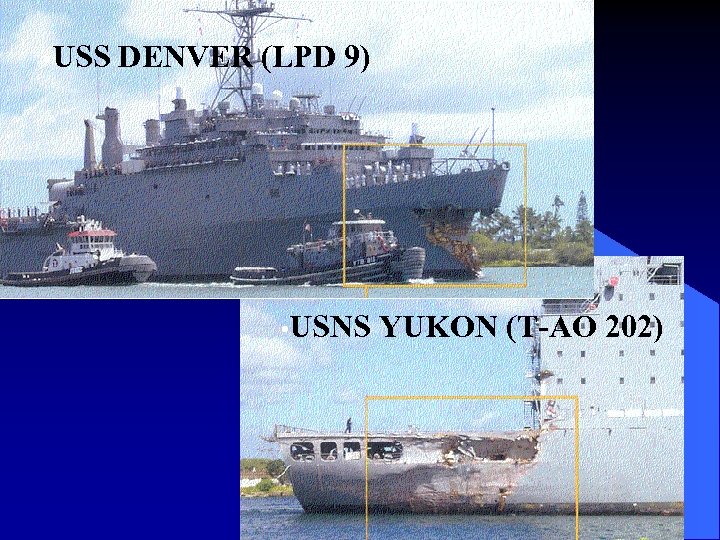

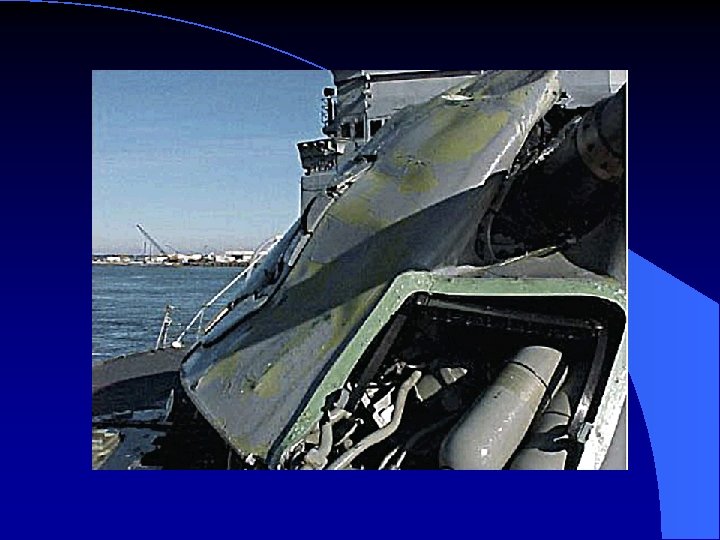

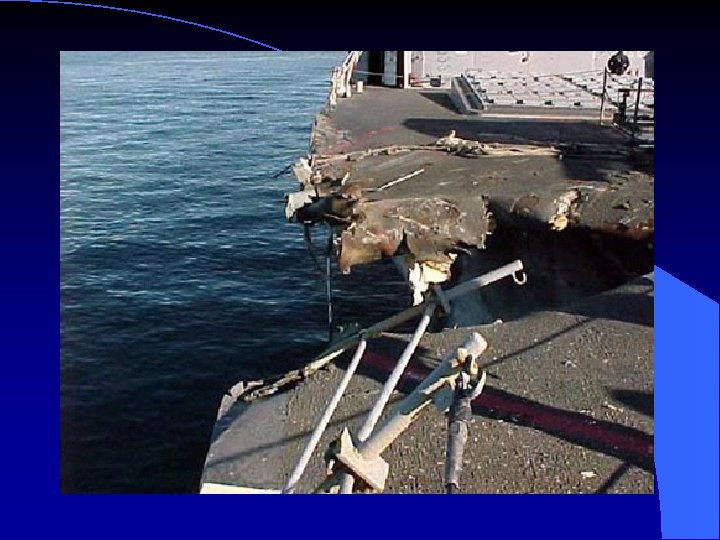

• USS DENVER (LPD 9) • USNS YUKON (T-AO 202)

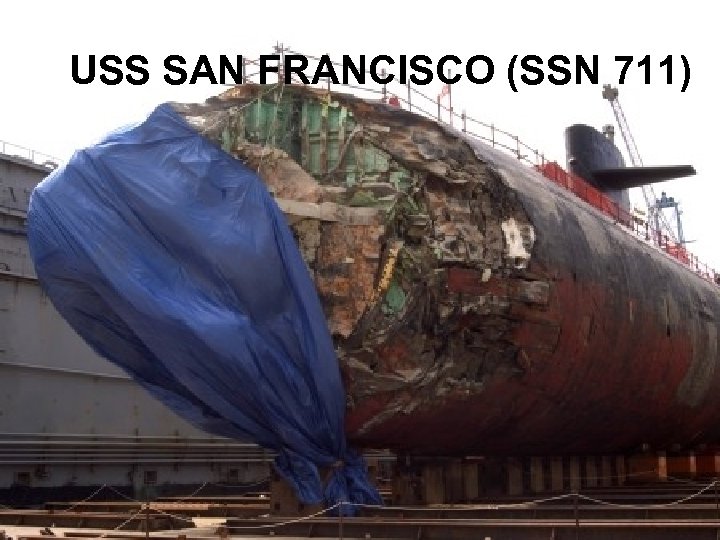

USS SAN FRANCISCO (SSN 711)

Types of Navigation • • • Coastal Piloting Dead Reckoning Celestial Navigation Radio Navigation Electronic Navigation

The Bridge Team (Normal, underway watch) • • Officer of the Deck (OOD) Conning Officer (CONN) Junior Officer of the Deck (JOOD) Quartermaster of the Watch (QMOW) Boatswain’s Mate of the Watch (BMOW) Lookouts Helmsman

The Piloting Team (Navigation Detail Stationed) Bridge (Piloting) OOD Conning CO Officer Chart Table Navigator Bridge Plotter. Bearing Recorder Bearing Taker • Navigator • Plotter • Brg Recorder • Bearing Taker CIC (Rad. Nav) Radar Operator Chart Table Plotter Piloting Officer • Radar Operator • BRG Recorder • Plotter

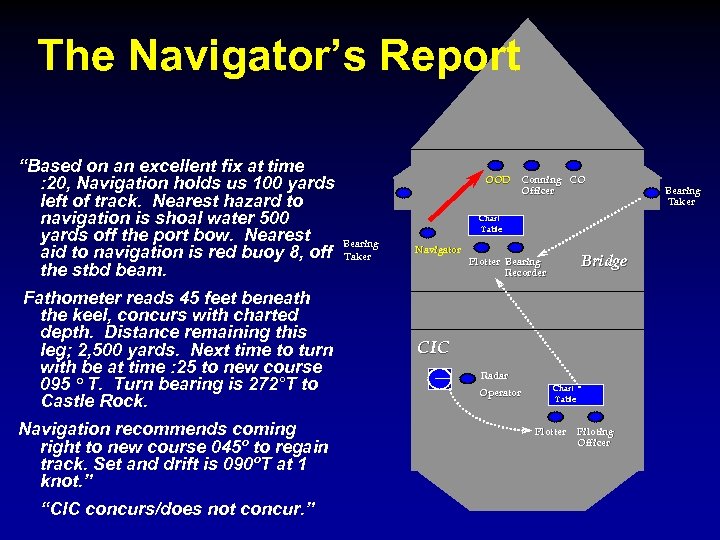

The Navigator’s Report “Based on an excellent fix at time : 20, Navigation holds us 100 yards left of track. Nearest hazard to navigation is shoal water 500 yards off the port bow. Nearest aid to navigation is red buoy 8, off the stbd beam. Fathometer reads 45 feet beneath the keel, concurs with charted depth. Distance remaining this leg; 2, 500 yards. Next time to turn with be at time : 25 to new course 095 ° T. Turn bearing is 272°T to Castle Rock. Navigation recommends coming right to new course 045º to regain track. Set and drift is 090ºT at 1 knot. ” “CIC concurs/does not concur. ” OOD Conning CO Officer Chart Table Bearing Taker Navigator Bridge Plotter Bearing Recorder CIC Radar Operator Chart Table Plotter Piloting Officer Bearing Taker

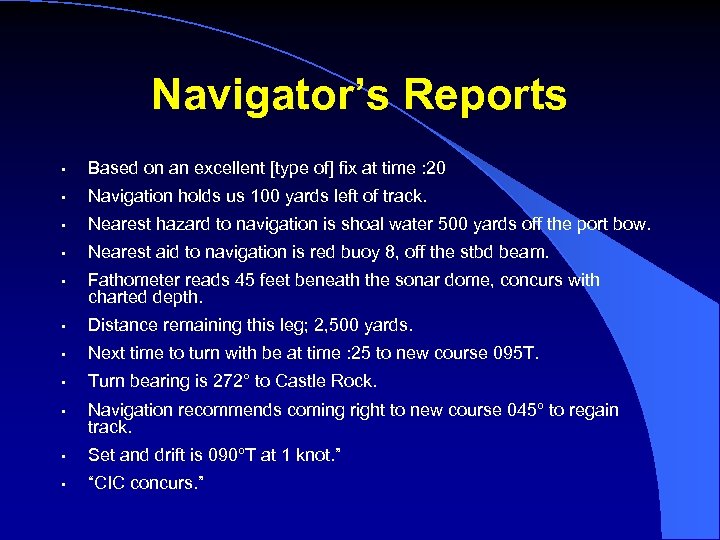

Navigator’s Reports • Based on an excellent [type of] fix at time : 20 • Navigation holds us 100 yards left of track. • Nearest hazard to navigation is shoal water 500 yards off the port bow. • Nearest aid to navigation is red buoy 8, off the stbd beam. • Fathometer reads 45 feet beneath the sonar dome, concurs with charted depth. • Distance remaining this leg; 2, 500 yards. • Next time to turn with be at time : 25 to new course 095 T. • Turn bearing is 272° to Castle Rock. • Navigation recommends coming right to new course 045º to regain track. • Set and drift is 090ºT at 1 knot. ” • “CIC concurs. ”

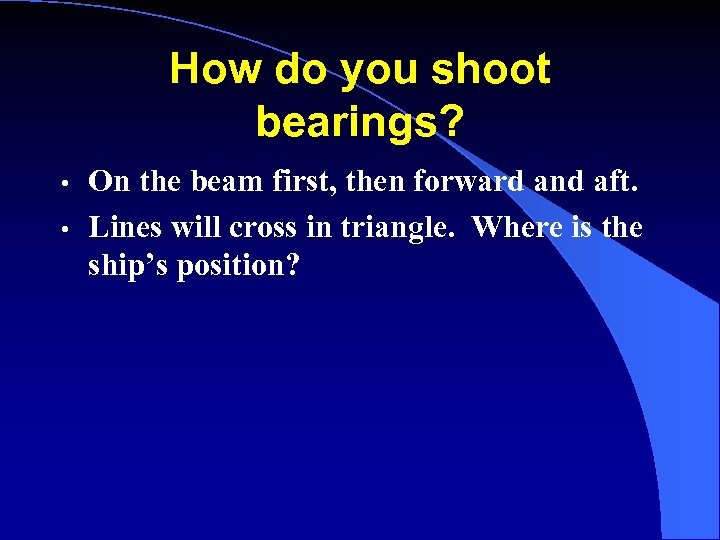

How do you shoot bearings? • • On the beam first, then forward and aft. Lines will cross in triangle. Where is the ship’s position?

Cardinal Rule • “No single source of information should be relied upon to the exclusion of others”

Fix intervals • • Water depth constraints Current Bottom contour Weather Navigational hazards Speed Simply put, how quickly you can get into trouble!

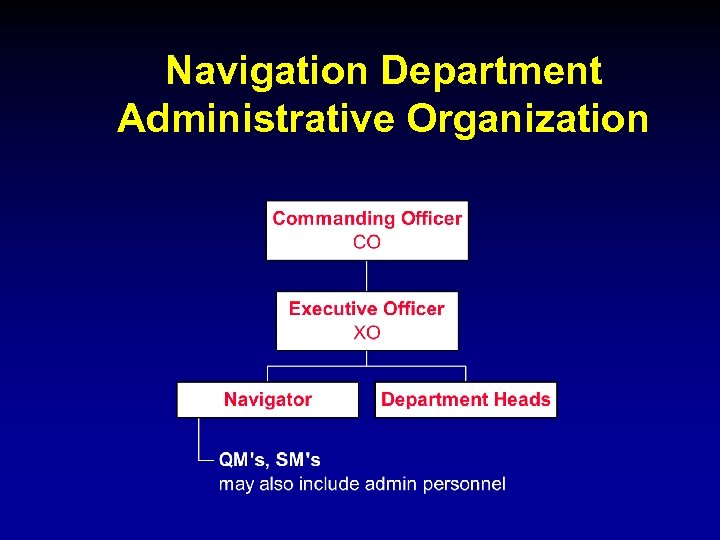

Navigation Department Administrative Organization

Navigation Department Operational Organization

Review • • How are bearing shot (order) Who must acknowledge the Navigator’s report?

Q U E S T I O N S ?
