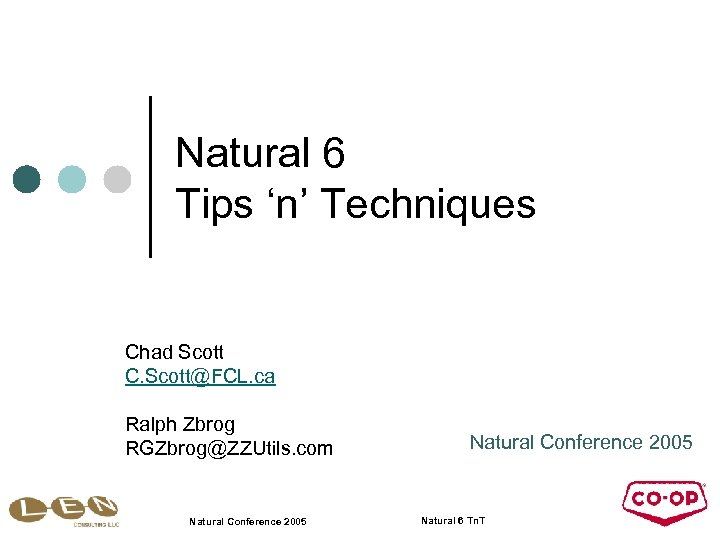

Natural 6 Tips ‘n’ Techniques Chad Scott C. Scott@FCL. ca Ralph Zbrog RGZbrog@ZZUtils. com Natural Conference 2005 Natural 6 Tn. T

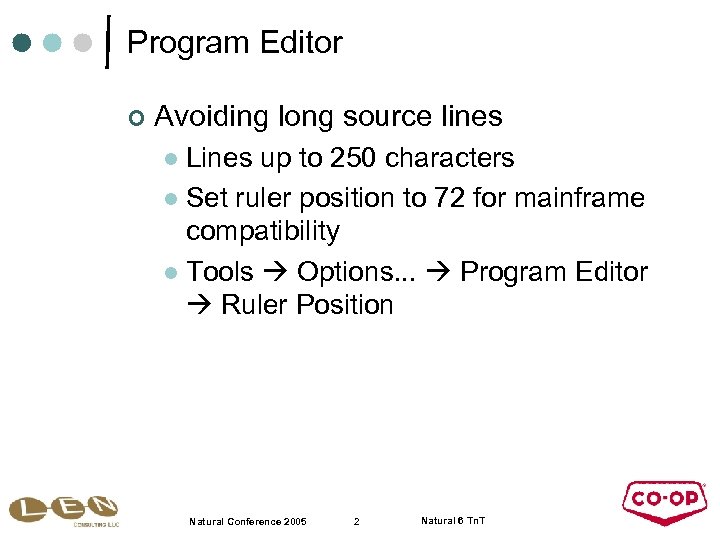

Program Editor ¢ Avoiding long source lines Lines up to 250 characters l Set ruler position to 72 for mainframe compatibility l Tools Options. . . Program Editor Ruler Position l Natural Conference 2005 2 Natural 6 Tn. T

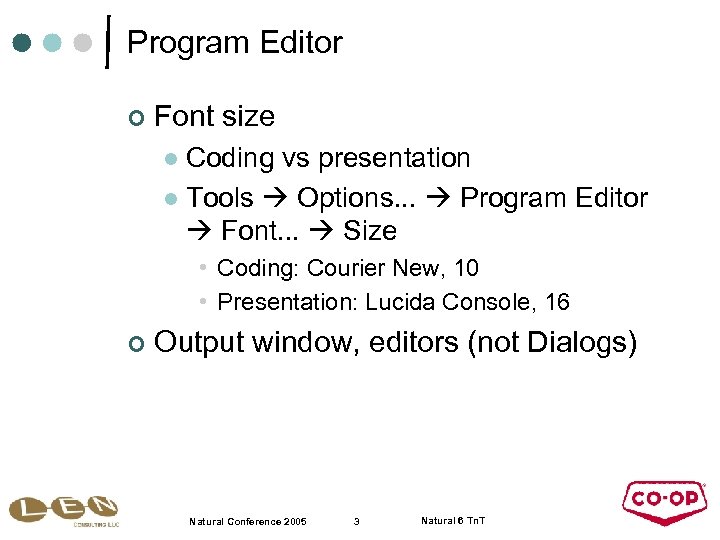

Program Editor ¢ Font size Coding vs presentation l Tools Options. . . Program Editor Font. . . Size l • Coding: Courier New, 10 • Presentation: Lucida Console, 16 ¢ Output window, editors (not Dialogs) Natural Conference 2005 3 Natural 6 Tn. T

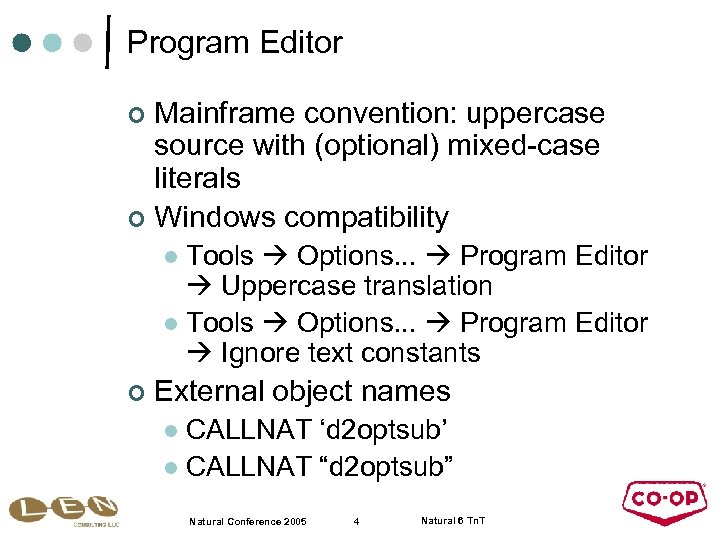

Program Editor Mainframe convention: uppercase source with (optional) mixed-case literals ¢ Windows compatibility ¢ Tools Options. . . Program Editor Uppercase translation l Tools Options. . . Program Editor Ignore text constants l ¢ External object names CALLNAT ‘d 2 optsub’ l CALLNAT “d 2 optsub” l Natural Conference 2005 4 Natural 6 Tn. T

Program Editor ¢ List or edit external object via context menu Left-click object name ctrl-o l Right-click object name Open l Right-click object name List l Natural Conference 2005 5 Natural 6 Tn. T

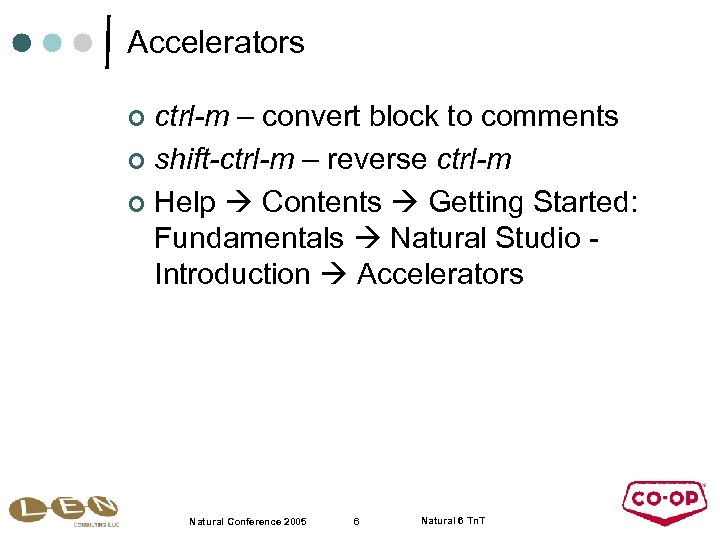

Accelerators ctrl-m – convert block to comments ¢ shift-ctrl-m – reverse ctrl-m ¢ Help Contents Getting Started: Fundamentals Natural Studio Introduction Accelerators ¢ Natural Conference 2005 6 Natural 6 Tn. T

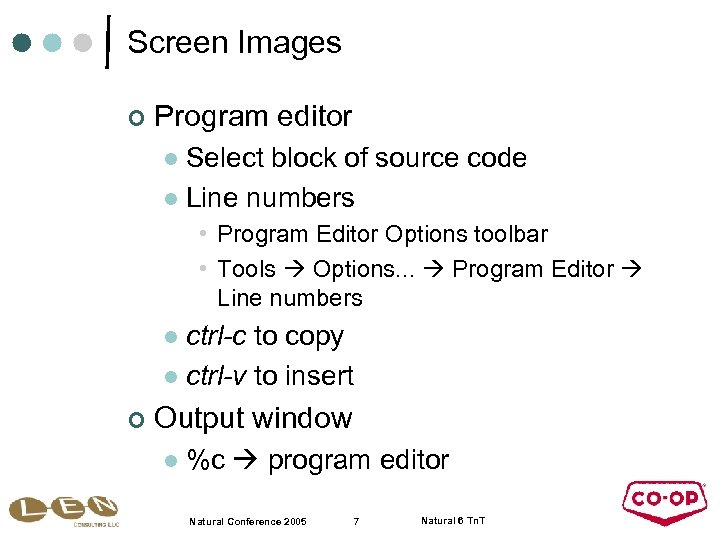

Screen Images ¢ Program editor Select block of source code l Line numbers l • Program Editor Options toolbar • Tools Options. . . Program Editor Line numbers ctrl-c to copy l ctrl-v to insert l ¢ Output window l %c program editor Natural Conference 2005 7 Natural 6 Tn. T

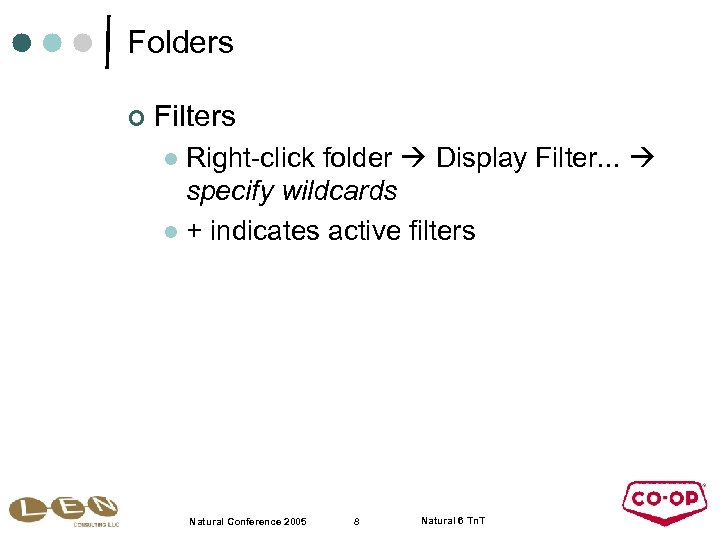

Folders ¢ Filters Right-click folder Display Filter. . . specify wildcards l + indicates active filters l Natural Conference 2005 8 Natural 6 Tn. T

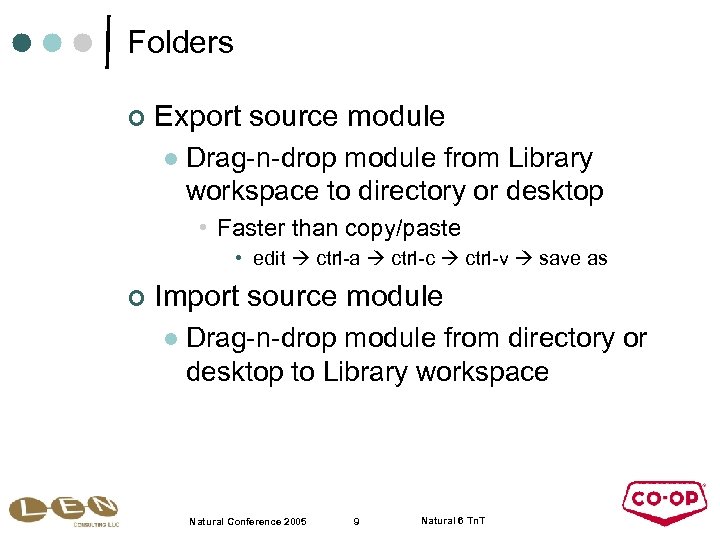

Folders ¢ Export source module l Drag-n-drop module from Library workspace to directory or desktop • Faster than copy/paste • edit ctrl-a ctrl-c ctrl-v save as ¢ Import source module l Drag-n-drop module from directory or desktop to Library workspace Natural Conference 2005 9 Natural 6 Tn. T

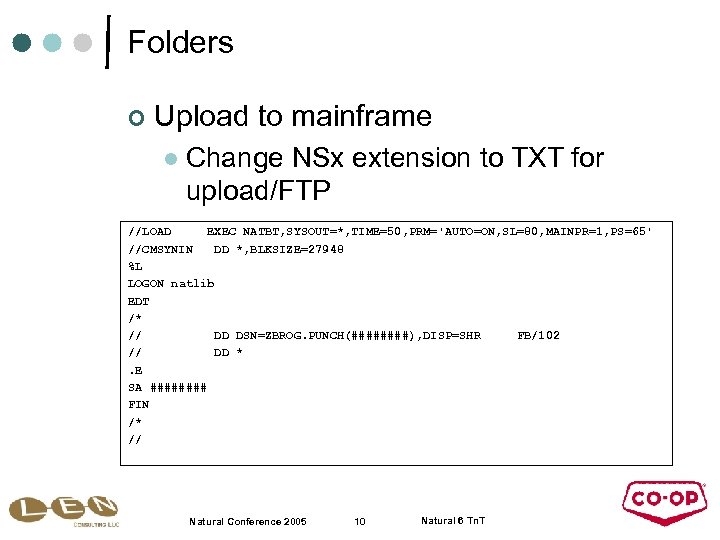

Folders ¢ Upload to mainframe l Change NSx extension to TXT for upload/FTP //LOAD EXEC NATBT, SYSOUT=*, TIME=50, PRM='AUTO=ON, SL=80, MAINPR=1, PS=65' //CMSYNIN DD *, BLKSIZE=27948 %L LOGON natlib EDT /* // DD DSN=ZBROG. PUNCH(####), DISP=SHR FB/102 // DD *. E SA #### FIN /* // Natural Conference 2005 10 Natural 6 Tn. T

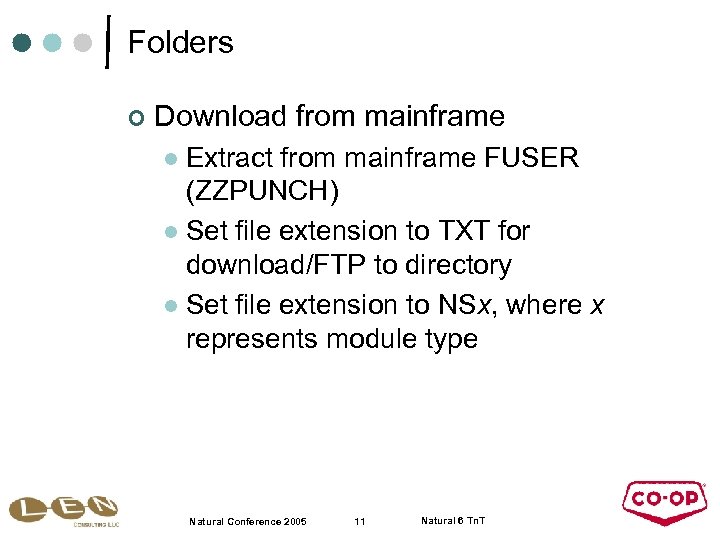

Folders ¢ Download from mainframe Extract from mainframe FUSER (ZZPUNCH) l Set file extension to TXT for download/FTP to directory l Set file extension to NSx, where x represents module type l Natural Conference 2005 11 Natural 6 Tn. T

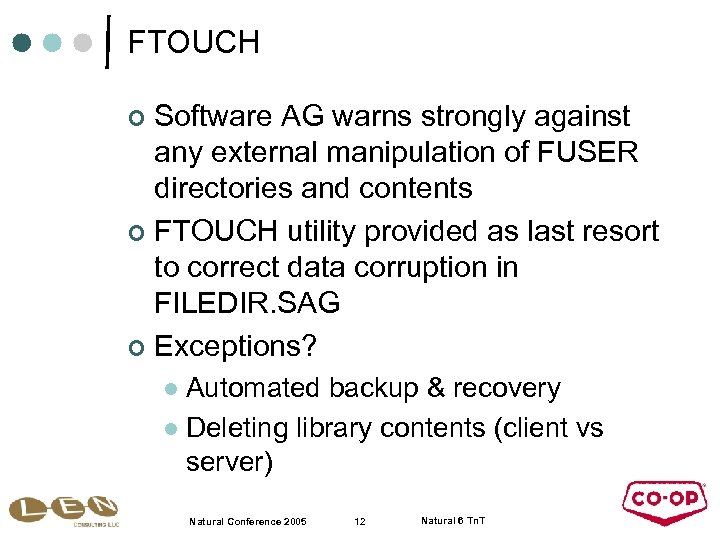

FTOUCH Software AG warns strongly against any external manipulation of FUSER directories and contents ¢ FTOUCH utility provided as last resort to correct data corruption in FILEDIR. SAG ¢ Exceptions? ¢ Automated backup & recovery l Deleting library contents (client vs server) l Natural Conference 2005 12 Natural 6 Tn. T

Backup Directory ¢ Directory name template l Configuration Utility Natural Parameter Files NATPARM Natural Execution Configuration Workfiles 1 C: Documents and Settings. . . Nat. Backupnat 05 mmdd. sag l Simply overtype mmdd Natural Conference 2005 13 Natural 6 Tn. T

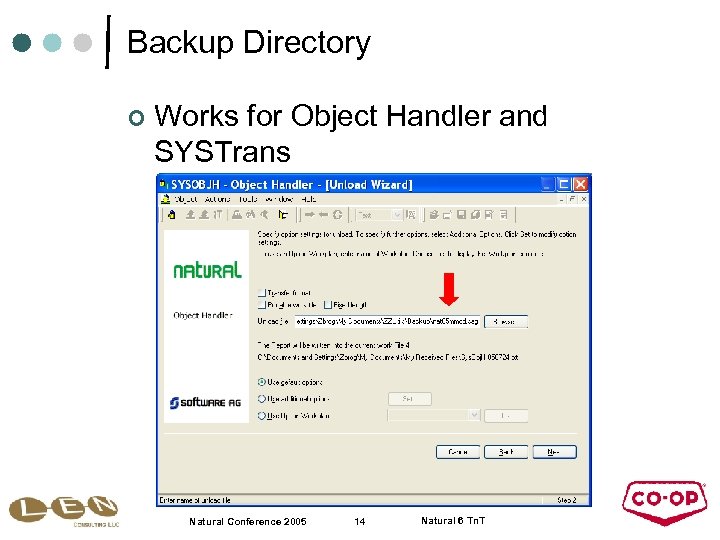

Backup Directory ¢ Works for Object Handler and SYSTrans Natural Conference 2005 14 Natural 6 Tn. T

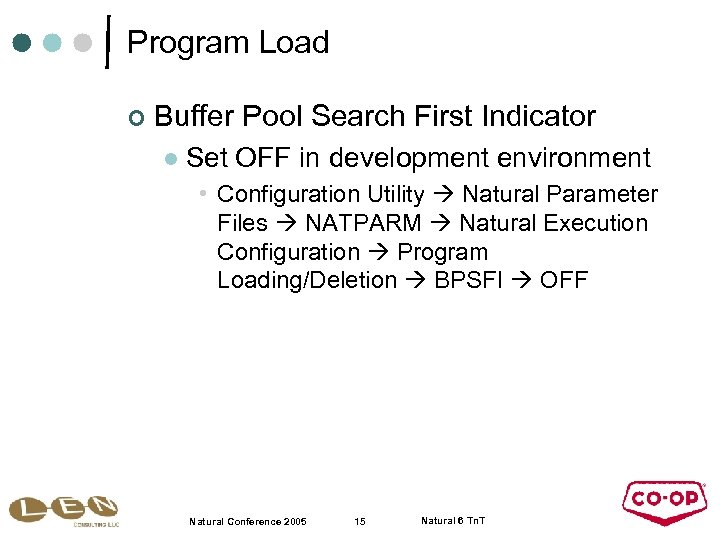

Program Load ¢ Buffer Pool Search First Indicator l Set OFF in development environment • Configuration Utility Natural Parameter Files NATPARM Natural Execution Configuration Program Loading/Deletion BPSFI OFF Natural Conference 2005 15 Natural 6 Tn. T

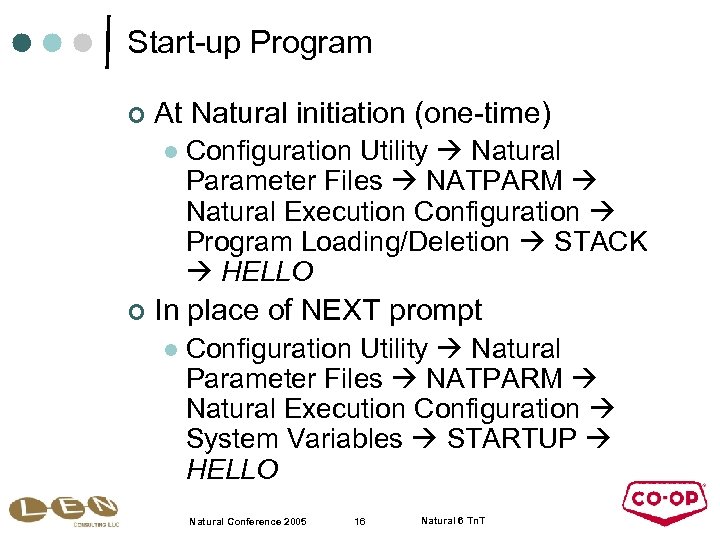

Start-up Program ¢ At Natural initiation (one-time) l ¢ Configuration Utility Natural Parameter Files NATPARM Natural Execution Configuration Program Loading/Deletion STACK HELLO In place of NEXT prompt l Configuration Utility Natural Parameter Files NATPARM Natural Execution Configuration System Variables STARTUP HELLO Natural Conference 2005 16 Natural 6 Tn. T

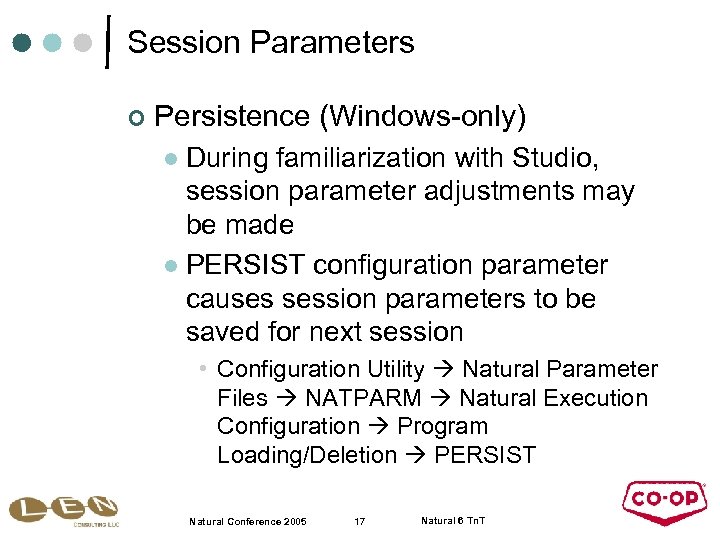

Session Parameters ¢ Persistence (Windows-only) During familiarization with Studio, session parameter adjustments may be made l PERSIST configuration parameter causes session parameters to be saved for next session l • Configuration Utility Natural Parameter Files NATPARM Natural Execution Configuration Program Loading/Deletion PERSIST Natural Conference 2005 17 Natural 6 Tn. T

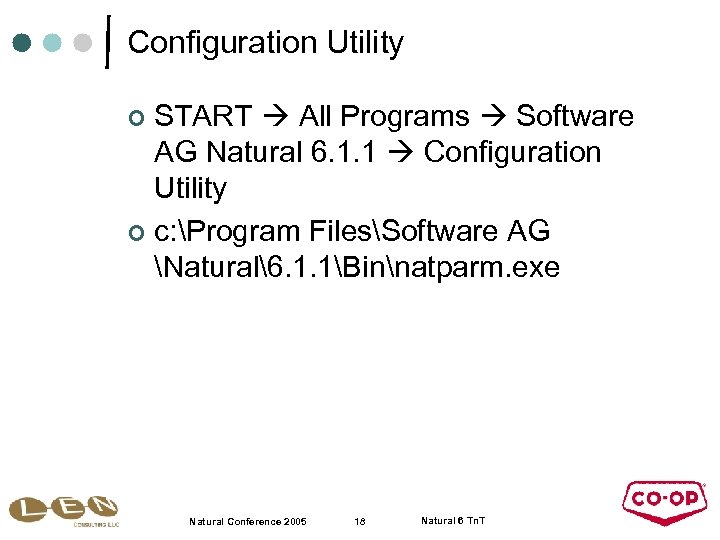

Configuration Utility START All Programs Software AG Natural 6. 1. 1 Configuration Utility ¢ c: Program FilesSoftware AG Natural6. 1. 1Binnatparm. exe ¢ Natural Conference 2005 18 Natural 6 Tn. T

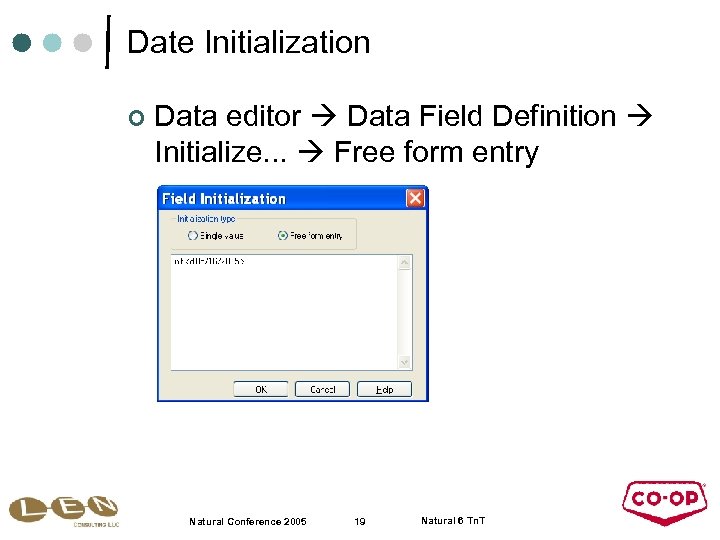

Date Initialization ¢ Data editor Data Field Definition Initialize. . . Free form entry Natural Conference 2005 19 Natural 6 Tn. T

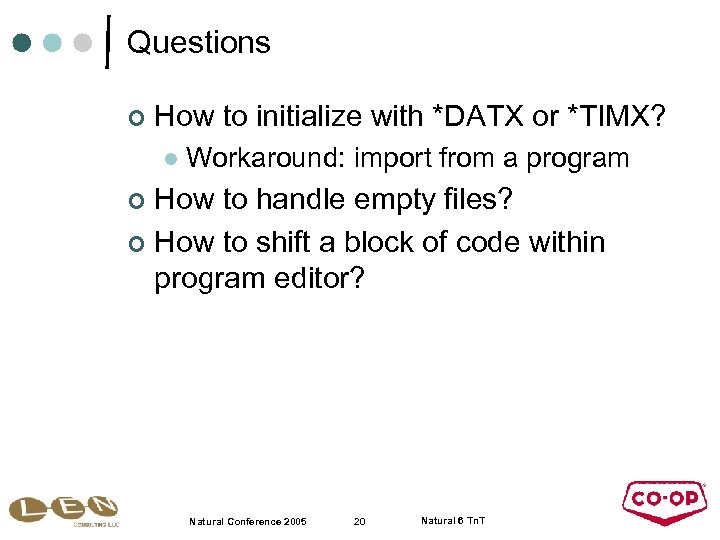

Questions ¢ How to initialize with *DATX or *TIMX? l Workaround: import from a program How to handle empty files? ¢ How to shift a block of code within program editor? ¢ Natural Conference 2005 20 Natural 6 Tn. T

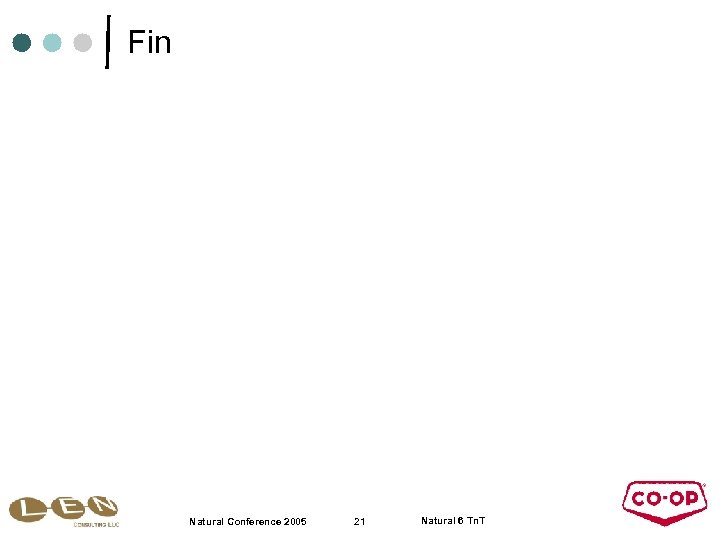

Fin Natural Conference 2005 21 Natural 6 Tn. T
