NATO 3 CStaff/ISB PROTECTION OF NATO INFORMATION AND NATO CIS Col. Augusto DEL PISTOIA NHQC 3 S INFOSEC Branch Chief +32 2 707 5534 infosec@hq. nato. int

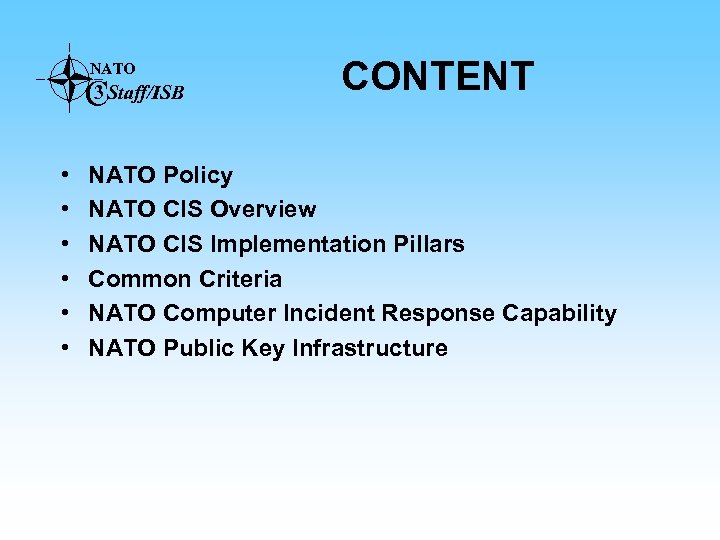

NATO C 3 Staff/ISB • • • CONTENT NATO Policy NATO CIS Overview NATO CIS Implementation Pillars Common Criteria NATO Computer Incident Response Capability NATO Public Key Infrastructure

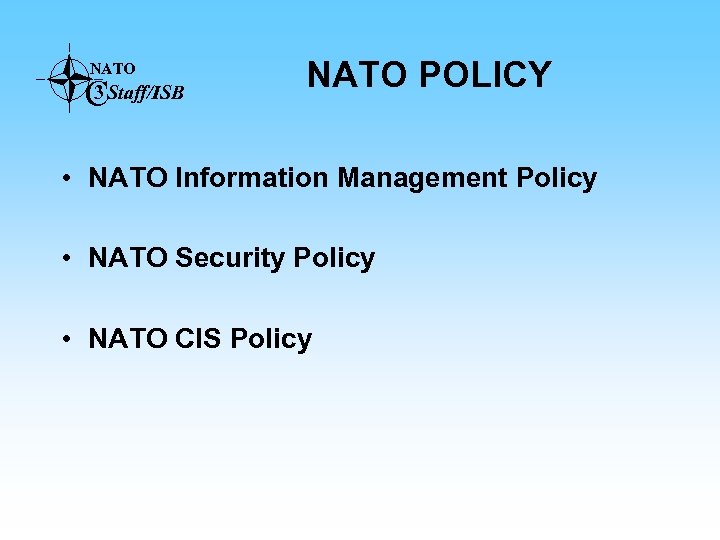

NATO C 3 Staff/ISB NATO POLICY • NATO Information Management Policy • NATO Security Policy • NATO CIS Policy

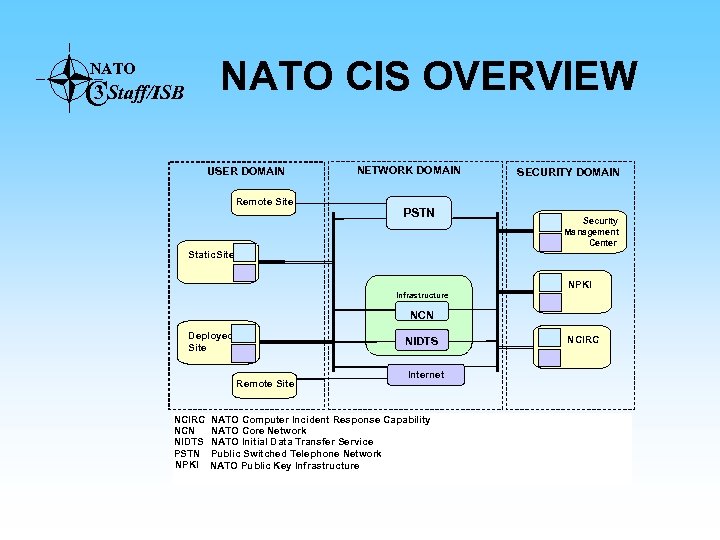

NATO CIS OVERVIEW NATO C 3 Staff/ISB USER DOMAIN Remote Site NETWORK DOMAIN PSTN SECURITY DOMAIN Security Management Center Static. Site NPKI Infrastructure NCN Deployed Site NIDTS Remote Site NCIRC NCN NIDTS PSTN NPKI Internet NATO Computer Incident Response Capability NATO Core Network NATO Initial Data Transfer Service Public Switched Telephone Network NATO Public Key Infrastructure NCIRC

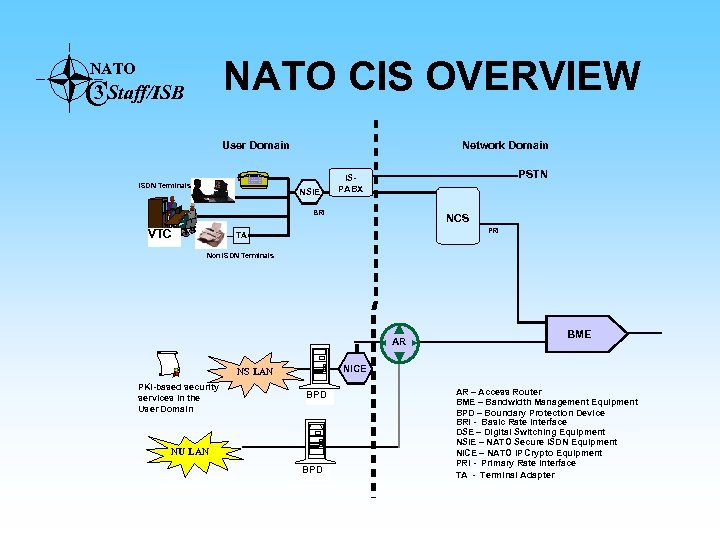

NATO CIS OVERVIEW NATO C 3 Staff/ISB User Domain ISDN Terminals Network Domain NSIE PSTN ISPABX BRI VTC NCS PRI TA Non ISDN Terminals AR NICE NS LAN PKI-based security services in the User Domain BME BPD NU LAN BPD AR – Access Router BME – Bandwidth Management Equipment BPD – Boundary Protection Device BRI - Basic Rate Interface DSE – Digital Switching Equipment NSIE – NATO Secure ISDN Equipment NICE – NATO IP Crypto Equipment PRI - Primary Rate Interface TA - Terminal Adapter

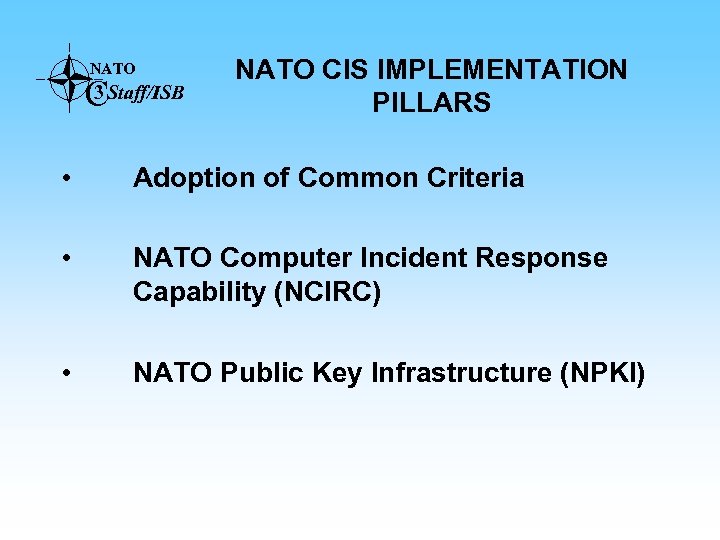

NATO 3 CStaff/ISB NATO CIS IMPLEMENTATION PILLARS • Adoption of Common Criteria • NATO Computer Incident Response Capability (NCIRC) • NATO Public Key Infrastructure (NPKI)

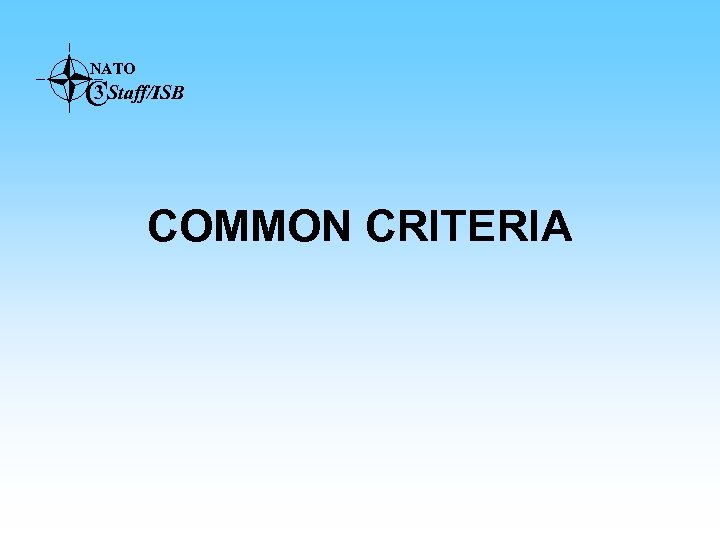

NATO 3 CStaff/ISB COMMON CRITERIA

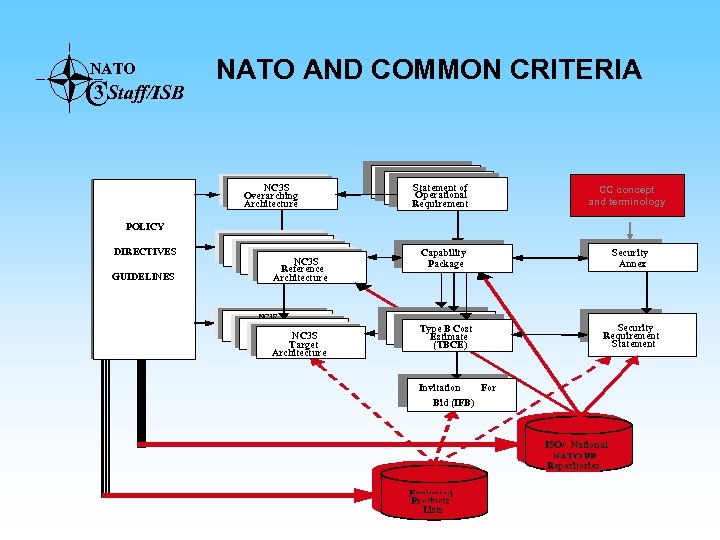

NATO 3 CStaff/ISB NATO AND COMMON CRITERIA NC 3 S Overarching Architecture Statement of Statement Operational of Operational Statement of Requirements Operational Requirement CC concept and terminology POLICY DIRECTIVES GUIDELINES NC 3 S Reference. NC 3 S Architecture Reference Capability Package Security Annex Architecture NC 3 S Target. NC 3 S Architecture Target Architecture Type B Cost Estimate B Cost Type (TBCE) Estimate (TBCE) Security Requirement Statement Invitation For Bid (IFB) ISO/ National NATO PP Repositories Evaluated Products Lists

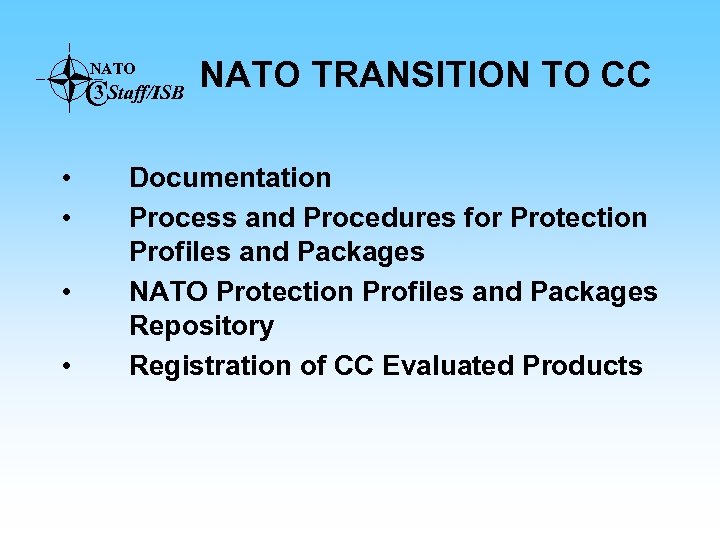

NATO C 3 Staff/ISB • • NATO TRANSITION TO CC Documentation Process and Procedures for Protection Profiles and Packages NATO Protection Profiles and Packages Repository Registration of CC Evaluated Products

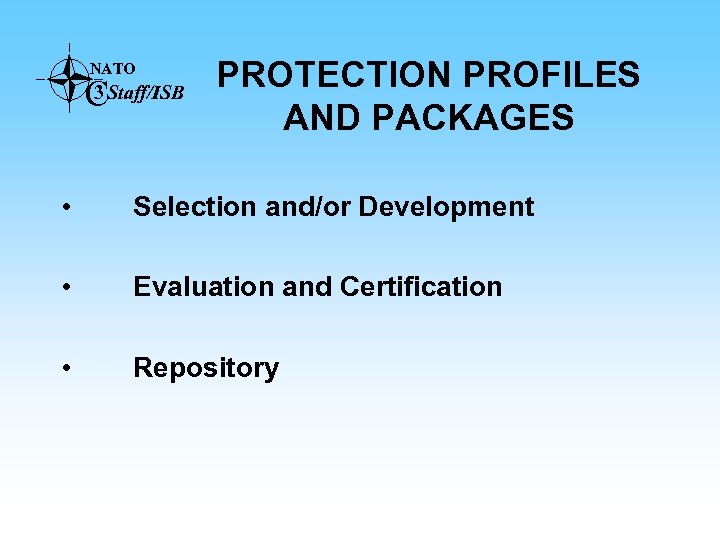

NATO C 3 Staff/ISB PROTECTION PROFILES AND PACKAGES • Selection and/or Development • Evaluation and Certification • Repository

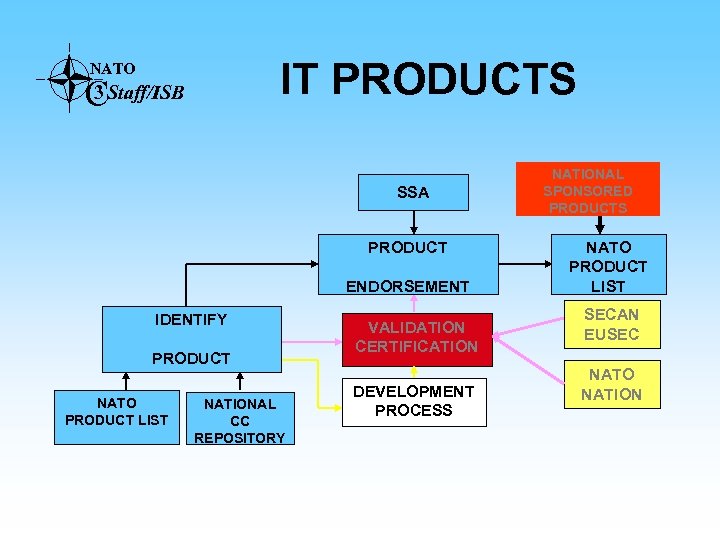

IT PRODUCTS NATO 3 CStaff/ISB SSA PRODUCT ENDORSEMENT IDENTIFY PRODUCT NATO PRODUCT LIST NATIONAL CC REPOSITORY VALIDATION CERTIFICATION DEVELOPMENT PROCESS NATIONAL SPONSORED PRODUCTS NATO PRODUCT LIST SECAN EUSEC NATO NATION
NATO 3 CStaff/ISB CURRENT SITUATION • Transition phase – Interim guidance – IT Products, PPs, Packages Database • Implementation Directive – Under approval • Objective: 2 Q 2003
NATO 3 CStaff/ISB NATO COMPUTER INCIDENT RESPONSE CAPABILITY
NATO 3 CStaff/ISB NCIRC • Central Capability • Incident Handling and Reporting • Implementation Approach

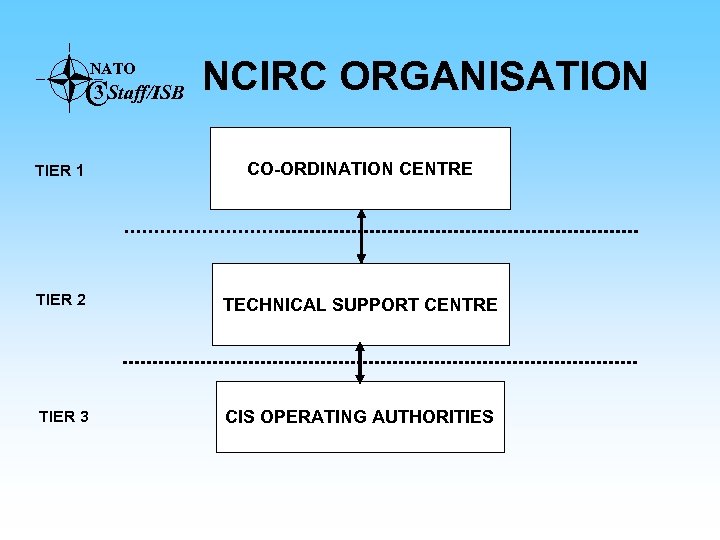

NATO C 3 Staff/ISB NCIRC ORGANISATION TIER 1 CO-ORDINATION CENTRE TIER 2 TECHNICAL SUPPORT CENTRE TIER 3 CIS OPERATING AUTHORITIES

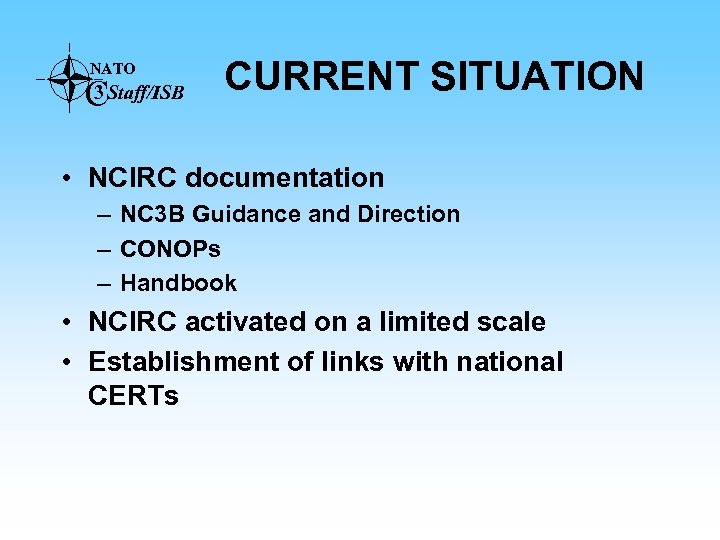

NATO C 3 Staff/ISB CURRENT SITUATION • NCIRC documentation – NC 3 B Guidance and Direction – CONOPs – Handbook • NCIRC activated on a limited scale • Establishment of links with national CERTs
NATO 3 CStaff/ISB NATO PKI

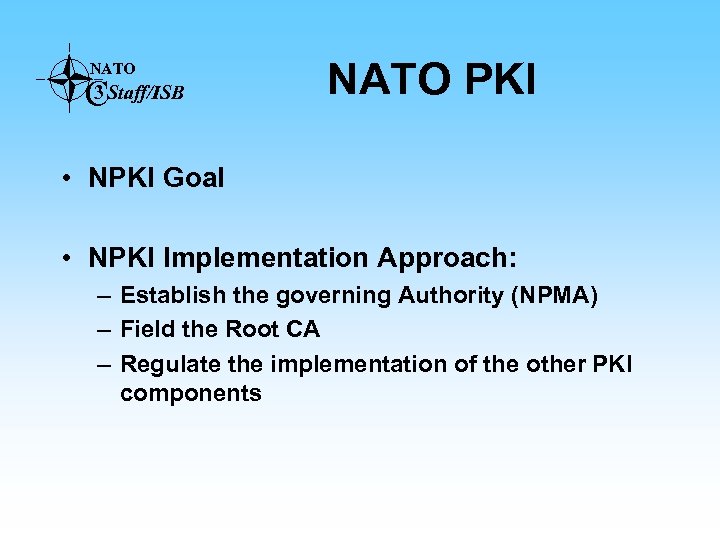

NATO 3 CStaff/ISB NATO PKI • NPKI Goal • NPKI Implementation Approach: – Establish the governing Authority (NPMA) – Field the Root CA – Regulate the implementation of the other PKI components

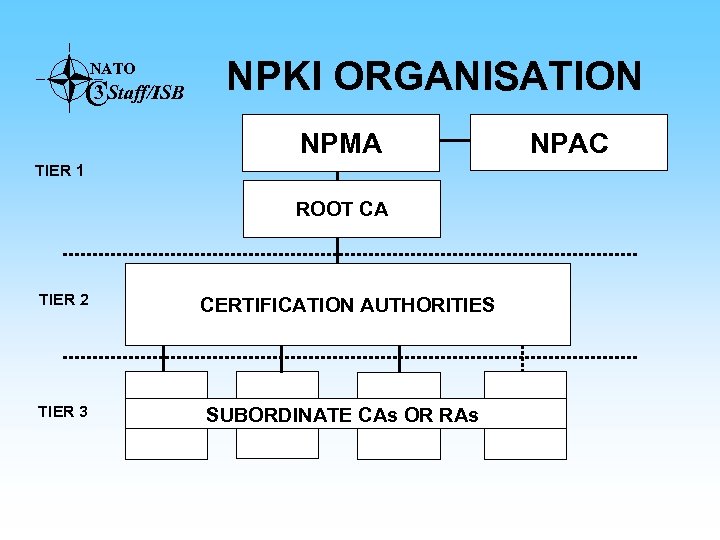

NATO C 3 Staff/ISB NPKI ORGANISATION NPMA TIER 1 ROOT CA TIER 2 TIER 3 CERTIFICATION AUTHORITIES SUBORDINATE CAs OR RAs NPAC

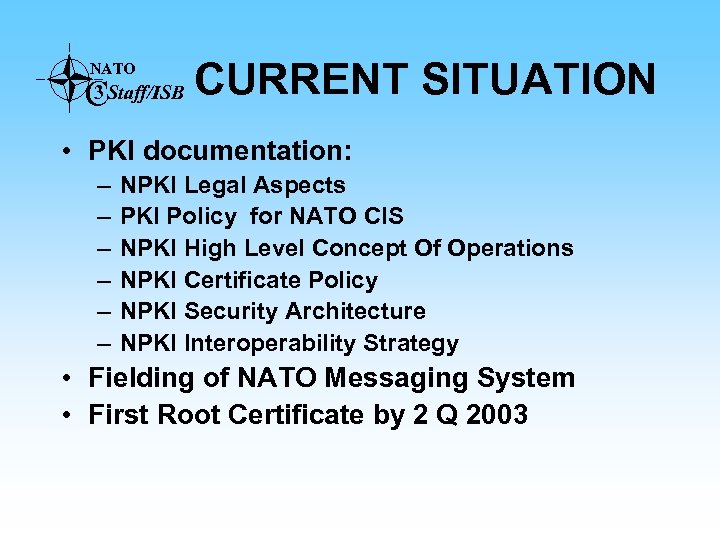

3 CStaff/ISB CURRENT NATO SITUATION • PKI documentation: – – – NPKI Legal Aspects PKI Policy for NATO CIS NPKI High Level Concept Of Operations NPKI Certificate Policy NPKI Security Architecture NPKI Interoperability Strategy • Fielding of NATO Messaging System • First Root Certificate by 2 Q 2003
NATO 3 CStaff/ISB • • • CONCLUSIONS NATO Policy NATO CIS Overview NATO CIS Implementation Pillars Common Criteria NATO Computer Incident Response Capability NATO Public Key Infrastructure
NATO 3 CStaff/ISB Questions?
