National Institute of Building Sciences National Building Information Model Standard Based on and supporting Agenda Industry Foundation Classes Information Delivery Manuals and International Framework for Dictionaries Overview Building Information Models NIBS National BIM Standard Project Committee November 2006 This presentation is a collaborative product of the NIBS NBIMS Project Committee.

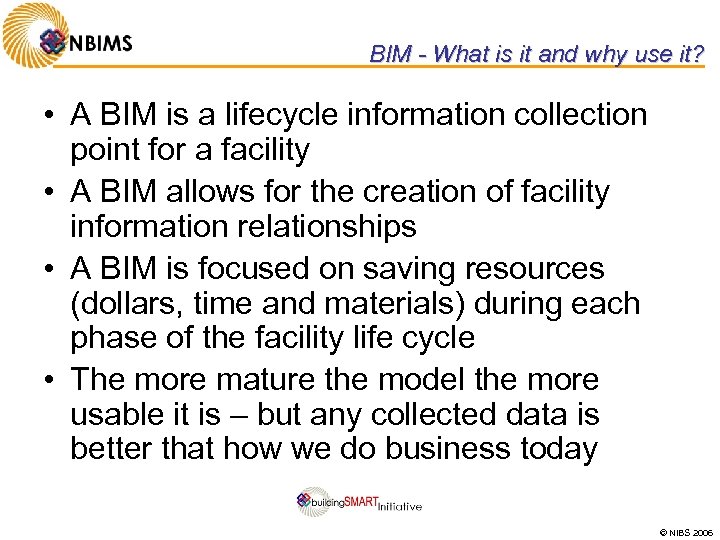

BIM - What is it and why use it? • A BIM is a lifecycle information collection point for a facility • A BIM allows for the creation of facility information relationships • A BIM is focused on saving resources (dollars, time and materials) during each phase of the facility life cycle • The more mature the model the more usable it is – but any collected data is better that how we do business today © NIBS 2006

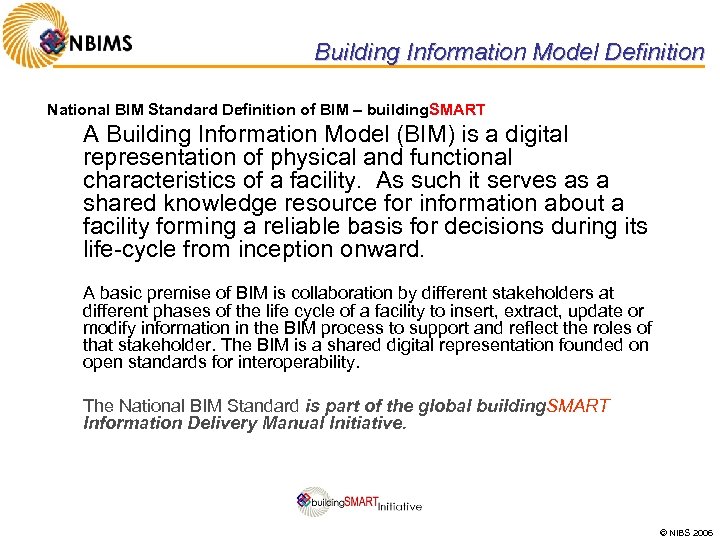

Building Information Model Definition National BIM Standard Definition of BIM – building. SMART A Building Information Model (BIM) is a digital representation of physical and functional characteristics of a facility. As such it serves as a shared knowledge resource for information about a facility forming a reliable basis for decisions during its life-cycle from inception onward. A basic premise of BIM is collaboration by different stakeholders at different phases of the life cycle of a facility to insert, extract, update or modify information in the BIM process to support and reflect the roles of that stakeholder. The BIM is a shared digital representation founded on open standards for interoperability. The National BIM Standard is part of the global building. SMART Information Delivery Manual Initiative. © NIBS 2006

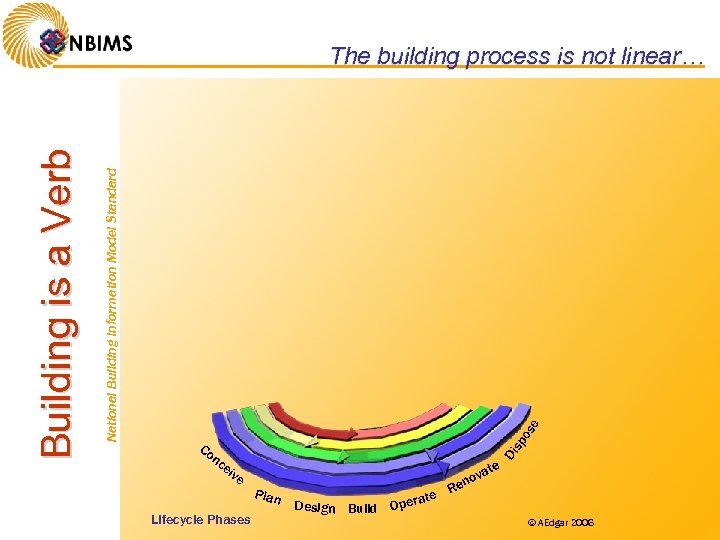

e sp os Co nc eiv Di National Building Information Model Standard Building is a Verb The building process is not linear… te e Plan Lifecycle Phases te Design Build Opera va eno R © AEdgar 2006 © NIBS 2006

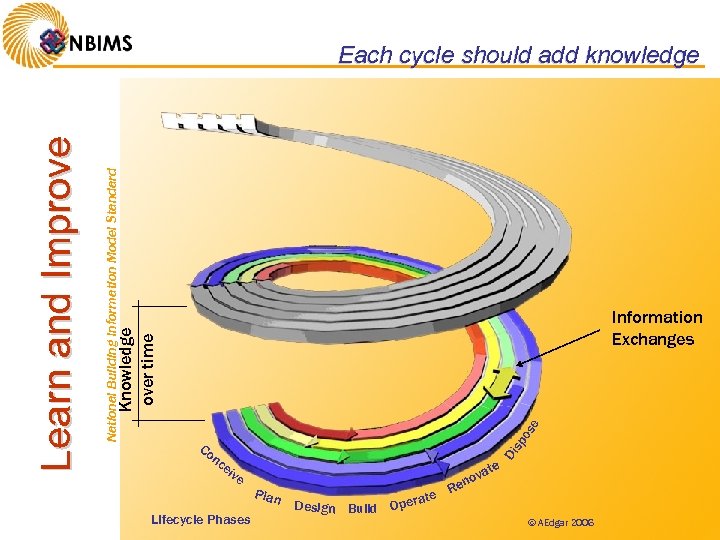

Information Exchanges sp os e Knowledge over time National Building Information Model Standard Co nc eiv Di Learn and Improve Each cycle should add knowledge te e Plan Lifecycle Phases te Design Build Opera va eno R © AEdgar 2006 © NIBS 2006

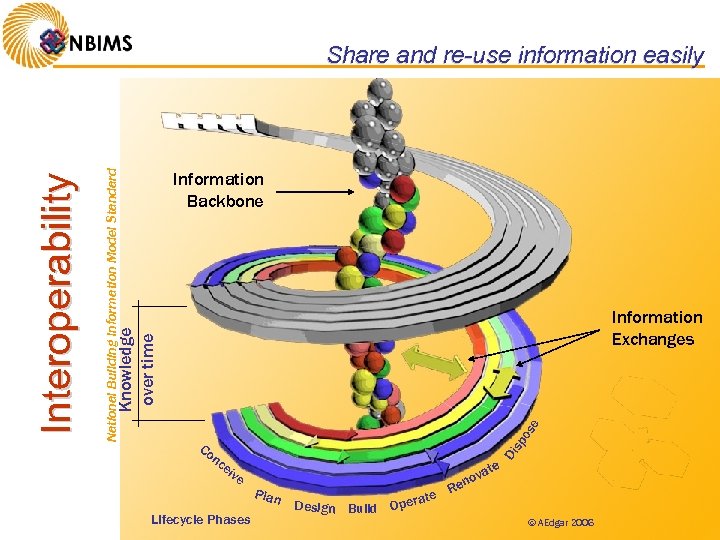

Information Backbone Information Exchanges sp os e Knowledge over time National Building Information Model Standard Co nc eiv Di Interoperability Share and re-use information easily te e Plan Lifecycle Phases te Design Build Opera va eno R © AEdgar 2006 © NIBS 2006

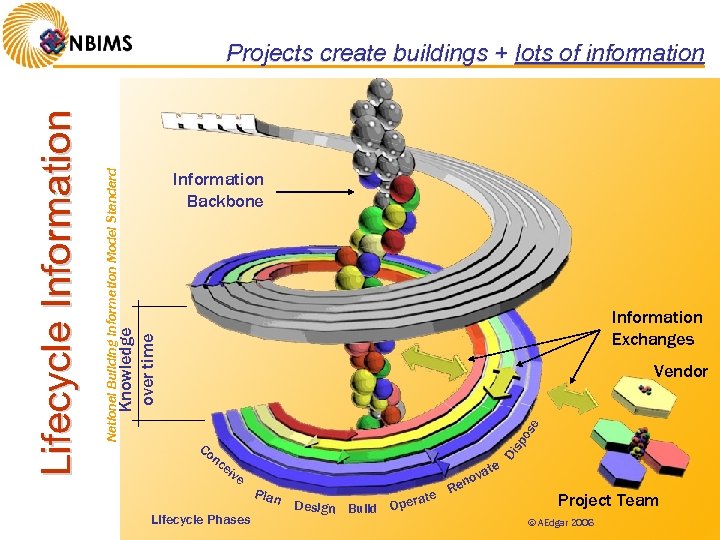

Information Backbone Information Exchanges Knowledge over time National Building Information Model Standard sp os e Vendor Co nc eiv Di Lifecycle Information Projects create buildings + lots of information te e Plan Lifecycle Phases te Design Build Opera R va eno Project Team © AEdgar 2006 © NIBS 2006
![What is Building Information Modeling [BIM]? • Building Is a Verb 2 D Lines](https://present5.com/presentation/ac3b8f5bb475a67598159a79113d5187/image-8.jpg "What is Building Information Modeling [BIM]? • Building Is a Verb 2 D Lines")

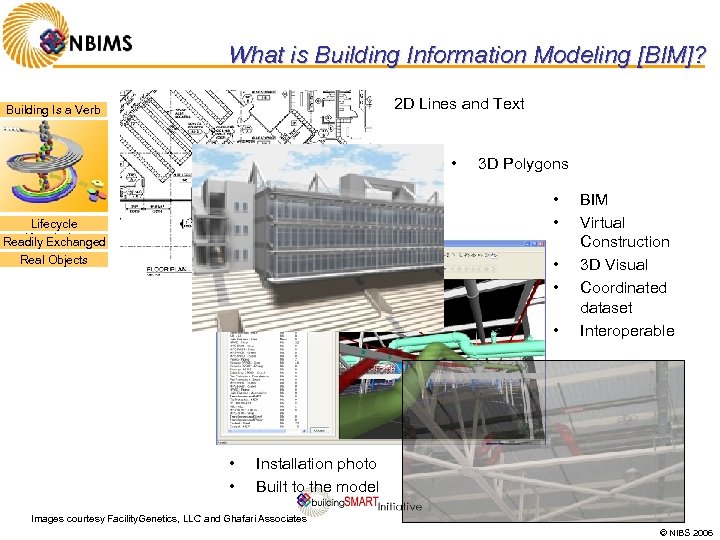

What is Building Information Modeling [BIM]? • Building Is a Verb 2 D Lines and Text • 3 D Polygons • • Lifecycle Knowledge Readily Exchanged Real Objects • • • BIM Virtual Construction 3 D Visual Coordinated dataset Interoperable Installation photo Built to the model Images courtesy Facility. Genetics, LLC and Ghafari Associates © NIBS 2006
How Does BIM Work? For Example… Lifecycle Knowledge Readily Exchanged Real Objects Lifelike Properties Courtesy: Kling Building Is a Verb Accurate steel members - Size, weight, performance, cost. Accurate connections Accurate 3 D position Simulation of - Installation process & equipment requirements - lighting - structural performance - etc. Overlap with other 3 D elements to identify collisions. - Mech, elec, plbg, - Walls, ceilings, FF&E - Access for maint. & repair © NIBS 2006

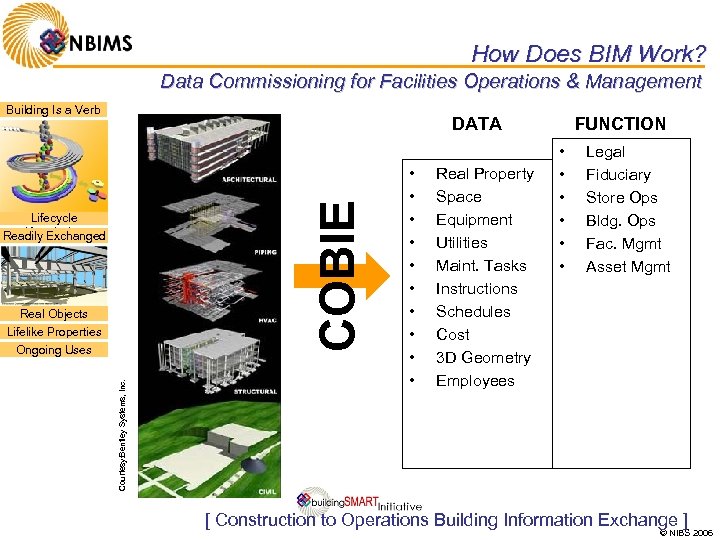

How Does BIM Work? Data Commissioning for Facilities Operations & Management Building Is a Verb COBIE DATA Lifecycle Knowledge Readily Exchanged Courtesy: Bentley Systems, Inc. Real Objects Lifelike Properties Ongoing Uses • • • Real Property Space Equipment Utilities Maint. Tasks Instructions Schedules Cost 3 D Geometry Employees FUNCTION • • • Legal Fiduciary Store Ops Bldg. Ops Fac. Mgmt Asset Mgmt [ Construction to Operations Building Information Exchange ] © NIBS 2006

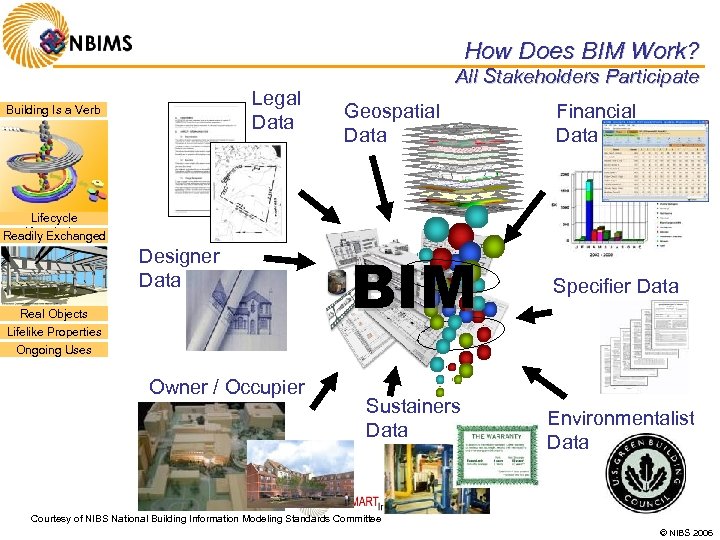

How Does BIM Work? Legal Data Building Is a Verb Lifecycle Knowledge Readily Exchanged Designer Data Real Objects Lifelike Properties Ongoing Uses Owner / Occupier Data All Stakeholders Participate Geospatial Data Financial Data BIM Specifier Data Sustainers Data Environmentalist Data Courtesy of NIBS National Building Information Modeling Standards Committee © NIBS 2006

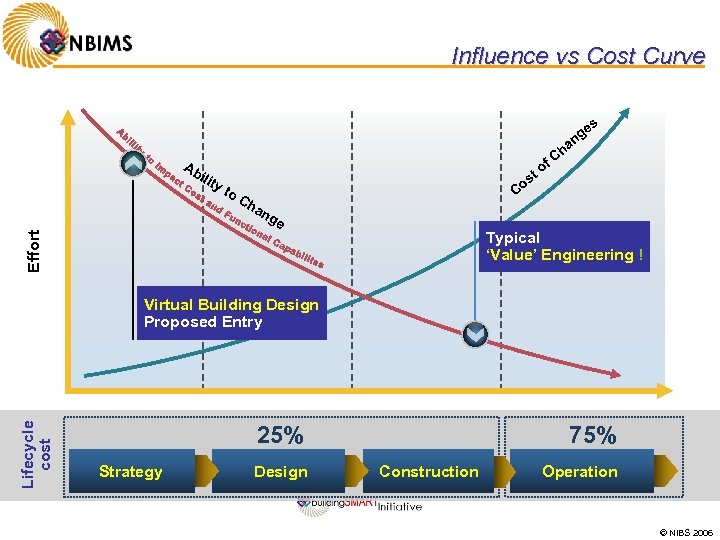

Influence vs Cost Curve s e ng a Ab ilit yt o. C t os h f. C o C ha e Typical ‘Value’ Engineering ! Effort ng Lifecycle cost Virtual Building Design Proposed Entry 25% Strategy Design 75% Construction Operation © NIBS 2006

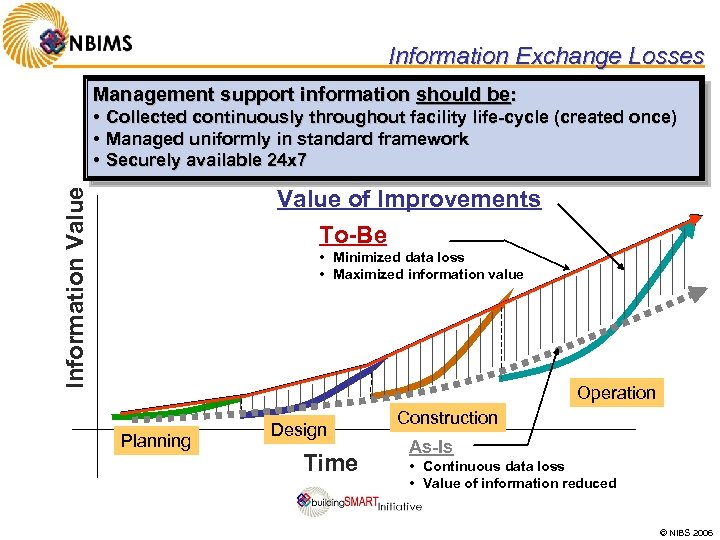

Information Exchange Losses Management support information should be: • Collected continuously throughout facility life-cycle (created once) • Managed uniformly in standard framework • Securely available 24 x 7 Information Value of Improvements To-Be • Minimized data loss • Maximized information value Operation Planning Design Time Construction As-Is • Continuous data loss • Value of information reduced © NIBS 2006

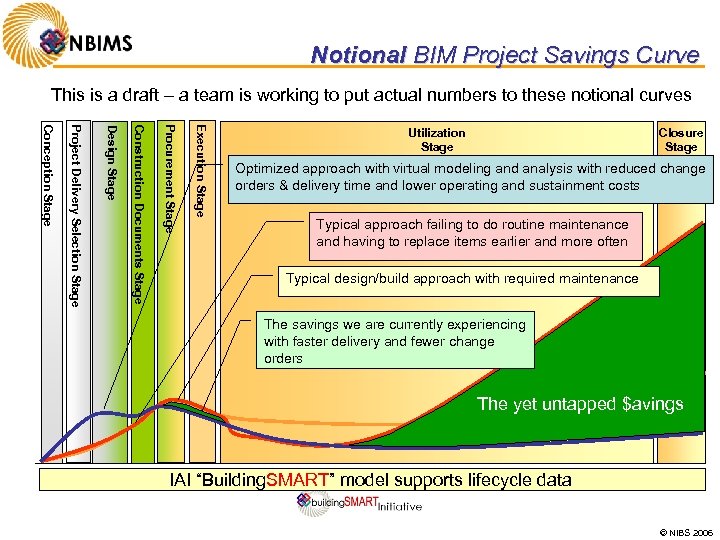

Notional BIM Project Savings Curve This is a draft – a team is working to put actual numbers to these notional curves Execution Stage Procurement Stage Construction Documents Stage Design Stage Project Delivery Selection Stage Conception Stage Utilization Stage Closure Stage Optimized approach with virtual modeling and analysis with reduced change orders & delivery time and lower operating and sustainment costs Typical approach failing to do routine maintenance and having to replace items earlier and more often Typical design/build approach with required maintenance The savings we are currently experiencing with faster delivery and fewer change orders The yet untapped $avings IAI “Building. SMART” model supports lifecycle data © NIBS 2006
Typical BIM Benefits Building Is a Verb Lifecycle Knowledge Readily Exchanged Real Objects Lifelike Properties Ongoing Uses • Better understanding of design concepts – shared understanding of issues • More focus on value-added tasks • Faster cycle times • Reduced errors and omissions • Less waste: rework, materials, time • Fewer translation errors and losses • Increased site safety • Better estimates – cost and time © NIBS 2006
Who Benefits From BIM Implementation Facility Information Views BIM Graphisoft Owners Planners Realtors Appraisers Mortgage Bankers Designers Engineers Cost & Quantity Estimators Specifiers Contracts & Lawyers Construction Contractors Sub-Contractors Fabricators Code Officials Facility Managers Maintenance & Sustainment Renovation & Restoration Disposal & Recycling Scoping, Testing, Simulation Safety & Occupational Health Environmental & NEPA Plant Operations Energy, LEED Space & Security Network Managers CIO’s Risk Management Occupant Support First Responders © NIBS 2006

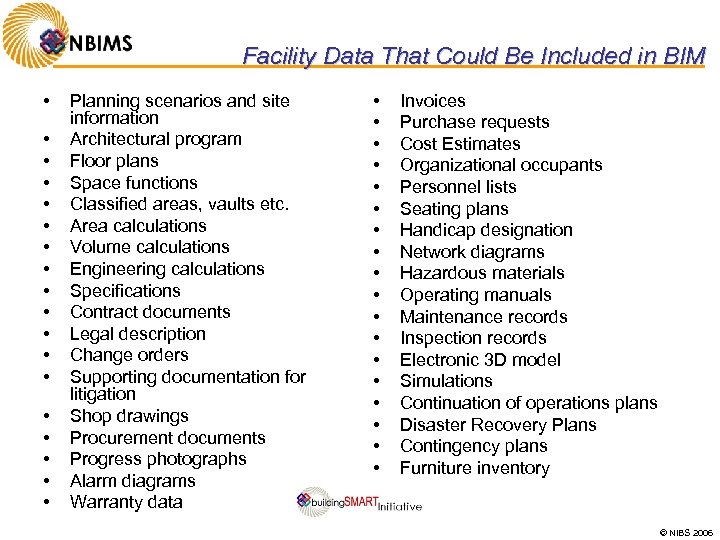

Facility Data That Could Be Included in BIM • • • • • Planning scenarios and site information Architectural program Floor plans Space functions Classified areas, vaults etc. Area calculations Volume calculations Engineering calculations Specifications Contract documents Legal description Change orders Supporting documentation for litigation Shop drawings Procurement documents Progress photographs Alarm diagrams Warranty data • • • • • Invoices Purchase requests Cost Estimates Organizational occupants Personnel lists Seating plans Handicap designation Network diagrams Hazardous materials Operating manuals Maintenance records Inspection records Electronic 3 D model Simulations Continuation of operations plans Disaster Recovery Plans Contingency plans Furniture inventory © NIBS 2006

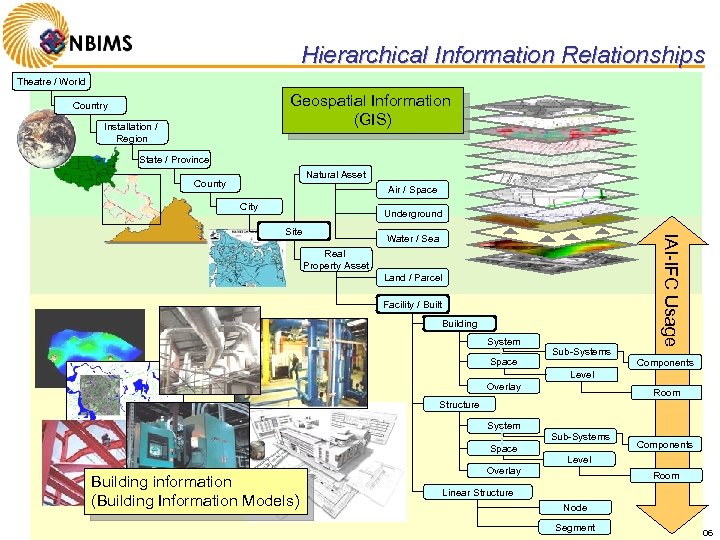

Hierarchical Information Relationships Theatre / World Geospatial Information (GIS) Country Installation / Region State / Province Natural Asset County Air / Space City Underground Water / Sea Real Property Asset Land / Parcel Facility / Built Building System Space Sub-Systems IAI-IFC Usage Site Components Level Overlay Room Structure System Space Building information (Building Information Models) Sub-Systems Components Level Overlay Room Linear Structure Node Segment © NIBS 2006

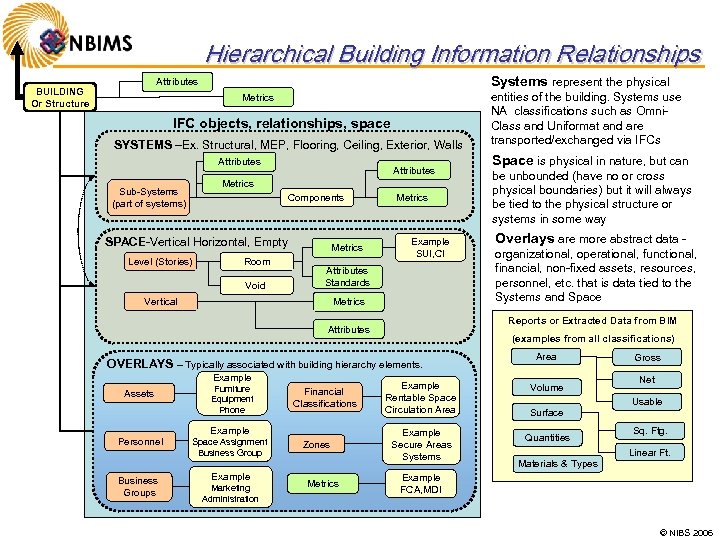

Hierarchical Building Information Relationships Systems represent the physical Attributes BUILDING Or Structure Metrics IFC objects, relationships, space SYSTEMS –Ex. Structural, MEP, Flooring, Ceiling, Exterior, Walls Attributes Metrics Sub-Systems (part of systems) Components SPACE-Vertical Horizontal, Empty Level (Stories) Room Void Metrics Example SUI, CI Attributes Standards Vertical Metrics Assets Personnel Business Groups Financial Classifications Example Space Assignment Business Group Example Marketing Administration Zones Metrics be unbounded (have no or cross physical boundaries) but it will always be tied to the physical structure or systems in some way Overlays are more abstract data - organizational, operational, functional, financial, non-fixed assets, resources, personnel, etc. that is data tied to the Systems and Space (examples from all classifications) OVERLAYS – Typically associated with building hierarchy elements. Furniture Equipment Phone Space is physical in nature, but can Reports or Extracted Data from BIM Attributes Example entities of the building. Systems use NA classifications such as Omni. Class and Uniformat and are transported/exchanged via IFCs Example Rentable Space Circulation Area Example Secure Areas Systems Area Volume Surface Quantities Gross Net Usable Sq. Ftg. Linear Ft. Materials & Types Example FCA, MDI © NIBS 2006

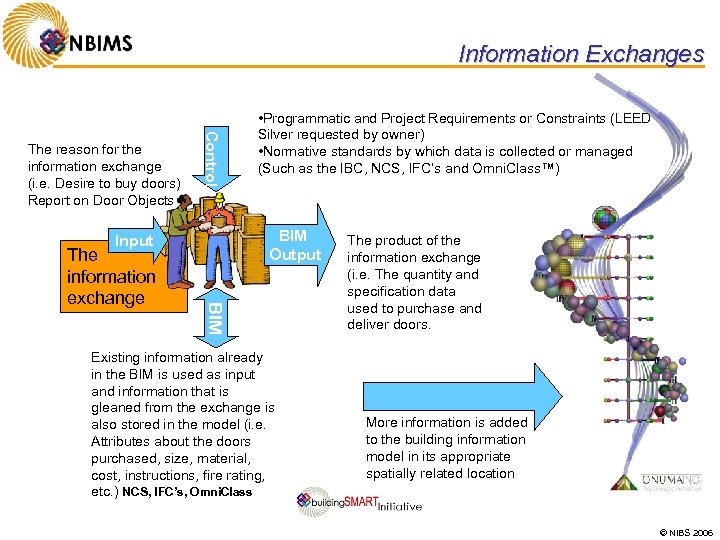

Information Exchanges Control The reason for the information exchange (i. e. Desire to buy doors) Report on Door Objects BIM Output Input BIM The information exchange • Programmatic and Project Requirements or Constraints (LEED Silver requested by owner) • Normative standards by which data is collected or managed (Such as the IBC, NCS, IFC’s and Omni. Class™) Existing information already in the BIM is used as input and information that is gleaned from the exchange is also stored in the model (i. e. Attributes about the doors purchased, size, material, cost, instructions, fire rating, etc. ) NCS, IFC’s, Omni. Class The product of the information exchange (i. e. The quantity and specification data used to purchase and deliver doors. More information is added to the building information model in its appropriate spatially related location © NIBS 2006

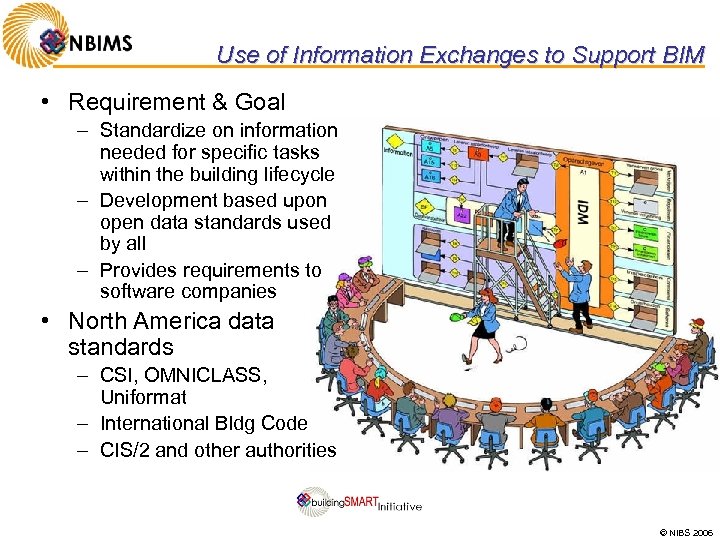

Use of Information Exchanges to Support BIM • Requirement & Goal – Standardize on information needed for specific tasks within the building lifecycle – Development based upon open data standards used by all – Provides requirements to software companies • North America data standards – CSI, OMNICLASS, Uniformat – International Bldg Code – CIS/2 and other authorities © NIBS 2006

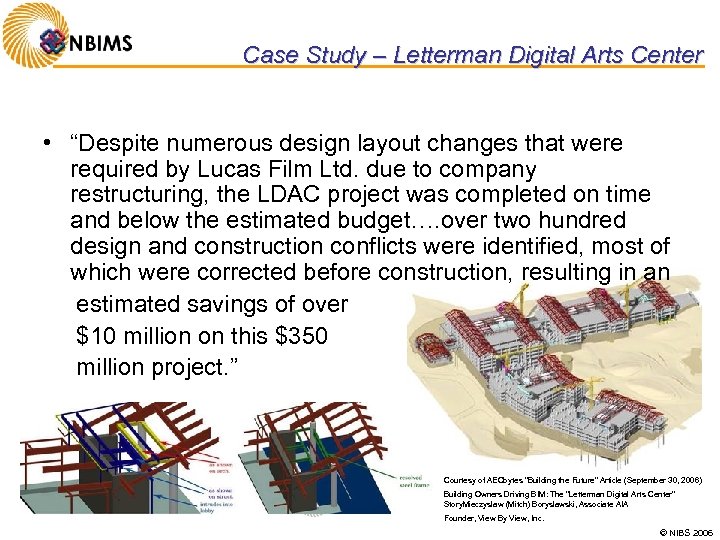

Case Study – Letterman Digital Arts Center • “Despite numerous design layout changes that were required by Lucas Film Ltd. due to company restructuring, the LDAC project was completed on time and below the estimated budget…. over two hundred design and construction conflicts were identified, most of which were corrected before construction, resulting in an estimated savings of over $10 million on this $350 million project. ” Courtesy of AECbytes "Building the Future" Article (September 30, 2006) Building Owners Driving BIM: The "Letterman Digital Arts Center" Story. Mieczyslaw (Mitch) Boryslawski, Associate AIA Founder, View By View, Inc. © NIBS 2006

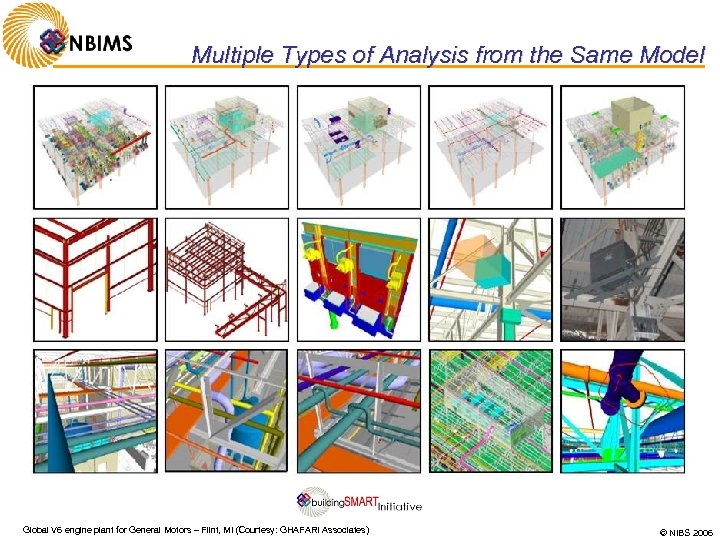

Multiple Types of Analysis from the Same Model Global V 6 engine plant for General Motors – Flint, MI (Courtesy: GHAFARI Associates) © NIBS 2006

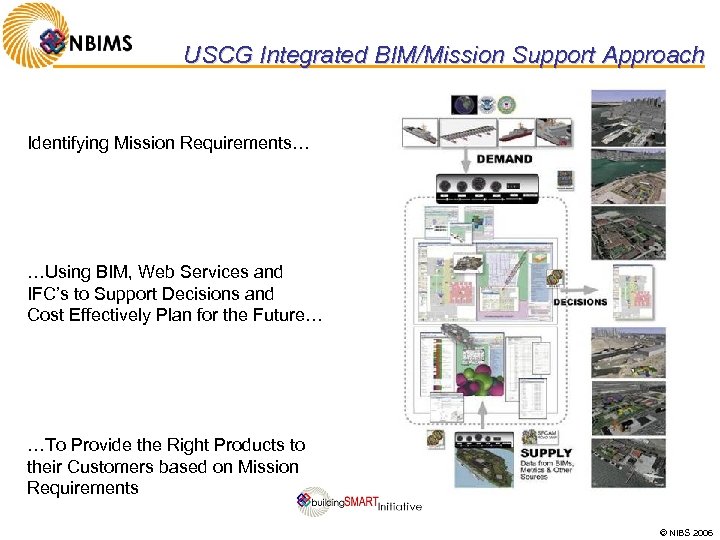

USCG Integrated BIM/Mission Support Approach Identifying Mission Requirements… …Using BIM, Web Services and IFC’s to Support Decisions and Cost Effectively Plan for the Future… …To Provide the Right Products to their Customers based on Mission Requirements © NIBS 2006

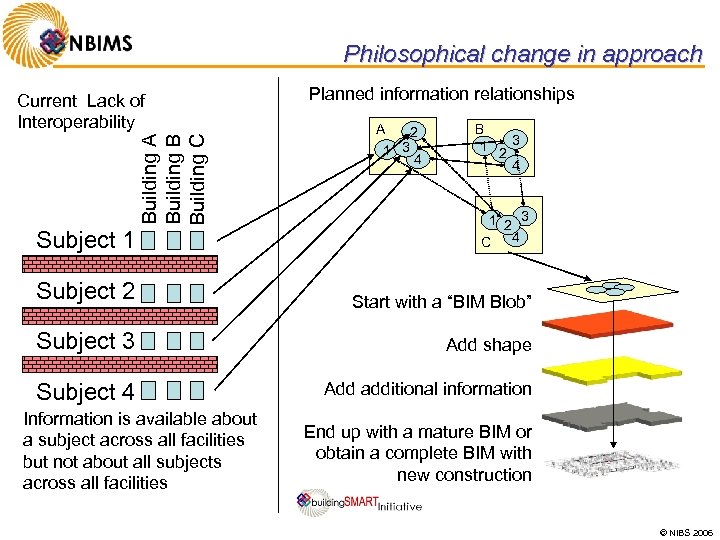

Philosophical change in approach Building A Building B Building C Current Lack of Interoperability Subject 1 Planned information relationships A 2 1 3 4 B 1 23 4 1 2 3 C 4 Subject 2 Start with a “BIM Blob” Subject 3 Add shape Subject 4 Add additional information Information is available about a subject across all facilities but not about all subjects across all facilities End up with a mature BIM or obtain a complete BIM with new construction © NIBS 2006

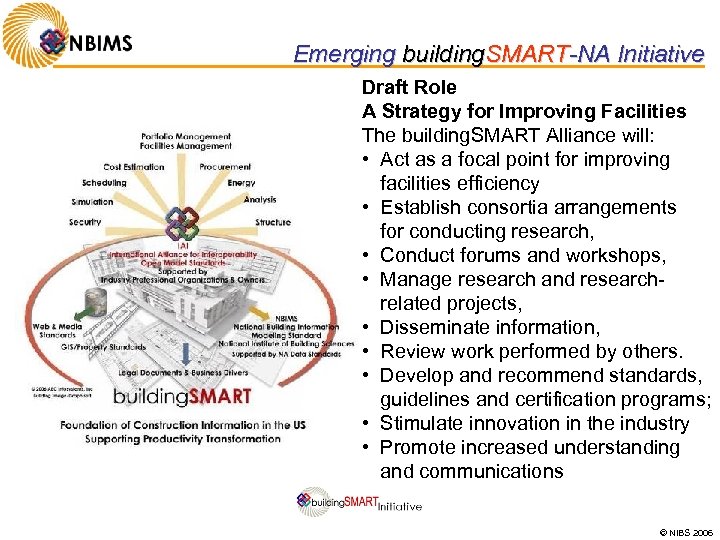

Emerging building. SMART-NA Initiative Draft Role A Strategy for Improving Facilities The building. SMART Alliance will: • Act as a focal point for improving facilities efficiency • Establish consortia arrangements for conducting research, • Conduct forums and workshops, • Manage research and researchrelated projects, • Disseminate information, • Review work performed by others. • Develop and recommend standards, guidelines and certification programs; • Stimulate innovation in the industry • Promote increased understanding and communications © NIBS 2006

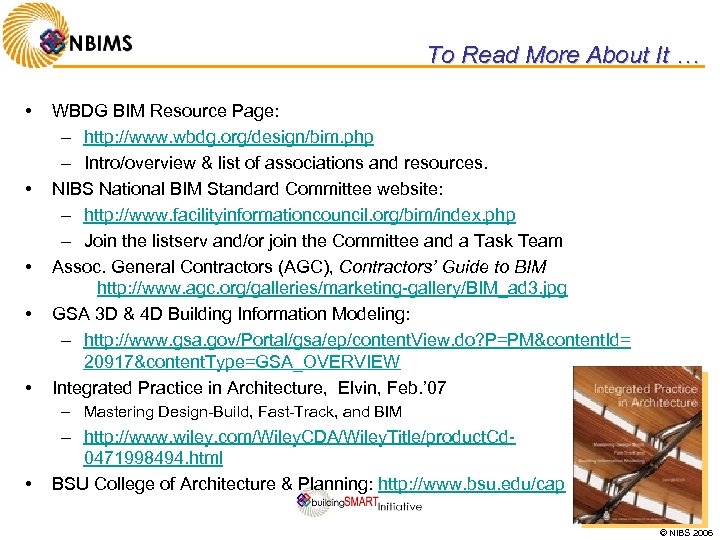

To Read More About It … • • • WBDG BIM Resource Page: – http: //www. wbdg. org/design/bim. php – Intro/overview & list of associations and resources. NIBS National BIM Standard Committee website: – http: //www. facilityinformationcouncil. org/bim/index. php – Join the listserv and/or join the Committee and a Task Team Assoc. General Contractors (AGC), Contractors’ Guide to BIM http: //www. agc. org/galleries/marketing-gallery/BIM_ad 3. jpg GSA 3 D & 4 D Building Information Modeling: – http: //www. gsa. gov/Portal/gsa/ep/content. View. do? P=PM&content. Id= 20917&content. Type=GSA_OVERVIEW Integrated Practice in Architecture, Elvin, Feb. ’ 07 – Mastering Design-Build, Fast-Track, and BIM • – http: //www. wiley. com/Wiley. CDA/Wiley. Title/product. Cd 0471998494. html BSU College of Architecture & Planning: http: //www. bsu. edu/cap © NIBS 2006
For More Information • Contact Information – NIBS: Earle Kennett - ekennett@nibs. org – Chairman: Deke Smith - deke@dksic. net – Task Team Chairpersons • Fundraising: Ric Jackson - jackson@fiatech. org • Business Process Integration: Dave Jordani - djordani@jordani. com • Scoping: Dianne Davis - d. davis@aecinfosystems. com • Development: Bill East - Bill. W. East@erdc. usace. army. mil • Testing: Patrick Suermann - suermann@ufl. edu • Communications: Alan Edgar – aredgar@facilitygenetics. com – NBMIS: www. facilityinformationcouncil. org/bim/index. php Thank You © NIBS 2006
