Naming and Certificates • Certificates issued to a principal – Principal uniquely identified to Naming and Certificates • Certificates issued to a principal – Principal uniquely identified to avoid confusion • Problem: names may be ambiguous – Does the name “Matt Bishop” refer to: • • The author of this book? A programmer in Australia? A stock car driver in Muncie, Indiana? Someone else who was named “Matt Bishop” November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 1

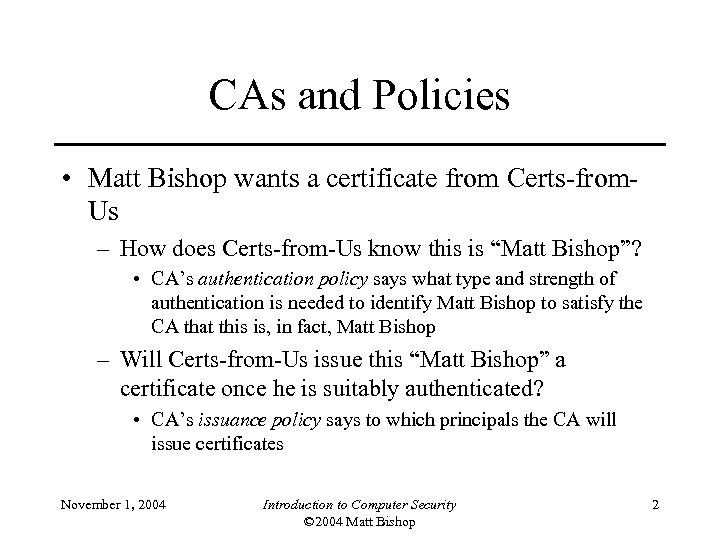

CAs and Policies • Matt Bishop wants a certificate from Certs-from. Us – How CAs and Policies • Matt Bishop wants a certificate from Certs-from. Us – How does Certs-from-Us know this is “Matt Bishop”? • CA’s authentication policy says what type and strength of authentication is needed to identify Matt Bishop to satisfy the CA that this is, in fact, Matt Bishop – Will Certs-from-Us issue this “Matt Bishop” a certificate once he is suitably authenticated? • CA’s issuance policy says to which principals the CA will issue certificates November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 2

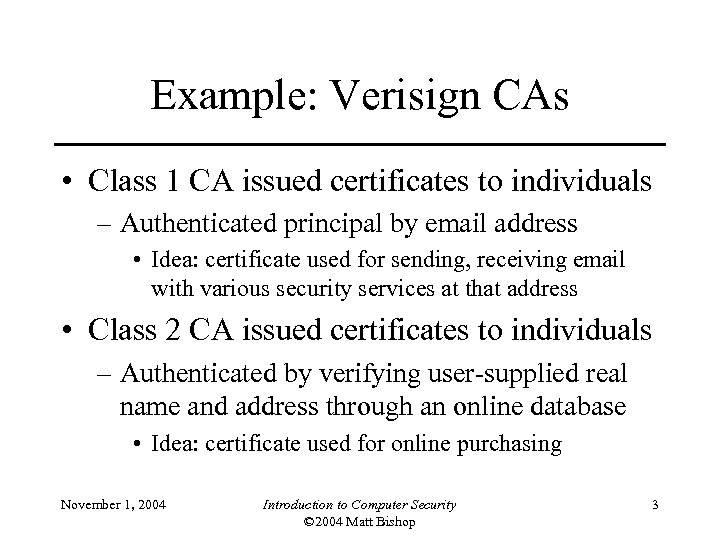

Example: Verisign CAs • Class 1 CA issued certificates to individuals – Authenticated principal Example: Verisign CAs • Class 1 CA issued certificates to individuals – Authenticated principal by email address • Idea: certificate used for sending, receiving email with various security services at that address • Class 2 CA issued certificates to individuals – Authenticated by verifying user-supplied real name and address through an online database • Idea: certificate used for online purchasing November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 3

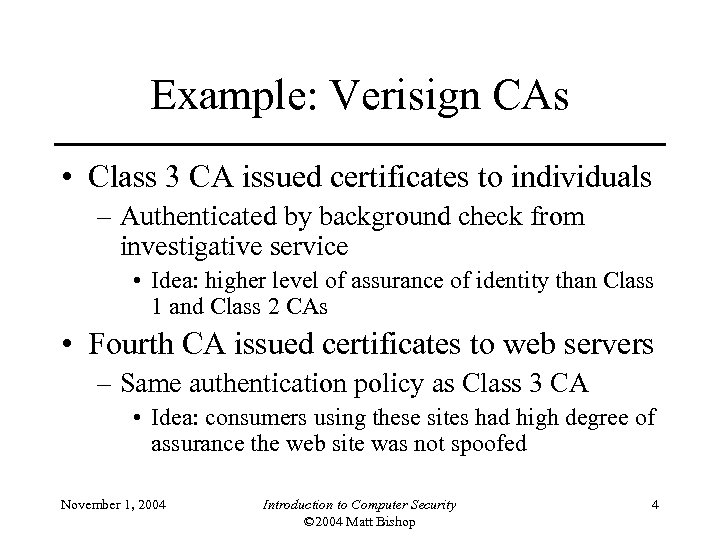

Example: Verisign CAs • Class 3 CA issued certificates to individuals – Authenticated by Example: Verisign CAs • Class 3 CA issued certificates to individuals – Authenticated by background check from investigative service • Idea: higher level of assurance of identity than Class 1 and Class 2 CAs • Fourth CA issued certificates to web servers – Same authentication policy as Class 3 CA • Idea: consumers using these sites had high degree of assurance the web site was not spoofed November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 4

Internet Certification Hierarchy • Tree structured arrangement of CAs – Root is Internet Policy Internet Certification Hierarchy • Tree structured arrangement of CAs – Root is Internet Policy Registration Authority, or IPRA • Sets policies all subordinate CAs must follow • Certifies subordinate CAs (called policy certification authorities, or PCAs), each of which has own authentication, issuance policies • Does not issue certificates to individuals or organizations other than subordinate CAs – PCAs issue certificates to ordinary CAs • Does not issue certificates to individuals or organizations other than subordinate CAs – CAs issue certificates to organizations or individuals November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 5

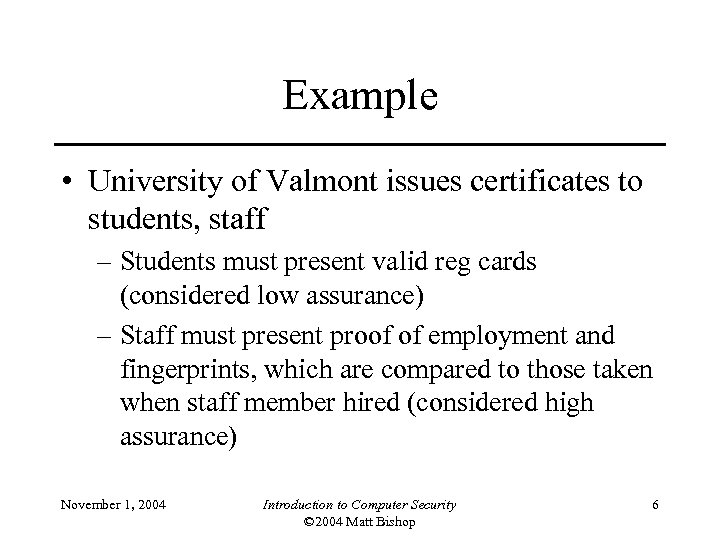

Example • University of Valmont issues certificates to students, staff – Students must present Example • University of Valmont issues certificates to students, staff – Students must present valid reg cards (considered low assurance) – Staff must present proof of employment and fingerprints, which are compared to those taken when staff member hired (considered high assurance) November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 6

Certificate Differences • Student, staff certificates signed using different private keys (for different CAs) Certificate Differences • Student, staff certificates signed using different private keys (for different CAs) – Student’s signed by key corresponding to low assurance certificate signed by first PCA – Staff’s signed by key corresponding to high assurance certificate signed by second PCA • To see what policy used to authenticate: – Determine CA signing certificate, check its policy – Also go to PCA that signed CA’s certificate • CAs are restricted by PCA’s policy, but CA can restrict itself further November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 7

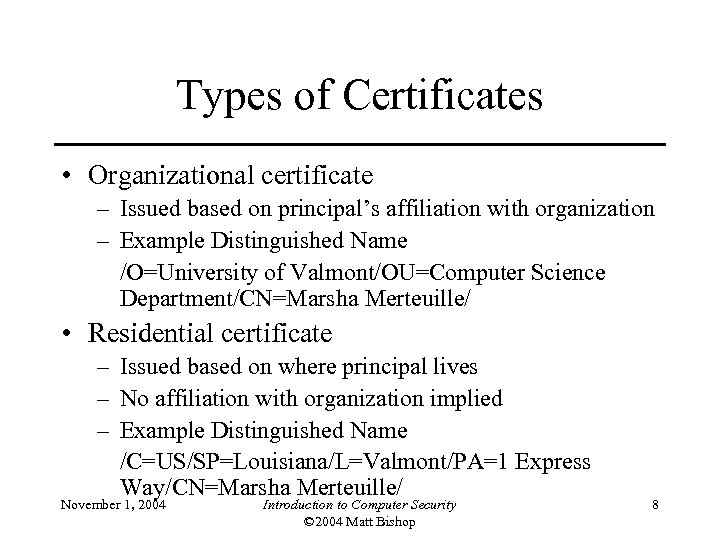

Types of Certificates • Organizational certificate – Issued based on principal’s affiliation with organization Types of Certificates • Organizational certificate – Issued based on principal’s affiliation with organization – Example Distinguished Name /O=University of Valmont/OU=Computer Science Department/CN=Marsha Merteuille/ • Residential certificate – Issued based on where principal lives – No affiliation with organization implied – Example Distinguished Name /C=US/SP=Louisiana/L=Valmont/PA=1 Express Way/CN=Marsha Merteuille/ November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 8

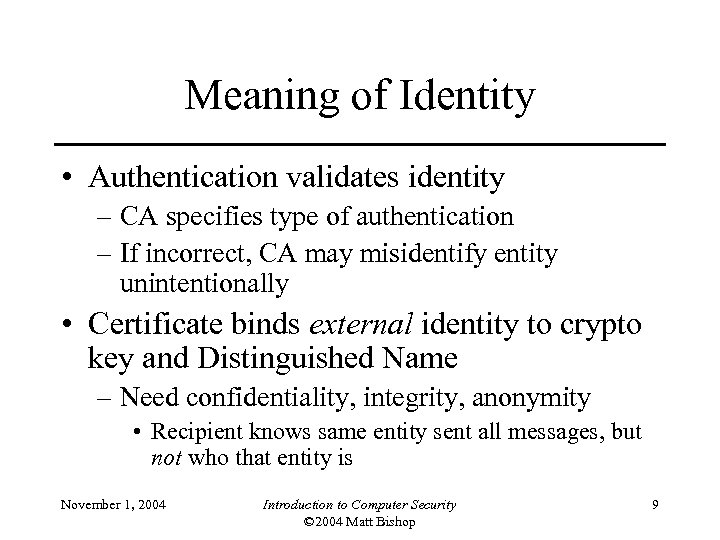

Meaning of Identity • Authentication validates identity – CA specifies type of authentication – Meaning of Identity • Authentication validates identity – CA specifies type of authentication – If incorrect, CA may misidentify entity unintentionally • Certificate binds external identity to crypto key and Distinguished Name – Need confidentiality, integrity, anonymity • Recipient knows same entity sent all messages, but not who that entity is November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 9

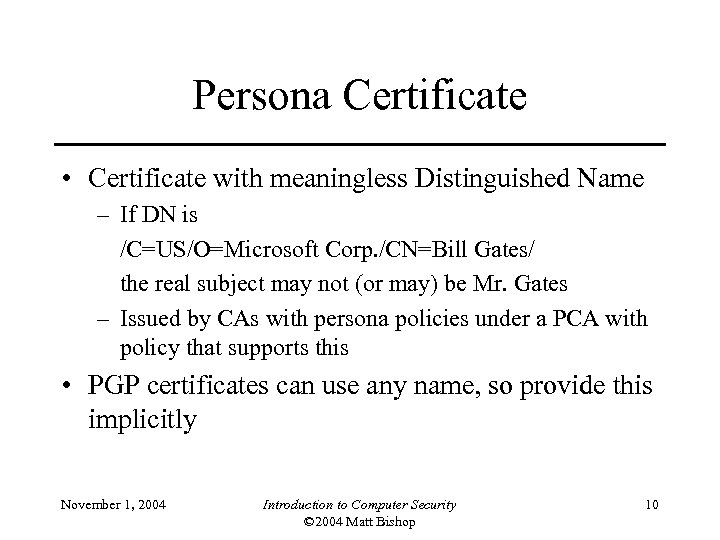

Persona Certificate • Certificate with meaningless Distinguished Name – If DN is /C=US/O=Microsoft Corp. Persona Certificate • Certificate with meaningless Distinguished Name – If DN is /C=US/O=Microsoft Corp. /CN=Bill Gates/ the real subject may not (or may) be Mr. Gates – Issued by CAs with persona policies under a PCA with policy that supports this • PGP certificates can use any name, so provide this implicitly November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 10

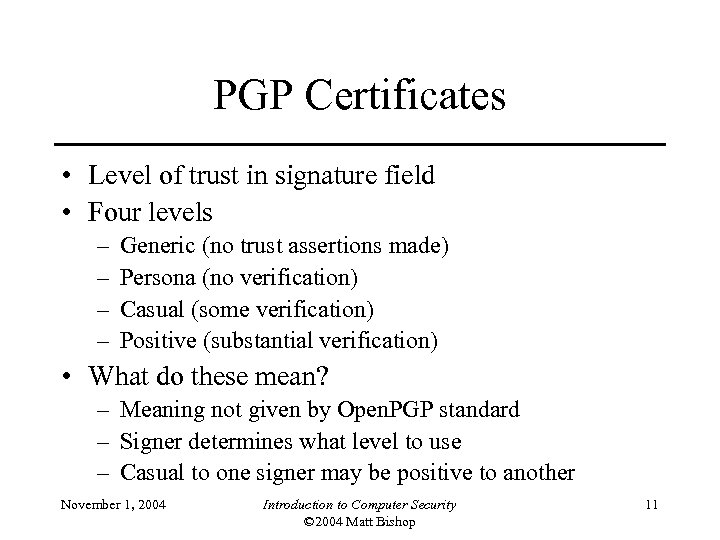

PGP Certificates • Level of trust in signature field • Four levels – – PGP Certificates • Level of trust in signature field • Four levels – – Generic (no trust assertions made) Persona (no verification) Casual (some verification) Positive (substantial verification) • What do these mean? – Meaning not given by Open. PGP standard – Signer determines what level to use – Casual to one signer may be positive to another November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 11

Identity on the Web • Host identity – Static identifiers: do not change over Identity on the Web • Host identity – Static identifiers: do not change over time – Dynamic identifiers: changes as a result of an event or the passing of time • State and Cookies • Anonymity – Anonymous email – Anonymity: good or bad? November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 12

Host Identity • Bound up to networking – Not connected: pick any name – Host Identity • Bound up to networking – Not connected: pick any name – Connected: one or more names depending on interfaces, network structure, context • Name identifies principal • Address identifies location of principal – May be virtual location (network segment) as opposed to physical location (room 222) November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 13

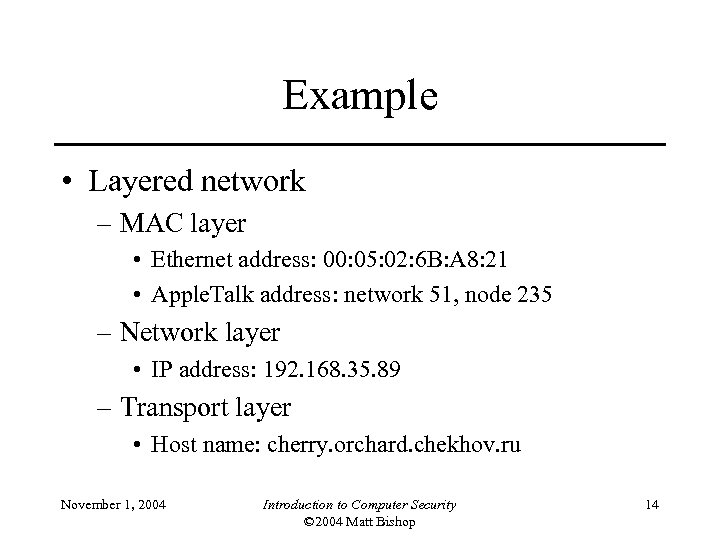

Example • Layered network – MAC layer • Ethernet address: 00: 05: 02: 6 Example • Layered network – MAC layer • Ethernet address: 00: 05: 02: 6 B: A 8: 21 • Apple. Talk address: network 51, node 235 – Network layer • IP address: 192. 168. 35. 89 – Transport layer • Host name: cherry. orchard. chekhov. ru November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 14

Danger! • Attacker spoofs identity of another host – Protocols at, above the identity Danger! • Attacker spoofs identity of another host – Protocols at, above the identity being spoofed will fail – They rely on spoofed, and hence faulty, information • Example: spoof IP address, mapping between host names and IP addresses November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 15

Domain Name Server • Maps transport identifiers (host names) to network identifiers (host addresses) Domain Name Server • Maps transport identifiers (host names) to network identifiers (host addresses) – Forward records: host names IP addresses – Reverse records: IP addresses host names • Weak authentication – Not cryptographically based – Various techniques used, such as reverse domain name lookup November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 16

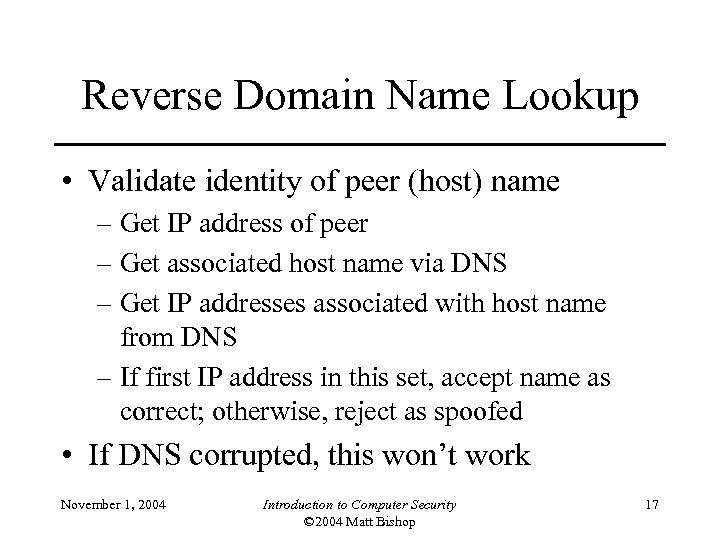

Reverse Domain Name Lookup • Validate identity of peer (host) name – Get IP Reverse Domain Name Lookup • Validate identity of peer (host) name – Get IP address of peer – Get associated host name via DNS – Get IP addresses associated with host name from DNS – If first IP address in this set, accept name as correct; otherwise, reject as spoofed • If DNS corrupted, this won’t work November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 17

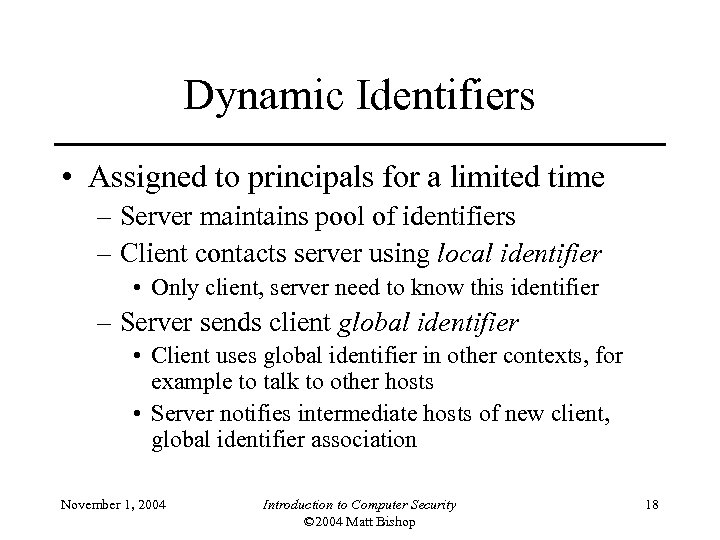

Dynamic Identifiers • Assigned to principals for a limited time – Server maintains pool Dynamic Identifiers • Assigned to principals for a limited time – Server maintains pool of identifiers – Client contacts server using local identifier • Only client, server need to know this identifier – Server sends client global identifier • Client uses global identifier in other contexts, for example to talk to other hosts • Server notifies intermediate hosts of new client, global identifier association November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 18

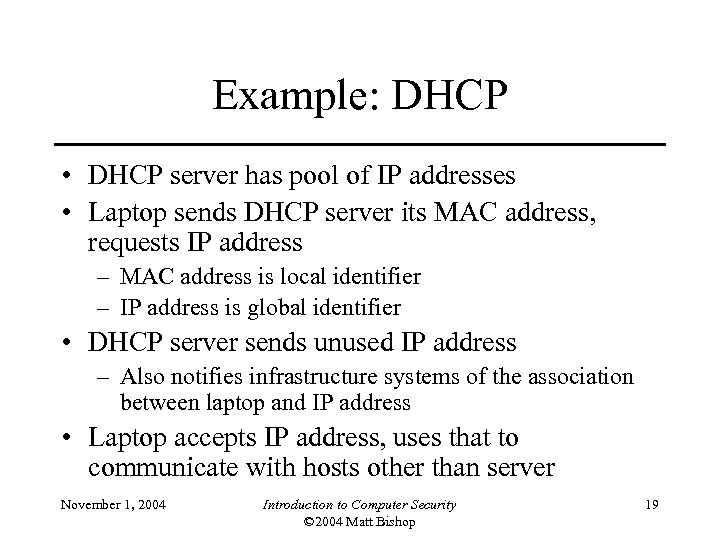

Example: DHCP • DHCP server has pool of IP addresses • Laptop sends DHCP Example: DHCP • DHCP server has pool of IP addresses • Laptop sends DHCP server its MAC address, requests IP address – MAC address is local identifier – IP address is global identifier • DHCP server sends unused IP address – Also notifies infrastructure systems of the association between laptop and IP address • Laptop accepts IP address, uses that to communicate with hosts other than server November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 19

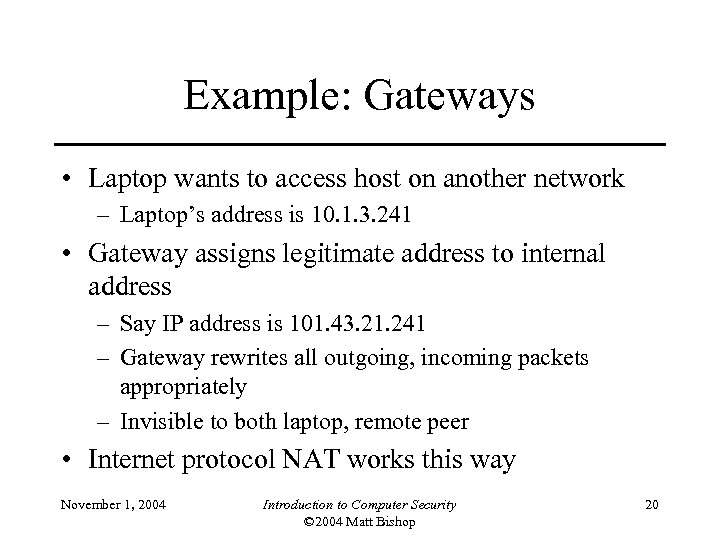

Example: Gateways • Laptop wants to access host on another network – Laptop’s address Example: Gateways • Laptop wants to access host on another network – Laptop’s address is 10. 1. 3. 241 • Gateway assigns legitimate address to internal address – Say IP address is 101. 43. 21. 241 – Gateway rewrites all outgoing, incoming packets appropriately – Invisible to both laptop, remote peer • Internet protocol NAT works this way November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 20

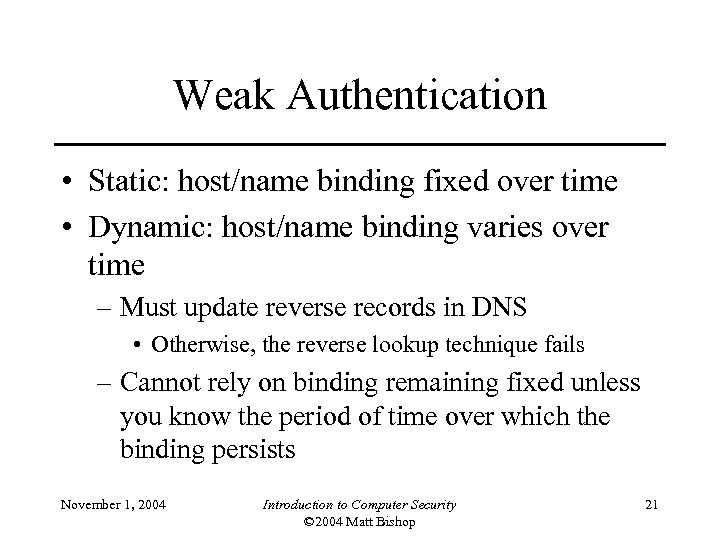

Weak Authentication • Static: host/name binding fixed over time • Dynamic: host/name binding varies Weak Authentication • Static: host/name binding fixed over time • Dynamic: host/name binding varies over time – Must update reverse records in DNS • Otherwise, the reverse lookup technique fails – Cannot rely on binding remaining fixed unless you know the period of time over which the binding persists November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 21

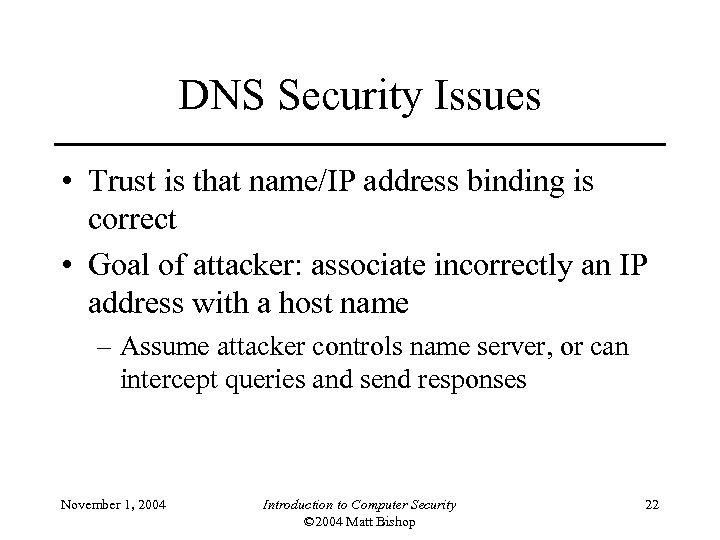

DNS Security Issues • Trust is that name/IP address binding is correct • Goal DNS Security Issues • Trust is that name/IP address binding is correct • Goal of attacker: associate incorrectly an IP address with a host name – Assume attacker controls name server, or can intercept queries and send responses November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 22

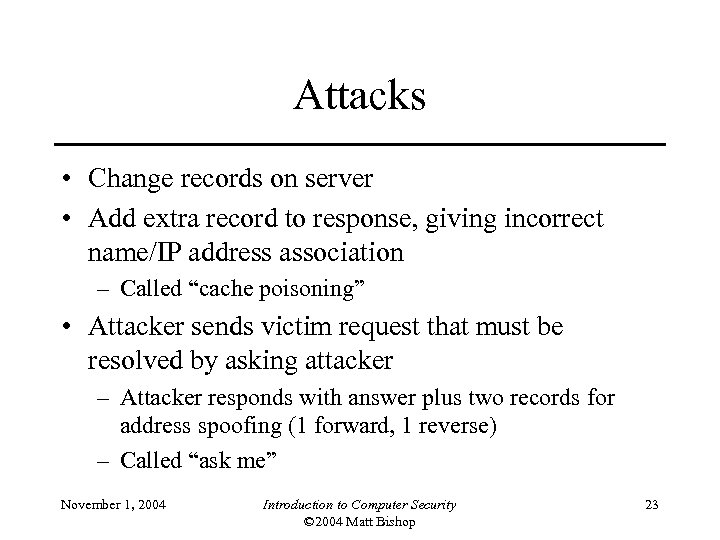

Attacks • Change records on server • Add extra record to response, giving incorrect Attacks • Change records on server • Add extra record to response, giving incorrect name/IP address association – Called “cache poisoning” • Attacker sends victim request that must be resolved by asking attacker – Attacker responds with answer plus two records for address spoofing (1 forward, 1 reverse) – Called “ask me” November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 23

Cookies • Token containing information about state of transaction on network – Usual use: Cookies • Token containing information about state of transaction on network – Usual use: refers to state of interaction between web browser, client – Idea is to minimize storage requirements of servers, and put information on clients • Client sends cookies to server November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 24

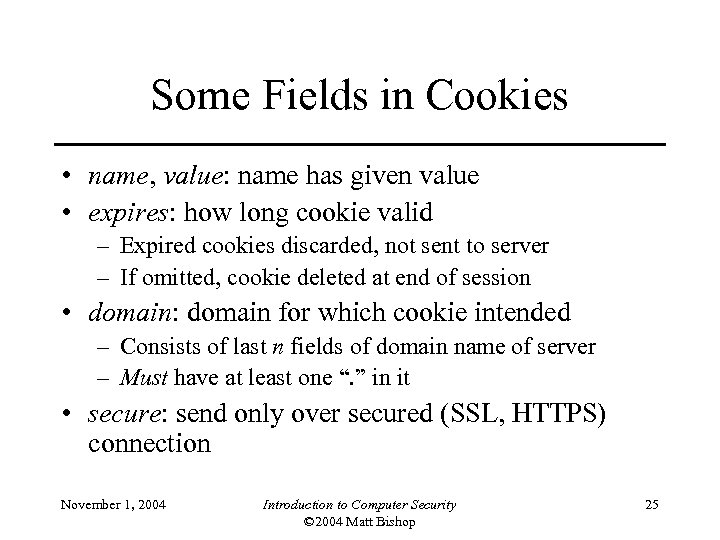

Some Fields in Cookies • name, value: name has given value • expires: how Some Fields in Cookies • name, value: name has given value • expires: how long cookie valid – Expired cookies discarded, not sent to server – If omitted, cookie deleted at end of session • domain: domain for which cookie intended – Consists of last n fields of domain name of server – Must have at least one “. ” in it • secure: send only over secured (SSL, HTTPS) connection November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 25

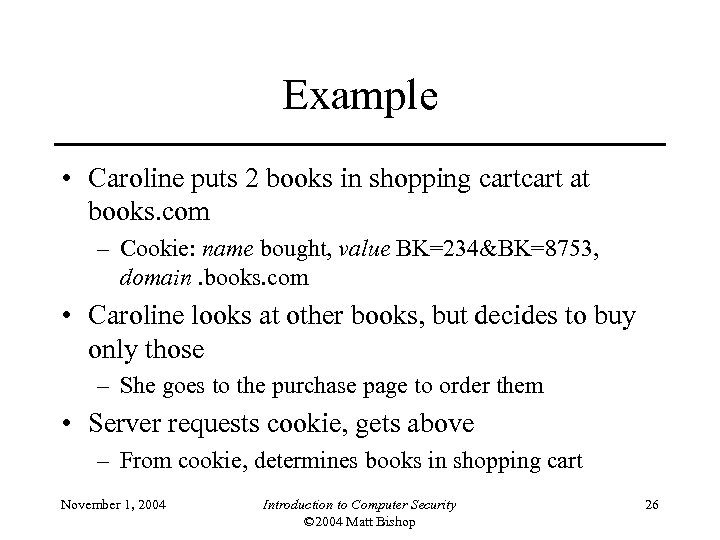

Example • Caroline puts 2 books in shopping cart at books. com – Cookie: Example • Caroline puts 2 books in shopping cart at books. com – Cookie: name bought, value BK=234&BK=8753, domain. books. com • Caroline looks at other books, but decides to buy only those – She goes to the purchase page to order them • Server requests cookie, gets above – From cookie, determines books in shopping cart November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 26

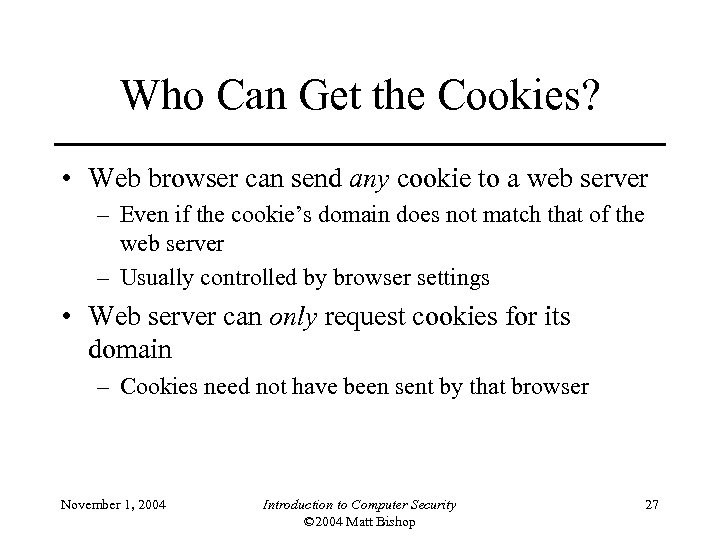

Who Can Get the Cookies? • Web browser can send any cookie to a Who Can Get the Cookies? • Web browser can send any cookie to a web server – Even if the cookie’s domain does not match that of the web server – Usually controlled by browser settings • Web server can only request cookies for its domain – Cookies need not have been sent by that browser November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 27

Where Did the Visitor Go? • Server books. com sends Caroline 2 cookies – Where Did the Visitor Go? • Server books. com sends Caroline 2 cookies – First described earlier – Second has name “id”, value “books. com”, domain “adv. com” • Advertisements at books. com include some from site adv. com – When drawing page, Caroline’s browser requests content for ads from server “adv. com” – Server requests cookies from Caroline’s browser – By looking at value, server can tell Caroline visited “books. com” November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 28

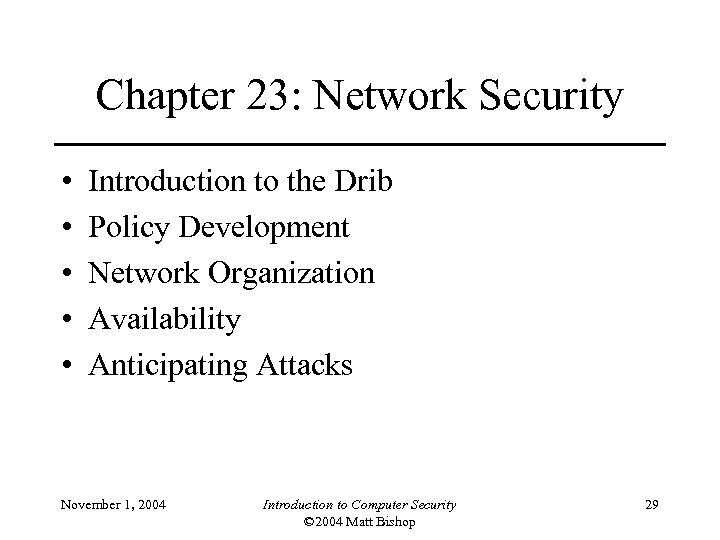

Chapter 23: Network Security • • • Introduction to the Drib Policy Development Network Chapter 23: Network Security • • • Introduction to the Drib Policy Development Network Organization Availability Anticipating Attacks November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 29

Network Organization • Partition network into several subnets – Guards between them prevent leaks Network Organization • Partition network into several subnets – Guards between them prevent leaks November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 30

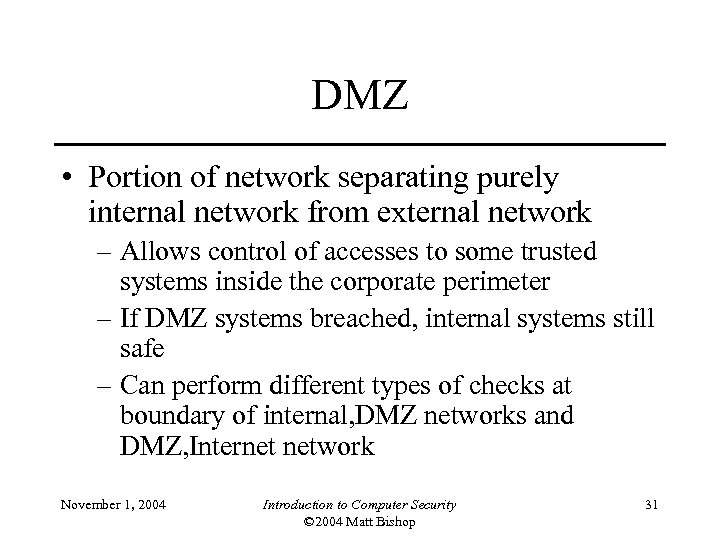

DMZ • Portion of network separating purely internal network from external network – Allows DMZ • Portion of network separating purely internal network from external network – Allows control of accesses to some trusted systems inside the corporate perimeter – If DMZ systems breached, internal systems still safe – Can perform different types of checks at boundary of internal, DMZ networks and DMZ, Internet network November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 31

Firewalls • Host that mediates access to a network – Allows, disallows accesses based Firewalls • Host that mediates access to a network – Allows, disallows accesses based on configuration and type of access • Example: block Back Orifice – BO allows external users to control systems • Requires commands to be sent to a particular port (say, 25345) – Firewall can block all traffic to or from that port • So even if BO installed, outsiders can’t use it November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 32

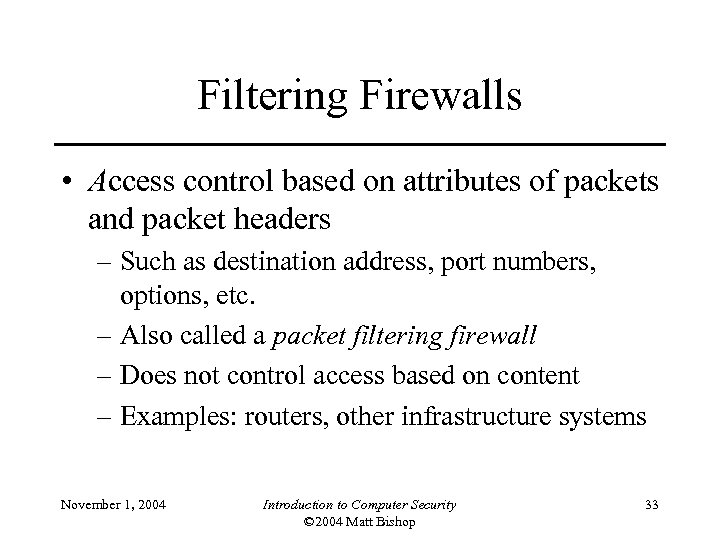

Filtering Firewalls • Access control based on attributes of packets and packet headers – Filtering Firewalls • Access control based on attributes of packets and packet headers – Such as destination address, port numbers, options, etc. – Also called a packet filtering firewall – Does not control access based on content – Examples: routers, other infrastructure systems November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 33

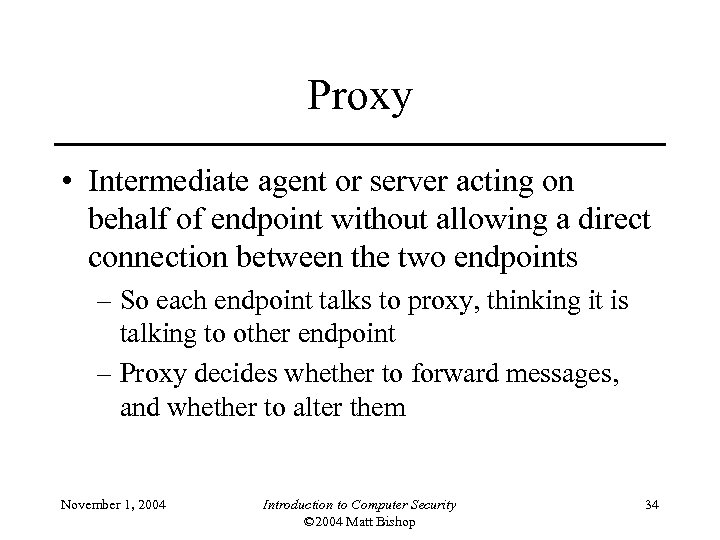

Proxy • Intermediate agent or server acting on behalf of endpoint without allowing a Proxy • Intermediate agent or server acting on behalf of endpoint without allowing a direct connection between the two endpoints – So each endpoint talks to proxy, thinking it is talking to other endpoint – Proxy decides whether to forward messages, and whether to alter them November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 34

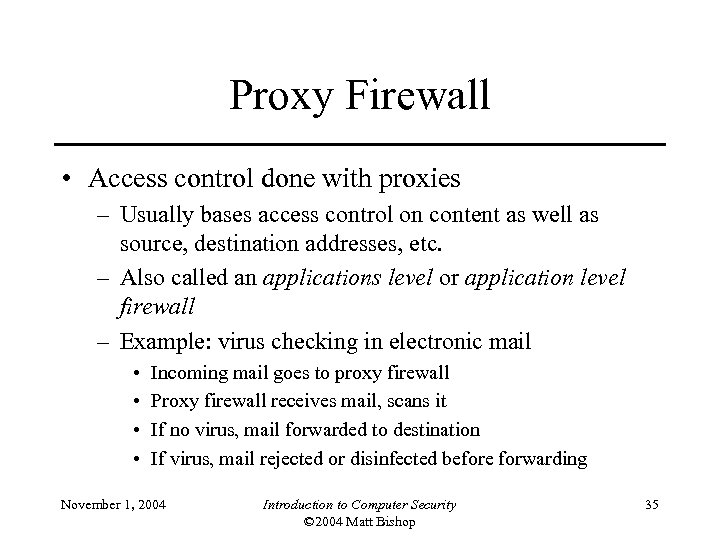

Proxy Firewall • Access control done with proxies – Usually bases access control on Proxy Firewall • Access control done with proxies – Usually bases access control on content as well as source, destination addresses, etc. – Also called an applications level or application level firewall – Example: virus checking in electronic mail • • Incoming mail goes to proxy firewall Proxy firewall receives mail, scans it If no virus, mail forwarded to destination If virus, mail rejected or disinfected before forwarding November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 35

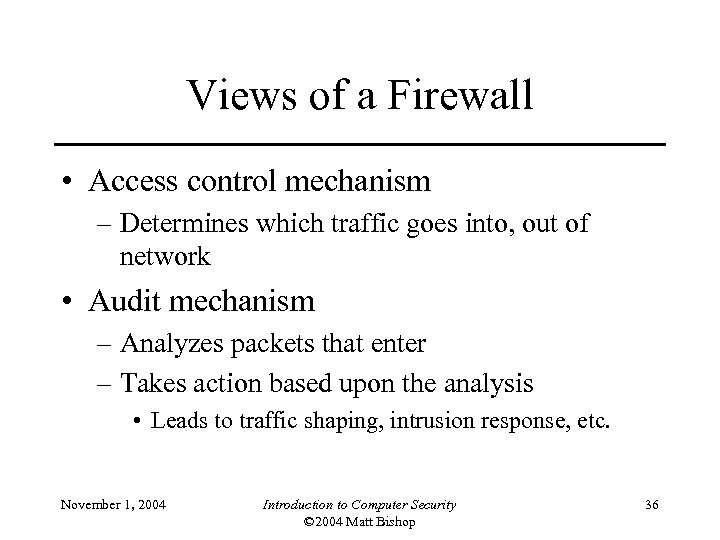

Views of a Firewall • Access control mechanism – Determines which traffic goes into, Views of a Firewall • Access control mechanism – Determines which traffic goes into, out of network • Audit mechanism – Analyzes packets that enter – Takes action based upon the analysis • Leads to traffic shaping, intrusion response, etc. November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 36

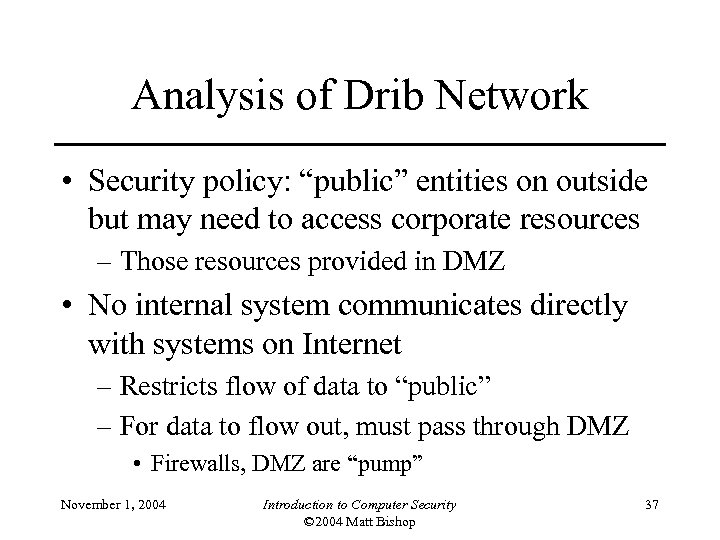

Analysis of Drib Network • Security policy: “public” entities on outside but may need Analysis of Drib Network • Security policy: “public” entities on outside but may need to access corporate resources – Those resources provided in DMZ • No internal system communicates directly with systems on Internet – Restricts flow of data to “public” – For data to flow out, must pass through DMZ • Firewalls, DMZ are “pump” November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 37

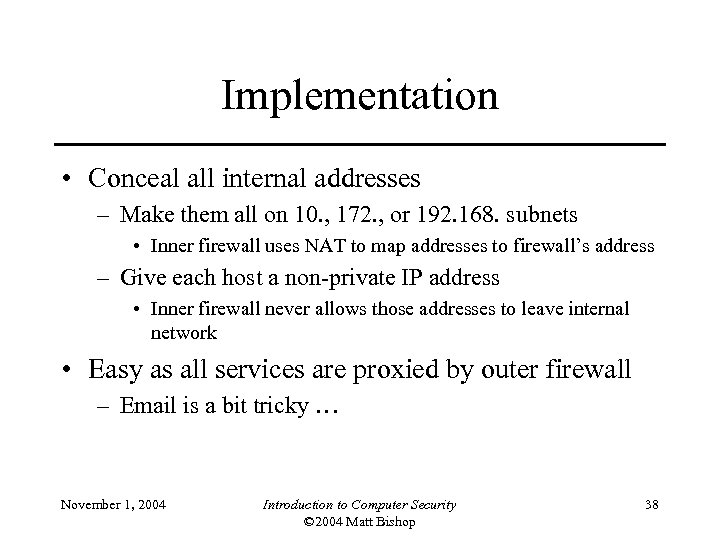

Implementation • Conceal all internal addresses – Make them all on 10. , 172. Implementation • Conceal all internal addresses – Make them all on 10. , 172. , or 192. 168. subnets • Inner firewall uses NAT to map addresses to firewall’s address – Give each host a non-private IP address • Inner firewall never allows those addresses to leave internal network • Easy as all services are proxied by outer firewall – Email is a bit tricky … November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 38

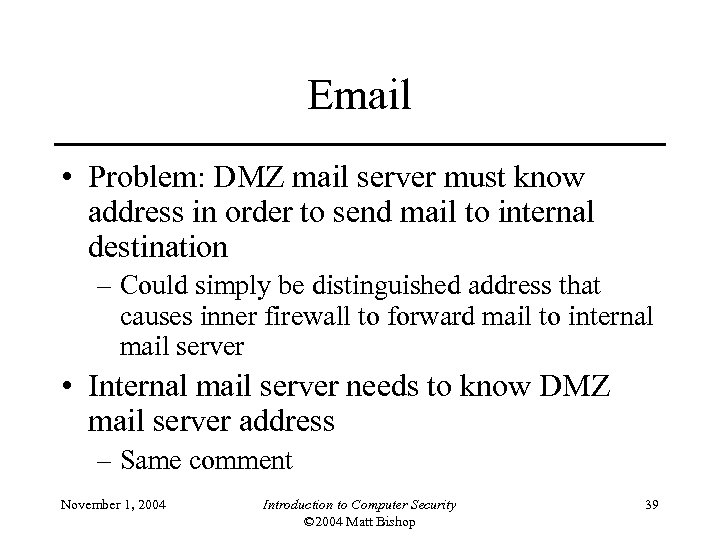

Email • Problem: DMZ mail server must know address in order to send mail Email • Problem: DMZ mail server must know address in order to send mail to internal destination – Could simply be distinguished address that causes inner firewall to forward mail to internal mail server • Internal mail server needs to know DMZ mail server address – Same comment November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 39

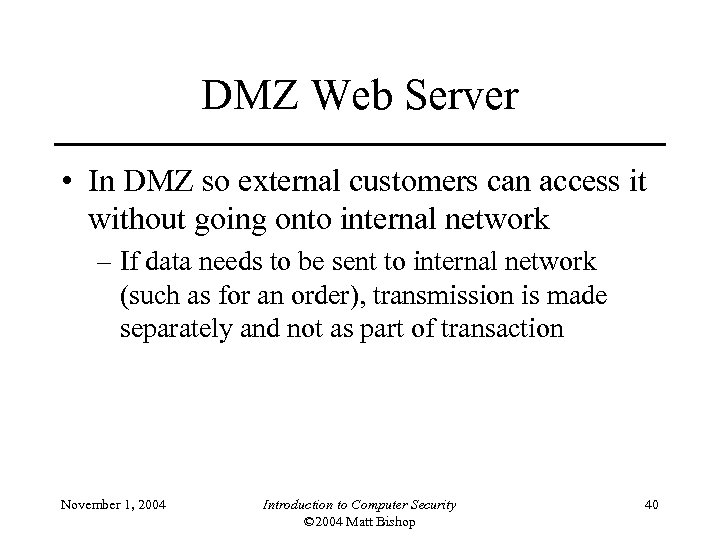

DMZ Web Server • In DMZ so external customers can access it without going DMZ Web Server • In DMZ so external customers can access it without going onto internal network – If data needs to be sent to internal network (such as for an order), transmission is made separately and not as part of transaction November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 40

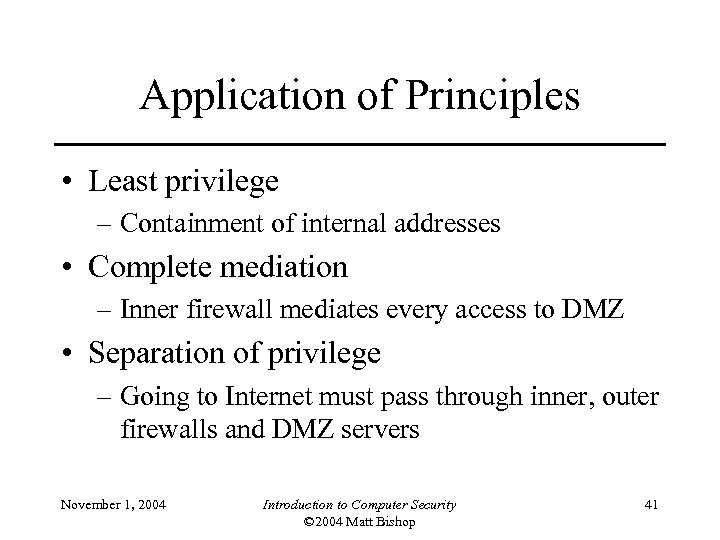

Application of Principles • Least privilege – Containment of internal addresses • Complete mediation Application of Principles • Least privilege – Containment of internal addresses • Complete mediation – Inner firewall mediates every access to DMZ • Separation of privilege – Going to Internet must pass through inner, outer firewalls and DMZ servers November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 41

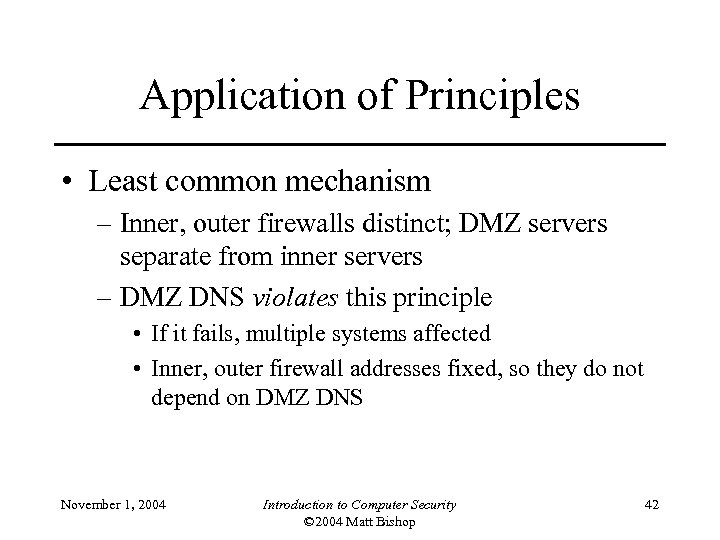

Application of Principles • Least common mechanism – Inner, outer firewalls distinct; DMZ servers Application of Principles • Least common mechanism – Inner, outer firewalls distinct; DMZ servers separate from inner servers – DMZ DNS violates this principle • If it fails, multiple systems affected • Inner, outer firewall addresses fixed, so they do not depend on DMZ DNS November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 42

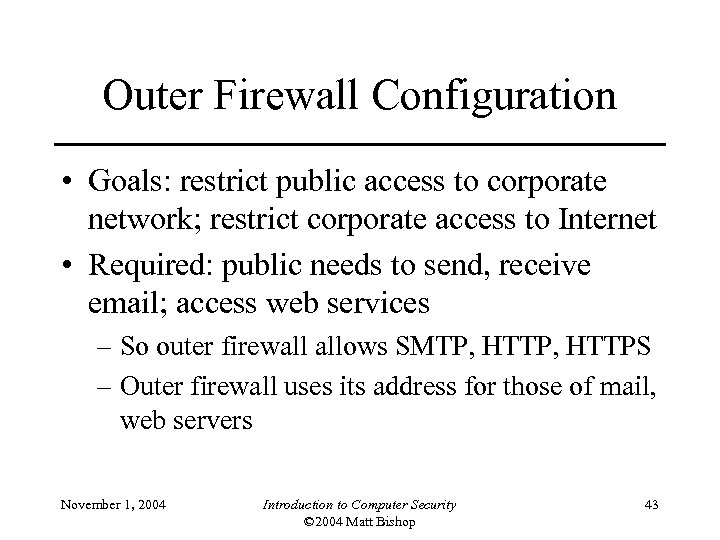

Outer Firewall Configuration • Goals: restrict public access to corporate network; restrict corporate access Outer Firewall Configuration • Goals: restrict public access to corporate network; restrict corporate access to Internet • Required: public needs to send, receive email; access web services – So outer firewall allows SMTP, HTTPS – Outer firewall uses its address for those of mail, web servers November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 43

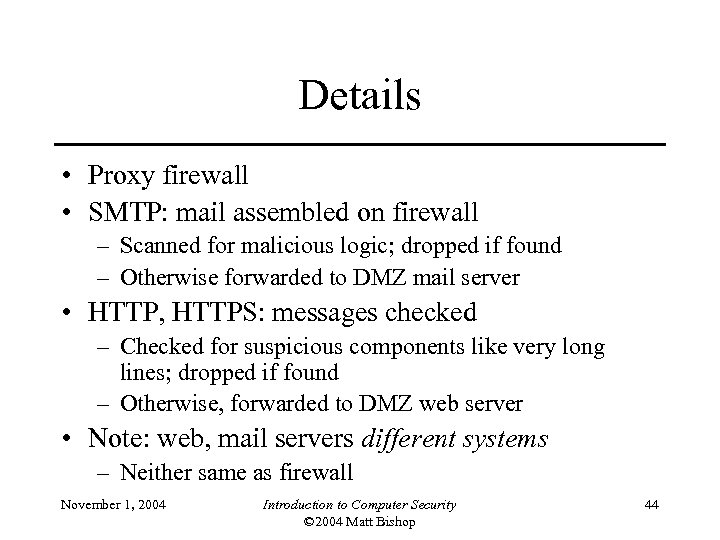

Details • Proxy firewall • SMTP: mail assembled on firewall – Scanned for malicious Details • Proxy firewall • SMTP: mail assembled on firewall – Scanned for malicious logic; dropped if found – Otherwise forwarded to DMZ mail server • HTTP, HTTPS: messages checked – Checked for suspicious components like very long lines; dropped if found – Otherwise, forwarded to DMZ web server • Note: web, mail servers different systems – Neither same as firewall November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 44

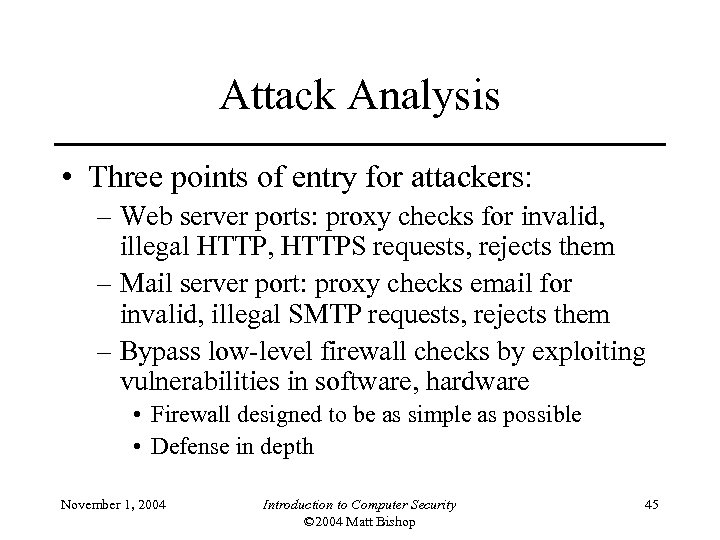

Attack Analysis • Three points of entry for attackers: – Web server ports: proxy Attack Analysis • Three points of entry for attackers: – Web server ports: proxy checks for invalid, illegal HTTP, HTTPS requests, rejects them – Mail server port: proxy checks email for invalid, illegal SMTP requests, rejects them – Bypass low-level firewall checks by exploiting vulnerabilities in software, hardware • Firewall designed to be as simple as possible • Defense in depth November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 45

Defense in Depth • Form of separation of privilege • To attack system in Defense in Depth • Form of separation of privilege • To attack system in DMZ by bypassing firewall checks, attacker must know internal addresses – Then can try to piggyback unauthorized messages onto authorized packets • But the rewriting of DMZ addresses prevents this November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 46

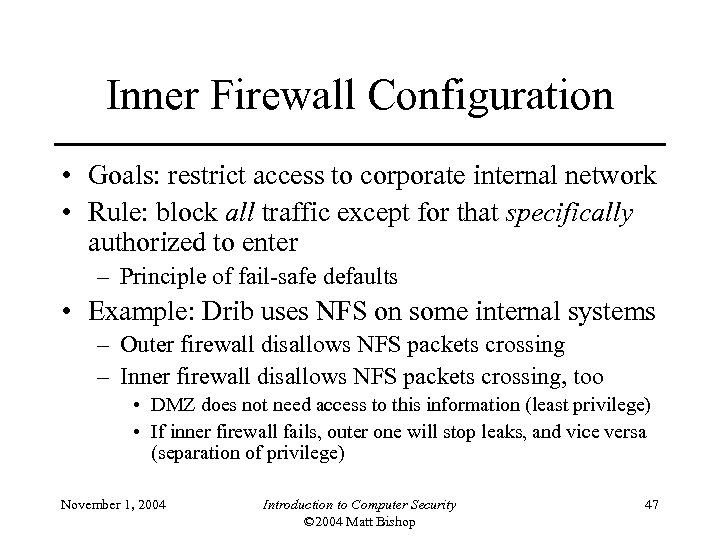

Inner Firewall Configuration • Goals: restrict access to corporate internal network • Rule: block Inner Firewall Configuration • Goals: restrict access to corporate internal network • Rule: block all traffic except for that specifically authorized to enter – Principle of fail-safe defaults • Example: Drib uses NFS on some internal systems – Outer firewall disallows NFS packets crossing – Inner firewall disallows NFS packets crossing, too • DMZ does not need access to this information (least privilege) • If inner firewall fails, outer one will stop leaks, and vice versa (separation of privilege) November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 47

More Configuration • Internal folks require email – SMTP proxy required • Administrators for More Configuration • Internal folks require email – SMTP proxy required • Administrators for DMZ need login access – So, allow SSH through provided: • Destination is a DMZ server • Originates at specific internal host (administrative host) – Violates least privilege, but ameliorated by above • DMZ DNS needs to know address of administrative host – More on this later November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 48

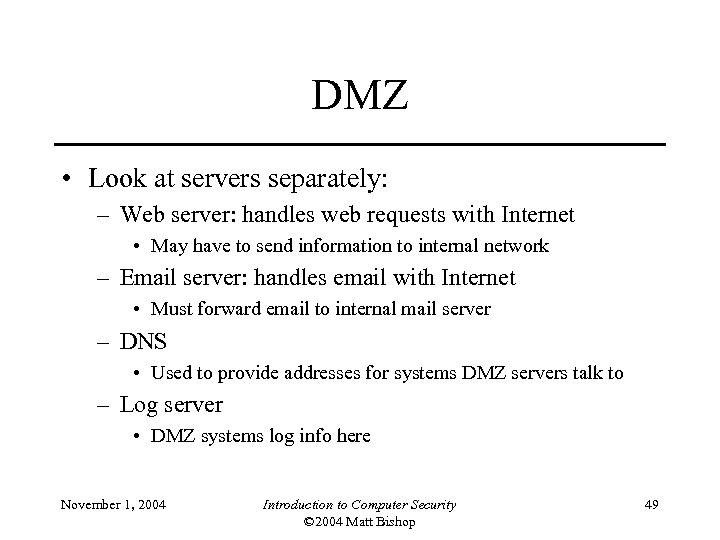

DMZ • Look at servers separately: – Web server: handles web requests with Internet DMZ • Look at servers separately: – Web server: handles web requests with Internet • May have to send information to internal network – Email server: handles email with Internet • Must forward email to internal mail server – DNS • Used to provide addresses for systems DMZ servers talk to – Log server • DMZ systems log info here November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 49

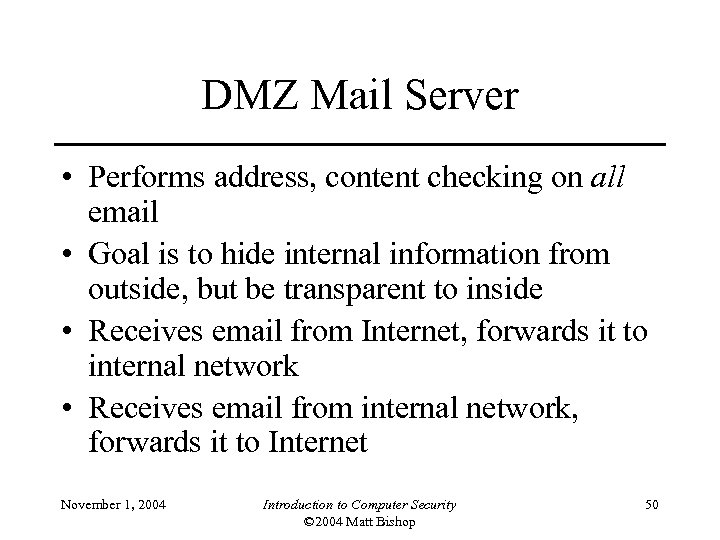

DMZ Mail Server • Performs address, content checking on all email • Goal is DMZ Mail Server • Performs address, content checking on all email • Goal is to hide internal information from outside, but be transparent to inside • Receives email from Internet, forwards it to internal network • Receives email from internal network, forwards it to Internet November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 50

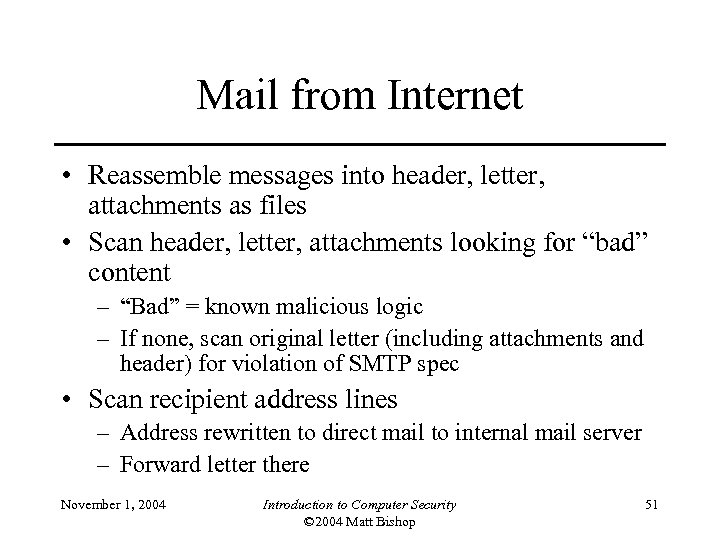

Mail from Internet • Reassemble messages into header, letter, attachments as files • Scan Mail from Internet • Reassemble messages into header, letter, attachments as files • Scan header, letter, attachments looking for “bad” content – “Bad” = known malicious logic – If none, scan original letter (including attachments and header) for violation of SMTP spec • Scan recipient address lines – Address rewritten to direct mail to internal mail server – Forward letter there November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 51

Mail to Internet • Like mail from Internet with 2 changes: – Step 2: Mail to Internet • Like mail from Internet with 2 changes: – Step 2: also scan for sensitive data (like proprietary markings or content, etc. ) – Step 3: changed to rewrite all header lines containing host names, email addresses, and IP addresses of internal network • All are replaced by “drib. org” or IP address of external firewall November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 52

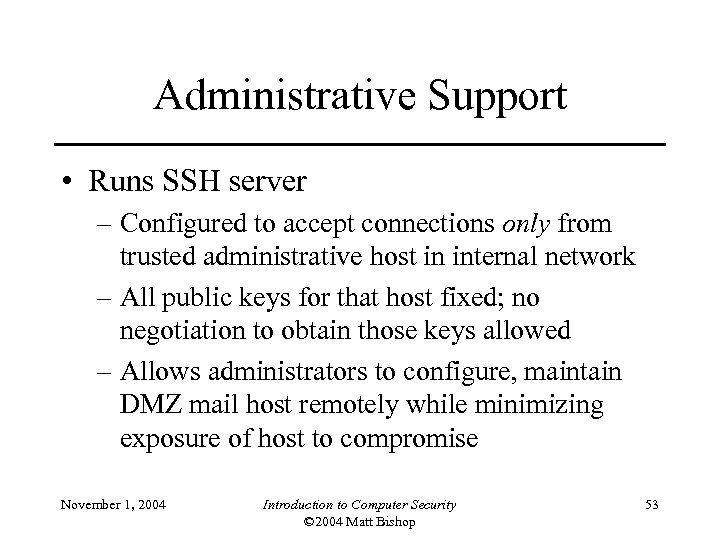

Administrative Support • Runs SSH server – Configured to accept connections only from trusted Administrative Support • Runs SSH server – Configured to accept connections only from trusted administrative host in internal network – All public keys for that host fixed; no negotiation to obtain those keys allowed – Allows administrators to configure, maintain DMZ mail host remotely while minimizing exposure of host to compromise November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 53

DMZ Web Server • Accepts, services requests from Internet • Never contacts servers, information DMZ Web Server • Accepts, services requests from Internet • Never contacts servers, information sources in internal network • CGI scripts checked for potential attacks – Hardened to prevent attacks from succeeding – Server itself contains no confidential data • Server is www. drib. org and uses IP address of outer firewall when it must supply one November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 54

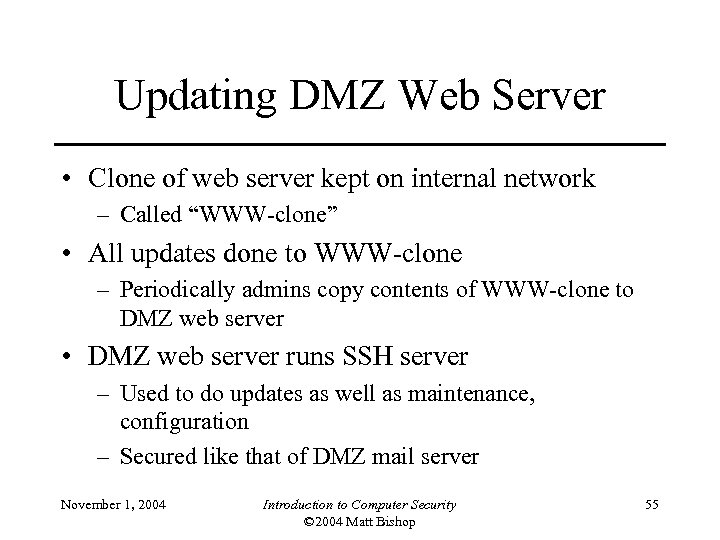

Updating DMZ Web Server • Clone of web server kept on internal network – Updating DMZ Web Server • Clone of web server kept on internal network – Called “WWW-clone” • All updates done to WWW-clone – Periodically admins copy contents of WWW-clone to DMZ web server • DMZ web server runs SSH server – Used to do updates as well as maintenance, configuration – Secured like that of DMZ mail server November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 55

Internet Ordering • Orders for Drib merchandise from Internet – Customer enters data, which Internet Ordering • Orders for Drib merchandise from Internet – Customer enters data, which is saved to file – After user confirms order, web server checks format, content of file and then uses public key of system on internal customer subnet to encipher it • This file is placed in a spool area not accessible to web server program – Original file deleted – Periodically, internal trusted administrative host uploads these files, and forwards them to internal customer subnet system November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 56

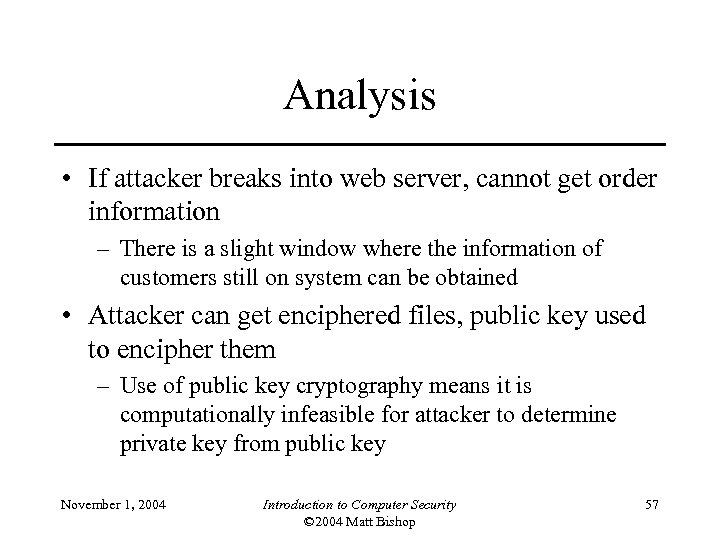

Analysis • If attacker breaks into web server, cannot get order information – There Analysis • If attacker breaks into web server, cannot get order information – There is a slight window where the information of customers still on system can be obtained • Attacker can get enciphered files, public key used to encipher them – Use of public key cryptography means it is computationally infeasible for attacker to determine private key from public key November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 57

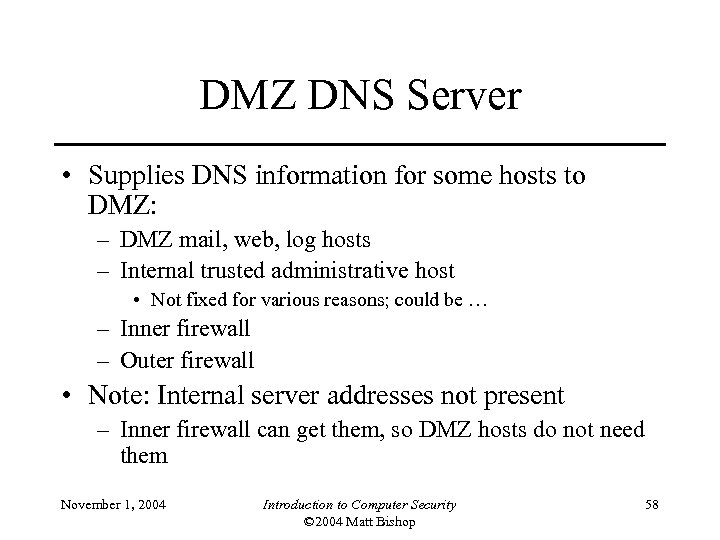

DMZ DNS Server • Supplies DNS information for some hosts to DMZ: – DMZ DMZ DNS Server • Supplies DNS information for some hosts to DMZ: – DMZ mail, web, log hosts – Internal trusted administrative host • Not fixed for various reasons; could be … – Inner firewall – Outer firewall • Note: Internal server addresses not present – Inner firewall can get them, so DMZ hosts do not need them November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 58

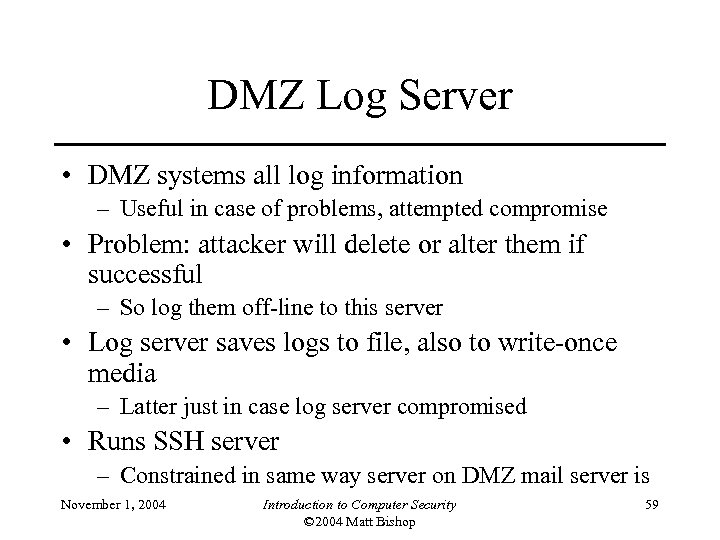

DMZ Log Server • DMZ systems all log information – Useful in case of DMZ Log Server • DMZ systems all log information – Useful in case of problems, attempted compromise • Problem: attacker will delete or alter them if successful – So log them off-line to this server • Log server saves logs to file, also to write-once media – Latter just in case log server compromised • Runs SSH server – Constrained in same way server on DMZ mail server is November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 59

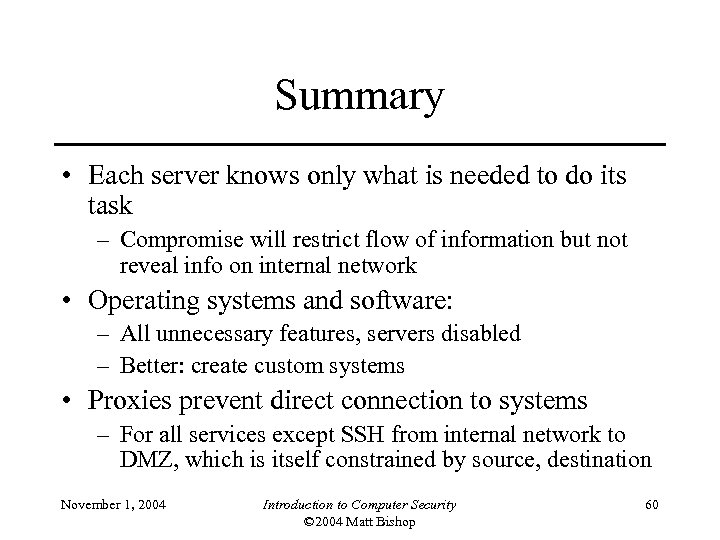

Summary • Each server knows only what is needed to do its task – Summary • Each server knows only what is needed to do its task – Compromise will restrict flow of information but not reveal info on internal network • Operating systems and software: – All unnecessary features, servers disabled – Better: create custom systems • Proxies prevent direct connection to systems – For all services except SSH from internal network to DMZ, which is itself constrained by source, destination November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 60

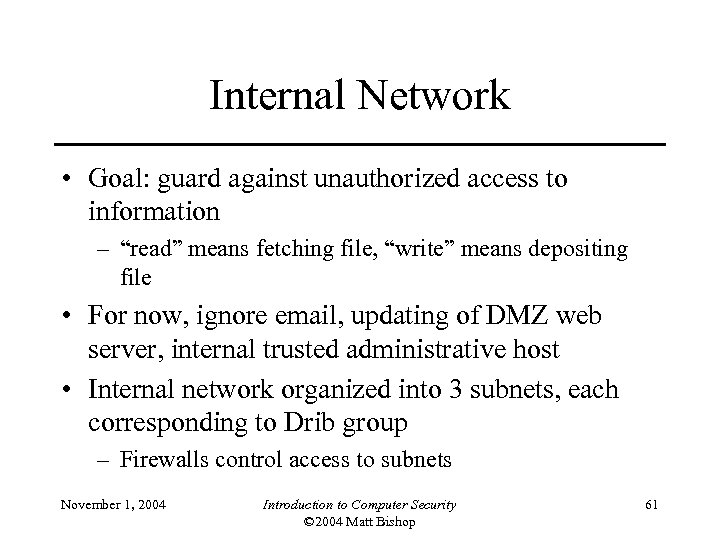

Internal Network • Goal: guard against unauthorized access to information – “read” means fetching Internal Network • Goal: guard against unauthorized access to information – “read” means fetching file, “write” means depositing file • For now, ignore email, updating of DMZ web server, internal trusted administrative host • Internal network organized into 3 subnets, each corresponding to Drib group – Firewalls control access to subnets November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 61

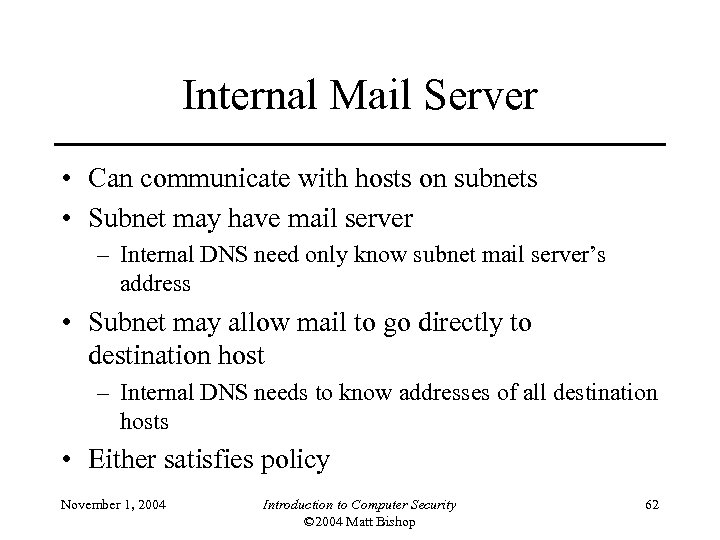

Internal Mail Server • Can communicate with hosts on subnets • Subnet may have Internal Mail Server • Can communicate with hosts on subnets • Subnet may have mail server – Internal DNS need only know subnet mail server’s address • Subnet may allow mail to go directly to destination host – Internal DNS needs to know addresses of all destination hosts • Either satisfies policy November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 62

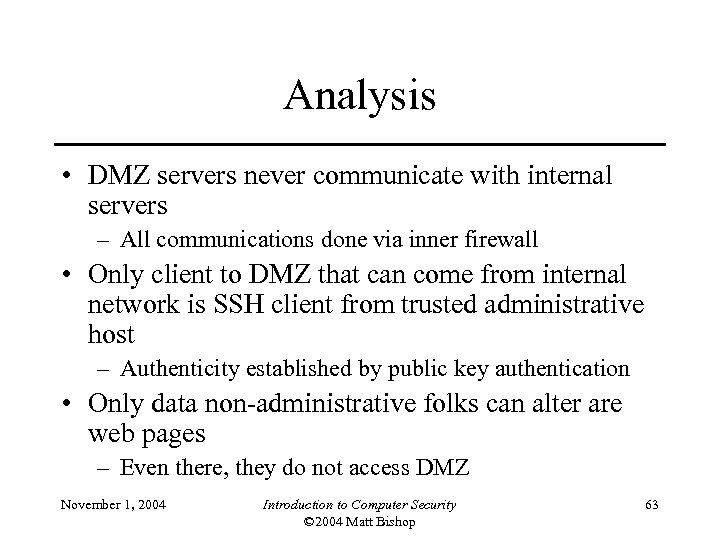

Analysis • DMZ servers never communicate with internal servers – All communications done via Analysis • DMZ servers never communicate with internal servers – All communications done via inner firewall • Only client to DMZ that can come from internal network is SSH client from trusted administrative host – Authenticity established by public key authentication • Only data non-administrative folks can alter are web pages – Even there, they do not access DMZ November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 63

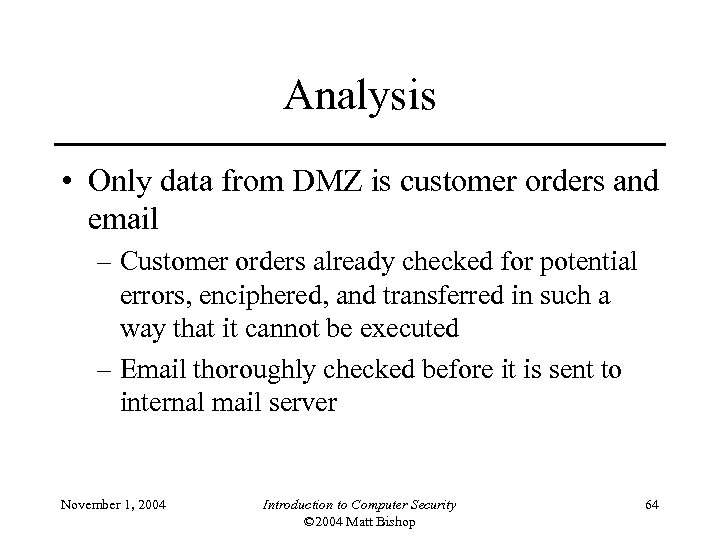

Analysis • Only data from DMZ is customer orders and email – Customer orders Analysis • Only data from DMZ is customer orders and email – Customer orders already checked for potential errors, enciphered, and transferred in such a way that it cannot be executed – Email thoroughly checked before it is sent to internal mail server November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 64

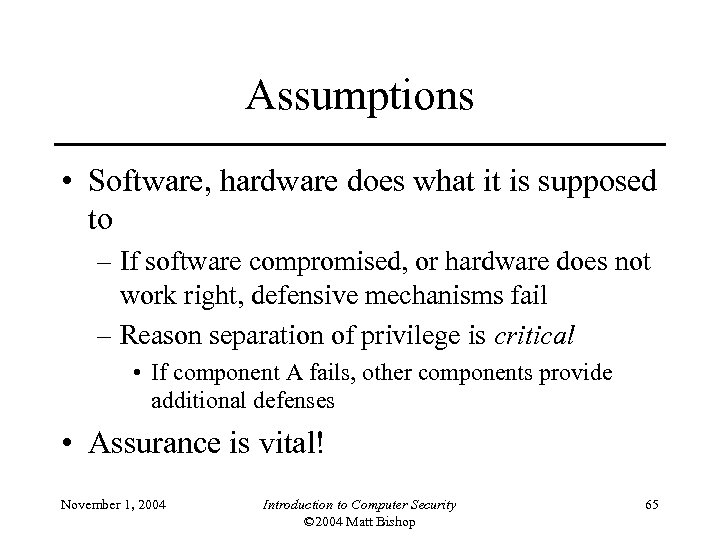

Assumptions • Software, hardware does what it is supposed to – If software compromised, Assumptions • Software, hardware does what it is supposed to – If software compromised, or hardware does not work right, defensive mechanisms fail – Reason separation of privilege is critical • If component A fails, other components provide additional defenses • Assurance is vital! November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 65

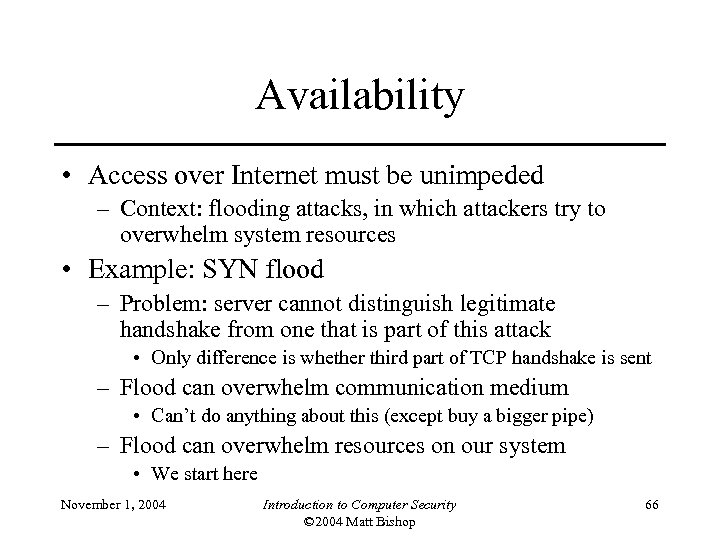

Availability • Access over Internet must be unimpeded – Context: flooding attacks, in which Availability • Access over Internet must be unimpeded – Context: flooding attacks, in which attackers try to overwhelm system resources • Example: SYN flood – Problem: server cannot distinguish legitimate handshake from one that is part of this attack • Only difference is whether third part of TCP handshake is sent – Flood can overwhelm communication medium • Can’t do anything about this (except buy a bigger pipe) – Flood can overwhelm resources on our system • We start here November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 66

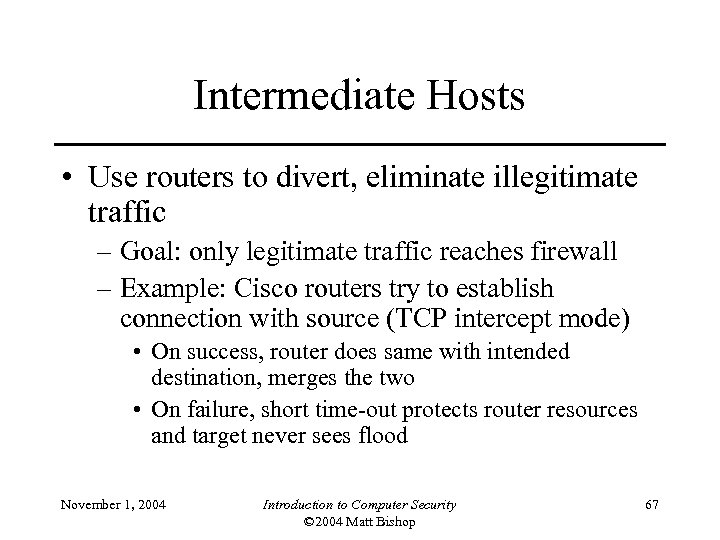

Intermediate Hosts • Use routers to divert, eliminate illegitimate traffic – Goal: only legitimate Intermediate Hosts • Use routers to divert, eliminate illegitimate traffic – Goal: only legitimate traffic reaches firewall – Example: Cisco routers try to establish connection with source (TCP intercept mode) • On success, router does same with intended destination, merges the two • On failure, short time-out protects router resources and target never sees flood November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 67

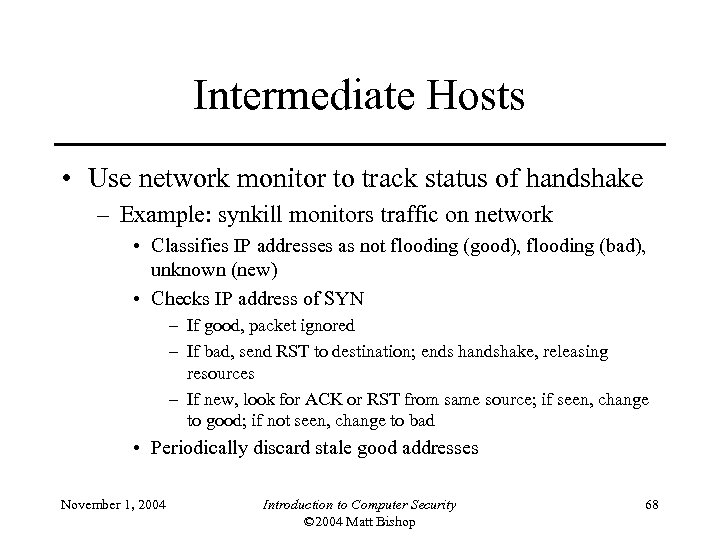

Intermediate Hosts • Use network monitor to track status of handshake – Example: synkill Intermediate Hosts • Use network monitor to track status of handshake – Example: synkill monitors traffic on network • Classifies IP addresses as not flooding (good), flooding (bad), unknown (new) • Checks IP address of SYN – If good, packet ignored – If bad, send RST to destination; ends handshake, releasing resources – If new, look for ACK or RST from same source; if seen, change to good; if not seen, change to bad • Periodically discard stale good addresses November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 68

Intermediate Hosts • Problem: don’t solve problem! – They move the locus of the Intermediate Hosts • Problem: don’t solve problem! – They move the locus of the problem to the intermediate system – In Drib’s case, Drib does not control these systems • So, consider endpoints November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 69

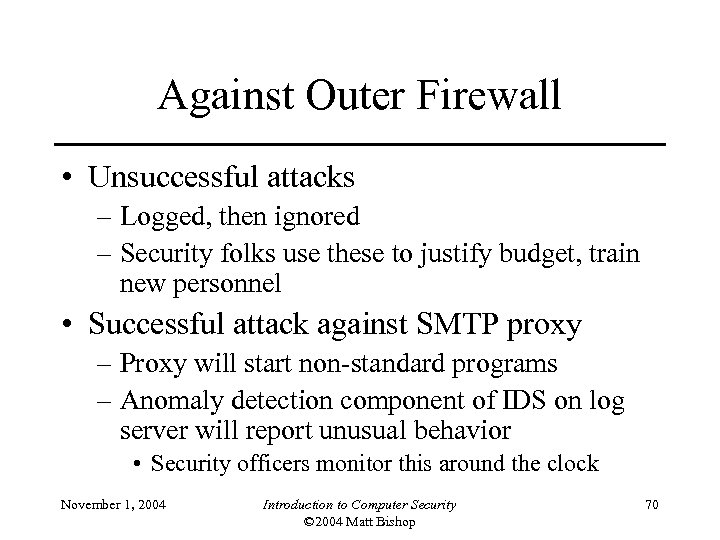

Against Outer Firewall • Unsuccessful attacks – Logged, then ignored – Security folks use Against Outer Firewall • Unsuccessful attacks – Logged, then ignored – Security folks use these to justify budget, train new personnel • Successful attack against SMTP proxy – Proxy will start non-standard programs – Anomaly detection component of IDS on log server will report unusual behavior • Security officers monitor this around the clock November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 70

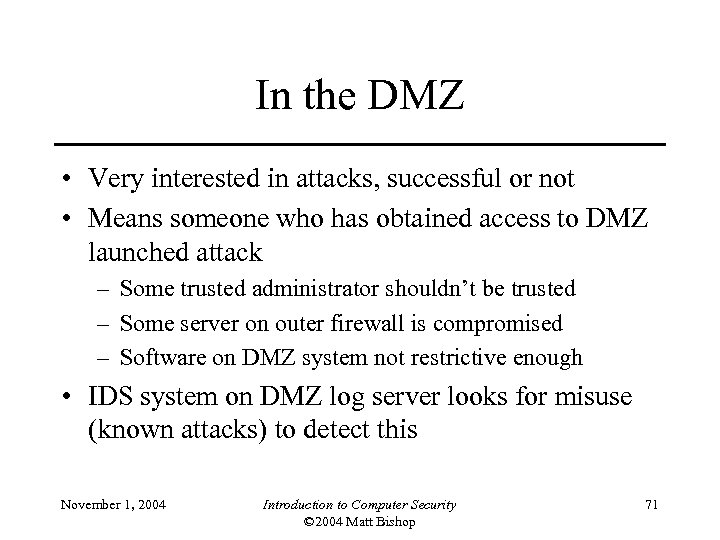

In the DMZ • Very interested in attacks, successful or not • Means someone In the DMZ • Very interested in attacks, successful or not • Means someone who has obtained access to DMZ launched attack – Some trusted administrator shouldn’t be trusted – Some server on outer firewall is compromised – Software on DMZ system not restrictive enough • IDS system on DMZ log server looks for misuse (known attacks) to detect this November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 71

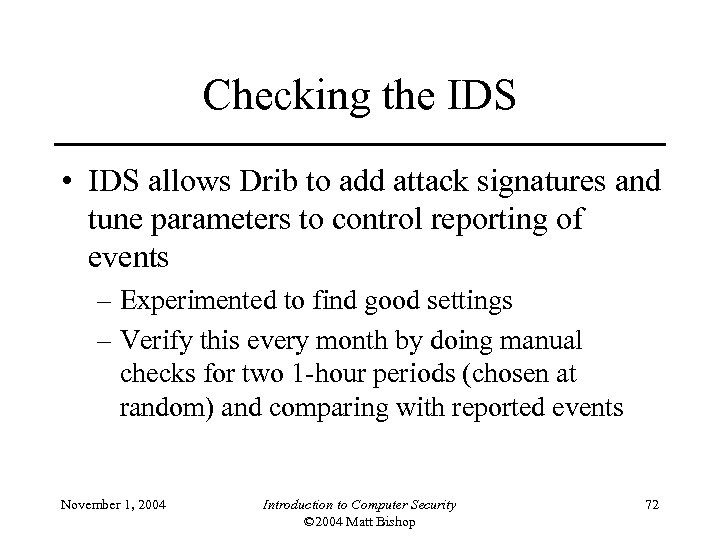

Checking the IDS • IDS allows Drib to add attack signatures and tune parameters Checking the IDS • IDS allows Drib to add attack signatures and tune parameters to control reporting of events – Experimented to find good settings – Verify this every month by doing manual checks for two 1 -hour periods (chosen at random) and comparing with reported events November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 72

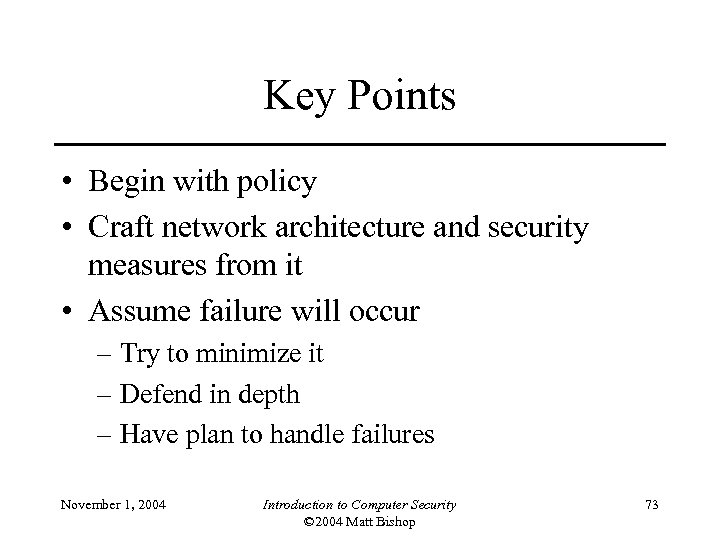

Key Points • Begin with policy • Craft network architecture and security measures from Key Points • Begin with policy • Craft network architecture and security measures from it • Assume failure will occur – Try to minimize it – Defend in depth – Have plan to handle failures November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 73

Chapter 24: System Security • • Introduction Policy Networks Users Authentication Processes Files Retrospective Chapter 24: System Security • • Introduction Policy Networks Users Authentication Processes Files Retrospective November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 74

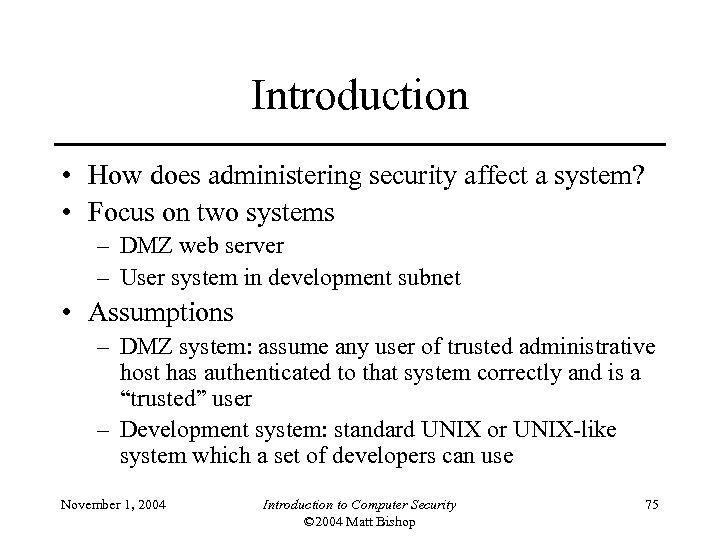

Introduction • How does administering security affect a system? • Focus on two systems Introduction • How does administering security affect a system? • Focus on two systems – DMZ web server – User system in development subnet • Assumptions – DMZ system: assume any user of trusted administrative host has authenticated to that system correctly and is a “trusted” user – Development system: standard UNIX or UNIX-like system which a set of developers can use November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 75

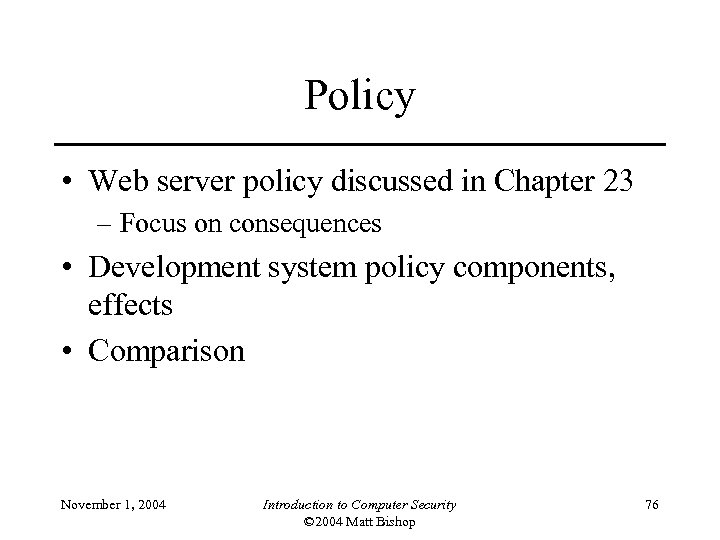

Policy • Web server policy discussed in Chapter 23 – Focus on consequences • Policy • Web server policy discussed in Chapter 23 – Focus on consequences • Development system policy components, effects • Comparison November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 76

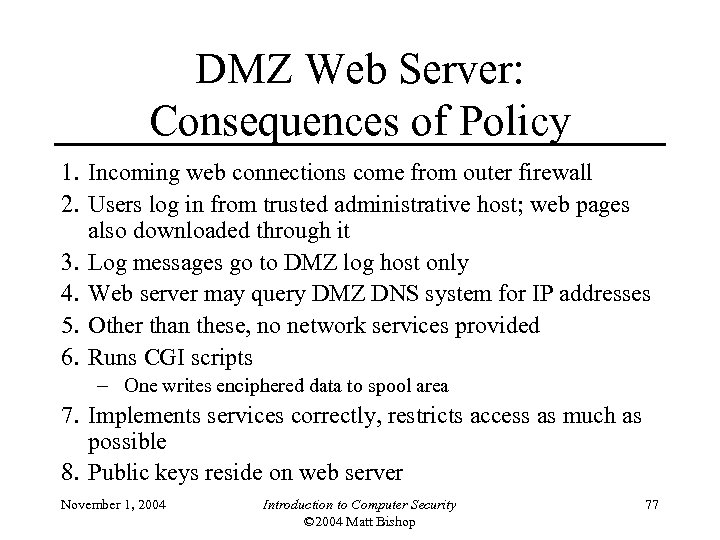

DMZ Web Server: Consequences of Policy 1. Incoming web connections come from outer firewall DMZ Web Server: Consequences of Policy 1. Incoming web connections come from outer firewall 2. Users log in from trusted administrative host; web pages also downloaded through it 3. Log messages go to DMZ log host only 4. Web server may query DMZ DNS system for IP addresses 5. Other than these, no network services provided 6. Runs CGI scripts – One writes enciphered data to spool area 7. Implements services correctly, restricts access as much as possible 8. Public keys reside on web server November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 77

Constraints on DMZ Web Server WC 1 No unrequested network connections except HTTP, HTTPS Constraints on DMZ Web Server WC 1 No unrequested network connections except HTTP, HTTPS from outer firewall and SSH from trusted administrative host – Replies to DNS queries from DMZ DNS okay WC 2 User access only to those with user access to trusted administrative host – Number of these users as small as possible – All actions attributed to individual account, not group or group account November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 78

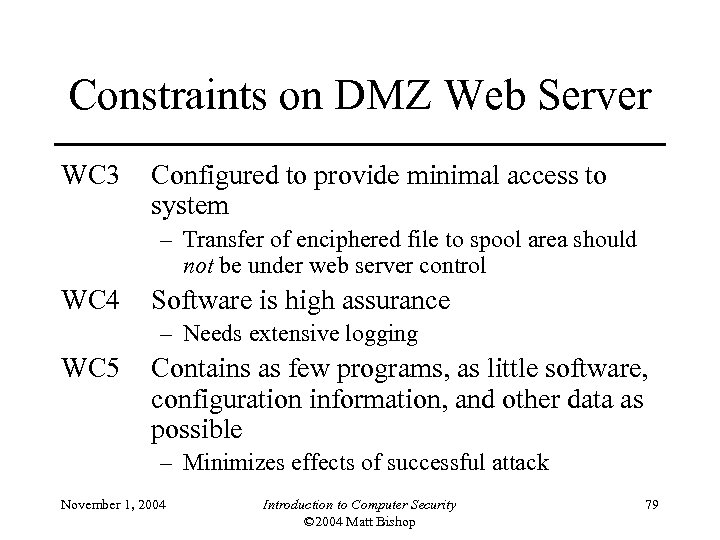

Constraints on DMZ Web Server WC 3 Configured to provide minimal access to system Constraints on DMZ Web Server WC 3 Configured to provide minimal access to system – Transfer of enciphered file to spool area should not be under web server control WC 4 Software is high assurance – Needs extensive logging WC 5 Contains as few programs, as little software, configuration information, and other data as possible – Minimizes effects of successful attack November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 79

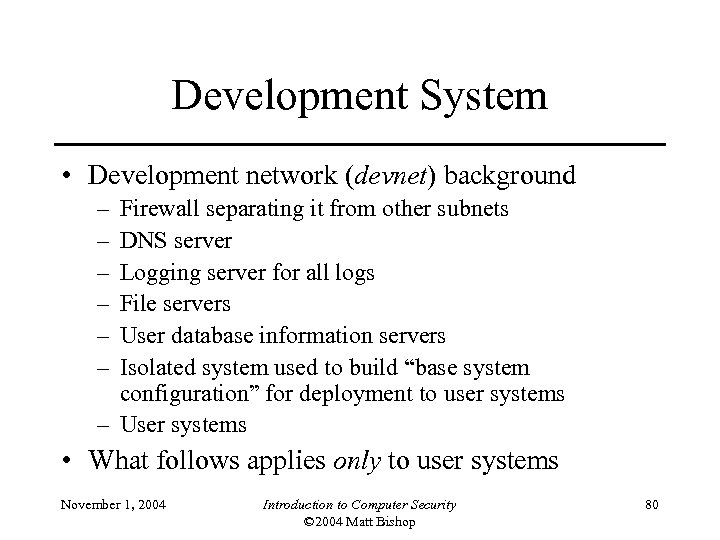

Development System • Development network (devnet) background – – – Firewall separating it from Development System • Development network (devnet) background – – – Firewall separating it from other subnets DNS server Logging server for all logs File servers User database information servers Isolated system used to build “base system configuration” for deployment to user systems – User systems • What follows applies only to user systems November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 80

Devnet User System: Policy Components 1. 2. 3. 4. 5. 6. 7. Only authorized Devnet User System: Policy Components 1. 2. 3. 4. 5. 6. 7. Only authorized users can use devnet systems; can work on any workstation Sysadmins must be able to access workstations at any time Authorized users trusted not to attack systems All network communications except email confidential, integrity checked Base standard configuration cannot be changed Backups allow any system to be restored Periodic, ongoing audits of devnet systems November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 81

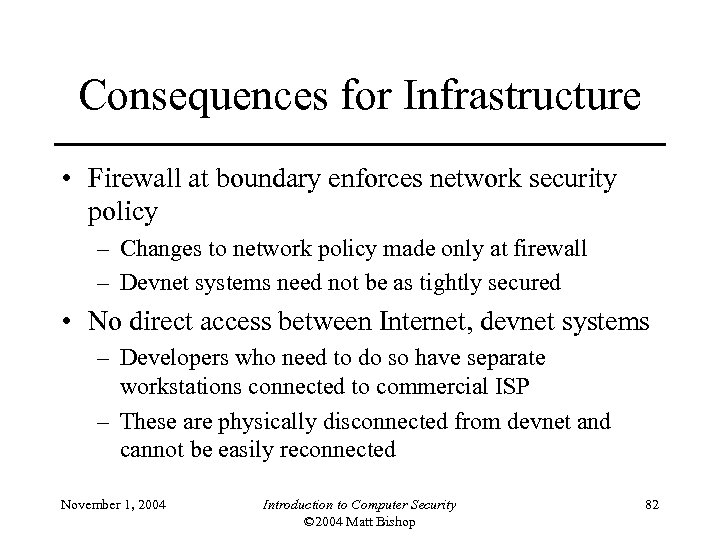

Consequences for Infrastructure • Firewall at boundary enforces network security policy – Changes to Consequences for Infrastructure • Firewall at boundary enforces network security policy – Changes to network policy made only at firewall – Devnet systems need not be as tightly secured • No direct access between Internet, devnet systems – Developers who need to do so have separate workstations connected to commercial ISP – These are physically disconnected from devnet and cannot be easily reconnected November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 82

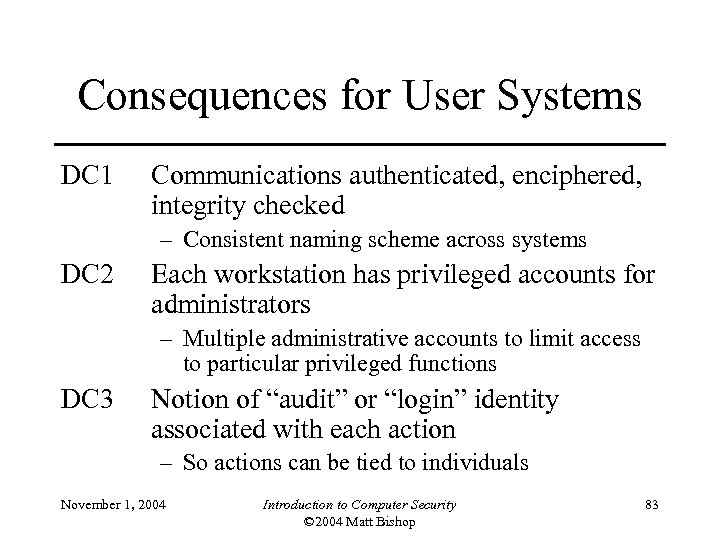

Consequences for User Systems DC 1 Communications authenticated, enciphered, integrity checked – Consistent naming Consequences for User Systems DC 1 Communications authenticated, enciphered, integrity checked – Consistent naming scheme across systems DC 2 Each workstation has privileged accounts for administrators – Multiple administrative accounts to limit access to particular privileged functions DC 3 Notion of “audit” or “login” identity associated with each action – So actions can be tied to individuals November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 83

Consequences for User Systems DC 4 Need approval to install program, and must install Consequences for User Systems DC 4 Need approval to install program, and must install it in special area – Separates it from base system software DC 5 Each workstation protects base system software from being altered – Best way: keep it on read-only media DC 6 Employee’s files be available continuously – Even if workstation goes down – Same permissions wherever employee accesses them November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 84

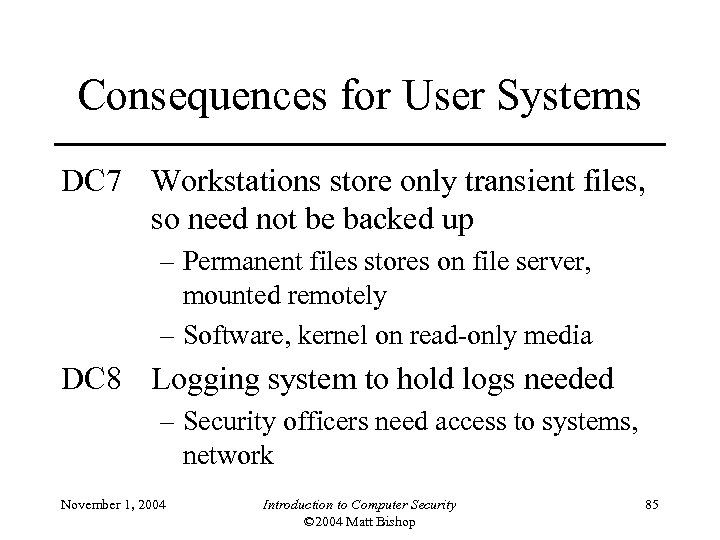

Consequences for User Systems DC 7 Workstations store only transient files, so need not Consequences for User Systems DC 7 Workstations store only transient files, so need not be backed up – Permanent files stores on file server, mounted remotely – Software, kernel on read-only media DC 8 Logging system to hold logs needed – Security officers need access to systems, network November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 85

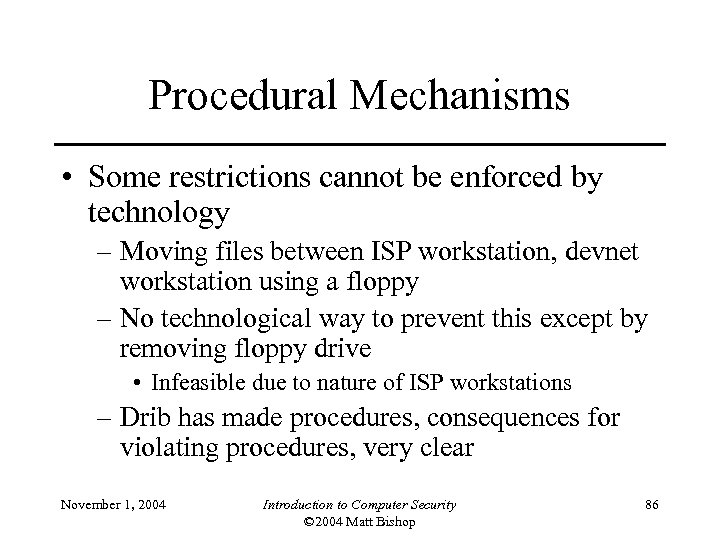

Procedural Mechanisms • Some restrictions cannot be enforced by technology – Moving files between Procedural Mechanisms • Some restrictions cannot be enforced by technology – Moving files between ISP workstation, devnet workstation using a floppy – No technological way to prevent this except by removing floppy drive • Infeasible due to nature of ISP workstations – Drib has made procedures, consequences for violating procedures, very clear November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 86

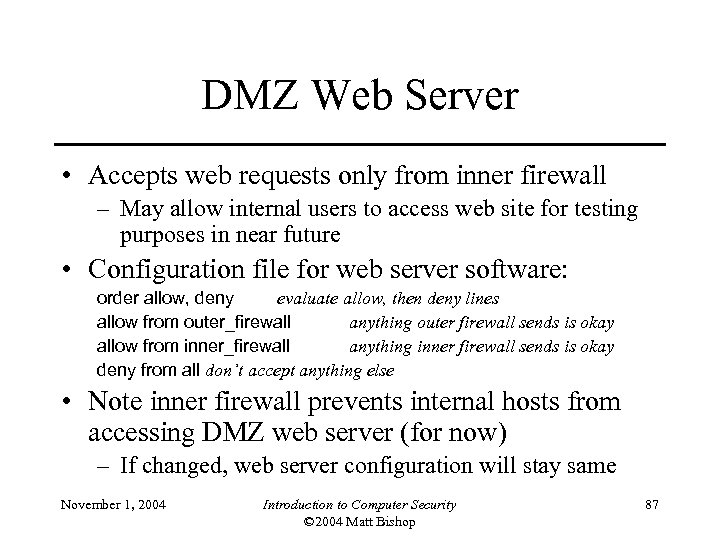

DMZ Web Server • Accepts web requests only from inner firewall – May allow DMZ Web Server • Accepts web requests only from inner firewall – May allow internal users to access web site for testing purposes in near future • Configuration file for web server software: order allow, deny evaluate allow, then deny lines allow from outer_firewall anything outer firewall sends is okay allow from inner_firewall anything inner firewall sends is okay deny from all don’t accept anything else • Note inner firewall prevents internal hosts from accessing DMZ web server (for now) – If changed, web server configuration will stay same November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 87

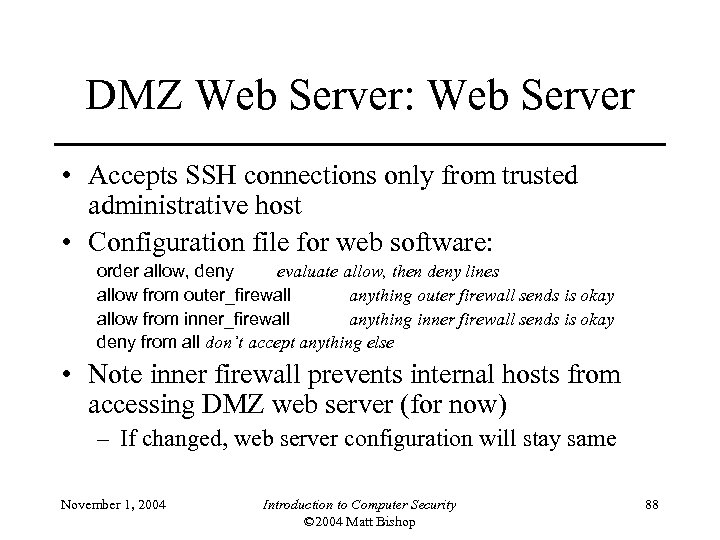

DMZ Web Server: Web Server • Accepts SSH connections only from trusted administrative host DMZ Web Server: Web Server • Accepts SSH connections only from trusted administrative host • Configuration file for web software: order allow, deny evaluate allow, then deny lines allow from outer_firewall anything outer firewall sends is okay allow from inner_firewall anything inner firewall sends is okay deny from all don’t accept anything else • Note inner firewall prevents internal hosts from accessing DMZ web server (for now) – If changed, web server configuration will stay same November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 88

DMZ Web Server: SSH Server • Accepts SSH connections only from authorized users coming DMZ Web Server: SSH Server • Accepts SSH connections only from authorized users coming in from trusted administrative server – SSH provides per host and per user authentication – Public keys pre-loaded on web server • Configuration file for ssh server: allow trusted_admin_server deny all refuse all others connections from admin server okay • Note inner firewall prevents other internal hosts from accessing SSH server on this system – Not expected to change November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 89

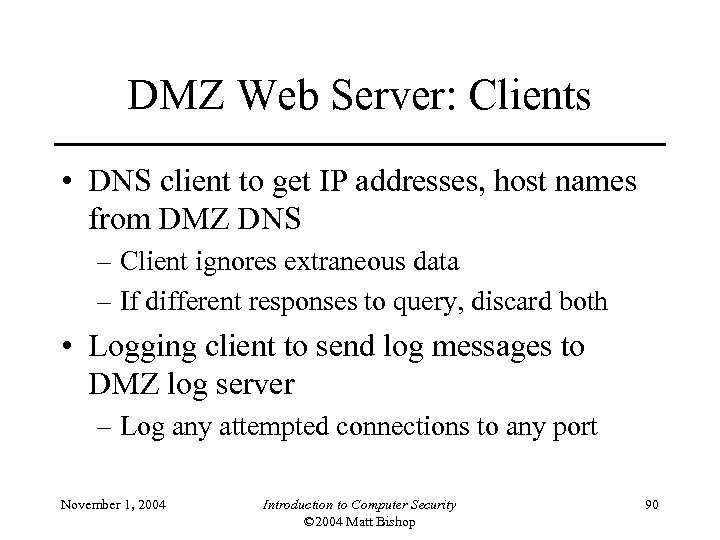

DMZ Web Server: Clients • DNS client to get IP addresses, host names from DMZ Web Server: Clients • DNS client to get IP addresses, host names from DMZ DNS – Client ignores extraneous data – If different responses to query, discard both • Logging client to send log messages to DMZ log server – Log any attempted connections to any port November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 90

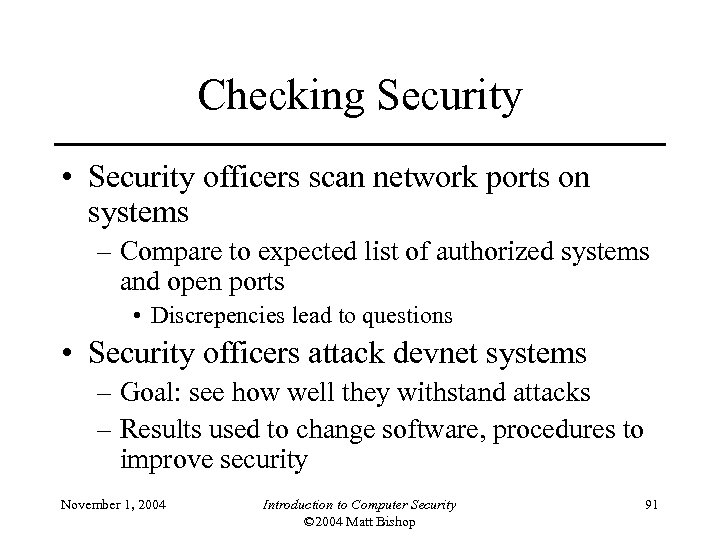

Checking Security • Security officers scan network ports on systems – Compare to expected Checking Security • Security officers scan network ports on systems – Compare to expected list of authorized systems and open ports • Discrepencies lead to questions • Security officers attack devnet systems – Goal: see how well they withstand attacks – Results used to change software, procedures to improve security November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 91

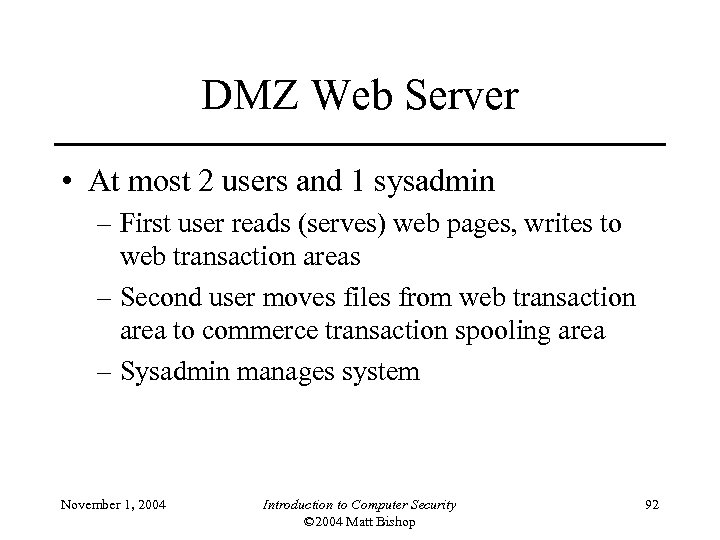

DMZ Web Server • At most 2 users and 1 sysadmin – First user DMZ Web Server • At most 2 users and 1 sysadmin – First user reads (serves) web pages, writes to web transaction areas – Second user moves files from web transaction area to commerce transaction spooling area – Sysadmin manages system November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 92

DMZ Web Server • SSH: cryptographic authentication for hosts – Does not use IP DMZ Web Server • SSH: cryptographic authentication for hosts – Does not use IP addresses – Reject connection if authentication fails • SSH: crypto for user; password on failure – Experimenting with smart card systems, so uses PAM • Passwords: use MD-5 hash to protect passwords – Can be as long as desired – Proactive password checking to ensure they are hard to guess – No password aging November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 93

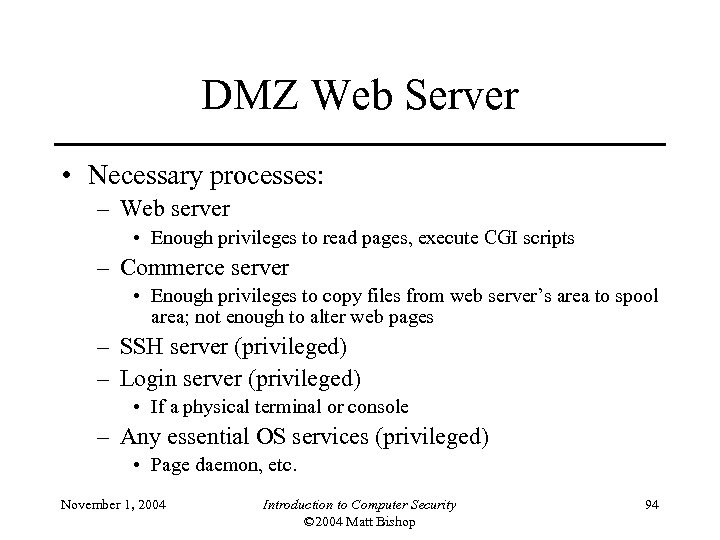

DMZ Web Server • Necessary processes: – Web server • Enough privileges to read DMZ Web Server • Necessary processes: – Web server • Enough privileges to read pages, execute CGI scripts – Commerce server • Enough privileges to copy files from web server’s area to spool area; not enough to alter web pages – SSH server (privileged) – Login server (privileged) • If a physical terminal or console – Any essential OS services (privileged) • Page daemon, etc. November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 94

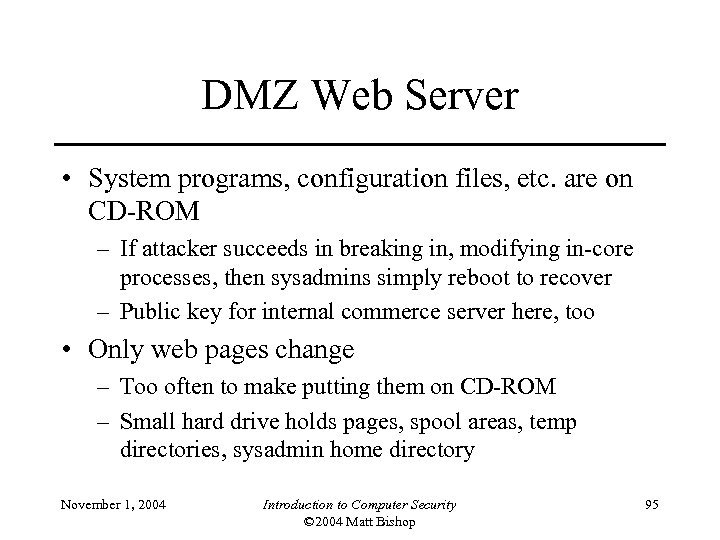

DMZ Web Server • System programs, configuration files, etc. are on CD-ROM – If DMZ Web Server • System programs, configuration files, etc. are on CD-ROM – If attacker succeeds in breaking in, modifying in-core processes, then sysadmins simply reboot to recover – Public key for internal commerce server here, too • Only web pages change – Too often to make putting them on CD-ROM – Small hard drive holds pages, spool areas, temp directories, sysadmin home directory November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 95

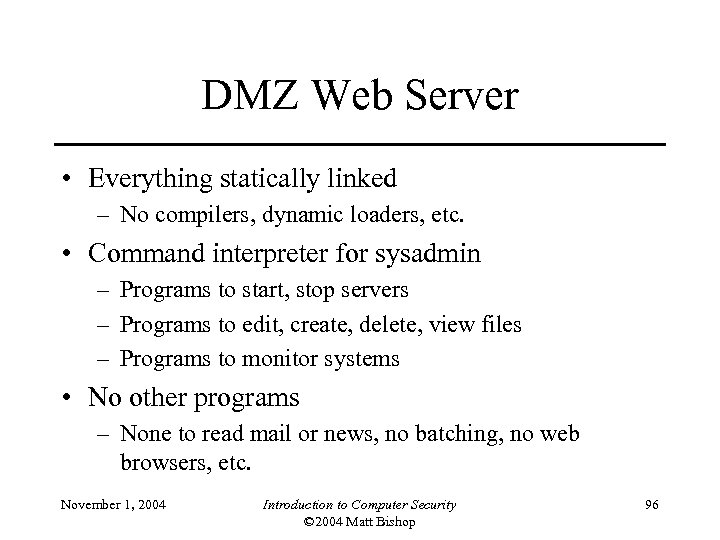

DMZ Web Server • Everything statically linked – No compilers, dynamic loaders, etc. • DMZ Web Server • Everything statically linked – No compilers, dynamic loaders, etc. • Command interpreter for sysadmin – Programs to start, stop servers – Programs to edit, create, delete, view files – Programs to monitor systems • No other programs – None to read mail or news, no batching, no web browsers, etc. November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 96

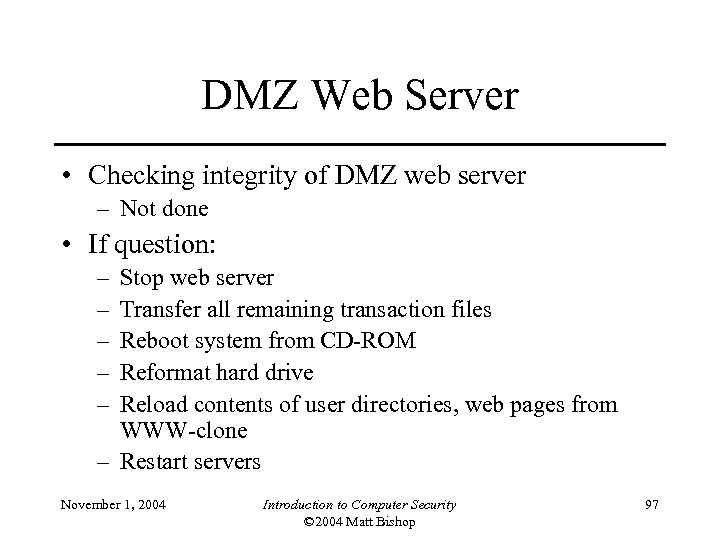

DMZ Web Server • Checking integrity of DMZ web server – Not done • DMZ Web Server • Checking integrity of DMZ web server – Not done • If question: – – – Stop web server Transfer all remaining transaction files Reboot system from CD-ROM Reformat hard drive Reload contents of user directories, web pages from WWW-clone – Restart servers November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 97

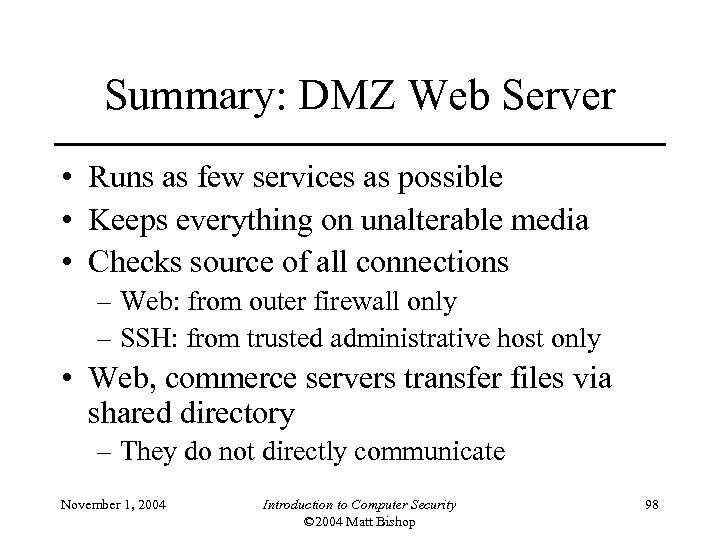

Summary: DMZ Web Server • Runs as few services as possible • Keeps everything Summary: DMZ Web Server • Runs as few services as possible • Keeps everything on unalterable media • Checks source of all connections – Web: from outer firewall only – SSH: from trusted administrative host only • Web, commerce servers transfer files via shared directory – They do not directly communicate November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 98

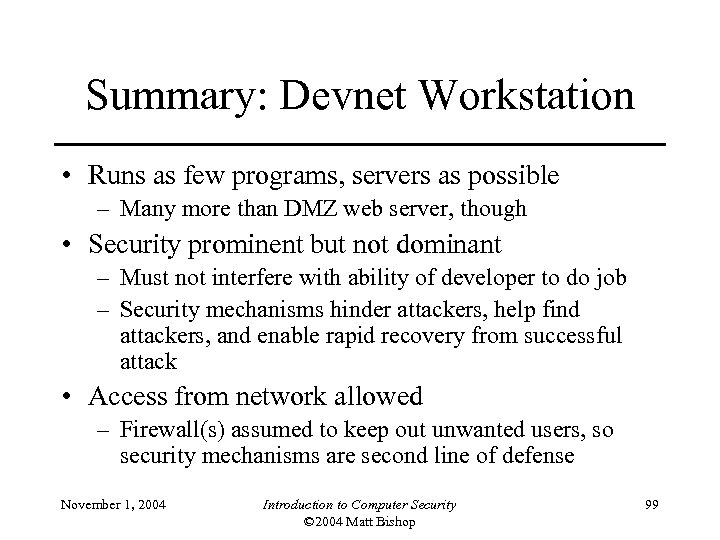

Summary: Devnet Workstation • Runs as few programs, servers as possible – Many more Summary: Devnet Workstation • Runs as few programs, servers as possible – Many more than DMZ web server, though • Security prominent but not dominant – Must not interfere with ability of developer to do job – Security mechanisms hinder attackers, help find attackers, and enable rapid recovery from successful attack • Access from network allowed – Firewall(s) assumed to keep out unwanted users, so security mechanisms are second line of defense November 1, 2004 Introduction to Computer Security © 2004 Matt Bishop 99
