Named Entity Recognition http gate ac uk http

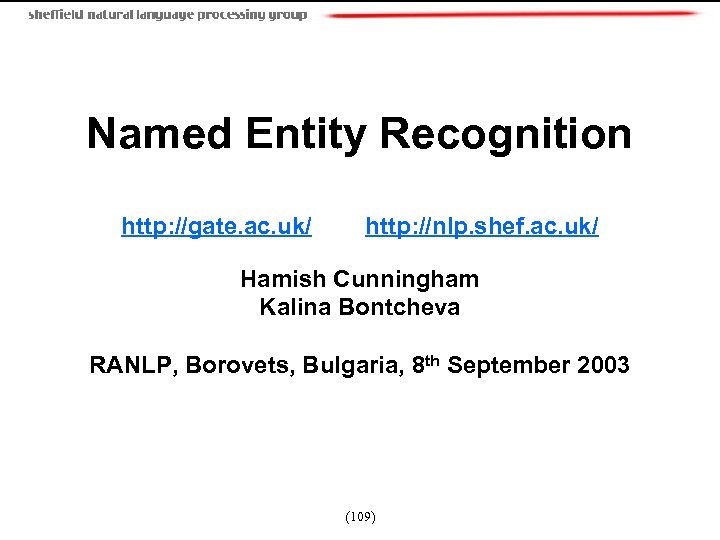

Named Entity Recognition http: //gate. ac. uk/ http: //nlp. shef. ac. uk/ Hamish Cunningham Kalina Bontcheva RANLP, Borovets, Bulgaria, 8 th September 2003 (109)

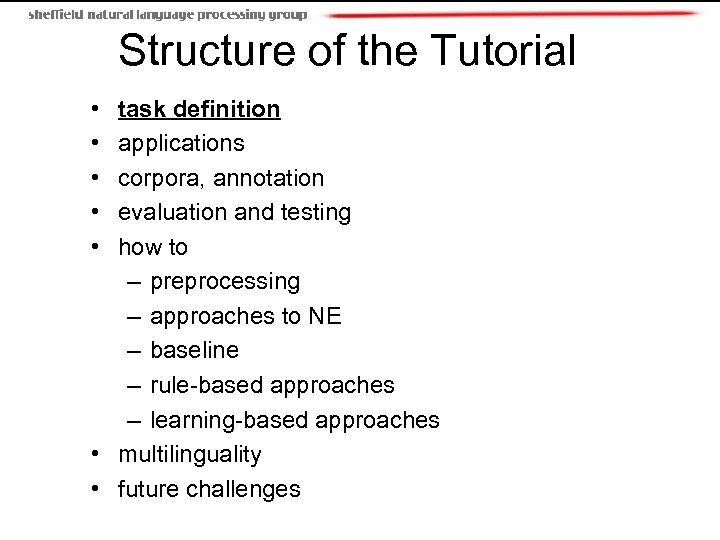

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges

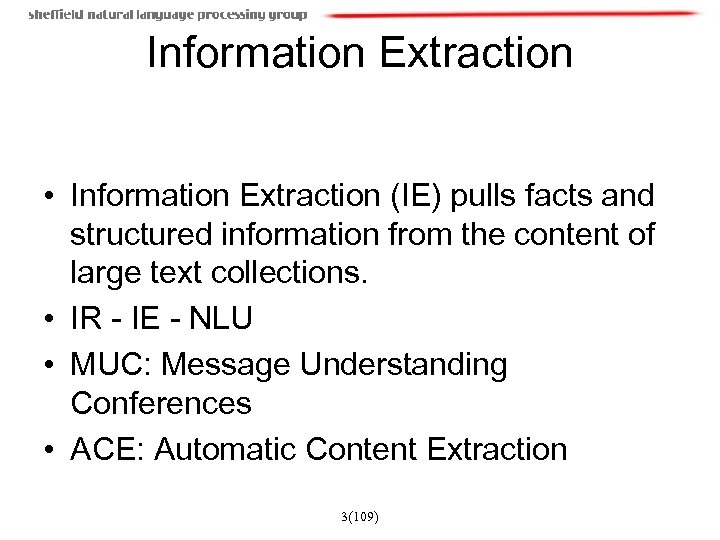

Information Extraction • Information Extraction (IE) pulls facts and structured information from the content of large text collections. • IR - IE - NLU • MUC: Message Understanding Conferences • ACE: Automatic Content Extraction 3(109)

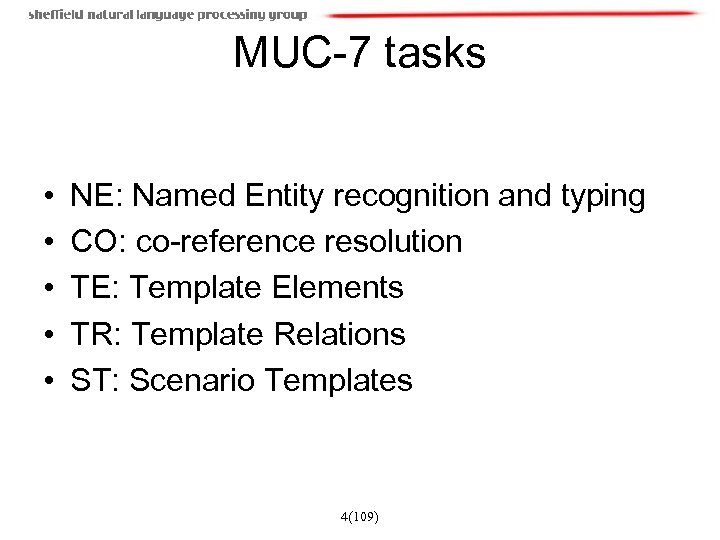

MUC-7 tasks • • • NE: Named Entity recognition and typing CO: co-reference resolution TE: Template Elements TR: Template Relations ST: Scenario Templates 4(109)

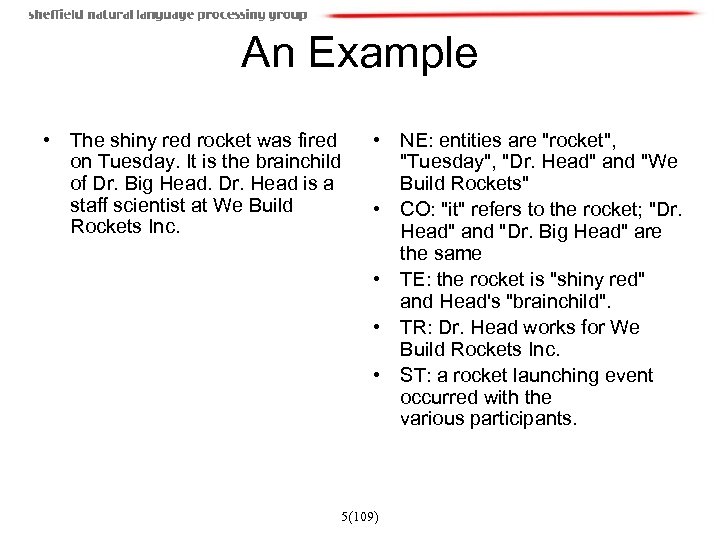

An Example • The shiny red rocket was fired on Tuesday. It is the brainchild of Dr. Big Head. Dr. Head is a staff scientist at We Build Rockets Inc. • NE: entities are "rocket", "Tuesday", "Dr. Head" and "We Build Rockets" • CO: "it" refers to the rocket; "Dr. Head" and "Dr. Big Head" are the same • TE: the rocket is "shiny red" and Head's "brainchild". • TR: Dr. Head works for We Build Rockets Inc. • ST: a rocket launching event occurred with the various participants. 5(109)

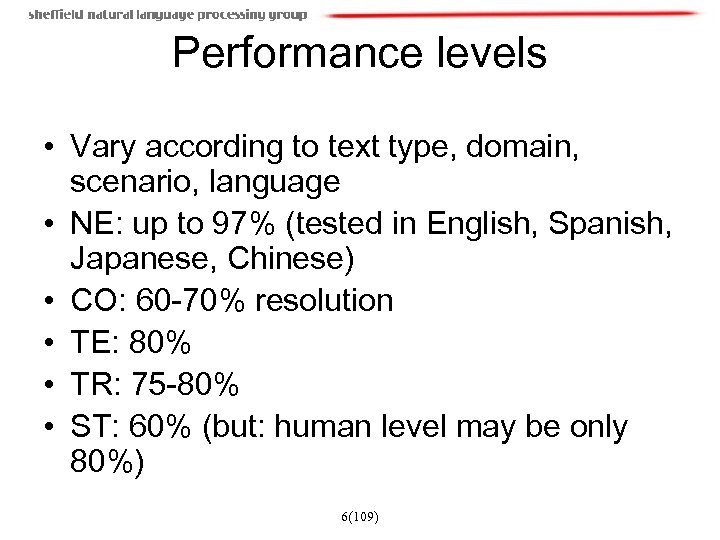

Performance levels • Vary according to text type, domain, scenario, language • NE: up to 97% (tested in English, Spanish, Japanese, Chinese) • CO: 60 -70% resolution • TE: 80% • TR: 75 -80% • ST: 60% (but: human level may be only 80%) 6(109)

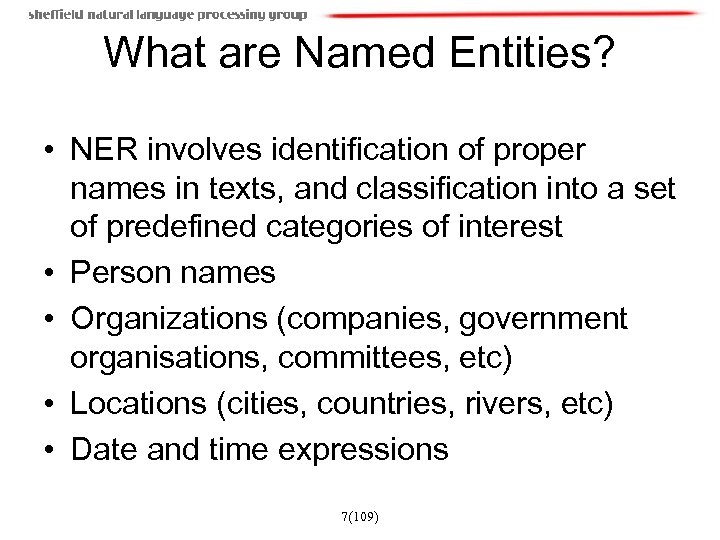

What are Named Entities? • NER involves identification of proper names in texts, and classification into a set of predefined categories of interest • Person names • Organizations (companies, government organisations, committees, etc) • Locations (cities, countries, rivers, etc) • Date and time expressions 7(109)

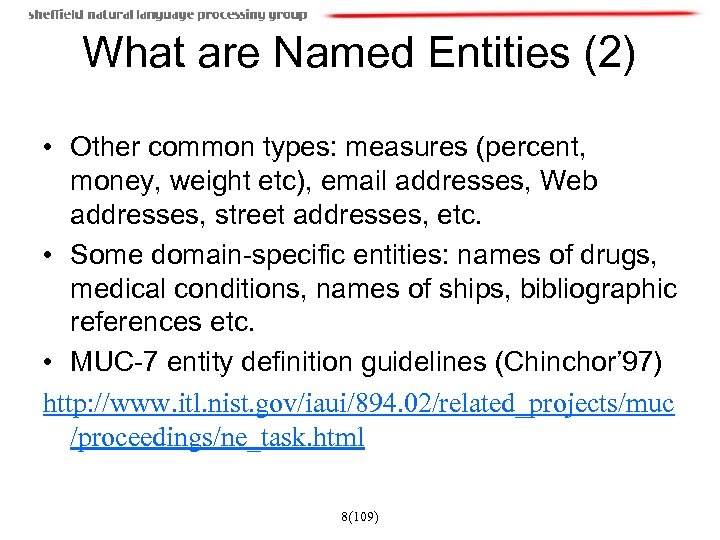

What are Named Entities (2) • Other common types: measures (percent, money, weight etc), email addresses, Web addresses, street addresses, etc. • Some domain-specific entities: names of drugs, medical conditions, names of ships, bibliographic references etc. • MUC-7 entity definition guidelines (Chinchor’ 97) http: //www. itl. nist. gov/iaui/894. 02/related_projects/muc /proceedings/ne_task. html 8(109)

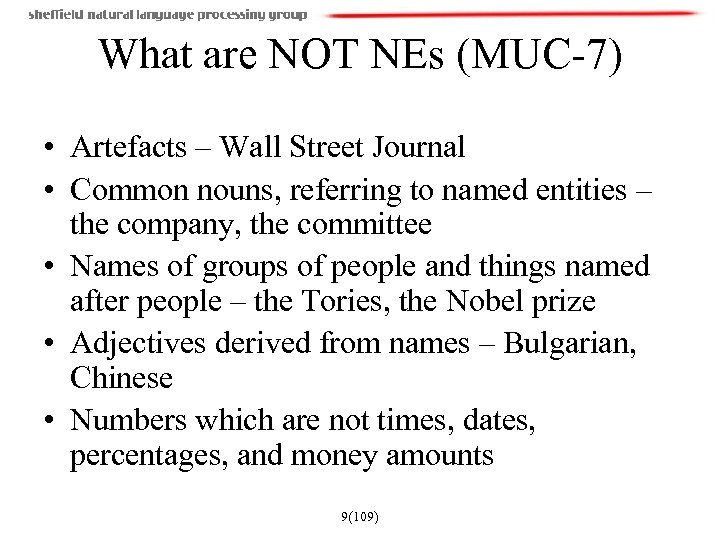

What are NOT NEs (MUC-7) • Artefacts – Wall Street Journal • Common nouns, referring to named entities – the company, the committee • Names of groups of people and things named after people – the Tories, the Nobel prize • Adjectives derived from names – Bulgarian, Chinese • Numbers which are not times, dates, percentages, and money amounts 9(109)

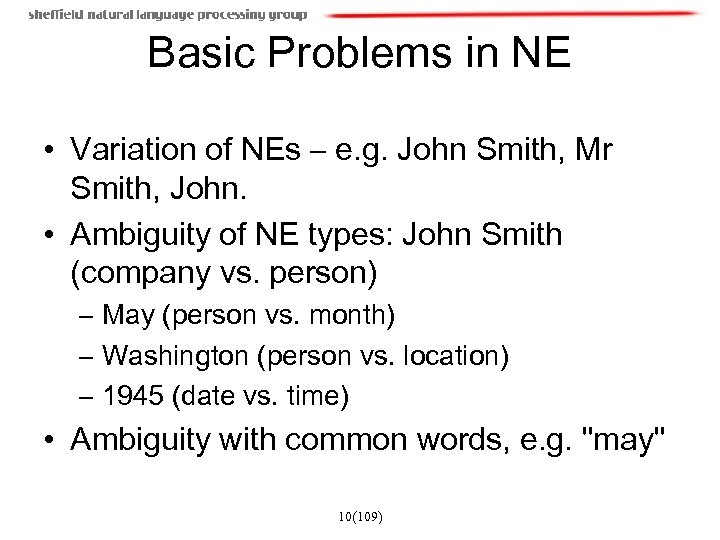

Basic Problems in NE • Variation of NEs – e. g. John Smith, Mr Smith, John. • Ambiguity of NE types: John Smith (company vs. person) – May (person vs. month) – Washington (person vs. location) – 1945 (date vs. time) • Ambiguity with common words, e. g. "may" 10(109)

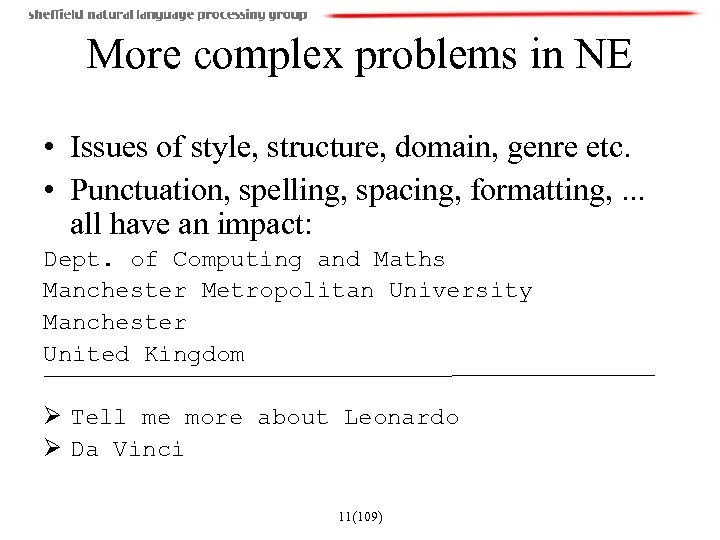

More complex problems in NE • Issues of style, structure, domain, genre etc. • Punctuation, spelling, spacing, formatting, . . . all have an impact: Dept. of Computing and Maths Manchester Metropolitan University Manchester United Kingdom Ø Tell me more about Leonardo Ø Da Vinci 11(109)

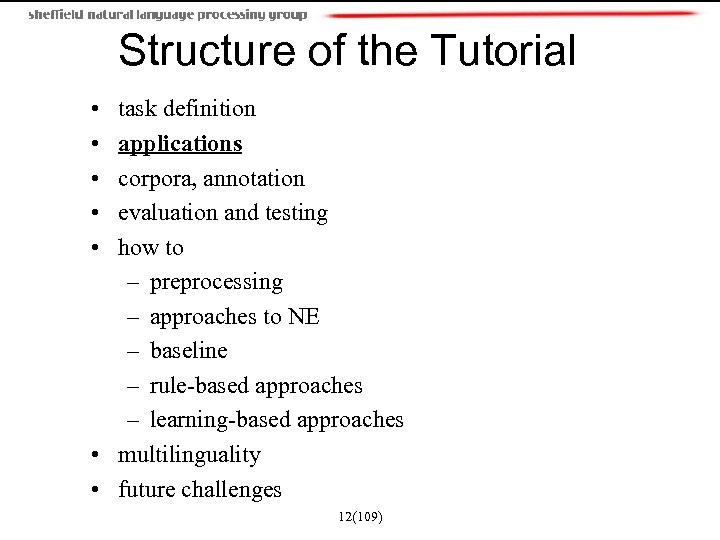

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 12(109)

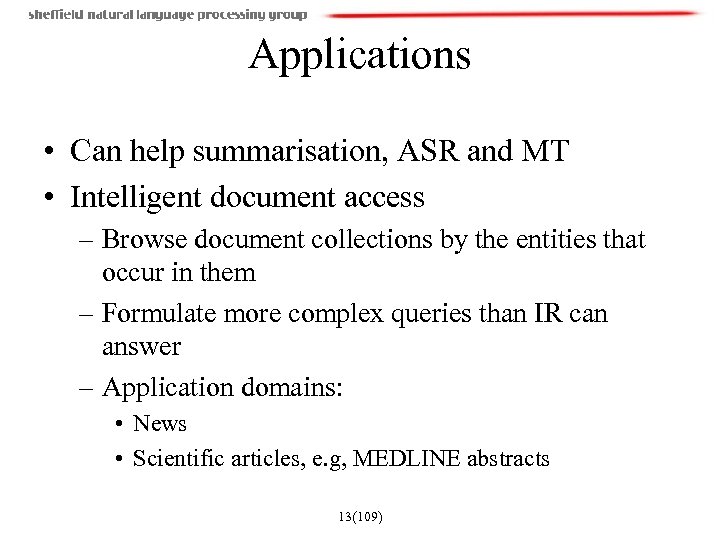

Applications • Can help summarisation, ASR and MT • Intelligent document access – Browse document collections by the entities that occur in them – Formulate more complex queries than IR can answer – Application domains: • News • Scientific articles, e. g, MEDLINE abstracts 13(109)

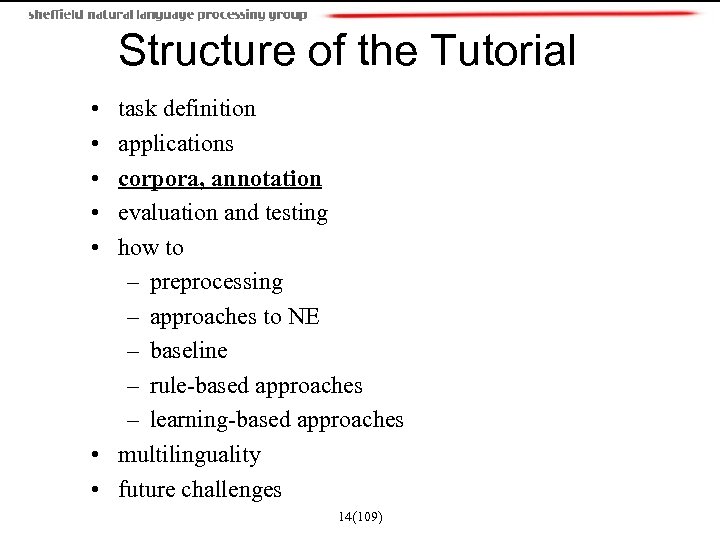

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 14(109)

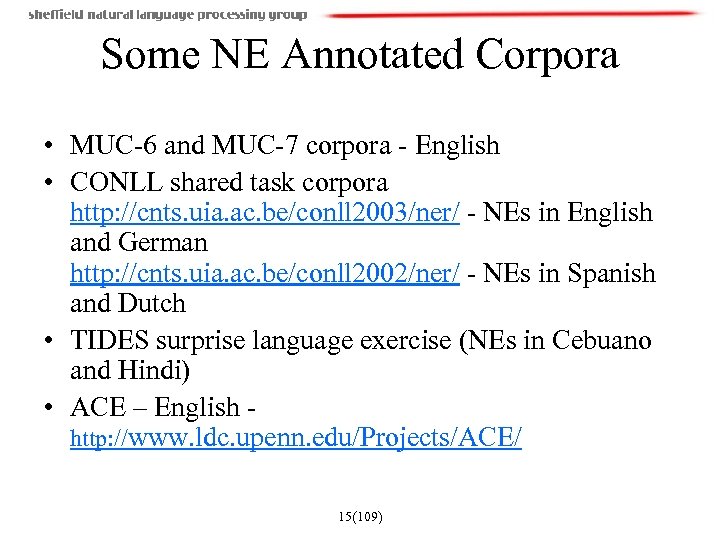

Some NE Annotated Corpora • MUC-6 and MUC-7 corpora - English • CONLL shared task corpora http: //cnts. uia. ac. be/conll 2003/ner/ - NEs in English and German http: //cnts. uia. ac. be/conll 2002/ner/ - NEs in Spanish and Dutch • TIDES surprise language exercise (NEs in Cebuano and Hindi) • ACE – English - http: //www. ldc. upenn. edu/Projects/ACE/ 15(109)

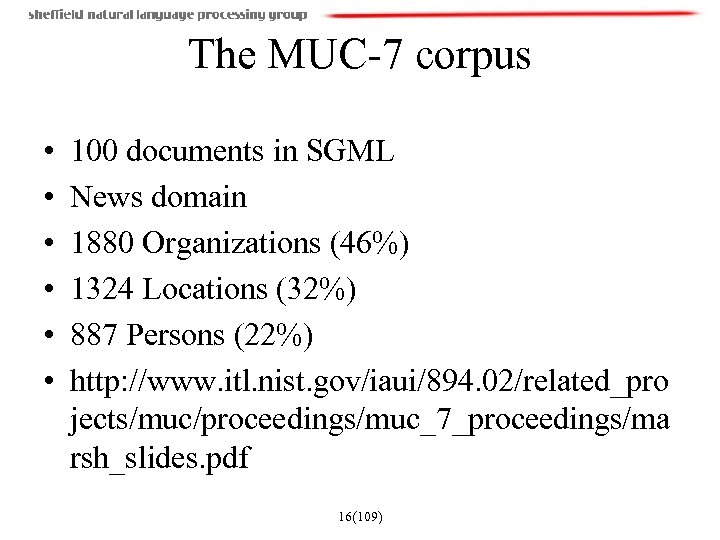

The MUC-7 corpus • • • 100 documents in SGML News domain 1880 Organizations (46%) 1324 Locations (32%) 887 Persons (22%) http: //www. itl. nist. gov/iaui/894. 02/related_pro jects/muc/proceedings/muc_7_proceedings/ma rsh_slides. pdf 16(109)

CAPE CANAVERAL, Fla. &MD; Working in chilly" src="https://present5.com/presentation/72d942415d56eb438c9ecb0131843aa9/image-17.jpg" alt="The MUC-7 Corpus (2) CAPE CANAVERAL, Fla. &MD; Working in chilly" /> The MUC-7 Corpus (2) CAPE CANAVERAL, Fla. &MD; Working in chilly temperatures Wednesday night, NASA ground crews readied the space shuttle Endeavour for launch on a Japanese satellite retrieval mission.

Endeavour, with an international crew of six, was set to blast off from the Kennedy Space Center on Thursday at 4: 18 a. m. EST, the start of a 49 minute launching period. The nine day shuttle flight was to be the 12 th launched in darkness. 17(109)

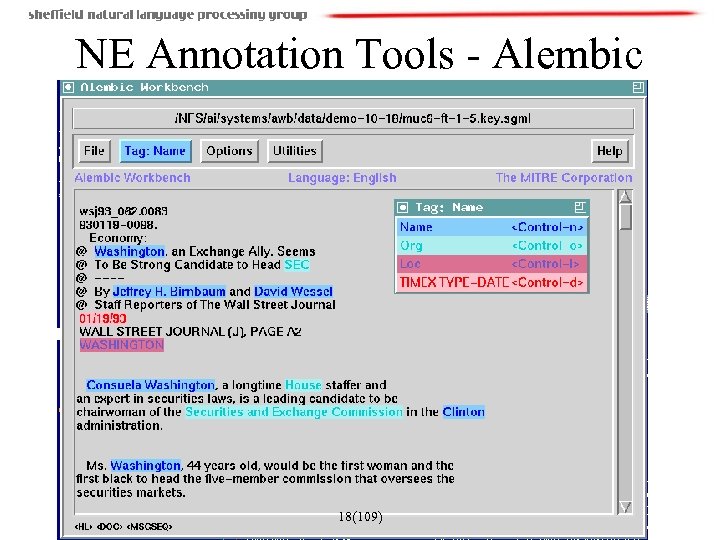

NE Annotation Tools - Alembic 18(109)

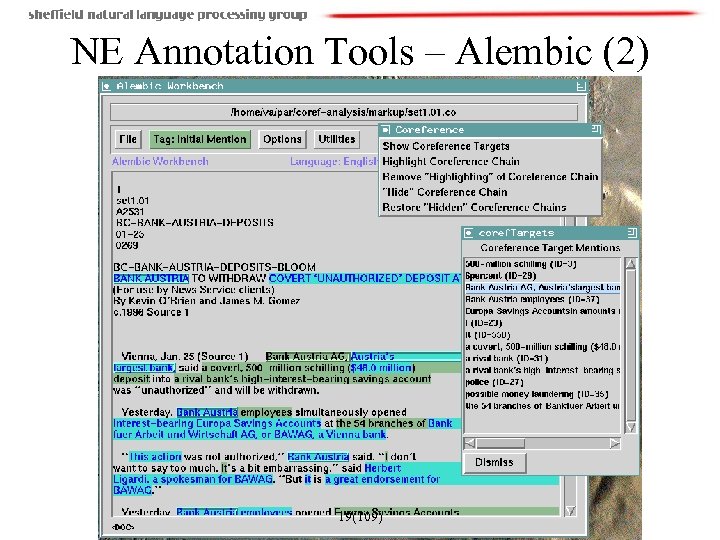

NE Annotation Tools – Alembic (2) 19(109)

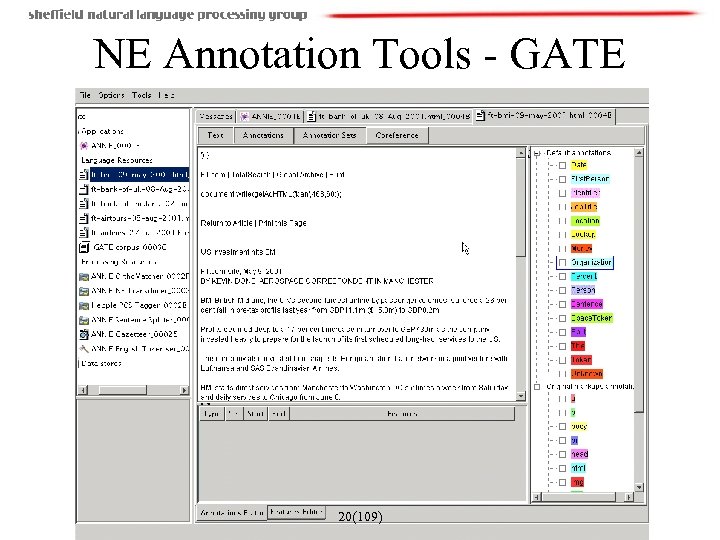

NE Annotation Tools - GATE 20(109)

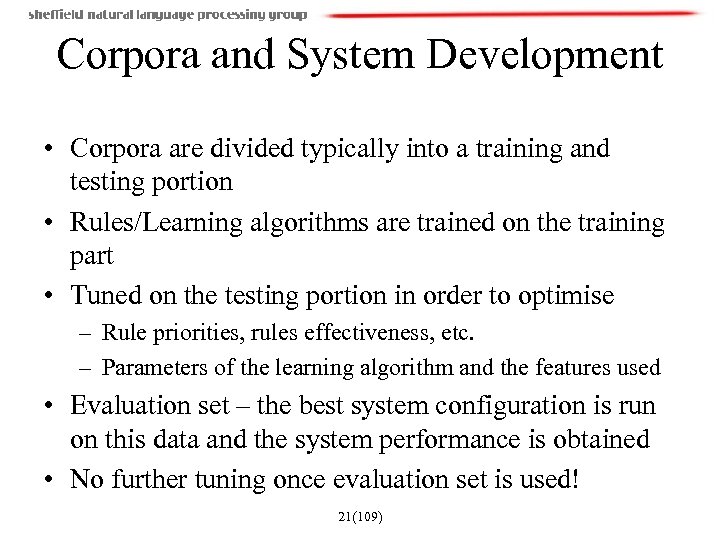

Corpora and System Development • Corpora are divided typically into a training and testing portion • Rules/Learning algorithms are trained on the training part • Tuned on the testing portion in order to optimise – Rule priorities, rules effectiveness, etc. – Parameters of the learning algorithm and the features used • Evaluation set – the best system configuration is run on this data and the system performance is obtained • No further tuning once evaluation set is used! 21(109)

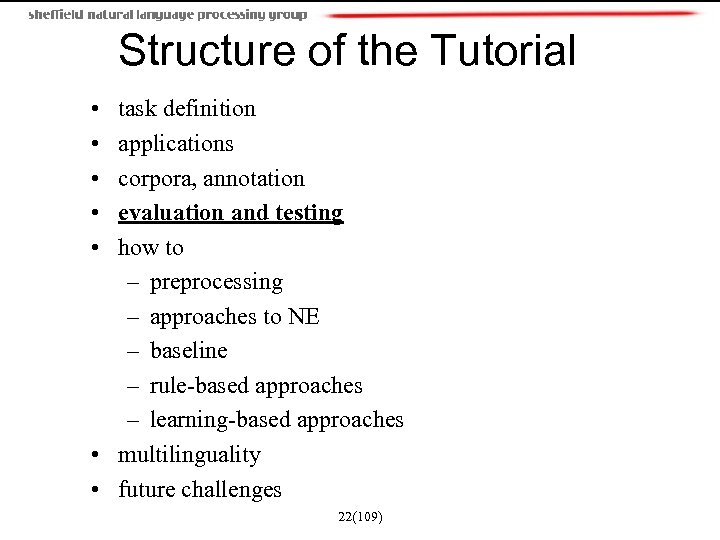

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 22(109)

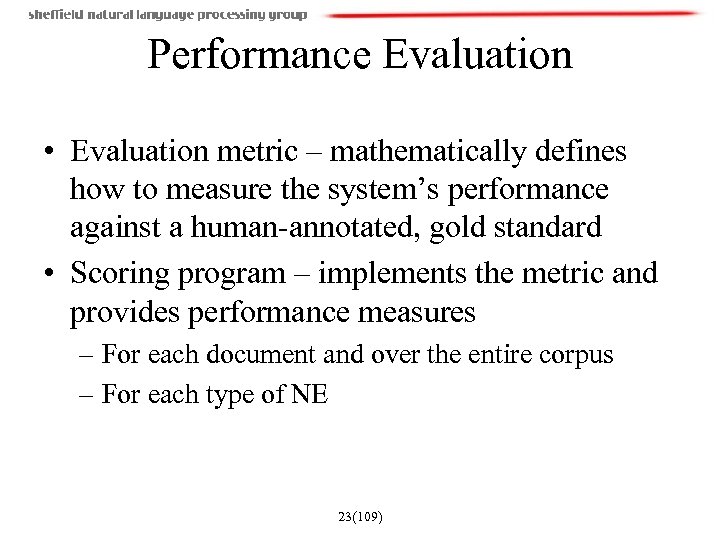

Performance Evaluation • Evaluation metric – mathematically defines how to measure the system’s performance against a human-annotated, gold standard • Scoring program – implements the metric and provides performance measures – For each document and over the entire corpus – For each type of NE 23(109)

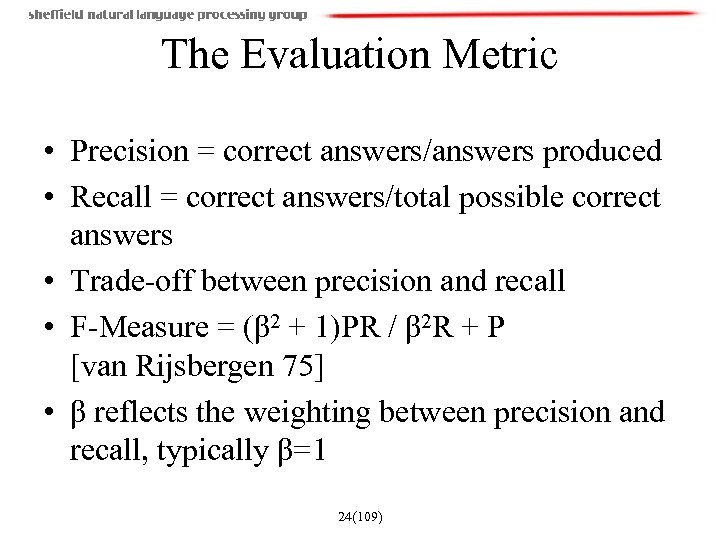

The Evaluation Metric • Precision = correct answers/answers produced • Recall = correct answers/total possible correct answers • Trade-off between precision and recall • F-Measure = (β 2 + 1)PR / β 2 R + P [van Rijsbergen 75] • β reflects the weighting between precision and recall, typically β=1 24(109)

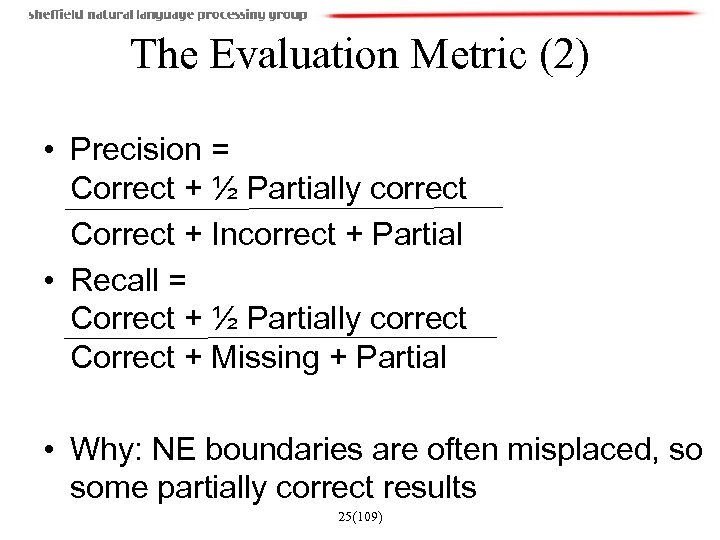

The Evaluation Metric (2) • Precision = Correct + ½ Partially correct Correct + Incorrect + Partial • Recall = Correct + ½ Partially correct Correct + Missing + Partial • Why: NE boundaries are often misplaced, so some partially correct results 25(109)

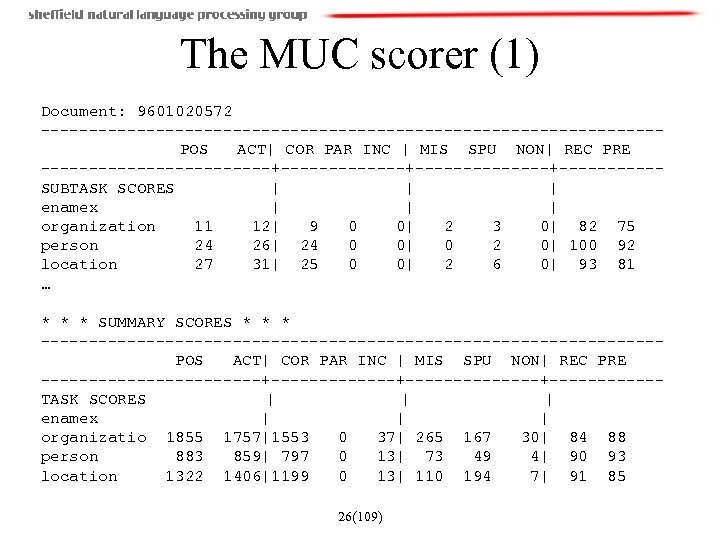

The MUC scorer (1) Document: 9601020572 --------------------------------POS ACT| COR PAR INC | MIS SPU NON| REC PRE ------------+--------------+-----SUBTASK SCORES | | | enamex | | | organization 11 12| 9 0 0| 2 3 0| 82 75 person 24 26| 24 0 0| 0 2 0| 100 92 location 27 31| 25 0 0| 2 6 0| 93 81 … * * * SUMMARY SCORES * * * --------------------------------POS ACT| COR PAR INC | MIS SPU NON| REC PRE ------------+--------------+------TASK SCORES | | | enamex | | | organizatio 1855 1757|1553 0 37| 265 167 30| 84 88 person 883 859| 797 0 13| 73 49 4| 90 93 location 1322 1406|1199 0 13| 110 194 7| 91 85 26(109)

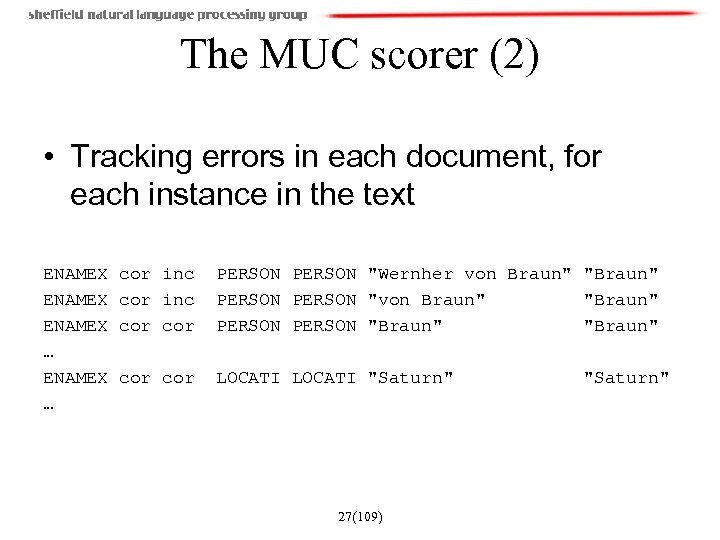

The MUC scorer (2) • Tracking errors in each document, for each instance in the text ENAMEX … cor inc cor PERSON "Wernher von Braun" "Braun" PERSON "Braun" cor LOCATI "Saturn" 27(109) "Saturn"

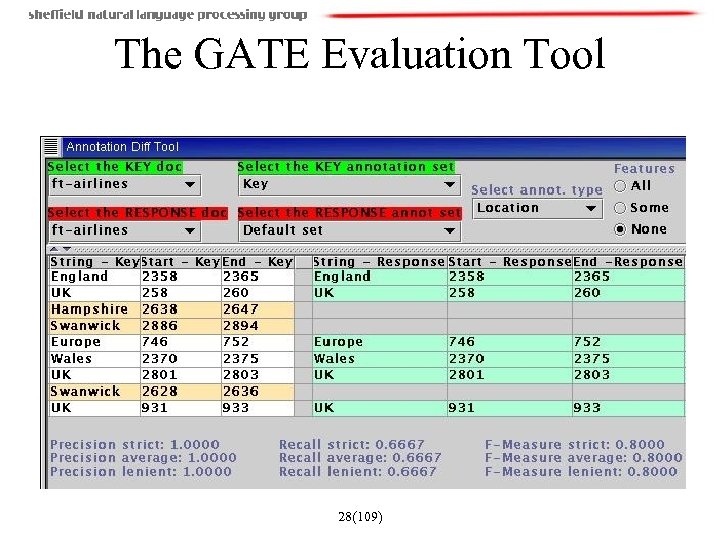

The GATE Evaluation Tool 28(109)

Regression Testing • Need to track system’s performance over time • When a change is made to the system we want to know what implications are over the entire corpus • Why: because an improvement in one case can lead to problems in others • GATE offers automated tool to help with the NE development task over time 29(109)

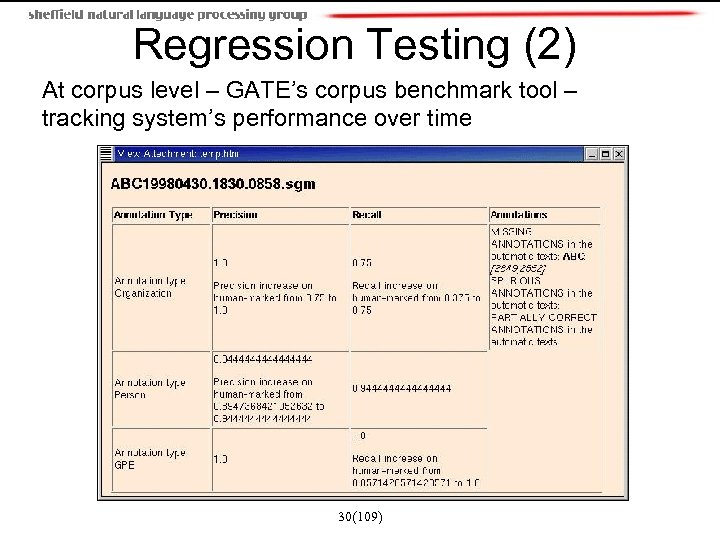

Regression Testing (2) At corpus level – GATE’s corpus benchmark tool – tracking system’s performance over time 30(109)

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 31(109)

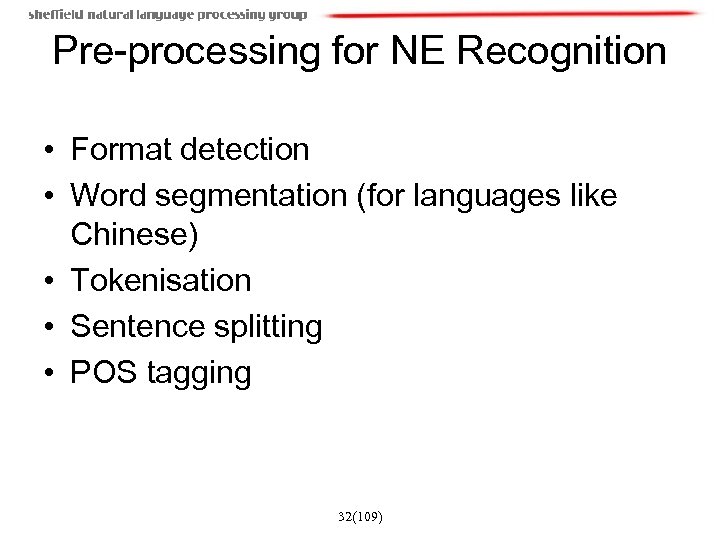

Pre-processing for NE Recognition • Format detection • Word segmentation (for languages like Chinese) • Tokenisation • Sentence splitting • POS tagging 32(109)

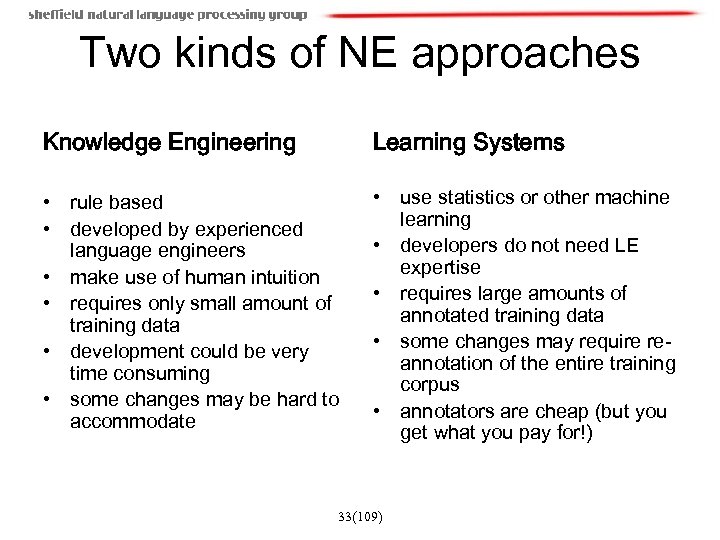

Two kinds of NE approaches Knowledge Engineering Learning Systems • rule based • developed by experienced language engineers • make use of human intuition • requires only small amount of training data • development could be very time consuming • some changes may be hard to accommodate • use statistics or other machine learning • developers do not need LE expertise • requires large amounts of annotated training data • some changes may require reannotation of the entire training corpus • annotators are cheap (but you get what you pay for!) 33(109)

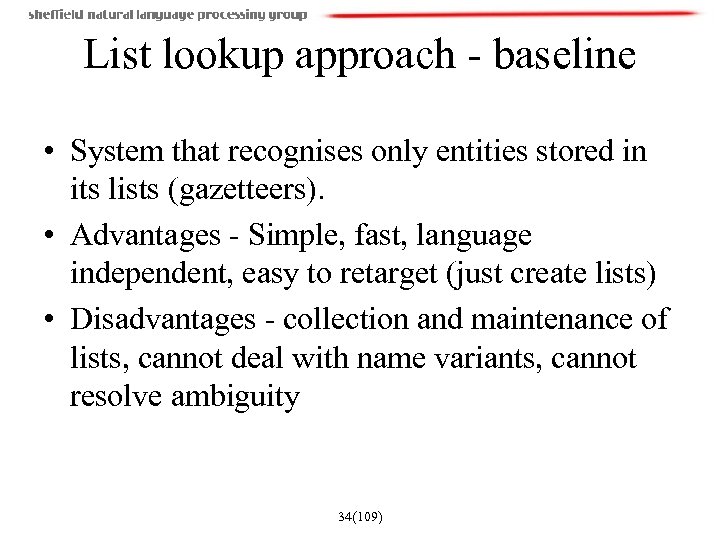

List lookup approach - baseline • System that recognises only entities stored in its lists (gazetteers). • Advantages - Simple, fast, language independent, easy to retarget (just create lists) • Disadvantages - collection and maintenance of lists, cannot deal with name variants, cannot resolve ambiguity 34(109)

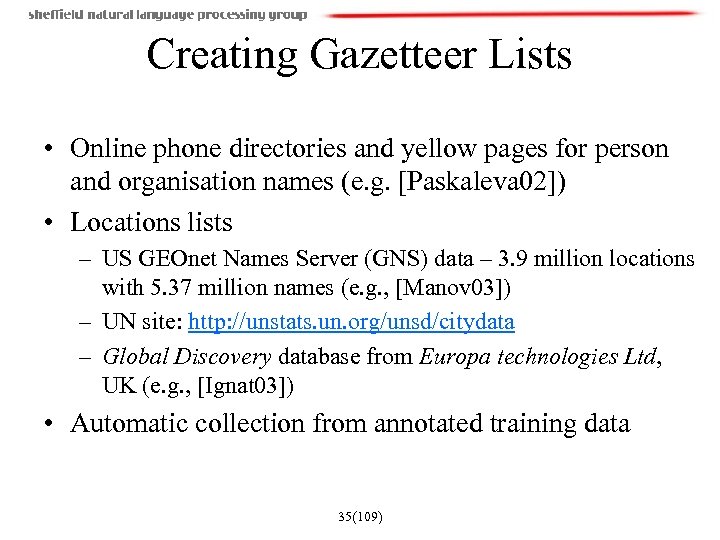

Creating Gazetteer Lists • Online phone directories and yellow pages for person and organisation names (e. g. [Paskaleva 02]) • Locations lists – US GEOnet Names Server (GNS) data – 3. 9 million locations with 5. 37 million names (e. g. , [Manov 03]) – UN site: http: //unstats. un. org/unsd/citydata – Global Discovery database from Europa technologies Ltd, UK (e. g. , [Ignat 03]) • Automatic collection from annotated training data 35(109)

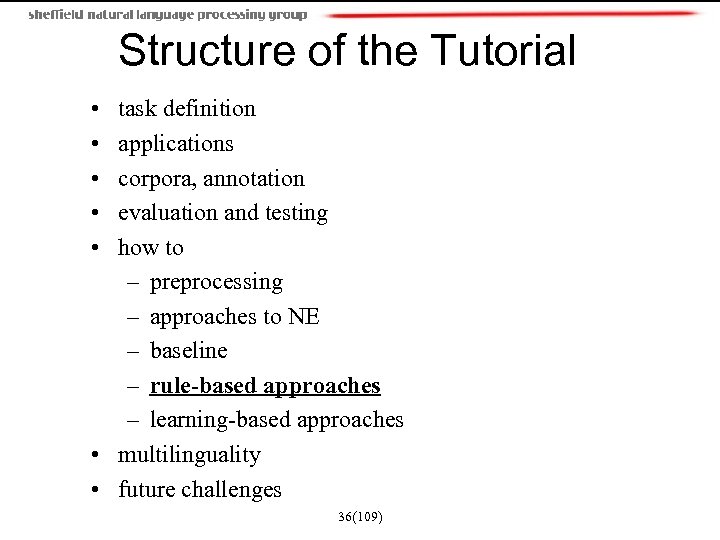

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 36(109)

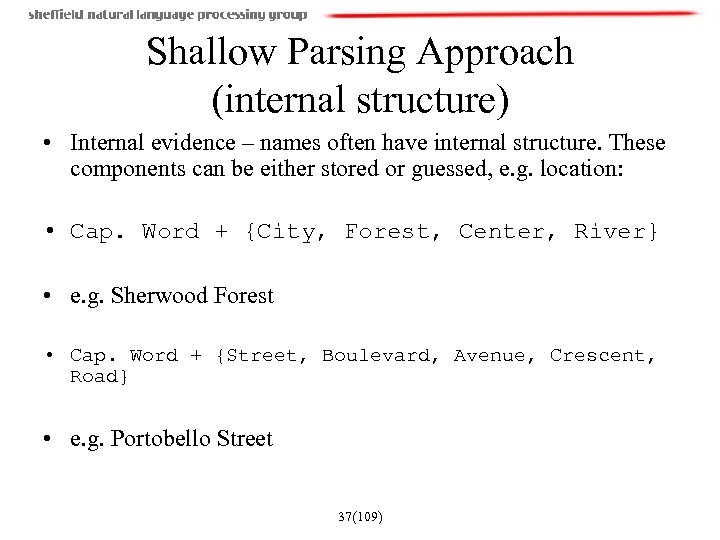

Shallow Parsing Approach (internal structure) • Internal evidence – names often have internal structure. These components can be either stored or guessed, e. g. location: • Cap. Word + {City, Forest, Center, River} • e. g. Sherwood Forest • Cap. Word + {Street, Boulevard, Avenue, Crescent, Road} • e. g. Portobello Street 37(109)

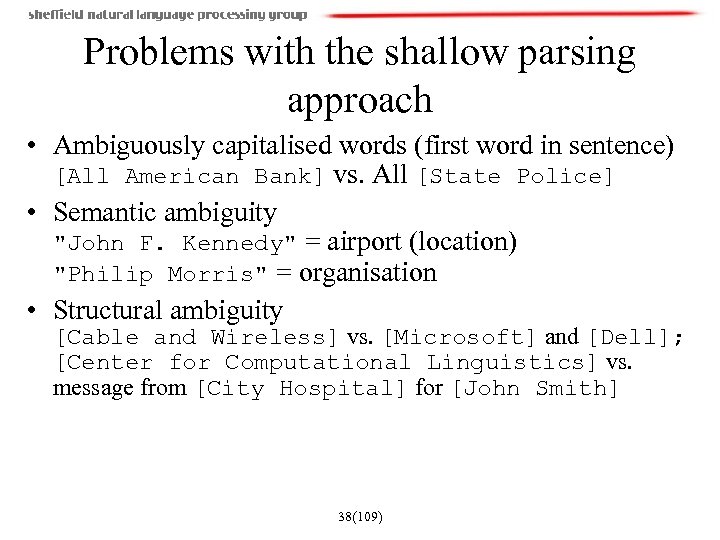

Problems with the shallow parsing approach • Ambiguously capitalised words (first word in sentence) [All American Bank] vs. All [State Police] • Semantic ambiguity "John F. Kennedy" = airport (location) "Philip Morris" = organisation • Structural ambiguity [Cable and Wireless] vs. [Microsoft] and [Dell]; [Center for Computational Linguistics] vs. message from [City Hospital] for [John Smith] 38(109)

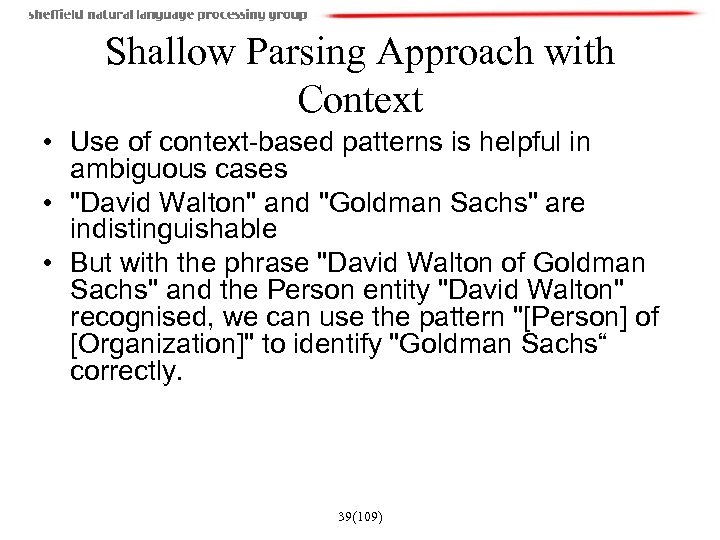

Shallow Parsing Approach with Context • Use of context-based patterns is helpful in ambiguous cases • "David Walton" and "Goldman Sachs" are indistinguishable • But with the phrase "David Walton of Goldman Sachs" and the Person entity "David Walton" recognised, we can use the pattern "[Person] of [Organization]" to identify "Goldman Sachs“ correctly. 39(109)

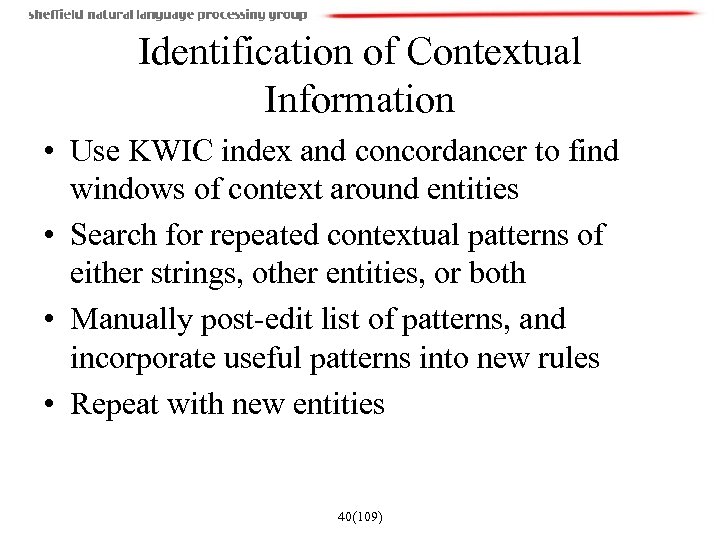

Identification of Contextual Information • Use KWIC index and concordancer to find windows of context around entities • Search for repeated contextual patterns of either strings, other entities, or both • Manually post-edit list of patterns, and incorporate useful patterns into new rules • Repeat with new entities 40(109)

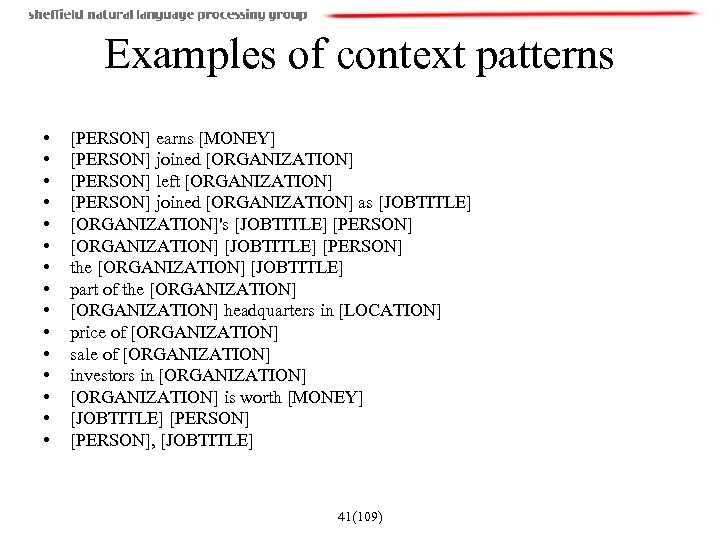

Examples of context patterns • • • • [PERSON] earns [MONEY] [PERSON] joined [ORGANIZATION] [PERSON] left [ORGANIZATION] [PERSON] joined [ORGANIZATION] as [JOBTITLE] [ORGANIZATION]'s [JOBTITLE] [PERSON] [ORGANIZATION] [JOBTITLE] [PERSON] the [ORGANIZATION] [JOBTITLE] part of the [ORGANIZATION] headquarters in [LOCATION] price of [ORGANIZATION] sale of [ORGANIZATION] investors in [ORGANIZATION] is worth [MONEY] [JOBTITLE] [PERSON], [JOBTITLE] 41(109)

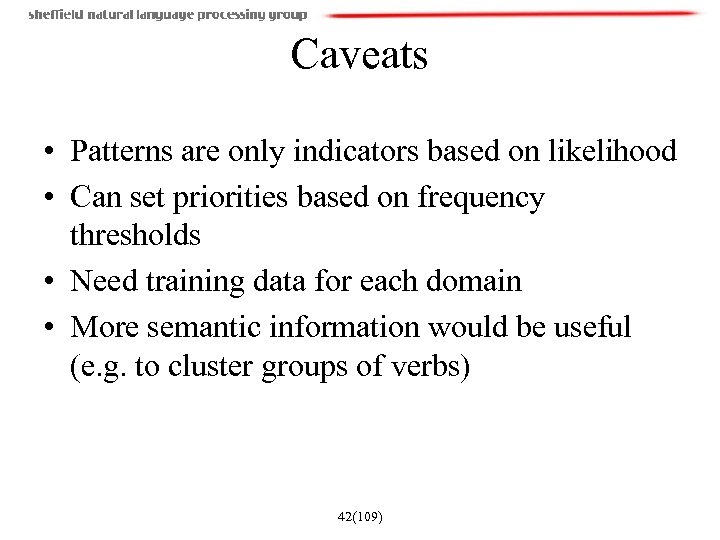

Caveats • Patterns are only indicators based on likelihood • Can set priorities based on frequency thresholds • Need training data for each domain • More semantic information would be useful (e. g. to cluster groups of verbs) 42(109)

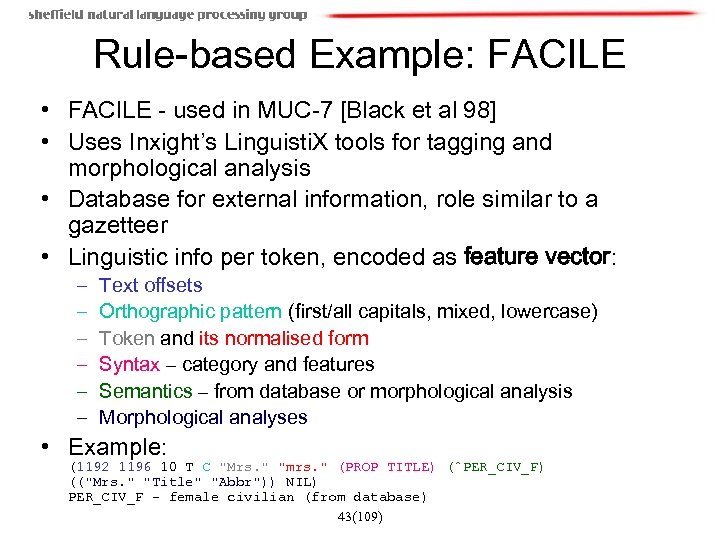

Rule-based Example: FACILE • FACILE - used in MUC-7 [Black et al 98] • Uses Inxight’s Linguisti. X tools for tagging and morphological analysis • Database for external information, role similar to a gazetteer • Linguistic info per token, encoded as feature vector: – – – Text offsets Orthographic pattern (first/all capitals, mixed, lowercase) Token and its normalised form Syntax – category and features Semantics – from database or morphological analysis Morphological analyses • Example: (1192 1196 10 T C "Mrs. " "mrs. " (PROP TITLE) (ˆPER_CIV_F) (("Mrs. " "Title" "Abbr")) NIL) PER_CIV_F – female civilian (from database) 43(109)

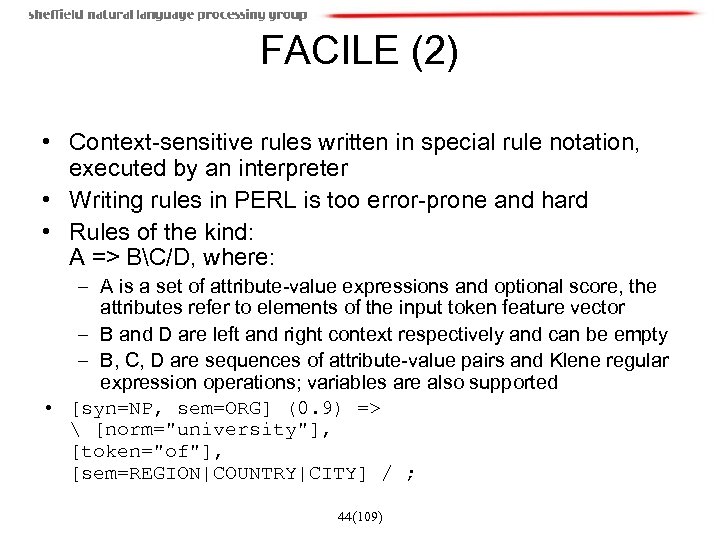

FACILE (2) • Context-sensitive rules written in special rule notation, executed by an interpreter • Writing rules in PERL is too error-prone and hard • Rules of the kind: A => BC/D, where: – A is a set of attribute-value expressions and optional score, the attributes refer to elements of the input token feature vector – B and D are left and right context respectively and can be empty – B, C, D are sequences of attribute-value pairs and Klene regular expression operations; variables are also supported • [syn=NP, sem=ORG] (0. 9) => [norm="university"], [token="of"], [sem=REGION|COUNTRY|CITY] / ; 44(109)

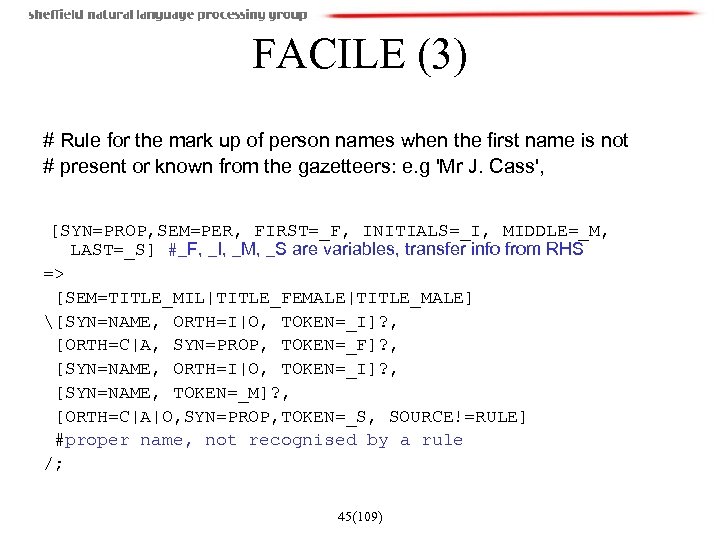

FACILE (3) # Rule for the mark up of person names when the first name is not # present or known from the gazetteers: e. g 'Mr J. Cass', [SYN=PROP, SEM=PER, FIRST=_F, INITIALS=_I, MIDDLE=_M, LAST=_S] #_F, _I, _M, _S are variables, transfer info from RHS => [SEM=TITLE_MIL|TITLE_FEMALE|TITLE_MALE] [SYN=NAME, ORTH=I|O, TOKEN=_I]? , [ORTH=C|A, SYN=PROP, TOKEN=_F]? , [SYN=NAME, ORTH=I|O, TOKEN=_I]? , [SYN=NAME, TOKEN=_M]? , [ORTH=C|A|O, SYN=PROP, TOKEN=_S, SOURCE!=RULE] #proper name, not recognised by a rule /; 45(109)

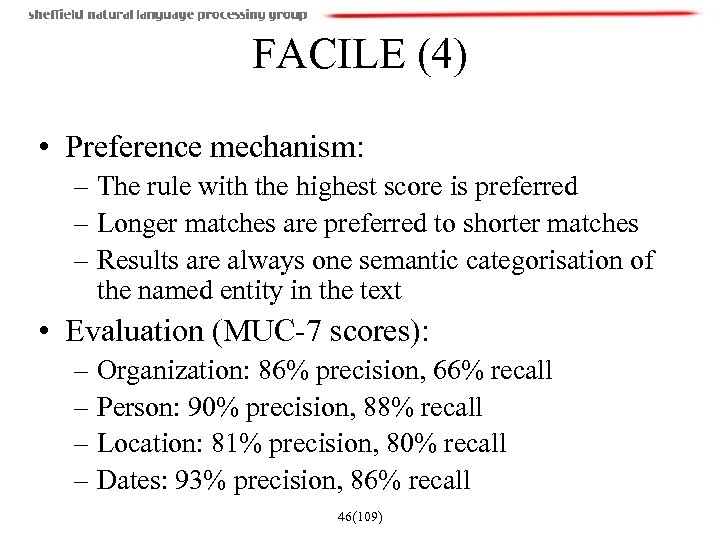

FACILE (4) • Preference mechanism: – The rule with the highest score is preferred – Longer matches are preferred to shorter matches – Results are always one semantic categorisation of the named entity in the text • Evaluation (MUC-7 scores): – Organization: 86% precision, 66% recall – Person: 90% precision, 88% recall – Location: 81% precision, 80% recall – Dates: 93% precision, 86% recall 46(109)

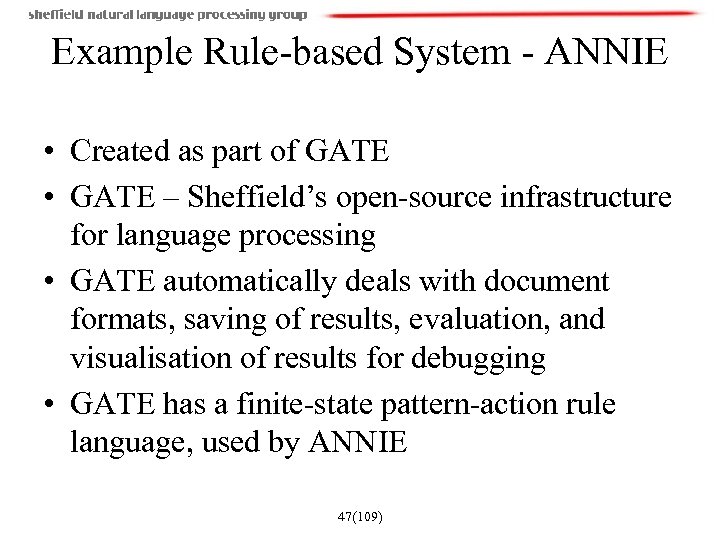

Example Rule-based System - ANNIE • Created as part of GATE • GATE – Sheffield’s open-source infrastructure for language processing • GATE automatically deals with document formats, saving of results, evaluation, and visualisation of results for debugging • GATE has a finite-state pattern-action rule language, used by ANNIE 47(109)

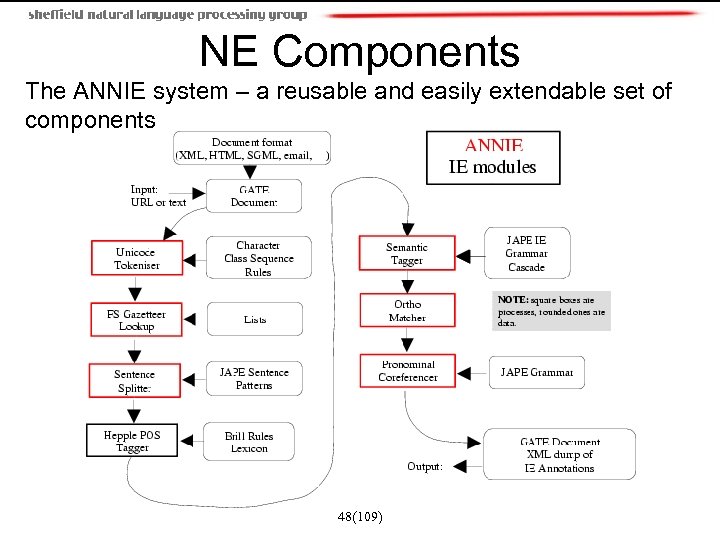

NE Components The ANNIE system – a reusable and easily extendable set of components 48(109)

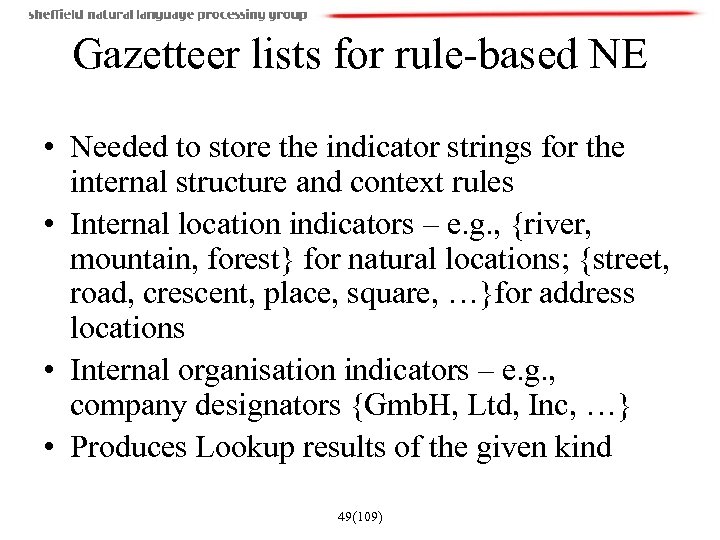

Gazetteer lists for rule-based NE • Needed to store the indicator strings for the internal structure and context rules • Internal location indicators – e. g. , {river, mountain, forest} for natural locations; {street, road, crescent, place, square, …}for address locations • Internal organisation indicators – e. g. , company designators {Gmb. H, Ltd, Inc, …} • Produces Lookup results of the given kind 49(109)

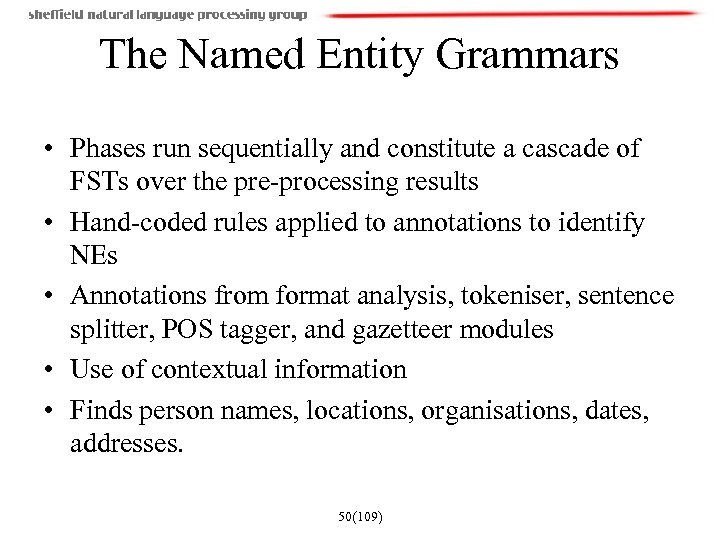

The Named Entity Grammars • Phases run sequentially and constitute a cascade of FSTs over the pre-processing results • Hand-coded rules applied to annotations to identify NEs • Annotations from format analysis, tokeniser, sentence splitter, POS tagger, and gazetteer modules • Use of contextual information • Finds person names, locations, organisations, dates, addresses. 50(109)

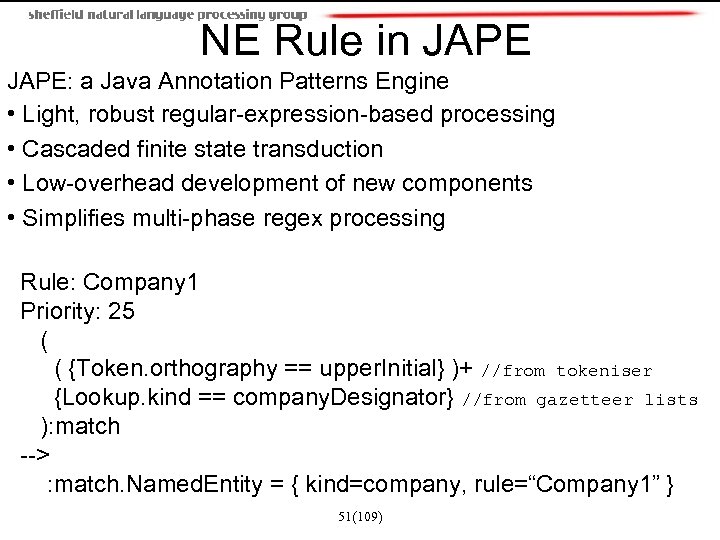

NE Rule in JAPE: a Java Annotation Patterns Engine • Light, robust regular-expression-based processing • Cascaded finite state transduction • Low-overhead development of new components • Simplifies multi-phase regex processing Rule: Company 1 Priority: 25 ( {Token. orthography == upper. Initial} )+ //from tokeniser {Lookup. kind == company. Designator} //from gazetteer lists ): match --> : match. Named. Entity = { kind=company, rule=“Company 1” } 51(109)

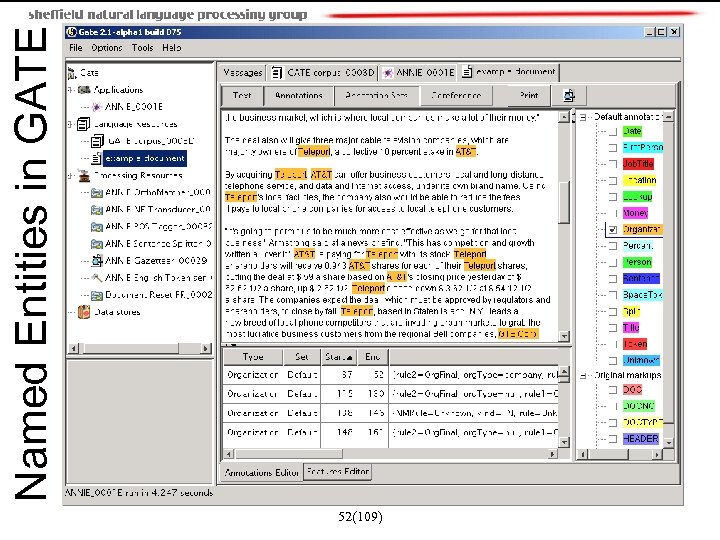

52(109) Named Entities in GATE

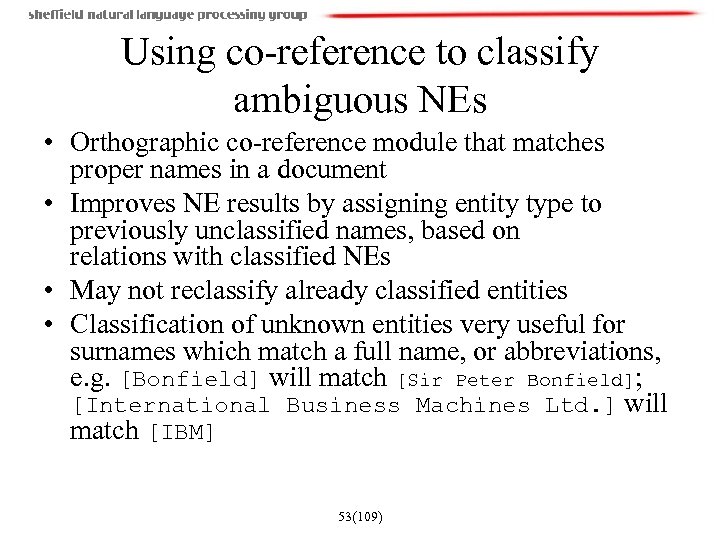

Using co-reference to classify ambiguous NEs • Orthographic co-reference module that matches proper names in a document • Improves NE results by assigning entity type to previously unclassified names, based on relations with classified NEs • May not reclassify already classified entities • Classification of unknown entities very useful for surnames which match a full name, or abbreviations, e. g. [Bonfield] will match [Sir Peter Bonfield]; [International Business Machines Ltd. ] will match [IBM] 53(109)

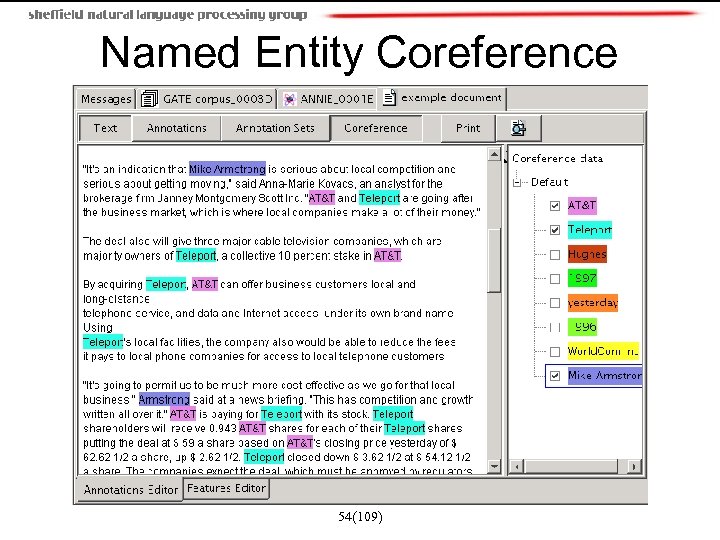

Named Entity Coreference 54(109)

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 55(109)

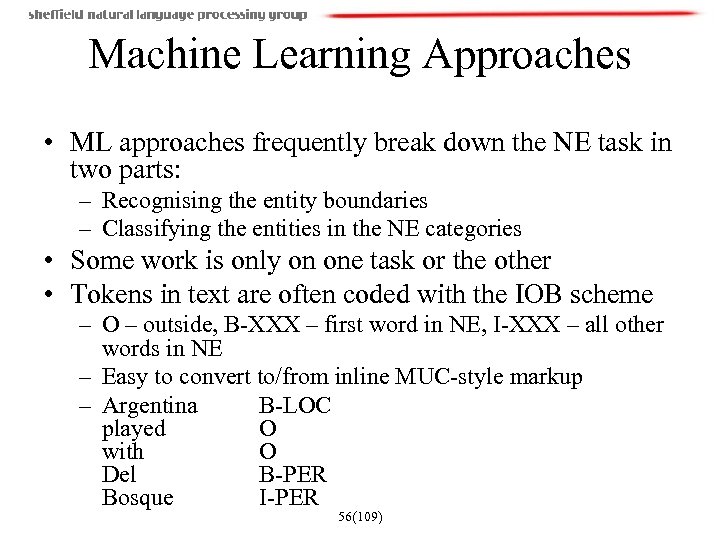

Machine Learning Approaches • ML approaches frequently break down the NE task in two parts: – Recognising the entity boundaries – Classifying the entities in the NE categories • Some work is only on one task or the other • Tokens in text are often coded with the IOB scheme – O – outside, B-XXX – first word in NE, I-XXX – all other words in NE – Easy to convert to/from inline MUC-style markup – Argentina B-LOC played O with O Del B-PER Bosque I-PER 56(109)

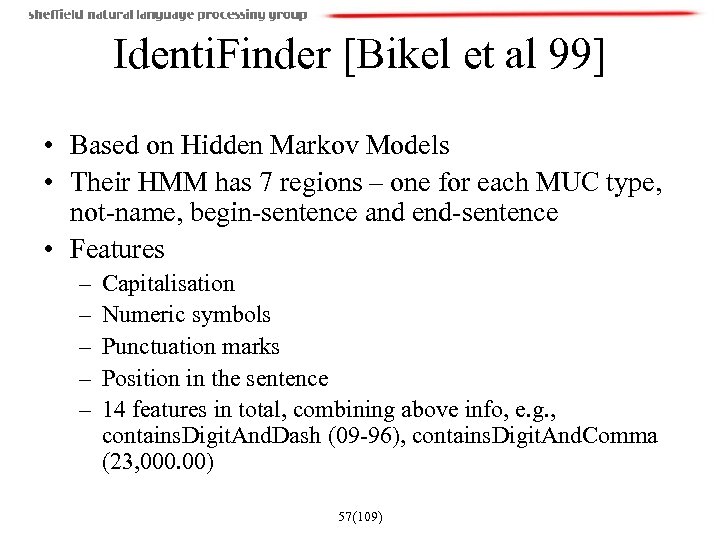

Identi. Finder [Bikel et al 99] • Based on Hidden Markov Models • Their HMM has 7 regions – one for each MUC type, not-name, begin-sentence and end-sentence • Features – – – Capitalisation Numeric symbols Punctuation marks Position in the sentence 14 features in total, combining above info, e. g. , contains. Digit. And. Dash (09 -96), contains. Digit. And. Comma (23, 000. 00) 57(109)

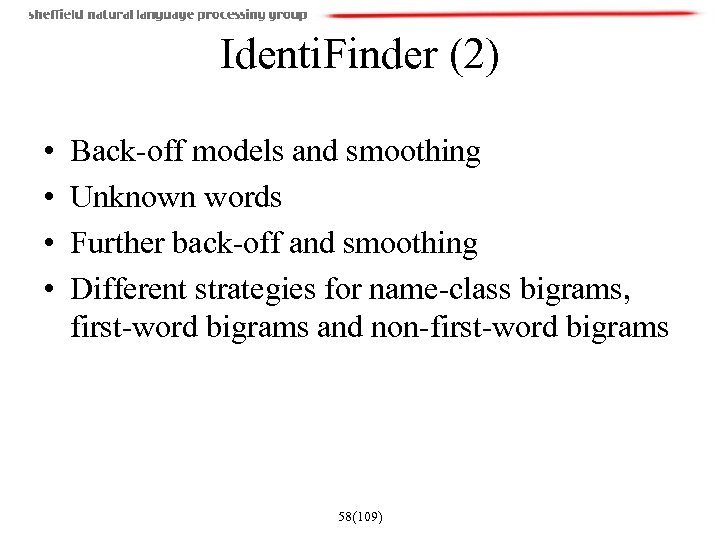

Identi. Finder (2) • • Back-off models and smoothing Unknown words Further back-off and smoothing Different strategies for name-class bigrams, first-word bigrams and non-first-word bigrams 58(109)

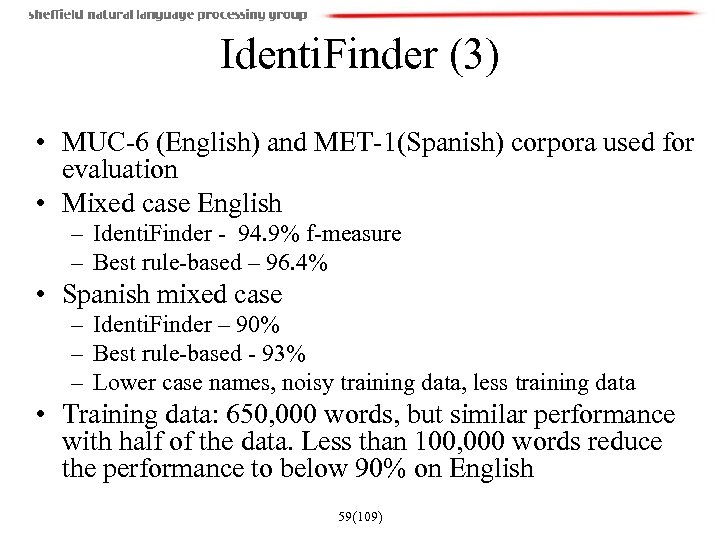

Identi. Finder (3) • MUC-6 (English) and MET-1(Spanish) corpora used for evaluation • Mixed case English – Identi. Finder - 94. 9% f-measure – Best rule-based – 96. 4% • Spanish mixed case – Identi. Finder – 90% – Best rule-based - 93% – Lower case names, noisy training data, less training data • Training data: 650, 000 words, but similar performance with half of the data. Less than 100, 000 words reduce the performance to below 90% on English 59(109)

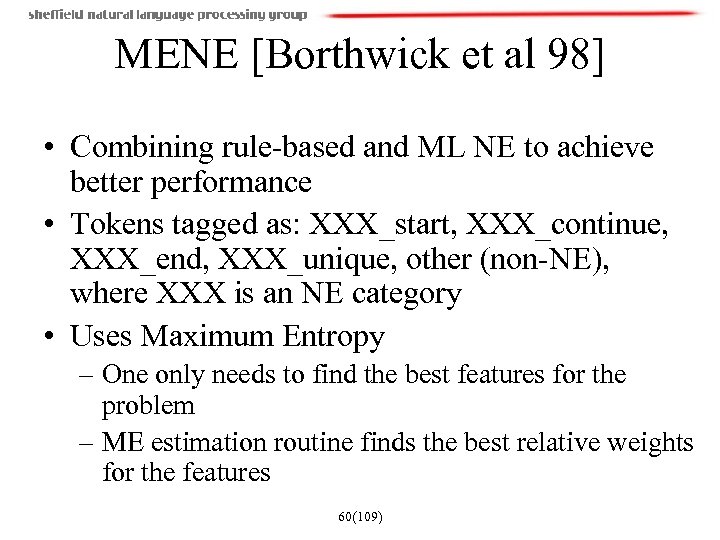

MENE [Borthwick et al 98] • Combining rule-based and ML NE to achieve better performance • Tokens tagged as: XXX_start, XXX_continue, XXX_end, XXX_unique, other (non-NE), where XXX is an NE category • Uses Maximum Entropy – One only needs to find the best features for the problem – ME estimation routine finds the best relative weights for the features 60(109)

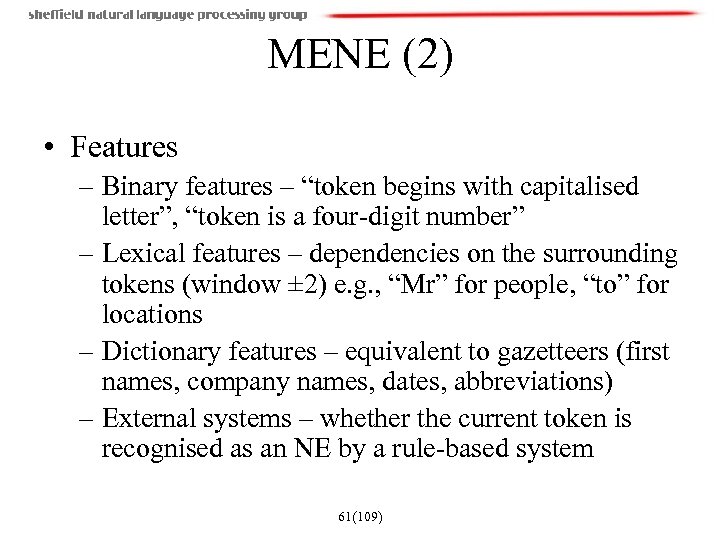

MENE (2) • Features – Binary features – “token begins with capitalised letter”, “token is a four-digit number” – Lexical features – dependencies on the surrounding tokens (window ± 2) e. g. , “Mr” for people, “to” for locations – Dictionary features – equivalent to gazetteers (first names, company names, dates, abbreviations) – External systems – whether the current token is recognised as an NE by a rule-based system 61(109)

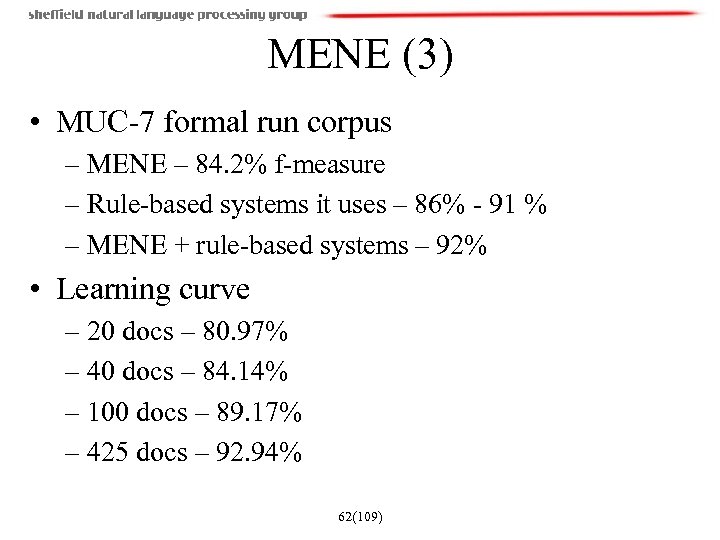

MENE (3) • MUC-7 formal run corpus – MENE – 84. 2% f-measure – Rule-based systems it uses – 86% - 91 % – MENE + rule-based systems – 92% • Learning curve – 20 docs – 80. 97% – 40 docs – 84. 14% – 100 docs – 89. 17% – 425 docs – 92. 94% 62(109)

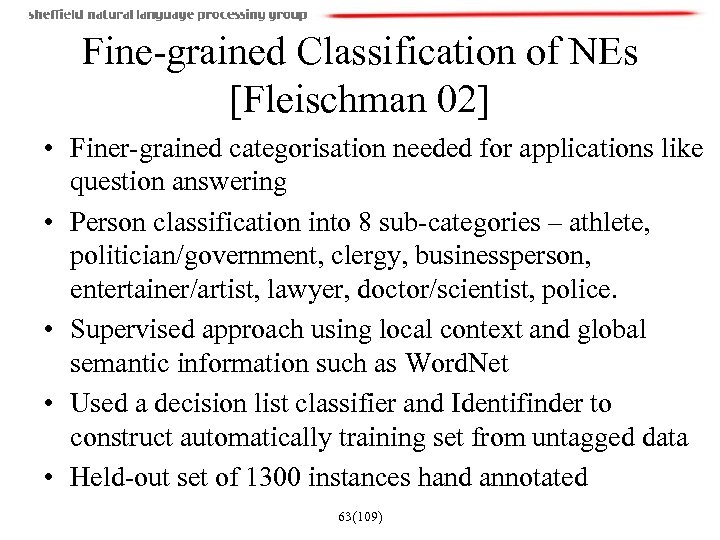

Fine-grained Classification of NEs [Fleischman 02] • Finer-grained categorisation needed for applications like question answering • Person classification into 8 sub-categories – athlete, politician/government, clergy, businessperson, entertainer/artist, lawyer, doctor/scientist, police. • Supervised approach using local context and global semantic information such as Word. Net • Used a decision list classifier and Identifinder to construct automatically training set from untagged data • Held-out set of 1300 instances hand annotated 63(109)

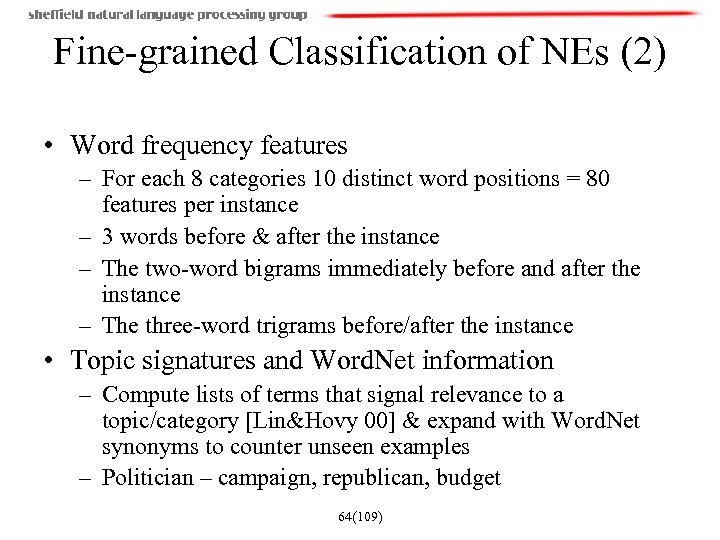

Fine-grained Classification of NEs (2) • Word frequency features – For each 8 categories 10 distinct word positions = 80 features per instance – 3 words before & after the instance – The two-word bigrams immediately before and after the instance – The three-word trigrams before/after the instance • Topic signatures and Word. Net information – Compute lists of terms that signal relevance to a topic/category [Lin&Hovy 00] & expand with Word. Net synonyms to counter unseen examples – Politician – campaign, republican, budget 64(109)

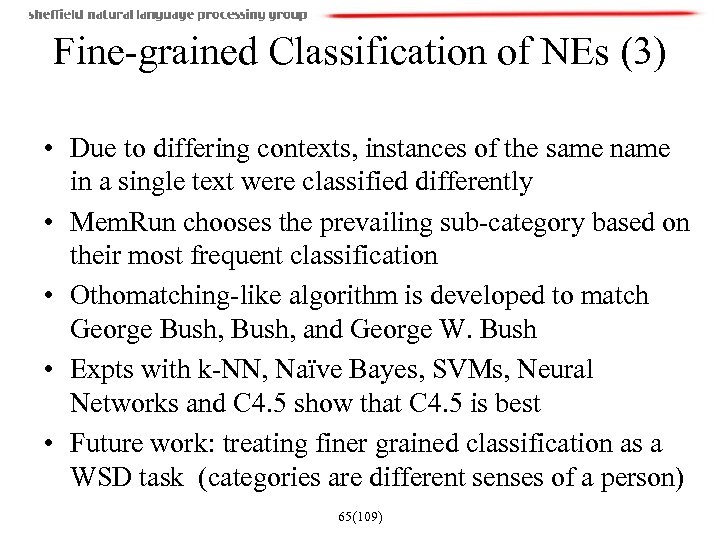

Fine-grained Classification of NEs (3) • Due to differing contexts, instances of the same name in a single text were classified differently • Mem. Run chooses the prevailing sub-category based on their most frequent classification • Othomatching-like algorithm is developed to match George Bush, and George W. Bush • Expts with k-NN, Naïve Bayes, SVMs, Neural Networks and C 4. 5 show that C 4. 5 is best • Future work: treating finer grained classification as a WSD task (categories are different senses of a person) 65(109)

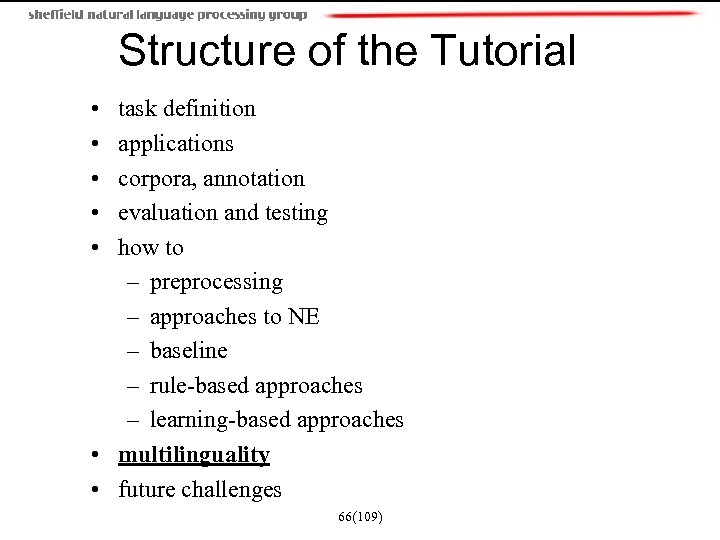

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 66(109)

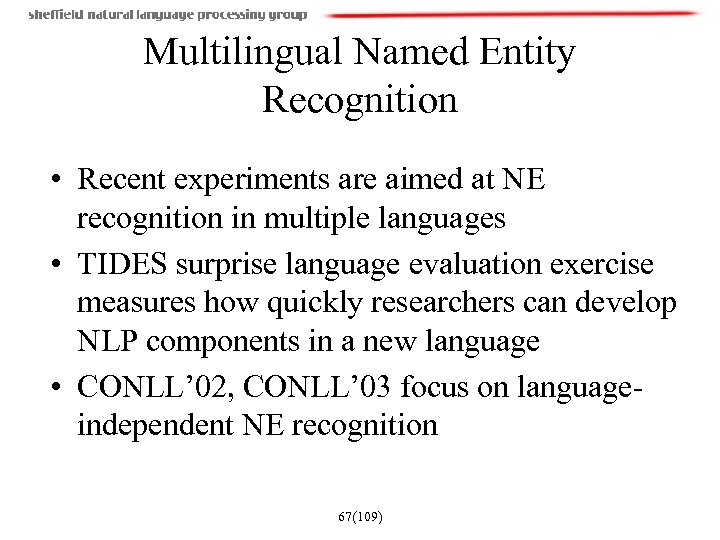

Multilingual Named Entity Recognition • Recent experiments are aimed at NE recognition in multiple languages • TIDES surprise language evaluation exercise measures how quickly researchers can develop NLP components in a new language • CONLL’ 02, CONLL’ 03 focus on languageindependent NE recognition 67(109)

Analysis of the NE Task in Multiple Languages [Palmer&Day 97] Language NE 4454 Time/ Date 17. 2% Numeric Org/Per/ exprs. Loc 1. 8% 80. 9% Chinese English 2242 10. 7% 9. 5% 79. 8% French 2321 18. 6% 3% 78. 4% Japanese 2146 26. 4% 4% 69. 6% Portuguese 3839 17. 7% 12. 1% 70. 3% Spanish 24. 6% 3% 72. 5% 3579 68(109)

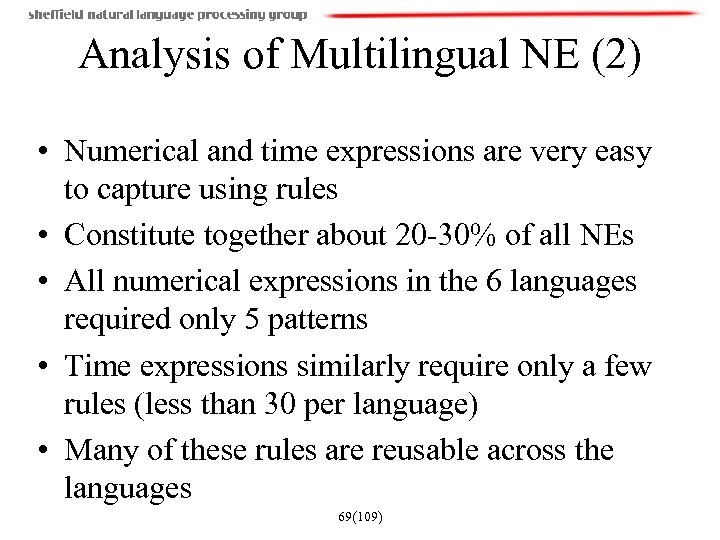

Analysis of Multilingual NE (2) • Numerical and time expressions are very easy to capture using rules • Constitute together about 20 -30% of all NEs • All numerical expressions in the 6 languages required only 5 patterns • Time expressions similarly require only a few rules (less than 30 per language) • Many of these rules are reusable across the languages 69(109)

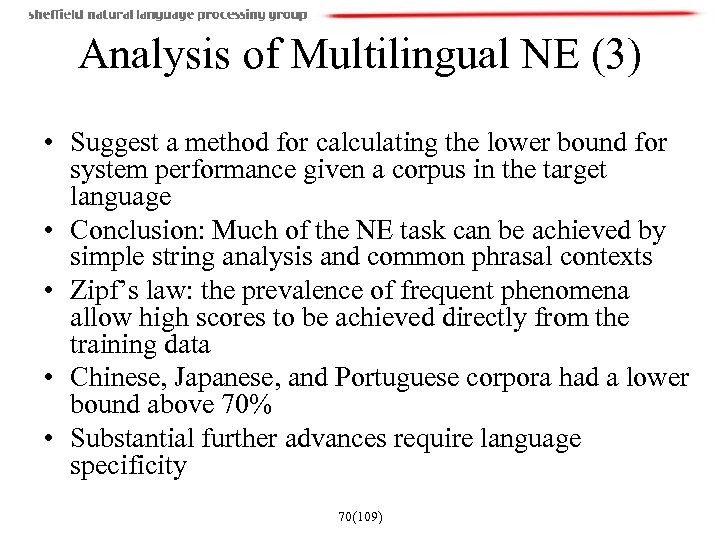

Analysis of Multilingual NE (3) • Suggest a method for calculating the lower bound for system performance given a corpus in the target language • Conclusion: Much of the NE task can be achieved by simple string analysis and common phrasal contexts • Zipf’s law: the prevalence of frequent phenomena allow high scores to be achieved directly from the training data • Chinese, Japanese, and Portuguese corpora had a lower bound above 70% • Substantial further advances require language specificity 70(109)

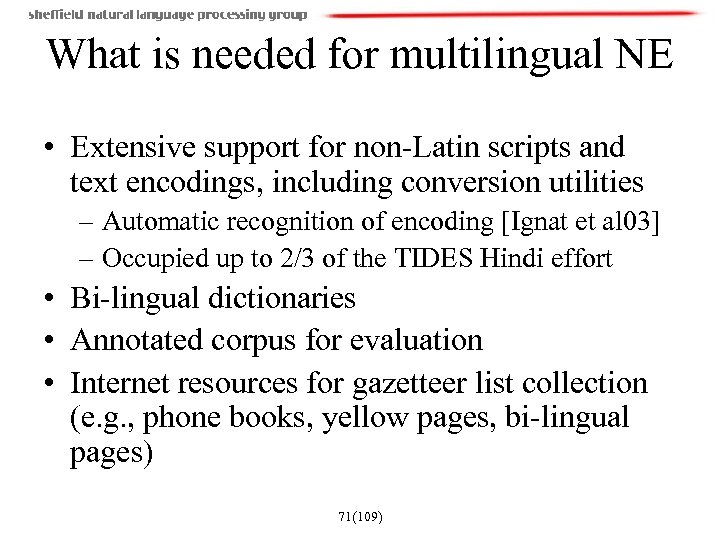

What is needed for multilingual NE • Extensive support for non-Latin scripts and text encodings, including conversion utilities – Automatic recognition of encoding [Ignat et al 03] – Occupied up to 2/3 of the TIDES Hindi effort • Bi-lingual dictionaries • Annotated corpus for evaluation • Internet resources for gazetteer list collection (e. g. , phone books, yellow pages, bi-lingual pages) 71(109)

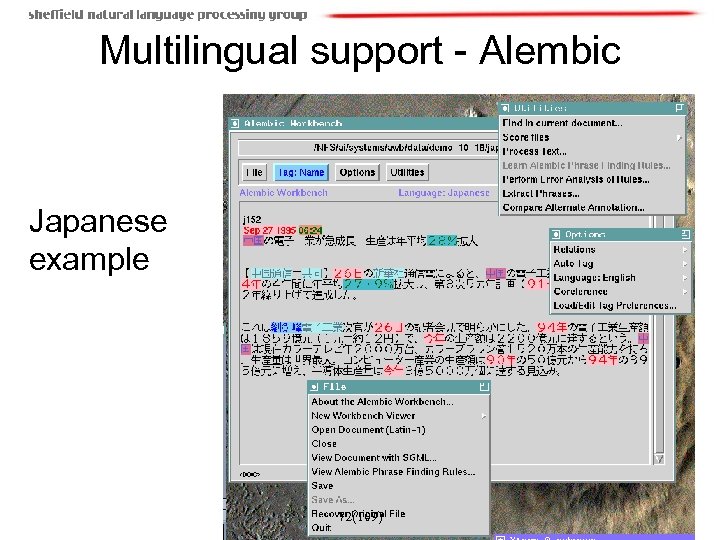

Multilingual support - Alembic Japanese example 72(109)

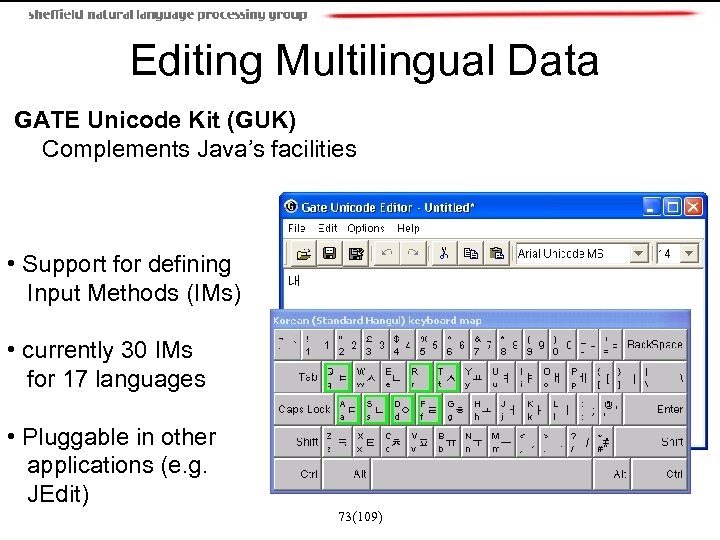

Editing Multilingual Data GATE Unicode Kit (GUK) Complements Java’s facilities • Support for defining Input Methods (IMs) • currently 30 IMs for 17 languages • Pluggable in other applications (e. g. JEdit) 73(109)

Multilingual Data - GATE All processing, visualisation and editing tools use GUK 74(109)

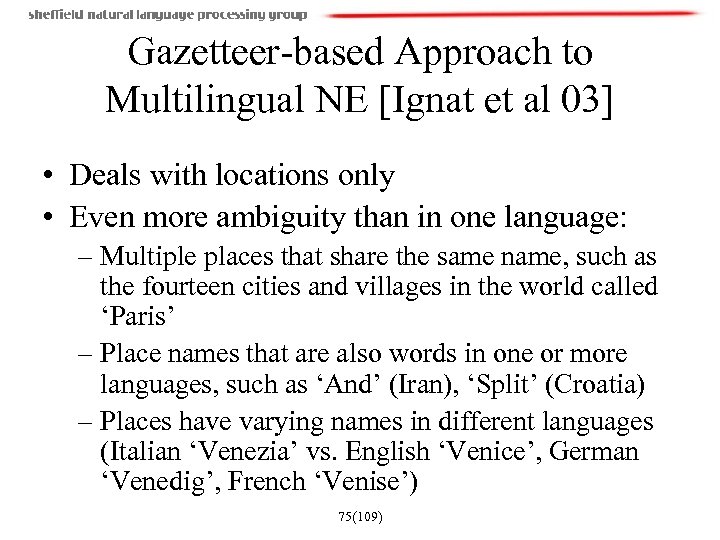

Gazetteer-based Approach to Multilingual NE [Ignat et al 03] • Deals with locations only • Even more ambiguity than in one language: – Multiple places that share the same name, such as the fourteen cities and villages in the world called ‘Paris’ – Place names that are also words in one or more languages, such as ‘And’ (Iran), ‘Split’ (Croatia) – Places have varying names in different languages (Italian ‘Venezia’ vs. English ‘Venice’, German ‘Venedig’, French ‘Venise’) 75(109)

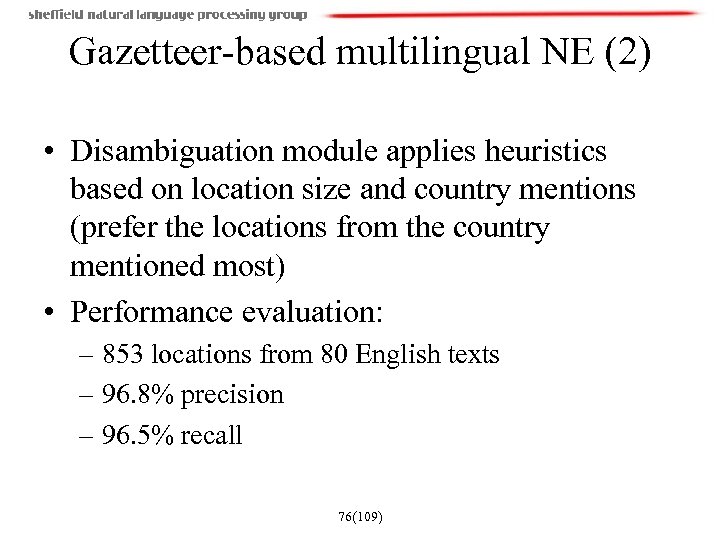

Gazetteer-based multilingual NE (2) • Disambiguation module applies heuristics based on location size and country mentions (prefer the locations from the country mentioned most) • Performance evaluation: – 853 locations from 80 English texts – 96. 8% precision – 96. 5% recall 76(109)

Machine Learning for Multilingual NE • CONLL’ 2002 and 2003 shared tasks were NE in Spanish, Dutch, English, and German • The most popular ML techniques used: – Maximum Entropy (5 systems) – Hidden Markov Models (4 systems) – Connectionist methods (4 systems) • Combining ML methods has been shown to boost results 77(109)

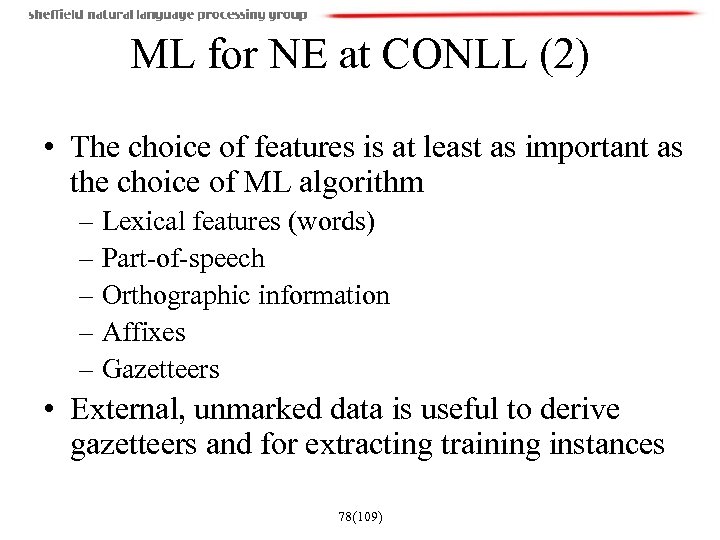

ML for NE at CONLL (2) • The choice of features is at least as important as the choice of ML algorithm – Lexical features (words) – Part-of-speech – Orthographic information – Affixes – Gazetteers • External, unmarked data is useful to derive gazetteers and for extracting training instances 78(109)

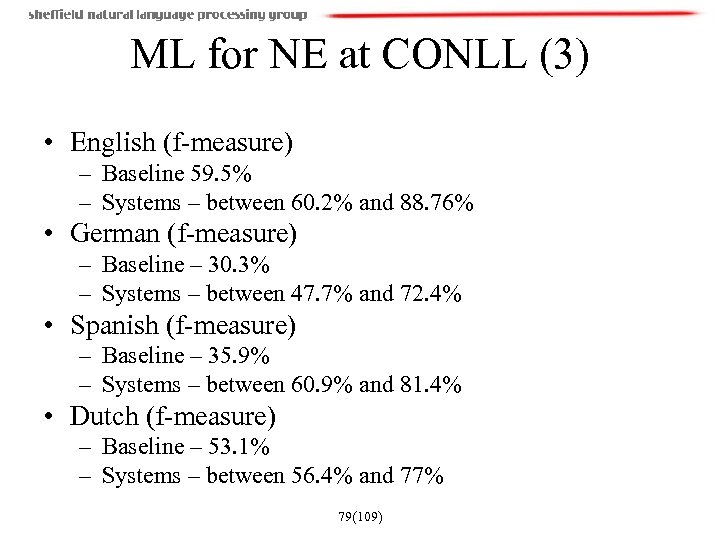

ML for NE at CONLL (3) • English (f-measure) – Baseline 59. 5% – Systems – between 60. 2% and 88. 76% • German (f-measure) – Baseline – 30. 3% – Systems – between 47. 7% and 72. 4% • Spanish (f-measure) – Baseline – 35. 9% – Systems – between 60. 9% and 81. 4% • Dutch (f-measure) – Baseline – 53. 1% – Systems – between 56. 4% and 77% 79(109)

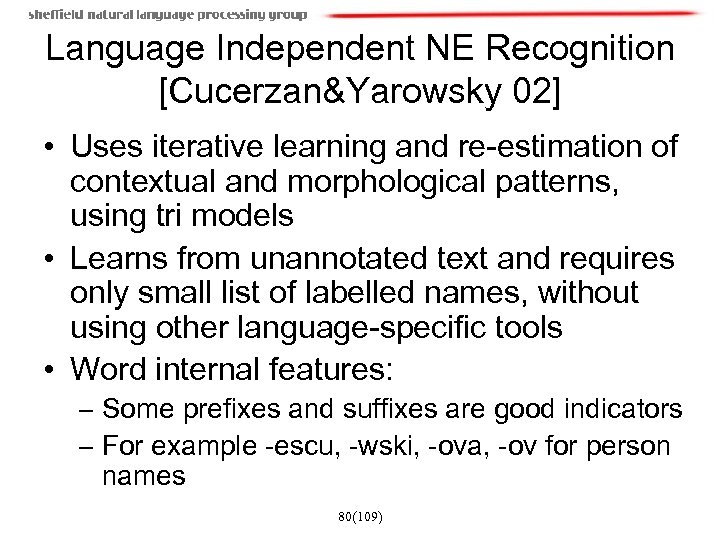

Language Independent NE Recognition [Cucerzan&Yarowsky 02] • Uses iterative learning and re-estimation of contextual and morphological patterns, using tri models • Learns from unannotated text and requires only small list of labelled names, without using other language-specific tools • Word internal features: – Some prefixes and suffixes are good indicators – For example -escu, -wski, -ova, -ov for person names 80(109)

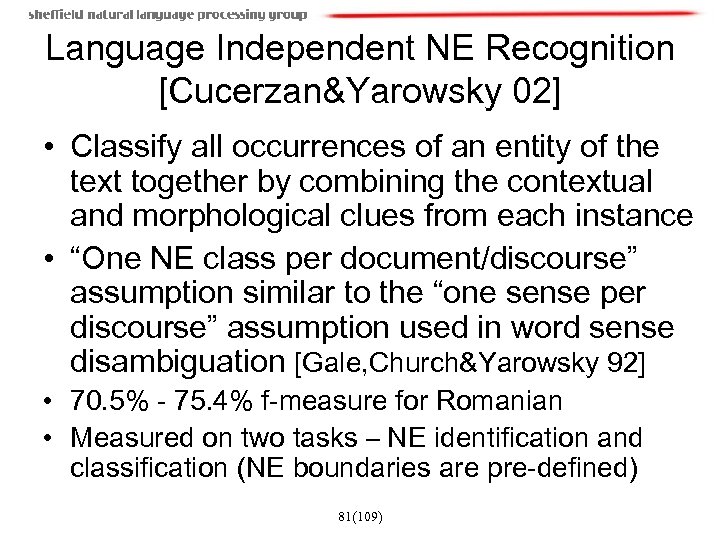

Language Independent NE Recognition [Cucerzan&Yarowsky 02] • Classify all occurrences of an entity of the text together by combining the contextual and morphological clues from each instance • “One NE class per document/discourse” assumption similar to the “one sense per discourse” assumption used in word sense disambiguation [Gale, Church&Yarowsky 92] • 70. 5% - 75. 4% f-measure for Romanian • Measured on two tasks – NE identification and classification (NE boundaries are pre-defined) 81(109)

TIDES surprise language exercise • Collaborative effort between a number of sites to develop resources and tools for various LE tasks on a surprise language • Tasks: IE (including NE), machine translation, summarisation, cross-language IR • Dry-run lasted 10 days on the Cebuano language from the Philippines • Surprise language was Hindi, announced at the start of June 2003; duration 1 month 82(109)

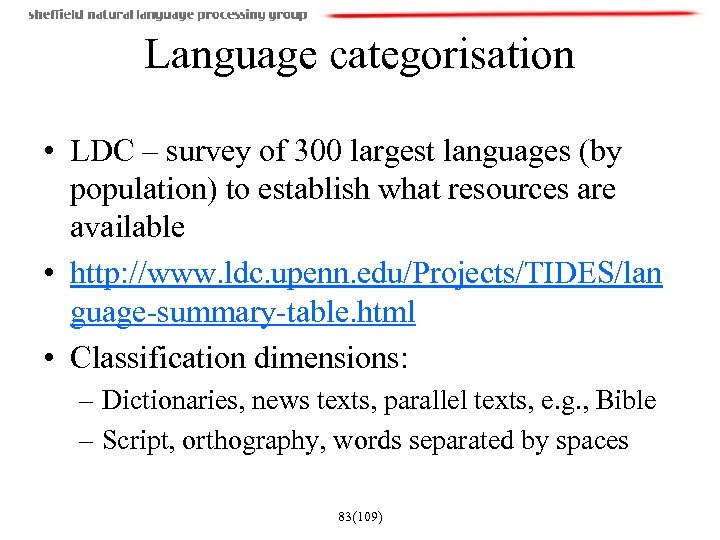

Language categorisation • LDC – survey of 300 largest languages (by population) to establish what resources are available • http: //www. ldc. upenn. edu/Projects/TIDES/lan guage-summary-table. html • Classification dimensions: – Dictionaries, news texts, parallel texts, e. g. , Bible – Script, orthography, words separated by spaces 83(109)

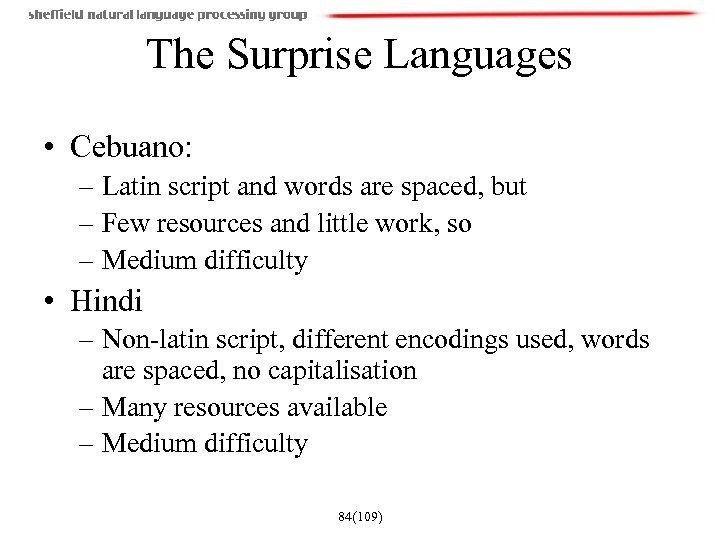

The Surprise Languages • Cebuano: – Latin script and words are spaced, but – Few resources and little work, so – Medium difficulty • Hindi – Non-latin script, different encodings used, words are spaced, no capitalisation – Many resources available – Medium difficulty 84(109)

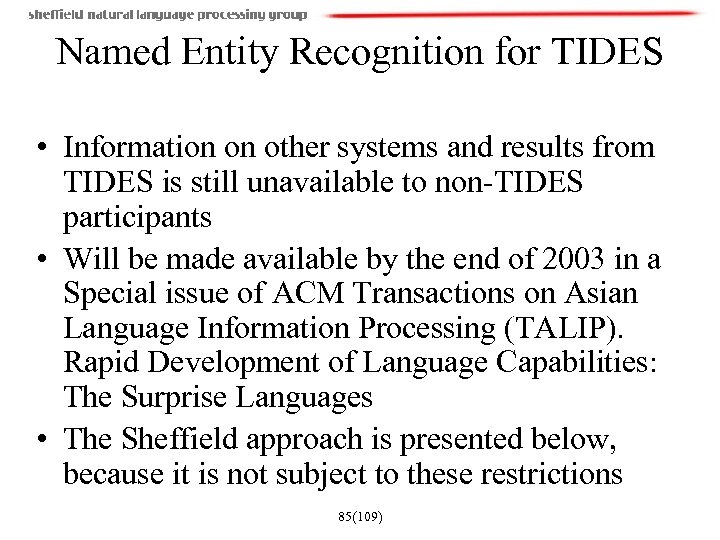

Named Entity Recognition for TIDES • Information on other systems and results from TIDES is still unavailable to non-TIDES participants • Will be made available by the end of 2003 in a Special issue of ACM Transactions on Asian Language Information Processing (TALIP). Rapid Development of Language Capabilities: The Surprise Languages • The Sheffield approach is presented below, because it is not subject to these restrictions 85(109)

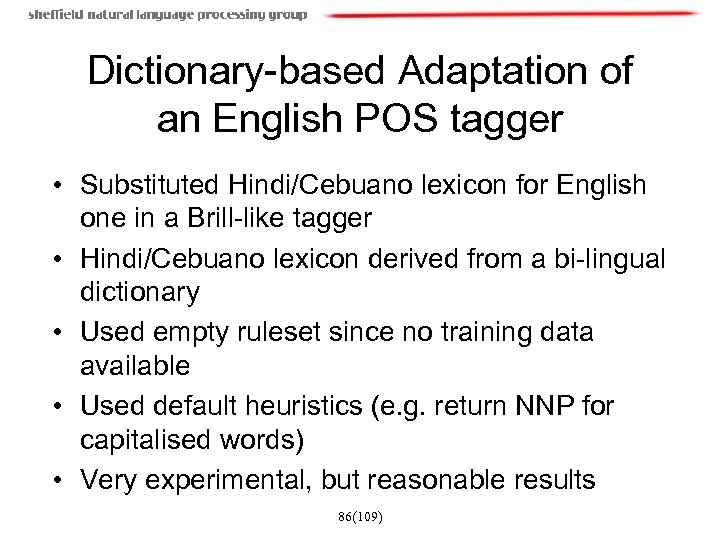

Dictionary-based Adaptation of an English POS tagger • Substituted Hindi/Cebuano lexicon for English one in a Brill-like tagger • Hindi/Cebuano lexicon derived from a bi-lingual dictionary • Used empty ruleset since no training data available • Used default heuristics (e. g. return NNP for capitalised words) • Very experimental, but reasonable results 86(109)

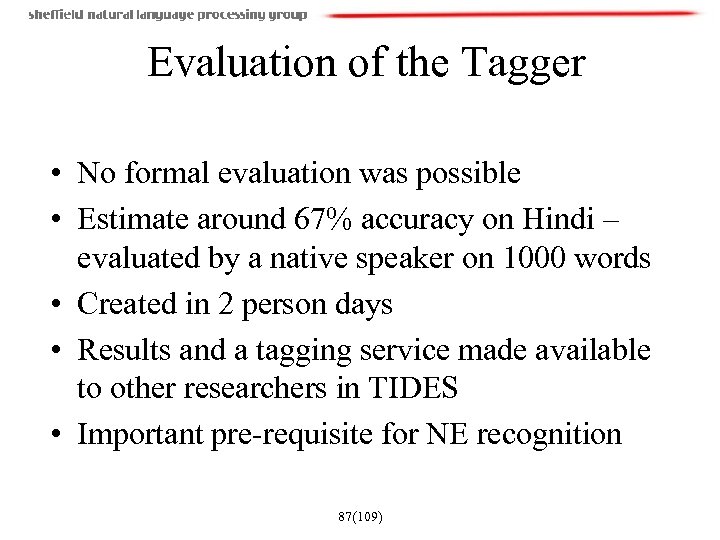

Evaluation of the Tagger • No formal evaluation was possible • Estimate around 67% accuracy on Hindi – evaluated by a native speaker on 1000 words • Created in 2 person days • Results and a tagging service made available to other researchers in TIDES • Important pre-requisite for NE recognition 87(109)

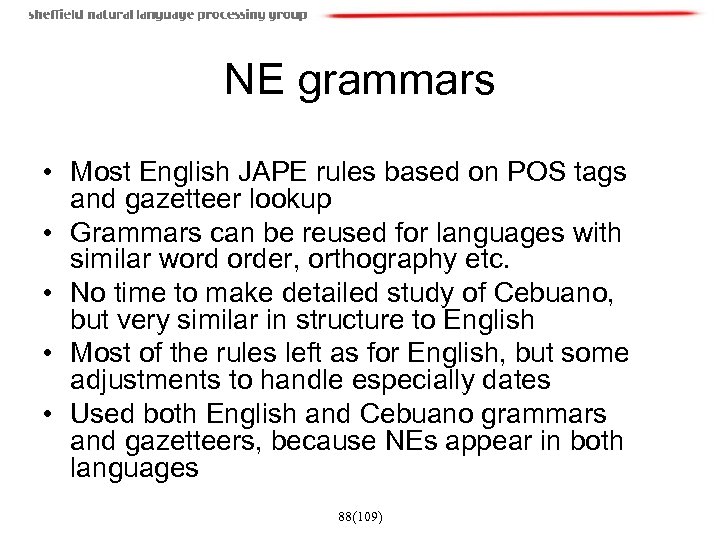

NE grammars • Most English JAPE rules based on POS tags and gazetteer lookup • Grammars can be reused for languages with similar word order, orthography etc. • No time to make detailed study of Cebuano, but very similar in structure to English • Most of the rules left as for English, but some adjustments to handle especially dates • Used both English and Cebuano grammars and gazetteers, because NEs appear in both languages 88(109)

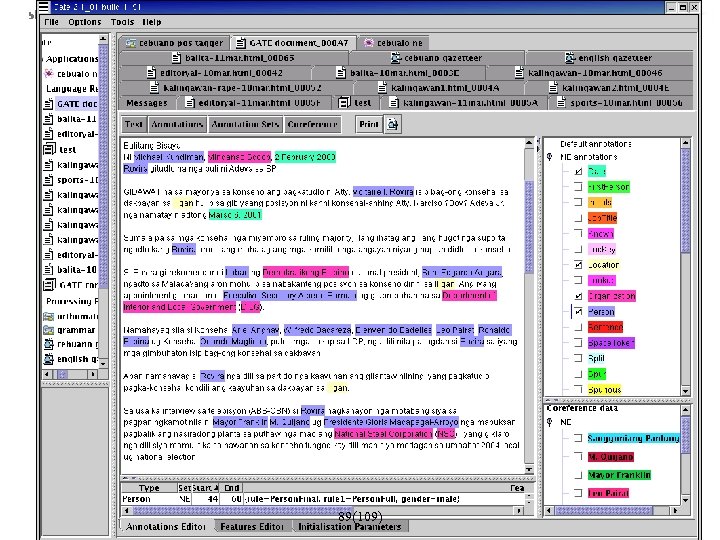

89(109)

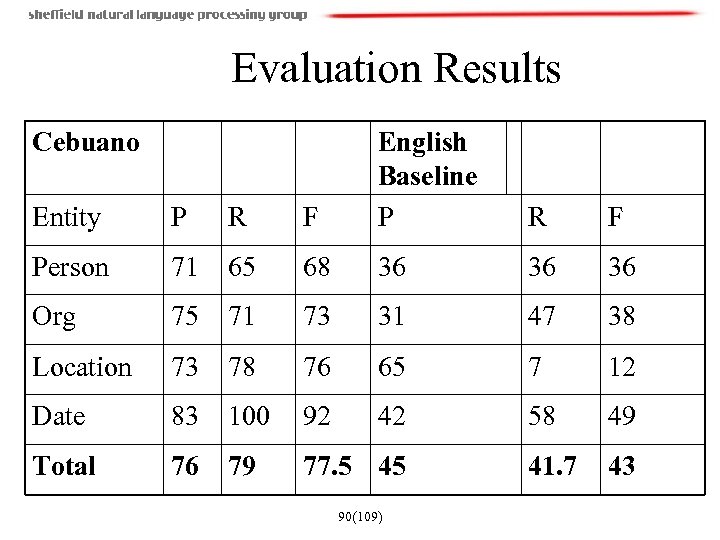

Evaluation Results Cebuano Entity P R F English Baseline P Person 71 65 68 36 36 36 Org 75 71 73 31 47 38 Location 73 78 76 65 7 12 Date 83 100 92 42 58 49 Total 76 79 77. 5 45 41. 7 43 90(109) R F

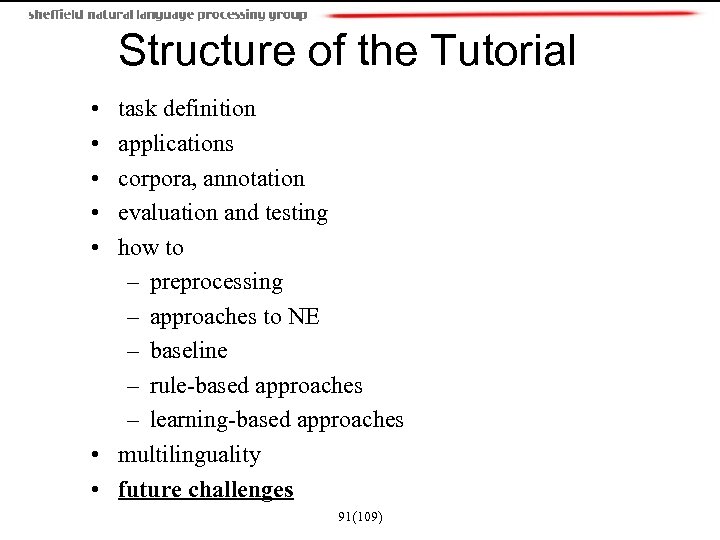

Structure of the Tutorial • • • task definition applications corpora, annotation evaluation and testing how to – preprocessing – approaches to NE – baseline – rule-based approaches – learning-based approaches • multilinguality • future challenges 91(109)

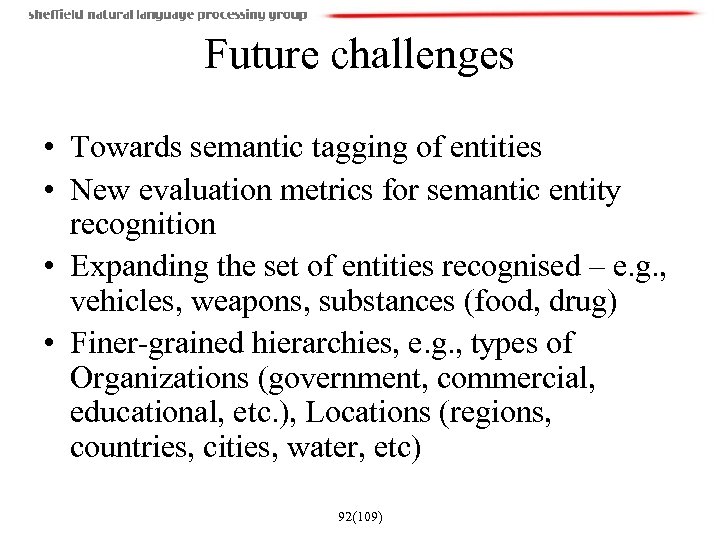

Future challenges • Towards semantic tagging of entities • New evaluation metrics for semantic entity recognition • Expanding the set of entities recognised – e. g. , vehicles, weapons, substances (food, drug) • Finer-grained hierarchies, e. g. , types of Organizations (government, commercial, educational, etc. ), Locations (regions, countries, cities, water, etc) 92(109)

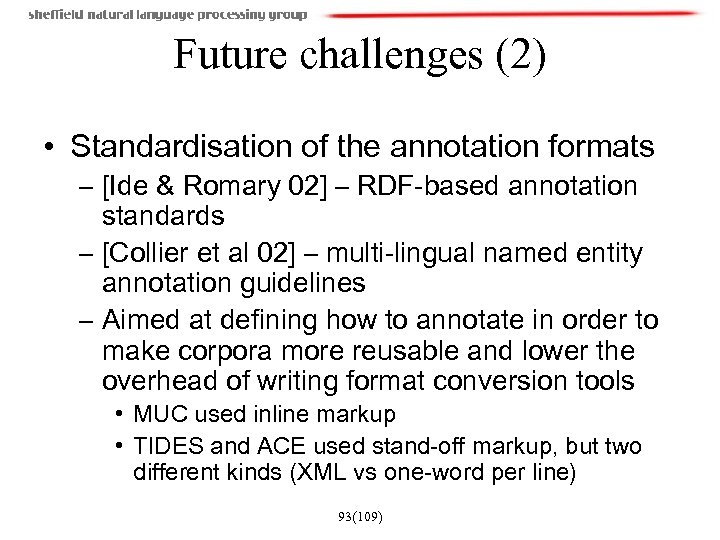

Future challenges (2) • Standardisation of the annotation formats – [Ide & Romary 02] – RDF-based annotation standards – [Collier et al 02] – multi-lingual named entity annotation guidelines – Aimed at defining how to annotate in order to make corpora more reusable and lower the overhead of writing format conversion tools • MUC used inline markup • TIDES and ACE used stand-off markup, but two different kinds (XML vs one-word per line) 93(109)

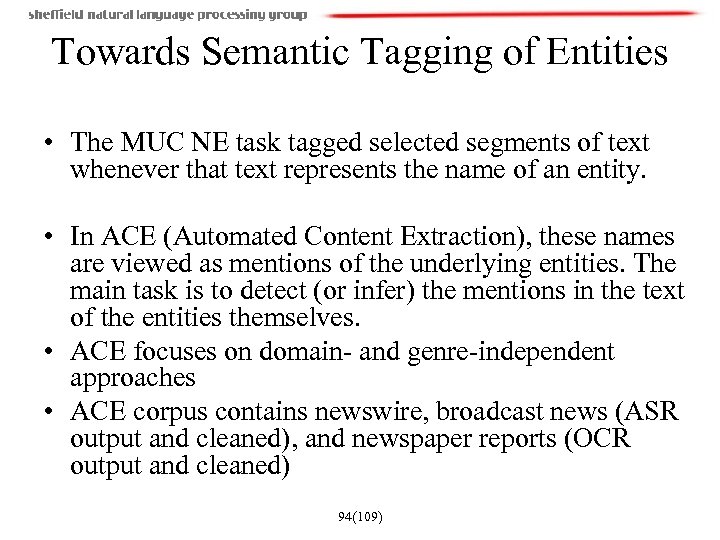

Towards Semantic Tagging of Entities • The MUC NE task tagged selected segments of text whenever that text represents the name of an entity. • In ACE (Automated Content Extraction), these names are viewed as mentions of the underlying entities. The main task is to detect (or infer) the mentions in the text of the entities themselves. • ACE focuses on domain- and genre-independent approaches • ACE corpus contains newswire, broadcast news (ASR output and cleaned), and newspaper reports (OCR output and cleaned) 94(109)

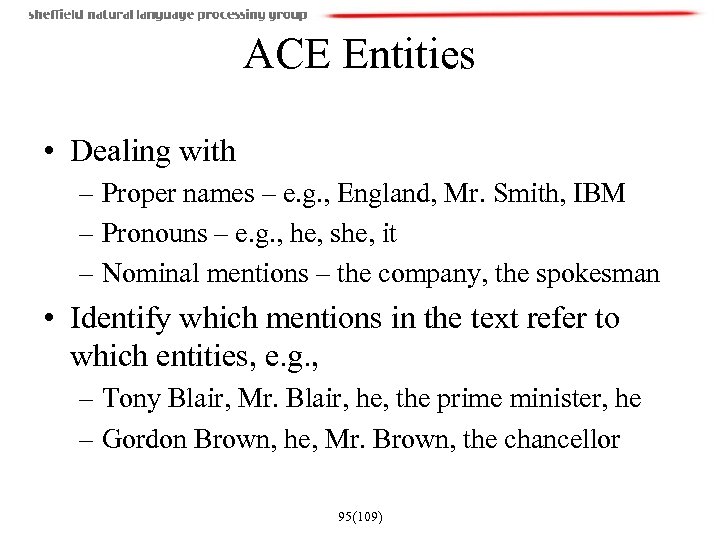

ACE Entities • Dealing with – Proper names – e. g. , England, Mr. Smith, IBM – Pronouns – e. g. , he, she, it – Nominal mentions – the company, the spokesman • Identify which mentions in the text refer to which entities, e. g. , – Tony Blair, Mr. Blair, he, the prime minister, he – Gordon Brown, he, Mr. Brown, the chancellor 95(109)

ACE Example 96(109)

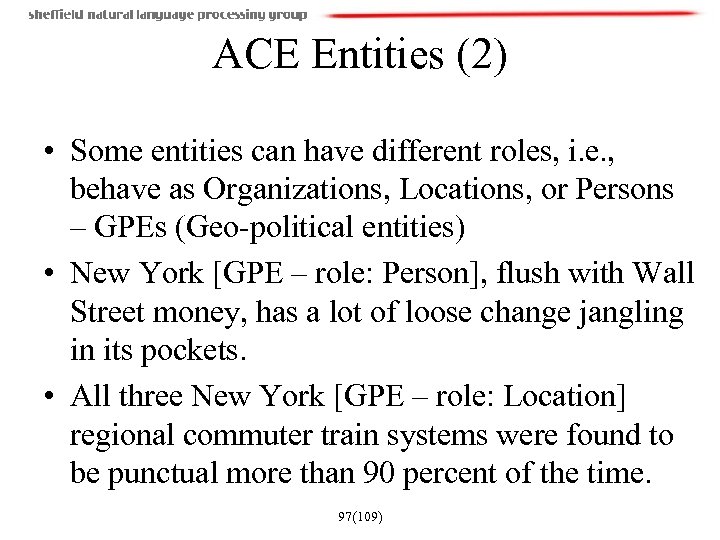

ACE Entities (2) • Some entities can have different roles, i. e. , behave as Organizations, Locations, or Persons – GPEs (Geo-political entities) • New York [GPE – role: Person], flush with Wall Street money, has a lot of loose change jangling in its pockets. • All three New York [GPE – role: Location] regional commuter train systems were found to be punctual more than 90 percent of the time. 97(109)

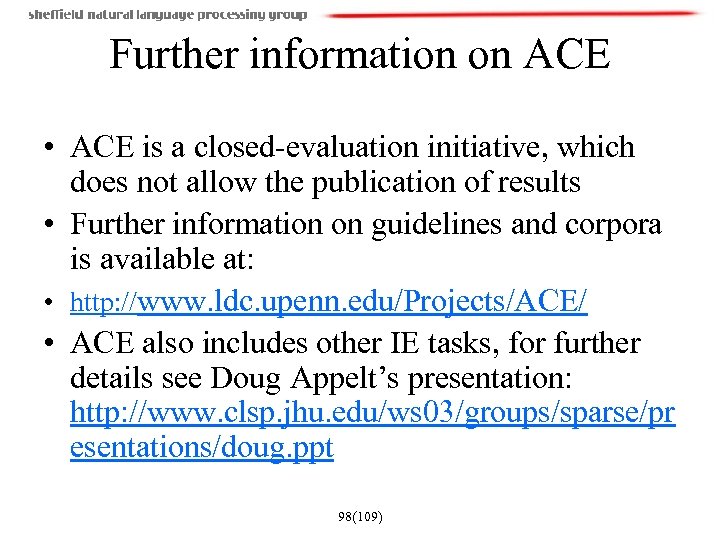

Further information on ACE • ACE is a closed-evaluation initiative, which does not allow the publication of results • Further information on guidelines and corpora is available at: • http: //www. ldc. upenn. edu/Projects/ACE/ • ACE also includes other IE tasks, for further details see Doug Appelt’s presentation: http: //www. clsp. jhu. edu/ws 03/groups/sparse/pr esentations/doug. ppt 98(109)

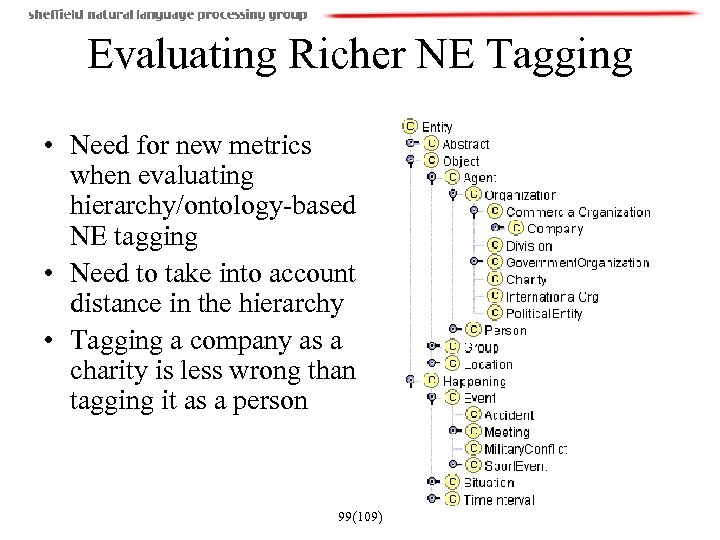

Evaluating Richer NE Tagging • Need for new metrics when evaluating hierarchy/ontology-based NE tagging • Need to take into account distance in the hierarchy • Tagging a company as a charity is less wrong than tagging it as a person 99(109)

THANK YOU! 100(109)

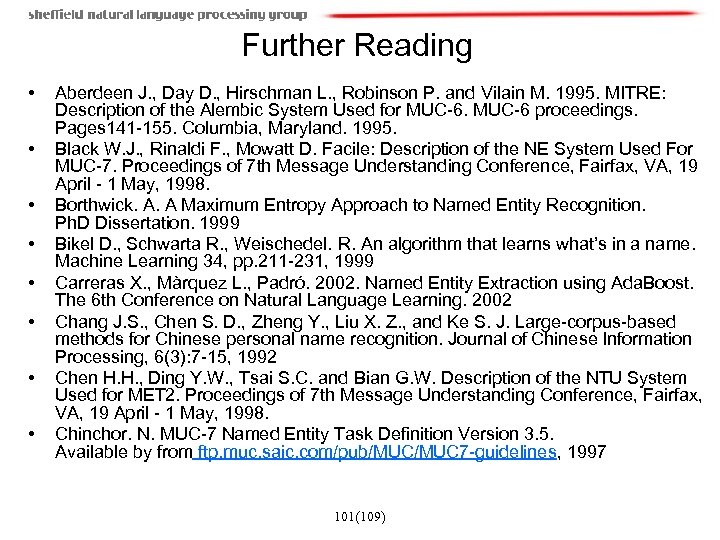

Further Reading • • Aberdeen J. , Day D. , Hirschman L. , Robinson P. and Vilain M. 1995. MITRE: Description of the Alembic System Used for MUC-6 proceedings. Pages 141 -155. Columbia, Maryland. 1995. Black W. J. , Rinaldi F. , Mowatt D. Facile: Description of the NE System Used For MUC-7. Proceedings of 7 th Message Understanding Conference, Fairfax, VA, 19 April - 1 May, 1998. Borthwick. A. A Maximum Entropy Approach to Named Entity Recognition. Ph. D Dissertation. 1999 Bikel D. , Schwarta R. , Weischedel. R. An algorithm that learns what’s in a name. Machine Learning 34, pp. 211 -231, 1999 Carreras X. , Màrquez L. , Padró. 2002. Named Entity Extraction using Ada. Boost. The 6 th Conference on Natural Language Learning. 2002 Chang J. S. , Chen S. D. , Zheng Y. , Liu X. Z. , and Ke S. J. Large-corpus-based methods for Chinese personal name recognition. Journal of Chinese Information Processing, 6(3): 7 -15, 1992 Chen H. H. , Ding Y. W. , Tsai S. C. and Bian G. W. Description of the NTU System Used for MET 2. Proceedings of 7 th Message Understanding Conference, Fairfax, VA, 19 April - 1 May, 1998. Chinchor. N. MUC-7 Named Entity Task Definition Version 3. 5. Available by from ftp. muc. saic. com/pub/MUC 7 -guidelines, 1997 101(109)

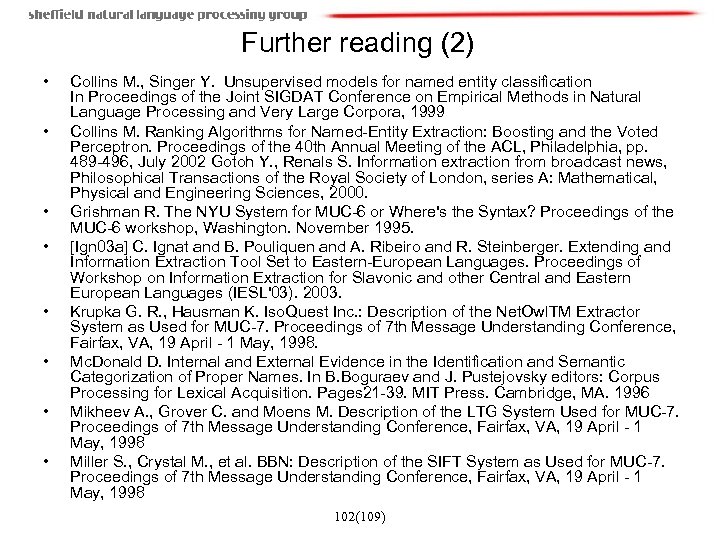

Further reading (2) • • Collins M. , Singer Y. Unsupervised models for named entity classification In Proceedings of the Joint SIGDAT Conference on Empirical Methods in Natural Language Processing and Very Large Corpora, 1999 Collins M. Ranking Algorithms for Named-Entity Extraction: Boosting and the Voted Perceptron. Proceedings of the 40 th Annual Meeting of the ACL, Philadelphia, pp. 489 -496, July 2002 Gotoh Y. , Renals S. Information extraction from broadcast news, Philosophical Transactions of the Royal Society of London, series A: Mathematical, Physical and Engineering Sciences, 2000. Grishman R. The NYU System for MUC-6 or Where's the Syntax? Proceedings of the MUC-6 workshop, Washington. November 1995. [Ign 03 a] C. Ignat and B. Pouliquen and A. Ribeiro and R. Steinberger. Extending and Information Extraction Tool Set to Eastern-European Languages. Proceedings of Workshop on Information Extraction for Slavonic and other Central and Eastern European Languages (IESL'03). 2003. Krupka G. R. , Hausman K. Iso. Quest Inc. : Description of the Net. Owl. TM Extractor System as Used for MUC-7. Proceedings of 7 th Message Understanding Conference, Fairfax, VA, 19 April - 1 May, 1998. Mc. Donald D. Internal and External Evidence in the Identification and Semantic Categorization of Proper Names. In B. Boguraev and J. Pustejovsky editors: Corpus Processing for Lexical Acquisition. Pages 21 -39. MIT Press. Cambridge, MA. 1996 Mikheev A. , Grover C. and Moens M. Description of the LTG System Used for MUC-7. Proceedings of 7 th Message Understanding Conference, Fairfax, VA, 19 April - 1 May, 1998 Miller S. , Crystal M. , et al. BBN: Description of the SIFT System as Used for MUC-7. Proceedings of 7 th Message Understanding Conference, Fairfax, VA, 19 April - 1 May, 1998 102(109)

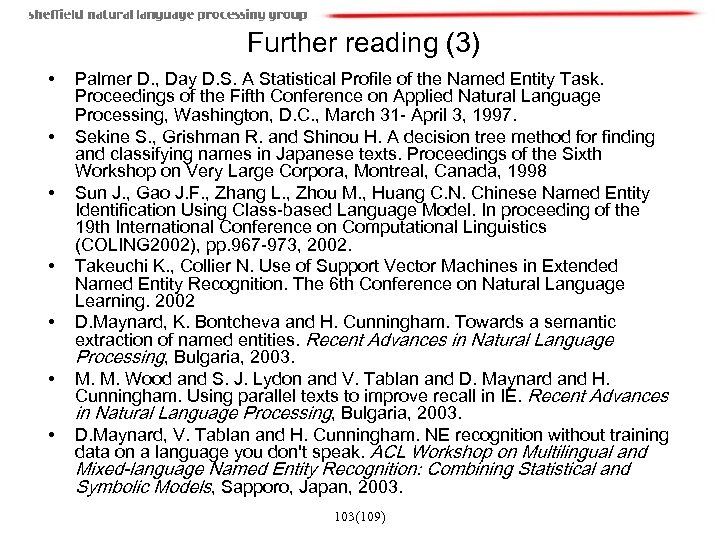

Further reading (3) • • Palmer D. , Day D. S. A Statistical Profile of the Named Entity Task. Proceedings of the Fifth Conference on Applied Natural Language Processing, Washington, D. C. , March 31 - April 3, 1997. Sekine S. , Grishman R. and Shinou H. A decision tree method for finding and classifying names in Japanese texts. Proceedings of the Sixth Workshop on Very Large Corpora, Montreal, Canada, 1998 Sun J. , Gao J. F. , Zhang L. , Zhou M. , Huang C. N. Chinese Named Entity Identification Using Class-based Language Model. In proceeding of the 19 th International Conference on Computational Linguistics (COLING 2002), pp. 967 -973, 2002. Takeuchi K. , Collier N. Use of Support Vector Machines in Extended Named Entity Recognition. The 6 th Conference on Natural Language Learning. 2002 D. Maynard, K. Bontcheva and H. Cunningham. Towards a semantic extraction of named entities. Recent Advances in Natural Language Processing, Bulgaria, 2003. M. M. Wood and S. J. Lydon and V. Tablan and D. Maynard and H. Cunningham. Using parallel texts to improve recall in IE. Recent Advances in Natural Language Processing, Bulgaria, 2003. D. Maynard, V. Tablan and H. Cunningham. NE recognition without training data on a language you don't speak. ACL Workshop on Multilingual and Mixed-language Named Entity Recognition: Combining Statistical and Symbolic Models, Sapporo, Japan, 2003. 103(109)

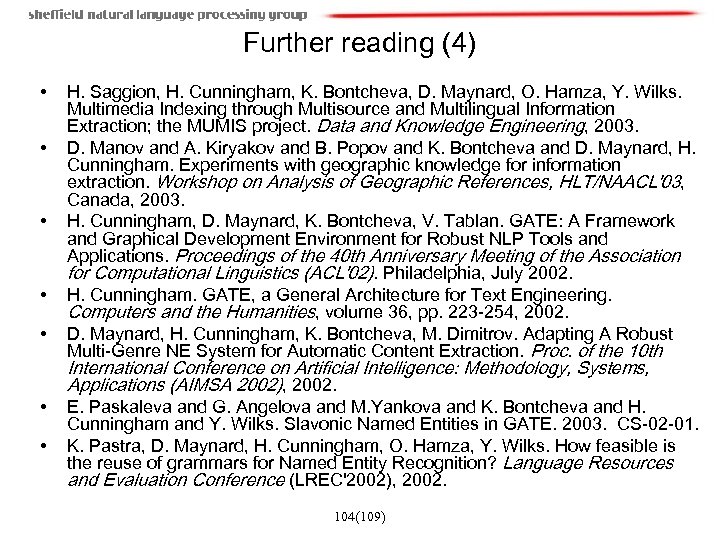

Further reading (4) • • H. Saggion, H. Cunningham, K. Bontcheva, D. Maynard, O. Hamza, Y. Wilks. Multimedia Indexing through Multisource and Multilingual Information Extraction; the MUMIS project. Data and Knowledge Engineering, 2003. D. Manov and A. Kiryakov and B. Popov and K. Bontcheva and D. Maynard, H. Cunningham. Experiments with geographic knowledge for information extraction. Workshop on Analysis of Geographic References, HLT/NAACL'03, Canada, 2003. H. Cunningham, D. Maynard, K. Bontcheva, V. Tablan. GATE: A Framework and Graphical Development Environment for Robust NLP Tools and Applications. Proceedings of the 40 th Anniversary Meeting of the Association for Computational Linguistics (ACL'02). Philadelphia, July 2002. H. Cunningham. GATE, a General Architecture for Text Engineering. Computers and the Humanities, volume 36, pp. 223 -254, 2002. D. Maynard, H. Cunningham, K. Bontcheva, M. Dimitrov. Adapting A Robust Multi-Genre NE System for Automatic Content Extraction. Proc. of the 10 th International Conference on Artificial Intelligence: Methodology, Systems, Applications (AIMSA 2002), 2002. E. Paskaleva and G. Angelova and M. Yankova and K. Bontcheva and H. Cunningham and Y. Wilks. Slavonic Named Entities in GATE. 2003. CS-02 -01. K. Pastra, D. Maynard, H. Cunningham, O. Hamza, Y. Wilks. How feasible is the reuse of grammars for Named Entity Recognition? Language Resources and Evaluation Conference (LREC'2002), 2002. 104(109)
