Nagamohr Company Presentation Index 1 Company Snapshot

Nagamohr Company Presentation

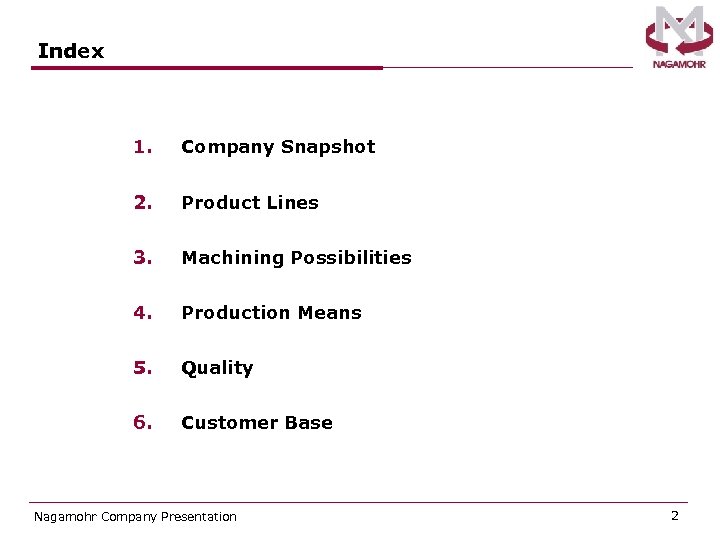

Index 1. Company Snapshot 2. Product Lines 3. Machining Possibilities 4. Production Means 5. Quality 6. Customer Base Nagamohr Company Presentation 2

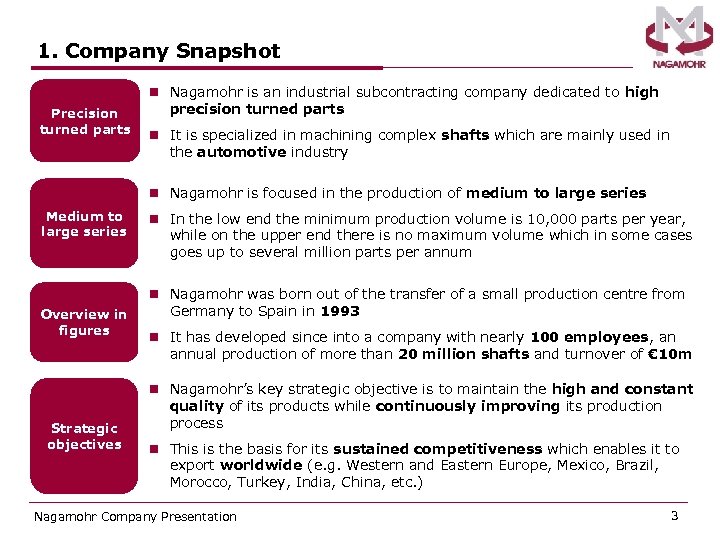

1. Company Snapshot Precision turned parts n Nagamohr is an industrial subcontracting company dedicated to high precision turned parts n It is specialized in machining complex shafts which are mainly used in the automotive industry n Nagamohr is focused in the production of medium to large series Medium to large series Overview in figures Strategic objectives n In the low end the minimum production volume is 10, 000 parts per year, while on the upper end there is no maximum volume which in some cases goes up to several million parts per annum n Nagamohr was born out of the transfer of a small production centre from Germany to Spain in 1993 n It has developed since into a company with nearly 100 employees, an annual production of more than 20 million shafts and turnover of € 10 m n Nagamohr’s key strategic objective is to maintain the high and constant quality of its products while continuously improving its production process n This is the basis for its sustained competitiveness which enables it to export worldwide (e. g. Western and Eastern Europe, Mexico, Brazil, Morocco, Turkey, India, China, etc. ) Nagamohr Company Presentation 3

2. Product Lines Solid Trans. Shafts Armature Shafts Hollow Trans. Shafts Powertrain Shafts Actuator Shafts Valves Product Application Examples These shafts are used in windshield wiper systems, electric window lifts, motorized seat adjustments and sunroofs, powertrain systems, exhaust air management systems, distribution boxes, and other similar applications. Nagamohr Company Presentation 4

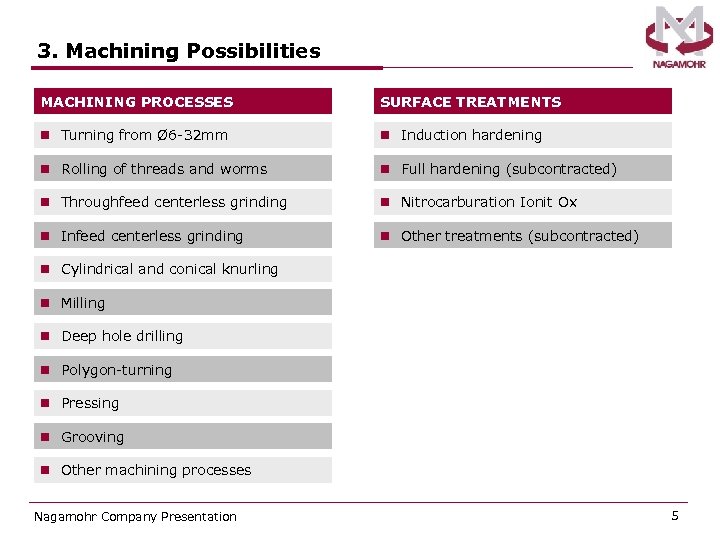

3. Machining Possibilities MACHINING PROCESSES SURFACE TREATMENTS n Turning from Ø 6 -32 mm n Induction hardening n Rolling of threads and worms n Full hardening (subcontracted) n Throughfeed centerless grinding n Nitrocarburation Ionit Ox n Infeed centerless grinding n Other treatments (subcontracted) n Cylindrical and conical knurling n Milling n Deep hole drilling n Polygon-turning n Pressing n Grooving n Other machining processes Nagamohr Company Presentation 5

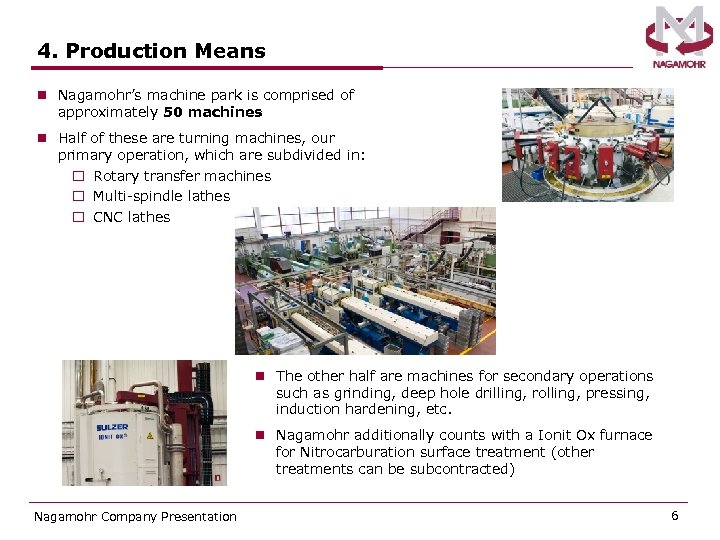

4. Production Means n Nagamohr’s machine park is comprised of approximately 50 machines n Half of these are turning machines, our primary operation, which are subdivided in: o Rotary transfer machines o Multi-spindle lathes o CNC lathes n The other half are machines for secondary operations such as grinding, deep hole drilling, rolling, pressing, induction hardening, etc. n Nagamohr additionally counts with a Ionit Ox furnace for Nitrocarburation surface treatment (other treatments can be subcontracted) Nagamohr Company Presentation 6

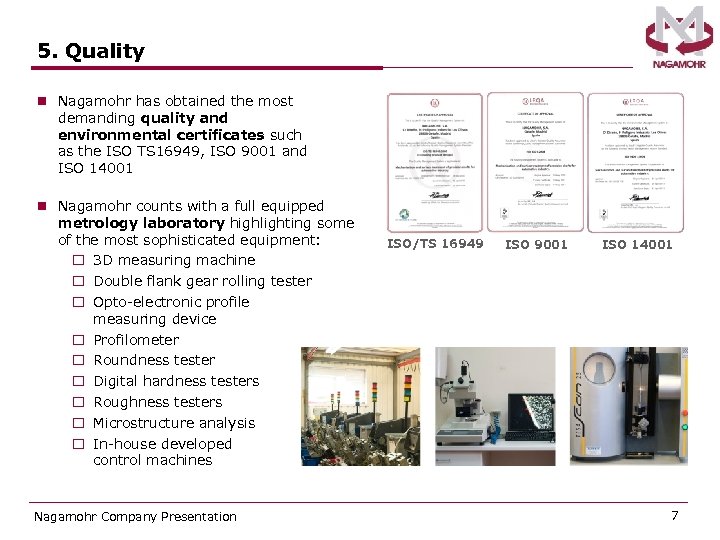

5. Quality n Nagamohr has obtained the most demanding quality and environmental certificates such as the ISO TS 16949, ISO 9001 and ISO 14001 n Nagamohr counts with a full equipped metrology laboratory highlighting some of the most sophisticated equipment: o 3 D measuring machine o Double flank gear rolling tester o Opto-electronic profile measuring device o Profilometer o Roundness tester o Digital hardness testers o Roughness testers o Microstructure analysis o In-house developed control machines Nagamohr Company Presentation ISO/TS 16949 ISO 9001 ISO 14001 7

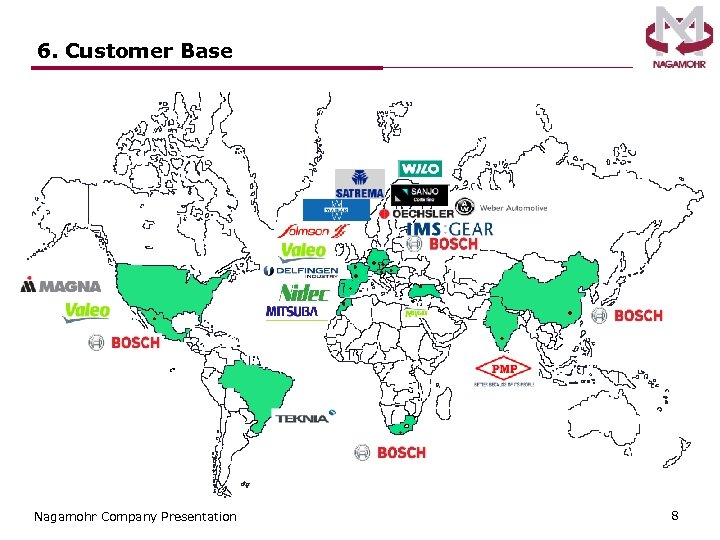

6. Customer Base Nagamohr Company Presentation 8

Calle Diseño 9 Pol. Ind. Los Olivos 28906 Getafe (Madrid) Spain T +34 91 601 02 74 F +34 91 681 84 40 www. nagamohr. com
