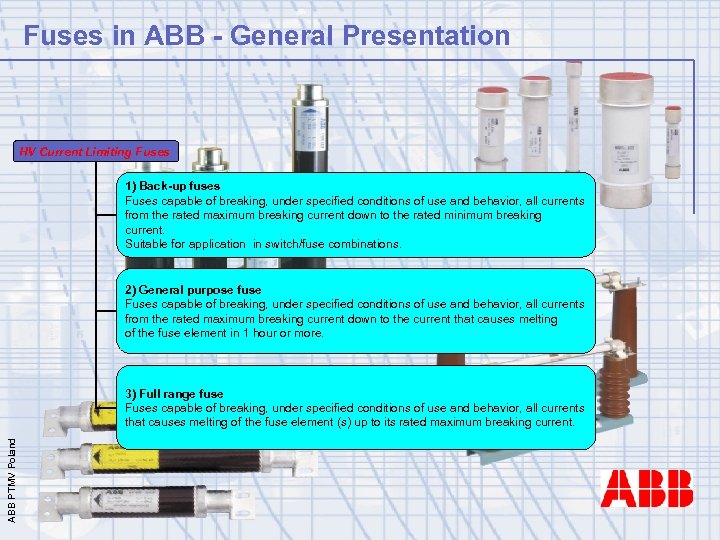

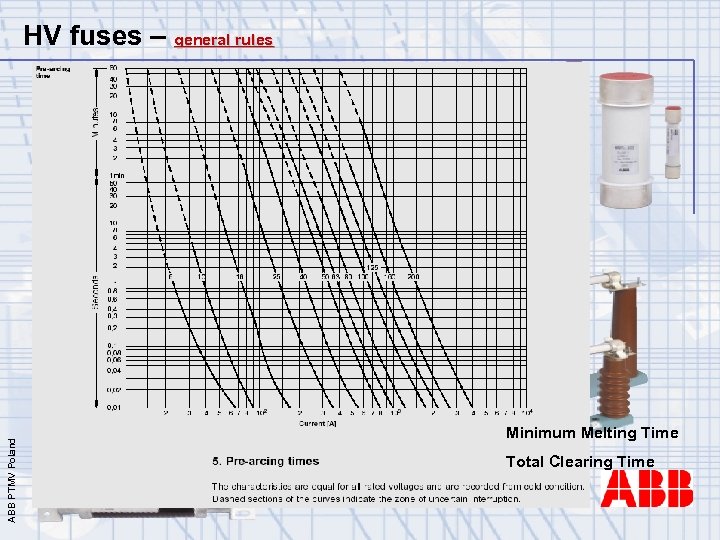

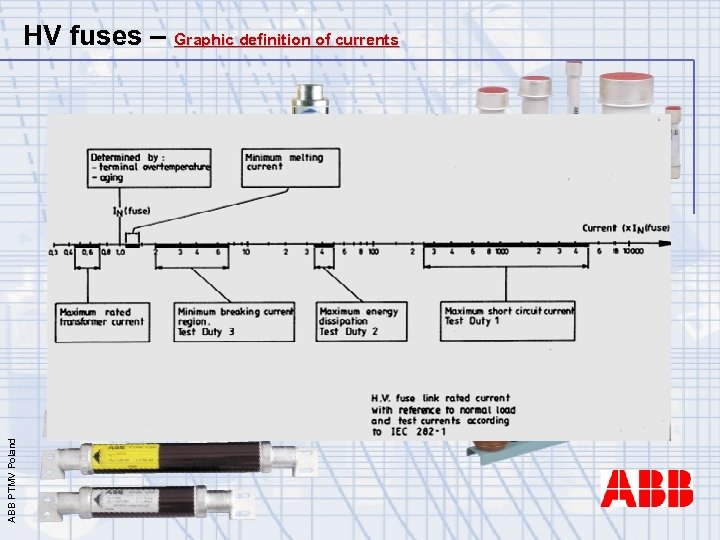

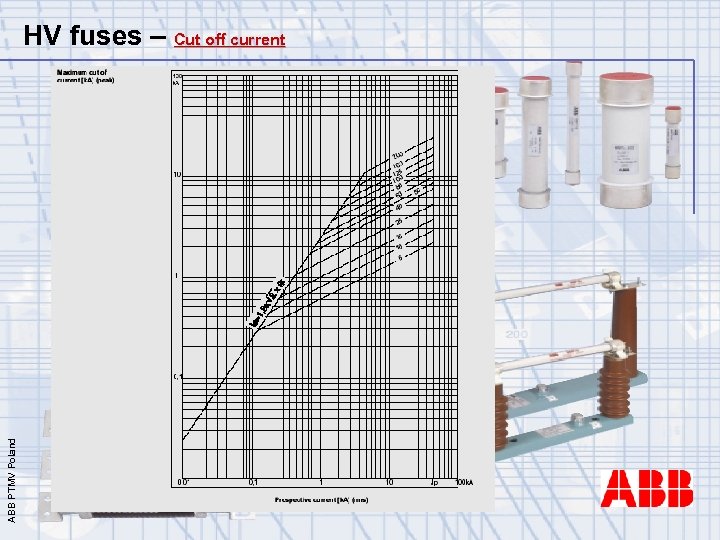

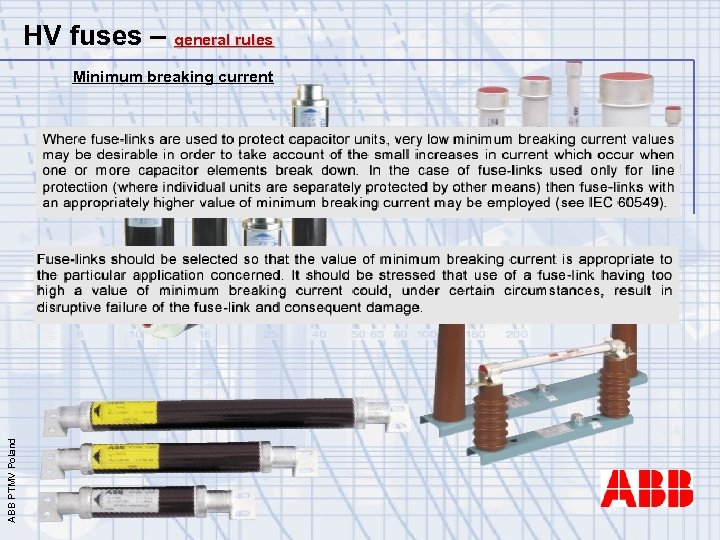

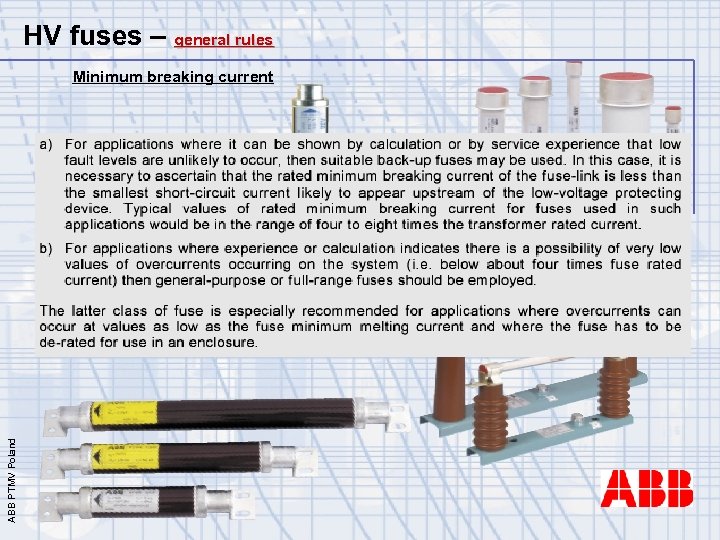

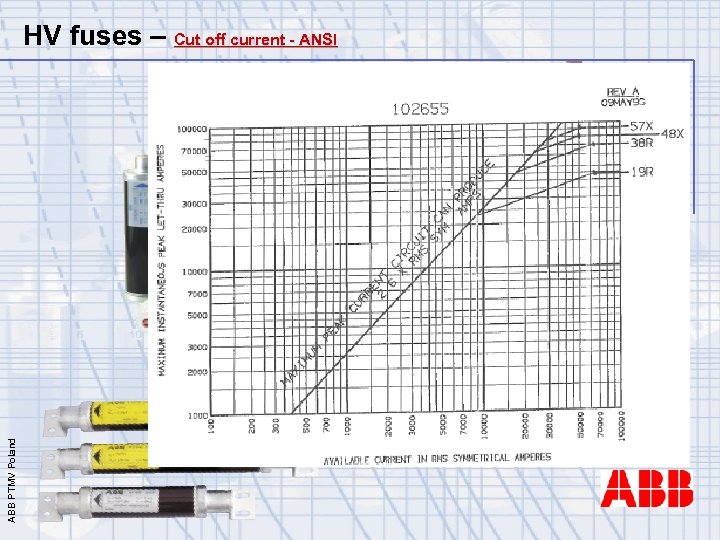

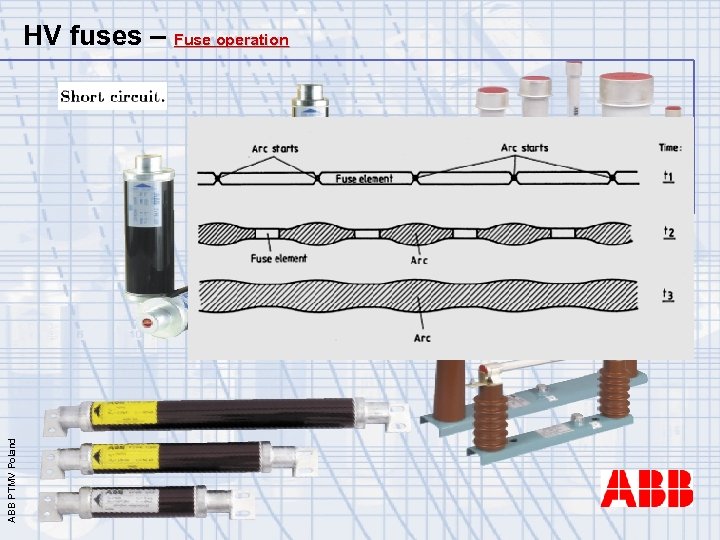

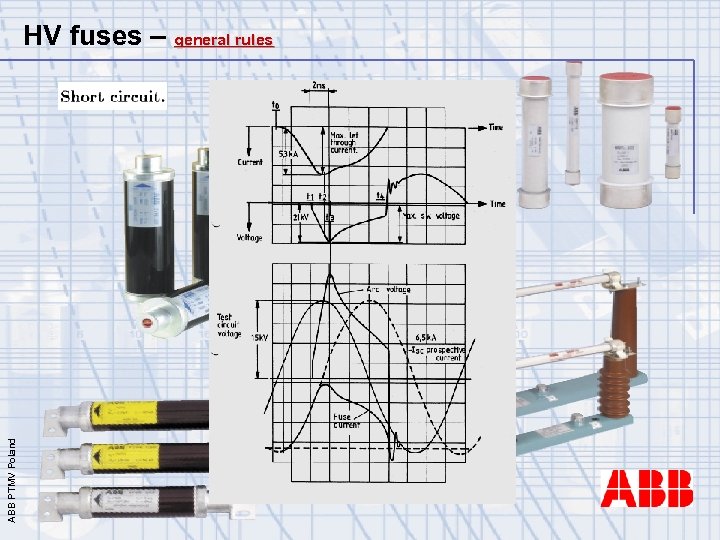

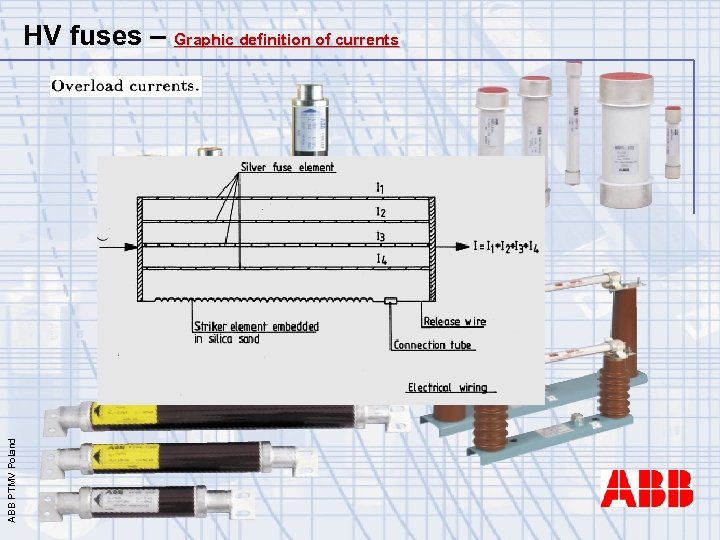

Fuses in ABB - General Presentation HV Current Limiting Fuses 1) Back-up fuses Fuses capable of breaking, under specified conditions of use and behavior, all currents from the rated maximum breaking current down to the rated minimum breaking current. Suitable for application in switch/fuse combinations. 2) General purpose fuse Fuses capable of breaking, under specified conditions of use and behavior, all currents from the rated maximum breaking current down to the current that causes melting of the fuse element in 1 hour or more. ABB PTMV Poland 3) Full range fuse Fuses capable of breaking, under specified conditions of use and behavior, all currents that causes melting of the fuse element (s) up to its rated maximum breaking current.

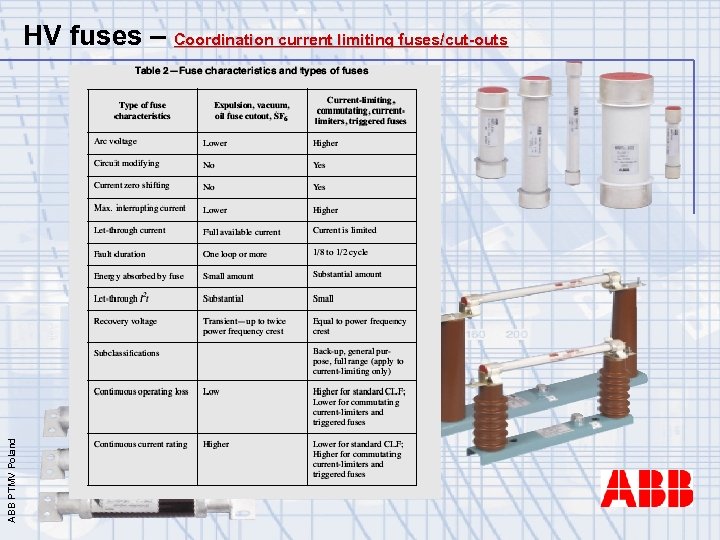

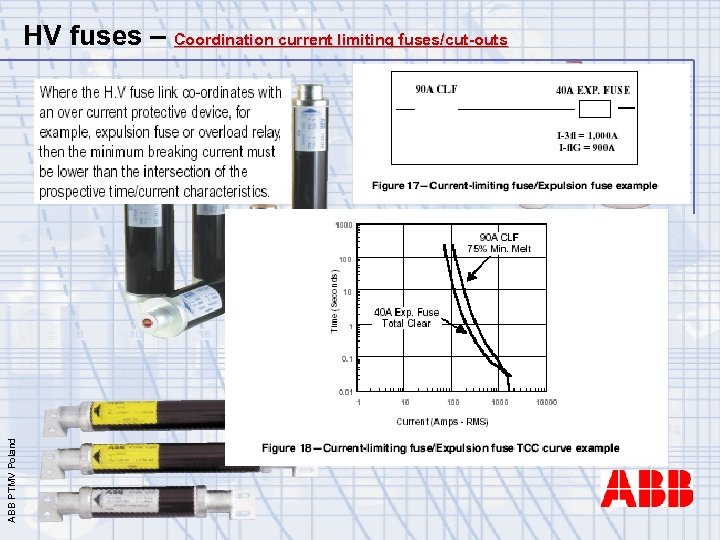

Fuses in ABB - General Presentation HV Non-Current Limiting Fuses 1 Expulsion fuses Outdoor fuses for protection of overhead lines and distribution transformers. They comprise a tin or copper fuse element in series with a flexible braid in a tube. ABB PTMV Poland 2) Liquid fuses Based on early non-current limiting fuses that use liquids ( mostly hydrocarbon) to quench the arc.

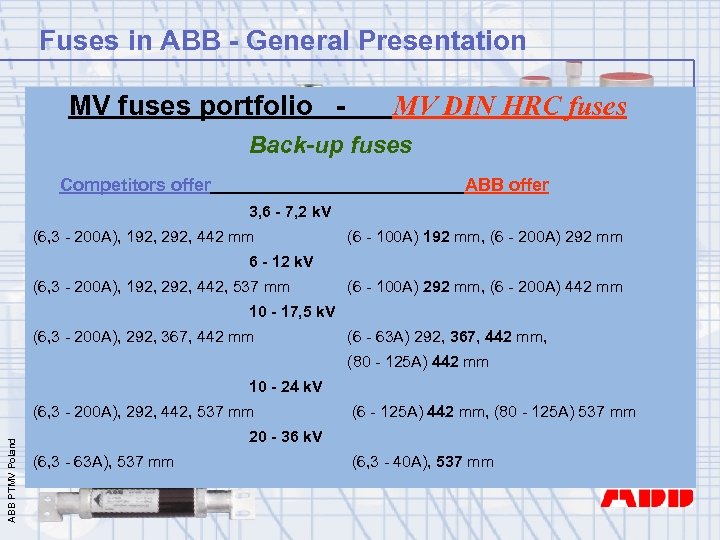

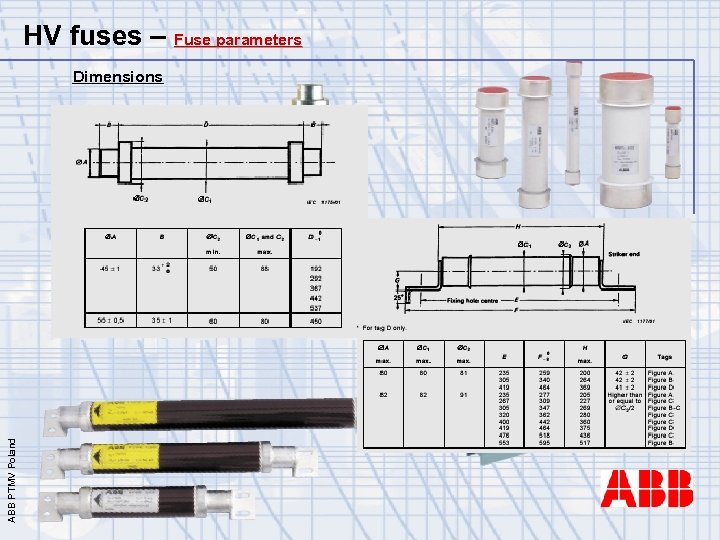

Fuses in ABB - General Presentation MV fuses portfolio - MV DIN HRC fuses Back-up fuses Competitors offer ABB offer 3, 6 - 7, 2 k. V (6, 3 - 200 A), 192, 292, 442 mm (6 - 100 A) 192 mm, (6 - 200 A) 292 mm 6 - 12 k. V (6, 3 - 200 A), 192, 292, 442, 537 mm (6 - 100 A) 292 mm, (6 - 200 A) 442 mm 10 - 17, 5 k. V (6, 3 - 200 A), 292, 367, 442 mm (6 - 63 A) 292, 367, 442 mm, (80 - 125 A) 442 mm 10 - 24 k. V ABB PTMV Poland (6, 3 - 200 A), 292, 442, 537 mm (6 - 125 A) 442 mm, (80 - 125 A) 537 mm 20 - 36 k. V (6, 3 - 63 A), 537 mm (6, 3 - 40 A), 537 mm

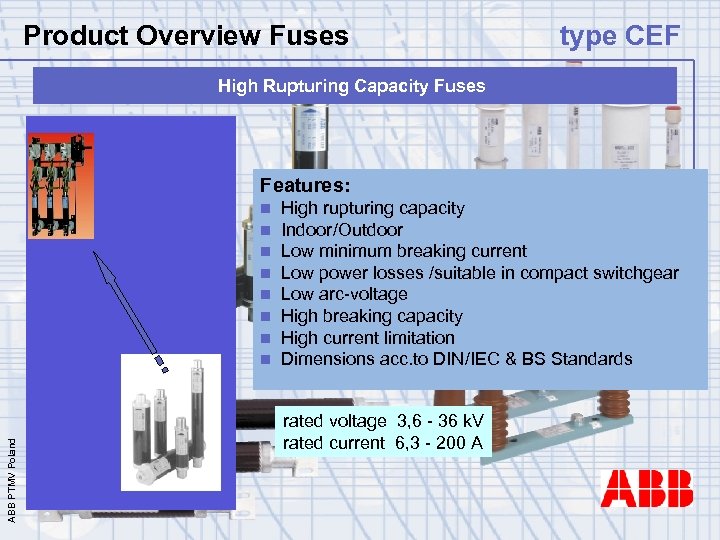

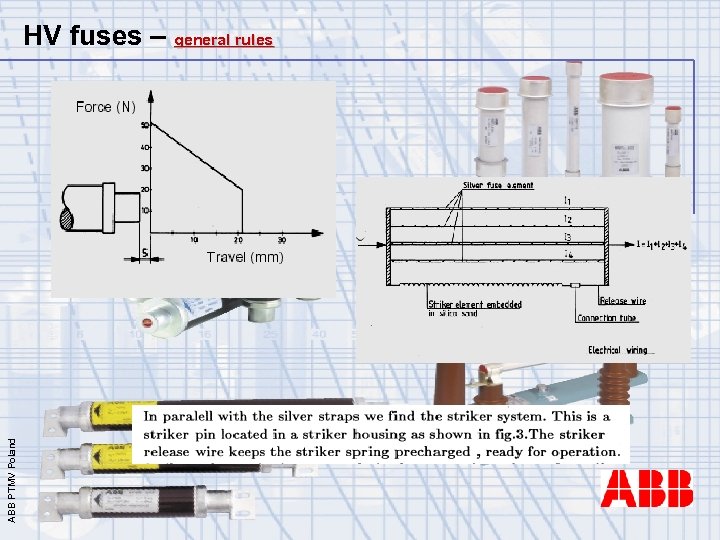

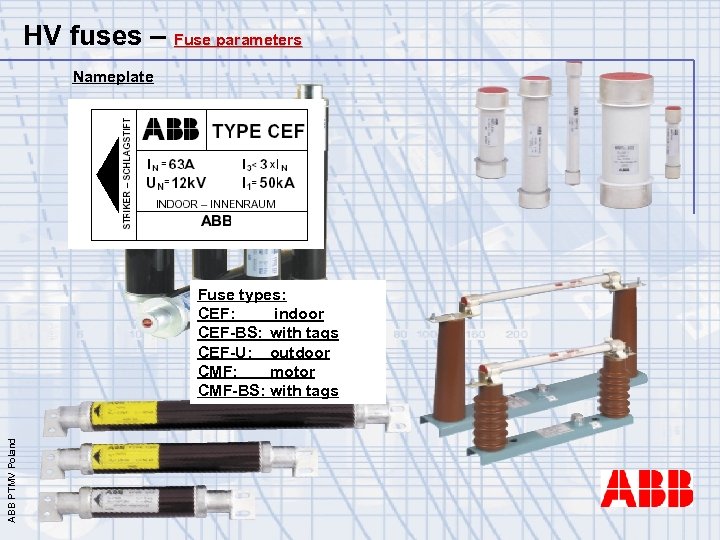

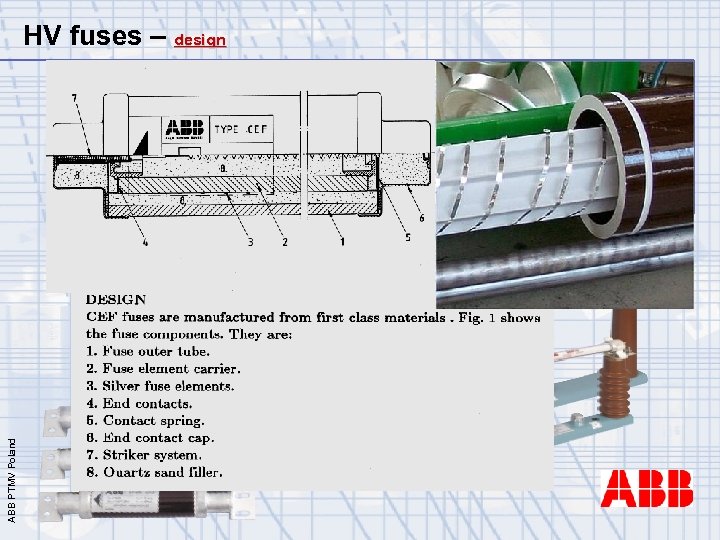

Product Overview Fuses type CEF High Rupturing Capacity Fuses Features: ABB PTMV Poland n n n n High rupturing capacity Indoor/Outdoor Low minimum breaking current Low power losses /suitable in compact switchgear Low arc-voltage High breaking capacity High current limitation Dimensions acc. to DIN/IEC & BS Standards rated voltage 3, 6 - 36 k. V rated current 6, 3 - 200 A

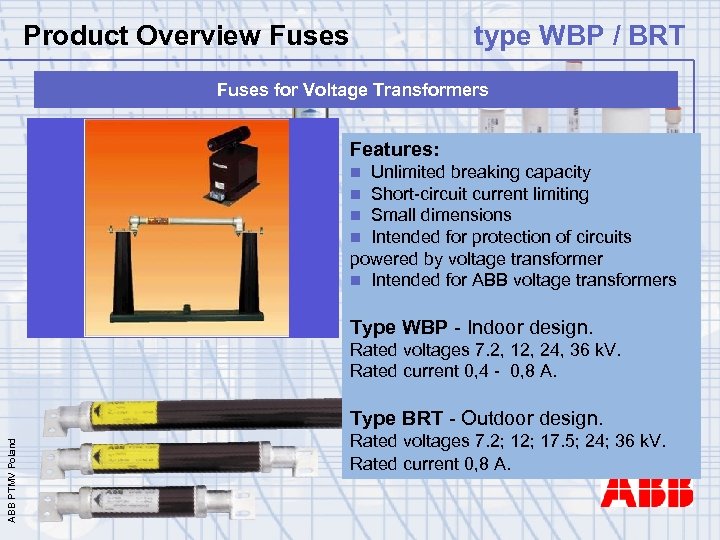

Product Overview Fuses type WBP / BRT Fuses for Voltage Transformers Features: Unlimited breaking capacity Short-circuit current limiting Small dimensions Intended for protection of circuits powered by voltage transformer n Intended for ABB voltage transformers n n Type WBP - Indoor design. Rated voltages 7. 2, 12, 24, 36 k. V. Rated current 0, 4 - 0, 8 A. ABB PTMV Poland Type BRT - Outdoor design. Rated voltages 7. 2; 17. 5; 24; 36 k. V. Rated current 0, 8 A.

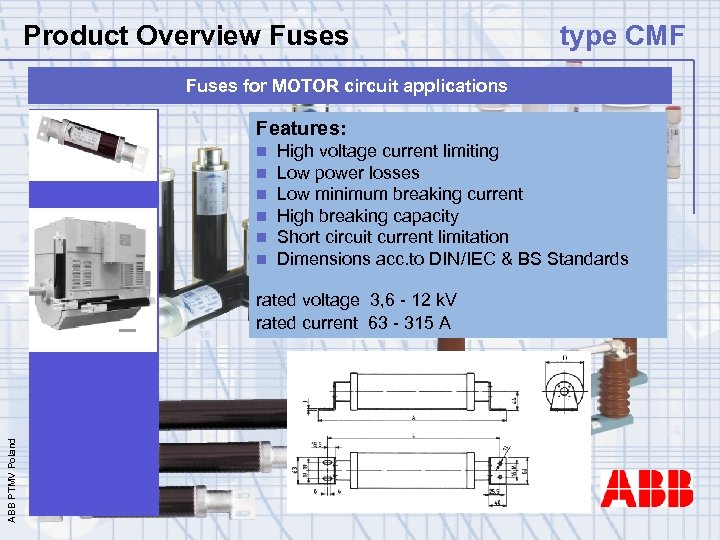

Product Overview Fuses type CMF Fuses for MOTOR circuit applications Features: n n n High voltage current limiting Low power losses Low minimum breaking current High breaking capacity Short circuit current limitation Dimensions acc. to DIN/IEC & BS Standards ABB PTMV Poland rated voltage 3, 6 - 12 k. V rated current 63 - 315 A

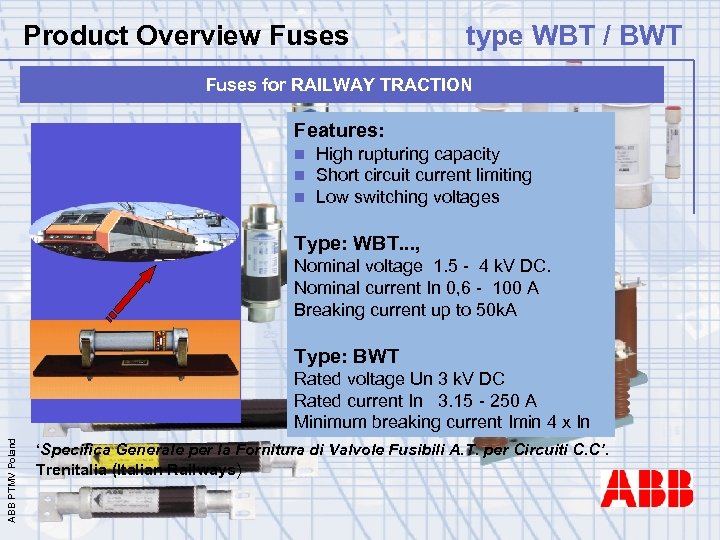

Product Overview Fuses type WBT / BWT Fuses for RAILWAY TRACTION Features: n n n High rupturing capacity Short circuit current limiting Low switching voltages Type: WBT. . . , Nominal voltage 1. 5 - 4 k. V DC. Nominal current In 0, 6 - 100 A Breaking current up to 50 k. A Type: BWT ABB PTMV Poland Rated voltage Un 3 k. V DC Rated current In 3. 15 - 250 A Minimum breaking current Imin 4 x In ‘Specifica Generale per la Fornitura di Valvole Fusibili A. T. per Circuiti C. C’. Trenitalia (Italian Railways)

Product Overview Fuses type CEF/CMF ABB PTMV Poland Automated Production Line of ABB fuse link

HV Fuses ABB PTMV Poland EUROPE: WE+CEE üAUSTRIA üBELGIUM üBELARUS üBULGARIA üCROATIA üCZECH REP. üDENMARK üESTONIA üFINLAND üFRANCE üGERMANY üGREAT BRITAIN üGREECE üHUNGARY üICELAND üIRELAND üITALY üLATVIA üLITHUANIA üLUXEMBOURG üNORWAY üNETHERLANDS üPOLAND üPORTUGAL üROMANIA üSLOVAKIA üSPAIN üSWEDEN üSWITZERLAND ASIA: üAUSTRALIA üCHINA üHONG KONG üINDIA üINDONESIA üJAPAN üKOREA ü NEW ZEALAND üMALAYSIA üPHILIPPINES üSINGAPORE üTAIWAN üTHAILAND üVIETNAM SOUTH&NORTH AMERICA: üARGENTINA üBRAZIL üCANADA üCHILE üCOLOMBIA üECUADOR üMEXICO üPANAMA üPERU üUSA üVENEZUELA MIDDLE EAST: üEGYPT üISRAEL üJORDAN üKUWAIT üLEBANON üSAUDI ARABIA üSYRIA üTUNISIA üTURKEY üUNITED ARAB EMIRATES AFRICA: üSOUTH AFRICA üTANZANIA

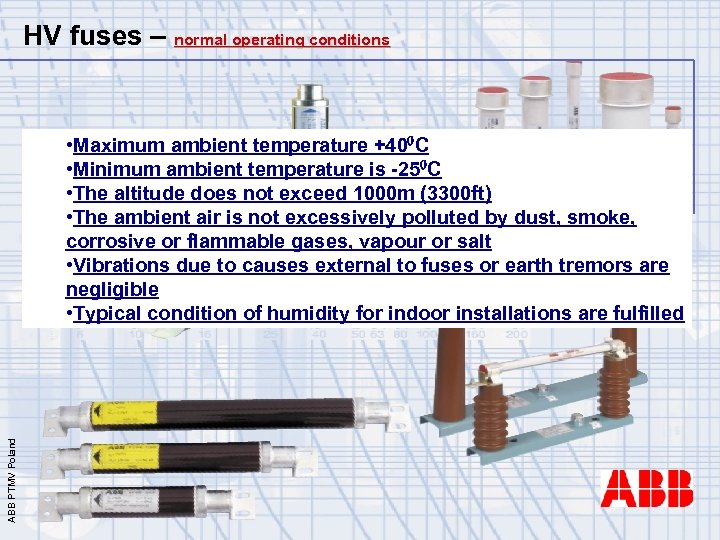

HV fuses – normal operating conditions ABB PTMV Poland • Maximum ambient temperature +400 C • Minimum ambient temperature is -250 C • The altitude does not exceed 1000 m (3300 ft) • The ambient air is not excessively polluted by dust, smoke, corrosive or flammable gases, vapour or salt • Vibrations due to causes external to fuses or earth tremors are negligible • Typical condition of humidity for indoor installations are fulfilled

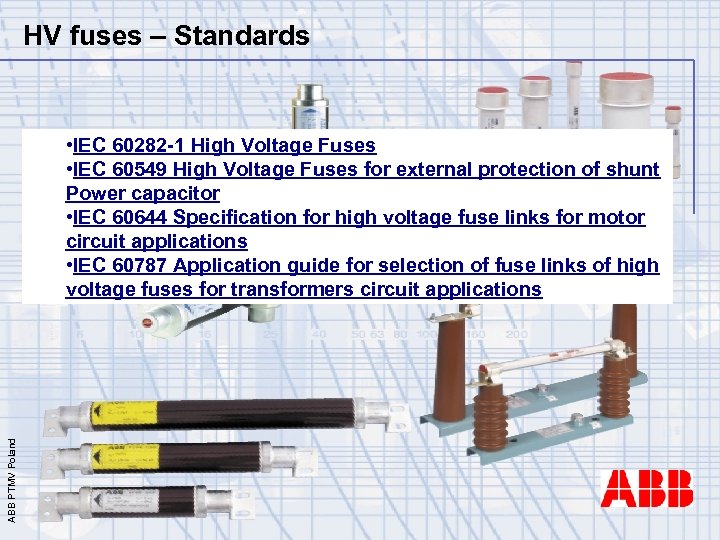

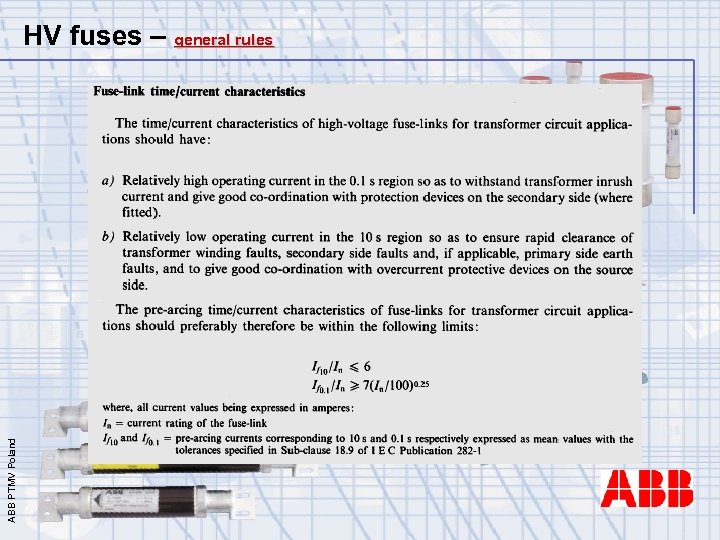

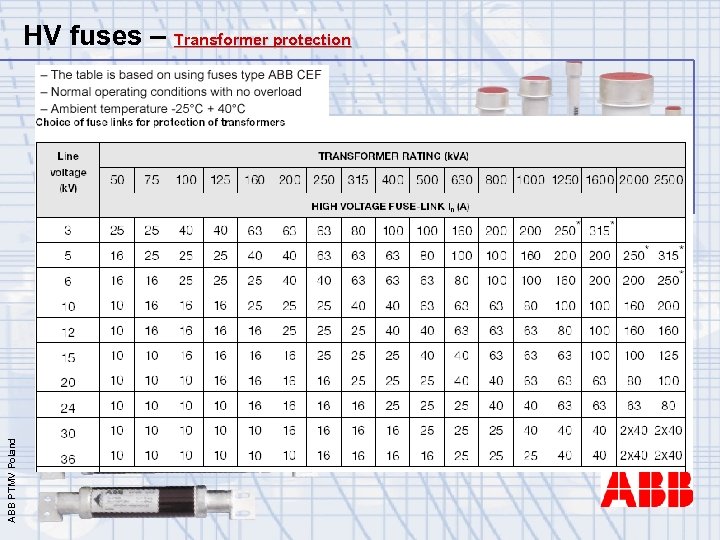

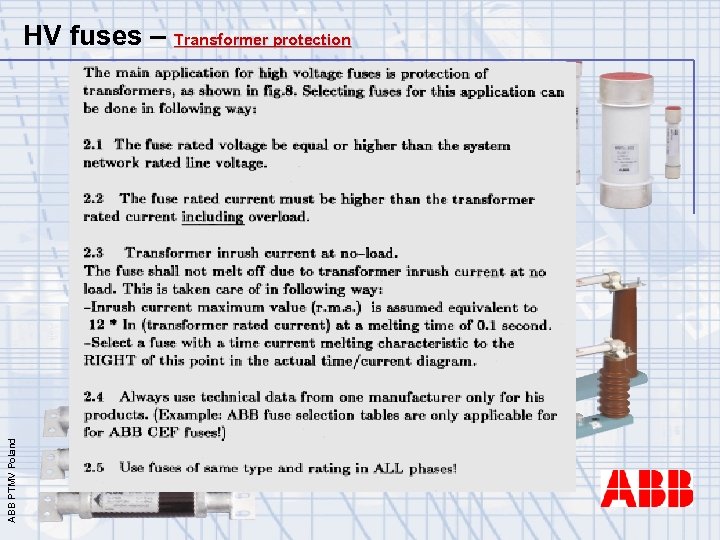

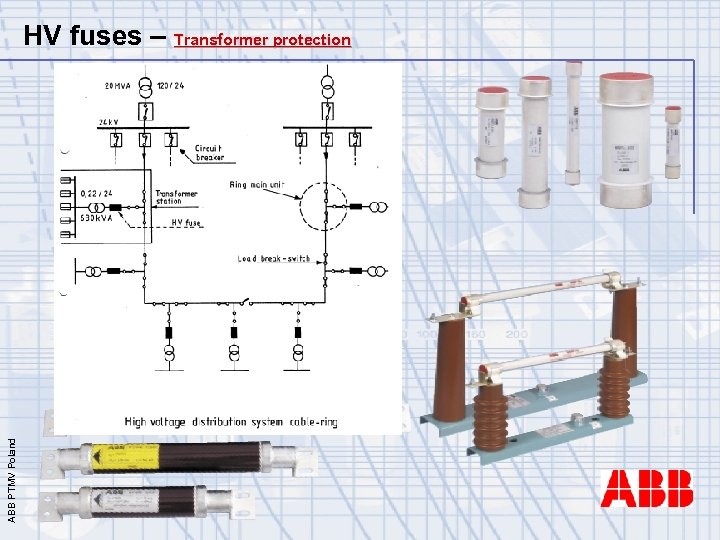

HV fuses – Standards ABB PTMV Poland • IEC 60282 -1 High Voltage Fuses • IEC 60549 High Voltage Fuses for external protection of shunt Power capacitor • IEC 60644 Specification for high voltage fuse links for motor circuit applications • IEC 60787 Application guide for selection of fuse links of high voltage fuses for transformers circuit applications
