MV 1200 Microprocessor CCTV Control System Features Modular

MV 1200 Microprocessor CCTV Control System Features Modular Construction Dual/Redundant CPU/Power Supply Support TCP/IP Communication Protocol 4096 Camera by 512 Monitor Switching English Character Display 64 keyboards user control 256 programmable sequences 125 Users with selectable password security Satellite/Host Networking The MV 1200 CCTV Control System is a microprocessor based video switching and controlling system. It provides full matrix switching capability and unique system features for security purpose. The basic system is capable of accommodating up to 256 cameras, 64 monitors, 32 keyboards, 256 alarm points, a computer interface port and a logging printer port. With the versatile modular design large scaled systems can be accommodated. The top level operator is able to change system parameters, program camera sequences, network user lockout control, user password protection, video loss monitoring, announcement edit, access the advance alarm handling screens easily. The programmed information may then be transferred into the main system. Stored on disk, or printed out directly from a printer connected. System can be programmed camera title, time date, monitor title, system message distribution, alarm conditions display with English Character. It can also support user friendly GUI. The MV 1200 system can be programmed with up to 256 sequences which can be run independently and set the switching time from 1 -60 second of each other. Any number of system monitors may be selected to switch as a group. The system accommodates one MV On-Site Receiver Driver for each camera input for Pan/Tilt and Lens Control, 8 auxiliary functions and 99 preset locations. Alarm Handling unit provides 3 types of alarm mode, basic alarm, auto activate and time schedules control up to 2048 alarm points. Alarm output set with dry contact to activate preprogrammed sequences. A MV 1200 system can serve as a master switcher in a satellite configuration. This innovative feature enables a single system to communicate with remotely located "satellite" systems. The MV Series 300/500/600/900/1200 switcher can serve as a remote satellite switcher. This permits the design of a large distributed type system with control at one central location and individual control at the local sites. The main control site can view/control local cameras plus cameras located at any of the remotely distributed satellite sites. By combining multiple satellite systems of this type, large matrix sizes of cameras can be designed in an extremely reliable, "Distributed Processing" configuration. Dual/redundant CPU/Power Supply with automatic hot-switchover capabilities, real time clock and chassis temperature indication, ideal self detection, multimedia graphics with e-map, video loop-thru, modular expansion and simple operation and built-in operator priority levels to allow up to 128 operators with password restricts to control designated functions. On-screen programming provides a clear and simple system configuration. Operators with the correct password can be program camera sequences, PTZ, alarm conditions, and monitor grouping etc. 1 Rev 1. 00 6/02

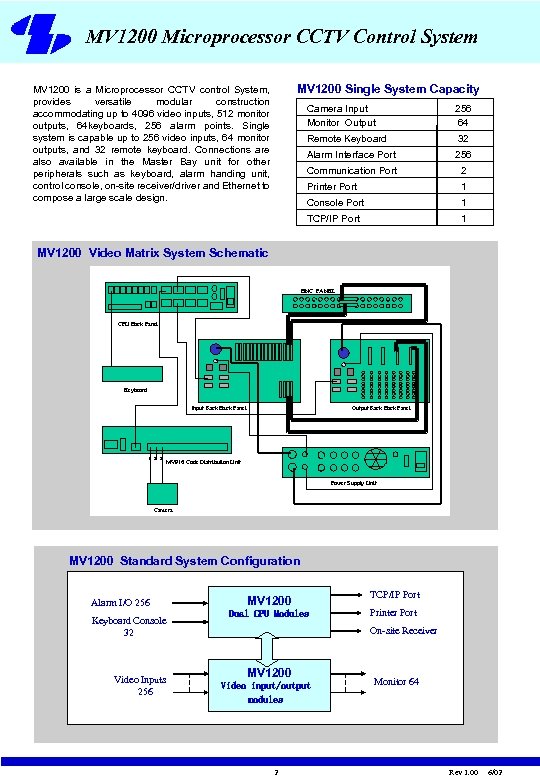

MV 1200 Microprocessor CCTV Control System MV 1200 Single System Capacity MV 1200 is a Microprocessor CCTV control System, provides versatile modular construction accommodating up to 4096 video inputs, 512 monitor outputs, 64 keyboards, 256 alarm points. Single system is capable up to 256 video inputs, 64 monitor outputs, and 32 remote keyboard. Connections are also available in the Master Bay unit for other peripherals such as keyboard, alarm handing unit, control console, on-site receiver/driver and Ethernet to compose a large scale design. Camera Input Monitor Output 256 64 Remote Keyboard 32 Alarm Interface Port 256 Communication Port 2 Printer Port 1 Console Port 1 TCP/IP Port 1 MV 1200 Video Matrix System Schematic BNC PANEL CPU Back Panel Keyboard Input Rack Back Panel 1 2 3 Output Rack Back Panel MV 916 Code Distribution Unit Power Supply Unit Camera MV 1200 Standard System Configuration Alarm I/O 256 Keyboard Console 32 Video Inputs 256 MV 1200 Dual CPU Modules TCP/IP Port Printer Port On-site Receiver MV 1200 Video input/output modules 2 Monitor 64 Rev 1. 00 6/02

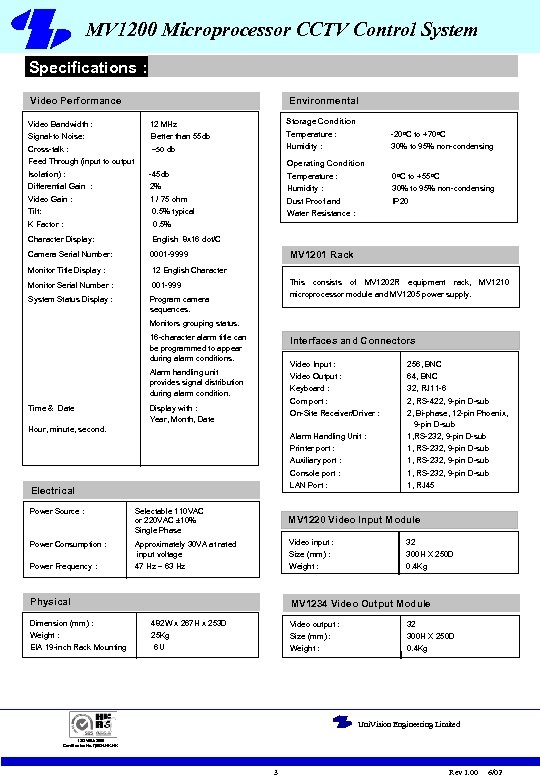

MV 1000 Microprocessor CCTV Control System MV 1200 Microprocessor CCTV Control System Specifications : Video Performance Environmental Video Bandwidth : 12 MHz Storage Condition Signal-to Noise: Better than 55 db Temperature : -20°C to +70°C Cross-talk : -50 db Humidity : 30% to 95% non-condensing Feed Through (input to output Operating Condition Isolation) : -45 db Temperature : 0°C to +55°C Differential Gain : 2% Humidity : 30% to 95% non-condensing Video Gain : 1 / 75 ohm Dust Proof and IP 20 Tilt: 0. 5% typical Water Resistance : K Factor : 0. 5% Character Display: English 8 x 16 dot/C Camera Serial Number: 0001 -9999 Monitor Title Display : 12 English Character Monitor Serial Number : 001 -999 System Status Display : MV 1201 Rack This consists of MV 1202 R equipment rack, MV 1210 microprocessor module and MV 1205 power supply. Program camera sequences. Monitors grouping status. 16 -character alarm title can be programmed to appear during alarm conditions. Interfaces and Connectors Video Input : Alarm Handling Unit : Power Consumption : Approximately 30 VA at rated input voltage Power Frequency : 47 Hz – 63 Hz 1, RS-232, 9 -pin D-sub 1, RJ 45 MV 1220 Video Input Module Video input : Size (mm) : Weight : Physical Dimension (mm) : Weight : EIA 19 -inch Rack Mounting 1, RS-232, 9 -pin D-sub LAN Port : Selectable 110 VAC or 220 VAC ± 10% Single Phase 1, RS-232, 9 -pin D-sub Console port : Power Source : 2, Bi-phase, 12 -pin Phoenix, 9 -pin D-sub 1, RS-232, 9 -pin D-sub Auxiliary port : Electrical 2, RS-422, 9 -pin D-sub On-Site Receiver/Driver : Hour, minute, second. 32, RJ 11 -6 Com port : Display with : Year, Month, Date 64, BNC Keyboard : Printer port : Time & Date 256, BNC Video Output : Alarm handling unit provides signal distribution during alarm condition. 32 300 H X 250 D 0. 4 Kg MV 1234 Video Output Module 482 W x 267 H x 253 D 25 Kg 6 U Video output : Size (mm) : Weight : 32 300 H X 250 D 0. 4 Kg Uni. Vision Engineering Limited ISO 9001: 2000 Certification No. Q 0084. HK 3 Rev 1. 00 6/02
