Multimodal multilingual information processing for automatic subtitle generation: Resources, Methods and System Architecture (MUSA) S. Piperidis, I. Demiros, P. Prokopidis {spip, iason, prokopis}@ilsp. gr Languages & The Media, 4 Nov 2004, Berlin 1

Objectives • explore the degree to which subtitling can be automated by using the appropriate technologies • focus on human language technologies • explore the degree to which speech and language technologies can be integrated • try out system architectures simulating the underlying cognitive processes Languages & The Media, 4 Nov 2004, Berlin 2

Challenges of Subtitling • the challenge in automated generation is that there must be agreement between subtitles, the spoken source language and the corresponding image • generated subtitles must meet a set of constraints imposed by the visual context of the text and spatio-temporal factors • subtitle text is no longer normal written text but rather oral text Languages & The Media, 4 Nov 2004, Berlin 3

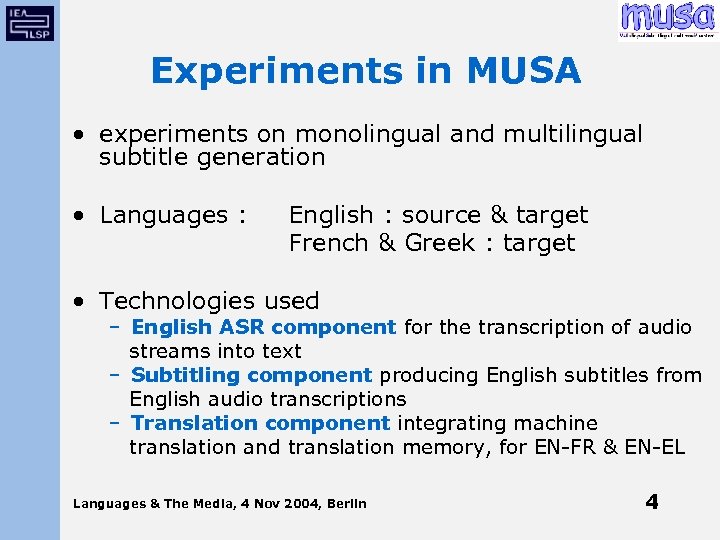

Experiments in MUSA • experiments on monolingual and multilingual subtitle generation • Languages : English : source & target French & Greek : target • Technologies used – English ASR component for the transcription of audio streams into text – Subtitling component producing English subtitles from English audio transcriptions – Translation component integrating machine translation and translation memory, for EN-FR & EN-EL Languages & The Media, 4 Nov 2004, Berlin 4

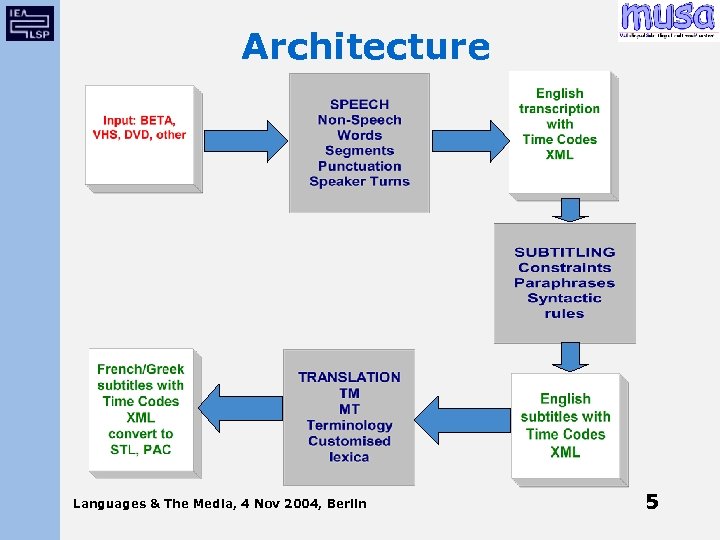

Architecture Languages & The Media, 4 Nov 2004, Berlin 5

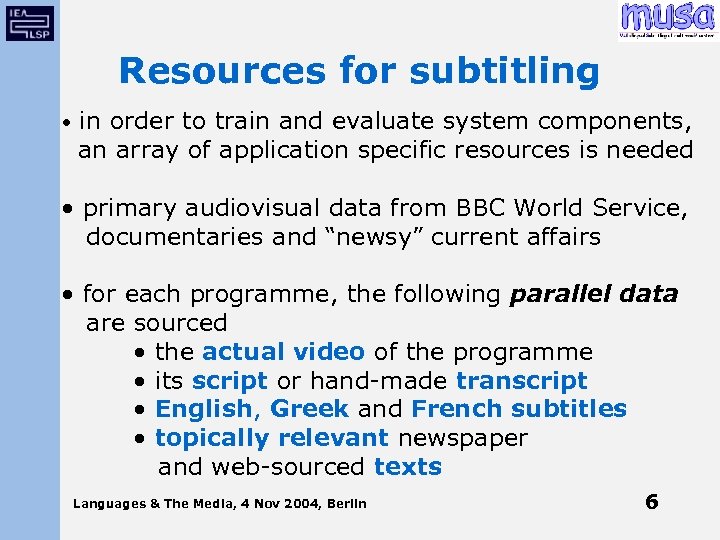

Resources for subtitling • in order to train and evaluate system components, an array of application specific resources is needed • primary audiovisual data from BBC World Service, documentaries and “newsy” current affairs • for each programme, the following parallel data are sourced • the actual video of the programme • its script or hand-made transcript • English, Greek and French subtitles • topically relevant newspaper and web-sourced texts Languages & The Media, 4 Nov 2004, Berlin 6

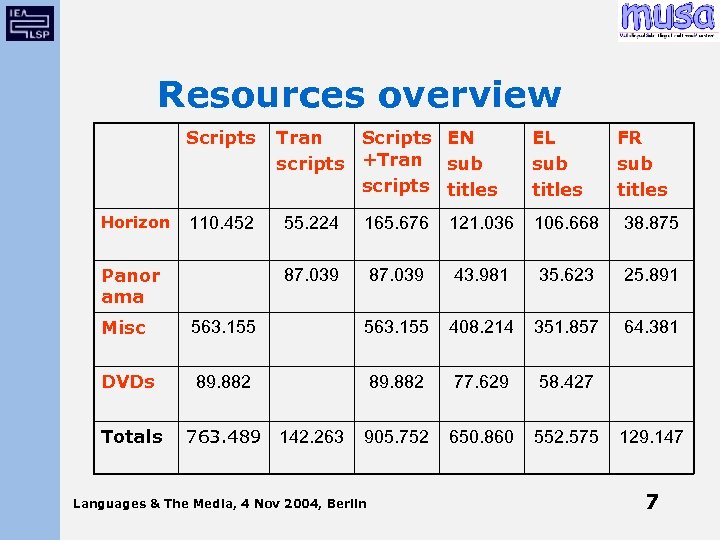

Resources overview Scripts Horizon 110. 452 Tran Scripts EN scripts +Tran sub scripts titles EL sub titles FR sub titles 165. 676 121. 036 106. 668 38. 875 87. 039 Panor ama 55. 224 87. 039 43. 981 35. 623 25. 891 64. 381 Misc 563. 155 408. 214 351. 857 DVDs 89. 882 77. 629 58. 427 905. 752 650. 860 552. 575 Totals 763. 489 142. 263 Languages & The Media, 4 Nov 2004, Berlin 129. 147 7

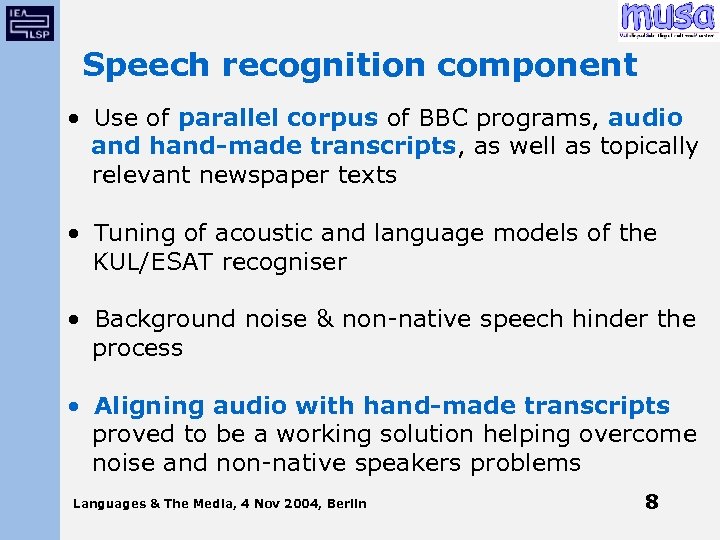

Speech recognition component • Use of parallel corpus of BBC programs, audio and hand-made transcripts, as well as topically relevant newspaper texts • Tuning of acoustic and language models of the KUL/ESAT recogniser • Background noise & non-native speech hinder the process • Aligning audio with hand-made transcripts proved to be a working solution helping overcome noise and non-native speakers problems Languages & The Media, 4 Nov 2004, Berlin 8

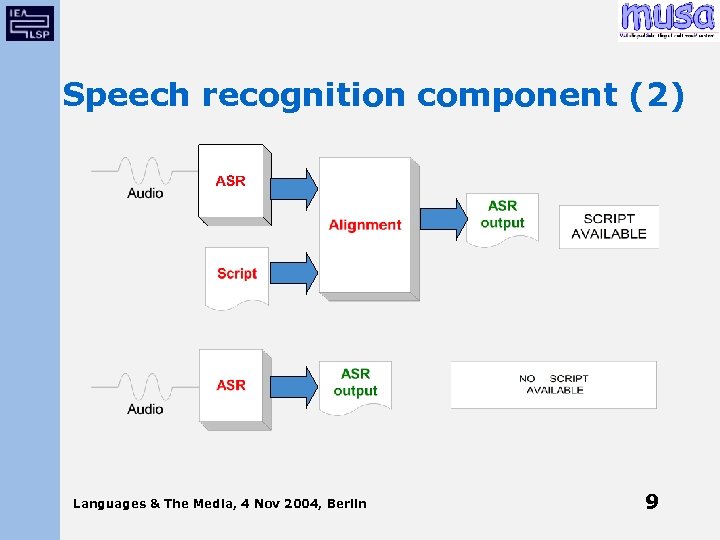

Speech recognition component (2) Languages & The Media, 4 Nov 2004, Berlin 9

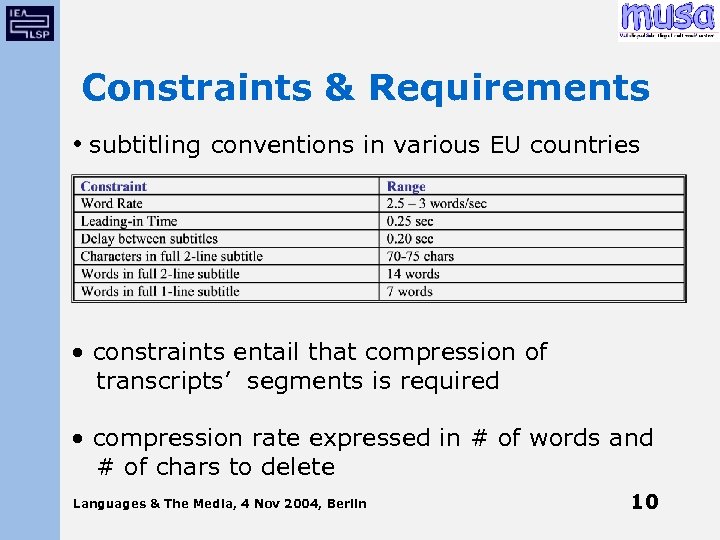

Constraints & Requirements • subtitling conventions in various EU countries • constraints entail that compression of transcripts’ segments is required • compression rate expressed in # of words and # of chars to delete Languages & The Media, 4 Nov 2004, Berlin 10

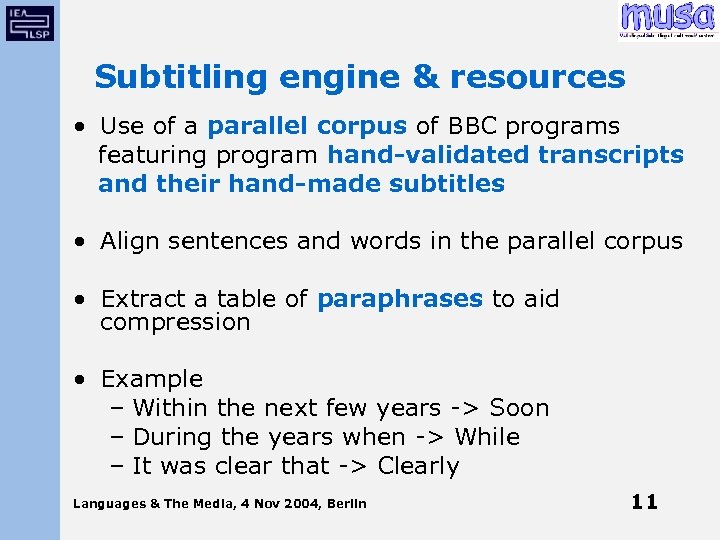

Subtitling engine & resources • Use of a parallel corpus of BBC programs featuring program hand-validated transcripts and their hand-made subtitles • Align sentences and words in the parallel corpus • Extract a table of paraphrases to aid compression • Example – Within the next few years -> Soon – During the years when -> While – It was clear that -> Clearly Languages & The Media, 4 Nov 2004, Berlin 11

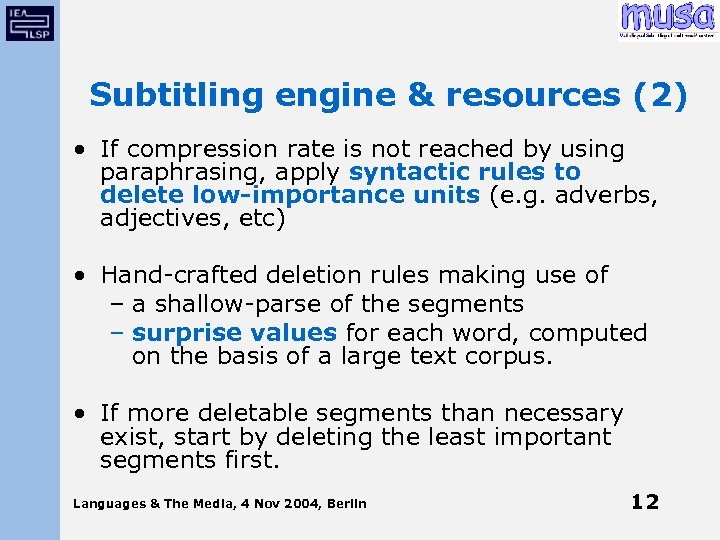

Subtitling engine & resources (2) • If compression rate is not reached by using paraphrasing, apply syntactic rules to delete low-importance units (e. g. adverbs, adjectives, etc) • Hand-crafted deletion rules making use of – a shallow-parse of the segments – surprise values for each word, computed on the basis of a large text corpus. • If more deletable segments than necessary exist, start by deleting the least important segments first. Languages & The Media, 4 Nov 2004, Berlin 12

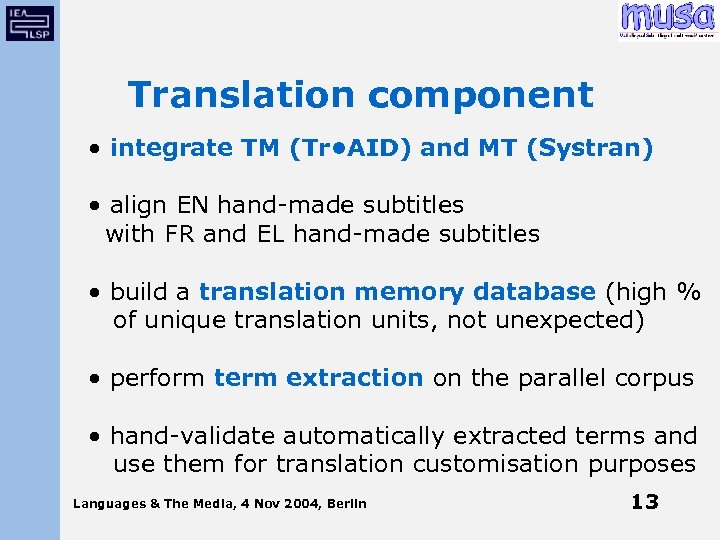

Translation component • integrate TM (Tr • AID) and MT (Systran) • align EN hand-made subtitles with FR and EL hand-made subtitles • build a translation memory database (high % of unique translation units, not unexpected) • perform term extraction on the parallel corpus • hand-validate automatically extracted terms and use them for translation customisation purposes Languages & The Media, 4 Nov 2004, Berlin 13

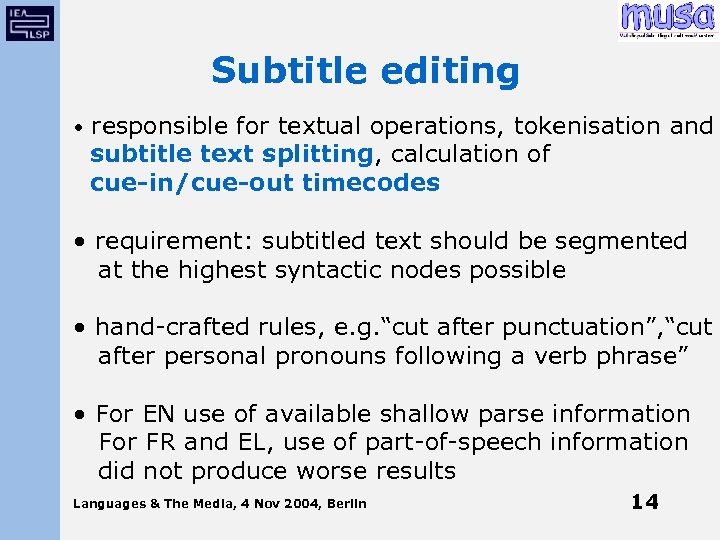

Subtitle editing • responsible for textual operations, tokenisation and subtitle text splitting, calculation of cue-in/cue-out timecodes • requirement: subtitled text should be segmented at the highest syntactic nodes possible • hand-crafted rules, e. g. “cut after punctuation”, “cut after personal pronouns following a verb phrase” • For EN use of available shallow parse information For FR and EL, use of part-of-speech information did not produce worse results Languages & The Media, 4 Nov 2004, Berlin 14

Evaluation • so far, relatively poor ASR results for subtitling • alignment mode of ASR yielded >97% accuracy • grammaticality and semantic acceptability of subtitles with targeted compression reached>70% • acceptability of translated subtitles in the range of 45%-55% • evaluation of integrated prototype very encouraging, entailing considerable productivity gains Languages & The Media, 4 Nov 2004, Berlin 15

The MUSA prototype Musa_EN_Demo. asx Musa_FR_Demo. asx Musa_EL_Demo. asx Languages & The Media, 4 Nov 2004, Berlin 16

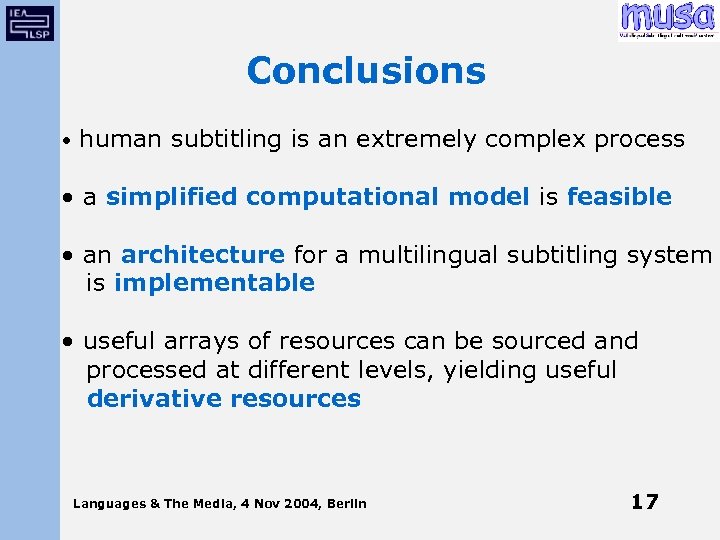

Conclusions • human subtitling is an extremely complex process • a simplified computational model is feasible • an architecture for a multilingual subtitling system is implementable • useful arrays of resources can be sourced and processed at different levels, yielding useful derivative resources Languages & The Media, 4 Nov 2004, Berlin 17

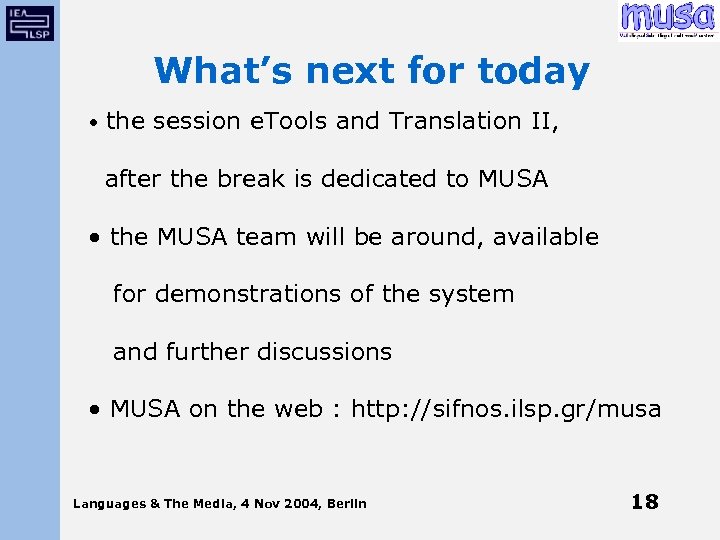

What’s next for today • the session e. Tools and Translation II, after the break is dedicated to MUSA • the MUSA team will be around, available for demonstrations of the system and further discussions • MUSA on the web : http: //sifnos. ilsp. gr/musa Languages & The Media, 4 Nov 2004, Berlin 18
