Multimedia applications and end systems Chao-kai Ching George

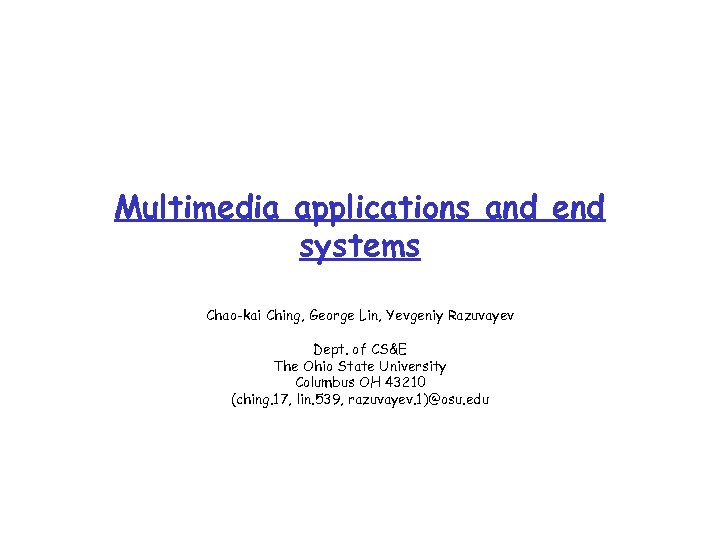

Multimedia applications and end systems Chao-kai Ching, George Lin, Yevgeniy Razuvayev Dept. of CS&E The Ohio State University Columbus OH 43210 (ching. 17, lin. 539, razuvayev. 1)@osu. edu

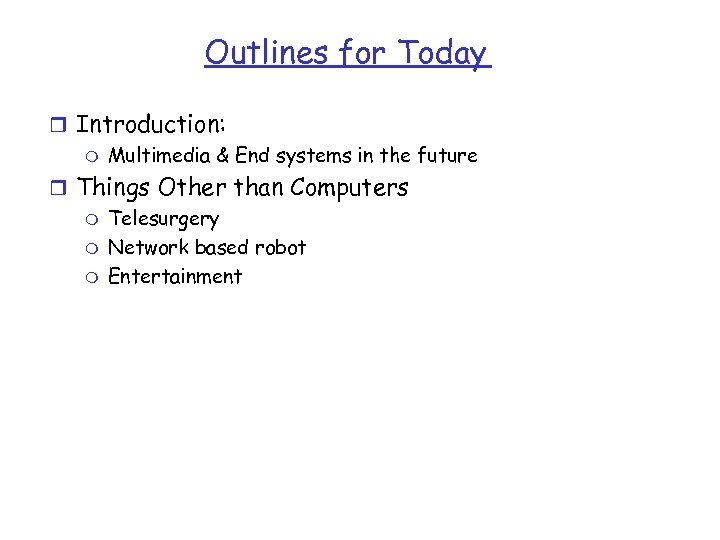

Outlines for Today r Introduction: m Multimedia & End systems in the future r Things Other than Computers m Telesurgery m Network based robot m Entertainment

Live TV Over the Internet r Purpose m To watch live TV anywhere there is a high speed internet connection m To watch live TV from a far away location such as another country m To watch local TV while away from home r Hardware m TV 2 Me m Sling Box m Sony Location. Free r Software m Orb

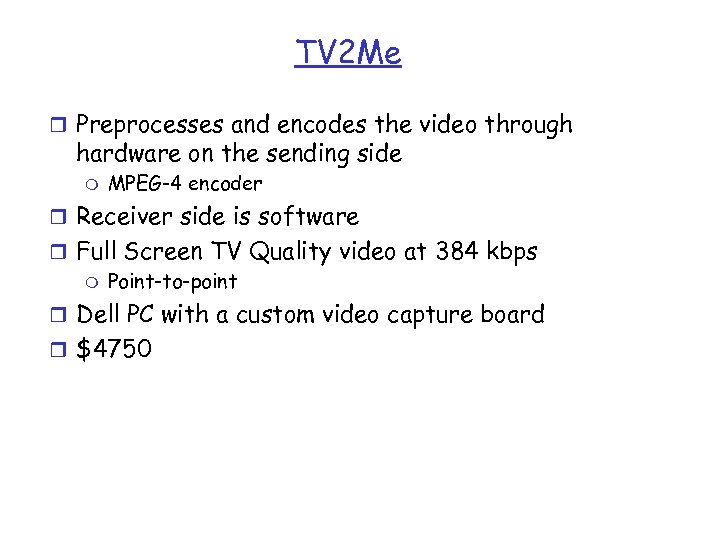

TV 2 Me r Preprocesses and encodes the video through hardware on the sending side m MPEG-4 encoder r Receiver side is software r Full Screen TV Quality video at 384 kbps m Point-to-point r Dell PC with a custom video capture board r $4750

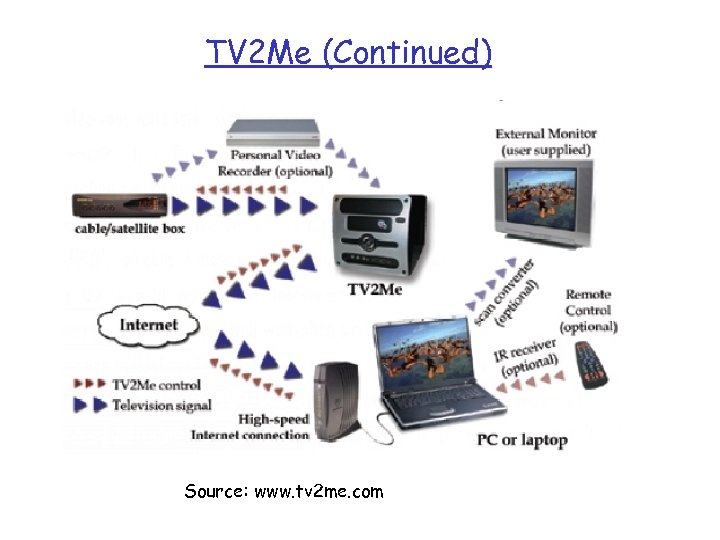

TV 2 Me (Continued) Source: www. tv 2 me. com

MPEG-4 r An open international standard for multimedia

Sling Box r Works like TV 2 Me r Encodes into Microsoft’s Media 9. 0 format r Video quality worse than TV 2 Me r Works with 802. 11 b and 802. 11 g networks r Uses a Digital Signal Processor (DSP) made by Texas Instruments r Uses a proprietary steam optimization code-named “Lebowski” r $249. 99

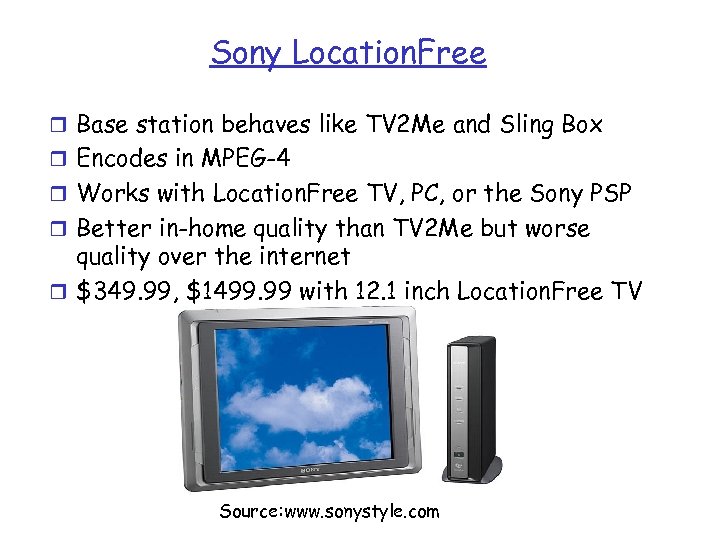

Sony Location. Free r Base station behaves like TV 2 Me and Sling Box r Encodes in MPEG-4 r Works with Location. Free TV, PC, or the Sony PSP r Better in-home quality than TV 2 Me but worse quality over the internet r $349. 99, $1499. 99 with 12. 1 inch Location. Free TV Source: www. sonystyle. com

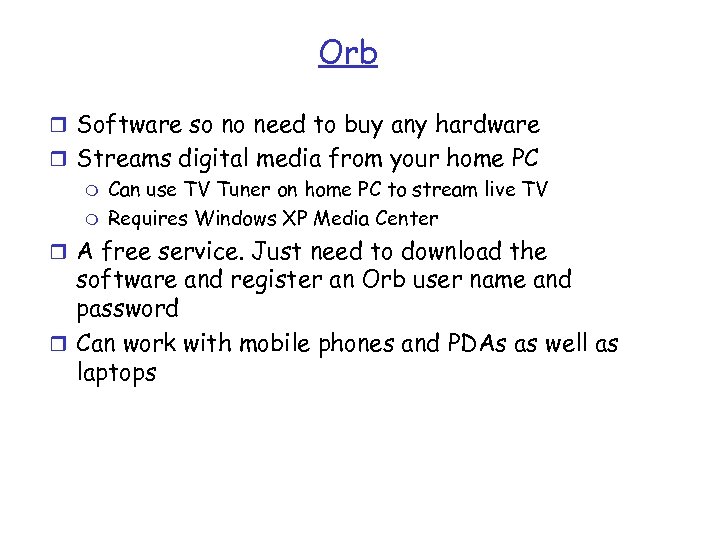

Orb r Software so no need to buy any hardware r Streams digital media from your home PC m Can use TV Tuner on home PC to stream live TV m Requires Windows XP Media Center r A free service. Just need to download the software and register an Orb user name and password r Can work with mobile phones and PDAs as well as laptops

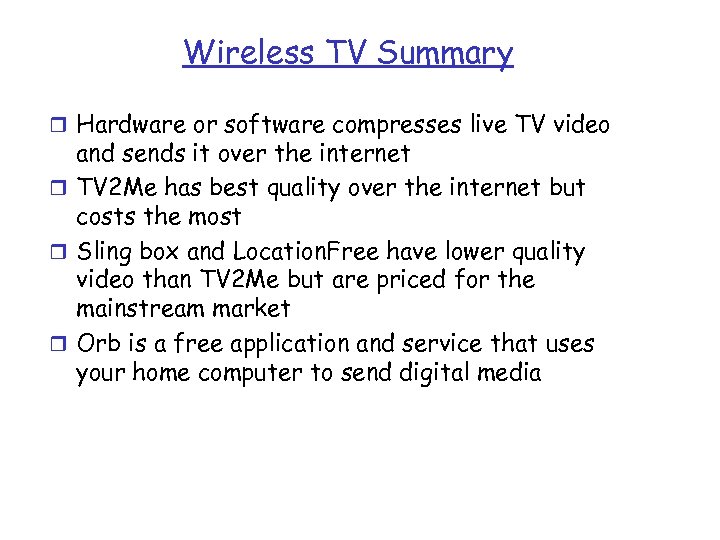

Wireless TV Summary r Hardware or software compresses live TV video and sends it over the internet r TV 2 Me has best quality over the internet but costs the most r Sling box and Location. Free have lower quality video than TV 2 Me but are priced for the mainstream market r Orb is a free application and service that uses your home computer to send digital media

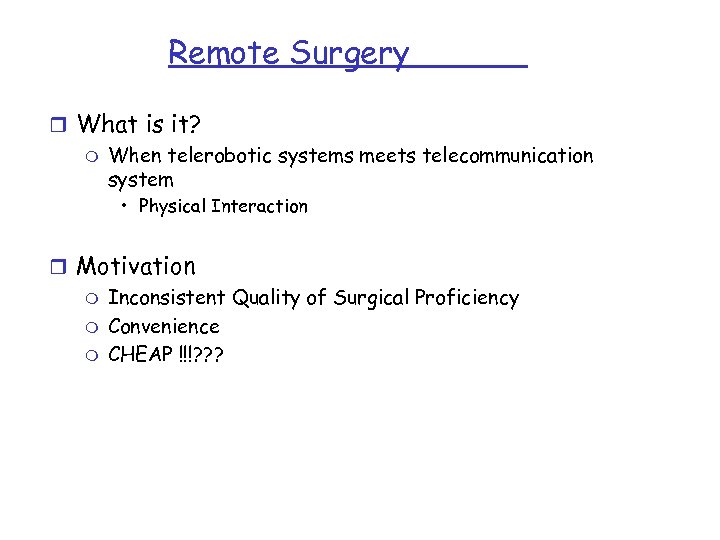

Remote Surgery r What is it? m When telerobotic systems meets telecommunication system • Physical Interaction r Motivation m Inconsistent Quality of Surgical Proficiency m Convenience m CHEAP !!!? ? ?

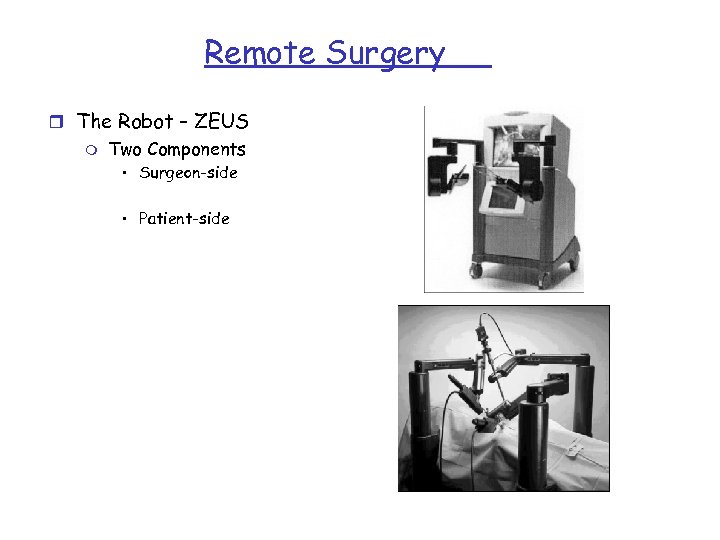

Remote Surgery r The Robot – ZEUS m Two Components • Surgeon-side • Patient-side

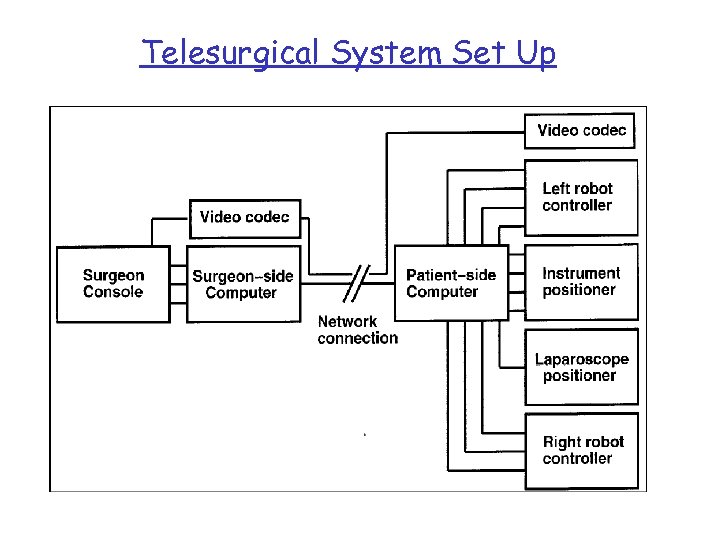

Telesurgical System Set Up

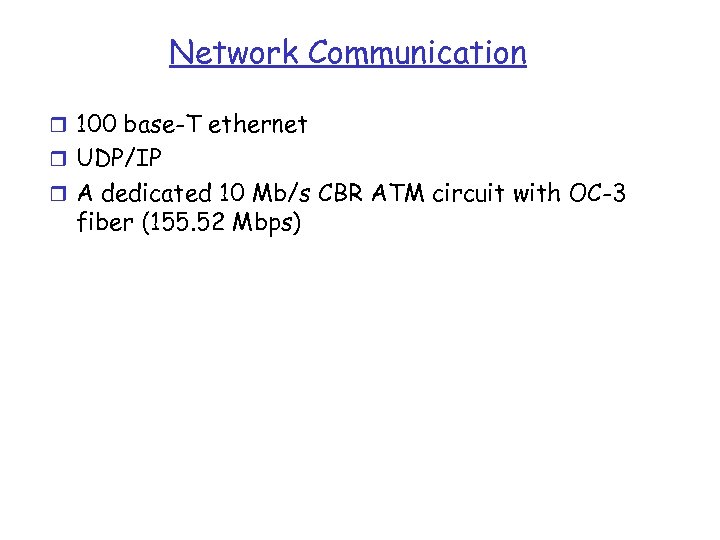

Network Communication r 100 base-T ethernet r UDP/IP r A dedicated 10 Mb/s CBR ATM circuit with OC-3 fiber (155. 52 Mbps)

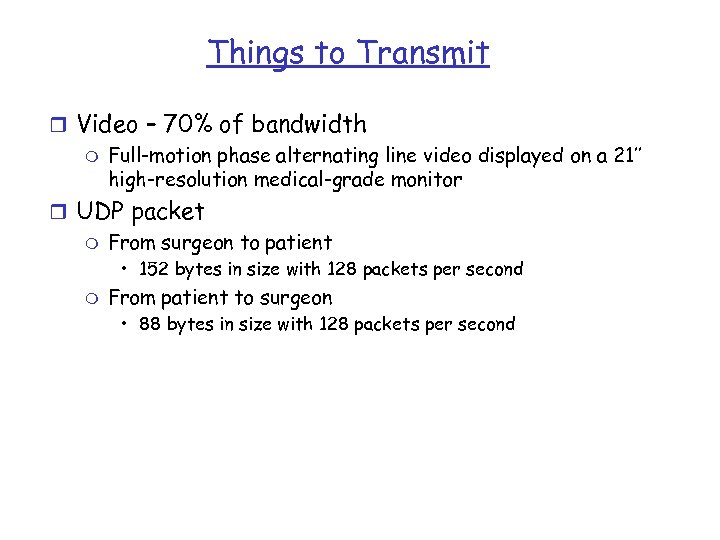

Things to Transmit r Video – 70% of bandwidth m Full-motion phase alternating line video displayed on a 21’’ high-resolution medical-grade monitor r UDP packet m From surgeon to patient • 152 bytes in size with 128 packets per second m From patient to surgeon • 88 bytes in size with 128 packets per second

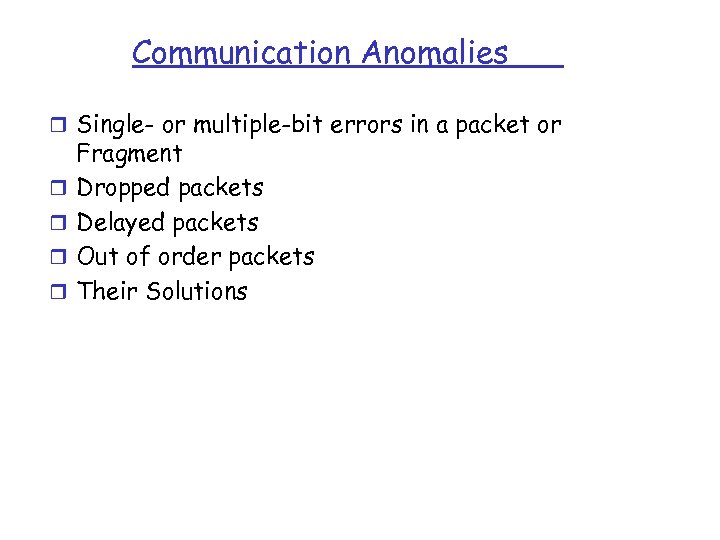

Communication Anomalies r Single- or multiple-bit errors in a packet or r r Fragment Dropped packets Delayed packets Out of order packets Their Solutions

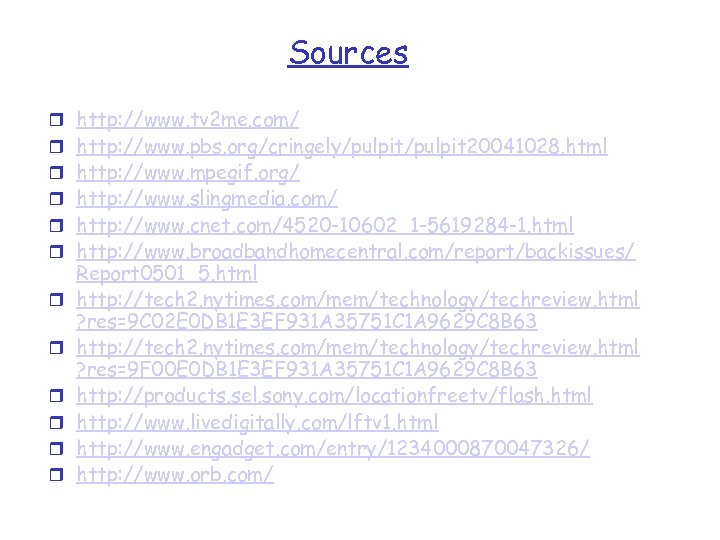

Sources r http: //www. tv 2 me. com/ r http: //www. pbs. org/cringely/pulpit 20041028. html r http: //www. mpegif. org/ r http: //www. slingmedia. com/ r http: //www. cnet. com/4520 -10602_1 -5619284 -1. html r http: //www. broadbandhomecentral. com/report/backissues/ r r r Report 0501_5. html http: //tech 2. nytimes. com/mem/technology/techreview. html ? res=9 C 02 E 0 DB 1 E 3 EF 931 A 35751 C 1 A 9629 C 8 B 63 http: //tech 2. nytimes. com/mem/technology/techreview. html ? res=9 F 00 E 0 DB 1 E 3 EF 931 A 35751 C 1 A 9629 C 8 B 63 http: //products. sel. sony. com/locationfreetv/flash. html http: //www. livedigitally. com/lftv 1. html http: //www. engadget. com/entry/1234000870047326/ http: //www. orb. com/

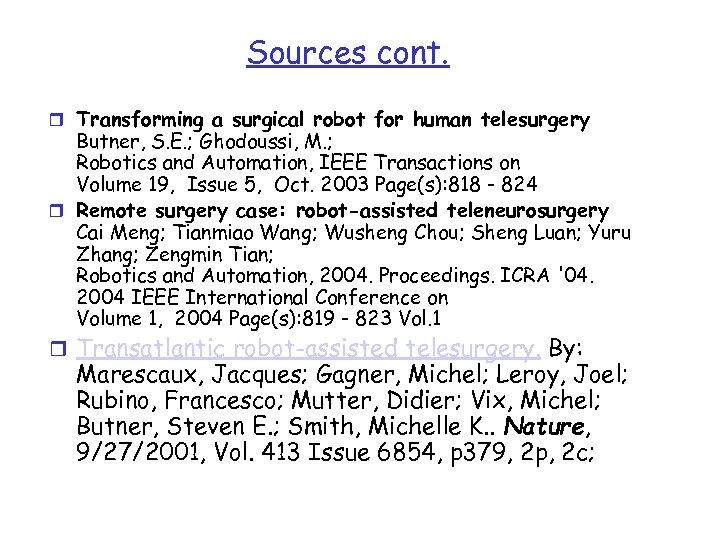

Sources cont. r Transforming a surgical robot for human telesurgery Butner, S. E. ; Ghodoussi, M. ; Robotics and Automation, IEEE Transactions on Volume 19, Issue 5, Oct. 2003 Page(s): 818 - 824 r Remote surgery case: robot-assisted teleneurosurgery Cai Meng; Tianmiao Wang; Wusheng Chou; Sheng Luan; Yuru Zhang; Zengmin Tian; Robotics and Automation, 2004. Proceedings. ICRA '04. 2004 IEEE International Conference on Volume 1, 2004 Page(s): 819 - 823 Vol. 1 r Transatlantic robot-assisted telesurgery. By: Marescaux, Jacques; Gagner, Michel; Leroy, Joel; Rubino, Francesco; Mutter, Didier; Vix, Michel; Butner, Steven E. ; Smith, Michelle K. . Nature, 9/27/2001, Vol. 413 Issue 6854, p 379, 2 p, 2 c;
