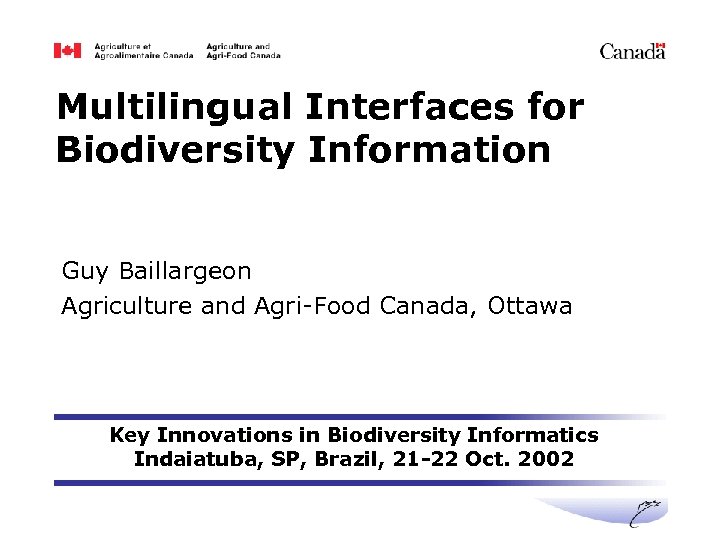

Multilingual Interfaces for Biodiversity Information Guy Baillargeon Agriculture and Agri-Food Canada, Ottawa Key Innovations in Biodiversity Informatics Indaiatuba, SP, Brazil, 21 -22 Oct. 2002

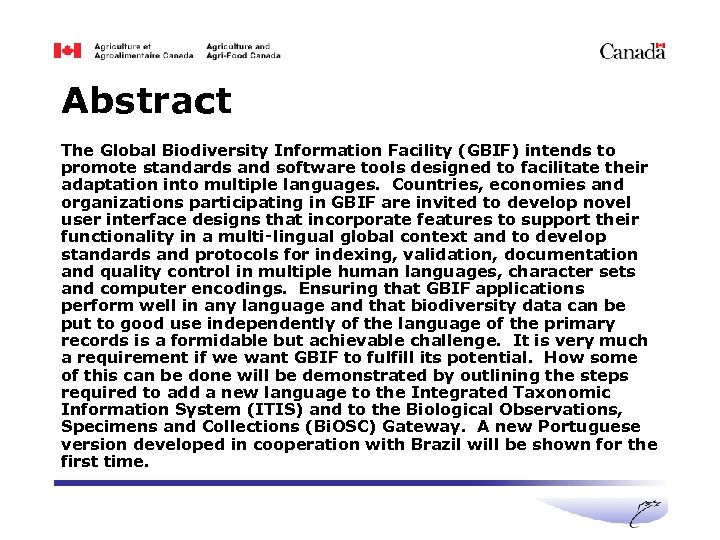

Abstract The Global Biodiversity Information Facility (GBIF) intends to promote standards and software tools designed to facilitate their adaptation into multiple languages. Countries, economies and organizations participating in GBIF are invited to develop novel user interface designs that incorporate features to support their functionality in a multi‑lingual global context and to develop standards and protocols for indexing, validation, documentation and quality control in multiple human languages, character sets and computer encodings. Ensuring that GBIF applications perform well in any language and that biodiversity data can be put to good use independently of the language of the primary records is a formidable but achievable challenge. It is very much a requirement if we want GBIF to fulfill its potential. How some of this can be done will be demonstrated by outlining the steps required to add a new language to the Integrated Taxonomic Information System (ITIS) and to the Biological Observations, Specimens and Collections (Bi. OSC) Gateway. A new Portuguese version developed in cooperation with Brazil will be shown for the first time.

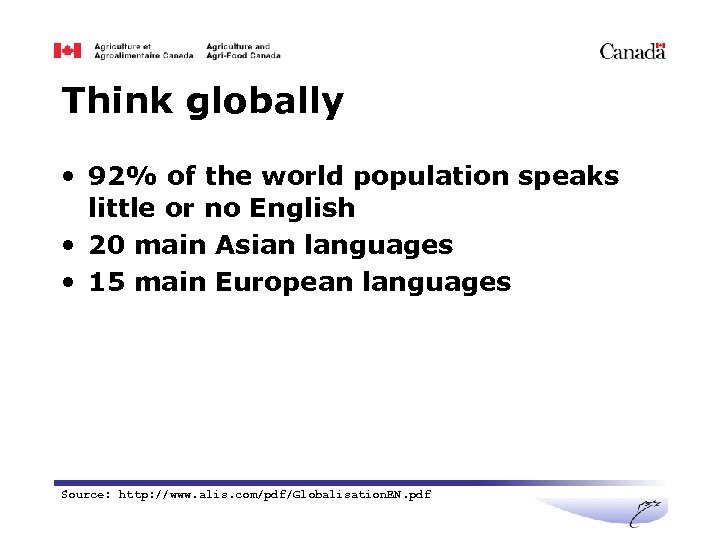

Think globally • 92% of the world population speaks little or no English • 20 main Asian languages • 15 main European languages Source: http: //www. alis. com/pdf/Globalisation. EN. pdf

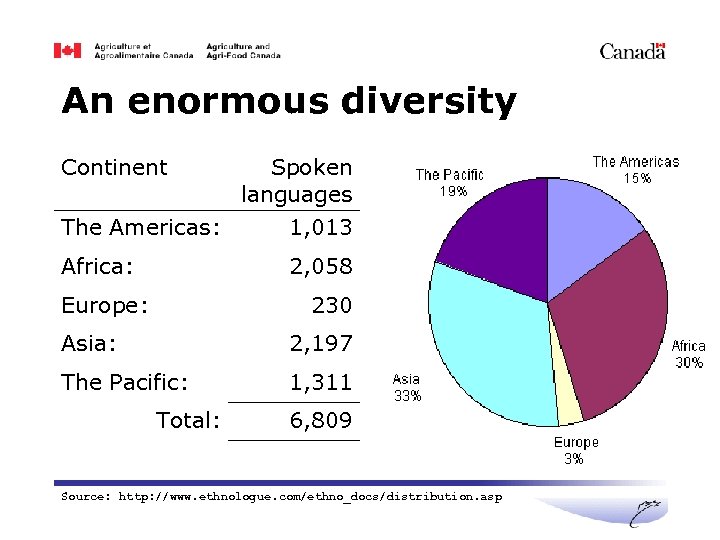

An enormous diversity Continent Spoken languages The Americas: 1, 013 Africa: 2, 058 Europe: 230 Asia: 2, 197 The Pacific: 1, 311 Total: 6, 809 Source: http: //www. ethnologue. com/ethno_docs/distribution. asp

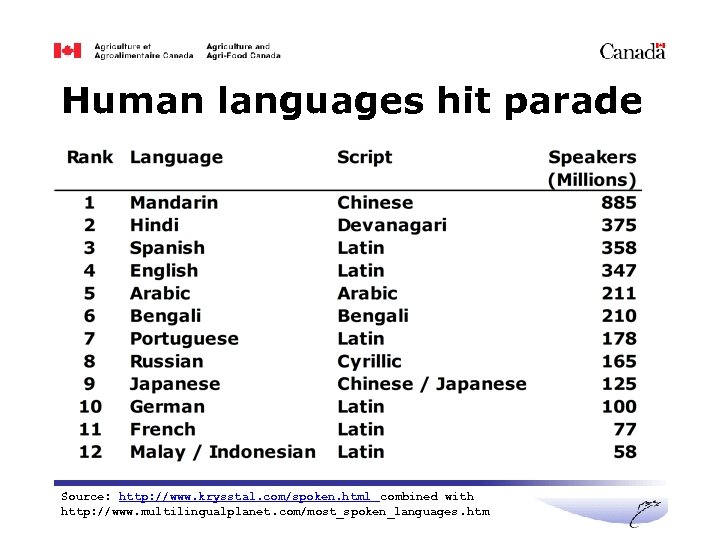

Human languages hit parade Source: http: //www. krysstal. com/spoken. html combined with http: //www. multilingualplanet. com/most_spoken_languages. htm

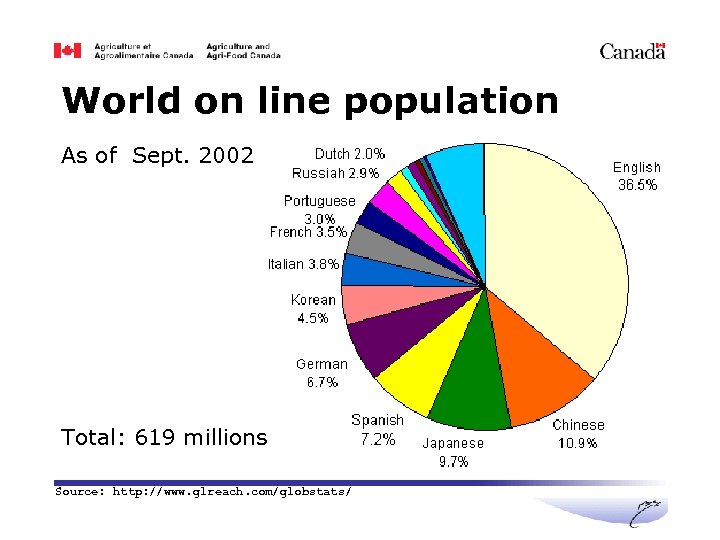

World on line population As of Sept. 2002 Total: 619 millions Source: http: //www. glreach. com/globstats/

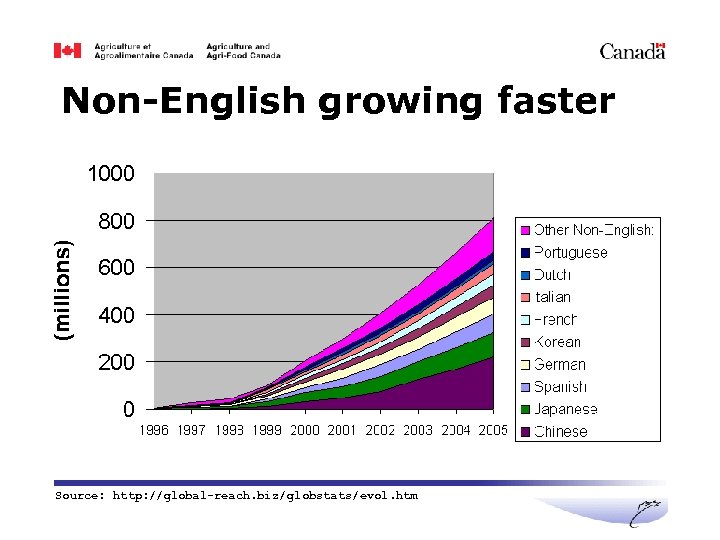

Non-English growing faster Source: http: //global-reach. biz/ globstats/evol. htm

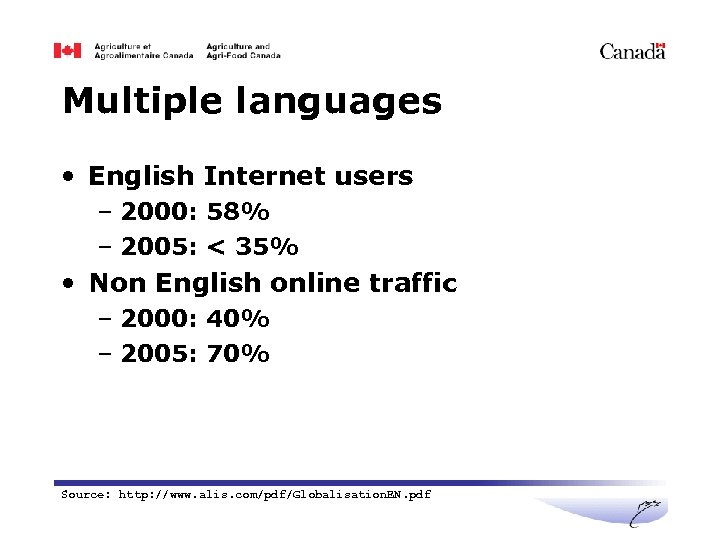

Multiple languages • English Internet users – 2000: 58% – 2005: < 35% • Non English online traffic – 2000: 40% – 2005: 70% Source: http: //www. alis. com/pdf/Globalisation. EN. pdf

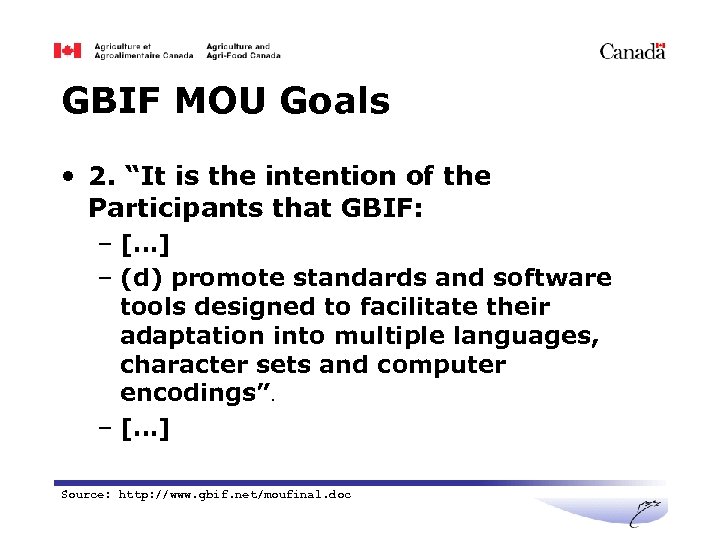

GBIF MOU Goals • 2. “It is the intention of the Participants that GBIF: – […] – (d) promote standards and software tools designed to facilitate their adaptation into multiple languages, character sets and computer encodings”. – […] Source: http: //www. gbif. net/moufinal. doc

GBIF MOU Scope of activities • 4 (a) (iii) “Developing suitable tools and standards for accessing, linking and analysing new and existing databases, including standards and protocols for indexing, validation, documentation and quality control in multiple human languages, character sets and computer encodings; ” Source: http: //www. gbif. net/moufinal. doc

ITIS North America • A joint project by – United States – Canada – Mexico – sis. agr. gc. ca/itis

Translation module Canadian Other multilingual context applic. Canadian context ITIS Client Browser • Requirement for a bilingual version of ITIS in Canada • Not changing the underlying data model • Wanted reusable components • Capability to handle other languages as well

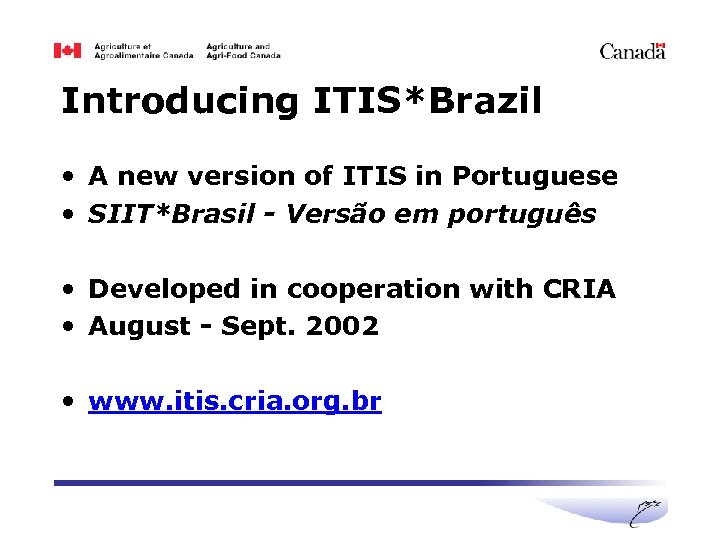

Introducing ITIS*Brazil • A new version of ITIS in Portuguese • SIIT*Brasil - Versão em português • Developed in cooperation with CRIA • August - Sept. 2002 • www. itis. cria. org. br

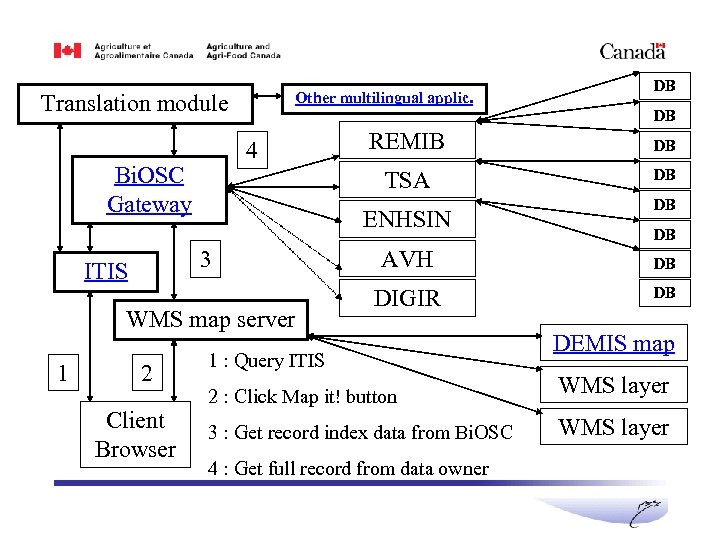

Translation module ITIS/Bi. OSC Data flow diagram Other multilingual applic. 3 2 Client Browser REMIB DB DB ENHSIN WMS map server 1 DB TSA 4 Bi. OSC Gateway ITIS DB DB DB AVH DB DIGIR DB 1 : Query ITIS DEMIS map 2 : Click Map it! button WMS layer 3 : Get record index data from Bi. OSC WMS layer 4 : Get full record from data owner

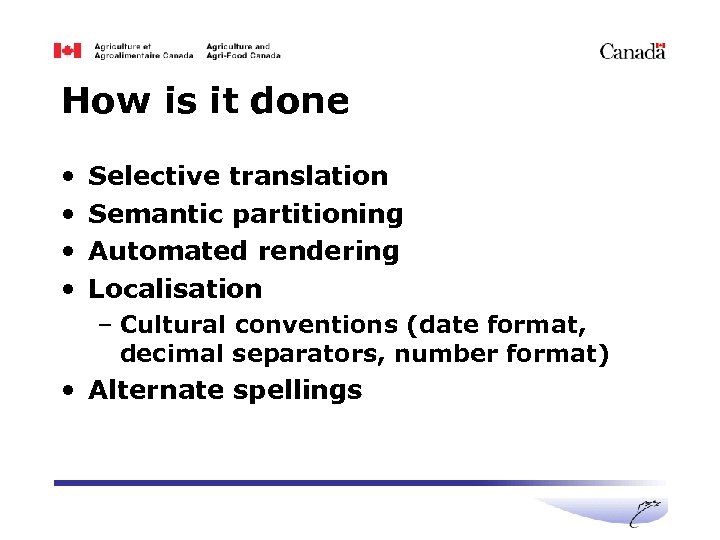

How is it done • • Selective translation Semantic partitioning Automated rendering Localisation – Cultural conventions (date format, decimal separators, number format) • Alternate spellings

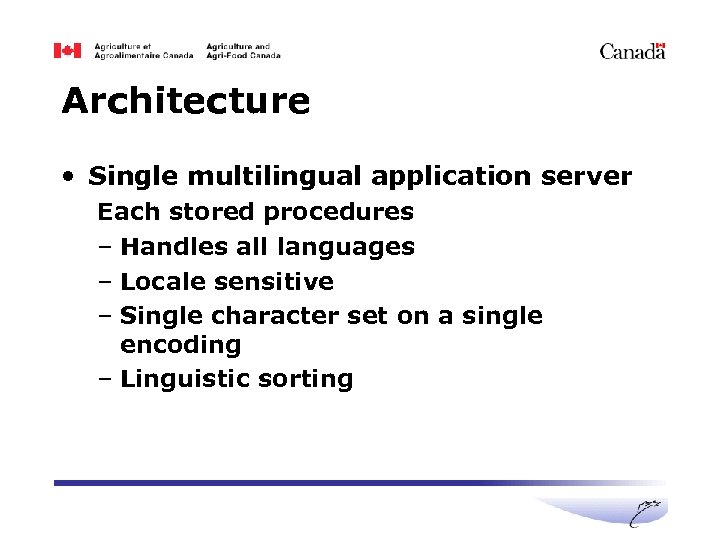

Architecture • Single multilingual application server Each stored procedures – Handles all languages – Locale sensitive – Single character set on a single encoding – Linguistic sorting

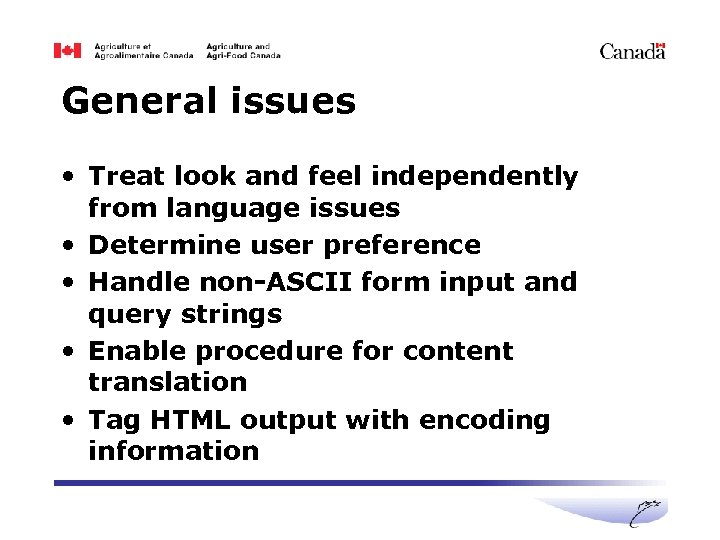

General issues • Treat look and feel independently from language issues • Determine user preference • Handle non-ASCII form input and query strings • Enable procedure for content translation • Tag HTML output with encoding information

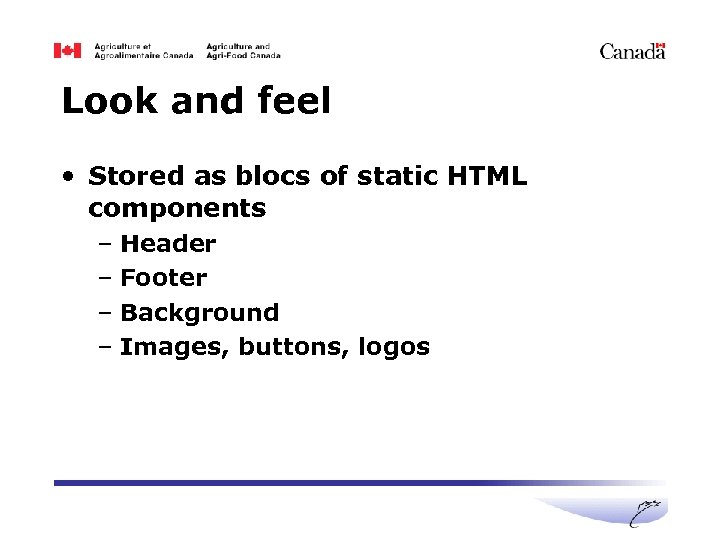

Look and feel • Stored as blocs of static HTML components – Header – Footer – Background – Images, buttons, logos

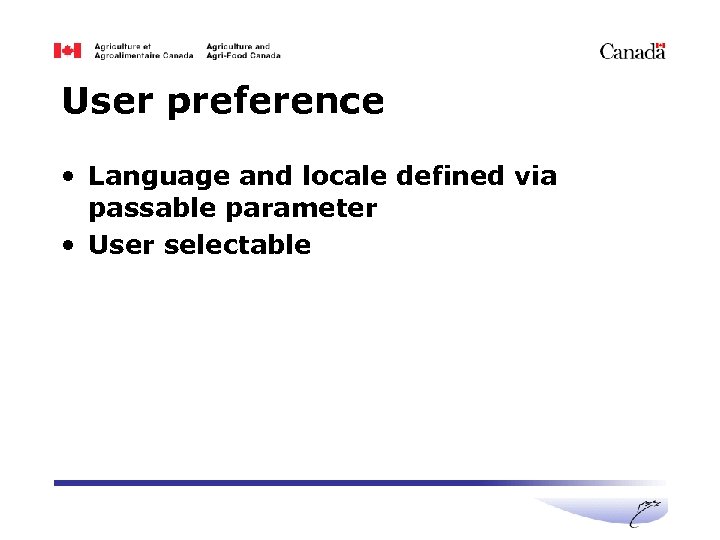

User preference • Language and locale defined via passable parameter • User selectable

Query string handling • URLs can only be encoded in 7 -bit ASCII • 8 -bit bytes are transformed into their hexadecimal representation prefixed by a percent sign • Requires decoding by the application – German word “Schloß” converted to • Schlo%c 3%9 f (Unicode) • Schlo%DF (Latin)

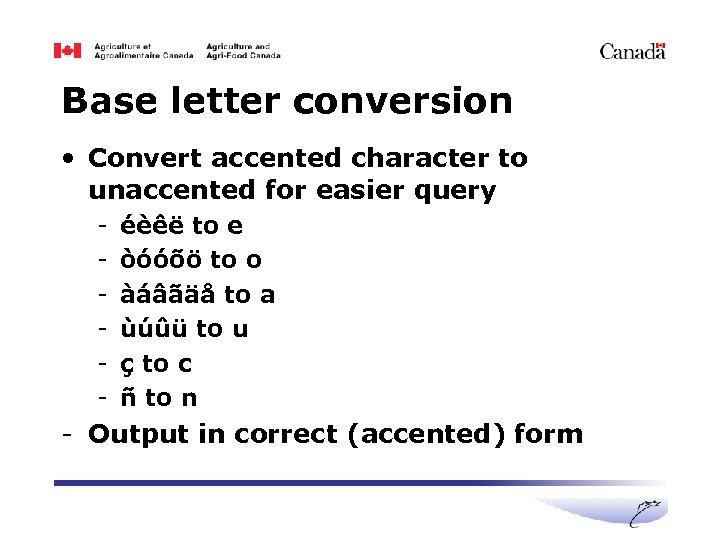

Base letter conversion • Convert accented character to unaccented for easier query - éèêë to e òóóõö to o àáâãäå to a ùúûü to u ç to c ñ to n - Output in correct (accented) form

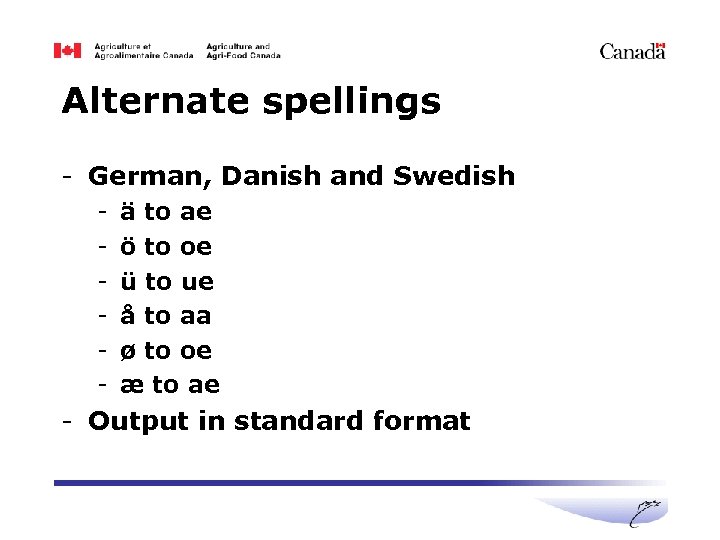

Alternate spellings - German, Danish and Swedish - ä to ae ö to oe ü to ue å to aa ø to oe æ to ae - Output in standard format

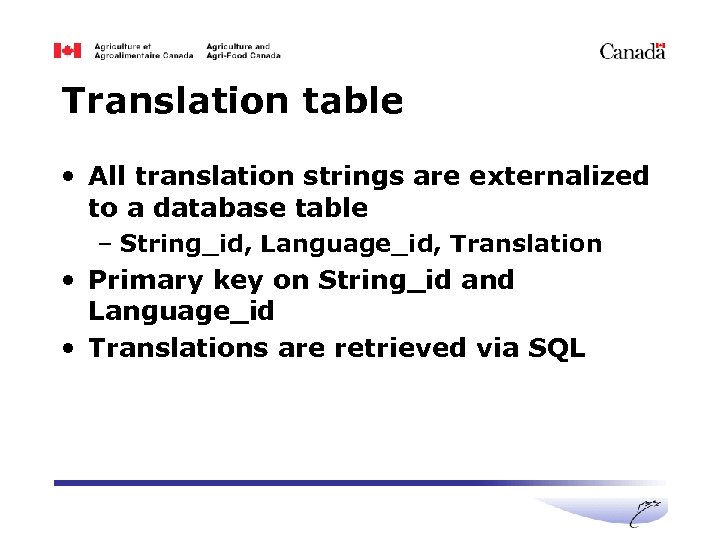

Translation table • All translation strings are externalized to a database table – String_id, Language_id, Translation • Primary key on String_id and Language_id • Translations are retrieved via SQL

Code snippet htp. prn(ctislib. multitext(177, p_lang)||': '|| ctislib. multidata(p_lang, 90, v_info_cursor. currency_rating)); en: fr: es: Current Standing: accepted Statut: accepté Estado actual: aceptado pt: Posição atual: aceito Multitext function accepts (string id number, language parameter) to translate application text Multidata function accepts (language parameter, table id number, text to be translated) to translate data

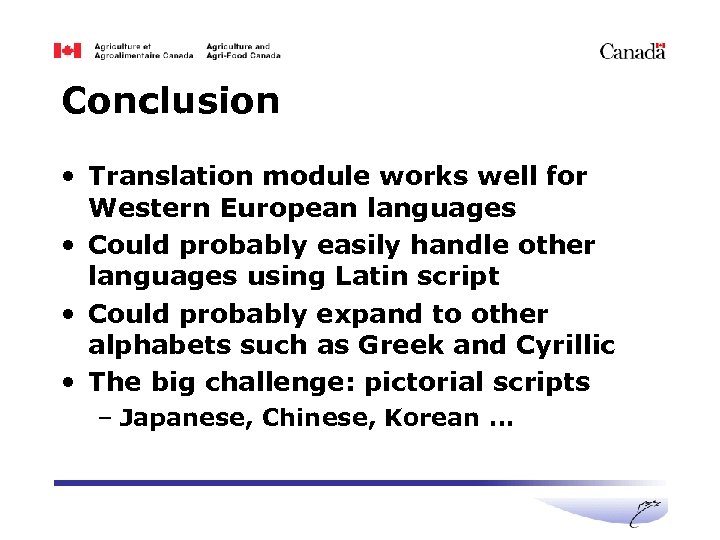

Conclusion • Translation module works well for Western European languages • Could probably easily handle other languages using Latin script • Could probably expand to other alphabets such as Greek and Cyrillic • The big challenge: pictorial scripts – Japanese, Chinese, Korean …

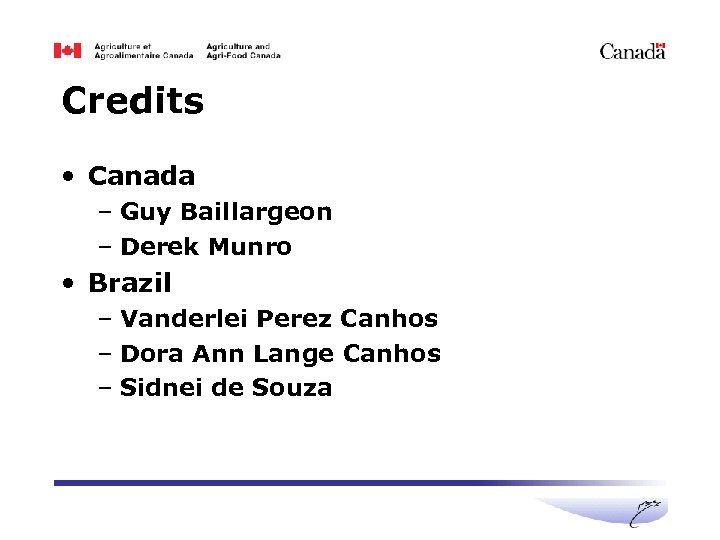

Credits • Canada – Guy Baillargeon – Derek Munro • Brazil – Vanderlei Perez Canhos – Dora Ann Lange Canhos – Sidnei de Souza
