MS 842 2 D imager scanner Tony Lin

MS 842 2 D imager scanner Tony Lin 2012/09/17

Agenda • MS 842… New Design • Features – Compact & Durable – Efficient • • • MS 842 Brief Specification Accessary Target Market Competitor information Model No. 1

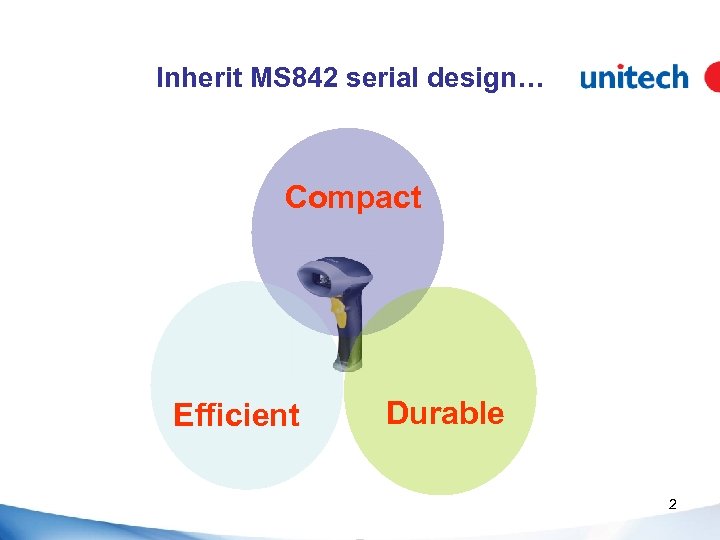

Inherit MS 842 serial design… Compact Efficient Durable 2

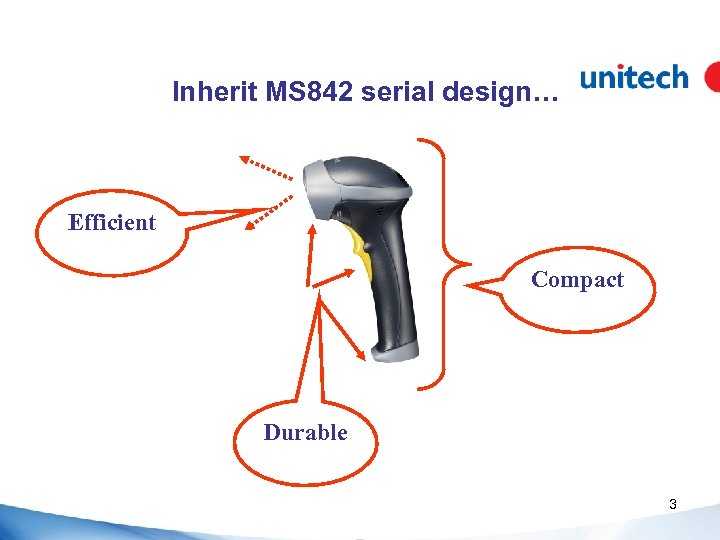

Inherit MS 842 serial design… Efficient Compact Durable 3

MS 842 Feature Small size & Light weight Compact Ergonomic gun type design Robust design-1. 8 M drop Durable IP rating: IP 42 Long switch life: 10 Mil. times High speed Decoder Efficient High performance engine Loudness Buzzer 4

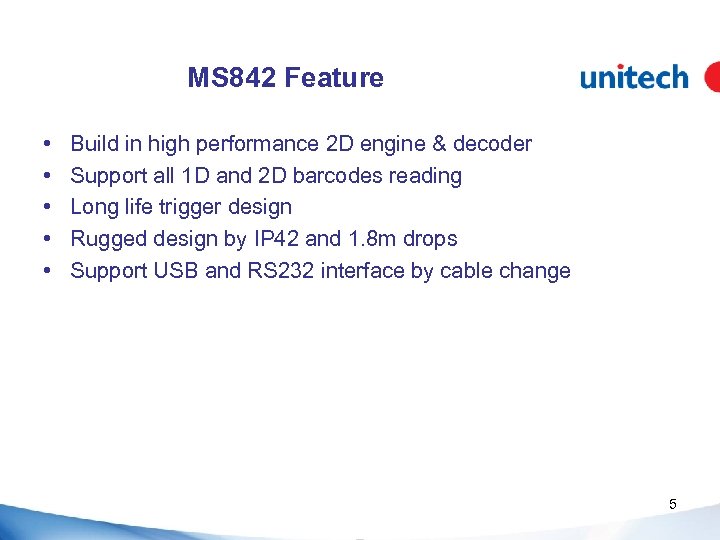

MS 842 Feature • • • Build in high performance 2 D engine & decoder Support all 1 D and 2 D barcodes reading Long life trigger design Rugged design by IP 42 and 1. 8 m drops Support USB and RS 232 interface by cable change 5

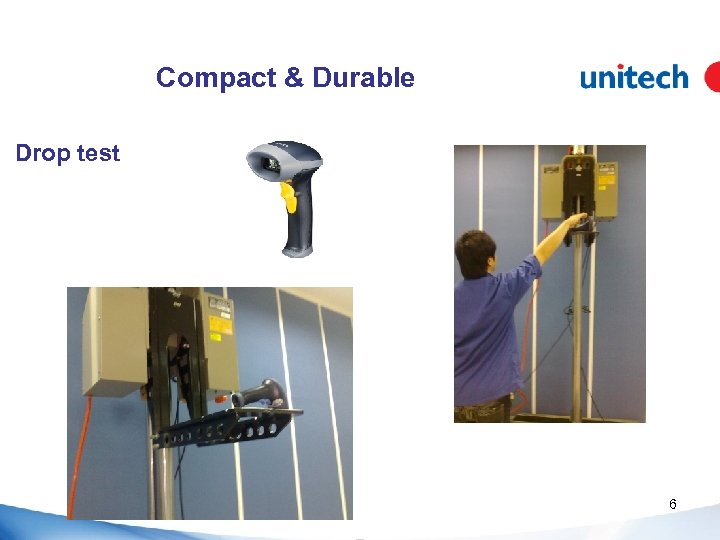

Compact & Durable Drop test 6

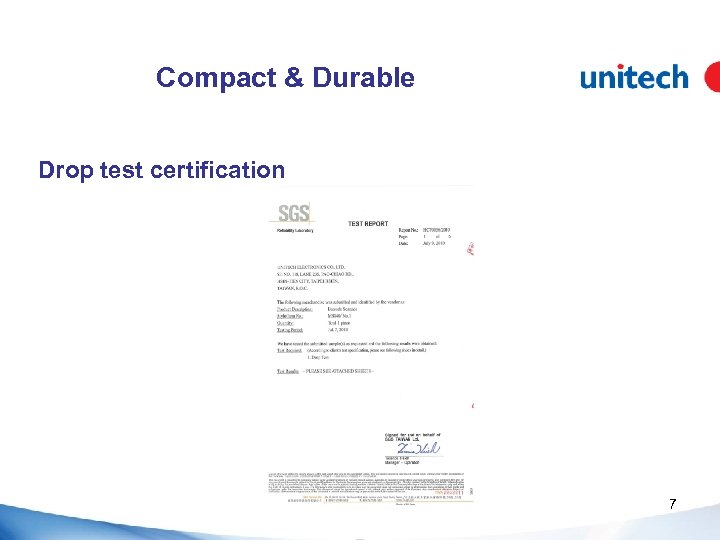

Compact & Durable Drop test certification 7

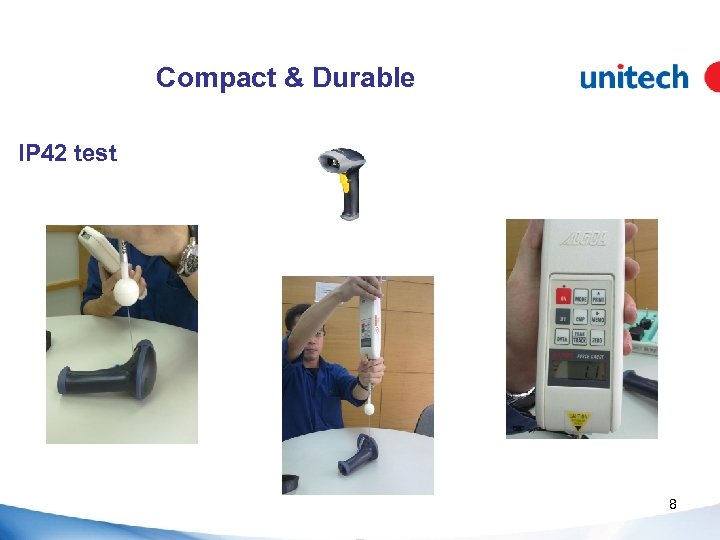

Compact & Durable IP 42 test 8

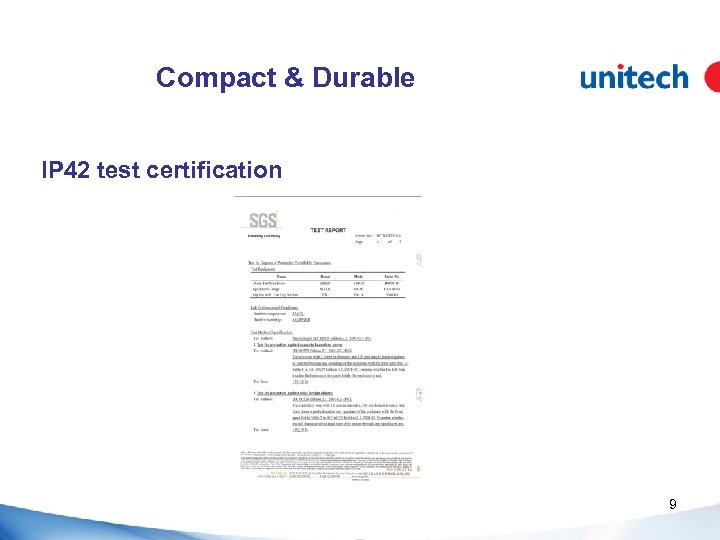

Compact & Durable IP 42 test certification 9

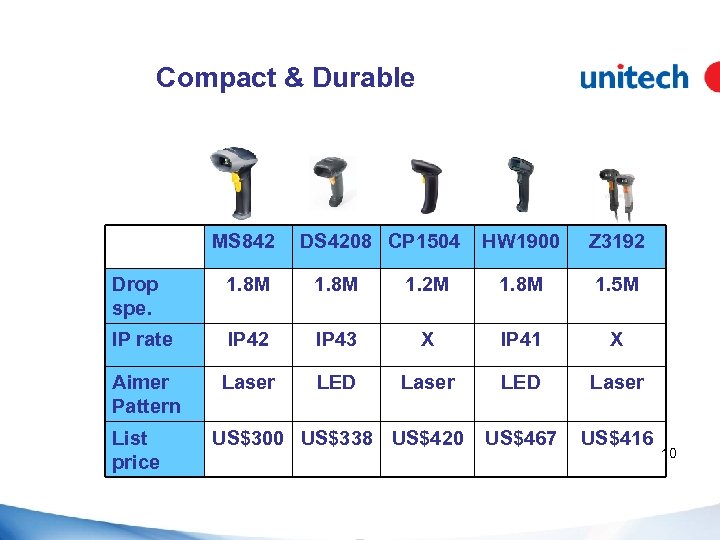

Compact & Durable MS 842 DS 4208 CP 1504 HW 1900 Z 3192 Drop spe. 1. 8 M 1. 2 M 1. 8 M 1. 5 M IP rate IP 42 IP 43 X IP 41 X Aimer Pattern Laser LED Laser US$467 US$416 List price US$300 US$338 US$420 10

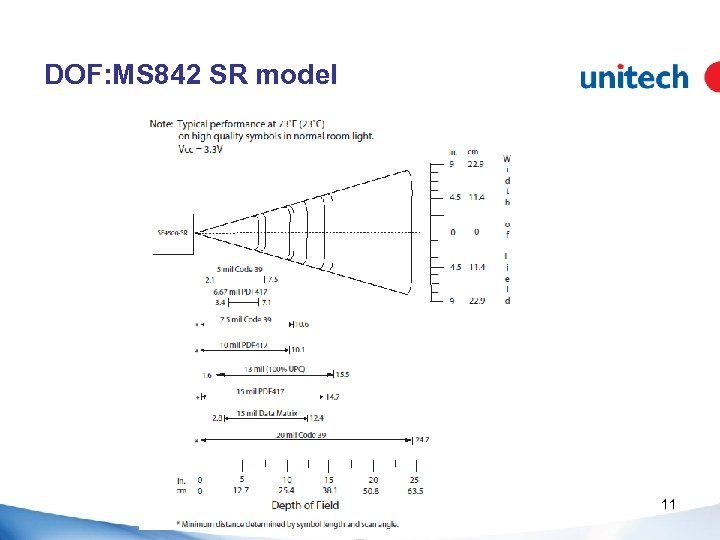

DOF: MS 842 SR model 11

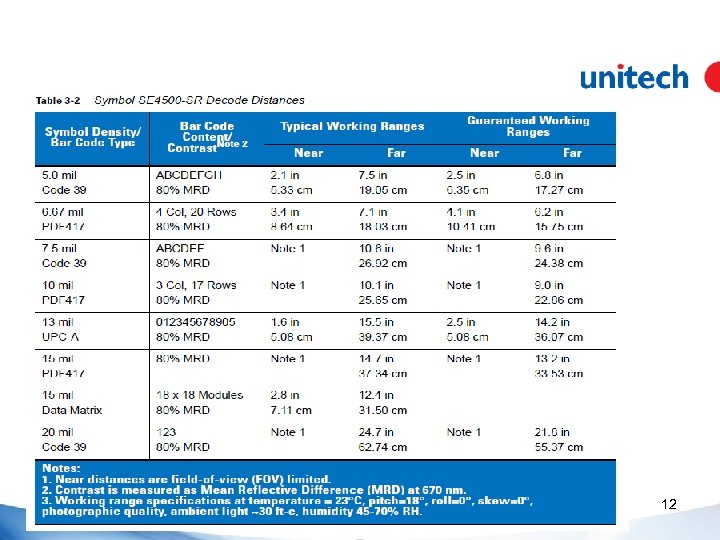

12

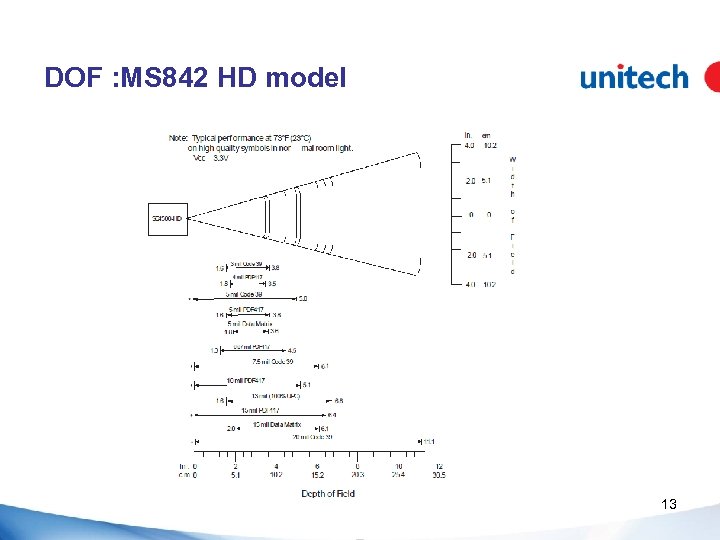

DOF : MS 842 HD model 13

14

MS 842 Brief Specification Receiving Device Image Sensor, 752 x 480 pixels Light Source Illumination : 625 nm LED Aiming : 655 nm VLD Max. Resolution Skew Angle Pitch Angle SR: 5 mil (code 39), 6. 7 mil (PDF 417) HD: 3 mil (code 39), 4 mil (PDF 417) ± 60 degrees Reading Distance (DOF PCS=80%) 15

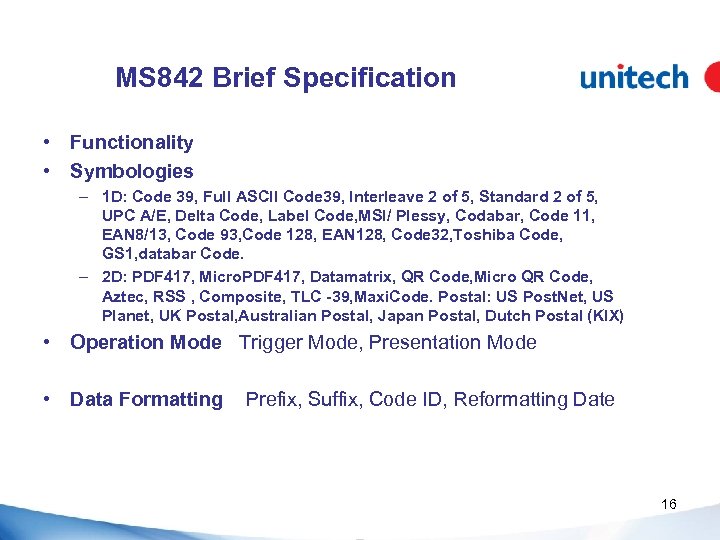

MS 842 Brief Specification • Functionality • Symbologies – 1 D: Code 39, Full ASCII Code 39, Interleave 2 of 5, Standard 2 of 5, UPC A/E, Delta Code, Label Code, MSI/ Plessy, Codabar, Code 11, EAN 8/13, Code 93, Code 128, EAN 128, Code 32, Toshiba Code, GS 1, databar Code. – 2 D: PDF 417, Micro. PDF 417, Datamatrix, QR Code, Micro QR Code, Aztec, RSS , Composite, TLC -39, Maxi. Code. Postal: US Post. Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) • Operation Mode Trigger Mode, Presentation Mode • Data Formatting Prefix, Suffix, Code ID, Reformatting Date 16

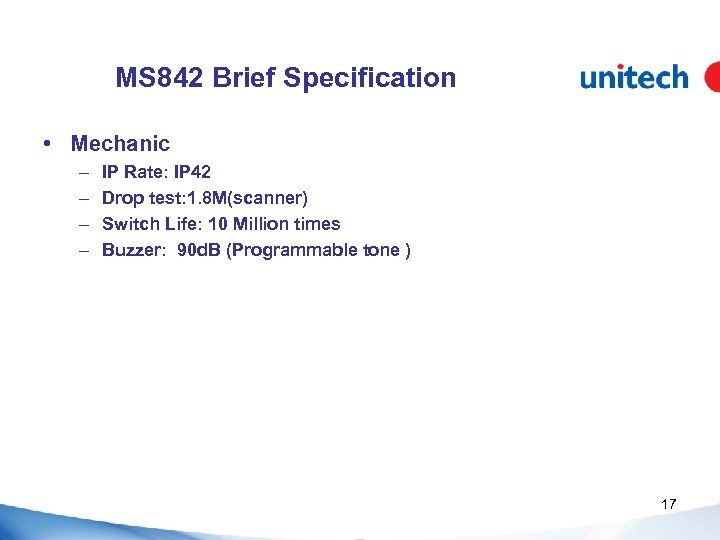

MS 842 Brief Specification • Mechanic – – IP Rate: IP 42 Drop test: 1. 8 M(scanner) Switch Life: 10 Million times Buzzer: 90 d. B (Programmable tone ) 17

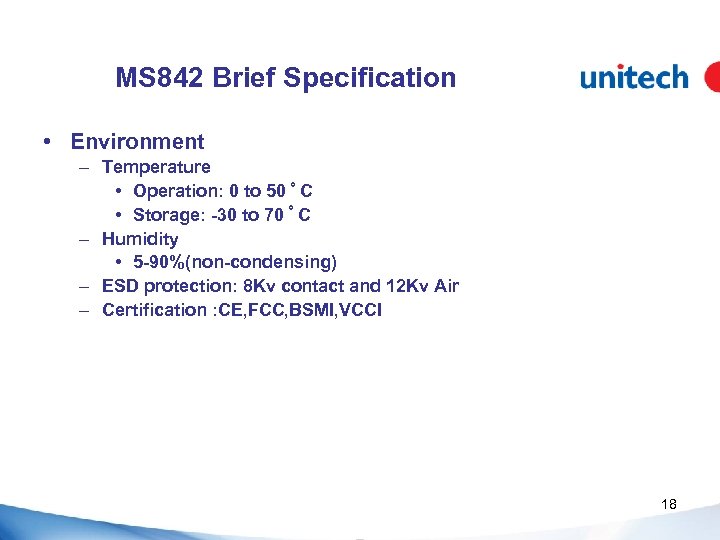

MS 842 Brief Specification • Environment – Temperature • Operation: 0 to 50 ﾟC • Storage: -30 to 70 ﾟC – Humidity • 5 -90%(non-condensing) – ESD protection: 8 Kv contact and 12 Kv Air – Certification : CE, FCC, BSMI, VCCI 18

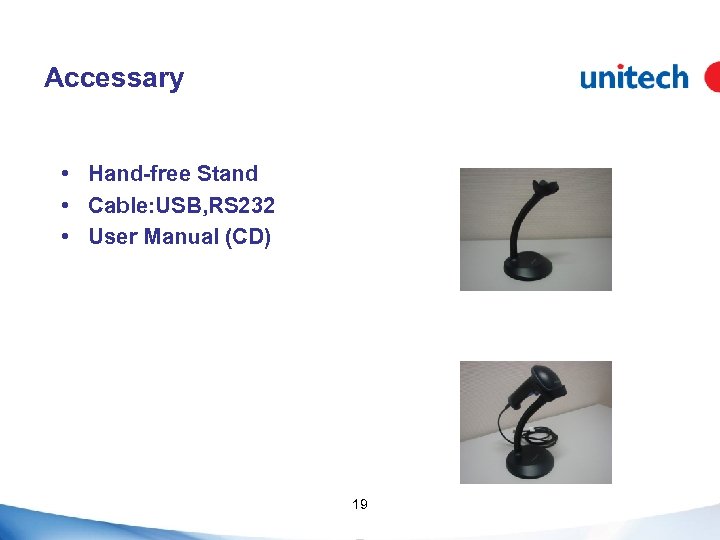

Accessary • Hand-free Stand • Cable: USB, RS 232 • User Manual (CD) 19

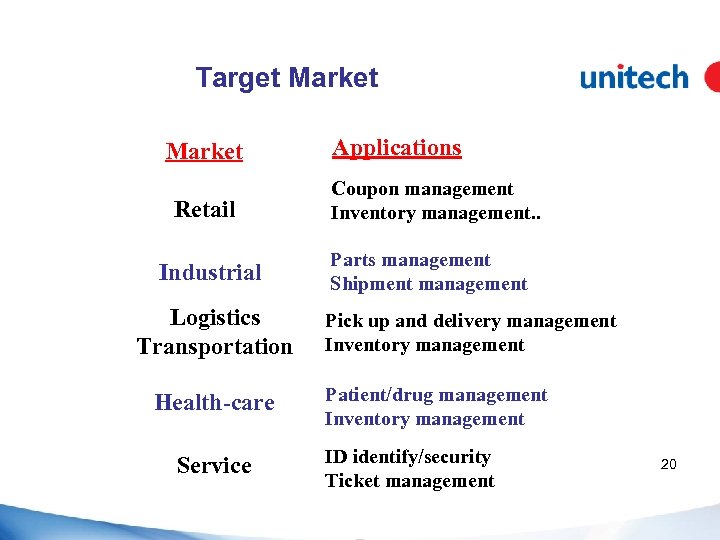

Target Market Retail Industrial Logistics Transportation Health-care Service Applications Coupon management Inventory management. . Parts management Shipment management Pick up and delivery management Inventory management Patient/drug management Inventory management ID identify/security Ticket management 20

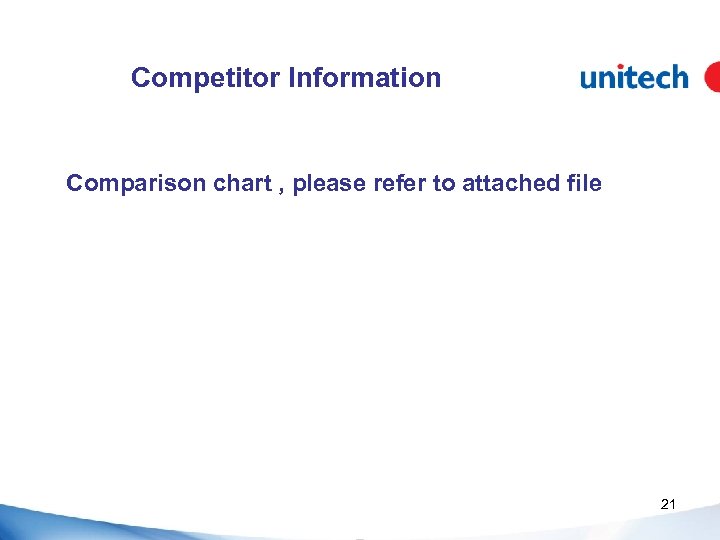

Competitor Information Comparison chart , please refer to attached file 21

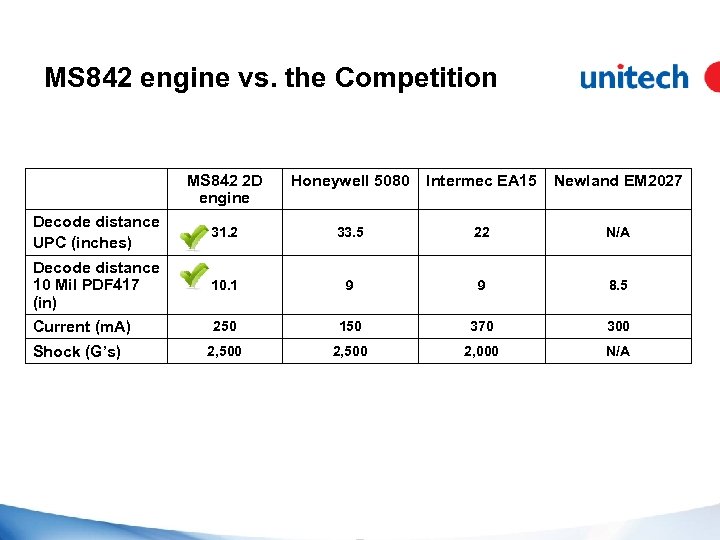

MS 842 engine vs. the Competition MS 842 2 D engine Honeywell 5080 Intermec EA 15 Newland EM 2027 Decode distance UPC (inches) 31. 2 33. 5 22 N/A Decode distance 10 Mil PDF 417 (in) 10. 1 9 9 8. 5 Current (m. A) 250 150 370 300 2, 500 2, 000 N/A Shock (G’s)

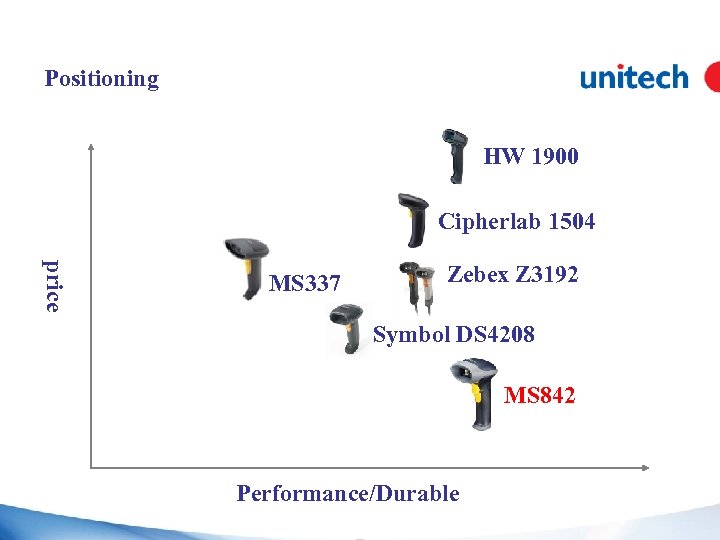

Positioning HW 1900 Cipherlab 1504 price MS 337 Zebex Z 3192 Symbol DS 4208 MS 842 Performance/Durable

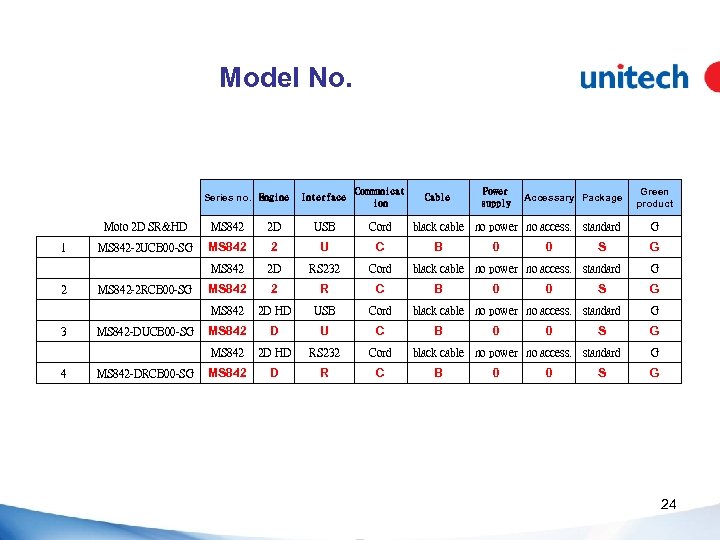

Model No. Series no. Engine Interface Communicat ion Moto 2 D SR&HD MS 842 2 D USB Cord 1 MS 842 -2 UCB 00 -SG MS 842 2 U C 　 　 MS 842 2 D RS 232 Cord 2 MS 842 -2 RCB 00 -SG MS 842 2 R C 　 　 MS 842 2 D HD USB Cord 3 MS 842 -DUCB 00 -SG MS 842 D U C 　 　 MS 842 2 D HD RS 232 Cord 4 MS 842 -DRCB 00 -SG MS 842 D R C Cable Power supply Accessary Package black cable no power no access. standard B 0 0 S Green product G G G G 24
