Moxa I O Solution Activate Your Alarm System

Moxa I/O Solution – Activate Your Alarm System Prepared by : Rick Peng

Success Stories Confidential

IP-based Surveillance System With Moxa I/O Solution n Vertical Market • Security n Customer • SIEMENS Security n Applications • Combine IO access with video surveillance n Selected Products • io. Logik E 2200 series n Why Moxa • Integrate with Moxa Active OPC Server, free of charge • Active concept can reduce network traffic • Click&Go logic provide local control capability Confidential

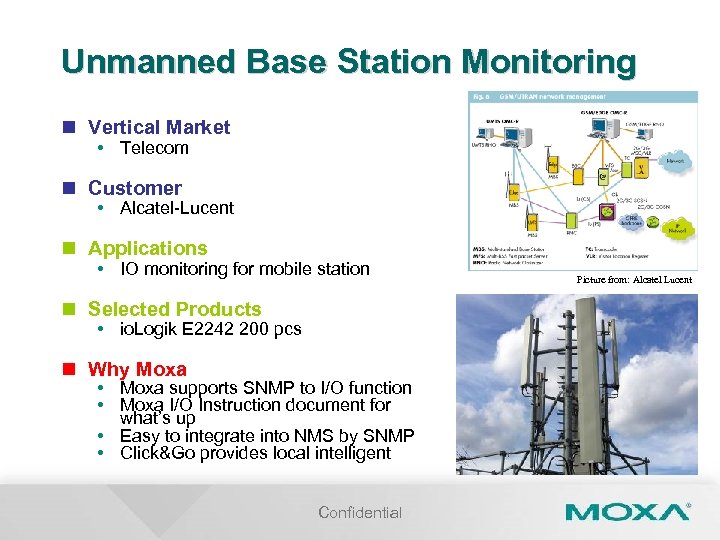

Unmanned Base Station Monitoring n Vertical Market • Telecom n Customer • Alcatel-Lucent n Applications • IO monitoring for mobile station n Selected Products • io. Logik E 2242 200 pcs n Why Moxa • Moxa supports SNMP to I/O function • Moxa I/O Instruction document for what’s up • Easy to integrate into NMS by SNMP • Click&Go provides local intelligent Confidential Picture from: Alcatel Lucent

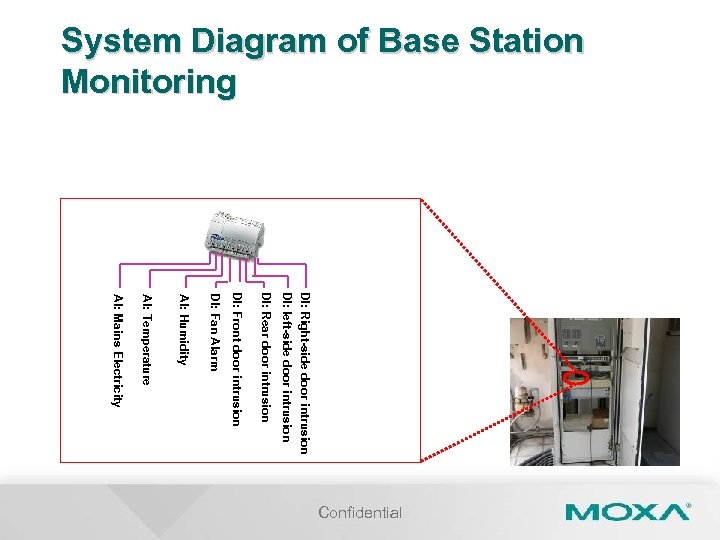

System Diagram of Base Station Monitoring DI: Right-side door intrusion DI: left-side door intrusion DI: Rear door intrusion DI: Front door intrusion DI: Fan Alarm AI: Humidity AI: Temperature AI: Mains Electricity Confidential

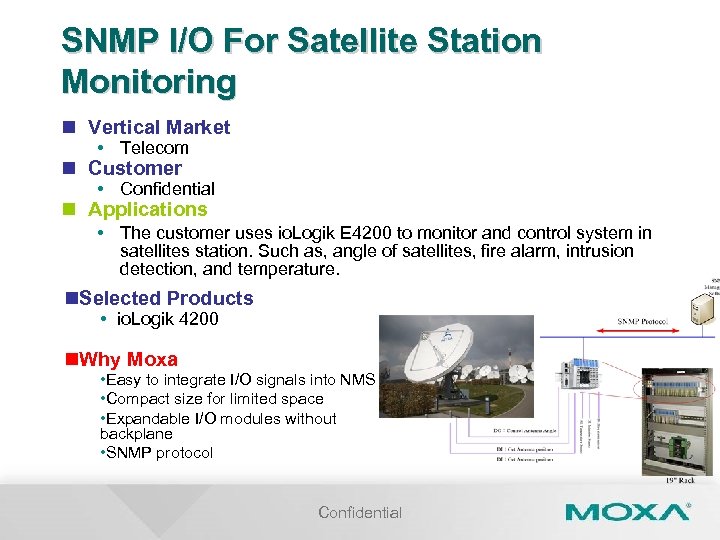

SNMP I/O For Satellite Station Monitoring n Vertical Market • Telecom n Customer • Confidential n Applications • The customer uses io. Logik E 4200 to monitor and control system in satellites station. Such as, angle of satellites, fire alarm, intrusion detection, and temperature. n. Selected Products • io. Logik 4200 n. Why Moxa • Easy to integrate I/O signals into NMS • Compact size for limited space • Expandable I/O modules without backplane • SNMP protocol Confidential

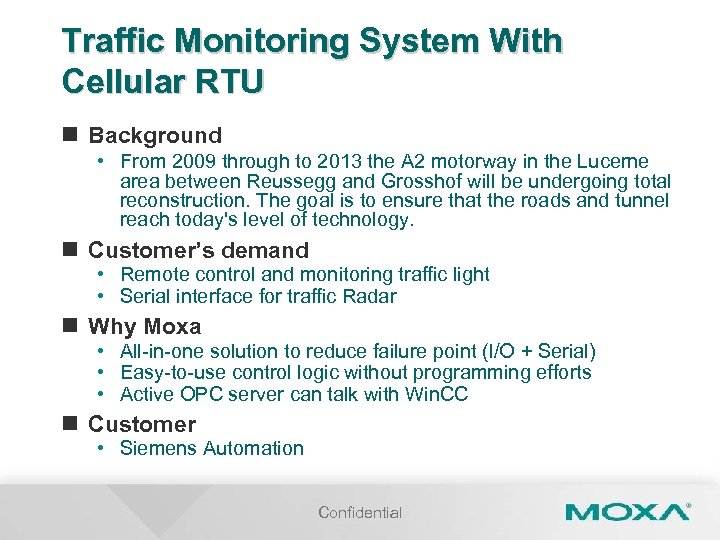

Traffic Monitoring System With Cellular RTU n Background • From 2009 through to 2013 the A 2 motorway in the Lucerne area between Reussegg and Grosshof will be undergoing total reconstruction. The goal is to ensure that the roads and tunnel reach today's level of technology. n Customer’s demand • Remote control and monitoring traffic light • Serial interface for traffic Radar n Why Moxa • All-in-one solution to reduce failure point (I/O + Serial) • Easy-to-use control logic without programming efforts • Active OPC server can talk with Win. CC n Customer • Siemens Automation Confidential

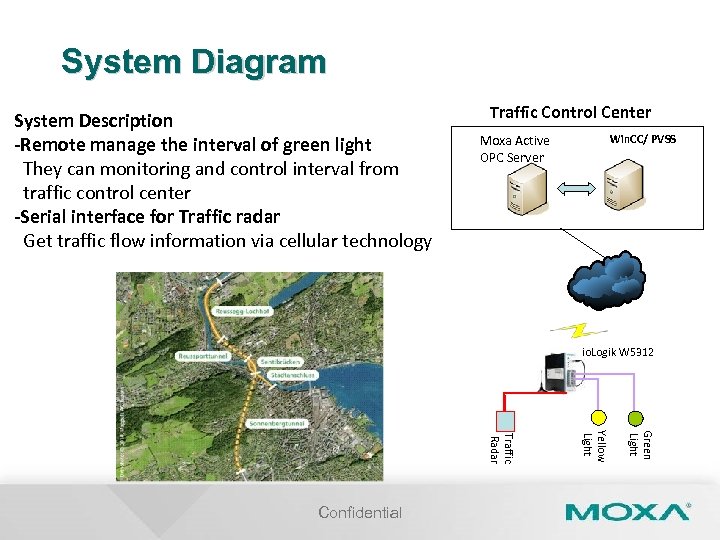

System Diagram System Description -Remote manage the interval of green light They can monitoring and control interval from traffic control center -Serial interface for Traffic radar Get traffic flow information via cellular technology Traffic Control Center Moxa Active OPC Server Win. CC/ PVSS io. Logik W 5312 Green Light Yellow Light Traffic Radar Confidential

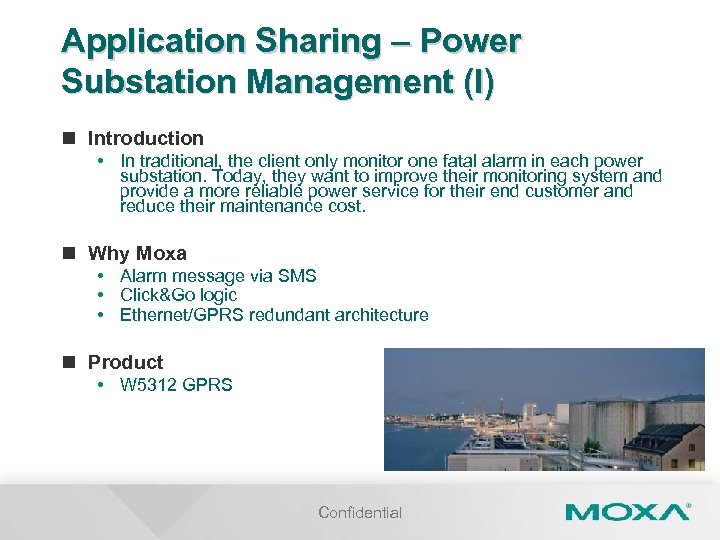

Application Sharing – Power Substation Management (I) n Introduction • In traditional, the client only monitor one fatal alarm in each power substation. Today, they want to improve their monitoring system and provide a more reliable power service for their end customer and reduce their maintenance cost. n Why Moxa • Alarm message via SMS • Click&Go logic • Ethernet/GPRS redundant architecture n Product • W 5312 GPRS Confidential

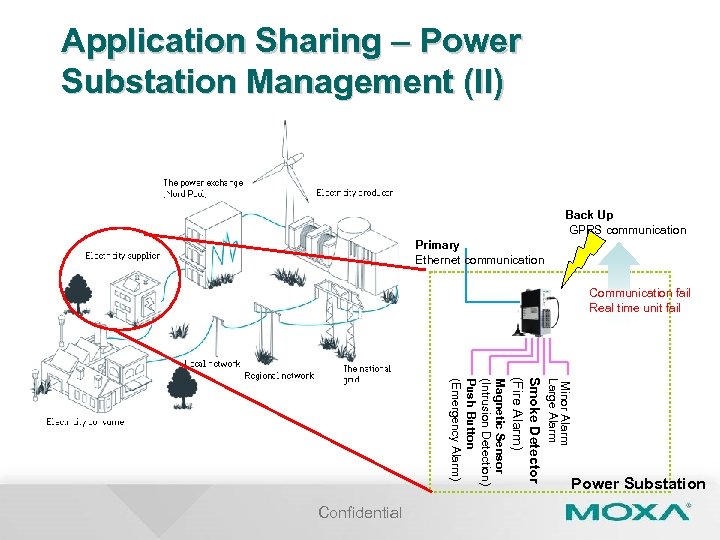

Application Sharing – Power Substation Management (II) Back Up GPRS communication Primary Ethernet communication Communication fail Real time unit fail Minor Alarm Large Alarm Smoke Detector (Fire Alarm) Magnetic Sensor (Intrusion Detection) Push Button (Emergency Alarm) Confidential Power Substation

Moxa Active Technologies for Alarm System Confidential

Smart SCADA Connectivity with Active OPC Server n Push-based Active OPC Server Lite – The middleware between io. Logik and SCADA Confidential

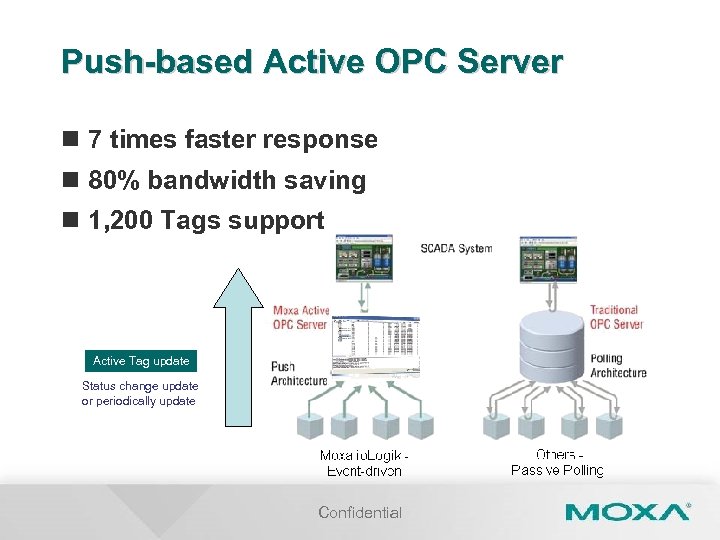

Push-based Active OPC Server n 7 times faster response n 80% bandwidth saving n 1, 200 Tags support Active Tag update Status change update or periodically update Confidential

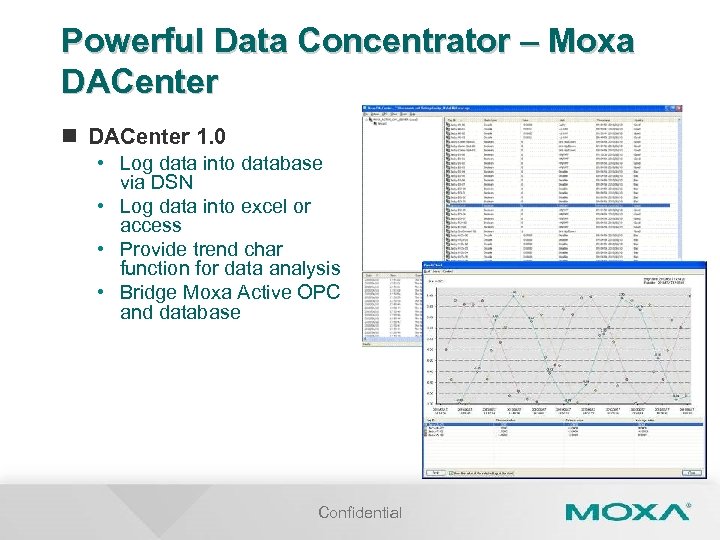

Powerful Data Concentrator – Moxa DACenter n DACenter 1. 0 • Log data into database via DSN • Log data into excel or access • Provide trend char function for data analysis • Bridge Moxa Active OPC and database Confidential

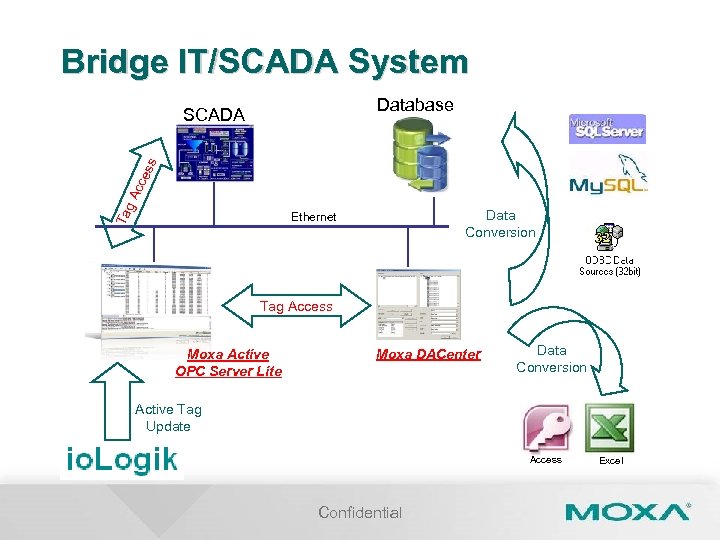

Bridge IT/SCADA System Database Ta g. A cce ss SCADA Data Conversion Ethernet Tag Access Moxa Active OPC Server Lite Moxa DACenter Data Conversion Active Tag Update Access Confidential Excel

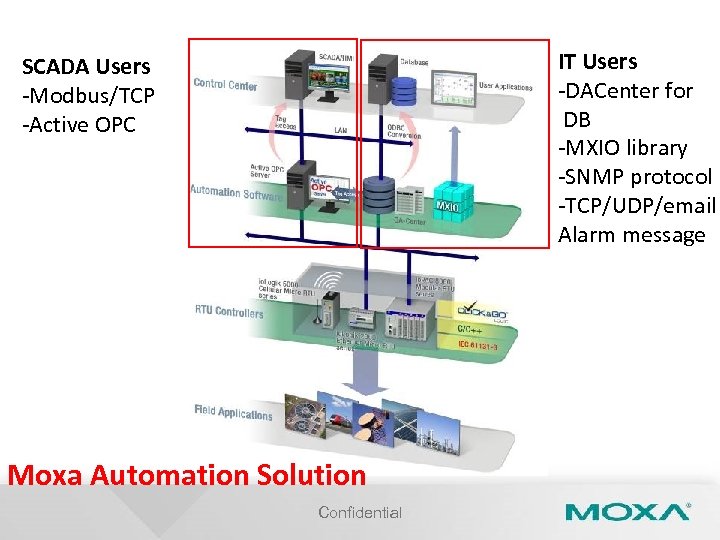

IT Users -DACenter for DB -MXIO library -SNMP protocol -TCP/UDP/email Alarm message SCADA Users -Modbus/TCP -Active OPC Moxa Automation Solution Confidential

io. Logik E 1200 Series -Daisy Chain Wiring Can Save Your Cost

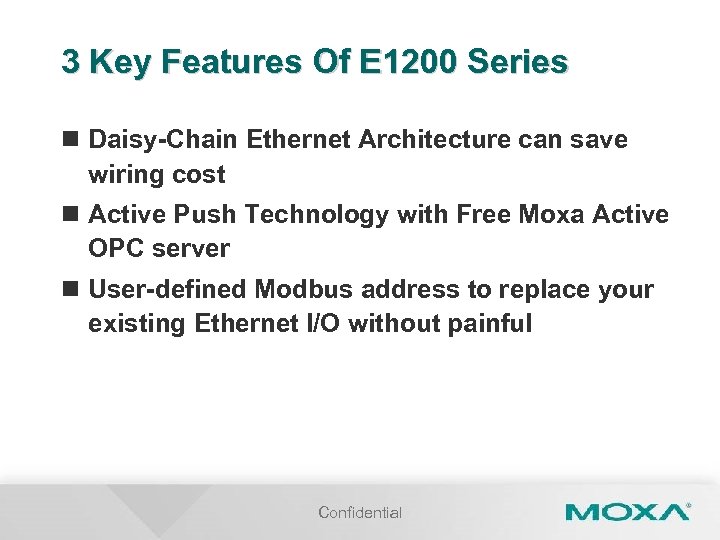

3 Key Features Of E 1200 Series n Daisy-Chain Ethernet Architecture can save wiring cost n Active Push Technology with Free Moxa Active OPC server n User-defined Modbus address to replace your existing Ethernet I/O without painful Confidential

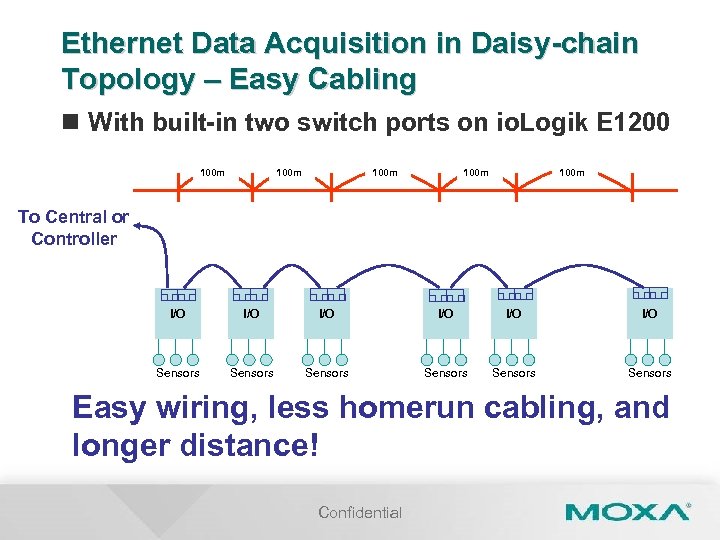

Ethernet Data Acquisition in Daisy-chain Topology – Easy Cabling n With built-in two switch ports on io. Logik E 1200 100 m 100 m To Central or Controller I/O I/O I/O Sensors Sensors Easy wiring, less homerun cabling, and longer distance! Confidential

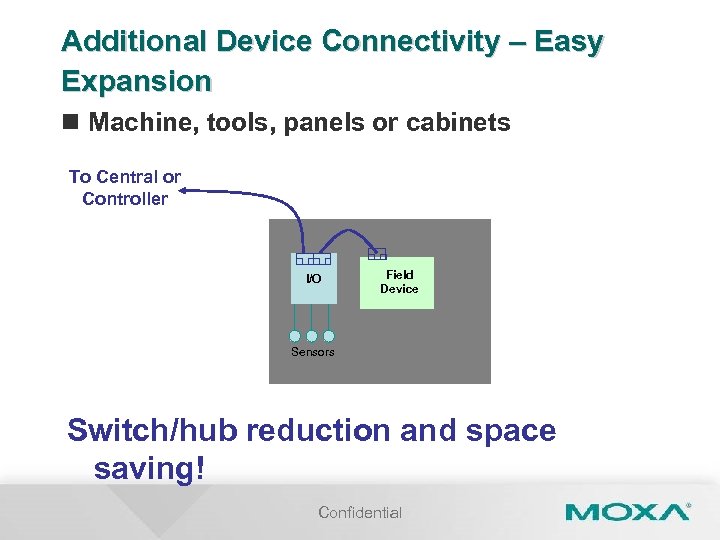

Additional Device Connectivity – Easy Expansion n Machine, tools, panels or cabinets To Central or Controller I/O Field Device Sensors Switch/hub reduction and space saving! Confidential

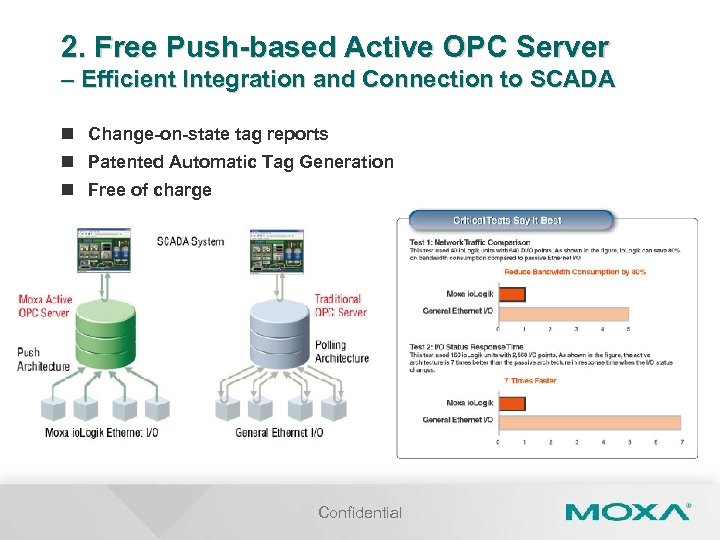

2. Free Push-based Active OPC Server – Efficient Integration and Connection to SCADA n Change-on-state tag reports n Patented Automatic Tag Generation n Free of charge Confidential

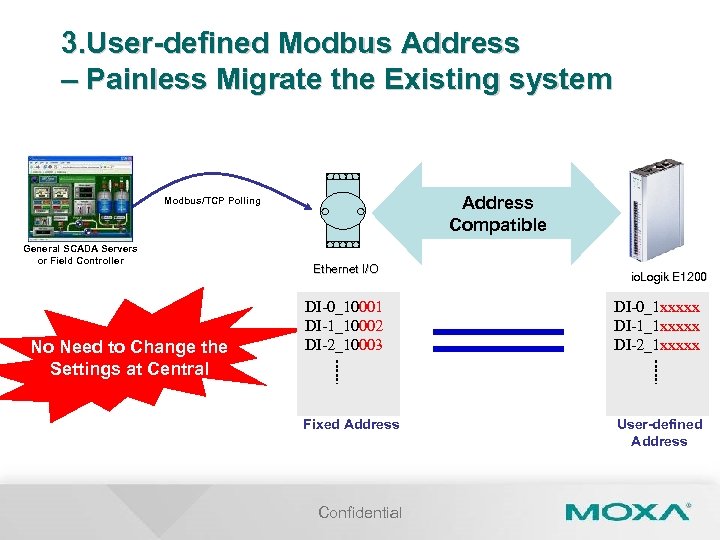

3. User-defined Modbus Address – Painless Migrate the Existing system Address Compatible Modbus/TCP Polling General SCADA Servers or Field Controller No Need to Change the Settings at Central Ethernet I/O io. Logik E 1200 DI-0_10001 DI-1_10002 DI-2_10003 DI-0_1 xxxxx DI-1_1 xxxxx DI-2_1 xxxxx Fixed Address User-defined Address Confidential

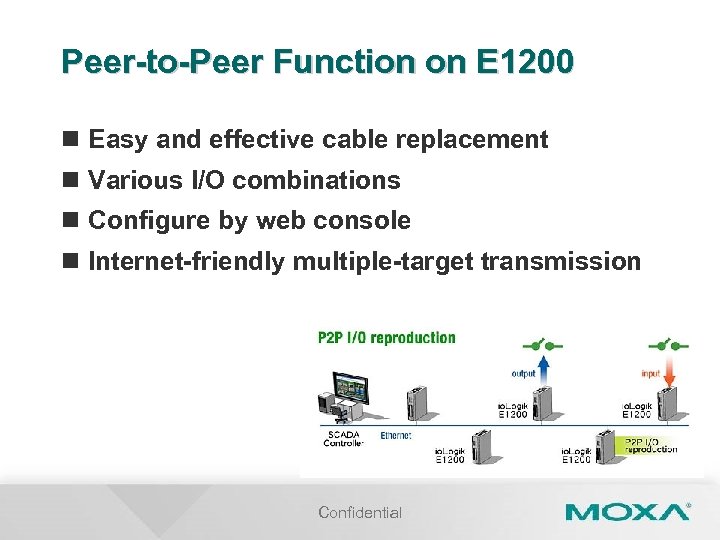

Peer-to-Peer Function on E 1200 n Easy and effective cable replacement n Various I/O combinations n Configure by web console n Internet-friendly multiple-target transmission Confidential

io. Logik E 1200 – Remote Ethernet I/O io. Logik E 1200 series io. Logik I/O Interface Ethernet E 1210 16 DI E 1211 16 DO E 1212 8 DI, 8 DIO E 1214 6 DI, 6 Relay E 1240 8 AI E 1241 4 AO E 1242 4 AI, 4 DIO E 1260 6 RTD E 1262 8 TC No Remote Control io. Logik E 1200 series Remark Built-in 2 -port Ethernet Switch Confidential

E 2000 Series – No 1. Easy-to-use Micro RTU Controller

io. Logik E 2000 Micro RTU Controller n PC-Free Alarm and Control Intelligent • Click&Go logic provides local intelligent n Use SNMP Protocol to Manage All Devices • Support SNMP V 1, V 2 c, and V 3 n Push Technology for Event and Alarms • TCP/UDP/SNMP Trap/e-mail alarm message n Co-work with IP Surveillance System • Support CGI-command for IP camera and surveillance SCADA software Confidential

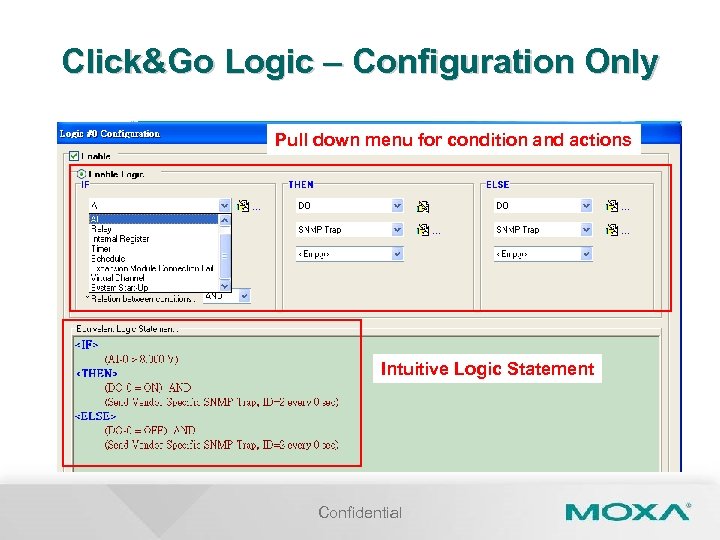

Click&Go Logic – Configuration Only Pull down menu for condition and actions Intuitive Logic Statement Confidential

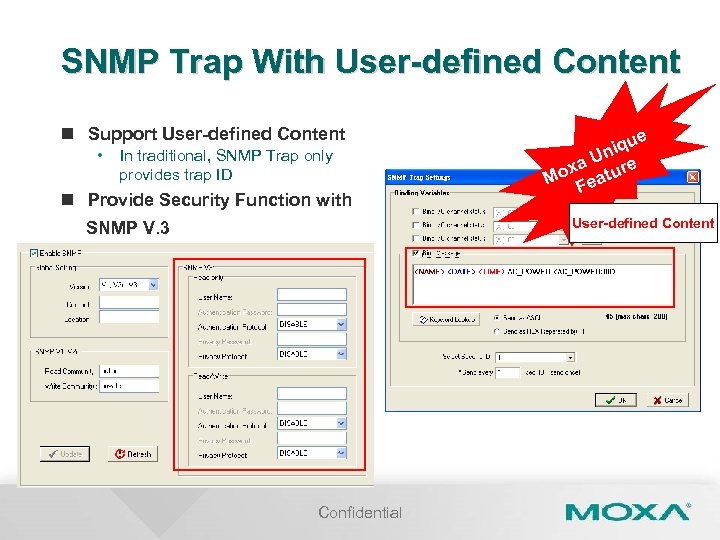

SNMP Trap With User-defined Content n Support User-defined Content • In traditional, SNMP Trap only provides trap ID n Provide Security Function with e iqu n a U ure x Mo eat F User-defined Content SNMP V. 3 Confidential

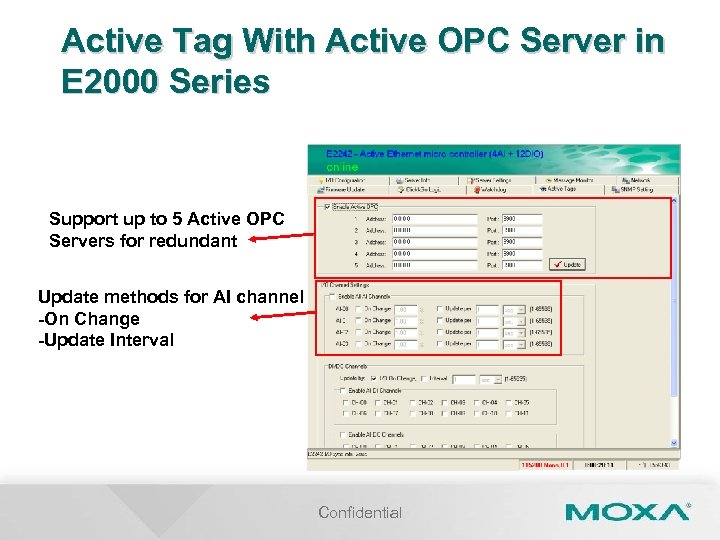

Active Tag With Active OPC Server in E 2000 Series Support up to 5 Active OPC Servers for redundant Update methods for AI channel -On Change -Update Interval Confidential

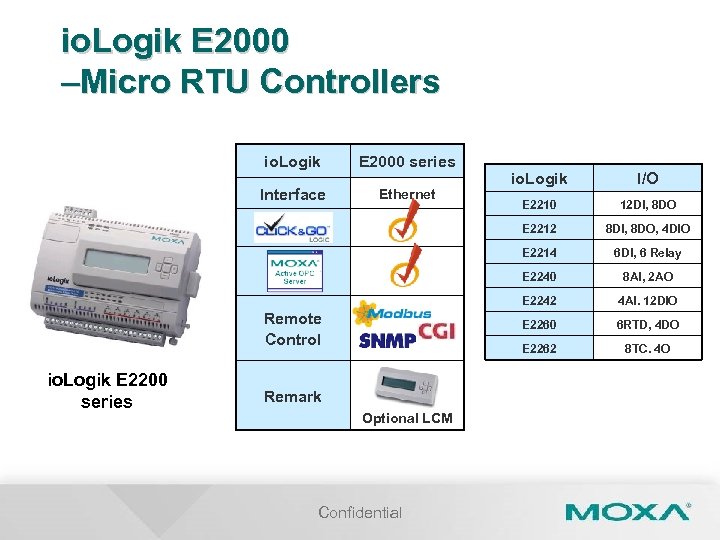

io. Logik E 2000 –Micro RTU Controllers io. Logik E 2000 series Interface Ethernet 6 DI, 6 Relay 8 AI, 2 AO 4 AI. 12 DIO E 2260 6 RTD, 4 DO E 2262 Confidential 8 DI, 8 DO, 4 DIO E 2242 Optional LCM 12 DI, 8 DO E 2240 Remark E 2210 E 2214 io. Logik E 2200 series I/O E 2212 Remote Control io. Logik 8 TC. 4 O

io. Logik W 5000 -Configurable Cellular RTU

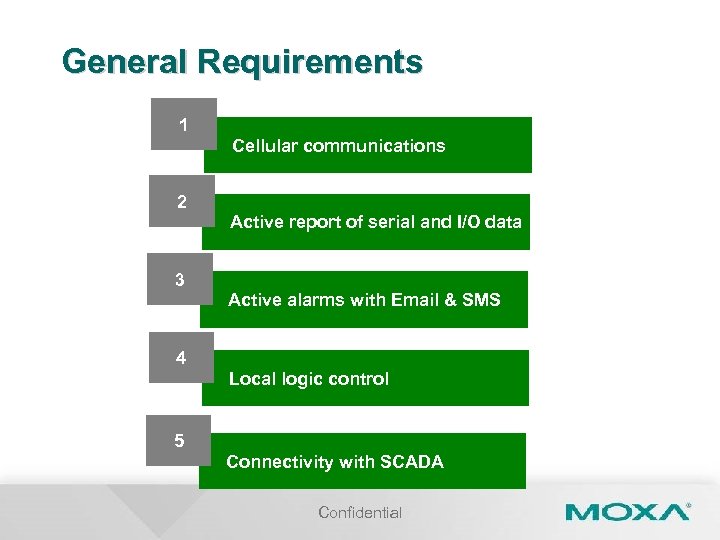

General Requirements 1 Cellular communications 2 Active report of serial and I/O data 3 Active alarms with Email & SMS 4 Local logic control 5 Connectivity with SCADA Confidential

Most Often Seen Solution PLC + Cellular Modem Confidential

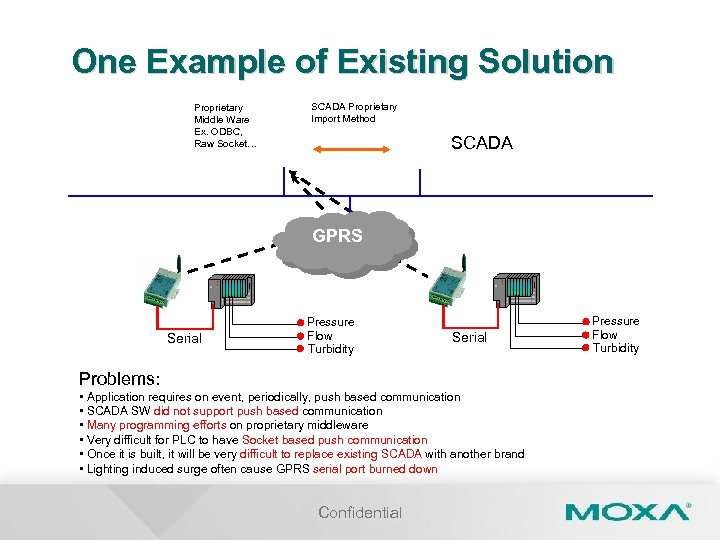

One Example of Existing Solution Proprietary Middle Ware Ex. ODBC, Raw Socket… SCADA Proprietary Import Method SCADA GPRS Serial Pressure Flow Turbidity Serial Problems: • Application requires on event, periodically, push based communication • SCADA SW did not support push based communication • Many programming efforts on proprietary middleware • Very difficult for PLC to have Socket based push communication • Once it is built, it will be very difficult to replace existing SCADA with another brand • Lighting induced surge often cause GPRS serial port burned down Confidential Pressure Flow Turbidity

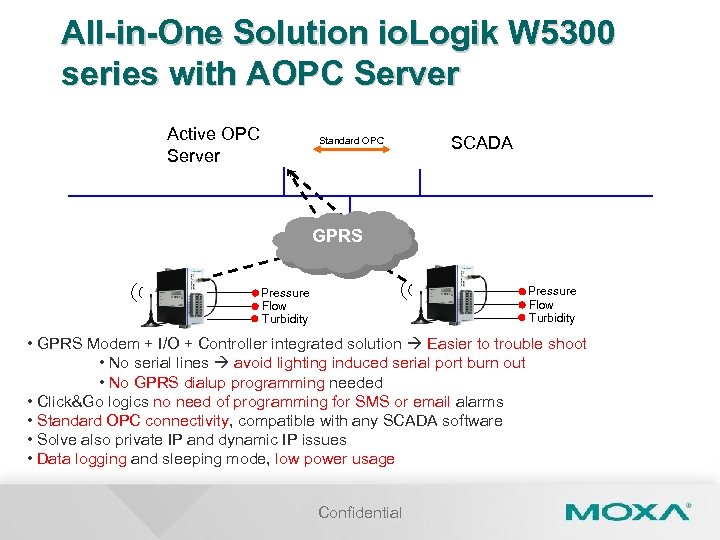

All-in-One Solution io. Logik W 5300 series with AOPC Server Active OPC Server Standard OPC SCADA GPRS Pressure Flow Turbidity • GPRS Modem + I/O + Controller integrated solution Easier to trouble shoot • No serial lines avoid lighting induced serial port burn out • No GPRS dialup programming needed • Click&Go logics no need of programming for SMS or email alarms • Standard OPC connectivity, compatible with any SCADA software • Solve also private IP and dynamic IP issues • Data logging and sleeping mode, low power usage Confidential

Moxa’s Cellular RTU Solution for Remote DAQ Applications Confidential

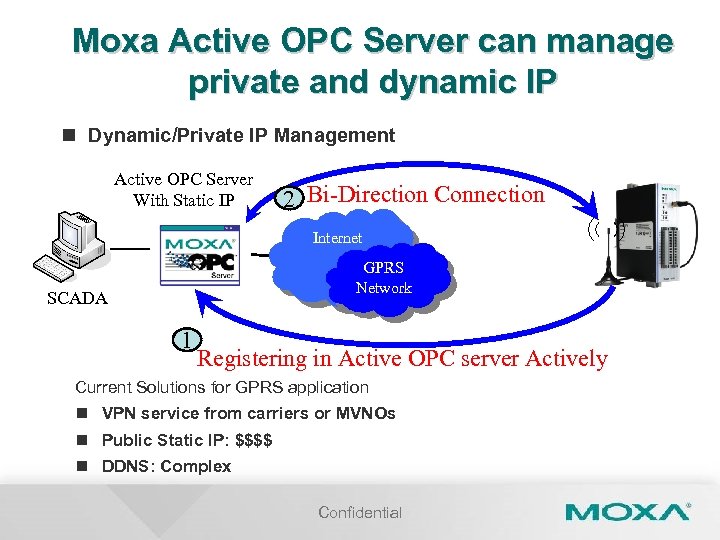

Moxa Active OPC Server can manage private and dynamic IP n Dynamic/Private IP Management Active OPC Server With Static IP 2 Bi-Direction Connection Internet GPRS Network SCADA 1 Registering in Active OPC server Actively Current Solutions for GPRS application n VPN service from carriers or MVNOs n Public Static IP: $$$$ n DDNS: Complex Confidential

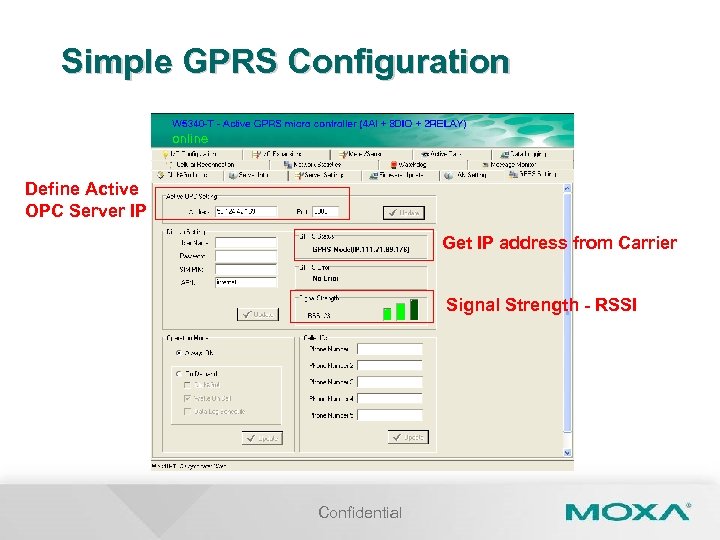

Simple GPRS Configuration Define Active OPC Server IP Get IP address from Carrier Signal Strength - RSSI Confidential

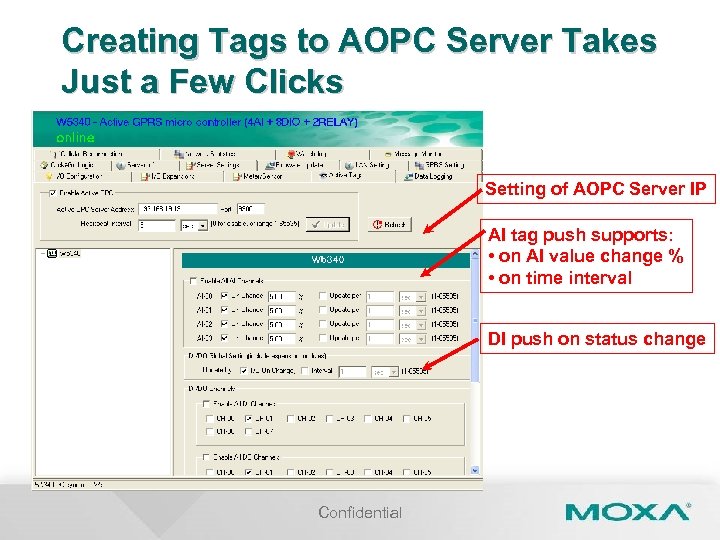

Creating Tags to AOPC Server Takes Just a Few Clicks Setting of AOPC Server IP AI tag push supports: • on AI value change % • on time interval DI push on status change Confidential

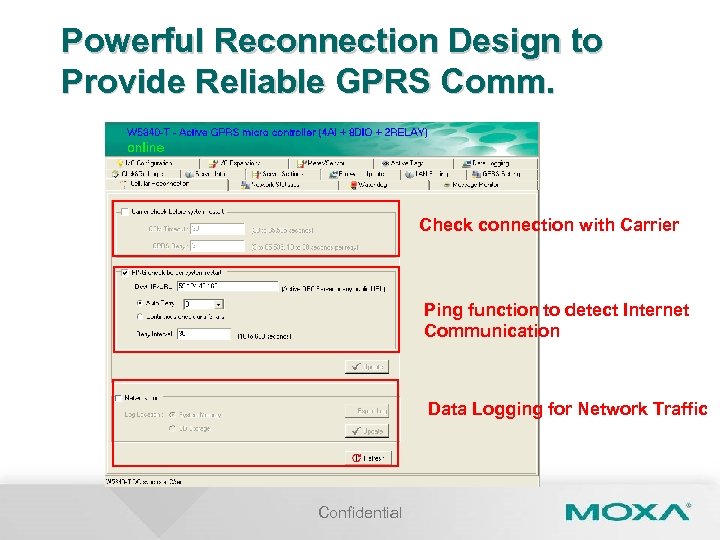

Powerful Reconnection Design to Provide Reliable GPRS Comm. Check connection with Carrier Ping function to detect Internet Communication Data Logging for Network Traffic Confidential

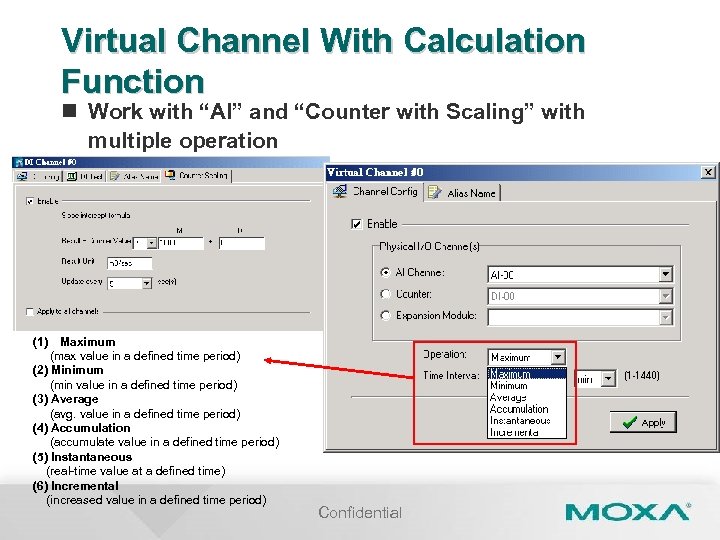

Virtual Channel With Calculation Function n Work with “AI” and “Counter with Scaling” with multiple operation (1) Maximum (max value in a defined time period) (2) Minimum (min value in a defined time period) (3) Average (avg. value in a defined time period) (4) Accumulation (accumulate value in a defined time period) (5) Instantaneous (real-time value at a defined time) (6) Incremental (increased value in a defined time period) Confidential

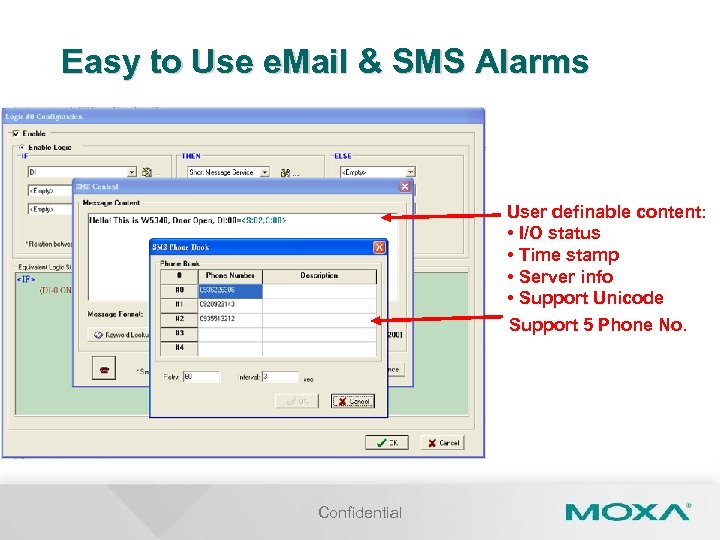

Easy to Use e. Mail & SMS Alarms User definable content: • I/O status • Time stamp • Server info • Support Unicode Support 5 Phone No. Confidential

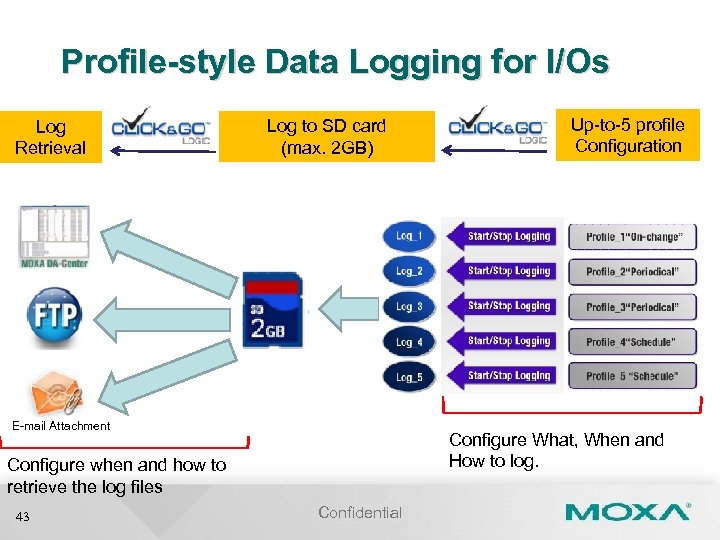

Profile-style Data Logging for I/Os Log Retrieval Log to SD card (max. 2 GB) E-mail Attachment Configure What, When and How to log. Configure when and how to retrieve the log files 43 Up-to-5 profile Configuration Confidential

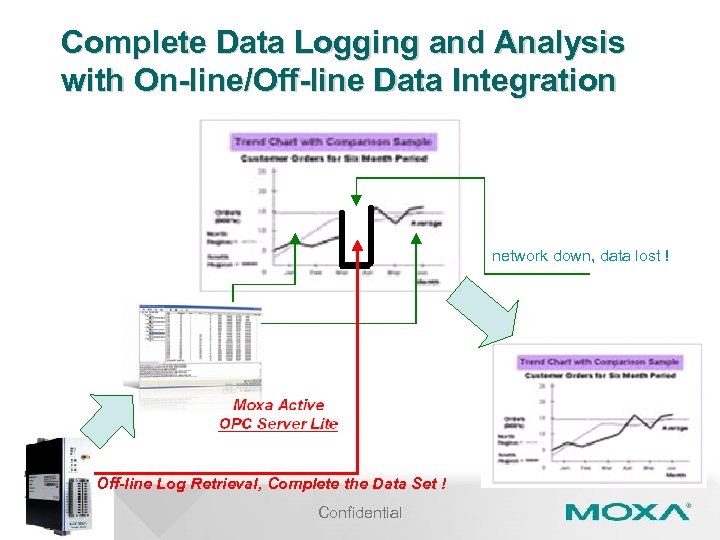

Complete Data Logging and Analysis with On-line/Off-line Data Integration network down, data lost ! Off-line Log Retrieval, Complete the Data Set ! Confidential

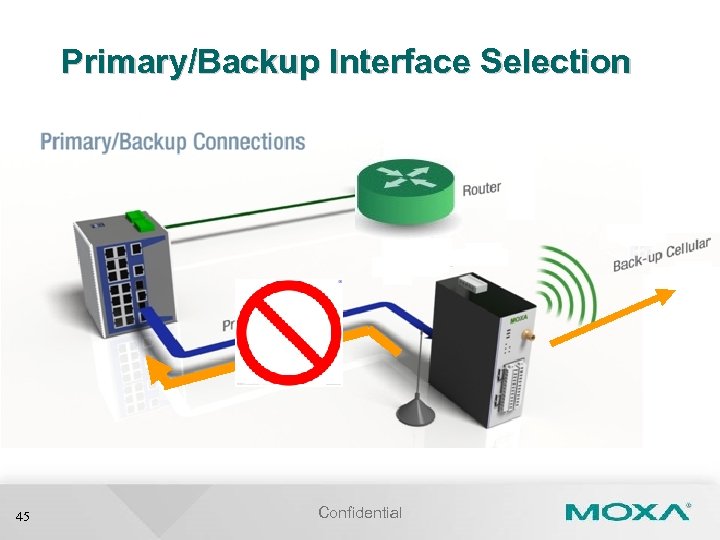

Primary/Backup Interface Selection 45 Confidential

New Cellular Operation Mode n Ethernet WAN (Cellular Backup) Redundant Network (Ethernet WAN) Failure detection, Switch to the backup (Cellular) or roll back to the primary Ethernet. 46 Confidential

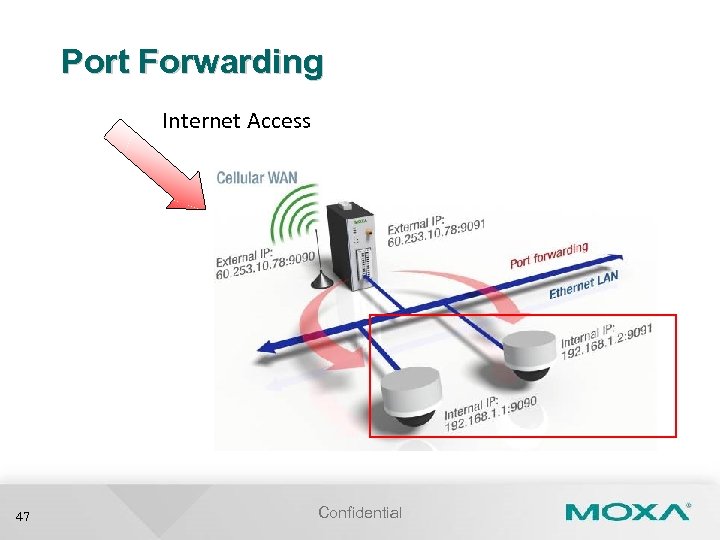

Port Forwarding Internet Access 47 Confidential

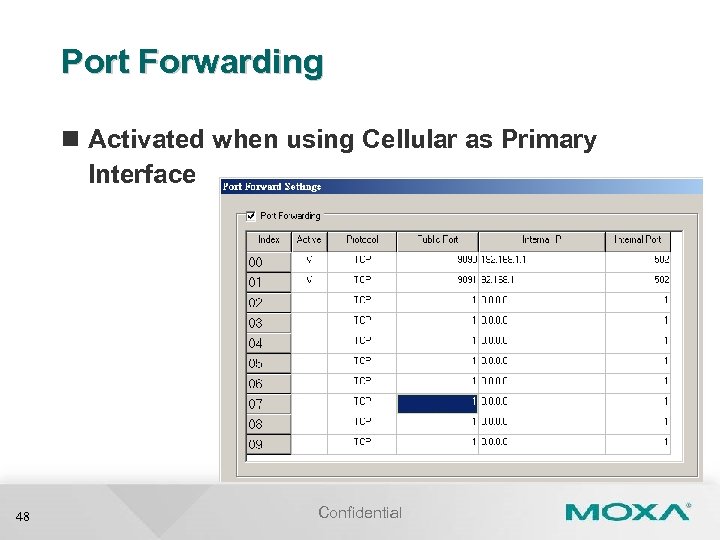

Port Forwarding n Activated when using Cellular as Primary Interface 48 Confidential

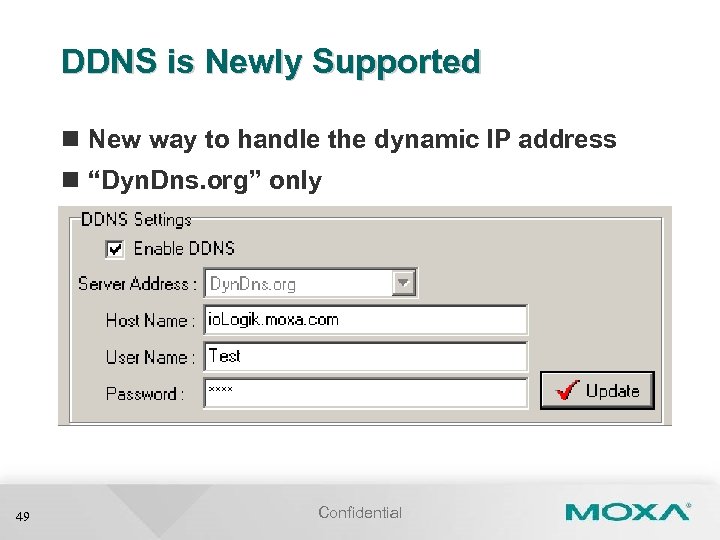

DDNS is Newly Supported n New way to handle the dynamic IP address n “Dyn. Dns. org” only 49 Confidential

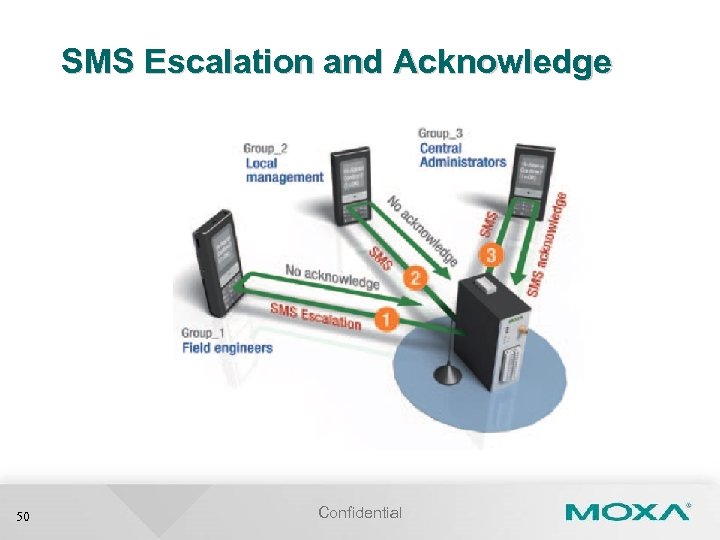

SMS Escalation and Acknowledge 50 Confidential

Settings of SMS Alarm Escalation Recipient sequence No reply timeout SMS content Confidential

SMS Acknowledgement n Reply code and message are sent with the SMS message. 52 Confidential

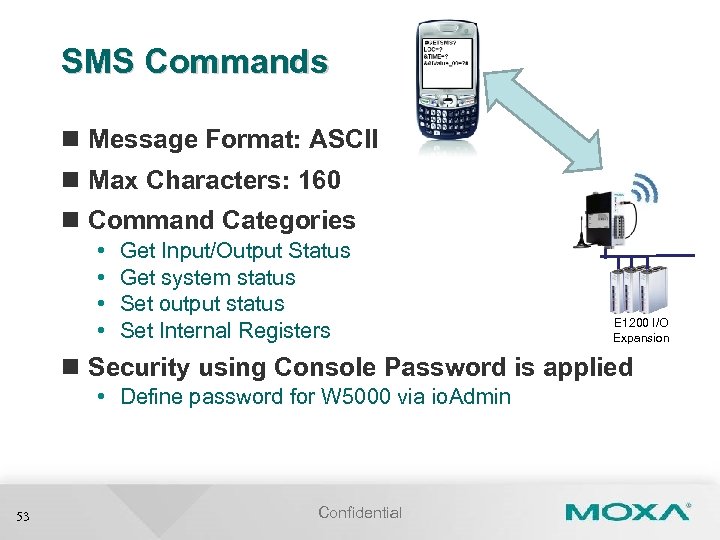

SMS Commands n Message Format: ASCII n Max Characters: 160 n Command Categories • • Get Input/Output Status Get system status Set output status Set Internal Registers E 1200 I/O Expansion n Security using Console Password is applied • Define password for W 5000 via io. Admin 53 Confidential

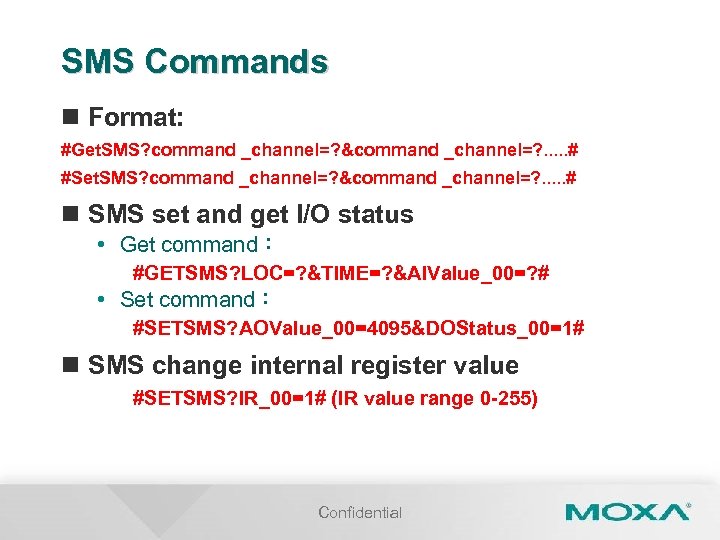

SMS Commands n Format: #Get. SMS? command _channel=? &command _channel=? . . . # #Set. SMS? command _channel=? &command _channel=? . . . # n SMS set and get I/O status • Get command： #GETSMS? LOC=? &TIME=? &AIValue_00=? # • Set command： #SETSMS? AOValue_00=4095&DOStatus_00=1# n SMS change internal register value #SETSMS? IR_00=1# (IR value range 0 -255) Confidential

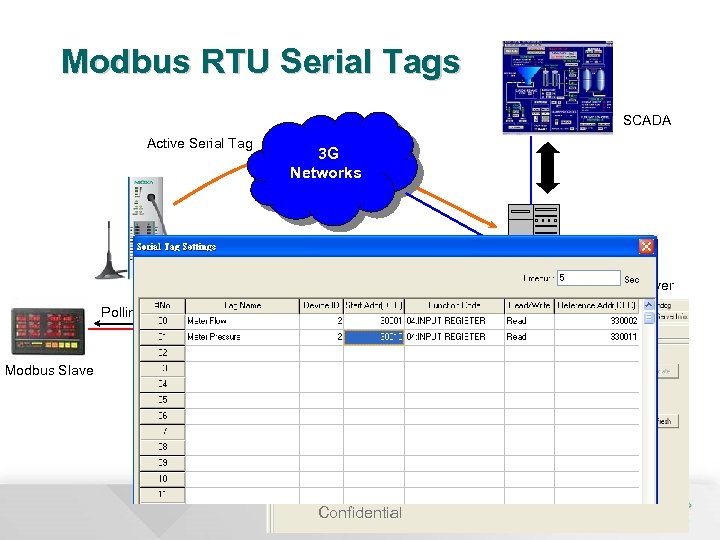

Modbus RTU Serial Tags SCADA Active Serial Tag 3 G Networks io. Logik W 5340 -HSDPA Modbus Master Polling Modbus Serial Modbus Slave Confidential AOPC Server

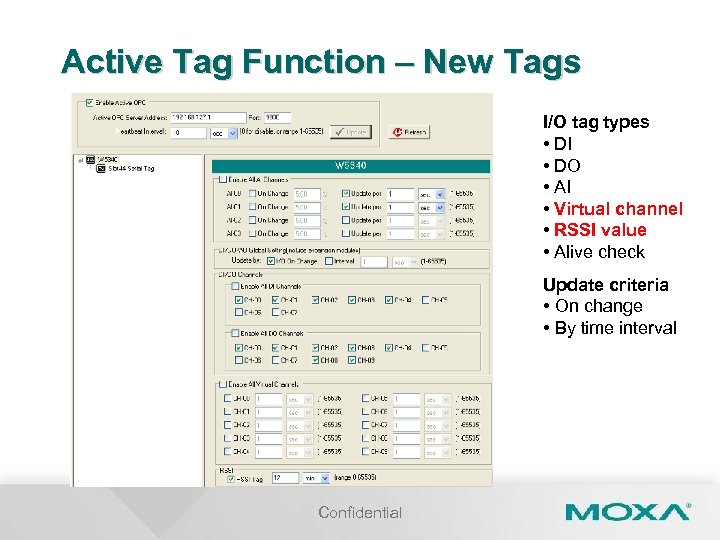

Active Tag Function – New Tags I/O tag types • DI • DO • AI • Virtual channel • RSSI value • Alive check Update criteria • On change • By time interval Confidential

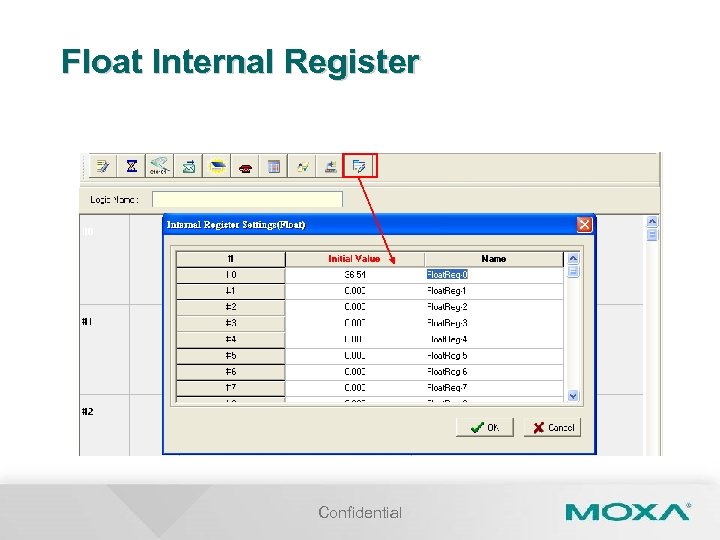

Float Internal Register Confidential

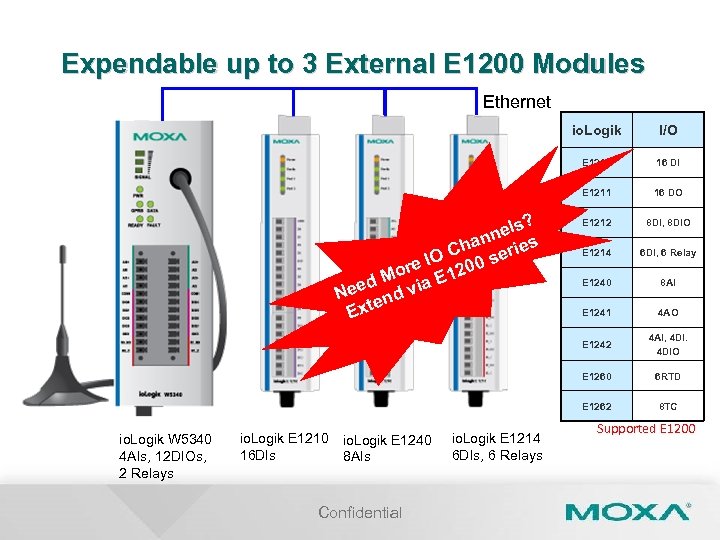

Expendable up to 3 External E 1200 Modules Ethernet io. Logik E 1210 Confidential io. Logik E 1214 6 DIs, 6 Relays 8 DI, 8 DIO E 1214 6 DI, 6 Relay E 1240 8 AI E 1241 4 AO 4 AI, 4 DIO 6 RTD E 1262 io. Logik E 1240 8 AIs E 1212 E 1260 io. Logik E 1210 16 DIs 16 DO E 1242 io. Logik W 5340 4 AIs, 12 DIOs, 2 Relays 16 DI E 1211 s? nel s n Cha serie O re I 1200 o d M via E Nee end Ext I/O 8 TC Supported E 1200

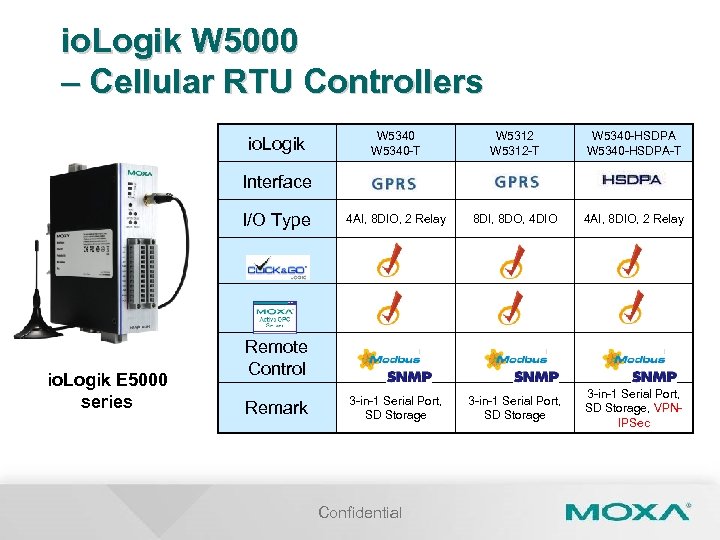

io. Logik W 5000 – Cellular RTU Controllers io. Logik W 5340 -T W 5312 -T W 5340 -HSDPA-T 4 AI, 8 DIO, 2 Relay 8 DI, 8 DO, 4 DIO 4 AI, 8 DIO, 2 Relay 3 -in-1 Serial Port, SD Storage, VPNIPSec Interface I/O Type io. Logik E 5000 series Remote Control Remark Confidential

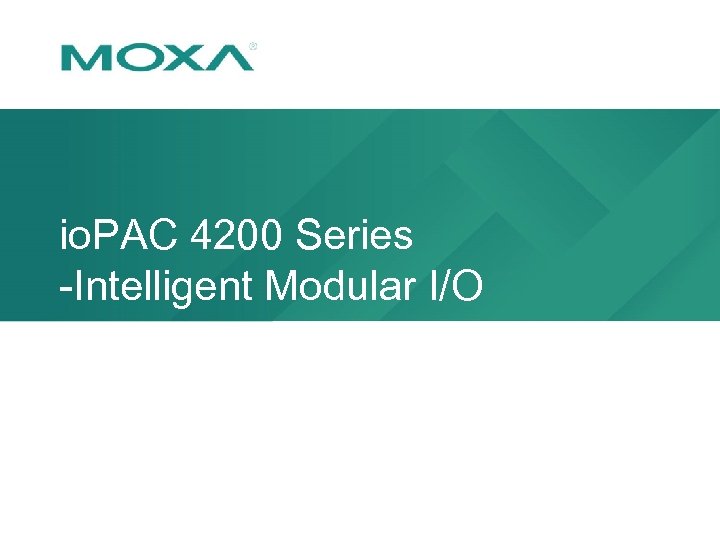

io. PAC 4200 Series -Intelligent Modular I/O

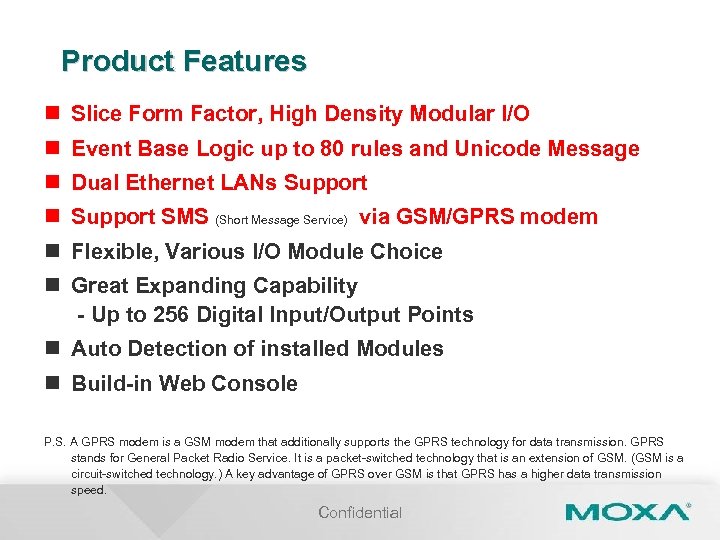

Product Features n Slice Form Factor, High Density Modular I/O n Event Base Logic up to 80 rules and Unicode Message n Dual Ethernet LANs Support n Support SMS (Short Message Service) via GSM/GPRS modem n Flexible, Various I/O Module Choice n Great Expanding Capability - Up to 256 Digital Input/Output Points n Auto Detection of installed Modules n Build-in Web Console P. S. A GPRS modem is a GSM modem that additionally supports the GPRS technology for data transmission. GPRS stands for General Packet Radio Service. It is a packet-switched technology that is an extension of GSM. (GSM is a circuit-switched technology. ) A key advantage of GPRS over GSM is that GPRS has a higher data transmission speed. Confidential

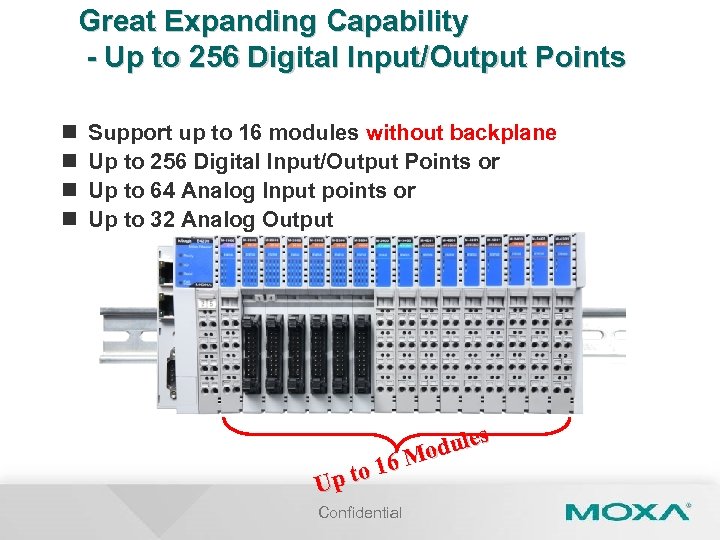

Great Expanding Capability - Up to 256 Digital Input/Output Points n n Support up to 16 modules without backplane Up to 256 Digital Input/Output Points or Up to 64 Analog Input points or Up to 32 Analog Output to 16 Up Confidential s dule Mo

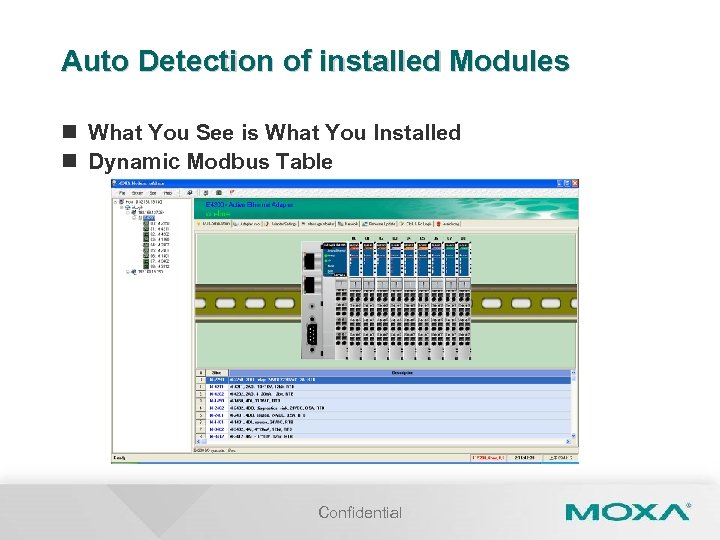

Auto Detection of installed Modules n What You See is What You Installed n Dynamic Modbus Table Confidential

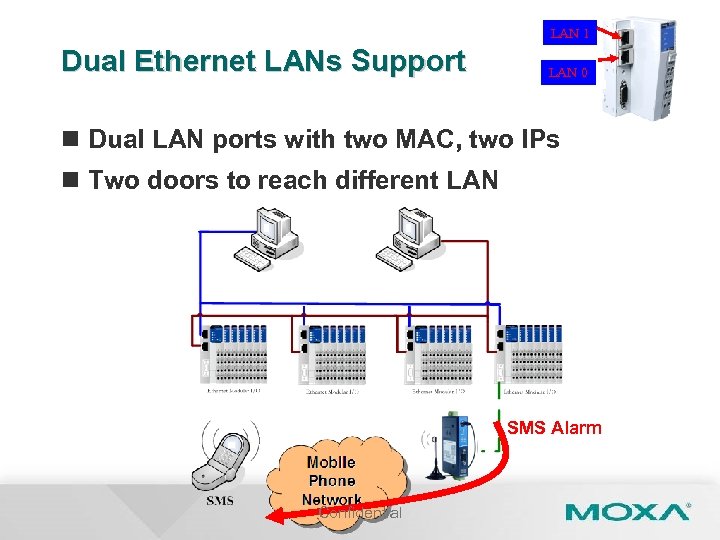

LAN 1 Dual Ethernet LANs Support LAN 0 n Dual LAN ports with two MAC, two IPs n Two doors to reach different LAN SMS Alarm Confidential

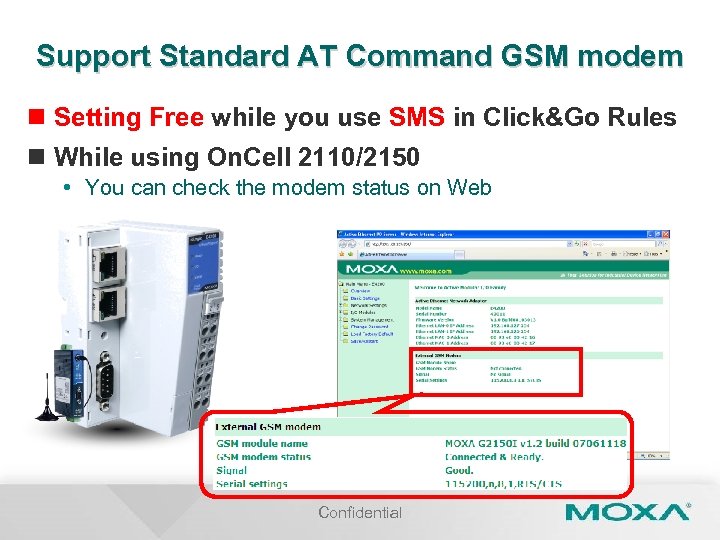

Support Standard AT Command GSM modem n Setting Free while you use SMS in Click&Go Rules n While using On. Cell 2110/2150 • You can check the modem status on Web Confidential

Build-in Web Console Confidential

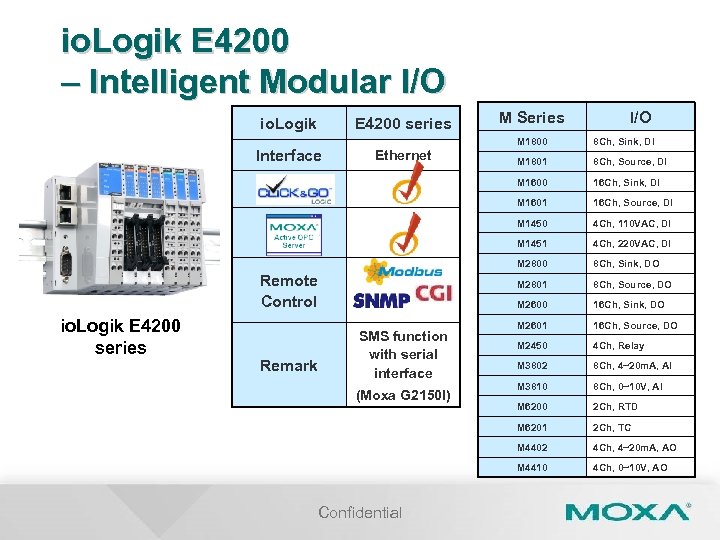

io. Logik E 4200 – Intelligent Modular I/O io. Logik E 4200 series M Series I/O 8 Ch, Sink, DO 8 Ch, Source, DO M 2600 16 Ch, Sink, DO M 2601 16 Ch, Source, DO M 2450 4 Ch, Relay M 3802 8 Ch, 4~20 m. A, AI M 3810 8 Ch, 0~10 V, AI M 6200 2 Ch, RTD 2 Ch, TC M 4402 4 Ch, 4~20 m. A, AO M 4410 Confidential 4 Ch, 220 VAC, DI M 2801 (Moxa G 2150 I) 4 Ch, 110 VAC, DI M 6201 Remark 16 Ch, Source, DI M 2800 SMS function with serial interface 16 Ch, Sink, DI M 1451 io. Logik E 4200 series 8 Ch, Source, DI M 1450 Remote Control M 1801 M 1601 Ethernet 8 Ch, Sink, DI M 1600 Interface M 1800 4 Ch, 0~10 V, AO

io. PAC 8000 Series -Rugged I/O Solution

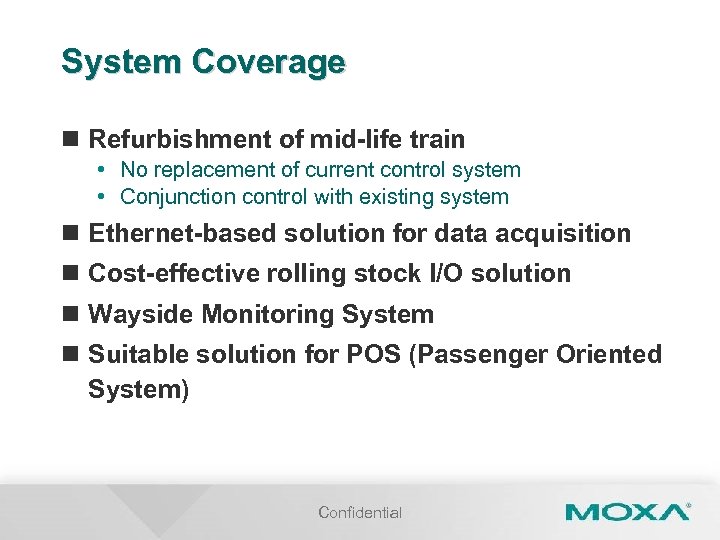

System Coverage n Refurbishment of mid-life train • No replacement of current control system • Conjunction control with existing system n Ethernet-based solution for data acquisition n Cost-effective rolling stock I/O solution n Wayside Monitoring System n Suitable solution for POS (Passenger Oriented System) Confidential

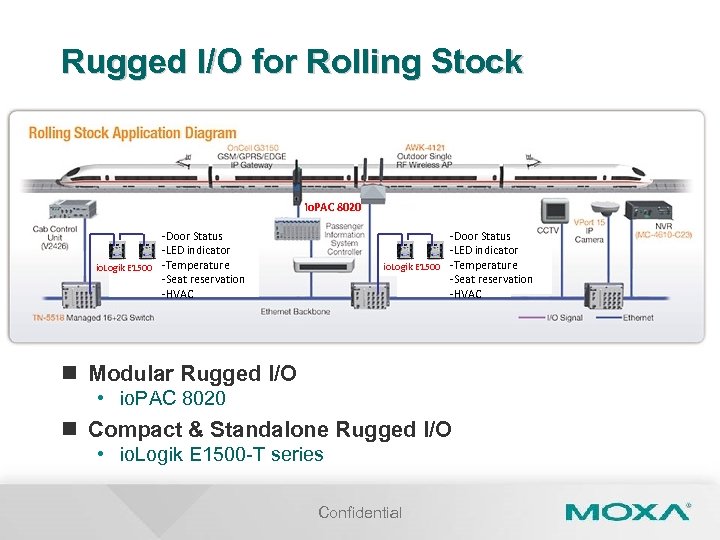

Rugged I/O for Rolling Stock io. PAC 8020 -Door Status -LED indicator io. Logik E 1500 -Temperature -Seat reservation -HVAC n Modular Rugged I/O • io. PAC 8020 n Compact & Standalone Rugged I/O • io. Logik E 1500 -T series Confidential

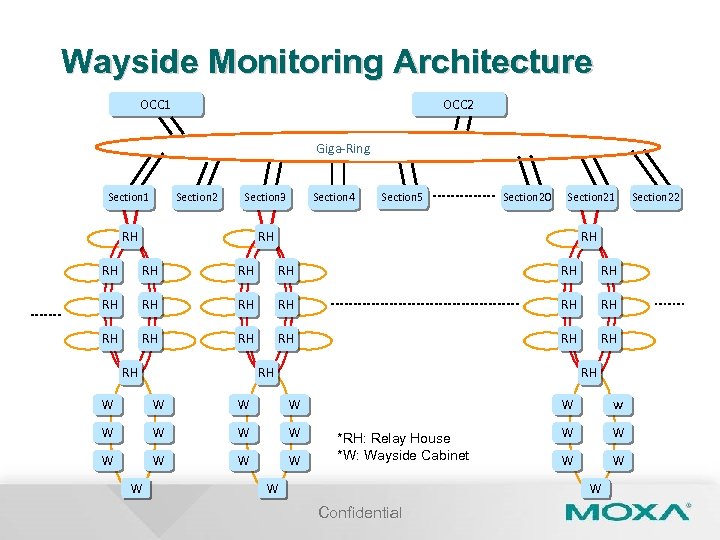

Wayside Monitoring Architecture OCC 1 OCC 2 Giga-Ring Section 1 Section 2 Section 3 RH Section 4 Section 5 Section 20 Section 21 RH RH RH RH RH RH W W W W *RH: Relay House *W: Wayside Cabinet W w W W W Confidential Section 22

Architecture of Wayside Cabinet Relay House io. Logik E 2210 for Alarm System io. PAC 8020 With C or IEC 61131 -3 Axle countercrossing Level LEU ATP Charger Switch balise signal Track machine circuit Camera Confidential

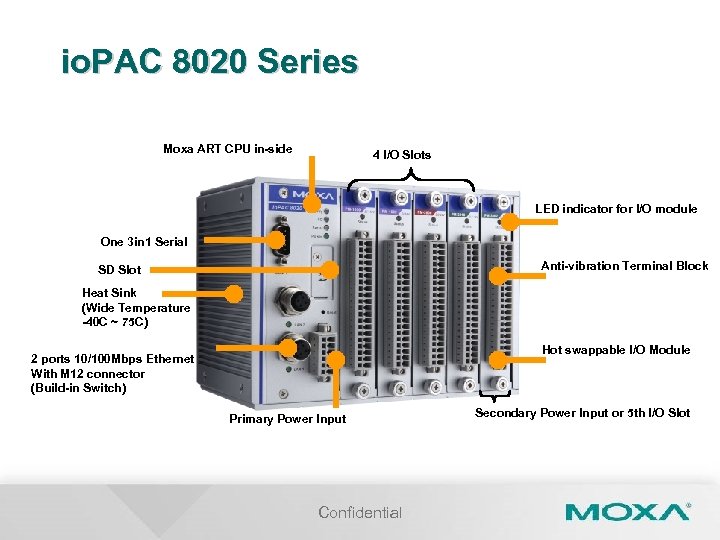

io. PAC 8020 Series Moxa ART CPU in-side 4 I/O Slots LED indicator for I/O module One 3 in 1 Serial Anti-vibration Terminal Block SD Slot Heat Sink (Wide Temperature -40 C ~ 75 C) Hot swappable I/O Module 2 ports 10/100 Mbps Ethernet With M 12 connector (Build-in Switch) Primary Power Input Confidential Secondary Power Input or 5 th I/O Slot

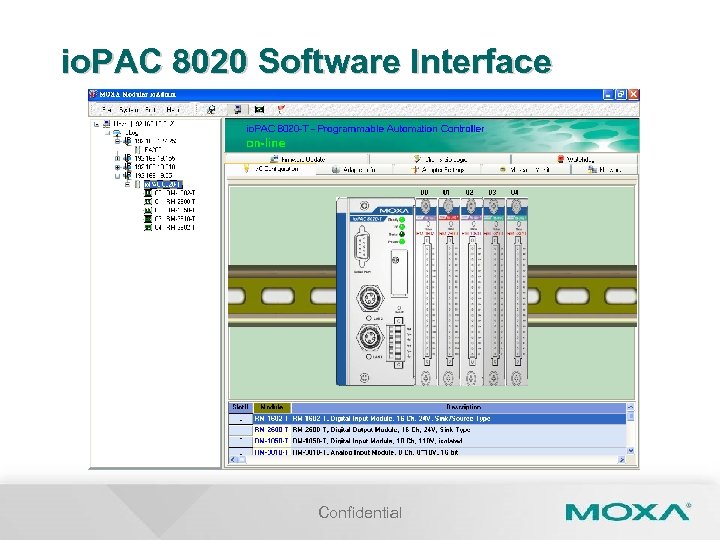

io. PAC 8020 Software Interface Confidential

Moxa I/O Product Offering Confidential

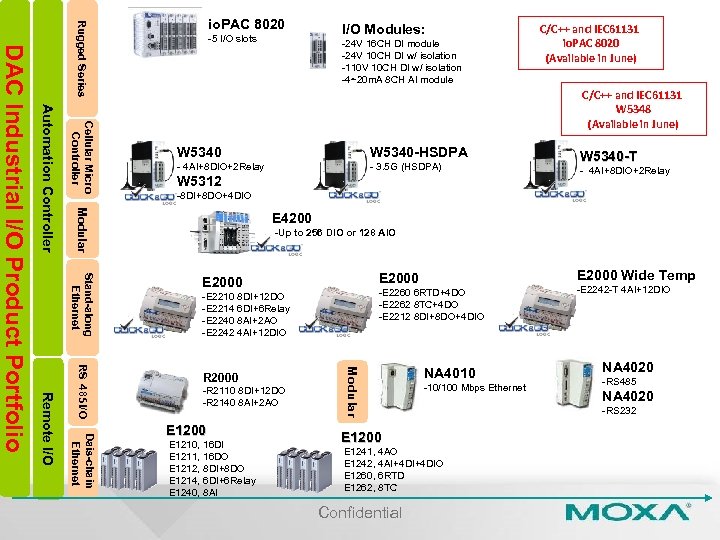

Cellular Micro Controller -5 I/O slots I/O Modules: -24 V 16 CH DI module -24 V 10 CH DI w/ isolation -110 V 10 CH DI w/ isolation -4~20 m. A 8 CH AI module C/C++ and IEC 61131 io. PAC 8020 (Available in June) C/C++ and IEC 61131 W 5348 (Available in June) W 5340 -HSDPA - 4 AI+8 DIO+2 Relay - 3. 5 G (HSDPA) W 5312 W 5340 -T - 4 AI+8 DIO+2 Relay -8 DI+8 DO+4 DIO Modular Automation Controller Stand-along Ethernet E 4200 -Up to 256 DIO or 128 AIO -E 2260 6 RTD+4 DO -E 2262 8 TC+4 DO -E 2212 8 DI+8 DO+4 DIO -E 2210 8 DI+12 DO -E 2214 6 DI+6 Relay -E 2240 8 AI+2 AO -E 2242 4 AI+12 DIO R 2000 -R 2110 8 DI+12 DO -R 2140 8 AI+2 AO Dais-chain Ethernet E 1200 E 1210, 16 DI E 1211, 16 DO E 1212, 8 DI+8 DO E 1214, 6 DI+6 Relay E 1240, 8 AI E 2000 Wide Temp E 2000 Modular RS 485 I/O Remote I/O DAC Industrial I/O Product Portfolio Rugged Series io. PAC 8020 NA 4010 -10/100 Mbps Ethernet E 1200 E 1241, 4 AO E 1242, 4 AI+4 DIO E 1260, 6 RTD E 1262, 8 TC Confidential -E 2242 -T 4 AI+12 DIO NA 4020 -RS 485 NA 4020 -RS 232
