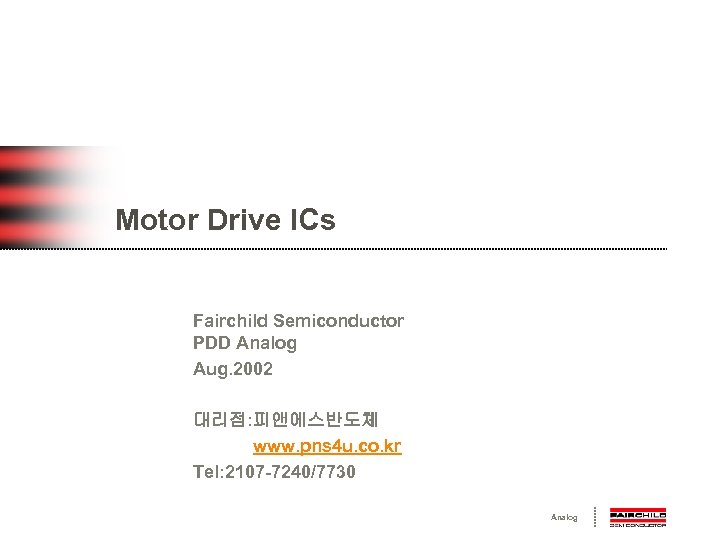

Motor Drive ICs Fairchild Semiconductor PDD Analog Aug. 2002 대리점: 피앤에스반도체 www. pns 4 u. co. kr Tel: 2107 -7240/7730 Analog
Key product lists by segments ( * : under development ) CD, DVD ROM/RW DVD Player FAN 8034 FAN 8035 FAN 8727 FAN 8728 FAN 8024 BD FAN 8042 FAN 8045 G 3 FAN 8047 G 3* FAN 8025 G 3* KA 2822 D FAN 8422 G* FDD FAN 8403 D 3 FAN 8400 BD 3 Printer (LBP/Dot/ Thermal) VCR FAN 8732* FAN 8423 D 3 FAN 8024 BD FAN 8431 FAN 8741* FAN 8200 D FAN 8751* FAN 8700 FAN 8702* Camera/DSC KA 9258 BD KA 9259 ED FAN 8038 FAN 8404 D FAN 8048* FAN 8408 D FAN 8424* FAN 8409 MTC* FAN 8412* FAN Audio CD Player Portable CD Player Analog

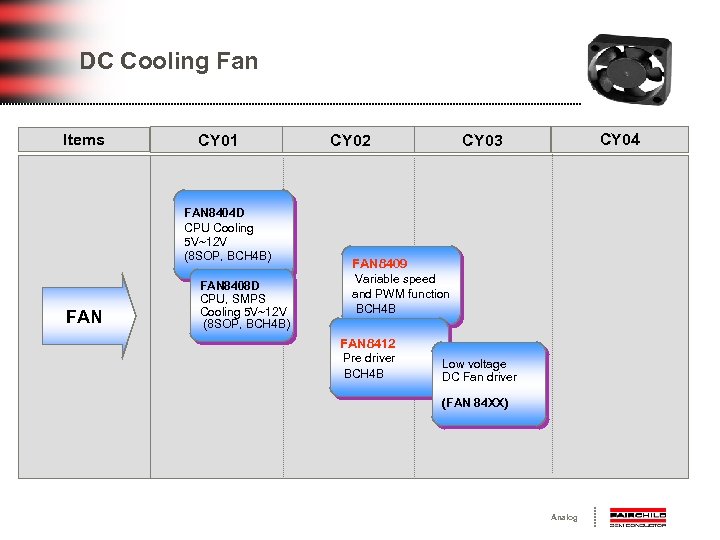

DC Cooling Fan Items CY 01 FAN 8404 D CPU Cooling 5 V~12 V (8 SOP, BCH 4 B) FAN 8408 D CPU, SMPS Cooling 5 V~12 V (8 SOP, BCH 4 B) CY 02 CY 04 CY 03 FAN 8409 Variable speed and PWM function BCH 4 B FAN 8412 Pre driver BCH 4 B Low voltage DC Fan driver (FAN 84 XX) Analog

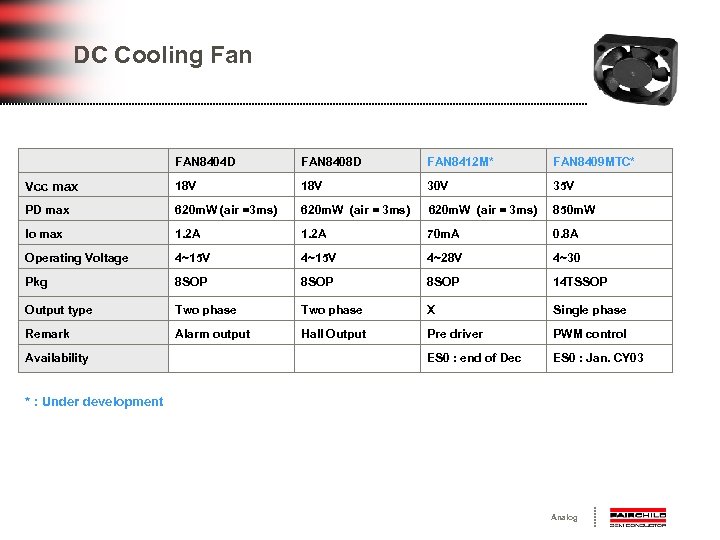

DC Cooling Fan FAN 8404 D FAN 8408 D FAN 8412 M* FAN 8409 MTC* Vcc max 18 V 30 V 35 V PD max 620 m. W (air =3 ms) 620 m. W (air = 3 ms) 850 m. W Io max 1. 2 A 70 m. A 0. 8 A Operating Voltage 4~15 V 4~28 V 4~30 Pkg 8 SOP 14 TSSOP Output type Two phase X Single phase Remark Alarm output Hall Output Pre driver PWM control ES 0 : end of Dec ES 0 : Jan. CY 03 Availability * : Under development Analog

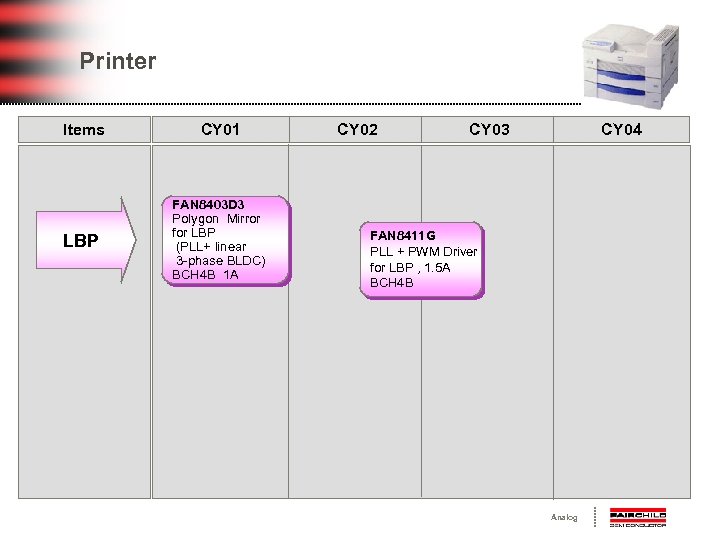

Printer Items CY 01 LBP FAN 8403 D 3 Polygon Mirror for LBP (PLL+ linear 3 -phase BLDC) BCH 4 B 1 A CY 02 CY 03 CY 04 FAN 8411 G PLL + PWM Driver for LBP , 1. 5 A BCH 4 B Analog

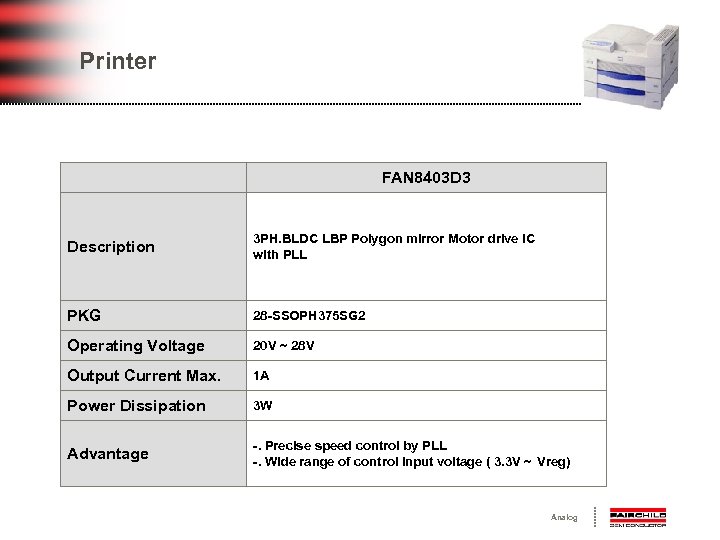

Printer FAN 8403 D 3 Description 3 PH. BLDC LBP Polygon mirror Motor drive IC with PLL PKG 28 -SSOPH 375 SG 2 Operating Voltage 20 V ~ 28 V Output Current Max. 1 A Power Dissipation 3 W Advantage -. Precise speed control by PLL -. Wide range of control input voltage ( 3. 3 V ~ Vreg) Analog
Printer Product Comparison FAN 8403 D 3 LB 1870/M Fairchild Sanyo Company Description 3 PH. BLDC LBP Polygon mirror Motor drive IC with PLL PKG 28 -SSOPH 375 SG 2 DIP 28 HS / MFP 36 SLF Operating Voltage 20 V ~ 28 V Output Current Max. 1 A 1 A Power Dissipation 3 W 3 W/0. 95 W Control input voltage range 3. 3 V ~ Vreg 3. 5 V ~ Vreg Analog
