Modelling of Combustion & Heat Transfer Effects in A Rankine Cycle P M V Subbarao Professor Mechanical Engineering Department I I T Delhi Modelling of Interactions between Source of Power & Steam Power ……

Fuel Model

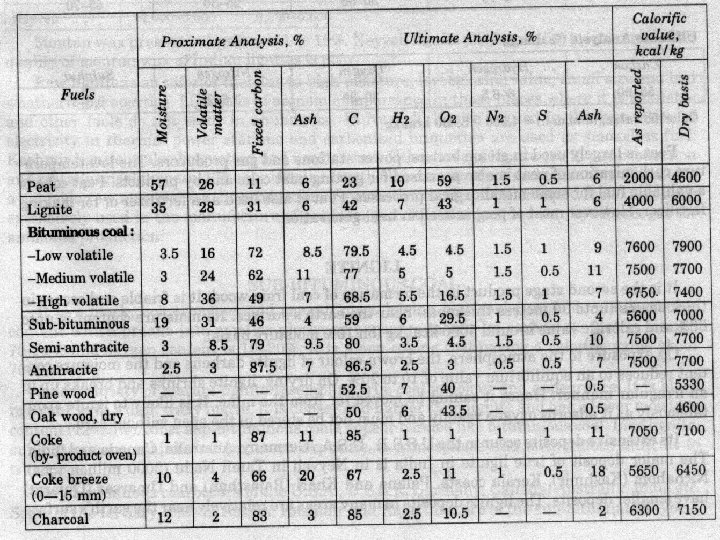

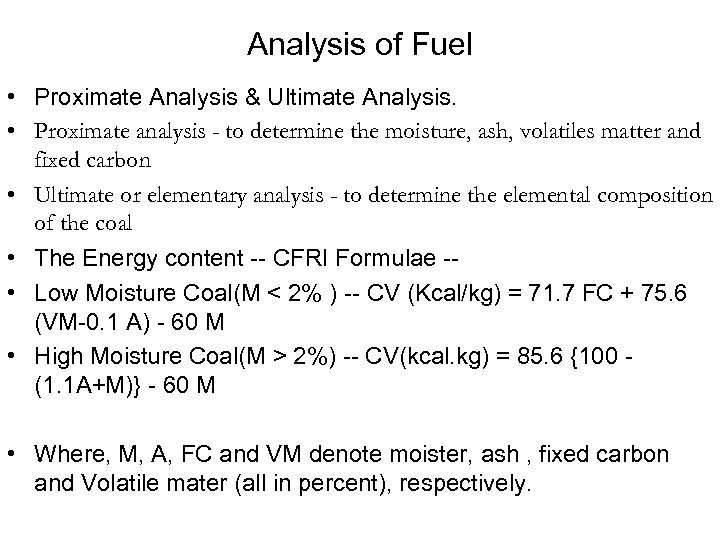

Analysis of Fuel • Proximate Analysis & Ultimate Analysis. • Proximate analysis - to determine the moisture, ash, volatiles matter and fixed carbon • Ultimate or elementary analysis - to determine the elemental composition of the coal • The Energy content -- CFRI Formulae - • Low Moisture Coal(M < 2% ) -- CV (Kcal/kg) = 71. 7 FC + 75. 6 (VM-0. 1 A) - 60 M • High Moisture Coal(M > 2%) -- CV(kcal. kg) = 85. 6 {100 (1. 1 A+M)} - 60 M • Where, M, A, FC and VM denote moister, ash , fixed carbon and Volatile mater (all in percent), respectively.

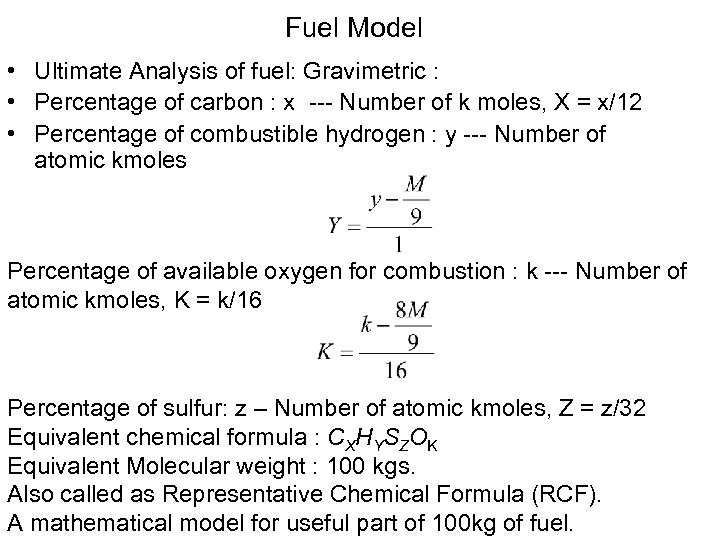

Fuel Model • Ultimate Analysis of fuel: Gravimetric : • Percentage of carbon : x --- Number of k moles, X = x/12 • Percentage of combustible hydrogen : y --- Number of atomic kmoles Percentage of available oxygen for combustion : k --- Number of atomic kmoles, K = k/16 Percentage of sulfur: z – Number of atomic kmoles, Z = z/32 Equivalent chemical formula : CXHYSZOK Equivalent Molecular weight : 100 kgs. Also called as Representative Chemical Formula (RCF). A mathematical model for useful part of 100 kg of fuel.

Model Testing for Determination of important species Water Flow Rate Air Flow Rate Flue gas Analysis Fuel Flow Rate

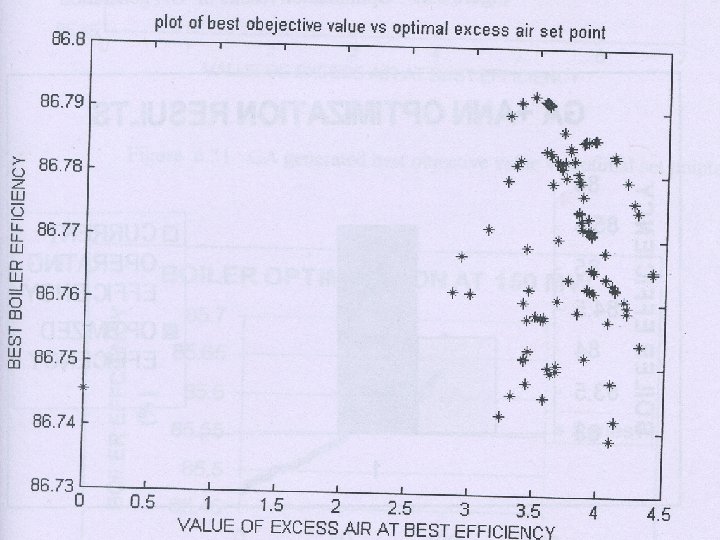

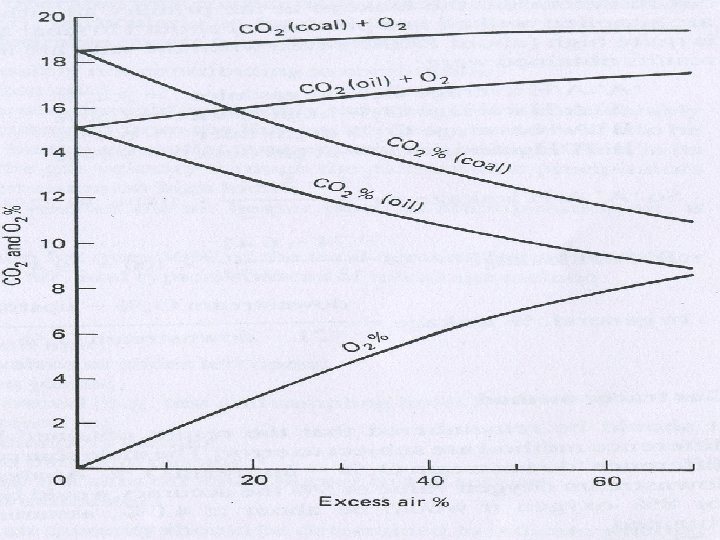

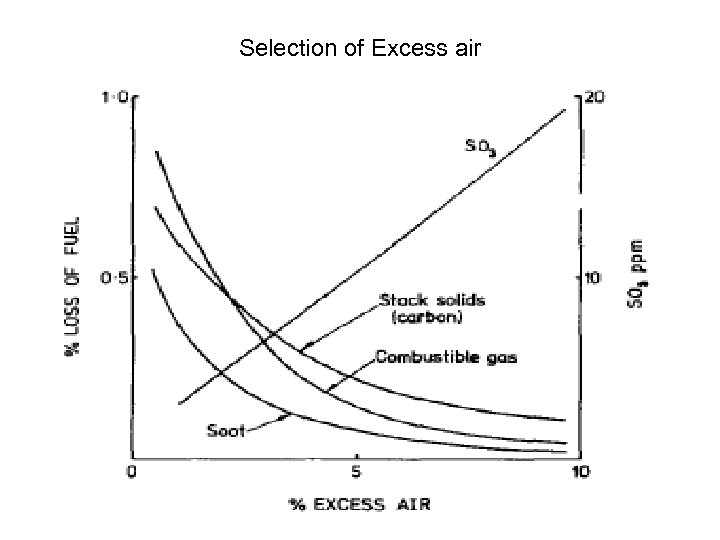

Selection of Excess air

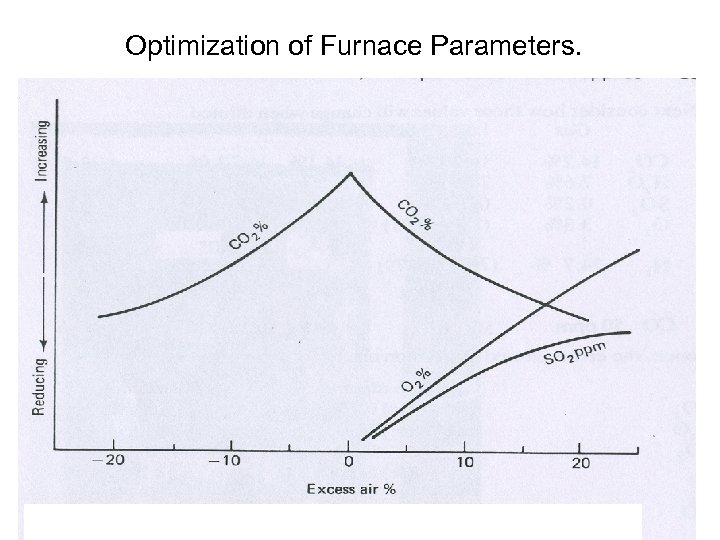

Optimization of Furnace Parameters.

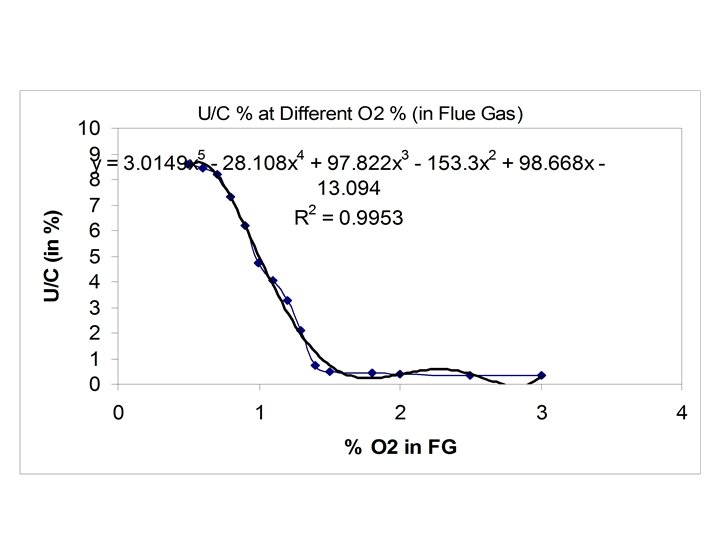

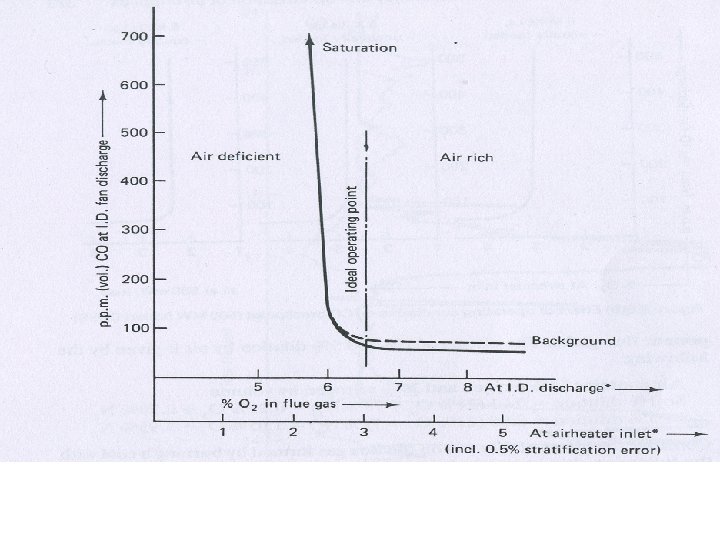

Average value of CO at different O 2 %

Results of Model Testing. • • • For a given fuel and required steam conditions. Optimum air flow rate. Optimum fuel flow rate. Optimum steam flow rate. Optimum combustion configuration!!! • • • Realization of MATtr Theory Mixing: Fuel preparation systems. Air: Draught systems. T : Preheating of fuel. t : Dimensions of combustion chamber. r: Turbulence generation systems.

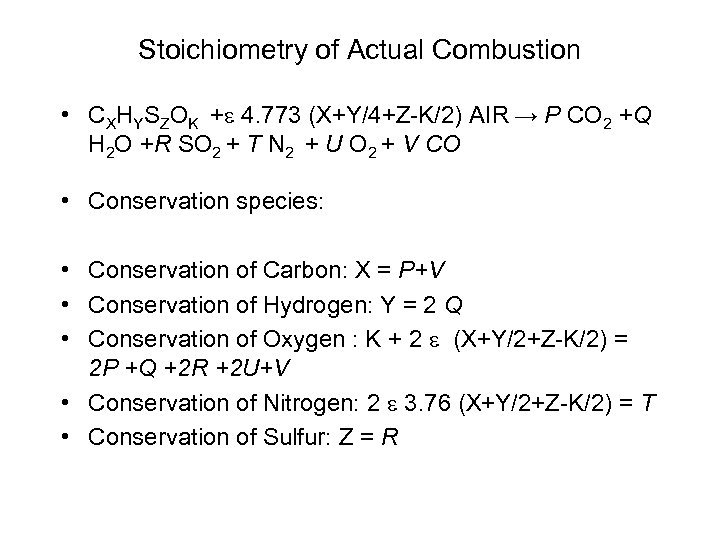

Stoichiometry of Actual Combustion • CXHYSZOK +e 4. 773 (X+Y/4+Z-K/2) AIR → P CO 2 +Q H 2 O +R SO 2 + T N 2 + U O 2 + V CO • Conservation species: • Conservation of Carbon: X = P+V • Conservation of Hydrogen: Y = 2 Q • Conservation of Oxygen : K + 2 e (X+Y/2+Z-K/2) = 2 P +Q +2 R +2 U+V • Conservation of Nitrogen: 2 e 3. 76 (X+Y/2+Z-K/2) = T • Conservation of Sulfur: Z = R

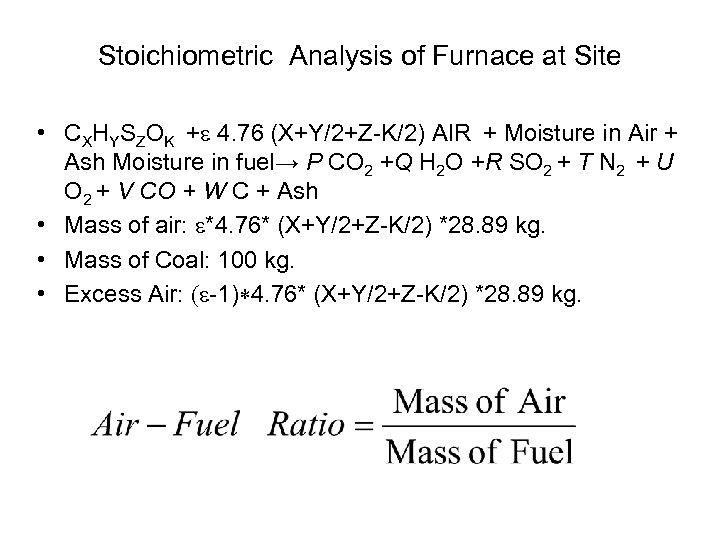

Stoichiometric Analysis of Furnace at Site • CXHYSZOK +e 4. 76 (X+Y/2+Z-K/2) AIR + Moisture in Air + Ash Moisture in fuel→ P CO 2 +Q H 2 O +R SO 2 + T N 2 + U O 2 + V CO + W C + Ash • Mass of air: e*4. 76* (X+Y/2+Z-K/2) *28. 89 kg. • Mass of Coal: 100 kg. • Excess Air: (e-1)*4. 76* (X+Y/2+Z-K/2) *28. 89 kg.

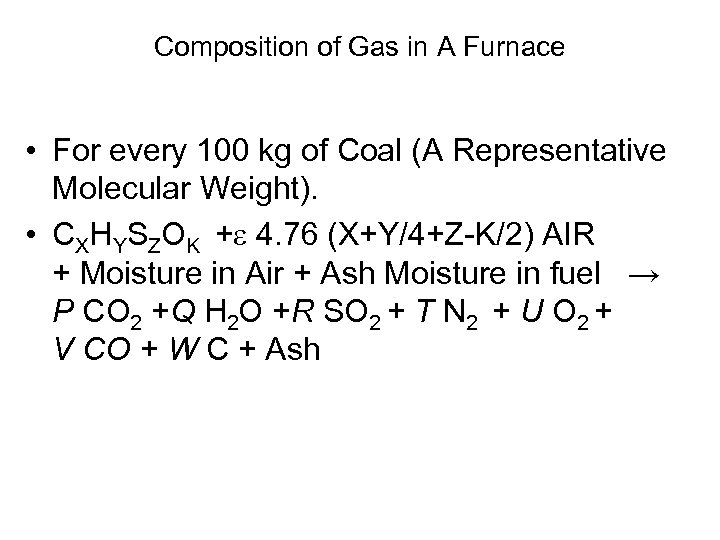

Composition of Gas in A Furnace • For every 100 kg of Coal (A Representative Molecular Weight). • CXHYSZOK +e 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash Moisture in fuel → P CO 2 +Q H 2 O +R SO 2 + T N 2 + U O 2 + V CO + W C + Ash

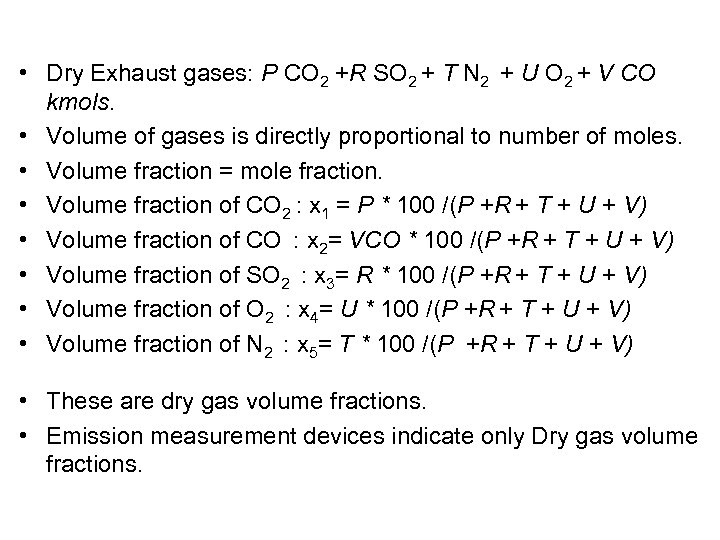

• Dry Exhaust gases: P CO 2 +R SO 2 + T N 2 + U O 2 + V CO kmols. • Volume of gases is directly proportional to number of moles. • Volume fraction = mole fraction. • Volume fraction of CO 2 : x 1 = P * 100 /(P +R + T + U + V) • Volume fraction of CO : x 2= VCO * 100 /(P +R + T + U + V) • Volume fraction of SO 2 : x 3= R * 100 /(P +R + T + U + V) • Volume fraction of O 2 : x 4= U * 100 /(P +R + T + U + V) • Volume fraction of N 2 : x 5= T * 100 /(P +R + T + U + V) • These are dry gas volume fractions. • Emission measurement devices indicate only Dry gas volume fractions.

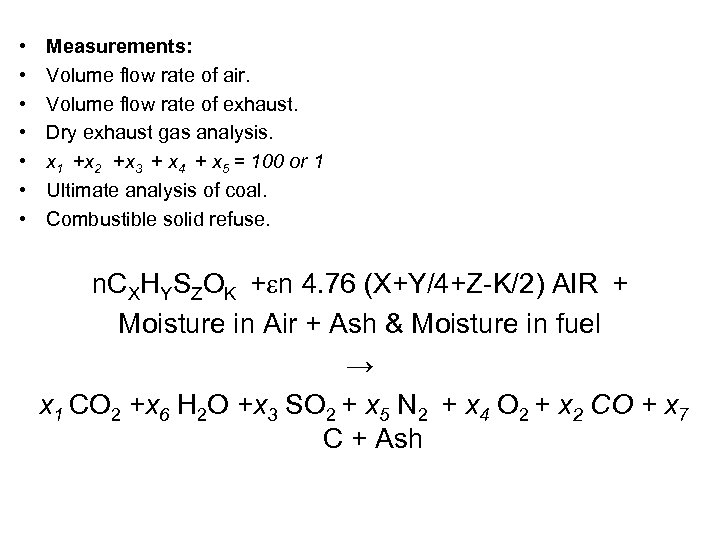

• • Measurements: Volume flow rate of air. Volume flow rate of exhaust. Dry exhaust gas analysis. x 1 +x 2 +x 3 + x 4 + x 5 = 100 or 1 Ultimate analysis of coal. Combustible solid refuse. n. CXHYSZOK +en 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash & Moisture in fuel → x 1 CO 2 +x 6 H 2 O +x 3 SO 2 + x 5 N 2 + x 4 O 2 + x 2 CO + x 7 C + Ash

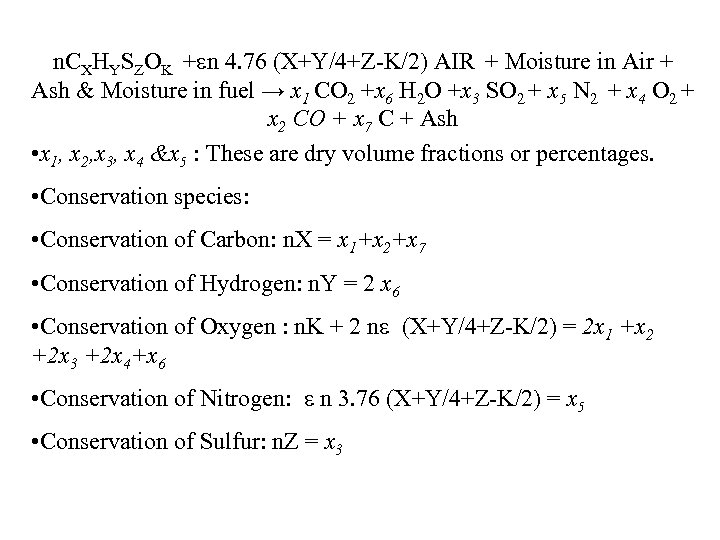

n. CXHYSZOK +en 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash & Moisture in fuel → x 1 CO 2 +x 6 H 2 O +x 3 SO 2 + x 5 N 2 + x 4 O 2 + x 2 CO + x 7 C + Ash • x 1, x 2, x 3, x 4 &x 5 : These are dry volume fractions or percentages. • Conservation species: • Conservation of Carbon: n. X = x 1+x 2+x 7 • Conservation of Hydrogen: n. Y = 2 x 6 • Conservation of Oxygen : n. K + 2 ne (X+Y/4+Z-K/2) = 2 x 1 +x 2 +2 x 3 +2 x 4+x 6 • Conservation of Nitrogen: e n 3. 76 (X+Y/4+Z-K/2) = x 5 • Conservation of Sulfur: n. Z = x 3

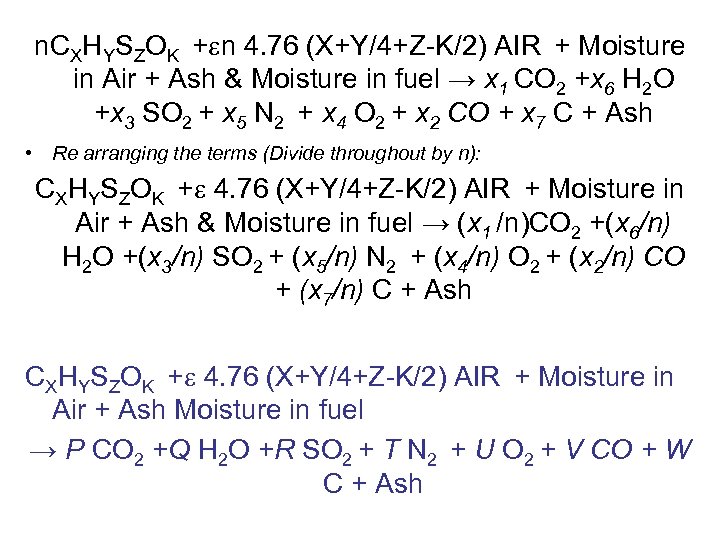

n. CXHYSZOK +en 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash & Moisture in fuel → x 1 CO 2 +x 6 H 2 O +x 3 SO 2 + x 5 N 2 + x 4 O 2 + x 2 CO + x 7 C + Ash • Re arranging the terms (Divide throughout by n): CXHYSZOK +e 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash & Moisture in fuel → (x 1 /n)CO 2 +(x 6/n) H 2 O +(x 3/n) SO 2 + (x 5/n) N 2 + (x 4/n) O 2 + (x 2/n) CO + (x 7/n) C + Ash CXHYSZOK +e 4. 76 (X+Y/4+Z-K/2) AIR + Moisture in Air + Ash Moisture in fuel → P CO 2 +Q H 2 O +R SO 2 + T N 2 + U O 2 + V CO + W C + Ash

Specific Flue Gas Analysis • • • For each kilogram of fuel: Air : e 4. 76 (X+Y/2+Z-K/2) * 29. 9 /100 kg. CO 2 : P * 44/100 kg. CO : V * 28/100 kg. Oxygen in exhaust : 32 * U/100 kg. Unburned carbon: 12*12/100 kg.

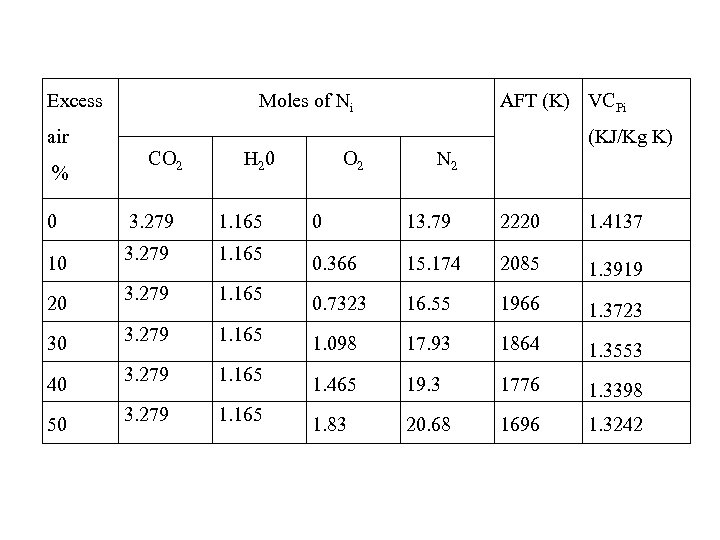

Excess air % Moles of Ni CO 2 H 2 0 O 2 AFT (K) VCPi (KJ/Kg K) N 2 0 3. 279 1. 165 0 13. 79 2220 1. 4137 10 3. 279 1. 165 0. 366 15. 174 2085 1. 3919 20 3. 279 1. 165 0. 7323 16. 55 1966 1. 3723 30 3. 279 1. 165 1. 098 17. 93 1864 1. 3553 40 3. 279 1. 165 1. 465 19. 3 1776 1. 3398 50 3. 279 1. 165 1. 83 20. 68 1696 1. 3242

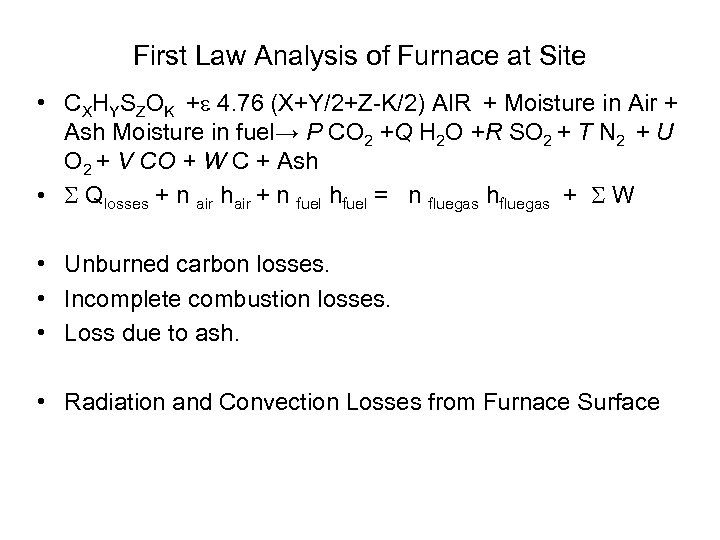

First Law Analysis of Furnace at Site • CXHYSZOK +e 4. 76 (X+Y/2+Z-K/2) AIR + Moisture in Air + Ash Moisture in fuel→ P CO 2 +Q H 2 O +R SO 2 + T N 2 + U O 2 + V CO + W C + Ash • S Qlosses + n air hair + n fuel hfuel = n fluegas hfluegas + S W • Unburned carbon losses. • Incomplete combustion losses. • Loss due to ash. • Radiation and Convection Losses from Furnace Surface

Capacity of Flue Gas Total Thermal Power available with flue gas: Rate of steam production:

3 2 s 2 f 5 4 2 1 6 s

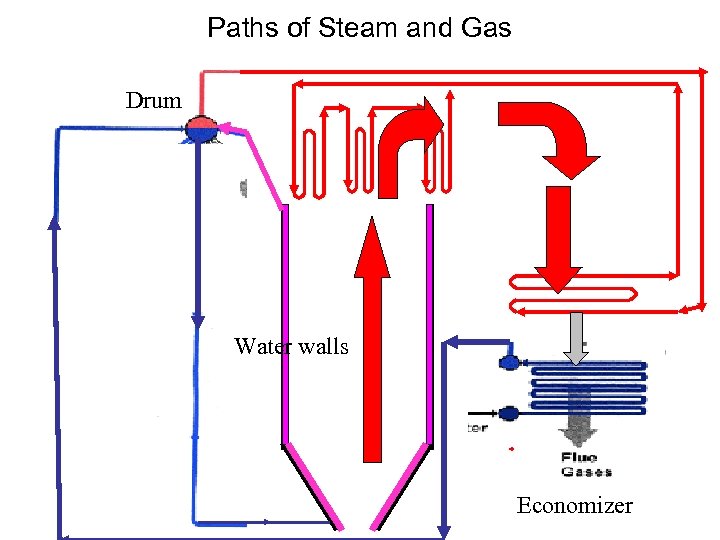

Paths of Steam and Gas Drum Water walls Economizer

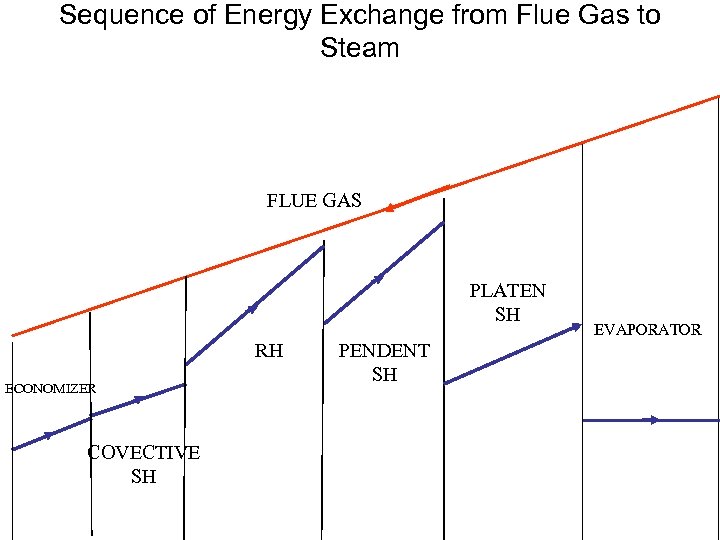

Sequence of Energy Exchange from Flue Gas to Steam FLUE GAS PLATEN SH RH ECONOMIZER COVECTIVE SH PENDENT SH EVAPORATOR

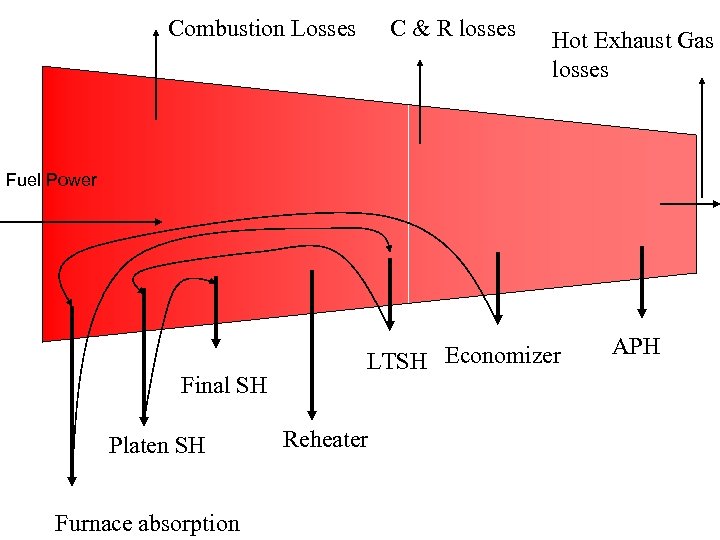

Combustion Losses C & R losses Hot Exhaust Gas losses Fuel Power Final SH Platen SH Furnace absorption LTSH Economizer Reheater APH

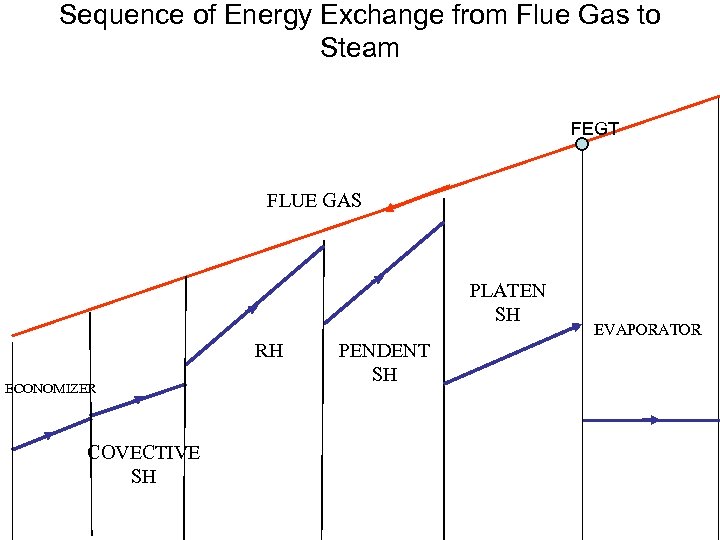

Sequence of Energy Exchange from Flue Gas to Steam FEGT FLUE GAS PLATEN SH RH ECONOMIZER COVECTIVE SH PENDENT SH EVAPORATOR

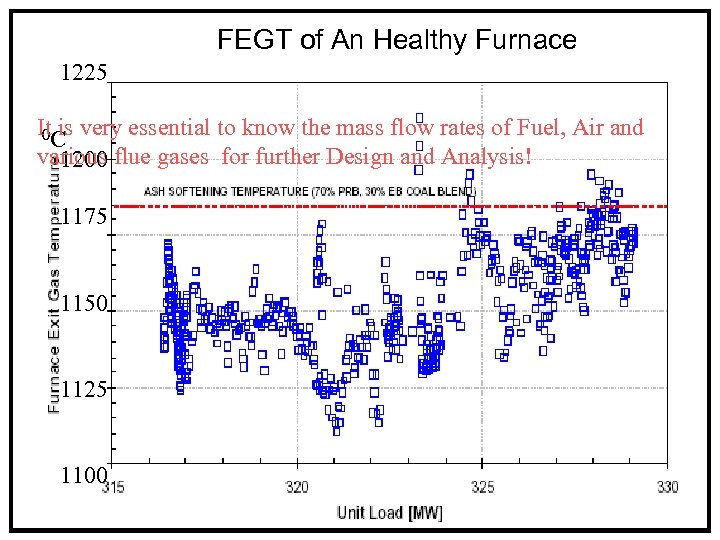

FEGT of An Healthy Furnace 1225 It is very essential to know the mass flow rates of Fuel, Air and 0 C various flue gases for further Design and Analysis! 1200 1175 1150 1125 1100

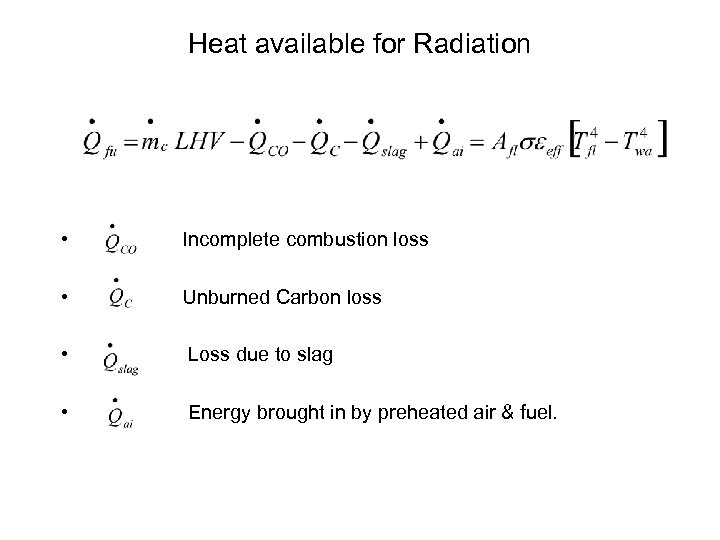

Heat available for Radiation • Incomplete combustion loss • Unburned Carbon loss • Loss due to slag • Energy brought in by preheated air & fuel.

Simplified Approach • Emitted Radiation heat flux of flames: • Emitted Radiation = Available Heat flux absorbed by walls : Thermal efficiency factor, y. The rate of heat absorption
