Mobile IP, and Micro Mobility Gihwan Cho ghcho@cs. chonbuk. ac. kr Chonbuk National University, DCS Lab presented by ghcho

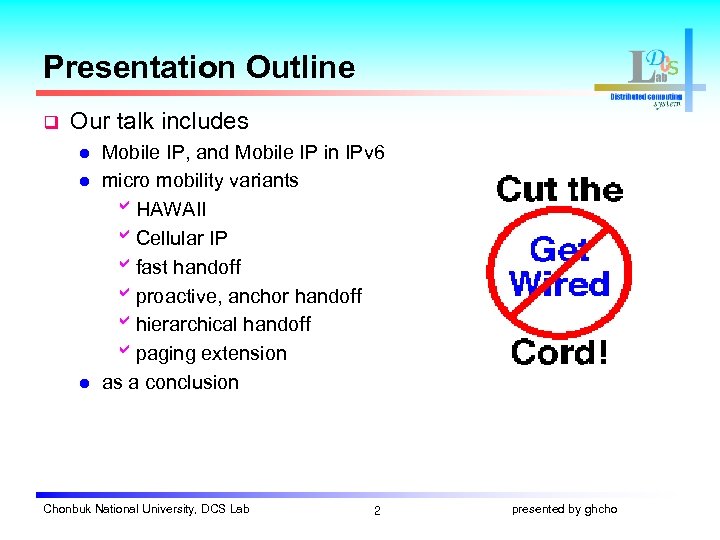

Presentation Outline q Our talk includes l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 2 presented by ghcho

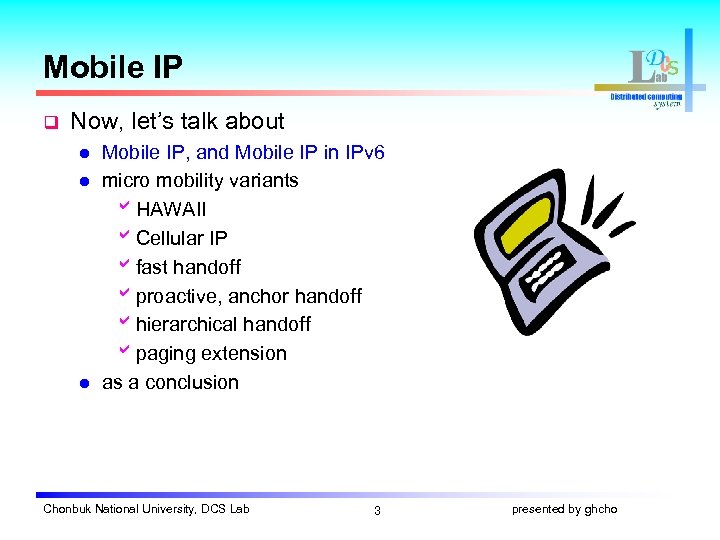

Mobile IP q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 3 presented by ghcho

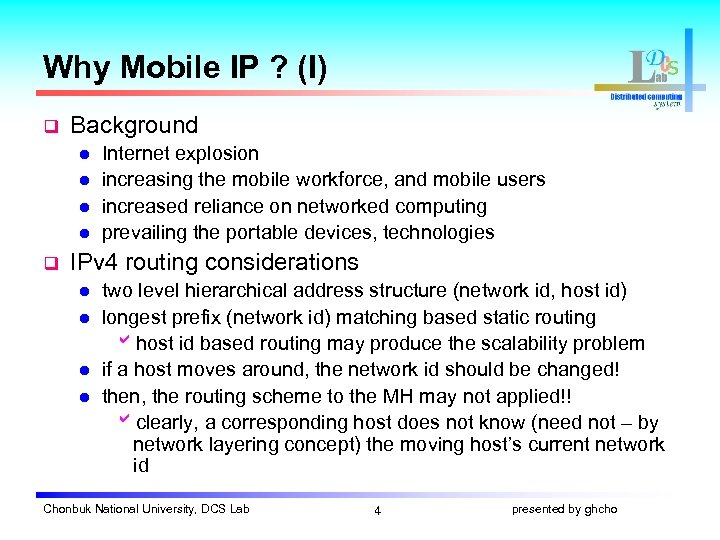

Why Mobile IP ? (I) q Background l l q Internet explosion increasing the mobile workforce, and mobile users increased reliance on networked computing prevailing the portable devices, technologies IPv 4 routing considerations l l two level hierarchical address structure (network id, host id) longest prefix (network id) matching based static routing bhost id based routing may produce the scalability problem if a host moves around, the network id should be changed! then, the routing scheme to the MH may not applied!! bclearly, a corresponding host does not know (need not – by network layering concept) the moving host’s current network id Chonbuk National University, DCS Lab 4 presented by ghcho

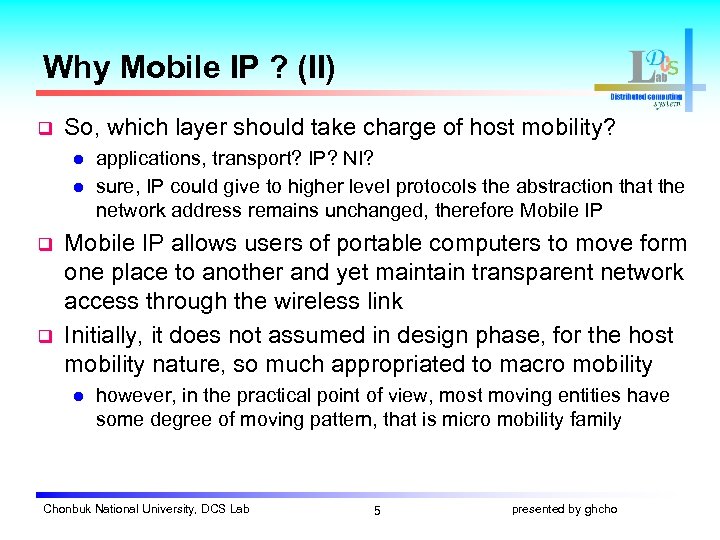

Why Mobile IP ? (II) q So, which layer should take charge of host mobility? l l q q applications, transport? IP? NI? sure, IP could give to higher level protocols the abstraction that the network address remains unchanged, therefore Mobile IP allows users of portable computers to move form one place to another and yet maintain transparent network access through the wireless link Initially, it does not assumed in design phase, for the host mobility nature, so much appropriated to macro mobility l however, in the practical point of view, most moving entities have some degree of moving pattern, that is micro mobility family Chonbuk National University, DCS Lab 5 presented by ghcho
![Protocol Overview (I) [1][2] q Three steps with the protocol l agent discovery: MAs](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-6.jpg "Protocol Overview (I) [1][2] q Three steps with the protocol l agent discovery: MAs")

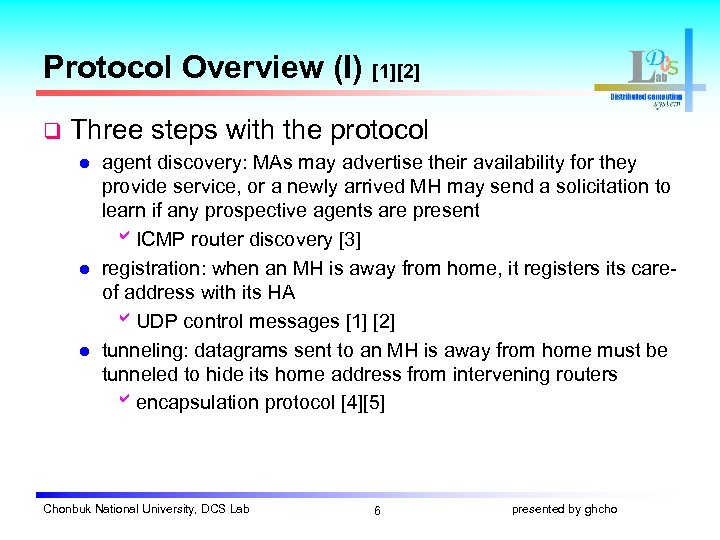

Protocol Overview (I) [1][2] q Three steps with the protocol l agent discovery: MAs may advertise their availability for they provide service, or a newly arrived MH may send a solicitation to learn if any prospective agents are present b. ICMP router discovery [3] registration: when an MH is away from home, it registers its careof address with its HA b. UDP control messages [1] [2] tunneling: datagrams sent to an MH is away from home must be tunneled to hide its home address from intervening routers bencapsulation protocol [4][5] Chonbuk National University, DCS Lab 6 presented by ghcho

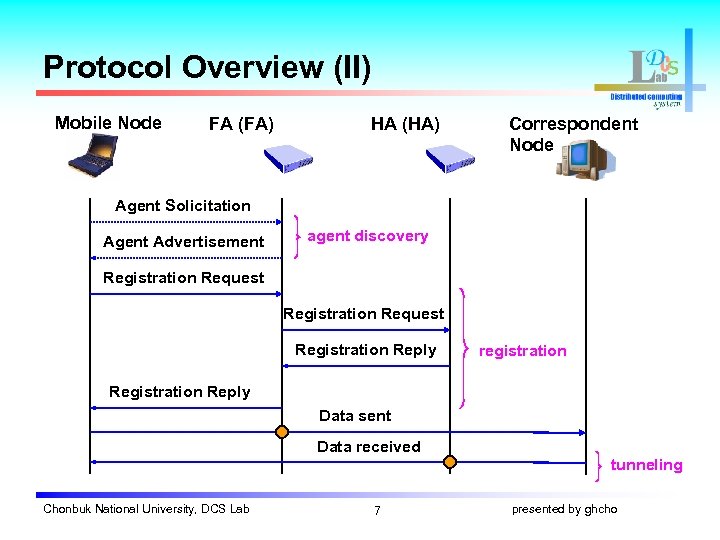

Protocol Overview (II) Mobile Node FA (FA) HA (HA) Correspondent Node Agent Solicitation Agent Advertisement agent discovery Registration Request Registration Reply registration Reply Data sent Data received tunneling Chonbuk National University, DCS Lab 7 presented by ghcho

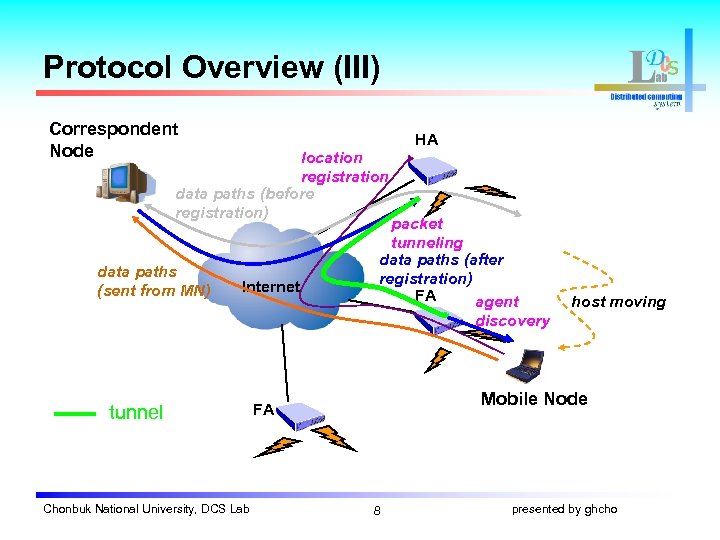

Protocol Overview (III) Correspondent Node HA location registration data paths (before registration) data paths (sent from MN) Internet tunnel Chonbuk National University, DCS Lab Mobile Node packet tunneling data paths (after registration) FA agent discovery host moving Mobile Node FA 8 presented by ghcho
Triangle Routing on Mobile IP Internet Host Home-based Location Home Agent Reply Path Tunneling FA MH k Host Moving q Triangle routing is undesirable : l l Increased network utilization (sensitivity to network partition) Irregularity of performance variance Chonbuk National University, DCS Lab 9 presented by ghcho

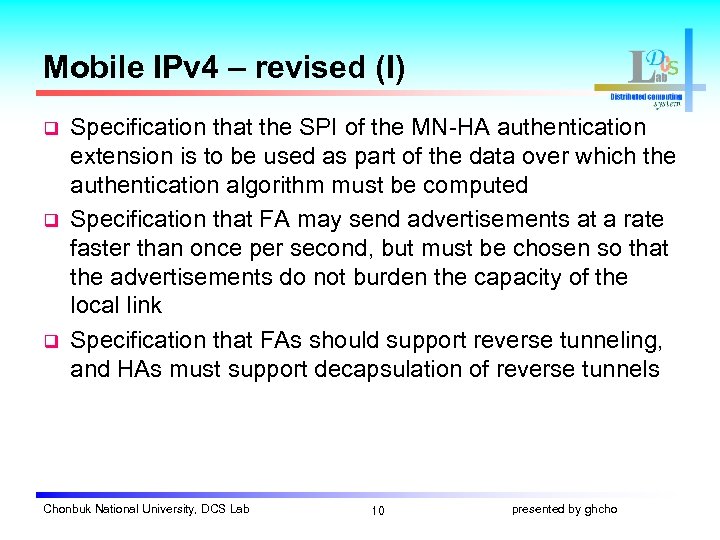

Mobile IPv 4 – revised (I) q q q Specification that the SPI of the MN-HA authentication extension is to be used as part of the data over which the authentication algorithm must be computed Specification that FA may send advertisements at a rate faster than once per second, but must be chosen so that the advertisements do not burden the capacity of the local link Specification that FAs should support reverse tunneling, and HAs must support decapsulation of reverse tunnels Chonbuk National University, DCS Lab 10 presented by ghcho

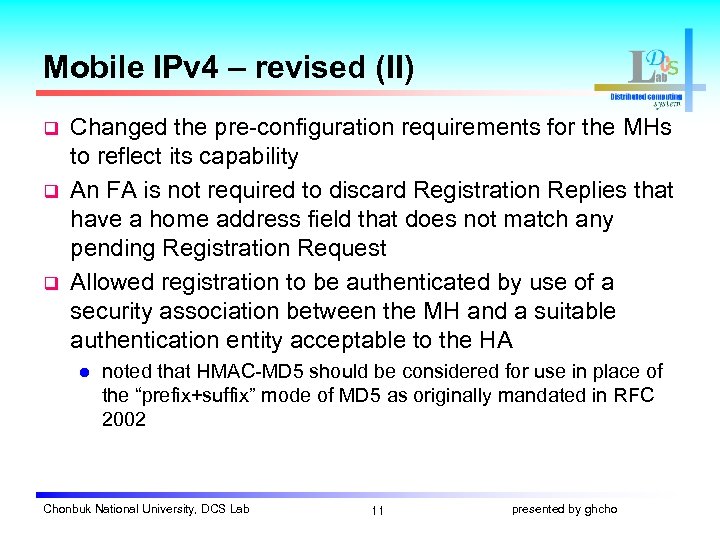

Mobile IPv 4 – revised (II) q q q Changed the pre-configuration requirements for the MHs to reflect its capability An FA is not required to discard Registration Replies that have a home address field that does not match any pending Registration Request Allowed registration to be authenticated by use of a security association between the MH and a suitable authentication entity acceptable to the HA l noted that HMAC-MD 5 should be considered for use in place of the “prefix+suffix” mode of MD 5 as originally mandated in RFC 2002 Chonbuk National University, DCS Lab 11 presented by ghcho

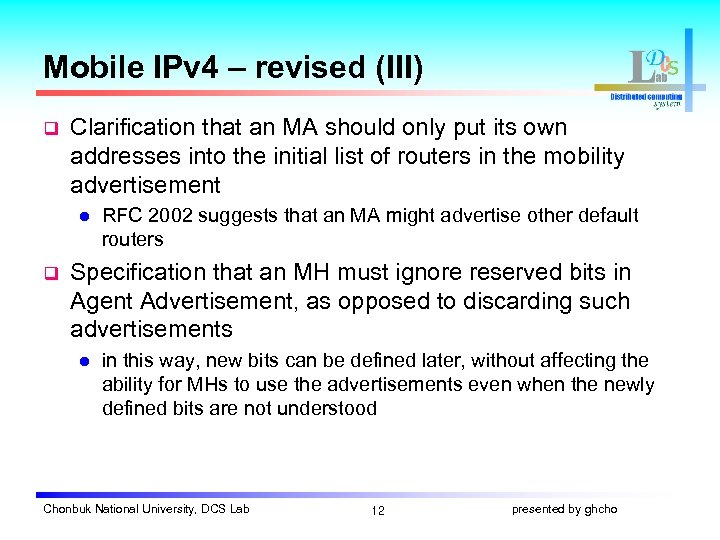

Mobile IPv 4 – revised (III) q Clarification that an MA should only put its own addresses into the initial list of routers in the mobility advertisement l q RFC 2002 suggests that an MA might advertise other default routers Specification that an MH must ignore reserved bits in Agent Advertisement, as opposed to discarding such advertisements l in this way, new bits can be defined later, without affecting the ability for MHs to use the advertisements even when the newly defined bits are not understood Chonbuk National University, DCS Lab 12 presented by ghcho
Mobile IPv 4 – revised (IV) q Specification that the FA checks to make sure that the indicated HA does not belong to any of its network interface before relaying a Registration Request l q q if the check fails, and the FA is not the MH’s HA, then the FA rejects the request with code 136 Specification that, while they are away from the home network, MHs must not broadcast ARP packets to find the MAC address of another internet node Specification that an FA must not use broadcast ARP for an MHs MAC address on a foreign network l it may obtain the MAC address by copying the information from an Agent Solicitation or a Reg. Request transmitted from an MH Chonbuk National University, DCS Lab 13 presented by ghcho

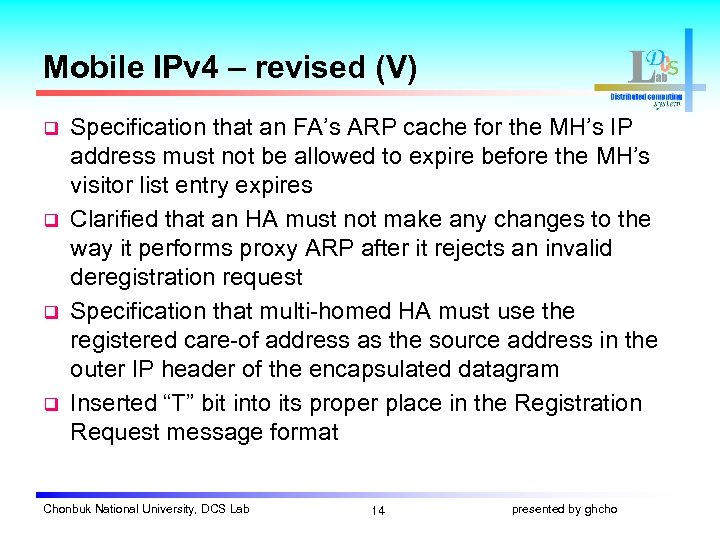

Mobile IPv 4 – revised (V) q q Specification that an FA’s ARP cache for the MH’s IP address must not be allowed to expire before the MH’s visitor list entry expires Clarified that an HA must not make any changes to the way it performs proxy ARP after it rejects an invalid deregistration request Specification that multi-homed HA must use the registered care-of address as the source address in the outer IP header of the encapsulated datagram Inserted “T” bit into its proper place in the Registration Request message format Chonbuk National University, DCS Lab 14 presented by ghcho
![Micro Mobility – HAWAII [6] q Now, let’s talk about l l l Mobile](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-15.jpg "Micro Mobility – HAWAII [6] q Now, let’s talk about l l l Mobile")

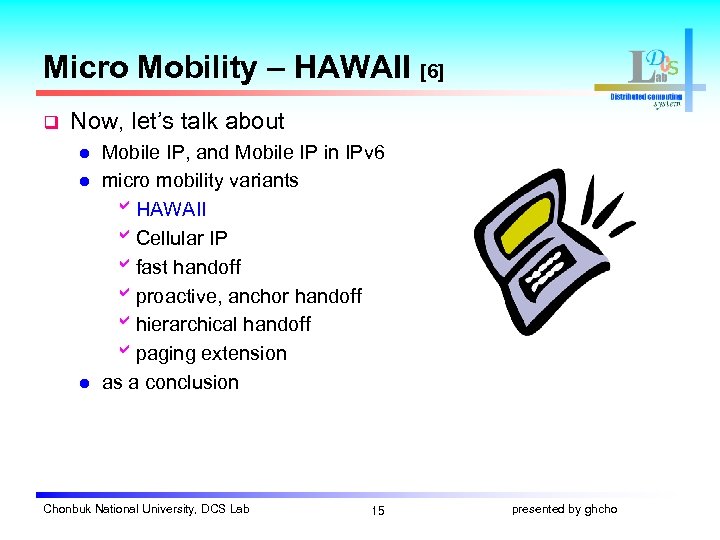

Micro Mobility – HAWAII [6] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 15 presented by ghcho
IP Micro Mobility – HAWAII (I) q Overview l l q Handoff Aware Wireless Access Internet Infrastructure (by Lucent) domain-based approach for supporting mobility approach : most user mobility is local to a domain specialized path setup schemes bhost-based routing entry Characteristics l l l reduce mobility related disruption to user application reduce the number of mobility related updated simplify Qo. S support improved reliability with soft-state transition provide macro mobility in conjunction with Mobile IP include the paging concept Chonbuk National University, DCS Lab 16 presented by ghcho

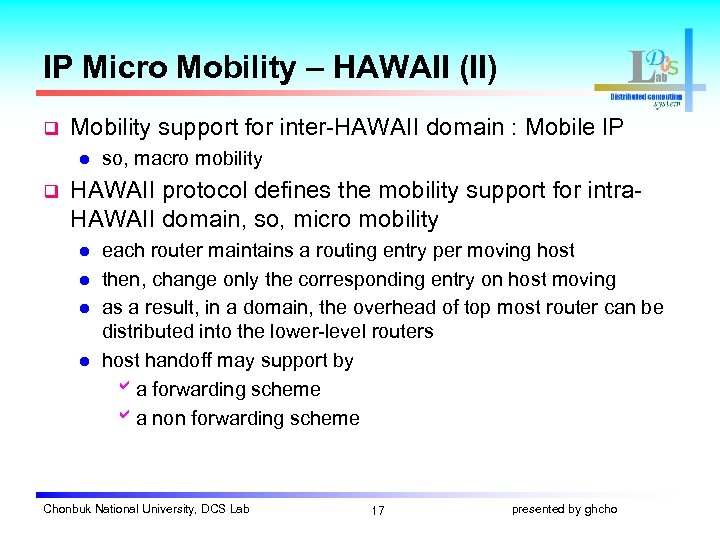

IP Micro Mobility – HAWAII (II) q Mobility support for inter-HAWAII domain : Mobile IP l q so, macro mobility HAWAII protocol defines the mobility support for intra. HAWAII domain, so, micro mobility l l each router maintains a routing entry per moving host then, change only the corresponding entry on host moving as a result, in a domain, the overhead of top most router can be distributed into the lower-level routers host handoff may support by ba forwarding scheme ba non forwarding scheme Chonbuk National University, DCS Lab 17 presented by ghcho
IP Micro Mobility – HAWAII (III) q q Use path setup message to establish and update hostbased routing entries in selective routers in the domain -> where, how, and which routers are updates? Forwarding scheme : optimized for TDMA network l q Non forwarding scheme : optimized for CDMA network l q q update the forwarding entry from old BS to new BS update the forwarding entry from new BS to old BS Other routers has no MH’s current location Forwarding entry must be updated in periodical, so soft state update, to prevent its out-of-state situation l refresh message Chonbuk National University, DCS Lab 18 presented by ghcho

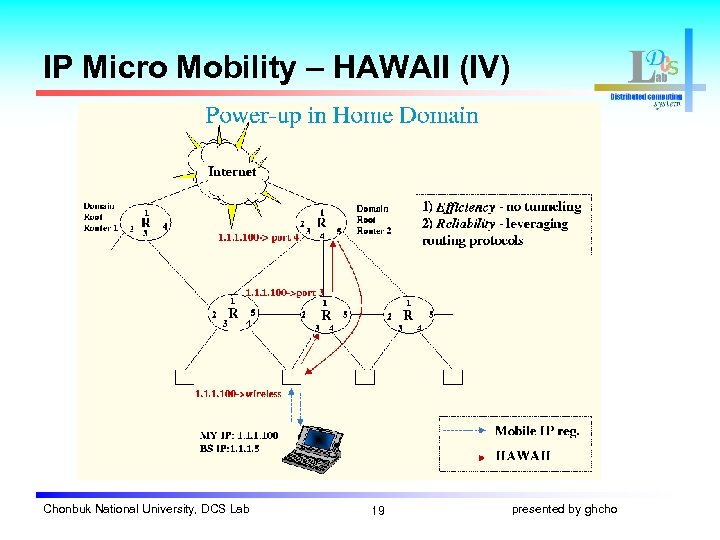

IP Micro Mobility – HAWAII (IV) Chonbuk National University, DCS Lab 19 presented by ghcho
IP Micro Mobility – HAWAII (V) Chonbuk National University, DCS Lab 20 presented by ghcho

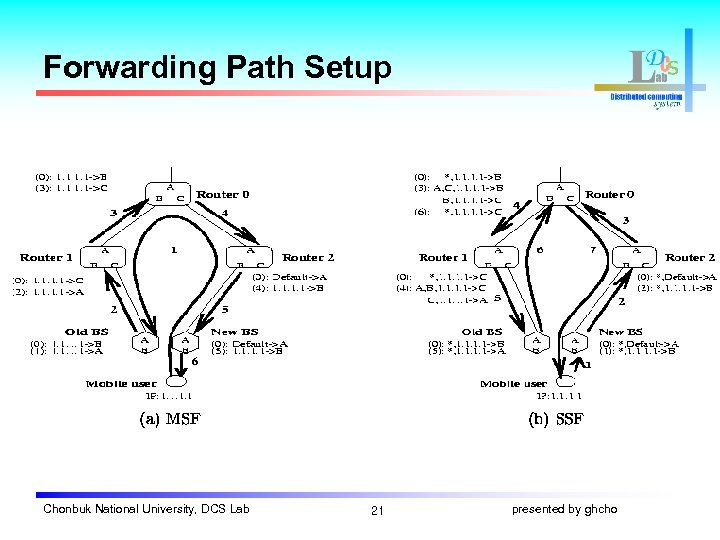

Forwarding Path Setup Chonbuk National University, DCS Lab 21 presented by ghcho

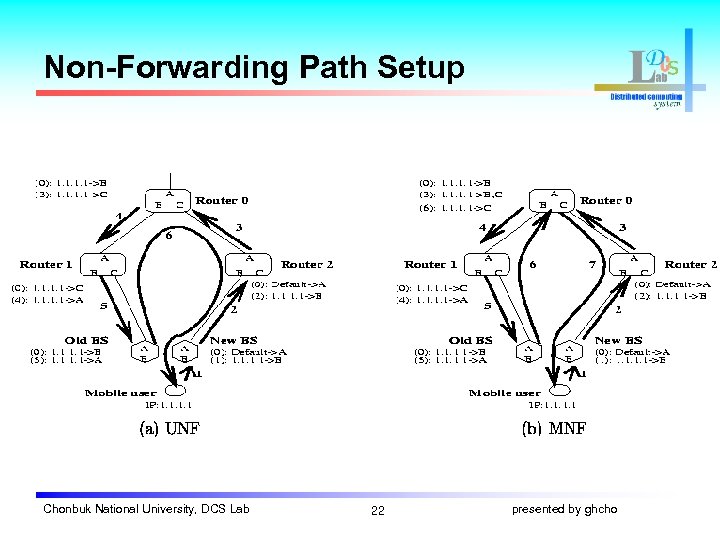

Non-Forwarding Path Setup Chonbuk National University, DCS Lab 22 presented by ghcho

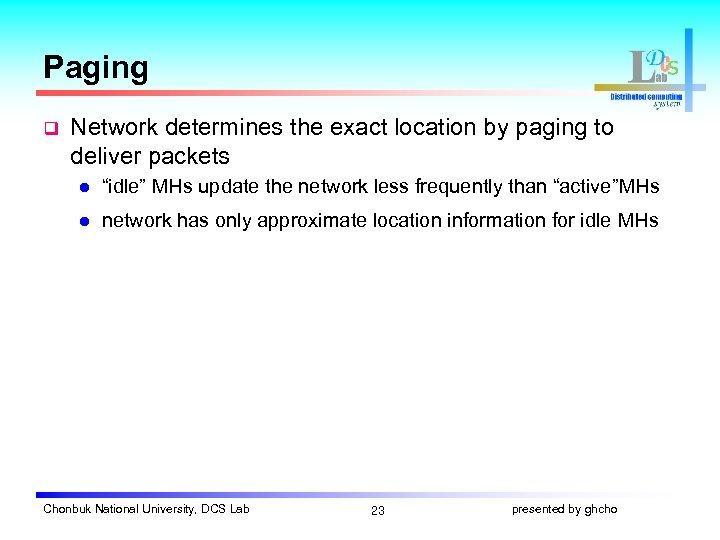

Paging q Network determines the exact location by paging to deliver packets l “idle” MHs update the network less frequently than “active”MHs l network has only approximate location information for idle MHs Chonbuk National University, DCS Lab 23 presented by ghcho
Hierarchy using Domain Chonbuk National University, DCS Lab 24 presented by ghcho

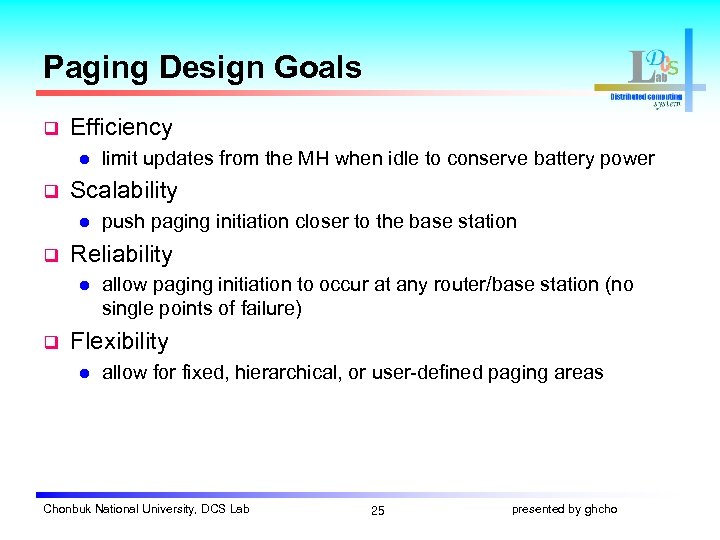

Paging Design Goals q Efficiency l q Scalability l q push paging initiation closer to the base station Reliability l q limit updates from the MH when idle to conserve battery power allow paging initiation to occur at any router/base station (no single points of failure) Flexibility l allow for fixed, hierarchical, or user-defined paging areas Chonbuk National University, DCS Lab 25 presented by ghcho

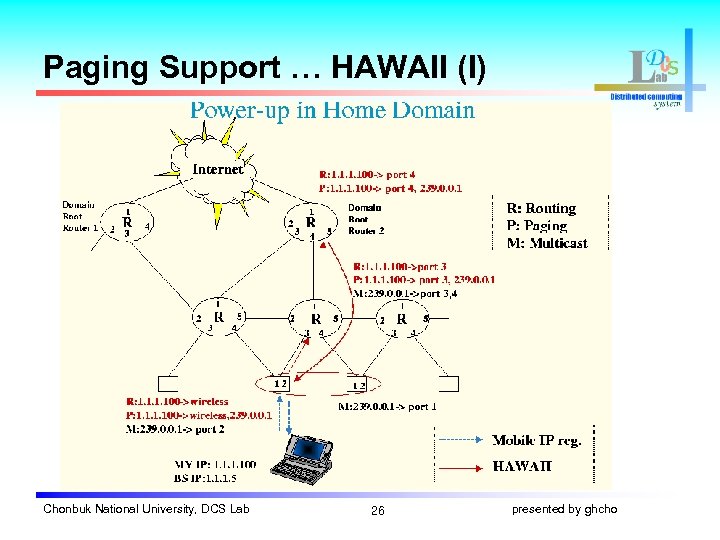

Paging Support … HAWAII (I) Chonbuk National University, DCS Lab 26 presented by ghcho

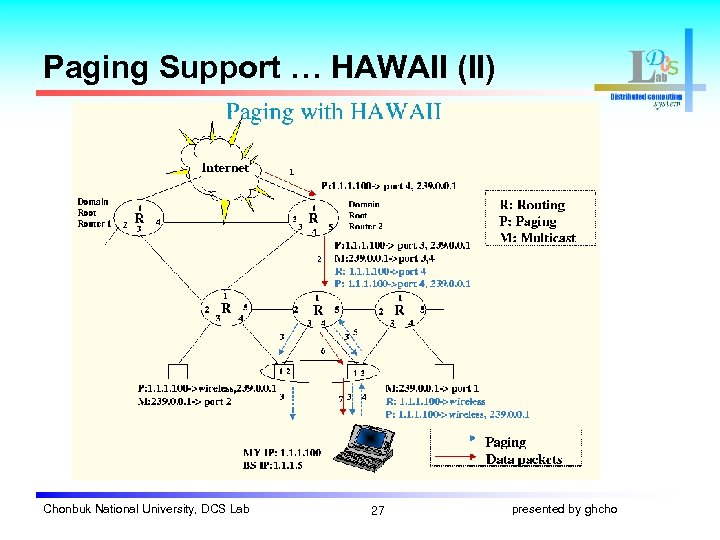

Paging Support … HAWAII (II) Chonbuk National University, DCS Lab 27 presented by ghcho

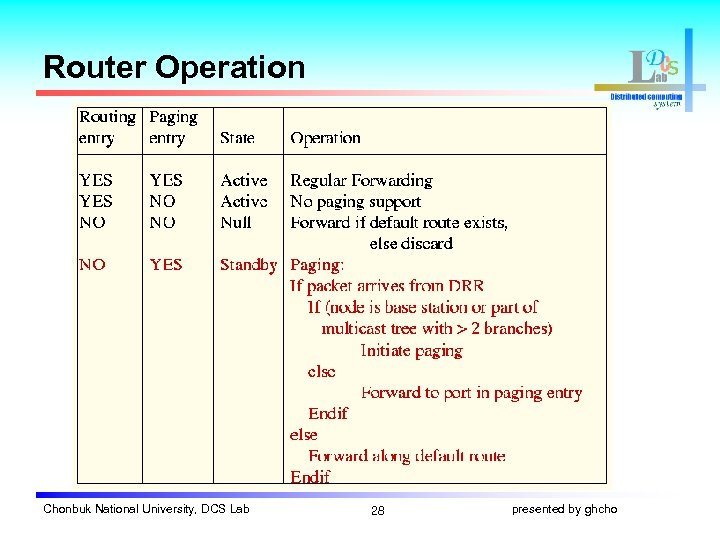

Router Operation Chonbuk National University, DCS Lab 28 presented by ghcho

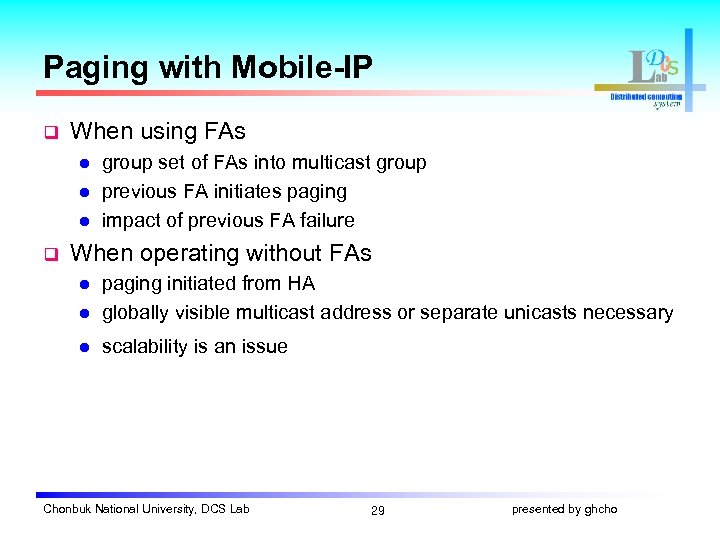

Paging with Mobile-IP q When using FAs l l l q group set of FAs into multicast group previous FA initiates paging impact of previous FA failure When operating without FAs l paging initiated from HA globally visible multicast address or separate unicasts necessary l scalability is an issue l Chonbuk National University, DCS Lab 29 presented by ghcho
![Micro Mobility – Cellular IP [7] q Now, let’s talk about l l l](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-30.jpg "Micro Mobility – Cellular IP [7] q Now, let’s talk about l l l")

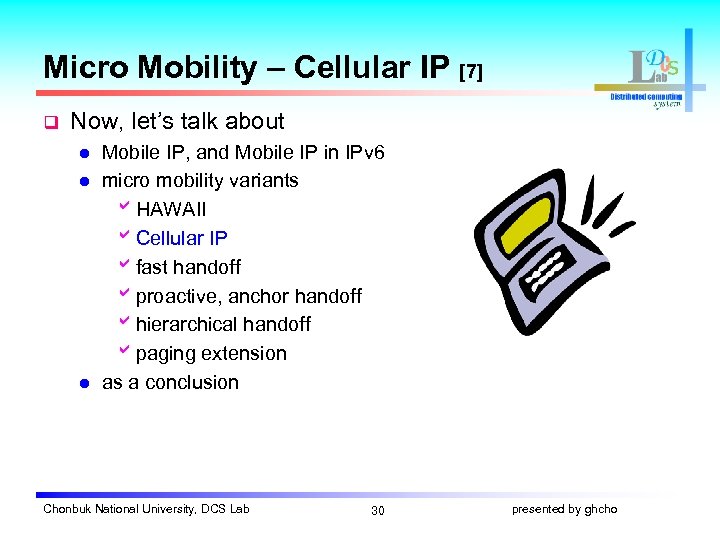

Micro Mobility – Cellular IP [7] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 30 presented by ghcho

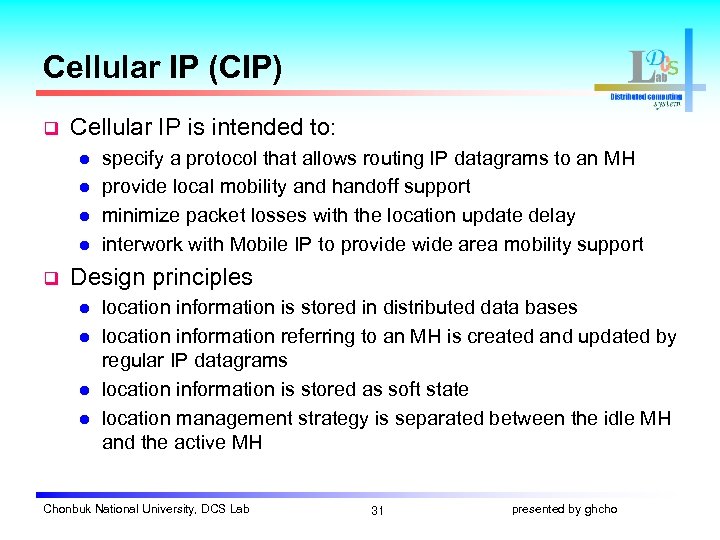

Cellular IP (CIP) q Cellular IP is intended to: l l q specify a protocol that allows routing IP datagrams to an MH provide local mobility and handoff support minimize packet losses with the location update delay interwork with Mobile IP to provide wide area mobility support Design principles l l location information is stored in distributed data bases location information referring to an MH is created and updated by regular IP datagrams location information is stored as soft state location management strategy is separated between the idle MH and the active MH Chonbuk National University, DCS Lab 31 presented by ghcho

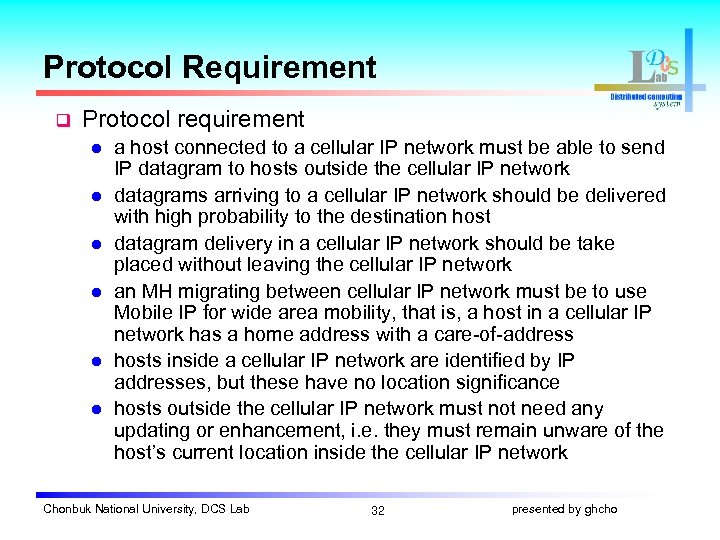

Protocol Requirement q Protocol requirement l l l a host connected to a cellular IP network must be able to send IP datagram to hosts outside the cellular IP network datagrams arriving to a cellular IP network should be delivered with high probability to the destination host datagram delivery in a cellular IP network should be take placed without leaving the cellular IP network an MH migrating between cellular IP network must be to use Mobile IP for wide area mobility, that is, a host in a cellular IP network has a home address with a care-of-address hosts inside a cellular IP network are identified by IP addresses, but these have no location significance hosts outside the cellular IP network must not need any updating or enhancement, i. e. they must remain unware of the host’s current location inside the cellular IP network Chonbuk National University, DCS Lab 32 presented by ghcho

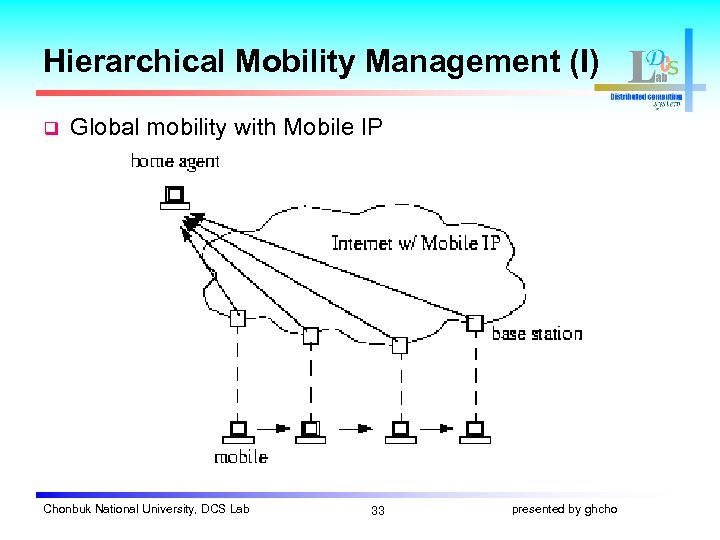

Hierarchical Mobility Management (I) q Global mobility with Mobile IP Chonbuk National University, DCS Lab 33 presented by ghcho

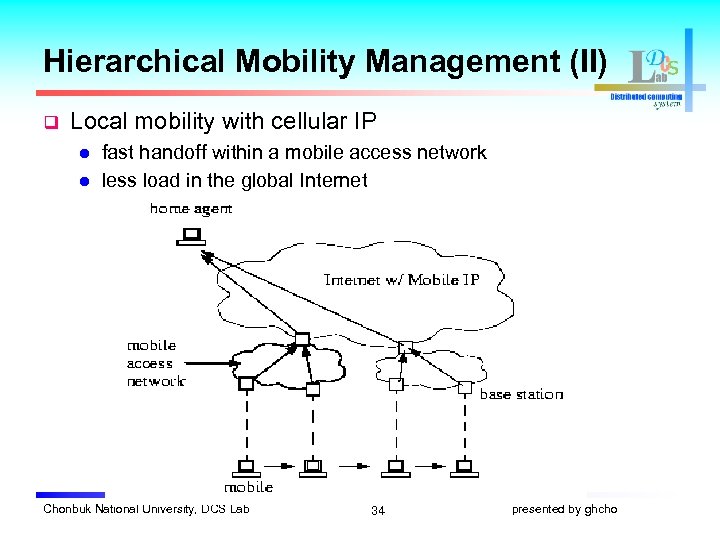

Hierarchical Mobility Management (II) q Local mobility with cellular IP l l fast handoff within a mobile access network less load in the global Internet Chonbuk National University, DCS Lab 34 presented by ghcho

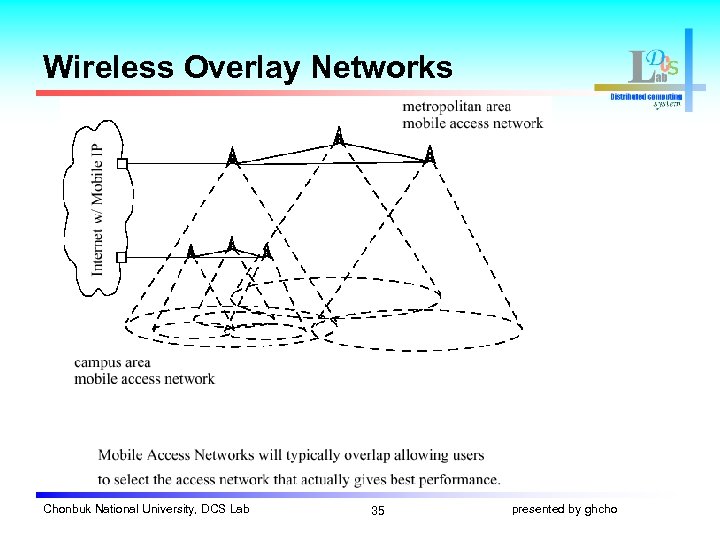

Wireless Overlay Networks Chonbuk National University, DCS Lab 35 presented by ghcho

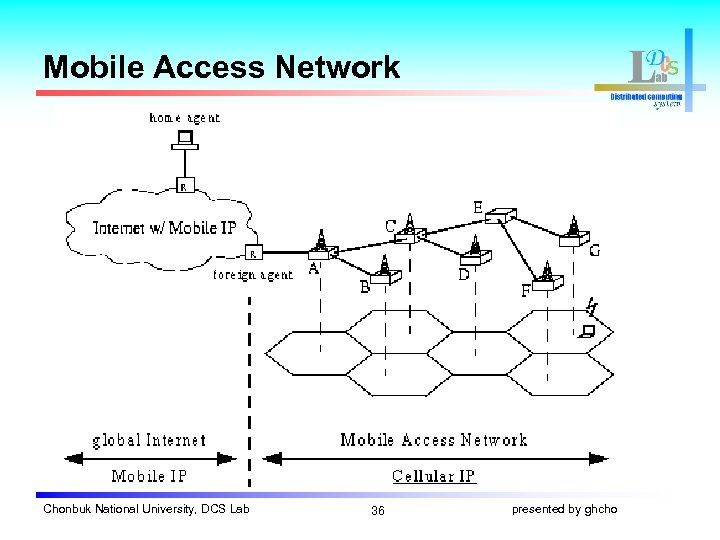

Mobile Access Network Chonbuk National University, DCS Lab 36 presented by ghcho

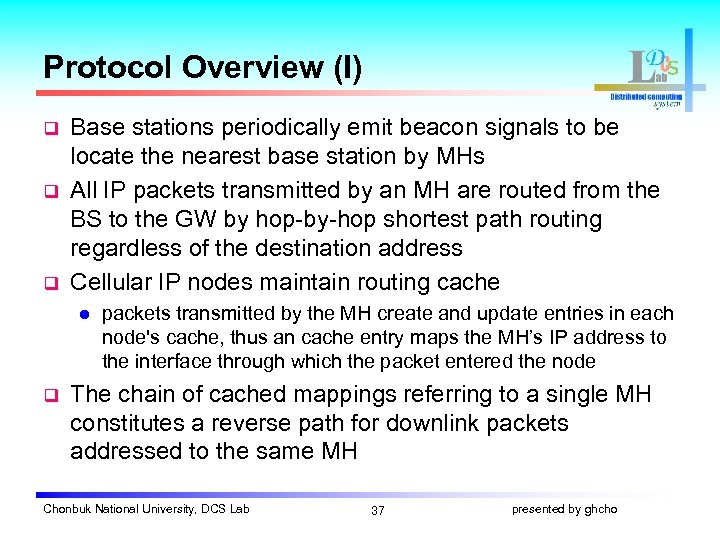

Protocol Overview (I) q q q Base stations periodically emit beacon signals to be locate the nearest base station by MHs All IP packets transmitted by an MH are routed from the BS to the GW by hop-by-hop shortest path routing regardless of the destination address Cellular IP nodes maintain routing cache l q packets transmitted by the MH create and update entries in each node's cache, thus an cache entry maps the MH’s IP address to the interface through which the packet entered the node The chain of cached mappings referring to a single MH constitutes a reverse path for downlink packets addressed to the same MH Chonbuk National University, DCS Lab 37 presented by ghcho

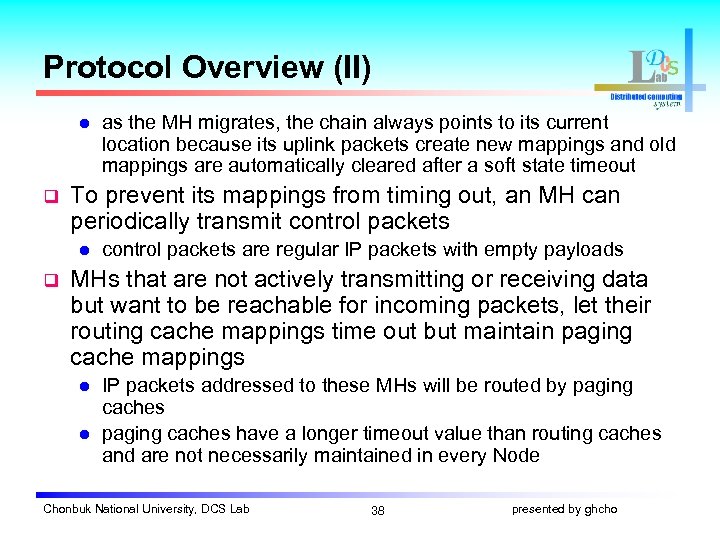

Protocol Overview (II) l q To prevent its mappings from timing out, an MH can periodically transmit control packets l q as the MH migrates, the chain always points to its current location because its uplink packets create new mappings and old mappings are automatically cleared after a soft state timeout control packets are regular IP packets with empty payloads MHs that are not actively transmitting or receiving data but want to be reachable for incoming packets, let their routing cache mappings time out but maintain paging cache mappings l l IP packets addressed to these MHs will be routed by paging caches have a longer timeout value than routing caches and are not necessarily maintained in every Node Chonbuk National University, DCS Lab 38 presented by ghcho

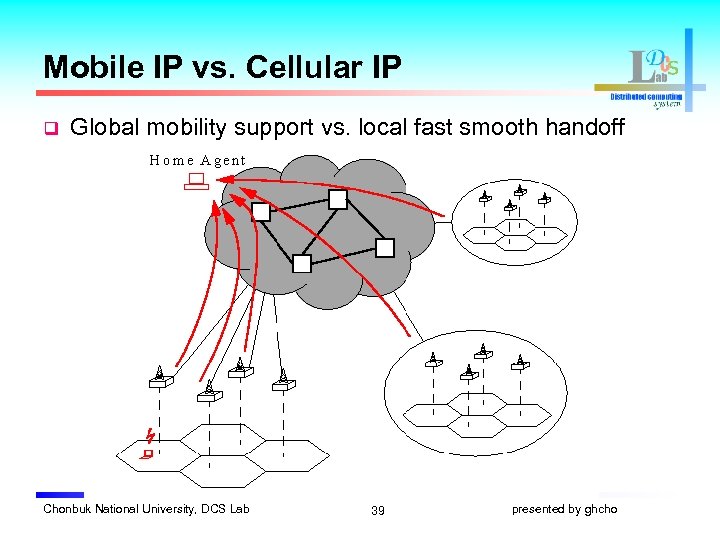

Mobile IP vs. Cellular IP q Global mobility support vs. local fast smooth handoff Chonbuk National University, DCS Lab 39 presented by ghcho

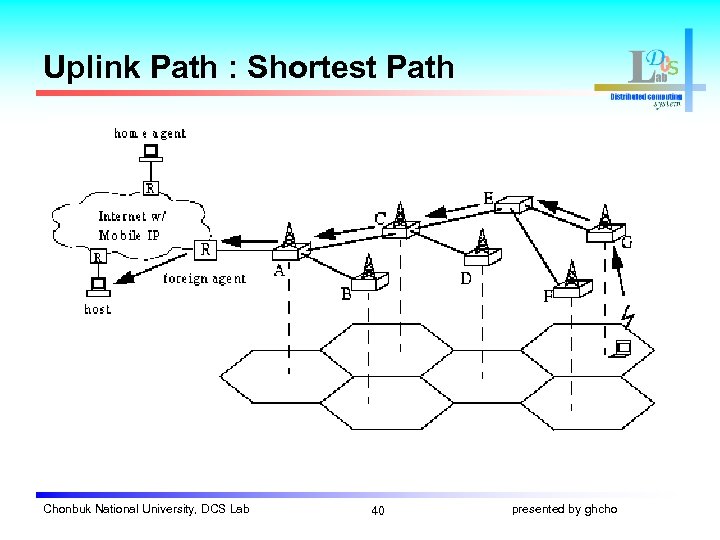

Uplink Path : Shortest Path Chonbuk National University, DCS Lab 40 presented by ghcho

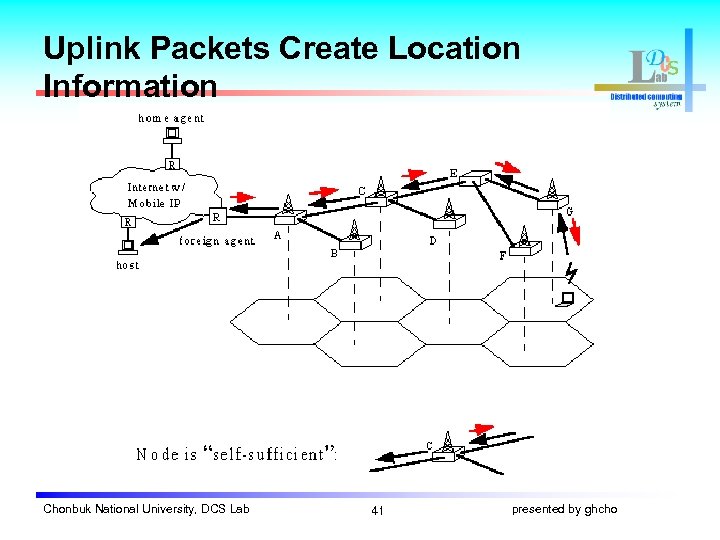

Uplink Packets Create Location Information Chonbuk National University, DCS Lab 41 presented by ghcho
Downlink Packets (I) q Mobile IP’s centralized location management Chonbuk National University, DCS Lab 42 presented by ghcho
Downlink Packets (II) q Cellular IP’s distributed location database Chonbuk National University, DCS Lab 43 presented by ghcho

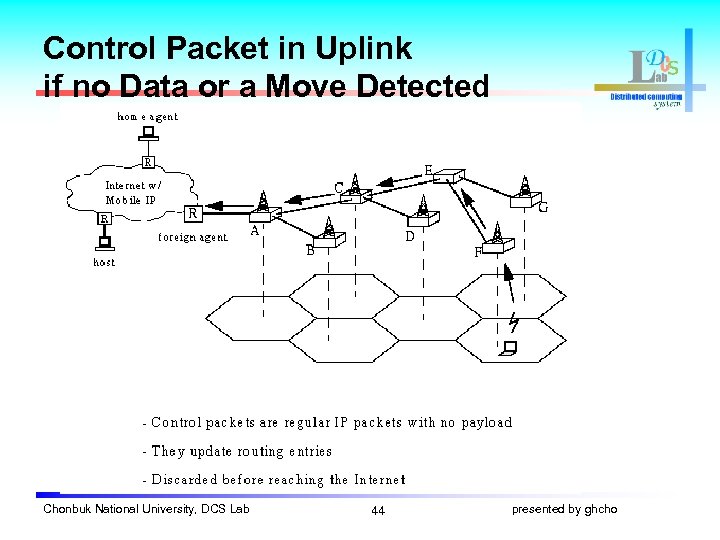

Control Packet in Uplink if no Data or a Move Detected Chonbuk National University, DCS Lab 44 presented by ghcho

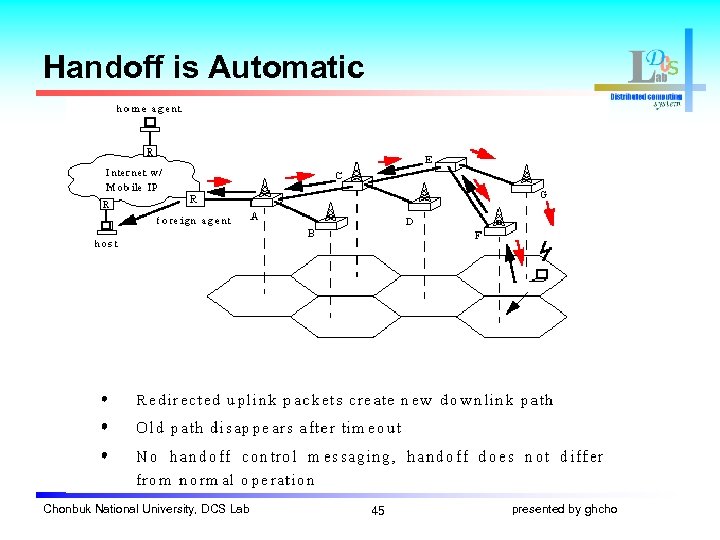

Handoff is Automatic Chonbuk National University, DCS Lab 45 presented by ghcho

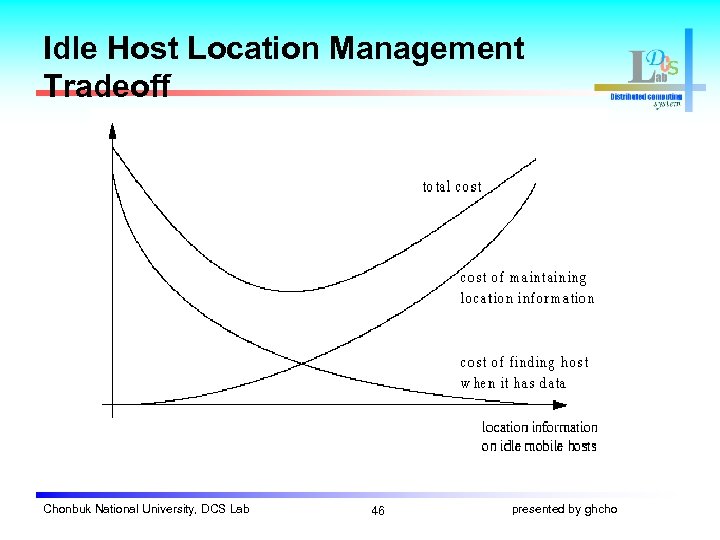

Idle Host Location Management Tradeoff Chonbuk National University, DCS Lab 46 presented by ghcho

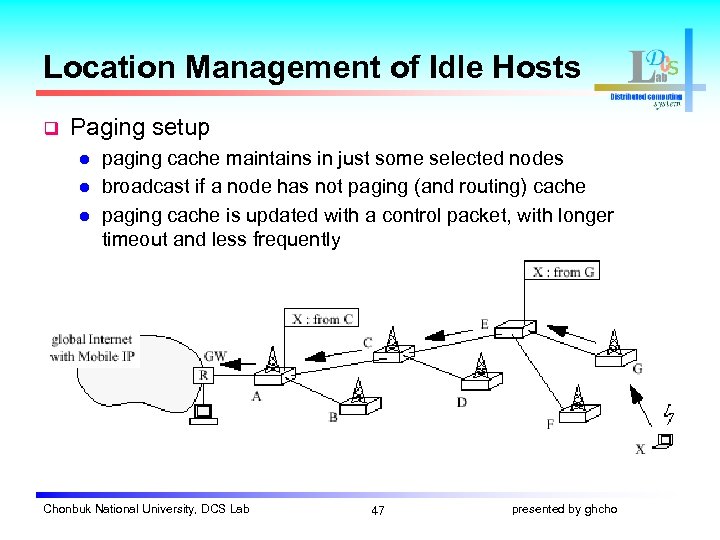

Location Management of Idle Hosts q Paging setup l l l paging cache maintains in just some selected nodes broadcast if a node has not paging (and routing) cache paging cache is updated with a control packet, with longer timeout and less frequently Chonbuk National University, DCS Lab 47 presented by ghcho

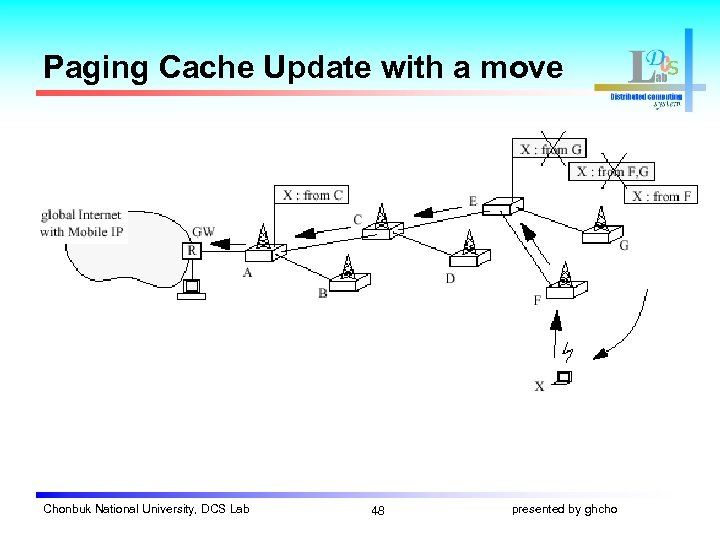

Paging Cache Update with a move Chonbuk National University, DCS Lab 48 presented by ghcho

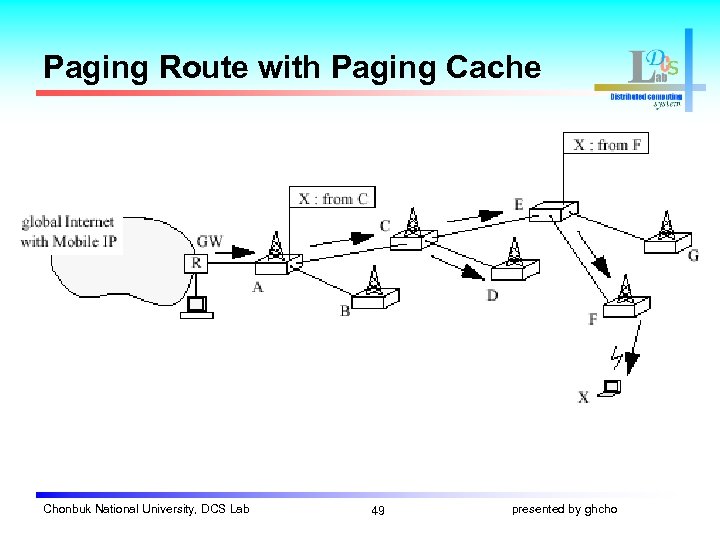

Paging Route with Paging Cache Chonbuk National University, DCS Lab 49 presented by ghcho

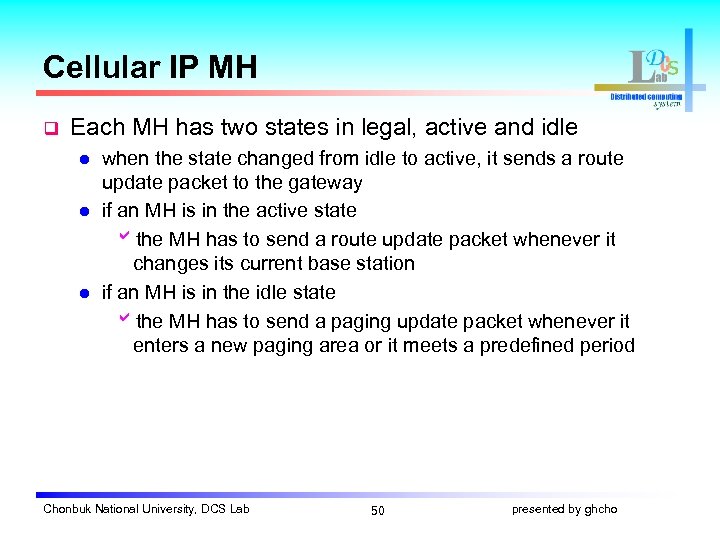

Cellular IP MH q Each MH has two states in legal, active and idle l l l when the state changed from idle to active, it sends a route update packet to the gateway if an MH is in the active state bthe MH has to send a route update packet whenever it changes its current base station if an MH is in the idle state bthe MH has to send a paging update packet whenever it enters a new paging area or it meets a predefined period Chonbuk National University, DCS Lab 50 presented by ghcho
Extensions to Cellular IP q During handoffs between base stations within the same paging area, idle MHs may remain silent, as paging is performed within the entire paging area Chonbuk National University, DCS Lab 51 presented by ghcho

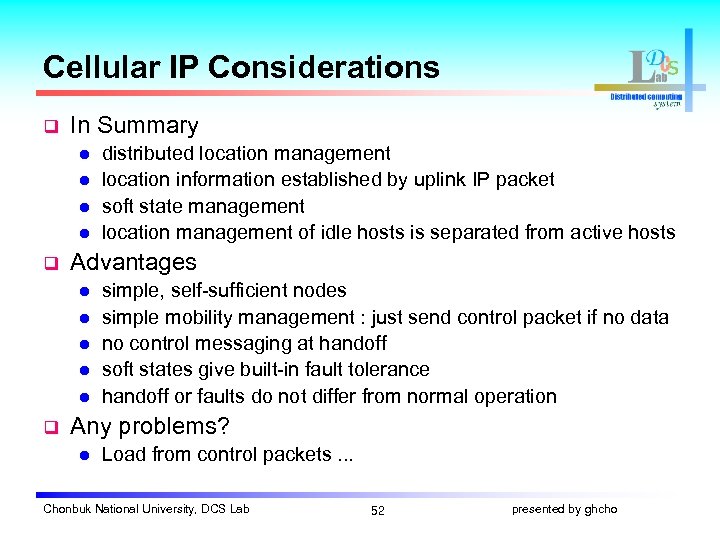

Cellular IP Considerations q In Summary l l q Advantages l l l q distributed location management location information established by uplink IP packet soft state management location management of idle hosts is separated from active hosts simple, self-sufficient nodes simple mobility management : just send control packet if no data no control messaging at handoff soft states give built-in fault tolerance handoff or faults do not differ from normal operation Any problems? l Load from control packets. . . Chonbuk National University, DCS Lab 52 presented by ghcho
![Micro Mobility – Fast Handoff [8] q Now, let’s talk about l l l](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-53.jpg "Micro Mobility – Fast Handoff [8] q Now, let’s talk about l l l")

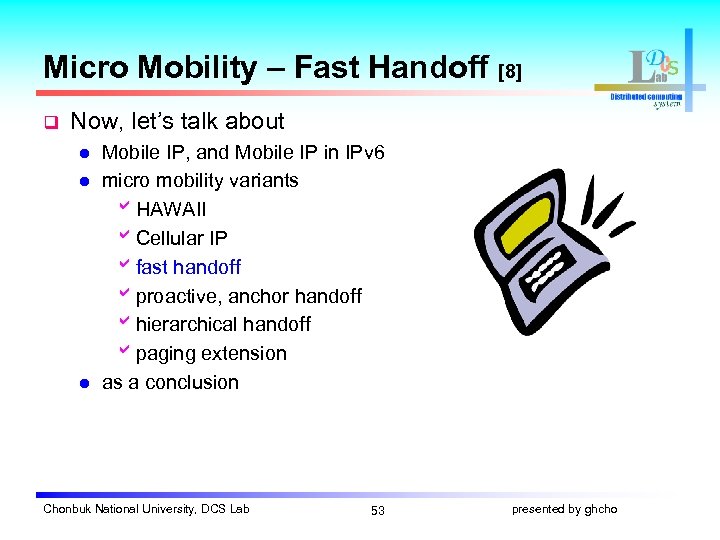

Micro Mobility – Fast Handoff [8] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 53 presented by ghcho

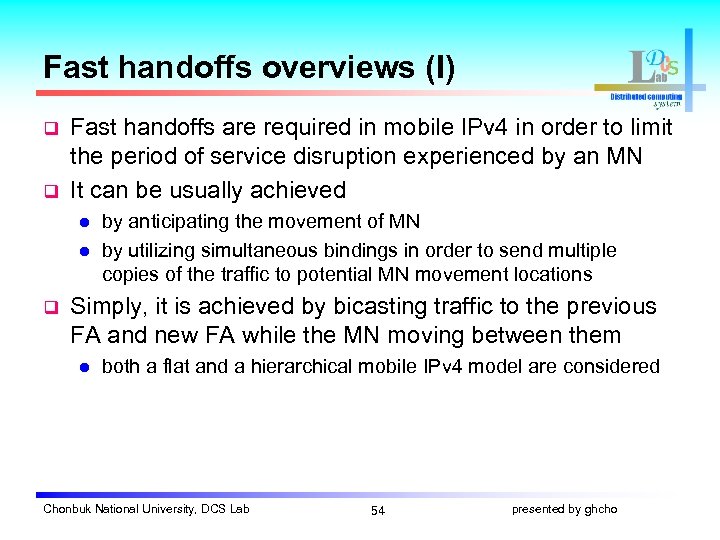

Fast handoffs overviews (I) q q Fast handoffs are required in mobile IPv 4 in order to limit the period of service disruption experienced by an MN It can be usually achieved l l q by anticipating the movement of MN by utilizing simultaneous bindings in order to send multiple copies of the traffic to potential MN movement locations Simply, it is achieved by bicasting traffic to the previous FA and new FA while the MN moving between them l both a flat and a hierarchical mobile IPv 4 model are considered Chonbuk National University, DCS Lab 54 presented by ghcho

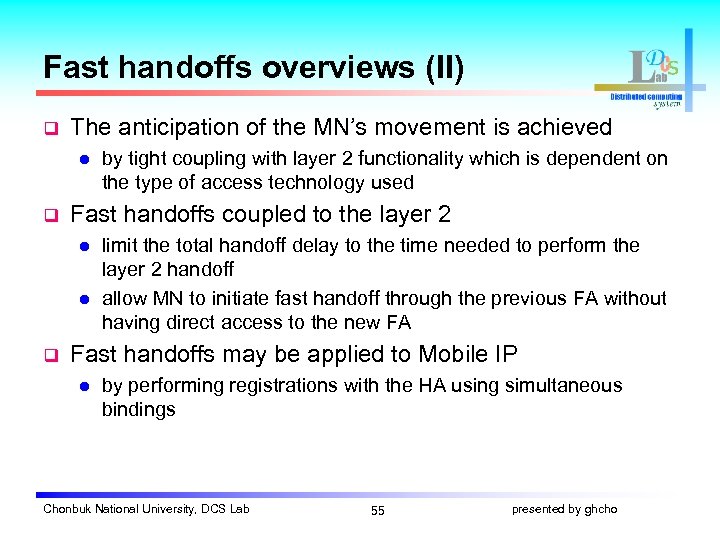

Fast handoffs overviews (II) q The anticipation of the MN’s movement is achieved l q Fast handoffs coupled to the layer 2 l l q by tight coupling with layer 2 functionality which is dependent on the type of access technology used limit the total handoff delay to the time needed to perform the layer 2 handoff allow MN to initiate fast handoff through the previous FA without having direct access to the new FA Fast handoffs may be applied to Mobile IP l by performing registrations with the HA using simultaneous bindings Chonbuk National University, DCS Lab 55 presented by ghcho

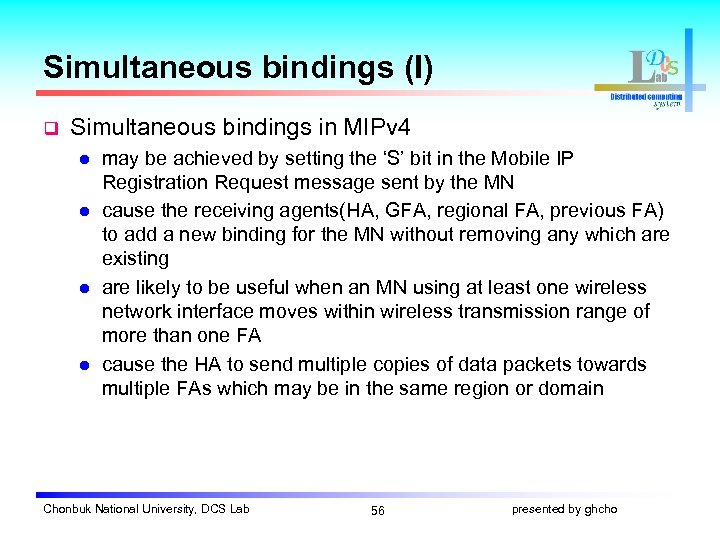

Simultaneous bindings (I) q Simultaneous bindings in MIPv 4 l l may be achieved by setting the ‘S’ bit in the Mobile IP Registration Request message sent by the MN cause the receiving agents(HA, GFA, regional FA, previous FA) to add a new binding for the MN without removing any which are existing are likely to be useful when an MN using at least one wireless network interface moves within wireless transmission range of more than one FA cause the HA to send multiple copies of data packets towards multiple FAs which may be in the same region or domain Chonbuk National University, DCS Lab 56 presented by ghcho

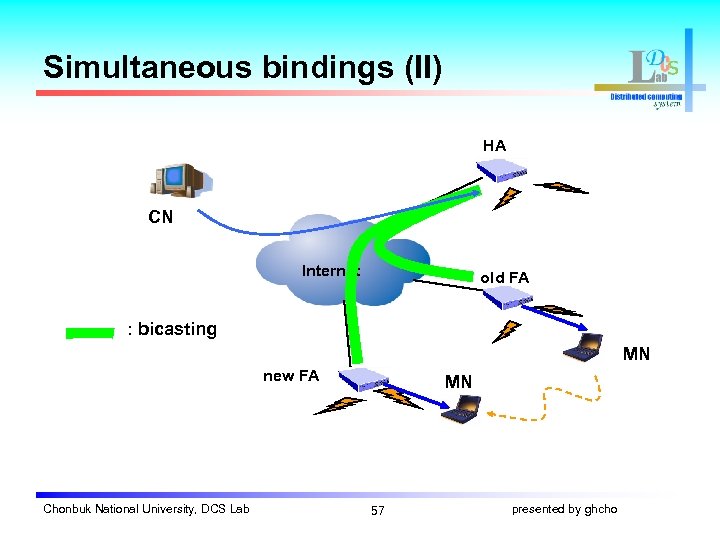

Simultaneous bindings (II) HA CN Internet old FA : bicasting MN new FA Chonbuk National University, DCS Lab MN 57 presented by ghcho

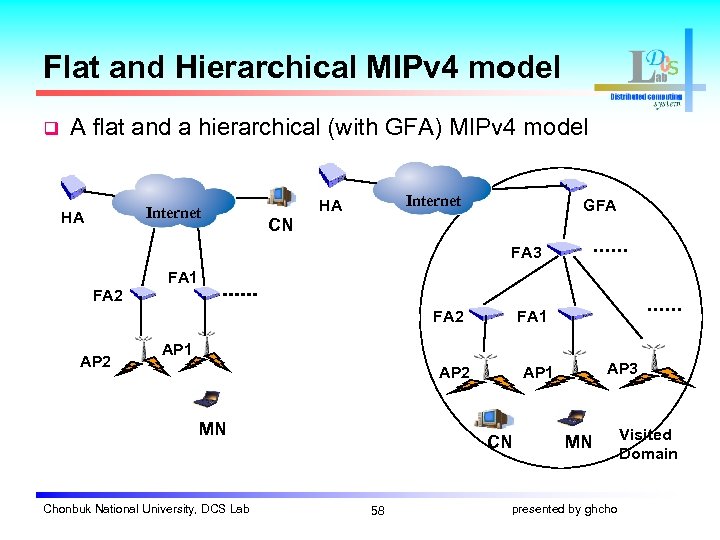

Flat and Hierarchical MIPv 4 model q A flat and a hierarchical (with GFA) MIPv 4 model Internet HA GFA CN FA 3 FA 1 FA 2 AP 2 FA 1 AP 2 MN Chonbuk National University, DCS Lab CN 58 AP 3 AP 1 MN presented by ghcho Visited Domain

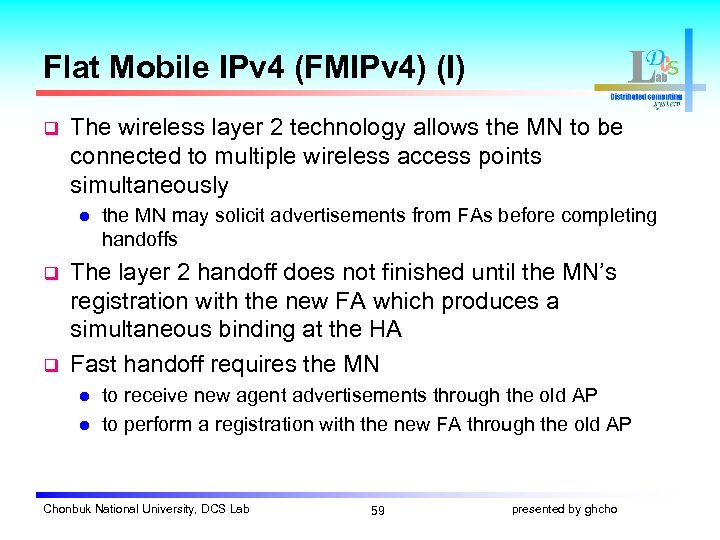

Flat Mobile IPv 4 (FMIPv 4) (I) q The wireless layer 2 technology allows the MN to be connected to multiple wireless access points simultaneously l q q the MN may solicit advertisements from FAs before completing handoffs The layer 2 handoff does not finished until the MN’s registration with the new FA which produces a simultaneous binding at the HA Fast handoff requires the MN l l to receive new agent advertisements through the old AP to perform a registration with the new FA through the old AP Chonbuk National University, DCS Lab 59 presented by ghcho

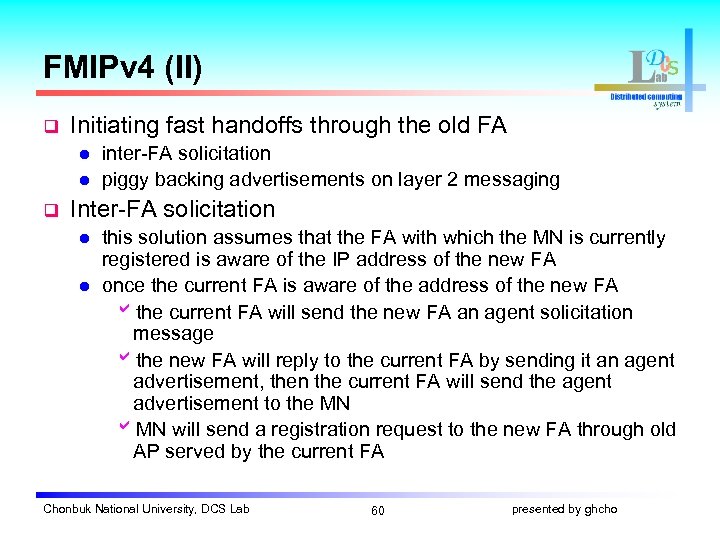

FMIPv 4 (II) q Initiating fast handoffs through the old FA l l q inter-FA solicitation piggy backing advertisements on layer 2 messaging Inter-FA solicitation l l this solution assumes that the FA with which the MN is currently registered is aware of the IP address of the new FA once the current FA is aware of the address of the new FA bthe current FA will send the new FA an agent solicitation message bthe new FA will reply to the current FA by sending it an agent advertisement, then the current FA will send the agent advertisement to the MN b. MN will send a registration request to the new FA through old AP served by the current FA Chonbuk National University, DCS Lab 60 presented by ghcho

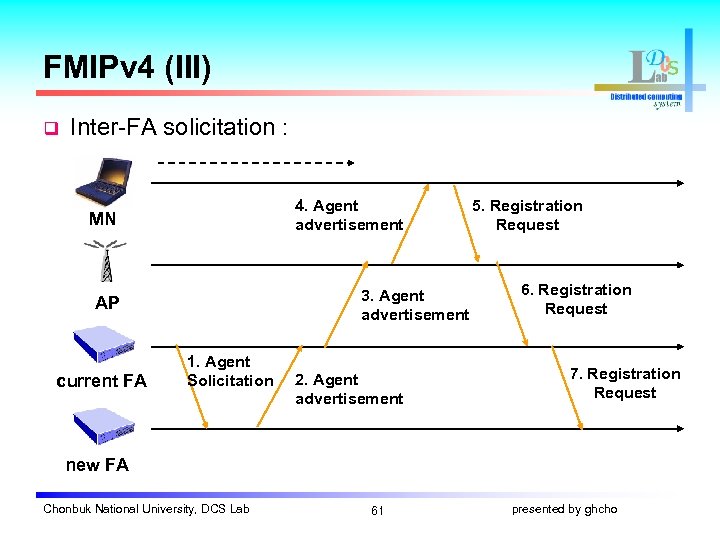

FMIPv 4 (III) q Inter-FA solicitation : 4. Agent advertisement MN 3. Agent advertisement AP current FA 1. Agent Solicitation 2. Agent advertisement 5. Registration Request 6. Registration Request 7. Registration Request new FA Chonbuk National University, DCS Lab 61 presented by ghcho

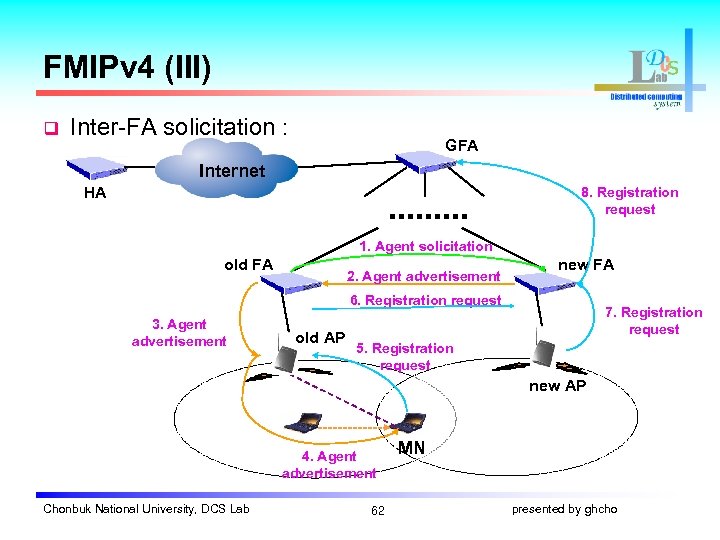

FMIPv 4 (III) q Inter-FA solicitation : GFA Internet HA 8. Registration request 1. Agent solicitation old FA 2. Agent advertisement new FA 6. Registration request 3. Agent advertisement old AP 7. Registration request 5. Registration request new AP 4. Agent advertisement Chonbuk National University, DCS Lab 62 MN presented by ghcho
FMIPv 4 (IV) q Piggy-backing advertisements on layer 2 messaging l l it is assumed that when an layer 2 handoff is initiated, old AP and new AP perform layer 2 messaging procedures to negotiate handoff since the MN is not attached to new AP yet bnew FA is unaware of the IP address of the MN and cannot send an advertisement to it bit is necessary for the layer 2 procedures to interwork with MIP once an layer 2 handoff is initiated, such that old AP and new AP are in communication, it is possible for new AP to solicit an advertisement from new FA and transfer it to old AP when the advertisement is received by the MN, the MN can perform a registration directed to new FA even though the MN has no data-connection to new AP yet Chonbuk National University, DCS Lab 63 presented by ghcho

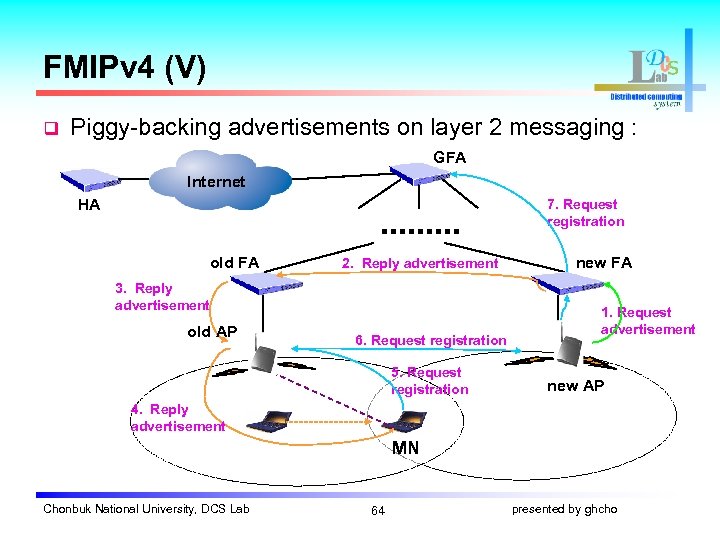

FMIPv 4 (V) q Piggy-backing advertisements on layer 2 messaging : GFA Internet HA 7. Request registration old FA 2. Reply advertisement 3. Reply advertisement old AP 6. Request registration 5. Request registration new FA 1. Request advertisement new AP 4. Reply advertisement MN Chonbuk National University, DCS Lab 64 presented by ghcho
Hierarchical Mobile IPv 4 (HMIPv 4) (I) q HMIPv 4 allows a MN to perform registrations locally with a Gateway FA(GFA) in order to reduce the number of signaling messages to the home network l l l q it achieves a reduction in the signaling delay when a MN moves between FAs within a domain MN may be attached directly to any FA within the hierarchy and moves between FAs there may be multiple paths between MN and GFA Triangle routing between nodes within the hierarchical domain is eliminated by direct routing through regional FAs or reduced by routing through the GFA Chonbuk National University, DCS Lab 65 presented by ghcho

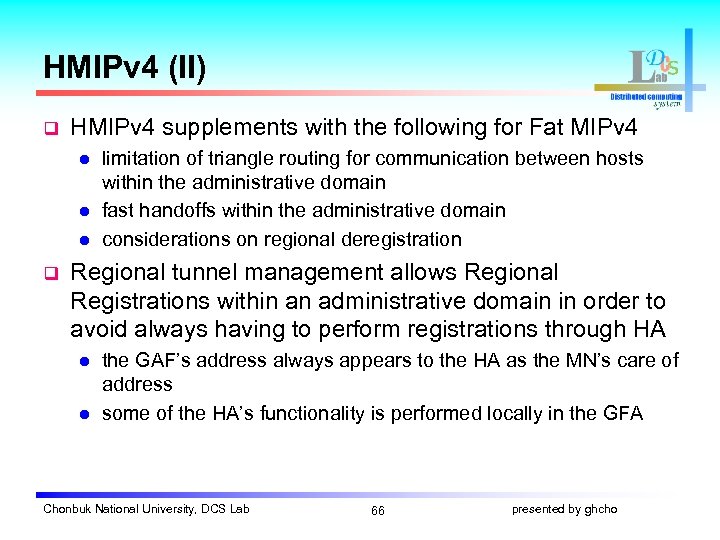

HMIPv 4 (II) q HMIPv 4 supplements with the following for Fat MIPv 4 l l l q limitation of triangle routing for communication between hosts within the administrative domain fast handoffs within the administrative domain considerations on regional deregistration Regional tunnel management allows Regional Registrations within an administrative domain in order to avoid always having to perform registrations through HA l l the GAF’s address always appears to the HA as the MN’s care of address some of the HA’s functionality is performed locally in the GFA Chonbuk National University, DCS Lab 66 presented by ghcho

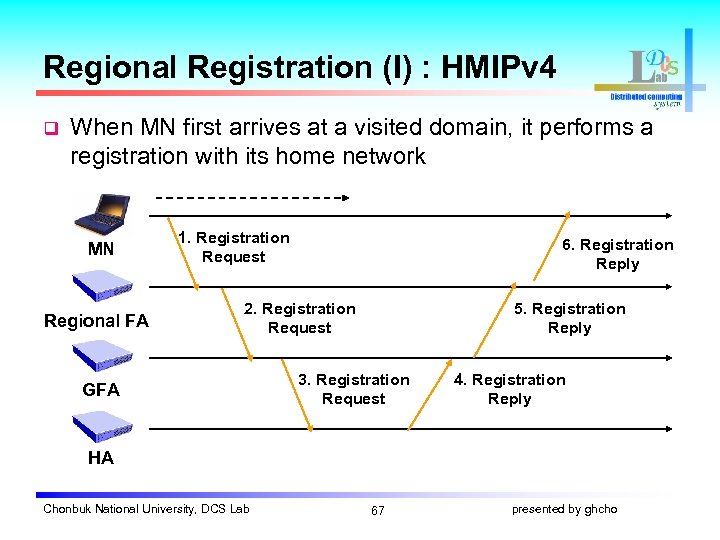

Regional Registration (I) : HMIPv 4 q When MN first arrives at a visited domain, it performs a registration with its home network MN Regional FA 1. Registration Request 6. Registration Reply 2. Registration Request GFA 5. Registration Reply 3. Registration Request 4. Registration Reply HA Chonbuk National University, DCS Lab 67 presented by ghcho

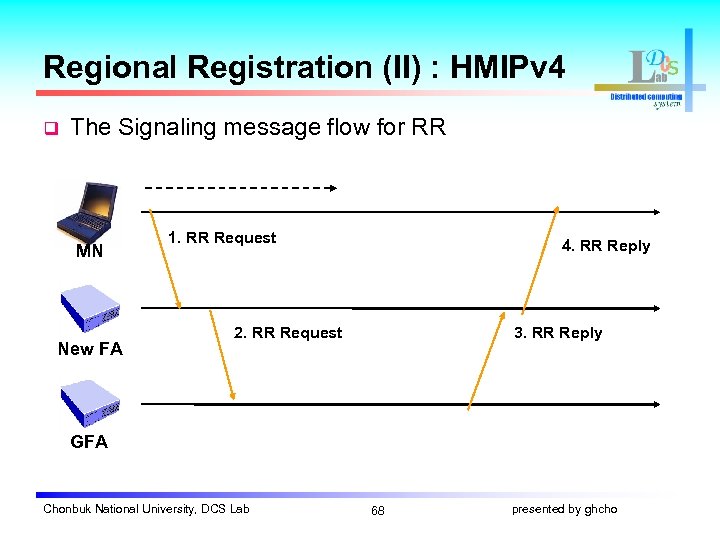

Regional Registration (II) : HMIPv 4 q The Signaling message flow for RR MN New FA 1. RR Request 4. RR Reply 2. RR Request 3. RR Reply GFA Chonbuk National University, DCS Lab 68 presented by ghcho

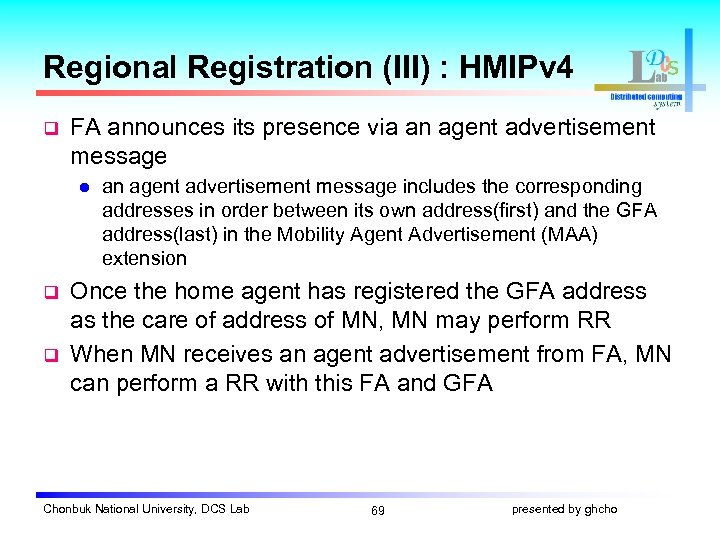

Regional Registration (III) : HMIPv 4 q FA announces its presence via an agent advertisement message l q q an agent advertisement message includes the corresponding addresses in order between its own address(first) and the GFA address(last) in the Mobility Agent Advertisement (MAA) extension Once the home agent has registered the GFA address as the care of address of MN, MN may perform RR When MN receives an agent advertisement from FA, MN can perform a RR with this FA and GFA Chonbuk National University, DCS Lab 69 presented by ghcho

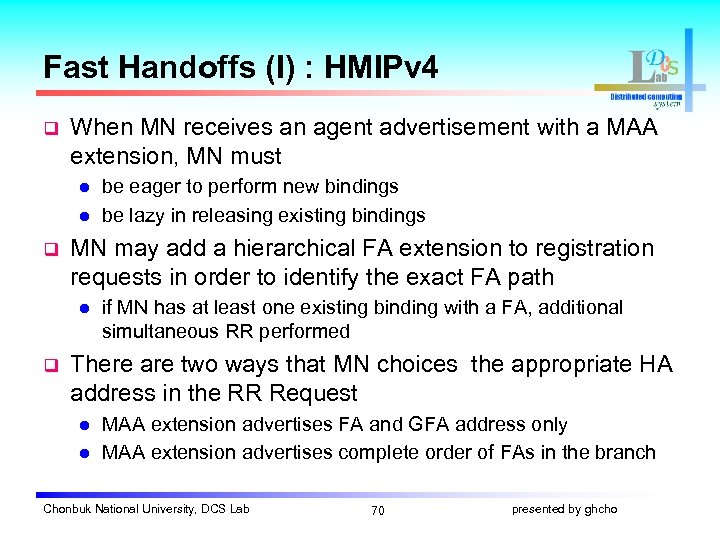

Fast Handoffs (I) : HMIPv 4 q When MN receives an agent advertisement with a MAA extension, MN must l l q MN may add a hierarchical FA extension to registration requests in order to identify the exact FA path l q be eager to perform new bindings be lazy in releasing existing bindings if MN has at least one existing binding with a FA, additional simultaneous RR performed There are two ways that MN choices the appropriate HA address in the RR Request l l MAA extension advertises FA and GFA address only MAA extension advertises complete order of FAs in the branch Chonbuk National University, DCS Lab 70 presented by ghcho

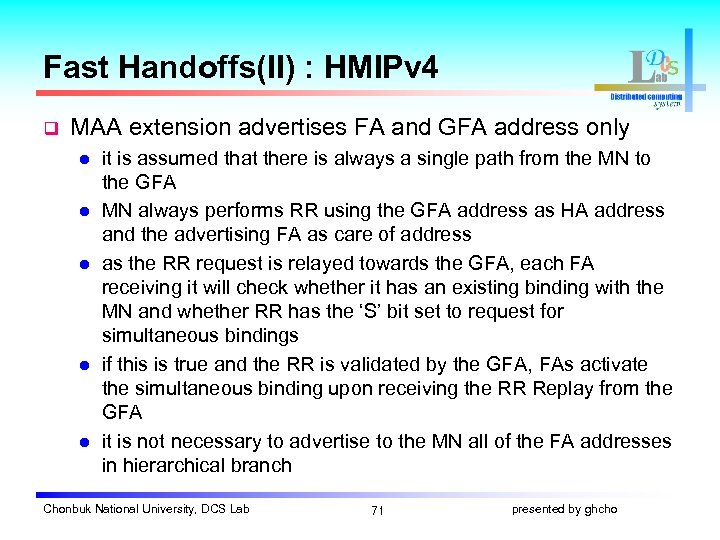

Fast Handoffs(II) : HMIPv 4 q MAA extension advertises FA and GFA address only l l l it is assumed that there is always a single path from the MN to the GFA MN always performs RR using the GFA address as HA address and the advertising FA as care of address as the RR request is relayed towards the GFA, each FA receiving it will check whether it has an existing binding with the MN and whether RR has the ‘S’ bit set to request for simultaneous bindings if this is true and the RR is validated by the GFA, FAs activate the simultaneous binding upon receiving the RR Replay from the GFA it is not necessary to advertise to the MN all of the FA addresses in hierarchical branch Chonbuk National University, DCS Lab 71 presented by ghcho

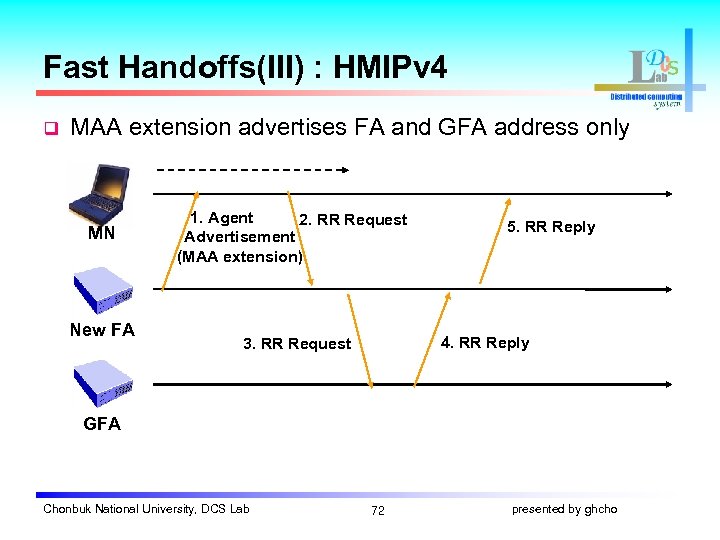

Fast Handoffs(III) : HMIPv 4 q MAA extension advertises FA and GFA address only MN New FA 1. Agent 2. RR Request Advertisement (MAA extension) 5. RR Reply 4. RR Reply 3. RR Request GFA Chonbuk National University, DCS Lab 72 presented by ghcho

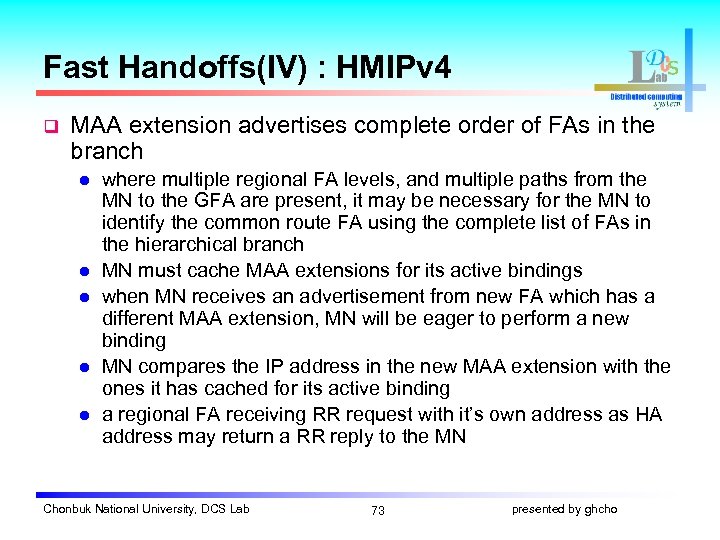

Fast Handoffs(IV) : HMIPv 4 q MAA extension advertises complete order of FAs in the branch l l l where multiple regional FA levels, and multiple paths from the MN to the GFA are present, it may be necessary for the MN to identify the common route FA using the complete list of FAs in the hierarchical branch MN must cache MAA extensions for its active bindings when MN receives an advertisement from new FA which has a different MAA extension, MN will be eager to perform a new binding MN compares the IP address in the new MAA extension with the ones it has cached for its active binding a regional FA receiving RR request with it’s own address as HA address may return a RR reply to the MN Chonbuk National University, DCS Lab 73 presented by ghcho

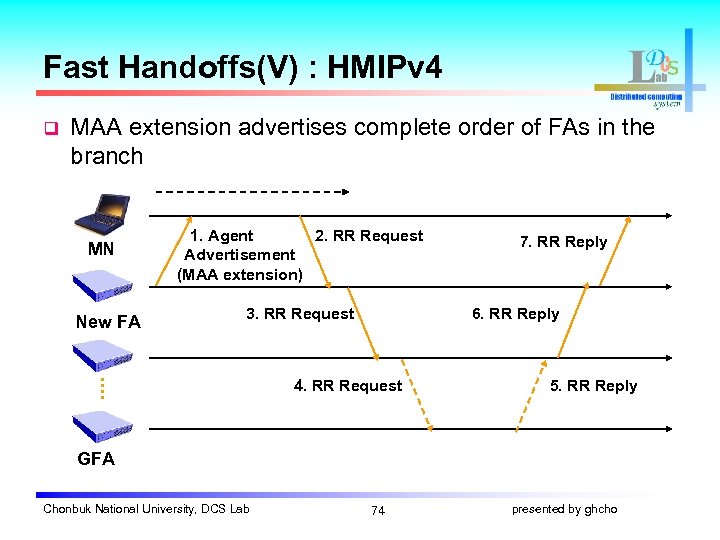

Fast Handoffs(V) : HMIPv 4 q MAA extension advertises complete order of FAs in the branch MN New FA 1. Agent 2. RR Request Advertisement (MAA extension) 3. RR Request 7. RR Reply 6. RR Reply 4. RR Request 5. RR Reply GFA Chonbuk National University, DCS Lab 74 presented by ghcho
![Micro Mobility - Proactive, Anchor Handoff [9][10] q Now, let’s talk about l l](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-75.jpg "Micro Mobility - Proactive, Anchor Handoff [9][10] q Now, let’s talk about l l")
Micro Mobility - Proactive, Anchor Handoff [9][10] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 75 presented by ghcho
![Proactive Handoff (I) [10] q q Proactive handoff aims to limit handoff delay to](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-76.jpg "Proactive Handoff (I) [10] q q Proactive handoff aims to limit handoff delay to")
Proactive Handoff (I) [10] q q Proactive handoff aims to limit handoff delay to the time needed to perform a L 2 handoff It is based on predicting the movement of MHs anticipating new points of attachment l l l first, it completes L 2 handoff then starts to forward data to the MH it allows L 3 registration to proceed finally, handoff control is driven by the network as opposed to MH Chonbuk National University, DCS Lab 76 presented by ghcho

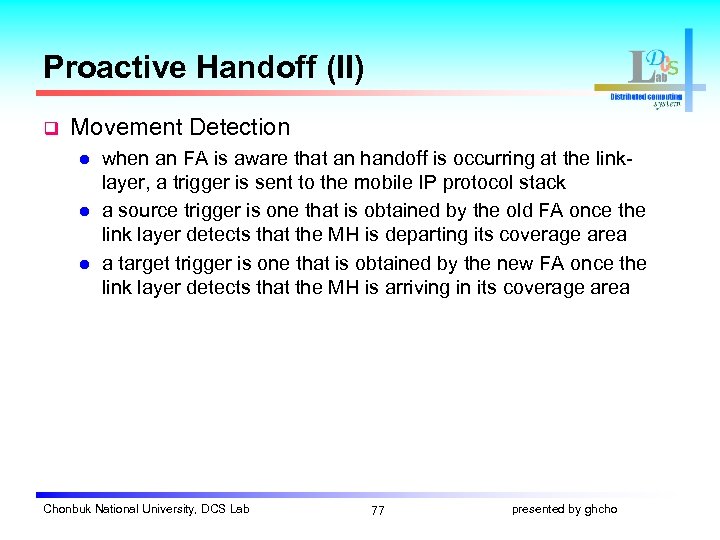

Proactive Handoff (II) q Movement Detection l l l when an FA is aware that an handoff is occurring at the linklayer, a trigger is sent to the mobile IP protocol stack a source trigger is one that is obtained by the old FA once the link layer detects that the MH is departing its coverage area a target trigger is one that is obtained by the new FA once the link layer detects that the MH is arriving in its coverage area Chonbuk National University, DCS Lab 77 presented by ghcho

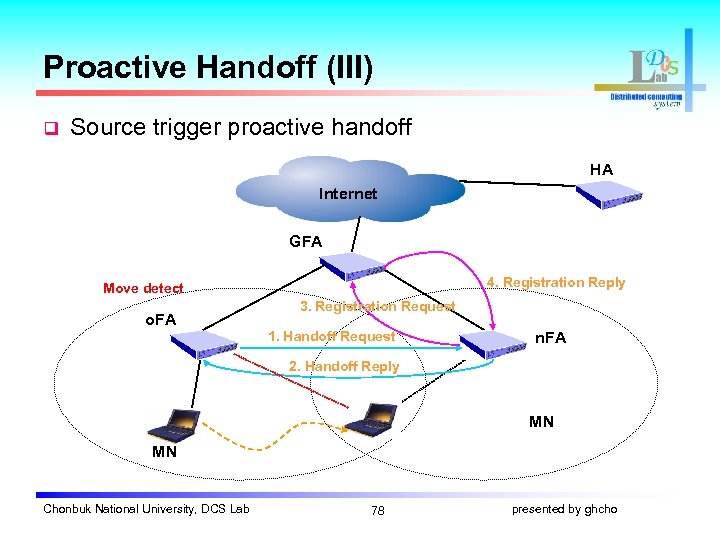

Proactive Handoff (III) q Source trigger proactive handoff HA Internet GFA 4. Registration Reply Move detect o. FA 3. Registration Request 1. Handoff Request n. FA 2. Handoff Reply MN MN Chonbuk National University, DCS Lab 78 presented by ghcho

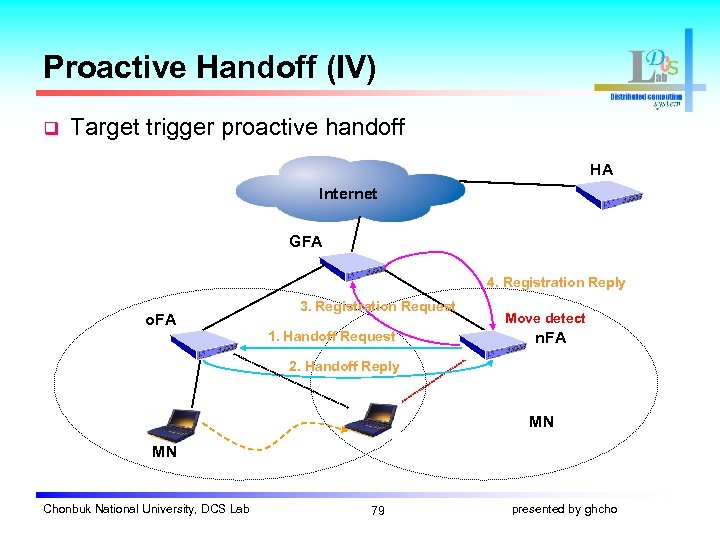

Proactive Handoff (IV) q Target trigger proactive handoff HA Internet GFA 4. Registration Reply o. FA 3. Registration Request 1. Handoff Request Move detect n. FA 2. Handoff Reply MN MN Chonbuk National University, DCS Lab 79 presented by ghcho

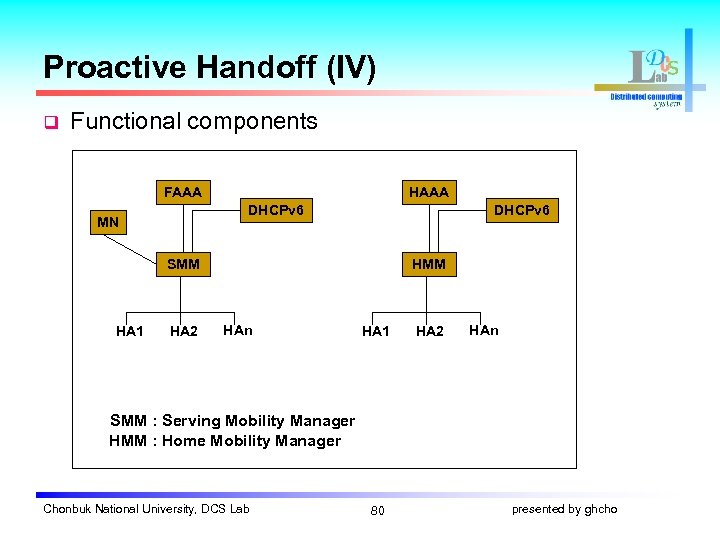

Proactive Handoff (IV) q Functional components FAAA HAAA DHCPv 6 MN DHCPv 6 SMM HA 1 HA 2 HMM HAn HA 1 HA 2 HAn SMM : Serving Mobility Manager HMM : Home Mobility Manager Chonbuk National University, DCS Lab 80 presented by ghcho

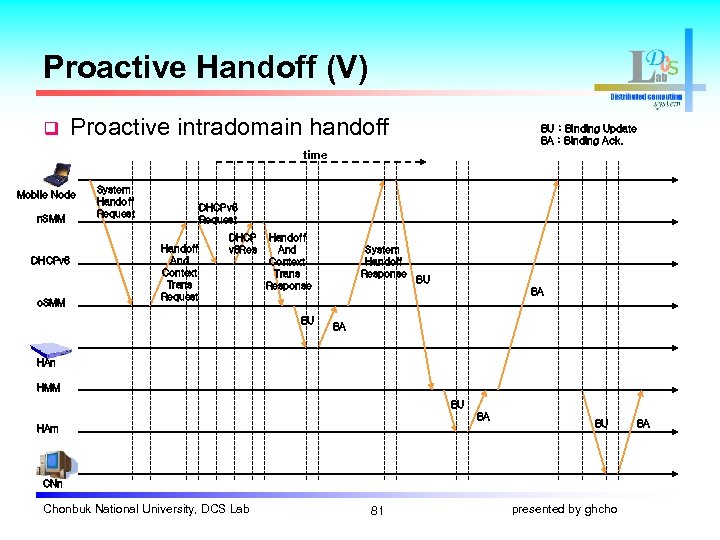

Proactive Handoff (V) q Proactive intradomain handoff BU : Binding Update BA : Binding Ack. time Mobile Node n. SMM DHCPv 6 o. SMM System Handoff Request DHCPv 6 Request Handoff And Context Trans Request DHCP v 6 Res Handoff And Context Trans Response BU System Handoff Response BU BA BA HAn HMM BU BA HAm BU CNn Chonbuk National University, DCS Lab 81 presented by ghcho BA

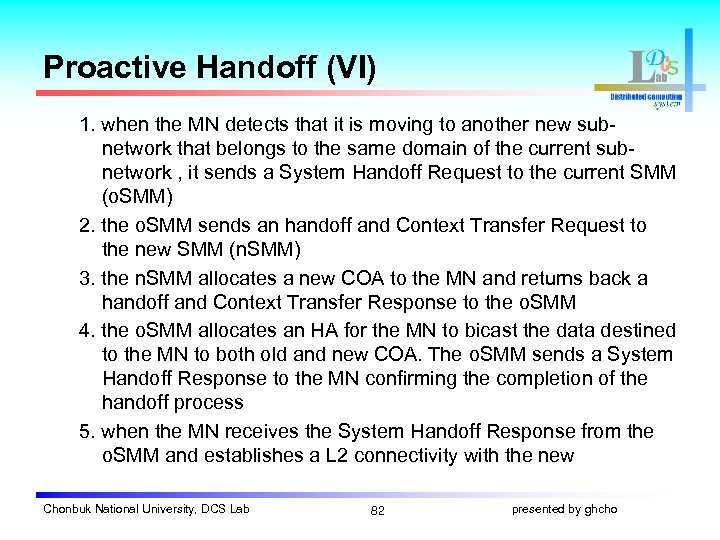

Proactive Handoff (VI) 1. when the MN detects that it is moving to another new subnetwork that belongs to the same domain of the current subnetwork , it sends a System Handoff Request to the current SMM (o. SMM) 2. the o. SMM sends an handoff and Context Transfer Request to the new SMM (n. SMM) 3. the n. SMM allocates a new COA to the MN and returns back a handoff and Context Transfer Response to the o. SMM 4. the o. SMM allocates an HA for the MN to bicast the data destined to the MN to both old and new COA. The o. SMM sends a System Handoff Response to the MN confirming the completion of the handoff process 5. when the MN receives the System Handoff Response from the o. SMM and establishes a L 2 connectivity with the new Chonbuk National University, DCS Lab 82 presented by ghcho

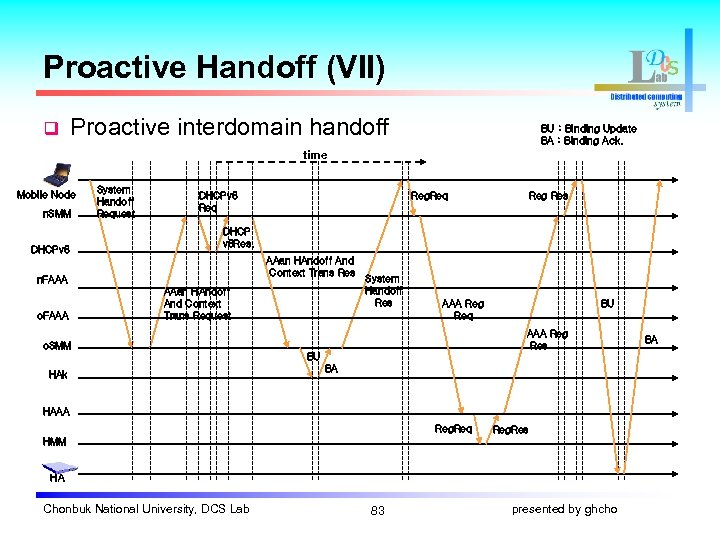

Proactive Handoff (VII) q Proactive interdomain handoff BU : Binding Update BA : Binding Ack. time Mobile Node n. SMM DHCPv 6 System Handoff Request DHCPv 6 Req Reg Res DHCP v 6 Res. AAan HAndoff And Context Trans Res n. FAAA o. FAAA Reg. Req AAan HAndoff And Context Trans Request System Handoff Res AAA Reg Req BU AAA Reg Res o. SMM BU HAk BA HAAA Reg. Req Reg. Res HMM HA Chonbuk National University, DCS Lab 83 presented by ghcho BA

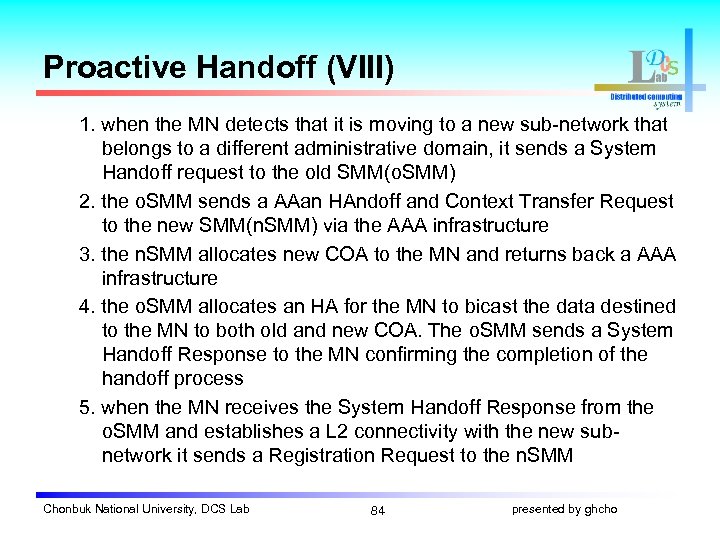

Proactive Handoff (VIII) 1. when the MN detects that it is moving to a new sub-network that belongs to a different administrative domain, it sends a System Handoff request to the old SMM(o. SMM) 2. the o. SMM sends a AAan HAndoff and Context Transfer Request to the new SMM(n. SMM) via the AAA infrastructure 3. the n. SMM allocates new COA to the MN and returns back a AAA infrastructure 4. the o. SMM allocates an HA for the MN to bicast the data destined to the MN to both old and new COA. The o. SMM sends a System Handoff Response to the MN confirming the completion of the handoff process 5. when the MN receives the System Handoff Response from the o. SMM and establishes a L 2 connectivity with the new subnetwork it sends a Registration Request to the n. SMM Chonbuk National University, DCS Lab 84 presented by ghcho

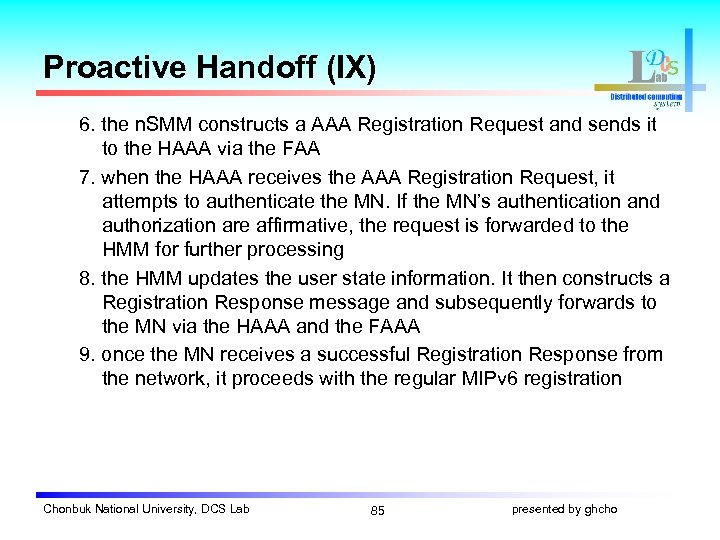

Proactive Handoff (IX) 6. the n. SMM constructs a AAA Registration Request and sends it to the HAAA via the FAA 7. when the HAAA receives the AAA Registration Request, it attempts to authenticate the MN. If the MN’s authentication and authorization are affirmative, the request is forwarded to the HMM for further processing 8. the HMM updates the user state information. It then constructs a Registration Response message and subsequently forwards to the MN via the HAAA and the FAAA 9. once the MN receives a successful Registration Response from the network, it proceeds with the regular MIPv 6 registration Chonbuk National University, DCS Lab 85 presented by ghcho

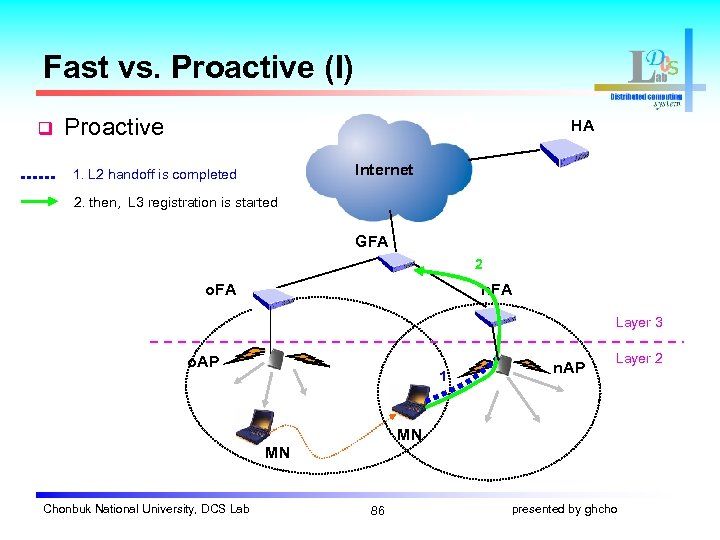

Fast vs. Proactive (I) q Proactive HA Internet 1. L 2 handoff is completed 2. then, L 3 registration is started GFA 2 o. FA n. FA Layer 3 o. AP 1 n. AP Layer 2 MN MN Chonbuk National University, DCS Lab 86 presented by ghcho

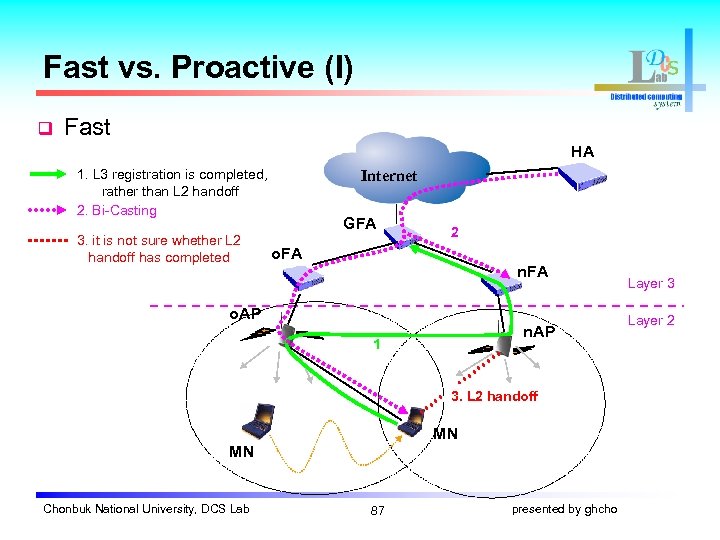

Fast vs. Proactive (I) q Fast HA 1. L 3 registration is completed, rather than L 2 handoff 2. Bi-Casting 3. it is not sure whether L 2 handoff has completed Internet GFA 2 o. FA n. FA o. AP n. AP 1 3. L 2 handoff MN MN Chonbuk National University, DCS Lab 87 presented by ghcho Layer 3 Layer 2
![Anchor Handoff (I) [11] q q q Anchor handoff proposes a number of enhancements](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-88.jpg "Anchor Handoff (I) [11] q q q Anchor handoff proposes a number of enhancements")
Anchor Handoff (I) [11] q q q Anchor handoff proposes a number of enhancements to ease local registration and global indirect registration An MH authenticates with its HA during global registration and establishes a secure tunnel between the HA and FA The FA then acts as anchor FA for future registrations So, only a local registration is necessary after handoff This rule holds as long as the MH moves within the same domain between the visiting FA and the anchor FA Chonbuk National University, DCS Lab 88 presented by ghcho
Anchor Handoff (II) q Local registration HA Home Network Internet Tunnel FA 2 Visited Network FA 1 MN MN Chonbuk National University, DCS Lab Anchor 89 presented by ghcho

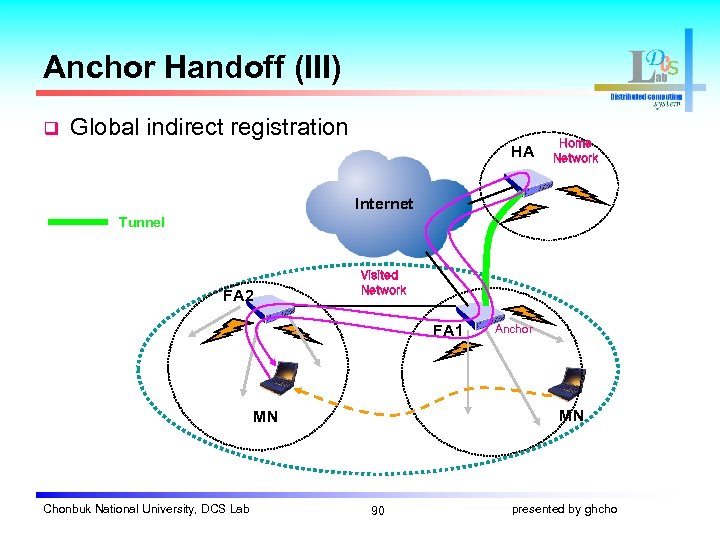

Anchor Handoff (III) q Global indirect registration HA Home Network Internet Tunnel FA 2 Visited Network FA 1 MN MN Chonbuk National University, DCS Lab Anchor 90 presented by ghcho
![Micro Mobility – Hierarchical Handoff [12] q Now, let’s talk about l l l](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-91.jpg "Micro Mobility – Hierarchical Handoff [12] q Now, let’s talk about l l l")

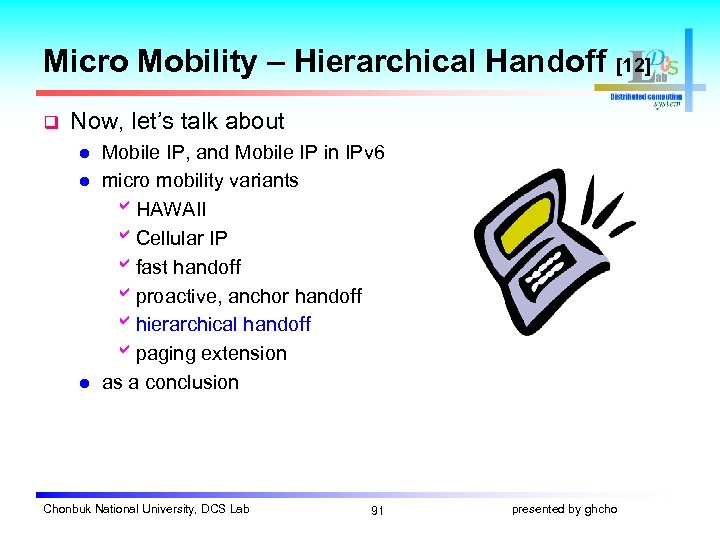

Micro Mobility – Hierarchical Handoff [12] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 91 presented by ghcho
![Hierarchical Mobile IP (I) [13] q Background l l l in Mobile IP ba](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-92.jpg "Hierarchical Mobile IP (I) [13] q Background l l l in Mobile IP ba")

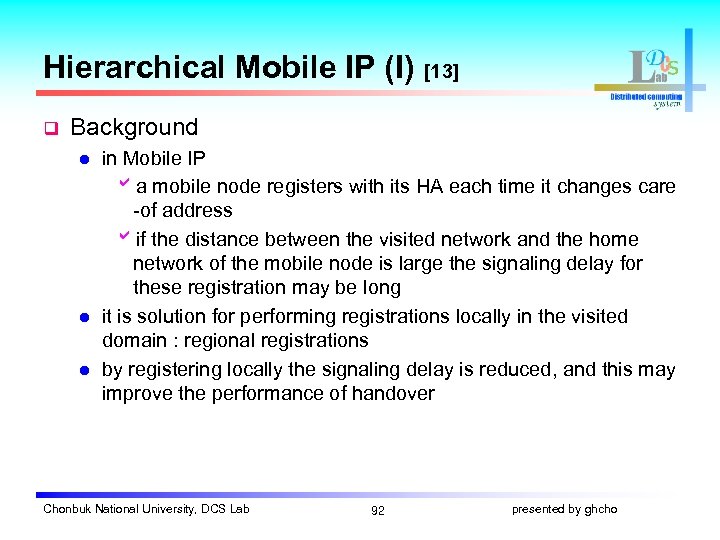

Hierarchical Mobile IP (I) [13] q Background l l l in Mobile IP ba mobile node registers with its HA each time it changes care -of address bif the distance between the visited network and the home network of the mobile node is large the signaling delay for these registration may be long it is solution for performing registrations locally in the visited domain : regional registrations by registering locally the signaling delay is reduced, and this may improve the performance of handover Chonbuk National University, DCS Lab 92 presented by ghcho

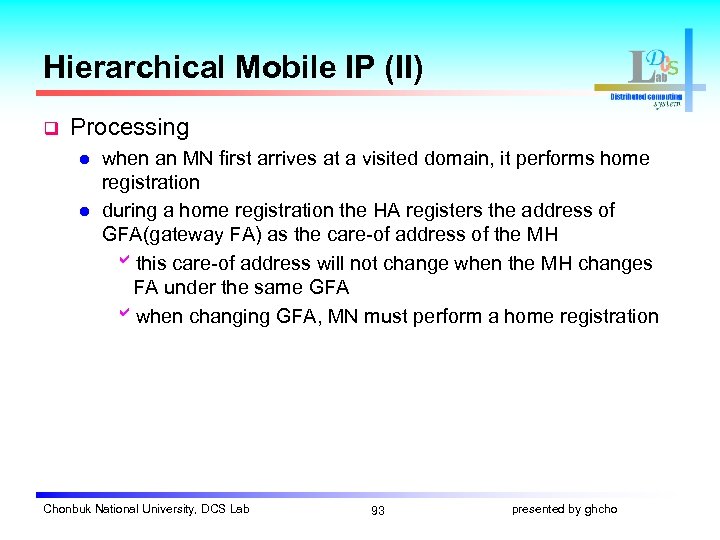

Hierarchical Mobile IP (II) q Processing l l when an MN first arrives at a visited domain, it performs home registration during a home registration the HA registers the address of GFA(gateway FA) as the care-of address of the MH bthis care-of address will not change when the MH changes FA under the same GFA bwhen changing GFA, MN must perform a home registration Chonbuk National University, DCS Lab 93 presented by ghcho

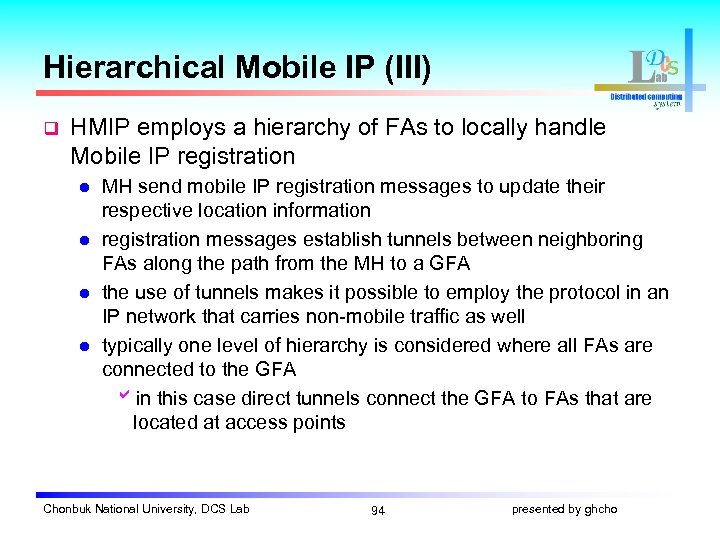

Hierarchical Mobile IP (III) q HMIP employs a hierarchy of FAs to locally handle Mobile IP registration l l MH send mobile IP registration messages to update their respective location information registration messages establish tunnels between neighboring FAs along the path from the MH to a GFA the use of tunnels makes it possible to employ the protocol in an IP network that carries non-mobile traffic as well typically one level of hierarchy is considered where all FAs are connected to the GFA bin this case direct tunnels connect the GFA to FAs that are located at access points Chonbuk National University, DCS Lab 94 presented by ghcho

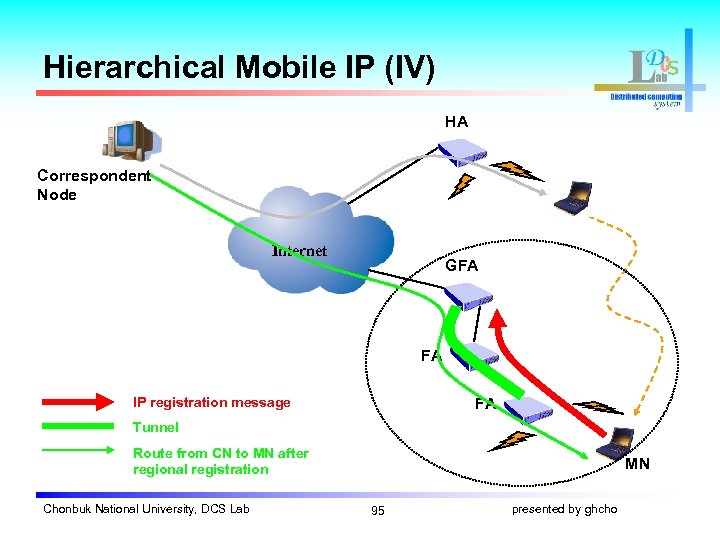

Hierarchical Mobile IP (IV) HA Correspondent Node Internet GFA FA IP registration message FA Tunnel Route from CN to MN after regional registration Chonbuk National University, DCS Lab MN 95 presented by ghcho
![Hierarchical Mobile IPv 6 (I) [14] [15] q Background l l l in Mobile](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-96.jpg "Hierarchical Mobile IPv 6 (I) [14] [15] q Background l l l in Mobile")

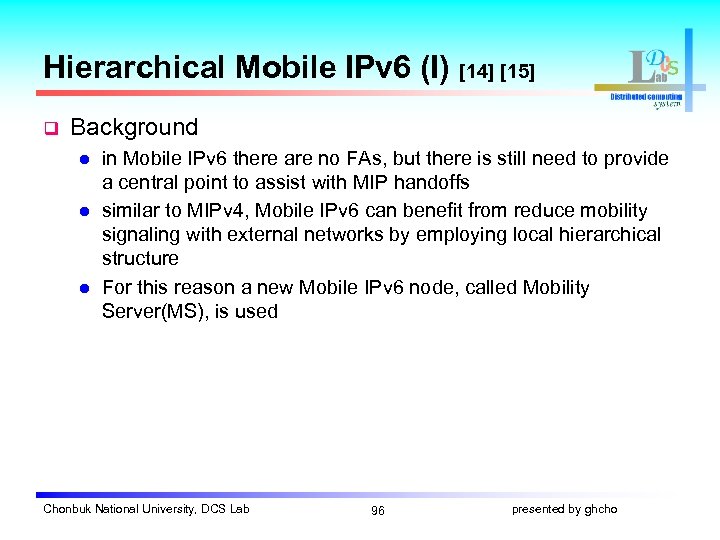

Hierarchical Mobile IPv 6 (I) [14] [15] q Background l l l in Mobile IPv 6 there are no FAs, but there is still need to provide a central point to assist with MIP handoffs similar to MIPv 4, Mobile IPv 6 can benefit from reduce mobility signaling with external networks by employing local hierarchical structure For this reason a new Mobile IPv 6 node, called Mobility Server(MS), is used Chonbuk National University, DCS Lab 96 presented by ghcho
Hierarchical Mobile IPv 6 (II) q Features l l as the existing hierarchical Mobile IP scheme it uses anchor points called mobility servers(MS) to deploy two levels of hierarchies (MS is called Mobility Anchor Point(MAP) in other IETF draft) it uses of new IPv 6 functionalities such as a large address space and neighbor discovery mechanisms to support flexible, scalable and robust mobility management supports two or more levels of hierarchy bthe simplest implementation of HMIPv 6 supports two levels of hierarchy (e. g. micro-mobility protocol and Mobile IP) each domain contains one or several MSs as the level of hierarchy Chonbuk National University, DCS Lab 97 presented by ghcho

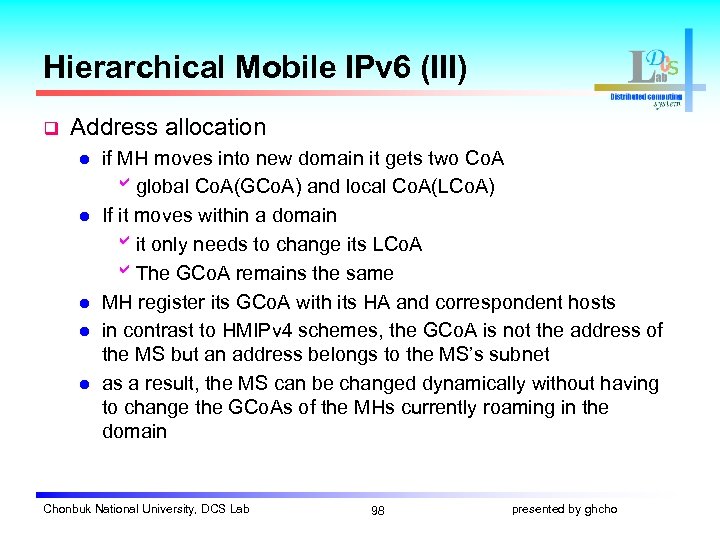

Hierarchical Mobile IPv 6 (III) q Address allocation l l l if MH moves into new domain it gets two Co. A bglobal Co. A(GCo. A) and local Co. A(LCo. A) If it moves within a domain bit only needs to change its LCo. A b. The GCo. A remains the same MH register its GCo. A with its HA and correspondent hosts in contrast to HMIPv 4 schemes, the GCo. A is not the address of the MS but an address belongs to the MS’s subnet as a result, the MS can be changed dynamically without having to change the GCo. As of the MHs currently roaming in the domain Chonbuk National University, DCS Lab 98 presented by ghcho

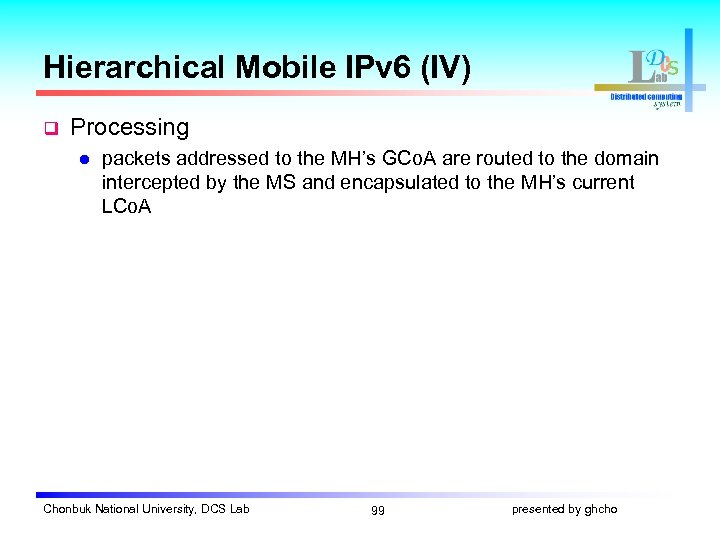

Hierarchical Mobile IPv 6 (IV) q Processing l packets addressed to the MH’s GCo. A are routed to the domain intercepted by the MS and encapsulated to the MH’s current LCo. A Chonbuk National University, DCS Lab 99 presented by ghcho

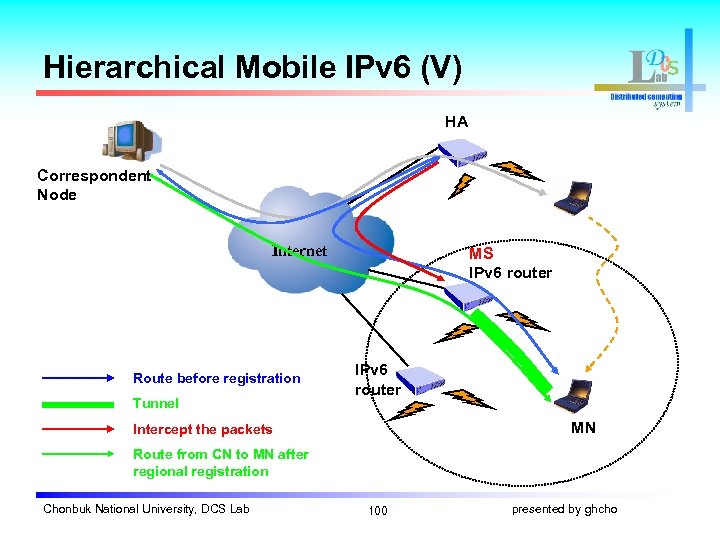

Hierarchical Mobile IPv 6 (V) HA Correspondent Node Internet Route before registration Tunnel MS IPv 6 router MN Intercept the packets Route from CN to MN after regional registration Chonbuk National University, DCS Lab 100 presented by ghcho
![Micro Mobility – Paging Extension [16] q Now, let’s talk about l l l](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-101.jpg "Micro Mobility – Paging Extension [16] q Now, let’s talk about l l l")
Micro Mobility – Paging Extension [16] q Now, let’s talk about l l l Mobile IP, and Mobile IP in IPv 6 micro mobility variants b. HAWAII b. Cellular IP bfast handoff bproactive, anchor handoff bhierarchical handoff bpaging extension as a conclusion Chonbuk National University, DCS Lab 101 presented by ghcho

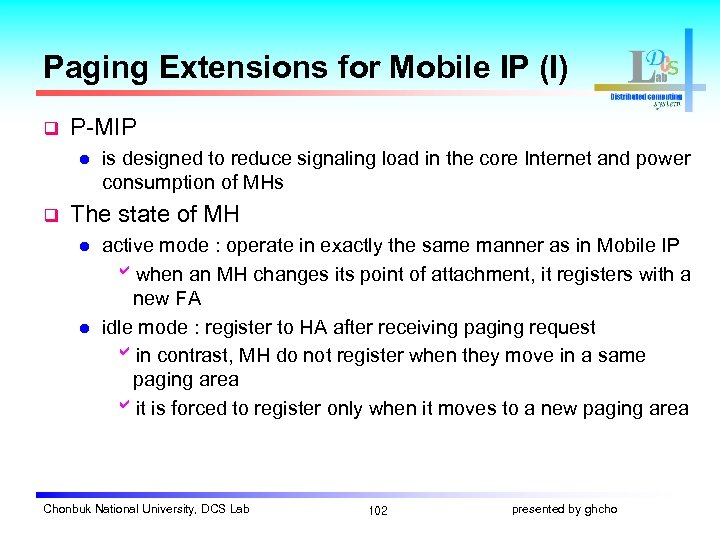

Paging Extensions for Mobile IP (I) q P-MIP l q is designed to reduce signaling load in the core Internet and power consumption of MHs The state of MH l l active mode : operate in exactly the same manner as in Mobile IP bwhen an MH changes its point of attachment, it registers with a new FA idle mode : register to HA after receiving paging request bin contrast, MH do not register when they move in a same paging area bit is forced to register only when it moves to a new paging area Chonbuk National University, DCS Lab 102 presented by ghcho

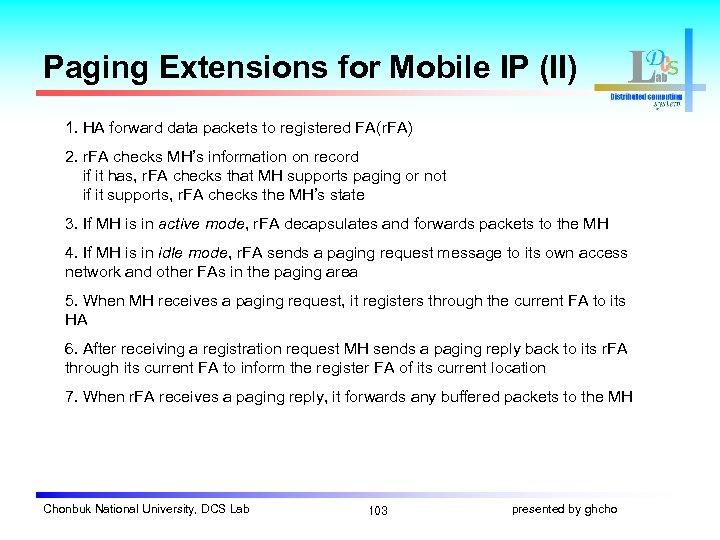

Paging Extensions for Mobile IP (II) 1. HA forward data packets to registered FA(r. FA) 2. r. FA checks MH’s information on record if it has, r. FA checks that MH supports paging or not if it supports, r. FA checks the MH’s state 3. If MH is in active mode, r. FA decapsulates and forwards packets to the MH 4. If MH is in idle mode, r. FA sends a paging request message to its own access network and other FAs in the paging area 5. When MH receives a paging request, it registers through the current FA to its HA 6. After receiving a registration request MH sends a paging reply back to its r. FA through its current FA to inform the register FA of its current location 7. When r. FA receives a paging reply, it forwards any buffered packets to the MH Chonbuk National University, DCS Lab 103 presented by ghcho
Paging Extensions for Mobile IP (III) HA Data packets Paging request message 1 Internet 2 4 FA r. FA 3 FA MN MN Paging area MN Chonbuk National University, DCS Lab 104 presented by ghcho
Paging Extensions for Mobile IP (IV) HA Registration message Paging reply message Orphan data packets Internet 6 7 FA r. FA FA MN MN 5 Paging area MN Chonbuk National University, DCS Lab 105 presented by ghcho

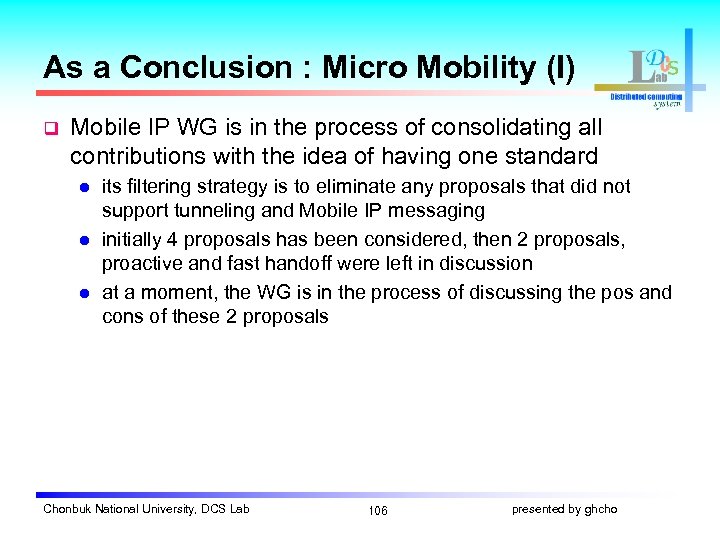

As a Conclusion : Micro Mobility (I) q Mobile IP WG is in the process of consolidating all contributions with the idea of having one standard l l l its filtering strategy is to eliminate any proposals that did not support tunneling and Mobile IP messaging initially 4 proposals has been considered, then 2 proposals, proactive and fast handoff were left in discussion at a moment, the WG is in the process of discussing the pos and cons of these 2 proposals Chonbuk National University, DCS Lab 106 presented by ghcho
As a Conclusion : Micro Mobility (II) q Similarities of the proactive handoff and fast handoff l l q aim to limit delay to the time needed to perform a L 2 handoff make use of predicting the movements of MHs to anticipate new points of attachments Differences of the proactive handoff and fast handoff l l the former first completes L 2 handoff, then starts to forward data to the MH, and finally, allows L 3 registration to proceed : handoff control is driven by the network the later anticipates the movements of an MH allowing the MH to register with the new FA or GFA prior to L 2 connectivity being established : handoff is initiated by MH Chonbuk National University, DCS Lab 107 presented by ghcho

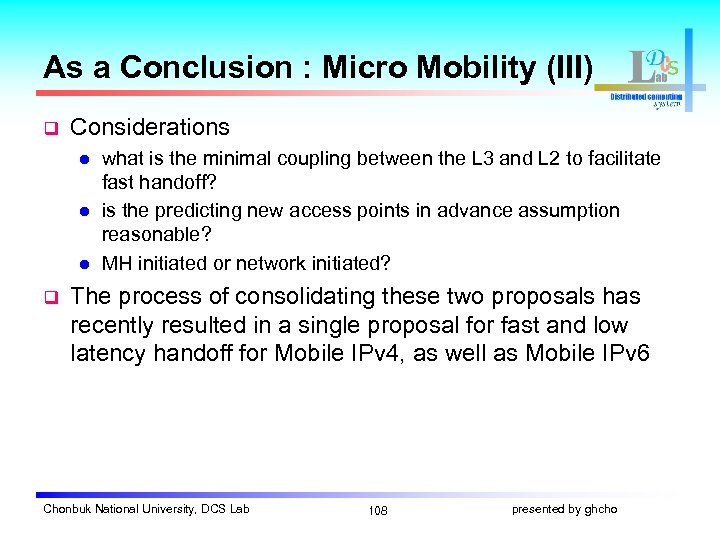

As a Conclusion : Micro Mobility (III) q Considerations l l l q what is the minimal coupling between the L 3 and L 2 to facilitate fast handoff? is the predicting new access points in advance assumption reasonable? MH initiated or network initiated? The process of consolidating these two proposals has recently resulted in a single proposal for fast and low latency handoff for Mobile IPv 4, as well as Mobile IPv 6 Chonbuk National University, DCS Lab 108 presented by ghcho
![Reference (I) [1] C. Perkins, “IP Mobility Support, ” IETF RFC 2002, Oct. 1996.](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-109.jpg "Reference (I) [1] C. Perkins, “IP Mobility Support, ” IETF RFC 2002, Oct. 1996.")
Reference (I) [1] C. Perkins, “IP Mobility Support, ” IETF RFC 2002, Oct. 1996. [2] C. Perkins, “IP Mobility Support for IPv 4, revised, ” IETF Draft, draft-ietfmobileip-rfc 2002 -bis-03. txt, Sep. 2000. [3] S. Deering, “ICMP Router Discovery Messages, ” IETF RFC 1256, Sep. 1991. [4] C. Perkins, “IP Encapsulation within IP, ” IETF RFC 2003, Oct. 1996. [5] C. Perkins, “Minimal Encapsulation within IP, ” IETF RFC 2004, Oct. 1996. [6] R. Ramjee, et. al. , “HAWAII : a domain-based approach for supporting mobility in wide-area wireless networks, ” Proc. IEEE International Conference on Network Protocols, pp. 283 -292, 1999. [7] A. Campbell, et. al. , “Cellular IP, ” IETF Draft, draft-ietf-mobileip-cellularip-00. txt, Dec. 1999. [8] K. Malki, H. Soliman, “Fast Handoffs in Mobile IPv 4, ” IETF Draft, draft-elmalki-mobileip -fast-handoffs-03. txt, Sep. 2000. Chonbuk National University, DCS Lab 109 presented by ghcho
![Reference (II) [9] G. Tsirtsis, “Fast handovers for Mobile IPv 6, ” IETF Draft,](https://present5.com/presentation/068bed34354b82bf03fe8aa3c42020bb/image-110.jpg "Reference (II) [9] G. Tsirtsis, “Fast handovers for Mobile IPv 6, ” IETF Draft,")

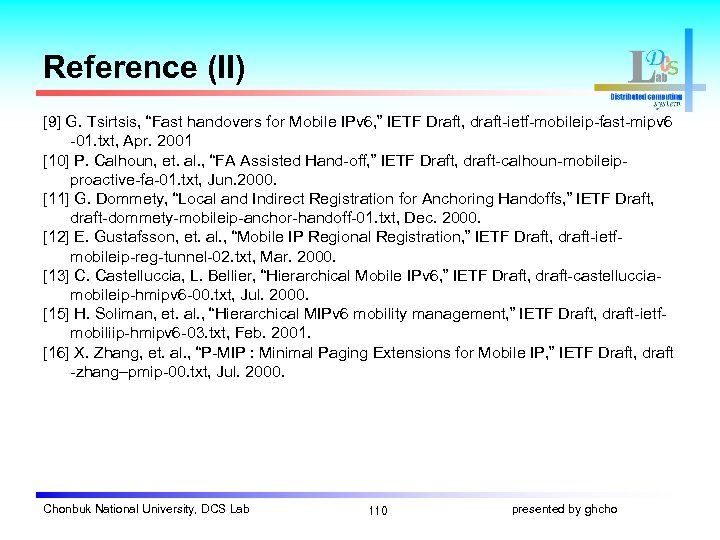

Reference (II) [9] G. Tsirtsis, “Fast handovers for Mobile IPv 6, ” IETF Draft, draft-ietf-mobileip-fast-mipv 6 -01. txt, Apr. 2001 [10] P. Calhoun, et. al. , “FA Assisted Hand-off, ” IETF Draft, draft-calhoun-mobileipproactive-fa-01. txt, Jun. 2000. [11] G. Dommety, “Local and Indirect Registration for Anchoring Handoffs, ” IETF Draft, draft-dommety-mobileip-anchor-handoff-01. txt, Dec. 2000. [12] E. Gustafsson, et. al. , “Mobile IP Regional Registration, ” IETF Draft, draft-ietfmobileip-reg-tunnel-02. txt, Mar. 2000. [13] C. Castelluccia, L. Bellier, “Hierarchical Mobile IPv 6, ” IETF Draft, draft-castellucciamobileip-hmipv 6 -00. txt, Jul. 2000. [15] H. Soliman, et. al. , “Hierarchical MIPv 6 mobility management, ” IETF Draft, draft-ietfmobiliip-hmipv 6 -03. txt, Feb. 2001. [16] X. Zhang, et. al. , “P-MIP : Minimal Paging Extensions for Mobile IP, ” IETF Draft, draft -zhang–pmip-00. txt, Jul. 2000. Chonbuk National University, DCS Lab 110 presented by ghcho
