Mixed Reality University of Central Florida Media Convergence

Mixed Reality University of Central Florida Media Convergence Laboratory @ IST School of Electrical Engineering & Computer Science Digital Media Department

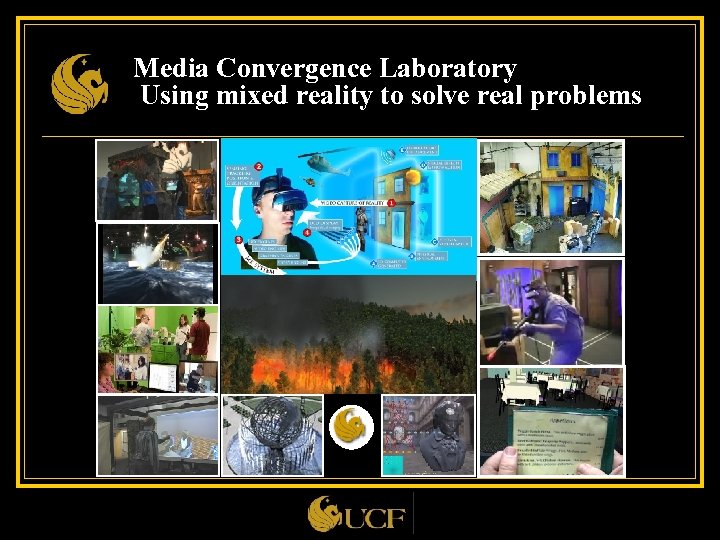

Media Convergence Laboratory Using mixed reality to solve real problems

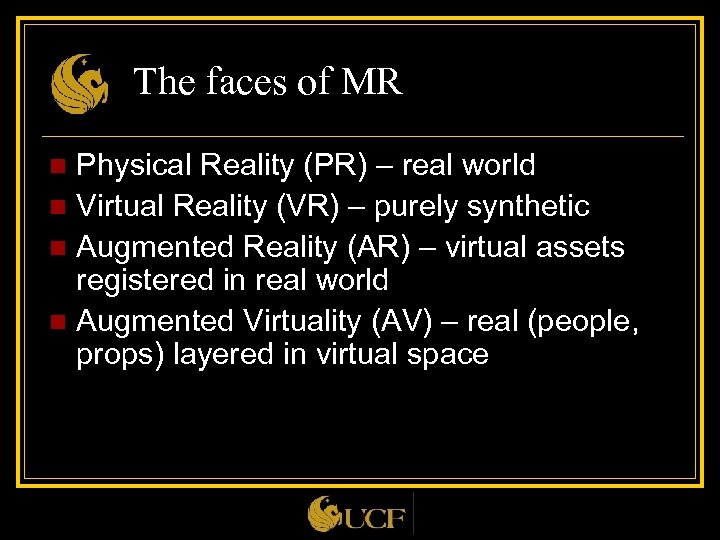

The faces of MR Physical Reality (PR) – real world n Virtual Reality (VR) – purely synthetic n Augmented Reality (AR) – virtual assets registered in real world n Augmented Virtuality (AV) – real (people, props) layered in virtual space n

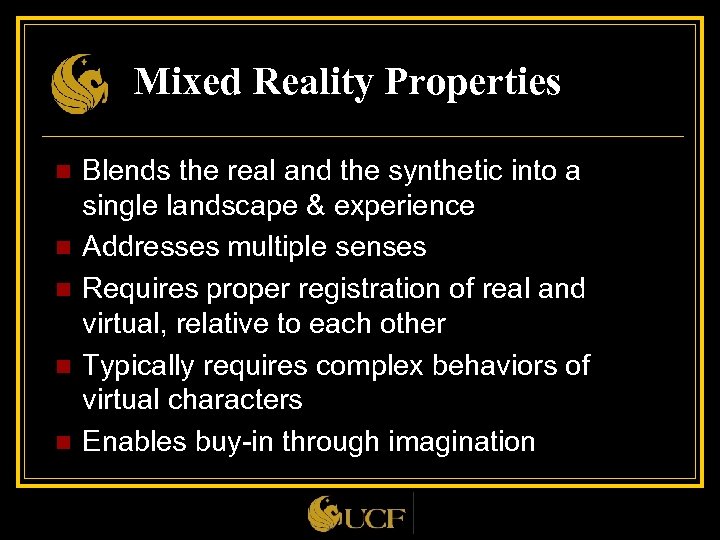

Mixed Reality Properties n n n Blends the real and the synthetic into a single landscape & experience Addresses multiple senses Requires proper registration of real and virtual, relative to each other Typically requires complex behaviors of virtual characters Enables buy-in through imagination

Limitations along the continuum PR is constrained by physical space n VR limits person-to-person expression and context of PR n AR often limits escape from real world n AV allows rich layering n In general, we want to move smoothly along the MR continuum n

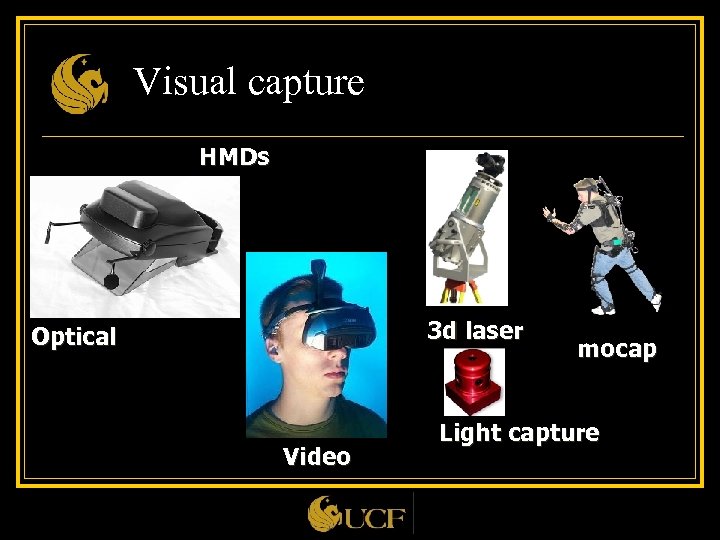

Visual capture HMDs 3 d laser Optical Video mocap Light capture

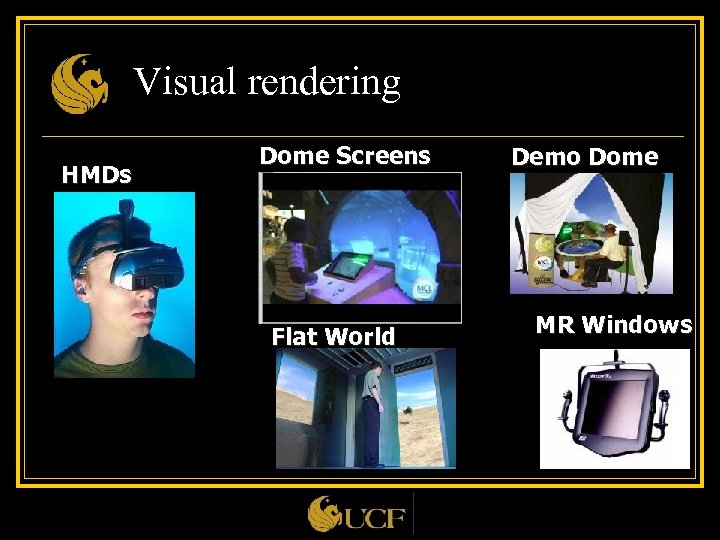

Visual rendering HMDs Dome Screens Flat World Demo Dome MR Windows

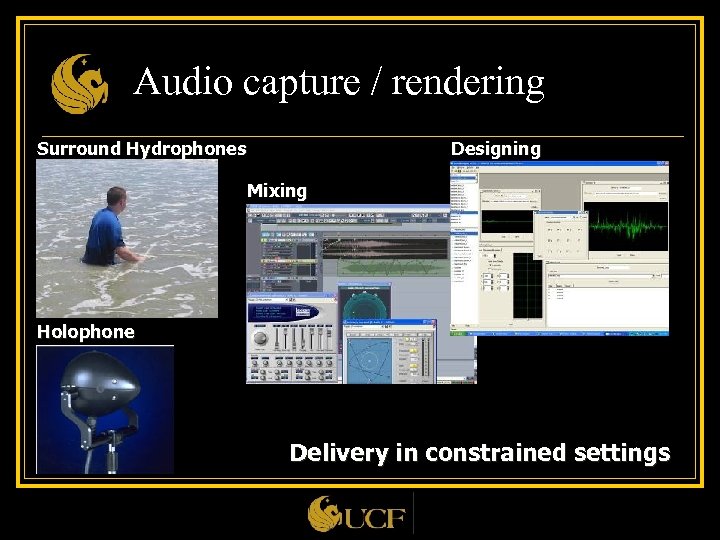

Audio capture / rendering Surround Hydrophones Designing Mixing Holophone Delivery in constrained settings

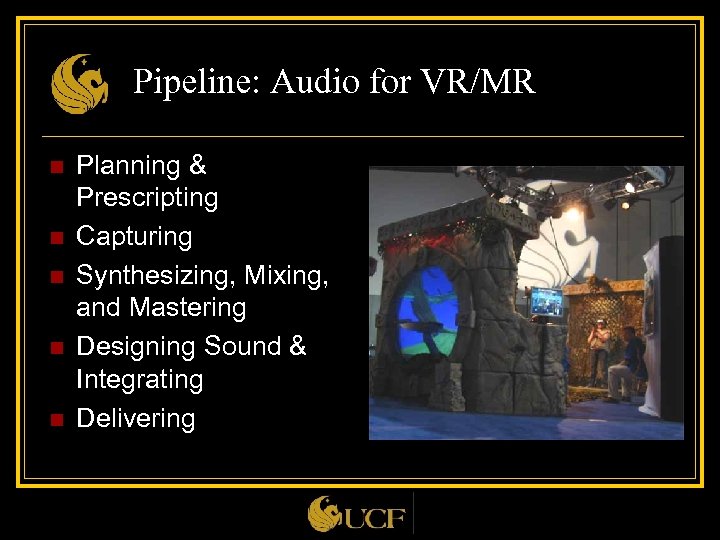

Pipeline: Audio for VR/MR n n n Planning & Prescripting Capturing Synthesizing, Mixing, and Mastering Designing Sound & Integrating Delivering

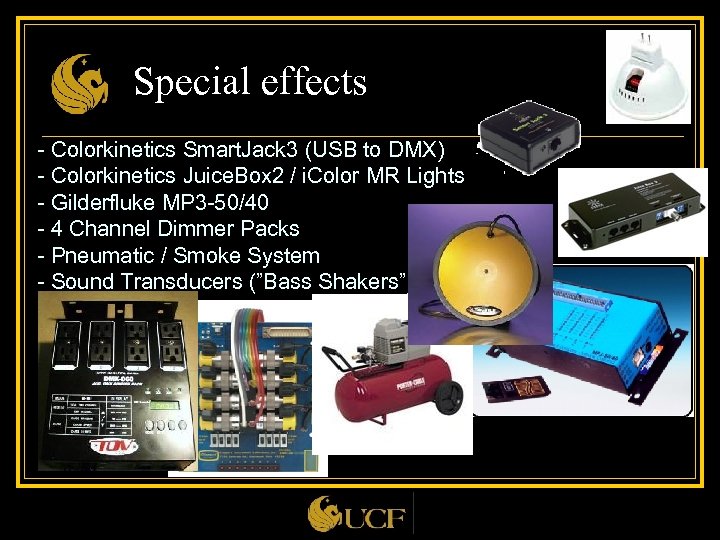

Special effects - Colorkinetics Smart. Jack 3 (USB to DMX) - Colorkinetics Juice. Box 2 / i. Color MR Lights - Gilderfluke MP 3 -50/40 - 4 Channel Dimmer Packs - Pneumatic / Smoke System - Sound Transducers (”Bass Shakers”)

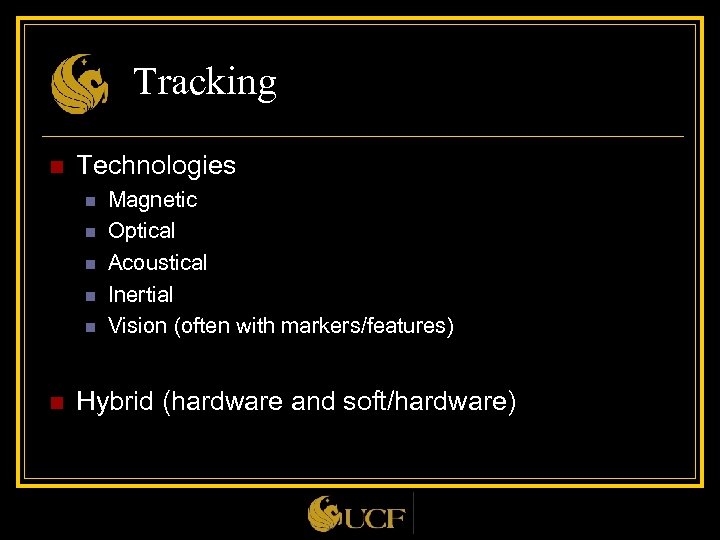

Tracking n Technologies n n n Magnetic Optical Acoustical Inertial Vision (often with markers/features) Hybrid (hardware and soft/hardware)

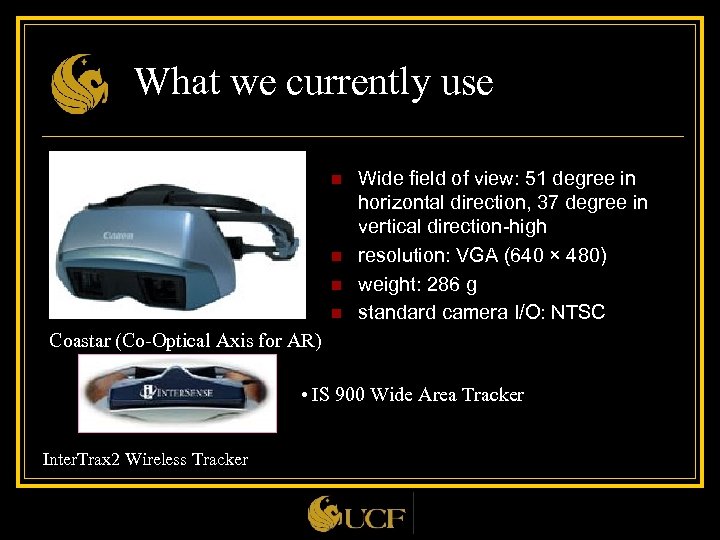

What we currently use n n Wide field of view: 51 degree in horizontal direction, 37 degree in vertical direction-high resolution: VGA (640 × 480) weight: 286 g standard camera I/O: NTSC Coastar (Co-Optical Axis for AR) • IS 900 Wide Area Tracker Inter. Trax 2 Wireless Tracker

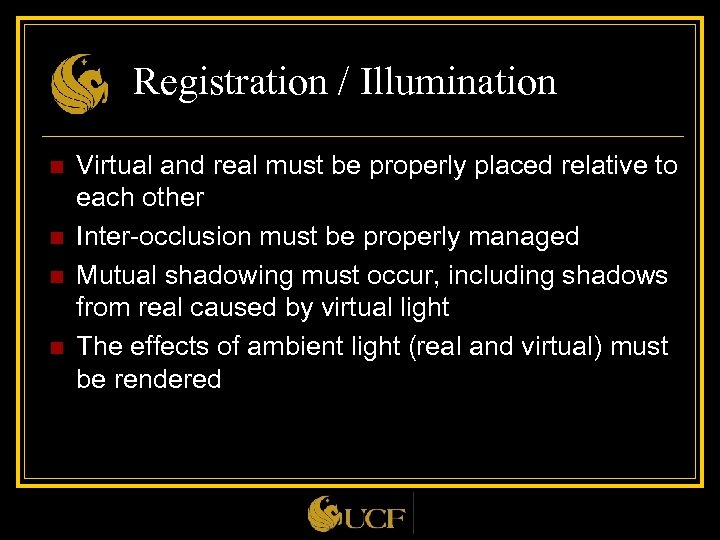

Registration / Illumination n n Virtual and real must be properly placed relative to each other Inter-occlusion must be properly managed Mutual shadowing must occur, including shadows from real caused by virtual light The effects of ambient light (real and virtual) must be rendered

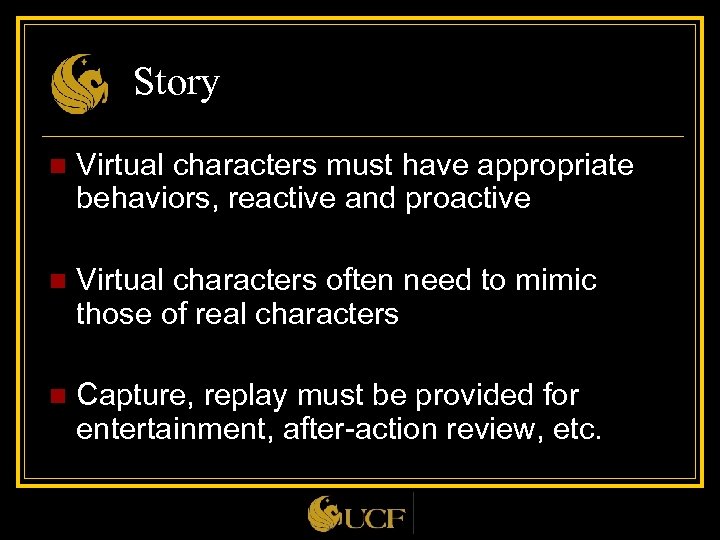

Story n Virtual characters must have appropriate behaviors, reactive and proactive n Virtual characters often need to mimic those of real characters n Capture, replay must be provided for entertainment, after-action review, etc.

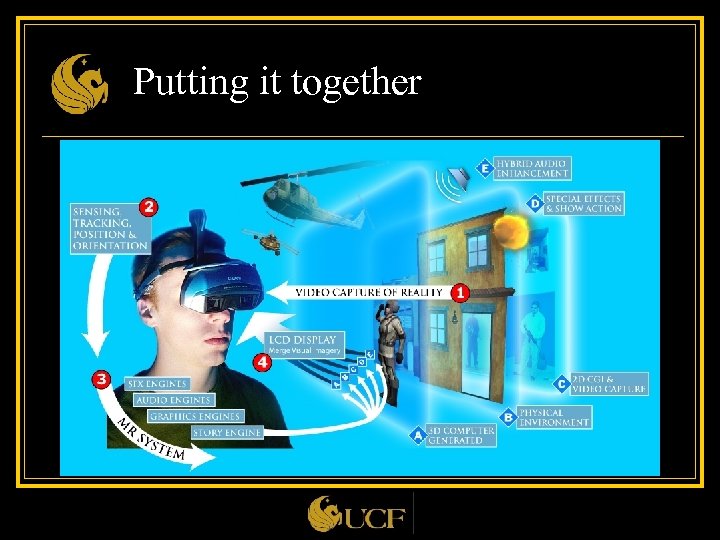

Putting it together

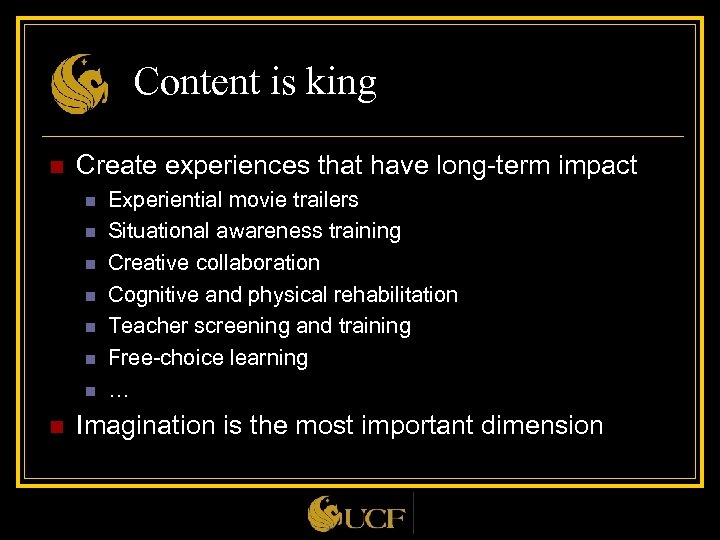

Content is king n Create experiences that have long-term impact n n n n Experiential movie trailers Situational awareness training Creative collaboration Cognitive and physical rehabilitation Teacher screening and training Free-choice learning … Imagination is the most important dimension

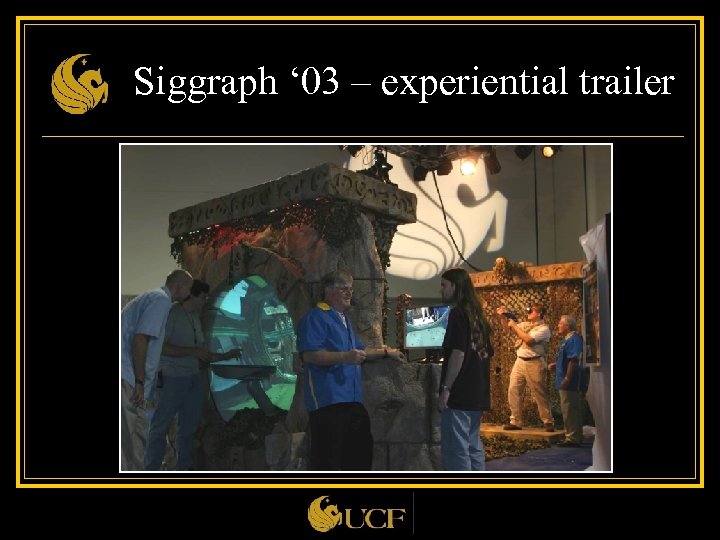

Siggraph ‘ 03 – experiential trailer

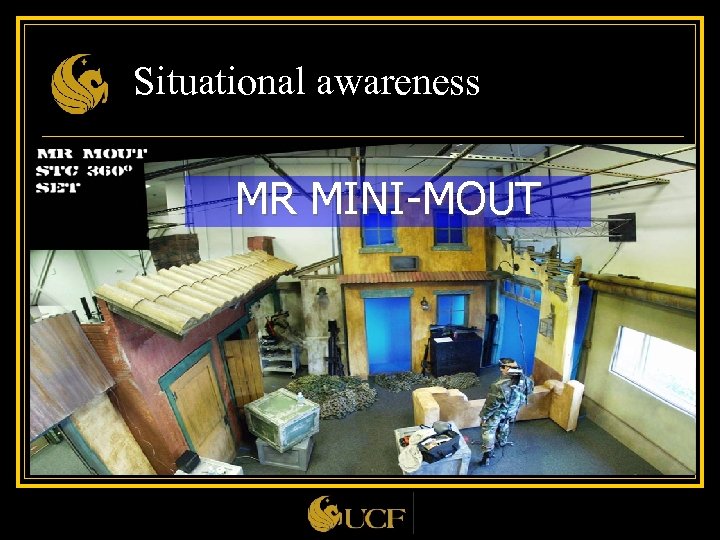

Situational awareness MR MINI-MOUT

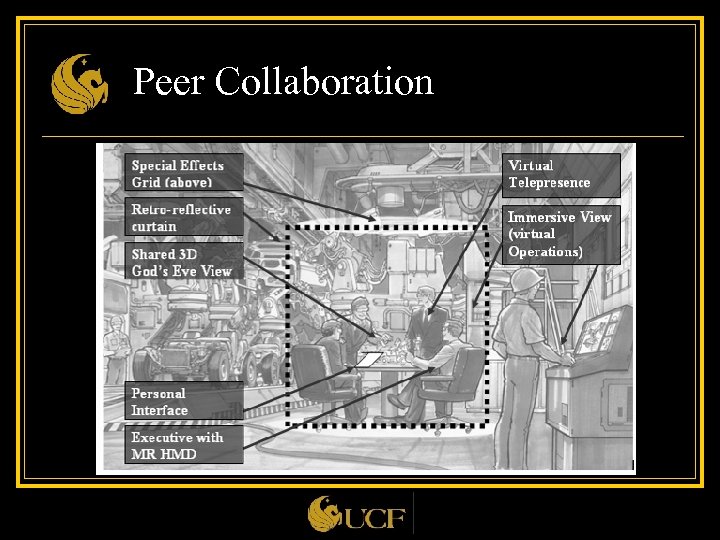

Peer Collaboration

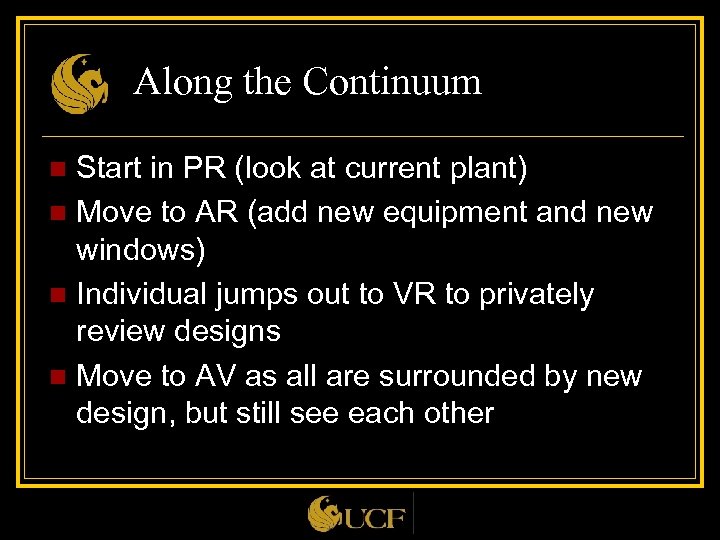

Along the Continuum Start in PR (look at current plant) n Move to AR (add new equipment and new windows) n Individual jumps out to VR to privately review designs n Move to AV as all are surrounded by new design, but still see each other n

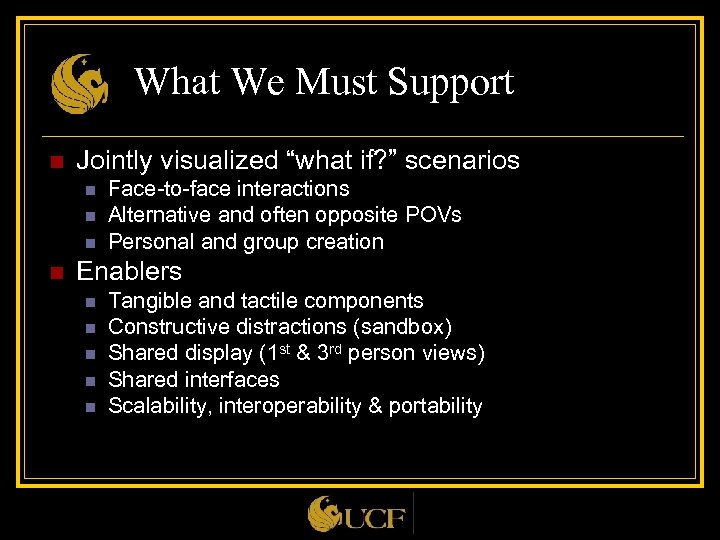

What We Must Support n Jointly visualized “what if? ” scenarios n n Face-to-face interactions Alternative and often opposite POVs Personal and group creation Enablers n n n Tangible and tactile components Constructive distractions (sandbox) Shared display (1 st & 3 rd person views) Shared interfaces Scalability, interoperability & portability

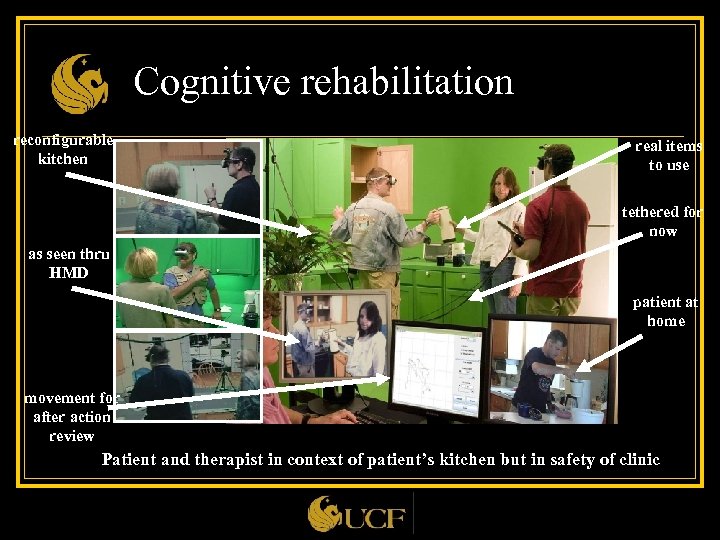

Cognitive rehabilitation reconfigurable kitchen real items to use tethered for now as seen thru HMD patient at home movement for after action review Patient and therapist in context of patient’s kitchen but in safety of clinic

Pre vs. Post Spoon Make Cereal Milk Cereal Bowls Pre-testing Home Post-testing Home

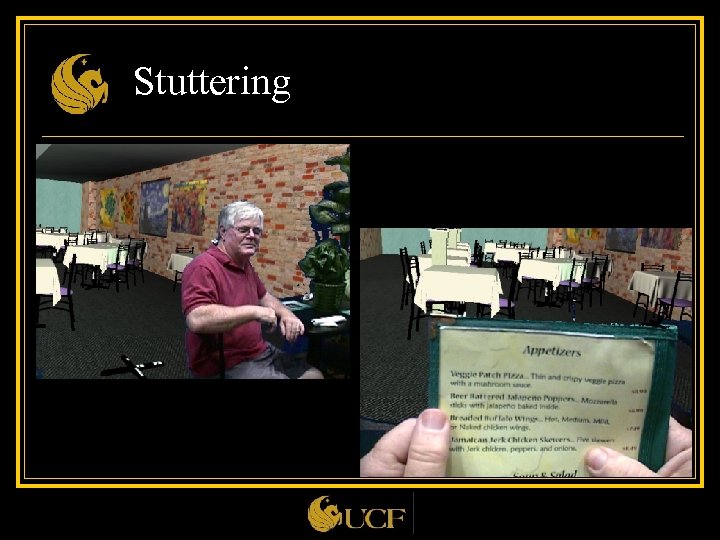

Stuttering

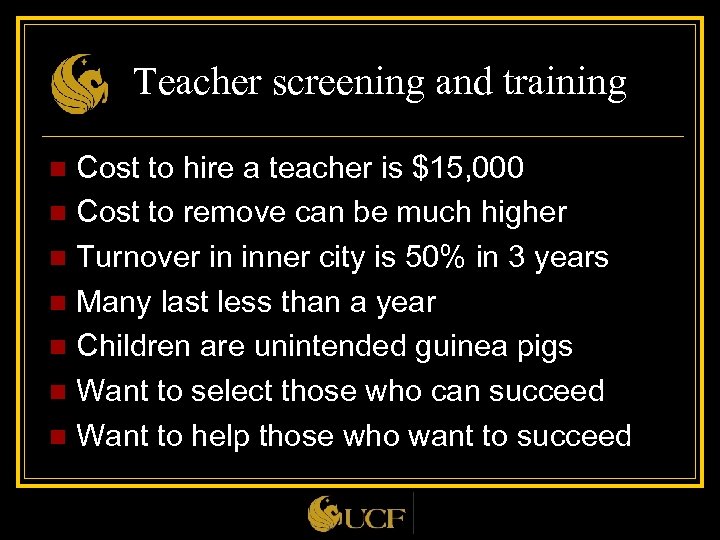

Teacher screening and training Cost to hire a teacher is $15, 000 n Cost to remove can be much higher n Turnover in inner city is 50% in 3 years n Many last less than a year n Children are unintended guinea pigs n Want to select those who can succeed n Want to help those who want to succeed n

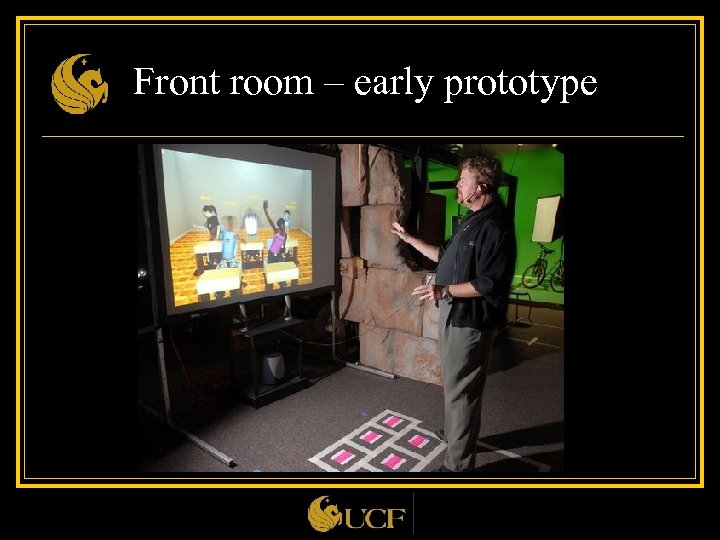

Front room – early prototype

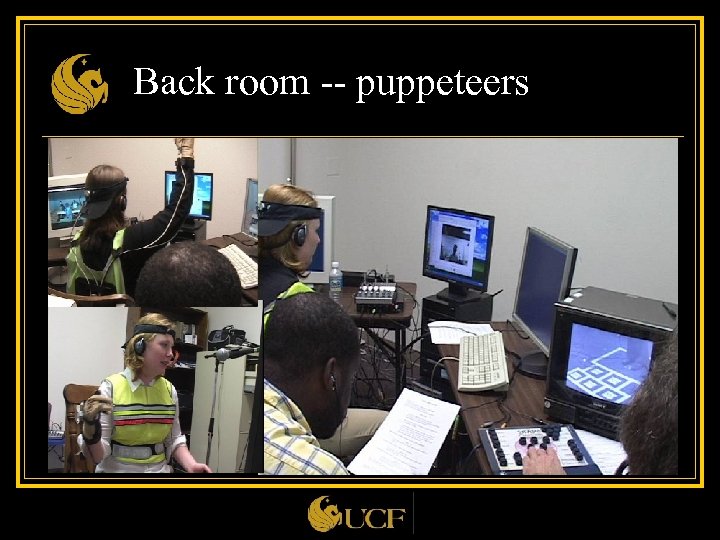

Back room -- puppeteers

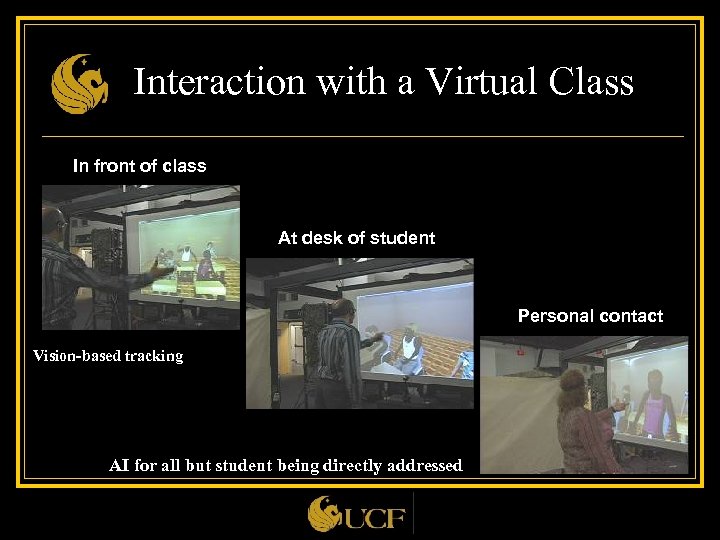

Interaction with a Virtual Class In front of class At desk of student Personal contact Vision-based tracking AI for all but student being directly addressed

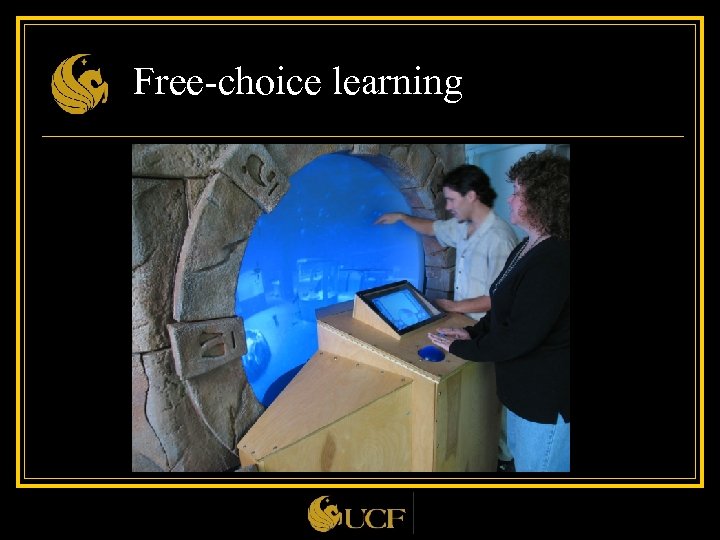

Free-choice learning

Free-choice learning

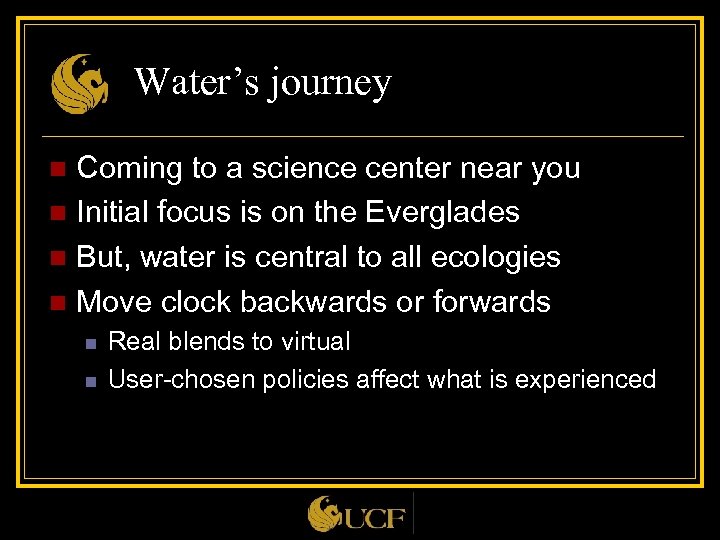

Water’s journey Coming to a science center near you n Initial focus is on the Everglades n But, water is central to all ecologies n Move clock backwards or forwards n n n Real blends to virtual User-chosen policies affect what is experienced

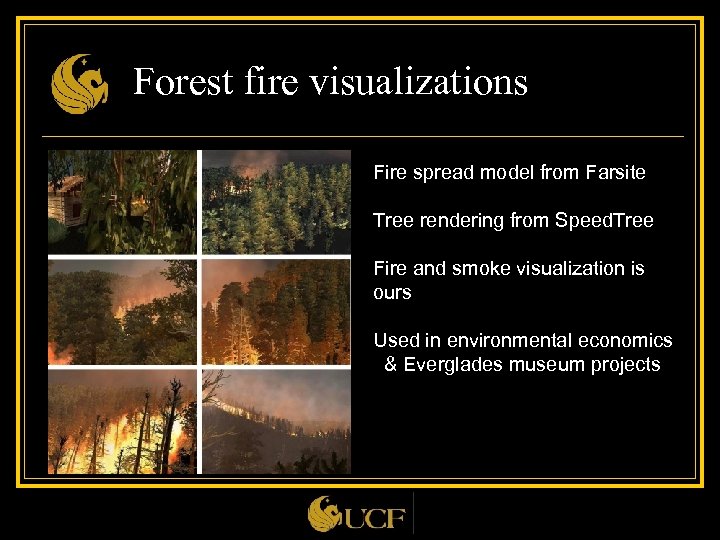

Forest fire visualizations Fire spread model from Farsite Tree rendering from Speed. Tree Fire and smoke visualization is ours Used in environmental economics & Everglades museum projects

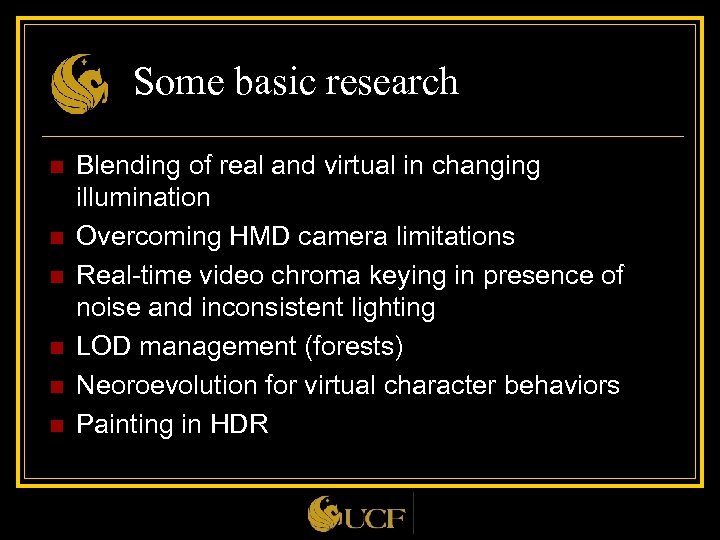

Some basic research n n n Blending of real and virtual in changing illumination Overcoming HMD camera limitations Real-time video chroma keying in presence of noise and inconsistent lighting LOD management (forests) Neoroevolution for virtual character behaviors Painting in HDR

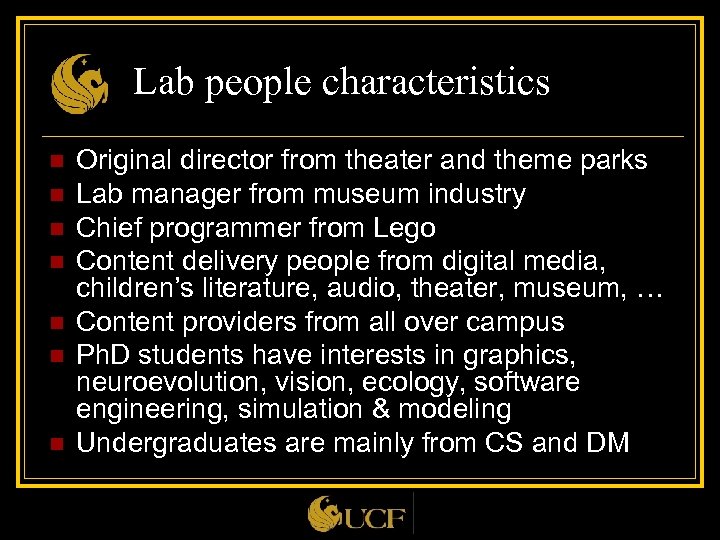

Lab people characteristics n n n n Original director from theater and theme parks Lab manager from museum industry Chief programmer from Lego Content delivery people from digital media, children’s literature, audio, theater, museum, … Content providers from all over campus Ph. D students have interests in graphics, neuroevolution, vision, ecology, software engineering, simulation & modeling Undergraduates are mainly from CS and DM

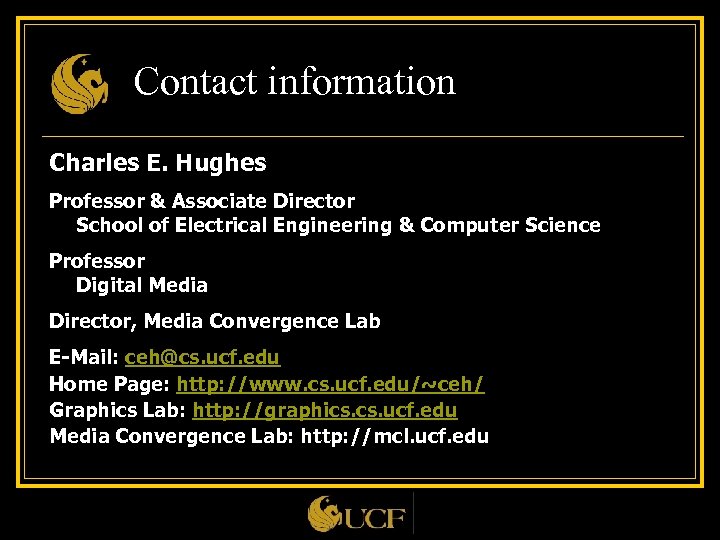

Contact information Charles E. Hughes Professor & Associate Director School of Electrical Engineering & Computer Science Professor Digital Media Director, Media Convergence Lab E-Mail: ceh@cs. ucf. edu Home Page: http: //www. cs. ucf. edu/~ceh/ Graphics Lab: http: //graphics. ucf. edu Media Convergence Lab: http: //mcl. ucf. edu

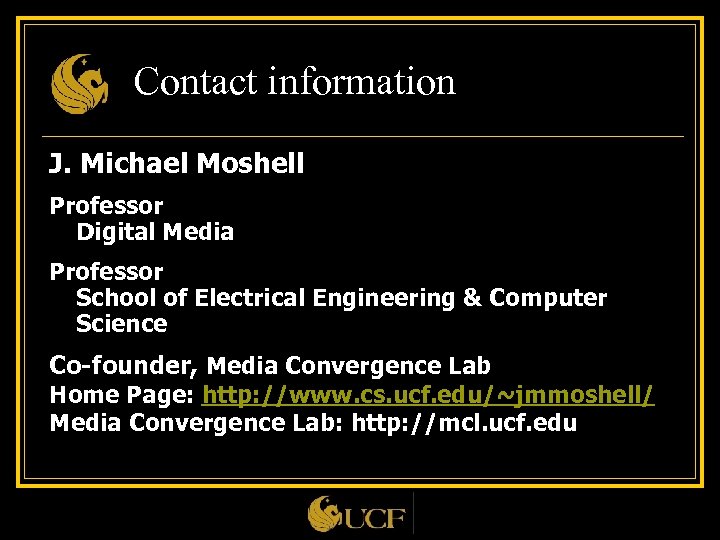

Contact information J. Michael Moshell Professor Digital Media Professor School of Electrical Engineering & Computer Science Co-founder, Media Convergence Lab Home Page: http: //www. cs. ucf. edu/~jmmoshell/ Media Convergence Lab: http: //mcl. ucf. edu
