Misidentification and Contamination of cell lines 2009 Bio

Misidentification and Contamination of cell lines 2009 Bio. Safety Office HSC 3 N 1 C, ext. 24956 Complete the quiz and return to HSC 3 N 1 C or fax 905 528 8539 withyman@mcmaster. ca cassidk@mcmaster. ca 1

introductory information (2 -4) quality of cell lines (6 -12) cell line identification (13 -18) contamination (19 - 37) summary (38) 2

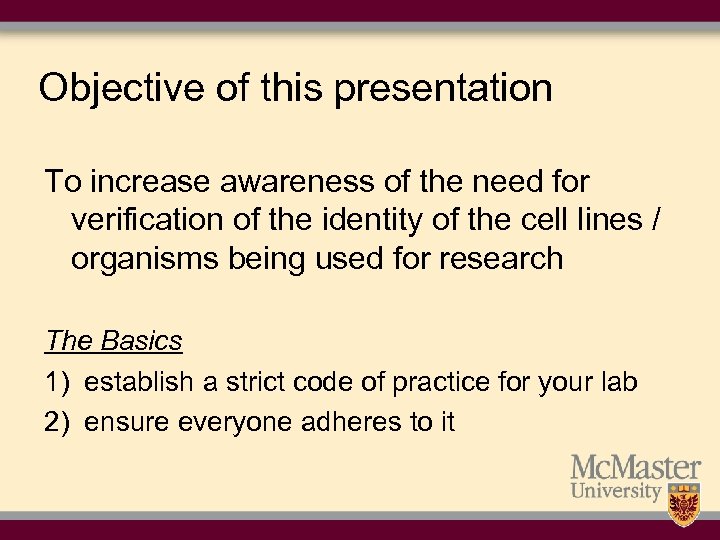

Objective of this presentation To increase awareness of the need for verification of the identity of the cell lines / organisms being used for research The Basics 1) establish a strict code of practice for your lab 2) ensure everyone adheres to it 3

Testing for contamination or misidentification of cell lines “Evidence suggests that up to one-third of tumor cell lines being used in scientific research are affected by inter- or intraspecies cross contamination or have been wrongly identified, thereby rendering many of the conclusions doubtful if not completely invalid. ” Lancet Oncology, vol. 2, July 2001, p. 393 The following is, in part, from ATCC information posted on line 4

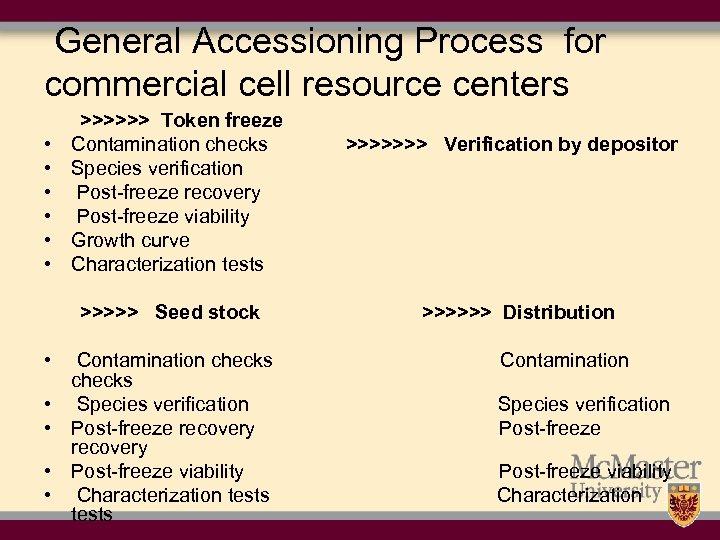

General Accessioning Process for commercial cell resource centers • • • >>>>>> Token freeze Contamination checks Species verification Post-freeze recovery Post-freeze viability Growth curve Characterization tests >>>>> Seed stock • • • Contamination checks Species verification Post-freeze recovery Post-freeze viability Characterization tests >>>>>>> Verification by depositor >>>>>> Distribution Contamination Species verification Post-freeze viability Characterization 5

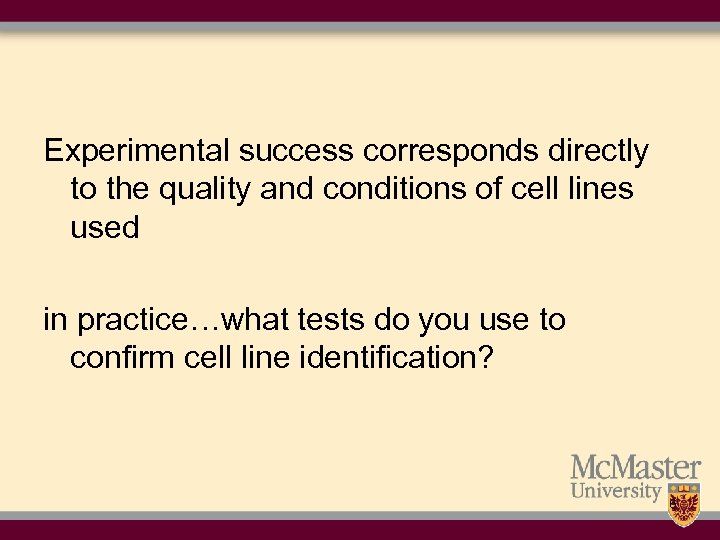

Experimental success corresponds directly to the quality and conditions of cell lines used in practice…what tests do you use to confirm cell line identification? 6

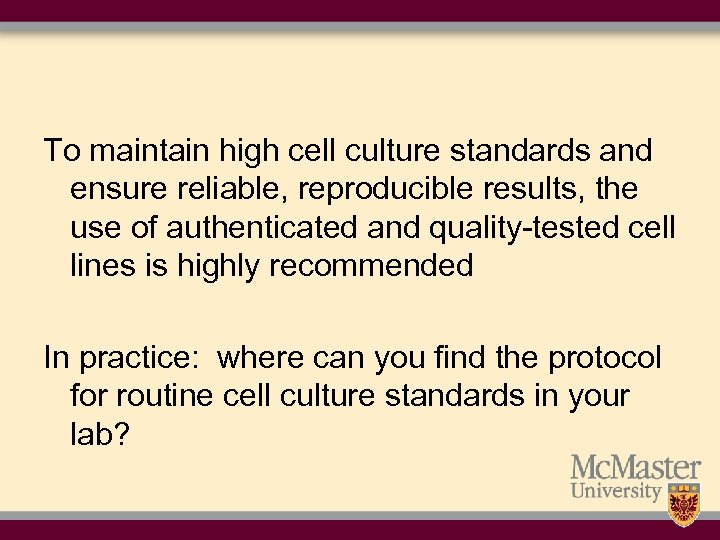

To maintain high cell culture standards and ensure reliable, reproducible results, the use of authenticated and quality-tested cell lines is highly recommended In practice: where can you find the protocol for routine cell culture standards in your lab? 7

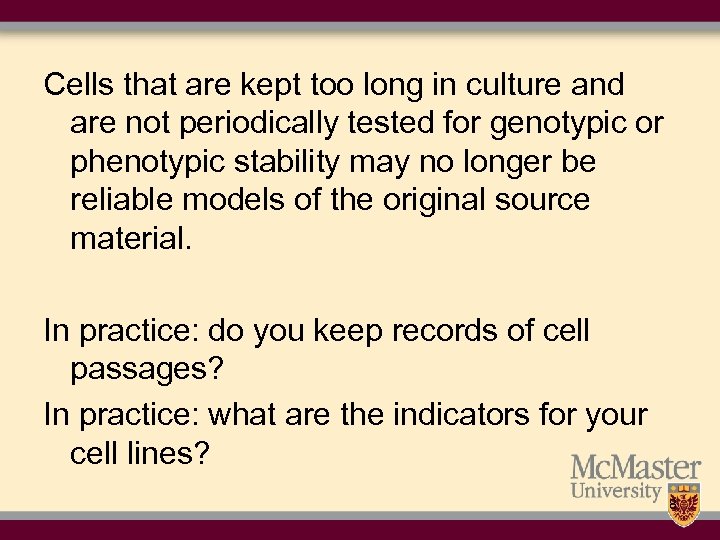

Cells that are kept too long in culture and are not periodically tested for genotypic or phenotypic stability may no longer be reliable models of the original source material. In practice: do you keep records of cell passages? In practice: what are the indicators for your cell lines? 8

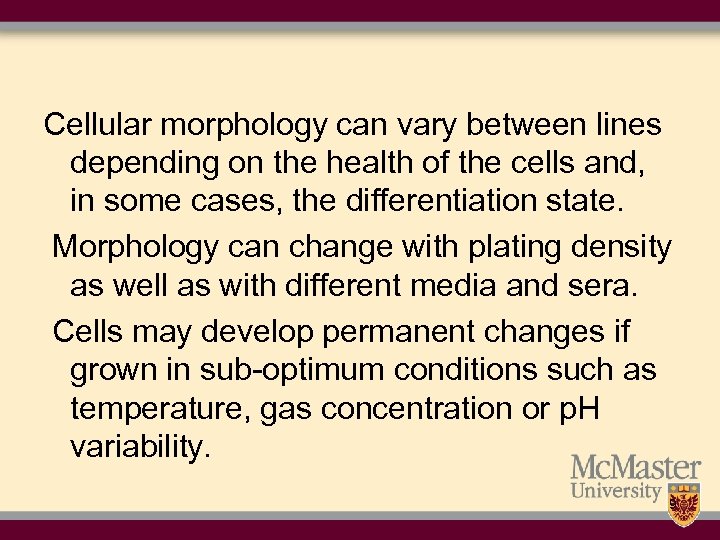

Cellular morphology can vary between lines depending on the health of the cells and, in some cases, the differentiation state. Morphology can change with plating density as well as with different media and sera. Cells may develop permanent changes if grown in sub-optimum conditions such as temperature, gas concentration or p. H variability. 9

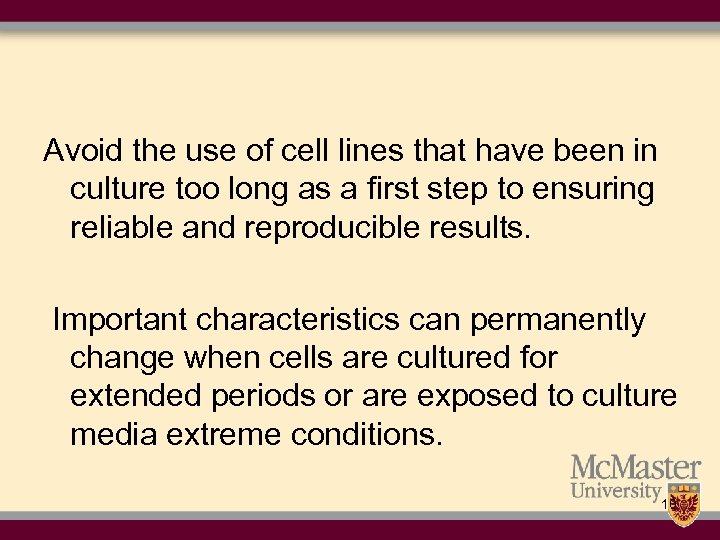

Avoid the use of cell lines that have been in culture too long as a first step to ensuring reliable and reproducible results. Important characteristics can permanently change when cells are cultured for extended periods or are exposed to culture media extreme conditions. 10

High-passage cell lines can exhibit alterations in the following properties: • morphology • growth rates • response to stimuli • protein expression and signaling 11

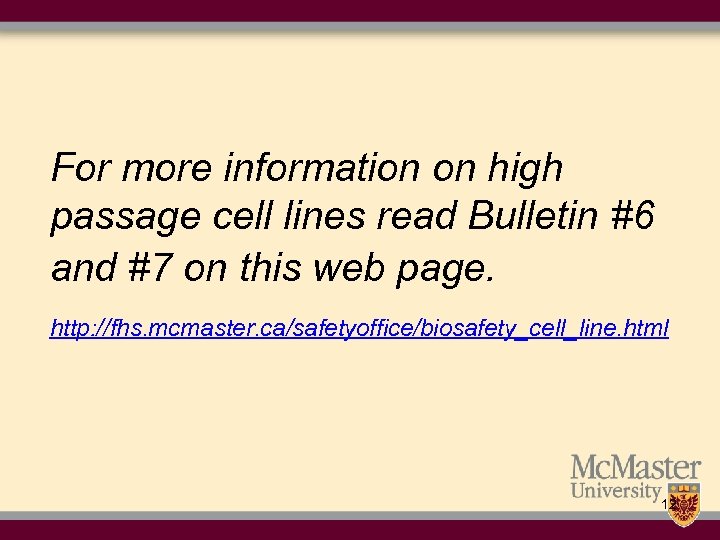

For more information on high passage cell lines read Bulletin #6 and #7 on this web page. http: //fhs. mcmaster. ca/safetyoffice/biosafety_cell_line. html 12

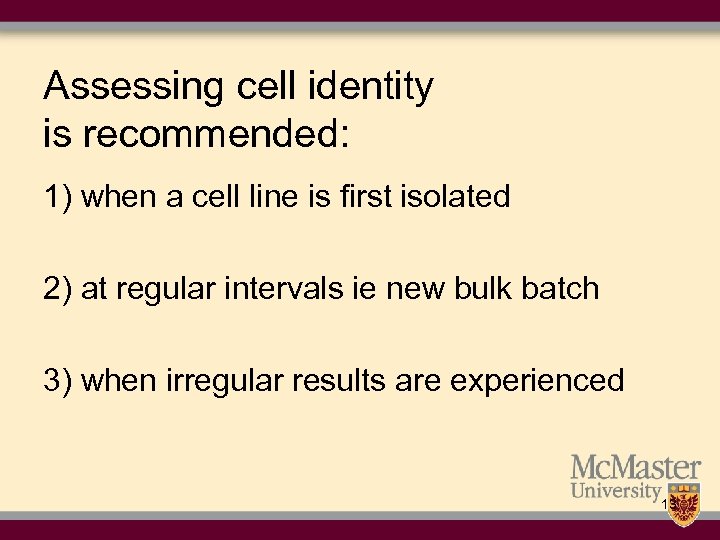

Assessing cell identity is recommended: 1) when a cell line is first isolated 2) at regular intervals ie new bulk batch 3) when irregular results are experienced 13

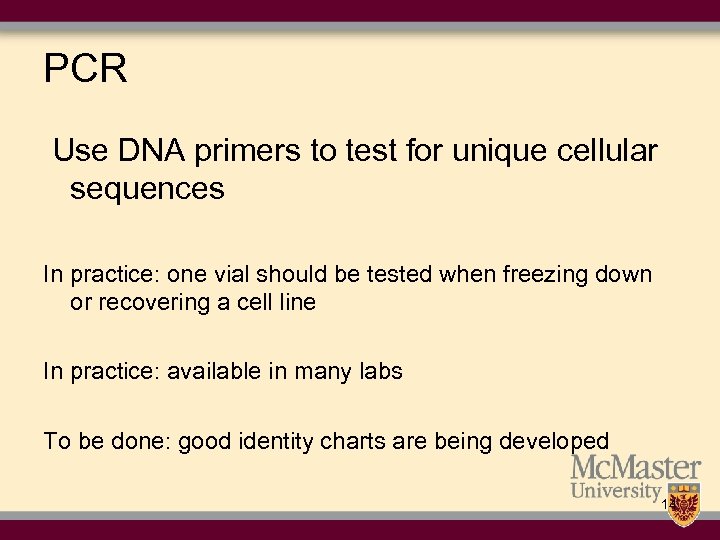

PCR Use DNA primers to test for unique cellular sequences In practice: one vial should be tested when freezing down or recovering a cell line In practice: available in many labs To be done: good identity charts are being developed 14

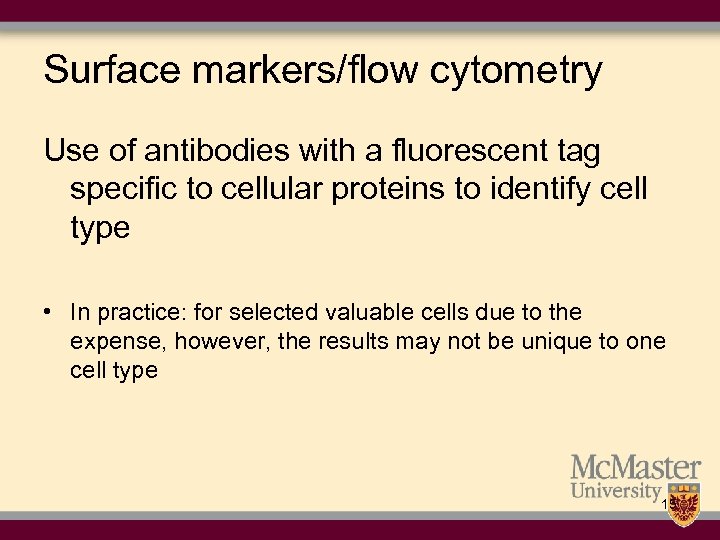

Surface markers/flow cytometry Use of antibodies with a fluorescent tag specific to cellular proteins to identify cell type • In practice: for selected valuable cells due to the expense, however, the results may not be unique to one cell type 15

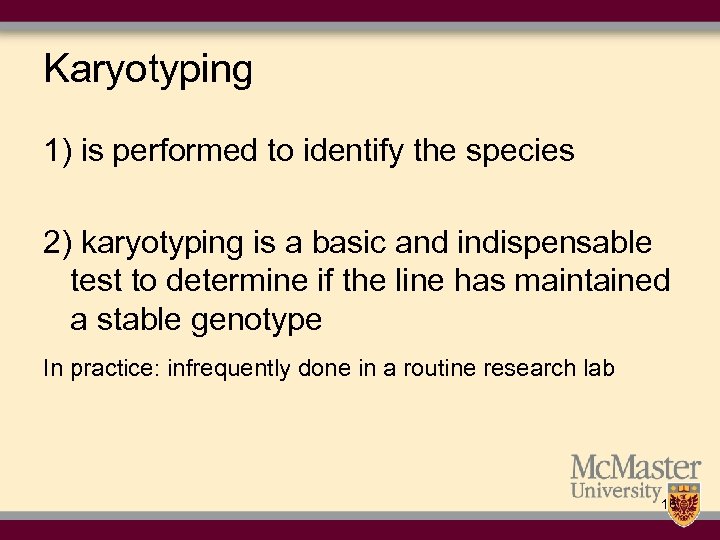

Karyotyping 1) is performed to identify the species 2) karyotyping is a basic and indispensable test to determine if the line has maintained a stable genotype In practice: infrequently done in a routine research lab 16

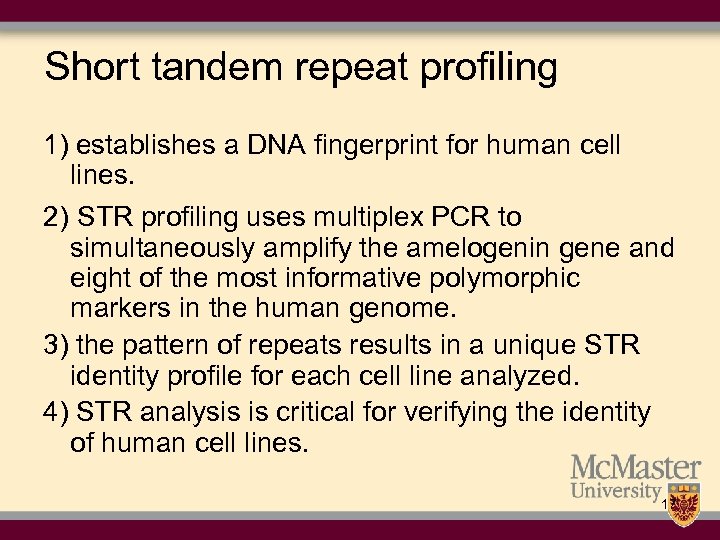

Short tandem repeat profiling 1) establishes a DNA fingerprint for human cell lines. 2) STR profiling uses multiplex PCR to simultaneously amplify the amelogenin gene and eight of the most informative polymorphic markers in the human genome. 3) the pattern of repeats results in a unique STR identity profile for each cell line analyzed. 4) STR analysis is critical for verifying the identity of human cell lines. 17

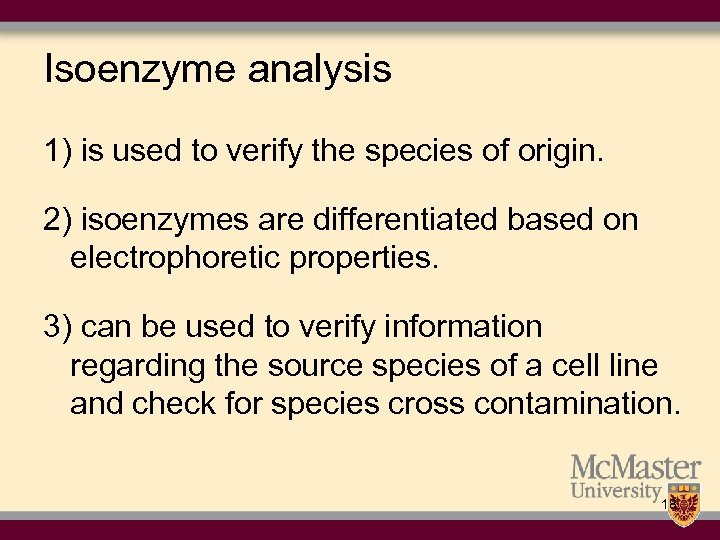

Isoenzyme analysis 1) is used to verify the species of origin. 2) isoenzymes are differentiated based on electrophoretic properties. 3) can be used to verify information regarding the source species of a cell line and check for species cross contamination. 18

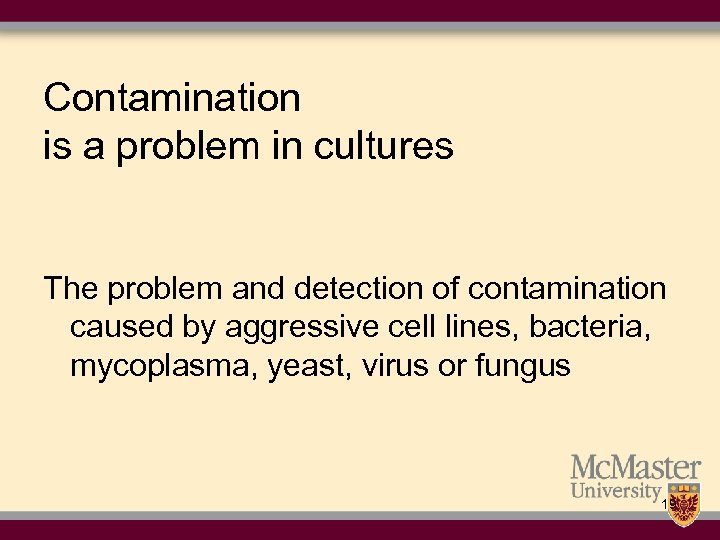

Contamination is a problem in cultures The problem and detection of contamination caused by aggressive cell lines, bacteria, mycoplasma, yeast, virus or fungus 19

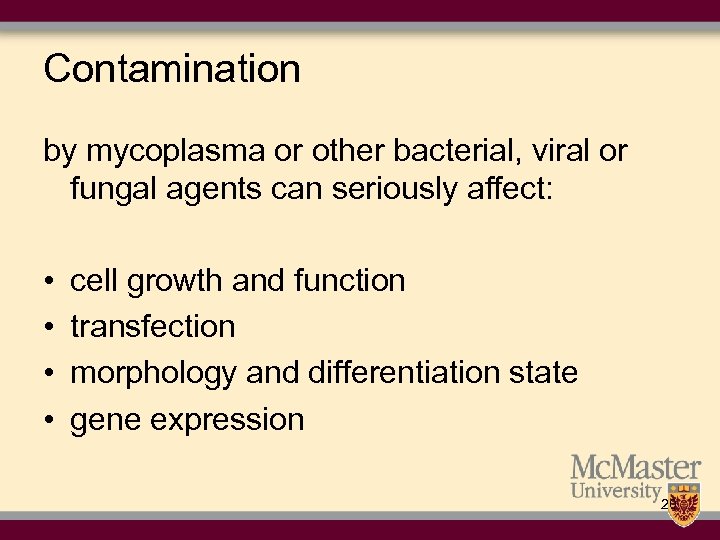

Contamination by mycoplasma or other bacterial, viral or fungal agents can seriously affect: • • cell growth and function transfection morphology and differentiation state gene expression 20

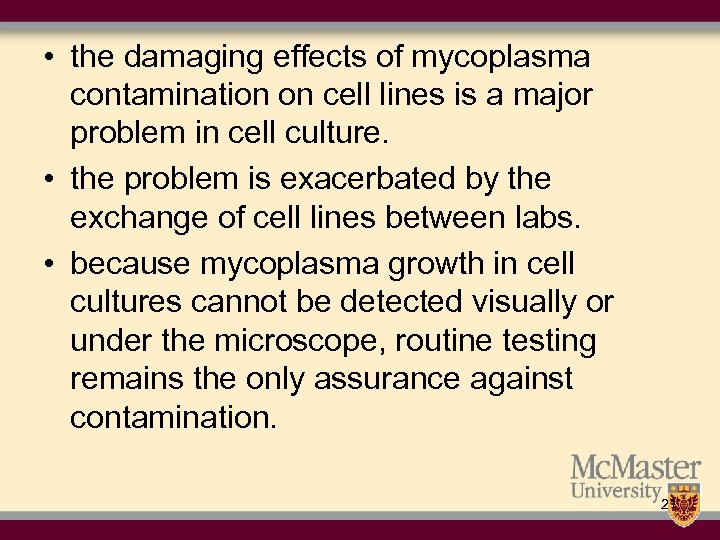

• the damaging effects of mycoplasma contamination on cell lines is a major problem in cell culture. • the problem is exacerbated by the exchange of cell lines between labs. • because mycoplasma growth in cell cultures cannot be detected visually or under the microscope, routine testing remains the only assurance against contamination. 21

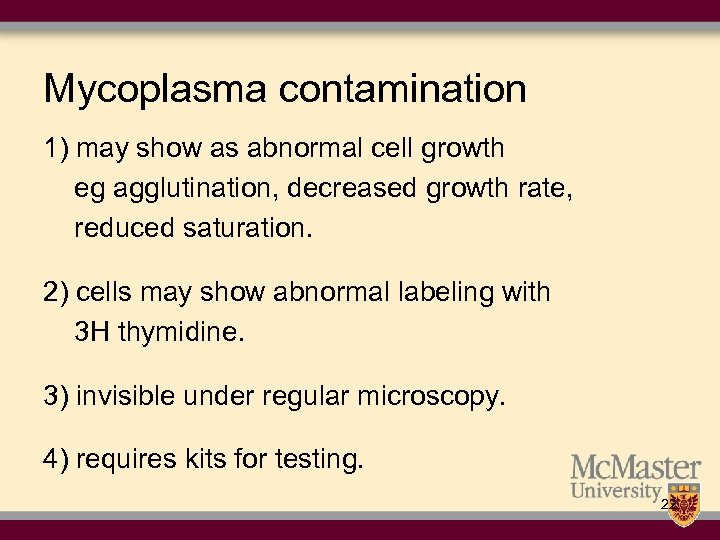

Mycoplasma contamination 1) may show as abnormal cell growth eg agglutination, decreased growth rate, reduced saturation. 2) cells may show abnormal labeling with 3 H thymidine. 3) invisible under regular microscopy. 4) requires kits for testing. 22

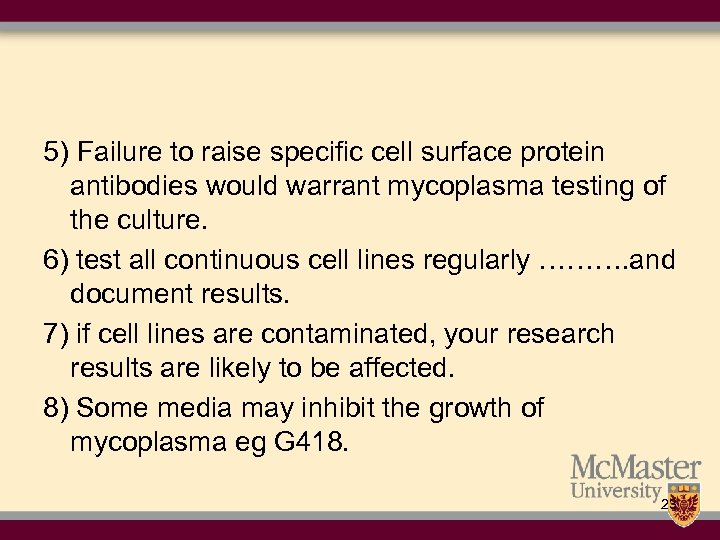

5) Failure to raise specific cell surface protein antibodies would warrant mycoplasma testing of the culture. 6) test all continuous cell lines regularly ………. and document results. 7) if cell lines are contaminated, your research results are likely to be affected. 8) Some media may inhibit the growth of mycoplasma eg G 418. 23

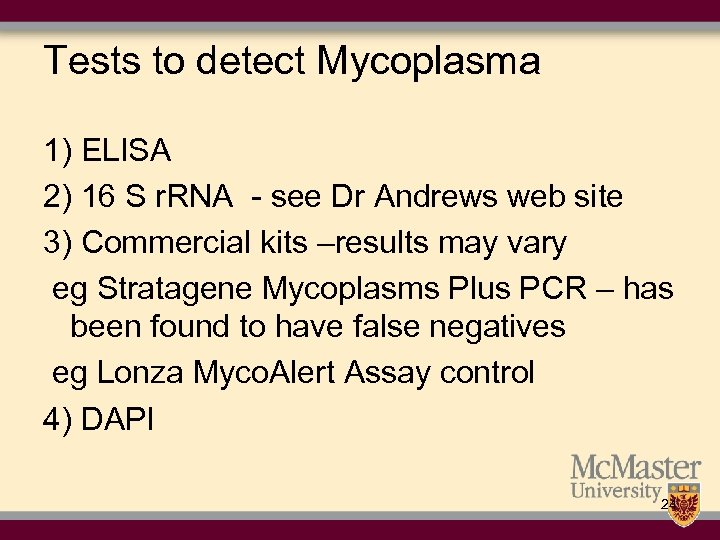

Tests to detect Mycoplasma 1) ELISA 2) 16 S r. RNA - see Dr Andrews web site 3) Commercial kits –results may vary eg Stratagene Mycoplasms Plus PCR – has been found to have false negatives eg Lonza Myco. Alert Assay control 4) DAPI 24

5) Fluorescent staining of DNA using Hoechst 33258 requires a fluorescent microscope Staining of the nuclei of cells are the positive control for this test May also detect bacterial contamination 25

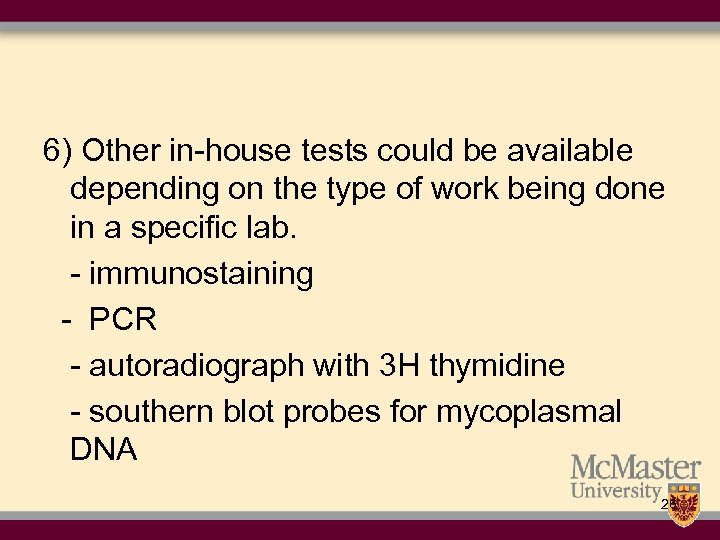

6) Other in-house tests could be available depending on the type of work being done in a specific lab. - immunostaining - PCR - autoradiograph with 3 H thymidine - southern blot probes for mycoplasmal DNA 26

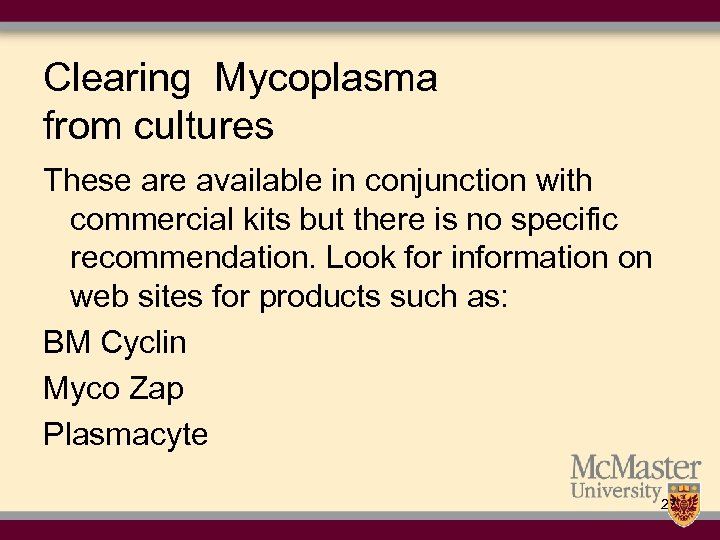

Clearing Mycoplasma from cultures These are available in conjunction with commercial kits but there is no specific recommendation. Look for information on web sites for products such as: BM Cyclin Myco Zap Plasmacyte 27

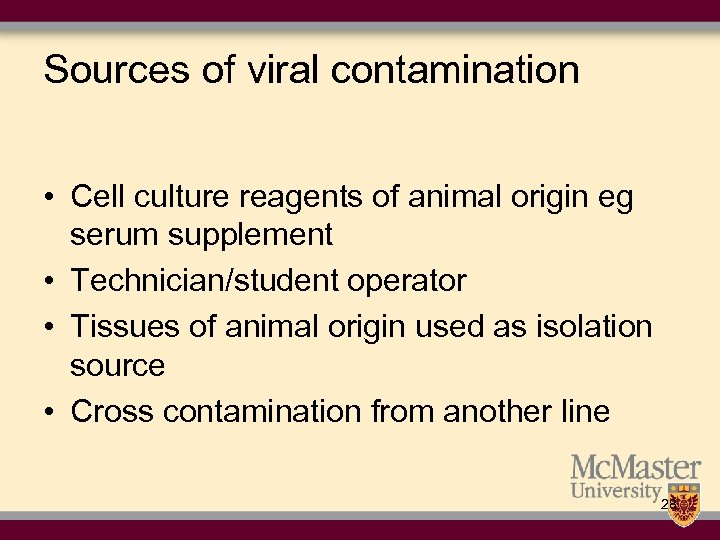

Sources of viral contamination • Cell culture reagents of animal origin eg serum supplement • Technician/student operator • Tissues of animal origin used as isolation source • Cross contamination from another line 28

Potential effects of viral contamination • Lysis of host cell line • Persistent sub lethal infection • In a small number of cases, release of human infectious viral particles eg B 95 -8 or MT 4 cells • Release of retrovirus-like particles eg CHO, BHK, murine myelomas 29

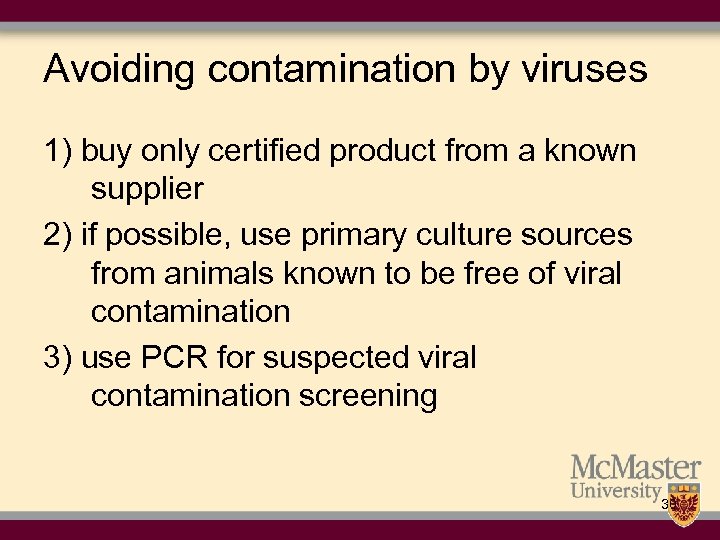

Avoiding contamination by viruses 1) buy only certified product from a known supplier 2) if possible, use primary culture sources from animals known to be free of viral contamination 3) use PCR for suspected viral contamination screening 30

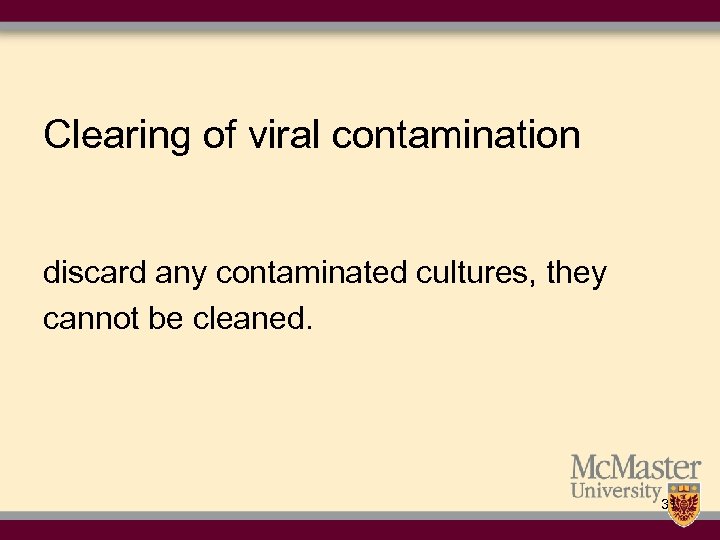

Clearing of viral contamination discard any contaminated cultures, they cannot be cleaned. 31

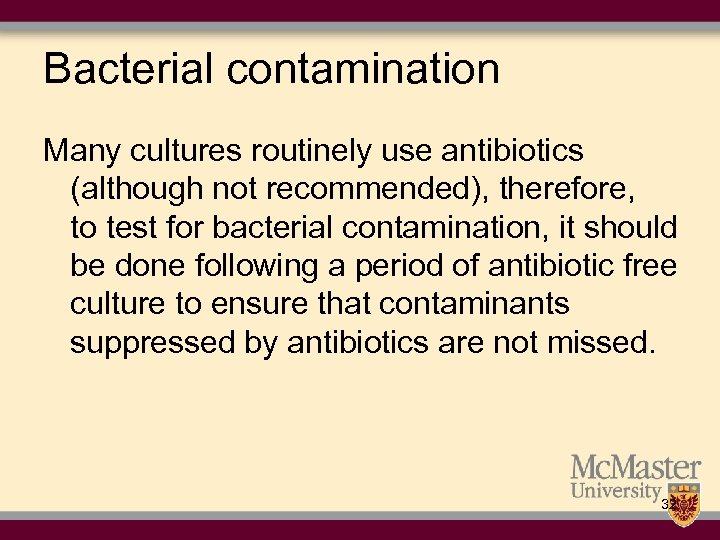

Bacterial contamination Many cultures routinely use antibiotics (although not recommended), therefore, to test for bacterial contamination, it should be done following a period of antibiotic free culture to ensure that contaminants suppressed by antibiotics are not missed. 32

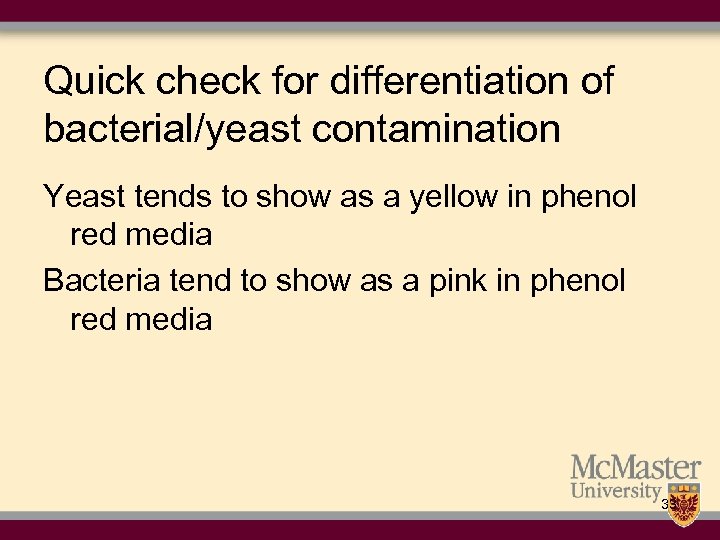

Quick check for differentiation of bacterial/yeast contamination Yeast tends to show as a yellow in phenol red media Bacteria tend to show as a pink in phenol red media 33

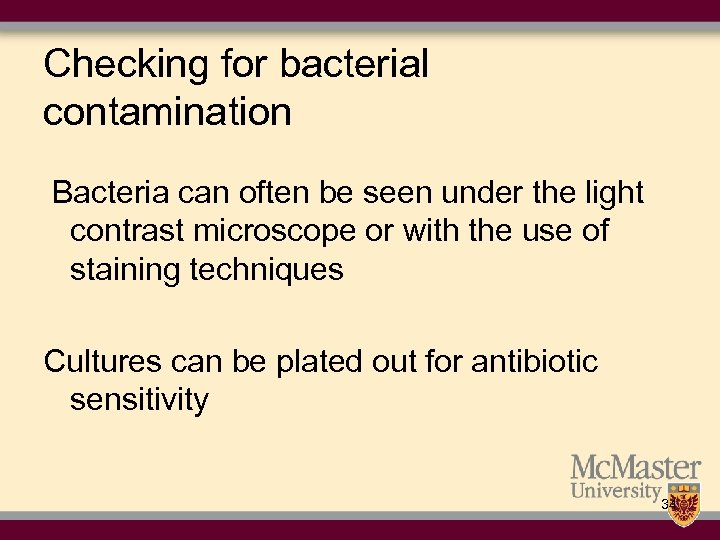

Checking for bacterial contamination Bacteria can often be seen under the light contrast microscope or with the use of staining techniques Cultures can be plated out for antibiotic sensitivity 34

Use of antibiotics for cell culture Antibiotics can be effective against bacteria, but may have toxic effects on cells. Antifungal agents may be more toxic to cell lines than antibiotics. Use of antibiotics should not become routine in a culture lab. Antibiotics can never be relied on as a substitute for good aseptic technique. 35

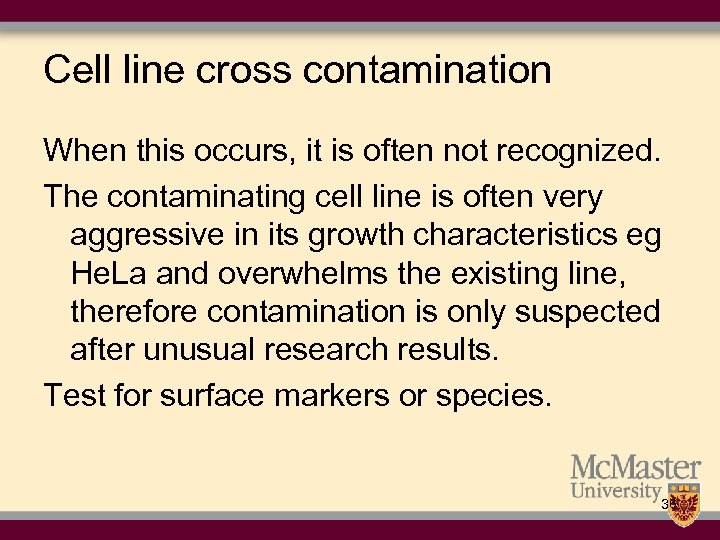

Cell line cross contamination When this occurs, it is often not recognized. The contaminating cell line is often very aggressive in its growth characteristics eg He. La and overwhelms the existing line, therefore contamination is only suspected after unusual research results. Test for surface markers or species. 36

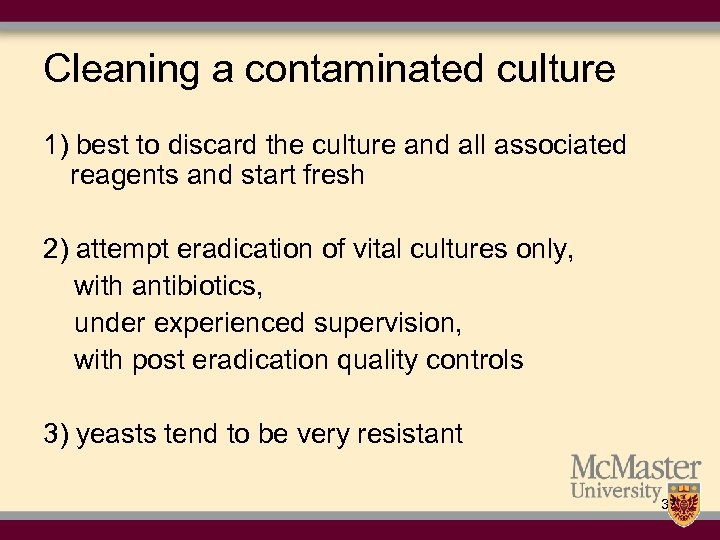

Cleaning a contaminated culture 1) best to discard the culture and all associated reagents and start fresh 2) attempt eradication of vital cultures only, with antibiotics, under experienced supervision, with post eradication quality controls 3) yeasts tend to be very resistant 37

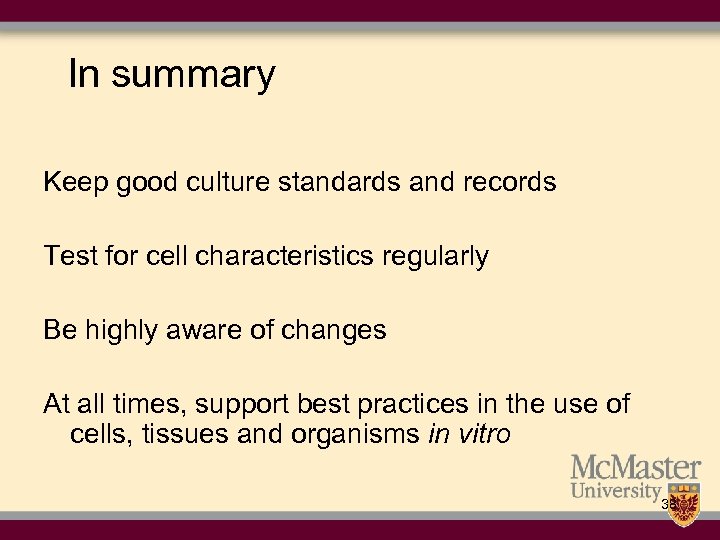

In summary Keep good culture standards and records Test for cell characteristics regularly Be highly aware of changes At all times, support best practices in the use of cells, tissues and organisms in vitro 38
