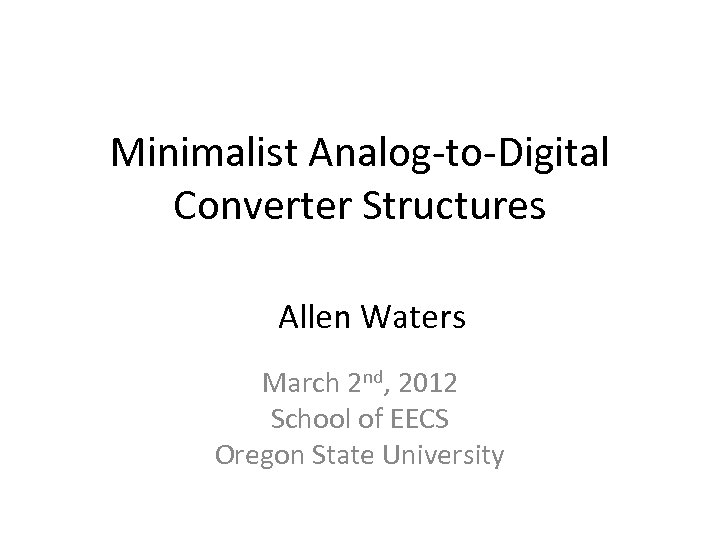

Minimalist Analog-to-Digital Converter Structures Allen Waters March 2

Minimalist Analog-to-Digital Converter Structures Allen Waters March 2 nd, 2012 School of EECS Oregon State University

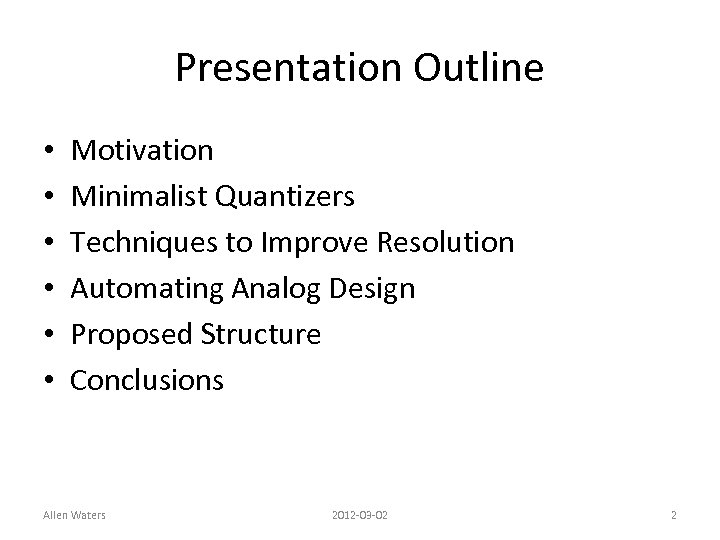

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 2

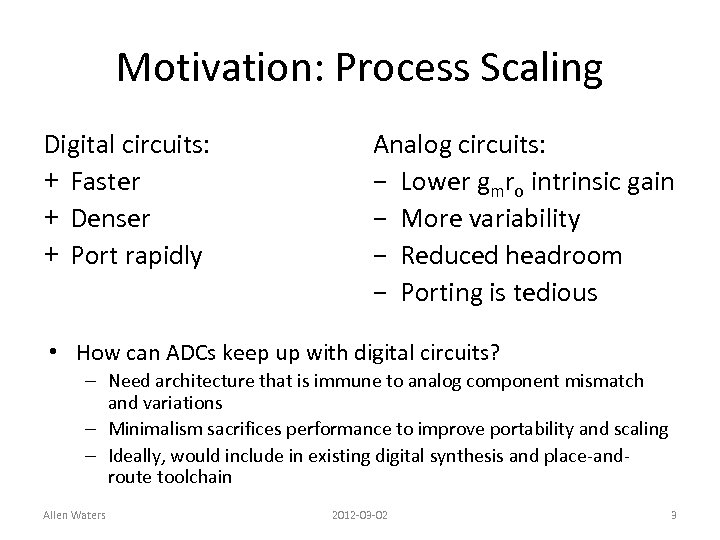

Motivation: Process Scaling Digital circuits: + Faster + Denser + Port rapidly Analog circuits: − Lower gmro intrinsic gain − More variability − Reduced headroom − Porting is tedious • How can ADCs keep up with digital circuits? – Need architecture that is immune to analog component mismatch and variations – Minimalism sacrifices performance to improve portability and scaling – Ideally, would include in existing digital synthesis and place-androute toolchain Allen Waters 2012 -03 -02 3

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 4

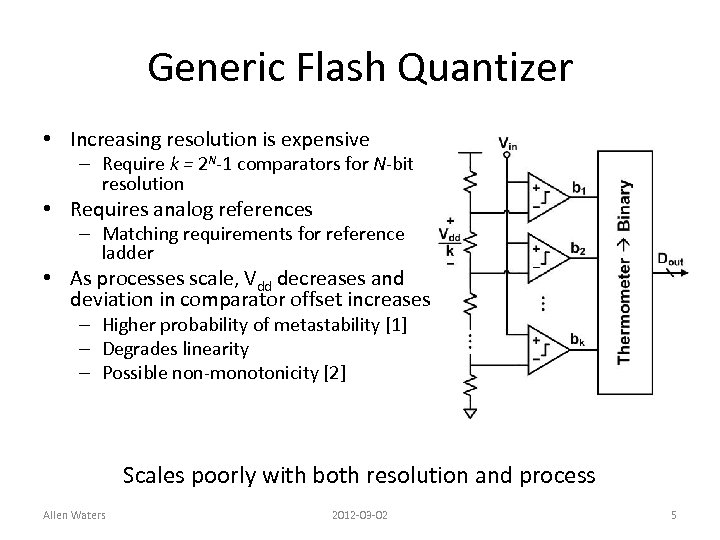

Generic Flash Quantizer • Increasing resolution is expensive – Require k = 2 N-1 comparators for N-bit resolution • Requires analog references – Matching requirements for reference ladder • As processes scale, Vdd decreases and deviation in comparator offset increases – Higher probability of metastability [1] – Degrades linearity – Possible non-monotonicity [2] Scales poorly with both resolution and process Allen Waters 2012 -03 -02 5

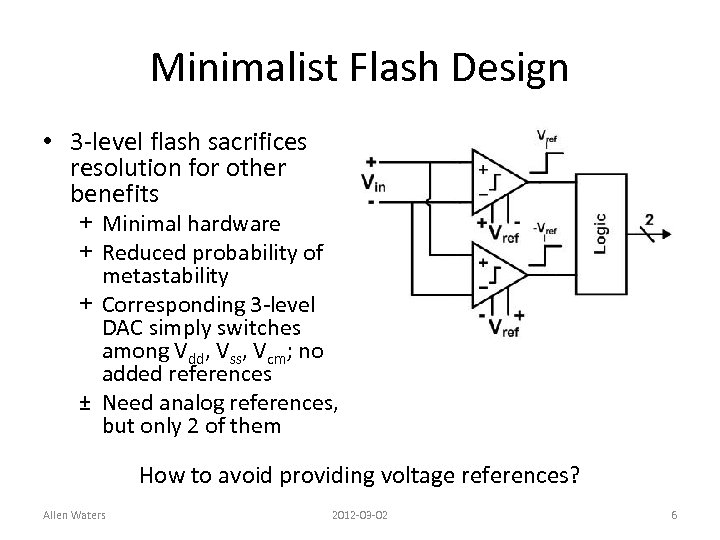

Minimalist Flash Design • 3 -level flash sacrifices resolution for other benefits + Minimal hardware + Reduced probability of metastability + Corresponding 3 -level DAC simply switches among Vdd, Vss, Vcm; no added references ± Need analog references, but only 2 of them How to avoid providing voltage references? Allen Waters 2012 -03 -02 6

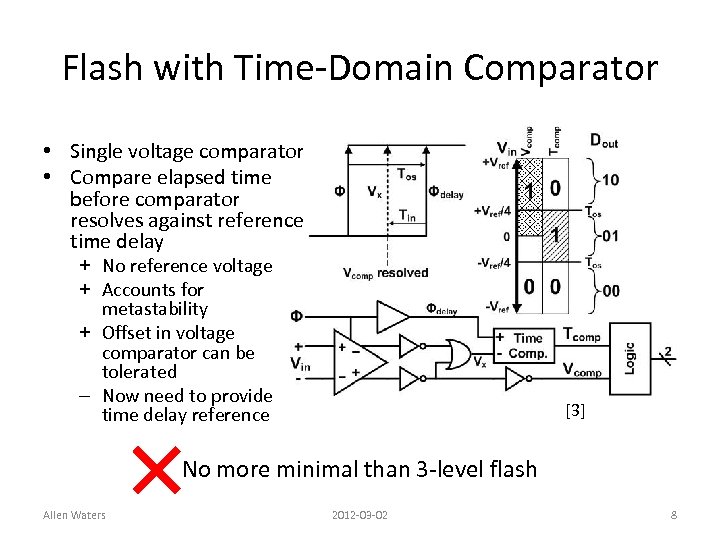

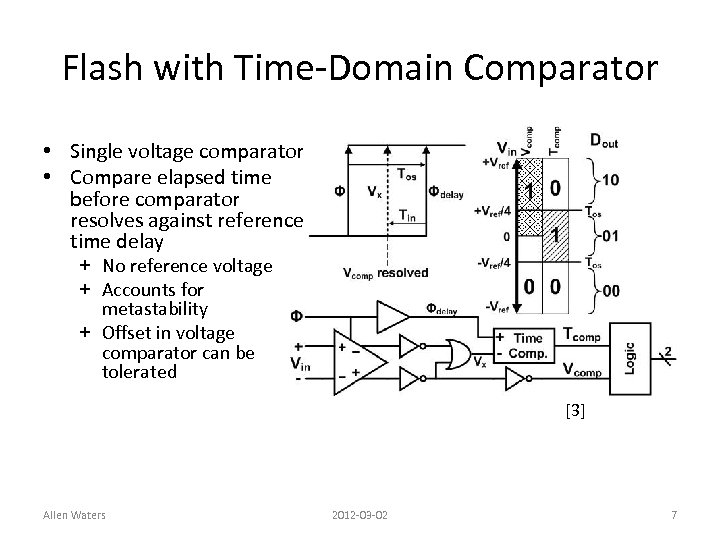

Flash with Time-Domain Comparator • Single voltage comparator • Compare elapsed time before comparator resolves against reference time delay + No reference voltage + Accounts for metastability + Offset in voltage comparator can be tolerated [3] Allen Waters 2012 -03 -02 7

Flash with Time-Domain Comparator • Single voltage comparator • Compare elapsed time before comparator resolves against reference time delay + No reference voltage + Accounts for metastability + Offset in voltage comparator can be tolerated – Now need to provide time delay reference [3] No more minimal than 3 -level flash Allen Waters 2012 -03 -02 8

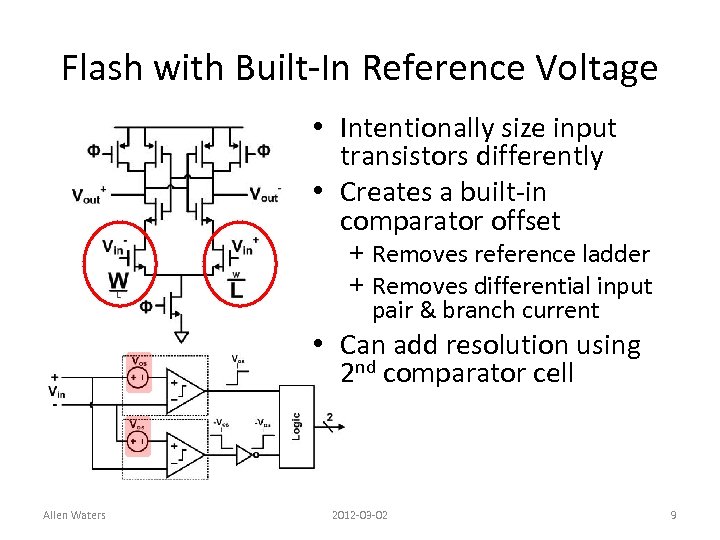

Flash with Built-In Reference Voltage • Intentionally size input transistors differently • Creates a built-in comparator offset + Removes reference ladder + Removes differential input pair & branch current • Can add resolution using 2 nd comparator cell Allen Waters 2012 -03 -02 9

VCO-Based Quantizer • Input voltage determines time delay of inverters (VTC) • Count inverter transitions occurring within fixed clock period (TDC) + + + – Highly digital Inherent 1 st-order noise shaping Implicit barrel shifting and DEM VTC has poor linearity Allen Waters 2012 -03 -02 [4, 5] 10

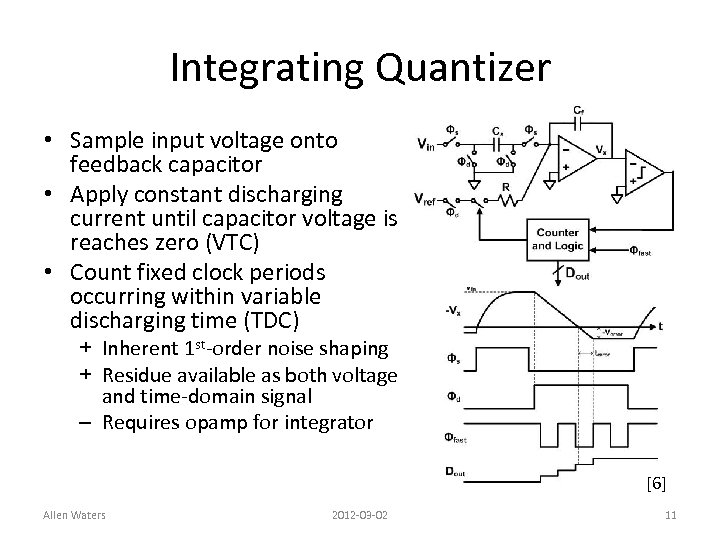

Integrating Quantizer • Sample input voltage onto feedback capacitor • Apply constant discharging current until capacitor voltage is reaches zero (VTC) • Count fixed clock periods occurring within variable discharging time (TDC) + Inherent 1 st-order noise shaping + Residue available as both voltage and time-domain signal – Requires opamp for integrator [6] Allen Waters 2012 -03 -02 11

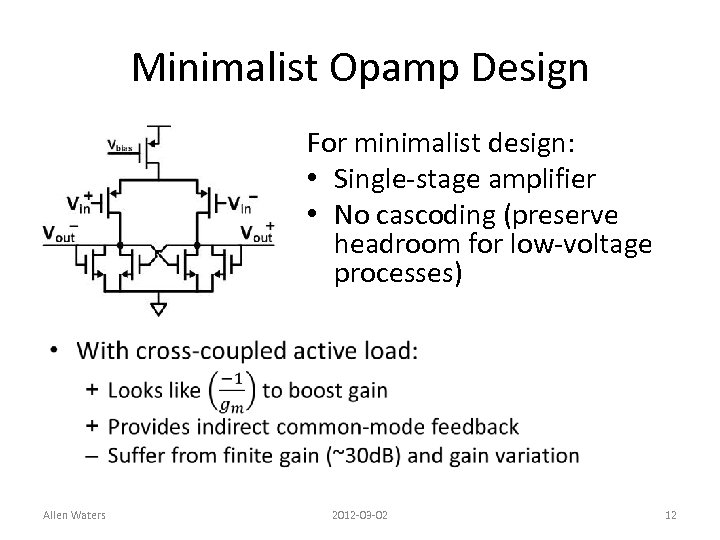

Minimalist Opamp Design For minimalist design: • Single-stage amplifier • No cascoding (preserve headroom for low-voltage processes) Allen Waters 2012 -03 -02 12

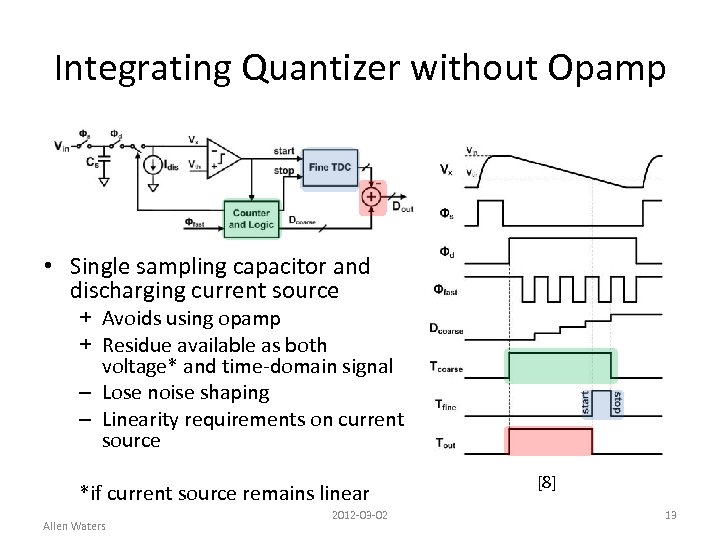

Integrating Quantizer without Opamp • Single sampling capacitor and discharging current source + Avoids using opamp + Residue available as both voltage* and time-domain signal – Lose noise shaping – Linearity requirements on current source *if current source remains linear Allen Waters 2012 -03 -02 [8] 13

Summary of Minimalist Quantizers Decreasing minimalism • Flash with built-in references Ø Fast and simple, but low resolution • VCO-based quantizer Ø Highly digital, but nonlinear • Integrating quantizer Allen Waters Improve resolution by reducing “counting” element delay Ø Residue voltage/time available, but relies on analog component matching Ø First-order noise shaping with opamp 2012 -03 -02 14

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 15

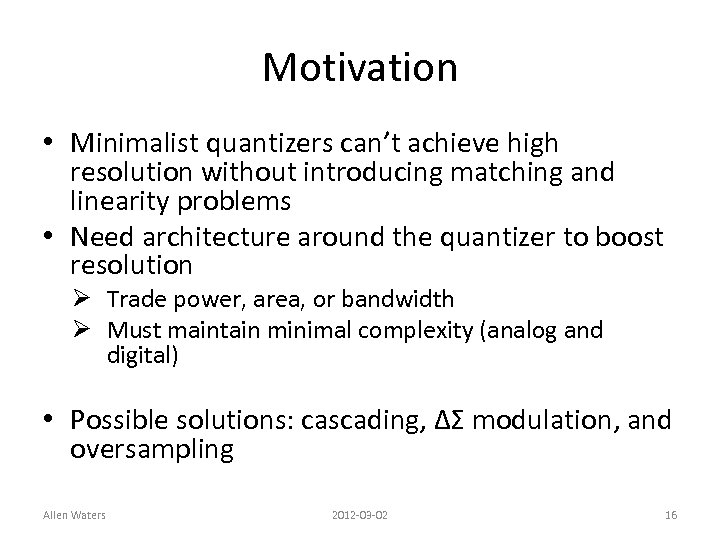

Motivation • Minimalist quantizers can’t achieve high resolution without introducing matching and linearity problems • Need architecture around the quantizer to boost resolution Ø Trade power, area, or bandwidth Ø Must maintain minimal complexity (analog and digital) • Possible solutions: cascading, ΔΣ modulation, and oversampling Allen Waters 2012 -03 -02 16

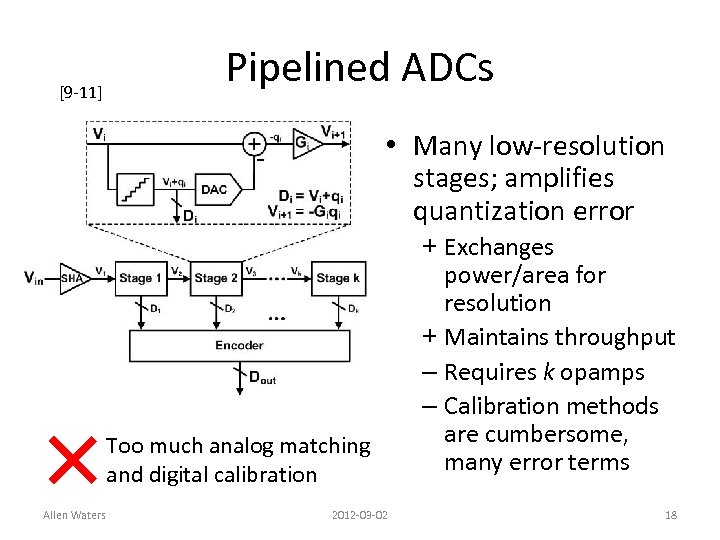

[9 -11] Pipelined ADCs • Many low-resolution stages; amplifies quantization error + Exchanges power/area for resolution + Maintains throughput Allen Waters 2012 -03 -02 17

[9 -11] Pipelined ADCs • Many low-resolution stages; amplifies quantization error Too much analog matching and digital calibration Allen Waters 2012 -03 -02 + Exchanges power/area for resolution + Maintains throughput – Requires k opamps – Calibration methods are cumbersome, many error terms 18

Algorithmic ADCs • More minimalist variation of pipelining • Time-share a single stage, performing k subconversions + – ± + Allen Waters Power/area reduced by k Throughput reduced by k Requires opamp (but only 2) Same gain error / variation in each stage simplifies calibration 2012 -03 -02 19

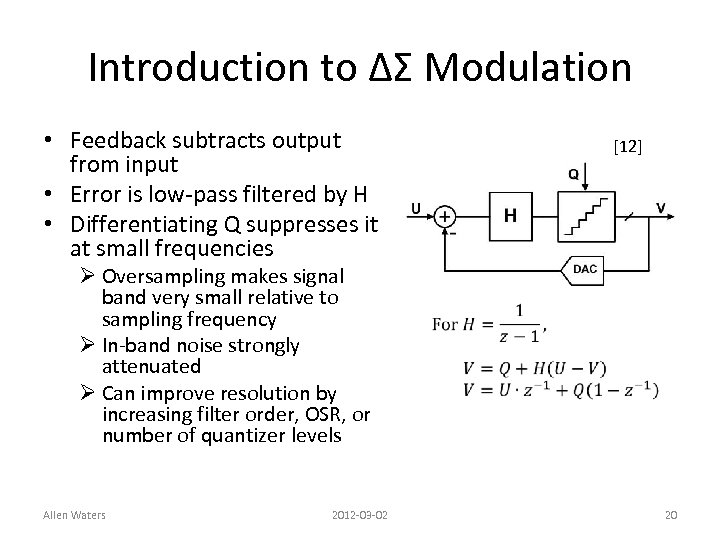

Introduction to ΔΣ Modulation • Feedback subtracts output from input • Error is low-pass filtered by H • Differentiating Q suppresses it at small frequencies Ø Oversampling makes signal band very small relative to sampling frequency Ø In-band noise strongly attenuated Ø Can improve resolution by increasing filter order, OSR, or number of quantizer levels Allen Waters 2012 -03 -02 [12] 20

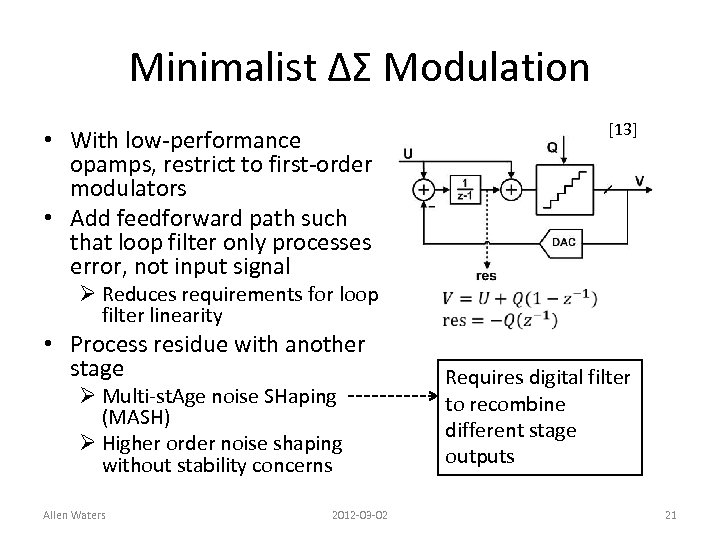

Minimalist ΔΣ Modulation [13] • With low-performance opamps, restrict to first-order modulators • Add feedforward path such that loop filter only processes error, not input signal Ø Reduces requirements for loop filter linearity • Process residue with another stage Ø Multi-st. Age noise SHaping (MASH) Ø Higher order noise shaping without stability concerns Allen Waters 2012 -03 -02 Requires digital filter to recombine different stage outputs 21

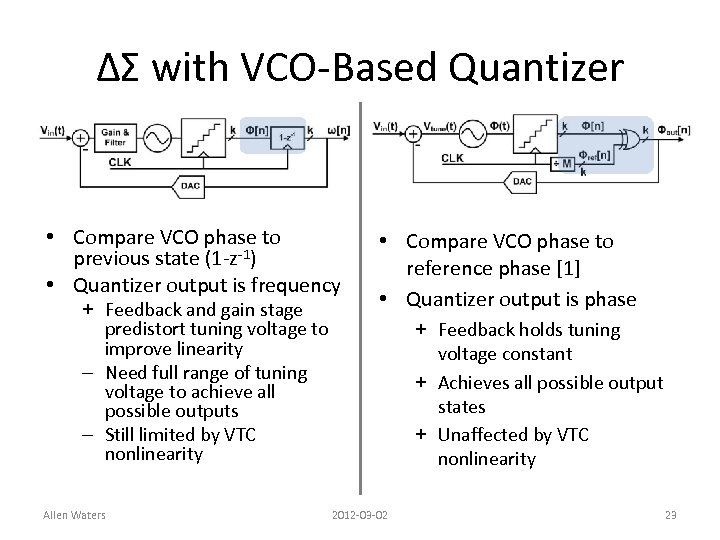

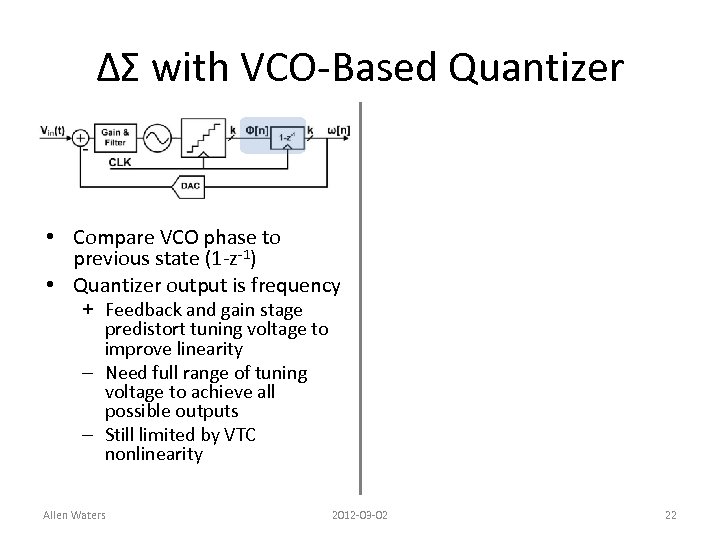

ΔΣ with VCO-Based Quantizer • Compare VCO phase to previous state (1 -z-1) • Quantizer output is frequency + Feedback and gain stage predistort tuning voltage to improve linearity – Need full range of tuning voltage to achieve all possible outputs – Still limited by VTC nonlinearity Allen Waters 2012 -03 -02 22

ΔΣ with VCO-Based Quantizer • Compare VCO phase to previous state (1 -z-1) • Quantizer output is frequency + Feedback and gain stage predistort tuning voltage to improve linearity – Need full range of tuning voltage to achieve all possible outputs – Still limited by VTC nonlinearity Allen Waters • Compare VCO phase to reference phase [1] • Quantizer output is phase 2012 -03 -02 + Feedback holds tuning voltage constant + Achieves all possible output states + Unaffected by VTC nonlinearity 23

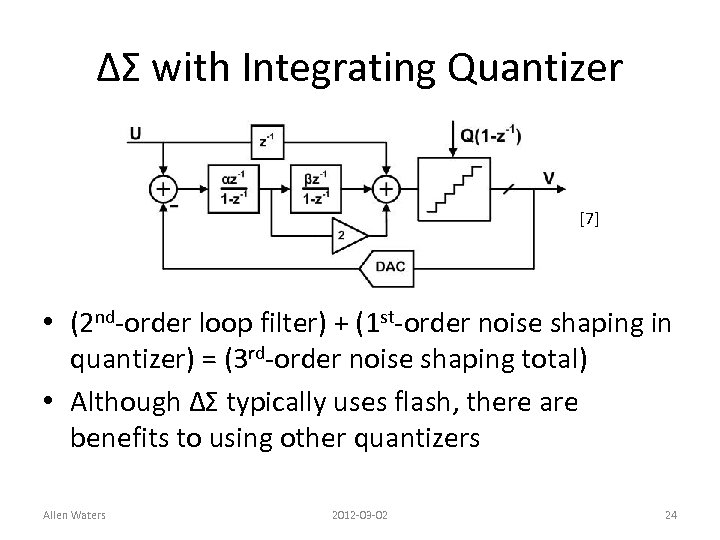

ΔΣ with Integrating Quantizer [7] • (2 nd-order loop filter) + (1 st-order noise shaping in quantizer) = (3 rd-order noise shaping total) • Although ΔΣ typically uses flash, there are benefits to using other quantizers Allen Waters 2012 -03 -02 24

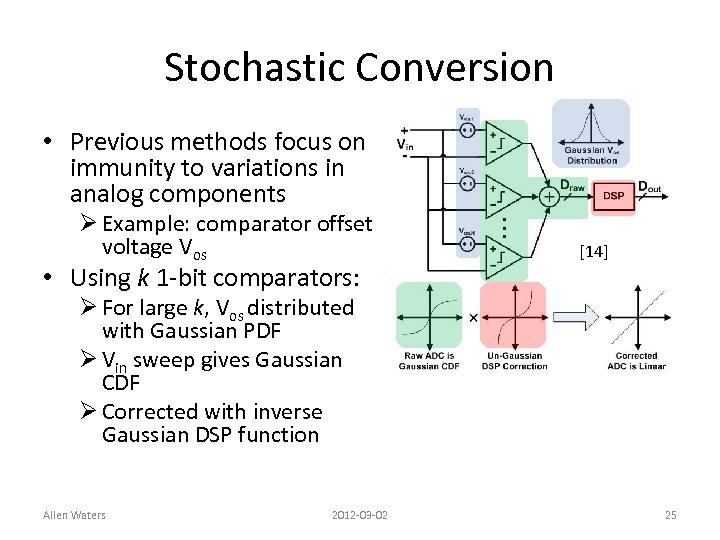

Stochastic Conversion • Previous methods focus on immunity to variations in analog components Ø Example: comparator offset voltage Vos • Using k 1 -bit comparators: [14] Ø For large k, Vos distributed with Gaussian PDF Ø Vin sweep gives Gaussian CDF Ø Corrected with inverse Gaussian DSP function Allen Waters 2012 -03 -02 25

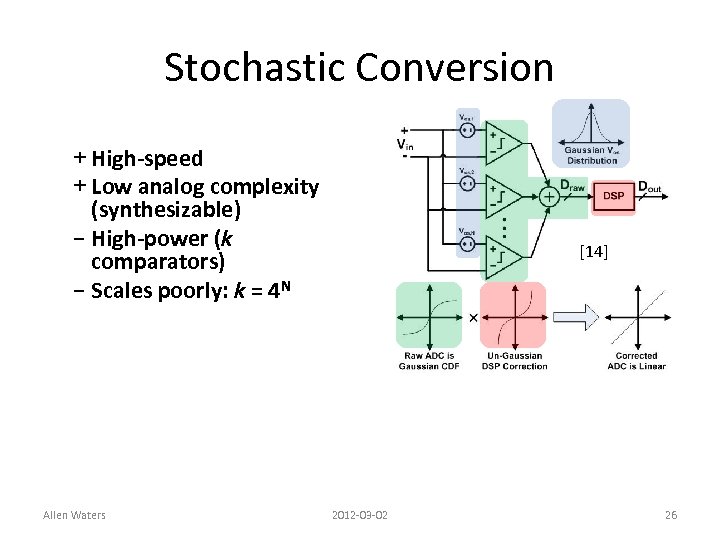

Stochastic Conversion + High-speed + Low analog complexity (synthesizable) − High-power (k comparators) − Scales poorly: k = 4 N Allen Waters [14] 2012 -03 -02 26

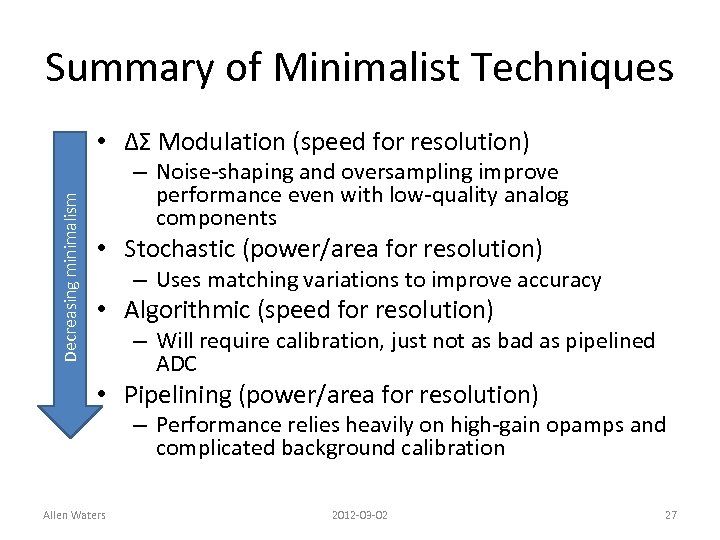

Summary of Minimalist Techniques Decreasing minimalism • ΔΣ Modulation (speed for resolution) – Noise-shaping and oversampling improve performance even with low-quality analog components • Stochastic (power/area for resolution) – Uses matching variations to improve accuracy • Algorithmic (speed for resolution) – Will require calibration, just not as bad as pipelined ADC • Pipelining (power/area for resolution) – Performance relies heavily on high-gain opamps and complicated background calibration Allen Waters 2012 -03 -02 27

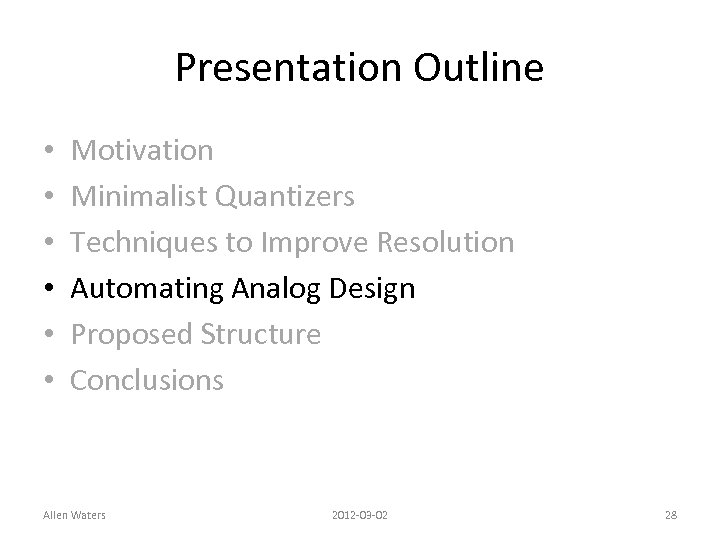

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 28

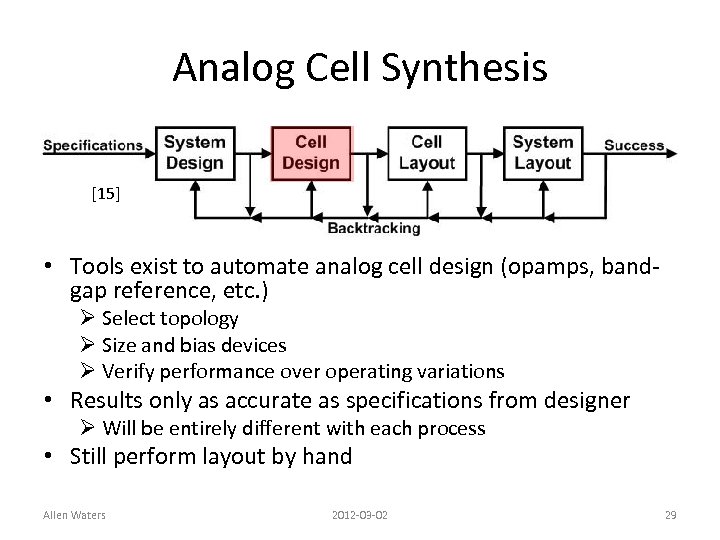

Analog Cell Synthesis [15] • Tools exist to automate analog cell design (opamps, bandgap reference, etc. ) Ø Select topology Ø Size and bias devices Ø Verify performance over operating variations • Results only as accurate as specifications from designer Ø Will be entirely different with each process • Still perform layout by hand Allen Waters 2012 -03 -02 29

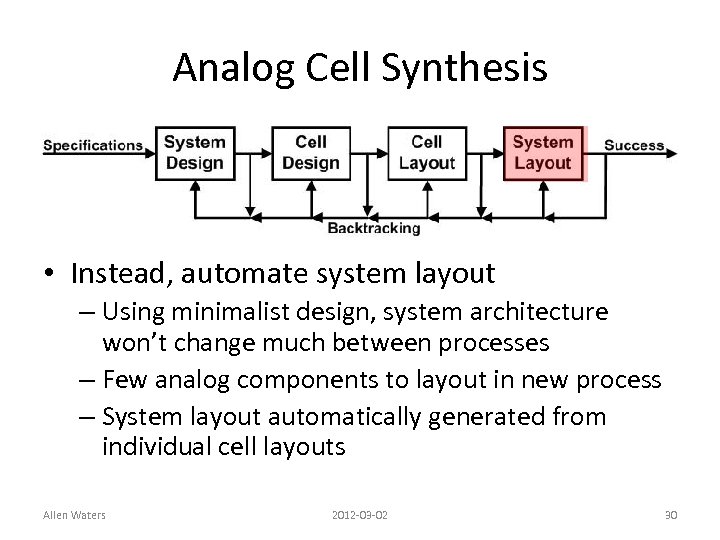

Analog Cell Synthesis • Instead, automate system layout – Using minimalist design, system architecture won’t change much between processes – Few analog components to layout in new process – System layout automatically generated from individual cell layouts Allen Waters 2012 -03 -02 30

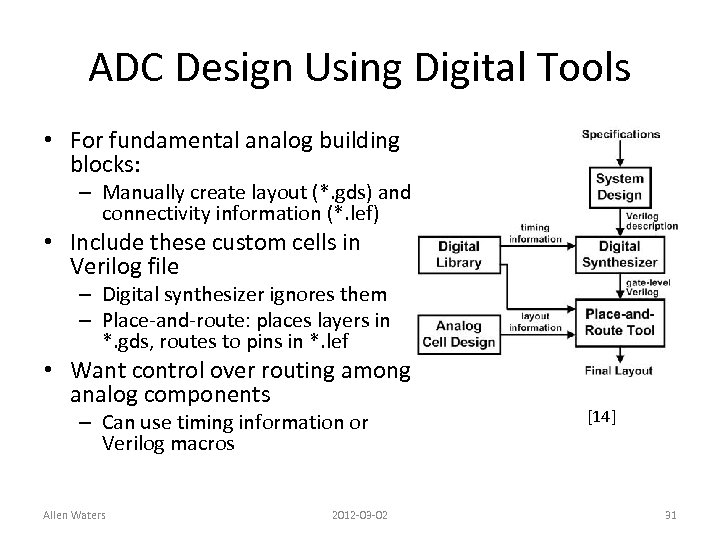

ADC Design Using Digital Tools • For fundamental analog building blocks: – Manually create layout (*. gds) and connectivity information (*. lef) • Include these custom cells in Verilog file – Digital synthesizer ignores them – Place-and-route: places layers in *. gds, routes to pins in *. lef • Want control over routing among analog components – Can use timing information or Verilog macros Allen Waters 2012 -03 -02 [14] 31

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 32

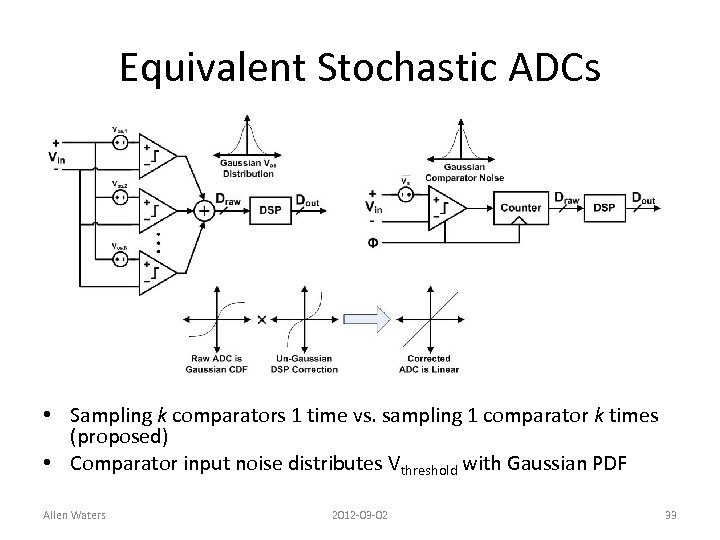

Equivalent Stochastic ADCs • Sampling k comparators 1 time vs. sampling 1 comparator k times (proposed) • Comparator input noise distributes Vthreshold with Gaussian PDF Allen Waters 2012 -03 -02 33

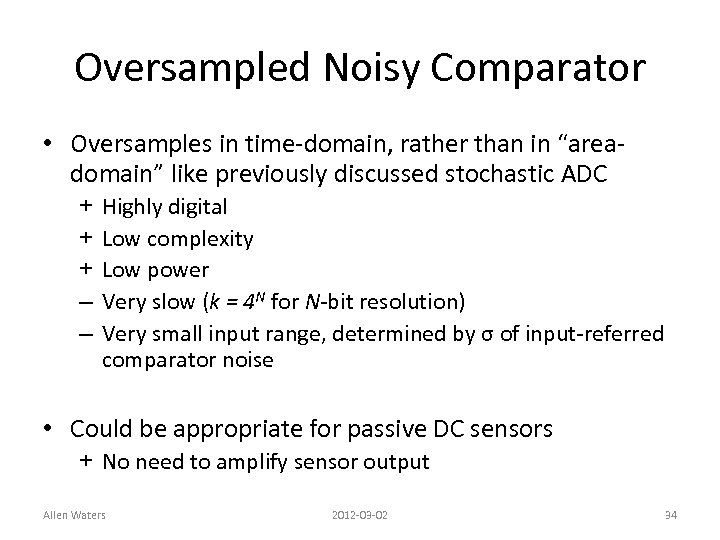

Oversampled Noisy Comparator • Oversamples in time-domain, rather than in “areadomain” like previously discussed stochastic ADC + + + – – Highly digital Low complexity Low power Very slow (k = 4 N for N-bit resolution) Very small input range, determined by σ of input-referred comparator noise • Could be appropriate for passive DC sensors + No need to amplify sensor output Allen Waters 2012 -03 -02 34

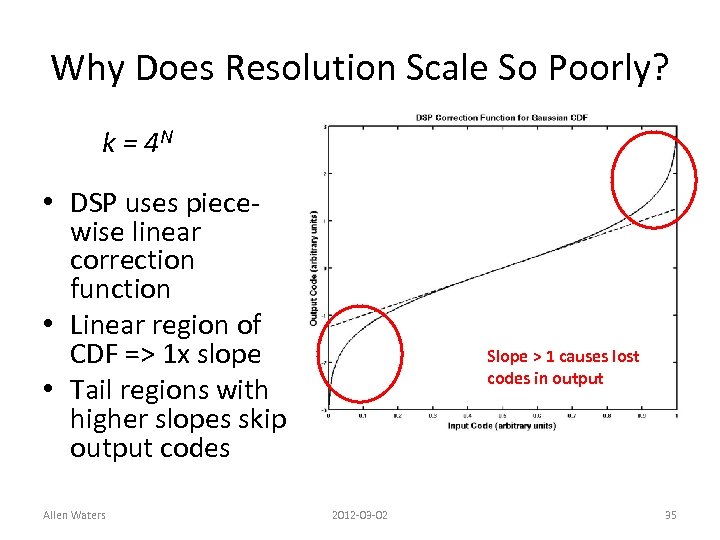

Why Does Resolution Scale So Poorly? k = 4 N • DSP uses piecewise linear correction function • Linear region of CDF => 1 x slope • Tail regions with higher slopes skip output codes Allen Waters Slope > 1 causes lost codes in output 2012 -03 -02 35

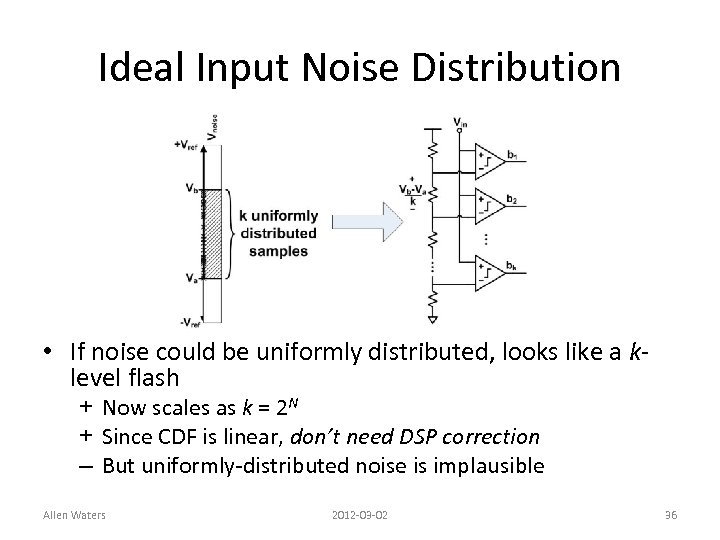

Ideal Input Noise Distribution • If noise could be uniformly distributed, looks like a klevel flash + Now scales as k = 2 N + Since CDF is linear, don’t need DSP correction – But uniformly-distributed noise is implausible Allen Waters 2012 -03 -02 36

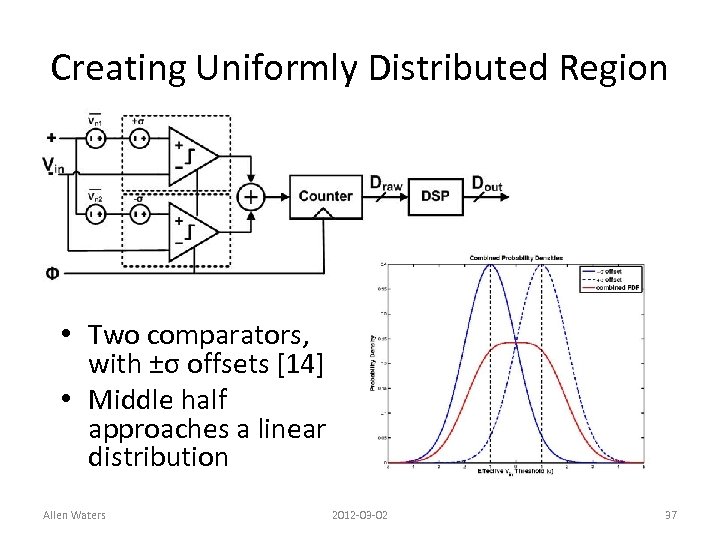

Creating Uniformly Distributed Region • Two comparators, with ±σ offsets [14] • Middle half approaches a linear distribution Allen Waters 2012 -03 -02 37

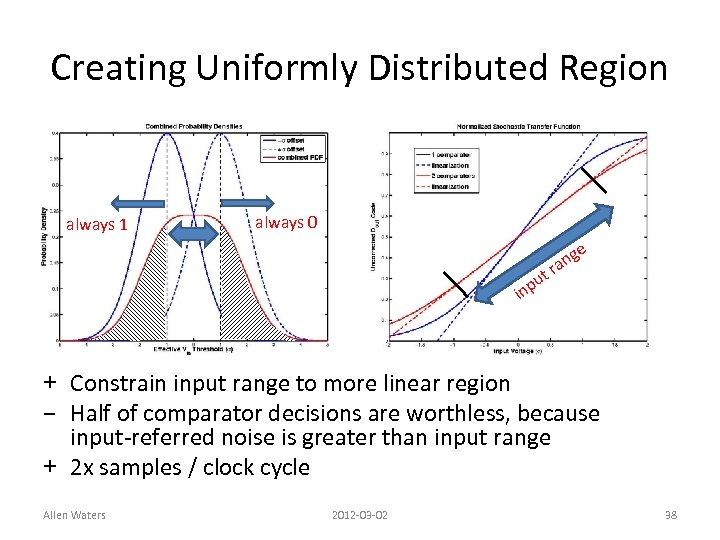

Creating Uniformly Distributed Region always 1 always 0 u inp t g ran e + Constrain input range to more linear region − Half of comparator decisions are worthless, because input-referred noise is greater than input range + 2 x samples / clock cycle Allen Waters 2012 -03 -02 38

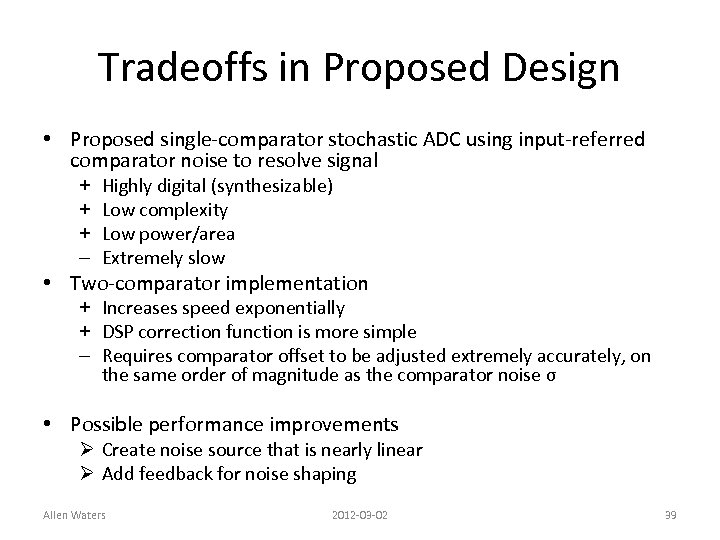

Tradeoffs in Proposed Design • Proposed single-comparator stochastic ADC using input-referred comparator noise to resolve signal + + + – Highly digital (synthesizable) Low complexity Low power/area Extremely slow • Two-comparator implementation + Increases speed exponentially + DSP correction function is more simple – Requires comparator offset to be adjusted extremely accurately, on the same order of magnitude as the comparator noise σ • Possible performance improvements Ø Create noise source that is nearly linear Ø Add feedback for noise shaping Allen Waters 2012 -03 -02 39

Presentation Outline • • • Motivation Minimalist Quantizers Techniques to Improve Resolution Automating Analog Design Proposed Structure Conclusions Allen Waters 2012 -03 -02 40

Conclusions • Analog circuit scaling lags behind digital • Need minimalist ADC structures that are immune to component mismatch and variation – Minimalist quantizers achieve low resolution – Use oversampling, cascading and noise-shaping to boost resolution at expense of speed/power • If resistant to routing variations, analog cells could be included in existing digital design flow • Proposed a new stochastic ADC that oversamples input-referred noise to resolve signal Allen Waters 2012 -03 -02 41

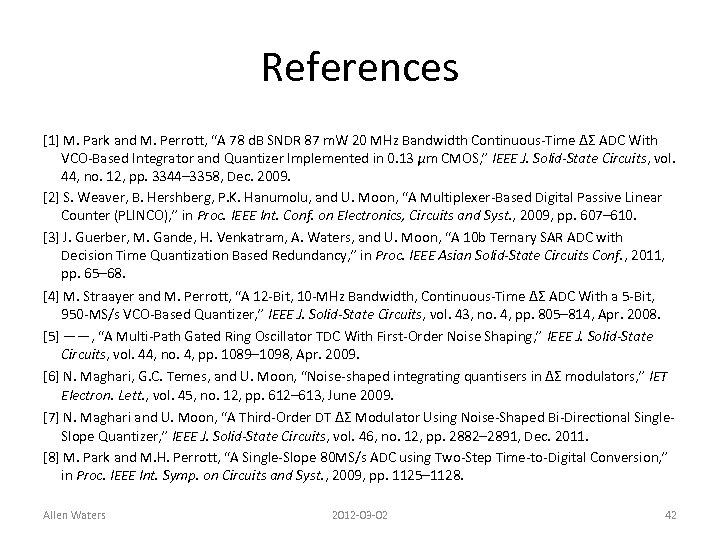

References [1] M. Park and M. Perrott, “A 78 d. B SNDR 87 m. W 20 MHz Bandwidth Continuous-Time ΔΣ ADC With VCO-Based Integrator and Quantizer Implemented in 0. 13 μm CMOS, ” IEEE J. Solid-State Circuits, vol. 44, no. 12, pp. 3344– 3358, Dec. 2009. [2] S. Weaver, B. Hershberg, P. K. Hanumolu, and U. Moon, “A Multiplexer-Based Digital Passive Linear Counter (PLINCO), ” in Proc. IEEE Int. Conf. on Electronics, Circuits and Syst. , 2009, pp. 607– 610. [3] J. Guerber, M. Gande, H. Venkatram, A. Waters, and U. Moon, “A 10 b Ternary SAR ADC with Decision Time Quantization Based Redundancy, ” in Proc. IEEE Asian Solid-State Circuits Conf. , 2011, pp. 65– 68. [4] M. Straayer and M. Perrott, “A 12 -Bit, 10 -MHz Bandwidth, Continuous-Time ΔΣ ADC With a 5 -Bit, 950 -MS/s VCO-Based Quantizer, ” IEEE J. Solid-State Circuits, vol. 43, no. 4, pp. 805– 814, Apr. 2008. [5] ——, “A Multi-Path Gated Ring Oscillator TDC With First-Order Noise Shaping, ” IEEE J. Solid-State Circuits, vol. 44, no. 4, pp. 1089– 1098, Apr. 2009. [6] N. Maghari, G. C. Temes, and U. Moon, “Noise-shaped integrating quantisers in ΔΣ modulators, ” IET Electron. Lett. , vol. 45, no. 12, pp. 612– 613, June 2009. [7] N. Maghari and U. Moon, “A Third-Order DT ΔΣ Modulator Using Noise-Shaped Bi-Directional Single. Slope Quantizer, ” IEEE J. Solid-State Circuits, vol. 46, no. 12, pp. 2882– 2891, Dec. 2011. [8] M. Park and M. H. Perrott, “A Single-Slope 80 MS/s ADC using Two-Step Time-to-Digital Conversion, ” in Proc. IEEE Int. Symp. on Circuits and Syst. , 2009, pp. 1125– 1128. Allen Waters 2012 -03 -02 42

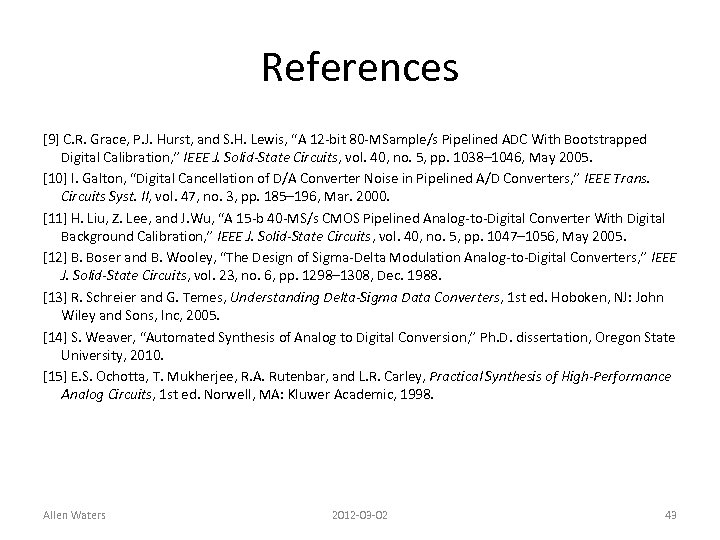

References [9] C. R. Grace, P. J. Hurst, and S. H. Lewis, “A 12 -bit 80 -MSample/s Pipelined ADC With Bootstrapped Digital Calibration, ” IEEE J. Solid-State Circuits, vol. 40, no. 5, pp. 1038– 1046, May 2005. [10] I. Galton, “Digital Cancellation of D/A Converter Noise in Pipelined A/D Converters, ” IEEE Trans. Circuits Syst. II, vol. 47, no. 3, pp. 185– 196, Mar. 2000. [11] H. Liu, Z. Lee, and J. Wu, “A 15 -b 40 -MS/s CMOS Pipelined Analog-to-Digital Converter With Digital Background Calibration, ” IEEE J. Solid-State Circuits, vol. 40, no. 5, pp. 1047– 1056, May 2005. [12] B. Boser and B. Wooley, “The Design of Sigma-Delta Modulation Analog-to-Digital Converters, ” IEEE J. Solid-State Circuits, vol. 23, no. 6, pp. 1298– 1308, Dec. 1988. [13] R. Schreier and G. Temes, Understanding Delta-Sigma Data Converters, 1 st ed. Hoboken, NJ: John Wiley and Sons, Inc, 2005. [14] S. Weaver, “Automated Synthesis of Analog to Digital Conversion, ” Ph. D. dissertation, Oregon State University, 2010. [15] E. S. Ochotta, T. Mukherjee, R. A. Rutenbar, and L. R. Carley, Practical Synthesis of High-Performance Analog Circuits, 1 st ed. Norwell, MA: Kluwer Academic, 1998. Allen Waters 2012 -03 -02 43

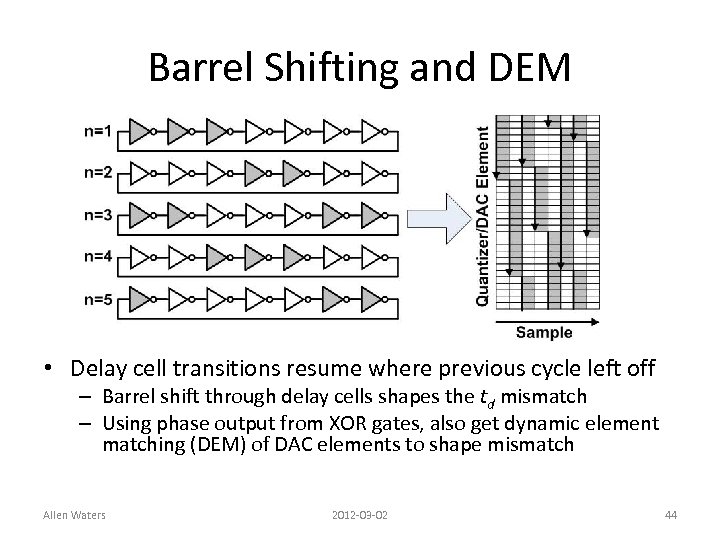

Barrel Shifting and DEM • Delay cell transitions resume where previous cycle left off – Barrel shift through delay cells shapes the td mismatch – Using phase output from XOR gates, also get dynamic element matching (DEM) of DAC elements to shape mismatch Allen Waters 2012 -03 -02 44

Example Cell Design and Usage ADC. v. . . module my. Module(input X, output Y); supply 1 VDD; supply 0 VSS; . . . unit. C C 1(. A(X), . B(VSS) ); . . . endmodule my. Module. . . • Placing custom cells is easy • Controlling the routing is the challenge Allen Waters unit. C. lef MACRO unit. C ORIGIN 0. 00 ; SIZE 14. 52 BY 15. 12 ; PIN A DIRECTION INOUT ; PORT LAYER metal 5 ; RECT 2. 91 3. 21 11. 61 11. 91 ; END A PIN B. . . END B PIN VDD. . . END VDD PIN VSS. . . END VSS OBS. . . END unit. C 2012 -03 -02 45

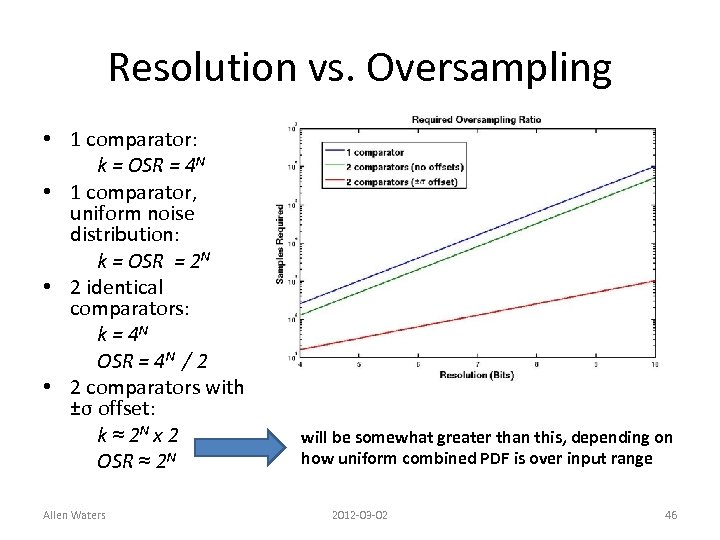

Resolution vs. Oversampling • 1 comparator: k = OSR = 4 N • 1 comparator, uniform noise distribution: k = OSR = 2 N • 2 identical comparators: k = 4 N OSR = 4 N / 2 • 2 comparators with ±σ offset: k ≈ 2 N x 2 OSR ≈ 2 N Allen Waters will be somewhat greater than this, depending on how uniform combined PDF is over input range 2012 -03 -02 46
