Mini POS Content Ø New Product Line

Mini POS

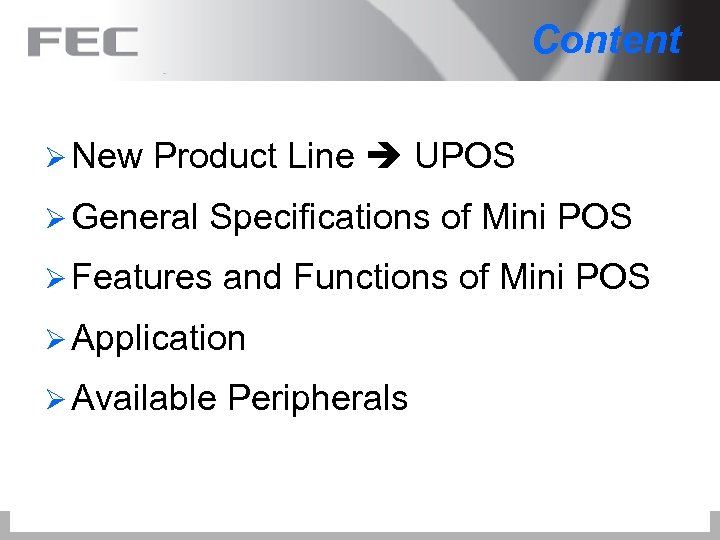

Content Ø New Product Line UPOS Ø General Specifications of Mini POS Ø Features and Functions of Mini POS Ø Application Ø Available Peripherals

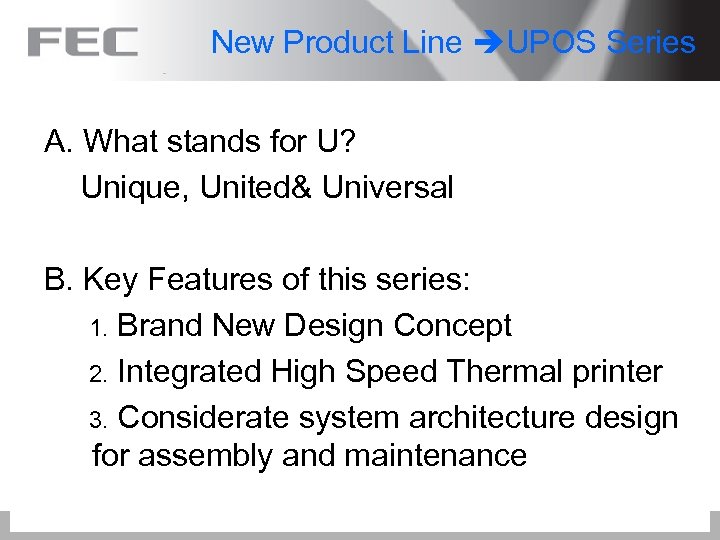

New Product Line UPOS Series A. What stands for U? Unique, United& Universal B. Key Features of this series: 1. Brand New Design Concept 2. Integrated High Speed Thermal printer 3. Considerate system architecture design for assembly and maintenance

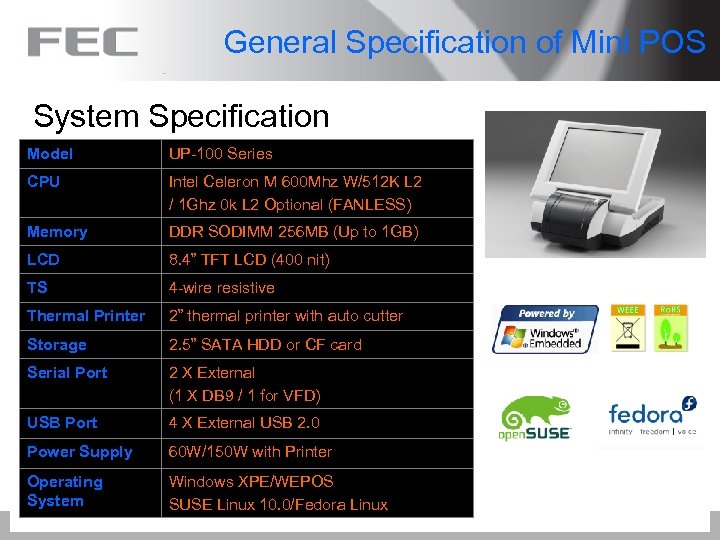

General Specification of Mini POS System Specification Model UP-100 Series CPU Intel Celeron M 600 Mhz W/512 K L 2 / 1 Ghz 0 k L 2 Optional (FANLESS) Memory DDR SODIMM 256 MB (Up to 1 GB) LCD 8. 4” TFT LCD (400 nit) TS 4 -wire resistive Thermal Printer 2” thermal printer with auto cutter Storage 2. 5” SATA HDD or CF card Serial Port 2 X External (1 X DB 9 / 1 for VFD) USB Port 4 X External USB 2. 0 Power Supply 60 W/150 W with Printer Operating System Windows XPE/WEPOS SUSE Linux 10. 0/Fedora Linux

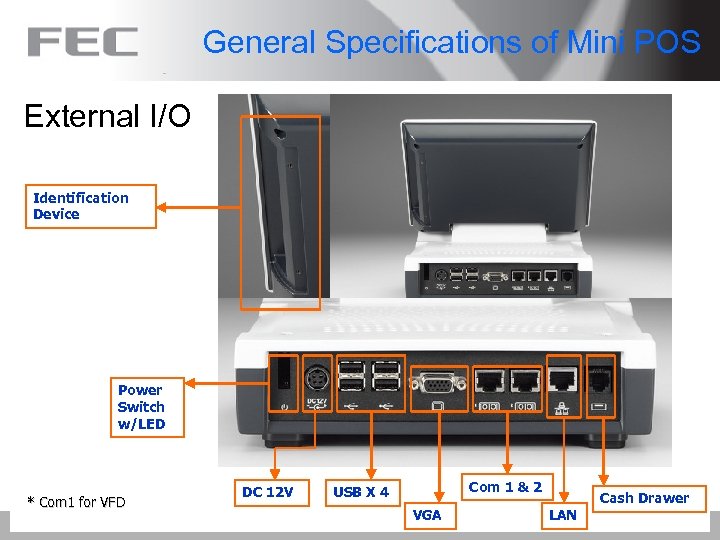

General Specifications of Mini POS External I/O Identification Device Power Switch w/LED * Com 1 for VFD DC 12 V Com 1 & 2 USB X 4 VGA Cash Drawer LAN

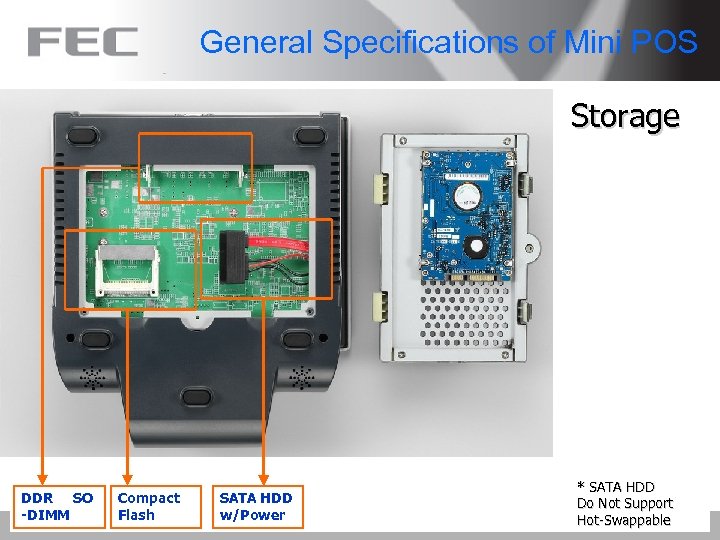

General Specifications of Mini POS Storage DDR SO -DIMM Compact Flash SATA HDD w/Power * SATA HDD Do Not Support Hot-Swappable

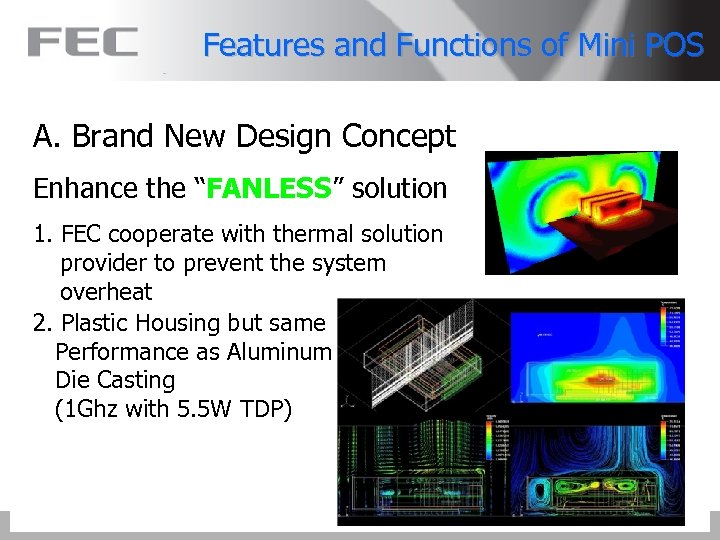

Features and Functions of Mini POS A. Brand New Design Concept Enhance the “FANLESS” solution 1. FEC cooperate with thermal solution provider to prevent the system overheat 2. Plastic Housing but same Performance as Aluminum Die Casting (1 Ghz with 5. 5 W TDP)

Features and Functions of Mini POS B. Small Footprint W: 239. 5 mm L: 260. 5 mm H: 100 mm * A 4 size=297 mm X 210 mm

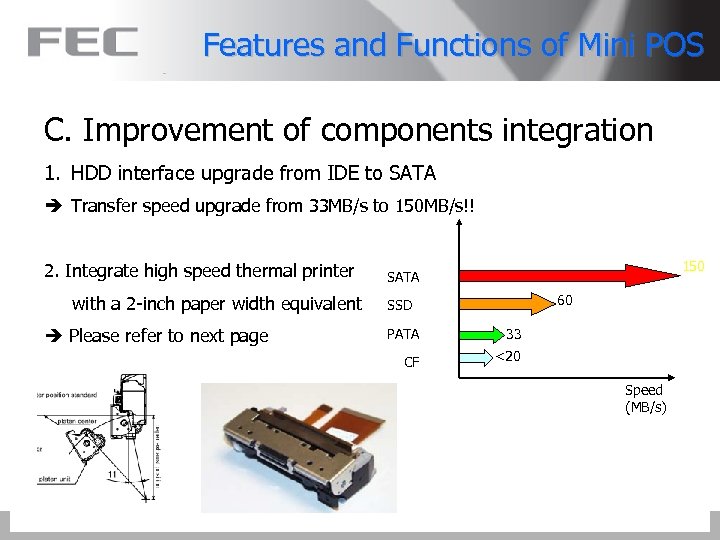

Features and Functions of Mini POS C. Improvement of components integration 1. HDD interface upgrade from IDE to SATA Transfer speed upgrade from 33 MB/s to 150 MB/s!! 2. Integrate high speed thermal printer with a 2 -inch paper width equivalent Please refer to next page 150 SATA 60 SSD PATA 33 CF <20 Speed (MB/s)

Features and Functions of Mini POS 2. Integrate 2 -inch paper width high speed printer a. Easy paper setting: While paper jam, just take the paper scroll out and put it back. b. Auto Cutter: Full cut type and partial cut type printers are available by user selection c. High speed printing: It can print at 60 mm/s (480 dotlines/s) maximum

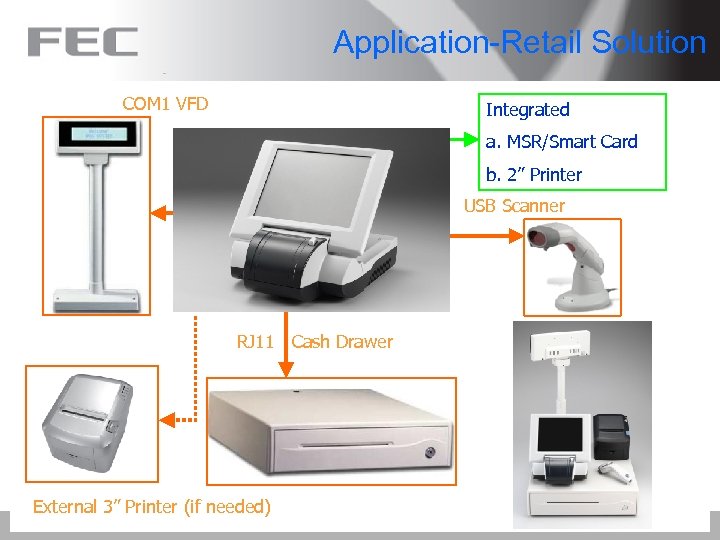

Application-Retail Solution COM 1 VFD Integrated a. MSR/Smart Card b. 2” Printer USB Scanner RJ 11 Cash Drawer External 3” Printer (if needed)

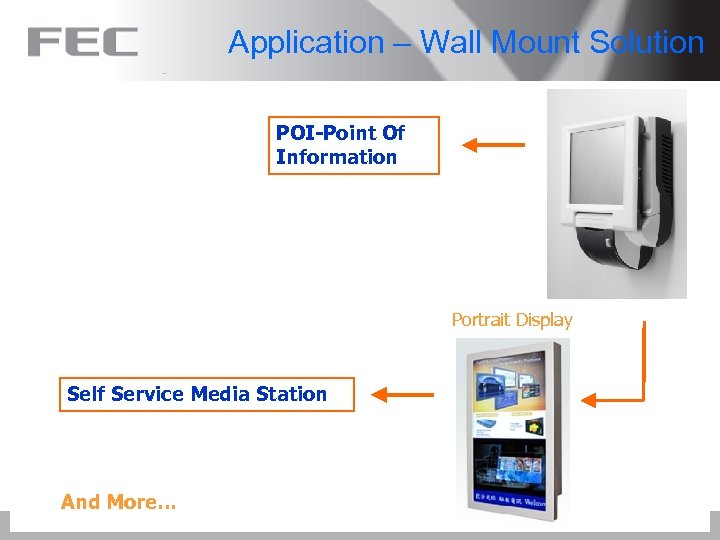

Application – Wall Mount Solution POI-Point Of Information Portrait Display Self Service Media Station And More…

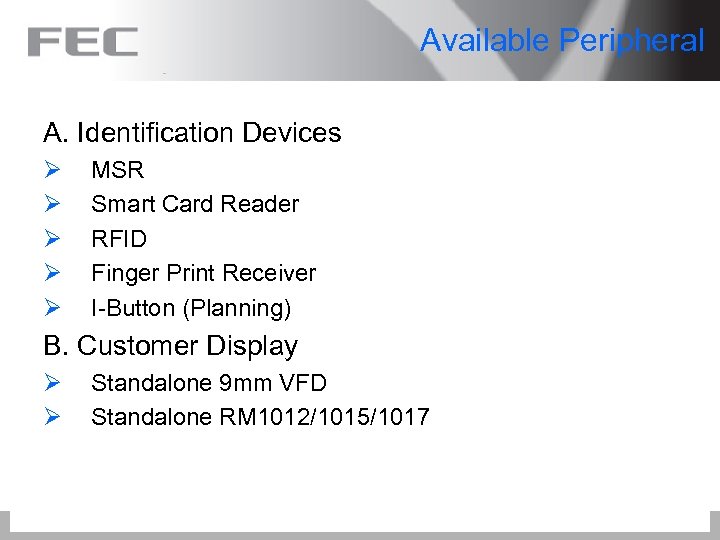

Available Peripheral A. Identification Devices Ø Ø Ø MSR Smart Card Reader RFID Finger Print Receiver I-Button (Planning) B. Customer Display Ø Ø Standalone 9 mm VFD Standalone RM 1012/1015/1017

ØQ &A
