Military, Marine & Medical Customized Solutions Gamatronic Our Power, Your confidence Military, Marine & Medical Customized Solutions Gamatronic Our Power, Your confidence

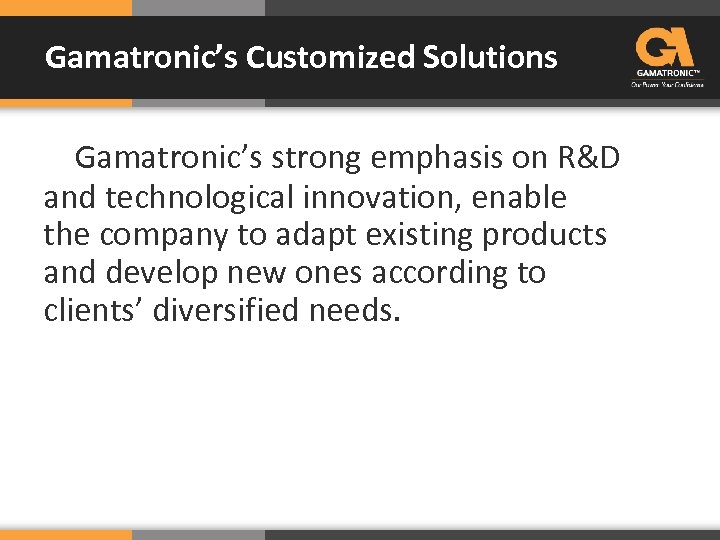

Gamatronic’s Customized Solutions Gamatronic’s strong emphasis on R&D and technological innovation, enable the company Gamatronic’s Customized Solutions Gamatronic’s strong emphasis on R&D and technological innovation, enable the company to adapt existing products and develop new ones according to clients’ diversified needs.

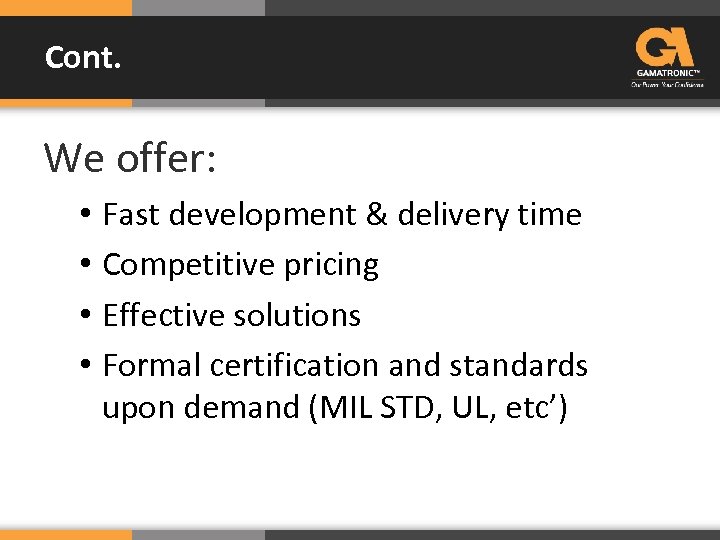

Cont. We offer: • Fast development & delivery time • Competitive pricing • Effective Cont. We offer: • Fast development & delivery time • Competitive pricing • Effective solutions • Formal certification and standards upon demand (MIL STD, UL, etc’)

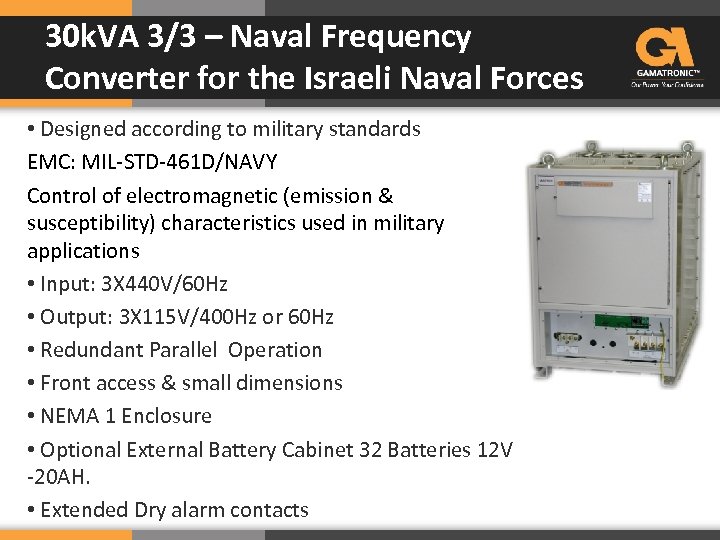

30 k. VA 3/3 – Naval Frequency Converter for the Israeli Naval Forces • 30 k. VA 3/3 – Naval Frequency Converter for the Israeli Naval Forces • Designed according to military standards EMC: MIL-STD-461 D/NAVY Control of electromagnetic (emission & susceptibility) characteristics used in military applications • Input: 3 X 440 V/60 Hz • Output: 3 X 115 V/400 Hz or 60 Hz • Redundant Parallel Operation • Front access & small dimensions • NEMA 1 Enclosure • Optional External Battery Cabinet 32 Batteries 12 V -20 AH. • Extended Dry alarm contacts

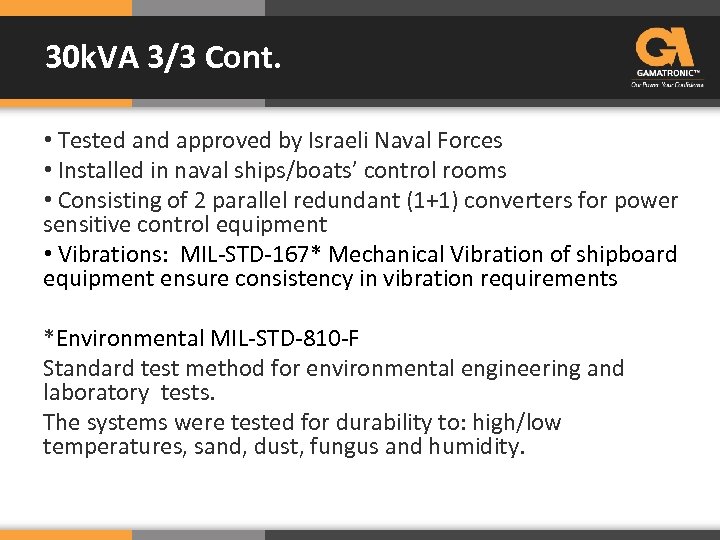

30 k. VA 3/3 Cont. • Tested and approved by Israeli Naval Forces • 30 k. VA 3/3 Cont. • Tested and approved by Israeli Naval Forces • Installed in naval ships/boats’ control rooms • Consisting of 2 parallel redundant (1+1) converters for power sensitive control equipment • Vibrations: MIL-STD-167* Mechanical Vibration of shipboard equipment ensure consistency in vibration requirements *Environmental MIL-STD-810 -F Standard test method for environmental engineering and laboratory tests. The systems were tested for durability to: high/low temperatures, sand, dust, fungus and humidity.

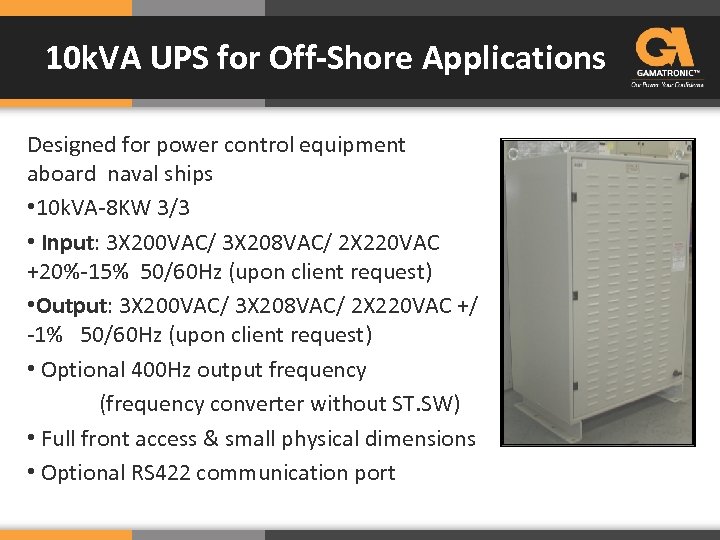

10 k. VA UPS for Off-Shore Applications Designed for power control equipment aboard naval 10 k. VA UPS for Off-Shore Applications Designed for power control equipment aboard naval ships • 10 k. VA-8 KW 3/3 • Input: 3 X 200 VAC/ 3 X 208 VAC/ 2 X 220 VAC +20%-15% 50/60 Hz (upon client request) • Output: 3 X 200 VAC/ 3 X 208 VAC/ 2 X 220 VAC +/ -1% 50/60 Hz (upon client request) • Optional 400 Hz output frequency (frequency converter without ST. SW) • Full front access & small physical dimensions • Optional RS 422 communication port

10 k. VA Cont. The unit complies with the following standards: • Vibrations: MIL-STD-167 10 k. VA Cont. The unit complies with the following standards: • Vibrations: MIL-STD-167 and MIL-STD-901 c • EMC : MIL-STD 461 • Safety: EN 50091 -1 • Design : ENV 50091 -3 Optional battery cabinet 16 batteries 12 V-26 AH Tested and approved by well know Israeli manufacturer of military intelligence equipment.

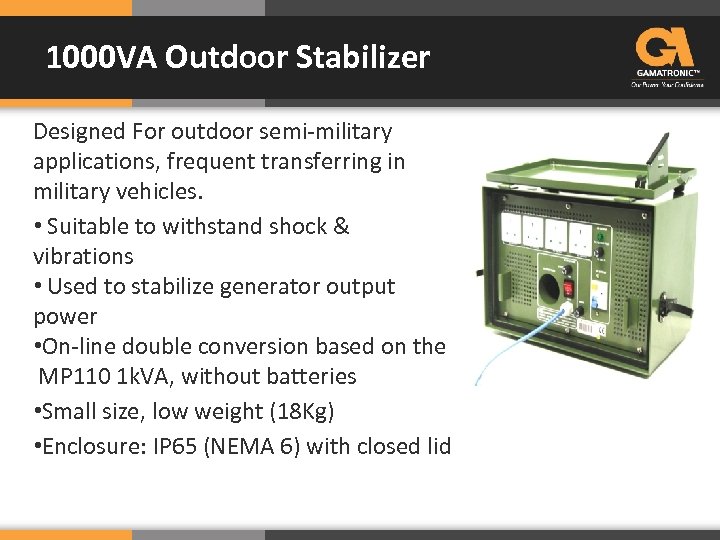

1000 VA Outdoor Stabilizer Designed For outdoor semi-military applications, frequent transferring in military vehicles. 1000 VA Outdoor Stabilizer Designed For outdoor semi-military applications, frequent transferring in military vehicles. • Suitable to withstand shock & vibrations • Used to stabilize generator output power • On-line double conversion based on the MP 110 1 k. VA, without batteries • Small size, low weight (18 Kg) • Enclosure: IP 65 (NEMA 6) with closed lid

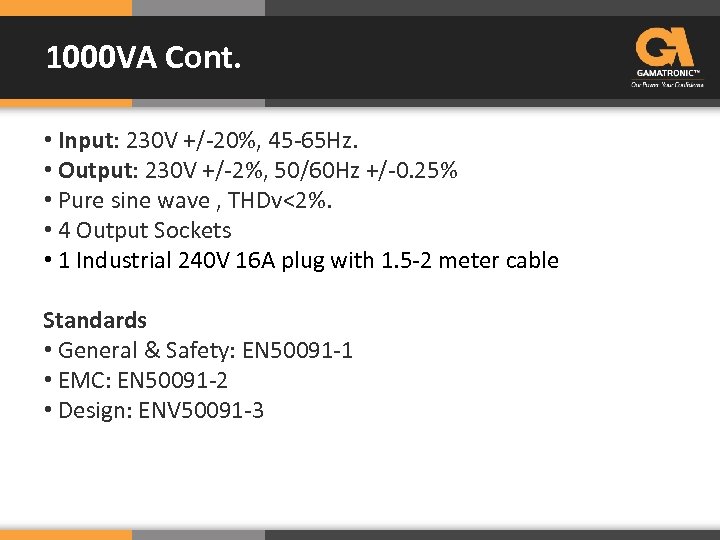

1000 VA Cont. • Input: 230 V +/-20%, 45 -65 Hz. • Output: 230 1000 VA Cont. • Input: 230 V +/-20%, 45 -65 Hz. • Output: 230 V +/-2%, 50/60 Hz +/-0. 25% • Pure sine wave , THDv<2%. • 4 Output Sockets • 1 Industrial 240 V 16 A plug with 1. 5 -2 meter cable Standards • General & Safety: EN 50091 -1 • EMC: EN 50091 -2 • Design: ENV 50091 -3

Marine Shore Power Systems for yachts The Advanced New Technologies company from the UK, Marine Shore Power Systems for yachts The Advanced New Technologies company from the UK, was searching for a product that would manage clean shore power solutions for yachts, including high power projects for super- and mega-yachts.

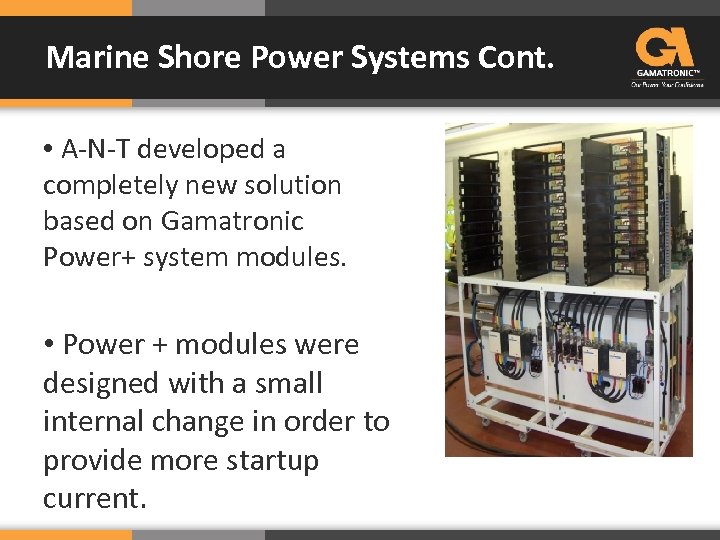

Marine Shore Power Systems Cont. • A-N-T developed a completely new solution based on Marine Shore Power Systems Cont. • A-N-T developed a completely new solution based on Gamatronic Power+ system modules. • Power + modules were designed with a small internal change in order to provide more startup current.

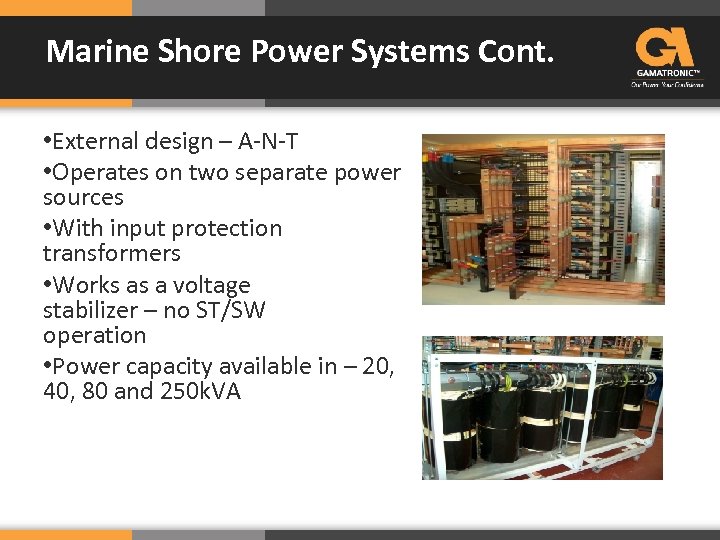

Marine Shore Power Systems Cont. • External design – A-N-T • Operates on two Marine Shore Power Systems Cont. • External design – A-N-T • Operates on two separate power sources • With input protection transformers • Works as a voltage stabilizer – no ST/SW operation • Power capacity available in – 20, 40, 80 and 250 k. VA

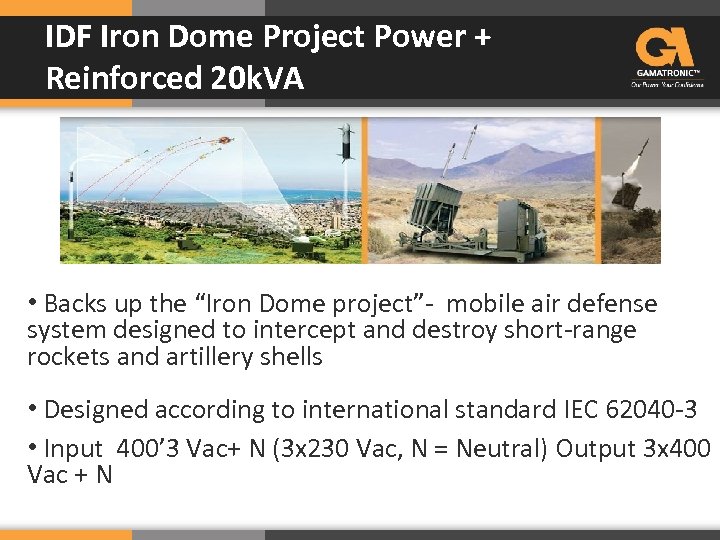

IDF Iron Dome Project Power + Reinforced 20 k. VA • Backs up the IDF Iron Dome Project Power + Reinforced 20 k. VA • Backs up the “Iron Dome project”- mobile air defense system designed to intercept and destroy short-range rockets and artillery shells • Designed according to international standard IEC 62040 -3 • Input 400’ 3 Vac+ N (3 x 230 Vac, N = Neutral) Output 3 x 400 Vac + N

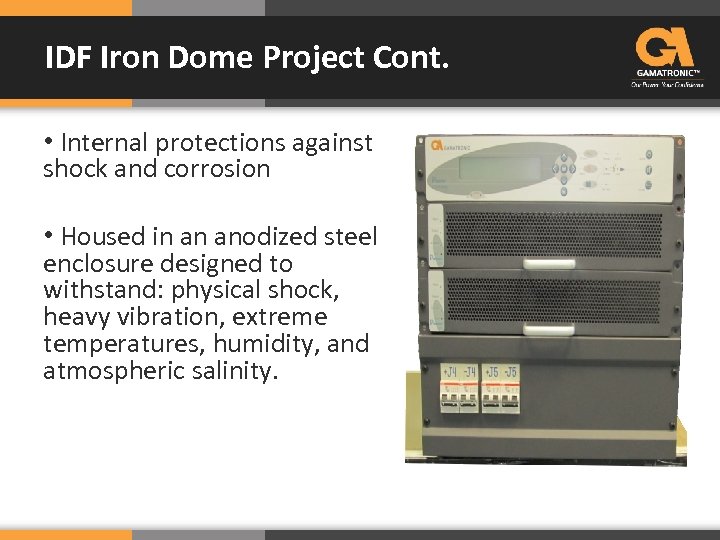

IDF Iron Dome Project Cont. • Internal protections against shock and corrosion • Housed IDF Iron Dome Project Cont. • Internal protections against shock and corrosion • Housed in an anodized steel enclosure designed to withstand: physical shock, heavy vibration, extreme temperatures, humidity, and atmospheric salinity.

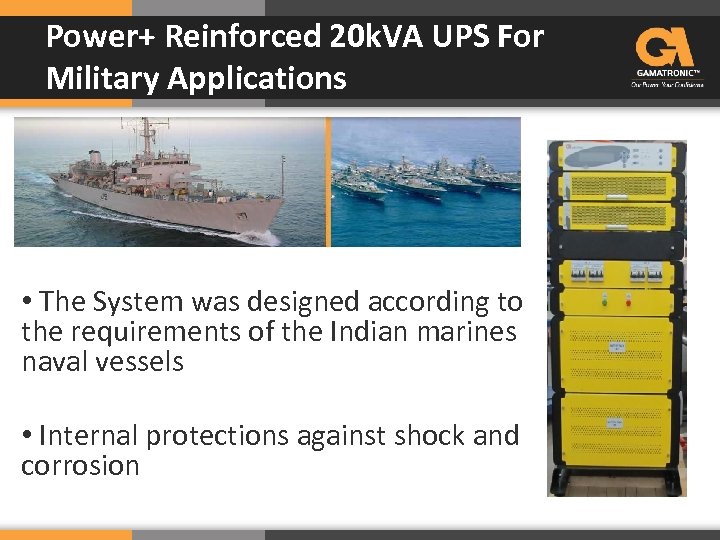

Power+ Reinforced 20 k. VA UPS For Military Applications • The System was designed Power+ Reinforced 20 k. VA UPS For Military Applications • The System was designed according to the requirements of the Indian marines naval vessels • Internal protections against shock and corrosion

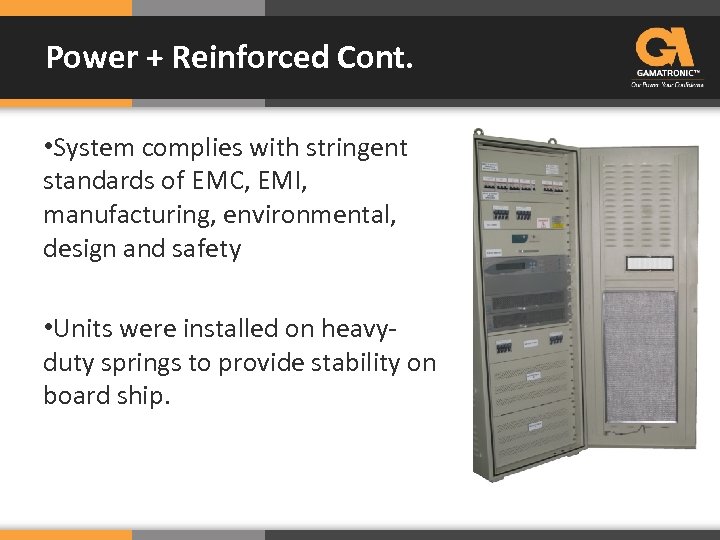

Power + Reinforced Cont. • System complies with stringent standards of EMC, EMI, manufacturing, Power + Reinforced Cont. • System complies with stringent standards of EMC, EMI, manufacturing, environmental, design and safety • Units were installed on heavyduty springs to provide stability on board ship.

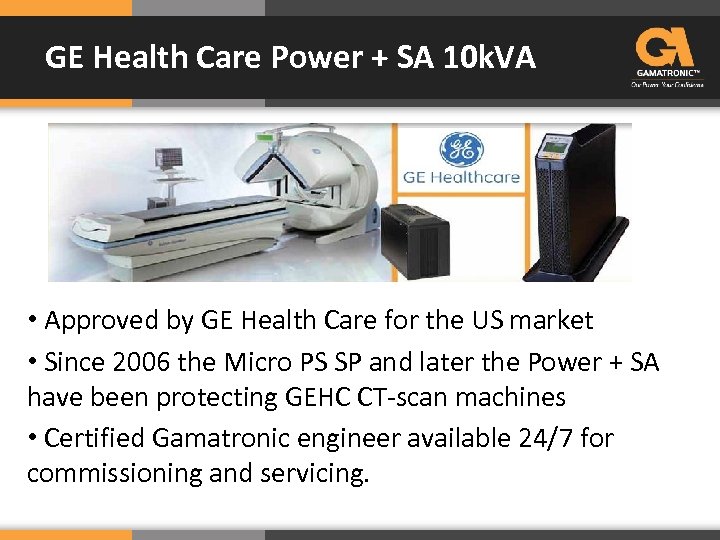

GE Health Care Power + SA 10 k. VA • Approved by GE Health GE Health Care Power + SA 10 k. VA • Approved by GE Health Care for the US market • Since 2006 the Micro PS SP and later the Power + SA have been protecting GEHC CT-scan machines • Certified Gamatronic engineer available 24/7 for commissioning and servicing.

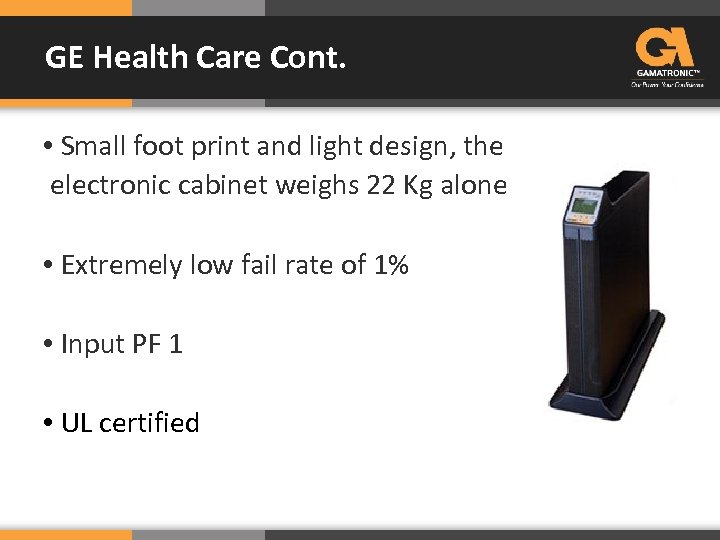

GE Health Care Cont. • Small foot print and light design, the electronic cabinet GE Health Care Cont. • Small foot print and light design, the electronic cabinet weighs 22 Kg alone • Extremely low fail rate of 1% • Input PF 1 • UL certified

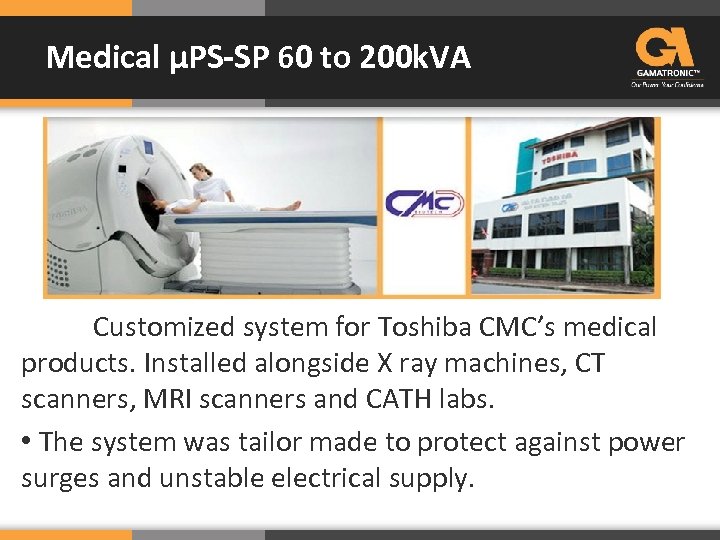

Medical μPS-SP 60 to 200 k. VA Customized system for Toshiba CMC’s medical products. Medical μPS-SP 60 to 200 k. VA Customized system for Toshiba CMC’s medical products. Installed alongside X ray machines, CT scanners, MRI scanners and CATH labs. • The system was tailor made to protect against power surges and unstable electrical supply.

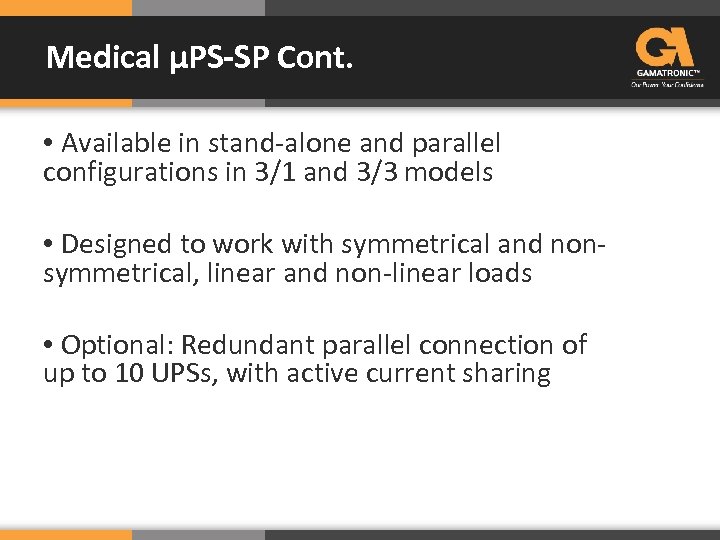

Medical μPS-SP Cont. • Available in stand-alone and parallel configurations in 3/1 and 3/3 Medical μPS-SP Cont. • Available in stand-alone and parallel configurations in 3/1 and 3/3 models • Designed to work with symmetrical and nonsymmetrical, linear and non-linear loads • Optional: Redundant parallel connection of up to 10 UPSs, with active current sharing

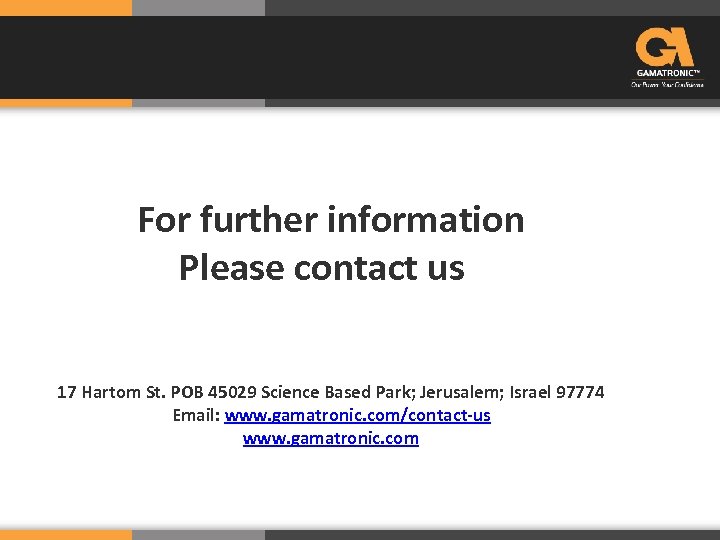

For further information Please contact us 17 Hartom St. POB 45029 Science Based Park; For further information Please contact us 17 Hartom St. POB 45029 Science Based Park; Jerusalem; Israel 97774 Email: www. gamatronic. com/contact-us www. gamatronic. com
