Michigan State University Pesticide Safety Education Program Michigan State University Pesticide Safety Education Program

Pesticide Storage And Handling Larry G. Olsen and Robert H. Wilkinson Michigan State University Pesticide Storage And Handling Larry G. Olsen and Robert H. Wilkinson Michigan State University

Consider Soil and Land Characteristics When Constructing a Facility Consider Soil and Land Characteristics When Constructing a Facility

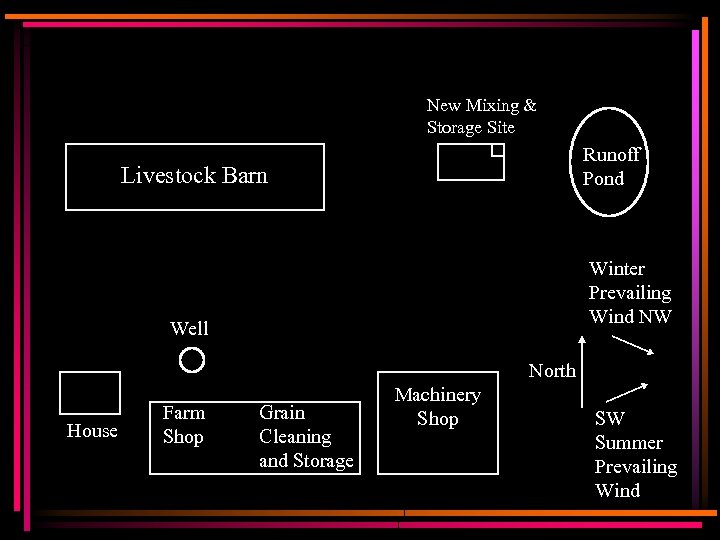

New Mixing & Storage Site Runoff Pond Livestock Barn Winter Prevailing Wind NW Well New Mixing & Storage Site Runoff Pond Livestock Barn Winter Prevailing Wind NW Well North House Farm Shop Grain Cleaning and Storage Machinery Shop SW Summer Prevailing Wind

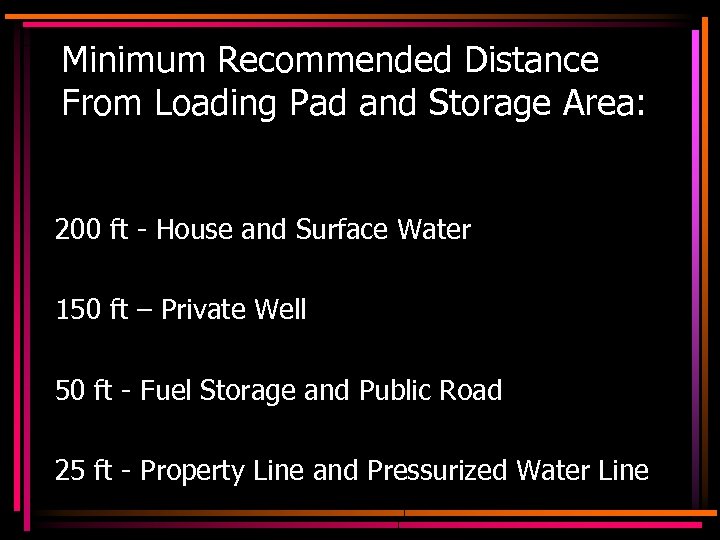

Minimum Recommended Distance From Loading Pad and Storage Area: 200 ft - House and Minimum Recommended Distance From Loading Pad and Storage Area: 200 ft - House and Surface Water 150 ft – Private Well 50 ft - Fuel Storage and Public Road 25 ft - Property Line and Pressurized Water Line

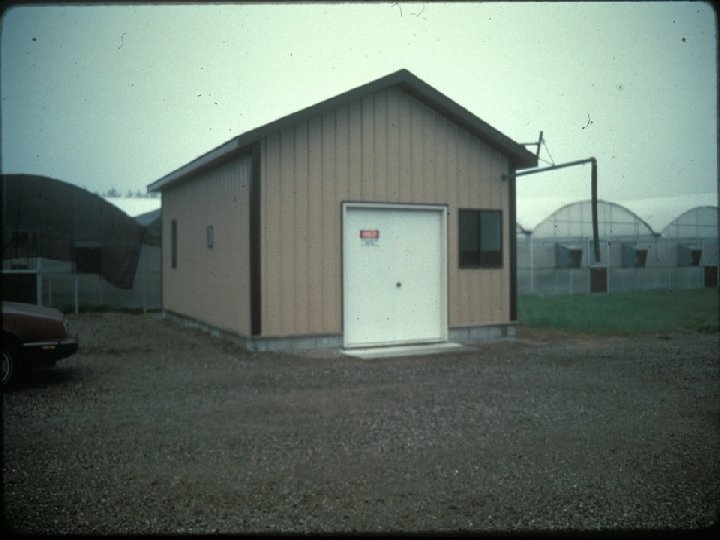

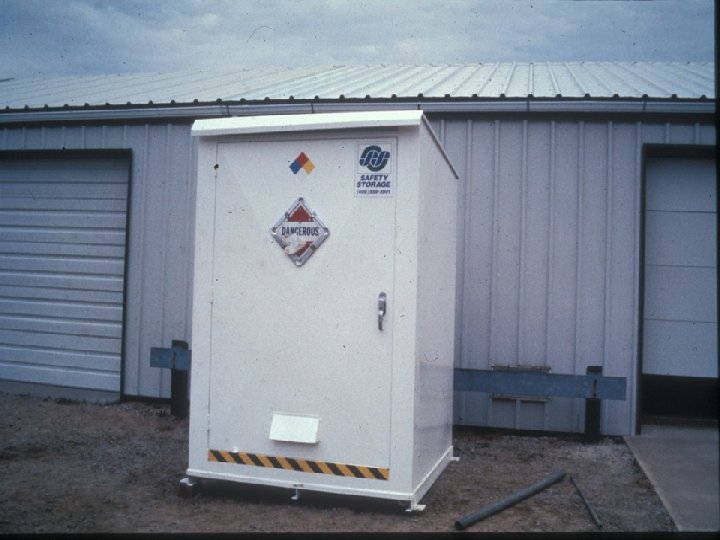

A Separate Building for Storage is Preferred A Separate Building for Storage is Preferred

Use Fire-Resistant Building Materials Use Fire-Resistant Building Materials

Seal the Floor of the Facility Seal the Floor of the Facility

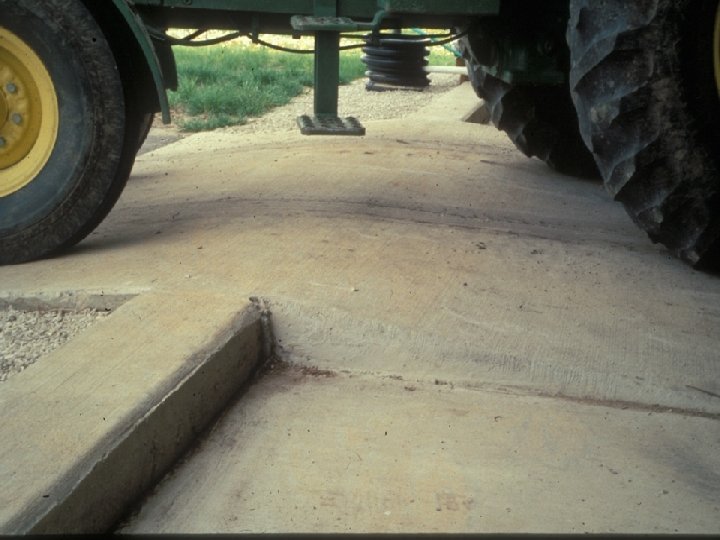

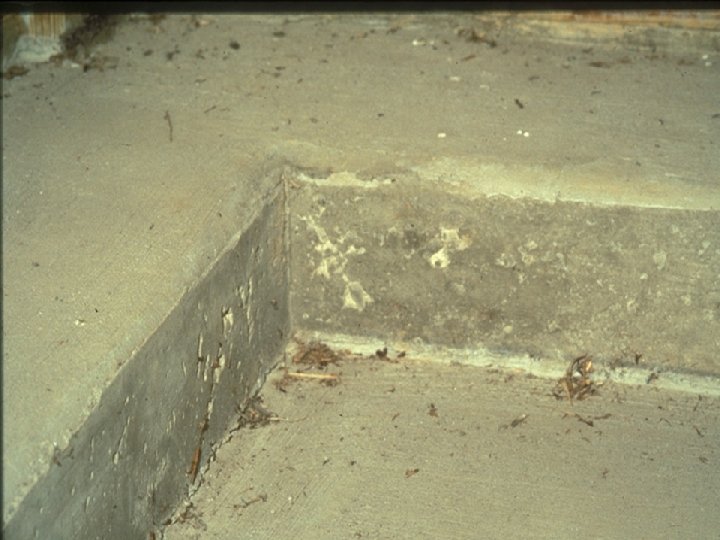

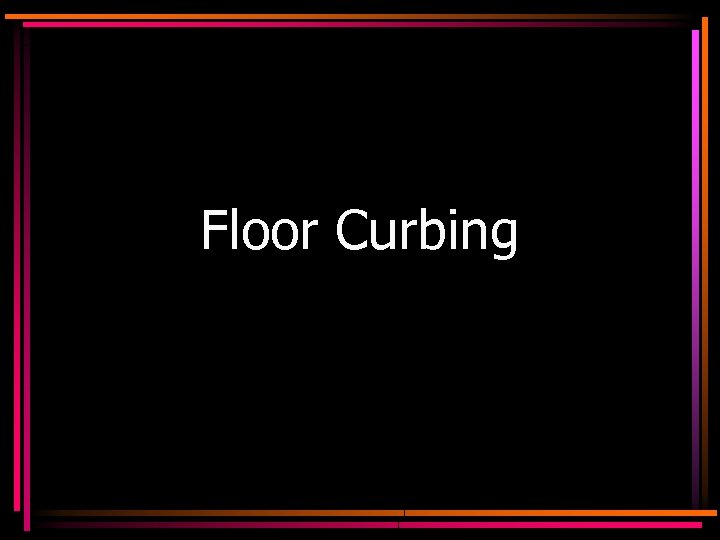

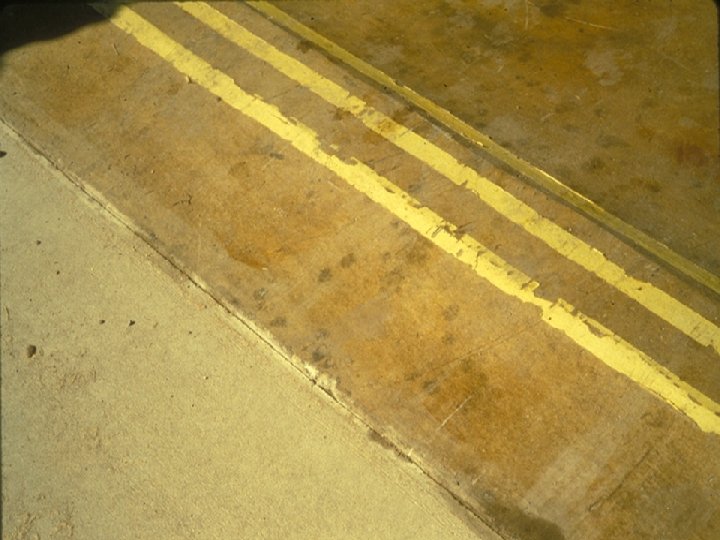

Floor Curbing Floor Curbing

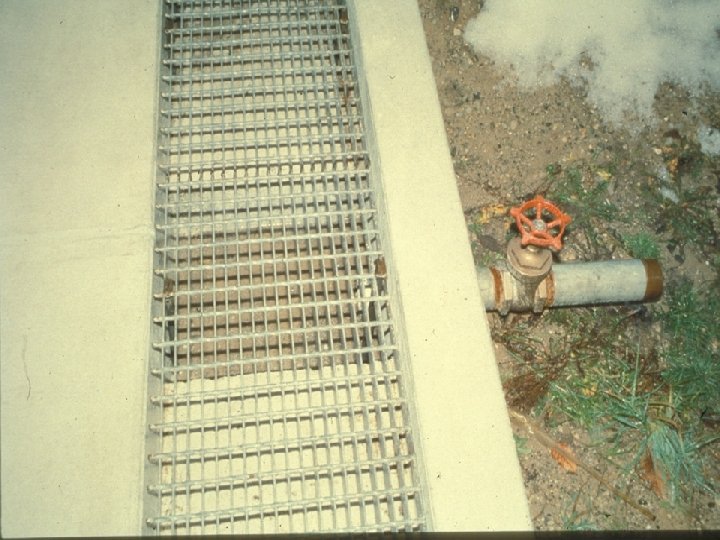

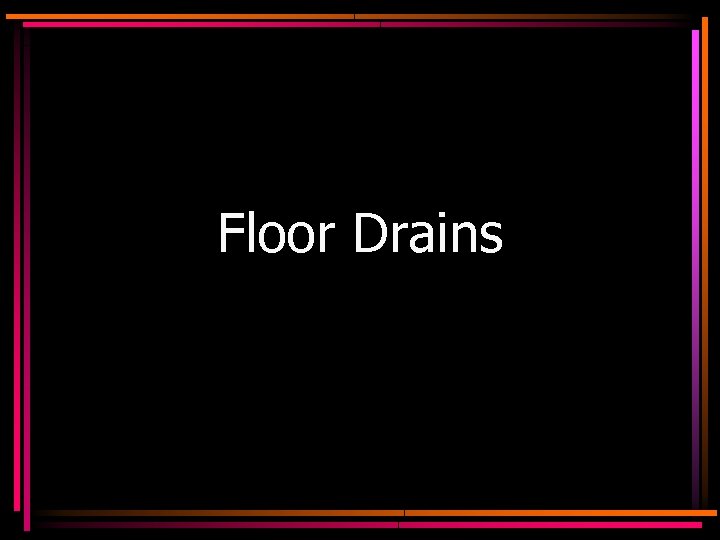

Floor Drains Floor Drains

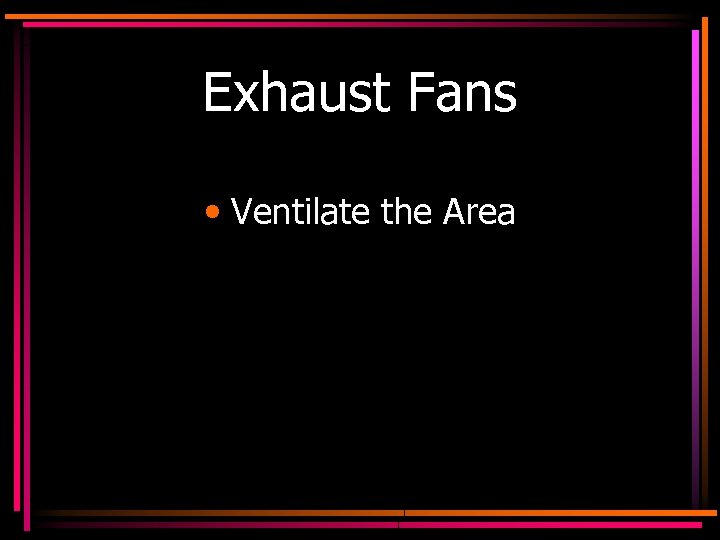

Exhaust Fans • Ventilate the Area Exhaust Fans • Ventilate the Area

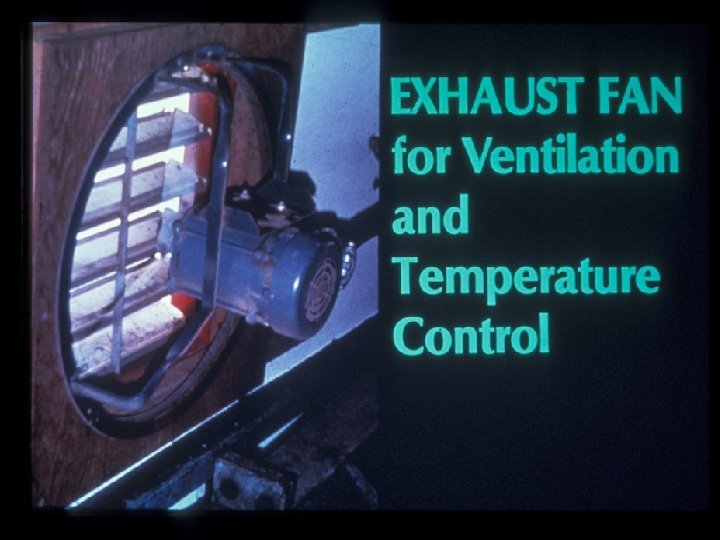

Exhaust Fan for Ventilation and Temperature Control Exhaust Fan for Ventilation and Temperature Control

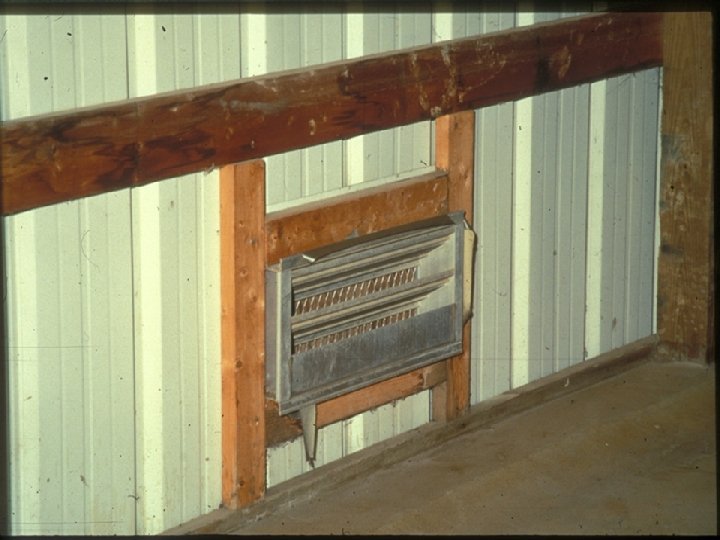

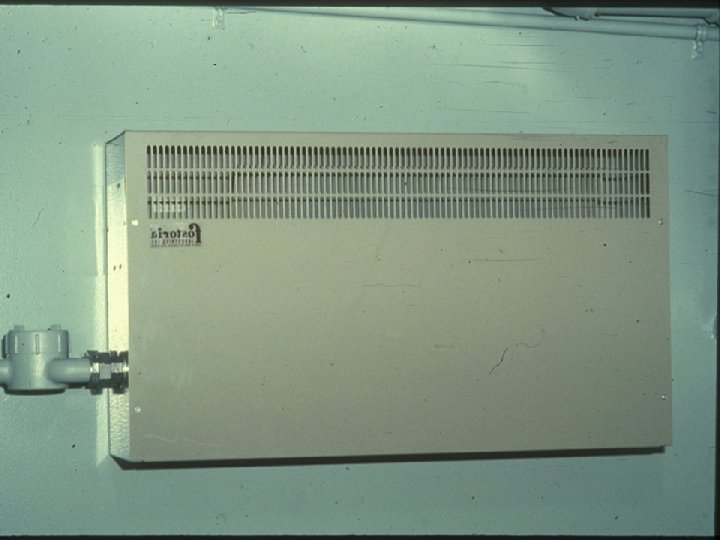

Provide a Separate Heat Source Provide a Separate Heat Source

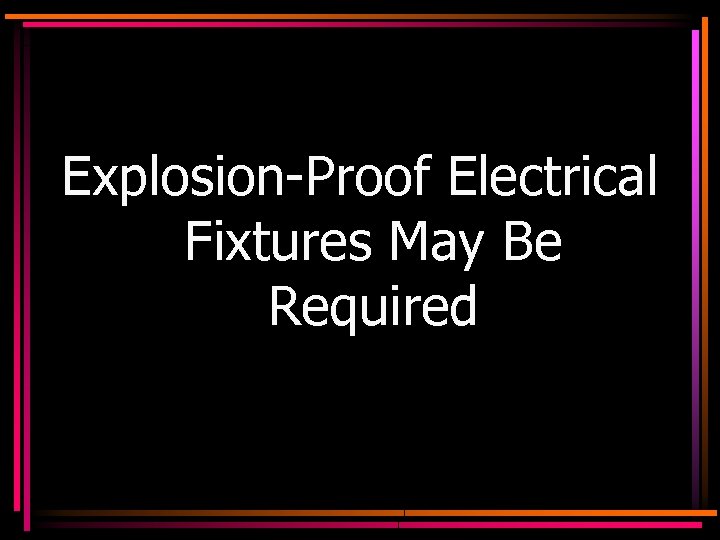

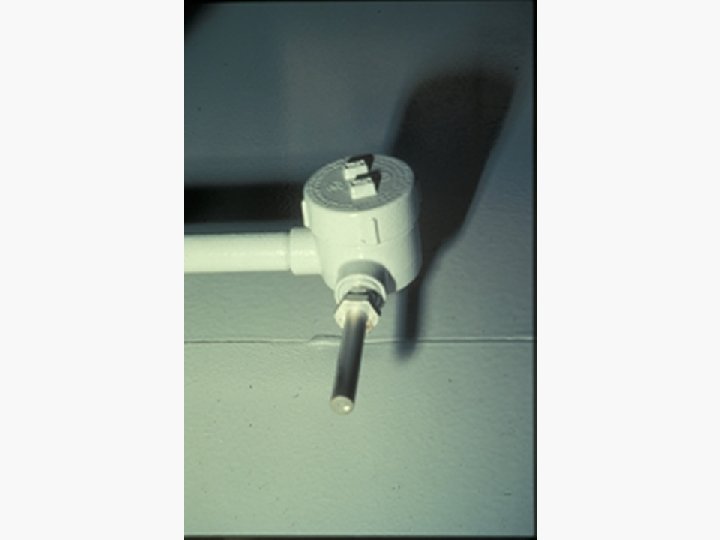

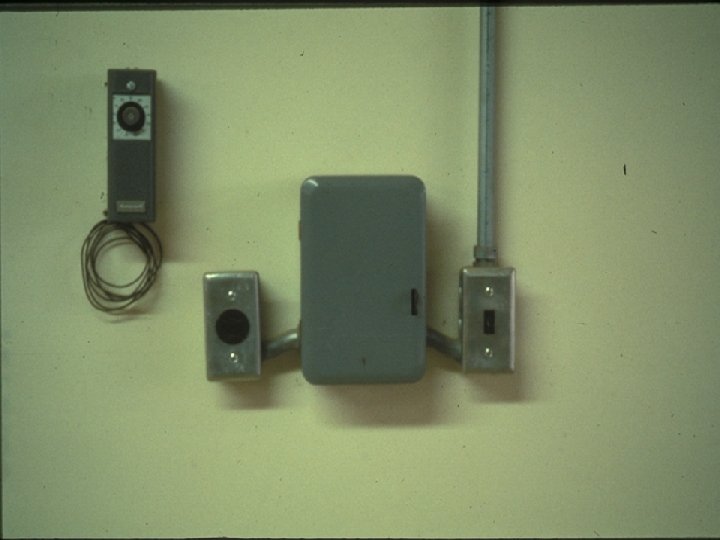

Explosion-Proof Electrical Fixtures May Be Required Explosion-Proof Electrical Fixtures May Be Required

Chemical Flash Points Chemical Flash Points

Use Local Building Codes Use Local Building Codes

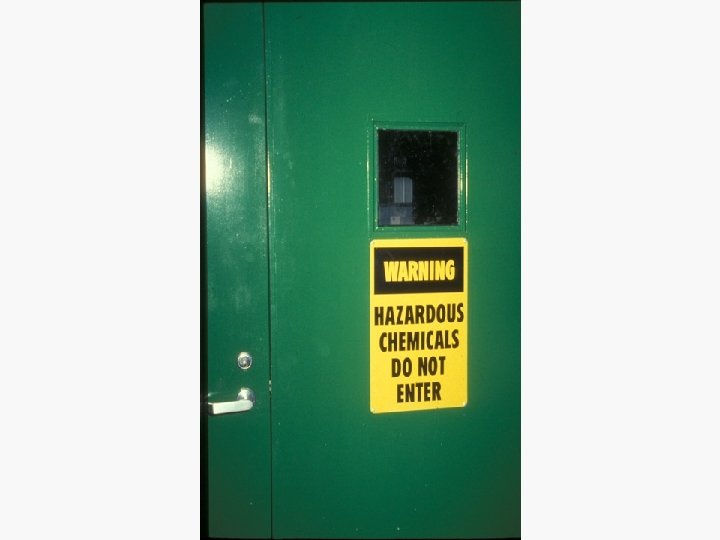

Store Pesticides in a Locked, Secure Place Store Pesticides in a Locked, Secure Place

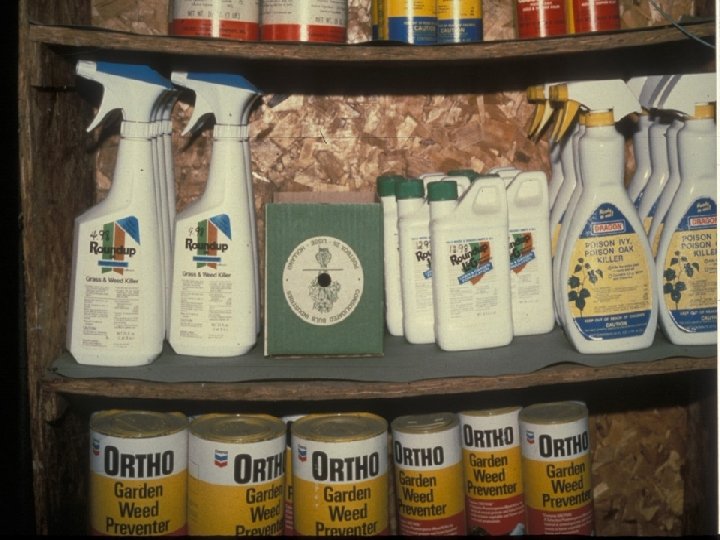

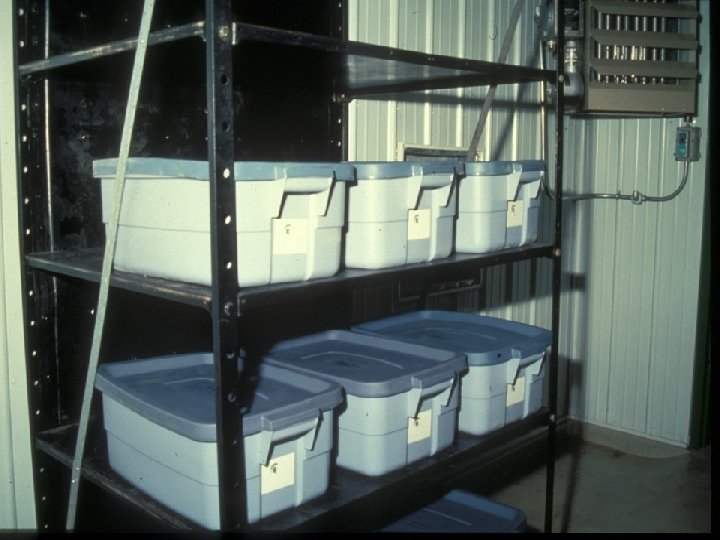

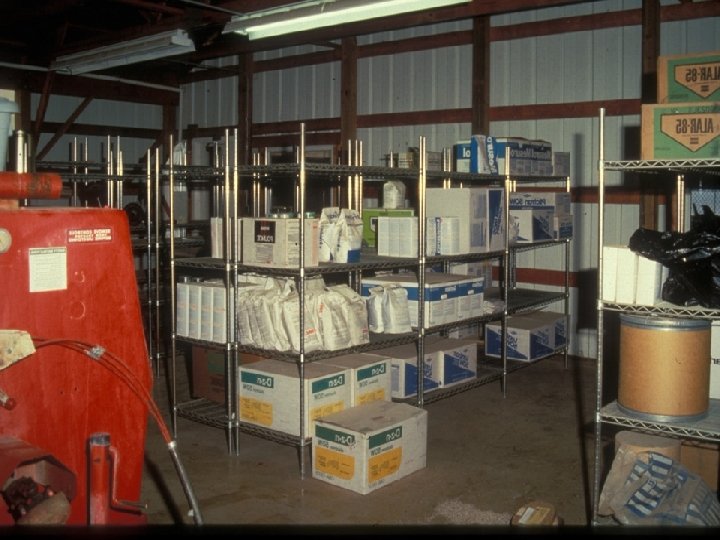

Use Metal Storage Shelves Use Metal Storage Shelves

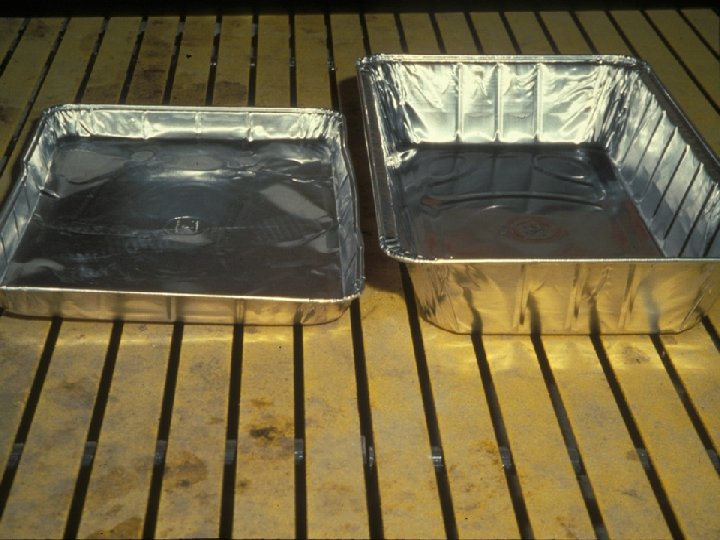

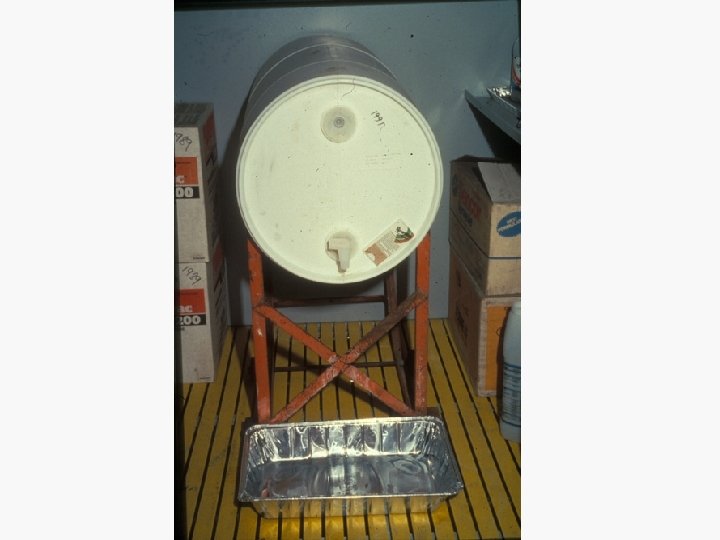

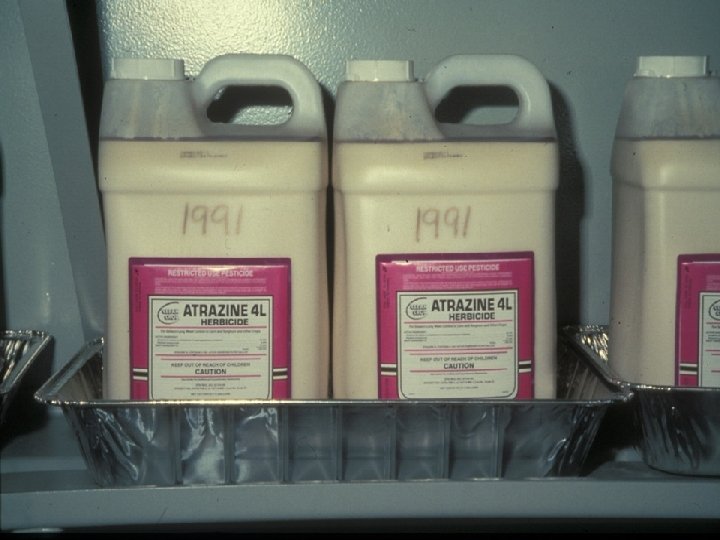

Provide Some Secondary Containment Provide Some Secondary Containment

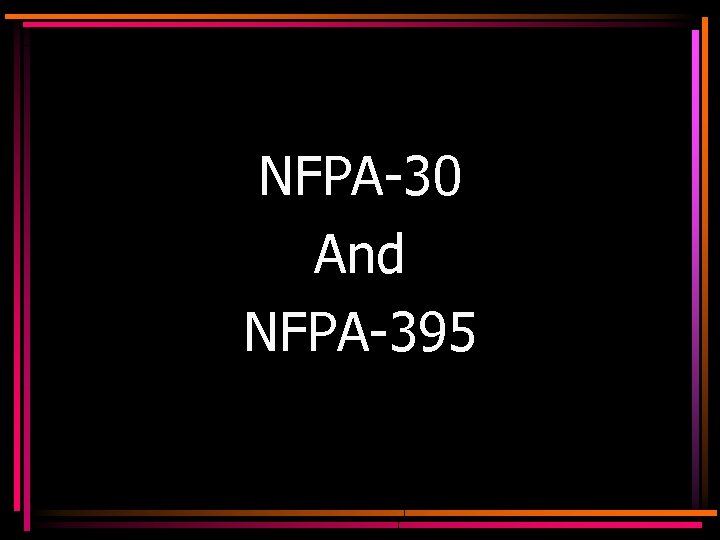

NFPA-30 And NFPA-395 NFPA-30 And NFPA-395

Consult Labels for Special Storage Instructions Consult Labels for Special Storage Instructions

Separate Pesticide By Group • Herbicides • Insecticides, Fungicides, etc. Separate Pesticide By Group • Herbicides • Insecticides, Fungicides, etc.

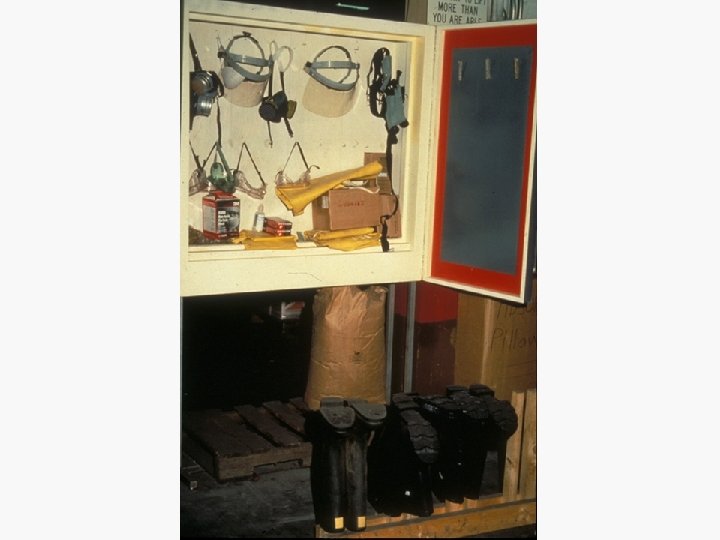

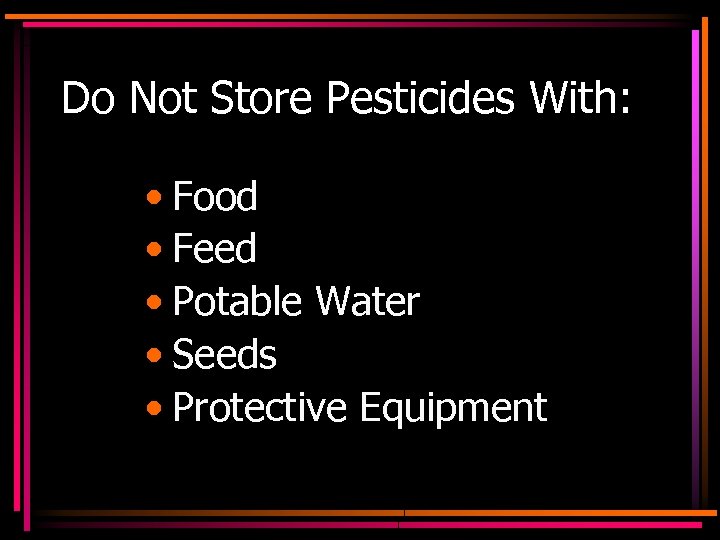

Do Not Store Pesticides With: • Food • Feed • Potable Water • Seeds Do Not Store Pesticides With: • Food • Feed • Potable Water • Seeds • Protective Equipment

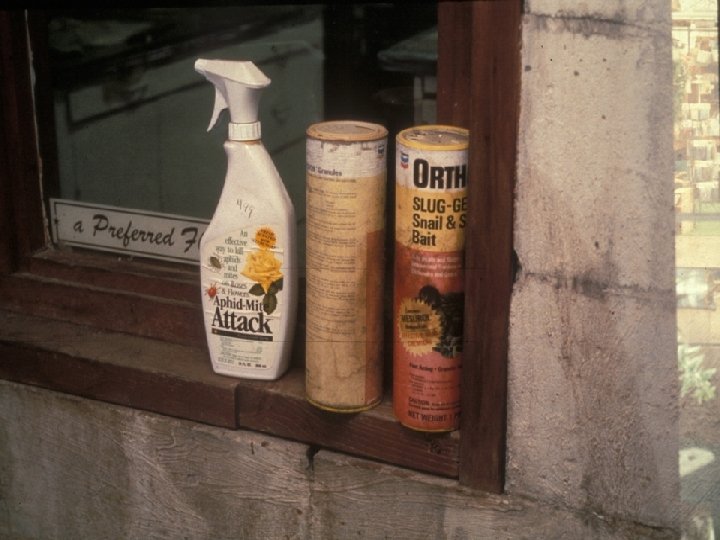

Never Place Pesticide Containers in Windows Never Place Pesticide Containers in Windows

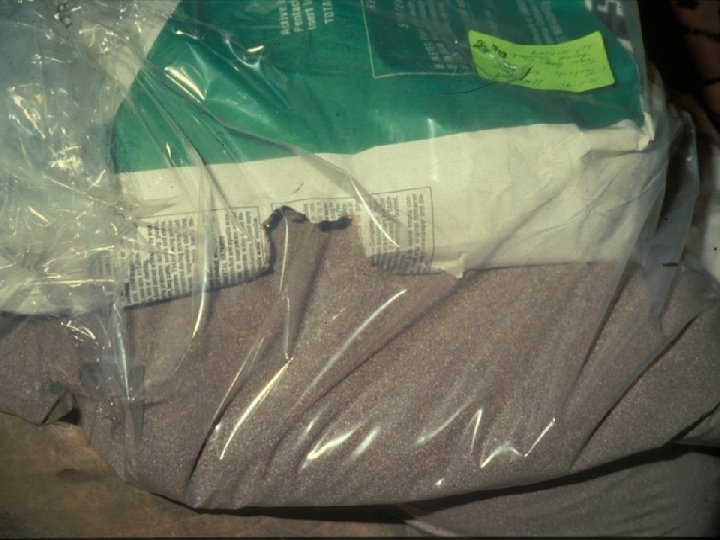

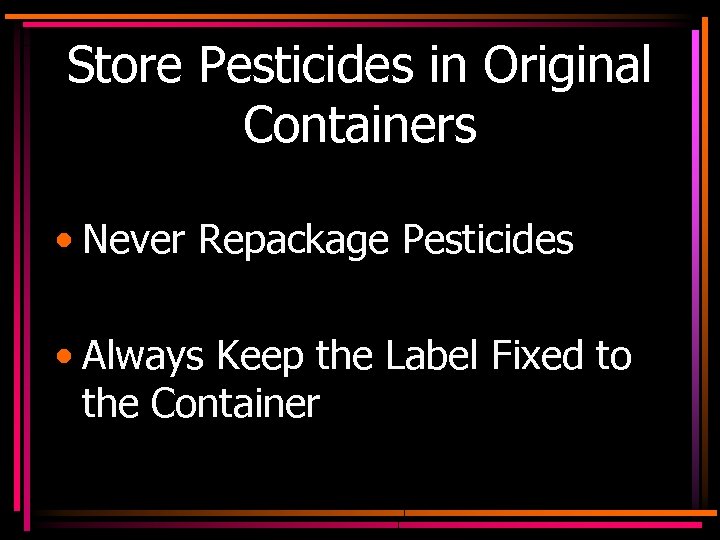

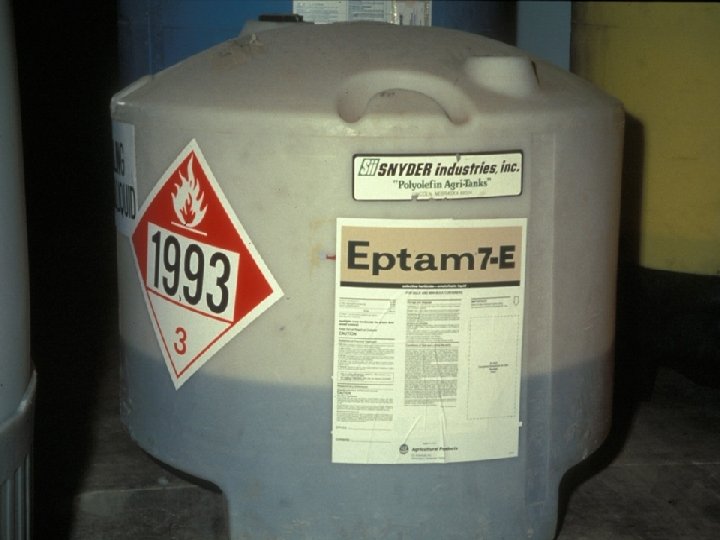

Store Pesticides in Original Containers • Never Repackage Pesticides • Always Keep the Label Store Pesticides in Original Containers • Never Repackage Pesticides • Always Keep the Label Fixed to the Container

Keep Pesticides Out of Reach of Children, Pets, Livestock and Irresponsible People Keep Pesticides Out of Reach of Children, Pets, Livestock and Irresponsible People

Mark Containers with the Date of Purchase Mark Containers with the Date of Purchase

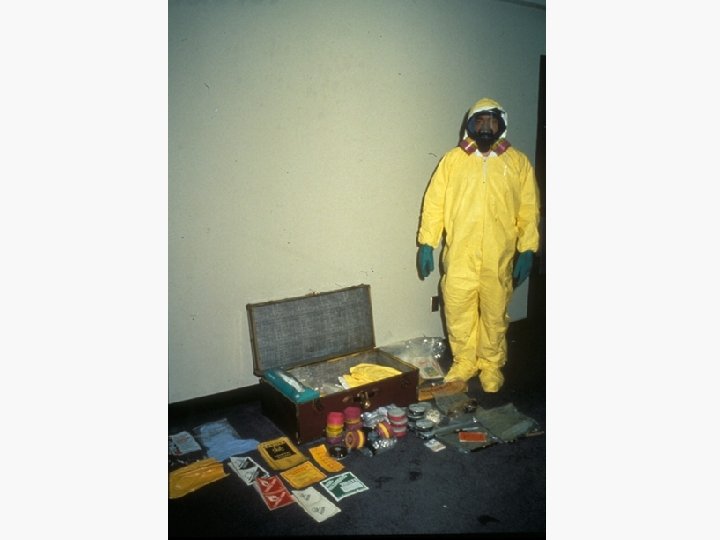

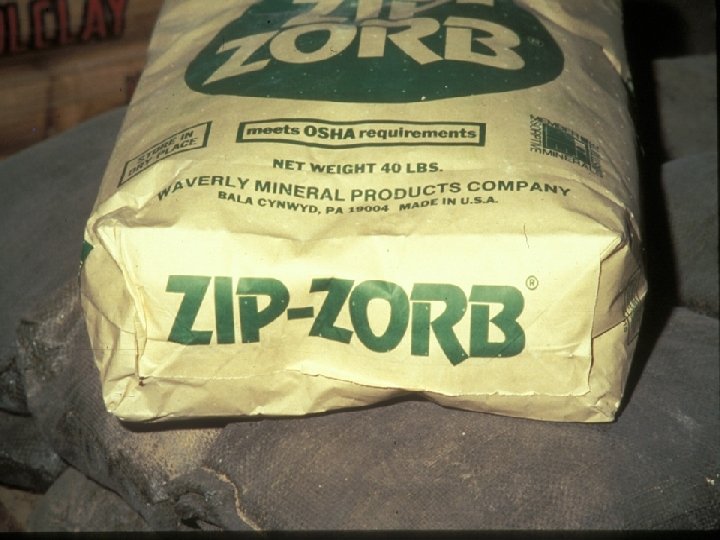

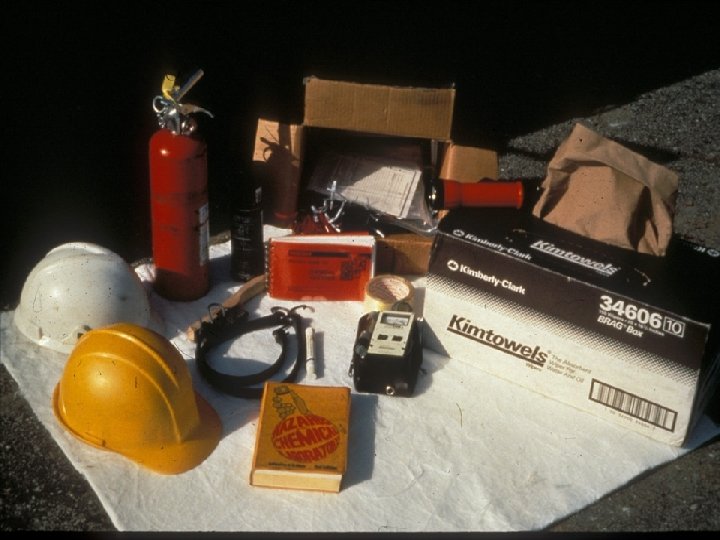

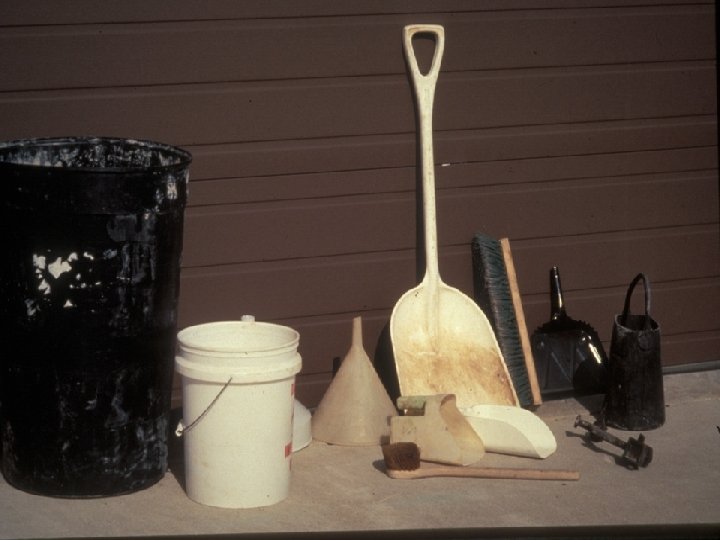

Have a Clean Up Kit Readily Available Have a Clean Up Kit Readily Available

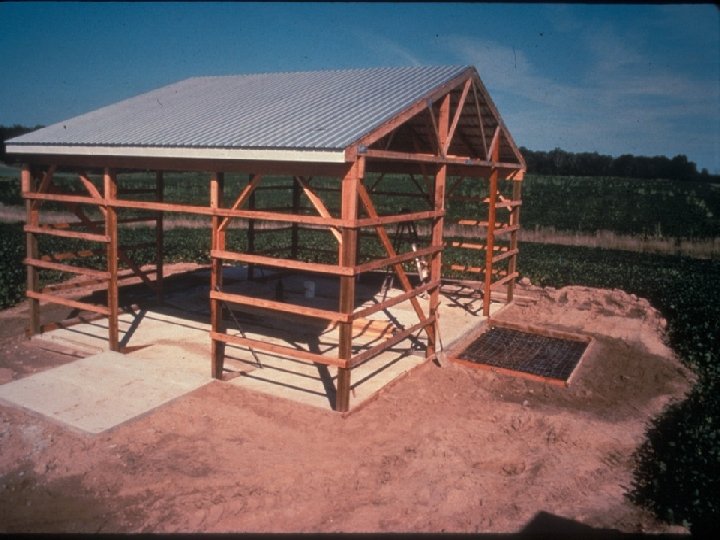

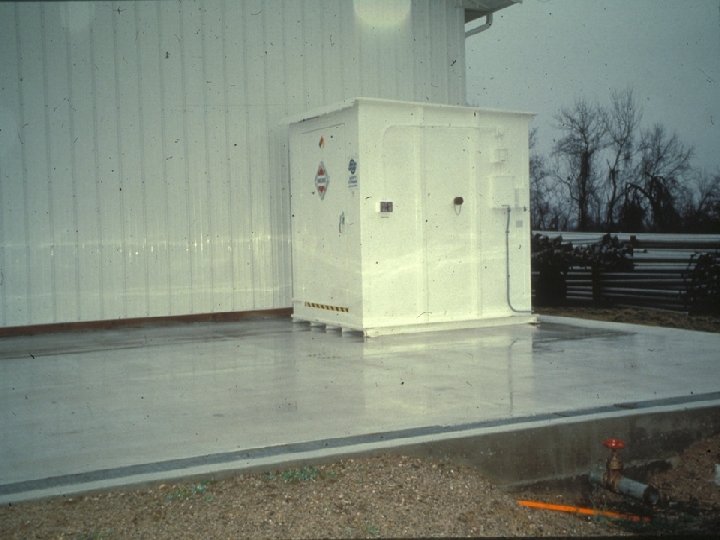

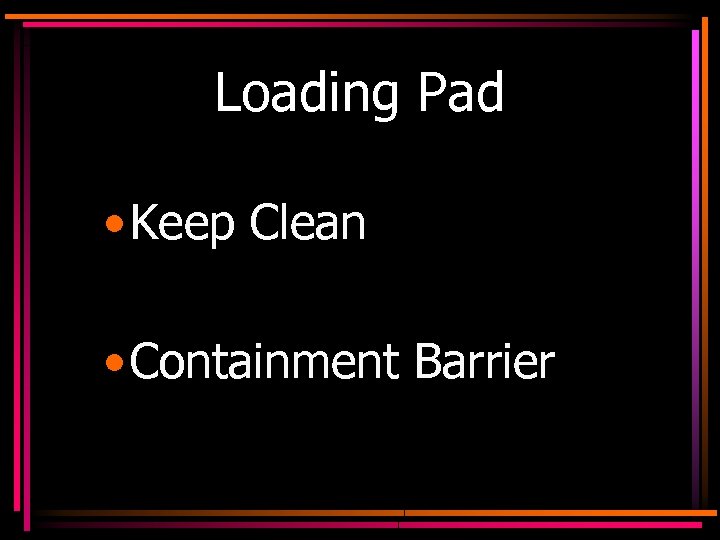

Loading Pad • Keep Clean • Containment Barrier Loading Pad • Keep Clean • Containment Barrier

Have a Chemical Approved Fire Extinguisher Have a Chemical Approved Fire Extinguisher

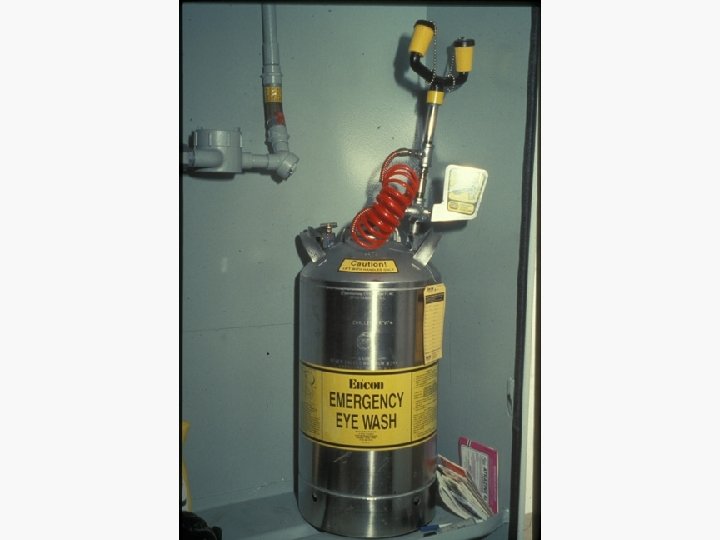

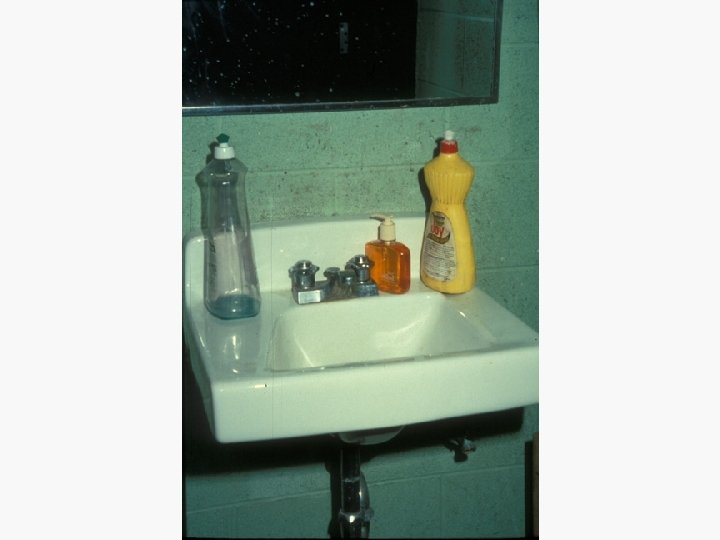

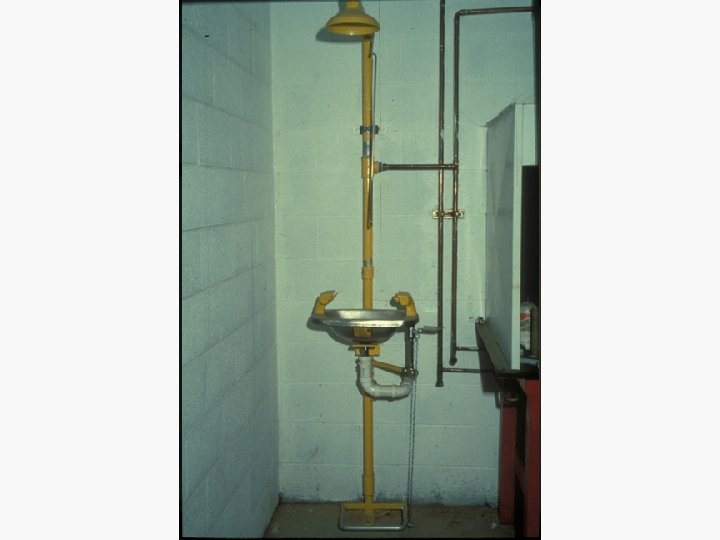

Clean Up Requires • Sink • Shower • Eye Wash Clean Up Requires • Sink • Shower • Eye Wash

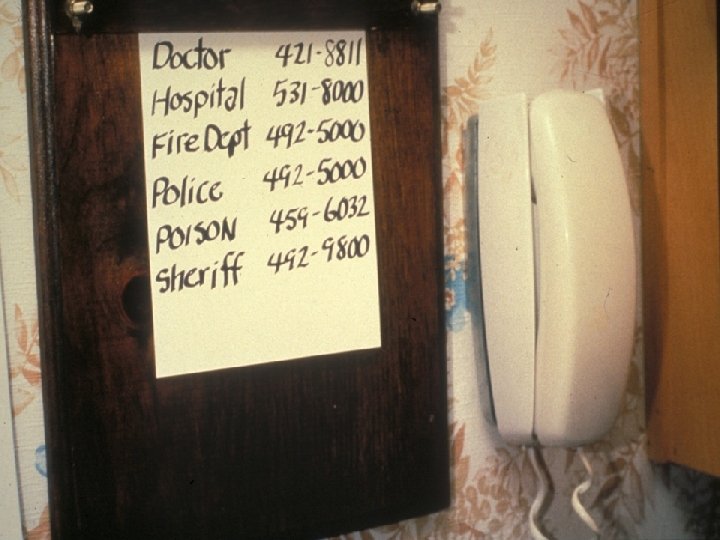

Keep a List of Emergency Phone Numbers Readily Available Keep a List of Emergency Phone Numbers Readily Available

Give the Local Fire Department and Emergency Response Coordinator a List of Materials, Quantity Give the Local Fire Department and Emergency Response Coordinator a List of Materials, Quantity and Floor Plan of Storage Facility

The Information in this slide set has been taken from the MWPS-37, “Designing Facilities The Information in this slide set has been taken from the MWPS-37, “Designing Facilities for Pesticide and Fertilizer Containment. ”
