MICE Wrap-up Michael S. Zisman Center for Beam Physics Lawrence Berkeley National Laboratory MICE Collaboration Meeting—Osaka March 3, 2006 November 21, 2005 H 2 R&D System Review-Zisman

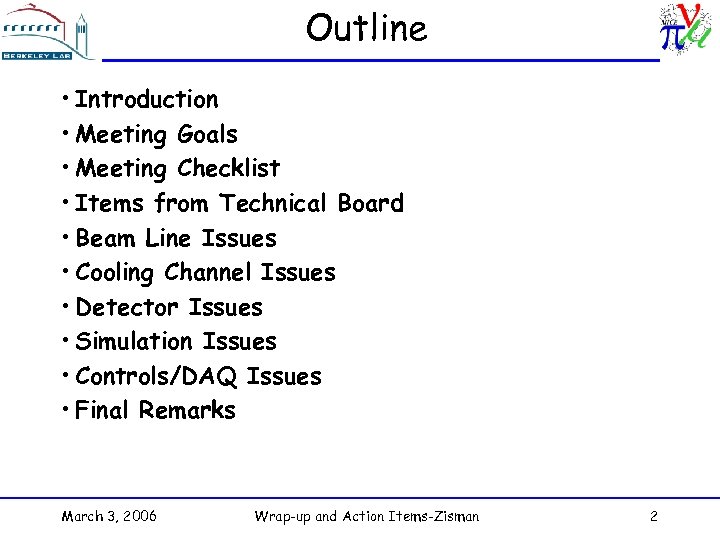

Outline • Introduction • Meeting Goals • Meeting Checklist • Items from Technical Board • Beam Line Issues • Cooling Channel Issues • Detector Issues • Simulation Issues • Controls/DAQ Issues • Final Remarks March 3, 2006 Wrap-up and Action Items-Zisman 2

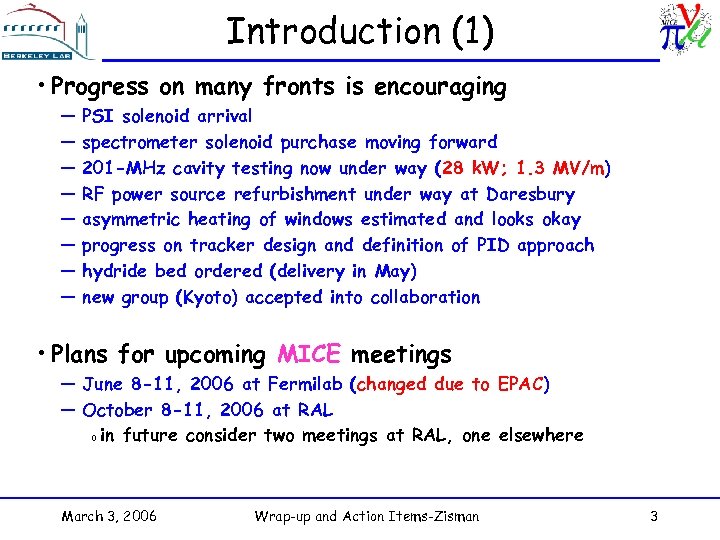

Introduction (1) • Progress on many fronts is encouraging — — — — PSI solenoid arrival spectrometer solenoid purchase moving forward 201 -MHz cavity testing now under way (28 k. W; 1. 3 MV/m) RF power source refurbishment under way at Daresbury asymmetric heating of windows estimated and looks okay progress on tracker design and definition of PID approach hydride bed ordered (delivery in May) new group (Kyoto) accepted into collaboration • Plans for upcoming MICE meetings — June 8 -11, 2006 at Fermilab (changed due to EPAC) — October 8 -11, 2006 at RAL o in future consider two meetings at RAL, one elsewhere March 3, 2006 Wrap-up and Action Items-Zisman 3

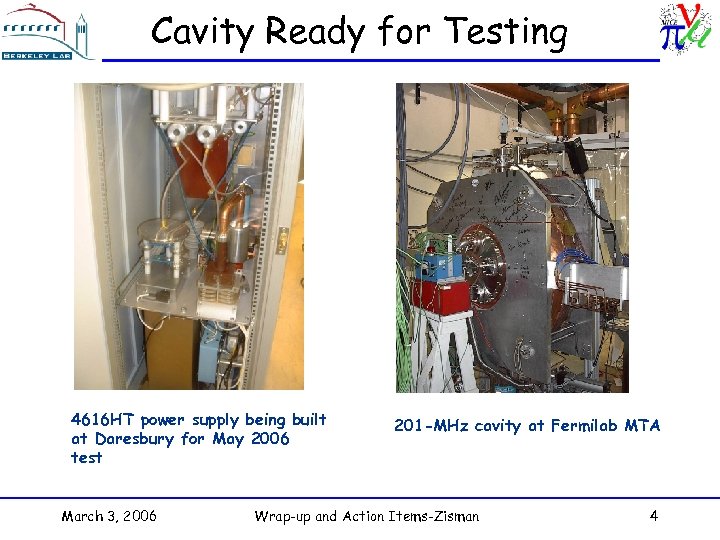

Cavity Ready for Testing 4616 HT power supply being built at Daresbury for May 2006 test March 3, 2006 201 -MHz cavity at Fermilab MTA Wrap-up and Action Items-Zisman 4

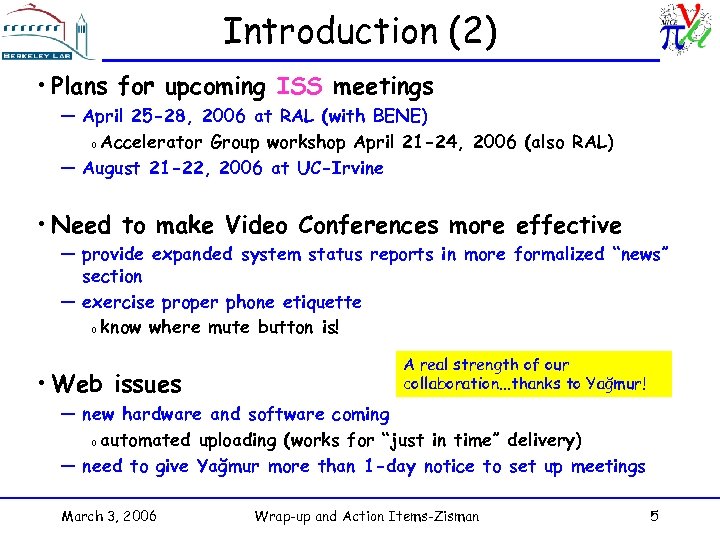

Introduction (2) • Plans for upcoming ISS meetings — April 25 -28, 2006 at RAL (with BENE) o Accelerator Group workshop April 21 -24, 2006 (also RAL) — August 21 -22, 2006 at UC-Irvine • Need to make Video Conferences more effective — provide expanded system status reports in more formalized “news” section — exercise proper phone etiquette o know where mute button is! • Web issues A real strength of our collaboration. . . thanks to Yağmur! — new hardware and software coming o automated uploading (works for “just in time” delivery) — need to give Yağmur more than 1 -day notice to set up meetings March 3, 2006 Wrap-up and Action Items-Zisman 5

Goals for Meeting • Where are we on preparations for Steps 1 and 2? • Issues — — — beam line, target, optics, tuning/correction algorithms, diffuser TOF, CKOVs, MUCAL, tracker, spectrometer solenoids trigger, DAQ, controls/monitoring software (PID, reconstruction) analysis (run plan, “beam” reconstruction, emittance, transmission) installation/cabling m PHASE I - STEP I: April 2007 = 394 days away! STEP II: October 2007 March 3, 2006 Wrap-up and Action Items-Zisman 6

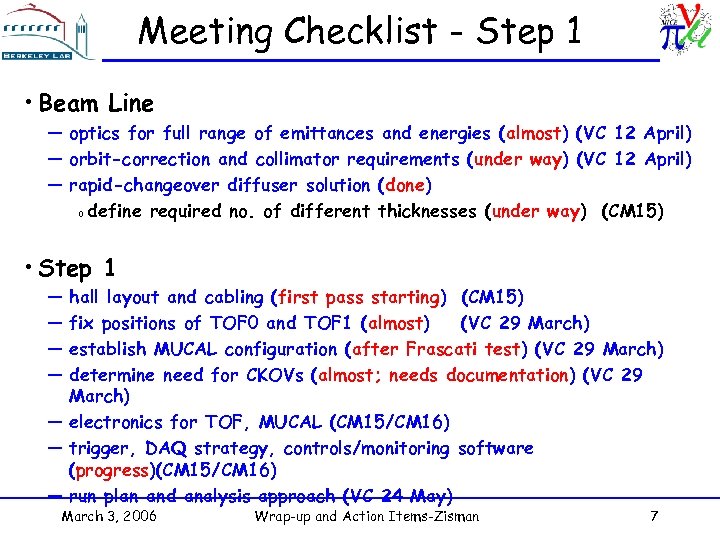

Meeting Checklist - Step 1 • Beam Line — optics for full range of emittances and energies (almost) (VC 12 April) — orbit-correction and collimator requirements (under way) (VC 12 April) — rapid-changeover diffuser solution (done) o define required no. of different thicknesses (under way) (CM 15) • Step 1 — — hall layout and cabling (first pass starting) (CM 15) fix positions of TOF 0 and TOF 1 (almost) (VC 29 March) establish MUCAL configuration (after Frascati test) (VC 29 March) determine need for CKOVs (almost; needs documentation) (VC 29 March) — electronics for TOF, MUCAL (CM 15/CM 16) — trigger, DAQ strategy, controls/monitoring software (progress)(CM 15/CM 16) — run plan and analysis approach (VC 24 May) March 3, 2006 Wrap-up and Action Items-Zisman 7

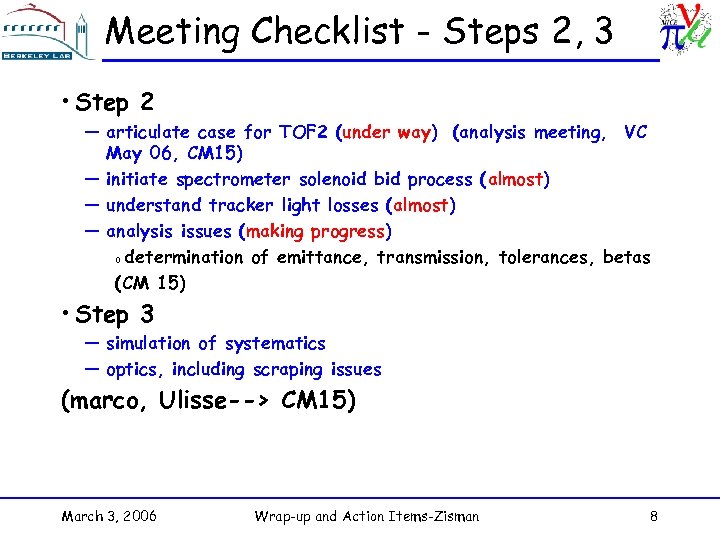

Meeting Checklist - Steps 2, 3 • Step 2 — articulate case for TOF 2 (under way) (analysis meeting, VC May 06, CM 15) — initiate spectrometer solenoid bid process (almost) — understand tracker light losses (almost) — analysis issues (making progress) o determination of emittance, transmission, tolerances, betas (CM 15) • Step 3 — simulation of systematics — optics, including scraping issues (marco, Ulisse--> CM 15) March 3, 2006 Wrap-up and Action Items-Zisman 8

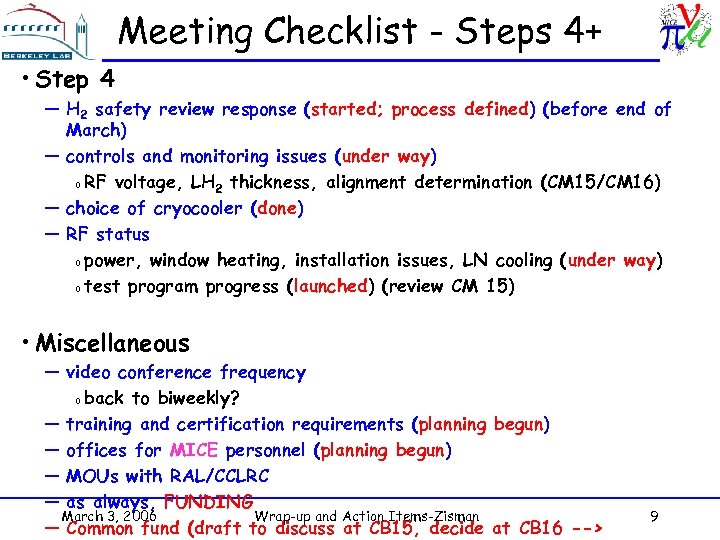

Meeting Checklist - Steps 4+ • Step 4 — H 2 safety review response (started; process defined) (before end of March) — controls and monitoring issues (under way) o RF voltage, LH 2 thickness, alignment determination (CM 15/CM 16) — choice of cryocooler (done) — RF status o power, window heating, installation issues, LN cooling (under way) o test program progress (launched) (review CM 15) • Miscellaneous — video conference frequency o back to biweekly? — training and certification requirements (planning begun) — offices for MICE personnel (planning begun) — MOUs with RAL/CCLRC — as always, FUNDING March 3, 2006 Wrap-up and Action Items-Zisman — Common fund (draft to discuss at CB 15, decide at CB 16 --> 9

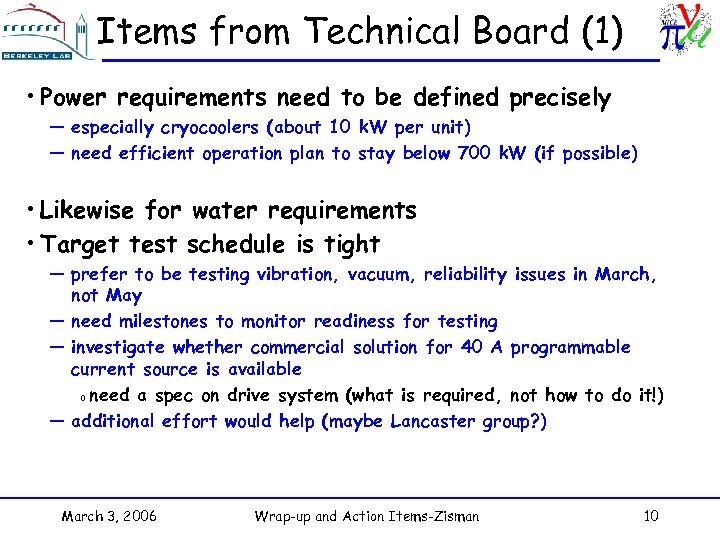

Items from Technical Board (1) • Power requirements need to be defined precisely — especially cryocoolers (about 10 k. W per unit) — need efficient operation plan to stay below 700 k. W (if possible) • Likewise for water requirements • Target test schedule is tight — prefer to be testing vibration, vacuum, reliability issues in March, not May — need milestones to monitor readiness for testing — investigate whether commercial solution for 40 A programmable current source is available o need a spec on drive system (what is required, not how to do it!) — additional effort would help (maybe Lancaster group? ) March 3, 2006 Wrap-up and Action Items-Zisman 10

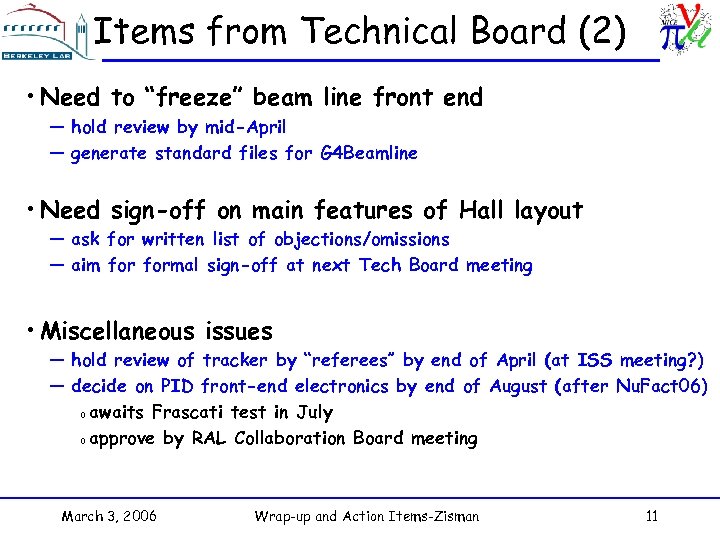

Items from Technical Board (2) • Need to “freeze” beam line front end — hold review by mid-April — generate standard files for G 4 Beamline • Need sign-off on main features of Hall layout — ask for written list of objections/omissions — aim formal sign-off at next Tech Board meeting • Miscellaneous issues — hold review of tracker by “referees” by end of April (at ISS meeting? ) — decide on PID front-end electronics by end of August (after Nu. Fact 06) o awaits Frascati test in July o approve by RAL Collaboration Board meeting March 3, 2006 Wrap-up and Action Items-Zisman 11

Items from Technical Board (2) • Miscellaneous issues (cont’d) — consider choice of ALICE on-line system, if allowed ACTION — give CERN a milestone for delivery of refurbished RF equipment o need equipment by end of 2007 — organize proper HAZOP with external help by April — post reviewers report (need permission to do so) — post schedule for design and safety reviews o get okay from all groups — encourage the submission of change requests at early stage (ACTION to advertize ‘email of intent’ concept from EXEC B. ) o details come in subsequent change note if approved — put all of Phase 1 activities into critical path (--> Paul) March 3, 2006 Wrap-up and Action Items-Zisman 12

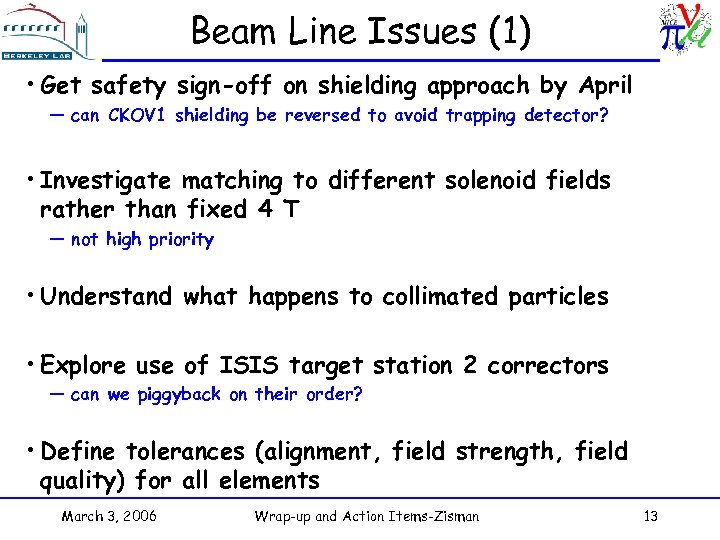

Beam Line Issues (1) • Get safety sign-off on shielding approach by April — can CKOV 1 shielding be reversed to avoid trapping detector? • Investigate matching to different solenoid fields rather than fixed 4 T — not high priority • Understand what happens to collimated particles • Explore use of ISIS target station 2 correctors — can we piggyback on their order? • Define tolerances (alignment, field strength, field quality) for all elements March 3, 2006 Wrap-up and Action Items-Zisman 13

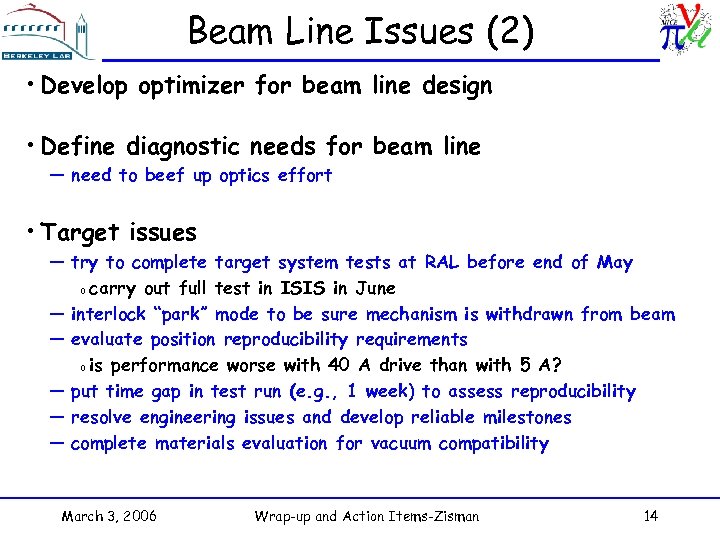

Beam Line Issues (2) • Develop optimizer for beam line design • Define diagnostic needs for beam line — need to beef up optics effort • Target issues — try to complete target system tests at RAL before end of May o carry out full test in ISIS in June — interlock “park” mode to be sure mechanism is withdrawn from beam — evaluate position reproducibility requirements o is performance worse with 40 A drive than with 5 A? — put time gap in test run (e. g. , 1 week) to assess reproducibility — resolve engineering issues and develop reliable milestones — complete materials evaluation for vacuum compatibility March 3, 2006 Wrap-up and Action Items-Zisman 14

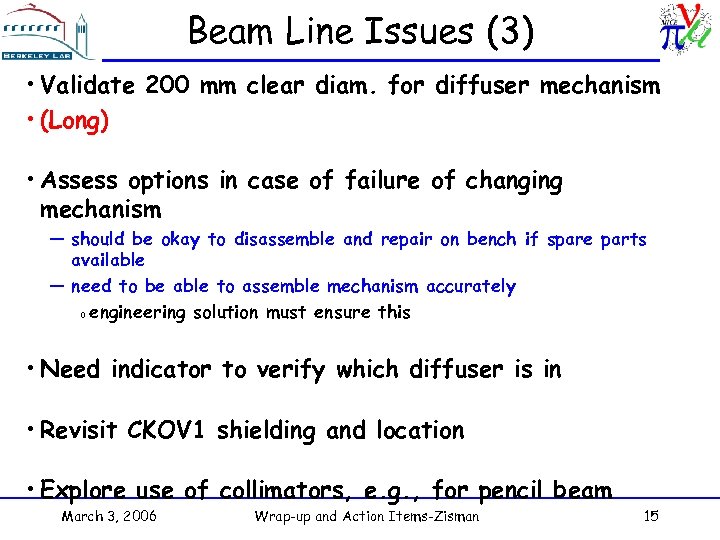

Beam Line Issues (3) • Validate 200 mm clear diam. for diffuser mechanism • (Long) • Assess options in case of failure of changing mechanism — should be okay to disassemble and repair on bench if spare parts available — need to be able to assemble mechanism accurately o engineering solution must ensure this • Need indicator to verify which diffuser is in • Revisit CKOV 1 shielding and location • Explore use of collimators, e. g. , for pencil beam March 3, 2006 Wrap-up and Action Items-Zisman 15

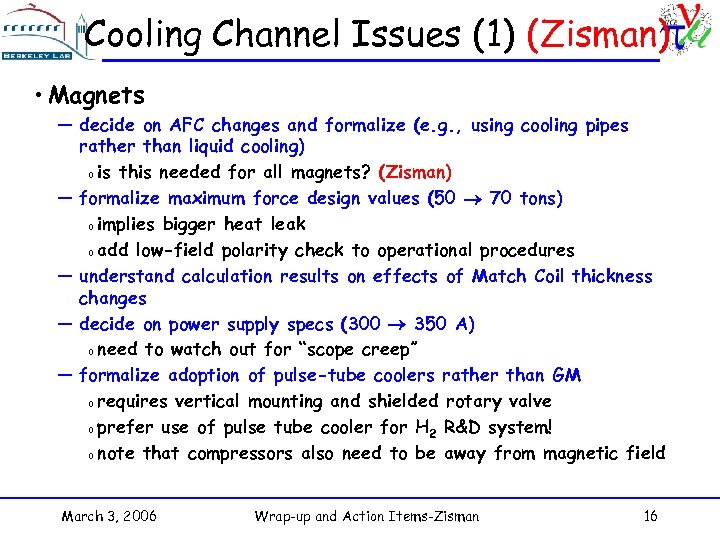

Cooling Channel Issues (1) (Zisman) • Magnets — decide on AFC changes and formalize (e. g. , using cooling pipes rather than liquid cooling) o is this needed for all magnets? (Zisman) — formalize maximum force design values (50 70 tons) o implies bigger heat leak o add low-field polarity check to operational procedures — understand calculation results on effects of Match Coil thickness changes — decide on power supply specs (300 350 A) o need to watch out for “scope creep” — formalize adoption of pulse-tube coolers rather than GM o requires vertical mounting and shielded rotary valve o prefer use of pulse tube cooler for H 2 R&D system! o note that compressors also need to be away from magnetic field March 3, 2006 Wrap-up and Action Items-Zisman 16

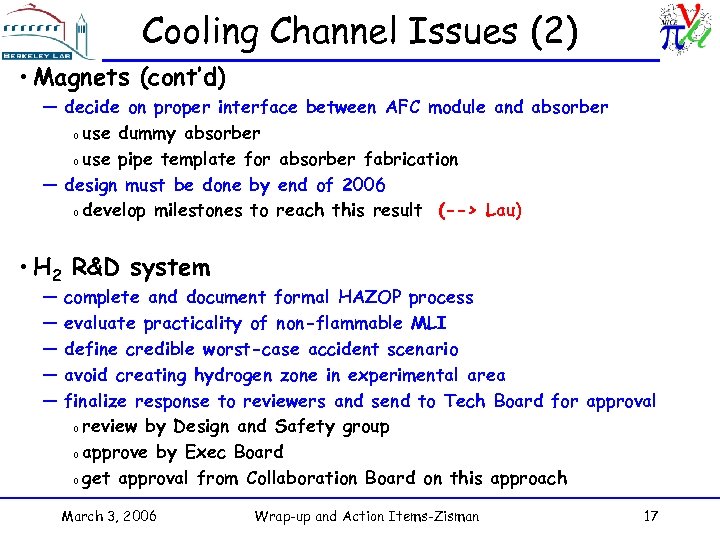

Cooling Channel Issues (2) • Magnets (cont’d) — decide on proper interface between AFC module and absorber o use dummy absorber o use pipe template for absorber fabrication — design must be done by end of 2006 o develop milestones to reach this result (--> Lau) • H 2 R&D system — — — complete and document formal HAZOP process evaluate practicality of non-flammable MLI define credible worst-case accident scenario avoid creating hydrogen zone in experimental area finalize response to reviewers and send to Tech Board for approval o review by Design and Safety group o approve by Exec Board o get approval from Collaboration Board on this approach March 3, 2006 Wrap-up and Action Items-Zisman 17

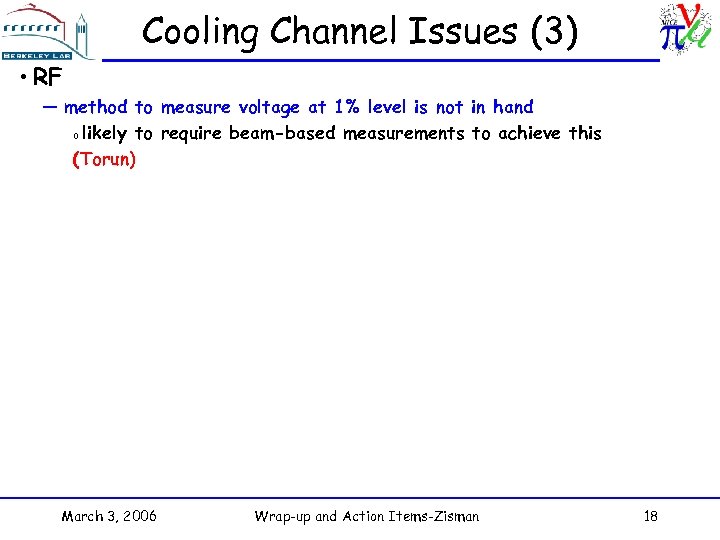

Cooling Channel Issues (3) • RF — method to measure voltage at 1% level is not in hand o likely to require beam-based measurements to achieve this (Torun) March 3, 2006 Wrap-up and Action Items-Zisman 18

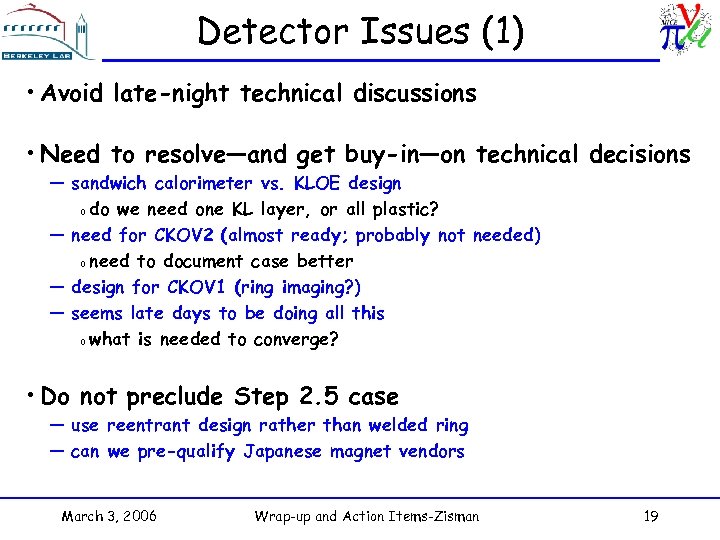

Detector Issues (1) • Avoid late-night technical discussions • Need to resolve—and get buy-in—on technical decisions — sandwich calorimeter vs. KLOE design o do we need one KL layer, or all plastic? — need for CKOV 2 (almost ready; probably not needed) o need to document case better — design for CKOV 1 (ring imaging? ) — seems late days to be doing all this o what is needed to converge? • Do not preclude Step 2. 5 case — use reentrant design rather than welded ring — can we pre-qualify Japanese magnet vendors March 3, 2006 Wrap-up and Action Items-Zisman 19

Detector Issues (2) • Wrap up spectrometer spec by mid-March • Need plan for final magnetic mapping with field sensors — Who will do field mapping? --> A. Bross (VC 12 April) • Be aware of delays associated with large purchases • Need to pay more attention to QA/QC — — wiring errors connector misalignments build a fifth station using full QA procedures other detectors need to show similar discipline • Need to develop analysis software — incorporate test beam QA techniques into G 4 MICE to use in the actual experiment (Malcolm) March 3, 2006 Wrap-up and Action Items-Zisman 20

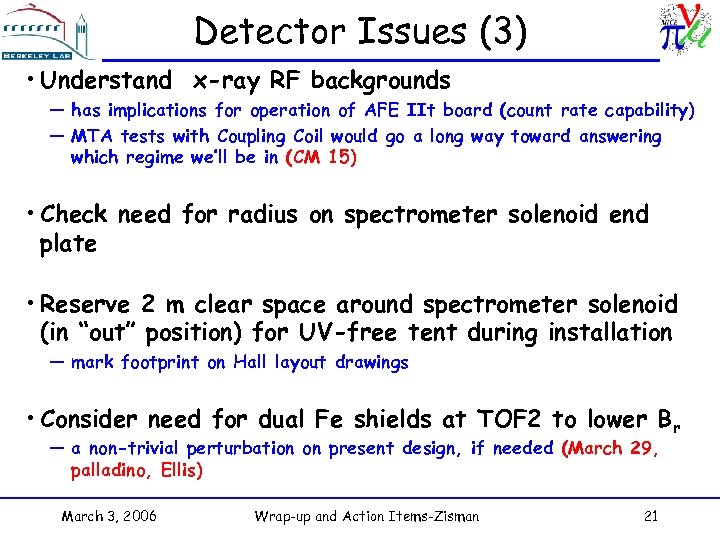

Detector Issues (3) • Understand x-ray RF backgrounds — has implications for operation of AFE IIt board (count rate capability) — MTA tests with Coupling Coil would go a long way toward answering which regime we’ll be in (CM 15) • Check need for radius on spectrometer solenoid end plate • Reserve 2 m clear space around spectrometer solenoid (in “out” position) for UV-free tent during installation — mark footprint on Hall layout drawings • Consider need for dual Fe shields at TOF 2 to lower Br — a non-trivial perturbation on present design, if needed (March 29, palladino, Ellis) March 3, 2006 Wrap-up and Action Items-Zisman 21

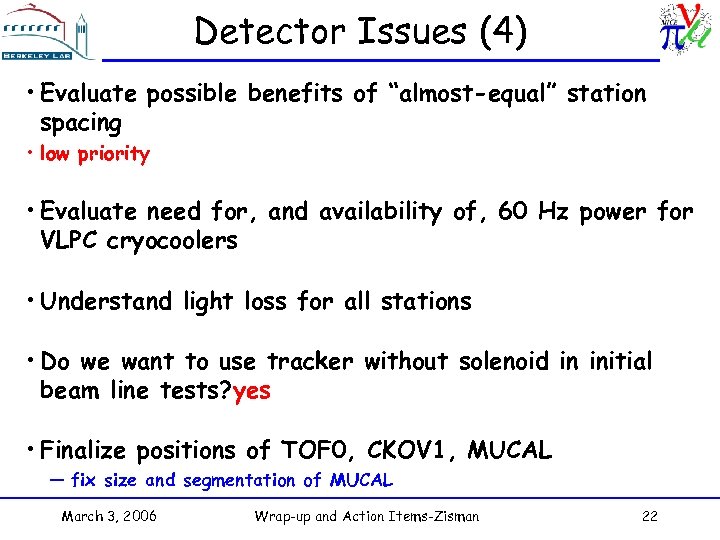

Detector Issues (4) • Evaluate possible benefits of “almost-equal” station spacing • low priority • Evaluate need for, and availability of, 60 Hz power for VLPC cryocoolers • Understand light loss for all stations • Do we want to use tracker without solenoid in initial beam line tests? yes • Finalize positions of TOF 0, CKOV 1, MUCAL — fix size and segmentation of MUCAL March 3, 2006 Wrap-up and Action Items-Zisman 22

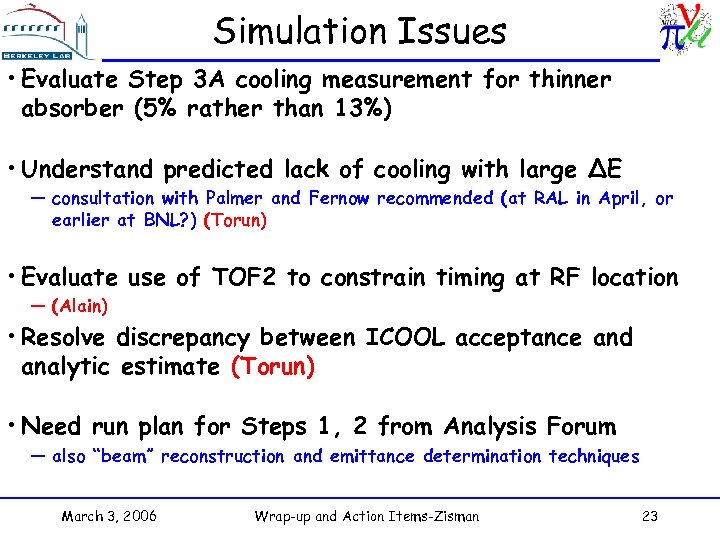

Simulation Issues • Evaluate Step 3 A cooling measurement for thinner absorber (5% rather than 13%) • Understand predicted lack of cooling with large ΔE — consultation with Palmer and Fernow recommended (at RAL in April, or earlier at BNL? ) (Torun) • Evaluate use of TOF 2 to constrain timing at RF location — (Alain) • Resolve discrepancy between ICOOL acceptance and analytic estimate (Torun) • Need run plan for Steps 1, 2 from Analysis Forum — also “beam” reconstruction and emittance determination techniques March 3, 2006 Wrap-up and Action Items-Zisman 23

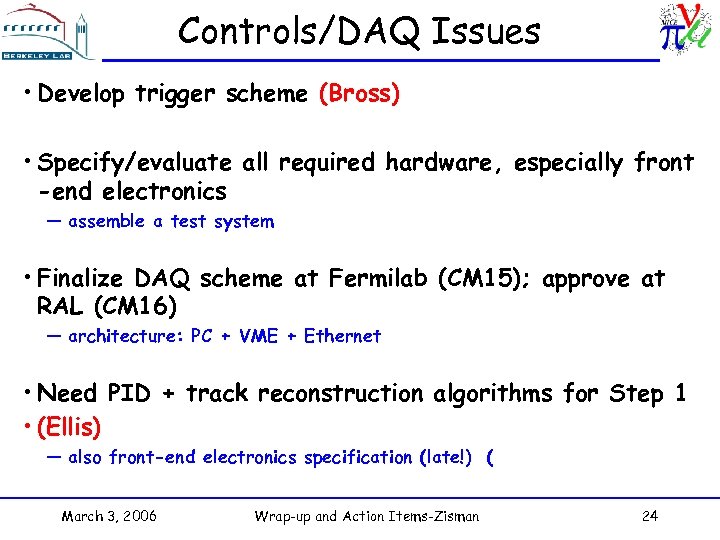

Controls/DAQ Issues • Develop trigger scheme (Bross) • Specify/evaluate all required hardware, especially front -end electronics — assemble a test system • Finalize DAQ scheme at Fermilab (CM 15); approve at RAL (CM 16) — architecture: PC + VME + Ethernet • Need PID + track reconstruction algorithms for Step 1 • (Ellis) — also front-end electronics specification (late!) ( March 3, 2006 Wrap-up and Action Items-Zisman 24

Final Remarks • We continue to make progress but some things are moving more slowly than hoped • Be vigilant about opportunities to publicize MICE — — muon program got good press at HEPAP AARD Subpanel need to think about journal publication(s) delineate set of papers that could be interesting to publish (Kaplan) • MICE management continues to be grateful for the hard work of the collaboration • Now 393 days to target date for first beam • See you at Fermilab March 3, 2006 Wrap-up and Action Items-Zisman 25
