Metadata and electronic information Michael Day UKOLN The

Metadata and electronic information Michael Day UKOLN: The UK Office for Library and Information Networking, University of Bath http: //www. ukoln. ac. uk/ m. day@ukoln. ac. uk

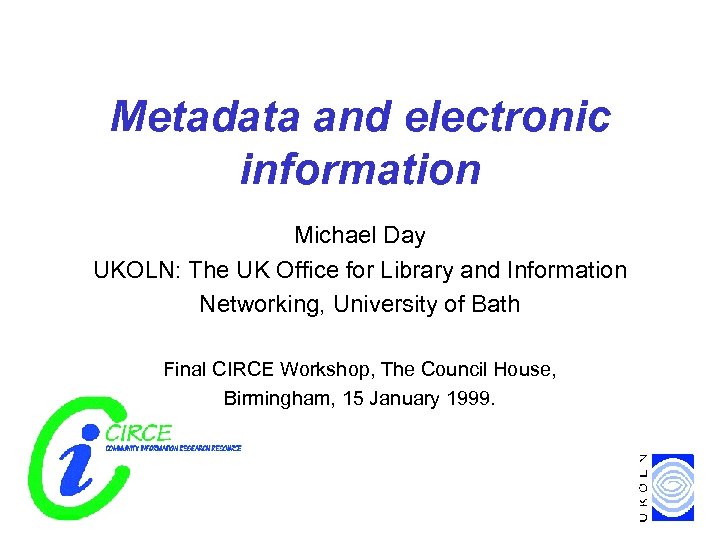

Metadata and electronic information Michael Day UKOLN: The UK Office for Library and Information Networking, University of Bath Final CIRCE Workshop, The Council House, Birmingham, 15 January 1999.

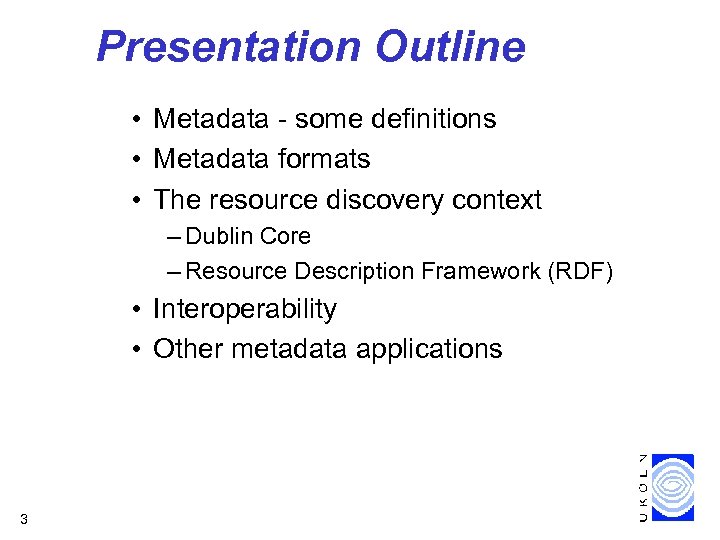

Presentation Outline • Metadata - some definitions • Metadata formats • The resource discovery context – Dublin Core – Resource Description Framework (RDF) • Interoperability • Other metadata applications 3

Metadata: definitions (1) Metadata = “data about data” “… the Internet-age term for structured data about data” - Joint NSF-EU Working Group on Metadata (1998) “… structured data about data that imposes order on a disordered information universe” - Carl Lagoze (Cornell University) 4

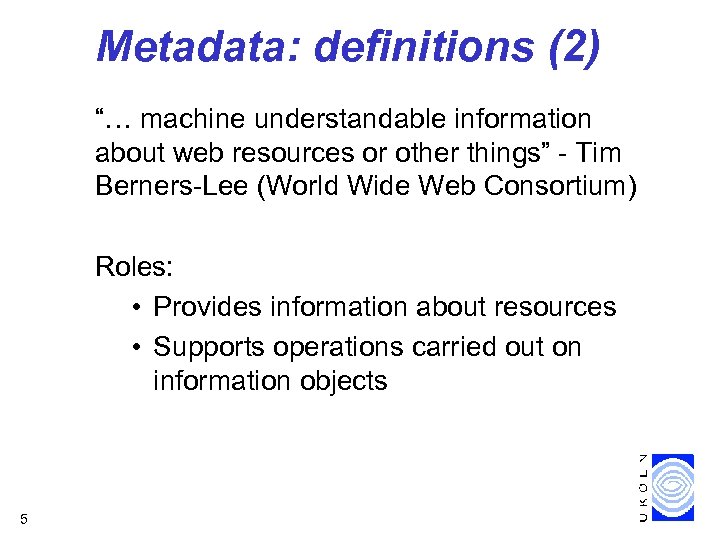

Metadata: definitions (2) “… machine understandable information about web resources or other things” - Tim Berners-Lee (World Wide Web Consortium) Roles: • Provides information about resources • Supports operations carried out on information objects 5

Metadata formats Diversity of metadata formats and frameworks, e. g. : • Dublin Core • EAD, CIMI, TEI • PICS, RDF • MARC • GILS, FGDC • ROADS http: //www. ukoln. ac. uk/metadata/glossary/ 6

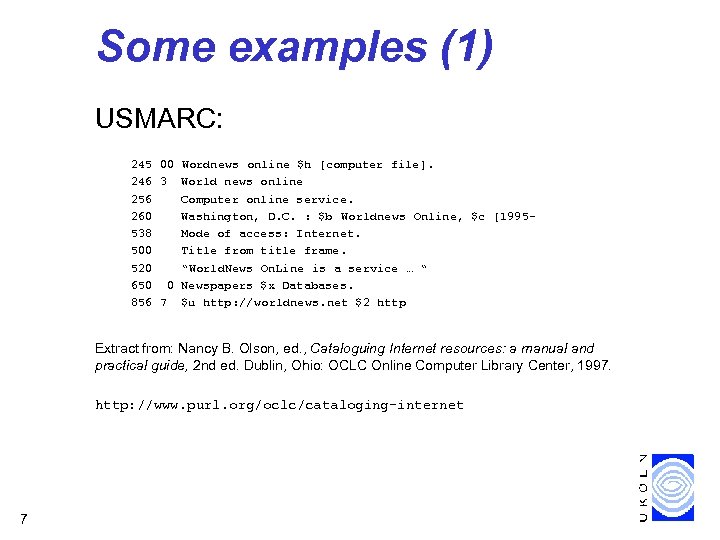

Some examples (1) USMARC: 245 00 Wordnews online $h [computer file]. 246 3 World news online 256 Computer online service. 260 Washington, D. C. : $b Worldnews Online, $c [1995538 Mode of access: Internet. 500 Title from title frame. 520 “World. News On. Line is a service … “ 650 0 Newspapers $x Databases. 856 7 $u http: //worldnews. net $2 http Extract from: Nancy B. Olson, ed. , Cataloguing Internet resources: a manual and practical guide, 2 nd ed. Dublin, Ohio: OCLC Online Computer Library Center, 1997. http: //www. purl. org/oclc/cataloging-internet 7

Omar Khayyam [. . . ] Creation of machine-readable version: Stephen Ramsay, Electronic Text Center Conversion to TEI. 2 -conformant markup: University of Virginia Library Electronic Text Center [. . . ] From: University of Virginia Library, Cataloging Services Department, Cataloging Procedures Manual, Chapter XII. Charlottesville, Va. : University of Virginia Library, 1996 -98. http: //www. lib. virginia. edu/cataloging/manual/chapters/chapxiib. html 8

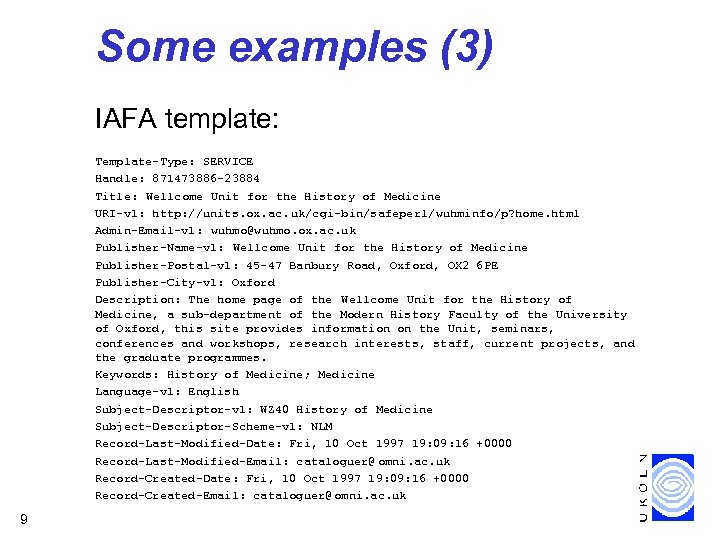

Some examples (3) IAFA template: Template-Type: SERVICE Handle: 871473886 -23884 Title: Wellcome Unit for the History of Medicine URI-v 1: http: //units. ox. ac. uk/cgi-bin/safeperl/wuhminfo/p? home. html Admin-Email-v 1: wuhmo@wuhmo. ox. ac. uk Publisher-Name-v 1: Wellcome Unit for the History of Medicine Publisher-Postal-v 1: 45 -47 Banbury Road, Oxford, OX 2 6 PE Publisher-City-v 1: Oxford Description: The home page of the Wellcome Unit for the History of Medicine, a sub-department of the Modern History Faculty of the University of Oxford, this site provides information on the Unit, seminars, conferences and workshops, research interests, staff, current projects, and the graduate programmes. Keywords: History of Medicine; Medicine Language-v 1: English Subject-Descriptor-v 1: WZ 40 History of Medicine Subject-Descriptor-Scheme-v 1: NLM Record-Last-Modified-Date: Fri, 10 Oct 1997 19: 09: 16 +0000 Record-Last-Modified-Email: cataloguer@ omni. ac. uk Record-Created-Date: Fri, 10 Oct 1997 19: 09: 16 +0000 Record-Created-Email: cataloguer@ omni. ac. uk 9

A metadata typology Simple Rich Adapted from: Lorcan Dempsey and Rachel Heery, “Metadata: a current view of practice and issues”, Journal of Documentation, vol. 54, no. 2, March 1998, 10 pp. 145 -172.

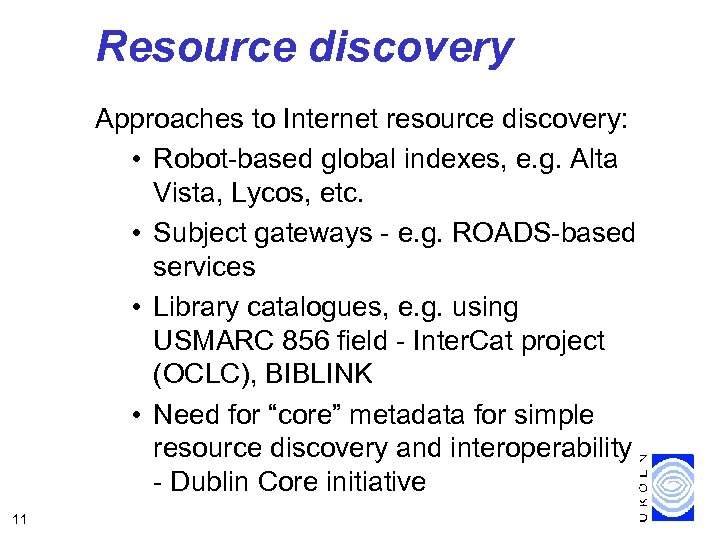

Resource discovery Approaches to Internet resource discovery: • Robot-based global indexes, e. g. Alta Vista, Lycos, etc. • Subject gateways - e. g. ROADS-based services • Library catalogues, e. g. using USMARC 856 field - Inter. Cat project (OCLC), BIBLINK • Need for “core” metadata for simple resource discovery and interoperability - Dublin Core initiative 11

Dublin Core (1) International initiative to define a core set of metadata elements for resource discovery on the Internet • Six DC workshops (to date): • • DC-1 (Dublin, Ohio) - 1995 DC-2 (Warwick) - 1996 DC-3 (Dublin, Ohio) - 1996 DC-4 (Canberra) - 1997 DC-5 (Helsinki) - 1997 DC-6 (Washington, D. C. ) - 1998 DC-7 (Frankfurt/AM) - 1999 http: //purl. oclc. org/dc 12

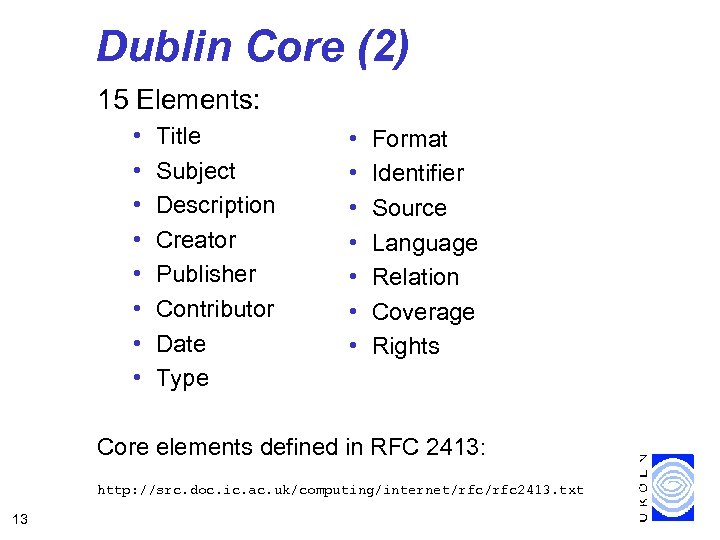

Dublin Core (2) 15 Elements: • • Title Subject Description Creator Publisher Contributor Date Type • • Format Identifier Source Language Relation Coverage Rights Core elements defined in RFC 2413: http: //src. doc. ic. ac. uk/computing/internet/rfc 2413. txt 13

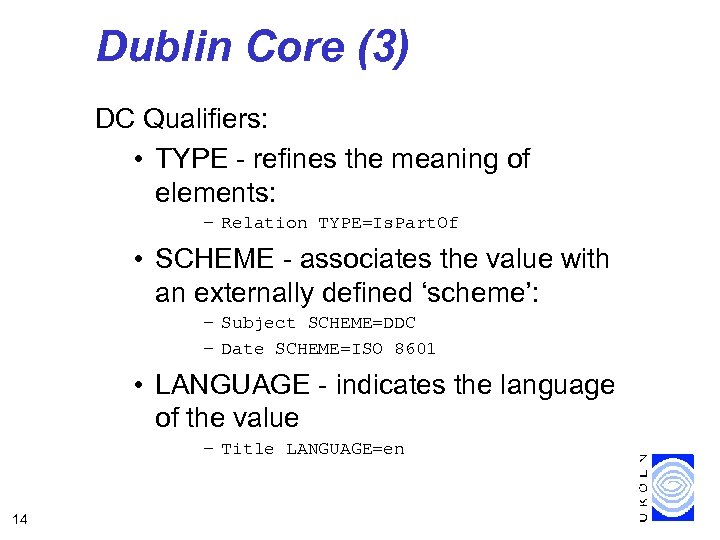

Dublin Core (3) DC Qualifiers: • TYPE - refines the meaning of elements: – Relation TYPE=Is. Part. Of • SCHEME - associates the value with an externally defined ‘scheme’: – Subject SCHEME=DDC – Date SCHEME=ISO 8601 • LANGUAGE - indicates the language of the value – Title LANGUAGE=en 14

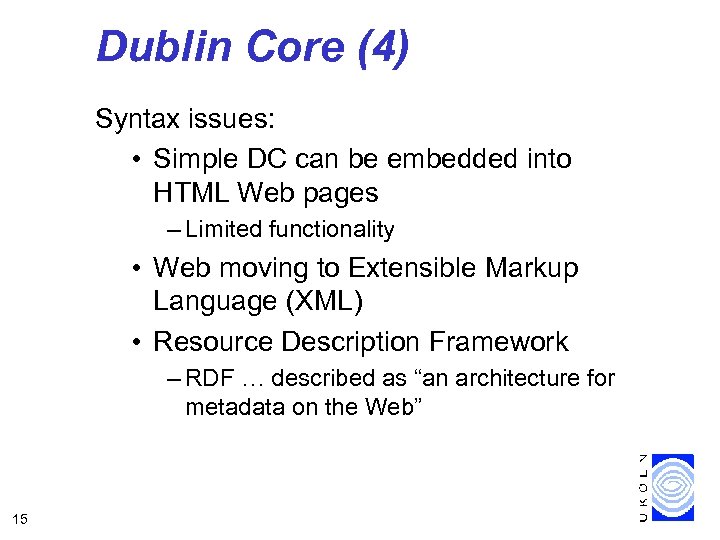

Dublin Core (4) Syntax issues: • Simple DC can be embedded into HTML Web pages – Limited functionality • Web moving to Extensible Markup Language (XML) • Resource Description Framework – RDF … described as “an architecture for metadata on the Web” 15

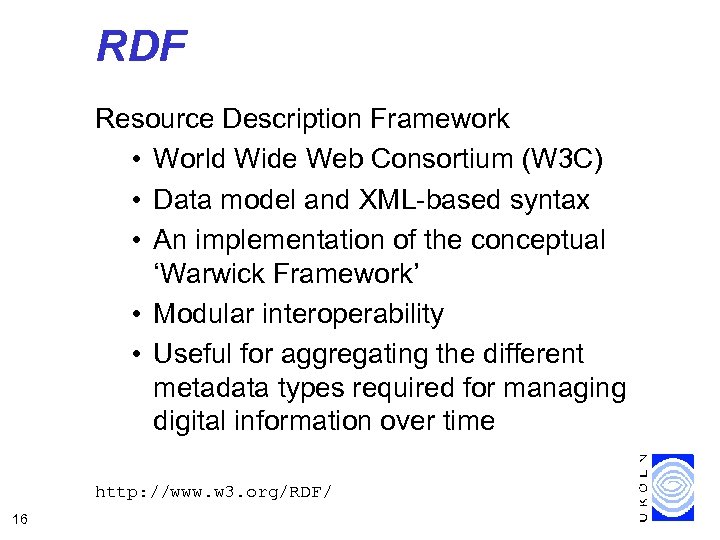

RDF Resource Description Framework • World Wide Web Consortium (W 3 C) • Data model and XML-based syntax • An implementation of the conceptual ‘Warwick Framework’ • Modular interoperability • Useful for aggregating the different metadata types required for managing digital information over time http: //www. w 3. org/RDF/ 16

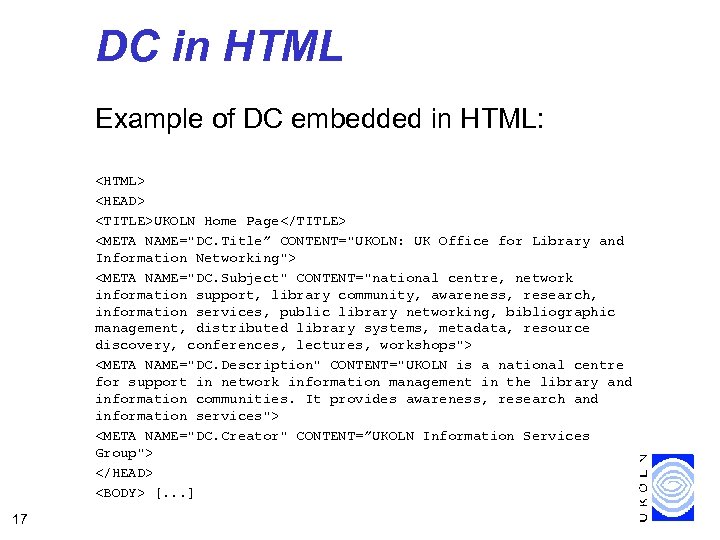

DC in HTML Example of DC embedded in HTML: [. . . ] 17

DC in XML-RDF 18

Interoperability Problem of heterogeneous and distributed resources • Protocols – Z 39. 50 – Whois++ cross-searching (ROADS) • Metadata conversion – Nordic Metadata Project – BIBLINK • “Layered” approaches – Arts and Humanities Data Service 19

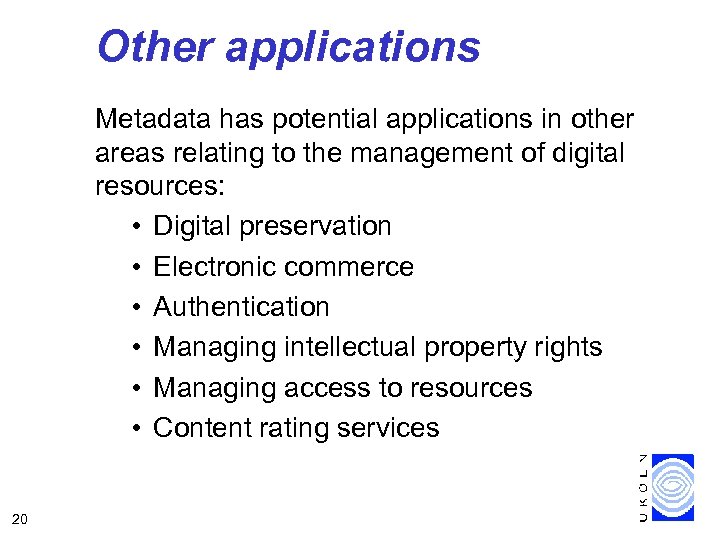

Other applications Metadata has potential applications in other areas relating to the management of digital resources: • Digital preservation • Electronic commerce • Authentication • Managing intellectual property rights • Managing access to resources • Content rating services 20

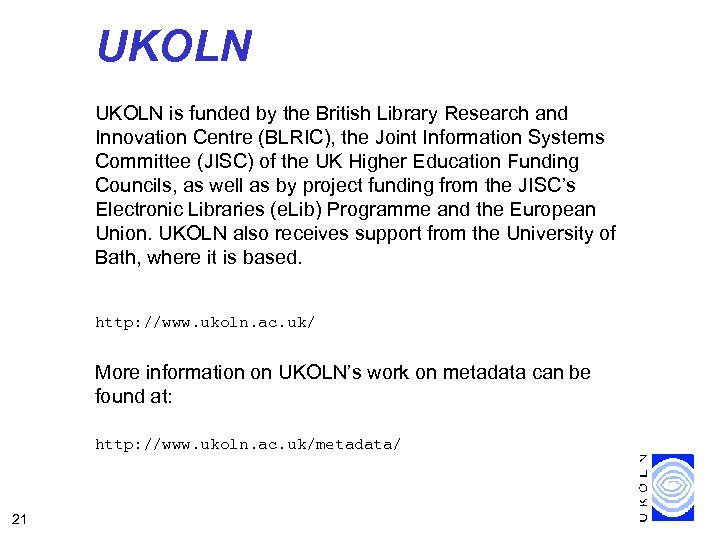

UKOLN is funded by the British Library Research and Innovation Centre (BLRIC), the Joint Information Systems Committee (JISC) of the UK Higher Education Funding Councils, as well as by project funding from the JISC’s Electronic Libraries (e. Lib) Programme and the European Union. UKOLN also receives support from the University of Bath, where it is based. http: //www. ukoln. ac. uk/ More information on UKOLN’s work on metadata can be found at: http: //www. ukoln. ac. uk/metadata/ 21
