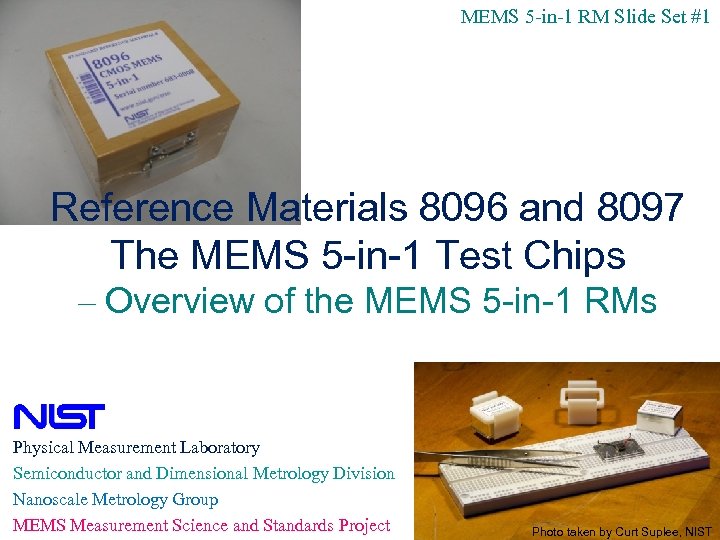

MEMS 5 -in-1 RM Slide Set #1 Reference Materials 8096 and 8097 The MEMS 5 -in-1 Test Chips – Overview of the MEMS 5 -in-1 RMs Physical Measurement Laboratory Semiconductor and Dimensional Metrology Division Nanoscale Metrology Group MEMS Measurement Science and Standards Project 1 Photo taken by Curt Suplee, NIST

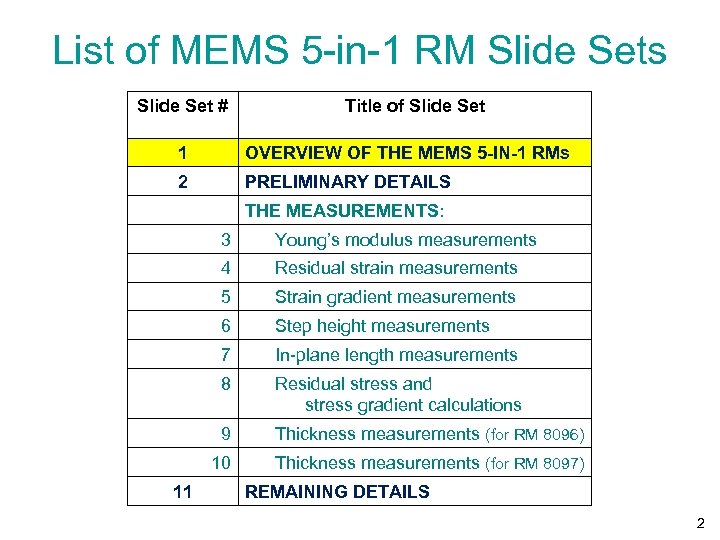

List of MEMS 5 -in-1 RM Slide Sets Slide Set # Title of Slide Set 1 OVERVIEW OF THE MEMS 5 -IN-1 RMs 2 PRELIMINARY DETAILS THE MEASUREMENTS: 3 4 Residual strain measurements 5 Strain gradient measurements 6 Step height measurements 7 In-plane length measurements 8 Residual stress and stress gradient calculations 9 Thickness measurements (for RM 8096) 10 11 Young’s modulus measurements Thickness measurements (for RM 8097) REMAINING DETAILS 2

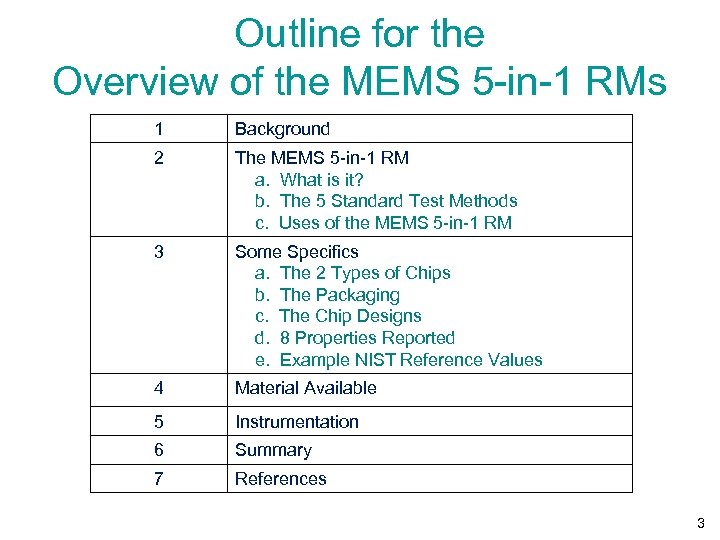

Outline for the Overview of the MEMS 5 -in-1 RMs 1 Background 2 The MEMS 5 -in-1 RM a. What is it? b. The 5 Standard Test Methods c. Uses of the MEMS 5 -in-1 RM 3 Some Specifics a. The 2 Types of Chips b. The Packaging c. The Chip Designs d. 8 Properties Reported e. Example NIST Reference Values 4 Material Available 5 Instrumentation 6 Summary 7 References 3

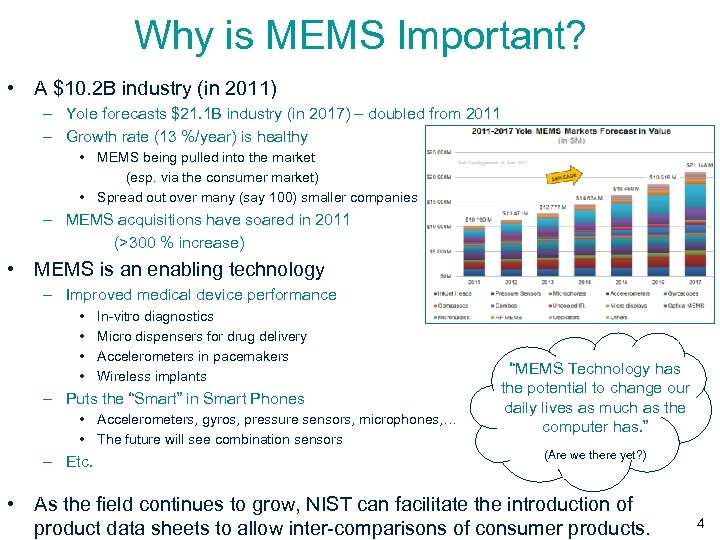

Why is MEMS Important? • A $10. 2 B industry (in 2011) – Yole forecasts $21. 1 B industry (in 2017) – doubled from 2011 – Growth rate (13 %/year) is healthy • MEMS being pulled into the market (esp. via the consumer market) • Spread out over many (say 100) smaller companies – MEMS acquisitions have soared in 2011 (>300 % increase) • MEMS is an enabling technology – Improved medical device performance • • In-vitro diagnostics Micro dispensers for drug delivery Accelerometers in pacemakers Wireless implants – Puts the “Smart” in Smart Phones • Accelerometers, gyros, pressure sensors, microphones, … • The future will see combination sensors – Etc. “MEMS Technology has the potential to change our daily lives as much as the computer has. ” (Are we there yet? ) • As the field continues to grow, NIST can facilitate the introduction of product data sheets to allow inter-comparisons of consumer products. 4

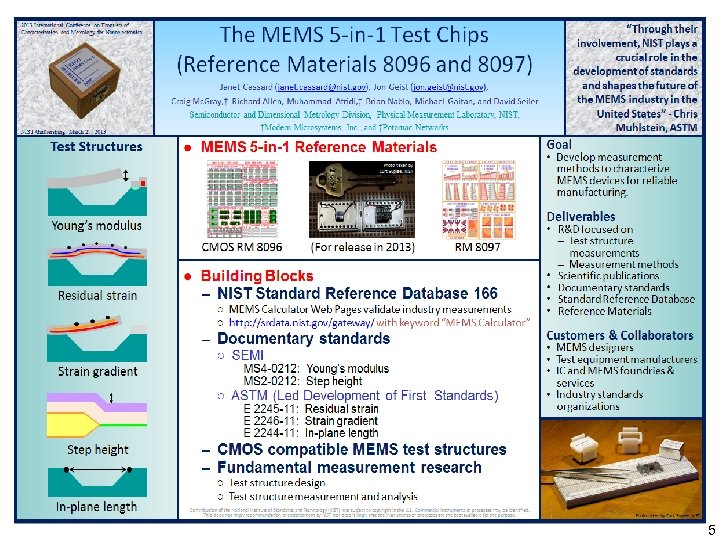

5 5

The MEMS 5 -in-1 RM (What is it ? ) MEMS = microelectromechanical systems 5 -in-1 = test structures for five standard test methods on one physical test chip 1. 2. 3. 4. 5. Young’s modulus (SEMI MS 4) Residual strain (ASTM E 2245) Strain gradient (ASTM E 2246) Step height (SEMI MS 2) In-plane length (ASTM E 2244) RM = Reference Material: a material or substance one or more of whose property values are sufficiently homogeneous, stable, and well established to be used for the calibration of an apparatus, the assessment of a measurement method, or for assigning values to materials. 6

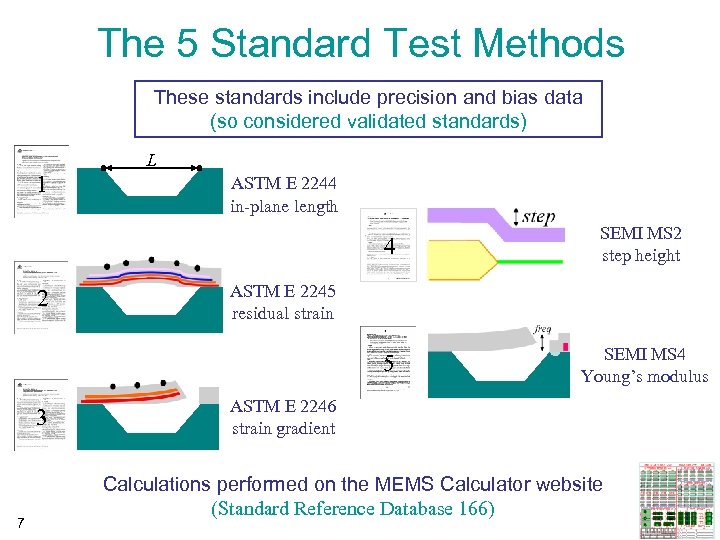

The 5 Standard Test Methods These standards include precision and bias data (so considered validated standards) 1 L ASTM E 2244 in-plane length 4 5 2 3 7 SEMI MS 2 step height SEMI MS 4 Young’s modulus ASTM E 2245 residual strain ASTM E 2246 strain gradient Calculations performed on the MEMS Calculator website (Standard Reference Database 166)

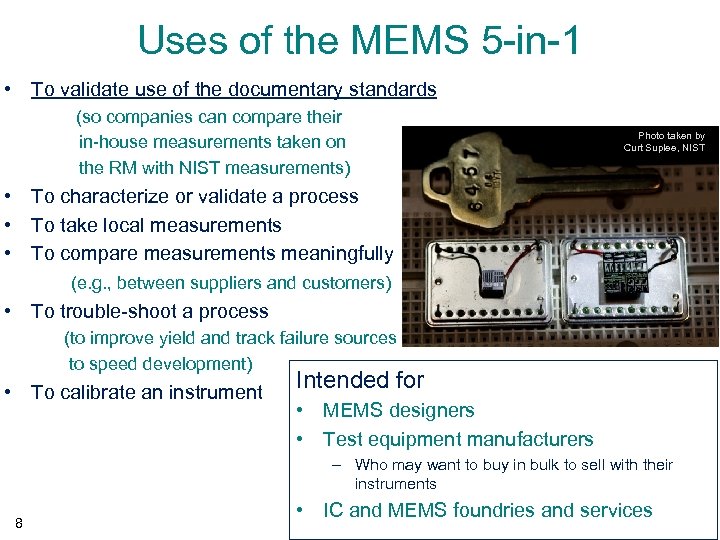

Uses of the MEMS 5 -in-1 • To validate use of the documentary standards (so companies can compare their in-house measurements taken on the RM with NIST measurements) Photo taken by Curt Suplee, NIST • To characterize or validate a process • To take local measurements • To compare measurements meaningfully (e. g. , between suppliers and customers) • To trouble-shoot a process (to improve yield and track failure sources to speed development) • To calibrate an instrument Intended for • MEMS designers • Test equipment manufacturers – Who may want to buy in bulk to sell with their instruments 8 • IC and MEMS foundries and services

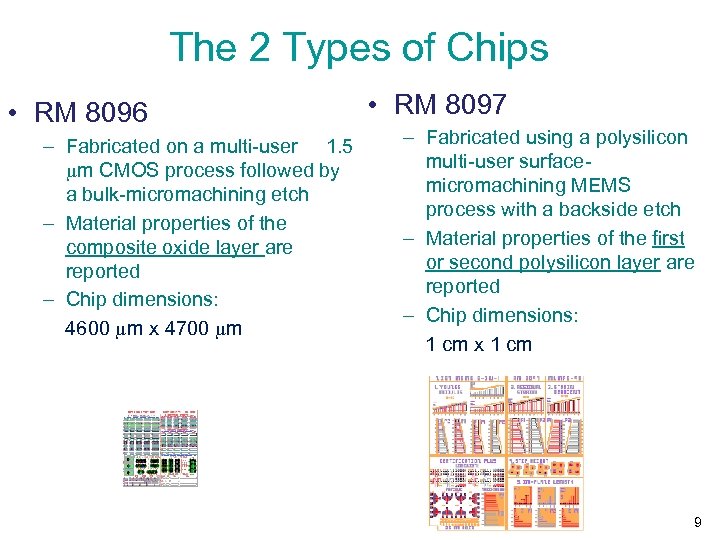

The 2 Types of Chips • RM 8096 – Fabricated on a multi-user 1. 5 µm CMOS process followed by a bulk-micromachining etch – Material properties of the composite oxide layer are reported – Chip dimensions: 4600 µm x 4700 µm • RM 8097 – Fabricated using a polysilicon multi-user surfacemicromachining MEMS process with a backside etch – Material properties of the first or second polysilicon layer are reported – Chip dimensions: 1 cm x 1 cm 9

NIST-on-a-Chip-type-of Packaging - testing solution provided - all measurements can be performed in this package Photo taken by Erik Secula, NIST chip PZT lid 10

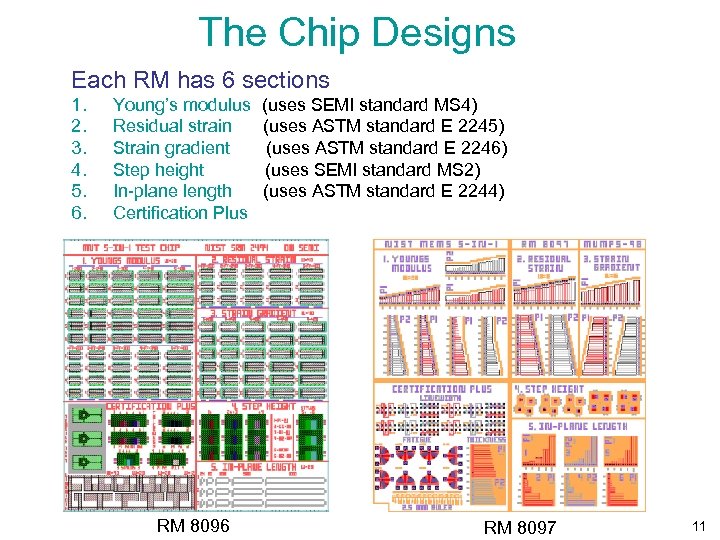

The Chip Designs Each RM has 6 sections 1. 2. 3. 4. 5. 6. Young’s modulus Residual strain Strain gradient Step height In-plane length Certification Plus RM 8096 (uses SEMI standard MS 4) (uses ASTM standard E 2245) (uses ASTM standard E 2246) (uses SEMI standard MS 2) (uses ASTM standard E 2244) RM 8097 11

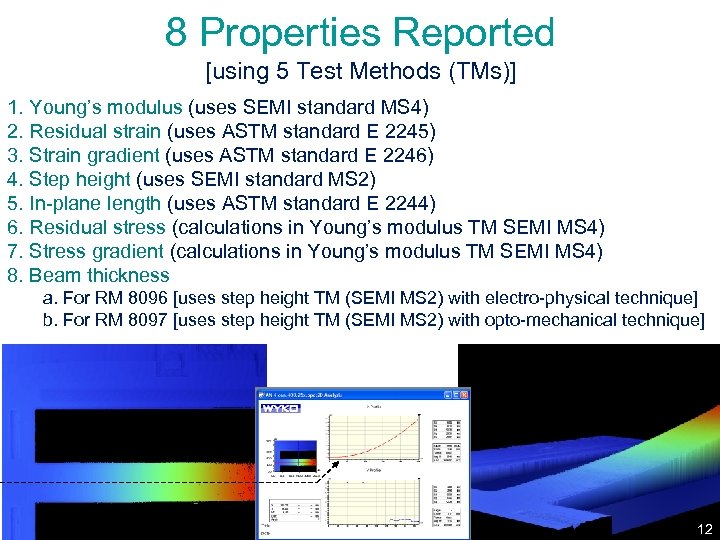

8 Properties Reported [using 5 Test Methods (TMs)] 1. Young’s modulus (uses SEMI standard MS 4) 2. Residual strain (uses ASTM standard E 2245) 3. Strain gradient (uses ASTM standard E 2246) 4. Step height (uses SEMI standard MS 2) 5. In-plane length (uses ASTM standard E 2244) 6. Residual stress (calculations in Young’s modulus TM SEMI MS 4) 7. Stress gradient (calculations in Young’s modulus TM SEMI MS 4) 8. Beam thickness a. For RM 8096 [uses step height TM (SEMI MS 2) with electro-physical technique] b. For RM 8097 [uses step height TM (SEMI MS 2) with opto-mechanical technique] 12 12

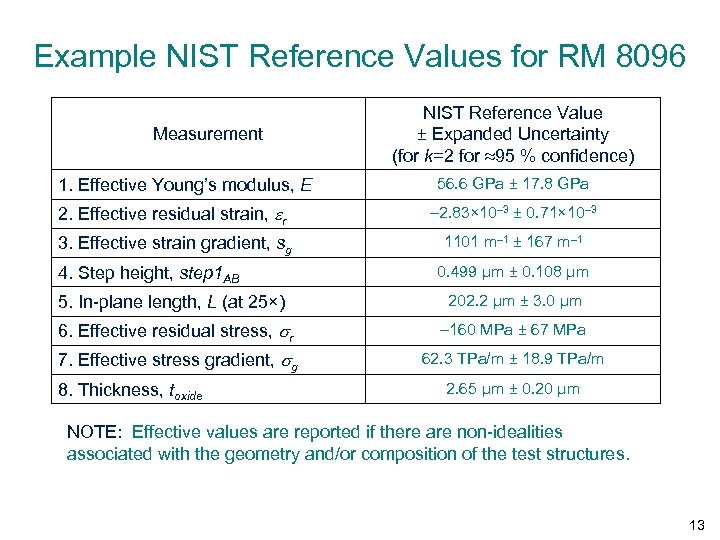

Example NIST Reference Values for RM 8096 Measurement 1. Effective Young’s modulus, E NIST Reference Value ± Expanded Uncertainty (for k=2 for ≈95 % confidence) 56. 6 GPa ± 17. 8 GPa 2. Effective residual strain, er – 2. 83× 10– 3 ± 0. 71× 10– 3 3. Effective strain gradient, sg 1101 m– 1 ± 167 m– 1 4. Step height, step 1 AB 0. 499 µm ± 0. 108 µm 5. In-plane length, L (at 25×) 202. 2 µm ± 3. 0 µm 6. Effective residual stress, sr – 160 MPa ± 67 MPa 7. Effective stress gradient, sg 62. 3 TPa/m ± 18. 9 TPa/m 8. Thickness, toxide 2. 65 µm ± 0. 20 µm NOTE: Effective values are reported if there are non-idealities associated with the geometry and/or composition of the test structures. 13

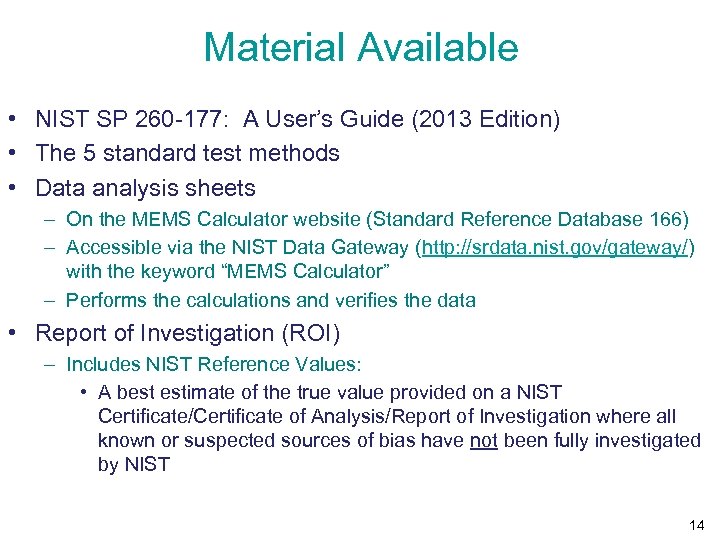

Material Available • NIST SP 260 -177: A User’s Guide (2013 Edition) • The 5 standard test methods • Data analysis sheets – On the MEMS Calculator website (Standard Reference Database 166) – Accessible via the NIST Data Gateway (http: //srdata. nist. gov/gateway/) with the keyword “MEMS Calculator” – Performs the calculations and verifies the data • Report of Investigation (ROI) – Includes NIST Reference Values: • A best estimate of the true value provided on a NIST Certificate/Certificate of Analysis/Report of Investigation where all known or suspected sources of bias have not been fully investigated by NIST 14

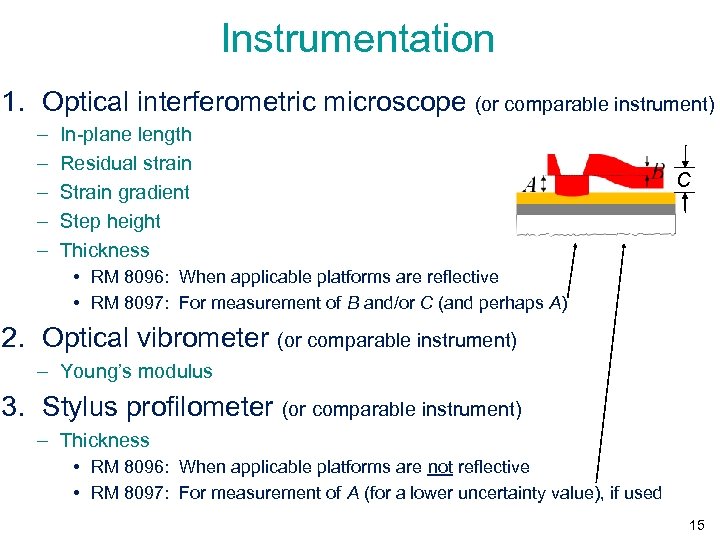

Instrumentation 1. Optical interferometric microscope (or comparable instrument) – – – In-plane length Residual strain Strain gradient Step height Thickness C • RM 8096: When applicable platforms are reflective • RM 8097: For measurement of B and/or C (and perhaps A) 2. Optical vibrometer (or comparable instrument) – Young’s modulus 3. Stylus profilometer (or comparable instrument) – Thickness • RM 8096: When applicable platforms are not reflective • RM 8097: For measurement of A (for a lower uncertainty value), if used 15

16 16

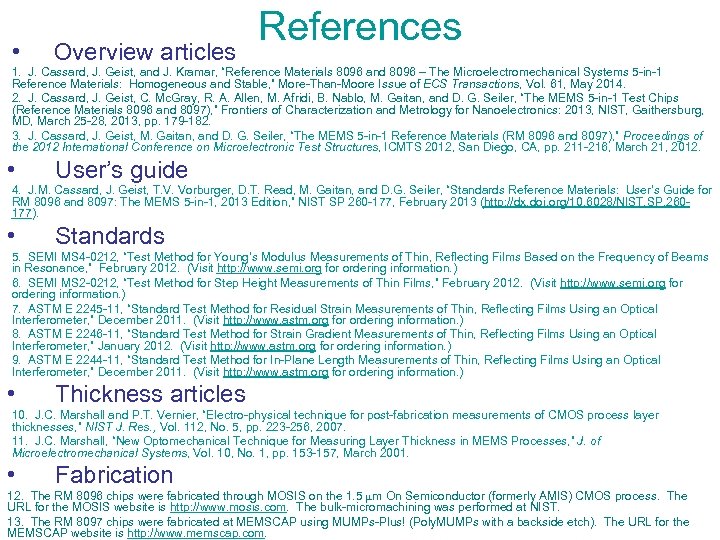

• Overview articles References 1. J. Cassard, J. Geist, and J. Kramar, “Reference Materials 8096 and 8096 – The Microelectromechanical Systems 5 -in-1 Reference Materials: Homogeneous and Stable, ” More-Than-Moore Issue of ECS Transactions, Vol. 61, May 2014. 2. J. Cassard, J. Geist, C. Mc. Gray, R. A. Allen, M. Afridi, B. Nablo, M. Gaitan, and D. G. Seiler, “The MEMS 5 -in-1 Test Chips (Reference Materials 8096 and 8097), ” Frontiers of Characterization and Metrology for Nanoelectronics: 2013, NIST, Gaithersburg, MD, March 25 -28, 2013, pp. 179 -182. 3. J. Cassard, J. Geist, M. Gaitan, and D. G. Seiler, “The MEMS 5 -in-1 Reference Materials (RM 8096 and 8097), ” Proceedings of the 2012 International Conference on Microelectronic Test Structures, ICMTS 2012, San Diego, CA, pp. 211 -216, March 21, 2012. • User’s guide 4. J. M. Cassard, J. Geist, T. V. Vorburger, D. T. Read, M. Gaitan, and D. G. Seiler, “Standards Reference Materials: User’s Guide for RM 8096 and 8097: The MEMS 5 -in-1, 2013 Edition, ” NIST SP 260 -177, February 2013 (http: //dx. doi. org/10. 6028/NIST. SP. 260177). • Standards 5. SEMI MS 4 -0212, “Test Method for Young’s Modulus Measurements of Thin, Reflecting Films Based on the Frequency of Beams in Resonance, ” February 2012. (Visit http: //www. semi. org for ordering information. ) 6. SEMI MS 2 -0212, “Test Method for Step Height Measurements of Thin Films, ” February 2012. (Visit http: //www. semi. org for ordering information. ) 7. ASTM E 2245 -11, “Standard Test Method for Residual Strain Measurements of Thin, Reflecting Films Using an Optical Interferometer, ” December 2011. (Visit http: //www. astm. org for ordering information. ) 8. ASTM E 2246 -11, “Standard Test Method for Strain Gradient Measurements of Thin, Reflecting Films Using an Optical Interferometer, ” January 2012. (Visit http: //www. astm. org for ordering information. ) 9. ASTM E 2244 -11, “Standard Test Method for In-Plane Length Measurements of Thin, Reflecting Films Using an Optical Interferometer, ” December 2011. (Visit http: //www. astm. org for ordering information. ) • Thickness articles 10. J. C. Marshall and P. T. Vernier, “Electro-physical technique for post-fabrication measurements of CMOS process layer thicknesses, ” NIST J. Res. , Vol. 112, No. 5, pp. 223 -256, 2007. 11. J. C. Marshall, “New Optomechanical Technique for Measuring Layer Thickness in MEMS Processes, ” J. of Microelectromechanical Systems, Vol. 10, No. 1, pp. 153 -157, March 2001. • Fabrication 12. The RM 8096 chips were fabricated through MOSIS on the 1. 5 µm On Semiconductor (formerly AMIS) CMOS process. The URL for the MOSIS website is http: //www. mosis. com. The bulk-micromachining was performed at NIST. 13. 8097 chips were fabricated at MEMSCAP using MUMPs-Plus! (Poly. MUMPs with a backside etch). The URL for the 17 The RMwebsite is http: //www. memscap. com. MEMSCAP

Acknowledgment • SEMI’s MEMS/NEMS Committee – MEMS Materials Characterization TF Mark Crockett (MEMSMART) Win Baylies (Bay. Tech Group) • ASTM’s E 08 Committee on Fatigue and Fracture – E 08. 05 Subcommittee on Cyclic Deformation and Fatigue Crack Formation Sreeramesh on Structural Films for MEMS • E 08. 05. 03 Task Group Kalluri (Ohio Aerospace Institute) • For industry cost-share and engineering support – MOSIS (for RM 8096) P. – MEMSCAP (for RM 8097) Thomas Vernier Busbee Hardy • NIST Robert Watters Stefan Leigh – Statistical Engineering Division, Measurement Services Division, Center for Nanoscale Science and Technology, Public and Business Affairs Office – Quality – Experts Ted Doiron Theodore Vorburger and David Read – MEMS Measurement Science and Standards Project • Test Structures Subgroup 18 Jon Geist (leader), Richard Allen Craig Mc. Gray (Modern Microsystems) Yaqub Afridi (Potomac Networks) Brian Nablo
