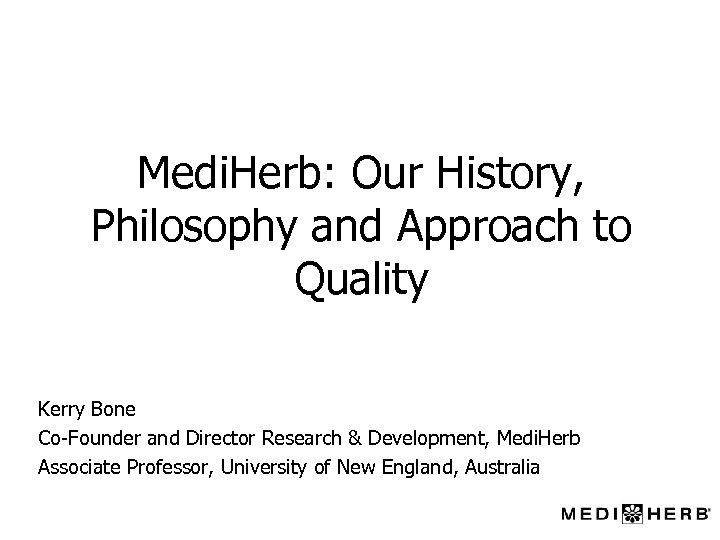

Medi. Herb: Our History, Philosophy and Approach to Quality Kerry Bone Co-Founder and Director Research & Development, Medi. Herb Associate Professor, University of New England, Australia

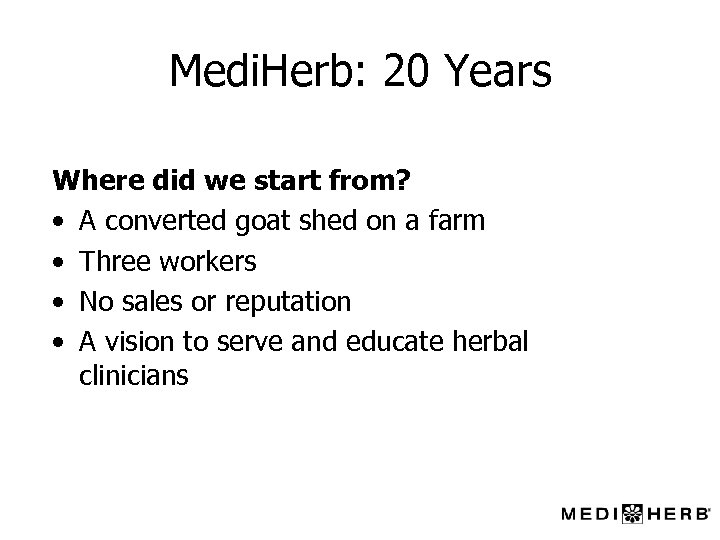

Medi. Herb: 20 Years Where did we start from? • A converted goat shed on a farm • Three workers • No sales or reputation • A vision to serve and educate herbal clinicians

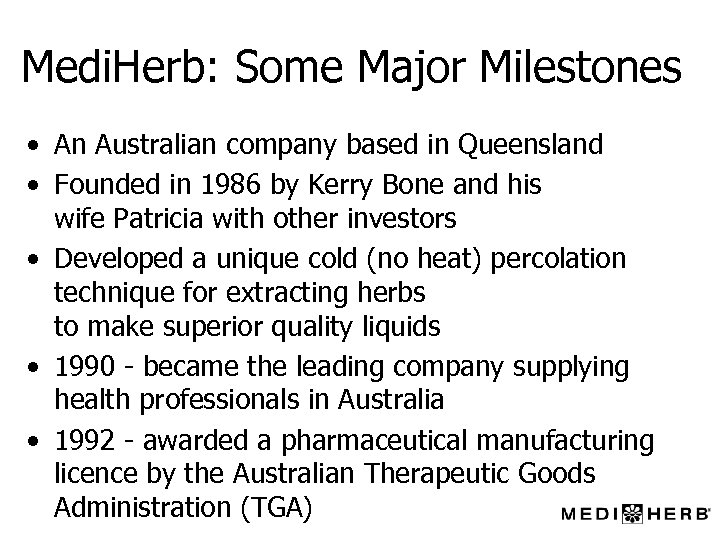

Medi. Herb: Some Major Milestones • An Australian company based in Queensland • Founded in 1986 by Kerry Bone and his wife Patricia with other investors • Developed a unique cold (no heat) percolation technique for extracting herbs to make superior quality liquids • 1990 - became the leading company supplying health professionals in Australia • 1992 - awarded a pharmaceutical manufacturing licence by the Australian Therapeutic Goods Administration (TGA)

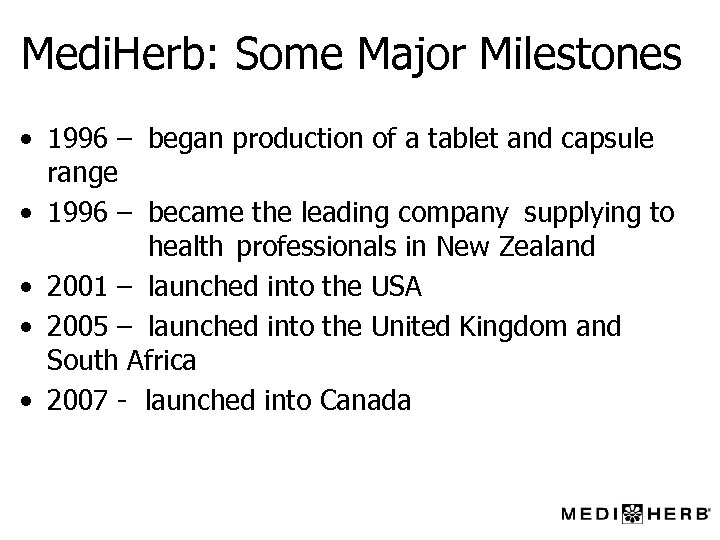

Medi. Herb: Some Major Milestones • 1996 – began production of a tablet and capsule range • 1996 – became the leading company supplying to health professionals in New Zealand • 2001 – launched into the USA • 2005 – launched into the United Kingdom and South Africa • 2007 - launched into Canada

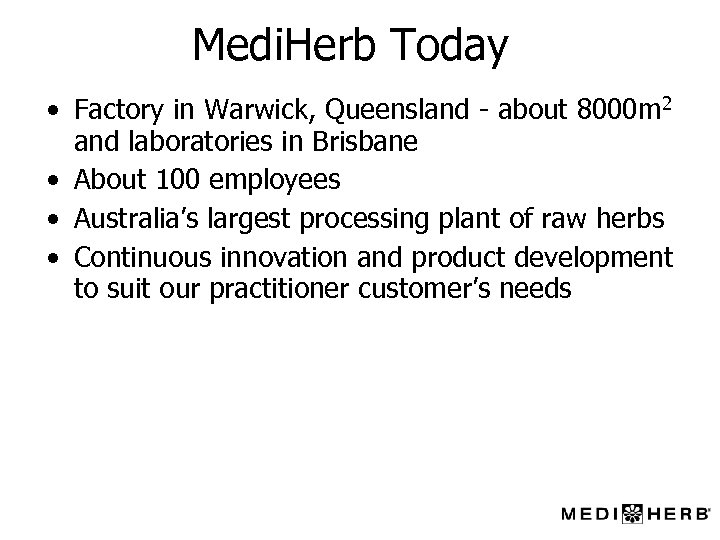

Medi. Herb Today • Factory in Warwick, Queensland - about 8000 m 2 and laboratories in Brisbane • About 100 employees • Australia’s largest processing plant of raw herbs • Continuous innovation and product development to suit our practitioner customer’s needs

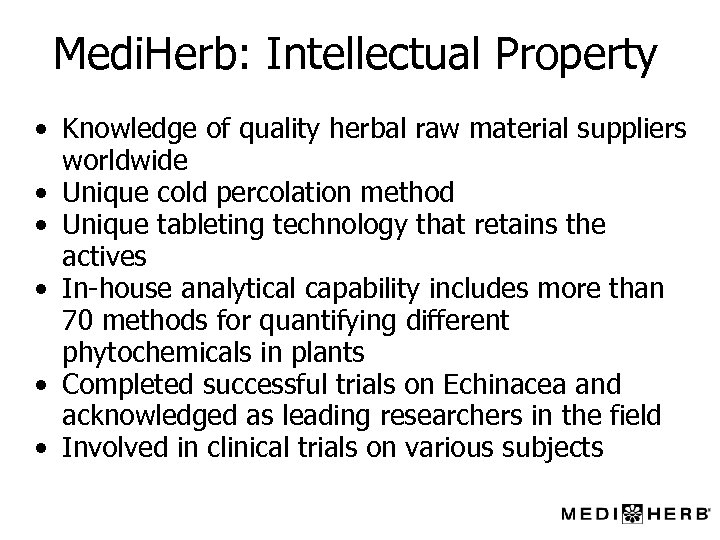

Medi. Herb: Intellectual Property • Knowledge of quality herbal raw material suppliers worldwide • Unique cold percolation method • Unique tableting technology that retains the actives • In-house analytical capability includes more than 70 methods for quantifying different phytochemicals in plants • Completed successful trials on Echinacea and acknowledged as leading researchers in the field • Involved in clinical trials on various subjects

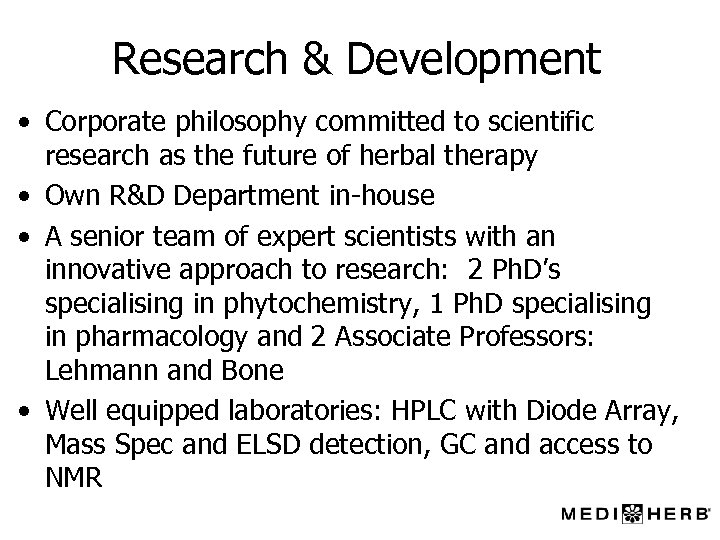

Research & Development • Corporate philosophy committed to scientific research as the future of herbal therapy • Own R&D Department in-house • A senior team of expert scientists with an innovative approach to research: 2 Ph. D’s specialising in phytochemistry, 1 Ph. D specialising in pharmacology and 2 Associate Professors: Lehmann and Bone • Well equipped laboratories: HPLC with Diode Array, Mass Spec and ELSD detection, GC and access to NMR

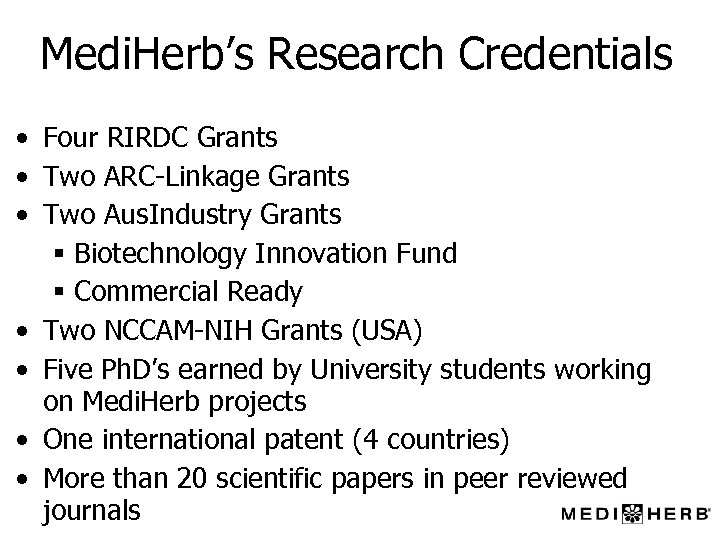

Medi. Herb’s Research Credentials • Four RIRDC Grants • Two ARC-Linkage Grants • Two Aus. Industry Grants § Biotechnology Innovation Fund § Commercial Ready • Two NCCAM-NIH Grants (USA) • Five Ph. D’s earned by University students working on Medi. Herb projects • One international patent (4 countries) • More than 20 scientific papers in peer reviewed journals

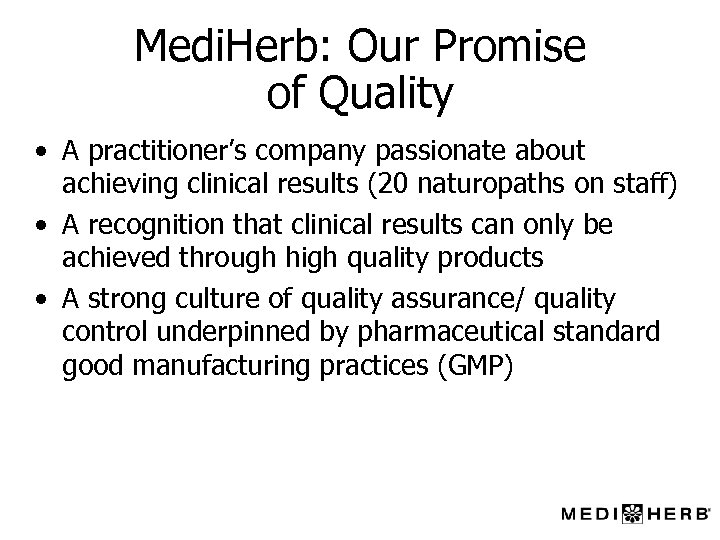

Medi. Herb: Our Promise of Quality • A practitioner’s company passionate about achieving clinical results (20 naturopaths on staff) • A recognition that clinical results can only be achieved through high quality products • A strong culture of quality assurance/ quality control underpinned by pharmaceutical standard good manufacturing practices (GMP)

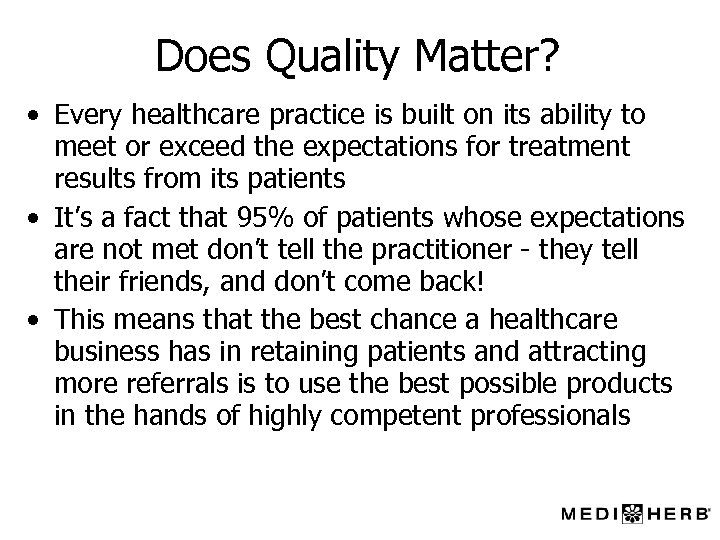

Does Quality Matter? • Every healthcare practice is built on its ability to meet or exceed the expectations for treatment results from its patients • It’s a fact that 95% of patients whose expectations are not met don’t tell the practitioner - they tell their friends, and don’t come back! • This means that the best chance a healthcare business has in retaining patients and attracting more referrals is to use the best possible products in the hands of highly competent professionals

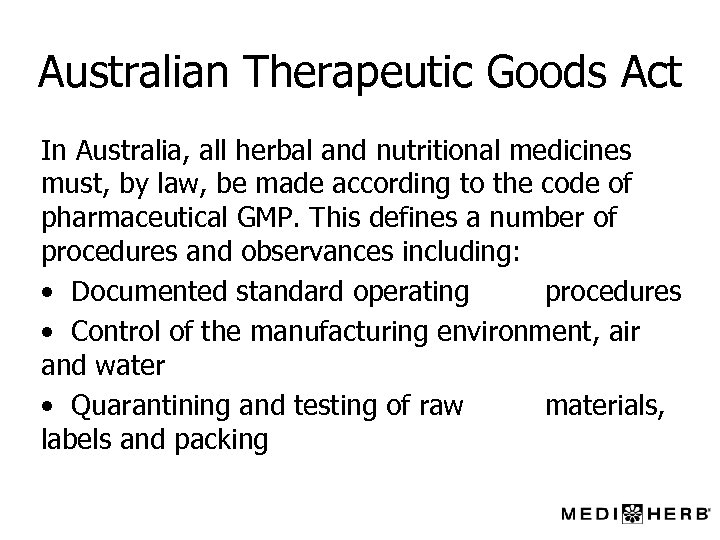

Australian Therapeutic Goods Act In Australia, all herbal and nutritional medicines must, by law, be made according to the code of pharmaceutical GMP. This defines a number of procedures and observances including: • Documented standard operating procedures • Control of the manufacturing environment, air and water • Quarantining and testing of raw materials, labels and packing

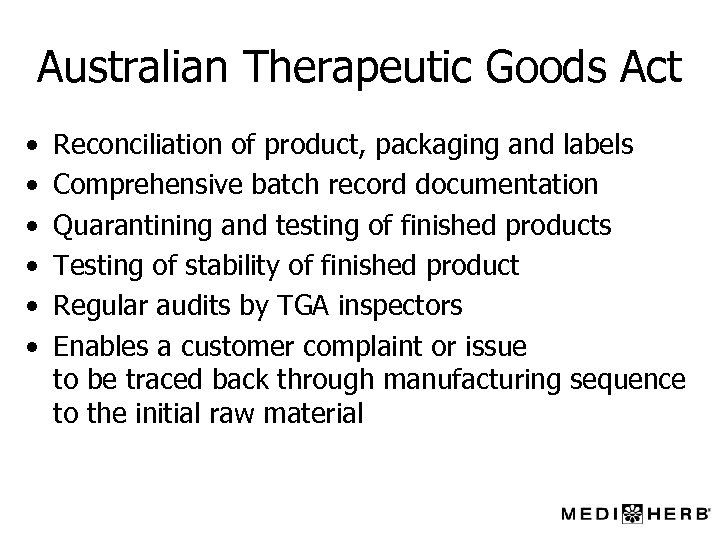

Australian Therapeutic Goods Act • • • Reconciliation of product, packaging and labels Comprehensive batch record documentation Quarantining and testing of finished products Testing of stability of finished product Regular audits by TGA inspectors Enables a customer complaint or issue to be traced back through manufacturing sequence to the initial raw material

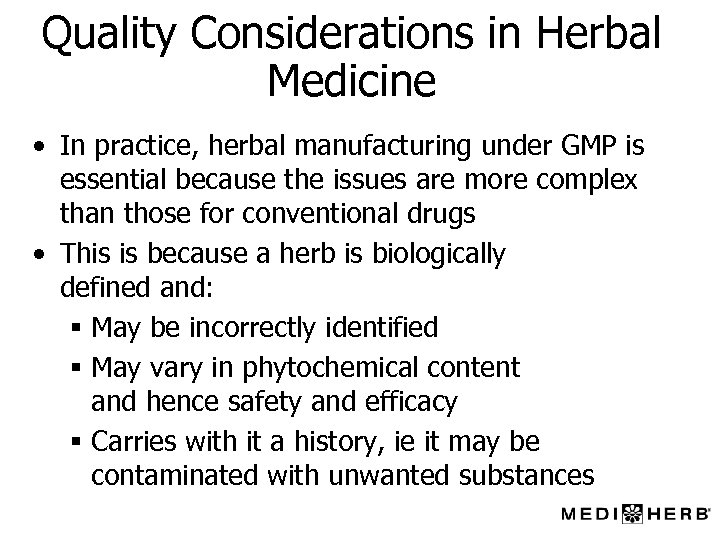

Quality Considerations in Herbal Medicine • In practice, herbal manufacturing under GMP is essential because the issues are more complex than those for conventional drugs • This is because a herb is biologically defined and: § May be incorrectly identified § May vary in phytochemical content and hence safety and efficacy § Carries with it a history, ie it may be contaminated with unwanted substances

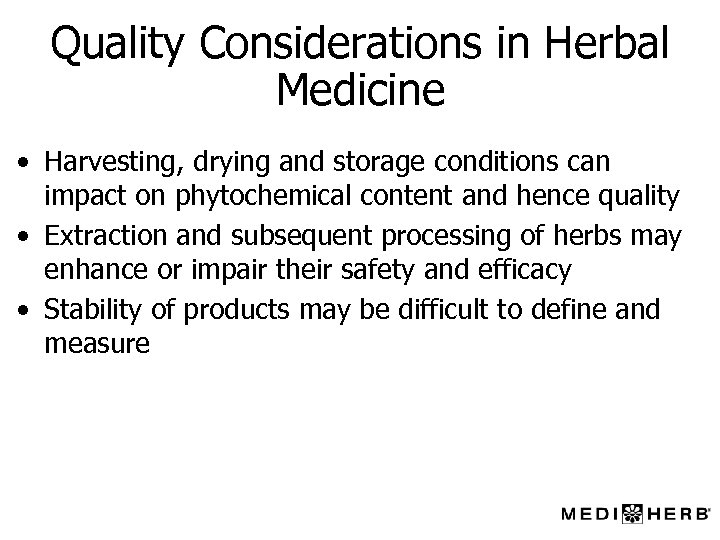

Quality Considerations in Herbal Medicine • Harvesting, drying and storage conditions can impact on phytochemical content and hence quality • Extraction and subsequent processing of herbs may enhance or impair their safety and efficacy • Stability of products may be difficult to define and measure

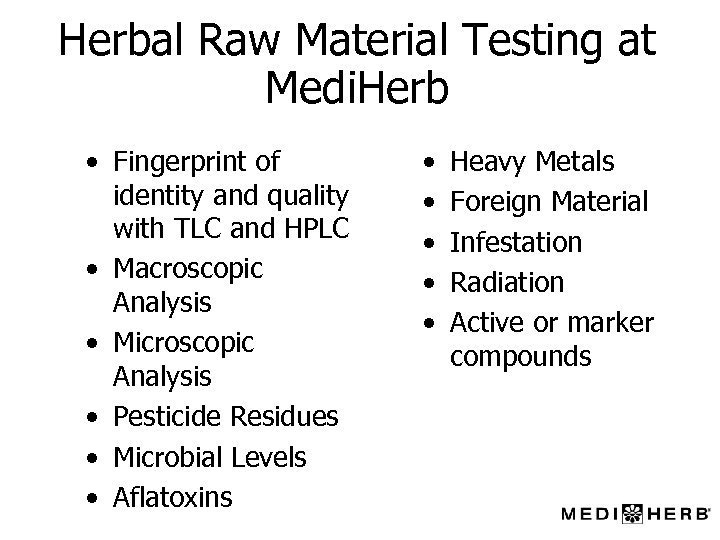

Herbal Raw Material Testing at Medi. Herb • Fingerprint of identity and quality with TLC and HPLC • Macroscopic Analysis • Microscopic Analysis • Pesticide Residues • Microbial Levels • Aflatoxins • • • Heavy Metals Foreign Material Infestation Radiation Active or marker compounds

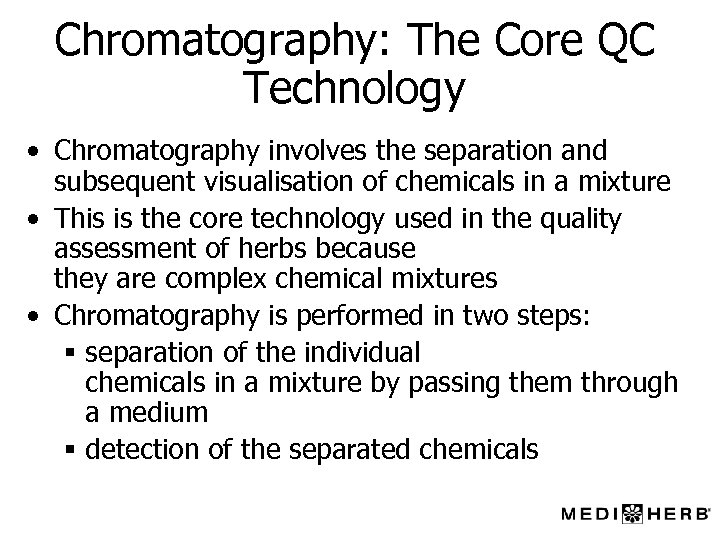

Chromatography: The Core QC Technology • Chromatography involves the separation and subsequent visualisation of chemicals in a mixture • This is the core technology used in the quality assessment of herbs because they are complex chemical mixtures • Chromatography is performed in two steps: § separation of the individual chemicals in a mixture by passing them through a medium § detection of the separated chemicals

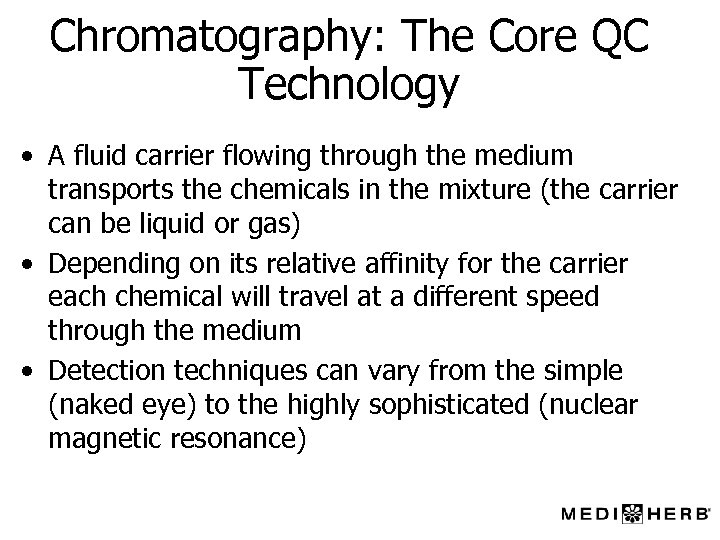

Chromatography: The Core QC Technology • A fluid carrier flowing through the medium transports the chemicals in the mixture (the carrier can be liquid or gas) • Depending on its relative affinity for the carrier each chemical will travel at a different speed through the medium • Detection techniques can vary from the simple (naked eye) to the highly sophisticated (nuclear magnetic resonance)

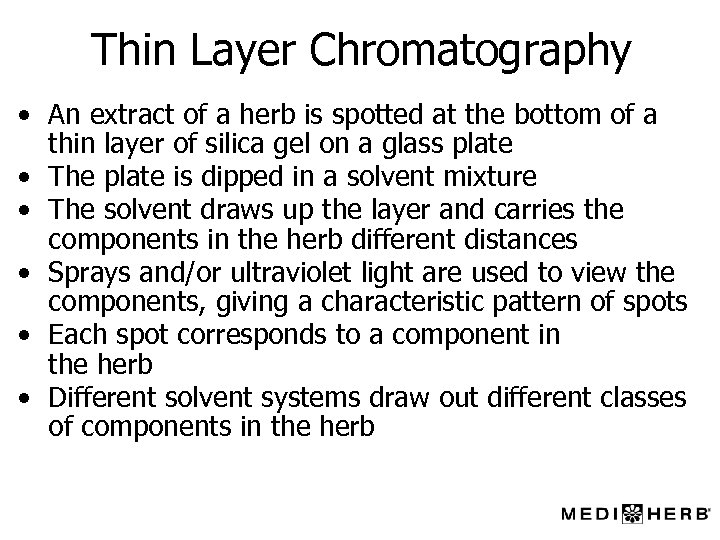

Thin Layer Chromatography • An extract of a herb is spotted at the bottom of a thin layer of silica gel on a glass plate • The plate is dipped in a solvent mixture • The solvent draws up the layer and carries the components in the herb different distances • Sprays and/or ultraviolet light are used to view the components, giving a characteristic pattern of spots • Each spot corresponds to a component in the herb • Different solvent systems draw out different classes of components in the herb

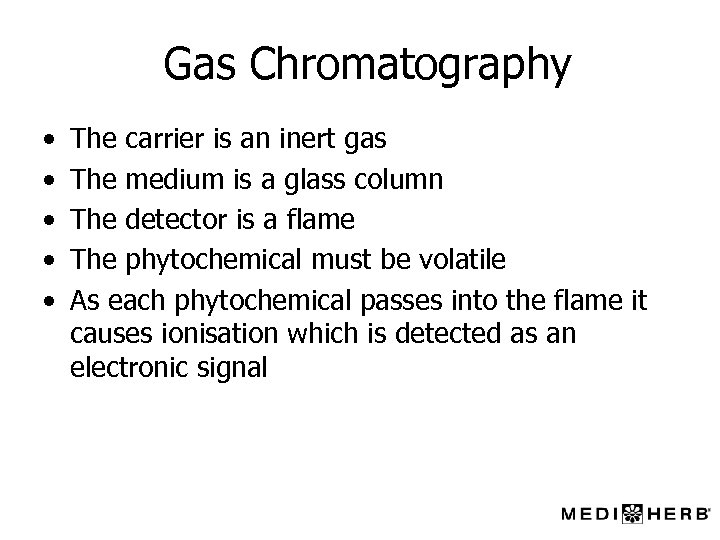

Gas Chromatography • • • The carrier is an inert gas The medium is a glass column The detector is a flame The phytochemical must be volatile As each phytochemical passes into the flame it causes ionisation which is detected as an electronic signal

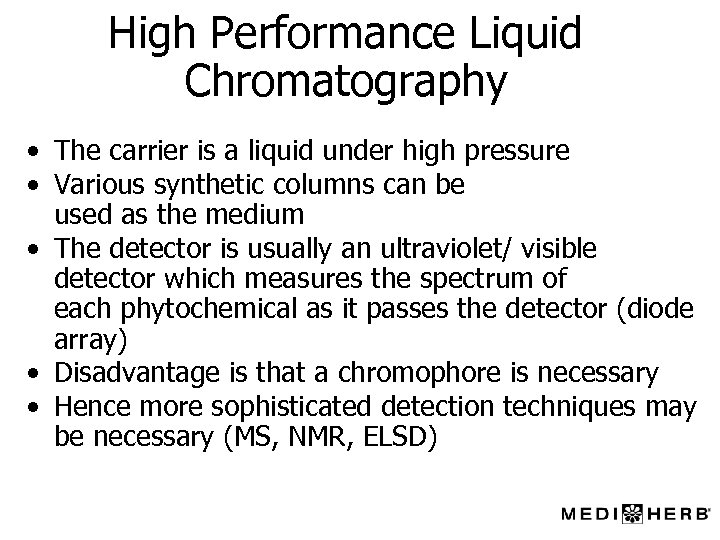

High Performance Liquid Chromatography • The carrier is a liquid under high pressure • Various synthetic columns can be used as the medium • The detector is usually an ultraviolet/ visible detector which measures the spectrum of each phytochemical as it passes the detector (diode array) • Disadvantage is that a chromophore is necessary • Hence more sophisticated detection techniques may be necessary (MS, NMR, ELSD)

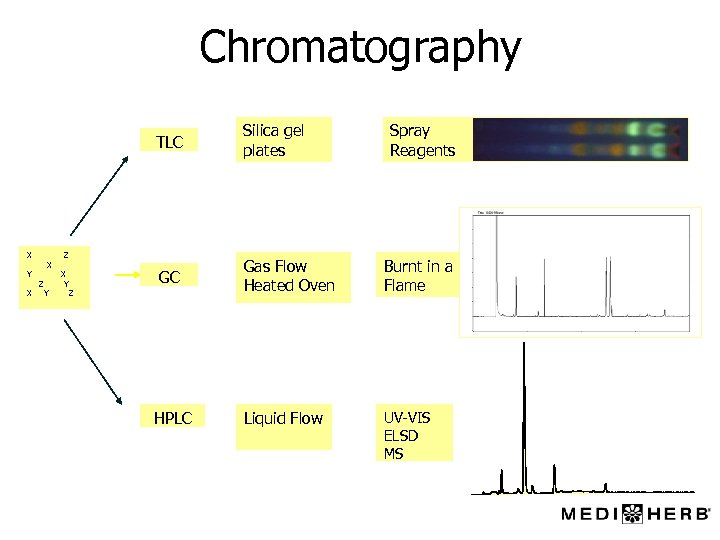

Chromatography TLC X Y X X Z Y Silica gel plates GC Gas Flow Heated Oven Burnt in a Flame Liquid Flow UV-VIS ELSD MS Z X Y Z HPLC Spray Reagents

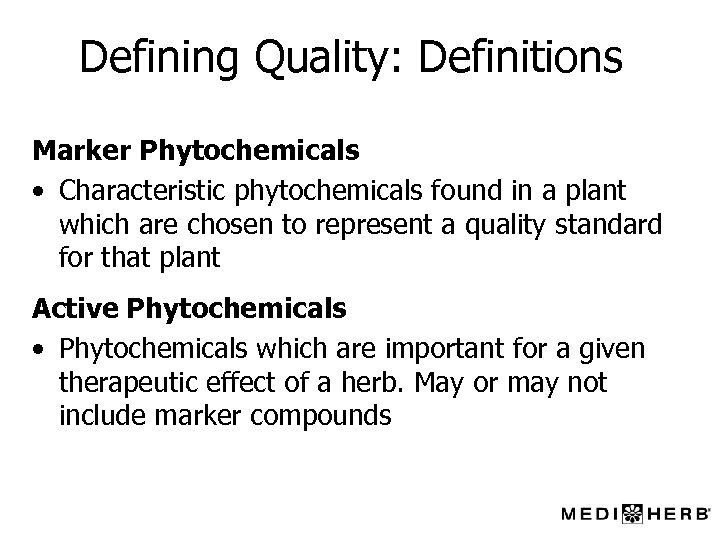

Defining Quality: Definitions Marker Phytochemicals • Characteristic phytochemicals found in a plant which are chosen to represent a quality standard for that plant Active Phytochemicals • Phytochemicals which are important for a given therapeutic effect of a herb. May or may not include marker compounds

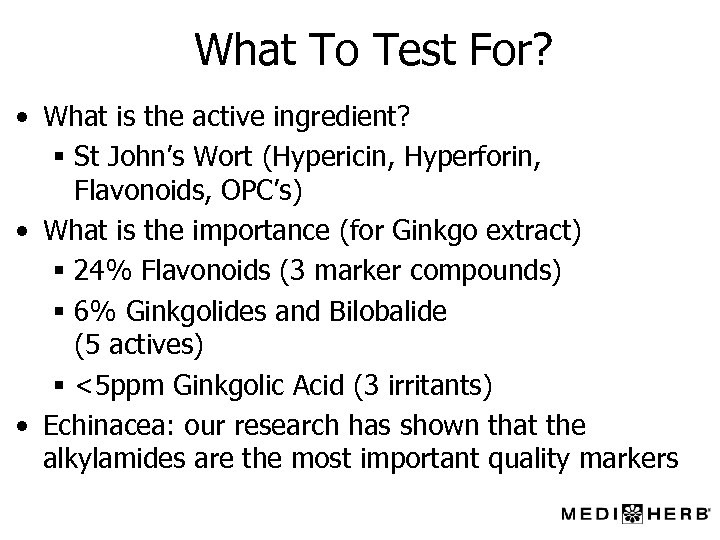

What To Test For? • What is the active ingredient? § St John’s Wort (Hypericin, Hyperforin, Flavonoids, OPC’s) • What is the importance (for Ginkgo extract) § 24% Flavonoids (3 marker compounds) § 6% Ginkgolides and Bilobalide (5 actives) § <5 ppm Ginkgolic Acid (3 irritants) • Echinacea: our research has shown that the alkylamides are the most important quality markers

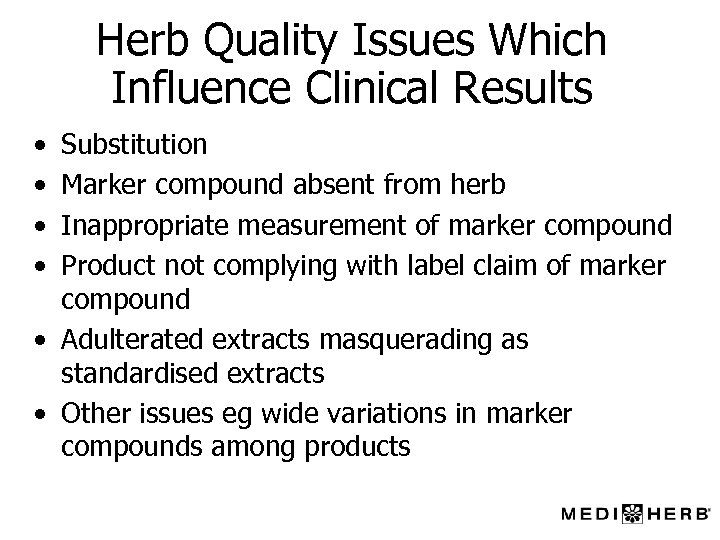

Herb Quality Issues Which Influence Clinical Results • • Substitution Marker compound absent from herb Inappropriate measurement of marker compound Product not complying with label claim of marker compound • Adulterated extracts masquerading as standardised extracts • Other issues eg wide variations in marker compounds among products

Substitution: Categories Substitution can occur at several different levels: • The wrong plant part within a species • A less active chemotype or subspecies • A related plant of the same genus • An unrelated plant (which can also have profound safety implications)

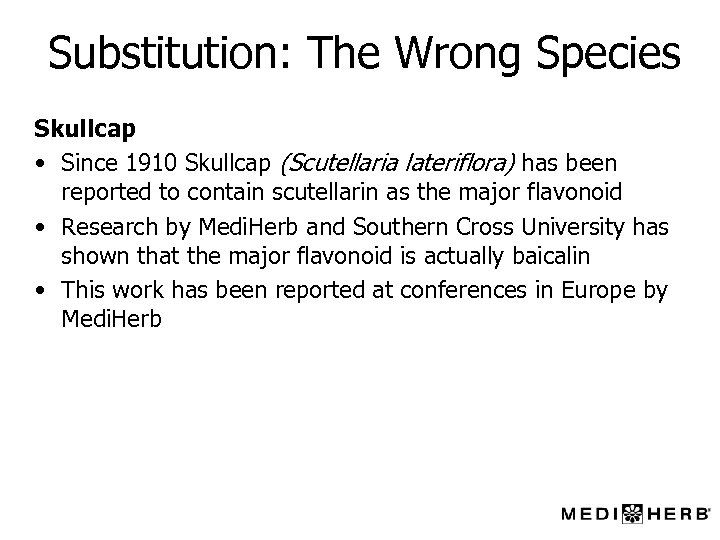

Substitution: The Wrong Species Skullcap • Since 1910 Skullcap (Scutellaria lateriflora) has been reported to contain scutellarin as the major flavonoid • Research by Medi. Herb and Southern Cross University has shown that the major flavonoid is actually baicalin • This work has been reported at conferences in Europe by Medi. Herb

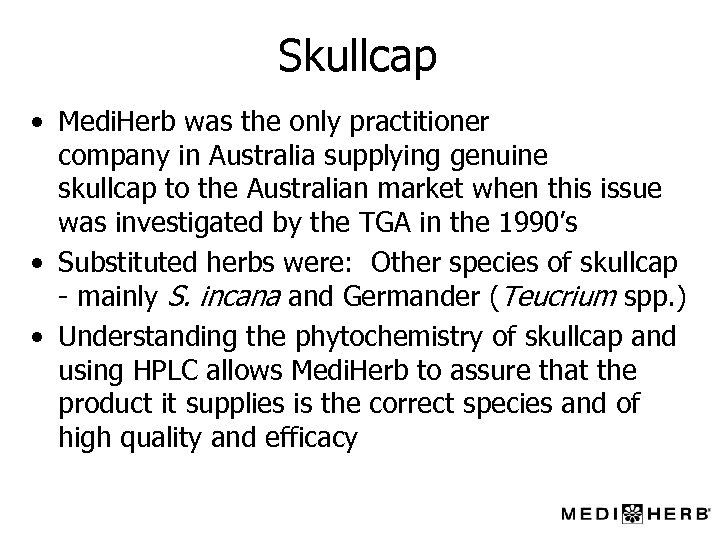

Skullcap • Medi. Herb was the only practitioner company in Australia supplying genuine skullcap to the Australian market when this issue was investigated by the TGA in the 1990’s • Substituted herbs were: Other species of skullcap - mainly S. incana and Germander (Teucrium spp. ) • Understanding the phytochemistry of skullcap and using HPLC allows Medi. Herb to assure that the product it supplies is the correct species and of high quality and efficacy

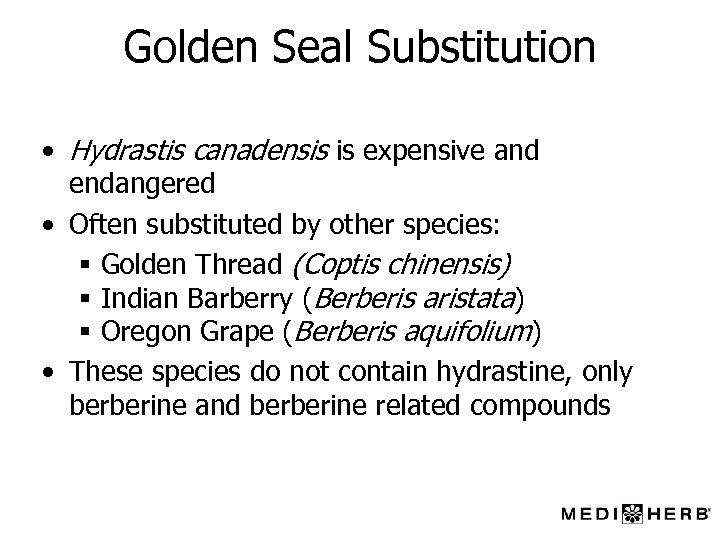

Golden Seal Substitution • Hydrastis canadensis is expensive and endangered • Often substituted by other species: § Golden Thread (Coptis chinensis) § Indian Barberry (Berberis aristata) § Oregon Grape (Berberis aquifolium) • These species do not contain hydrastine, only berberine and berberine related compounds

Golden Seal Substitution

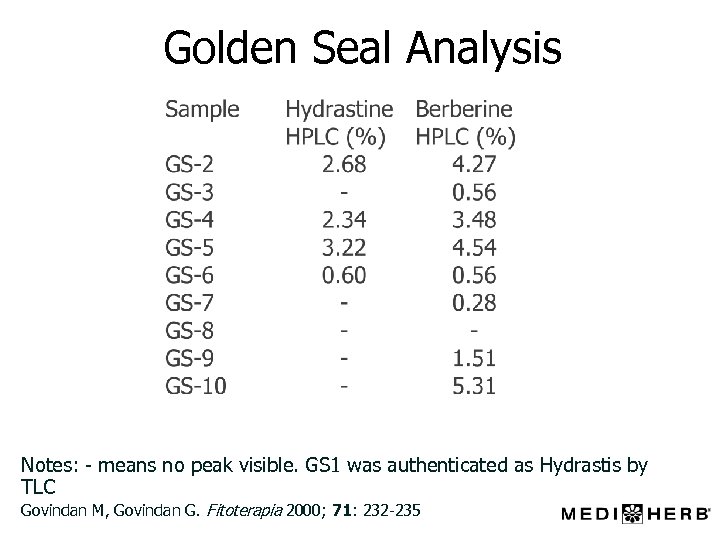

Golden Seal Analysis Notes: - means no peak visible. GS 1 was authenticated as Hydrastis by TLC Govindan M, Govindan G. Fitoterapia 2000; 71: 232 -235

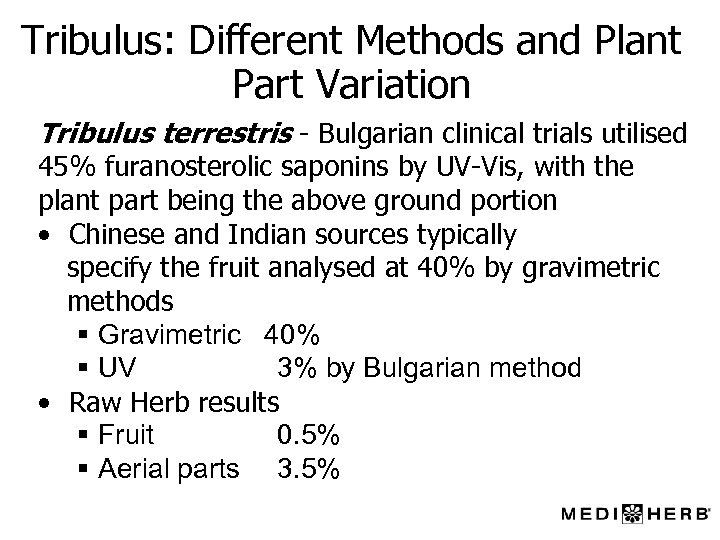

Tribulus: Different Methods and Plant Part Variation Tribulus terrestris - Bulgarian clinical trials utilised 45% furanosterolic saponins by UV-Vis, with the plant part being the above ground portion • Chinese and Indian sources typically specify the fruit analysed at 40% by gravimetric methods § Gravimetric 40% § UV 3% by Bulgarian method • Raw Herb results § Fruit 0. 5% § Aerial parts 3. 5%

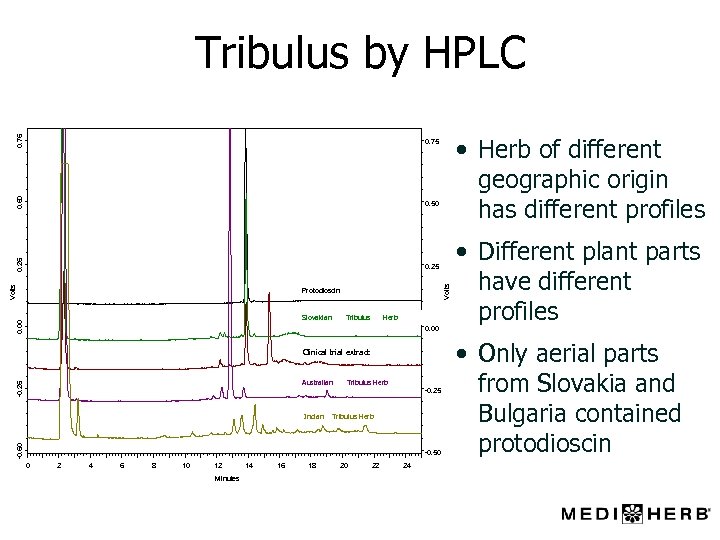

0. 25 Volts 0. 75 0. 50 Volts 0. 50 • Herb of different geographic origin has different profiles 0. 75 0. 25 Tribulus by HPLC Protodioscin 0. 00 Slovakian Herb Tribulus 0. 00 Clinical trial extract -0. 25 Australian Tribulus Herb -0. 25 Tribulus Herb -0. 50 Indian -0. 50 0 2 4 6 8 10 12 Minutes 14 16 18 20 22 24 • Different plant parts have different profiles • Only aerial parts from Slovakia and Bulgaria contained protodioscin

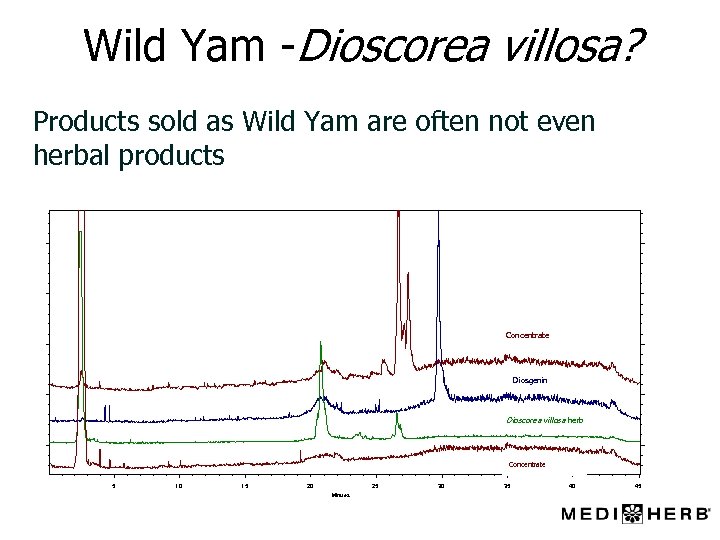

Wild Yam -Dioscorea villosa? Products sold as Wild Yam are often not even herbal products Concentrate Diosgenin Dioscorea villosa herb Concentrate 5 10 15 20 25 Minutes 30 35 40 45

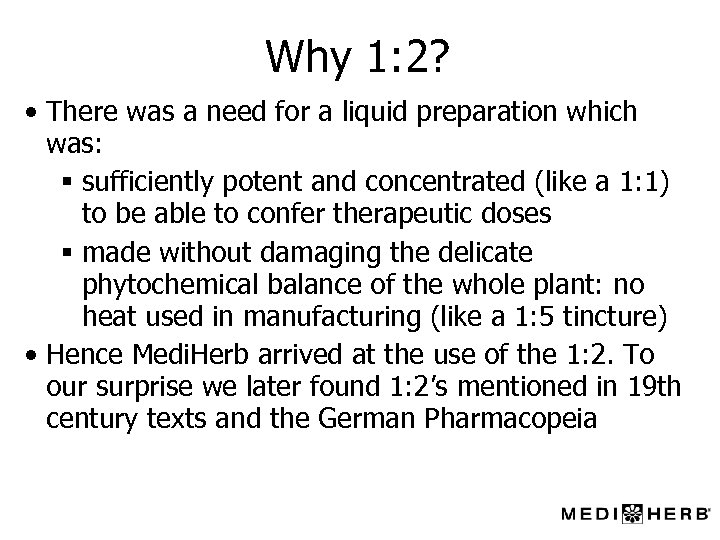

Why 1: 2? • There was a need for a liquid preparation which was: § sufficiently potent and concentrated (like a 1: 1) to be able to confer therapeutic doses § made without damaging the delicate phytochemical balance of the whole plant: no heat used in manufacturing (like a 1: 5 tincture) • Hence Medi. Herb arrived at the use of the 1: 2. To our surprise we later found 1: 2’s mentioned in 19 th century texts and the German Pharmacopeia

Cold Percolation: The Key To An Effective 1: 2 • While efficiently extracting 1 Kg of herb into 2 litres of liquid is substantially easier than for 1 litre, it is still a difficult task • Using his background in chemistry Kerry Bone adapted the existing knowledge of percolation to produce the Medi. Herb 1: 2 Cold Percolation Process • In this context “cold” means that damaging heat is not applied during the extraction process

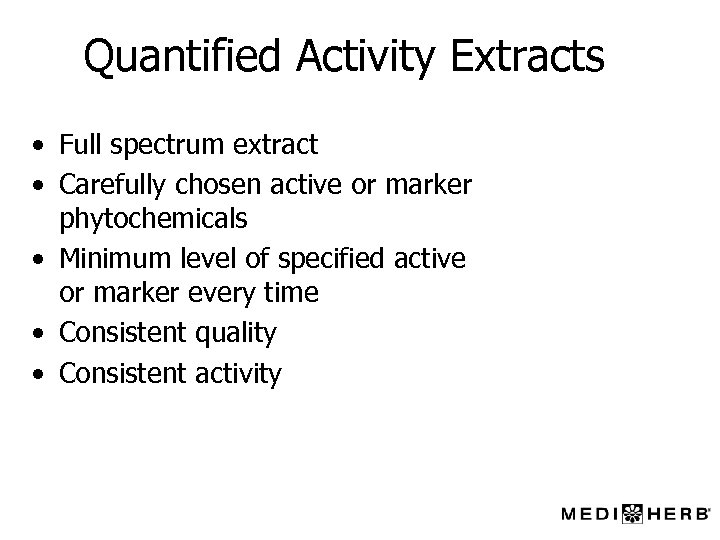

Quantified Activity Extracts • Full spectrum extract • Carefully chosen active or marker phytochemicals • Minimum level of specified active or marker every time • Consistent quality • Consistent activity

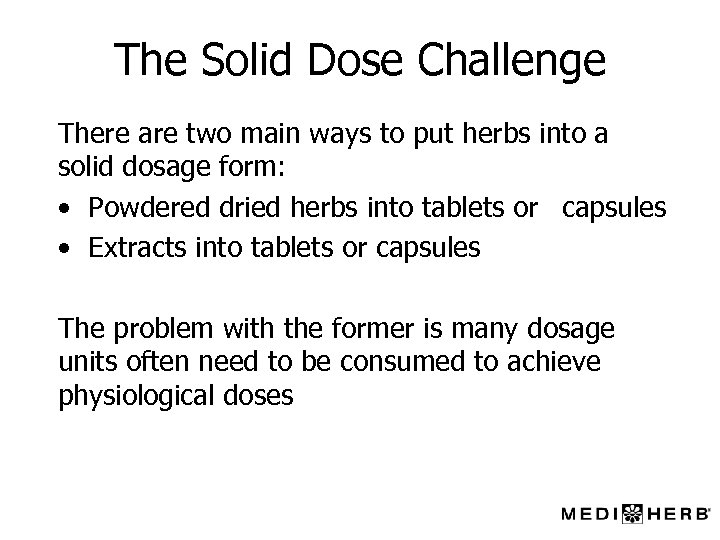

The Solid Dose Challenge There are two main ways to put herbs into a solid dosage form: • Powdered dried herbs into tablets or capsules • Extracts into tablets or capsules The problem with the former is many dosage units often need to be consumed to achieve physiological doses

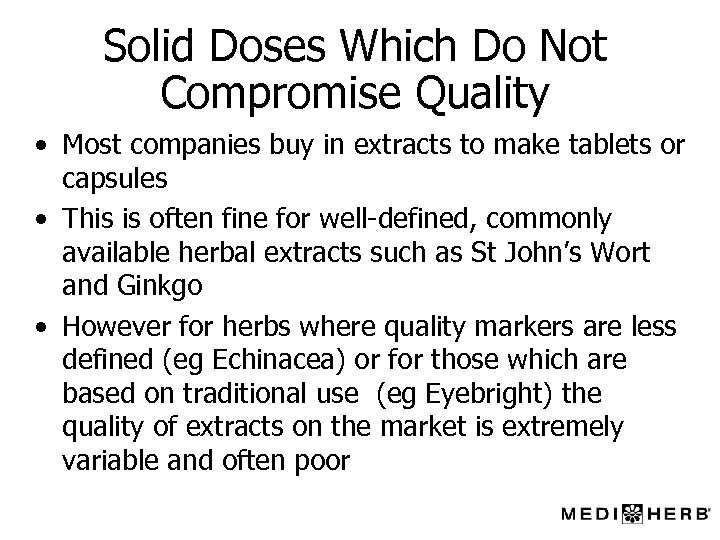

Solid Doses Which Do Not Compromise Quality • Most companies buy in extracts to make tablets or capsules • This is often fine for well-defined, commonly available herbal extracts such as St John’s Wort and Ginkgo • However for herbs where quality markers are less defined (eg Echinacea) or for those which are based on traditional use (eg Eyebright) the quality of extracts on the market is extremely variable and often poor

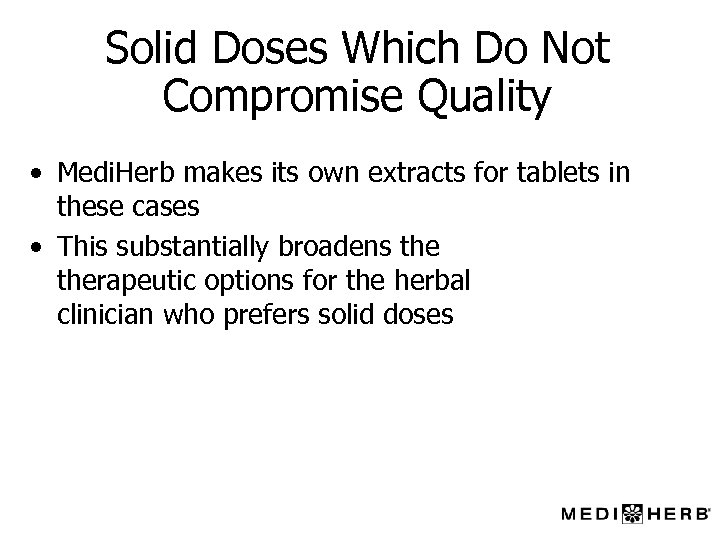

Solid Doses Which Do Not Compromise Quality • Medi. Herb makes its own extracts for tablets in these cases • This substantially broadens therapeutic options for the herbal clinician who prefers solid doses

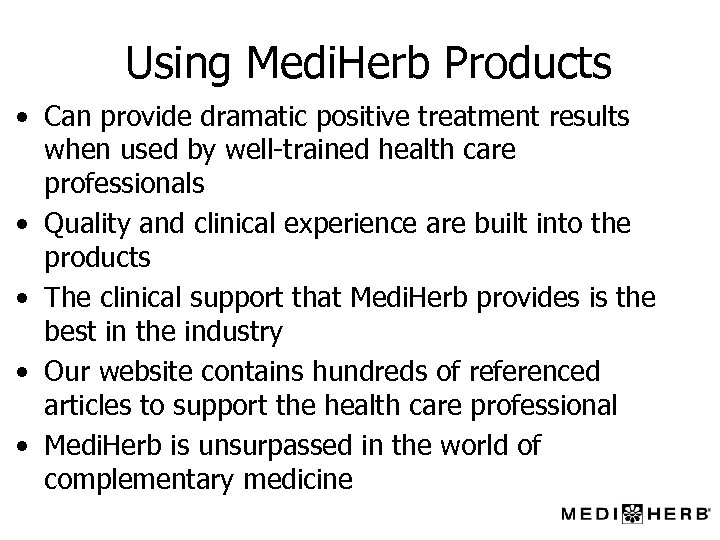

Using Medi. Herb Products • Can provide dramatic positive treatment results when used by well-trained health care professionals • Quality and clinical experience are built into the products • The clinical support that Medi. Herb provides is the best in the industry • Our website contains hundreds of referenced articles to support the health care professional • Medi. Herb is unsurpassed in the world of complementary medicine

The Medi. Herb Philosophy The philosopher and teacher Rudolf Steiner once said that, for every human illness, somewhere in the world there exists a plant which is the cure. We believe that there is a healing potential locked inside plants which is integral with their evolution, just as it is part of human evolution to learn to tap this wonderful gift of Nature

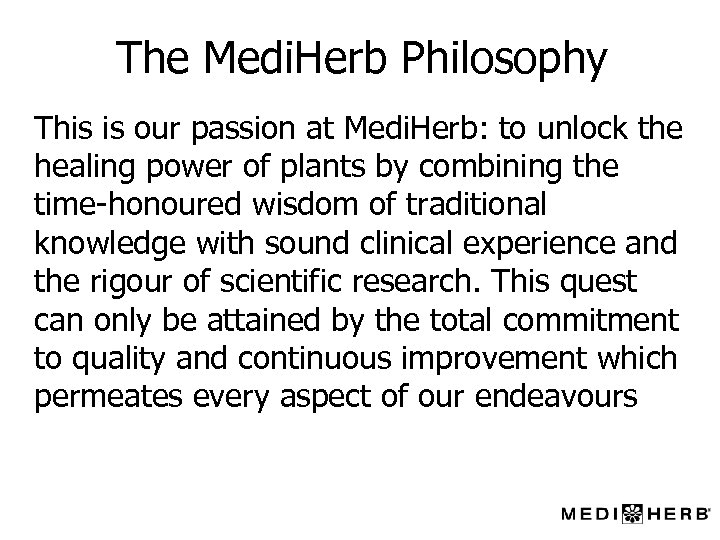

The Medi. Herb Philosophy This is our passion at Medi. Herb: to unlock the healing power of plants by combining the time-honoured wisdom of traditional knowledge with sound clinical experience and the rigour of scientific research. This quest can only be attained by the total commitment to quality and continuous improvement which permeates every aspect of our endeavours
