ME 31 B INFRASTRUCTURE FOR BIOSYSTEMS COURSE OUTLINE

ME 31 B: INFRASTRUCTURE FOR BIOSYSTEMS COURSE OUTLINE FORMAT

Details of Lecturer n n Course Lecturer: Dr. E. I. Ekwue Room Number: 216 Main Block, Faculty of Engineering Email: ekwue@eng. uwi. tt , Tel. No. : 662 2002 Extension 3171

Course Outline n n n Layout, structural design and environmental requirements for agricultural buildings and structures. Access road construction and maintenance. Local water supplies: planning water source works including design of ponds, boreholes and farm reservoirs.

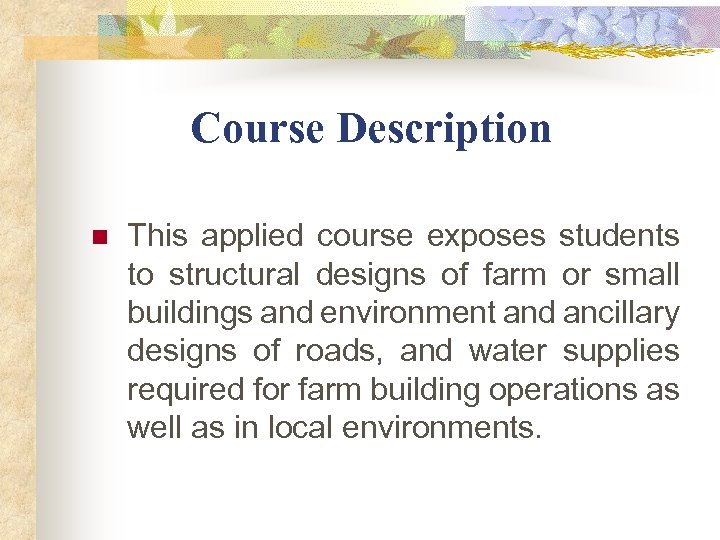

Course Description n This applied course exposes students to structural designs of farm or small buildings and environment and ancillary designs of roads, and water supplies required for farm building operations as well as in local environments.

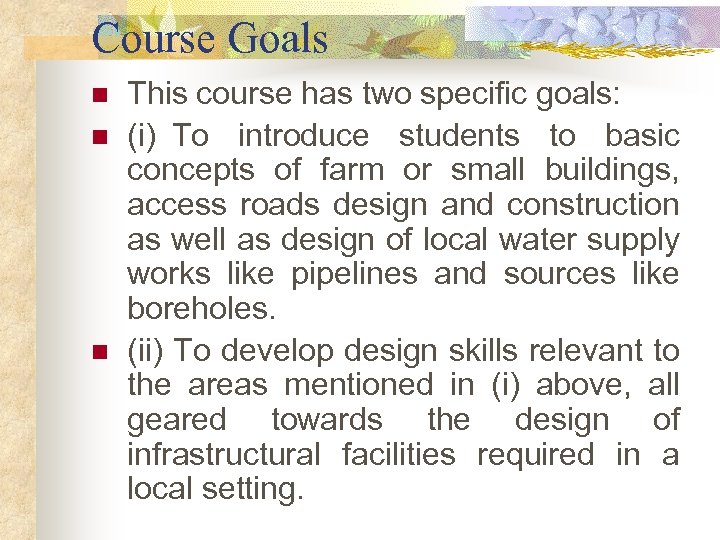

Course Goals n n n This course has two specific goals: (i) To introduce students to basic concepts of farm or small buildings, access roads design and construction as well as design of local water supply works like pipelines and sources like boreholes. (ii) To develop design skills relevant to the areas mentioned in (i) above, all geared towards the design of infrastructural facilities required in a local setting.

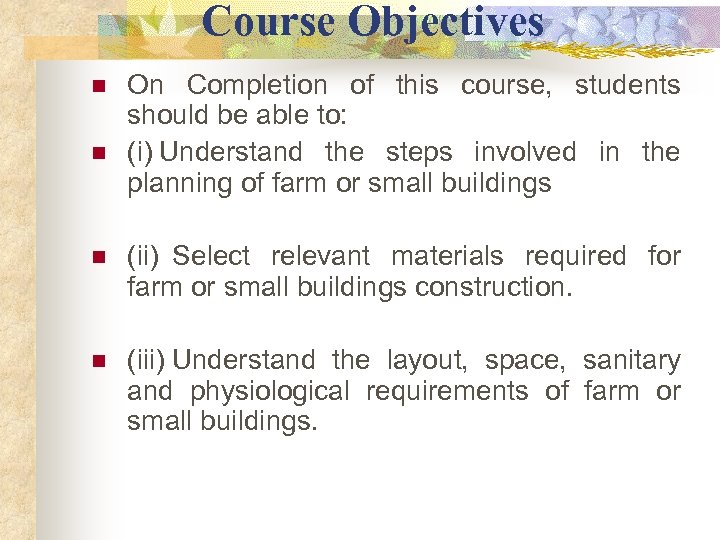

Course Objectives n n On Completion of this course, students should be able to: (i) Understand the steps involved in the planning of farm or small buildings n (ii) Select relevant materials required for farm or small buildings construction. n (iii) Understand the layout, space, sanitary and physiological requirements of farm or small buildings.

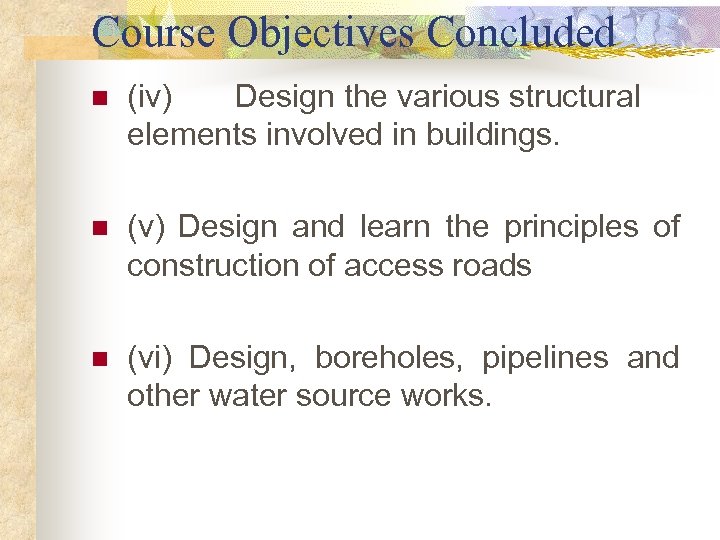

Course Objectives Concluded n (iv) Design the various structural elements involved in buildings. n (v) Design and learn the principles of construction of access roads n (vi) Design, boreholes, pipelines and other water source works.

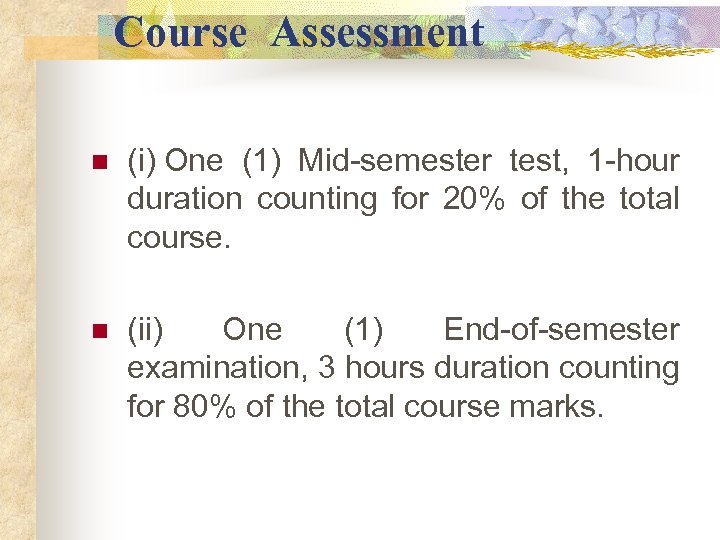

Course Assessment n (i) One (1) Mid-semester test, 1 -hour duration counting for 20% of the total course. n (ii) One (1) End-of-semester examination, 3 hours duration counting for 80% of the total course marks.

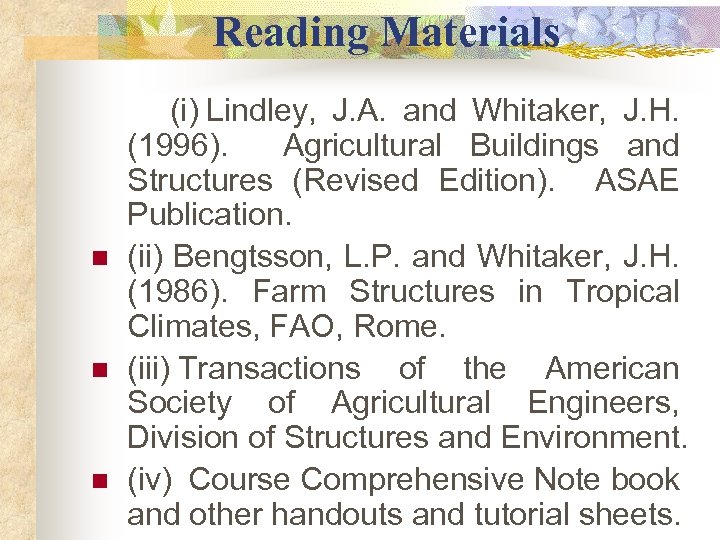

Reading Materials (i) Lindley, J. A. and Whitaker, J. H. (1996). Agricultural Buildings and Structures (Revised Edition). ASAE Publication. n (ii) Bengtsson, L. P. and Whitaker, J. H. (1986). Farm Structures in Tropical Climates, FAO, Rome. n (iii) Transactions of the American Society of Agricultural Engineers, Division of Structures and Environment. n (iv) Course Comprehensive Note book and other handouts and tutorial sheets.

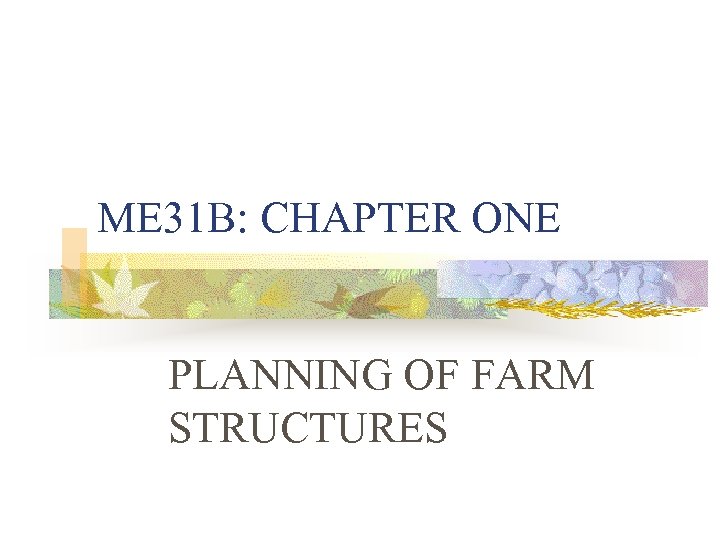

ME 31 B: CHAPTER ONE PLANNING OF FARM STRUCTURES

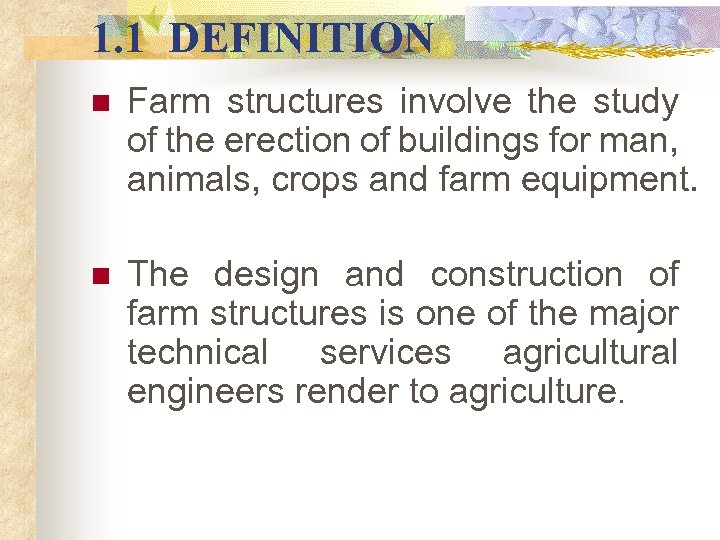

1. 1 DEFINITION n Farm structures involve the study of the erection of buildings for man, animals, crops and farm equipment. n The design and construction of farm structures is one of the major technical services agricultural engineers render to agriculture.

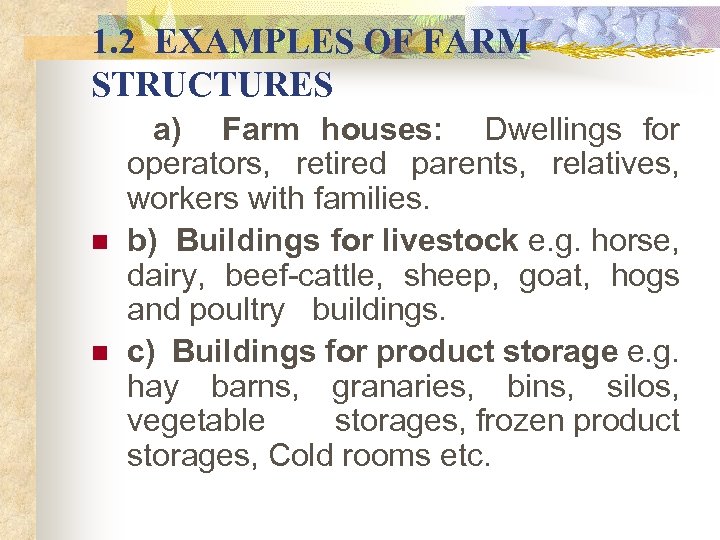

1. 2 EXAMPLES OF FARM STRUCTURES a) Farm houses: Dwellings for operators, retired parents, relatives, workers with families. n b) Buildings for livestock e. g. horse, dairy, beef-cattle, sheep, goat, hogs and poultry buildings. n c) Buildings for product storage e. g. hay barns, granaries, bins, silos, vegetable storages, frozen product storages, Cold rooms etc.

Other Farm Building Examples n n n d) Buildings for crop production especially green houses. e) Buildings for processing e. g. milk houses, pasteurizing and bottling plants; slaughter houses, grain dryers, dehydration structures etc. f) Buildings for equipment and supplies e. g. implement sheds, garages, farm shops, fuel storage etc

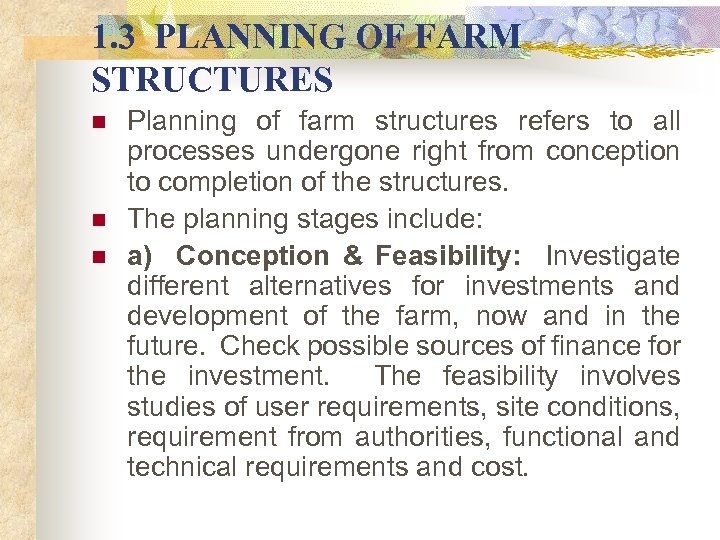

1. 3 PLANNING OF FARM STRUCTURES n n n Planning of farm structures refers to all processes undergone right from conception to completion of the structures. The planning stages include: a) Conception & Feasibility: Investigate different alternatives for investments and development of the farm, now and in the future. Check possible sources of finance for the investment. The feasibility involves studies of user requirements, site conditions, requirement from authorities, functional and technical requirements and cost.

Stages in Planning Contd. n b) Sketch Plans: Roughly sketch alternatives to the general approach to layout, functional planning, design and construction. Choose the required layout and prepare preliminary constructional design and cost calculations. n Alternatively, drawings can be collected from reliable sources e. g. research stations. Study the drawings and evaluate them regarding the functional and technical requirements.

Steps in Planning Contd. n c) Detailed design of every component of the building. Complete cost and checking of designs. Final decision on construction. n The design of farm structures is essentially similar to the design of Civil Engineering structures like buildings.

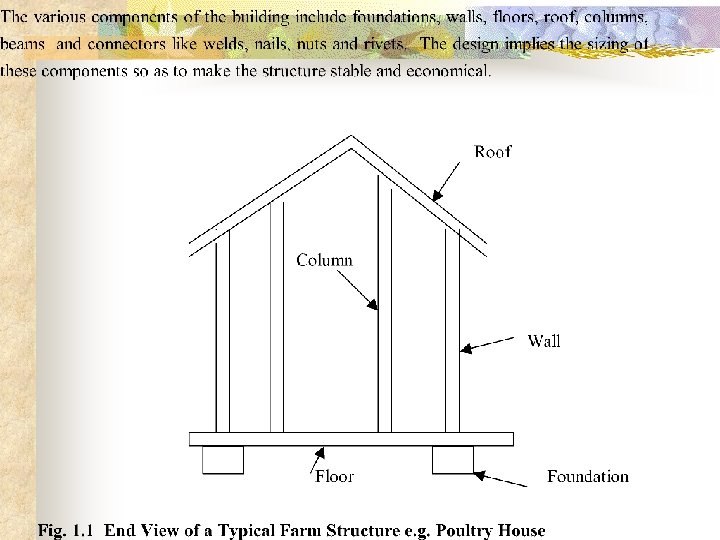

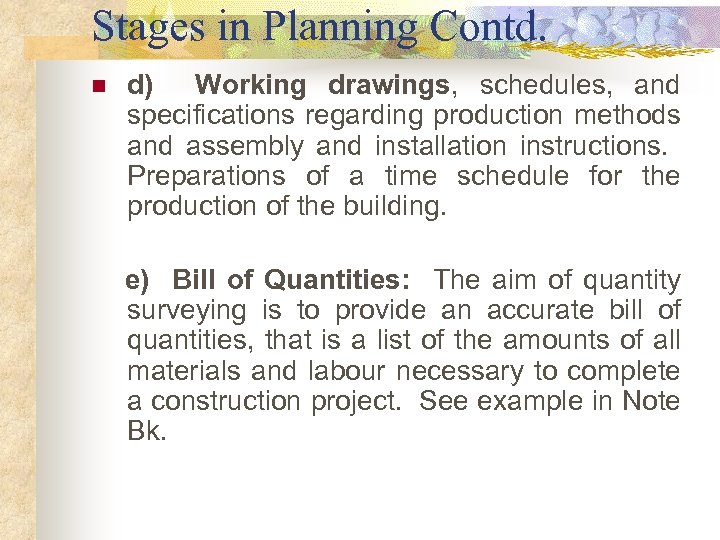

Stages in Planning Contd. n d) Working drawings, schedules, and specifications regarding production methods and assembly and installation instructions. Preparations of a time schedule for the production of the building. e) Bill of Quantities: The aim of quantity surveying is to provide an accurate bill of quantities, that is a list of the amounts of all materials and labour necessary to complete a construction project. See example in Note Bk.

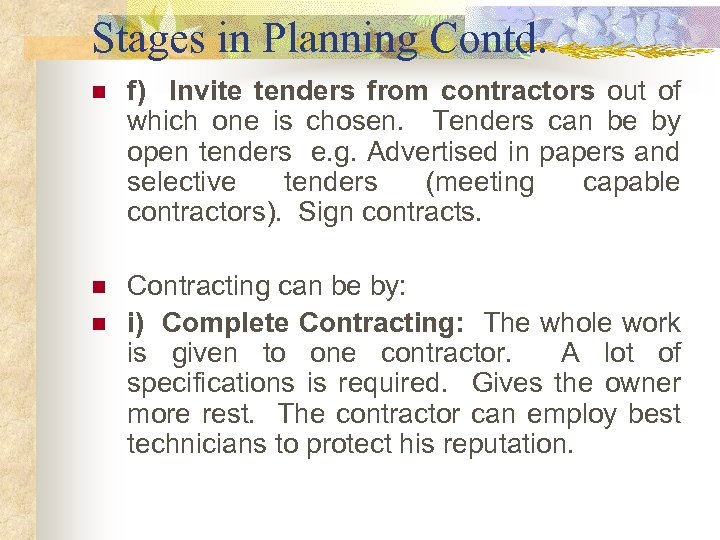

Stages in Planning Contd. n f) Invite tenders from contractors out of which one is chosen. Tenders can be by open tenders e. g. Advertised in papers and selective tenders (meeting capable contractors). Sign contracts. n n Contracting can be by: i) Complete Contracting: The whole work is given to one contractor. A lot of specifications is required. Gives the owner more rest. The contractor can employ best technicians to protect his reputation.

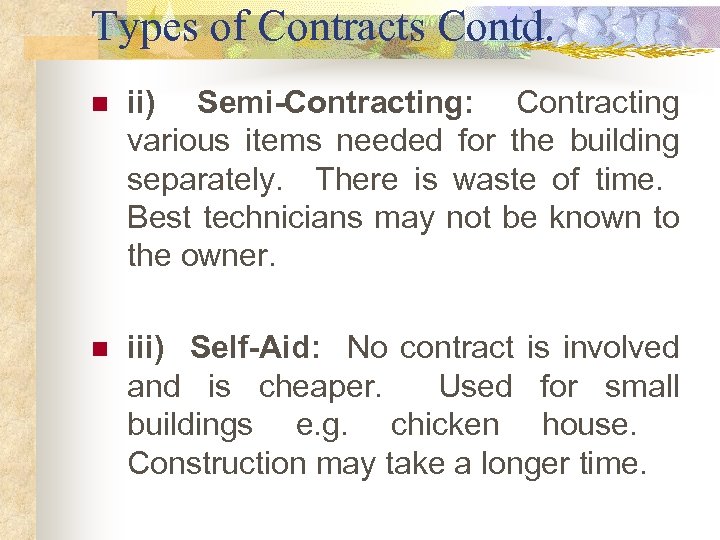

Types of Contracts Contd. n ii) Semi-Contracting: Contracting various items needed for the building separately. There is waste of time. Best technicians may not be known to the owner. n iii) Self-Aid: No contract is involved and is cheaper. Used for small buildings e. g. chicken house. Construction may take a longer time.

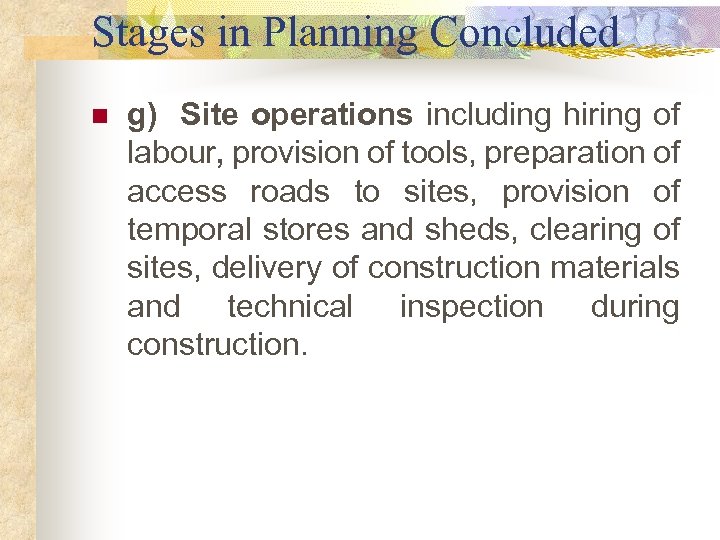

Stages in Planning Concluded n g) Site operations including hiring of labour, provision of tools, preparation of access roads to sites, provision of temporal stores and sheds, clearing of sites, delivery of construction materials and technical inspection during construction.

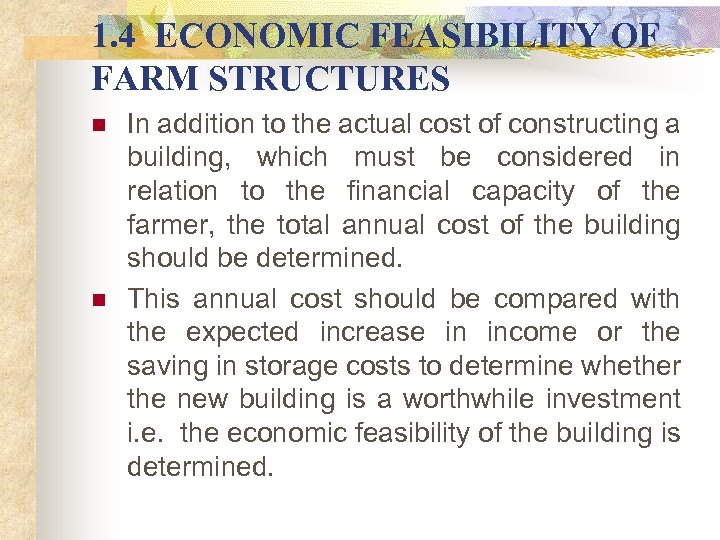

1. 4 ECONOMIC FEASIBILITY OF FARM STRUCTURES n n In addition to the actual cost of constructing a building, which must be considered in relation to the financial capacity of the farmer, the total annual cost of the building should be determined. This annual cost should be compared with the expected increase in income or the saving in storage costs to determine whether the new building is a worthwhile investment i. e. the economic feasibility of the building is determined.

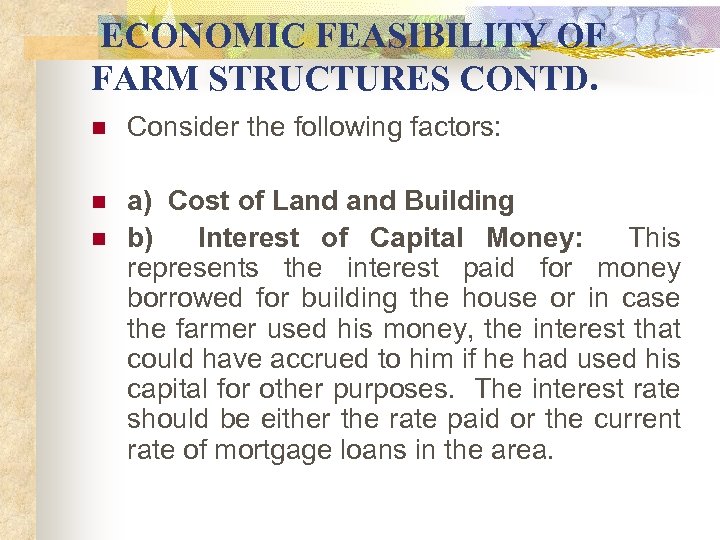

ECONOMIC FEASIBILITY OF FARM STRUCTURES CONTD. n Consider the following factors: n n a) Cost of Land Building b) Interest of Capital Money: This represents the interest paid for money borrowed for building the house or in case the farmer used his money, the interest that could have accrued to him if he had used his capital for other purposes. The interest rate should be either the rate paid or the current rate of mortgage loans in the area.

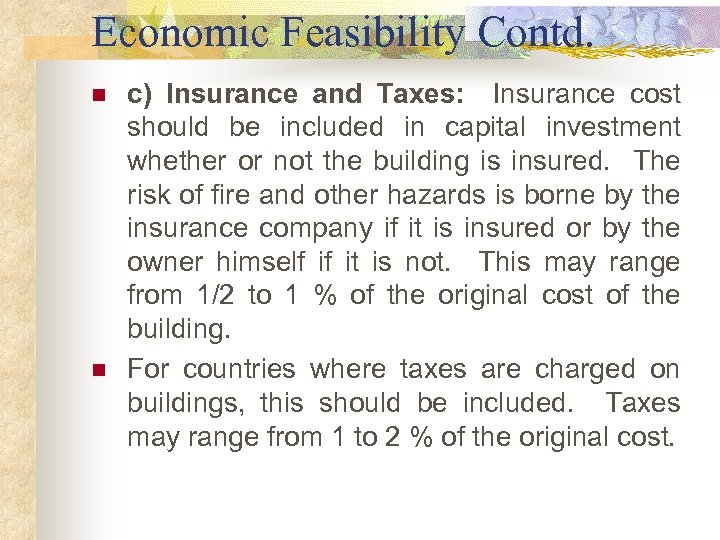

Economic Feasibility Contd. n n c) Insurance and Taxes: Insurance cost should be included in capital investment whether or not the building is insured. The risk of fire and other hazards is borne by the insurance company if it is insured or by the owner himself if it is not. This may range from 1/2 to 1 % of the original cost of the building. For countries where taxes are charged on buildings, this should be included. Taxes may range from 1 to 2 % of the original cost.

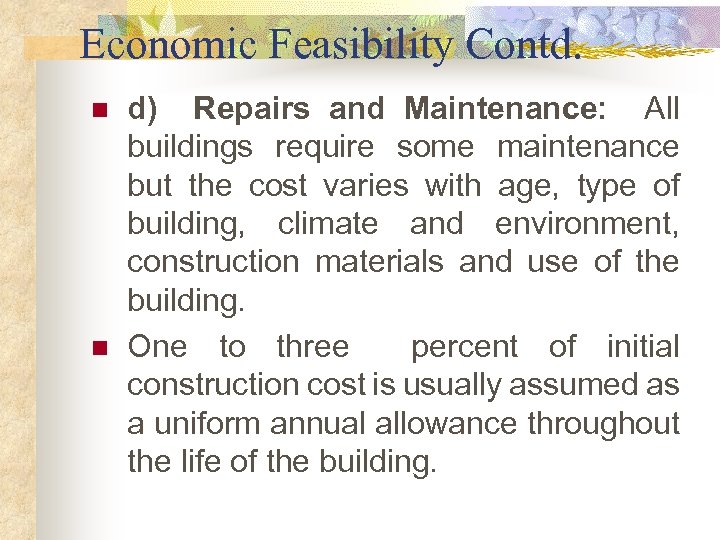

Economic Feasibility Contd. n n d) Repairs and Maintenance: All buildings require some maintenance but the cost varies with age, type of building, climate and environment, construction materials and use of the building. One to three percent of initial construction cost is usually assumed as a uniform annual allowance throughout the life of the building.

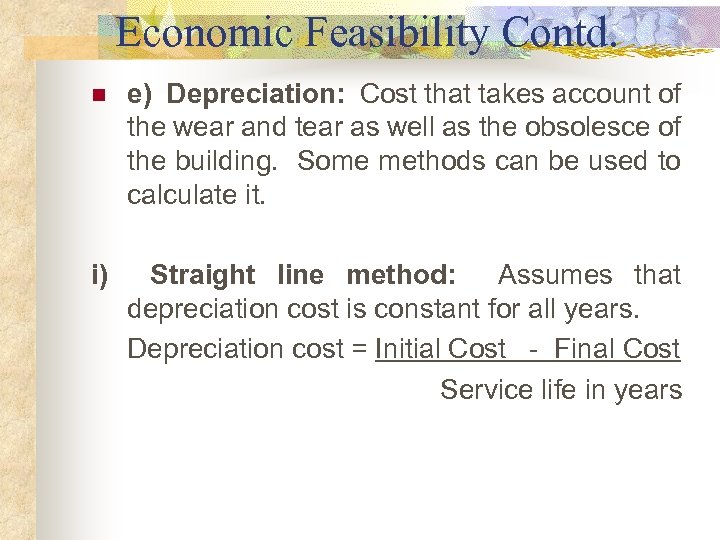

Economic Feasibility Contd. n e) Depreciation: Cost that takes account of the wear and tear as well as the obsolesce of the building. Some methods can be used to calculate it. i) Straight line method: Assumes that depreciation cost is constant for all years. Depreciation cost = Initial Cost - Final Cost Service life in years

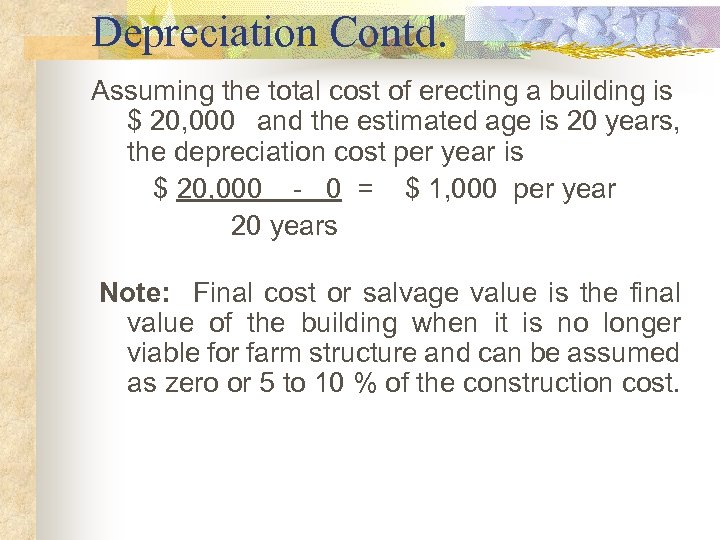

Depreciation Contd. Assuming the total cost of erecting a building is $ 20, 000 and the estimated age is 20 years, the depreciation cost per year is $ 20, 000 - 0 = $ 1, 000 per year 20 years Note: Final cost or salvage value is the final value of the building when it is no longer viable for farm structure and can be assumed as zero or 5 to 10 % of the construction cost.

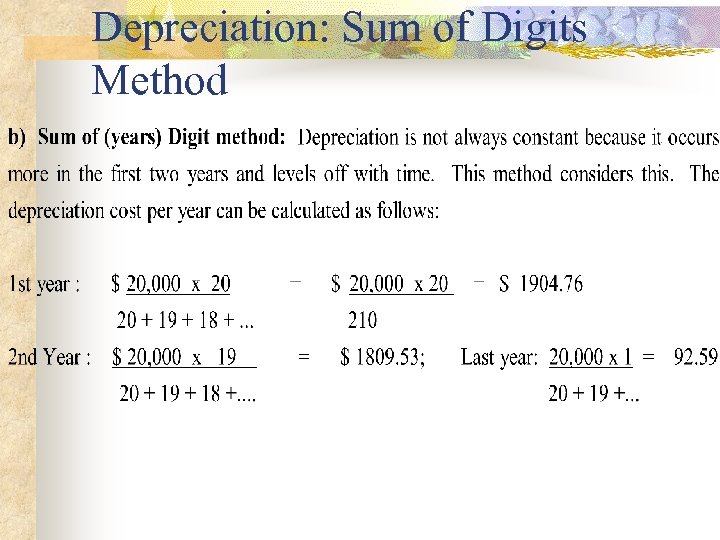

Depreciation: Sum of Digits Method

Depreciation: Compound Interest Method

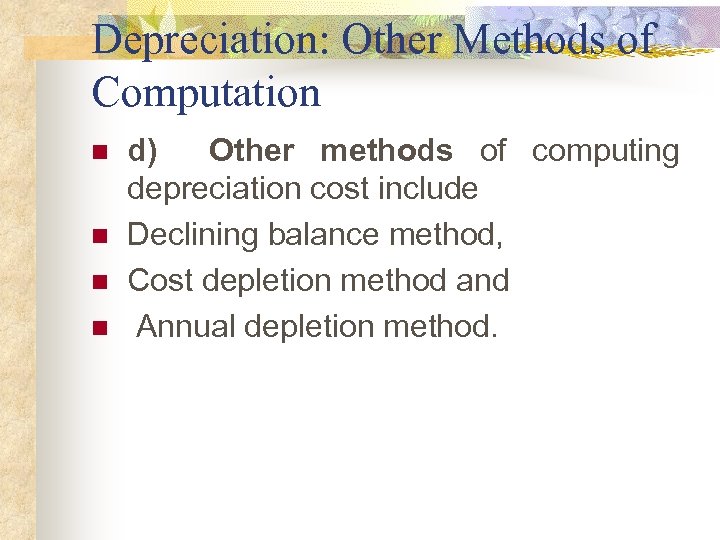

Depreciation: Other Methods of Computation n n d) Other methods of computing depreciation cost include Declining balance method, Cost depletion method and Annual depletion method.

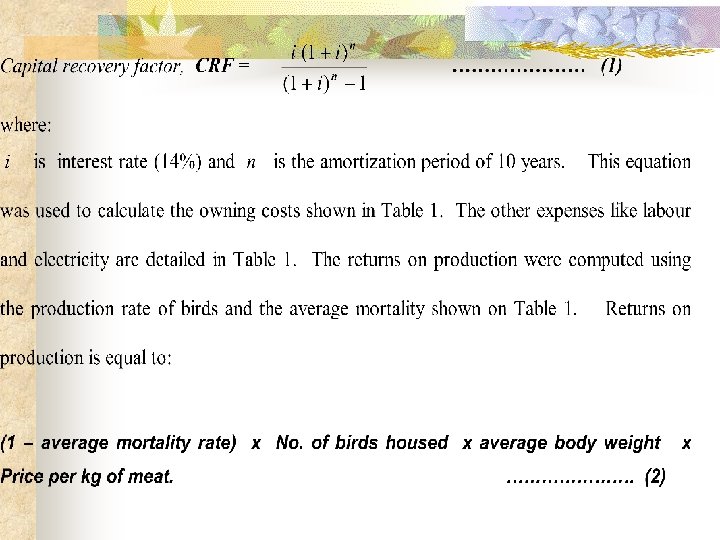

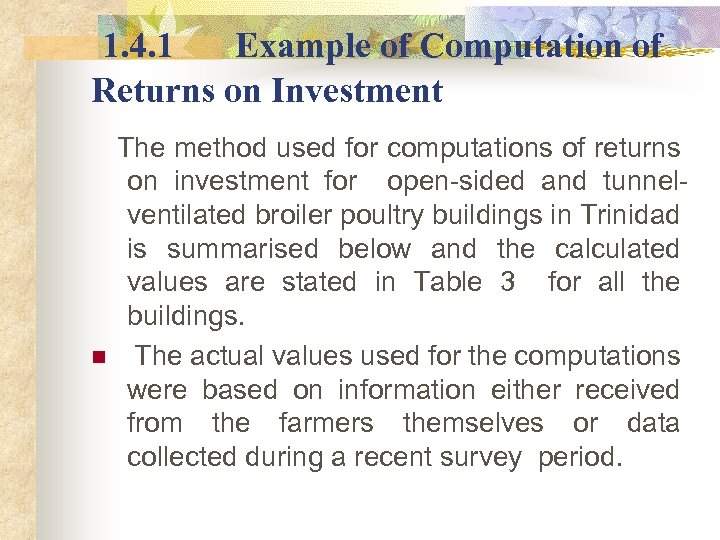

1. 4. 1 Example of Computation of Returns on Investment The method used for computations of returns on investment for open-sided and tunnelventilated broiler poultry buildings in Trinidad is summarised below and the calculated values are stated in Table 3 for all the buildings. n The actual values used for the computations were based on information either received from the farmers themselves or data collected during a recent survey period.

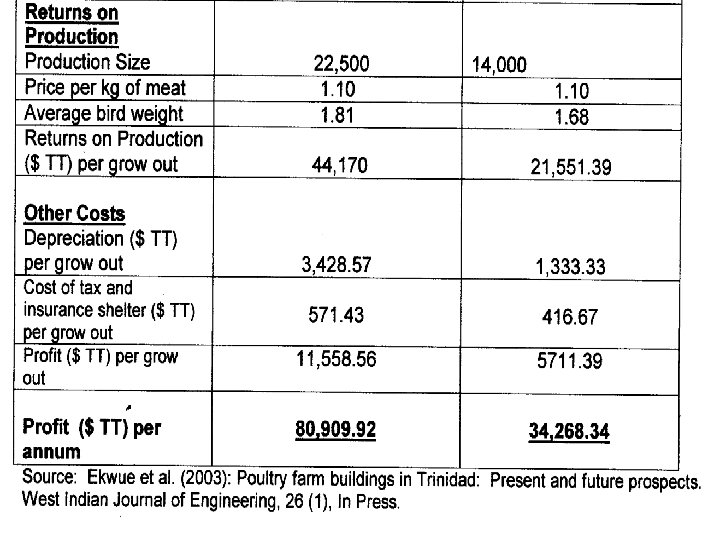

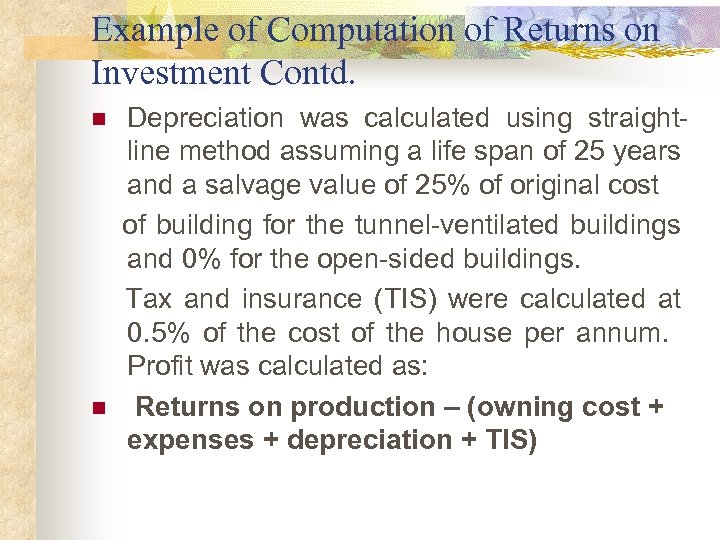

Example of Computation of Returns on Investment Contd. Depreciation was calculated using straightline method assuming a life span of 25 years and a salvage value of 25% of original cost of building for the tunnel-ventilated buildings and 0% for the open-sided buildings. Tax and insurance (TIS) were calculated at 0. 5% of the cost of the house per annum. Profit was calculated as: n Returns on production – (owning cost + expenses + depreciation + TIS) n

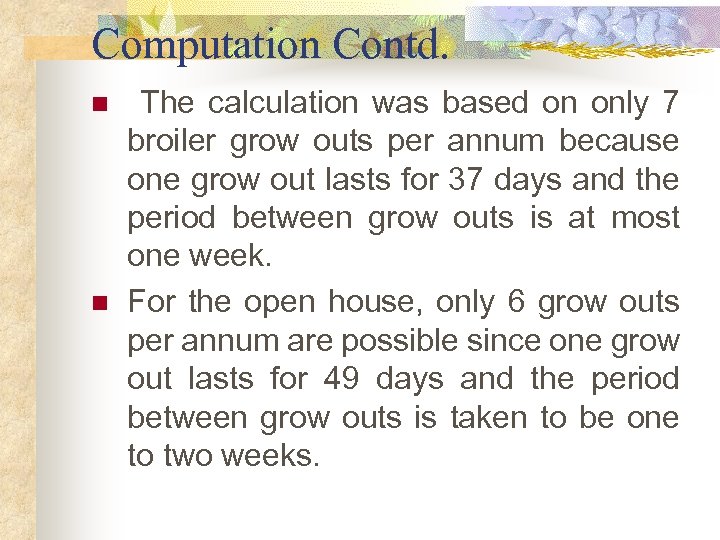

Computation Contd. n n The calculation was based on only 7 broiler grow outs per annum because one grow out lasts for 37 days and the period between grow outs is at most one week. For the open house, only 6 grow outs per annum are possible since one grow out lasts for 49 days and the period between grow outs is taken to be one to two weeks.

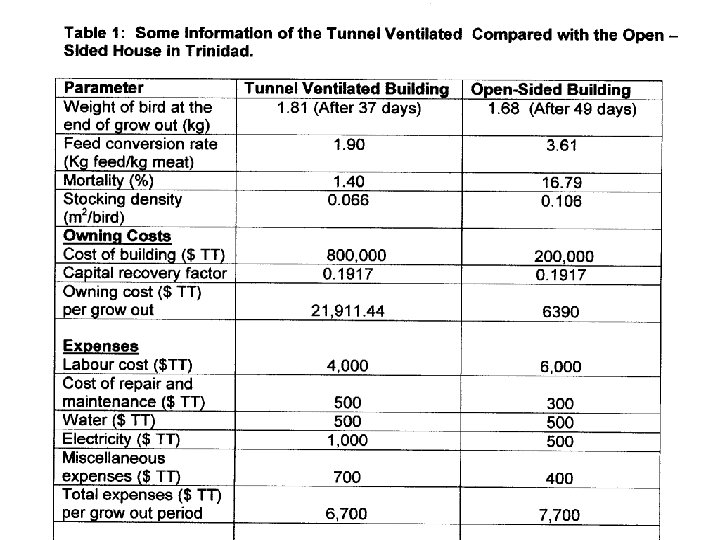

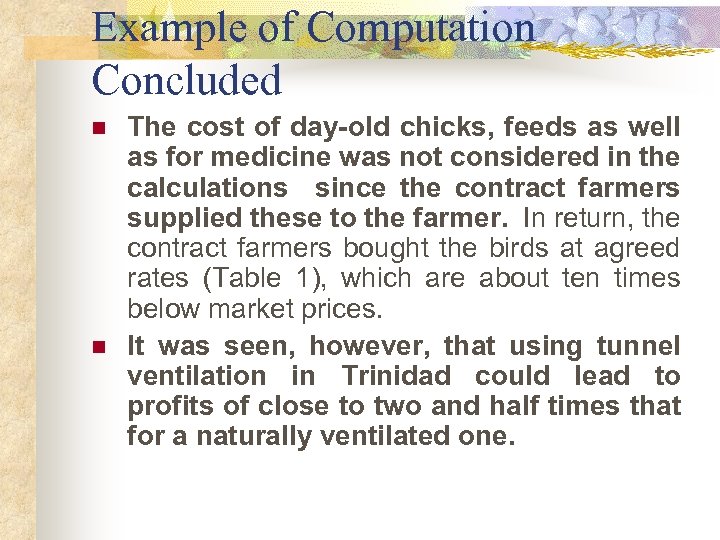

Example of Computation Concluded n n The cost of day-old chicks, feeds as well as for medicine was not considered in the calculations since the contract farmers supplied these to the farmer. In return, the contract farmers bought the birds at agreed rates (Table 1), which are about ten times below market prices. It was seen, however, that using tunnel ventilation in Trinidad could lead to profits of close to two and half times that for a naturally ventilated one.
